Integrating Distributed Tracing into the Narayana Transaction Manager

Miloslav

zulka

, Ond

rej Chaloupka

and Bruno Rossi

1 a

Masaryk University, Faculty of Informatics, Brno, Czech Republic

Red Hat, Brno, Czech Republic

Keywords:

System Transactions, Distributed Transactions, OpenTracing, Distributed Tracing.

Abstract:

ACID transactions have proven to be a very useful mechanism of ensuring reliability of applications. Guar-

anteeing transactional properties effectively and correctly is a challenging task by itself. Furthermore, inves-

tigating transaction issues in a distributed environment is at least equally complex and requires systematic

data collection and analysis. In this paper, we present mechanisms and concepts of distributed tracing with

focus on the OpenTracing API and showcase our integration of tracing capabilities into the Narayana transac-

tion manager. We show that the performance impact of tracing does not drastically decrease user application

performance while providing useful information for the analysis of running transactions.

1 INTRODUCTION

Transaction processing is designed to maintain a sys-

tem’s integrity in a known, consistent state, by en-

suring that interdependent operations on the system

are either all completed or all cancelled (Bernstein,

2009). This simple, yet very powerful concept is

still used in many present-day applications. There-

fore, understanding the details of transaction process-

ing gives us big beneﬁts during troubleshooting in

a great variety of systems, allowing to improve the

overall reliability and resilience (Rossi et al., 2010;

Kanti-Singha Roy and Rossi, 2014).

Research on system transaction processing is still

active even after more than forty years of its intro-

duction to the ﬁeld of computer science. When trans-

action processing exceeds boundaries of one isolated

system and is performed in an interconnected dis-

tributed environment, the study of such systems be-

comes even more demanding and time-consuming

(

Stefanko et al., 2019;

Stefanko, 2018).

Collecting information systematically from a dis-

tributed transaction processing system would aid in

reasoning about transaction from a global perspective,

e.g. what paths transaction processing took, which

nodes caused the failure of a transaction or what was

the exact cause of the failure. The Narayana (Little

et al., 2020) transaction manager, written in Java and

used in projects such as the WildFly Java EE applica-

https://orcid.org/0000-0002-8659-1520

tion server, which lacks exactly such instrumentation.

The main goal of this article is to achieve the in-

tegration of OpenTracing into the Narayana Transac-

tion Manager (TM). Tracing can be fundamental in

distributed patterns such as the Saga Pattern (

Stefanko

et al., 2019; Garcia-Molina and Salem, 1987a). There

have been many attempts to collect information about

transactions, some of which date more than ﬁfteen

years (S. Smith, 2005; M. Goulet, 2011). The con-

cept itself is therefore not new and for example,

Narayana itself contains a great number of logging

statements. However, at least to our knowledge, this

paper presents a new way of systematic information

collection from a TM, more speciﬁcally ArjunaCore,

the transactional engine of Narayana.

The paper is structured as follows: in Section 2 we

review the background concepts of distributed trans-

actions. In Section 3 we delve into distributed trac-

ing, presenting OpenTracing. In Section 4 we present

the integration of tracing integration into Narayana,

together with performance testing. In Section 5 we

provide the conclusions.

2 DISTRIBUTED

TRANSACTIONS

A transaction represents a single unit of work treated

coherently and reliably independent of other trans-

actions. Transactions usually represent a change in

Žežulka, M., Chaloupka, O. and Rossi, B.

Integrating Distributed Tracing into the Narayana Transaction Manager.

DOI: 10.5220/0010448200550062

In Proceedings of the 6th International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2021), pages 55-62

ISBN: 978-989-758-505-0

a shared resource. To ensure all the desired proper-

ties of transactions, we need a supervisor which will

make sure all transactions are executed accordingly

to the deﬁned set of rules. We call such supervisor

a transaction manager (TM). When a TM determines

that a transaction can complete without any failure we

say that it commits the transaction. This means that

changes to shared resources take permanent effect and

are available to other parties. Otherwise, the TM is re-

quired to perform a rollback of the transaction which

discards any possible changes already made by the

transaction.

In the 1983 paper Principles of Transaction-

Oriented Database Recovery (Haerder and Reuter,

1983), Andreas Reuter and Theo H

arder coined the

acronym ACID as shorthand for Atomicity, Consis-

tency, Isolation and Durability. It turns out to be

quite difﬁcult to scale traditional, ACID-compliant

database systems. One of the possible ways of build-

ing a more scalable system is horizontal scaling

which consists in distributing shared resources and

their load over multiple nodes. The problem is that

if a transaction accesses data that is split across mul-

tiple physical machines, guaranteeing the traditional

ACID properties becomes increasingly complex; for

example, the atomicity property of the ACID quadru-

ple requires a distributed commit protocol to be run

on top of the whole processing.

2.1 CAP Theorem

CAP theorem, also known as the Brewer’s theorem,

was proposed by Eric Brewer(Brewer, 2000). CAP

is short for Consistency, Availability and Partition-

Tolerance. The main contribution this theorem brings

is that a distributed system data store can’t satisfy

all three properties at once. As a matter of fact,

Seth Gilbert and Nancy Lynch published a proof of

the Brewer’s conjecture(Gilbert and Lynch, 2002) in

2002. Let us brieﬂy introduce each one of the proper-

ties.

Consistency. There must exist a total order on all op-

erations such that each operation behaves as if it were

completed at a single point in time. This is equivalent

to requiring requests of the distributed shared mem-

ory to act as if they were executing on a single node,

responding to operations one at a time.

Availability. For a distributed system to be contin-

uously available, every request received by a non-

failing node in the system must result in a response.

Partition-tolerance. The network will be allowed to

lose arbitrarily many messages sent from one node to

another. When a network is partitioned, all messages

sent from nodes in one component of the partition to

Figure 1: CAP theorem and all the possible compromise

categories together with examples (as of 2015). Based on

(Lourenc¸o et al., 2015).

nodes in another component are lost.

Since its inception, the CAP theorem has proven

to be quite useful in helping distributed system de-

signers to reason through capabilities of a proposed

system. However, CAP has become increasingly mis-

understood and misapplied. In particular, many de-

signers incorrectly concluded that the theorem im-

poses certain restrictions on a distributed database

system regardless of whether the system is operating

normally or in a recovery mode. By strictly adhering

to CAP, we design a system which is robust but might

waste a lot of resources.

2.2 Sagas

In many scenarios, we need to process a series of

transactions (possibly communicating among each

other) which may as a whole last a long time, perhaps

hours or even days. We call such transactions long-

lived transactions (Garcia-Molina and Salem, 1987b;

Stefanko et al., 2019) (LLT). Saga is an LLT trans-

action processing pattern and can be thought of as

a metatransaction arching over multiple subtransac-

tions

To make a transaction atomic, a DTP system

would usually lock all objects accessed by the trans-

action until it commits, thus preventing other trans-

actions from accessing these resources and making

them starve as a consequence. Such starvation is even

more perceptible in LLTs. The solution sagas offer

This does not imply that the meta-transaction adheres

to all ACID principles, though. In sagas, each transaction

is committed separately, meaning that sagas do not comply

with the isolation property.

COMPLEXIS 2021 - 6th International Conference on Complexity, Future Information Systems and Risk

is to avoid locks on non-local resources, i.e. sagas

hold only those resources needed by unﬁnished trans-

actions. As soon as a subtransaction commits, it re-

leases all of its local resources irrespective of whether

other subtransactions have been committed or not.

We would still like to achieve atomicity in sagas,

i.e. either all subtransactions are committed and the

whole saga succeeds or at a certain stage, any sub-

transaction can fail and the whole saga needs to be

aborted. Since some of the subtransactions may have

already committed their work, we need a mechanism

to semantically reverse the effect of any committed

transaction. We call such a process compensation.

Sagas use compensating transactions associated with

every sub-transaction. Saga coordination then runs

compensating transactions for all committed transac-

tions in case of abort, thus accomplishing the atomic-

ity property of ACID on the level of a saga.

Sagas utilize an alternative model which favours

CAP availability over ACID isolation. Where ACID

is pessimistic and forces CAP consistency at the end

of every transaction, BASE is optimistic and accepts

that the database consistency will be in a state of ﬂux.

Although this model has its indisputable disadvan-

tages, BASE leads to levels of scalability that can-

not be obtained with ACID. The availability of BASE

is achieved through supporting partial inconsistencies

without total system failure (Pritchett, 2008).

Having two or more participants as part of a

transaction makes the transaction a distributed one.

With resource-local transaction processing, a resource

manager could process transaction updates indepen-

dently of each other (Bernstein, 2009, p. 223). The

global transaction must either commit updates of all

resource managers or none. Such coordination issue

belongs to a much more generic family of problems

called consensus. One of the most known consen-

sus protocols is the two-phase commit (2PC) protocol

(Skeen, 1982).

3 DISTRIBUTED TRACING

So far, we have discussed how transaction state is

transferred among all participants. We now also need

a mechanism which would make it possible to trans-

mit tracing data to various TMs since a Transaction

Manager deals with XA transactions in a way that

each node is managed by a standalone (but at the same

time possibly subordinate in the context of a trans-

action) TM communicating with the rest of the dis-

tributed transaction processing environment.

We would like to have a mechanism supporting in-

formation propagation across multiple nodes. More-

over, we want to treat related information from vari-

ous nodes as a whole. This can be extremely useful

particularly for Narayana since we want to see how

a particular execution of the 2PC consensus protocol

behaves globally.

Distributed tracing shows a micro view of a re-

quest execution from the end-to-end perspective. As

a consequence, we can retrospectively understand be-

haviour of each application component. Distributed

tracing records everything related to an action in the

system, i.e. captures detailed information of a request

and all causally related activities (Stark et al., 2019).

A collection of such activities is called a trace. For

the purposes of this paper, one trace will be usually

equivalent to one XA transaction.

X-Trace (Fonseca et al., 2007), one of the ﬁrst

frameworks which attempted to reconstruct a com-

prehensive view of service behavior, presented three

main principles which were taken into consideration

when designing it. These principles were later used

in many relevant distributed tracing systems such as

Dapper (Sigelman et al., 2010) or Canopy (Kaldor

et al., 2017): i) The trace request should be sent in-

band, rather than in a separate probe message, ii) the

collected trace data should be sent out-of-band, de-

coupled from the original datapath, iii) the entity that

requests tracing is decoupled from the entity that re-

ceives the trace reports.

Event causality in tracing is based on the Lam-

port’s happens before relation (Lamport, 1978) and in

such a way tracing ”[...] does not rely on clocks but

on the sequence of event execution. Because of the

propagation of metadata among related events, [X-

Trace] captures true causality, rather than incidental

causality due to execution ordering” (Fonseca et al.,

2010). Even though traces contain contextual data,

one caveat with using tracing for troubleshooting is

that it requires a global view yet granular attribution.

For an enough large system, this might present an

information overload since ”only a small fraction of

data in each trace may be relevant to each engineer

[...]” but at the same time, ”traces [, by design,] con-

tain all of the data necessary for anybody” (Kaldor

et al., 2017).

3.1 OpenTracing API

OpenTracing is a distributed tracing standard. In

short, OpenTracing translates what previous tracing

projects did, especially Google’s Dapper (Sigelman

et al., 2010), into a well-deﬁned API

https://opentracing.io/speciﬁcation/

Integrating Distributed Tracing into the Narayana Transaction Manager

OpenTracing is not the only option at hand

. First

most distinguishable aspect around OpenTracing is

a public list of OpenTracing-related projects called

OpenTracing Registry (the Registry). The Registry

is a collection of ”tracers, instrumentation libraries,

interfaces, and other projects”. Besides this, the Reg-

istry also shows how active OpenTracing is, both in

terms of its use in projects and development of the

API itself. One other positive (not that much distin-

guishable from alternatives as the Registry, though)

aspect of OpenTracing is that it supports the vast ma-

jority of mainstream languages. At the time of writ-

ing this paper, nine programming languages were of-

ﬁcially supported: C#, C++, Go, Java, JavaScript,

Objective-C, PHP, Python and Ruby. The project

”provides a vendor-neutral speciﬁcation and polyglot

APIs for describing distributed actions. [...] From

an API perspective, there are three key concepts:

Tracer, Span, and SpanContext”.

Trace is a directed graph the vertex set is a set of

reported spans and the edge set is a set of references

among respective spans. The OpenTracing standard

does in no way prescribe any further constraints the

structure of a trace. A trace is not directly represented

in API and is represented as a set of Span instances.

There are two kinds of references: ChilldOf and

FollowsFrom, both representing a child-parent rela-

tion. In a ChildOf reference, the parent Span de-

pends on the child Span in some capacity. For ex-

ample, a Span representing the server side of an RPC

may be the ChildOf a Span representing the client

side of that RPC. Some parent Spans do not depend in

any way on the result of their child Spans, e.g. when

we model asynchronous behaviour like emitting and

receiving messages to the message bus. The Open-

Tracing standard describes such causality as a follows

from relation. SpanContext depicts a state of a Span

that needs to be propagated to descendant Spans and

across process boundaries. Having such a representa-

tion in the API is basically what makes the OpenTrac-

ing standard distributed. The idea of distributed con-

text propagation resides in associating certain meta-

data to every request that enters the system, then prop-

agating this metadata across thread, process or ma-

chine boundaries as the request gets fanned out to

other services (Popa and Oprescu, 2019). The Tracer

interface creates Spans and understands how to in-

ject (serialize) and extract (deserialize) their metadata

across process boundaries. It has the following ca-

pabilities: start a new Span, inject a SpanContext

into and extract a SpanContext from a carrier which

acts as an abstraction over any environment through

See OpenZipkin - https://zipkin.io, OpenCensus -

https://opencensus.io

which data is sent. A trace can be represented and

visualized in multiple ways. In Fig. 2, we can see

two different representations of the same trace. The

ﬁrst, causal representation, depicts the relationship

among spans. The latter temporal visualisation fo-

cuses more on the time domain at which the trace

spans were recorded, making it more useful when de-

bugging latency-related issues in the application.

Figure 2: Causal and temporal relationships among spans

of a same trace. Adapted from: https://opentracing.io/docs/

best-practices/instrumenting-your-application/.

4 TRACING INTEGRATION IN

NARAYANA

We delve now into the main contribution of the paper,

that is the integration of OpenTracing into Narayana.

4.1 Narayana Transaction Processing

Narayana (https://narayana.io) is a library which pro-

vides an implementation of Java Transaction API

(JTA). In a broader context, though, we can think of

Narayana as a transaction toolkit providing a broad

range of standards-based transaction protocols and

mechanisms, namely JTS, WS-AT, WS-BA, REST-

AT Transactions, STM, XATMI/TX and LRA.

4.1.1 Architecture Overview

The centrepiece and core part of Narayana is called

ArjunaCore. There are three main ArjunaCore com-

ponents. The ﬁrst part is the TM engine itself and can

be thought of as a state machine. The second part is a

recovery manager running as a separate process. The

last unit is responsible for persisting auxiliary infor-

mation related to transaction processing, also known

in the context of Narayana as the object store (or ob-

ject storage).

ArjunaCore is used as a transaction engine for the

above-mentioned protocols which are system-wise

one layer above ArjunaCore. For the purposes of this

paper, we will focus purely on ArjunaCore.

COMPLEXIS 2021 - 6th International Conference on Complexity, Future Information Systems and Risk

StateManager provides primitive facilities nec-

essary for managing persistent and recoverable ob-

jects. These facilities include support for the activa-

tion and deactivation of objects, and state-based ob-

ject recovery. LockManager represents the concur-

rency controller of the engine. Lock, a synchroniza-

tion primitive speciﬁc to ArjunaCore, is made persis-

tent. Locks are maintained within the memory of the

virtual machine which created them.

As the name suggests, AbstractRecord is an

overarching abstract class which deﬁnes an interface

used in ArjunaCore to notify objects that various state

transitions have occurred as an XA transaction exe-

cutes. In other words, any class having a subtype

AbstractRecord acts as an intermediary between a

transaction processing and a related record in the ob-

ject store. ArjunaCore remembers object state: this

serves two purposes. Firstly, the recovery manager

can then use such information for transaction recov-

ery. The second, directly related one, is persistence.

The state represents the ﬁnal state of an object at ap-

plication termination.

The failure recovery subsystem of Narayana will

ensure that results of a transaction are applied con-

sistently to all resources affected by the transaction,

even if any of the application processes or the ma-

chine hosting them crash or lose network connectiv-

ity. In the case of machine (system) crash or network

failure, the recovery will not take place until the sys-

tem or network are restored, but the original appli-

cation does not need to be restarted – recovery re-

sponsibility is delegated to a recovery manager which

runs as a separate process(Little et al., 2020). The

main responsibility of the recovery manager is to pe-

riodically scan the object store for transactions that

may have failed; failed transactions are indicated by

presence in an object store after a timeout that the

transaction would have normally been expected to ﬁn-

ish. Narayana also utilizes a so-called reaper thread

which separately and periodically monitors all locally

created transactions and forces them to roll back if

their timeouts elapse.

4.2 Integration Design

One of the most crucial stages of any tracing integra-

tion is to properly understand its domain. Without

such preparation, we render tracing useless.

The ﬁrst important task, therefore, was to design

a generic trace structure reﬂecting the way Arjuna

processes a GT. In our integration, each GT is repre-

sented by an OpenTracing trace and vice versa. Struc-

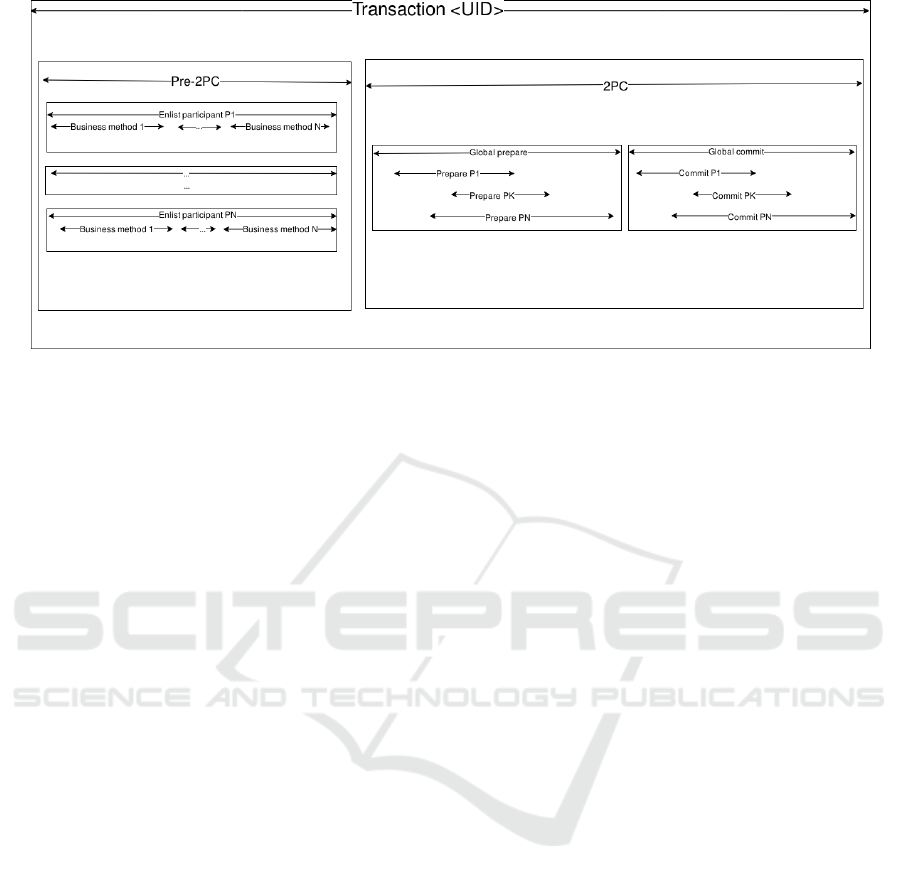

ture of such a trace can be seen in Fig. 3. To con-

struct a complete trace, we needed to ﬁnd appropriate

code insertion points inside Narayana which would

correspond to an action done by the TM. Narayana

contains a great deal of logging statements and after

careful inspection of logs, we were able to pinpoint

most of the code locations. In Table 1, we can see ﬁ-

nal choices of instrumentation points in ArjunaCore.

Table 1: Span delimiting events in ArjunaCore.

Span action Instrumentation point

global prepare BasicAction.prepare

branch prepare XAResourceRecord.topLevelPrepare

global commit BasicAction.phase2Commit

branch commit XAResourceRecord.topLevelCommit

global abort BasicAction.phase2Abort

branch abort BasicAction.doAbort

enlistment TransactionImple.enlistResource

4.3 Problems Encountered

During tracing integration itself, we encountered

many blind alleys and needed to rethink some of the

design choices. Let us now talk about the most im-

portant items we needed to deal with.

4.3.1 Cross-thread Manual Context Transfer

During the ﬁrst draft of the implementation, we used a

VM-global ConcurrentHashMap which we used for

transfer of Spans across multiple threads, where the

map key was a String representation of a GT identi-

ﬁer. This way, every event in Narayana has the abil-

ity to be attached to this span and together, we get

a complete trace irrespective of on which threads the

processing happened.

We can already see that this approach is a bit inef-

fective as every access to this global storage might be

synchronized. In the ﬁnal integration, this has been

mitigated by associating every root span (as a pri-

vate class attribute) to a BasicAction which is where

transaction processing both starts and ends. This way,

the whole lifecycle of a span can be managed from

one thread. Nevertheless, even if we, for some reason,

needed to transfer spans across thread boundaries, this

would be still best done by SpanContext injection

and extraction among threads. Choosing global col-

lection is bound to be very ineffective and prone to er-

rors related to ”memory leaks” (e.g. spans which will

never be deleted from the global collection because

of a transaction processing path which the integration

has not dealt with or even has not expected).

4.3.2 Fluid OpenTracing API

OpenTracing API for Java is three years old but

even during the work on the integration, substantial

Integrating Distributed Tracing into the Narayana Transaction Manager

Figure 3: Causal and temporal relationships among spans of a same trace. Adapted from: https://opentracing.io/docs/

best-practices/instrumenting-your-application/.

changes were still being made, e.g. how a tracer

is registered or whether spans were subject to au-

tomatic resource management, in Java realized as a

try-with-resources statement.

Frequent changes in the API were also reﬂected in

obsolete tutorials at the OpenTracing project website,

as of the beginning of 2020, making it more difﬁcult

for a new user to use properly. We created a special-

ized narayanatracing module in Narayana which

tries to avoid such complications. This means that all

the necessary changes forced by the change of the API

will be only propagated at only one place. The other

motivation behind introducing the module is to ease

the use of tracing as much as possible. We know in

advance what the structure of a transaction span will

be and we can use this to our advantage when using

tracing inside Narayana.

4.4 Performance Testing

In a time-critical component which transaction man-

ager certainly is, we need to measure the overhead

caused by introducing the tracing code. If the over-

head is too large, there is no practical use to such in-

strumentation and it might be useful to resort to al-

ready existing practices instead.

When measuring tracing overheads, engineers

from Google in their Dapper paper argued that ”the

cost of a tracing system is felt as performance degra-

dation in the system being monitored due to both

trace generation and collection overheads, and as the

amount of resources needed to store and analyze trace

data” (Sigelman et al., 2010). Tracing was from the

very beginning designed in a way that ”... propagat-

ing metadata on its own is unlikely to become a bot-

tleneck. Generating reports, however, could become

a signiﬁcant source of load” (Sigelman et al., 2010).

At ﬁrst sight, it might seem that the only overhead

caused by the tracing is the time it takes to handle all

the OpenTracing API calls and optionally, how long

does it take to propagate a span across the network.

In general, this seems to be the case but we also

need to take into consideration a situation in which

the tracing is present in the codebase but the trac-

ing itself has not been activated. What Jaeger does

by default is to register a no operation tracer (no-op

tracer) which serves as a dummy implementation of

the tracer which, as the name suggests, does not per-

form any real action and immediately returns from

any of its API calls.

Even though the analogy of tracing with log-

ging fails on many levels, it is still useful to com-

pare the differences of overhead between those two

approaches. Narayana contains a great deal of log

statements for debugging and development purposes.

Therefore, we use a special logger, the only one

turned on during performance testing, which bypasses

the standard Narayana logging; this way, we have di-

rect control over what is logged. All the logging state-

ments are written to a single log ﬁle persisted to a lo-

cal ﬁle system. We tested ﬁve types of Narayana:

• T1. file-logged: Narayana with logging state-

ments transformed from the tracing instrumenta-

tion as described above),

• T2. jaeger: with tracing code and an activated

Jaeger tracer,

• T3. noop: with tracing code inside but with only

a default no operation tracer registered,

• T4. tracing-off: tracing code is present but

its execution is completely circumvented using if

statements,

COMPLEXIS 2021 - 6th International Conference on Complexity, Future Information Systems and Risk

• T5. vanilla: cloned from the ofﬁcial repository

with no changes in the code.

There are four main use cases tested in benchmarks:

commit 2 XA resources, commit an XA resource,

user-initiated rollback and a scenario in which an XA

resource fails to prepare. It is difﬁcult to reproduce a

production environment with multi-threading concur-

rent access and all the impact it can have on perfor-

mance. In order to address these issues, the OpenJDK

project has developed a tool dedicated to benchmarks

for languages running on the JVM called Java Mi-

crobenchmark Harness (JMH). This framework aims

at executing automatically repeated executions of any

chosen code and collecting statistics about code per-

formance. The most basic usage of JMH is to write a

class or classes containing a series of methods anno-

tated with the @Benchmark annotation and JMH takes

care of the rest of the setup. The resulting artifact is a

standalone JAR ﬁle which is, very simply put, a JHM

wrapper around the attached benchmark tests.

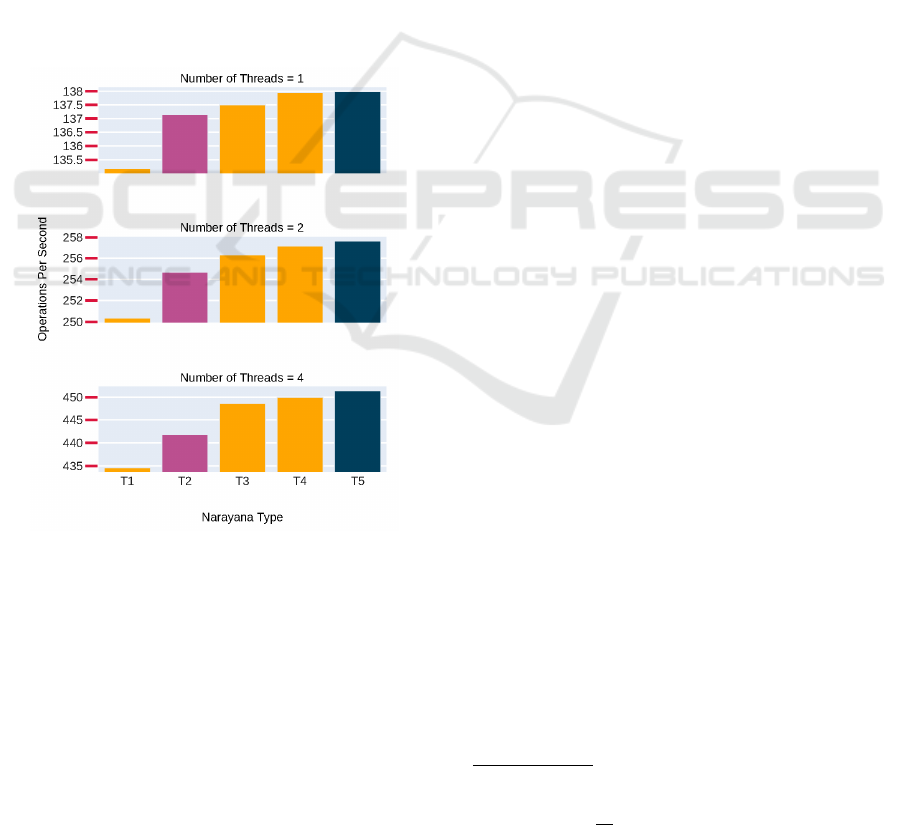

Figure 4: Performance test results (note different scales for

better visual inspection).

4.4.1 Performance Troubleshooting

Once we conducted the ﬁrst benchmark’s runs we en-

countered an inexplicable and drastic decrease in per-

formance; benchmark running Narayana patched with

tracing performed roughly ﬁve to six times slower

than upstream version of Narayana with no changes.

We investigated this issue by running a proﬁler and

examining whether there were any bottlenecks out-

side of the instrumentation itself. Indeed, the bottle-

neck was not caused by tracing but by using costly

toString method on XAResourceRecord instances

which were used quite often as a value for XID span

attributes. Apart from this, we have also seen big

overhead used by a backing collection inside Jaeger

which held unreported spans; in the latest perfor-

mance test, this overhead was reduced.

After running tests multiple times with the same

stabilized conﬁguration, we observed that perfor-

mance remained practically invariant to the type of

test we were running; the only factor which changed

in respect to operations ArjunaCore was execut-

ing were absolute values, not ratios among various

Narayana types. To illustrate our results, we’ve cho-

sen a scenario in which two dummy XA resources

are enlisted into the transaction and the transaction

commits successfully. As we can see from Fig. 4,

the overhead caused in T2 is in terms of tenths to

units of percents

. However, we saw an increasing

overhead as the number of threads went up. This

was most probably be caused by necessary synchro-

nization needed for accessing the backing collection,

common to all threads, to which spans are stored un-

til ﬁnished and reported. Therefore, most of the over-

head is not caused by execution of tracing code itself.

5 CONCLUSION

The main goal of this article was to show the integra-

tion of distributed transaction tracing into a transac-

tion manager (the Narayana platform). We measured

the impact of tracing in terms of several alternative

implementations. Moreover, we provided a proof of

concept which enables us to connect information of

transaction processing spanning over multiple nodes,

thus showing the full potential of distributed tracing

in terms of OpenTracing.

We integrated the OpenTracing API into the

Narayana transaction manager in a way that it pro-

vides enough information to discover and monitor

transaction problems. Overall, the results show that

the integration does not hinder performance in any

noticeable way. During the journey to the state-of-

the-art integration, we were able to investigate main

concepts behind OpenTracing and use such knowl-

edge for its integration into the Narayana transaction

manager. We also listed various obstacles which can

stand in a way of any software developer attempting

to integrate tracing into other projects.

The exact overheads ratios are (starting from one thread

counting upwards) are 0.6%, 1.2% and 2.2% using the for-

mula 100 × (1 −

T 2

T 5

Integrating Distributed Tracing into the Narayana Transaction Manager

ACKNOWLEDGMENT

The research was supported from ERDF/ESF ”Cy-

berSecurity, CyberCrime and Critical Informa-

tion Infrastructures Center of Excellence” (No.

CZ.02.1.01/0.0/0.0/16 019/0000822).

REFERENCES

Bernstein, P. (2009). Principles of transaction processing.

Morgan Kaufmann Publishers, Burlington, Mass.

Brewer, E. A. (2000). Towards robust distributed systems

(abstract). In Proceedings of the Nineteenth Annual

ACM Symposium on Principles of Distributed Comput-

ing, PODC ’00, page 7, New York, NY, USA. Associ-

ation for Computing Machinery.

Fonseca, R., Freedman, M. J., and Porter, G. (2010). Ex-

periences with tracing causality in networked services.

INM/WREN, 10(10).

Fonseca, R., Porter, G., Katz, R. H., Shenker, S., and Sto-

ica, I. (2007). X-trace: A pervasive network tracing

framework. In 4th USENIX Symposium on Networked

Systems Design & Implementation (NSDI 07), Univ. of

California, Berkeley.

Garcia-Molina, H. and Salem, K. (1987a). Sagas. ACM

SIGMOD Record, 16(3):249–259.

Garcia-Molina, H. and Salem, K. (1987b). Sagas. In

Proceedings of the 1987 ACM SIGMOD International

Conference on Management of Data, SIGMOD ’87,

page 249–259, New York, NY, USA. Association for

Computing Machinery.

Gilbert, S. and Lynch, N. (2002). Brewer’s conjecture

and the feasibility of consistent, available, partition-

tolerant web services. SIGACT News, page 51–59.

Haerder, T. and Reuter, A. (1983). Principles of transaction-

oriented database recovery. ACM Comput. Surv., page

287–317.

Kaldor, J., Mace, J., Bejda, M., Gao, E., Kuropatwa, W.,

O’Neill, J., Ong, K. W., Schaller, B., Shan, P., and

Viscomi, B. (2017). Canopy: An end-to-end perfor-

mance tracing and analysis system. In Proceedings of

the 26th Symposium on Operating Systems Principles,

SOSP ’17, page 34–50, New York, NY, USA. Associ-

ation for Computing Machinery.

Kanti-Singha Roy, N. and Rossi, B. (2014). Towards an

improvement of bug severity classiﬁcation. In 2014

40th EUROMICRO Conference on Software Engineer-

ing and Advanced Applications, pages 269–276.

Lamport, L. (1978). Time, clocks, and the ordering

of events in a distributed system. Commun. ACM,

21(7):558–565.

Little, M., Halliday, J., Dinn, A., Connor, K., Musgrove,

M., Robinson, P., Trikleris, G., and Feng, A. (2020).

Narayana project documentation.

Lourenc¸o, J., Cabral, B., Carreiro, P., Vieira, M., and

Bernardino, J. (2015). Choosing the right nosql

database for the job: a quality attribute evaluation.

Journal of Big Data, 2:18.

M. Goulet, S. T. Rader, A. S. (2011). Selective reporting of

upstream transaction trace data. US Patent 8,392,556.

Popa, N. M. and Oprescu, A. (2019). A data-centric ap-

proach to distributed tracing. In 2019 IEEE Inter-

national Conference on Cloud Computing Technology

and Science (CloudCom), pages 209–216.

Pritchett, D. (2008). Base: An acid alternative. Queue,

6(3):48–55.

Rossi, B., Russo, B., and Succi, G. (2010). Modelling fail-

ures occurrences of open source software with reliabil-

ity growth. In

Agerfalk, P., Boldyreff, C., Gonz

alez-

Barahona, J. M., Madey, G. R., and Noll, J., editors,

Open Source Software: New Horizons, pages 268–280,

Berlin, Heidelberg. Springer Berlin Heidelberg.

S. Smith, D. Schank, M. T. (2005). System and methods for

cross-tier transaction tracing. US Patent 7,886,281.

Sigelman, B. H., Barroso, L. A., Burrows, M., Stephenson,

P., Plakal, M., Beaver, D., Jaspan, S., and Shanbhag,

C. (2010). Dapper, a large-scale distributed systems

tracing infrastructure. Google Technical Report.

Skeen, D. (1982). A quorum-based commit protocol. Tech-

nical report, Cornell University, USA.

Stark, S., Sabot-Durand, A., Loffay, P., Mesnil, J., Rupp,

H. W., and Saavedra, C. (2019). Hands-On Enterprise

Java Microservices with Eclipse MicroProﬁle. Packt

Publishing Ltd., S.l.

Stefanko, M. (2018). Use of transaction within a reactive

microservices environment. Master’s thesis, Masaryk

University, Brno.

Stefanko, M., Chaloupka, O., and Rossi, B. (2019). The

saga pattern in a reactive microservices environment.

In Proceedings of the 14th International Conference

on Software Technologies - Volume 1: ICSOFT,, pages

483–490. INSTICC, SciTePress.

COMPLEXIS 2021 - 6th International Conference on Complexity, Future Information Systems and Risk
