A Risk Management Framework for Scrum Projects

Samuel de Souza Lopes

1 a

, Rog

eria Cristiane Grat

ao de Souza

2 b

, Allan de Godoi Contessoto

2 c

Andr

e Luiz de Oliveira

3 d

and Rosana Teresinha Vaccare Braga

1 e

Institute of Mathematical and Computer Sciences, University of S

ao Paulo, S

ao Carlos-SP, Brazil

Department of Computer Science and Statistics, S

ao Paulo State University, S

ao Jos

e do Rio Preto-SP, Brazil

Department of Computer Science, Federal University of Juiz de Fora, Juiz de Fora-MG, Brazil

Keywords:

Agile Software Development, Scrum, Product Owner, Project Management, Risk Management.

Abstract:

Software changes constantly to suit the market volatility, causing risks to the project. Agile software develop-

ment approaches, such as Scrum, have been proposed to deal with constant changes in project requirements.

In Scrum, the Product Owner (PO) is responsible for managing such changes and ensuring that the developed

software brings signiﬁcant value to the customers. However, there are potential risks involved in these respon-

sibilities. If not properly managed, they can lead to project failure. In this paper, we introduce a novel approach

to managing risks involving PO’s roles. In our work, we tailored the risk management knowledge area from

the Project Management Body of Knowledge Guide into the Scrum. We established a framework called RIsk

Management PRoduct Owner (RIMPRO), which intends to support project teams to systematically manage

risks related to PO activities that may arise during the project. As proof of concept, the processes described in

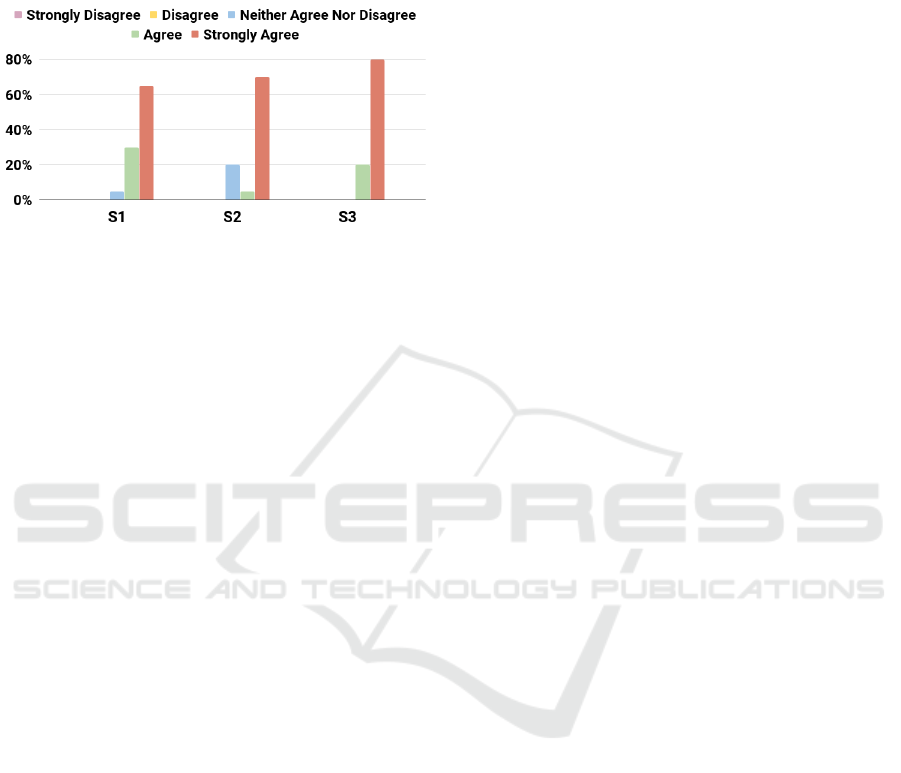

RIMPRO were evaluated by potential users. Through a preliminary assessment, we observed that RIMPRO is

promising since it can assist teams in managing risks involving PO in a systematized and effective manner.

1 INTRODUCTION

The traditional waterfall process for software de-

velopment has been criticized and characterized by

disconnecting important life-cycle activities, such as

planning, analysis, design, implementation, and test-

ing. A waterfall life-cycle is also characterized by

having unpredictable schedules and slower transitions

between activities, which may increase project costs.

Moreover, there is a risk that the delivered software

at the end of a waterfall life-cycle does not meet

the customer’s expectations since emergent require-

ments identiﬁed after analysis could not be consid-

ered throughout the software development process. In

the view of this scenario, agile process models (e.g.,

Scrum) and practices, such as ”release early” and ”re-

lease often”, are well established in open source soft-

ware development and address the limitations of the

waterfall model (Sutherland and Sutherland, 2014).

https://orcid.org/0000-0003-1721-311X

https://orcid.org/0000-0002-7449-9022

https://orcid.org/0000-0001-6545-5178

https://orcid.org/0000-0003-0564-0034

https://orcid.org/0000-0003-4259-0785

Despite the beneﬁts of agile methods regarding

evolution and self-adaptiveness, they were viewed

with scepticism for their emphasis on contrary ideas

of the traditional software engineering, such as scarce

software documentation and prioritization of project

changes (Dingsøyr et al., 2012). The uncertainty

and active participation of stakeholders on projects

contributed to the adoption of agile methods. How-

ever, risk management has been neglected or partially

supported in agile methods like Scrum, even with

risk management gaining importance among organi-

zations, since risks may arise throughout the life cy-

cle of the project (de Godoi Contessoto et al., 2016;

Tavares et al., 2019b). In Scrum, the Product Owner

(PO) has a major role in deﬁning the requirements to

address customer needs and leading the project, but

this is also risky as risks regarding its roles may arise

throughout the project, then they should be properly

managed. Therefore, it is important to incorporate

traditional risk management approaches within ag-

ile methods (Gold and Vassell, 2015; Tavares et al.,

2019b).

In this paper, we introduce a novel approach to

managing risks involving PO’s roles. A framework

called RIsk Management PRoduct Owner (RIMPRO)

Lopes, S., Gratão de Souza, R., Contessoto, A., Luiz de Oliveira, A. and Braga, R.

A Risk Management Framework for Scrum Projects.

DOI: 10.5220/0010448300300040

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 30-40

ISBN: 978-989-758-509-8

 2021 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

has been established to assist the management of such

risks in the context of Scrum. As proof of concept,

the processes described in RIMPRO were evaluated

by potential users. We also present a classiﬁcation

intended to guide RIMPRO users to classify PO risks.

The remainder of this paper is organized as fol-

lows. Section 2 introduces the required background

for the reader to understand the work contributions.

Section 3 presents the RIMPRO and its processes.

Section 4 presents the results obtained through RIM-

PRO assessment. Section 5 discusses the related

works. Finally, Section 6 presents the conclusions and

proposals for future work.

2 BACKGROUND

Scrum is an agile method for project management

with an emphasis on software development projects.

Scrum is not characterized as a methodology, but as

a framework, since it is possible to employ various

processes or techniques (Sutherland and Sutherland,

2014). Scrum emphasizes incremental software de-

velopment. The set of all requirements of the software

is called Product Backlog as well as the set of imple-

mented requirements in each Sprint is called Sprint

Backlog. An increment is delivered to customers at

the end of each iteration (Sprint). Scrum is an adap-

tive and self-corrective approach for reviewing the in-

crements implemented in each Sprint and checking

possible improvements in the processes used to man-

age the project in the Sprint Review and Sprint Retro-

spective meetings, respectively. Scrum is one of the

most agile methods adopted in the industry. However,

it does not provide support for formal risk manage-

ment that embraces the main processes, such as plan-

ning, analysis, and risk response planning (Tavares

et al., 2019b).

Risk management is a set of processes for iden-

tifying and controlling areas or events that have the

potential of causing unwanted changes. The Project

Management Body of Knowledge (PMBoK) Guide

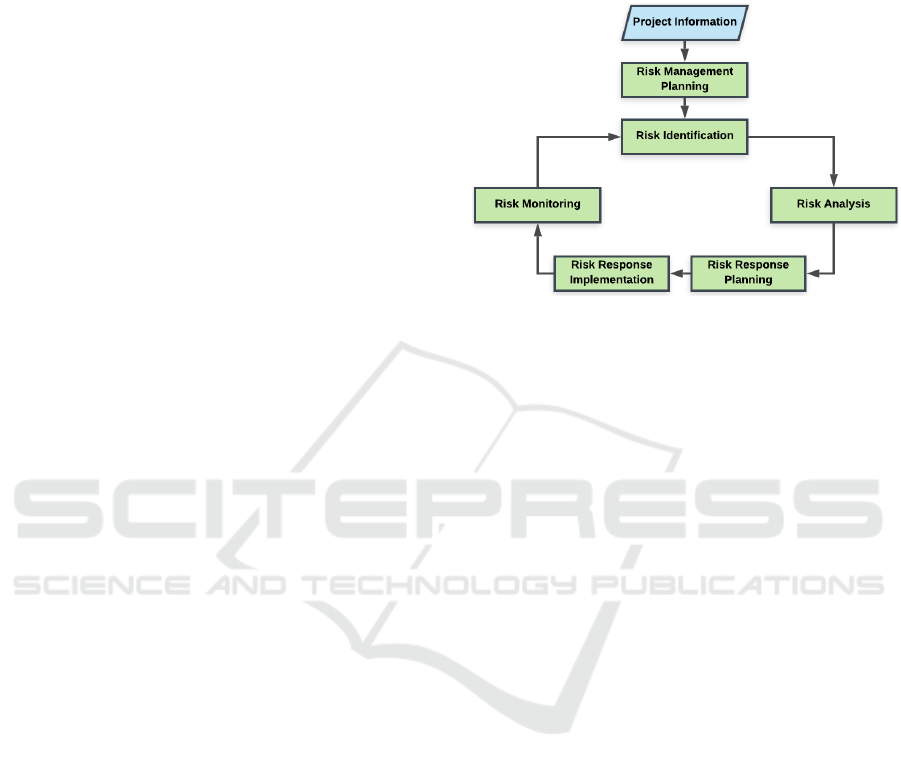

deﬁnes risk management as a set of seven pro-

cesses: Plan Risk Management; Identify Risks; Per-

form Qualitative Risk Analysis; Perform Quantitative

Risk Analysis; Plan Risk Responses; Implement Risk

Responses; and Monitor Risks. Due to the lack of

standardization of the term ”risk”, we have used the

deﬁnition proposed by PMBoK. Risk is an ”event or

an uncertain condition that, if it occurs, can result in

positive (opportunities) or negative impacts (threats)

in one or more project objectives, such as scope, time,

cost, and quality” (PMI, 2017).

In agile project management, due to the recep-

tivity to changes, several projects have uncertainties

and risks. To ensure that risks are well understood

and treated, projects managed through adaptive ap-

proaches make use of frequent reviews of work prod-

ucts and multi-functional project teams to accelerate

communication and knowledge sharing. These risks

can be managed through traditional risk management

processes, as long as they are adapted to the context

of agile development (Andrat and Jaswal, 2015; Al-

liance, 2017).

Eventually, several risks remain unknown because

they are ignored throughout the project life-cycle.

Thus, it is needed to introduce risk management pro-

cesses within agile development (Andrat and Jaswal,

2015). In this context, the Project Management Insti-

tute (PMI), together with the Agile Alliance, devel-

oped the Agile Practice Guide. This guide provides

tools, situational guidance, and an understanding of

the various agile approaches available to enable bet-

ter results throughout the project. The Agile Prac-

tice Guide assists traditional project teams that want

to apply agile development concepts to their projects.

Even helping traditional teams adopt agile practices,

the Agile Practices Guide does not support changes

or modiﬁcations to PMBoK processes or knowledge

areas, such as risk management, justifying the impor-

tance of this work (Alliance, 2017).

The PO plays an essential role throughout the

project life-cycle, with the responsibility of managing

requirements and ensuring that the software brings

signiﬁcant value to customers. Due to her/his impor-

tance in the project, the risk identiﬁcation and anal-

ysis associated with PO decisions are needed. The

previous knowledge of these risks may contribute to

the success of the project (Sutherland and Sutherland,

2014). From the current literature analysis, we can

group the potential risks involving the PO decisions

into three groups described as follows.

2.1 Requirements Engineering Risks

(Dikert et al., 2016) point out that several risks may

arise if the PO does not correctly perform his/her du-

ties in the requirements engineering stage, therefore

it is necessary to document and analyze such risks.

The risks involving the PO are broken down into four

categories:

• Risks Related to Lack of Requirements Docu-

mentation: The production of lean documenta-

tion is one of the main problems in agile develop-

ment processes. Traditional requirements speciﬁ-

cation are replaced with stories or backlog items

to document the potential interactions of stake-

holders with software (Sutherland and Suther-

A Risk Management Framework for Scrum Projects

land, 2014). The most effective way to min-

imize the problems related to lean documenta-

tion is through efﬁcient communication since the

main problems exposed by the literature related to

lean documentation occur due to inefﬁcient com-

munication between the Scrum Team and cus-

tomers (Inayat et al., 2015; Curcio et al., 2018;

Elghariani and Kama, 2016; Fitriani et al., 2016).

However, communication failures can also arise

when all Scrum Team members are not accommo-

dated in the same work environment because it is

more difﬁcult to communicate changes in require-

ments among Scrum Team members and cus-

tomers. Thus, the use of more detailed user stories

facilitates homogeneous communication between

stakeholders, helping developers to make correct

choices regarding the implementation of an incre-

ment during a Sprint (Inayat et al., 2015; Elghari-

ani and Kama, 2016);

• Risks Related to Lack of Customers to Take

Decisions: One of the pillars of the Agile Mani-

festo is the customer’s interaction with the project

team, which is disseminated in several agile ap-

proaches, such as Scrum. Since the PO is respon-

sible for ensuring that the increments have signif-

icant value to the customer, it is up to her/him

to maintain constant contact with the customer

(Sutherland and Sutherland, 2014). Customer

availability is important, as changes in require-

ments being determined directly by the customer

can speed up the project, as well as to prioritize

requirements by customers creates higher value

increments. However, the client’s unavailability

in taking project decisions is a problem since the

continuous contact with the Scrum Team gener-

ates costs for the organization that requested the

software (Inayat et al., 2015; Curcio et al., 2018;

Elghariani and Kama, 2016). A way to solve this

problem in practice is assigning customer role to

one member of the Scrum team. It may con-

tribute to reducing the need for constant interac-

tion with real customers. However, such an ap-

proach is only effective when the Scrum team

members have substantial knowledge of the tar-

geted application domain (Inayat et al., 2015).

Another issue related to the client is the lack of

knowledge to deﬁne the requirements. This is-

sue also occurs in projects as there is more than

one client, making it difﬁcult to reach a consensus

among the group when there are disagreements

regarding requirements. That is more evident in

projects with shorter Sprints. If this problem oc-

curs, the project’s performance is directly affected

(Inayat et al., 2015; Curcio et al., 2018);

• Risks Related to Changes in the Requirements:

The lack of clarity in the deﬁnition of the re-

quirements can contribute to project failures, as

it impairs the product overview (Alliance, 2017;

Sutherland and Sutherland, 2014). To developing

increments with signiﬁcant value to customers, re-

quirements must be documented, prioritized, and,

if needed, modiﬁed (Inayat et al., 2015; Elghar-

iani and Kama, 2016; Fitriani et al., 2016). The

requirements deﬁnition process may be compli-

cated, as stakeholders often have different expec-

tations of a requirement. Also, the requirements

suggested by some stakeholders may be consid-

ered unworkable by the Scrum Team. Another ob-

stacle is when the client considers that most of the

software requirements are mandatory and equally

important, so it is difﬁcult to use criteria for prior-

itizing these requirements (Elghariani and Kama,

2016; Alliance, 2017);

• Risks Related to Budget, Architecture, and

Schedule: Analogously to traditional software

development approaches, the design of the soft-

ware architecture, the estimation of project bud-

get, and the management of the schedule are criti-

cal activities for organizations adopting Scrum in

their projects. That occurs because, in Scrum, re-

quirements are considered volatile since they may

change throughout the project (Inayat et al., 2015;

Elghariani and Kama, 2016; Curcio et al., 2018).

To reduce the time and effort needed to turn re-

quirements into increments, the requirement can

be decomposed into smaller sub-requirements.

Requirements decomposition may contribute to

improving the accuracy of schedule estimation

and minimizing the occurrence of unforeseen

events during the Sprint (Alliance, 2017).

2.2 Software Quality Risks

(Asghar et al., 2017) emphasize that the lack of

quality and clarity of requirements can contribute to

project failures. On the other hand, (Dikert et al.,

2016) point out that the quality control functions as-

signed to Scrum Team members may be adversely af-

fected when ambiguous requirements arise. To avoid

ambiguities, the PO can receive specialized training,

so that the Scrum Team can establish a structured way

to document the requirements.

2.3 Risks Related to Migration of

Traditional Teams to Agile

These risks are related to the inherent insertion of ag-

ile approaches characteristics in the context of teams

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

that use traditional techniques of software engineer-

ing (Gandomani and Nafchi, 2016). The Agile Prac-

tice Guide provides guidance to support traditional

teams to adapt their practices to the agile context (Al-

liance, 2017). Such adaptation requires sufﬁcient time

and effort, but risks can often arise during this change

(Gandomani and Nafchi, 2016). So, a risk may or

not be related to migration. Even after the migration,

risks related to Requirements Engineering (RE) and

Software Quality (SQ) can occur, as they are activ-

ities inherent to the PO. Thus, the risk can receive

more than one classiﬁcation if it is related to one of

the functions of the PO (RE and SQ) and, also, the

project team is migrating to Scrum.

In this scenario, we can conclude that the PO has

great importance since (s)he is a member of the Scrum

Team responsible for crucial stages of the project.

Consequently, risks can arise involving her/his deci-

sions throughout the project. The risks related to agile

methods, such as Scrum, are scarce, unlike the tradi-

tional software development approaches in which the

risks are well-known (Andrat and Jaswal, 2015). This

leads us to believe that the use of an adapted risk man-

agement framework to the Scrum context, focusing on

the risks involving the PO, is important to support the

documentation of risk analysis and mitigation mea-

sures in agile projects. Lessons learned from projects

can provide support for decision making by software

organizations that use Scrum to manage their projects.

For this purpose, such framework should support the

classic processes of risk management, such as iden-

tiﬁcation, analysis, and planning of responses to pos-

itive and negative risks of the project adapted to the

agile context (Tavares et al., 2019b).

3 RISK MANAGEMENT

PRODUCT OWNER (RIMPRO)

RIMPRO is a framework that proposes a modiﬁcation

of the risk management processes exposed in PMBoK

to managing risks involving PO. In this context, RIM-

PRO intends to guide traditional teams that need to

adopt agile practices in their projects. This is quite

common currently so that such teams can combine

concepts proposed by Scrum with the structured risk

management of RIMPRO, using concepts proposed

by the Agile Practice Guide (Alliance, 2017). We

consider RIMPRO is a framework instead of a process

because each team is free to adapt it according to their

needs. We use the word ”process” to deﬁne risk man-

agement steps to maintain the PMBoK nomenclature

standard.

As shown in Figure 1, project information, such

as budget, schedule, and stakeholders, is needed to

guide the structure established for RIMPRO, which

foresees the execution of six processes, described in

the following subsections.

Figure 1: Relationship between RIMPRO processes.

Comparing the structure of RIMPRO with risk man-

agement processes established by PMBoK, we ob-

served that Quantitative Risk Analysis provided by

PMBoK is not performed due to insufﬁcient numeri-

cal data on the identiﬁed risks by RIMPRO to carry

out such process, considering its agile focus (Al-

liance, 2017).

For the correct application of RIMPRO, all stake-

holders must participate in the proposed processes be-

cause the knowledge of them must be gathered dur-

ing the execution of the risk management processes

(Siqueira et al., 2017). Moreover, as risks that involve

PO can arise throughout the project, the processes

foreseen by RIMPRO must be iteratively executed on

all Sprints. Thus, we emphasize that all the documen-

tation provided by the framework must be created or

reviewed in a Sprint. The documents generated or up-

dated through the RIMPRO processes are Risk Man-

agement Plan – which describes how risk manage-

ment processes are structured and executed; Project

Risk Backlog – which reports all risks identiﬁed for

the project; Sprint Risk Backlog – which reports all

monitored risks of a particular Sprint in which each

Sprint has its Sprint Risk Backlog.

3.1 Risk Management Planning

Risk Management Planning is the process of deﬁning

how RIMPRO project risk management is conducted

to ensure that the degree, type, and visibility of risk

management are proportional to the risks and the im-

portance of the project to the organization and other

stakeholders (Alliance, 2017). This process must be

performed at the beginning of the project, before the

A Risk Management Framework for Scrum Projects

ﬁrst Sprint Planning Meeting, because while the PO

performs functions throughout the entire project, risks

associated with (s)he may arise. Thus, it is necessary

to begin risk management before the beginning of the

ﬁrst Sprint (Sutherland and Sutherland, 2014).

At the beginning of the project, key deﬁnitions

are established, such as the individual responsible for

project risk management. This individual, namely

Risk Master, must ensure that all Scrum Team mem-

bers are performing the risk management processes

foreseen by RIMPRO, as well as managing the plan-

ning documents. As this framework aims at risk man-

agement involving PO, Risk Master should be repre-

sented by the PO itself for two main reasons: i) the

PO is the most important member of the Scrum Team

for risk management (Tavares et al., 2019a); ii) and

the risks can be related to the client and the PO is the

most suitable member to treat them, since (s)he is the

one that has direct contact with the client throughout

the project among the other members of the Scrum

Team (Sutherland and Sutherland, 2014).

In addition to the Risk Master deﬁnition, other

deﬁnitions must be taken, namely (PMI, 2017):

• Roles and Responsibilities: As risk management

is a vital process for the success of the project

and the Scrum Team is a self-managed team

that shares all the knowledge acquired among its

members, everyone must participate in the man-

agement processes of risks, as this ensures trans-

parency of project information among stakehold-

ers (Sutherland and Sutherland, 2014);

• Deadlines: It deﬁnes when and how often the

risk management processes will be carried out

throughout the life cycle of the project and estab-

lish the protocols for applying the contingency re-

serves in the schedule;

• Stakeholder Risk Appetite: It is the maximum

amount or volume of risks that stakeholders are

willing to tolerate, called the maximum overall

risk level of the project, to be expressed as lim-

its of measurable risks for each project objective.

As the project is divided into Sprints, the overall

risk level of the project must be updated with each

Sprint;

• Budget: It estimates funds based on designated

resources for inclusion in the cost baseline, and

establishes protocols for applying contingency

and management reserves.

At the end of the process, all agreed deﬁnitions should

be contained in the Risk Management Plan. For

Sprint’s goal not to be degenerate, changes to the

Risk Management Plan must be requested during the

Sprint Retrospective, as this meeting makes adjust-

ments to Scrum Team to improve its work (Sutherland

and Sutherland, 2014).

3.2 Risk Identiﬁcation

In this process, risks are identiﬁed and their charac-

teristics are documented. All stakeholders, including

customers, should be encouraged to suggest new risks

at any time. This process must be continuous because

the project is susceptible to uncertainties throughout

its life cycle, so risks can be identiﬁed at any time

(Alliance, 2017). To support the Scrum Team and,

speciﬁcally, the Risk Master, risks related to PO’s

roles succinctly described in Section 2 are listed and

made available. The risks identiﬁed are documented

with the following attributes:

• Risk Title: Short description of the risk;

• Owner: If the risk materializes, the owner is a

member of the Scrum Team or an external or-

ganization. If the implementation of the risk re-

sponse is outsourced, the owner should be the en-

tity responsible for applying one of the agreed re-

sponses;

• Date of Registration: Date on which the risk was

registered;

• Type: Opportunity or Threat;

• Classiﬁcation: According to the analysis exposed

in Section 2, PO’s risks may be classiﬁed into

three ways: Requirements; Software Quality;

and Migration to Scrum. When the risk does not

meet any of the classiﬁcations suggested above, it

may be deﬁned as Not deﬁned;

• Sprint Affected: It determines the Sprint that can

be affected if the risk materializes;

• Probability of Occurrence: It is a ﬂoat value

between zero and one, the higher the value, the

greater the probability of the risk to occur. This

value must be reﬁned in the Risk Analysis pro-

cess;

• Impact: It is a ﬂoat value between zero and one,

the higher the value, the greater the positive im-

pact, in the case of opportunity, or negative, in the

case of a threat, of the risk. This value must be

reﬁned in the Risk Analysis process;

• General Description: To avoid ambiguities, the

following structure should be used to describe the

risks identiﬁed using the risk speciﬁcations: If a

CAUSE exists, the EVENT may occur, leading to

the EFFECT;

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

• Main Causes: They must be evident, as they can

cause one or more identiﬁed risks. These causes

must be registered to support the future identiﬁca-

tion of risks for this and other projects;

• Potential Responses: During the Risk Identiﬁca-

tion process, some potential responses to the iden-

tiﬁed risks can be developed. These responses

will be improved in the Risk Response Planning

process;

• Triggers: Events or conditions that indicate that

the risk is about to occur.

The risks present in the Project Risk Backlog will be

further analyzed in the subsequent process.

3.3 Risk Analysis

In this process, the risks are analyzed and the Project

Risk Backlog is updated for additional action. This

analysis is done only in a qualitative way, due to in-

sufﬁcient data to perform a quantitative analysis (Al-

liance, 2017). As the purpose of this process is to

prioritize the risks that will be monitored during the

Sprint, the risk analysis must be done during Sprint

Planning because in this meeting the Sprint goals are

deﬁned (Sutherland and Sutherland, 2014).

Therefore, the risks are analyzed through a tech-

nique proposed in this work, called Risk Plan-

ning Poker, in which Planning Poker is adapted to

risk management (Sutherland and Sutherland, 2014).

Based on the Delphi technique which is used to

reach consensus among experts while preserving their

anonymity (Dalkey and Helmer, 1963), the risk anal-

ysis is performed anonymously among Scrum Team

members (Alliance, 2017). Risk Planning Poker is di-

vided into two steps.

In Step 1, Scrum Team members empirically

choose the risks that can affect the Sprint. These risks

will be analyzed in Risk Planning Poker, in which

each member has a deck. Each card contains a Fi-

bonacci sequence number, as the human mind has dif-

ﬁculty perceiving faint changes. Thus, the distance

between the numbers in this sequence is sufﬁcient for

the difference between the probabilities of occurrence

or the impacts of the risks to be perceived more easily,

intuitively. At each round, the probability of occur-

rence of risk is analyzed, with each member selecting

a card and placing its face down on the table. Each

card placed on the table represents the opinion of each

participant about the probability of occurrence of the

risk analyzed. Then all members cast their respective

cards at the same time. If all members’ opinions are

within a distance of up to two cards from each other,

the probability of occurrence of this risk is the arith-

metic mean of the card values of all members. Oth-

erwise, members who have selected the highest and

lowest card explain their reasoning. After both expla-

nations, a new round is made and the probability of

the risk analyzed is the arithmetic mean of the card

values (Sutherland and Sutherland, 2014). At the end

of all the rounds from step 1, the risks that exceed the

established limit value comprise the list of risks that

will be analyzed in step 2.

Step 2 is analogous to step 1, but the impact of the

risks that exceed the limit value of step 1 will be fur-

ther analyzed. After completing the two steps, the fa-

cilitator determines the highest probability or impact

risks that will be monitored throughout the Sprint, so

that these risks will compose the Sprint Risk Backlog.

After Risk Planning Poker, the Risk Master cre-

ates the Sprint Risk Backlog. Thus, each Sprint has

a list of risks that can affect the success of the it-

eration. Since the Scrum Team has few members,

lean documentation, and a limited budget, the Sprint

Risk Backlog should contain few risks. Therefore,

it avoids a signiﬁcant increase in additional project

work (Sutherland and Sutherland, 2014).

To facilitate the monitoring of the Sprint Risk

Backlog, a probability and impact matrix should be

used (PMI, 2017). Thus, risks are normalized using

min-max normalization in which risks are normalized

to values in the range of 0 to 1 (Faceli et al., 2011).

Such scaling is performed by the equation in 1, where

risk

−

normalized

is the value of risk

normalized to a

value contained in the range [0, 1], risk

is the prob-

ability of occurrence or impact of risk

calculated on

Risk Planning Poker, max and min are the values of

the highest and lowest card in the deck used during

the analysis of risk

, respectively. For example, con-

sider that an organization uses a deck whose lowest

and highest cards range from 3 to 21, respectively. If

the probability of occurrence and the impact of a risk

is 17 and 15, respectively, then the normalized proba-

bility of occurrence and impact of this risk is 14/18 =

0.78 and 12/18 = 0.67, respectively.

After normalization, the Risk Master should de-

ﬁne the probability and occurrence ranges for the cat-

egories (e.g. very low, low, moderate, high, and very

high) and exhibit them in a probability and impact

matrix. The responses to the risks that make up the

Sprint Risk Backlog are deﬁned in the subsequent

process, called Risk Response Planning.

risk

−

normalized

risk

− min

max − min

(1)

A Risk Management Framework for Scrum Projects

3.4 Risk Response Planning

Risk Response Planning is the process responsible

for developing options and actions to maximize op-

portunities and minimize threats to project objectives

(Alliance, 2017). This process occurs after the Risk

Analysis process because the risks of the Sprint Risk

Backlog have already been deﬁned, but their respec-

tive answers have not yet been elaborated.

Risk responses should be developed with the col-

laboration of all stakeholders, including customers

with knowledge in the application domain and man-

agers. Planned responses should be appropriate to the

relevance of the risk, have cost-effectiveness to meet

the challenge, be realistic within the project context,

be agreed upon by all stakeholders, and have a desig-

nated stakeholder. In general, it is necessary to select

the best response to risk among the various possible

options. The Risk Master should mediate this pro-

cess before the beginning of the Sprint because the

responses to certain risks may vary throughout the

project, i.e., risk responses for a given Sprint may

not be appropriate for subsequent Sprints (Alliance,

2017).

For each risk of the Sprint Risk Backlog, the strat-

egy or mix of response strategies of greater efﬁciency

should be selected, including major and secondary

strategies as needed. If the major strategies do not

take effect, the possibility of applying the secondary

strategies should be evaluated. Another point to em-

phasize is the secondary risks. For these risks, a sur-

plus may be allocated for time or cost contingencies,

as well as the identiﬁcation of the conditions that trig-

ger the use of these surpluses (Alliance, 2017). At

the end of the process, the Risk Master must update

the Sprint Risk Backlog response lists and starting the

subsequent process.

3.5 Risk Response Implementation

Risk Response Implementation is the process respon-

sible for implementing the risk response plans that

compose the Sprint Risk Backlog to ensure that risk

responses are carried out as planned. Attention to this

process will ensure that the responses to the agreed

risks are implemented. A common problem with risk

management is that the Scrum Team devotes efforts

to identify and analyze risks and developing risk re-

sponses, but no action is taken to manage them (Al-

liance, 2017; Sutherland and Sutherland, 2014).

Tools and techniques can be used to the imple-

mentation of the risk response plans associated with

Sprint Risk Backlog, such as (Alliance, 2017):

• Expert Opinion: It should be considered by

Scrum Team individuals with specialized knowl-

edge to validate or modifying responses to risks,

if necessary, and decide how to implement them

most efﬁciently;

• Interpersonal and Team Skills: Among the in-

terpersonal and team skills that can be used in this

process, the main one is inﬂuence. Some risk re-

sponse actions may be owned by people outside

the Scrum Team or who have other conﬂicting de-

mands. It is necessary, at certain points in the

project, that the Risk Master takes inﬂuence to

encourage the appointed risk owners to take the

necessary measures when appropriate;

• Project Management Information System:

May include schedule, resource, and cost software

to ensure that agreed risk response plans and their

associated activities are integrated into the project

along with other project activities.

If any response is modiﬁed during the process, the

Sprint Risk Backlog should be updated (Alliance,

2017).

3.6 Risk Monitoring

Risk Monitoring is the process responsible for: (i)

monitoring the implementation of the risk response

plans contained in the Sprint Risk Backlog; (ii) mon-

itoring risks that may affect Sprint, and (iii) assess-

ing the effectiveness of risk management processes

throughout the Sprint. The main beneﬁt of this pro-

cess is that it allows project decisions to be based

on current information about the overall exposure to

project risk and individual project risks. This process

occurs throughout the Sprint, since risks may arise or

materialize throughout the project (PMI, 2017).

The step of evaluating the effectiveness of the risk

management processes proposed by RIMPRO is car-

ried out during the Sprint Retrospective meeting, as

this meeting aims to identify what worked well, what

can be improved and what actions will be taken to im-

prove several aspects that may limit the speed of the

project, such as deﬁciencies in the risk management

processes. Such an evaluation must be made with

all Scrum Team members at the Sprint Retrospective

meeting, as it is the moment when the whole team

must present the lessons learned in each Sprint for

the beneﬁt of future projects and subsequent Sprints

of the current project. In this way, plans to improve

risk management processes can be established, to be

applied in Sprints and the following projects (PMI,

2017; Sutherland and Sutherland, 2014).

To ensure that stakeholders are aware of the cur-

rent risks, Sprint must be continuously monitored.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

Risk Monitoring uses project information to deter-

mine whether (Alliance, 2017): the responses to the

implemented risks are effective; the current project

risks have changed; the status of individual risks iden-

tiﬁed in Sprint has changed; new risks of individual

projects have arisen; the risk management approach

is still appropriate; risk management processes have

been followed; the contingency surplices for cost or

time require modiﬁcations.

Risk reviews are scheduled regularly and should

examine and document the effectiveness of the risk

responses made in the Sprint Risk Backlog. Risk

reviews can also result in identifying newer risks,

including secondary risks arising from responses to

agreed risks, reassessing current risks, closing out

risks that are out of date, identifying problems that

arise as a result of risks that have occurred, and iden-

tifying lessons learned for implementation in subse-

quent Sprints or similar projects in the future. The

Sprint risk review should be conducted as part of

a regular project status meeting, such as the Daily

Scrum (Alliance, 2017; Sutherland and Sutherland,

2014).

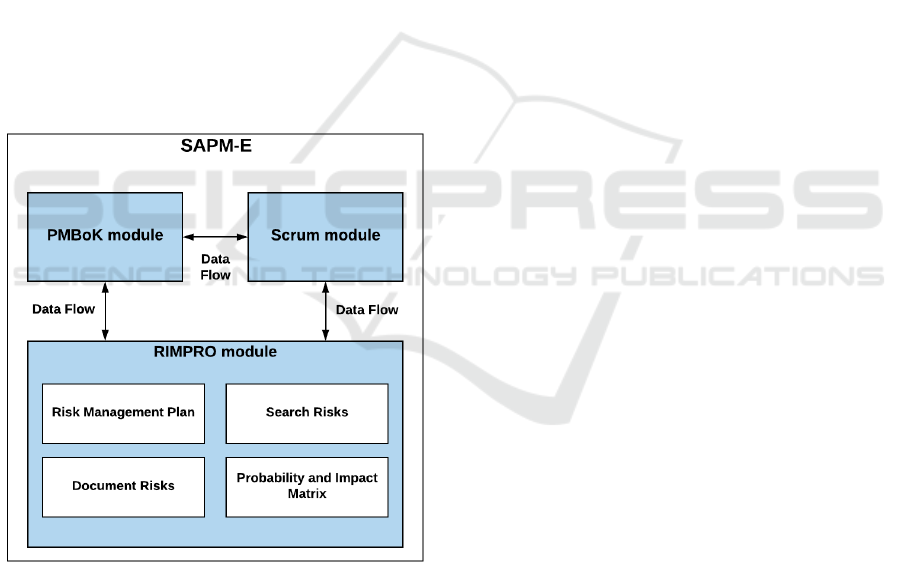

Figure 2: SAPM-Extended Architecture.

4 RIMPRO ASSESSMENT

To evaluate RIMPRO, we automated its processes

through a computational module attached to the com-

putational tool called System to Aid Project Manag-

ing (SAPM). SAPM has been developed with the par-

ticipation of one of the authors. The automation of

risk management processes is crucial since the lack

of knowledge of professionals in this knowledge area,

as well as the scarcity of computational tools, are bar-

riers to the execution of risk management processes

(Gregoriades et al., 2011), such as those foreseen by

SAPM. The development of a computational mod-

ule facilitates the application of RIMPRO in Scrum

projects. SAPM allowed the management of tradi-

tional projects, based on the knowledge areas pro-

vided by PMBoK, as well as an independent alter-

native for agile project management through Scrum

(Mendonc¸a et al., 2014). The incorporation of RIM-

PRO into SAPM referred to in this paper as SAPM-

Extended has allowed the execution of traditional pro-

cesses foreseen in PMBoK, in an agile way, according

to Scrum. Figure 2 shows the general architecture es-

tablished for SAPM-Extended.

We performed the RIMPRO assessment from

September to October 2018. Students, both under-

graduate and graduate who had already completed

the discipline of Software Engineering, as well as IT

professionals, participated in the assessment process.

The assessment process was carried out by 31 partic-

ipants, of which 12.9% are IT professionals, 22.6%

are graduate students, and 64.5% are undergraduate

students. Although most participants in the sample

are not IT professionals, participating students have

contact with projects that use PMBoK and Scrum.

One of the authors invited all participants of the

assessment to a meeting, in which RIMPRO and

SAPM-Extended were presented and possible doubts

were resolved. The participants had the opportunity

to simulate a Sprint, in which risks were identiﬁed

and the probability and impact were measured by the

participants. At the end of the meeting, a guide for

using the RIMPRO and an assessment form were sent

to all participants by email. In the 15 days following

the meeting, everyone was free to continue using the

RIMPRO on the Web and ﬁll out the assessment form.

We used the Likert Scale (Boone and Boone,

2012) with ”Strongly Disagree”, ”Disagree”, ”Nei-

ther Agree Nor Disagree”, ”Agree” and ”Strongly

Agree” items, to evaluate RIMPRO under the follow-

ing three statements (S):

• S1: I am satisﬁed with the ease of learning and

use of RIMPRO;

• S2: PMBoK’s adaptation by RIMPRO to manage

risks involving PO contributes to the management

of agile projects as well as managing risks related

to PO’s roles;

• S3: The risk management divided by Sprints, in-

stead of addressing in a general way as it occurs

in traditional projects, contributes to the risk man-

agement in agile projects.

A Risk Management Framework for Scrum Projects

The obtained results are illustrated in Figure 3. We

also provided two open questions to the participants

expressing their opinions about RIMPRO’s strengths

and weaknesses.

Figure 3: Assessment Histogram of RIMPRO.

From the analysis of the answers obtained from the

participants shown in Figure 3, it is possible to verify

a satisfactory result, since more than 50% of the par-

ticipants strongly agreed with all the statements. We

can conclude that RIMPRO is easy to learn and use,

since the way to classify the risks through Sprints and

the prioritization of the risks through the adaptation

of Planning Poker, proposed in this work, are analo-

gous to the stage of requirements engineering. In this

way, the use of RIMPRO in real projects looks sim-

ple and it requires few hours of training because the

risks are documented and catalogued in a similar way

to the requirements of agile software projects.

As for strengths, the participants concluded that

iteratively managing risks is beneﬁcial because the

Scrum Team has few members, and the project budget

is relatively smaller than traditional projects. Thus,

instead of monitoring all risks throughout the project,

only risks that can affect a given Sprint are monitored.

It is relevant when it comes to risks involving the PO

because (s)he is present throughout the project and,

so, the probability of occurrence and the impact of the

risks involved may vary throughout Sprint. Conse-

quently, risks monitored in a Sprint may not be moni-

tored in subsequent Sprints, and vice versa. As for the

weaknesses, even the SAPM-Extended having a pre-

vious database containing the risks exposed in Section

2, the participants noted a limited amount of risks in-

volving the PO’s roles to guide the execution of RIM-

PRO through the project, as well as lessons learned

from previous projects. They also stressed the impor-

tance of assisting the Scrum Team in discussing new

risks that may arise.

5 RELATED WORKS

With respect to project risk management, some stud-

ies address this topic to increase the success rates in

the development of software projects. (Janjua et al.,

2016) stated that it is necessary to use risk manage-

ment practices. Indeed, (Pasha et al., 2018) point out

that the risks related to large-scale software develop-

ment are challenging, and they provide a compara-

tive study of the risks found in the literature related

to small and large-scale software development. (Bista

et al., 2017) also emphasize the importance of risk

management for software projects, to propose a new

approach to estimate these risks using the analyzed

regression method, which consists of using a collec-

tion of statistical techniques for models that describe

the reasonable relations between several explanatory

variables, the use of which is described quantitatively

on a determined process.

Regarding risk management related to the ag-

ile approach to software development, some studies

highlight the need to identify and analyze such risks.

(Khatri et al., 2014) suggested a set of good risk man-

agement practices applied to agile methods, but it

has not been validated. (Moran, 2014) presented a

generic process for performing risk management in

agile methods. However, it has not been validated.

(Alsaqaf et al., 2017) exposed the main risks related

to software quality, emphasizing that agile approaches

neglect the software quality requirements. In turn,

(Andrat and Jaswal, 2015) warned that, unlike the tra-

ditional approach, risks related to the agile approach

to software development are little known. Consider-

ing Scrum, (Tavares et al., 2019b) warns that such a

method does not specify project risk management ac-

tivities, concluding that classic risk management pro-

cesses, such as planning, analyzing, and planning re-

sponses to risks, must be incorporated and adapted to

Scrum. Finally, (Tavares et al., 2019a) consider that

the PO plays the most important role and its risk man-

agement practices are strongly recommended. This

motivated this work, by presenting RIMPRO as a use-

ful framework for managing risks involving the PO.

The adaptation of the PMBoK knowledge area

namely risk management exposed in this paper is

something that we did not ﬁnd in any of the analyzed

studies. Besides, even showing the importance of PO

in Scrum Teams, we have not found studies that have

identiﬁed the risks related to PO activities or proposed

an effective way to manage them. Regarding all re-

searches related to risk management of agile methods,

none has any assessment process, highlighting the im-

portance of the RIMPRO assessment carried out.

RIMPRO differs from a general risk management

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

approach because of two features. The classiﬁca-

tion presented in Section 2 intends to guide RIMPRO

users to classify PO risks, as described in Section

3.2. Also, the data obtained by surveying the risks

involving the PO was used to create a database for

the SAPM-Extended that was used to automate RIM-

PRO. Thus, during the RIMPRO assessment, users

were able to access the risk database through SAPM-

Extended. The participants considered this database

as a strong point that helped to understand RIMPRO,

although it still requires expansion. Another feature

that distinguishes RIMPRO from a general risk man-

agement approach is the fact that the Risk Master is

the PO because the PO is the most important mem-

ber of the Scrum Team for risk management, and the

risks can be related to the client and the PO is the

most suitable member to treat them, since (s)he is the

one, among the other members of the Scrum Team,

who has direct contact with the client throughout the

project.

6 CONCLUSION

Although Scrum is one of the most widely used agile

methods today, it does not have a structured way of

managing risks that may arise throughout the project.

This work contributed to structuring the RIMPRO to

support the Scrum Team to implement a systematic

way of managing risks, based on the PMBoK Guide,

without interfering with the agile values of Scrum.

Structuring a risk management framework for agile

projects contributes to this area maturity and, conse-

quently, promotes the advancement of research aimed

at its improvement.

The results obtained through the preliminary

RIMPRO assessment are promising. This assessment

provides evidence of the feasibility of RIMPRO in

supporting the Scrum Team by taking decisions based

on the risks related to the PO that may arise in an ag-

ile and satisfactory manner. However, we have not

applied RIMPRO to real agile projects. Furthermore,

another limitation of RIMPRO is the non-use of quan-

titative techniques to perform risk analysis. There-

fore, we intend to evaluate the effectiveness of RIM-

PRO by conducting experiments and realistic case

studies in companies, as well as improving RIMPRO

by using quantitative risk analysis without infringing

agile manifesto.

ACKNOWLEDGEMENTS

Thanks to God for everything, as well as Con-

selho Nacional de Desenvolvimento Cient

ıﬁco

e Tecnol

ogico (CNPq) and Coordenac¸

ao de

Aperfeic¸oamento de Pessoal de N

ıvel Superior

(CAPES) for the ﬁnancial support.

REFERENCES

Alliance, A. (2017). Agile Practice Guide, volume 1. Buku-

pedia.

Alsaqaf, W., Daneva, M., and Wieringa, R. (2017). Ag-

ile quality requirements engineering challenges: First

results from a case study. In 2017 ACM/IEEE Interna-

tional Symposium on Empirical Software Engineering

and Measurement (ESEM), pages 454–459.

Andrat, H. and Jaswal, S. (2015). An alternative approach

for risk assessment in scrum. In 2015 International

Conference on Computing and Network Communica-

tions (CoCoNet), pages 535–539. IEEE.

Asghar, A. R., Tabassum, A., Bhatti, S. N., and Jadi, A. M.

(2017). Impact and challenges of requirements elicita-

tion & prioritization in quality to agile process: Scrum

as a case scenario. In 2017 International Conference

on Communication Technologies (ComTech), pages

50–55. IEEE.

Bista, R., Karki, S., and Dongol, D. (2017). A new approach

for software risk estimation. In 2017 11th Interna-

tional Conference on Software, Knowledge, Informa-

tion Management and Applications (SKIMA), pages

1–8.

Boone, H. N. and Boone, D. A. (2012). Analyzing likert

data. Journal of extension, 50(2):1–5.

Curcio, K., Navarro, T., Malucelli, A., and Reinehr, S.

(2018). Requirements engineering: A systematic

mapping study in agile software development. Jour-

nal of Systems and Software, 139:32–50.

Dalkey, N. and Helmer, O. (1963). An experimental ap-

plication of the delphi method to the use of experts.

Management science, 9(3):458–467.

de Godoi Contessoto, A., Sant’Ana, L. A., De Souza, R.

C. G., Val

encio, C. R., Doneg

a, G. F., Amorim, A. R.,

and Esteca, A. M. N. (2016). Improving risk identi-

ﬁcation process in project management. In Proceed-

ings of the International Conference on Software En-

gineering and Knowledge Engineering, SEKE, pages

555–558.

Dikert, K., Paasivaara, M., and Lassenius, C. (2016). Chal-

lenges and success factors for large-scale agile trans-

formations: A systematic literature review. Journal of

Systems and Software, 119:87–108.

Dingsøyr, T., Nerur, S., Balijepally, V., and Moe, N. (2012).

A decade of agile methodologies: Towards explaining

agile software development. Journal of Systems and

Software, 85(6):1213 – 1221.

Elghariani, K. and Kama, N. (2016). Review on agile re-

quirements engineering challenges. In 2016 3rd In-

ternational conference on computer and information

sciences (ICCOINS), pages 507–512. IEEE.

A Risk Management Framework for Scrum Projects

Faceli, K., Lorena, A. C., Gama, J., and Carvalho, A. C. P. d.

L. F. d. (2011). Intelig

encia artiﬁcial: uma abordagem

de aprendizado de m

aquina. LTC.

Fitriani, W. R., Rahayu, P., and Sensuse, D. I. (2016). Chal-

lenges in agile software development: A systematic

literature review. In 2016 International Conference on

Advanced Computer Science and Information Systems

(ICACSIS), pages 155–164. IEEE.

Gandomani, T. J. and Nafchi, M. Z. (2016). Agile transition

and adoption human-related challenges and issues: A

grounded theory approach. Computers in Human Be-

havior, 62:257–266.

Gold, B. and Vassell, C. (2015). Using risk management to

balance agile methods: A study of the scrum process.

In 2015 2nd International Conference on Knowledge-

Based Engineering and Innovation (KBEI), pages 49–

54. IEEE.

Gregoriades, A., Lesta, V. P., and Petrides, P. (2011).

Project risk management using event calculus (s). In

SEKE, pages 335–338.

Inayat, I., Salim, S. S., Marczak, S., Daneva, M., and

Shamshirband, S. (2015). A systematic literature re-

view on agile requirements engineering practices and

challenges. Computers in human behavior, 51:915–

929.

Janjua, U. I., Jaafar, J., and Lai, F. W. (2016). Expert’s

opinions on software project effective risk manage-

ment. In 2016 3rd International Conference on Com-

puter and Information Sciences (ICCOINS), pages

471–476. IEEE.

Khatri, S. K., Bahri, K., and Johri, P. (2014). Best prac-

tices for managing risk in adaptive agile process. In

Proceedings of 3rd International Conference on Reli-

ability, Infocom Technologies and Optimization, pages

1–5. IEEE.

Mendonc¸a, L. T., Esteca, A. M. N., De Souza, R. C. G., San-

tos, A. B., and Val

encio, C. R. (2014). A scrum sup-

port system integrated to a web project management

environment. In 29th International Conference on

Computers and Their Applications, pages 111–116.

Moran, A. (2014). Agile risk management. In Agile Risk

Management, pages 33–60. Springer.

Pasha, M., Qaiser, G., and Pasha, U. (2018). A critical anal-

ysis of software risk management techniques in large

scale systems. IEEE Access, 6:12412–12424.

PMI, editor (2017). A Guide to the Project Management

Body of Knowledge (PMBOK Guide). Project Man-

agement Institute, 6 edition.

Siqueira, D. L., Fontoura, L. M., Bordini, R. H., and

de Lima Silva, L.

A. (2017). A knowledge engi-

neering process for the development of argumentation

schemes for risk management in software projects. In

Proceedings of the 29th International Conference on

Software Engineering and Knowledge Engineering.

Sutherland, J. and Sutherland, J. (2014). Scrum: the art of

doing twice the work in half the time. Currency.

Tavares, B. G., da Silva, C. E. S., and de Souza, A. D.

(2019a). Practices to improve risk management in

agile projects. International Journal of Software En-

gineering and Knowledge Engineering, 29(03):381–

399.

Tavares, B. G., da Silva, C. E. S., and de Souza, A. D.

(2019b). Risk management analysis in scrum software

projects. International Transactions in Operational

Research, 26(5):1884–1905.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
