Collaborative Coding in a Robotic Visual Language

Farah Yasser Dawoud, Ahmed Adel and Nada Sharaf

Media Engineering and Technology, German University in Cairo, Third Settelment, Cairo, Egypt

Keywords:

Visual Programming, Google Blockly, Collaborative Programming, Real-time Collaboration, Lego

Mindstorms EV3 Programming, Block-based Programming.

Abstract:

This paper presents a platform, that is a block-based visual programming environment. Students can collab-

oratively interact using a ﬂexible and versatile deﬁnition of visual programming code and interface created

using Google Blockly, JavaScript, and Firebase. The web application is designed to allow students to program

the Lego Mindstorms EV3. An experiment was conducted to investigate the effect of real-time collaboration

on students working on the block-based visual programming web application.

1 INTRODUCTION

Visual programming along with robotic programming

have both been evolving rapidly and are proven to

have a positive impact on students. They allow them

to enhance problem-solving skills and develop differ-

ent solutions to the same problem. (Danahy et al.,

2014). Collaborative tools and technologies facili-

tate teamwork leading to better results, greater in-

novation, and higher productivity. After all, collab-

orative tools cannot be just conﬁned to better shar-

ing of knowledge; collaboration literally means work-

ing together, and collaborative tools can improve the

speed and effectiveness of people’s efforts. Some

popular examples of real-time collaborative tools are

Google docs, Google sheets, Google Slides, eRoom,

and SamePage. Some programming platforms also al-

low this such as CodeR (Kurniawan et al., 2015) and

Overleaf.

The world is going towards a technological revo-

lution, anything that saves time and effort would be

very much preferred and appreciated. Visual pro-

gramming has originally supported individual work

where only one person works on a program at a

time. However, based on previous studies, collabora-

tive coding has been proven to be more efﬁcient and

shows that students working collaboratively outper-

formed individual programmers (Nosek, 1998). To

the best of our knowledge, there exist no real-time

collaborative block-based platforms. The aim of the

work in this paper is to introduce a methodology

to enable real-time collaboration in block-based pro-

gramming settings. The methodology was applied

in a platform to control and simulate the Lego EV3

Robot.

This aim of the work to test the effect of col-

laborative coding on students by allowing some of

the participants to test the application collaboratively

through accomplishing a task and others are given the

same task to accomplish individually. Aspects includ-

ing user’s engagement, mental load, performance, ef-

fort, and frustration levels are analysed for both cases

through surveys to investigate the effect of working

collaboratively on students.

2 VISUAL PROGRAMMING

Visual Programming reduces the need to write lond

textual programs. Program thus have multiple dimen-

sions not only the text (Burnett and McIntyre, 1995).

The idea is that with visual constructs, it could have a

better learning curve and be more appealing.

For example, with a robotic visual programming

language, users can program the robot without writing

a textual code and without signiﬁcant knowledge of

any programming language. Examples include Make

Block

and Open Roberta

for programming differ-

ent hardware systems using blocks.

Visual programming languages have different sev-

eral classes including block-based, diagrammatic, and

iconic visual languages (Myers, 1990).

http://editor.makeblock.com/ide.html

https://lab.open-roberta.org/

Dawoud, F., Adel, A. and Sharaf, N.

Collaborative Coding in a Robotic Visual Language.

DOI: 10.5220/0010455501510156

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 1, pages 151-156

ISBN: 978-989-758-502-9

151

2.1 Block-based Programming

Block-based languages are a class of visual program-

ming languages where the code constrcuts are blocks

that should be connected to each other.

In this case, the programmer has to drag the

needed blocks and drop them in the editor and con-

nect them together shown in Figure 1. Blocks usually

contain visual hints that eliminate the possibility of

having wrong connections or programs.

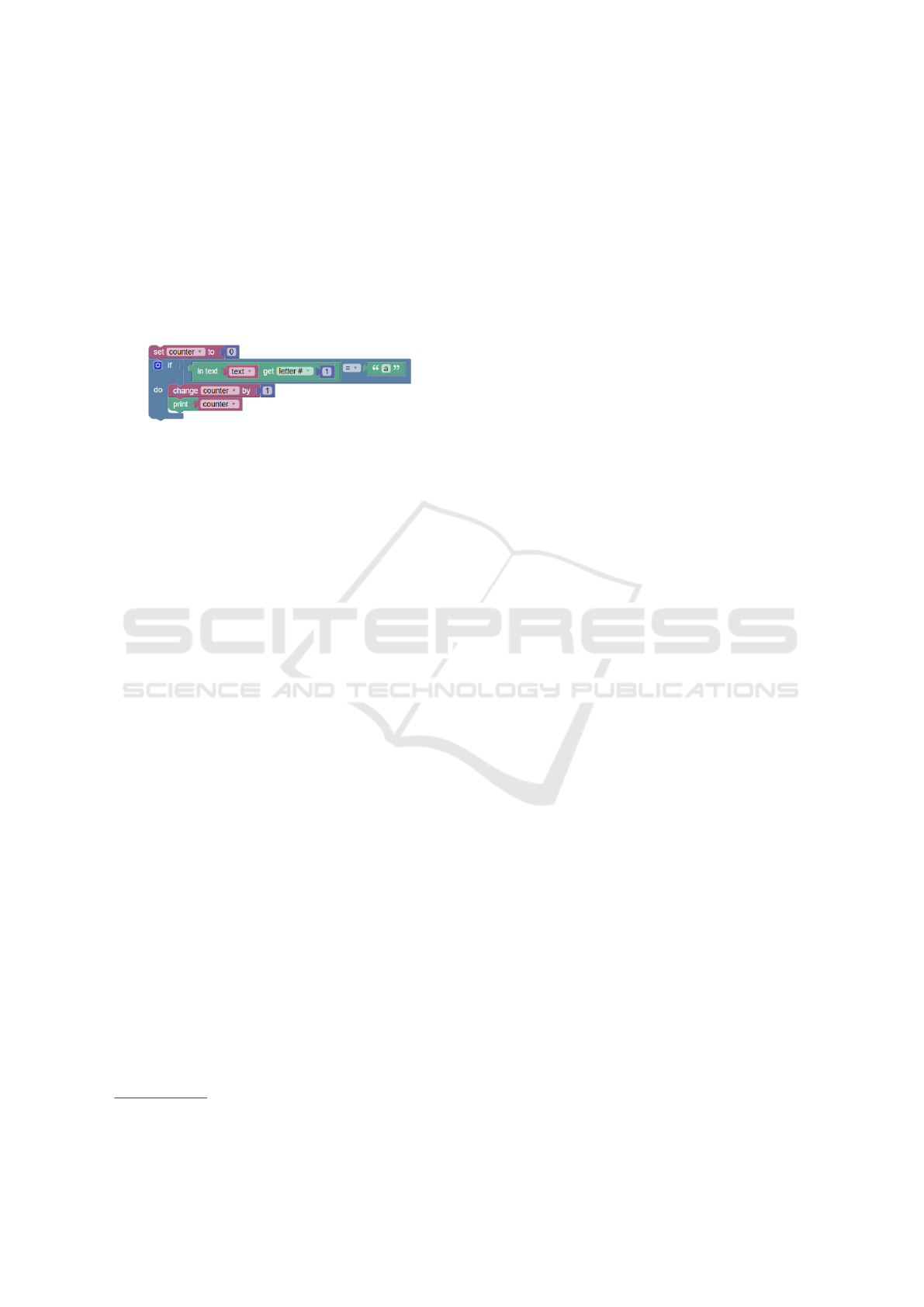

Figure 1: Block Based Program Example.

2.2 Google Blockly

In the search for the best visual editor, and after exper-

imenting with many Visual Programming Languages,

it was concluded that Google Blockly

was the most

preferable option. It offers the most suited ﬂexibility

to the need.

Users would consider Blockly as a fun way to

build programs. However, on the other side it pro-

vides developers with a means to build their own vi-

sual blocks and language.

Blockly also allows users to export their pro-

grams into well-known languages including Python

and Javascript.

Custom blocks were created to satisfy our appli-

cation’s needs and this was achieved through ’Block

Factory’ provided by Blockly as shown in Figure 2.

The custom blocks that our web application re-

quired were mainly the blocks responsible for con-

trolling and programming the Lego Mindstorm EV3

along with some other basic blocks. Lego Mind-

storm is a programmable robot based on Lego build-

ing blocks (Valk, 2014).

3 COLLABORATIVE

BLOCK-BASED

PROGRAMMING

While collaborative approaches have been shown to

be highly beneﬁcial, implementing real-time collab-

orative coding feature in the application is not a

straight-forward task and requires overcoming several

technical challenges.

https://blockly.games/

One challenge of a successful real-time collabo-

rative system is avoiding interference between users

by synchronizing workspace changes across all par-

ties. The application’s synchronization has to be re-

liable enough to guarantee constant user access, en-

sure the right order of applying edits from other users,

and avoiding code duplication so that there is constant

awareness of the state of the workspaces being edited.

Code integration and compilation while others might

still be editing source code as well are complicated by

the presence of collaborators which necessitates han-

dling syntax errors from edits made by other users.

These technical challenges have various solutions that

often force trade-offs between ease of implementation

and usability.

To be able to track changes of the user’s

workspace in our application, the following scheme

is followed:

1. Track and listen to the stream of events

2. Save them

3. Deliver and fetch by other parties

4. Apply them on other parties’ workspaces

3.1 Block Events

Editing code in real-time allows multiple program-

mers to do changes in the code. Such changes should

be automatically reﬂected for all programmers/col-

laborators with access to the workspace (Kurniawan

et al., 2015). In our application, these changes can

vary from being a deletion, creation, update of a

block, moving a block across the workspace (drag-

ging and releasing), and connecting it to other blocks

or even making a UI change for the arrangement of

blocks. All these changes should be tracked and ap-

plied to other parties and are all considered ‘events’.

Every change on the user’s workspace triggers a

certain event where these events fully describe the be-

fore and after state of each change. For example, the

MOVE event has properties that describe the type of

event, workspace ID, block ID, and old coordinates

(position) of the block and the new ones to determine

where it was moved.

But how do we listen to these events? Blockly

workspaces have an addChangeListener and

removeChangeListener methods that are used to

listen to the events stream. The event listener works

by taking a function (“func” in the example below)

as a parameter. This function is executed whenever

anything in the workspace changes (i.e whenever an

event is triggered).

addChangeListener(func)

CSEDU 2021 - 13th International Conference on Computer Supported Education

152

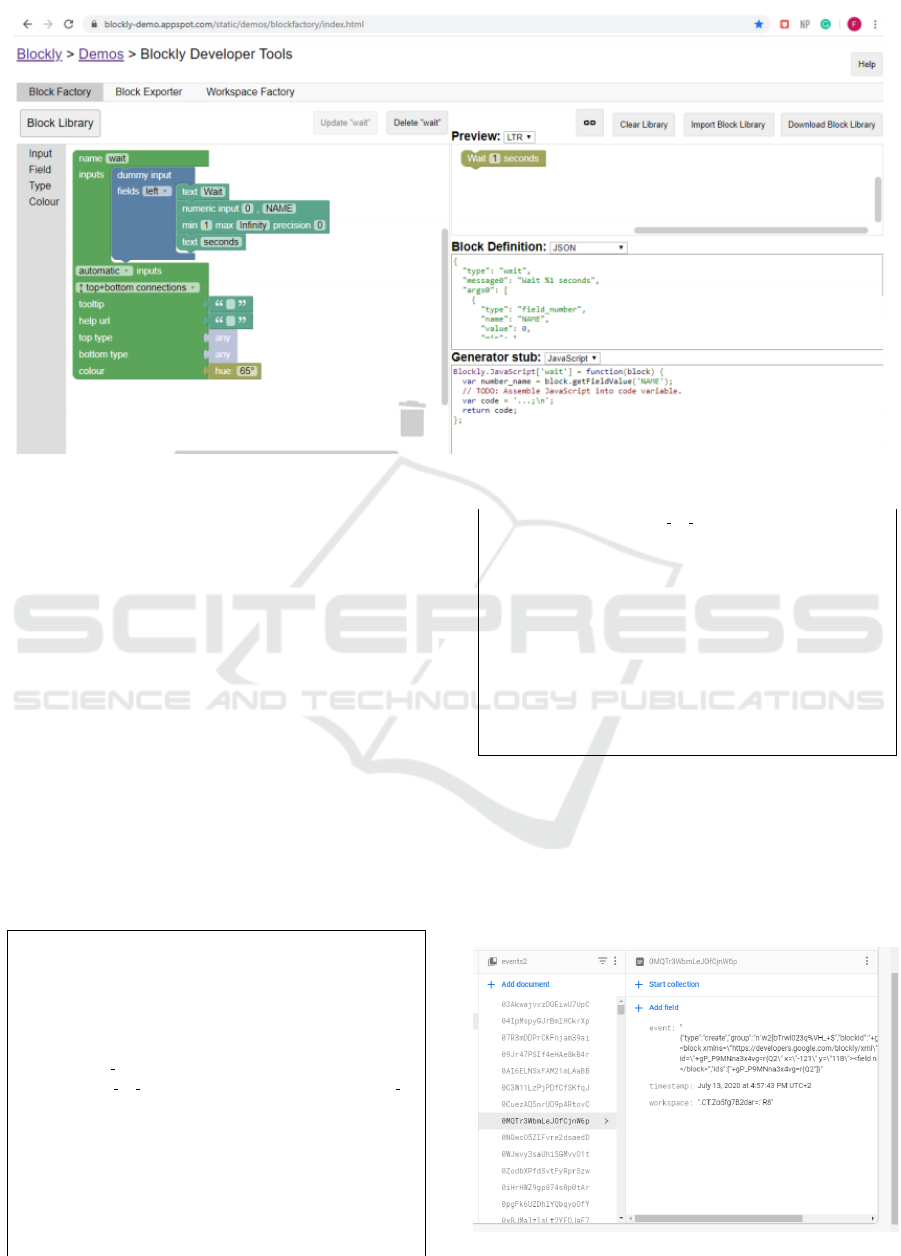

Figure 2: An example of a basic ‘wait’ custom block created by Blockly factory.

To be able to perform the remaining steps, there

has to be a connection and communication method

between users and their workspaces to allow real-time

data exchange which was achieved through Firebase.

3.2 Firebase

Firebase (Moroney, 2017) was used to implement the

real-time collaboration in the application. Firebase

provides Cloud Firestore that can store document-

structures data. In addition, it is able to synchro-

nize corresponding applications in case of any data

change. This consequently means that the application

is always listening to the database.

To continue with the Four main steps mentioned

above, the code below shows the Listener method and

the instructions that need to execute when a change is

detected.

f u n c t i o n l i s t e n e r ( c h a n ge ) {

l e t wo rk sp ac e = B l o c k l y . g e tM a in W or k spa ce ( ) ;

/ / c o n v e r t i n g t h e e v e n t t o j s o n t h e n S t r i n g

l e t c h a n g e j s = cha ng e . t o J s o n ( ) ;

l e t c h a n g e j s s t r i n g = JSON . s t r i n g i f y ( c h a n g e j s ) ;

/ / a d d i ng t h e e v e n t

/ / t o t h e d a t a b a s e a s a s t r i n g

var number2 = S t r i n g ( number ) ;

f i r e b a s e . f i r e s t o r e ( )

. c o l l e c t i o n ( ’ e v e n t s ’ + number2 ) . a d d ( {

wo rk sp ac e : wo rk sp ac e . i d ,

e v e n t : c h a n g e j s s t r i n g ,

t i m e s t a m p : f i r e b a s e . f i r e s t o r e .

F i e l d V a l u e . s e r v e r T i m e s t a m p ( )

})

/ / u p d a t i n g t h e co d e o f t h e w ho l e

/ / w or ks pa ce and s e n d i n g i t t o s i m u l a t i o n

var cod e = B l o c k l y . J a v a S c r i p t .

works p a c eT oC od e ( w or ks pa ce ) ;

l o c a l S t o r a g e . s e t I t e m ( ” cod e ” , c o de ) ;

}

We start by saving the event to the database.

The event or change is initially of type ‘Blockly

event’. The Blockly event is ﬁrst converted to JSON

(JavaScript Object Notation), which is a minimal,

readable format for structuring data. The JSON ob-

ject is then converted to a String. Figure 3 shows the

example document in Firestore collection.

Figure 3: Example event document in Firestore collection.

Collaborative Coding in a Robotic Visual Language

153

Once the event is triggered by any of the users,

it is ﬁred automatically by the listener function to be

saved in the Events collection in Firestore. This en-

sures achieving step 1 and 2 (Listening to the stream

of events and Saving events). However, the applica-

tion needs to make sure that all workspaces are syn-

chronized with the required state of awareness.

3.2.1 Real-time Updates

This section discusses the etailed steps to achieve

the required synchronization. As shown in the re-

altimeEvents() function below, we need to fetch

the document, convert the event ﬁeld from String

to JSON then back to a Blockly event. This

event can then be applied to other workspaces using

blockly event.run(true) command. Cloud Firestore

was used for to keep the data synchronized accross

the client applications through the realtime listeners.

The onSnapshot() method is executed whenever

there is a change in the data.

To explain the process with an example, if two

users are working collaboratively and user1 created a

block, the event is detected by Blockly’s event listener

and is saved to Firestore by adding a new document

of the new event to the Events collection. A docu-

ment has been added to the collection and a change

is now detected by the realtime updates, thus the on-

Snapshot() function is subsequently executed and the

event is now applied to other users.

f u n c t i o n r e a l t i m e E v e n t s ( ) {

l e t m a i n Wo rk s pa ce = B l o c k l y . g e tM a in W or k spa ce ( ) ;

f i r e b a s e . f i r e s t o r e ( )

. c o l l e c t i o n ( ’ e v e n t s ’ + S t r i n g ( number ) )

. o rd e r B y ( ” t i m e s t a m p ” , ” as c ” )

. o n Sn a ps h ot ( f u n c t i o n ( q u e r y S n a p s h o t ) {

q u e r y S n a p s h o t . d ocCh ange s ( )

. f o r E a c h ( f u n c t i o n ( ch a ng e ) {

l e t wo rk sp ac e = c h a n ge . doc . d a t a ( ) . w o rk sp ac e ;

i f ( wo rk sp ac e !== ma i nW o rk sp a ce . i d ) {

B l o c k l y . E v e n t s . d i s a b l e ( )

l e t e v e n t = JSON . p a r s e ( c h a n ge . doc . d a t a ( ) . e v e n t ) ;

c o n s t b l o c k l y e v e n t = B l o c k l y . E v e n t s .

f r o m J s on ( e v en t , ma i n Wo r ks pa c e )

t r y {

b l o c k l y e v e n t . r u n ( t r u e ) ;

} c a t c h ( e r r o r ) { c o n s o l e . l o g ( e r r o r ) ; }

B l o c k l y . E v e n t s . e n a b l e ( )

} } ) } )}

4 EXPERIMENTAL DESIGN

This section describes in more details the experi-

ment,its design and results. The main purpose was

to test the effect of real-time collaboration. In other

words, the aim was to test whether it enhances the

process, makes it easier, faster, more efﬁcient, more

interesting with a less mental demand or not.

4.1 Participants

The experiment was conducted on 10 participants, 7

males and 3 females. Their ages ranged from 9 to

14. All of the participants were children who have

previous knowledge and were familiar with block-

based programming applications such as Scratch, or

have previously been programming the EV3 using the

Lego Mindstorms EV3 Home edition. None of them

had a history of any health problem.

4.2 Procedure

All of the participants had their experiment on the

same conditions and surroundings to be able to eval-

uate correctly only for the effect of one aspect that is

collaboration. They were all given the same set of al-

gorithm to solve written in pseudo-code in which they

are required to implement using our block-based ap-

plication. Some of them were asked to perform the

task completely on their own (individually). Others,

on the other hand, were asked to ﬁnish the task to-

gether using the real-time collaboration feature. The

participants were then asked to ﬁll a post-experiment

survey with their feedback and experience. The sur-

vey is divided into three parts; System Usability

Scale (SUS) (Brooke, 1996), User Engagement Sur-

vey (Pearce et al., 2005; O’Brien et al., 2018; O’Brien

and Toms, 2010), and NASA Task Load Index (TLX)

workload survey (Hart and Staveland, 1988).

4.3 Statistical Results

Data collected from the post-experience questionnaire

of all participants were analysed to calculate the re-

sults.

Starting with the ﬁrst section of the survey, the

System usability score provides a useful measure for

the usability of a product (Bangor et al., 2008). Final

scores for the SUS range from 0 to 100. Higher scores

indicate better usabilities.

The mean SUS score of all participants was calcu-

lated to be 89.25.

The total workload scores were analysed as well.

Final scores for the Nasa TLX workload survey can

CSEDU 2021 - 13th International Conference on Computer Supported Education

154

range from 0 to 100. In this case, a higher score in-

dicates s higher workload on the student while per-

forming the task (Colle and Reid, 1998). The average

Workload score of students who worked individually

was 33.75 while the average of those who used the

real-time collaboration feature was 9.4 as illustrated

in Table 1.

Table 1: Mean overall workload on students with respect to

their group.

Group Mean overall workload

Collaborative 9.4

Individually 33.8

Results for four different aspects; performance

level, effort level, mental demand, and frustration

level were analysed for each participant. Mean scores

are shown in Table 2 according to their group and ﬁnal

scores can range from 0 to 10.

Table 2: Mean scores of Performance, Frustration, Effort,

and Mental Demand on students with respect to their group.

Dimension Group Mean score

Performance Level Collaborative 10.00

Performance Level Individually 9.00

Frustration Level Collaborative 1.67

Frustration Level Individually 4.00

Effort Level Collaborative 2.67

Effort Level Individually 6.50

Mental Demand Collaborative 1.17

Mental Demand Individually 4.25

Data collected was also analysed to calculate the

results of the User Engagement Scale (UES). The

UES is a measure of the engagement or depth of in-

vestmenent. (O’Brien and Toms, 2010). UES-SF

which is a Short form of the UES was used in the

post-experiment survey. The ﬁnal UES score can have

values ranging from 0 to 5. The mean UES score for

each group is shown in Table 3.

Table 3: Mean UES Score with respect to the students’

group.

Group Mean UES Score

Collaborative 4.3

Individually 2.9

4.3.1 Correlation

There is a signiﬁcant negative correlation between

students working collaboratively and the mental de-

mand on them while performing a task with Spear-

man’s correlation coefﬁcient of -0.913, Kendall’s tau

coefﬁcient of -0.840, and Pearson’s coefﬁcient of -

0.930.

There is a signiﬁcant negative correlation be-

tween collaborative work and effort done in the task

with Spearman’s correlation coefﬁcient of -0.799,

Kendall’s tau coefﬁcient of -0.719, and Pearson’s co-

efﬁcient of -0.757.

There is a signiﬁcant positive correlation be-

tween collaborative work and performance level in

accomplishing the task with Spearman’s correlation

coefﬁcient of 0.612, Kendall’s tau coefﬁcient of

0.612, and Pearson’s coefﬁcient of 0.612 as well.

There is a signiﬁcant negative correlation be-

tween collaborative work and frustration level in ac-

complishing the task with Spearman’s correlation co-

efﬁcient of -0.761, Kendall’s tau coefﬁcient of -0.722,

and Pearson’s coefﬁcient of -0.764.

There is a signiﬁcant negative correlation be-

tween collaborative work and total workload on par-

ticipants while accomplishing the task with Spear-

man’s correlation coefﬁcient of -0.853, Kendall’s tau

coefﬁcient of -0.730, and Pearson’s coefﬁcient of -

0.891.

There is no signiﬁcant correlation between col-

laboration and system usability. Spearman’s correla-

tion coefﬁcient is 0.434, Kendall’s tau coefﬁcient of

0.387, and Pearson’s coefﬁcient of 0.5.

There is a signiﬁcant positive correlation be-

tween collaborative work and user engagement while

accomplishing the task with Spearman’s correlation

coefﬁcient of 0.775, Kendall’s tau coefﬁcient of

0.705, and Pearson’s coefﬁcient of 0.747.

Table 4 shows a summary table for all factors with

Spearman’s, Kendall’s, and Pearson’s correlation co-

efﬁcient values along with the p-value (signiﬁcance

value) of Pearson’s correlation.

5 CONCLUSIONS AND FUTURE

WORK

This study was performed to investigate the effect of

real-time collaborative programming on the process

by investigating several aspects including effort, per-

formance, engagement, and mental workload. An ex-

periment was conducted on a representative sample

of 10 normal children (7 males and 3 females) who

Collaborative Coding in a Robotic Visual Language

155

Table 4: Correlation coefﬁcient and signiﬁcance values for all factors.

Factor Spearman’s Kendall’s Pearson’s p-value Signiﬁcant correlation

User Engagement 0.775** 0.705* 0.747** .006 YES

System Usability 0.434 0.387 0.500 .042 NO

Total Workload -0.853** -0.730** -0.891** .000 YES

Performance Level 0.612* 0.612* 0.612* .030 YES

Frustration Level -0.761** -0.722* -0.764** .005 YES

Effort Level -0.799** -0.719** -0.757** .006 YES

Mental Demand -0.913** -0.840** -0.930** .000 YES

**. Correlation is signiﬁcant at the 0.01 level

*. Correlation is signiﬁcant at the 0.05 level

are familiar with block-based visual programming ap-

plications. They were given a task to accomplish

in a set time interval. Results showed users work-

ing collaboratively expressed higher levels of conﬁ-

dence about their work, engagement to the task, less

levels of frustration, mental demand, and total work-

load, and higher performance level while accomplish-

ing the task than programmers who worked and per-

formed the task alone. This was concluded by calcu-

lating the SUS, NASA TLX workload, and engage-

ment scores then calculating the correlation and re-

gression.

In the future, working on a larger sample size

would help in getting more reliable and accurate re-

sults. It would be better to a large number of par-

ticipants for each age and gender. In addition, mak-

ing sure all participants have approximately the same

years of experience in using block-based applications.

REFERENCES

Bangor, A., Kortum, P. T., and Miller, J. T. (2008). An

empirical evaluation of the system usability scale. Intl.

Journal of Human–Computer Interaction, 24(6):574–

594.

Brooke, J. (1996). Sus: a “quick and dirty’usability. Us-

ability evaluation in industry, 189.

Burnett, M. M. and McIntyre, D. W. (1995). Visual pro-

gramming. COMPUTER-LOS ALAMITOS-, 28:14–

14.

Colle, H. A. and Reid, G. B. (1998). Context effects in

subjective mental workload ratings. Human factors,

40(4):591–600.

Danahy, E., Wang, E., Brockman, J., Carberry, A., Shapiro,

B., and Rogers, C. B. (2014). Lego-based robotics

in higher education: 15 years of student creativity.

International Journal of Advanced Robotic Systems,

11(2):27.

Hart, S. G. and Staveland, L. E. (1988). Development of

nasa-tlx (task load index): Results of empirical and

theoretical research. In Advances in psychology, vol-

ume 52, pages 139–183. Elsevier.

Kurniawan, A., Soesanto, C., and Wijaya, J. E. C. (2015).

Coder: Real-time code editor application for collab-

orative programming. Procedia Computer Science,

59:510–519.

Moroney, L. (2017). The ﬁrebase realtime database. In The

Deﬁnitive Guide to Firebase, pages 51–71. Springer.

Myers, B. A. (1990). Taxonomies of visual programming

and program visualization. Journal of Visual Lan-

guages & Computing, 1(1):97–123.

Nosek, J. T. (1998). The case for collaborative program-

ming. Communications of the ACM, 41(3):105–108.

O’Brien, H. L., Cairns, P., and Hall, M. (2018). A practi-

cal approach to measuring user engagement with the

reﬁned user engagement scale (ues) and new ues short

form. International Journal of Human-Computer

Studies, 112:28–39.

O’Brien, H. L. and Toms, E. G. (2010). The development

and evaluation of a survey to measure user engage-

ment. Journal of the American Society for Information

Science and Technology, 61(1):50–69.

Pearce, J. M., Ainley, M., and Howard, S. (2005). The ebb

and ﬂow of online learning. Computers in human be-

havior, 21(5):745–771.

Valk, L. (2014). Lego mindstorms Ev3 Discovery Book: A

beginner’s guide to building and programming robots.

No Starch Press.

CSEDU 2021 - 13th International Conference on Computer Supported Education

156
