Global Reward Design for Cooperative Agents to Achieve Flexible

Production Control under Real-time Constraints

Sebastian Pol

, Schirin Baer

, Danielle Turner

, Vladimir Samsonov

and Tobias Meisen

Siemens AG, Digital Industries, Nuremberg, Germany

Institute of Information Management in Mechanical Engineering, RWTH Aachen University, Aachen, Germany

Institute of Technologies and Management of the Digital Transformation, University of Wuppertal, Wuppertal, Germany

vladimir.samsonov@ima.rwth-aachen.de, meisen@uni-wuppertal.de

Keywords:

Cooperative Agents, Deep Reinforcement Learning, Flexible Manufacturing System, Global Optimization,

Job Shop Scheduling, Reactive Scheduling, Reward Design.

Abstract:

In ﬂexible manufacturing, efﬁcient production requires reactive control. We present a solution for solving

practical and ﬂexible job shop scheduling problems, focusing on minimizing total makespan while dealing

with many product variants and unseen production scenarios. In our system, each product is controlled by an

independent reinforcement learning agent for resource allocation and transportation. A signiﬁcant challenge

in multi-agent solutions is collaboration between agents for a common optimization objective. We implement

and compare two global reward designs enabling cooperation between the agents during production. Namely,

we use dense local rewards augmented with global reward factors, and a sparse global reward design. The

agents are trained on randomized product combinations. We validate the results using unseen scheduling

scenarios to evaluate generalization. Our goal is not to outperform existing domain-speciﬁc heuristics for total

makespan, but to generate comparably good schedules with the advantage of being able to instantaneously

react to unforeseen events. While the implemented reward designs show very promising results, the dense

reward design performs slightly better while the sparse reward design is much more intuitive to implement. We

benchmark our results against simulated annealing based on total makespan and computation time, showing

that we achieve comparable results with reactive behavior.

1 INTRODUCTION

In today’s ﬂexible manufacturing, reactive production

control is a key component for efﬁcient production. It

is necessary to deal with increasing levels of uncer-

tainty introduced by the dynamic nature of complex

manufacturing setups and self-planning technologies.

Therefore it becomes vital to respond to unforeseen

events such as machine failures and demand ﬂuctu-

ations with low decision-making latency while en-

suring the minimum negative impact on the produc-

tion as a whole. Every adjustment in planning has to

consider common objectives accomplished by all en-

tities in the system, such as minimization of the to-

tal production makespan, low inventory levels, and

high schedule adherence. This allows us to deﬁne

three main requirements for scheduling systems de-

ployed in ﬂexible manufacturing: (1) fulﬁlling global

scheduling optimization goals, (2) fast reaction to un-

foreseen events, and (3) dealing with a large number

of product variants. It should be mentioned that most

heuristics solving the Job Shop Scheduling Problem

(JSSP) cannot cope with the named requirements, as

they are neither reactive during production, nor to new

products without adaptation. Therefore we concen-

trate on enabling reactive scheduling for ﬂexible man-

ufacturing while ensuring results which are compara-

ble to the performance of common heuristics with low

computation times. To fulﬁll those requirements we

propose a Reinforcement Learning (RL) system capa-

ble of solving practical and ﬂexible JSSPs. Designing

a Multi-Agent RL (MARL) scheduling solution for

all three tasks goes far beyond the classical JSSP and

has barely been studied within the past years. For this,

we adapt the approach of (Baer et al., 2020b) where

production and transportation of each product is con-

trolled by a separate RL agent. This work concen-

trates on achieving an improved fulﬁllment of com-

mon optimization objectives as formulated in the ﬁrst

requirement by improving cooperation between the

Pol, S., Baer, S., Turner, D., Samsonov, V. and Meisen, T.

Global Reward Design for Cooperative Agents to Achieve Flexible Production Control under Real-time Constraints.

DOI: 10.5220/0010455805150526

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 515-526

ISBN: 978-989-758-509-8

515

RL agents involved in planning. The second require-

ment is covered by the fact that each RL agent needs

only one forward-pass of the trained neural network

for the next decision. This allows our solution to react

to unforeseen situations with a very low computation

time during the production process. Furthermore, we

consider a large number of product variants to fulﬁll

the third requirement.

Our approach to the ﬂexible JSSP is to distribute

the problem to decentralized decision-makers, which

is advantageous in terms of scaling the concept to

large manufacturing systems. As each agent has a

local view of the state of the Markov Decision Pro-

cess (MDP), the state size complexity does not grow

exponentially with an increasing number of products.

However, the downside of this approach is that coop-

eration between the agents is not given out of the box.

Therefore, the goal of this paper is to enable coopera-

tive behavior using our proposed reward designs.

This work is relevant to complex scheduling prob-

lems that can be decentralized and assigned to agents

interpreting situations, anticipating other agents’ be-

havior, and cooperating accordingly to fulﬁll a com-

mon goal. The paper is structured as follows: We re-

view related work on traditional and modern schedul-

ing approaches and on how cooperative agent be-

havior is commonly implemented in Section 2. We

brieﬂy describe the formalization of the ﬂexible JSSP

as an MDP, as well as the training strategy in Section

3. Section 4 describes the two reward designs that we

implement to achieve a cooperative agent behavior,

followed by the experiments and results in Sections 5

and 6. The work is concluded with a summary of the

results in Section 7.

2 RELATED WORK

The JSSP has been well studied in operations research

in order to solve the difﬁcult combinatorial optimiza-

tion problem, ﬁrst using explicit programming meth-

ods and later using heuristics and priority rules that

are used to determine the best sequence of jobs on

machines (Garey et al., 1976). Instead of using lin-

ear integer programming to search for the optimal

schedule (Manne, 1960), heuristics such as branch

and bound procedures were developed to search for

a good, but non-optimal solution for the JSSP in a

more efﬁcient way (Berrada and Stecke, 1986). These

approaches still involve computation times of several

minutes, which is acceptable for ofﬂine planning, but

insufﬁcient when reactive scheduling should be ap-

plied. To solve the ﬂexible JSSP in a reactive way

during production, we simplify the problem by divid-

ing it into sub-problems. These are solved by local

entities that decide on their partial view of the sys-

tem and control products to the resources. Bring-

ing these decisions together, we expect the resulting

schedule to be a viable solution, even if not an opti-

mal one. We therefore model the environment as a

Decentralized Partially Observable Markov Decision

Process (DEC-POMDP) (Bernstein et al., 2002) en-

tailing the aspect of cooperation needed between the

agents, which has been well studied in the past, for

example by (Panait and Luke, 2005), (Gupta et al.,

2017) and (De Hauwere et al., 2010).

Agents need to communicate to solve a common

problem, for example by communicating action inten-

tions or informing others of their current state by shar-

ing immediate sensor information. Direct communi-

cation through learning a communication protocol, as

in (Foerster et al., 2016) and (Sukhbaatar et al., 2016)

can be used to achieve cooperative behavior, as well

as indirect communication with indirect transfer of in-

formation by modifying the environment (Panait and

Luke, 2005). We chose indirect communication to en-

sure that the problem complexity was not increased

by requiring the agents to ﬁrst learn to communicate

before learning to solve the desired problem.

(Gabel and Riedmiller, 2007) presents a reactive

solution, where decentralized agents learn a dispatch-

ing policy that is aligned with the local optimization

goal. Independently learning agents are also exam-

ined in (Cs

aji and Monostori, 2004), where reactive

scheduling is performed by a market-based produc-

tion control system with contracts and bidding be-

tween the agents. In addition, both approaches con-

sider the requirements of being reactive and fulﬁll a

global objective, but cannot easily be scaled to a large

number of various products manufactured on differ-

ent machines. The approach of (Waschneck et al.,

2018) involves multiple neural networks that control

different workcenters and choose lots for the prod-

ucts. Training takes place in two phases for local

and global optimization using the deviation from the

due-dates of products as rewards. While these mod-

ern concepts consider the ﬂexible JSSP with practi-

cal requirements such as due-dates, varying process-

ing times, and different lot sizes, transportation times

are neglected as well as unplanned events. In addi-

tion to considering the minimum total makespan as a

global objective, (Roesch et al., 2019) also consid-

ers energy consumption. Their reactive production

scheduling approach involves a two-fold reward func-

tion, forcing the agents to act jointly. Very similar to

the approach of (Baer et al., 2020b), which we use as

a baseline, is (Kuhnle et al., 2020), where RL agents

include transportation decisions as well as resource

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

516

dispatching, which is rarely found. Inspired by these

approaches, we attempt to achieve a global optimiza-

tion by implementing a state design that shares nec-

essary information between the agents (see Section 3)

as well as a global reward design that motivates the

agents to collaborate (see Section 4).

3 MARL APPROACH

This paper builds upon the approach discussed in

(Baer et al., 2020b), utilizing Deep Q-Networks

(DQN) (Mnih et al., 2013) to guide products through

a ﬂexible manufacturing system. This approach con-

siders a production system in which individual ma-

chines can be docked to and undocked from a central

transportation system. This introduces the complex-

ity of a ﬂexible environment, whereby the machines

in use, and additionally their available resources, can

be changed at any time. The assumption is also made

that the products manufactured within this system are

lot-size one and a single ﬁxed stack of orders, which

may be prioritized beforehand, is considered at a time.

A solution in which all possible products are consid-

ered is thus unreasonable, especially due to the fact

that new machines with additional production meth-

ods can be added. In order to create a solution that

can handle the ﬂexibility of the chosen system without

high engineering requirements, a self-learning MARL

approach is chosen, discussed further in this section.

3.1 Concept

In order to solve the ﬂexible JSSP, each product

is assigned to a separate RL agent, which makes

ﬁne-grained decisions regarding the movement of the

given product through the production system and as-

signs the products to various machines for the re-

quired operations. A job speciﬁcation describes the

possible machines for each of the operations, and the

relevant information for optimization. In this case,

this information is a normalized integer value rep-

resenting the processing time required for the given

machine to complete the operation. Each operation

within the job speciﬁcation follows the format:

[[M

, T

], [M

, T

], ..., [M

, T

]] (1)

where M

represents the ith machine able to perform

the nth operation, and T

represents the time required

to complete this operation on this machine. In the

considered use case each job speciﬁcation includes

four consecutive operations, each having two possi-

ble machines on which the operation can be processed

with different processing times.

In addition to the relevant job speciﬁcation, the

agents also receive information regarding the produc-

tion environment as a part of the state space. This in-

formation includes the agent’s position and locations

of all other active agents within the system, the ma-

chine topology describing the position of machines in

relation to the central transport system, and sections

of the job speciﬁcations assigned to other agents. By

designing the agent’s state space in such a way that it

contains sufﬁcient information about the other agents,

it enables indirect communication by observing each

other. This ultimately allows the agents to coordinate

more effectively.

The manufacturing system is described using a

Petri net, which shows all possible decision points

and transitions, allowing us to deﬁne the location of

the agents and the topology of the system using inte-

ger values. For the chosen manufacturing system, this

consists of 6 machines and 12 decision points due to

the circular plant topology. We enhanced the concept

of (Baer et al., 2020a) by adding transitions to the

places representing machines, meaning that agents

can choose to stay in the machine for consecutive op-

erations. This leads to a total of 24 transitions, which

correspond to the 24 actions for the agent to choose. It

should be noted that not all decisions are valid at each

location. Invalid decisions can arise early in training,

for instance selecting a transition that is not possible

from the current location, selecting a machine that is

currently unavailable, or selecting a machine that is

unable to complete the current operation. Therefore,

the agent must ﬁrst learn the valid transitions in each

position given the state information, then learn which

machines are valid, and ﬁnally focus on creating an

optimal schedule. We furthermore include transporta-

tion times between the decision points in the discrete

simulation and in reward calculation. This forces the

agents to take transportation into account when mak-

ing decisions, similar to (Kuhnle et al., 2020).

Currently, our implementation only involves three

agents in the system simultaneously. Therefore, the

location of all agents and a section of their job speci-

ﬁcations in the form of a lookahead can be considered

in the agents’ state. However, should more agents be

present, it is not reasonable for the state to contain all

possible information. In order to ensure that the state

size does not grow exponentially with the number of

agents, it is possible to consider only the most rele-

vant agents, for instance, selected by distance or the

similarity of the next operations.

The MARL approach chosen for this solution is

that of DQN, due to its widespread success for prob-

lems with highly complex state spaces and its sim-

ple implementation. Furthermore, it has been shown

Global Reward Design for Cooperative Agents to Achieve Flexible Production Control under Real-time Constraints

517

to achieve good results for the considered problem

by (Baer et al., 2020b) in their past work. Three

agents controlling three products are deployed simul-

taneously in the deﬁned ﬂexible manufacturing sys-

tem. A deep neural network is trained to approximate

the Q-function using the aforementioned state s as an

input. The network then infers which action a should

be taken given the information within the state, cho-

sen using a greedy policy. Having chosen an action,

the agent has a new state s

and is given a reward r

based on the choice made. The appropriate design

of this reward is imperative to the performance of the

network. In the baseline implementation, a dense lo-

cal reward is used, in which the agents are given pos-

itive or negative rewards based solely on their own

performance (Baer et al., 2020b). These rewards can

be described using the following:

R(s, a, s

) =











−0.1 valid steps

2 + (−0.1 × T ) valid machines

−1 invalid steps

−0.8 invalid machines

(2)

where T is the time required to process an opera-

tion on the selected machine. The value of T usu-

ally ranges from 1 to 9 and represents the normalized

processing time. When the agent has to wait for the

module to become available, the value of T can be

higher. Steps refer to transportation steps on the cen-

tral transportation system or waiting time in front of

a module, and a valid machine refers to one which is

both available and able to complete the required oper-

ation.

3.2 Training Strategy

The training takes place in an episodic setting, where

every episode starts with a ﬁxed number of three

agents controlling three different products and ﬁn-

ishes when all agents complete their job speciﬁca-

tion or are removed due to an invalid transition. The

agents act using a deterministic, epsilon-greedy pol-

icy. A single neural network instance, and there-

fore single policy, is shared by all three agents. This

simpliﬁes training the agents in the MARL set-up

because we avoid unstable behavior and the need

to freeze and unfreeze the networks sequentially as

demonstrated in (Waschneck et al., 2018). As pro-

posed in (Mnih et al., 2013), we use a replay memory

buffer that stores experience tuples hs, a, r, s

i of each

agent in a shared data structure. The policy of the

agents is updated after every epoch (256 episodes) us-

ing a random batch of experiences.

In the training strategy, we also deﬁne how new

job speciﬁcations are provided to the agents during

the training. We create a training set of 600 ran-

domly generated job speciﬁcations, from which we

randomly sample three job speciﬁcations for the three

deployed agents upon each change. The job speciﬁca-

tion frequency, which determines how often the sam-

pled job speciﬁcations are changed, is set to a value

of 5 epochs following a parameter test. This means

that during 4,000 epochs, for example, 800 different

combinations of job speciﬁcations from the training

set are presented to the agents. This allows the agents

to generalize the job speciﬁcations seen during train-

ing and also be able to schedule unseen jobs.

4 RL AGENT COOPERATION

4.1 Cooperation Requirements

The work of (Baer et al., 2020b) does not consider co-

operative behavior to achieve a global optimum. They

use dense local rewards in which each agent’s per-

formance is assessed solely on its individual behav-

ior. Therefore, the agents do not have any rational

incentive to collaborate, which leads to the develop-

ment of greedy behaviors. Section 4.1 highlights the

importance of cooperative behavior in achieving the

minimum total makespan with a multi-agent schedul-

ing solution. In scenario A, the agent controlling

Job 1 behaves in a non-cooperative way, selecting the

fastest machines for itself. By doing so, both other

agents are required to wait, as they do not have alter-

native machines available. In scenario B, the agent in-

stead behaves cooperatively, choosing a machine with

a longer processing time, and therefore degrading its

own performance, in order to allow other agents to

continue production.

4.2 Concept

As in RL, the agent’s behavior is exclusively deter-

mined by the reward function, changing the agent’s

behavior to be more cooperative in order to achieve a

global optimization goal involves adapting the reward

scheme. To enable collaboration, a global reward

is required, which is distributed equally among the

agents. However, with the growing complexity of the

environment, it becomes increasingly difﬁcult for in-

dividual learners to derive sufﬁcient feedback tailored

to their own speciﬁc actions from the global reward.

This is commonly known as the credit assignment

problem. Therefore, the ﬁrst approach investigated

in this chapter is to train the agents in two phases.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

518

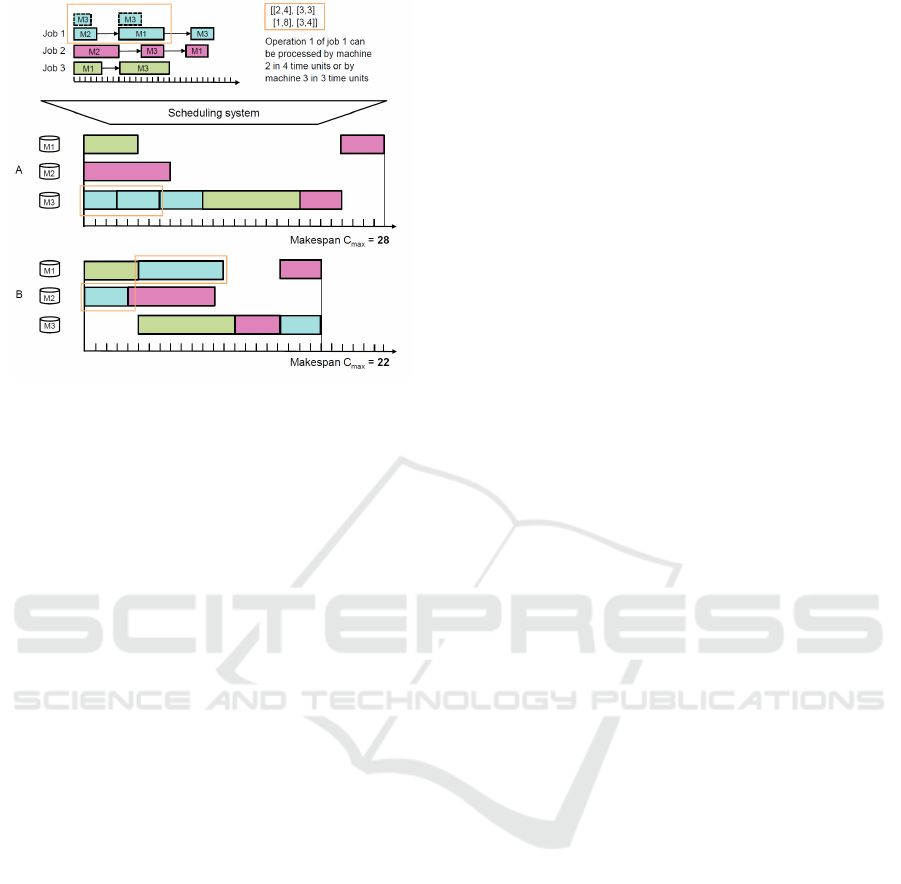

Figure 1: A comparison of two possible schedules demon-

strating the beneﬁt of cooperative behavior between agents.

Three jobs colored in blue, red and green with three consec-

utive operations should be assigned to three machines. Job 1

(blue) has two options for operations one and two with dif-

ferent processing times (orange rectangle). In schedule A,

the faster options are chosen leading to a sub-optimal over-

all schedule. In schedule B, the slower options are chosen

for Job 1, allowing other agents to perform their operations

sooner, achieving a schedule that is 6 time units faster.

The ﬁrst phase utilizes dense local rewards from (Baer

et al., 2020b) to ensure fast learning and simpliﬁed

credit assignment. Following this, the second phase

involves re-training with the local rewards augmented

by a global reward factor (see Section 4.3). The sec-

ond approach involves using a sparse global reward

during training, i.e. all agents receive a single reward

signal at the end of an episode (see Section 4.4). To

facilitate learning from a single reward signal, eligi-

bility traces (Sutton and Barto, 2012) are used instead

of experience replay.

We expect that the global reward approaches in

combination with the state design described in Sec-

tion 3.1 should enable the agents to learn when co-

operative actions might be necessary. As the state in-

cludes information not only about the product of the

agent but also about the products handled by other

agents, this should allow an agent to anticipate the ac-

tions of other agents to some extent and to adjust its

own actions for better cooperation.

4.3 Dense Reward Design

For the dense reward approach, the training is sep-

arated into two phases: “training” and “re-training”.

During the ﬁrst training phase, only dense local re-

wards are used, as in (Baer et al., 2020b). In this

phase, the agents are supposed to learn a fundamental

behavior policy involving the understanding of which

actions are valid at which position as well as how

to interpret the job speciﬁcation input, recognizing

which machines can be entered to process each op-

eration. Furthermore, the agents begin to learn to

achieve a local optimization, i.e. to minimize their

local makespan. During the re-training phase, the lo-

cal rewards are augmented by multiplying them with

a global reward factor that is calculated based on the

total makespan. This global reward factor adjusts the

dense rewards to a value that is either slightly larger,

in the event of a good total makespan, or slightly

smaller, in the event of a bad total makespan. This

is supposed to ﬁne-tune the agents’ behavior with re-

spect to the global optimization goal.

Calculating a global reward is only viable when

all agents ﬁnish their jobs correctly and the total

makespan is known. During the ﬁrst training phase,

the agents learn to recognize valid actions through un-

derstanding the job speciﬁcation and the ﬂexible pro-

duction system. Therefore, during re-training most

exploitative actions are ensured to be valid. In addi-

tion, it is implemented that the agents can only choose

exploratory actions that are valid given their current

location. In case an agent still chooses an invalid ac-

tion (through exploitation) and the episode is not com-

pleted, no global reward is calculated for the episode.

As the global reward is determined at the end of

the episode, the initial local rewards calculated dur-

ing the episode are changed retroactively in the re-

play memory. For this, the initial local rewards are

boosted by multiplying them with the global reward

factor calculated after the episode. Negative values

are not boosted with the global reward factor to avoid

excessive discouragement of exploration.

For determining the size of the global reward fac-

tor, it must be evaluated whether or not the generated

schedule is good with respect to the global optimiza-

tion goal, i.e. if the total makespan is close to the

optimum. However, during training, an optimal to-

tal makespan is not known, as an optimal schedule

cannot be calculated ad hoc (at least not for arbitrary

cases). Therefore, the optimal total makespan cannot

be used as a reference to calculate the global reward

factor. Furthermore, as we select a new random com-

bination of job speciﬁcations every n epochs (from

a ﬁxed data set), it would be unreasonable to have

all necessary optimal schedules computed beforehand

and stored in a data set in which each job speciﬁcation

combination is labeled by the optimal total makespan.

Whilst in the chosen use case such an approach could

be possible, the computation time may become pro-

hibitive in larger problem instances.

Therefore, to determine the global reward, an es-

Global Reward Design for Cooperative Agents to Achieve Flexible Production Control under Real-time Constraints

519

timated upper and lower bound is calculated in which

the total makespan of the schedule is most likely to be

found depending on the three job speciﬁcations used

in a certain episode of the training. In the ﬁrst step,

an upper and lower bound is calculated for each job

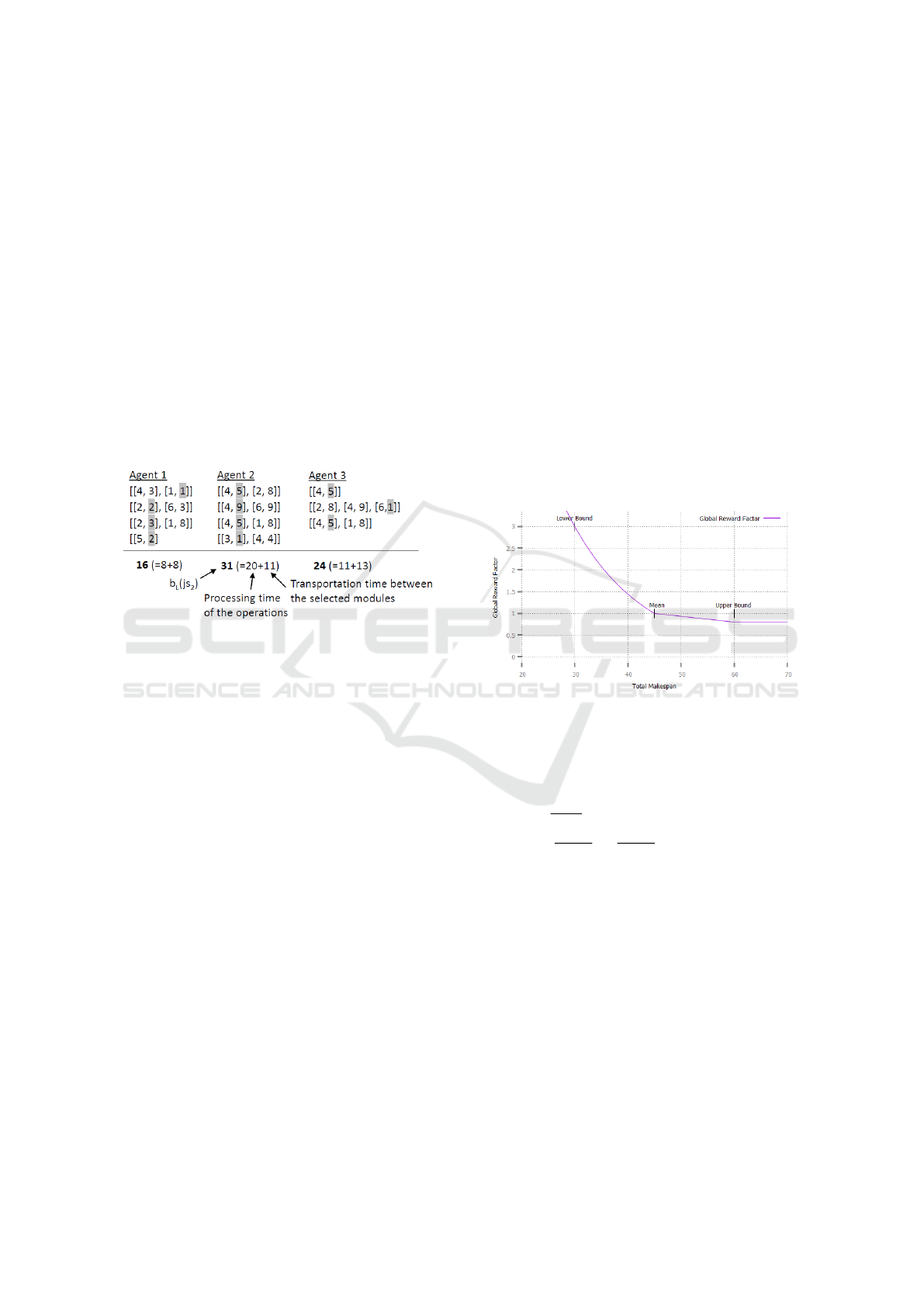

speciﬁcation individually. Figure 2 shows an example

of how the lower bound is calculated for three differ-

ent job speciﬁcations. As can be seen, the processing

time of each operation is added, assuming that each

time the machine with the lowest processing time is

selected. In addition, the transportation time between

the different machines is also calculated and added.

The transportation time is determined based on the

plant topology. The upper bound for each job spec-

iﬁcation is calculated in the same way with the only

difference being that, for each operation, the machine

with the highest processing time is selected.

Figure 2: Demonstration of the calculation of the lower

bound for three given job speciﬁcations.

After calculating the individual bounds for each job

speciﬁcation, the global bounds are calculated using

= max(b

( js

), b

( js

), b

( js

)) ∗ c

+ c

= max(b

( js

), b

( js

), b

( js

)) ∗ c

+ c

(3)

where js

is equal to the job speciﬁcation for agent i,

and b

are the global lower and upper bounds,

and b

are the local lower and upper bounds of

each job respectively. The maximum lower bound is

selected as the global lower bound and the maximum

upper bound is selected as the global upper bound.

This is because all three agents together can only ﬁn-

ish as quickly as the slowest agent.

It should be noted that these bounds are only an es-

timate and the actual makespan could be above or be-

low these thresholds. This is because when choosing

the best/worst machine for each operation neither the

transportation times are taken into account, nor is it

considered that agents may have to wait for resources.

To account for this, the empirical constants c

, ..., c

are introduced. Through an analysis of the generated

total makespans for a number of experiments during

training with respect to the calculated bounds, suit-

able values for the constants are determined to be

= 1, c

= c

= 0, c

= 1.1. This means that only

the upper bound is increased by ten percent which

seems reasonable to account for the agents blocking

resources for each other.

To ﬁnally calculate the global reward factor after

an episode given the global upper and lower bounds

of the job speciﬁcations used, various functions were

tested in advance. Figure 3 shows the function which

is used for the experiments in this paper, for an ex-

ample global lower bound of 30 and global upper

bound of 60. The label “Mean” indicates the mean

value between the two bounds. If the agents’ behav-

ior leads to a total makespan lower than the mean,

they receive a global reward factor higher than 1, in-

creasing the local rewards through multiplication. If

the total makespan is higher than the mean, the global

reward factor is lower than 1 decreasing the local re-

wards. However, the global reward decreases the local

reward by a maximum factor of 0.8.

Figure 3: Plot of the function which is used to map the total

makespan to a global reward factor given the global upper

and lower bound.

Formally, the global reward function R

glo

(t) is deﬁned

as:

glo











m−t

m−b

if t ≤ m

−

0.2

−m

t +

0.2m

−m

+ 1 if m < t ≤ b

0.8 if t > b

(4)

with b

and b

being the global upper and lower

bound for the job speciﬁcations, m being the mean

value, and t being the total makespan.

Determining this function required several itera-

tions of ﬁne-tuning. While it initially seemed reason-

able to penalize the agents for schedules below the

mean with a global reward factor between 0 and 1,

this led to poor results. As the total makespan is of-

ten close to the upper bound during initial stages of

the training, the agent’s local reward for entering a

correct machine is almost completely eliminated due

to a global reward factor close to 0. As a result, in

some validation scenarios, the agents circled on the

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

520

conveyor belt without ever entering a machine as they

were discouraged by the low reward. Therefore, the

global reward function is adapted to never drop below

0.8. Furthermore, we also examined whether it pro-

vides any beneﬁt to set an upper limit to the global

reward factor, as high global rewards may lead to a

large variation in the Q-values during training, ulti-

mately aggravating learning. However, it was shown

that setting an upper limit is not necessary as the lower

bound is rarely exceeded during training.

4.4 Sparse Reward Design

In contrast to the dense reward design described in

the previous section, we also explore the approach

of training the agents using a sparse global reward

in which all agents receive a common reward sig-

nal at the end of the episode depending on the total

makespan. Furthermore, the training is not separated

into two phases. Instead, the agents are trained us-

ing the sparse global reward right from the beginning.

While sparse rewards are usually much more intuitive

from the modeling standpoint, they might aggravate

learning in complex tasks. With regard to the exam-

ined scheduling domain, the agents might have trou-

ble learning a functioning policy if they are not ex-

plicitly rewarded for reaching subgoals such as pro-

cessing an operation by entering a correct machine.

Nevertheless, sparse rewards are commonly used in

many domains and often demonstrate remarkable re-

sults.

As no local rewards exist, the agents can only

learn from the sparse global reward. The sparse global

reward in turn requires all agents to ﬁnish their prod-

ucts correctly so that the total makespan is known.

Therefore it must be ensured from the beginning of

training that the agents can only choose valid actions.

For this, we apply Q-value masking similar to (Kool

et al., 2019) and (Bello et al., 2017). In Q-value mask-

ing, the action space of the agent is masked so that the

agent can only choose between valid actions. During

exploration one of the valid actions is selected ran-

domly and during exploitation the valid action with

the highest Q-value is selected. If an invalid action

has a higher Q-value, it is disregarded.

To keep the experiments between the two reward

designs as comparable as possible, the sparse global

reward is deﬁned to resemble the previously used

dense local reward design (see eq. (2)). As the agents

received a local reward of +2 for entering a valid ma-

chine minus a penalty of −0.1 for every time step

spent in the machine (waiting or processing) as well

as a reward of −0.1 for every time step on the con-

veyor belt, and each job comprises four operations,

the sparse global reward is calculated as:

sparse

= 8 − (total makespan ∗ 0.1). (5)

To facilitate learning from a sparse reward signal,

we use eligibility traces (Sutton and Barto, 2012).

In comparison to regular Q-learning, in which the

action-value function is updated considering only the

state at time step t and the state at t + 1, eligibility

traces also take past states into account by extending

what has been learned at t + 1 also to previous states.

This accelerates learning as the action-value of the

ﬁrst action in the episode is also affected by the up-

date of the last action-value, in which the only reward

is received. As eligibility traces require the process-

ing of the experiences in the same order as they occur

during an episode, experience replay cannot be used.

Therefore, we save entire trajectories of the agents in

a buffer. When an epoch is completed, all saved tra-

jectories are processed in sequential order while per-

forming the corresponding Q-value updates using eli-

gibility traces.

5 EXPERIMENTS

To ﬁnd out whether the (re-)training with global re-

wards provides any beneﬁts concerning a global op-

timization compared to training only with local re-

wards, several experiments are conducted. The hyper-

parameters that are used are mainly based on results

of the hyperparameter study conducted in (Baer et al.,

2020b). For the following experiments, the agents are

trained for 4,000 epochs. In the case of the dense re-

ward strategy, the epochs are split equally among the

two training phases, which means that the last 2,000

epochs are used for re-training with global rewards.

The Q-network comprises two (fully-connected) hid-

den layers with 128 and 64 nodes respectively, along-

side the input layer with 522 nodes and the output

layer with 24 nodes. The hidden layers use ReLU

activations while the output layer uses linear activa-

tion. Furthermore, we use a discount rate (gamma) of

0.95, a learning rate of 0.0001, and stochastic learn-

ing when performing the network updates. The re-

play memory size of each agent is 4,096 leading to a

common replay memory of 12,276. During each ex-

perience replay, we sample 8,192 experiences for up-

dating the Q-network. The training set contains 600

job speciﬁcations which are sampled in random order.

Every ﬁfth epoch of training, the job speciﬁcations are

changed.

For the experiment using a sparse global reward,

we start with an epsilon value of 0.99 and decrease

the value over time using an epsilon decay of 0.9992.

Global Reward Design for Cooperative Agents to Achieve Flexible Production Control under Real-time Constraints

521

This leads to an exponential decrease with epsilon

reaching its deﬁned minimum value of 0.05 after

around 90% of the training. For the experiment using

dense rewards, the epsilon development is adjusted to

account for the two training phases. The training also

starts with an epsilon value of 0.99. However, we use

an epsilon decay of 0.9984 so that the minimum of

0.05 is already reached after around 1,850 epochs.

Before the re-training starts after 2,000 epochs, the

epsilon value is reset to 0.9. This allows the agents to

explore again and adjust their behavior according to

the changed reward function during re-training.

For evaluating the experiments, we use ten scenar-

ios, in each of which three unseen products must be

scheduled by the agents. The validation set is con-

sistent across all experiments. We compare the per-

formance of the two global reward designs with the

baseline performance of (Baer et al., 2020b) using

local rewards only. To further benchmark our sys-

tem, we also compare the results with common search

and optimization algorithms using the Python pack-

age mlrose (Hayes, 2019). Namely, the algorithms

“hill climb”, “genetic algorithm” and “simulated an-

nealing” are tested (Russell and Norvig, 2009). As

simulated annealing consistently performed the best

among all optimization algorithms tested, we only ad-

dress those results in Section 6.

As our scheduling task is a discrete-state opti-

mization problem, we apply the aforementioned algo-

rithms of mlrose to the corresponding problem class

(mlrose.DiscreteOpt). In addition, we deﬁne a custom

ﬁtness function (mlrose.CustomFitness) which corre-

sponds to the total makespan of a schedule. The opti-

mization algorithms try to ﬁnd a suitable array of re-

source allocations that minimizes the deﬁned ﬁtness

function. The array deﬁnes which operation of which

job should be processed by which machine. Since the

jobs in each validation scenario have four operations,

the array contains 12 values. Each value is ranged

between 1 and 6, as there are six machines available,

leading to 6

possible different states. The custom

ﬁtness function calculates the total makespan for a

given state. It considers the transportation time be-

tween the machines using a distance matrix as well as

resource blockades so that the results are comparable

to the RL system. For invalid states, i.e. states that do

not fulﬁll the job speciﬁcations, additional penalties

to the ﬁtness function lead to a return value higher

than the total makespan of any valid schedule. Pa-

rameters deﬁning the maximum number of iterations

or the maximum number of attempts of the algorithms

are set to values that lead to a run-time of around 15

minutes on a modern server CPU. It was shown that

higher numbers of iterations do not lead to better re-

sults in most cases.

6 RESULTS

6.1 Global Optimization

Table 1 shows a comprehensive analysis of the exper-

iments. Each row in the table corresponds to one of

the validation scenarios in which three unseen jobs

are scheduled. The values indicate the total makespan

achieved for each scenario. Furthermore, the valida-

tion is done with the network weights after 2,000 and

4,000 epochs of training. In the case of training with

dense rewards, this is necessary to ﬁnd out whether re-

training with global rewards had a positive effect on

the agents’ behavior concerning the total makespan.

Furthermore, to rule out that any improvement is due

to the additional 2,000 epochs of training and not to

the global reward design, the table also shows the re-

sults after re-training with local rewards only.

The four columns on the left of Table 1 show

the results of the dense reward approach. As can

be seen in the ﬁrst two columns, the continued train-

ing with dense local rewards did not lead to any im-

provement. The policy marginally changed during

re-training leading to some validation scenarios be-

ing scheduled slightly better and some slightly worse.

However, the average total makespan for the valida-

tion scenarios overall stayed the same. The third col-

umn shows the results after re-training with the dense

local rewards being boosted by a global reward fac-

tor. Analyzing the average total makespan shows a

signiﬁcant improvement of around 10% compared to

the baseline. In three validation scenarios, the total

makespan became slightly worse, in one scenario it

stayed the same, and in six of the validation scenar-

ios, the total makespan was improved by up to 25%.

This conﬁrms the effectiveness of including a global

reward component during re-training with respect to

achieving a smaller total makespan.

The middle section of Table 1 shows the results of

using a sparse global reward. It can be seen that af-

ter training for 4,000 epochs, a similar performance is

achieved for the validation scenarios compared to the

dense global reward variant. As in this case, the train-

ing is not separated into two phases, the validation

after 2,000 and 4,000 epochs does not demonstrate

the beneﬁt of re-training with a global reward compo-

nent, but simply shows the progress after additional

training.

Although the usage of a sparse global reward did

not lead to an improvement over the dense reward de-

sign, it is still remarkable how well the agents are able

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

522

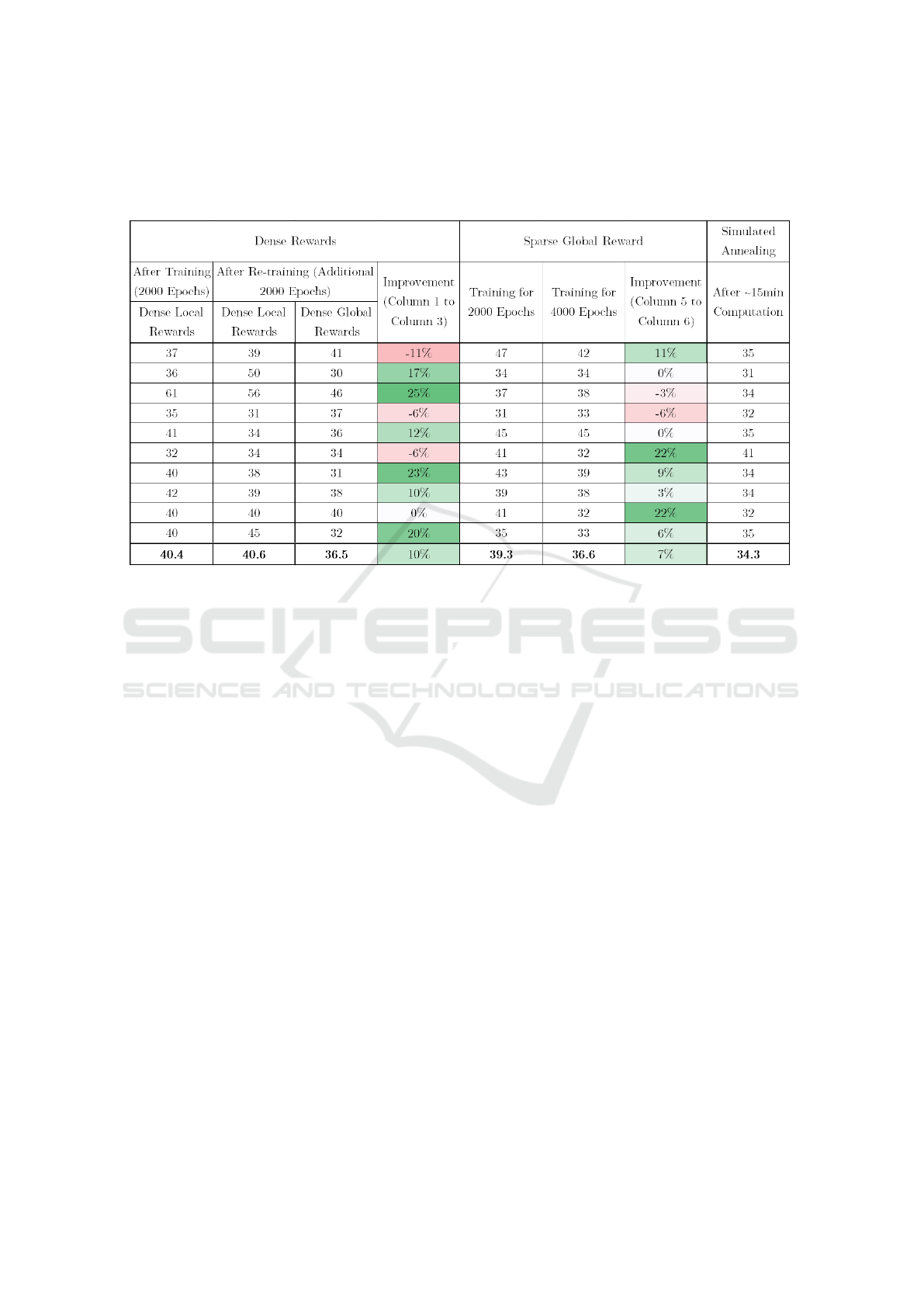

Table 1: Comprehensive analysis of the agents’ performance with respect to the total makespan after being (re-)trained using

the described global reward variants. Both implemented global reward designs led to a signiﬁcant improvement compared to

the baseline using local rewards only. The comparison with simulated annealing shows that there is still room for improve-

ment.

to learn from a single reward signal at the end of the

episode. This is an important realization, as imple-

menting the sparse reward design required much less

effort compared to the dense reward design. The im-

plementation of functioning dense local rewards and

the augmentation of these rewards with elaborately

calculated global reward factors required much more

engineering effort and ﬁne-tuning than the sparse re-

ward design. The fact that the sparse reward is calcu-

lated solely based on the total makespan and does not

require the comparison to any hypothetical bounds (as

done in the dense reward design) makes the imple-

mentation much easier and more universally applica-

ble.

To rule out the possibility that the good perfor-

mance of the sparse reward design is coming from

the use of Q-value masking and not from the re-

ward design itself, a number of experiments with the

dense reward design are repeated while also using Q-

value masking. The results have demonstrated a clear

drop in performance when Q-value masking is en-

abled. This conﬁrms that making invalid actions dur-

ing training and receiving an instant negative reward

for it substantially helps the agents to learn. Train-

ing schemes involving the sparse global reward with-

out Q-value masking, on the contrary, hardly allow

the agents to learn at the initial training stage as very

few episodes are completed successfully without the

agents making invalid actions. Therefore, while Q-

value masking remains an important part of the train-

ing process involving the sparse global reward, it can

be seen as a necessary but insufﬁcient condition for

good results.

The comparison to simulated annealing is shown

in the rightmost column of Table 1. The average to-

tal makespan for the tested scheduling scenarios us-

ing simulated annealing is slightly better compared

to the performance achieved by the RL system after

being trained with one of the global reward variants.

However, it can also be seen that in some of the val-

idation scenarios, the total makespan of the schedule

generated by the RL system is even better than the

one found by simulated annealing. While this com-

parison shows that there is still room for improve-

ment regarding the total makespan, the performance

of the RL system is already very promising and suit-

able for practical application. Furthermore, it should

be stressed that the RL system is designed to be used

for online scheduling, meaning that the focus lies less

on optimality but more on reactivity and real-time

decision-making. The RL system has the advantage

of being able to react instantly to changes during pro-

duction as each new decision only requires a single

forward pass of the trained network. For example,

if an additional manufacturing skill is activated on a

machine during production, the agent would receive

this information through a changed job speciﬁcation.

The agent sees in its job speciﬁcation lookahead for

Global Reward Design for Cooperative Agents to Achieve Flexible Production Control under Real-time Constraints

523

its next operation which machines are available and

can act accordingly. Using an ofﬂine scheduling ap-

proach (as demonstrated with simulated annealing), a

completely new scheduling plan would have to be cal-

culated if a slight change occurs during production.

This would require several minutes, leading to idle

time in the production, and, therefore, would not be

suitable for reactive production control fulﬁlling the

given requirements.

Regarding the tested validation scenarios, simu-

lated annealing achieved about equal performance to

the RL system after around ﬁve minutes of compu-

tation and converged after around 15 minutes to the

results displayed in the table. The RL system on the

contrary requires much less time and can react in real-

time, as only a few inferences of the (small) trained

network are required.

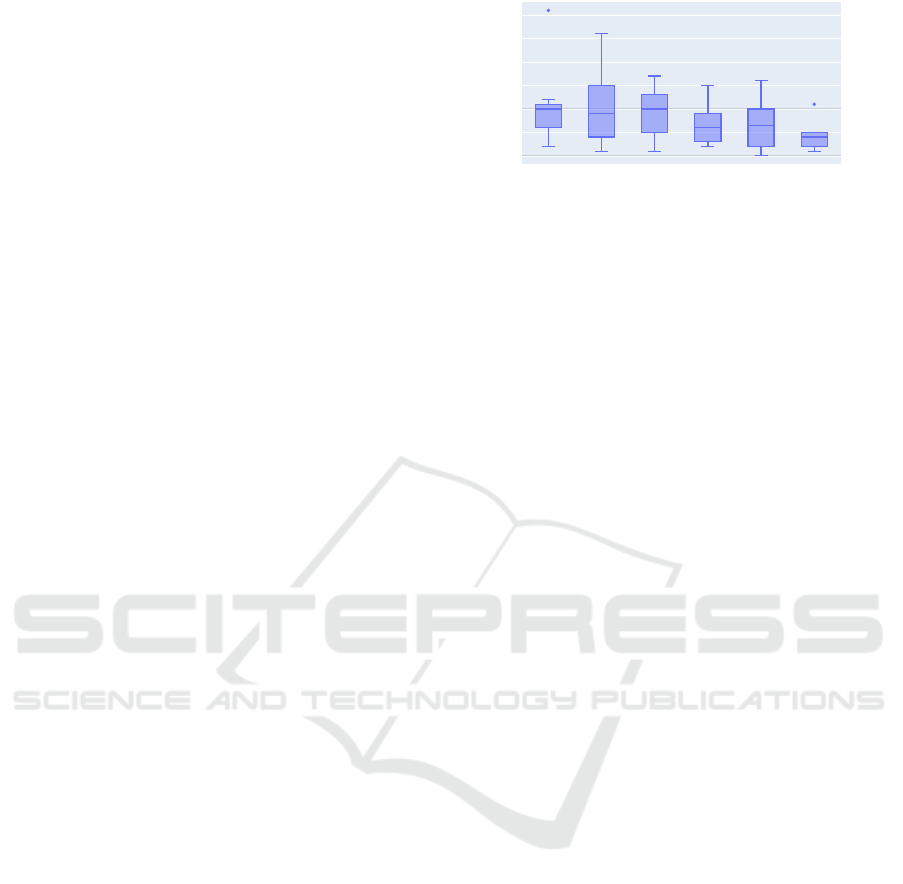

Figure 4 summarizes the experimental results. By

looking at the spread and median makespan values

achieved by the trained agents on the set of valida-

tion scenarios it can be derived which reward designs

facilitate the learning of good scheduling heuristics.

The lower the median value and spread of the ob-

served makespan values are, the better the schedul-

ing heuristic learned by the agent. Dense local re-

wards provide the agents with a rich signal enabling

fast learning during the ﬁrst 2,000 epochs. How-

ever, since no global minimization of the makespan

can be embedded into the local reward design, fur-

ther training for 2,000 epochs does not result in any

better performance. Sparse global rewards, on the

contrary, provide a learning signal directly tailored

to the minimization of the total makespan. Agents

trained with the sparse global reward do not show any

learning advantage over the dense local reward de-

sign during the ﬁrst 2,000 epochs. However, contin-

uing training for another 2,000 epochs signiﬁcantly

improves the learned behavior both in terms of the

makespan median values and the spread across the

different scheduling scenarios. However, the quality

of the learned behavior based only on the sparse re-

ward might quickly decay with scheduling tasks of

growing size. Longer planning horizons aggravate

the challenge of credit assignment to single good ac-

tions over long episodes. Agents jointly trained on

dense local rewards and global rewards can incorpo-

rate the best of both by using a rich learning signal

tailored to the global optimization goal. In our exper-

iments, agents trained on the combination of dense

local and global rewards achieve a comparable me-

dian makespan to the agents trained solely on a sparse

global reward. While surpassing all other reward ap-

proaches and simulated annealing by a good margin

in some of the scheduling instances, it has an overall

Local Rewards (2000 Epochs)

Local Rewards (4000 Epochs)

Sparse Global Rewards (2000 Epochs)

Sparse Global Rewards (4000 Epochs)

Local and Global Rewards (4000 Epochs)

Simulated Annealing

Solution Approach

Makespan

Figure 4: Comparative analysis of different RL training

strategies and simulated annealing.

higher variance compared to the agents trained with

the sparse global reward for 4,000 epochs. The per-

formance of simulated annealing is 6% better on av-

erage compared to the best RL agents at the cost of

considerably longer computation time.

6.2 Cooperative behavior

In the previous section, it has been shown that the

agents have managed to improve the total makespan

on the validation scenarios after being trained using

one of the global reward strategies. However, it is

unclear whether this improvement is achieved by the

agents collaborating or simply by each agent making

better decisions for itself. Therefore, the schedules

of the validation scenarios are analyzed to ﬁnd out

whether the agents have actually developed any ten-

dency toward cooperative behavior. For this, we use

the Gantt charts created during the evaluation of the

dense global reward design after 4,000 epochs, as this

had the best overall performance.

The analysis has shown that in some of the cases

with reduced total makespan after re-training, the im-

provement is achieved by the agents ﬁnding better in-

dividual schedules and do not necessarily involve co-

operation. However, this can be due to the fact that

some job speciﬁcation combinations used for vali-

dation simply did not have any conﬂicting schedul-

ing situations that require cooperation for achieving a

(near-)optimal total makespan. In other cases, the im-

provement could be attributed to cooperative actions

in which an agent degraded its individual performance

but improved the performance of other agents.

To further examine the cooperativeness, additional

validation scenarios are manually created with special

emphasis on job speciﬁcations that require collabora-

tion. The analysis of these schedules has conﬁrmed

that the agents do in fact cooperate in many cases

where necessary. Figure 5 shows one of these valida-

tion scenarios with the corresponding schedule before

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

524

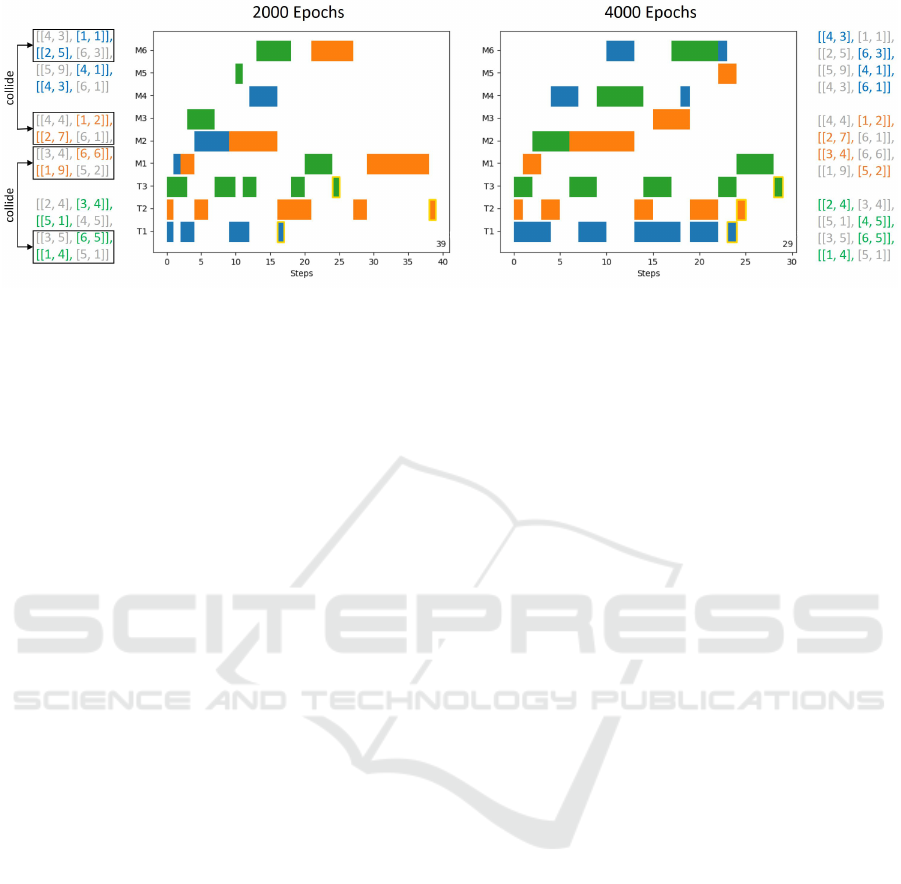

Figure 5: Comparison of two schedules with respect to the cooperativeness of the agents. After re-training (right), the agents

ﬁnd a schedule with a much lower total makespan. While the different agents often chose the same machine for processing

an operation after 2,000 epochs (left), they have learned after re-training to spread more equally across the different machine

options and, hence, avoid unnecessary waiting times.

and after re-training with the global reward. The job

speciﬁcations are designed so that the ﬁrst two opera-

tions of the ﬁrst and second job collide, as well as the

second two operations of the second and third job.

Figure 5 shows that the agents have learned dur-

ing re-training to choose a worse option if it allows

another agent to be faster and therefore improves the

overall total makespan. For example, after train-

ing with local rewards (2,000 epochs), both Agent 1

(blue) and Agent 2 (orange) choose M1 for the ﬁrst

operation and M2 for the second operation, causing an

unnecessary queue. However, after re-training, Agent

1 instead chooses M4 and M6, which is worse locally,

but allows Agent 2 to ﬁnish almost 15 time steps ear-

lier. Agent 3 (green) also chooses M2 for its ﬁrst op-

eration, although this causes a queue, as the overall

makespan is still better this way. Furthermore, for the

third and fourth operation, Agent 2 and Agent 3 ini-

tially both chose M6 and M1 respectively. However,

after re-training with global rewards, Agent 2 chooses

M3 and M5 to avoid collisions (although this is also

the better option locally for this case).

7 CONCLUSION

In this paper, we have presented two global reward

designs for enabling cooperative behavior between

multiple agents in a ﬂexible manufacturing system.

The proposed multi-agent system is capable of solv-

ing scheduling tasks with the global optimization goal

of minimizing the total makespan. The ﬁrst reward

design uses dense local rewards in an initial training

phase and augments the local rewards by a global re-

ward factor during a re-training phase. The second

approach uses a sparse global reward depending on

the achieved total makespan. To facilitate learning

from the sparse reward, eligibility traces and Q-value

masking are used.

Both global reward designs demonstrate signif-

icantly better results in terms of the achieved total

makespans compared to the baseline solution of (Baer

et al., 2020b) training with local rewards only. We

observe an improvement of 10% of the average to-

tal makespan by augmenting the dense local rewards

with a global reward factor. Comparable results are

achieved by the sparse global reward design while re-

quiring much less engineering effort. A detailed anal-

ysis of the Gantt charts generated for the validation

instances has also conﬁrmed the positive inﬂuence of

global rewards in regards to the cooperative behavior

of the agents. After being trained with local rewards,

it could be observed that the agents mostly act self-

ishly and fail to generate schedules with a low total

makespan. However, after using one of the proposed

global reward variants, the agents were shown to co-

operate in most cases by selecting actions with neg-

ative inﬂuence on their own local performance, but a

positive effect on the global optimization goal.

Among the tested non-learning-based heuristics,

simulated annealing delivers on average a 6% better

makespan after around 15 minutes of computation.

Equal performance to our RL system is achieved af-

ter 5 minutes. However, the RL system ﬁnds suit-

able schedules within seconds as each decision only

requires the inference of a small neural network. This

makes our solution particularly viable for applications

in ﬂexible and reactive scheduling.

Despite the promising results achieved in this pa-

per, the RL system still has some limitations that

should be addressed in the future for use in practi-

cal applications. For example, it would be interesting

to consider more than three products in the system

at the same time. This would further emphasize the

Global Reward Design for Cooperative Agents to Achieve Flexible Production Control under Real-time Constraints

525

necessity for cooperation and also require the selec-

tion of relevant information about the other agents for

the local state. In addition, it would be worthwhile to

allow products to enter the system dynamically over

time, which would require the re-deﬁnition of the op-

timization goal for training (e.g. using throughput in-

stead of makespan). Another direction of future work

would be to extend the system to be able to handle

open-shop scheduling problems, in which the opera-

tions of a job do not necessarily have to be processed

in a ﬁxed order. Furthermore, it should be investigated

how agents trained in the discrete simulation behave

in a real manufacturing system, which is much more

dynamic, and to which extent re-training of the net-

work is needed.

REFERENCES

Baer, S., Baer, F., Turner, D., Pol, S., and Meisen, T.

(2020a). Integration of a reactive scheduling solution

using reinforcement learning in a manfacturing sys-

tem. In Automation 2020, Bade-Baden, Germany.

Baer, S., Turner, D., Kumar Mohanty, P., Samsonov, V.,

Bakakeu, R. J., and Meisen, T. (2020b). Multi agent

deep q-network approach for online job shop schedul-

ing in ﬂexible manufacturing. In ICMSMM 2020: In-

ternational Conference on Manufacturing System and

Multiple Machines, Tokyo, Japan.

Bello, I., Pham, H., Le, Q. V., Norouzi, M., and Bengio, S.

(2017). Neural combinatorial optimization with rein-

forcement learning.

Bernstein, D., Givan, R., Immerman, N., and Zilberstein,

S. (2002). The complexity of decentralized control of

markov decision processes. Mathematics of Opera-

tions Research, 27.

Berrada, M. and Stecke, K. E. (1986). A branch and

bound approach for machine load balancing in ﬂex-

ible manufacturing systems. Management Science,

32(10):1316–1335.

aji, B. C. and Monostori, L. (2004). Adaptive algorithms

in distributed resource allocation. In Proceedings of

the 6th International Workshop on Emergent Synthesis

(IWES 2004), pages 69–75.

De Hauwere, Y.-M., Vrancx, P., and Nowe, A. (2010).

Learning multi-agent state space representations. In

Proceedings of the International Joint Conference on

Autonomous Agents and Multiagent Systems, AAMAS,

volume 2, pages 715–722.

Foerster, J., Assael, I. A., de Freitas, N., and White-

son, S. (2016). Learning to communicate with deep

multi-agent reinforcement learning. In Lee, D. D.,

Sugiyama, M., Luxburg, U. V., Guyon, I., and Garnett,

R., editors, Advances in Neural Information Process-

ing Systems 29, pages 2137–2145. Curran Associates,

Inc.

Gabel, T. and Riedmiller, M. (2007). Scaling adaptive

agent-based reactive job-shop scheduling to large-

scale problems. In 2007 IEEE Symposium on Com-

putational Intelligence in Scheduling, pages 259–266.

Garey, M. R., Johnson, D. S., and Sethi, R. (1976).

The complexity of ﬂowshop and jobshop scheduling.

Mathematics of operations research, 1(2):117–129.

Gupta, J. K., Egorov, M., and Kochenderfer, M. (2017).

Cooperative multi-agent control using deep reinforce-

ment learning. In Sukthankar, G. and Rodriguez-

Aguilar, J. A., editors, Autonomous Agents and Multi-

agent Systems, pages 66–83, Cham. Springer Interna-

tional Publishing.

Hayes, G. (2019). mlrose: Machine Learning, Random-

ized Optimization and SEarch package for Python.

https://github.com/gkhayes/mlrose.

Kool, W., van Hoof, H., and Welling, M. (2019). Attention,

learn to solve routing problems!

Kuhnle, A., Kaiser, J.-P., Theiß, F., Stricker, N., and Lanza,

G. (2020). Designing an adaptive production control

system using reinforcement learning. Journal of Intel-

ligent Manufacturing.

Manne, A. S. (1960). On the job-shop scheduling problem.

Operations Research, 8(2):219–223.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A.,

Antonoglou, I., Wierstra, D., and Riedmiller, M.

(2013). Playing atari with deep reinforcement learn-

ing.

Panait, L. and Luke, S. (2005). Cooperative multi-agent

learning: The state of the art. Autonomous Agents and

Multi-Agent Systems, 11(3):387–434.

Roesch, M., Linder, C., Bruckdorfer, C., Hohmann, A., and

Reinhart, G. (2019). Industrial load management us-

ing multi-agent reinforcement learning for reschedul-

ing. In Second International Conference on Artiﬁcial

Intelligence for Industries (AI4I), pages 99–102.

Russell, S. and Norvig, P. (2009). Artiﬁcial Intelligence:

A Modern Approach. Prentice Hall Press, USA, 3rd

edition.

Sukhbaatar, S., Szlam, A., and Fergus, R. (2016). Learning

multiagent communication with backpropagation. In

Lee, D. D., Sugiyama, M., Luxburg, U. V., Guyon, I.,

and Garnett, R., editors, Advances in Neural Informa-

tion Processing Systems 29, pages 2244–2252. Curran

Associates, Inc.

Sutton, R. S. and Barto, A. G. (2012). Reinforcement learn-

ing: An introduction. A Bradford book. The MIT

Press, Cambridge, Massachusetts.

Waschneck, B., Reichstaller, A., Belzner, L., Altenm

uller,

T., Bauernhansl, T., Knapp, A., and Kyek, A. (2018).

Deep reinforcement learning for semiconductor pro-

duction scheduling. In 2018 29th annual SEMI

advanced semiconductor manufacturing conference

(ASMC), pages 301–306. IEEE.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

526
