An Interface Design Catalog for Interactive Labeling Systems

Lucas Viana

1 a

, Edson Oliveira

2 b

and Tayana Conte

1 c

Department of Computing, Universidade Federal do Amazonas (UFAM), Amazonas, Brazil

Secretaria de Estado da Fazenda (SEFAZ), Amazonas, Brazil

Keywords:

Interactive Labeling, Interactive Machine Learning, Interface Design, Interface Design for Interactive

Machine Learning, Training Data.

Abstract:

Machine Learning (ML) systems have been widely used in recent years in different areas of human knowledge.

However, to achieve highly accurate ML systems, it is necessary to train the ML model with data carefully

labeled by specialists in the problem domain. In the context of ML and Human Computer Interaction (HCI),

there are studies that propose interfaces that facilitate interactive labeling by domain specialists, in order to

minimize effort and maximize productivity. This paper extends a previous secondary study that discusses

some labeling systems. This paper proposes a catalog of design elements for the interface development of

this type of system. We built the catalog based on the interface elements found in the studies analyzed in the

previous secondary study. With this contribution, we expect to improve the development of better interfaces

for interactive labeling systems and, thus, enhance the development of more accurate ML systems.

1 INTRODUCTION

Machine Learning (ML) technology has been suc-

cessfully applied to different problems from various

domains of human knowledge: from art to medicine

(Gillies et al., 2016). The advances obtained with the

use of this technology, have made considerable im-

pacts on our daily lives (Qiu et al., 2016; Rudin and

Wagstaff, 2014). As such, one of the examples is the

use of ML for the construction of textual summaries

about live events from the status updates of Twitter

users (Nichols et al., 2012).

The success of ML projects, however, hides the

considerable human work involved in the process of

its development (Fiebrink and Gillies, 2018). Devel-

opers of ML projects should design a solution consid-

ering what is possible to be trained, obtain the neces-

sary data and continuously adjust the learning algo-

rithms according to the errors presented, until an ac-

ceptable model for use in practice is achieved. Never-

theless, to obtain this data means to obtain a database

properly prepared for the ML development. Thus, it

is necessary that this database be representative and

accurate for the domain in question, and this is not al-

ways easy to obtain (Yimam et al., 2015; Benato et al.,

https://orcid.org/0000-0002-8154-0062

https://orcid.org/0000-0001-9168-4388

https://orcid.org/0000-0001-6436-3773

2018).

If it is not possible to obtain a database already

prepared for the problem to be solved with ML, the

only alternative is to prepare a new database, dur-

ing the ML development. To prepare this database,

it is necessary to involve specialists in the domain

in which ML is being applied. These specialists

will help by creating and labeling the data, as well

as correcting any errors found during this process.

The data labeling provides the transfer of knowledge

from the domain specialists to the ML model. How-

ever, data labeling is a costly, error-prone and labor-

intensive process that can frustrate specialists (Nadj

et al., 2020). In addition, if the specialist gets frus-

trated or tired, it can compromise the quality of the

data labeling.

Some studies (Thomaz and Breazeal, 2008; Bryan

and Mysore, 2013; Self et al., 2016; Nadj et al., 2020)

have investigated the use of interactive systems that

can enable and facilitate the data labeling, thereby

mitigating the frustration of specialists during this

process. Nadj et al. (2020) present a Systematic Lit-

erature Review (SLR) focusing on interactive labeling

systems, in which 44 papers were analyzed. As a re-

sult, the authors identiﬁed and discussed ﬁve design

principles for interactive labeling systems. They af-

ﬁrmed that the development and design of these inter-

active labeling systems require good visual User In-

Viana, L., Oliveira, E. and Conte, T.

An Interface Design Catalog for Interactive Labeling Systems.

DOI: 10.5220/0010458204830494

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 483-494

ISBN: 978-989-758-509-8

483

terface (UI) planning, since users are not often happy

to be treated as mere oracles.

However, Nadj et al. (2020) did not present pos-

sible designs of interface elements for interactive la-

beling systems in their design principles. The choice

of interface elements (UI design) is a form of im-

plicit communication between the UI designer and the

user (De Souza, 2005). Depending on this choice,

the quality of UI interaction can lead to the problems

of fatigue and frustration of the users. In this paper,

we extend the work of Nadj et al. (2020) to answer

the following research question not yet covered in

the study “Which interface elements have been used

in the interactive labeling systems in the literature?”.

For this, we grouped the labeling systems found in

the studies, extracted UI designs (with their interface

elements), creating a catalog to assist developers and

designers of new interactive labeling systems.

This paper is organized as follows: in Section 2,

the concepts of the theoretical framework are pre-

sented; in Section 3, the methodology we followed

to perform this analysis in the format of an SLR ex-

tension; in Section 4, the results obtained; in Section

5, discussions and, ﬁnally, Section 6 presents the con-

clusions of this paper.

2 THEORETICAL FRAMEWORK

In this section, we introduce the concept of ML, In-

teractive Labeling, and Interactive Machine Learning

(IML). The concept of ML is important to better un-

derstand the context in which Interactive Labeling is

inserted. The IML concept is important for under-

standing the analysis of the interfaces performed on

the results.

2.1 Machine Learning

ML is a subarea of Artiﬁcial Intelligence that focuses

on pattern recognition from existing data (Alpaydin,

2020). With pattern recognition of data, ML can make

predictions about new data (Mohri et al., 2018). An

example of an ML application is the system devel-

oped by Nichols et al. (2012). The researchers devel-

oped an ML algorithm that builds a journalistic sum-

mary of events. The authors Nichols et al. (2012) used

Twitter status updates as a source. The objective of

the authors is to provide a summary for people, who

are not following a live event, to inform themselves

quickly about the event. In this case, as new data

about a live event appears on Twitter, the ML model

predicts a new summary.

ML algorithms can be classiﬁed into different

learning methods (Zhang, 2020). In the next subsec-

tions, we describe the best known learning methods

of ML algorithms: reinforcement learning, unsuper-

vised learning, and supervised learning.

2.1.1 Reinforcement Learning

Reinforcement Learning is a learning method where

the algorithm transforms feedback on actions taken

into learning (Alpaydin, 2020). The purpose of the

algorithm is to learn by interacting with the environ-

ment. It maximizes its learning as it receives feed-

back from its actions. These feedbacks can be of the

reward type, if the action was correct, or of the pun-

ishment type, if the action was not correct. For exam-

ple, a robot that can receive feedback on its actions

and learn from the mistakes and successes (Thomaz

and Breazeal, 2008).

2.1.2 Unsupervised Machine Learning

Unsupervised learning method algorithms learn how

to categorize unlabeled data into clusters based on

data similarity characteristics (Mohri et al., 2018).

However, the generated clusters need to be analyzed

to see if they make sense within the context of the

problem.

Kim et al. (2015) present a study that applied un-

supervised ML. The authors presented the beneﬁts

generated by using ML to correct activities in a Mas-

sive Open Online Course (MOOCs). The ML algo-

rithm created groups of students’ activities according

to the common characteristics of each activity. By

grouping the students’ activities with ML, it was pos-

sible for teachers to correct once a group of similar ac-

tivities. This allowed for a reduction in the workload

in correcting activities, in addition to allowing the

teacher to provide feedback to students more quickly.

2.1.3 Supervised Machine Learning

Supervised Machine Learning (SML) is the learning

method in which the ML algorithm learns from a la-

beled sample database. The labeled sample database

is intended to help a learning algorithm to learn and

later be able to predict theses labels from new data

samples (Kotsiantis et al., 2007).

SML algorithms achieve good performance when

the sample database is representative of the problem

domain, i.e., the sample database has a good diversity

with sufﬁcient quality and quantity (Cui et al., 2014).

In other words, SML algorithms are sensitive to the

labeled samples to which they are exposed, that is,

if the samples are labeled wrong, the algorithms will

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

484

learn incorrectly, a situation known as “garbage in,

garbage out” (Geiger et al., 2020). However, getting

a good database of labeled samples for generating an

accurate ML model is not an easy task.

2.2 Interactive Labeling

The concept of interactive labeling brings the expert

user, i.e., the domain specialists, into the development

of the ML model, specially in the SML method, in

which some beneﬁts generated are the reduction of

time and cost for acquisition of labeled samples and

that data samples are labeled under evaluation of the

knowledge of the expert user (Cui et al., 2014; Yimam

et al., 2015). Ware et al. (2001) observed that, with an

easy and intuitive interface, expert users in the ﬁeld

of data knowledge were able to help in the creation of

good classiﬁers (i.e., in the ML model) after a short

period of practice with the systems. In addition, when

the interactive labeling system is well integrated with

other systems, the ML model in question will always

be fostered, learning new concepts and even updating

existing concepts (Huang et al., 2013).

2.3 Interactive Machine Learning

The ML methods that the ML developer wants to use

in her project must be chosen carefully, as this choice

affects how the data should be structured and what

information that data should contain. In addition, the

ML developer must know where to get the data, one of

the ways is through specialist in the problem domain.

The interaction between specialists and the de-

veloping ML model was traditionally accomplished

through the exchange of electronic ﬁles, such as

spreadsheets or text documents. Ware et al. (2001)

and Fails and Olsen Jr (2003) were the pioneers in

proposing an interface system with the specialists to

facilitate this interaction, calling it Interactive Ma-

chine Learning – IML. Their studies presented the

beneﬁts caused by the interaction of specialists users

of the IML system, in contrast to the traditional prac-

tice of interaction through electronic ﬁles.

Fails and Olsen Jr (2003) stated that the IML ap-

proach breaks with several premises of traditional ML

development. According to the authors, with IML it

is possible to reduce the chances of the generation of

a limited ML knowledge base, in which the gener-

ated ML model has to achieve excellent performance

when applied to new data never seen in its develop-

ment. However, according to Dudley and Kristens-

son (2018), the design of an appropriate interface is

fundamental in order to obtain good results with IML

systems and this presents a challenge for the design

of the interface.

IML systems therefore play an important role in

enabling knowledge transfer from specialist users for

the development of a successful ML model Behringer

et al. (2017). This knowledge transfer occurs through

interface elements that must be in the language of

these users, who mostly do not have technical knowl-

edge about ML. This enables specialist users tasks re-

lated to inspection and correction of ML models to

be performed intuitively and effectively (Dudley and

Kristensson, 2018).

2.3.1 IML Interface Communication Channels

In the context of IML systems, Dudley and Kris-

tensson (2018) present four interface communication

channels, which refer to how the user can interact

with these systems. These communication channels

deﬁne the interaction between the specialist user, the

ML model, and the data. These four communication

channels idealized by Dudley and Kristensson (2018)

are presented below.

Sample Review. This is the way in which the IML

system presents the data in the interface to the spe-

cialist user in order for her to understand these. In

this communication channel, it is important that de-

signers reﬂect on the following: How should the data

be presented to the user in an easy and intuitive way?

What can be highlighted from the data in order to fa-

cilitate the comprehension and understanding of the

specialist user?

Feedback Assignment. This is the way in which the

IML system allows the user to perform feedback on

the data presented. In this communication channel,

designers should reﬂect on what information from the

data and the ML model in development should the

IML system offer possible feedback on, and how the

interface can be organized and what it should be com-

posed of in order to capture this feedback.

Model Inspection. In this channel, the IML system

presents the overall performance of the ML model

learned by the machine, and allows the user to check

whether the ML model is ready for use, i.e., whether

the model is of good quality or if it needs improve-

ments. In this communication channel, it is impor-

tant that designers reﬂect on what characteristics and

metrics of the ML model already learned should be

presented and how these characteristics and metrics

should be presented without many ML technical de-

tails.

Task Overview. This is the way that the IML system

informs the specialist user about the overall progress

of the development of the ML model, for example,

presenting how much data has already been reviewed

and how much data can still be evaluated for im-

An Interface Design Catalog for Interactive Labeling Systems

485

provement of the ML model. In this communication

channel, designers should reﬂect on what information

about the overall vision of the task should be pre-

sented to the specialist user and how should it be pre-

sented?

3 METHODOLOGY

A SLR seeks to identify, select, evaluate, summarize,

and interpret phenomena of interest (Kitchenham and

Charters, 2007). Also, SLR is documented through

a protocol and must allow its reproduction by other

researchers (Madeyski and Kitchenham, 2015). An-

other point is that the SLR can also be extended and

updated (Rivero et al., 2013). The extension can be

done by asking other research questions that were not

asked in the base SLR or an update of the SLR can

be carried out, including studies from other years, li-

braries, updating of new terms in the strings, etc. that

were not used in the base SLR.

Based on exploratory searches in the literature,

we found the SLR of Nadj et al. (2020), recent and

aligned with the context and objective of our study:

interactive labeling systems. However, the questions

we wish to answer were different. Therefore, we de-

cided to inquire the same set of articles investigated

by Nadj et al. (2020) and apply our research ques-

tions.

The research question that was addressed in this

research is:

• Which interface elements have been used in the

interactive labeling systems in the literature?

The following are the steps carried out during the

extension of the SLR: selection criteria, selection of

studies, data extraction strategy, data extraction, con-

duction strategy and results.

3.1 Study Selection Strategy

Nadj et al. (2020) found a total of 44 studies that

present interactive labeling systems. However, not

all these studies describe or present their UI design.

As an example, one study was focused on investigat-

ing the effects of active human-controlled learning on

robots (Cakmak et al., 2010); another study focused

on investigating strategies to obtain meaningful sam-

ples for labeling (Zhu and Yang, 2019). These studies

do not have sufﬁcient details about their interface el-

ements, therefore they do not contribute to answer of

our research question. Due to this, we applied a selec-

tion criteria to ﬁlter whether a study will be included

or excluded from our study.

The criteria applied were as follows:

• Inclusion Criteria: the study presents interface el-

ements for interactive labeling systems;

• Exclusion Criteria: the study does not present in-

terface elements for interactive labeling systems.

3.2 Data Extraction Strategy

We conducted the data extraction from the selected

studies by analyzing the labeling system interfaces

available in the studies. The selected studies were

read completely by one of the authors, that also ex-

tracted the interface elements. The other authors re-

vised all the extractions results.

In addition to the system interfaces, we also ex-

tracted other data:

• Title, authors, year of publication, publication ve-

hicle. This data was collected in order to analyze

the timeline of the articles and the most relevant

publication vehicles in the area.

• Type of labeling system. This data represents the

general objective in which the labeling system is

being applied in the analyzed study.

• Problem domain. This data informs what activity

the interactive labeling system requests the user

during the labeling process.

• Area of application of the labeling system. This

data informs which context of the use of the la-

beling system.

• Interface elements. These data were collected to

capture the interface elements of the interactive la-

beling systems that were not presented visually in

the studies, that is, through a graphical interface.

4 RESULTS

This section reports the results of our SLR extension.

Subsection 4.1 present the selected studies. Subsec-

tion 4.2 presents the results of our research questions.

4.1 Selected Studies

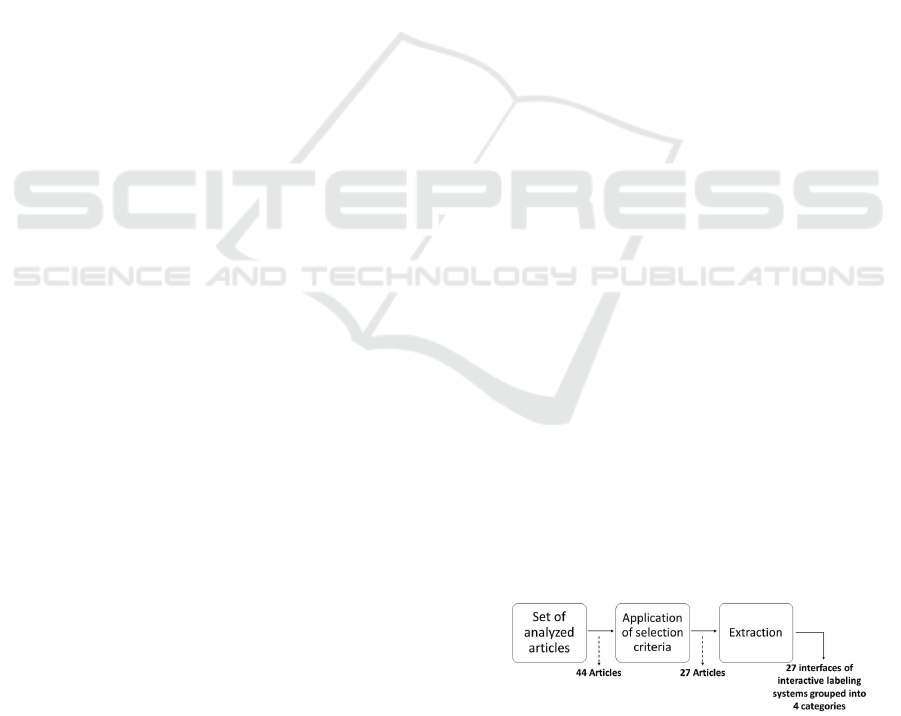

Figure 1: The methodology used for data extraction and

analysis.

Nadj et al. (2020) found a total of 44 studies in their

SLR. Out of these 44 studies, we excluded 17 papers

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

486

because of our selection criteria. Therefore, we se-

lected 27 papers that presented interface elements, as

shown in Figure 1. Of these 27 studies, 9 were pub-

lished in journals, 13 in conferences, 4 in workshops

and 1 paper was related to a technical report.

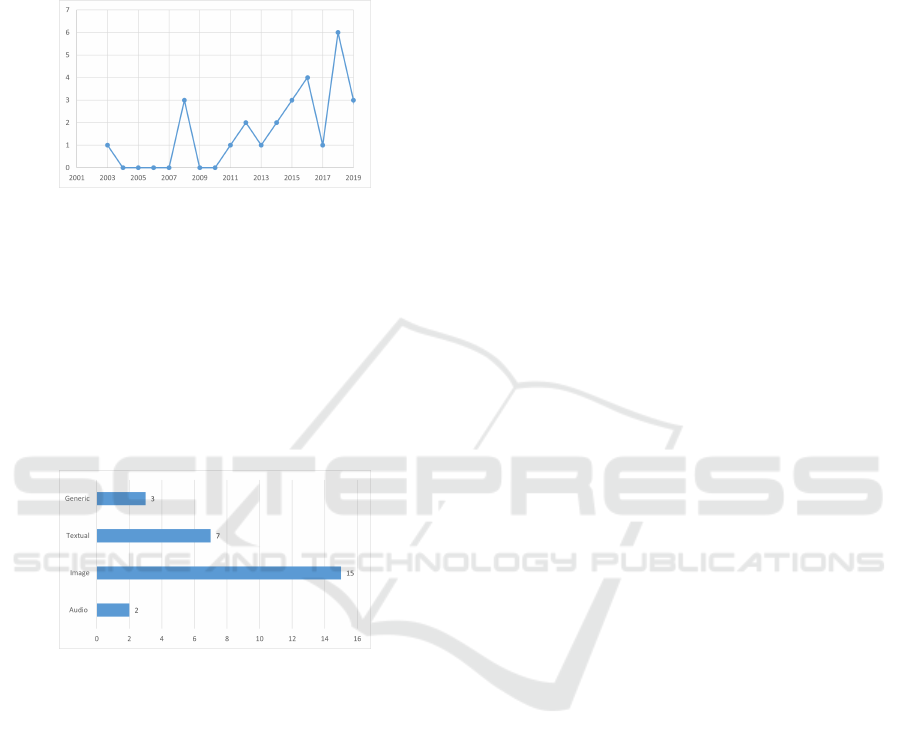

Figure 2: Period of publication of the articles.

As shown in Figure 2, the selected 27 studies were

published from 2003 to 2019. The year 2018 had

more publications in comparison with the other years,

with a total of 6 publications. Also, it is possible to

identify a growing trend in interest in interactive la-

beling systems. We identiﬁed 4 types of data pro-

cessed in the interactive labeling systems. As shown

in Figure 3, we classiﬁed the data type into sound,

image, textual, and generic.

Figure 3: Data Type of Labeling Systems.

4.2 RQ: Which Interface Elements

Have Been used in the Interactive

Labeling Systems in the Literature?

To answer our research question, we divided the anal-

ysis into two parts. The ﬁrst part is the analysis of

clusters of the analyzed interactive labeling systems.

The second part refers to the composition of the inter-

faces.

4.2.1 Groups of Interactive Labeling Systems

For this analysis, we consider the different approaches

applied to soliciting user labeling. We were able to

ﬁnd 4 groups shown in Table 1.

The ﬁrst group is composed by the systems that

expect direct labeling on a piece of data or a set of data

from the user, which we named “direct labeling ap-

proach”. In this grouping, the systems request direct

labeling from the user regarding the category of the

data, as in the study of Fogarty et al. (2008). In this

ﬁrst group, the systems usually ask the user to choose

between “correct” or “wrong” regarding an object la-

bel, to evaluate whether it is in its correct category or

not. However, some of these systems do not request

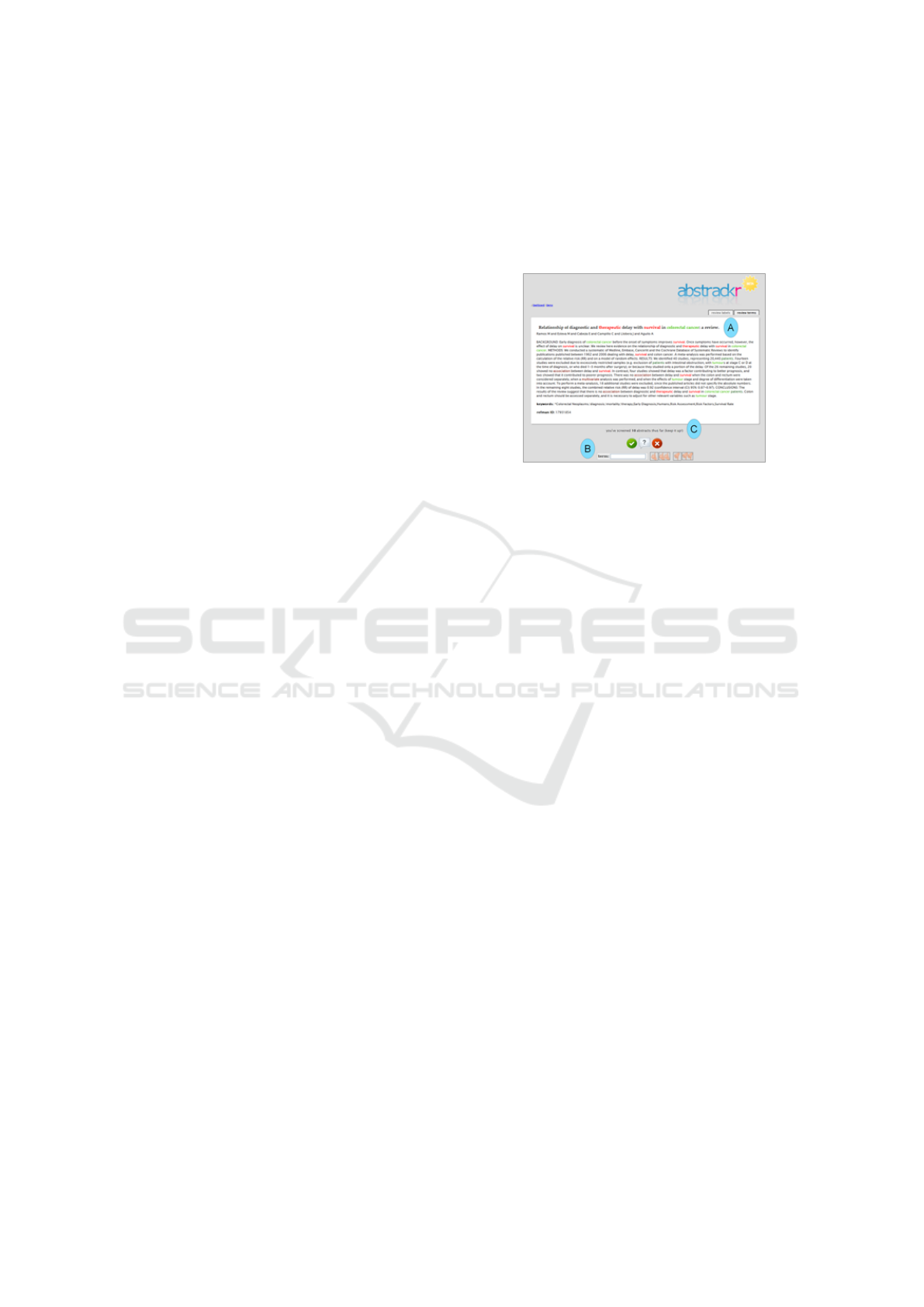

user labeling in only two categories. For example, the

abstrackr system from Wallace et al. (2012) goes be-

yond providing 3 alternatives for the user: “correct”

or “wrong”, or “maybe”.

Some systems differ in the labeling information

that is requested from the user. The labeling systems

presented in Guo et al. (2018); Xu et al. (2017), ask

the user for feedback through comparison with other

data. We call this group the “indirect labeling ap-

proach”.

There are also interactive labeling systems that so-

licit user labeling in an exploratory way, which we

call the “exploratory labeling approach”. This type of

strategy is applied in tasks where the user must iden-

tify the objects and their limits in an image. In this ap-

proach, all the interactive labeling systems analyzed

belong to the supervised ML method.

Finally, the UI’s classiﬁed in the “N/A ” group

were those that the system did not ask for the data

class. In this group are systems such as the Self et al.

(2016) that requests feedback regarding the relevance

of the data attributes.

4.2.2 Analysis of the Composition of the

Interfaces

The results in this analysis consider the interface

screens that were presented in the studies. To facil-

itate the organization of UIs and their elements, we

have created a catalog for this. The catalog was built

from the perspective of the communication channels

identiﬁed by Dudley and Kristensson (2018).

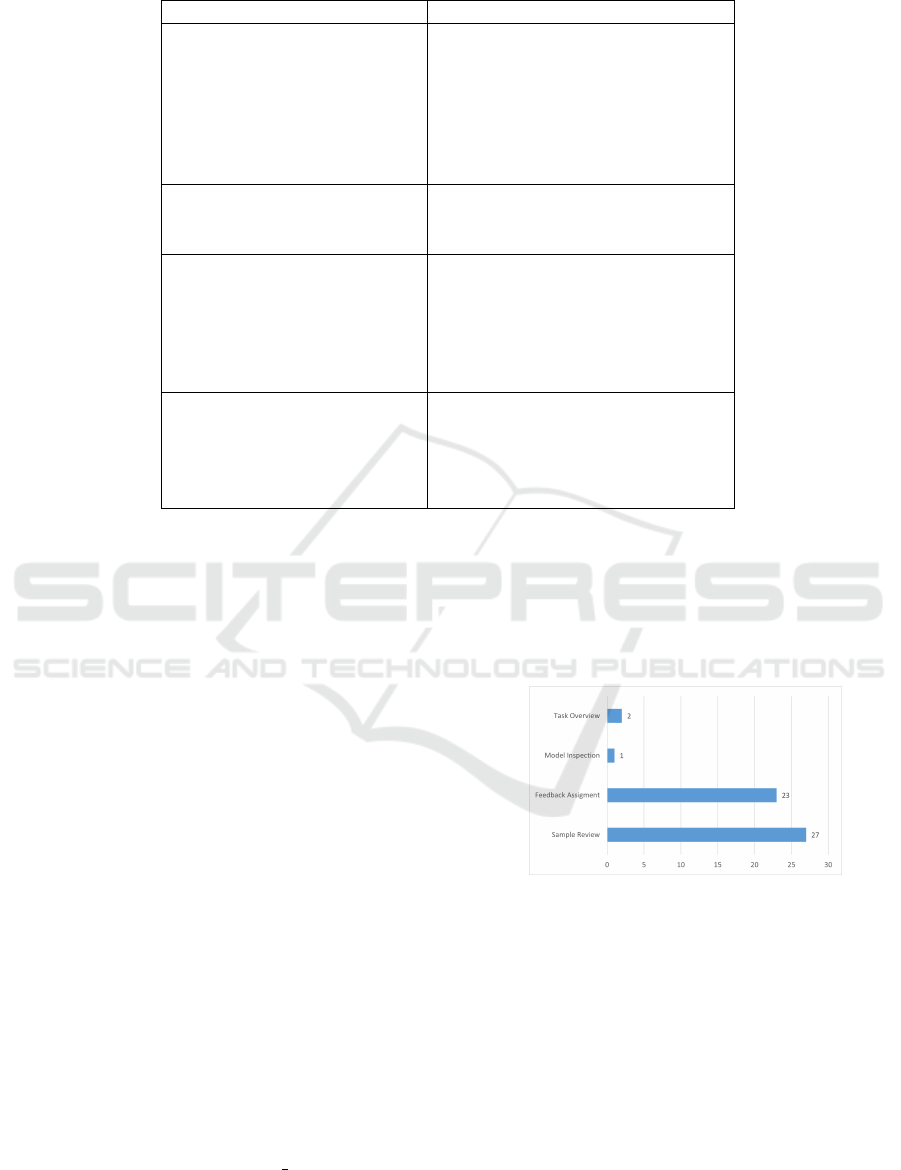

Figure 4 presents the relationship between the

composition of interactive labeling system interfaces

and communication channels by Dudley and Kris-

tensson (2018). All the 27 analyzed system interfaces

present elements that were classiﬁed as the sample

review communication channel. In 23 of the inter-

faces, there are interface elements that conﬁgure the

feedback assignment communication channel. Only

one interface has elements that conﬁgure the model

inspection communication channel. Finally, 2 inter-

faces have elements that conﬁgure the task overview

communication channel.

Of the 27 systems analyzed, only 2 of these are fo-

cused on assigning a graphical interface for the con-

struction of an ML model. This graphical interface

An Interface Design Catalog for Interactive Labeling Systems

487

Table 1: Groups of interactive labeling systems.

Groups Articles

Direct labeling approach Weigl et al. (2016); Zhang et al.

(2008); Burkovski et al. (2011);

Fogarty et al. (2008); MacGlashan

et al. (2017); Cheng et al. (2016);

Kim et al. (2015); Wallace et al.

(2012); Amershi et al. (2014); Yi-

mam et al. (2016).

Indirect labeling approach Guo et al. (2018); Xu et al. (2017);

Plummer et al. (2019); Amershi

et al. (2014).

Exploratory labeling approach Bryan and Mysore (2013); Jain

et al. (2019); Fails and Olsen Jr

(2003); Nalisnik et al. (2015);

Kim and Pardo (2018); Boyko and

Funkhouser (2014); Acuna et al.

(2018); Harvey and Porter (2016).

N/A Dasgupta et al. (2019); Self et al.

(2016); Bernard et al. (2017);

Amershi et al. (2012); Thomaz and

Breazeal (2008); Amershi et al.

(2014); Datta and Adar (2018).

makes it easy for ML professionals to use it as well

as for users interested in using ML without technical

knowledge for data manipulation. The other 25 sys-

tems are focused on creating a system for the user to

perform data labeling.

The systems that are for use in the audio area are

intended for the labeling of sounds in sound record-

ings through spectrogram. One example is the system

presented by Kim and Pardo (2018), shown in Figure

5-B. Image systems are those that treat the identiﬁca-

tion of objects in an image through user labeling, such

as the study of Jain et al. (2019). For the systems that

act in the textual area, one example is the study of

Yimam et al. (2015), it aims to identify knowledge

of the medical area through reports of medical diag-

noses, shown in Figure 6-D. Finally, the generic sys-

tems were those that did not ﬁt into the previous ar-

eas. Figure 3 shows the number of systems analyzed

by area of activity.

The 27 system interfaces analyzed present many

ideas for implementing interface elements. How-

ever, due to the number of design elements found,

only a few of these will be shown below in Figures

5 and 6. The complete list of interfaces, their el-

ements and the classiﬁcation in the communication

channels of Dudley and Kristensson is available at:

https://ﬁgshare.com/articles/ﬁgure/ /13785727.

The interface elements that characterize the com-

munication channels of Dudley and Kristensson

(2018) are highlighted in a red box with a number by

the side (see Figures 5 and 6). The number represents

the identiﬁer of the communication channels. The

identiﬁers are 1 - Sample Review, 2 - Feedback As-

sigment, 3 - Model Inspection and 4 - Task Overview.

Figure 4: Relationship between the interface elements of

the analyzed systems and the communication channels of

Dudley and Kristensson (2018).

Most interfaces do not have all communication chan-

nels. Therefore, not all interfaces contain the four

communication channels identiﬁed in Figures 5 and

6. Each letter shown in Figures 5 and 6 (A, B, C, D,

and E) identiﬁes a different labeling system. The au-

thors of these studies are referenced in the caption of

Figure 5 and 6 according to their identifying letter.

The interface presented with the identifying let-

ter “A” in Figure 5 is a system that aims to identify

pathologies in medical imaging examinations (Nalis-

nik et al., 2015). For this purpose, the users of the

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

488

Figure 5: Reduced catalog - Part I: consisting of 3 labeling systems presenting interface elements characterizing the commu-

nication channels. The interfaces used in this catalog were captured from studies by the authors Nalisnik et al. (2015) in (A),

Kim and Pardo (2018) in (B), Amershi et al. (2014) in (C).

Figure 6: Reduced catalog - Part II: consisting of 2 labeling systems presenting interface elements characterizing the commu-

nication channels. The interfaces used in this catalog were captured from studies by the authors Yimam et al. (2015) in (D)

and, Wallace et al. (2012) in (E).

An Interface Design Catalog for Interactive Labeling Systems

489

system are those with experience in image examina-

tion reading. They should analyze the images and

identify the signs of pathologies by means of a vir-

tual brush that users employ to highlight the signs of

pathologies. Through this interaction between the la-

beling system and the user, a database labeled by the

users is built. After this, a training of the algorithm

for automatic identiﬁcation in new images of exams

was carried out.

The system interface presented with the identi-

ﬁer letter “B” in Figure 5 focuses on the recogni-

tion of errors in sound recordings (Kim and Pardo,

2018). Users of this system are specialists in visual

and sound reading of digital sounds. These users must

identify and recognize the areas of the sound record-

ing that are the bad ones. The interface elements in-

volved in this system are the program for analyzing

the sound recording, the list of regions of the spec-

trogram already labeled by the user, and the list of

regions to be labeled.

The interface of the system presented with the

identiﬁer letter “C” in Figure 5 shows a system that

aims to perform searches of images with keywords

and rules deﬁned by the user (Amershi et al., 2014).

For this system, expert users do not have a speciﬁc

proﬁle. These users generate the search rules by inter-

acting with the ﬁrst search they perform by selecting

the images returned erroneously, for example.

The interface of the system presented with the

identiﬁer letter “D” in Figure 6 presents a system re-

lated to identiﬁcation of medical knowledge by means

of annotations. Yimam et al. (2015) demonstrated the

impact of the use of an IML system on the develop-

ment of a database for the recognition of biomedi-

cal citations in medical annotations. During the an-

notation performed by a specialist, an ML model is

constructed using as data these annotations in order

to propose labels for subsequent annotations. Al-

though the study is still in an exploratory stage at the

time of publication, the experimental results indicated

qualitatively and quantitatively the feasibility of the

method for a more personal and responsive informa-

tion extraction technology.

Finally, the system interface presented with the

identiﬁer letter “E” in Figure 6 presents a labeling

system integrated into a common system in the life of

users. In this system expert users are most often end

users of the system. Wallace et al. (2012) presented

a labeling system called “abstrackr”. Abstrackr aims

to mitigate the workload of medical researchers in the

search for evidence (a systematic review of literature)

that is pertinent to a speciﬁc clinical question. Ac-

cording to the authors, although many ML methods

have been proposed and used in the past, they are ac-

tually rarely (or never) made available to profession-

als in practice. Abstrackr has already been used in

more than 50 systematic reviews, in which the authors

claim to have reduced the workload of medical re-

searchers by 40% without erroneously excluding any

relevant reviews.

Figure 7: Abstrackr’s interactive labeling system - adapted

from Wallace et al. (2012).

In order to facilitate the understanding of these in-

terfaces of the labeling systems presented in Figure

5, we will explain more about one of these systems,

namely, abstrackr. In Figure 7, we will use as a ref-

erence a screen of the abstractkr system, as proposed

by Wallace et al. (2012), to further explain the details

of this type of interface. The explanation will be con-

ducted by segmenting parts of the interface into the

perspectives of communication channels.

4.2.3 Detailed Analysis

In the communication channel “Sample Review”, the

labeling system presents the data samples to the user,

to subsequently obtain from them feedback on the

labeling of these. The Abstractkr interface design

presents the title and summary of a scientiﬁc paper

from the medical area (Figure 7-A). Abstractkr’s in-

terface elements involve highlighting text words by

color, according to relevance or not learned by the

machine.

Regarding the communication channel “Feedback

Attribution”, the labeling system expects interactions

from the expert user, given the data sample presented

by the “Sample Review”, in order to use this feedback

in the evolution of the ML model. In the abstractkr

tool, the possible interactions by expert users are: text

ﬁeld to provide new terms and classify them as rel-

evant or not, buttons next to the ﬁeld (Figure 7-B);

buttons to label the abstract of the presented paper as

relevant (Tick) or not (”X”), or as undecided (white

button with a ?).

In the communication channel “Model Inspec-

tion”, the labeling system presents information about

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

490

the quality of the ML model already learned by the

machine, such as, for example, its current classiﬁ-

cation accuracy. In accordance with Wallace et al.

(2012), the abstrackr tool does not present, at least

in what was made available by the paper, in its in-

terface design, any information about the ML model

under development. However, this system could have

used existing interface elements to represent the com-

munication channel for the user. The user could be

informed about the relevance of other abstracts and

their assertiveness, or be presented a bar graph with

the amount of texts considered relevant or not in the

current state of the ML model. This is an example in

which the catalog of design elements can assist in the

development of labeling systems that better support

the expert user in understanding the ML model under

construction.

In the communication channel “Task Overview”,

the labeling system presents the user with information

on the progress of the support task in the construction

of the ML model. The abstractkr system provides the

progress of readings performed by the expert user in

the systematic review, as can be seen in Figure 7-C.

In addition to the abstractkr system, only one system

displays elements in the interface that characterizes

the communication channel “Task Overview” and is

found in the study of Kim and Pardo (2018). In this

case, with the catalog, it was possible to identify the

need for further studies focusing on the presentation

of this channel in interfaces of labeling systems. With

new studies, more paths emerged to provide other

possibilities beyond those used in the studies of Wal-

lace et al. (2012) and Kim and Pardo (2018) for the

developers and designers of these systems.

5 DISCUSSION

In this study, we identiﬁed design ideas for inter-

faces of interactive labeling systems, also, we found

4 groupings of types of these systems. We classify

systems as feedback approach, indirect feedback ap-

proach, exploratory feedback approach, and N/A. Fi-

nally, we were able to answer our research question

through the catalog and the groupings of the systems.

According to Katan et al. (2015), there are few

studies that explore interface design for labeling sys-

tems. Furthermore, according to the authors, to gain

a better understanding of this type of design, includ-

ing related challenges, it is necessary to explore ex-

isting systems and research other alternatives to inter-

face design. In this sense, this study extracted a cat-

alog with twenty-seven user interface design ideas of

labeling systems developed in selected studies from

literature.

Analyzing our results, one can notice that the

choice of interface elements varies according to the

strategy for capturing the feedback regarding the la-

beling. Also, another factor that inﬂuences the choice

of interface elements is the data type. In interactive

labeling systems in which the data type is an image,

there are several interface elements that we have iden-

tiﬁed in the catalog that can be used for new labeling

system projects. However, when the data type is tex-

tual, the choices of interface elements are limited.

In our view, the interface design of labeling sys-

tems for some types of data is more intuitive than

other types. For example, in the classiﬁcation of

knowledge data of media, such as photos or videos,

the very presentation of the example without any

modiﬁcation facilitates the design ideas to be worked

on in the labeling system of Fails and Olsen Jr (2003),

such as the use of markers in the images to highlight

important parts. Its own image already visually col-

laborates intuitively for the elaboration of interface el-

ements.

This is also the case in sound labeling systems.

In the study of Bryan and Mysore (2013), a labeling

system was developed for the identiﬁcation of noises

in sound recordings, however, the sound is in another

type of media (the spectrogram). The original mıdia

is represented in another metaphor that helps the user

of the labeling system to interact with the system.

In the labeling of textual data, it is important that

the interface elements support expert users in a more

efﬁcient reading, avoiding textual data that is unnec-

essary and/or irrelevant, confusing, long, among other

problems. These situations related to textual data can

cause fatigue and stress in the expert user and, espe-

cially, a lack of understanding during their labeling

feedback during the use of the system. This is the type

of interface design that affects the quality of review of

the examples by expert users, and impacts the success

or failure of the ML model under development.

In addition to the twenty-seven design ideas ex-

tracted and cataloged, other ideas of interaction with-

out a visual design were observed. One was to carry

out a double review of the data, making the assess-

ment more assertive when agreed by the two special-

ists (Wallace et al., 2012). Also, other studies pro-

posed an investigation strategy to the user the degree

of intimacy and trust under the data labeling, in addi-

tion to internally assessing the impact of the generated

labeling (Kim et al., 2015).

The representation of the data that is required to

be labeled in the labeling systems often needs to go

through the process of metaphor for a type of data

different from its original. We observed the proposal

An Interface Design Catalog for Interactive Labeling Systems

491

for the labeling system presented in Kim and Pardo

(2018), the process of transforming one type of data

into another brought more possibilities for the use of

interface elements and consequently a better interac-

tion with the user.

We believe that the process of transforming one

type of data to another can improve the interaction

between the user and the interactive labeling systems,

providing the user with an improvement in the ﬂuid-

ity of tasks within these systems, preventing the user

from feeling unmotivated, compromising quality data

labeling.

This research, in addition to providing a catalog,

can serve as a guide for exploring aspects of existing

ideas for the interface of interactive labeling systems.

6 CONCLUSIONS

Interactive labeling systems are important in various

contexts, such as support for health professionals and

business professionals. However, there are few stud-

ies in the literature that explore the analysis of these

systems due to their complexity (Kim et al., 2015).

This paper extends the SLR of Nadj et al. (2020) fo-

cusing on the analysis of interface elements used to

design interactive labeling systems. The outcome is a

catalog of interface elements classiﬁed from the per-

spective of communication channels established by

Dudley and Kristensson (2018).

The catalog aims at being a helpful tool for the

development of labeling systems interfaces, present-

ing solutions that have proven effective in the scien-

tiﬁc literature. Bad UI design choices usually lead to

problems of users’ fatigue and frustration. Further-

more, the catalog is useful for directing what the in-

terfaces should show the user, in addition to demon-

strating practical applications from other systems that

serve the guidelines for developers.

One of the limitations of this study is how the

analysis of interfaces were conducted. The analysis

were carried out with the interface screens available in

the analyzed studies. Most of the analyzed systems do

not have access for the general public and, therefore,

the analysis was limited only to the interface screen

and the interface elements described textually in the

studies.

With this catalog, we expect to contribute to the

effective interaction of specialist users with interac-

tive labeling systems during the ML model construc-

tion process. Thus, ML models will be developed

with higher quality, and promote a better experience

for the end users of these systems.

In future work, we intend to investigate which

methods are proposed in the literature to assess the

quality of the interactive labeling systems’ interface.

Exploring these methods can also improve the inter-

face design ideas that exist in the catalog. Besides,

we highlight the importance of more research investi-

gating the interaction between these systems and the

users using the HCI lens.

ACKNOWLEDGMENTS

We would like to thank the Foundation for Re-

search Support of the State of Amazonas (FA-

PEAM) for the ﬁnancial support through POS-

GRAD and the processes numbers 062.00638/2019

and 062.00150/2020, CNPq through the process

number 311494/2017-0, and the Coordination for

the Improvement of Higher Education Personnel -

Brazil (CAPES) - Finance Code 001. Furthermore,

this research, according to Article 48 of Decree nº

6.008/2006, was partially funded by Samsung Elec-

tronics of Amazonia Ltda, under the terms of Federal

Law nº 8.387/1991, through agreement nº 003/2019,

signed with ICOMP/UFAM.

REFERENCES

Acuna, D., Ling, H., Kar, A., and Fidler, S. (2018). Efﬁ-

cient interactive annotation of segmentation datasets

with polygon-rnn++. In Proceedings of the IEEE con-

ference on Computer Vision and Pattern Recognition,

pages 859–868.

Alpaydin, E. (2020). Introduction to machine learning.

MIT press.

Amershi, S., Cakmak, M., Knox, W. B., and Kulesza, T.

(2014). Power to the people: The role of humans in in-

teractive machine learning. Ai Magazine, 35(4):105–

120.

Amershi, S., Fogarty, J., and Weld, D. (2012). Regroup:

Interactive machine learning for on-demand group

creation in social networks. In Proceedings of the

SIGCHI Conference on Human Factors in Computing

Systems, pages 21–30.

Behringer, M., Hirmer, P., and Mitschang, B. (2017).

Towards interactive data processing and analytics-

putting the human in the center of the loop. In Interna-

tional Conference on Enterprise Information Systems,

volume 2, pages 87–96. SCITEPRESS.

Benato, B. C., Telea, A. C., and Falc

ao, A. X. (2018). Semi-

supervised learning with interactive label propagation

guided by feature space projections. In 2018 31st SIB-

GRAPI Conference on Graphics, Patterns and Images

(SIBGRAPI), pages 392–399. IEEE.

Bernard, J., Hutter, M., Zeppelzauer, M., Fellner, D., and

Sedlmair, M. (2017). Comparing visual-interactive la-

beling with active learning: An experimental study.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

492

IEEE transactions on visualization and computer

graphics, 24(1):298–308.

Boyko, A. and Funkhouser, T. (2014). Cheaper by the

dozen: Group annotation of 3d data. In Proceedings

of the 27th annual ACM symposium on User interface

software and technology, pages 33–42.

Bryan, N. and Mysore, G. (2013). An efﬁcient posterior

regularized latent variable model for interactive sound

source separation. In International Conference on

Machine Learning, pages 208–216.

Burkovski, A., Kessler, W., Heidemann, G., Kobdani, H.,

and Sch

utze, H. (2011). Self organizing maps in nlp:

Exploration of coreference feature space. In Inter-

national Workshop on Self-Organizing Maps, pages

228–237. Springer.

Cakmak, M., Chao, C., and Thomaz, A. L. (2010). De-

signing interactions for robot active learners. IEEE

Transactions on Autonomous Mental Development,

2(2):108–118.

Cheng, T.-Y., Lin, G., Gong, X., Liu, K.-J., and Wu, S.-H.

(2016). Learning user perceived clusters with feature-

level supervision. In NIPS.

Cui, S., Dumitru, C. O., and Datcu, M. (2014). Semantic

annotation in earth observation based on active learn-

ing. International Journal of Image and Data Fusion,

5(2):152–174.

Dasgupta, S., Poulis, S., and Tosh, C. (2019). Interactive

topic modeling with anchor words. Workshop on Hu-

man in the Loop Learning (HILL 2019).

Datta, S. and Adar, E. (2018). Communitydiff: visualiz-

ing community clustering algorithms. ACM Trans-

actions on Knowledge Discovery from Data (TKDD),

12(1):1–34.

De Souza, C. S. (2005). The semiotic engineering of human-

computer interaction. MIT press.

Dudley, J. J. and Kristensson, P. O. (2018). A review of

user interface design for interactive machine learning.

ACM Transactions on Interactive Intelligent Systems

(TiiS), 8(2):1–37.

Fails, J. A. and Olsen Jr, D. R. (2003). Interactive machine

learning. In Proceedings of the 8th international con-

ference on Intelligent user interfaces, pages 39–45.

Fiebrink, R. and Gillies, M. (2018). Introduction to the spe-

cial issue on human-centered machine learning. ACM

Transactions on Interactive Intelligent Systems (TiiS),

8(2):7.

Fogarty, J., Tan, D., Kapoor, A., and Winder, S. (2008).

Cueﬂik: interactive concept learning in image search.

In Proceedings of the sigchi conference on human fac-

tors in computing systems, pages 29–38.

Geiger, R. S., Yu, K., Yang, Y., Dai, M., Qiu, J., Tang, R.,

and Huang, J. (2020). Garbage in, garbage out? do

machine learning application papers in social comput-

ing report where human-labeled training data comes

from? In Proceedings of the 2020 Conference on Fair-

ness, Accountability, and Transparency, pages 325–

336.

Gillies, M., Fiebrink, R., Tanaka, A., Garcia, J., Bevilac-

qua, F., Heloir, A., Nunnari, F., Mackay, W., Amershi,

S., Lee, B., et al. (2016). Human-centred machine

learning. In Proceedings of the 2016 CHI Conference

Extended Abstracts on Human Factors in Computing

Systems, pages 3558–3565.

Guo, X., Wu, H., Cheng, Y., Rennie, S., Tesauro, G., and

Feris, R. (2018). Dialog-based interactive image re-

trieval. Advances in neural information processing

systems, 31:678–688.

Harvey, N. and Porter, R. (2016). User-driven sampling

strategies in image exploitation. Information Visual-

ization, 15(1):64–74.

Huang, S.-W., Tu, P.-F., Fu, W.-T., and Amanzadeh, M.

(2013). Leveraging the crowd to improve feature-

sentiment analysis of user reviews. In Proceedings of

the 2013 international conference on Intelligent user

interfaces, pages 3–14.

Jain, S., Munukutla, S., and Held, D. (2019). Few-shot point

cloud region annotation with human in the loop. arXiv

preprint arXiv:1906.04409.

Katan, S., Grierson, M., and Fiebrink, R. (2015). Using in-

teractive machine learning to support interface devel-

opment through workshops with disabled people. In

Proceedings of the 33rd annual ACM conference on

human factors in computing systems, pages 251–254.

Kim, B., Glassman, E., Johnson, B., and Shah, J. (2015).

ibcm: Interactive bayesian case model empowering

humans via intuitive interaction.

Kim, B. and Pardo, B. (2018). A human-in-the-loop sys-

tem for sound event detection and annotation. ACM

Transactions on Interactive Intelligent Systems (TiiS),

8(2):1–23.

Kitchenham, B. and Charters, S. (2007). Guidelines for per-

forming systematic literature reviews in software en-

gineering.

Kotsiantis, S. B., Zaharakis, I., and Pintelas, P. (2007). Su-

pervised machine learning: A review of classiﬁcation

techniques. Emerging artiﬁcial intelligence applica-

tions in computer engineering, 160(1):3–24.

MacGlashan, J., Ho, M. K., Loftin, R., Peng, B., Roberts,

D., Taylor, M. E., and Littman, M. L. (2017). Interac-

tive learning from policy-dependent human feedback.

34th International Conference on Machine Learning

(ICML 2017).

Madeyski, L. and Kitchenham, B. (2015). Reproducible

research–what, why and how. Wroclaw University of

Technology, PRE W, 8.

Mohri, M., Rostamizadeh, A., and Talwalkar, A. (2018).

Foundations of machine learning. MIT press.

Nadj, M., Knaeble, M., Li, M. X., and Maedche, A. (2020).

Power to the oracle? design principles for interactive

labeling systems in machine learning. KI-K

unstliche

Intelligenz, pages 1–12.

Nalisnik, M., Gutman, D. A., Kong, J., and Cooper, L. A.

(2015). An interactive learning framework for scal-

able classiﬁcation of pathology images. In 2015 IEEE

International Conference on Big Data (Big Data),

pages 928–935. IEEE.

Nichols, J., Mahmud, J., and Drews, C. (2012). Summa-

rizing sporting events using twitter. In Proceedings of

the 2012 ACM international conference on Intelligent

User Interfaces, pages 189–198.

Plummer, B., Kiapour, H., Zheng, S., and Piramuthu, R.

(2019). Give me a hint! navigating image databases

An Interface Design Catalog for Interactive Labeling Systems

493

using human-in-the-loop feedback. In 2019 IEEE

Winter Conference on Applications of Computer Vi-

sion (WACV), pages 2048–2057. IEEE.

Qiu, J., Wu, Q., Ding, G., Xu, Y., and Feng, S. (2016). A

survey of machine learning for big data processing.

EURASIP Journal on Advances in Signal Processing,

2016(1):67.

Rivero, L., Barreto, R., and Conte, T. (2013). Characteriz-

ing usability inspection methods through the analysis

of a systematic mapping study extension. CLEI Elec-

tronic Journal, 16(1):12–12.

Rudin, C. and Wagstaff, K. L. (2014). Machine learning for

science and society.

Self, J. Z., Vinayagam, R. K., Fry, J., and North, C. (2016).

Bridging the gap between user intention and model

parameters for human-in-the-loop data analytics. In

Proceedings of the Workshop on Human-In-the-Loop

Data Analytics, pages 1–6.

Thomaz, A. L. and Breazeal, C. (2008). Teachable robots:

Understanding human teaching behavior to build more

effective robot learners. Artiﬁcial Intelligence, 172(6-

7):716–737.

Wallace, B. C., Small, K., Brodley, C. E., Lau, J., and

Trikalinos, T. A. (2012). Deploying an interactive

machine learning system in an evidence-based prac-

tice center: abstrackr. In Proceedings of the 2nd ACM

SIGHIT international health informatics symposium,

pages 819–824.

Ware, M., Frank, E., Holmes, G., Hall, M., and Witten, I. H.

(2001). Interactive machine learning: letting users

build classiﬁers. International Journal of Human-

Computer Studies, 55(3):281–292.

Weigl, E., Walch, A., Neissl, U., Meyer-Heye, P., Radauer,

T., Lughofer, E., Heidl, W., and Eitzinger, C. (2016).

Mapview: Graphical data representation for active

learning. In CEUR Workshop Proceedings (2016)

1707 3-8, pages 3–8.

Xu, Y., Zhang, H., Miller, K., Singh, A., and Dubrawski, A.

(2017). Noise-tolerant interactive learning using pair-

wise comparisons. In Advances in neural information

processing systems, pages 2431–2440.

Yimam, S. M., Biemann, C., Majnaric, L.,

Sabanovi

S.,

and Holzinger, A. (2015). Interactive and iterative an-

notation for biomedical entity recognition. In Interna-

tional Conference on Brain Informatics and Health,

pages 347–357. Springer.

Yimam, S. M., Biemann, C., Majnaric, L.,

Sabanovi

S.,

and Holzinger, A. (2016). An adaptive annotation ap-

proach for biomedical entity and relation recognition.

Brain Informatics, 3(3):157–168.

Zhang, L., Tong, Y., and Ji, Q. (2008). Active image label-

ing and its application to facial action labeling. In Lec-

ture Notes in Computer Science (including subseries

Lecture Notes in Artiﬁcial Intelligence and Lecture

Notes in Bioinformatics) (2008) 5303 LNCS(PART 2)

706-719, pages 706–719. Springer.

Zhang, X.-D. (2020). A Matrix Algebra Approach to Artiﬁ-

cial Intelligence. Springer.

Zhu, Y. and Yang, K. (2019). Tripartite active learn-

ing for interactive anomaly discovery. IEEE Access,

7:63195–63203.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

494
