Defamation 2.0: New Threats in Digital Media Era - An Overview on

Forensics Approaches in the Social Network Ecosystem

Cristina Nastasi and Sebastiano Battiato

Dipartimento di Matematica ed Informatica, Università degli Studi di Catania, Italy

Keywords: Digital Forensics, Social Media, Defamation, Criminal Procedure.

Abstract: Recently, social networks have become the largest and fastest growing websites on the Internet. These

platforms contain sensitive and personal data of hundreds of millions of people, and are integrated also into

millions of other websites so it is more and more important to focus on security and privacy issues. In this

work, we expose the defamation issue in the social network context and apply some known methods to recover

data of person who offends reputation of others over 250 different social media frameworks. The datasets,

that it is possible to exploit, can contain various profile information (user data, photos, etc.) and associated

meta-data (internal timestamps and unique identifiers). These data are significant in the field of digital

forensics to be properly used as evidences in front of Court.

1 INTRODUCTION

Every day, millions of people connect to the Internet

and most of them use “Social Networks" to work, to

keep in touch with friends or simply for fun. This

tendency to use these "communication platforms" has

made social networks the undisputed masters of

media communication on the web in recent years.

Users can share information, take care of their

interpersonal relationships or create new ones, can

advertise their business or even set up real marketing

campaigns. There are different types of social

networks like professional or entertainment and

specific categories: animals, sports, music, etc.

Unfortunately, it is not always good to expose your

personal data on social media. A news published on

the web, a post on a social network, an inappropriate

comment on a chat of a Facebook or a "Whatsapp"

group are able to easily reach an unspecified number

of people and can, however, be quite dangerous

whenever the subject of the diffused message has a

disparaging and defamatory nature towards its

recipient. In recent years the issue of defamation

through the use of social networks has been the

subject of extensive debates because it is one of the

criminal offenses that are most commonly used.

Thanks to anonymity, the web induces the most

impudent (called haters or keyboard lions) to offenses

and insults of all kinds. The number of cases of insult

and defamation on these social networks are

increasing and it is necessary to be ready to react in

the appropriate forms. Defamation or offense that

occurs on social media is punishable and their

certified acquisition can become evidence in criminal

or civil court proceedings.

In this paper we present on overview on existing

social network platforms, brief notes on the

defamation crime on the net and show the procedure

to recover and freeze useful data to be used as

evidences at Court. Finally we expose the obtained

result and concludes the paper with the explanation of

our future goal in this field.

2 SOCIAL MEDIA

Social networks, born in the late nineties, allow users

to create an appropriate user profile, to organize a list

of people to keep in touch with, to publish their own

stream of updates and access that one of others. A

social network (Boyd & Ellison, 2007) is a service

offered through the Internet, typically usable in a

completely free way through the web or by specific

applications for mobile devices, whose purpose is to

facilitate the management of social relationships by

allowing communication and sharing of digital

content. Most social networks have common

Nastasi, C. and Battiato, S.

Defamation 2.0: New Threats in Digital Media Era - An Overview on Forensics Approaches in the Social Network Ecosystem.

DOI: 10.5220/0010463601210127

In Proceedings of the International Conference on Image Processing and Vision Engineering (IMPROVE 2021), pages 121-127

ISBN: 978-989-758-511-1

121

characteristics that can be identified in three main

elements:

• the creation of a personal profile (public or

semi-public);

• the creation of a list of friends;

• the exploration of one's own network and that

one of friends.

Once the registration phase is completed, in

which we are asked to provide an e-mail address and

a password, we move on to the creation and

management of a personal user profile through a

series of questions (on the city of birth, on the place

where we live, on the school we attend or have

attended, on the job, on personal interests, hobbies

and more). This page contains general information

about the user with images or photos, videos and a

short self-description. Then we move on to the

creation of a list of friends. The list of “contacts” is

usually expanded with the help of machine learning

algorithms through reference to the answers we gave

in the user profile compilation phase, suggest friends

we met in real life and "potential new friends",

selecting from the registered users, people who have

characteristics corresponding to our indications.

Another typical social networks feature is the ability

to explore the profiles of friends who are part of our

friends list and those who are part of our friends'

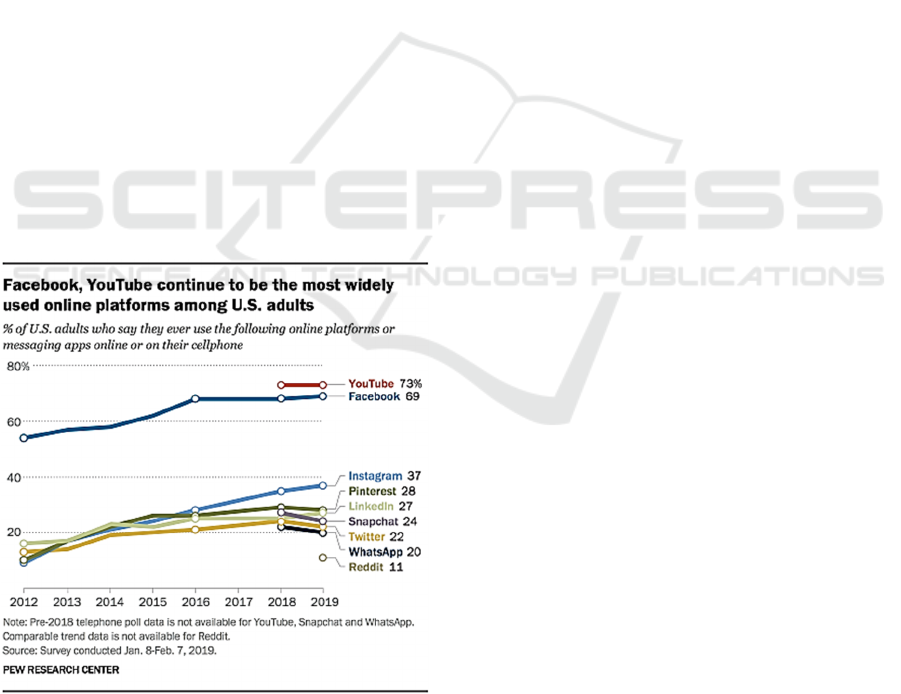

Figure 1: The results of the survey conducted from the 8th

of January 2019 to the 7th of February 2019 by Pew

Reserarch Center. It is showed the percentage of U.S. adults

who say they use certain online platforms or apps online or

on they cellphone.

friends (even if they have not made friends directly

with us); you can visit the personal pages of users

(friends), observe their favourite activities, musical

tastes, etc. and of course interact directly with people

we don't know.

A new Pew Research Center survey (Smith &

Anderson, 2018) of U.S. adults finds that the social

media landscape in early 2018 is defined by a mix of

old trends, but also new emerging apps. Facebook

andYouTube dominate this landscape, while at the

same time, younger (especially between 18 and 24)

use a variety of other platforms frequently. Moreover,

there are substantial differences in social media use

by age and there is a substantial amount of overlap

between users of the various sites.

Social networks have become the largest websites

on the Internet. This web site, such as Facebook or

LinkedIn, contain sensitive and personal data of

hundreds of millions of people, and are integrated

also into millions of other websites. Research has

acknowledged the importance of these websites and

recently, a number of publications have focused on

security issues. In particular, a number of empirical

studies on online social networks (L. Bilge,

Balzarotti, & Kirda, 2009) (Gao, et al., 2010) (Jagatic,

Johnson, Jakobsson, & Menczer, 2007) (M. Huber,

2011) (Wondracek, Holz, Kirda, & Kruegel, 2010)

highlight challenges to the security and privacy of

social network users and their data.

2.1 How Many Are the Social Media

Sites and Apps?

The world of social media continues to maintain a

great power of attraction, in the last year the number

of users has grown again by 17%. According to the

site (La Stampa, 2018), each person who frequents

social networks is registered on an average of seven

sites. The existing social networks are not limited

only to Twitter, Facebook, LinkedIn and Blog. But

how many social networks are there in the world?

Wikipedia (Wikipedia, 2020) lists 206 of them, while

(Social Media List, 2020) has registered 250 ones. In

alphabetical order they go from Academia.edu, a site

for teachers and researchers that helps to make their

work known by sharing scientific publications, up to

Greek Zoo.gr frequented by those who want to play

online. Some have a few thousand members and are

dedicated to individual passions, such as books or

cinema, or to communities of people who share

particular situations. The social network founded by

Mark Zuckerberg remains the most popular and today

has more than 2 billion and 100 million users.

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

122

2.2 Defamation Crime in Italian Law

In Italian law, defamation is the crime provided for

by art. 595 of the Criminal Code, which reads:

"Anyone who, apart from the cases indicated in the

previous article, by communicating with more

people, offends the reputation of others" and "is

punished with imprisonment of up to one year or a

fine of up to euro 1,032.00 ". Law 48/2008 has

introduced into our legal system a series of new

offenses generically classified as computer crimes,

but has not added anything for the possibility of

configuring the defamation crime through computer

networks or telematics. In the typical crime of

defamation, the principal legal asset is the reputation

and its structural elements are: the offense to the

reputation of others that is an injury to personal,

moral, social, professional qualities, etc. of an

individual; communication with several people,

where the expression "several people" must certainly

be understood as "at least two people"; the absence of

the offended person. It is not difficult to argue,

however, that the offense referred to in art. 595 of the

Criminal Code, is sufficiently generic to also include

all those offensive behaviors that are carried out

through computer networks and modern

communication techniques.

3 INVESTIGATE ON SOCIAL

MEDIA CRIME

Forensic analysis of social networks is the method

used by investigators to identify and prosecute

dangerous subjects present in a social network

service.

The acquisition and collection of evidence of

defamation is a key element, but it is necessary to

certify and verify the integrity and authenticity of the

collected evidence. The authentication of the page or

profile that has carried out the defamation, insult or

slander can be followed by a Notary equipped or by a

forensic computer expert who acquires the pages with

the messages defamatory or abusive. The digital

appraisal aimed at documenting the defamation and

the offense or injury occurred on the Internet through

computerized evidence that can be extended through

OSINT investigations and searches also to the

acquisition of data relating to the owners or users of

the profiles, groups or pages on where defamatory

messages are published.

3.1 OSINT & SOCMINT

The Open Source INTelligence (OSINT) is the

activity of collecting information by consulting

publicly accessible sources. OSINT sources are

distinguished from other forms of intelligence

because they must be legally accessible to the public

without violating any copyright or privacy laws.

Indeed, OSINT includes all sources of information

accessible to the public. This information is available

online or offline, following some examples:

• Access to the Internet, which includes

forums, blogs, social networking sites, video

sharing sites, wikis, Whois records of

registered domain names, metadata and

digital files, geolocation data, IP addresses,

people's search engines and everything that

can be found online.

• Traditional mass media (TV, radio, journals,

book).

• Specialized journals, academic publications,

dissertations, conference proceedings,

company profiles, annual reports, company

news, employee profiles and resumes.

There are organizations specializing in OSINT

services. Some of them are based on government

services others are private companies that offer their

services to various entities such as government

agencies and commercial companies on a subscription

basis; among the best known: government bodies,

international organizations, military agencies, but also

companies whose power is information.

The term of Social Media Intelligence

(SOCMINT) indicates a set of techniques and

technologies that allow private or public agencies to

monitor social media platforms. SOCMINT's

activities concern the monitoring of content, such as

messages or photos posted, and any other kind of data

produced during an activity session on social media.

Such information, whether private or public, involves

interactions between people, between people and

groups or between different groups. The methods

used to analyze the data produced through social

networks are different: they may also include the

manual correction of content, public or private, or of

entire pages; o reviewing the results of some research

or some questions; o modification of activities or

content posted by the user; or scraping, which

translated means scraping and which consists of

extracting the content of a web page and duplicating

it in a way accessible to those involved in social

media intelligence. Clearly, SOCMINT's activity

Defamation 2.0: New Threats in Digital Media Era - An Overview on Forensics Approaches in the Social Network Ecosystem

123

includes a series of procedures to collect, store, and

analyze the data produced on social media, data that

are subsequently translated into analyzes and trends.

The term Social Media Intelligence is sometimes

replaced by the equivalent Open Source Intelligence

(OSINT), although there is a substantial difference

between the two activities': while the OSINT

analyzes only public data, such as articles, sites and

blogs, SOCMINT analyzes both those public and

private ones, i.e. messages and chats.

3.2 Identify Profile, Page or Group

with Defamatory Content

In order to perform a correct analysis on a profile,

page or group, it is necessary to identify the ID code

that uniquely identifies it. The profile name can in

fact be changed by the owner, as well as the address

that appears in the browser's URL bar. To locate the

ID code of the profile or page from which the

defamation comes, you can use a site such as Find My

FB ID (FindMyFbID, 2020), by pasting the profile or

page address in the text field and pressing the "Find

numeric ID" button. Once you have entered the

address of the profile or page where the defamation is

present, you will get a number to copy or print, to

"freeze" the unique identifier that will allow you to

find the profile or page even in the event of a name

change or URL and to ask the Judicial Authority for

any log files or defamatory content. If it is not

possible to use online sites that identify the ID, it is

advisable to save the page or profile on which the

defamation was detected. Within the page code, you

will find two items containing the ID codes searched:

"pageID"; (for Facebook pages) and "profile id" (for

profiles).

3.3 Find the Unique Reference of the

Defamatory Post or Comment

Once the User ID of the owner of the profile from

which the defamation occurred or the Page ID of the

page containing the defamatory text has been

established, it is also necessary to "freeze" the post or

comment itself, including the date, to then use it as IT

proof of the defamation and allow the IT forensic

consultants who will be hired to carry out an IT

expertise. The address or URL that identifies the post

itself will be of the following type:

www.facebook.com/profile.name/posts/10213357451

991856.

To identify a specific comment, by clicking on the

date and time under the comment itself, after the

"Like" link, the post will be opened in a new page

with the comment highlighted, a URL of the

following type:

www.facebook.com/profile.name/posts/10213357451

991856?comment id=10213357955884453

The first code, highlighted in bold, is the ID code of

the post, while the second one is the "comment id",

that is the unique identifier of the defamatory

comment.

3.4 “Freeze" a Digital Proof of

Defamation

It is always important to make a certified copy of a

profile or page containing defamatory messages.

However, it is possible (also to protect oneself in the

event of cancellation) to begin the "crystallization"

phase using some precautions, such as the free FAW,

Forensic Acquisition of Websites (FAW, 2020), or

Legal Eye (Legal_eye, 2020) software that allows for

the forensic acquisition of web pages or social

profiles network with some guarantees on the

originality of the acquired data. There are also web

services that allow you to download an authentic copy

of pages or posts as long as they are public and not

private, such as Perma.cc or Archive.is that permits to

create a copy of an Internet page on a third server,

carried out by a third party, a strategic activity in

particular in the event that the defamatory messages

are modified or removed.

4 OVERVIEW ON FORENSIC

ANALYSIS IN SOCIAL MEDIA

ECOSYSTEM

In the recent years, Social Media Applications

received attention from many forensic researchers,

because of their exponential growth, due to their ease

of use and efficiency reaching out to people, allow the

development of many malicious activities and serious

cybercrime (Mohtasebi & Dehghantanha, 2011).

In 2012 Al Mutawa et al. (Mutawa, Baggili, &

Marrington, 2012) focus their attention on mobile

device analyzing forensic artifacts of several Social

Media apps on various mobile platforms: MySpace,

Twitter and Facebook each on Blackberry phone,

iPhone (iOS) and Android. In 2013, M. Baca et al

(Baca, Cosic, & Cosic, 2013) conduct an analysis of

Facebook artifacts in internet and were able to find

significant evidence traces related to Facebook

activity. Other research based on the analysis of

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

124

WhatsApp, Viber and Skype artifacts was carried out

(Mahajan, Dahiya, & Sanghvi, 2013) (Thakur, 2013)

(Al-Saleh, I., & Forihat., 2013). In 2015 Walnycky et

al. (Walnycky, Baggili, Marrington, Moore, &

Breitinger, 2015) conduct a network and device

forensic analysis of twenty android social messaging

apps to explore digital evidence strictly limited to

messaging service only. A forensic analysis of three

social media apps (Facebook, Viber and Skype) in

windows 10 was carried out by Majeed et al. (Majeed,

Zia, Imran, & Saleem, 2015). They explored and

examined the potential locations of storage finding

interesting artifacts for all three applications in plain

text. In 2017 Yusoff et al. (Yusoff, Dehghantanha, &

Mahmod, 2017) conduct an investigation and analysis

of social media and instant messaging services focus

on residual remnants of forensics value in FireFox

OS. They examined three social media services

(Facebook, Twitter and Google+) as well as three

instant messaging services (Telegram, OpenWapp

and Line).

A very interesting research focused on authorship

attribution for Social Media Forensics was conduct by

Rocha et al. (Rocha, et al., 2016). Their research is

based on the fact that all authors possess peculiarities

of habit that influence the form and content of their

written works. These characteristics can often be

quantified and measured using machine learning

algorithms. Rocha et al. provide a comprehensive

review of the methods of authorship attribution that

can be applied to the problem of social media

forensics. Further, they examine emerging supervised

learning based methods that are effective for small

sample sizes, and provide step-by-step explanations

for several scalable approaches as instructional case

studies for newcomers to the field.

A work on Forensics of Social Network

Relationship based on Big Data was carried out in

2020 by Junjing et al. (Junjing, Yan, & Jinqiang,

2020). They expound the forensics mode of social

network relationship and the forensics process of

mobile phones, and puts forward the forensics

method of social network relationship based on

Wechat platform, analyses the instance data set,

obtains the social network diagram, and intuitively

and clearly shows the relationship and intimacy

between multiple members. The possibility to extract

information about images uploaded on social

platform has been exploited in (Giudice, Paratore,

Moltisanti, & Battiato, 2017) / (Moltisanti, Paratore,

Battiato, & Saravo, 2015).

Nowadays images are the main way by which

people and companies share news and opinions

through social platforms. Fake images (e.g., deep

fake) and mislead images are under severe discussion

by technicians in this last period. The field that

studies how and why images are used to convey

opinions (i.e., sentiment) (Ortis, Farinella, & Battiato,

2020) is named visual sentiment analysis. Related to

this field there are several possible tasks, which

would benefit from forensics analysis. Moreover, the

outcomes of such analyses could be used as evidences

(e.g., popularity dynamics, etc.).

4.1 Analysis Results

Our analysis has been conducted on the 250 social

networks listed by (Social Media List, 2020). We

have examined the different social networks in order

to find the way to identify useful information that can

be used in forensic investigations, like User Id, Post

Id, Comment Id and any other to retrieve univocally

to the defamation author. For each Social Network

website, different type of approaches has been

adopted to trace these identifiers: an inspection and

analysis of the URL of the page or profile of interest,

and a "Inspect Element" to examine the source code

of the profile or post page; the inspection element

analysis, mainly in HTML code, aims to find a script

containing the string with the useful information for

the investigation (for example an ID Users or others

relevant ID) .

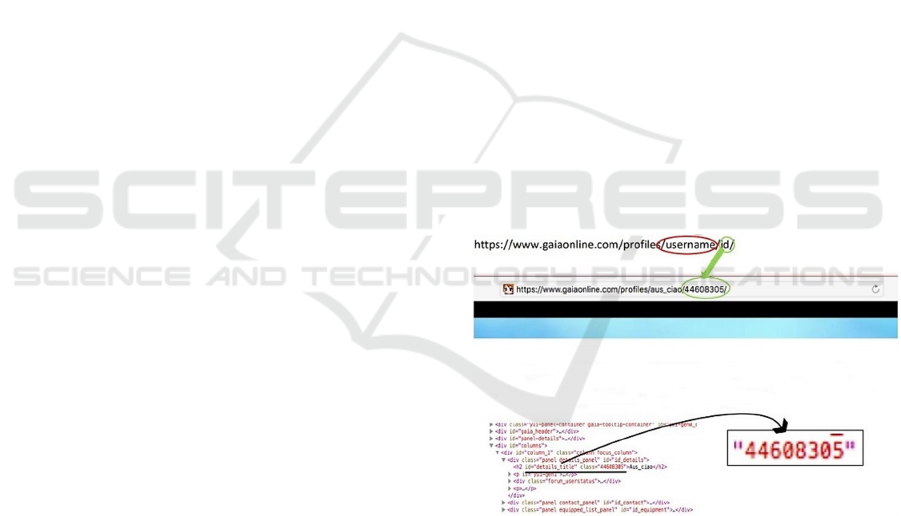

Figure 2: An example of URL analysis and Code Inspection

applied on a Social Network Website.

Figure 2 shows an example of URL analysis and

Code Inspection applied on a Social Network

website.

Our analysis has shown that is not always possible

to use both these approaches for every social network

examined, or they are not always able to discover

interesting information to be used in front of a court

in the event of any cases of defamation.

In some cases the forensic study has not been

possible to conduct; for example when it is not able

Defamation 2.0: New Threats in Digital Media Era - An Overview on Forensics Approaches in the Social Network Ecosystem

125

to extract useful evidences or when the social site has

characteristics that do not allow the defamation

crime.

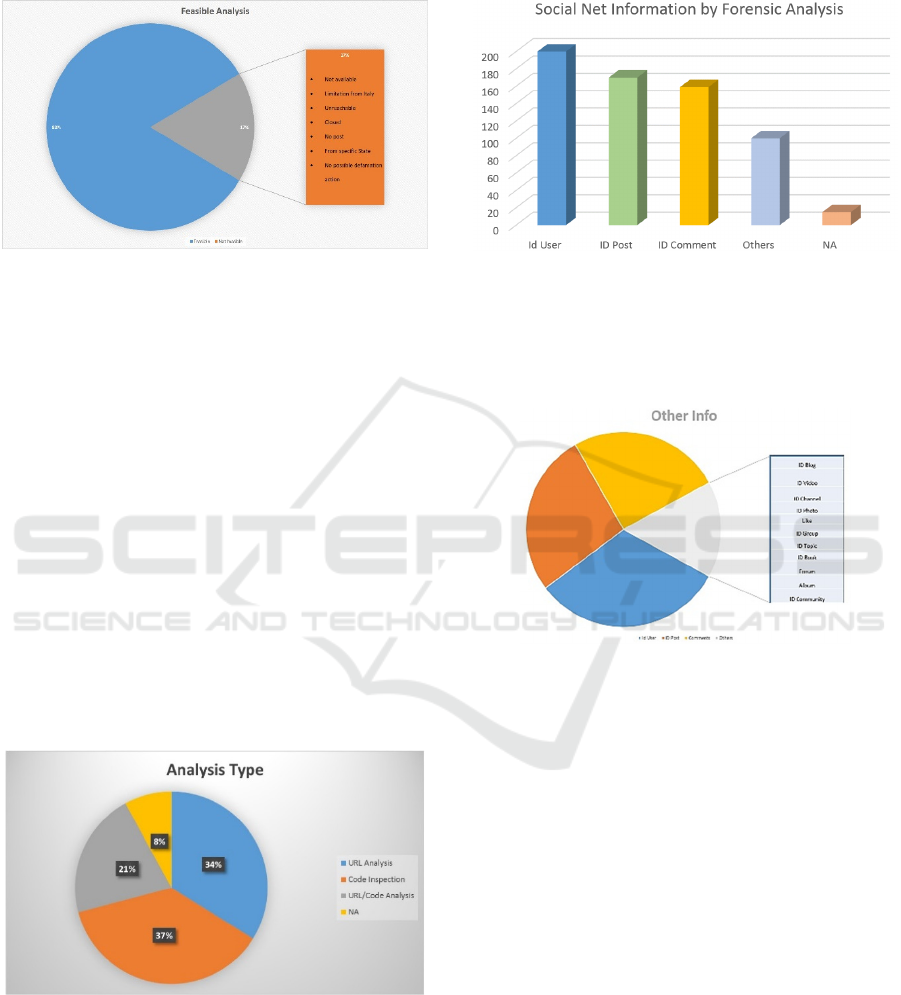

Figure 3: Our results show that in the 83% of the cases is

possible apply a forensic analysis of the Social Network

Platform obtaining useful evidences.

Figure 3 shows our analysis results conduct on

250 Social Network Platform: in the 83% of the cases

it was possible to pull out useful information applying

the forensics standard approaches said before. In the

remaining 17% of the cases it was not possible

conduct a forensic analysis because of different

reasons (closed web site, unreachable app or website

or because there are not post on the website to

analyze).

In the Social Media Forensics the main

information to detect defamation author are basically

obtained from URL analysis or Code Inspection.

Focus our attention on the inspectable Social Network

Websites, in Figure 4 we show how many Social

Media is possible to investigate with a URL analysis

approach, how many with a Code Inspection

approach and how many with both of them.

Figure 4: Types of Forensic approaches applicable on

Social Media Websites.

In the 8% of the analyzed cases it is not possible to

proceed with these techniques but it is necessary to

contact the social network provider to recover valued

information.

Figure 5 shows the number of Social Network where

it was possible pull out some evidences such as

IDUser, ID Post and ID Comment.

Figure 5: Typology of mainly Information that is possible

extract with a forensic Social Network Analysis.

Moreover it is possible to find also other

numerous information that characterize social

network as shown in figure 6.

Figure 6: Other typology of information that is possible

extract with a forensics Social Network Analysis.

5 CONCLUSIONS

Social networks are changing the way forensics

examinations are done. In this paper we achieve an

overview on how is possible to conduct a digital

forensics investigation on 250 different Social

Network Platforms to search and identify potential

evidences. Our research highlights that in the most of

the cases, also without the collaboration of the social

network service, a forensic investigation is able to

identify relevant potential information that can be

presented as proofs in front of a court to pursue, in

particular, the defamation crime. Our evaluation

demonstrates that, in many cases, it is reasonably

possible to extract forensic useful information of a

given social networking account, of a given post or

comment.

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

126

Moreover it has been shown how the main

forensic approaches can be applied, specifically on

this particular type of investigation, and how is

possible to collect the evidences.

Future work in this domain could be related to an

implementation of an automatic tool able to provide a

digital evidence collection by means of a forensic

investigation on social networking activities.

REFERENCES

Al-Saleh, I., M., & Forihat., Y. A. (2013). Skype forensics

in android devices. International Journal of Computer

Applications, (pp. 38-44).

Baca, M., Cosic, J., & Cosic, Z. (2013). Forensic analysis

of social networks (case study). Information

Technology Interfaces (ITI), Proceedings of the ITI

2013 35th International Conference on (pp. 219-223).

IEEE.

Boyd, D. m., & Ellison, N. B. (2007). Social Network Sites:

Definition, History and Scholarship. Journal of

Computer-Mediated Communication, (pp. 210-230).

FAW. (2020). https://it.fawproject.com/.

FindMyFbID. (2020). https://findmyfbid.in/.

Gao, H., Hu, J., Wilson, C., Li, Z., Chen, Y., & Zhao, B.

(2010). Detecting and characterizing social spam

campaigns. Proceedings of the 10th annual conference

on Internet measurement (pp. 35-47). ACM.

Giudice, Paratore, Moltisanti, & Battiato. (2017). A

classification engine for image ballistics of social data.

International Conference on Image Analysis and

Processing, (pp. 625-636).

Jagatic, T., Johnson, N., Jakobsson, M., & Menczer, F.

(2007). Social phishing. Communications of the ACM,

(pp. 94-100).

Junjing, T., Yan, B., & Jinqiang, M. (2020). Research on

Forensics of Social Network Relationship Based on Big

Data. Journal of Physics: Conference Series 1584

012022. DMCIT 2020. doi:10.1088/1742-6596/1584/1/

012022

L. Bilge, T. S., Balzarotti, D., & Kirda, E. (2009). Allyour

contacts are belong to us: automated identity theft

attacks on social networks. Proceedings of the 18th

international conference on World wide web (pp. 551-

560). ACM.

La Stampa. (2018). Retrieved from https://www.

lastampa.it/cultura/2018/02/03/news/quanti-social-

network-esistono-1.33975738

Legal_eye. (2020). https://www.legaleye.cloud/public.

M. Huber, M. M. (2011). Friend-in-the-middle attacks:

Exploiting social networking sites for spam. Internet

Computing.

Mahajan, A., Dahiya, M. S., & Sanghvi, H. P. (2013).

Forensic analysis of instant messenger applications on

android devices. arXiv preprint arXiv:1304.4915.

Majeed, A., Zia, H., Imran, R., & Saleem, S. (2015,

December). Forensic analysis of three social media

apps in windows 10. 2015 12th International

Conference on High-capacity Optical Networks and

Enabling/Emerging Technologies (HONET), (pp. 75-

79). Islamabad (Pakistan). doi:10.1109/HONET.2015.

7395419

Mohtasebi, S., & Dehghantanha, A. (2011). Defusing the

Hazards of Social Network Services. Int. J. Digit. Inf.

Wirel. Commun., 504-516.

Moltisanti, M., Paratore, A., Battiato, S., & Saravo, L.

(2015). Image manipulation on facebook for forensics

evidence. International Conference on Image Analysis

and Processing, (pp. 506-517).

Mutawa, A., Baggili, & Marrington. (2012). Forensic

analysis of social networking applications on mobile

devices. DIgital Investigation, 9

, S24-S33.

Ortis, A., Farinella, G. M., & Battiato, S. (2020). Survey on

visual sentiment analysis. IET Image Processing, (pp.

14(8), 1440-1456).

Rocha, A., Scheirer, W. J., Forstall, C. W., Cavalcante, T.,

Theophilo, A., Shen, B., Stamatatos, E. (2016).

Authorship Attribution for Social Media Forensics.

IEEE Transactions On Information Forensics And

Security.

Smith, A., & Anderson, M. (2018, March 1). Social Media

Use in 2018. Pew Research Center. Retrieved from

www.pewresearch.org

Social Media List. (2020). Retrieved from

https://socialmedialist.org/social-media-apps.html

Thakur, N. S. (2013). Forensic analysis of WhatsApp on

Android smartphones. University of New Orleans

Theses and Dissertations.

Walnycky, D., Baggili, I., Marrington, A., Moore, J., &

Breitinger, F. (2015). Network and device forensic

analysis of Android social-messaging applications.

Digital Investigation Impact Factor: 0.99.

Wikipedia. (2020). Retrieved from https://en.wikipedia.

org/wiki/JPEG.

Wikipedia. (2020). Retrieved from https://en.wikipedia.org/

wiki/List of social networking websites.

Wondracek, G., Holz, T., Kirda, E., & Kruegel. (2010). A

Practical Attack to De-Anonymize Social Network

Users. Proceedings of the IEEE Symposium on Security

and Privacy.

Yusoff, M. N., Dehghantanha, A., & Mahmod, R. (2017).

Forensic Investigation of Social Media and Instant

Messaging Services in Firefox OS: Facebook, Twitter,

Google+, Telegram, OpenWapp and Line as Case

Studies. Contemporary Digital Forensic Investigations

Of Cloud And Mobile, Chapter 4, 41-62.

Defamation 2.0: New Threats in Digital Media Era - An Overview on Forensics Approaches in the Social Network Ecosystem

127
