Generating Relationship between Design Pattern and Source Code

Mika Ohstuki and Tetsuro Kakeshita

Computing Division, Saga University, Honjo-machi 1, Saga City 840-8502, Japan

Keywords: Educational Support Systems, Software Engineering, Software Process, Design Pattern, Source Code.

Abstract: Software engineers need to learn a variety of knowledge and skills to develop various artifacts, such as

software specification, software design, source code, and test code, during the software process. We are

developing a visualization tool named VRale-SCM for various artifacts and the relationship among them in

VR space. A software engineer can freely navigate the artifacts to deeply understand the artifacts and the

relationship among them. In this paper, we propose a mechanism to generate a relationship between the design

pattern and Java source code. Integration of the proposed mechanism to VRale-SCM will enrich the

educational contents of the system so that the educational effect will be further improved.

1 INTRODUCTION

In today's world, the realization of various services

depends on computer software. With the increasing

sophistication and complexity of software, the

training of advanced software engineers who are

responsible for the life cycle of software, including

planning, development, and operation, is of high

social importance.

The software development process consists of

various processes such as planning, requirements

analysis, design, programming, and software testing

(ISO, 2017). Software engineers need to learn a

variety of knowledge and skills to develop artifacts at

each process.

We are developing a visualization tool named

VRale-SCM for the artifacts of each process and the

relationship among them in VR space (Kishikawa,

2020). A software engineer can freely navigate the

artifacts to deeply understand the artifacts and the

relationship among them. In this paper, we propose a

mechanism to generate a relationship between the

design pattern and Java source code. Integration of

the proposed mechanism to VRale-SCM will enrich

the educational contents of the system so that the

educational effect will be further improved.

Design patterns (Gamma, 1995) are abstract

descriptions of recommended conventions of object-

oriented software design and are useful for teaching

systematic software design. We have proposed

xPIML to describe the structure and description of

design patterns (Ohtsuki, 1998 and 2011). The

mechanism proposed in this paper utilizes xPIML and

defines a mapping between the design pattern and

corresponding Jave source code.

This paper is organized as follows. We shall

explain the related works in Section 2 with a

discussion of the originality of our work. We shall

introduce VRale-SCM and xPIML in Sections 3 and

4 respectively. The entire framework of the mapping

between the design pattern and source code is

proposed in Section 5. The actual mapping is

described using a CSV file, which is explained in

Section 6 with a demonstrating example using the

Template Method pattern.

2 RELATED WORKS

Various works have been conducted on environments

and tools that support the education of knowledge and

skills for software engineers especially for

programming (Caiza, 2013). However, there is no

known educational environment that covers the entire

software development process. Also, there is a lack of

education to deepen the understanding of the

relationship between deliverables in each process.

Several methods for applying design patterns

have been proposed in the past. For example, there

have been many tools for describing design patterns

in some form and generating source code from them,

such as design tools (Kobayashi, 2000) and

development environments (Shizuki, 2000), led by

(Budinsky, 1996). In recent years, it is often

288

Ohstuki, M. and Kakeshita, T.

Generating Relationship between Design Pattern and Source Code.

DOI: 10.5220/0010472502880293

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 2, pages 288-293

ISBN: 978-989-758-502-9

incorporated as a feature in design tools and

integrated development environments, both

commercial and non-commercial.

However, few of these application tools maintain

a correspondence between the result of the

application and the original design pattern. Even if it

is maintained, it is only for things developed within

the tool and does not deal with correspondences

within general libraries such as the Java language

library. Since we need to visualize the

correspondence with not only the source code of the

examples but also general libraries in our lectures, we

aim to realize visualization as an independent tool.

On the other hand, many attempts to detect design

patterns in the source code have been proposed in the

past. One of the earliest attempts to detect design

patterns in Java source code was a method using

UML descriptions (Albin-Amiot, 2001). Recently, a

neural network-based detection method (Dwivedi,

2019) has been proposed.

Currently, due to the small size of the source code

of our examples and the limited range of libraries we

use, we do the mapping manually. In the future, when

the scale of the source code targeted by PBL becomes

larger, we would like to consider these automatic

extraction methods.

3 EDUCATIONAL TOOL

VRALE-SCM UTILIZING VR

SPACE

Individual software consists of many artifacts, and

there are interrelationships among them. To

understand these interrelationships, there is a limit to

what can be displayed on a screen in two dimensions.

For this purpose, we developed VRale-SCM, a tool

for displaying the artifacts in three-dimensional

space.

VRale-SCM visualizes the source code of a

project which consists of multiple Java files. The tool

also visualizes the parse tree of the source code.

VRale-SCM provides the following functions.

 The tool shows a folder or a file in the VR

space. When a student clicks any folder then

the tool displays its child elements such as

folders and files.

 When a student clicks a file in the VR space,

the tool aligns the files.

 When a student clicks a name of a class,

method, or variable on a source code, the

system displays the name table of the

corresponding name according to the type of

the clicked name.

 The name table contains a list of definitions

and references of the clicked name. When a

student clicks an entry of the list, the system

shows the corresponding definition or a

reference within the source code.

 The system displays a parse tree for the

selected source code file.

 If a student clicks on a name node of a parse

tree, the system displays the corresponding

name table. The student can jump to the place

within the source code by clicking an

appropriate entry of the name table.

By using VRale-SCM, students can understand

the structure of the source code and how source codes

and the parse tree concretely relate to each other.

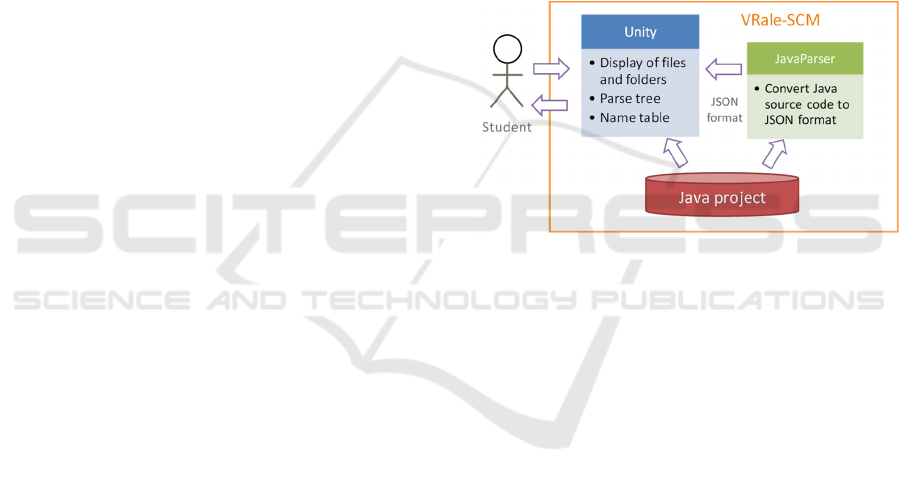

Figure 1: Entire Structure of VRale-SCM.

The entire structure of the tool is represented in

Figure 1. A student interacts with the tool as a VR

application developed using Unity. The Java project

contains source code and other documents of the

target project for visualization. We utilize JavaParser

to convert Java source code to JSON format.

We will add to this system the ability to map

design patterns to source code, so that students can

understand what the source code was designed for.

4 DESIGN PATTERN

DESCRIPTION LANGUAGE

XPIML

PIML (Pattern Information Markup Language), a

language for describing design patterns, was designed

as SGML in 1998 (Ohtsuki, 1998). xPIML

(Extensible Pattern Information Markup Language) is

a redesign of PIML as XML in 2011 (Inoue, 2011).

While xPIML can describe both descriptive text

and structural information of design patterns, this

paper describes the structural information used for

Generating Relationship between Design Pattern and Source Code

289

correspondence. The structure information is

described in the "structure" element as shown in

Figure 2.

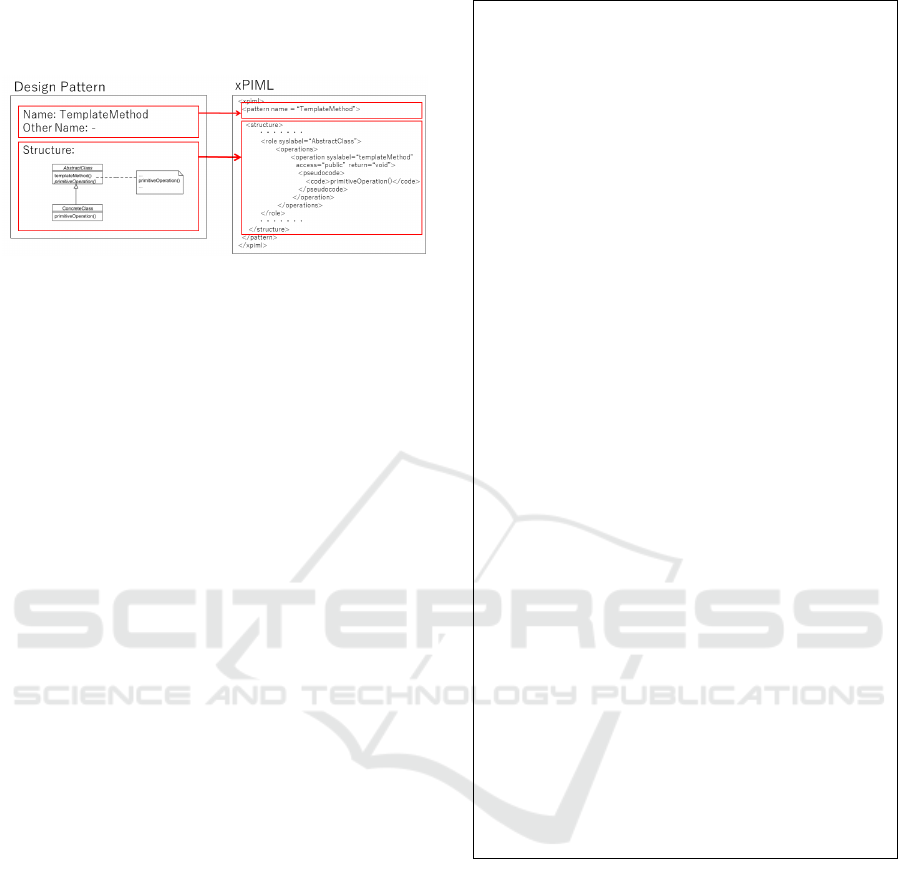

Figure 2: Describing a Design Pattern in xPIML.

4.1 Description Structure

The structural information, including the behavior

described in the pseudocode, is described in three

parts: the relation definition group, the role definition

group, and the clonable group, based on the

information obtained from the UML class diagram.

First, relationships between classes, such as

inheritance, are described in the relation definition

group section "relations".

Next, the classes in the class diagram are called

roles and are listed in the "roles" section of the

role definition group. Each role is described in the

"role" element, and the operation of the role is

described in the "operation" element. The

behavior that may be described in operations is

described using Java-like pseudo-code.

Finally, some roles and operations that may exist

in multiple implementations are described in the

"clonables" section as replicable combinations.

For example, the method

primitiveOperation() of AbstractClass

of TemplateMethod can be implemented multiple

times with different names. In that case, multiple

primitiveOperation() of ConcreteClass

must be implemented as well. For this reason,

ptimiviveOperation() of AbstractClass

and primitiveOperation() of

ConcreteClass are defined to be "clonable"

as a set.

4.2 Description Example

Figure 3 shows an example of the TemplateMethod

design pattern description. For reasons of space, only

a part of this article has been excerpted.

Figure 3: TemplateMethod design pattern described in

xPIML.

5 MAPPING OF DESIGN

PATTERNS TO SOURCE CODE

We shall propose the entire structure of the mapping

between the design pattern and Java source code in

this section.

The use of frameworks and APIs is essential in

modern software development. To understand the

software structure, it is necessary to understand

architecture patterns and design patterns used in those

frameworks and APIs. These patterns are also used in

the design process of individual software. For this

<xpiml>

<inheritance

origin="ConcreteClass"

target="AbstractClass"/>

</relations>

…

<celem type="op"

id="AbstractClass::

primitiveOperation"/>

<celem type="op"

id="ConcreteClass::

premitiveOperation"/>

</clonable>

</clonables>

<roles>

<operation

syslabel=“templateMethod

access=“public”

return=“void”>

<code>

primitiveOperation()

</code>

</pseudocode>

</operation>

…

</operations>

</role>

…

<roles>

</structure>

</pattern>

</xpiml>

CSEDU 2021 - 13th International Conference on Computer Supported Education

290

reason, we thought that it would be possible to deepen

the understanding of the learners if we could relate

these patterns, which are design knowledge, to source

code, which are artifacts of the implementation

process, and visualize the correspondence so that

design support and inspection can be performed.

In designing this system, we made the following

assumptions. Java will be used as the development

language in the lectures in our department. First, we

will cover the 23 design patterns of the GOF Book

(Gamma, 1995). It assumes the use of those in the

Java language library and popular frameworks such

as java.util, java.awt, and java.sql.

5.1 Visualization UI Concept

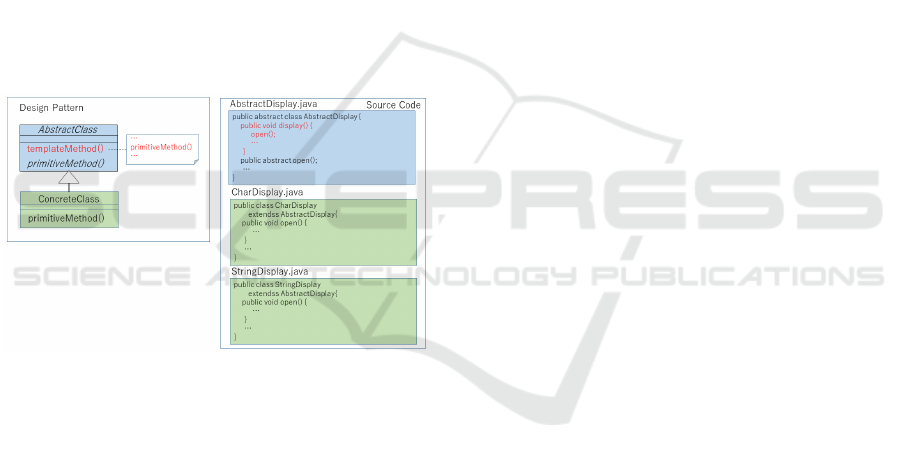

The image of the mapping between design patterns

and source code is shown in Figure 4. The

documented design pattern is displayed as a diagram,

and the correspondence between each element in the

design pattern and the corresponding code is

indicated using colors.

Figure 4: Example mapping between design patterns and

source code.

In Figure 4, the design pattern on the left side is

the TemplateMethod which has two roles. One role

AbstractClass is colored with blue and the

corresponding class AbstractDisplay in source code

is also colored with blue. The other role

ConcreteClass is colored with green and the

corresponding classes CharDisplay and StringClass

are also colored with green. When the

templateMethod in AbstractClass is selected and

highlighted with red, then the corresponding method

display() in AbstractDisplay is also highlighted with

red.

5.2 Mapping Algorithm

For documenting design patterns, we use xPIML, a

description language we developed previously

(Inoue, 2011). Since multiple design patterns may be

implemented within a single class, this description

language distinguishes the element that corresponds

to a class by calling it a "role". The element

corresponding to a method is called "operation".

To map the classes and interfaces in the

implemented source code to roles and the methods

contained in them to operations, it is necessary to

describe the mapping. A CSV file is used for this

description.

If there are multiple design patterns in an issue or

project, the mapping CSV files are created for all of

them. The following mapping algorithm is used for

the generation of each design pattern.

1. Do for each role in the design pattern.

1.1. If the role is implemented as multiple

classes, list them as one-to-many

correspondences.

1.2. If the role is implemented as a multi-level

class hierarchy, map it to the top-level

interface or class.

1.3. If there is a one-to-one correspondence

between the role and a class, describe it as

they are.

1.4. Do for each method in the role

1.4.1. If the operation is implemented as

multiple methods, list them as one-to-

many correspondences.

1.4.2. If multiple operations of a design

pattern are implemented together as a

single method, list them as a many-to-

one relationship.

1.4.3. If there is a one-to-one correspondence

between the operation and a method in

the source code, describe it as they are.

This kind of mapping makes it possible to

visualize the relationship between design patterns and

source code.

5.3 Folder Structure

The structure of the folder in which the data used in

this mapping system is stored is shown in Figure 5.

Here, the java folder contains the implemented

Java source code. Source code should be organized

by issue or project. The figure shows two folders, one

with the issue name "ex2020120101" and the

other with an example implementation of the design

pattern TemplateMethod. The source code may

include a nested hierarchy such as

"TemplateMethod/Sample". This folder also

includes the source code of the Java language library

such as java.lang and java.util in "java.base"

folder.

Generating Relationship between Design Pattern and Source Code

291

The xpiml folder contains the design pattern

description documents written in xPIML. It has the 23

design patterns of the GOF Book, which have been

described in previous studies.

The xpiml2java folder contains the CSV files

that describe the mapping between design patterns

and Java source code. The subfolder containing the

CSV files corresponds to the subfolder of the same

name of the source code of the issue or project placed

in the java folder.

data/

java/

ex2020120101/

Main.java

mypack/

Point.java

…

java.base/

…

(Java Language Library)

…

TemplateMethod/

Sample/

AbstractDisplay.java

CharDisplay.java

Main.java

StringDisplay.java

xpiml/

AbstractFactory/

Adapter/

...

(GOF 23 patterns)

...

TemplateMethod/

TemplateMethod.xml

Visitor/

xpiml2java/

ex2020120101/

TemplateMethod.csv

TemplateMethod/

TemplateMethod.csv

Figure 5: Folder structure used in the mapping system.

6 CSV FILE FOR MAPPING

The individual mapping between design patterns and

Java is described using a CSV file. The concrete

mapping rules are proposed in this section. The

validity of the rule is demonstrated using the example

described in Section 5.2.

6.1 Description Rules

The CSV file in which the mapping between design

patterns and Java source code is described is

composed as follows. The mappings between roles or

operations and classes or methods are generated using

the algorithm described in Section 5.2.

 First, specify the location of the source code to

be targeted at the beginning. Use the relative

position from the data folder to specify the

position of the source code.

 Next, list the mapping between the role

element specified by XPath and the class.

Classes should be written in a way that

includes packages.

 Besides, list the mapping between the

operation element specified by XPath and the

method. Methods should be prefixed with the

class name, and the method name should be

written after "::".

java:TemplateMethod/Sample
