Facial Expression Recognition System for Stress Detection with Deep

Learning

José Almeida

and Fátima Rodrigues

Polytechnic of Porto, School of Engineering, Rua Dr. António Bernardino de Almeida, Porto, Portugal

Interdisciplinary Studies Research Center (ISRC), Polytechnic of Porto, School of Engineering, Porto, Portugal

Keywords: Stress Detection, Emotion, Facial Expression Classification, Convolutional Neural Networks.

Abstract: Stress is the body's natural reaction to external and internal stimuli. Despite being something natural,

prolonged exposure to stressors can contribute to serious health problems. These reactions are reflected not

only physiologically, but also psychologically, translating into emotions and facial expressions. Based on this,

we developed a proof of concept for a stress detector. With a convolutional neural network capable of

classifying facial expressions, and an application that uses this model to classify real-time images of the user's

face and thereby assess the presence of signs of stress. For the creation of the classification model was used

transfer learning together with fine-tuning. In this way, we took advantage of the pre-trained networks VGG16,

VGG19, and Inception-ResNet V2 to solve the problem at hand. For the transfer learning process two

classifier architectures were considered. After several experiments, it was determined that VGG16, together

with a classifier based on a convolutional layer, was the candidate with the best performance at classifying

stressful emotions. The results obtained are very promising and the proposed stress-detection system is non-

invasive, only requiring a webcam to monitor the user's facial expressions.

1 INTRODUCTION

Demanding jobs are a significant cause of stress in

people. Situations like frequent exposure to danger,

short deadlines, rigorous tasks or even repetitive tasks

are some stress originators.

Nearly one in three workers in Europe and the

United States report that they are affected by stress at

work. Work-related stress, depression, and anxiety

can result in reduced work performance and

absenteeism, costing an estimated 3% to 4% of gross

national product (Dewa & Hoch, 2015). Also, about

61% of European institutions participating in the

2019 EU-OSHA study (EU-OSHA, 2019) reported

that a reluctance to talk openly about these issues

seems to be the main difficulty for addressing

psychosocial risks.

There is evidence that stress conditions are both

preventable and treatable in the workplace and that

workers who receive treatment are more likely to be

more productive (Carolan et al., 2017). Hence, non-

intrusive stress sensing tools that continuously

monitor stress levels, with a minimal impact on

https://orcid.org/0000-0003-4950-7593

workers’ daily lives, could be used to automatically

initiate stress-reduction interventions. In stressful

work settings, these applications could not only lead

to more timely and reduced-cost interventions, but

also to more productive environments where workers

could better manage their workload.

1.1 Facial Expressions and Stress

Every day, people communicate with each other, not

only verbally, but also with gestures and facial

expressions. Often these gestures and facial

expressions are automatic, and the transmitter does

not even realize that he/she is executing them. This

unintentional information is the primary way to know

the transmitter's emotions in a non-invasive way.

There are facial expressions that express the same

emotion universally. These are called universal facial

expressions of emotion. There is ample consensus in

the scientific community (Ekman, 2016) about the

universality of five emotions: anger, disgust, fear,

happiness and sadness. In this same study, scientists

also agreed on the relationship between emotions and

256

Almeida, J. and Rodrigues, F.

Facial Expression Recognition System for Stress Detection with Deep Learning.

DOI: 10.5220/0010474202560263

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 256-263

ISBN: 978-989-758-509-8

moods. Like other emotions and moods, stress can

also be manifested from facial expressions, gestures,

and even from the voice. Stress does not have an

universal facial expression of emotion however, there

are studies (Dinges et al., 2005), (Lerner et al., 2007)

where the feeling of stress was validated by the

increase in cortisol levels and cardiac activity, that

confirm the relationship between facial expressions

and stress. In these studies, the negative emotions

anger, disgust, and fear were unquestionably related

with stress.

1.2 State of the Art in Stress Detection

Automatic stress detection has been studied for many

years. From some intrusive approaches, such as saliva

or blood tests, to less intrusive approaches, with the

collection of images.

One of those works are the study (Gao et al.,

2014) where a camera mounted inside the dashboard

of a car collected images of the driver face for the

detection of stress. Using Support Vector Machines

(SVMs) trained in public facial expression datasets,

the collected images were then classified into one of

six facial expressions. An algorithm would

subsequently count the classifications within a time

window. If the number of anger and disgust

classifications exceeds a specific threshold, the driver

would be considered under stress. The best classifier

obtained was trained, not only with the images from

the public datasets but also with images of the

subjects posing for the stress classification. In this

way, the models could adapt to the way these subjects

show their facial expressions. They obtained an

accuracy of 90.5% for the stress classification.

In another work (Maaoui et al., 2015), was

developed a system that collects Remote

Photoplethysmography (rPPG) signals using the

computer's webcam for the detection of stress. The

rPPG signals were then translated into a sinusoidal

wave, which represents the heart rate. An SVM

classifier presented the best results with 94.40%

accuracy.

The group (Giannakakis et al., 2016) developed a

system capable of detecting stress/anxiety emotional

states through video-recorded facial cues. Applying a

multitude of techniques, such as Active Appearance

Models, Optical Flow, and rPPG they extracted the

most relevant features that were used for the stress

classification. The best classification accuracy of

87.72% was obtained with a K-NN classifier.

In the study (Viegas et al., 2018) was proposed a

system capable of detecting signs of stress through

Facial Action Units (FAUs) extracted from videos.

They performed binary classification using several

simple classifiers on FAUs extracted in each video

frame and were able to achieve an accuracy of up to

74% in subject independent classification and 91% in

subject dependent classification.

2 SOLUTION DESIGN

The system use case is to detect and notify the user

that he shows signs of stress using facial expressions

detected only with video images. The advantage of

using video for personal stress detection is the easy

accessibility to webcams when working with

computers. The program will run in the background,

monitoring the user's facial expressions, and will

notify him/her when (s)he is showing signs of stress.

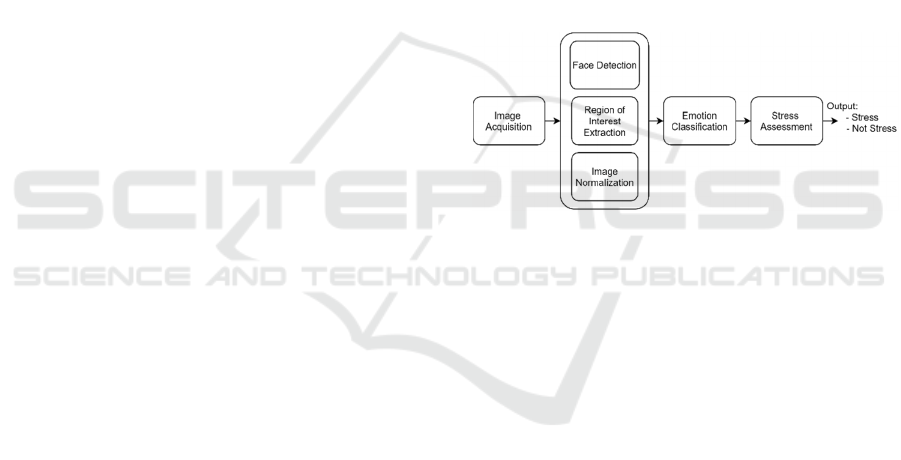

In Figure 1 are presented the various modules

composing the system.

Figure 1: Overview of the modules composing the stress

detection system.

The system's first module will be responsible for

capturing images in real-time, from the computer's

webcam, and sending these images to the second

module. In the second module will be determined the

user's face's location, using a Haar-like feature

selection technique and cropped. The face will then

be resized to 299x299 pixels and normalized, by

dividing the value of all pixels by 255 so that all have

values between 0 and 1. The Emotion Classification

module, consisting of a trained classification model,

will classify the face and return a list of seven

probability scores, one for each facial expression. The

facial expression with the highest probability will

then be fed to the fourth module (stress assessment).

The various classifications made over time will be

recorded and based on the parameters provided to the

program, it will then determine whether the user is

under stress.

The program only requires three parameters:

1) the "frequency" of the program, which

determines the time interval, in milliseconds, between

each image extraction from video's webcam, and

consequently, the remaining modules' execution;

Facial Expression Recognition System for Stress Detection with Deep Learning

257

2) the "time window" in seconds, which indicates

the period of past classifications that will be

considered in the stress assessment process;

3) a "threshold" that indicates the percentage of

negative emotions needed to determine, within the

time window, if the user is under stress.

For example, if the time window is 900s (or 15

min.) and the threshold is 75%, it means that if in the

last 15 minutes, 75% or more of the classifications are

for stressful emotions, then the system determines

that the user shows signs of stress and it will be

displayed a notification alerting for that fact. If the

user wishes, he has the possibility to confirm this

notification. Also, if the user permits, the images

collected by the webcam will be saved on disk and

those positively classified by the model will be

labelled with stress and its timestamp. The goal to

collect these images is twofold, first to create a real

dataset of images labelled with stress/non stress, as

far as we know, from the research carried out, there

aren´t any public dataset with such characteristics

accessible; and also make these images available to

be analysed by experts.

3 EXPERIMENTATION

For the development of this project, was follow the

CRISP-DM methodology (Wirth & Hipp, 2000) that

provides guidelines for data mining and machine

learning process in general.

3.1 Business and Data Understanding

To tackle the stress detection problem there were two

possibilities. Address the problem with data classified

as stress or non-stress (preferable approach), or with

data classified with the seven facial expressions.

Unfortunately, datasets classified directly as stress or

non-stress are few and not publicly available.

Therefore, tacking in consideration the direct

correlation between specific facial expressions and

stressful situations, two datasets were requested.

The Karolinska Directed Emotional Faces

(KDEF) (Lundqvist et al., 1998) is a dataset created

by the Karolinska Institute, bringing together 4900

images of seven human facial expressions, 700 for

each one. The facial expressions collected coincide

with the five facial expressions of emotion accepted

by the scientific community, plus neutral and

surprise. Despite we will consider these seven

emotions, only anger, disgust and fear will be

associated with stress, since only these are accepted

as related to stress. Although complete and well

uniformed, KDEF is a very homogeneous dataset,

where the subjects are all of the same age group, same

race, without any facial modification such as glasses

or beard, and the images were all captured in a

controlled environment

As such, to counteract this homogeneity, it was

decided to obtain the CK+ dataset and also to create a

new dataset with images collected by us from the

internet (here called Net Images), to train the models

with more heterogeneous data. With the use of these

three datasets, it is expected to obtain a more realistic

training and assessment of the models and hopefully

closer to the real world.

The CK+ dataset is the result of an extension of

the CK dataset (Kanade et al., 2000) that aimed to

promote research into automatically detecting

individual facial expressions (Lucey et al., 2010). The

CK+ dataset has a total of 327 sequences of images

and the number of each facial expression in the

dataset varies a little presenting a distribution of 45

sequences of anger, 18 of contempt, 59 of disgust, 25

of fear, 69 of happiness, 28 of sadness and 83 of

surprise.

The dataset created by us, Net Images, consists of

twenty images for each emotion (same emotions as

KDEF) in a total of 140 images. These images were

collected from searches on two search engines

(Google and DuckDuckGo) and free stock images

sites (unsplash.com; pexels.com; shutterstock.com;

freepik.com). Then, were selected images where the

face was visible, and the emotion was unmistakably

present. We tried to obtain very heterogeneous

images, from people of different ages, races, and with

and without a beard and the same for glasses. Images

with watermarks, with visible image edition and in

which the facial expression could be interpreted as a

mix of emotions, as mentioned in (Ekman & Friesen,

2003) were avoided.

3.2 Data Preparation

After collecting the datasets, the images were

prepared for training the models. One of the first

changes was to adapt KDEF to the problem. Given

that this project will use the user's computer webcam

to capture user's facial expressions, it was decided to

use only the half-left profile, straight, and half right

profile images to train the neural network. The first

reason was that the full profile images contain little

information about facial expressions, which can

hinder learning for the neural network. Furthermore,

by default, the webcams will be pointing at the user's

face from the front, capturing mainly the straight and

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

258

half profiles. With this adaptation, the dataset was

reduced to 2940 images, 420 for each emotion.

In the CK+ dataset, the sequences' images were

reorganized for two reasons. It had the contempt

facial expression, which was not present in the other

datasets, and it does not have the separation of the

neutral facial expression images. Therefore, the

reorganization consisted of:

 Extracting the first image of every sequence

(which is always a neutral facial expression) to

form a new neutral class;

 Elimination of all images except the last six

images of each sequence, since the

intermediate images do not have very

pronounced facial expression.

After this reorganization, the CK+ includes 270

images of anger, 354 of disgust, 150 of fear, 414 of

happiness, 309 of neutral, 168 of sadness, and 490 of

surprise, in a total of 2155 facial expressions.

Once the dataset was adapted, all the images were

cropped around the face and scaled to 299 by 299

pixels. Contrary to the KDEF dataset, the distribution

of classes in CK+ is quite different with a certain

imbalance between classes.

Lastly, following the hold-out method the

training, validation, and test sets were created. The

datasets were merged and divided into 80% training,

10% validation and 10% test. But for the partitioning

of the datasets, it was considered the works of (Gao

et al., 2014; Viegas et al., 2018) where the models

showed an ability to adapt to people's faces, or even

to the way they express their emotions. Therefore, for

the separation of the datasets in training, validation

and test data, the divisions were made in such a way

that images of a specific person only existed in one of

the datasets. As a result, the models will be trained

and tested, not only with different images but with

different persons, as images of the same person only

exists in one of the datasets. Table 1 presents the

number of facial expressions in each dataset, train,

test and validation.

Table 1: Number of each facial expression in train,

validation and test datasets.

Facial

expression

Train Test Validation

anger 568 68 74

disgust 632 80 80

fear 469 56 62

happiness 682 86 86

neutral 597 76 74

sadness 490 56 62

surprise 730 92 92

3.3 Modelling

For the classification of facial expressions

convolutional neural networks (CNN) were explored.

As there are not many images to train those CNNs, it

was also decided to use pre-trained neural networks

and apply transfer learning.

In all, were selected three neural networks created

based on the ImageNet Large Scale Visual

Recognition Challenge (ILSVRC) (Russakovsky et

al., 2015). The selected neural networks were the

VGG16 and VGG19 proposed in (Simonyan &

Zisserman, 2015) and the InceptionResNetV2

(Szegedy et al., 2016). VGG16 and VGG19 were

selected because they are very simple and

straightforward architecturally and are often referred

to as the main networks used for transfer learning.

InceptionResNetV2 was also selected as it is

mentioned in (Hung et al., 2019) presenting good

results in a facial expression classification task.

The two pre-trained networks VGG16 and

VGG19 differ only in the number of layers of the

convolution base. The convolution base is made of

convolutional and max-pooling layers. The

convolutional layers use a 3x3 pixels filter, padding

and stride of 1 pixel. For the max-pooling layers were

used a 2x2 pixels window and a stride of 2. In all

layers is used the ReLU activation function, except

for the Dense layer output of the classifier that uses

Softmax.

At an architectural level, Inception-ResNet V2 is

a more complex network than the VGG, wider, with

filters of different sizes, and organized in different

types of blocks. Inception-ResNet modules are only

made of convolution layers, while reduction modules

are made of both convolution layers and max-pooling

layers in order to reduce the image size across the

network. The activation function used in the network

is ReLU, with the exception of the output layer that

uses Softmax and some layers in the Inception-

ResNet modules that do not use activation function.

Due to the size of the train dataset, it was

necessary during the training process applied data

augmentation to the training images. This data

augmentation consisted of:

 rotations of up to 20 degrees;

 10% and 15% translations for width and height,

respectively;

 brightness changes between 0.2 and 1;

 zoom-out up to 10% and zoom-in up to 20%;

 horizontal flips.

No data augmentation was made to the images in

the validation or test set.

Facial Expression Recognition System for Stress Detection with Deep Learning

259

3.3.1 Transfer Learning

Transfer learning reuses characteristics learned in

solving a general problem as a starting point for

solving another problem. With this technique, it is

possible to leverage learning to solve a problem in

fewer iterations than those that would be necessary

without the previous knowledge. The most common

case found in computer vision is the use of pretrained

networks, which are trained on a large benchmark

dataset.

These pre-trained networks are divided into two

parts, convolutional base and classifier. The

convolutional base, commonly composed of stacks of

convolutional and pooling layers, aims to generate

features from the image. This process is called feature

extraction. The classifier, often composed of fully

connected layers, classifies the image based on the

features extracted by the convolutional base.

The typical transfer learning workflow in

computer vision is:

 Select a pre-trained network that solves a

problem similar to the one intended to be

solved;

 Replace the classifier with a new one to be

trained in the new dataset;

 Freeze the convolutional base and train the

neural network in the new dataset.

The first step taken in creating the models was the

definition of classifiers architecture for the transfer

learning process. Were tried two different

approaches, one classifier based on a global average

pooling (GAP) layer and a second with a convolution

layer. The two architectures can be seen in Figure 2.

Figure 2: Classifier architecture of the two tried approaches.

For the Global Average Pooling approach was

used only a GAP layer together with a fully connected

layer with seven neurons and Softmax as the

activation function. With this architecture, there are

no hyperparameters to define.

The second approach is made up of a convolution

layer, followed by a flatten layer, that reshapes all the

filters in a single array of one dimension, a 50%

dropout to reduce overfitting along with two fully

connected layers. The activation function ReLU

composes the first fully connected layer and the last,

which serves as the output layer that uses a softmax

function with seven neurons. For this approach, there

are a set of hyperparameters that need to be selected.

Therefore, were trained a set of different classifiers to

select the most suitable values.

Essentially, we tried to determine the best value

for the number of filters in the convolution layer and

the number of neurons for the penultimate densely

connected layer. Giving four different configurations:

 A: 64 filters with 256 neurons;

 B: 64 filters with 512 neurons;

 C: 128 filters with 256 neurons;

 D: 128 filters with 512 neurons.

To understand the best configuration for each of

the pre-trained networks, four configurations were

trained and tested with each one of them. For the

training of these classifiers, it was necessary to select

an optimizer. Initially, was tried the optimizer Adam,

however, sporadically, he lost what he had learned so

far and dropped to high loss values. Therefore, it was

decided to use the Mini-batch Gradient Descent,

which corresponds to Keras' SGD, with a momentum

of 0.9 and Nesterov Accelerated Gradient active.

After training the various models with only

transfer learning, that is, with the training only

habilitated to the classifier layers, the following

results were obtained with the validation images.

Table 2: Accuracy of the pre-trained networks for each one

of the configurations.

Configurations VGG16 VGG19

Inception-

Resnet V2

A 0.7412 0.6770 0.8132

B 0.7198 0.6868 0.8249

C 0.7665 0.7062 0.8152

D 0.7626 0.7257 0.7996

As can be seen, for VGG networks, the

configurations with more filters, C and D, were those

that presented the highest performance, being the

opposite for the Inception ResNet V2, where the

configuration with 64 filters, showed some

advantage. Based on the results presented in the Table

2, the models to be created with the pre-trained

network are: VGG16 with configuration C; VGG19

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

260

with configuration D; and Inception ResNet V2 with

configuration B.

3.3.2 Fine Tuning

For the fine-tuning process, first it is necessary to

determine how much of the convolutional base to

train. It is essential to bear in mind two factors, the

similarity between the target and source domain, as

well as the size of the dataset to classify (Marcelino,

2018).

Even though that the source domain, the ILSVRC,

presents images for more than 1000 different classes,

none of them refers to people or their facial

expressions, our target domain. Therefore, it will be

necessary to consider the two domains as non-similar,

justifying the use of fine-tuning. Regarding the size

of the target domain's dataset, we will have to

consider our train dataset a small dataset, so it is

necessary to fine-tune most of the pre-trained

network's layers.

Since both networks are structured in blocks, the

division of the layers to train followed that structure.

For the VGG were fine-tuned the last three

convolution blocks, conv5, conv4, and conv3, and for

the Inception-ResNet V2, were fine-tuned the

Inception-resnet-C, Reduction-B, and Inception-

resnet-B.

3.3.3 Created Models

Since were selected three pre-trained neural networks

and defined two different classification architectures,

six classification models were trained:

 VGG16: The pre-trained network VGG16,

with the convolutional layer classifier,

following the configuration C.

 VGG19: The pre-trained network VGG19,

with the convolutional layer classifier,

following the configuration D.

 IRNV2: The pre-trained network Inception-

ResNet V2, with the convolutional layer

classifier, following the configuration B.

 VGG16 GAP: The pre-trained network

VGG16, with the global average pooling layer

classifier.

 VGG19 GAP: The pre-trained network

VGG19, with the global average pooling layer

classifier.

 IRNV2 GAP: The pre-trained network

Inception-ResNet V2, with the global average

pooling layer classifier.

The implementation was made with Keras and the

models were trained and validated at the end of each

epoch with images from the validation dataset. Once

trained and fine-tuned for the best possible result in

the validation data, they were evaluated with the test

data.

All models were trained on Google Colab, with

the free version that allowed access to Nvidia K80s

GPUs, 12 GB of RAM, 68 GB of disk space and runs

of up to 12 hours. The used version of Keras was 2.3.0

and Python 3.

3.4 Evaluation

To evaluate the performance of the models, confusion

matrices were used. Once in possession of this source

of information, it is then possible to extract several

metrics to evaluate the models. Two kind of models

will be evaluated: multi-class classification to predict

the seven facial expressions and binary classification

to classify stress/non-stress. The distribution of the

seven facial expressions in the three datasets doesn't

differ too much, so the accuracy and F1-score

(harmonic mean of precision and recall) metrics will

be used to evaluate the models.

3.4.1 Multi-class Evaluation

Once trained and fine-tuned with the validation

dataset for the best possible result, the six models

were tested with confusion matrixes presenting each

one of the seven facial expressions.

In Table 3 the overall accuracy and F1-score

metrics of each of the six multi-class models are

presented.

Table 3: Multi-class classification overall models metrics.

Models Accuracy F1-score

VGG16 89.6% 89.7%

VGG19 89.4% 89.5%

IRNV2 82.8% 82.4%

VGG16 GAP 84.5% 84.6%

VGG19 GAP 86.2% 86.3%

IRNV2 GAP 81.5% 81.4%

Analysing the performances obtained, clearly the

GAP network is superior to Inception-Resnet V2 and

for both of these approaches, the combination with

convolution layer works better than with the global

average pooling layer. The difference between the

performance of the two best models, VGG16 and

VGG19, is not significant, so the VGG16 will be used

since it is simpler than VGG19.

The multi-class VGG16 model has an overall

accuracy of 89.6%. The performance of the model for

each one of the seven facial expressions is shown in

Table 4.

Facial Expression Recognition System for Stress Detection with Deep Learning

261

Table 4: Performance metrics for the seven facial

expressions with the VGG16 model.

Facial

Expression

Precision Recall F1-Score Support

anger 90.6% 78.4% 84.1% 74

disgust 97.3% 90.0% 93.5% 80

fear 77.1% 87.1% 81.8% 62

happiness 100% 93.0% 96.4% 86

neutral 82.1% 93.2% 87.3% 74

sadness 86.2% 90.3% 88.2% 62

surprise 92.5% 93.5% 93% 92

Happiness, disgust and surprise are the facial

expressions better recognized with very high F1-

score (more than 92%). Concerning the three

emotions related with stress, fear is the facial

expression with lower accuracy and F1-score. This

may be due to less examples associated with this

emotion.

3.4.2 Binary Evaluation

Despite the models having been trained for multiclass

classification, stress detection is a binary problem, as

such, it is necessary to evaluate the performance of

the models for classification between stress and non-

stress. For this binary evaluation, the test images were

separated between stress and non-stress, relating

anger, disgust, and fear with stress and the remaining

as non-stress.

The VGG16 model presented an accuracy of

92.1%. Table 5 presents the precision, recall and F1-

score metrics of the VGG16 model for stress/non-

stress classification.

Table 5: Performance metrics for stress/non stress with the

VGG16 model.

Precision Recall F1-Score Support

stress 91.8% 88.4% 90.1% 216

not stress 92.2% 94.6% 93.4% 314

Precision is a measure of confirmation, when the

classifier indicates stress, how often it is in fact

correct. So, 91.8% of precision means 8.2% of

persons were flagged as stress were in fact not. Recall

is a measure of utility, how much the model finds

stress persons. Most stress persons are in fact tagged

(we have high recall – 88.4%) and precision is

emphasized over recall, which is appropriate for the

stress application.

4 CONCLUSIONS

We developed a system capable of capturing real-

time images of the user's face and, using a facial

expression classifier, assess if the user presents signs

of stress, notifying him/her in such case.

For the creation of the classification model was

used transfer learning together with fine-tuning. The

pre-trained networks VGG16, VGG19, and

Inception-ResNet V2 were considered with two

different classifier architectures.

Despite the best model presenting an accuracy of

92.1%, this was based on the association between

facial expressions and stress, to overcome the lack of

a dataset directly classified in terms of stress or non-

stress. This relationship must be supported with more

data and case studies. Thus, as future work, we will

collect feedback from users concerning the alerts that

our system sends them. This will permit to validate if

the system correctly classifies stressful situations,

thereby increasing the confidence in the association

between negative emotions and stress.

Another proposal for future work is the

improvement of the classification models, training

them with more data collected from our users. The

migration of the classification module to a server

where it could take advantage of centralized

processing with graphics cards (reducing the impact

on users' device) will also be considered.

ACKNOWLEDGEMENTS

The authors would like to thank to the creators of

KDEF and CK+ for giving us access to use these

datasets.

REFERENCES

Carolan, S., Harris, P. R., & Cavanagh, K. (2017).

Improving Employee Well-Being and Effectiveness:

Systematic Review and Meta-Analysis of Web-Based

Psychological Interventions Delivered in the

Workplace. Journal of Medical Internet Research,

19(7), e271. https://doi.org/10.2196/jmir.7583

Dewa, C., & Hoch, J. (2015, July). Barriers to Mental

Health Service Use Among Workers With Depression

and Work Productivity. Journal of Occupational and

Environmental Medicine; J Occup Environ Med.

https://doi.org/10.1097/JOM.0000000000000472

Dinges, D. F., Rider, R. L., Dorrian, J., McGlinchey, E. L.,

Rogers, N. L., Cizman, Z., Goldenstein, S. K., Vogler,

C., Venkataraman, S., & Metaxas, D. N. (2005). Optical

computer recognition of facial expressions associated

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

262

with stress induced by performance demands. Aviation,

Space, and Environmental Medicine, 76(6 Suppl),

B172-182.

Ekman, P. (2016). What Scientists Who Study Emotion

Agree About. Perspectives on Psychological Science,

11(1), 31–34. https://doi.org/10.1177/17456916155

96992

Ekman, P., & Friesen, W. V. (2003). Unmasking the Face:

A Guide to Recognizing Emotions from Facial Clues.

ISHK.

EU-OSHA. (2019). Third European Survey of Enterprises

on New and Emerging Risks [Reports]. European

Agency for Safety and Health at Work.

https://osha.europa.eu/en/publications/third-european-

survey-enterprises-new-and-emerging-risks-esener-

3/view

Gao, H., Yüce, A., & Thiran, J.-P. (2014). Detecting

emotional stress from facial expressions for driving

safety. 2014 IEEE International Conference on Image

Processing (ICIP), 5961–5965. https://doi.org/

10.1109/ICIP.2014.7026203

Giannakakis, G., Pediaditis, M., Manousos, D., Kazantzaki,

E., Chiarugi, F., Simos, P. G., Marias, K., & Tsiknakis,

M. (2016). Stress and anxiety detection using facial

cues from videos. Biomedical Signal Processing and

Control, 31, 89–101. https://doi.org/10.1016/

j.bspc.2016.06.020

Hung, J. C., Lin, K.-C., & Lai, N.-X. (2019). Recognizing

learning emotion based on convolutional neural

networks and transfer learning. Applied Soft

Computing, 84, 105724. https://doi.org/10.1016/

j.asoc.2019.105724

Kanade, T., Cohn, J. F., & Tian, Y. (2000). Comprehensive

database for facial expression analysis. Proceedings

Fourth IEEE International Conference on Automatic

Face and Gesture Recognition (Cat. No. PR00580),

46–53. https://doi.org/10.1109/AFGR.2000.840611

Lerner, J. S., Dahl, R. E., Hariri, A. R., & Taylor, S. E.

(2007). Facial Expressions of Emotion Reveal

Neuroendocrine and Cardiovascular Stress Responses.

Biological Psychiatry, 61(2), 253–260.

https://doi.org/10.1016/j.biopsych.2006.08.016

Lucey, P., Cohn, J. F., Kanade, T., Saragih, J., Ambadar, Z.,

& Matthews, I. (2010). The Extended Cohn-Kanade

Dataset (CK+): A complete dataset for action unit and

emotion-specified expression. 2010 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition - Workshops, 94–101. https://doi.org/

10.1109/CVPRW.2010.5543262

Lundqvist, D., Flykt, A., & Öhman, A. (1998). The

Karolinska Directed Emotional Faces (KDEF), CD-

ROM from Department of Clinical Neuroscience,

Psychology section, Karolinska Institutet, ISBN 91-

630-7164-9.

Maaoui, C., Bousefsaf, F., & Pruski, A. (2015). Automatic

human stress detection based on webcam

photoplethysmographic signals. Journal of Mechanics

in Medicine and Biology, 16

. https://doi.org/

10.1142/S0219519416500391

Marcelino, P. (2018). Transfer learning from pre-trained

models. https://towardsdatascience.com/transfer-

learning-from-pre-trained-models-f2393f124751

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein,

M., Berg, A. C., & Fei-Fei, L. (2015). ImageNet Large

Scale Visual Recognition Challenge. International

Journal of Computer Vision, 115(3), 211–252.

https://doi.org/10.1007/s11263-015-0816-y

Simonyan, K., & Zisserman, A. (2015). Very Deep

Convolutional Networks for Large-Scale Image

Recognition. ArXiv: 1409.1556 [Cs].

http://arxiv.org/abs/1409.1556

Szegedy, C., Ioffe, S., Vanhoucke, V., & Alemi, A. (2016).

Inception-v4, Inception-ResNet and the Impact of

Residual Connections on Learning. ArXiv:1602.07261

[Cs]. http://arxiv.org/abs/1602.07261

Viegas, C., Lau, S.-H., Maxion, R., & Hauptmann, A.

(2018). Towards Independent Stress Detection: A

Dependent Model Using Facial Action Units. 2018

International Conference on Content-Based

Multimedia Indexing (CBMI), 1–6. https://doi.org/

10.1109/CBMI.2018.8516497

Wirth, R., & Hipp, J. (2000). CRISP-DM: Towards a

standard process model for data mining. 29–39.

Facial Expression Recognition System for Stress Detection with Deep Learning

263
