Collection of Requirements and Model-based Approach for

Scenario Description

Thilo Braun

, Lennart Ries

, Franziska K

ortke

, Lara Turner

, Stefan Otten

and Eric Sax

FZI Research Center for Information Technology, Karlsruhe, Germany

ZF Friedrichshafen AG, Friedrichshafen, Germany

Keywords:

AD, ADAS, Trafﬁc Scenarios, Automotive Testing, Scenario-based Testing, Resimulation, Scenario

Description Language.

Abstract:

As the level of automation and variety of Advanced Driver Assistance Systems (ADAS) and Automated Driv-

ing (AD) increases, new challenges for Veriﬁcation and Validation (V&V) methods emerge. This applies espe-

cially in urban areas due to the combination of many different environmental elements, participant types, and

interactions between the participants. Scenario-based testing and resimulation of recorded data are promising

approaches to tackle these new challenges. An elementary component of these methods is the scenario descrip-

tion, which serves as a connection between different working steps in the V&V workﬂow. This heterogeneous

usage of the scenarios during the development and validation process leads to a multitude of different, some-

times contradictory, demands on the scenario description. Nevertheless, a uniform description is desirable for

easy exchange and automation. The contribution of this paper is twofold: Firstly, the described versatile ﬁeld

of demands is systematically broken down to requirements for the scenario description languages. This step is

essential to ensure broad applicability. Secondly, this paper introduces a holistic scenario description language

that is usable for generation, extraction from real-world test drives and execution of the scenarios enabling an

automated workﬂow and increased traceability between generated, extracted and resimulated scenarios. The

description and uses a model based approach and has been exemplarily tested for manually created scenarios

and automatic resimulation of real-word test drives.

1 INTRODUCTION

The development of Automated Driving (AD) is pro-

gressing fast over the last years. The goal of higher

automation in trafﬁc is increased safety, as assistance

systems support the driver in critical situations, e.g.

by automatically initializing an emergency braking

maneuver, and with increased comfort, e.g. by driv-

ing on a highway autonomously.

The degree of automation is deﬁned by SAE In-

ternational in ﬁve levels, from ”no automation” on

Level 0 to ”full automation” on Level 5 (International,

2018). To proceed from the current prototype sta-

tus of AD to approved products, an accepted valida-

tion process is necessary. Current validation meth-

ods like requirement-based testing or real-world en-

durance runs are not able to validate the Level 3+

functions, because the statistically necessary kilo-

meters are not reachable (Wachenfeld and Winner,

2016). Furthermore the validity of a distance-based

method is not sufﬁcient in complex environments, be-

cause it is not ensured that rare corner situations are

considered (Schuldt, 2017).

Scenario-based testing is considered as a promis-

ing method to support the validation of AD (Neu-

rohr et al., 2020). With its ability to produce crit-

ical situations through a synthetic scenario descrip-

tion it enables focusing on the most relevant scenar-

ios and therefore achieves a high coverage fast and

efﬁciently. The scenarios for scenario-based testing

can be manually generated from domain experts, ex-

tracted from real-world test drives for resimulation in

a data-driven approach or generated from computer

algorithms. During the test process, users like test

and simulation engineers, require different descrip-

tion languages and formats to describe the scenarios

depending on their speciﬁc task. As a consequence,

the scenarios have to be transformed when processing

and exchanging them, what is usually a manual pro-

cess leading to increased effort and high error rate.

A holistic and formalized Scenario Description Lan-

guage (SDL) can avoid these problems but has to take

into account the diverse views and needs of all users.

634

Braun, T., Ries, L., Körtke, F., Turner, L., Otten, S. and Sax, E.

Collection of Requirements and Model-based Approach for Scenario Description.

DOI: 10.5220/0010478706340645

In Proceedings of the 7th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2021), pages 634-645

ISBN: 978-989-758-513-5

To enable a structured design of such a Domain Spe-

ciﬁc Language (DSL), the authors of this paper collect

these views and needs and brake it down to require-

ments. Based on these, we propose a DSL for broad

application which supports both the virtualization of

recorded real-world data and the manually generation

of scenarios in the second part of the paper. This en-

ables an automated workﬂow from recorded data to

resimulated scenarios, while allowing to additionally

integrate handcrafted scenarios seamlessly.

This paper is structured as follows: Chapter

2 introduces different validation methods for AD

and embeds the proposed approach. Chapter 3

describes, among others, the usage, requirements and

state of the art for scenario description languages.

Chapter 4 gives common maneuver categories and

sets to describe the behavior in an abstract way.

Chapter 5 explains our concept including its technical

implementation. Chapter 6 shows the tools for the

extraction of scenarios from recorded real-world

testing as well as manual generation and editing

of scenarios. Chapter 7 exemplarily demonstrates

the complete workﬂow for resimulating a scenario.

Chapter 8 contains the conclusion and future work.

2 VALIDATION METHODS FOR

Requirement-based testing has been the most popular

method to validate AD in the past. It uses speciﬁed

test cases including pass/fail criteria, that are derived

from analysing the system requirements for the Sys-

tem under Test (SuT).

The requirement-based testing is usually com-

bined with endurance runs, which make safety state-

ments by means of statistical evaluation of success-

fully driven kilometers. To reduce the cost, the test

drives can also been simulated (King et al., 2019). As

stated before, the combination of speciﬁed test-cases

with endurance runs is not sufﬁcient for higher lev-

els of automation. Therefore, new methods are un-

der research, e.g. in the projects PEGASUS (Pegasus,

2019) and VV-Methods (VVM, 2020).

Formal test approaches such as Responsible Sen-

sitive Safety argument with exact mathematical mod-

els and white-box testing (Shalev-Shwartz et al.,

2017). However, their application and implementa-

tion is not straight forward and, thus, scope of further

research (Koopman et al., 2019).

For reasons of reproducibility, recorded test drives

can be replayed, which is an approach frequently used

in industry. While a replay of recorded data is suf-

ﬁcient for open-loop systems, systems that interact

with the environment require a closed-loop reactive

simulation (Bach et al., 2017) (Pfeffer et al., 2019).

In scenario-based testing, a catalog of relevant

trafﬁc scenarios is generated and used for the test-

coverage estimation (Schuldt, 2017). The scenarios

can be created knowledge-based or, in contrast to

this, data-driven and extracted from real-world test

drives (Langner et al., 2018) (Stellet et al., 2015) .

The execution of the scenarios is possible on differ-

ent platforms (software-in-the-loop, hardware-in-the-

loop, vehicle-in-the-loop) whereby most of the tests

are expected to be performed in simulation environ-

ments because of their high scalability.

In this paper, we focus on scenario-based testing.

As proposed in literature (Neurohr et al., 2020), we

assume that the resimulation workﬂow is conceptu-

ally integrated in the testing process, as shown in ﬁg-

ure 1. In addition, we show a technical integration

by providing a SDL for this workﬂow, enabling a

fully automated workﬂow for resimulation. In a ﬁrst

step the scenarios are generated, either extracted from

recorded data or manually, and stored in the scenario

catalog. Then they are executed in a simulation with

parameter variations to enable systematical testing of

the AD function.

3 SCENARIO DESCRIPTION

A test in scenario-based testing consists of several

parts: Firstly, the description of the scenario, in which

the static and dynamic content is described, and sec-

ondly the description of the test case itself where,

among others, the SuT with test goal and test evalua-

tion and the test setup are described. Scenarios can be

represented in different forms: While they are avail-

able in the form of sensor data for recorded test drives,

scenario-based testing of AD functions requires a se-

mantic interpretation of these data.

3.1 Usage and Requirements for

Scenario Description Languages

In the following, we describe where and how sce-

narios are used in the test process and the role of

the SDL to derive requirements for its design. A

common way to generate relevant scenarios is to

use the knowledge of domain experts and formulate

the scenarios manually. When creating scenarios

manually, the SDL deﬁnes which elements can be

used and how they are related to each other.

Another source of scenarios is recorded data from

real-world test drives or simulation. When extracting

Collection of Requirements and Model-based Approach for Scenario Description

635

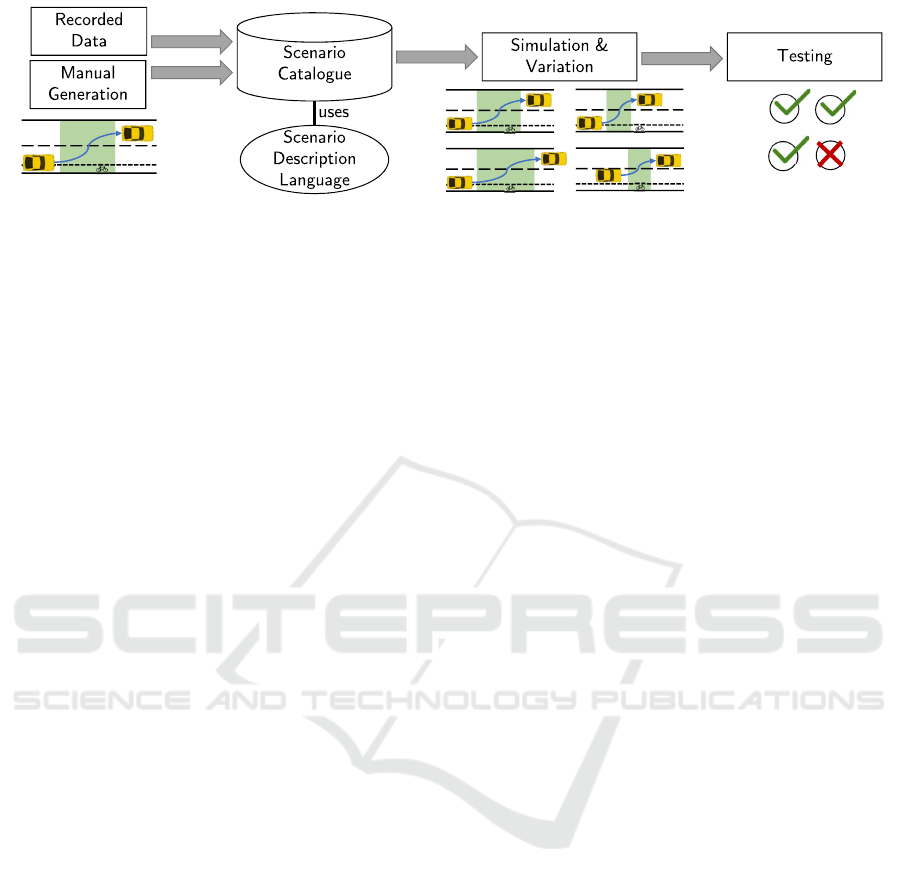

Figure 1: Workﬂow and usage of the scenario description language in scenario-based testing.

scenarios from recorded data, the SDL deﬁnes the

abstraction level and interface for the extraction

algorithm.

To save the scenarios in the catalog, the SDL

deﬁnes the data format.

In the execution of the scenario within a simula-

tion tool, the SDL has an imperative character being

the instruction for the underlying behavior models.

Besides creating and executing scenarios, inspec-

tion, comparing and clustering are actions to gain

further knowledge about the scenarios. Here, the

SDL deﬁnes the interface to the speciﬁc tools and

can support the algorithms by providing relevant

information.

Based on an analysis of the previously described

usages and discussions with domain experts and

researchers, this section summarizes the most impor-

tant requirements for the SDL.

Expressive. It should provide the ability to describe

as many possible driving scenario as possible. This

includes, e.g., different Operational Design Do-

main (ODD)s like highway or inner-urban scenarios,

different participant types like cars, bikes and trucks

and different types of behaviors.

Extendable. It should be possible to add new

features to the language when necessary to make the

language more expressive. So the language can and

should evolve over time and adapt to new challenges

in the testing domain.

Abstract. The SDL should be capable of describing

scenarios in different abstraction levels. Higher

abstraction levels are needed for comparing and

interpreting scenarios, lower abstractions levels for

deﬁnition of very speciﬁc driving situations. An

example for a low abstraction level is the description

of an objects’ movement with exact trajectories,

whereas a verbal description would be a high abstrac-

tion level. A higher abstraction level is necessary to

condense the complex and large scenario space.

Reference on Scenery. Describing scenarios only

based on trajectories will cause problems on different

curve radius or junction forms, because it is not dis-

tinguishable if a curved trajectory was caused from a

curved road, intersection or another maneuver. When

using an abstracted description the reference on the

scenery connects the behavior of the participants with

the static part.

Parameter Spaces and Concrete Values. It should

be possible to describe the parameters of the sce-

narios with concrete values and parameters spaces.

This also leads to a condensation of the scenario

space. This kind of abstraction is comparable to the

PEGASUS levels of concrete and logical scenarios.

Comparable and Searchable. It should be possible

to compare, search and ﬁlter scenarios with speciﬁc

features on the basis of the SDL. This is necessary

for a good handling of the scenario catalog, a catego-

rization, clustering of the scenarios and evaluation of

the covered scenario space.

Concise. Especially when generating scenarios

manually, the description of a scenario should be as

compact and precise as possible to avoid unnecessary

long descriptions.

Executable. The language has to be deﬁned in a

way, that an interpreter can execute the scenario. The

interpreter can be an algorithm of a simulation tool or

a test driver.

Understandable for Humans. The content of the

described scenario should be intuitively understand-

able for all its users, e.g. test engineers, programmers

and non-programmers and also non-domain-experts.

Exchangeable and Tool-independent. It should

be possible to exchange scenarios between different

tools. This concerns scenario generation, editing and

execution. The exchanging should be traceable.

Although many requirements have to be consid-

ered, a uniform SDL for the V&V process brings ad-

vantages: It enables easy exchange between different

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

636

tools, better traceability during the process and a com-

mon understanding between different users.

3.2 Layers of Scenarios

In order to classify the elements in road trafﬁc, there

exist a series of layered models proposed in the lit-

erature. In the following, we refer to one of the lat-

est publications (Bock et al., 2018) introducing a total

of six layers (so-called 6-layer-model). Layer 1 de-

scribes the street layer including the geometry, topol-

ogy and condition of the roads. Layer 2 addresses the

trafﬁc infrastructure with, e.g., signs and markings.

The focus of Layer 3 is on temporal modiﬁcations

of the previous two layers describing the geometri-

cal and topological overlay by construction sites. The

movable trafﬁc participants and objects and their be-

havior (interactions, maneuvers) is listed in Layer 4.

Layer 5 contains the environmental conditions such as

weather and daytime as well as their effects on Layer

1-4. Finally, Layer 6 is designed to summarize digital

map data and information on V2X communication.

This paper focuses on Layer 4, which has a high

complexity due to the variety of possible combina-

tions of participant behaviors and maneuvers. When

necessary, connections to other levels are also consid-

ered.

3.3 Types of Scenario Descriptions and

Related Work

There exist different approaches to describe scenar-

ios, targeting different use cases and user groups. This

section gives an overview about existing approaches

and serves as a basis for the design of our SDL.

When evaluating the concepts and designing an

own implementation, the following trade-off has to

be considered: Developing a language that is intuitive

for humans and easy to apply on the one side or de-

veloping a machine-readable and executable language

on the other side. Another important property to be

taken into account is the expressiveness of the lan-

guage, which speciﬁes how many different scenarios

can be described.

3.3.1 Verbal Description

Verbal languages use natural language to describe

scenarios. One example is the functional description

mentioned above or ﬁrst drafts of scenarios written

down manually. Obviously, a verbal description is

very easy to understand and write for humans and has

a very high expressiveness. On the other hand, it is

not possible for machines to create an executable sce-

nario of the given description. This kind of language

is often used in early stages of a scenario generation,

when the focus is mainly on the content and not the

execution of the scenario.

3.3.2 Visual Description

Visual languages use visual representations of the sce-

nario, e.g., snapshots in bird view perspective. They

are often an alternative or addition to other language

types like verbal or programming languages. Simi-

lar to the verbal language, the visual representation

is easy to understand for humans, but not readable for

machines. It is a good method to get a quick overview

about the scenario and share it, although it is hard to

write down all the necessary details.

3.3.3 Formalized Verbal and Visual Description

To overcome the lack of readability for machines,

some efforts were done to formalize verbal and vi-

sual languages using a deﬁned vocabulary and rules

(Damm et al., 2018) (Menzel et al., 2018) (Kohlhaas

et al., 2014). The executability is obtained at the ex-

pense of reduced expressiveness and a more compli-

cated generation process, because the person generat-

ing the scenario has to learn the deﬁned rules and the

vocabulary.

3.3.4 Programming Language and Domain

Speciﬁc Language

The need to execute the described scenarios in simula-

tion tools suggests the use of programming languages.

Here a universal programming language (e.g., python,

C++) or a DSL can be used. DSLs are designed for

a speciﬁc domain or use case. They can deﬁne an

own syntax (external DSL) or use the syntax of an

universal programming language as a basis (internal

DSL). Examples for scenario DSL are the concept

of OpenSCENARIO 2.0 (ASAM, 2020b) and the M-

SDL (Foretellix, 2020). For programming languages,

the requirement of machine-readability is obviously

satisﬁed, but they can normally only be used and un-

derstood by experts. Therefore, programmers and

simulation experts are the main target group of this

kind of languages. The expressiveness and usability

of the DSL depends on the design. Comparing to an

universal programming language it is easier to learn

because it is tailored to a domain and has a reduced

set of commands.

Collection of Requirements and Model-based Approach for Scenario Description

637

3.3.5 Model-based Scenario Description

Language

In the model-based scenario description, a technical

metamodel is created that maps all relevant entities

and relationships (Wuellner et al., 2019). This can

be a UML class model like in OpenSCENARIO 1.0

(ASAM, 2020a), an Ecore model (Bach et al., 2016)

(Jafer et al., 2018) or an ontology (Geyer et al., 2013).

Each scenario is an instance of this metamodel. Us-

ing a graphical representation of the domain as meta-

model, this approach is easy to understand. The for-

malized description also assures machine readability.

If the metamodel is directly linked to a software, a

change in the metamodel effects a change in the soft-

ware, assuring that conceptional changes, normally

done in the metamodel, and implementation do not

diverge. This makes the model-based approach easy

to maintain.

Previous mentioned descriptions focus on a single sub

task of the validation workﬂow, whereas this work

provides a holistic approach enabling automation and

traceability throughout the whole resimulation pro-

cess.

4 MANEUVERS

In order to understand which part of the driving task

is described by maneuvers, the driving task is divided

into several levels. (Lange, 2018) compares existing

models for the driving task and summarizes them in

four levels: Navigation level, Maneuver level, Trajec-

tory level and Stabilization level.

The maneuver level converts the mission plan gen-

erated by the navigation level into suitable maneu-

vers and is responsible for the behavioral decision.

The trajectory level converts the selected maneuvers

to concrete trajectories.

A sequence of (driving) maneuvers, which are

used instead of trajectories, has proven to be a useful

abstraction for the dynamic behavior of trafﬁc par-

ticipants (ASAM, 2020a) (ASAM, 2020b) (Pfeffer

et al., 2019) (Hartjen et al., 2019). Compared to a de-

scription with trajectories, maneuvers are much more

concise and intuitive. By deﬁning maneuver-speciﬁc

parameters the expressiveness and variability of this

description is increased.

To structure the maneuvers and describe their

properties, a categorization of these maneuvers is

often done. This section describes commonly used

categories:

Direction. Frequently, a classiﬁcation is made into

the movement directions longitudinal and lateral.

The classiﬁcation is particularly intuitive for vehicle

steering because lateral maneuvers are controlled by

the steering system and longitudinal maneuvers by

the drive train. The category can be extended by

routing maneuvers (ASAM, 2020a).

Interaction. (Firl and Tran, 2011) creates a maneu-

ver category, indicating whether an interaction with

other participants is part of the maneuver or not.

Triggered and Self-terminating. (Schreiber, 2012)

categorizes based on the trigger for starting the

maneuver. If a maneuver is actively started with

a trigger, e.g., a lane change, this is an explicit

maneuver. A lane keeping maneuver following the

lane change without trigger is an implicit maneuver

because it starts automatically when the lane change

is ﬁnished. Closely related to this category is whether

a maneuver terminates itself (e.g., lane change) or

whether it is without deﬁned end (e.g., lane keeping).

Atomic and Composed. The division into atomic

and composed maneuvers is often found (Bagschik

et al., 2018) (ASAM, 2020b). Atomic maneuvers

are a basic class of maneuvers that can be combined

to composed maneuvers. The rules of combination

range from quite simple sequencing (ASAM, 2020a),

maneuver graphs (Bach et al., 2016) or methods of

a DSL (Foretellix, 2020), where the border between

maneuvers and scenarios vanishes.

5 CONCEPT FOR A SCENARIO

DESCRIPTION

The concept aims to create a semantic meaningful ab-

straction to describe the behavior of dynamic partici-

pants and use it for recorded and manually generated

scenarios and for their execution as shown in Figure

1. It is desirable to have only one SDL for all pro-

cessing steps to avoid converting the scenarios. For

recorded scenarios, the abstraction should contain all

necessary information for their analysis and resimula-

tion without using the recorded time series data. For

manually generated scenarios, the abstraction should

be as concise as possible to enable faster speciﬁcation.

Furthermore it should be possible to modify the sce-

narios manually. The abstraction should be both in-

tuitive for humans and easy to use for machines. The

mentioned requirements should be fulﬁlled for a vari-

ety of ODDs, including the ambitious domain of ur-

ban trafﬁc. In this chapter, we explain the concept and

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

638

0..*

1..*

1..* 1..*

1..*

0..*

(reference Participant)

Participant Types

Longitudinal

Maneuver types

Lateral

Maneuver types

Road types

Scenario

Participant

Initial Conditions

conditions

Scenery

file

Maneuver

parameters

Road Element

Longitudinal ManeuverEnd Event

condition

Lateral Maneuver

Figure 2: Elements and relationships of a scenario. Grey classes are abstract classes that cannot be instantiated. For reasons

of space some inherited classes are not shown in the ﬁgure but the types are indicated with boxes with curved edges. The

numbers on the connections deﬁne the cardinality.

give motivation for our design decisions, abstractions

and technical representation.

5.1 Core Elements

Figure 2 shows the core elements of a scenario and

their relations in form of a UML-model.

Classes with gray background are abstract classes,

meaning that only an inherited class can be instan-

tiated. So general properties of this class can be

designed, but the instance is always of a speciﬁc type.

The Scenario consists of a static part, the Scenery,

and a dynamic part, the Participants. The Scenery

consists of several Road Elements. For the structure

of the Road Elements and the Road Types we use a

subset of the OpenDRIVE format, therefore it can

be automatically imported from a given OpenDRIVE

ﬁle. Each Road Element has a unique id.

The Participants have Initial Conditions that

deﬁne the state at the beginning of the scenario (e.g.

position on the road, heading, velocity). Participant

Types are car, truck, pedestrian, bicycle and motor-

bike.

The dynamic behavior of the participants is de-

scribed with Maneuvers. Each Participant has a list

of Lateral Maneuvers and Longitudinal Maneuvers

that are sequentially executed during the scenario.

Figure 4 shows our concept for the graphical repre-

sentation. The Lateral and Longitudinal Maneuver

classes inherit from the base Maneuver class. Each

Maneuver has parameters as attributes that allow to

vary the behavior, e.g. velocity of a Longitudinal

Maneuver, distance of a Stop Maneuver or the lateral

offset on a lane of a Lateral Maneuver. Maneuvers

refer also the Road Elements on which they are

performed.

To deﬁne when to end the Maneuver, each

Maneuver contains at least one End Event. An End

Event occurs if the speciﬁed conditions are fulﬁlled,

e.g. if a certain point on the road is reached or the

distance to another Participant is below a speciﬁc

value. Furthermore a Maneuver can have reference

Participants, if interaction with other participants

is required. This could be the preceding vehicle

in a Follow maneuver. Examples for Longitudinal

Maneuvers Types are Cruise Free, Approach and

Follow (another Participant). Examples for Lateral

Maneuver Types are Hold Lane, Cross Street and

Turn.

Turn maneuvers do not have relation to the

speciﬁc junction or exit, but are described as Turn

left or Turn right. So it is possible to execute and

compare scenarios with the same dynamic behavior

on different junctions.

Figure 3 shows exemplarily a longitudinal ma-

neuver list with the parameters of the maneuver.

When creating scenarios, a rule checker is used to

detect unrealistic maneuvers. It detects infeasible

combinations of types, e.g., only pedestrians and

bikes can use a sidewalk or perform a Cross Street

maneuver on a crosswalk. It detects infeasible

parameters of the Maneuver, e.g., Follow maneuvers

Collection of Requirements and Model-based Approach for Scenario Description

639

with a negative distance to the preceding Participant.

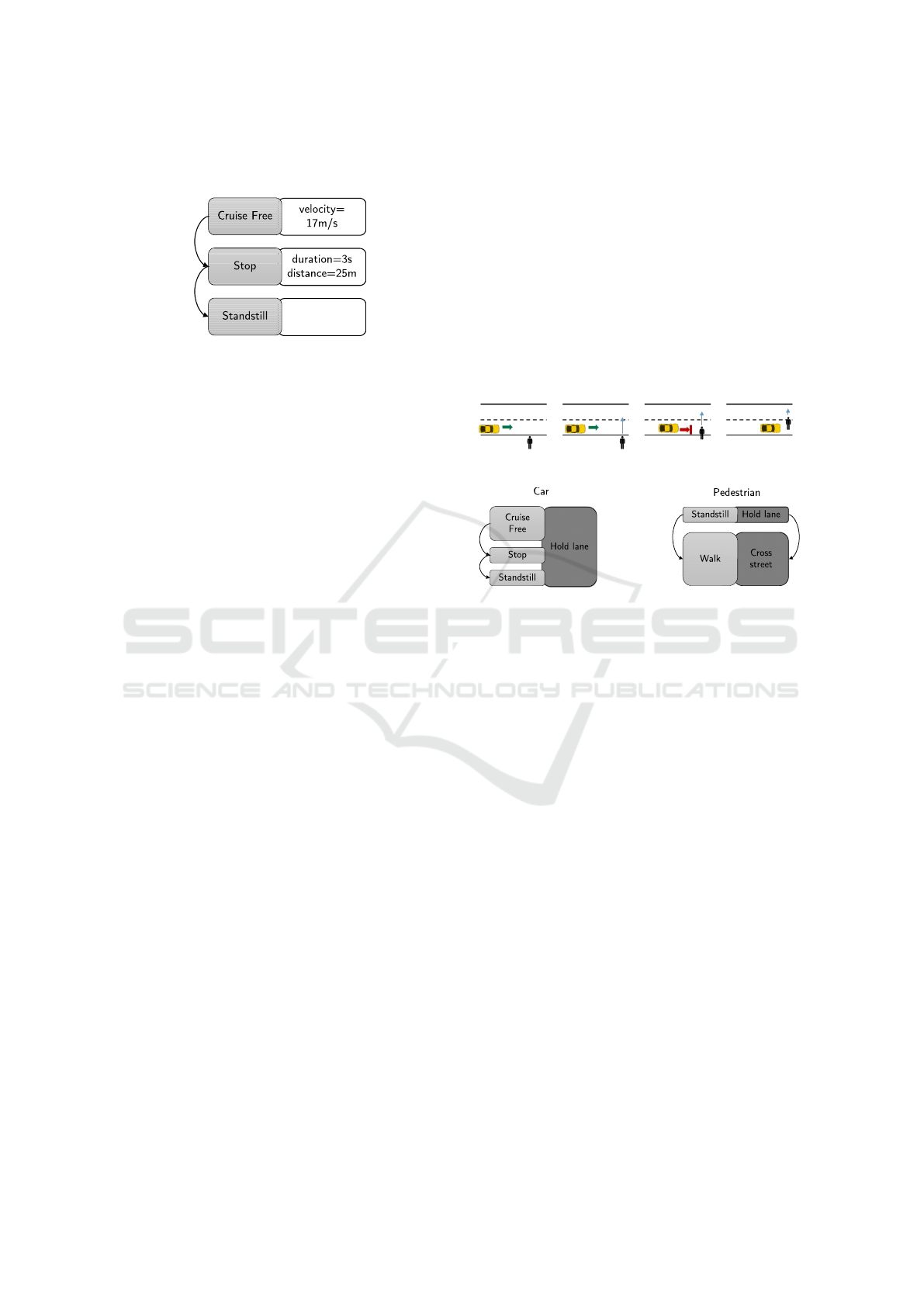

Figure 3: Example of a longitudinal maneuver list with cor-

responding parameters.

5.2 Used Maneuver Categories from

Chapter 4

To describe the maneuvers in an urban environment,

the categories direction and interaction with other

participants are used.

The behavior of a participant is always described with

a combination of one lateral and one longitudinal ma-

neuver to decouple the description of steering and ve-

locity.

The interaction category is necessary to describe

maneuvers with a reference participant. An interac-

tive maneuver has at least one reference participant,

for a non-interactive maneuver the reference partici-

pants list is empty.

We treat all maneuvers as explicit in our imple-

mentation, because the start of a maneuver in our con-

cept is always marked by the end of the previous ma-

neuver. Generally, adding the right end events to the

maneuvers is complex, but for self-terminating ma-

neuvers it is trivial. Therefore, we use this category

to automatically add end events when possible. Until

now, we treat all maneuvers as atomic, but it is pos-

sible to integrate composed maneuvers in the concept

to make the description more concise.

5.3 Abstraction of Evolution Over Time

The information on the progression of the scenario

is mainly described by the end events, that deﬁne

both the end of the current maneuver and the start

of the next maneuver. We do not use an act-based

description as (Bach et al., 2016) introduced for

highway scenarios. Even if this is an elegant way

to deﬁne simultaneous maneuvers, the number of

acts increases signiﬁcantly when more participants

appear and the maneuvers change more often. This

effect makes the act-based description not usable for

an urban trafﬁc scenario. To deﬁne simultaneous

maneuvers, the conditions for the end events have to

be carefully chosen.

When extracting scenarios from real-world data,

participants appear or disappear during the scenario

runtime since they exceed the maximum sensor range

or due to occlusion. We deﬁned a special ”None-

Maneuver” for this time span. If the None-Maneuver

is at the start of the scenario, the participants start

to perform the remaining maneuvers after the end

event for this None-Maneuver. As default we use the

road position of the ego car as end event for the ﬁrst

None-Maneuver. If the None-Maneuver is at the end

of the scenario, the participant disappears during this

maneuver.

(a) Visualization of scenario and maneuvers

15.10.2020 © FZI Forschungszentrum Informatik 6

(b) Maneuvers and end

events of the car

15.10.2020 © FZI Forschungszentrum Informatik 6

events of the pedestrian

Figure 4: Example of an abstracted scenario with lateral and

longitudinal maneuver lists.

5.4 Example of an Abstracted Scenario

Figure 4 shows an example of an abstracted scenario.

There are two participants, a car driving on a straight

road and a pedestrian that wants to cross the road. The

pedestrian should start crossing the road causing the

car to brake. This scenario could be used for testing

an emergency brake assist.

The sequence of graphics in Figure 4a visualize

the scenarios evolution over time.

Figure 4b shows the maneuvers and end events of

the car. The arrows indicate the end events. The ﬁrst

end event occurs when the car detects the pedestrian

(non self-terminating maneuver). Because Stop is a

self-terminating maneuver, the maneuver ends when

the velocity of the car is zero. The Standstill maneu-

ver ends after a number of predeﬁned seconds and at

this time the scenario ﬁnishes.

Figure 4c shows the maneuvers and end events of

the pedestrian. He starts crossing the street when the

distance to the car falls below a certain threshold thus

challenging the car.

For testing purposes the parameters of the maneu-

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

640

vers, e.g. cruising velocity of the car, and the param-

eters of the end events, e.g. distance for starting the

Cross Street maneuver, can be varied to expand the

test coverage.

The visual representation of our concept is shown

in ﬁgure 4b and 4c. Light gray blocks show the lon-

gitudinal maneuvers, dark gray the lateral maneuvers,

the arrows indicate the end events. This representa-

tion is intuitively understandable and enables the exe-

cution of the scenario.

5.5 Technical Representation as

Metamodel

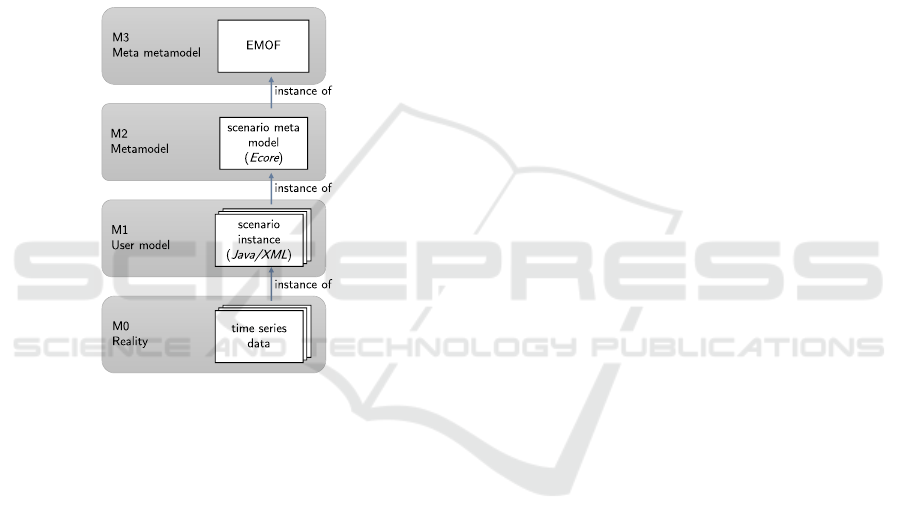

Figure 5: Model levels in model-driven engineering, their

equivalents in the trafﬁc scenario domain and used formats

(italic).

We applied a metamodeling approach to design our

scenario description language. Figure 5 shows the

general concept of metamodels (OCUP2 Examina-

tionTeam, 2017), their equivalents in the domain for

trafﬁc scenarios and the formats we used for our con-

cept. Level M3 is a meta metamodel that deﬁnes the

language for specifying metamodels, meaning entities

like classes and relationships. Level M2 is the do-

main speciﬁc metamodel, that uses M3 to describe the

structure of scenarios. Here the different entities of

the scenario and their relationships are deﬁned. Level

M1 describes the abstracted scenarios as instances of

the metamodel in Level M2. A instance of Level M1

is a speciﬁc scenario in our SDL. Level M0 is the

real-world without any abstraction, so in our case the

trajectories of the scenario.

We created an Ecore metamodel using the Eclipse

Model Framework (EMF) (Foundation, 2020) for

level M2. The class diagram in Figure 2 shows the

core of our metamodel. The metamodel is designed as

Data Transfer Object (DTO) and uses object-oriented

programming. The DTO enables the scenarios to

be transferred easily between tools and programming

languages (e.g. different tools for simulation, creating

and editing scenarios, scenario extraction and work-

ﬂow management).

The object-oriented programming encapsulates

the information and ﬁts the domain because the par-

ticipants are physical objects. Inheritance is used to

generalize speciﬁc characteristics for e.g. different

participants or maneuver types. Each new participant

type or maneuver type is a new class and inherits from

the corresponding superclass.

A scenario can be instantiated either as Java-

instance, the native format of EMF, or as XML-

instance, which is suited for exchange between pro-

grams. It is possible to transfer the instances auto-

matically form one format into the other.

5.6 Comparison of Concept with

Requirements

This section evaluates the concept, mainly the

conceptional abstraction to maneuvers and the

metamodel as technical representations, against the

requirements of chapter 3.1.

Expressive. The expressiveness of the scenario de-

scription is strongly connected to the used maneuver

set and maneuver parameters. With a well-deﬁned

maneuver catalog the desired scenarios can be de-

scribed adequately. To increase expressiveness new

maneuvers, sub-maneuvers or maneuver parameters

can be added.

Extendable. Object-oriented programming and

inheritance for maneuvers, participants and road

types are methods that are easily extendable. The

direct link between domain description and tools in

the metamodel concept ensures the transfer from the

concept level to the technical level.

Abstract. The concept abstracts the scenario from

concrete time series data to semantic meaningful

maneuvers.

Reference to Scenery. The concept uses a subset of

the OpenDRIVE standard to create a reference on the

scenery. By using the standard no further deﬁnitions

in the scenery description are necessary and existing

ﬁles can be used seamlessly. For execution the

speciﬁcation of the direction of the turn maneuvers

allows, e.g., to run the same scenario on different

Collection of Requirements and Model-based Approach for Scenario Description

641

junctions.

Parameter Spaces and Concrete Values. So far,

parameter spaces are not used in the concept. For

parameter variation an external tool is still necessary.

This topic can be focused in future work.

Comparable and Searchable. The abstraction to

maneuvers allows to compare, search or ﬁlter scenar-

ios based on maneuvers. The scenario catalog can

be searched for scenarios with speciﬁc maneuvers

or scenery elements. Furthermore, scenarios can be

deﬁned as equal, when their participants have the

same maneuver lists.

Concise. Maneuvers are a concise way to describe

the behavior of the participants. Using the subset

of OpenDRIVE reduces the effort for the scenery

description. Adding standard end events to self-

terminating maneuvers makes the description more

concise.

Executable. By the deﬁnition of exactly one lateral

and exactly one longitudinal maneuver the behavior

of the participants is described in an unambiguous

and executable way. Also the end events deﬁne un-

ambiguously when to proceed to the next maneuver.

Understandable for Humans. The abstractions from

time series to maneuvers and visual representation

of the maneuver lists shown in ﬁgure 4 makes the

scenarios intuitively readable and understandable.

The graphical representation as metamodel is also a

intuitive technical format.

Exchangeable and Tool-independent. Using the

data transfer object design pattern and the export op-

tion as XML-ﬁle makes it easy to exchange the sce-

narios between tools.

In summary, the abstraction from time series to

maneuvers fulﬁlls the requirements of the concep-

tional level, the use of a metamodel meets the tech-

nical requirements.

6 TOOLS FOR SCENARIO

GENERATION

6.1 Scenario Extraction

The target of the scenario extraction is the generation

of scenario instances from recorded data. Output for-

mat is the scenario description language introduced

in Chapter 5. The data can be recorded by a driving

vehicle, static sensors in the infrastructure or drones.

Also existing datasets with recorded trajectories can

be used. Similarly, the concept applies to simulation

data.

In a ﬁrst step, data preprocessing is necessary to

compensate noise in the recorded data and exploit

knowledge about the scenery. This includes the as-

signment of the participants to the next participant-

type speciﬁc valid road element and lane and the clas-

siﬁcation of irrelevant participants (e.g. when they are

present a very short). The scenery is represented by

an OpenDRIVE ﬁle.

In the next step the performed lateral and longi-

tudinal maneuvers are classiﬁed. After classifying

the maneuvers, the corresponding parameters and end

events are extracted. Finally, all extracted data is re-

structured to ﬁt the our SDL and the scenario is saved

in the scenario catalog.

We use rule-based algorithms for all extraction steps.

Figure 6 shows an example of an Approach-and-

Follow scenario in a curve. Using the road elements

of the scenery the relative distance along the lane is

calculated. Compared with the euclidean distance this

method provides reasonable results even in curves.

The Approach maneuver changes into a Follow ma-

neuver when the ego vehicle and preceding vehicle

have the same velocity.

6.2 Manual Generation and Editing

As stated before, it is possible to edit and create sce-

narios manually. So expert knowledge can be added

to the extracted scenarios or detected false classiﬁca-

tions of the scenario extraction algorithm can be cor-

rected. Also the parameters of the maneuvers can be

edited.

Figure 7 shows an example how to edit a junction

scenario. The left side shows the scenery and initial

positions of the participants. The right side shows

the editable elements like participants and maneu-

vers. When selecting an element an interactive mask

with all editable elements shows up. The same dia-

logue can be used to build up scenarios from scratch.

The program was implemented by Zukunft Mobility

GmbH, a company of ZF Friedrichshafen AG.

7 ILLUSTRATIVE EXAMPLE

For illustration of our approach we executed the com-

plete workﬂow automatically for a recorded real-

world scenario on a junction. Figure 8a shows the

trajectories of the participants embedded in a satellite

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

642

(a) Trajectory of the ego and preced-

ing vehicle. The black lines show the

start and end of the scenario, the black

boxes show the initial positions of the

vehicles. The yellow color indicates

the trajectory of an Approach maneu-

ver, the blue color indicates the trajec-

tory of a Follow maneuver. The trajec-

tories of the two vehicles overlap.

time[s]

velocity[m/s]

(b) Detected maneuvers and velocity of the

ego vehicle. The velocity decreases (Ap-

proach maneuver, yellow) until it is equal to

the preceding car, that is driving with a con-

stant velocity (Follow maneuver, blue). The

dashed line indicates a lateral Cross-Junction

maneuver.

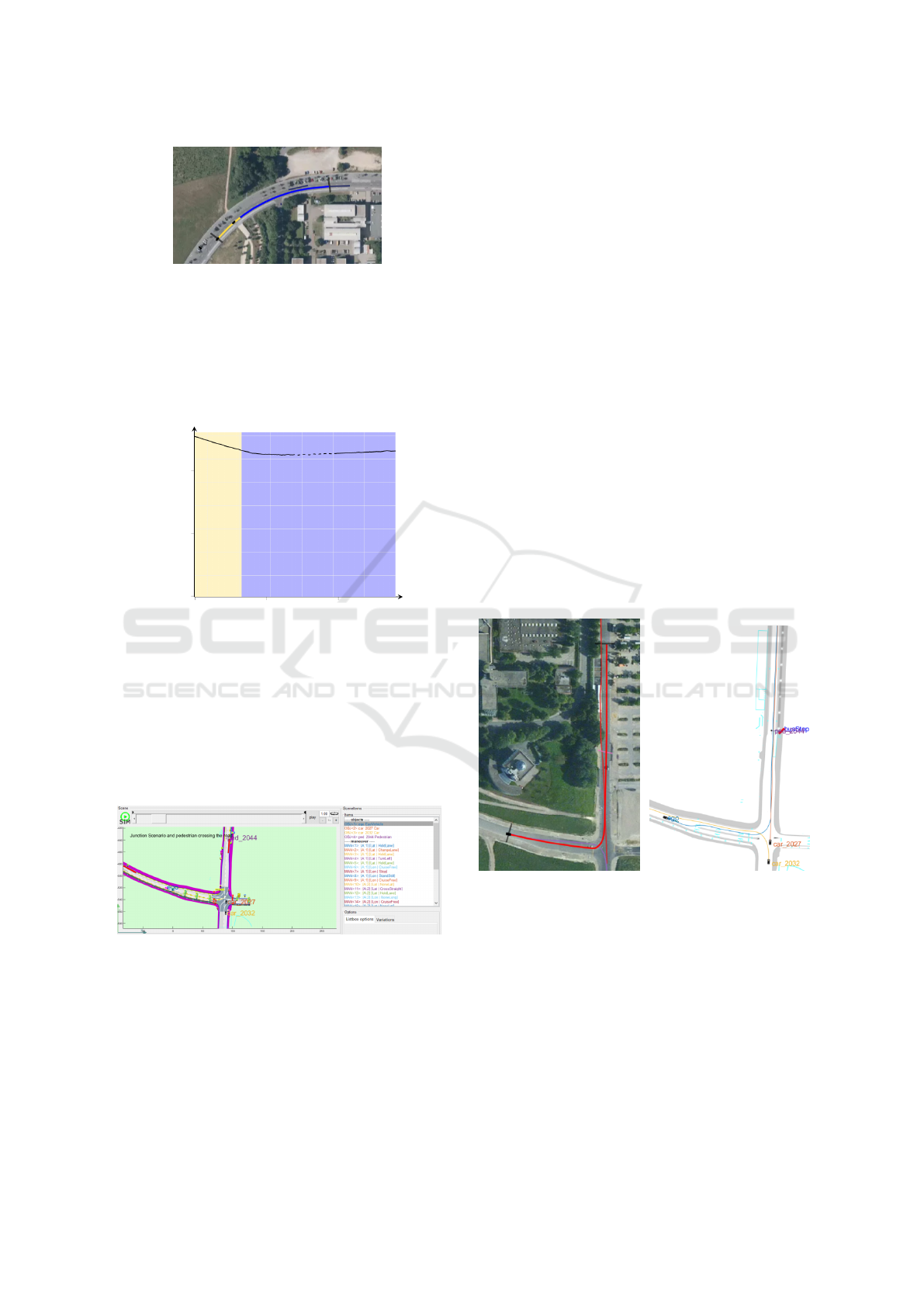

Figure 6: Detection of maneuvers in an Approach-and-

Follow scenario in a curve. Yellow indicates the Approach

maneuver, blue indicates the Follow maneuver.

Figure 7: GUI for manual editing a scenario implemented

by Zukunft Mobility GmbH (ZKM).

picture of the scenery. The scenario contains 3 cars

(including the ego car that recorded the data) driving

over a junction and one pedestrian crossing the street.

The ego car turns left on the junctions and has to stop

to give way to another car. The pedestrian is crossing

the street, but not inﬂuencing other participants. The

scenery was known and described in the OpenDRIVE

format.

The scenario was extracted with the scenario ex-

traction algorithm, saved as instance of the meta-

model and then executed by a simulation tool. The

simulation tool only takes the abstract scenario de-

scription and scenery as input, but has no knowledge

about the recorded time series like velocity or trajec-

tories. Please notice that the workﬂow is completely

automated.

Figure 8b shows the resimulated trajectories of the

scenario, that are very similar to the original ones.

Figure 9 displays the recorded and resimulated veloc-

ity of the ego vehicle. In the recorded speed diagram

the classiﬁed maneuvers Stop (red), Standstill (gray)

and Cruise Free (green) are marked. In the resimu-

lated velocity a similar speed proﬁle is generated. In

addition, the gear shifts produced by the simulation

driver are visible as small peaks.

With this example scenarios we demonstrate how

a fully automated resimulation of a scenario can be

performed with our concept. The behavior is success-

fully abstracted and used as input for a simulation that

generates comparable results. The concept also sup-

ports more complex scenario, but need a more power-

ful scenario extraction algorithm or manual supoort.

(a) Recorded trajectories (b) Snapshot of resimulated

trajectories in the ZKM sim-

ulation tool

Figure 8: Resimulation: Trajectories of a scenario on a

junction. Black boxes indicate the initial positions of the

vehicles, colored lines their trajectories.

8 CONCLUSION AND FUTURE

WORK

We motivated this paper by the necessity for new test-

ing methods for AD due to the rising automation level

Collection of Requirements and Model-based Approach for Scenario Description

643

time[s]

velocity[m/s]

(a) Recorded velocity of ego

vehicle with detected maneu-

vers.

time[s]

velocity[m/s]

(b) Resimulated velocity

of ego vehicle in the ZKM

simulation tool

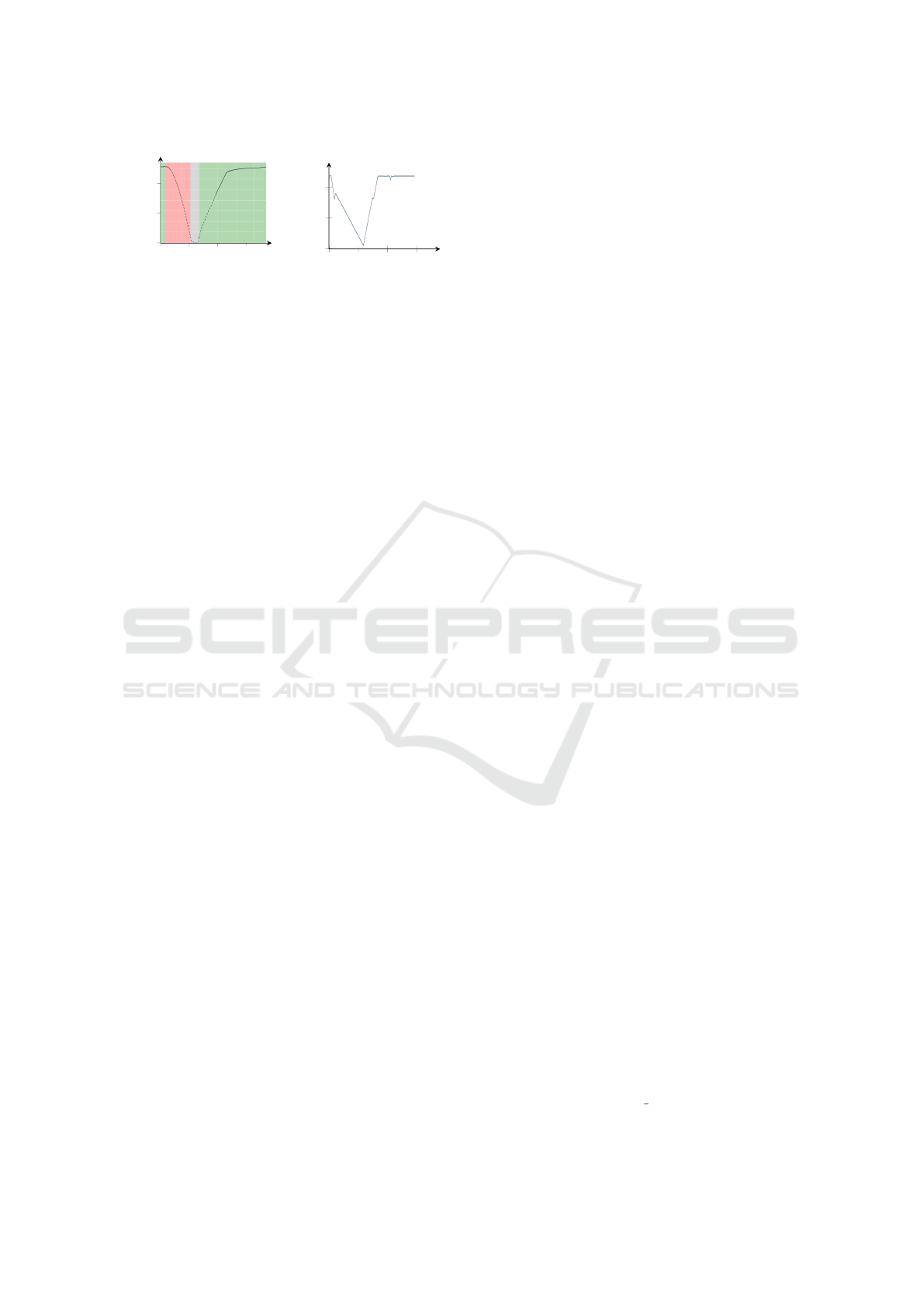

Figure 9: Resimulation: Velocity of ego vehicle.

and the variety of new ODDs. The scenario descrip-

tion was identiﬁed as an elemental part for the ap-

proaches scenario-based testing and automatic resim-

ulation. This paper collects and structures require-

ments for the scenario description as basis for its de-

sign. Its shows the integration of the resimulation of

recorded test drives in scenario-based testing using

scenario extraction and propose an abstract and holis-

tic model-based scenario description language. The

design as tool-independent metamodel ensures an ex-

tendable, maintainable and traceable use of scenarios

between different working steps, tools and execution

platforms. It is designed to ﬁt the needs of urban traf-

ﬁc and is easily extendable to other ODDs. Further-

more it is possible to modify and add scenarios man-

ually to include expert knowledge. Due to the com-

pletely automated workﬂow for generation of scenar-

ios from recorded real data and resimulation of these,

our approach offers a scalable option to build up a

scenario catalog for testing of AD. The approach was

implemented and exemplarily tested on recorded real-

world driving data in urban trafﬁc.

Future work will focus on the integration of pa-

rameter distributions in the description language to

be able to describe logical scenarios. A condensa-

tion of the scenarios to scenario clusters is a necessary

step to deﬁne the coverage of the scenario catalog. It

is planned to use the method on more different data

sources and with more simulation tools. The usage of

mixed datasets of recorded and resimulated scenarios

as input for AI-based methods is another interesting

research topic.

ACKNOWLEDGMENT

We thank Katrin Lotto (ZF) for her help in creating

the concept of the SDL. We thank Markus Lemmer

(FZI) for his help in implementing the concept.We

thank Marco Alt (ZKM) for his help in implement-

ing the scenario description in their simulation tool.

We thank Philipp Rigoll (FZI) for his help in imple-

menting the visualization tool for extracted scenarios.

REFERENCES

ASAM (2020a). OpenSCENARIO 1.0 User

Guide. https://www.asam.net/index.

php?eID=dumpFile&t=f&f=3496&token=

df4fdaf41a8463e585495001cc3db3298b57d426.

Accessed: 2020-10-16.

ASAM (2020b). OpenSCENARIO 2.0 Con-

cept Paper. https://www.asam.net/index.

php?eID=dumpFile&t=f&f=3460&token=

14e7c7fab9c9b75118bb4939c725738fa0521fe9.

Accessed: 2020-10-16.

Bach, J., Holz

apfel, M., Otten, S., and Sax, E. (2017).

Reactive-replay approach for veriﬁcation and valida-

tion of closed-loop control systems in early develop-

ment. Technical report, SAE Technical Paper.

Bach, J., Otten, S., and Sax, E. (2016). Model based sce-

nario speciﬁcation for development and test of auto-

mated driving functions. In 2016 IEEE Intelligent Ve-

hicles Symposium (IV), pages 1149–1155. IEEE.

Bagschik, G., Menzel, T., and Maurer, M. (2018). Ontol-

ogy based scene creation for the development of au-

tomated vehicles. In 2018 IEEE Intelligent Vehicles

Symposium (IV), pages 1813–1820. IEEE.

Bock, J., Krajewski, R., Eckstein, L., Klimke, J., Sauerbier,

J., and Zlocki, A. (2018). Data basis for scenario-

based validation of HAD on highways. In 27th Aachen

colloquium automobile and engine technology.

Damm, W., Kemper, S., M

ohlmann, E., Peikenkamp, T.,

and Rakow, A. (2018). Using trafﬁc sequence charts

for the development of havs. In European Congress on

Embedded Real Time Software and Systems 2018, 9th

European Congress on Embedded Real Time Software

and Systems (ERTS 2018).

Firl, J. and Tran, Q. (2011). Probabilistic Maneuver Predic-

tion in Trafﬁc Scenarios. In ECMR, pages 89–94.

Foretellix (2020). M-SDL Speciﬁcation. Accessed: 2020-

08-146.

Foundation, E. (2020). Eclipse modeling framework

(emf). https://www.eclipse.org/modeling/emf. Ac-

cessed: 2020-10-16.

Geyer, S., Baltzer, M., Franz, B., Hakuli, S., Kauer, M.,

Kienle, M., Meier, S., Weißgerber, T., Bengler, K.,

Bruder, R., et al. (2013). Concept and development of

a uniﬁed ontology for generating test and use-case cat-

alogues for assisted and automated vehicle guidance.

IET Intelligent Transport Systems, 8(3):183–189.

Hartjen, L., Schuldt, F., and Friedrich, B. (2019). Seman-

tic classiﬁcation of pedestrian trafﬁc scenarios for the

validation of automated driving. In 2019 IEEE In-

telligent Transportation Systems Conference (ITSC),

pages 3696–3701. IEEE.

International, S. (2018). Taxonomy and Deﬁnitions

for Terms Related to Driving Automation Systems

for On-Road Motor Vehicles. https://www.sae.org/

standards/content/j3016 201806/. Accessed: 2020-

10-16.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

644

Jafer, S., Chhaya, B., Zeigler, B. P., and Durak, U.

(2018). SES and Ecore for Ontology-based Scenario

Modeling in Aviation Scenario Deﬁnition Language

(ASDL). International Journal of Aviation, Aeronau-

tics, and Aerospace, 5(5):4.

King, C., Ries, L., Kober, C., Wohlfahrt, C., and Sax,

E. (2019). Automated function assessment in driv-

ing scenarios. In 2019 12th IEEE Conference on

Software Testing, Validation and Veriﬁcation (ICST),

pages 414–419. IEEE.

Kohlhaas, R., Bittner, T., Schamm, T., and Z

ollner, M.

(2014). Semantic state space for high-level maneuver

planning in structured trafﬁc scenes. In 17th Interna-

tional IEEE Conference on Intelligent Transportation

Systems (ITSC), pages 1060–1065. IEEE.

Koopman, P., Osyk, B., and Weast, J. (2019). Autonomous

vehicles meet the physical world: RSS, variability, un-

certainty, and proving safety. In International Con-

ference on Computer Safety, Reliability, and Security,

pages 245–253. Springer.

Lange, A. (2018). Gestaltung der Fahrdynamik beim

Fahrstreifenwechselman

over als R

uckmeldung f

ur den

Fahrer beim automatisierten Fahren. PhD thesis,

Technische Universit

at M

unchen.

Langner, J., Bach, J., Ries, L., Otten, S., Holz

apfel, M., and

Sax, E. (2018). Estimating the uniqueness of test sce-

narios derived from recorded real-world-driving-data

using autoencoders. In 2018 IEEE Intelligent Vehicles

Symposium (IV), pages 1860–1866.

Menzel, T., Bagschik, G., Isensee, L., Schomburg, A., and

Maurer, M. (2018). Detailing a Keyword Based Sce-

nario Description for Execution in a Simulation Envi-

ronment Using the Example of Scenarios on German

Highways. In Workshop Fahrerassistenzsysteme und

automatisiertes Fahren, volume 12, pages 15–26.

Neurohr, C., Westhofen, L., Henning, T., de Graaff, T.,

ohlmann, E., and B

ode, E. (2020). Fundamental

considerations around scenario-based testing for auto-

mated driving. arXiv preprint arXiv:2005.04045.

OCUP2 ExaminationTeam (2017). Meta-Modeling

and the OMG Meta Object Facility (MOF).

https://www.omg.org/ocup-2/documents/

Meta-ModelingAndtheMOF.pdf. Accessed: 2020-

10-16.

Pegasus (2019). PEGASUS Abschlussveranstal-

tung. https://www.pegasusprojekt.de/de/pegasus-

abschlussveranstaltung.

Pfeffer, R., Sax, E., and Schmidt, S. (2019). Real-

datenbasierte simulationsgest

utzte absicherung

hochautomatisierter fahrfunktionen. ATZelektronik,

14(11):24–29.

Schreiber, M. (2012). Konzeptionierung und Evaluierung

eines Ansatzes zu einer man

overbasierten

Fahrzeugf

uhrung im Nutzungskontext Autobah-

nfahrten. PhD thesis, Technische Universit

Darmstadt.

Schuldt, F. (2017). Ein Beitrag f

ur den methodischen

Test von automatisierten Fahrfunktionen mit Hilfe von

virtuellen Umgebungen . PhD thesis, TU Braun-

schweig.

Shalev-Shwartz, S., Shammah, S., and Shashua, A. (2017).

On a formal model of safe and scalable self-driving

cars. CoRR, abs/1708.06374.

Stellet, J. E., Zofka, M. R., Schumacher, J., Schamm, T.,

Niewels, F., and Z

ollner, J. M. (2015). Testing of ad-

vanced driver assistance towards automated driving:

A survey and taxonomy on existing approaches and

open questions. In 2015 IEEE 18th International Con-

ference on Intelligent Transportation Systems, pages

1455–1462.

VVM (2020). V&V Methoden. https://vvm.vdali.de/. Ac-

cessed: 2020-10-16.

Wachenfeld, W. and Winner, H. (2016). The release of

autonomous vehicles. In Autonomous driving, pages

425–449. Springer.

Wuellner, T., Feuerstack, S., and Hahn, A. (2019). Clus-

tering environmental conditions of historical accident

data to efﬁciently generate testing sceneries for mar-

itime systems. In Lect. Notes Comput. Sci. (includ-

ing Subser. Lect. Notes Artif. Intell. Lect. Notes Bioin-

formatics), volume 11842 LNCS, pages 349–362.

Springer.

Collection of Requirements and Model-based Approach for Scenario Description

645
