Trusted Execution Environments for Cloud/Fog-based

Internet of Things Applications

Dalton C

ezane Gomes Valadares

1,2 a

, Newton Carlos Will

3 b

, Marco Aur

elio Spohn

4 c

Danilo Freire de Souza Santos

, Angelo Perkusich

2 d

and Kyller Costa Gorgonio

2 e

Federal Institute of Pernambuco, Mechanical Engineering Department, Caruaru, PE, Brazil

Federal University of Campina Grande, Informatics and Electrical Engineering Center, Computer Science,

Campina Grande, PB, Brazil

Federal University of Technology - Paran

a, Dois Vizinhos, PR, Brazil

Federal University of Fronteira Sul, Chapec

o, SC, Brazil

Keywords:

Trusted Execution Environments, Internet of Things, Intel SGX, ARM TrustZone, Fog Computing, Security.

Abstract:

Cloud services and fog-based solutions can improve the communication and processing efﬁciency of the In-

ternet of Things (IoT). Cloud and fog servers offer more processing power to IoT solutions, enabling more

complex tasks within reduced time frames, which could not be possible when relying solely on IoT devices.

Cloud and fog computing beneﬁts are even better when considering sensitive data processing once IoT devices

can hardly perform complex security tasks. To improve data security in cloud/fog-based IoT solutions, Trusted

Execution Environments (TEEs) allow the processing of sensitive data and code inside protected and isolated

regions of memory. This paper presents a brief survey regarding TEEs’ adoption to protect data in cloud/fog-

based IoT applications. We focus on solutions based on the two leading TEE technologies currently available

in the market (Intel SGX and ARM Trustzone), pointing out some research challenges and directions.

1 INTRODUCTION

The Internet of Things (IoT) paradigm has gained

power when combined with the cloud or fog comput-

ing paradigm. Such a combination alleviates the con-

cerns regarding the IoT devices’ typical constraints,

such as limited memory and processing capabilities,

by allowing applications demanding complex and fast

processing to run in fog/cloud servers. Despite these

beneﬁts of fog and cloud computing, concerns remain

when cloud/fog-based IoT applications deal with sen-

sitive data.

Among the commonly employed solutions to pro-

tect data generated by IoT applications, we ﬁnd the

use of Trusted Execution Environments (TEEs). TEE

can be deﬁned as a tamper-resistant processing en-

vironment, running in a separate kernel, which pro-

https://orcid.org/0000-0003-1709-0404

https://orcid.org/0000-0003-2976-4533

https://orcid.org/0000-0002-9265-9421

https://orcid.org/0000-0002-7377-1258

https://orcid.org/0000-0001-9796-1382

vides an adequate level of authenticity, integrity, and

conﬁdentiality for the executed code (Sabt et al.,

2015). A TEE should supply a remote attestation

process, enabling third-parties to prove its trustwor-

thiness. Nonetheless, TEE is not a bullet-proof so-

lution for systems security: an adversary can still ex-

plore Side-Channel attacks

. Since 2010, Global Plat-

form

is responsible for TEE standardization through

its TEE System Architecture and API speciﬁcations,

which comprise TEE Client API, TEE Internal Core

API, TEE Secure Element API, among others

To investigate how TEE intends to protect data in

cloud/fog-based IoT applications, we deﬁned the fol-

lowing research questions:

1. What are the current proposals regarding the use

of TEE in IoT applications?

Attacks based on particular hardware characteristics, such

as timing information, power consumption, electromag-

netic leaks, and sound, requiring a good technical knowl-

edge about the internal operation of the system.

http://globalplatform.org/

https://globalplatform.org/specs-library/?ﬁlter-committee

=tee

Valadares, D., Will, N., Spohn, M., Santos, D., Perkusich, A. and Gorgonio, K.

Trusted Execution Environments for Cloud/Fog-based Internet of Things Applications.

DOI: 10.5220/0010480701110121

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 111-121

ISBN: 978-989-758-510-4

111

2. What sort of IoT solutions is TEE currently in

use?

To answer these questions, we performed a basic lit-

erature review, searching for related papers in some

of the main Computer Science scientiﬁc repositories

(e.g., Scopus

, IEEE Digital Library

and ACM Dig-

ital Library

). For this search, we used the follow-

ing keywords as search topics: “Internet of Things”

AND “Trusted Execution Environment” AND “Secu-

rity”. We have taken into account only the main TEE

technologies available in the market: ARM TrustZone

and Intel SGX. We decided to focus on ten selected

papers for each TEE technology, which is enough to

get an overview of the developed research and get

insights/directions to guide future works. Our main

contributions are listed as follows:

• A survey on TEE, applied for protecting

cloud/fog-based IoT applications, presenting rel-

evant related papers;

• A discussion regarding the challenges in the adop-

tion of TEE for IoT applications and key research

directions;

• A starting point to carry out a Systematic Litera-

ture Review regarding the research questions.

This work is the ﬁrst review regarding the use of TEE

in IoT applications to the best of our knowledge. The

remainder of this paper has the following organiza-

tion. Section 2 presents the fundamentals of ARM

TrustZone and Intel SGX, meanwhile in Section 3 we

present works employing Intel SGX in their propos-

als, while Section 4 focuses on works related to the

context of ARM TrustZone. Section 5 presents the

main vulnerabilities of the two TEE technologies un-

der consideration. In Section 6, we present relevant

challenges and directions to the application of TEE in

IoT, and we discuss related works in Section 7. Con-

clusions are then laid out in Section 8.

2 BACKGROUND

This Section presents a brief description of the two

leading TEE technologies currently available in the

market, Intel Software Guard Extensions and the

ARM TrustZone, some differences between both, and

common scenarios for IoT applications.

http://www.scopus.com

http://ieeexplore.ieee.org

http://portal.acm.org

2.1 Intel Software Guard Extensions

(SGX)

Intel Software Guard Extensions (Intel SGX) is an ex-

tension to the x86 architecture instruction set that al-

lows applications to run in a protected memory area,

called enclave, which contains the application code

and data. An enclave is a protected area in the applica-

tion’s address space that guarantees the conﬁdential-

ity and integrity of the data, preventing this data from

being accessed by malware and even other software

with high execution privileges, such as VM monitors,

BIOS, and the operating system (McKeen et al., 2013;

Jain et al., 2016; da Rocha. et al., 2020). We describe

an SGX enclave’s attack surface, as shown in Fig. 1.

Hardware Hardware

VMM VMM

OS OS

App App App App App App

Attack Surface

Attack Surface Without Enclaves Attack Surface With Enclaves

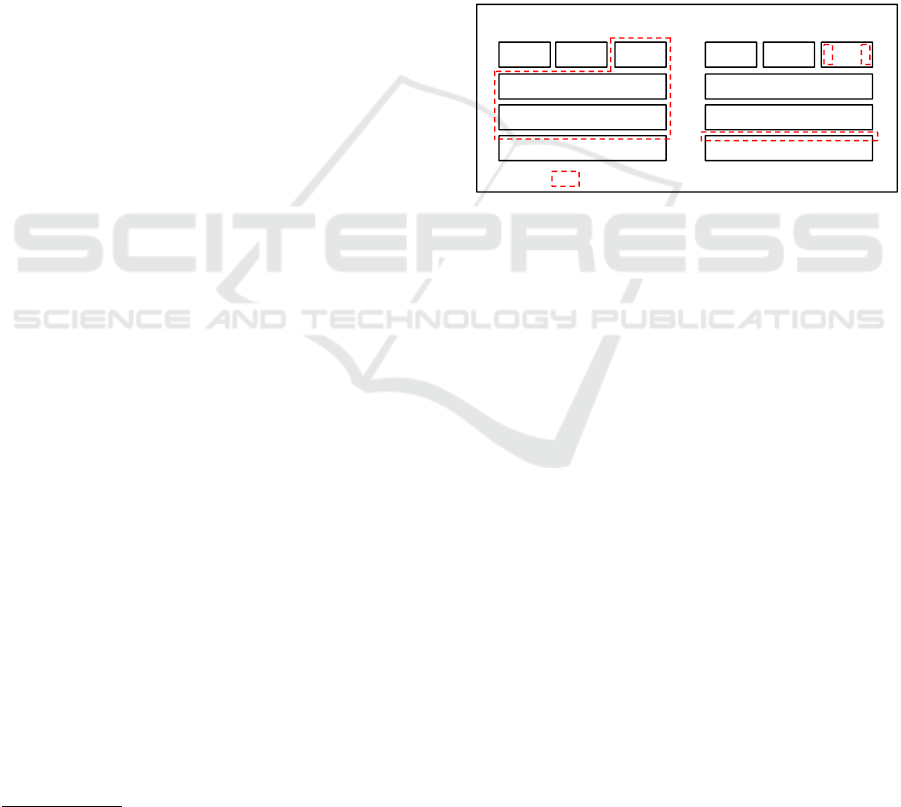

Figure 1: Attack surface of a security-sensitive application

without SGX enclaves (left) and with SGX enclaves (right).

Memory encryption employs standard algorithms

containing protections against replay attacks. The en-

cryption key is stored in registers inside the CPU,

not accessible to external components, and is changed

randomly at each hibernation or system restart event

(Intel, 2016b). Each enclave has a certiﬁcate signed

by the enclave author containing information that al-

lows the Intel SGX architecture to detect whether any

part of the enclave has been tampered with. However,

the hardware only checks the enclave’s measurement

when loaded (Intel, 2016a).

Applications can also request a speciﬁc key (seal-

ing key) to the enclave to protect their keys and data

when they want to save them outside the protection

of the enclave, such as on disk. Enclaves can also at-

test to each other, enabling establishing a secure com-

munication channel for sharing sensitive information

(Anati et al., 2013).

The main goal of SGX is to reduce the Trusted

Computing Base (TCB), allowing only sensitive parts

of the application to be within enclaves. Splitting the

application into two components brings some advan-

tages, with fewer failure points in the trusted part of

the application, resulting in safer software.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

112

2.2 ARM TrustZone

ARM TrustZone is a hardware architecture that ex-

tends the security aspect to the entire system design,

allowing any part of the system to be protected. Trust-

Zone technology provides a basic infrastructure that

allows SoC designers to choose a range of compo-

nents that can assist with speciﬁc functions within a

secure environment. The architecture’s main goal is

to enable the construction of a programmable envi-

ronment that allows the conﬁdentiality and integrity

of almost all assets to be protected from speciﬁc at-

tacks and can be used to build a set of security solu-

tions that are not possible with traditional methods.

(ARM, 2009).

With the ARM TrustZone architecture, the system

can be isolated in two logical states: a secure world

and a normal world (Fig. 2). These states are also

signaled to all peripheral devices via the system bus,

allowing them to make access control decisions based

on the system’s current state. The mechanism respon-

sible for exchanging context between the two states is

called monitor.

Normal world

User mode

Normal world

Privileged modes

Secure world

User mode

Secure world

Privileged modes

Monitor

mode

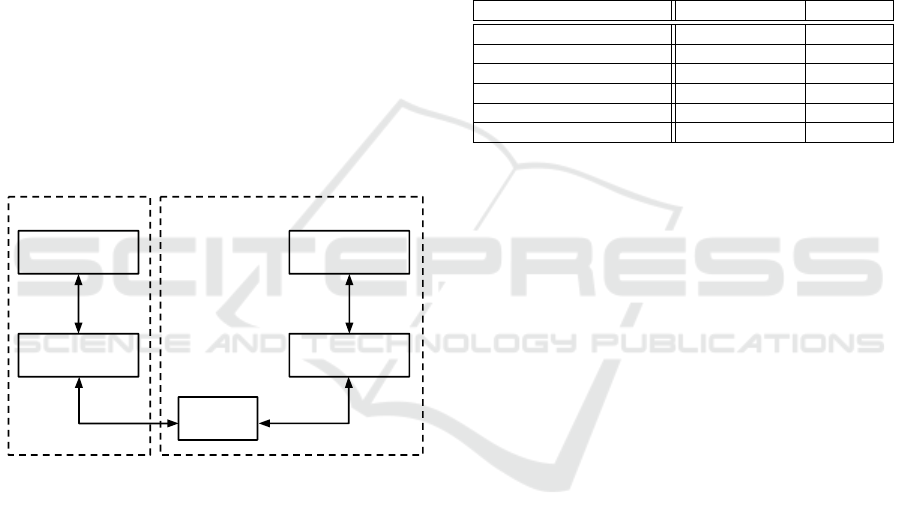

Normal world Secure world

Figure 2: Execution modes in the ARM TrustZone archi-

tecture.

When an application runs in a secure world, it can

isolate parts of the memory for its use, preventing ap-

plications running in an ordinary world from access-

ing these locations. The memory controller using the

TrustZone architecture premises guarantees such iso-

lation, providing access control for memory regions

based on the current state. This memory partitioning

can be static or programmable at runtime.

Secure world applications can also force speciﬁc

interrupts or exceptions to be caught only in a secure

world, and this control is also in charge of the inter-

rupt controller. The system can also block access to

particular devices for applications that are not running

in a secure world, ensuring these devices’ exclusivity

only to secure applications (Lesjak et al., 2015).

2.3 Differences between ARM

TrustZone and Intel SGX

Table 1 presents a comparison between ARM Trust-

Zone and Intel SGX TEE technologies’ main char-

acteristics. We can notice that Intel SGX technol-

ogy covers the main characteristics necessary for the

development of secure applications without the need

to trust the operating system or other high privileged

components. At the same time, ARM TrustZone can

provide a trusted communication path to compatible

devices.

Table 1: Comparison between the ARM TrustZone and In-

tel SGX TEE technologies.

ARM TrustZone Intel SGX

Architecture ARM x86-64

Secure Storage X

Attestation X

Memory Isolation X X

Cryptographic Accelerator X X

Trusted I/O X

While Intel SGX technology aims to offer a com-

plete solution in terms of CPU and memory compo-

nents’ communication, ARM TrustZone lacks a com-

ponent capable of offering a trusted code measure-

ment. A device-unique key is the basis of the secure

storage and attestation mechanisms. In conjunction

with a TPM, or another module capable of providing

a unique key and code measurement, it is possible to

offer such features.

On the other hand, the Intel SGX technology is fo-

cused only on the CPU and the communication with

the memory, offering no native feature to enable se-

cure communication with I/O devices, unlike ARM

TrustZone. It is necessary to combine Intel SGX with

other solutions to enable the before-mentioned secure

communication, such as hypervisor-based trusted

path architectures (Weiser and Werner, 2017).

2.4 Common IoT Scenarios

In general, IoT applications consist of distributed sys-

tems involving various devices, systems, and servers.

As already mentioned, to deal with the constraints

of the known devices, the different IoT scenarios de-

mand cloud, fog, and edge computing paradigms. We

show the common IoT scenarios considering these

paradigms in Fig. 3.

The main entities are the IoT devices that collect

data from the environment. These data can be pro-

cessed locally on the devices or sent to an edge gate-

way, a fog server, or a cloud server. Whenever us-

Trusted Execution Environments for Cloud/Fog-based Internet of Things Applications

113

Cloud

Servers

Fog

Servers

Edge

Gateway

IoT

Device

IoT

Device

IoT

Device

Fog Computing

Layer

Edge Computing

Layer

Cloud Computing

Layer

Devices

Layer

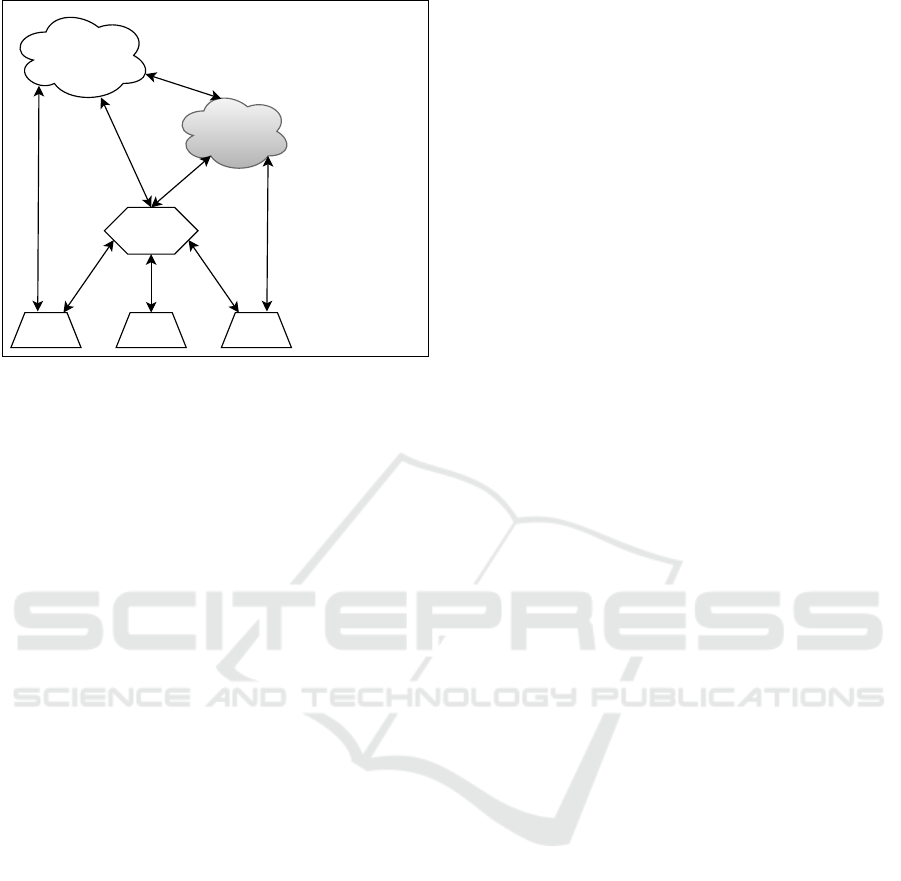

Figure 3: Common Scenarios for IoT Applications.

ing an edge gateway, it can also communicate with a

fog or cloud server when it demands more process-

ing, memory, and storage. The fog servers can also

exchange data with the cloud servers. The arrows in

Fig. 3 represent the communication possibilities be-

tween the devices and the edge, fog, and cloud layers.

Knowing these common scenarios, we can think

of applying TEE to protect sensitive data in any of the

possible combinations. The TrustZone is more suit-

able to IoT since its architecture is available in many

devices based on ARM processors, including micro-

controllers. Unlike TrustZone, SGX only is supported

by computers running Intel processors. This way,

the solutions employing trusted applications to pro-

tect data in these IoT scenarios commonly apply TEE

to edge gateways or fog/cloud servers.

IoT solutions can combine ARM TrustZone and

Intel SGX technologies. The ﬁrst one is used to en-

sure trusted operations in IoT and edge devices, and

the second one in fog and cloud servers. Cryptog-

raphy techniques and secure protocols (e.g., Trans-

port Layer Security) are employed to protect data in

transit after leaving the devices. If the devices do

not have enough capabilities to process such secu-

rity tasks, they can run in a closer edge gateway. In-

tel SGX provides mechanisms to perform a remote

attestation procedure with third parties, enabling a

fog/cloud server to attest IoT/edge devices and cre-

ates a trusted communication channel between them.

3 INTEL SGX SOLUTIONS

Milutinovic et al. (Milutinovic et al., 2016) presented

a blockchain that uses a proof of lucky consensus pro-

tocol. Low-latency in the transaction validation, low

energy consumption, and deterministic conﬁrmation

time is reached through a random number generation

based on a Trusted Execution Environment. The au-

thors applied the Intel SGX capabilities for this and

explained the protection provided by this solution.

Liang et al. (Liang et al., 2017) proposed using

Intel SGX and blockchain to protect sensitive health

data, achieving accountability for data access. A Per-

sonal Health Data Management system is proposed,

with a user-centric approach, allowing patients to

collect and manage their health data. According to

the authors, the proposal achieves self-sovereign data

ownership, permanent data record with integrity, scal-

able processing, decentralized and distributed privacy,

access control, and trusted accountability.

Sampaio et al. proposed a data dissemination plat-

form. (Sampaio et al., 2017), providing data security

and privacy levels. The proposed solution gives full

control to data producers over consumers’ access; i.e.,

producers allow or deny the consumers access to sen-

sitive data and set the granularity level. Thus, sensi-

tive data can be produced and repeatedly anonymized

or aggregated by trusted entities, using Intel SGX, and

then consumed by untrusted applications, ensuring

original data privacy. The use of Intel SGX makes the

solution more feasible than homomorphic encryption.

The authors evaluated the solution, which achieved a

lower overhead and can be useful for medium-scale

systems with small data dissemination volumes.

SGX is also used to enforce user privacy in

location-based services since sharing location traces

with untrusted service providers may have privacy

implications. Kulkarni et al. (Kulkarni et al., 2017)

described an architecture where the user device (IoT,

mobile phone, or a GPS enabled device) initiates an

attestation process with an enclave that runs in an

untrusted provider, establishing a secure channel be-

tween the device and the enclave and allowing a se-

cure information exchange. All user data are pro-

cessed within an enclave, avoiding data leakage to

an untrusted cloud. The authors evaluated the solu-

tion with a marginal overhead while providing near-

to-the-perfect results, describing it as a better solu-

tion than currently available, as spatial-cloaking with

k-anonymity.

Nguyen et al. (Nguyen et al., 2018) proposed

LogSafe, a distributed, scalable, fault-tolerant, and

trusted logger for IoT devices data. Using Intel SGX,

the proposed logger satisﬁes conﬁdentiality, integrity,

and availability and provides tamper detection, pro-

tecting against replay, injection, and eavesdropping

attacks. Experiments demonstrated that LogSafe has

high scalability, which allows it to work with a high

number of IoT devices and a high data transmission

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

114

Table 2: Summary of Intel SGX solutions.

Title Year Solution

Proof of Luck: an Efﬁcient Blockchain Consensus Protocol (Milutinovic et al., 2016) 2016 Blockchain Consensus Protocol

Towards Decentralized Accountability and Self-Sovereignty in Healthcare Systems (Liang et al., 2017) 2017 Personal Health Data Management system

Secure and Privacy-Aware Data Dissemination for Cloud-based Applications (Sampaio et al., 2017) 2017 Data Aggregation and Dissemination Platform

Privacy-Preserving Location-Based Services by Using Intel SGX (Kulkarni et al., 2017) 2017 Secure Architecture for Location-based Services

LogSafe: Secure and Scalable Data Logger for IoT Devices (Nguyen et al., 2018) 2018 Trusted logger

Decentralized IoT Data Management Using BlockChain and Trusted Execution Environment (Ayoade et al., 2018) 2018 Descentralized Data Management system

BASTION-SGX: Bluetooth and Architectural Support for Trusted I/O on SGX (Peters et al., 2018) 2018 Bluetooth Trusted I/O

Security and privacy aware data aggregation on cloud computing (Silva et al., 2018) 2018 Smart Metering Data Aggregation

Achieving Data Dissemination with Security using FIWARE and Intel Software Guard Extensions (Valadares et al., 2018) 2018 Trusted Architecture

Enabling Security-Enhanced Attestation With Intel SGX for Remote Terminal and IoT (Wang et al., 2018) 2018 Security-enhanced Attestation

rate.

Ayoade et al. (Ayoade et al., 2018) proposed a de-

centralized system for data management in IoT appli-

cations using blockchain and TEE technologies. The

idea is to enforce access control by using blockchain

smart contracts and storing only data hashes in the

blockchain while keeping raw data in a TEE appli-

cation. The authors implemented the proposal using

Ethereum blockchain and Intel SGX, including exper-

iments regarding the processing costs at blockchain

and SGX application (gas usage, throughput, and

CPU time considering the primary operations). The

obtained results demonstrate that the solution has an

acceptable efﬁciency.

Peters et al. (Peters et al., 2018) proposed

BASTION-SGX, architectural support for Bluetooth

trusted I/O using Intel SGX. This work has the goal

of protecting I/O data even when considering adver-

saries with high-level privileges. Authors described

challenges regarding the design and implementation

of “trusted I/O”, presenting a possible solution and

describing the implementation of a proof-of-concept,

which extends the existing Bluetooth security to an

SGX enclave, securing the data between it and the

Bluetooth controller. The solution includes a secure

tunnel between an SGX enclave and the Bluetooth

hardware.

Silva et al. (Silva et al., 2018) presented an archi-

tecture for data aggregation in cloud computing, con-

sidering two approaches for data security and privacy.

The proposed architecture comprises four main com-

ponents: message bus, producers, aggregators, and

consumers. Proofs of the concept were implemented

and evaluated regarding the response time to process

routine operations in smart metering, such as instant

energy consumption and monthly bill calculations.

Two different aggregators were implemented: one

considering the Intel SGX technology and one con-

sidering a homomorphic encryption technique. Tests

were performed considering the host machine, vir-

tual machines, and containers. The achieved results

demonstrate that Intel SGX enables lower response

times than the homomorphic encryption technique.

The authors also presented advantages and disadvan-

tages for each approach and presented a security anal-

ysis for both.

A trusted architecture using Intel SGX to protect

sensitive data in IoT applications was proposed by

Valadares et al. (Valadares et al., 2018). The pro-

posal adds security components to a common pub-

lish/subscribe architecture, including authentication,

authorization, cryptography and trusted processing

with a TEE. When compared to a solution without

any security mechanism, the authors implemented a

prototype and performed experiments to verify the

proposal’s time overhead. The results presented low

overhead regarding all the communication ﬂow with

the security processes and indicated an excellent scal-

ability level.

Wang et al. (Wang et al., 2018) proposed a

security-enhanced attestation for remote terminals

and IoT devices, suitable to use the “bring your own

device” policy in enterprise networks. The solution

achieves shielded execution for measurements and at-

testation, with a small trusted computing base and dy-

namic attestation based on multiple enclaves. It also

provides a policy-based measurement mechanism that

enables administrators to collect and monitor the run-

time status in a trusted way, ensured by SGX. The

evaluated prototype shows a little overhead in the at-

testation procedure.

In Table 2, we present all these ten papers that

used Intel SGX to provide some data security solu-

tions in fog/cloud-based IoT applications.

4 ARM TRUSTZONE SOLUTIONS

Yang et al. (Yang et al., 2014) presented Trust-E,

a trusted embedded operating system architecture,

compliant with Global Platform TEE speciﬁcations.

The authors designed and implemented the Trust-E

solution and implemented a mobile payment applica-

tion as a demo to test their solution regarding correct-

ness and effectiveness. According to the authors, the

results demonstrated that the proposed solution could

effectively meet the security requirements.

Lesjak et al. (Lesjak et al., 2015) proposed a se-

curity solution for industrial maintenance scenarios,

Trusted Execution Environments for Cloud/Fog-based Internet of Things Applications

115

Table 3: Summary of ARM Trustzone solutions.

Title Year Solution

Trust-E: A Trusted Embedded Operating System Based on the ARM Trustzone (Yang et al., 2014) 2014 Trusted Embedded Operating System Architecture

Hardware-security technologies for industrial IoT: TrustZone and security controller (Lesjak et al., 2015) 2015 Device Snapshot Authentication System

CacheKit: Evading Memory Introspection Using Cache Incoherence (Zhang et al., 2016) 2016 Processor Cache Exploitation through a Rootkit

OPTZ: a Hardware Isolation Architecture of Multi-Tasks Based on TrustZone Support (Dai and Chen, 2017) 2017 Multitask Hardware Isolation Architecture

TM-Coin: Trustworthy Management of TCB Mveasurements in IoT (Park and Kwangjo Kim, 2017) 2017 Trustworthy TCB Measurements Management System

LTZVisor: TrustZone is the Key (Pinto et al., 2017) 2017 Hypervisor to Assist Virtualization

Secure Edge Computing with ARM TrustZone (Pettersen. et al., 2017) 2017 Trusted Edge Computing Platform

A TrustEnclave-Based Architecture for Ensuring Runtime Security in Embedded Terminals (Chang et al., 2017) 2017 Runtime Security for Embedded Terminals

TruApp: A TrustZone-based authenticity detection service for mobile apps (Demesie Yalew et al., 2017) 2017 Mobile App Authenticity and Integrity Checker

Building a Trustworthy Execution Environment to Defeat Exploits from both Cyber Space and

Physical Space for ARM (Guan et al., 2019)

2019 Shield System for Legacy Applications

designing and implementing a device snapshot au-

thentication system. This solution was implemented

with ARM TrustZone and Security Controller, com-

paring both technologies. The results indicated that

the TrustZone solution presents greater ﬂexibility and

performance, while the Security Controller solution

presents better protection against physical attacks.

The authors concluded that the chosen technology de-

pends on the use case. They proposed a hybrid ap-

proach, using both technologies, which maximizes

performance and security: employing TrustZone with

software components that demand more processing

power and Security Controller within software com-

ponents demanding more security.

Zhang et al. (Zhang et al., 2016) presented a sys-

tematic study about a cache incoherence behavior be-

tween regular and secure worlds in the ARM Trust-

Zone, and proposed a rootkit called Cachekit to show

the feasibility of including malicious code in the pro-

cessor cache, keeping it hidden. Due to the incoher-

ent state between regular and secure worlds, allowing

the rootkit to evade introspection from detection tools

was possible. The authors compared the Cachekit

with other rootkits regarding detection methods. It

proved to be the best, without any detection, since the

malicious code completely hides inside the cache.

Dai and Chen (Dai and Chen, 2017) proposed the

design and implementation of OPTZ (Open Trust-

Zone), a multitask hardware isolation between reg-

ular and secure worlds, with an architecture com-

posed of a secure OS (for the secure world), a stan-

dard OS (for the ordinary world), secure services and

a communication mechanism. The authors focused

on the communication between regular and secure

worlds through the secure monitor, considering a sys-

tem interrupt design and a multitask hardware iso-

lation. They implemented the architecture with the

TrustZone technology and carried out experiments to

verify its correctness, testing the physical memory ac-

cess. The results demonstrated the effectiveness of the

proposed hardware isolation.

Park and Kim (Park and Kwangjo Kim, 2017)

proposed a trustworthy management system for TCB

(Trusted Computing Base) measurements from IoT

applications. Authors called the solution TM-Coin,

which uses TrustZone and blockchain. They pre-

sented the protocol and transactions ﬂow to distribute

the TCB measurements in the blockchain securely.

TrustZone was used to generate and protect the TM-

Coin transactions containing the TCB measurements.

The solution applied a remote attestation mechanism

and evaluated its performance overhead through ex-

periments carried out with an implemented prototype.

Pinto et al. (Pinto et al., 2017) proposed LTZVi-

sor, a hypervisor that uses TrustZone to assist virtual-

ization. The authors presented the hypervisor archi-

tecture and details of its implementation, which was

experimentally evaluated considering three metrics:

memory footprint, performance overhead, and inter-

rupt latency. The experimental results demonstrated a

low-performance overhead, satisfying strict require-

ments for real-time environment virtualization when

running unmodiﬁed rich operating systems.

Pettersen et al. (Pettersen. et al., 2017) used both

ARM TrustZone and Intel SGX to create a generic

platform that enables IoT, mobile, and cloud systems

from different vendors to seamlessly connect and in-

tegrate into a privacy-preserving and secure manner.

The proposed architecture has three vertically stacked

layers. The top-most layer has an ARM TrustZone en-

abled client device. The middle layer is also a client

device, in the same administrative domain, with ARM

TrustZone or Intel SGX capabilities, such as a fog de-

vice or an enterprise cloud server. The third layer is

the public cloud, with Intel SGX enabled. The so-

lution achieves a secure design to integrate IoT edge

devices to back-end cloud servers with a small over-

head.

Chang et al. (Chang et al., 2017) proposed the

use of TEE to address runtime security problems ef-

ﬁciently since it uses hardware isolation technology.

They presented the TrustZone architecture, explain-

ing its basic working, divided into regular and secure

worlds (untrusted and trusted, respectively). They

tested a TrustZone-enabled hardware device, evaluat-

ing the proposal, which achieved experimental results

demonstrating its effectiveness and feasibility.

Yalew et al. (Demesie Yalew et al., 2017) pre-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

116

sented TruApp, which validates the authenticity and

integrity of a mobile app by checking some measure-

ments and static/dynamic watermarks, and a veriﬁ-

cation key issued by the TruApp provider or the app

vendor. TruApp is protected since it executes mostly

in a TrustZone secure world and veriﬁes the part run-

ning in the insecure world. The authors implemented

the proposal and carried out experiments, concluding

that the measurements are more effective in detecting

not authentic apps but incur higher overhead costs.

They proposed to analyze means of optimizing the

TruApp as future works.

Guan et al. (Guan et al., 2019) proposed Trust-

Shadow, a new system to shield legacy applications

running on multiprogramming IoT devices from un-

trusted OSes. It uses ARM TrustZone technology, se-

curing critical applications through a lightweight run-

time system responsible for the communication be-

tween the applications and the OS running in the or-

dinary world. This runtime system does not provide

system services. However, it forwards the untrusted

ordinary world’s requests, verifying the responses and

employing a page-based encryption mechanism to

protect all the data segments from a security-critical

application. Whenever an encrypted page is accessed,

the page is decrypted in the internal RAM, immune

to physical exploits. It is not necessary any modiﬁ-

cations to legacy applications. The authors tested the

proposed solution with microbenchmarks and real ap-

plications, which presented negligible and, in a few

cases, moderate overhead when running real applica-

tions.

We list all these ten published papers and their so-

lutions in Table 3, which considered ARM Trustzone

to provide or improve data security in IoT applica-

tions.

5 SGX AND TRUSTZONE

VULNERABILITIES

Intel SGX and TrustZone do not consider side-

channel or reverse-engineering attacks in their threat

model. The Intel Software Guard Extensions Devel-

oper Guide (Intel, 2016a) points out that it is up to de-

velopers to build enclaves resistant to these types of

attacks. Side-channel attacks could generate enough

information for the attacker to infer the sequence of

running instructions or passive address translation at-

tacks that could give information from the attacker to

memory access patterns with page granularity. These

threats are classiﬁed into four attack vectors by (Wang

et al., 2017): power statistics, cache miss statistics,

branch timing, and page accesses via page tables. Al-

though the enclave is cryptographically protected in

the EPC, in SGX applications, the data inside cache

memory are in plain-text. The same occurs for Trust-

Zone applications, even considering that the secure

cache lines are not accessible by the untrusted world

(ordinary world) (Lesjak et al., 2015; Cerdeira et al.,

2020).

Several works in the literature were able to extract

sensitive information from enclaves by side-channel,

such as a key from RSA processing (Schwarz et al.,

2017; Brasser et al., 2017) and AES keys (Moghimi

et al., 2017). Spectre vulnerabilities can also be used

to infer secrets contained in an SGX enclave (Chen

et al., 2019a) or TrustZone trusted applications (Guan

et al., 2019). Seeking to mitigate the effects caused

by side-channel attacks in applications that use SGX,

Shih et al. (Shih et al., 2017) propose T-SGX. The

resources provided by Transactional Synchronization

Extensions (TSX) are employed to isolate attempts to

unauthorized access to the enclave data, eradicating

the effects of known side-channel attack techniques.

Weichbrodt et. al. (Weichbrodt et al., 2016) also

addresses thread synchronization issues in enclaves,

using techniques such as use-after-free and time-of-

check-to-time-of-use, allowing the attacker to hijack

the ﬂow of control or bypass enclave access controls,

interrupting threads and forcing segmentation failures

in enclaves.

6 CHALLENGES AND

DIRECTIONS

The use of TEE brings some challenges that one must

take into account when developing robust and efﬁ-

cient solutions. However, the Intel SGX architec-

ture provides efﬁcient mechanisms to ensure the se-

curity of an application’s data. Side-channel attacks

or reverse-engineering attacks are not in the architec-

ture’s threat model. Therefore, the SGX architecture

is vulnerable to Spectre attacks: applications outside

the enclave can inﬂuence an enclave’s code execution

prediction. The control ﬂow of the enclave can be

manipulated to execute instructions leading to observ-

able cache state changes, which an adversary can use

to learn secrets from the memory of the enclave or its

registers (Chen et al., 2019b).

Thread synchronization problems in enclaves are

also addressed by using techniques such as use-after-

free and time-of-check-to-time-of-use, allowing the

attacker to hijack the control ﬂow or bypass enclave

access controls, interrupting threads, and forcing seg-

mentation failures in enclaves (Weichbrodt et al.,

2016). Some challenges to enforcing remote attesta-

Trusted Execution Environments for Cloud/Fog-based Internet of Things Applications

117

tion protocol to build secure and scalable applications

with SGX are discussed by (Beekman and Porter,

2017).

The ARM TrustZone architecture also suffers

from side-channel attacks, as demonstrated by Lipp

et al. (Lipp et al., 2016), where the authors use the or-

dinary world to monitor activities performed in Trust-

Zone secure world. Besides, there are several secu-

rity bulletins related to TrustZone, such as bugs in

kernel and drivers, and also hardware-related vulner-

abilities, which affect different hardware parts of the

platform (Pinto and Santos, 2019).

Software developers may assume that TEE is

100% secure, but it is not, and they must consider

bugs and vulnerabilities in hardware and software

components. Also, they must consider performance

issues in both Intel SGX and ARM TrustZone. A

broad range of views of the challenges about TEEs

is discussed by Ning et al. (Ning et al., 2017).

Regarding the directions for new researches, we

could group the critical solutions found in the se-

lected papers for both Intel SGX and ARM Trust-

Zone, as seen in Fig. 4. We noticed that both dis-

cussed TEE technologies had been employed to pro-

vide security for data aggregation and management

systems among the proposed solutions. Considering

only the Intel SGX solutions, we identiﬁed proposals

related to trusted architectures, attestation, and trusted

logging and I/O operations systems. When consider-

ing only ARM TrustZone solutions, we identiﬁed pro-

posals related to authentication and authenticity sys-

tems, trusted OS and hypervisor, rootkit, trusted plat-

form for edge computing, and protection for embed-

ded terminals and legacy systems.

Securing the ﬁrmware update process of IoT de-

vices is paramount for any IoT ecosystem. One

should employ a reliable and secure mechanism for

updating the ﬁrmware of any IoT device while allow-

ing it to roll back to a previous working instance in

case of update failure (resulting from an accidental

or intentional error). In this context, Surdu (Surdu,

2018) presents a method based on TEE that isolates

the main entities involved in the ﬁrmware update

process. The new ﬁrmware is properly instantiated

in a staged TEE region, interfacing with emulated

drivers during the upgrade process to avoid any in-

terference with the current working system. Once the

new ﬁrmware is fully functional, the system transi-

tions to the new conﬁguration; otherwise, it continues

to operate with the previous working ﬁrmware.

As seen, many topics can be explored, and many

solutions can beneﬁt from using TEE. Blockchain is

a related topic that was identiﬁed among the solutions

with both SGX and TrustZone, emphasizing the fol-

lowing aspects:

1. Data are encrypted and stored securely locally or

in a protected server (e.g., fog or cloud);

2. The data hashes are stored in the blockchain in-

frastructure.

To this end, TEE is an option to keep cryptographic

keys secure and perform operations on sensitive data

(encryption, decryption, and processing). We suggest

applying TEE for the most critical portions of the ap-

plication, which can be explored as a target by inter-

ested adversaries without access permission.

7 RELATED WORK

Works have been done exploring trust and security is-

sues in the Internet of Things, proposing solutions,

and exploring different technologies for these solu-

tions. Based on this potential and broad research area,

surveys and reviews were executed to map these trust

and security works as expected.

In terms of surveys, Aly et al. (Aly et al., 2019)

focused on listing and discussing works related to se-

curity threats and challenges in general terms. Other

surveys, such as Kouicem et al. (Kouicem et al.,

2018), and Di Martino et al. (Di Martino et al.,

2018), present more general research and discussion

about different aspects of IoT, such as interoperabil-

ity and architecture, making a parallel about how each

cited work relates to trust and security issues. How-

ever, none of these surveys present works related to

Trusted Execution Environment and its application on

Edge/Fog solutions.

Coppolino et al. (Coppolino et al., 2019) pre-

sented a survey of hardware-assisted security solu-

tions, focusing on edge computing scenarios. Differ-

ent types of hardware-assisted security technologies

are presented in their work, including the potential use

of Trusted Execution Environments. However, it is

not presented a speciﬁc survey of works that explore

TEE technologies in their solutions, including its use

in Edge and Internet of Things scenarios.

This way, to the best of our knowledge, currently,

there is no published survey, mapping, or review re-

garding the different uses of TEE for IoT applications.

8 CONCLUSION

In this work, we carried out a literature review to

gather relevant papers related to the use of TEE in

the cloud and fog-based solutions to improve security

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

118

Arm

TrustZone

Intel

SGX

Data

Aggregation

and

Management

System

Securityfor

Embedded

Terminalsand

Legacy

Systems

Trusted

Loggerand

I/O

Trusted

Architecture

TrustedOS

and

Hypervisor

Trusted

Platform

Attestation

Authentication

and

Authenticity

Rootkit

Figure 4: Key solutions found in the selected papers.

for IoT data applications. We summarized the solu-

tions and analyzed possible challenges and directions

for future work. For this study, we focused on 20 pub-

lished papers: 10 TrustZone based and 10 SGX based

solutions.

We presented a summary for each selected paper

and a discussion about the main challenges related to

the use of TEEs. Besides, we also carried on a con-

cise discussion regarding the main research topics ad-

dressed by TEEs usage and their improvements: se-

cure and private data processing, secure storage, au-

thentication, virtualization, among others. As future

work, we plan a Systematic Literature Review focus-

ing on all the relevant papers published in the top con-

ferences and journals.

REFERENCES

Aly, M., Khomh, F., Haoues, M., Quintero, A., and Yacout,

S. (2019). Enforcing security in internet of things

frameworks: A systematic literature review. Internet

of Things, page 100050.

Anati, I., Gueron, S., Johnson, S. P., and Scarlata, V. R.

(2013). Innovative technology for CPU based attesta-

tion and sealing. In Proceedings of the 2nd Interna-

tional Workshop on Hardware and Architectural Sup-

port for Security and Privacy, Tel-Aviv, Israel. ACM.

ARM (2009). Security technology: Building a secure sys-

tem using TrustZone technology (white paper). ARM

Limited.

Ayoade, G., Karande, V., Khan, L., and Hamlen, K. (2018).

Decentralized iot data management using blockchain

and trusted execution environment. In IEEE Intl. Conf.

on Information Reuse and Integration.

Beekman, J. G. and Porter, D. E. (2017). Challenges for

scaling applications across enclaves. In Proceedings

of the 2nd Workshop on System Software for Trusted

Execution, New York, NY, USA. ACM.

Brasser, F., M

uller, U., Dmitrienko, A., Kostiainen, K.,

Capkun, S., and Sadeghi, A.-R. (2017). Software

Grand Exposure: SGX cache attacks are practical. In

Proceedings of the 11th USENIX Workshop on Offen-

sive Technologies, Vancouver, BC, Canad

a. USENIX

Association.

Cerdeira, D., Santos, N., Fonseca, P., and Pinto, S. (2020).

SoK: Understanding the Prevailing Security Vulnera-

bilities in TrustZone-Assisted TEE Systems. In Pro-

ceedings of IEEE Symposium on Security and Privacy.

Chang, R., Jiang, L., Chen, W., Xie, Y., and Lu, Z. (2017).

A TrustEnclave-Based Architecture for Ensuring Run-

time Security in Embedded Terminals. Tsinghua Sci-

ence and Technology, 22(5).

Chen, G., Chen, S., Xiao, Y., Zhang, Y., Lin, Z., and Lai,

T.-H. (2019a). SgxPectre: Stealing intel secrets from

SGX enclaves via speculative execution. In Euro Sym

on Security and Privacy, Stockholm, Sweden. IEEE.

Chen, G., Chen, S., Xiao, Y., Zhang, Y., Lin, Z., and Lai,

T. H. (2019b). Stealing Intel secrets from SGX en-

claves via speculative execution. In Proc. of the 4th

IEEE European Symp. on Security and Privacy. IEEE.

Coppolino, L., D’Antonio, S., Mazzeo, G., and Romano, L.

(2019). A comprehensive survey of hardware-assisted

security: From the edge to the cloud. Internet of

Things, 6(100,055).

da Rocha., M., Valadares., D. C. G., Perkusich., A., Gor-

gonio., K. C., Pagno., R. T., and Will., N. C. (2020).

Secure cloud storage with client-side encryption us-

ing a trusted execution environment. In Proceedings

of the 10th International Conference on Cloud Com-

puting and Services Science - Volume 1: CLOSER,,

pages 31–43. INSTICC, SciTePress.

Dai, H. and Chen, K. (2017). OPTZ: a Hardware Iso-

lation Architecture of Multi-Tasks Based on Trust-

Zone Support. In IEEE International Symposium

on Parallel and Distributed Processing with Applica-

tions and IEEE International Conference on Ubiqui-

tous Computing and Communications (ISPA/IUCC),

pages 391–395.

Demesie Yalew, S., Mendonca, P., Maguire, G. Q., Haridi,

S., and Correia, M. (2017). Truapp: A trustzone-

based authenticity detection service for mobile apps.

In IEEE 13th International Conference on Wireless

Trusted Execution Environments for Cloud/Fog-based Internet of Things Applications

119

and Mobile Computing, Networking and Communica-

tions.

Di Martino, B., Rak, M., Ficco, M., Esposito, A., Maisto,

S., and Nacchia, S. (2018). Internet of things reference

architectures, security and interoperability: A survey.

Internet of Things, 1:99–112.

Guan, L., Cao, C., Liu, P., Xing, X., Ge, X., Zhang, S., Yu,

M., and Jaeger, T. (2019). Building a trustworthy exe-

cution environment to defeat exploits from both cyber

space and physical space for arm. IEEE Transactions

on Dependable and Secure Computing, 16(3).

Intel (2016a). Intel Software Guard Extensions Developer

Guide. Intel Corporation.

Intel (2016b). Intel Software Guard Extensions SDK for

Linux OS Developer Reference. Intel Corporation.

Jain, P., Desai, S., Kim, S., Shih, M.-W., Lee, J., Choi, C.,

Shin, Y., Kim, T., Kang, B. B., and Han, D. (2016).

OpenSGX: An open platform for SGX research. In

Proc. of the Network and Distributed System Security

Symposium, San Diego, CA, USA. Internet Society.

Kouicem, D. E., Bouabdallah, A., and Lakhlef, H. (2018).

Internet of things security: A top-down survey. Com-

puter Networks, 141.

Kulkarni, V., Chapuis, B., and Garbinato, B. (2017).

Privacy-preserving location-based services by using

intel sgx. In Proceedings of the First International

Workshop on Human-Centered Sensing, Networking,

and Systems, New York, NY, USA. ACM.

Lesjak, C., Hein, D., and Winter, J. (2015). Hardware-

security technologies for industrial iot: Trustzone and

security controller. In 41st Annual Conference of the

IEEE Industrial Electronics Society.

Liang, X., Shetty, S., Zhao, J., Bowden, D., Li, D., and Liu,

J. (2017). Towards decentralized accountability and

self-sovereignty in healthcare systems. In Proceed-

ings of the International Conference on Information

and Communications Security.

Lipp, M., Gruss, D., Spreitzer, R., Maurice, C., and Man-

gard, S. (2016). Armageddon: Cache attacks on mo-

bile devices. In 25th USENIX Security Symposium),

Austin, TX. USENIX Association.

McKeen, F., Alexandrovich, I., Berenzon, A., Rozas, C. V.,

Shaﬁ, H., Shanbhogue, V., and Savagaonkar, U. R.

(2013). Innovative instructions and software model

for isolated execution. In Proceedings of the 2nd In-

ternational Workshop on Hardware and Architectural

Support for Security and Privacy, Tel-Aviv, Israel.

ACM.

Milutinovic, M., He, W., Wu, H., and Kanwal, M. (2016).

Proof of luck: An efﬁcient blockchain consensus pro-

tocol. In Proceedings of the 1st Workshop on System

Software for Trusted Execution, SysTEX ’16, New

York, NY, USA. Association for Computing Machin-

ery.

Moghimi, A., Irazoqui, G., and Eisenbarth, T. (2017).

CacheZoom: How SGX ampliﬁes the power of cache

attacks. In Proceedings of the International Confer-

ence on Cryptographic Hardware and Embedded Sys-

tems, pages 69–90, Taipei, Taiwan. Springer.

Nguyen, H., Ivanov, R., Phan, L. T. X., Sokolsky, O.,

Weimer, J., and Lee, I. (2018). LogSafe: Secure and

Scalable Data Logger for IoT Devices. In IEEE/ACM

Third International Conference on Internet-of-Things

Design and Implementation (IoTDI), pages 141–152.

Ning, Z., Zhang, F., Shi, W., and Shi, W. (2017). Position

paper: Challenges towards securing hardware-assisted

execution environments. In Proceedings of the Hard-

ware and Architectural Support for Security and Pri-

vacy, New York, NY, USA. ACM.

Park, J. and Kwangjo Kim (2017). Tm-coin: Trustworthy

management of tcb measurements in iot. In IEEE In-

ternational Conference on Pervasive Computing and

Communications Workshops.

Peters, T., Lal, R., Varadarajan, S., Pappachan, P., and Kotz,

D. (2018). BASTION-SGX: Bluetooth and Architec-

tural Support for Trusted I/O on SGX. In Proc. of the

Intl Workshop on Hardware and Architectural Support

for Security and Privacy, New York, NY, USA. ACM.

Pettersen., R., Johansen., H. D., and Johansen., D. (2017).

Secure edge computing with arm trustzone. In Proc.

of the 2nd Intl Conference on Internet of Things, Big

Data and Security. INSTICC, SciTePress.

Pinto, S., Pereira, J., Gomes, T., Tavares, A., and Cabral, J.

(2017). Ltzvisor: Trustzone is the key. In Proceed-

ings of the 29th Euromicro Conference on Real-Time

Systems (ECRTS).

Pinto, S. and Santos, N. (2019). Demystifying arm trust-

zone: A comprehensive survey. ACM Comput. Surv.,

51(6).

Sabt, M., Achemlal, M., and Bouabdallah, A. (2015).

Trusted execution environment: What it is, and what

it is not. In 2015 IEEE Trustcom/BigDataSE/ISPA,

volume 1, pages 57–64.

Sampaio, L., Silva, F., Souza, A., Brito, A., and Felber, P.

(2017). Secure and privacy-aware data dissemination

for cloud-based applications. In Proceedings of the

10th International Conference on Utility and Cloud

Computing, page 47–56, New York, NY, USA. ACM.

Schwarz, M., Weiser, S., Gruss, D., Maurice, C., and Man-

gard, S. (2017). Malware Guard Extension: Using

SGX to conceal cache attacks. In Proceedings of

the 14th International Conference on Detection of In-

trusions and Malware, and Vulnerability Assessment,

Bonn, Alemanha. Springer.

Shih, M.-W., Lee, S., Kim, T., and Peinado, M. (2017). T-

SGX: Eradicating controlled-channel attacks against

enclave programs. In Proceedings of the Network and

Distributed System Security Symposium, San Diego,

CA, USA. Internet Society.

Silva, L., Barbosa, P., Silva, R., and Brito, A. (2018). Secu-

rity and privacy aware data aggregation on cloud com-

puting. Journal of Internet Services and Applications,

Surdu, O. (2018). Reliable and secure ﬁrmware up-

date for internet of things (iot) devices. US Patent

US20180081666A1.

Valadares, D. C. G., da Silva, M. S. L., Brito, A. E. M.,

and Salvador, E. M. (2018). Achieving data dissem-

ination with security using FIWARE and Intel Soft-

ware Guard Extensions (SGX). In Proc. of the IEEE

Symposium on Computers and Communications, Na-

tal, RN, Brazil.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

120

Wang, J., Hong, Z., Zhang, Y., and Jin, Y. (2018). En-

abling security-enhanced attestation with intel sgx

for remote terminal and iot. IEEE Transactions on

Computer-Aided Design of Integrated Circuits and

Systems, 37(1):88–96.

Wang, W., Chen, G., Pan, X., Zhang, Y., Wang, X., Bind-

schaedler, V., Tang, H., and Gunter, C. A. (2017).

Leaky cauldron on the dark land: Understanding

memory side-channel hazards in SGX. In Proceedings

of the ACM SIGSAC Conference on Computer and

Communications Security, pages 2421–2434, Dallas,

Texas, USA. ACM.

Weichbrodt, N., Kurmus, A., Pietzuch, P., and Kapitza,

R. (2016). AsyncShock: Exploiting synchronisation

bugs in Intel SGX enclaves. In Proceedings of the Eu-

ropean Symposium on Research in Computer Security,

pages 440–457, Heraklion, Greece. Springer.

Weiser, S. and Werner, M. (2017). SGXIO: Generic trusted

I/O path for Intel SGX. In Proceedings of the 7th

Conference on Data and Application Security and Pri-

vacy, CODASPY ’17, page 261–268, Scottsdale, AZ,

USA. ACM.

Yang, X., Shi, P., Tian, B., Zeng, B., and Xiao, W. (2014).

Trust-e: A trusted embedded operating system based

on the arm trustzone. In IEEE 11th Intl Conf on Ubiq-

uitous Intelligence and Computing, and 11th Intl Conf

on Autonomic and Trusted Computing, and 14th Intl

Conf on Scalable Computing and Communications,

pages 495–501.

Zhang, N., Sun, H., Sun, K., Lou, W., and Hou, Y. T. (2016).

Cachekit: Evading memory introspection using cache

incoherence. In IEEE European Symposium on Secu-

rity and Privacy (EuroS P).

Trusted Execution Environments for Cloud/Fog-based Internet of Things Applications

121
