Hazard Analysis for Decentralized Charging Management of Electric

Vehicles

Stylianos Karatzas, Panagiotis Farmakis, Athanasios Chassiakos

and Zoi Christoforou

Department of Civil Engineering, University of Patras, Rio-Patras, Greece

Keywords: Systems, STPA, Hazard Analysis, EVs, Charging.

Abstract: This paper deals with the hazard analysis in the design of an application for decentralized EVs charging

management at all stages of the process, including identification of charging points, selection of the optimum

charging station, charging and successful transactions between user and provider, by applying the non-

deterministic System-Theoretic Process Analysis (STPA). The aim is to explore the possibilities offered by

the proposed systemic model of hazard analysis in a complex system and examine the effectiveness of the

implementation in the development of an application, ensuring the safe operation and interactions between

the various subsystems and processes in charging management. The identification of accident scenarios and

corresponding safety constraints guides safety analysts in the design phase of the application, to prevent losses

and costly interventions during actual operation phase.

1 INTRODUCTION

1.1 Background

Electromobility in a broad sense is becoming an

important solution to avoid atmospheric pollution due

to significant emissions from the transport sector. The

proliferation of electric vehicles requires the

corresponding development of charging points for the

refuelling of vehicles through their connection to a

smart grid, from which electricity will be transferred.

To this direction, the development of new

technologies as Blockchain, as well as technologies

for integrating EVs into a vehicle-to-gird smart

energy network, contributes to the possibility of

secure and decentralized transactions. More efficient

use of existing installed charging points and a

dynamic energy trading scheme will play a vital role,

both in consolidating electric vehicles, and in

upgrading the quality of the services they offer.

Therefore, a question that arises to EV users is what

the best choice for the intermediate charging of their

vehicle is. A proposed solution is the design and

development of an application that would help the

user to make the best decision regarding the

intermediate vehicle charging between offers

provided by several charging points, based on a set of

predefined criteria set by the user. The idea is the

development of a web application to provide a

communication channel between the user and the

energy providers, facilitating the configuration of the

digital energy market while introducing a new

autonomous trading approach for the optimal choice

of charging.

The purpose of this paper is to apply a systemic

model of hazard analysis in the design of the proposed

application, for the recognition and management of

losses in all stages of the charging process. The

System Theoretic Process Analysis (STPA) method

is chosen, which surpasses the traditional hazard

analysis techniques, because it recognizes

interactions of individual subsystems and is

compatible with the characteristics arising from

complex systems. The analysis concludes with a list

of loss scenarios, based on which possible safety

vulnerabilities of the application can be identified.

1.2 Hazard Analysis and Accident

Prevention

Accidents that occur are the result of technical

failures, human error or organizational problems and

result in losses, including loss of human life or injury,

property damage, environmental pollution, mission

failure, financial damage, etc. (Hollnagel, 2004).

The range of the developed accident models is

proportional to the variety of accidents recorded, as

well as the risk analysis methods derived from the

220

Karatzas, S., Farmakis, P., Chassiakos, A. and Christoforou, Z.

Hazard Analysis for Decentralized Charging Management of Electric Vehicles.

DOI: 10.5220/0010482202200227

In Proceedings of the 10th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2021), pages 220-227

ISBN: 978-989-758-512-8

assumptions of each modelling. The challenge for the

analyst is to choose the most appropriate accident

model and risk analysis method for a specific case, as

each of them offers advantages over the others. The

choice is based on understanding the Accident

Causation (or Accident Causality), which can be

immediate or systemic, a condition necessary for the

successful prevention of the accidents and avoidance

of the risks related to them.

There are several available research methods in

the bibliography, each one being distinguished by its

own features and tools and applied in different fields.

A typical model classification, considering also their

evolution in time, results into three major groups,

namely Linear or Sequential Models,

Epidemiological Models and Systemic Models

(Hollnagel & Goteman, 2014); (Wienen et al. 2017).

Sequential or simple linear models assume that

accidents are the culmination of a series of events or

circumstances that interact sequentially with each

other in a linear manner, and therefore accidents can

be avoided by eliminating one of the causes in the

linear sequence.

Epidemiological accidents models are based on

the study of epidemiological diseases and consider

accidents as a combination of "latent" and "active"

failures within a system, by analogy with the spread

of a disease (Qureshi, 2008).

Traditional Hazard Analysis Methods work well

for losses caused by failures in simple systems but are

limited in their capability to explain accident

causation in the more complex systems. Specifically,

they cannot handle with component interaction

accidents, systemic factors (affecting all components

and barriers), software and software requirements

errors, system design errors and indirect or non-linear

interactions and complexity. The application of

Systems Theory concepts and the development of

systemic models was proposed as a solution

(Hollnagel, 2010). The new generation of accident

modelling thinking has come to recognize that

accident models must be non-linear and that accidents

can be thought of as coming from combinations of

interacting variables that occur in real time. Only

through understanding of the combination and

interaction between these multiple factors, accidents

can actually be understood and prevented. Thus, new

approaches to accident modelling have adopted a

systemic approach that takes into account the

performance of the system as a whole. According to

these models an accident occurs when several causal

factors (human, technical and environmental)

coincidentally appear at a specific time and place

(Hollnagel, 2004).

2 STAMP ACCIDENT MODEL

AND STPA HAZARD ANALYSIS

MODEL

2.1 STAMP Accident Model

Systems-Theoretic Accident Model and Processes

(STAMP) is a relatively new systemic accident

model. The STAMP model (Leveson, 2004) gives

emphasis to the safety constraints and considers an

accident in a complex system not just as the case of

failure of some individual components of the system

but rather the result of either an external factor or a

malfunction within the system which has not been

effectively addressed by the control system (Thomas,

2011). The model differentiates from the traditional

approaches in considering an accident as a sequence

of events and as the result of insufficient control and

ineffective application of constraints on the design,

development, and operation phase of the system

(Ouyang et al., 2010). Safety is viewed as a control

problem rather than a component reliability problem.

A hierarchical safety control structure is used in

STAMP to represent the system and control loops in

it (a typical control loop is presented in Figure 1),

showing how constraints are enforced. Instead of

addressing accidents as the results of an event-chain,

they are considered to result from a lack of constraints

on behaviour at each level of a socio-technical

system. The design of the initial system needs to

impose appropriate behavioural constraints to ensure

safe operation (Leveson & Thomas, 2018).

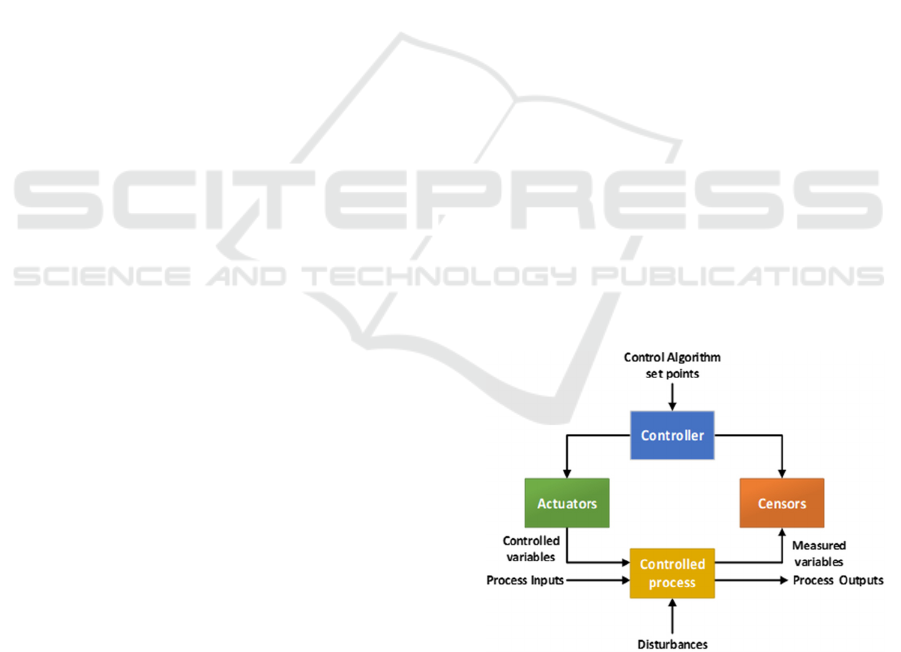

Figure 1: Typical Control Loop.

2.2 STPA Hazard Analysis Model

STPA is based on system control theory and not on

reliability theory established in most existing risk

analysis techniques. The basic principles of STPA are

Hazard Analysis for Decentralized Charging Management of Electric Vehicles

221

the following: (Leveson, 2013); (Friedberg et al.,

2017); (Horne, 2017):

• The best way to detect accident chances in

complex systems is to omit causal factors that are

not stochastic or for which no information is

available. Probabilistic analysis results may not

accurately reflect the actual risks and can be

riskily misleading.

• Unlike traditional risk analysis techniques, STPA

is stronger in identifying risk causes and

hazardous scenarios, especially those related to

system design and human behaviour.

• STPA, supporting hierarchical safety control

structures, can be used for both technical design

and organizational planning.

• STPA can be applied to any emergent system

property in the system engineering and product

lifecycle, apart from safety.

• Because STPA is a top-down approach, system

safety engineering can be used early in the system

development process to create high-level security

requirements and constraints.

Also, STPA analysis can be integrated into the entire

system engineering process resulting in a significant

decrease in the cost of engineering for safety

(Karatzas et al., 2020).

The objectives of this paper are by using the main

principles of this relatively new systemic model in the

proposed EV charging management application to:

- Provide guidance to analysts and detect accident

scenarios that cover the entire accident process

and not just individual components

- Provide the necessary information to guide the

design process, rather than requiring design

configurations before risk analysis begins. STPA

results can then be used to guide architecture,

preliminary and detailed design, make decisions in

the implementation phase and improve control

structure.

3 METHODS AND MATERIALS

3.1 Architectural Design of the System

A prerequisite for the hazard analysis of the system,

is the understanding of its operation and the

interactions between its subsystems, so that to

identify inadequate controls within it. Therefore, it is

necessary to present the basic architecture and the

processes of the electric vehicles within the context

of the charging management application. The

proposed application through the use of a mobile

phone will provide interaction between the EV driver

and Charging Stations (CSs). It will act as a

communication channel between the driver, the

vehicle control unit (VCU) and the Charging Point

Control Unit (CPCU), handling the entire charging

process. The proposed web application consists of

four consecutive phases. In the Identification phase,

an electric vehicle interacts with the application and

submits a request for charging including information

about the region R within it moves, the time horizon

T in which plans to charge, and the desired amount of

energy e. In the Bidding phase, charging stations

within region R, sends one or more offers to a

Distributed Ledger, responding to the user request.

CSs belonging to the R region that are able to respond

to the EV user request make one or more bids B.

Subsequently, during the Selection phase, the

optimum station is selected through a series of

parameters, such as the price of energy, the costs of

travel, the distance between the electric vehicle and

the charging station, as well as other variables entered

as preferences by the EV user. Finally, during the

Charging Phase, the electric vehicle communicates

directly and approaches the selected station for

charging and finalizing the transaction.

The objective function, which will suggest the

optimal solution among the charging points

alternatives, will be composed of the following

parameters: • The cost of energy supply • The cost of

moving the electric vehicle from current location at

the time of request to each potential charging station,

taking into account distance travelled and traffic

conditions using GPS data. • The specifications of the

vehicles (battery capacity, maximum required

charging energy, connection and disconnection times

of electric vehicle). • The status of charging stations

(availability, charging status, billing status).

3.2 STPA Implementation

STPA is a process consisting of four phases with

interconnected activities, thus can be considered as a

repetitive process constantly updated with feedback

from the evolving system design. The individual

phases are briefly presented below.

Define Purpose of the Analysis: The definition of

the purpose of the analysis is the first step in any risk

analysis method. The types of losses that the analysis

intends to prevent, the hazards that emerge, and the

system boundaries are defined.

Model the Control Structure: In the second phase

analysts generate the Control Structure which is a

schematic representation of the system. A control

SMARTGREENS 2021 - 10th International Conference on Smart Cities and Green ICT Systems

222

structure depicts the system as a set of feedback

control loops, including the functional relationships

of subsystems and the interactions with each other.

The control structure usually starts at a very abstract

level and is constantly being developed in depth to

incorporate more details about the system.

Identify Unsafe Control Actions: In the third phase,

the Control Actions (CAs) evolving from the control

structure study, are analysed and examined to

determine the conditions under which they could lead

to losses. Thus, Unsafe Control Actions (UCAs) are

identified and recorded, which in turn are used to

establish a list of functional requirements and

constraints for the system.

Identify Loss Scenarios: In the final phase, STPA

identifies the reasons that unsafe control actions may

occur, and loss scenarios are generated to explain:

• Whether incorrect feedback, inadequate

requirements, design errors, component failures

and other factors could cause unsafe control

actions and ultimately lead to losses.

• How safety control actions can be provided but not

followed or performed correctly, resulting in losses.

Once loss scenarios are identified, they can be used to

create additional Safety Requirements, leading to

updated design proposals, if STPA is used during the

design phase (Leveson & Thomas, 2018).

In the present study, the SafetyHAT modelling

tool, developed by the US National Transportation

Systems Center (Volpe, 2014) is applied for

modelling and mapping the different components as

defined in the STPA methodology. SafetyHAT is

selected due to its simplicity and maturity in relation

with other software tools that support STPA analysis

e.g., A-STPA (Krauss et al., 2015) and XSTAMPP

(Abdulkhaleq et al. 2015).

4 STPA RESULTS

The STPA risk analysis examines the risks of the

proposed web application during its design phase,

regarding the losses that can result from both unsafe

control actions in the individual subsystems, as well

as from their connection and communication.

Specifically, the reported losses may include:

 Malfunction of Individual Components:

• Blockchain Technology: Privacy issues (e.g.

disclosure of the electric vehicle location or

energy need).

• Electric Vehicle Supply Equipment (EVSE):

Damaged or modified charging equipment (e.g.,

corrupted Residual Current Device (RCD), a

sensitive safety device which automatically

shuts off the power supply in a fault event for

the protection against electric shock or fire).

• Optimization Algorithm: Errors that lead to non-

optimum decisions regarding the selection of the

charging station (e.g. non-convergence of the

algorithm, errors in algorithm logic).

 Communication between Subsystems:

• Interoperability: Compatibility between the

software subsystems and the charging system

(e.g. charging equipment incompatibility,

incompatibility between charging equipment

and distributed ledger technologies).

• Data Reliability: Data collected from

unrecognized source origin (e.g. unreliable user

identification, unreliable timestamp of requests,

unreliable estimation of energy demand,

unreliable price offered by a provider).

Table 1: Values and objectives of the stakeholders.

Stakeholders Values Goals

EV user

Preferences

Personal data

protection

Data reliability

Transactions security

Equipment integrity

Transfer from point

A to point B

EV Intermediate

Charging

Finding the best

charging option

Application

Ensuring user

privacy

Data reliability

Secure Transactions

Achieving EV -

CS communication

Satisfaction of users

& energy providers

Charging

Stations

Data reliability

Secure Transactions

Equipment integrity

Energy supply

Energy storage

Profit

Table 2: System losses.

Α/Α Losses Α/Α Losses

L-1

Unable to transfer from

AtoB (EV)

L-6 Unreliable data

L-2

Damage or destruction

of EV equipmen

L-7 Unsafe transactions

L-3

Unsuccessful

intermediate charging

process

L-8

Unable to supply

energy (CS)

L-4

Inability to satisfy

users & providers

L-9

Damage or

destruction of CS

equipmen

L-5

Loss of sensitive

information

L-10 Loss of energy

4.1 Define Purpose of the Analysis

The first task of this step is the recognition of losses,

which is accomplished through the next three steps.

Hazard Analysis for Decentralized Charging Management of Electric Vehicles

223

Step 1: Identification of all stakeholders engaged to

the system under examination, which are the

Electric vehicle EV user, the Application

and the charging station (CS).

Step 2: Recording values and goals of each

stakeholder (Table 1).

Step 3: Induction of their values and goals in

potential losses (Table 2).

The second task includes the definition and setting of

the system boundaries, the recognition of system

hazards at system level and their linkage to the losses

(Table 3). The logic underneath is represented as:

<Hazard Specification> = <System> & <Unsafe

Condition> & <Link to Losses>

The third task is the identification of safety

constraints at system level and their linkage to the

Hazards, as represented in the system logic sentence:

<System-Level Constraints> = <System> &

<Condition to Enforce> & <Link to Hazards>.

Table 3: Hazard specification.

Α/Α System – Level Hazards Losses

H-1 The EV is not sending request 1,3

H-2 The EV enters incorrect data 1,2,6,9

H-3

The application does not receive

the reques

1,3,4

H-4 The application loses data 5

H-5

The application does not transfer the

reques

1,3,4

H-6 The CSs do not take the request 1,3,4

H-7 The CSs do not send bids 1,3,4

H-8 The CSs send incorrect data 1,3,4,6,9

H-9 The application does not receive bids 1,3,4

H-10

The application does not provide an

optimal choice

3,4,6

H-11 The EV is not commit best bid 1,3,4,6,8

H-12

The CS does not receive

the commitment

1,3,4,6,8

H-13

The application does not transfer the

commitment & navigation plan

1,3,4,6,8

H-14 The EV does not reach the selected CS 1,3,4,6,8

H-15

The CS does not verify the

commitment

1,3,4,6,7,8

H-16 The EV cannot get charged 1,3,4,8

H-17

The EV is not satisfied upon the

reques

2,3,4,6,7

H-18 The EV is damaged 2,4

H-19 The CS is not satisfied upon the offer 3,4,6,7,10

H-20 The CS is damaged 9,10

Table 4: Control actions and feedback.

Control Action

Feedback

Description

Reques

The EV use

submit request for charging.

Request

Transmission

The Distributed Ledger transmits

the reques

to the CSs.

Request

Processing

CSs in the R area test whether they can

satisfy it.

Bidding CSs make one or more bids.

Bid

Ttransmission

Bi is transferred from CS to EV.

Optimum bid The application sorts the available bids.

Selection EV user selects the optimum CS

Commitment

The EV user confirms CS booking by

sending a commitment request to the

application.

Commitment

Transmission

The application forwards the commitment

request to the selected CS.

Commitment

Verification

The selected CS accepts the commitment

request.

Smart

Contrac

A smart contract is drawn up between the

user and the CS.

GPI

Navigation

EV user is navigated to the selected CS.

Driving The EV use

drives to the selected CS.

Commitment

Confirmation

The commitment and timestamp are

confirmed upon EV arrival at the CS.

Connection

Confirmation

If both the commitment and the timestamp

are valid, CS allows the connection with

the EV.

Energy

transmission

The energy e is transferred from CS to EV

as agreed in the contract.

Charging

Completion

CS shuts off the energy supply.

Payment

Reques

CS sends a request to the EV user to

submit the payment.

Payment

The EV user pays the amount agreed in the

contract.

Payment

Confirmation

The CS confirms that it has received

payment from EV.

Release The CS releases the EV.

For example, for the H-1, the corresponding

safety constraint SC-1 is that the EV must send a

request.

4.2 Control Structure Modelling

The control structure consists of functional Blocks

connected by downward arrows representing Control

Actions (CAs), as well as upward arrows symbolizing

the Feedback). The gradual addition of data to the

control structure makes it easier for both the reader to

understand and accept the control structure of the

system and the analyst himself to avoid hasty

decisions and connections. Based on the above, it is

understood that each system, no matter how complex

or simple, does not have a unique control structure, as

it depends on the level of modelling.

SMARTGREENS 2021 - 10th International Conference on Smart Cities and Green ICT Systems

224

The modelling starts at a high level, where it

includes the subsystems and the connection between

them (Figure 2) and continues at lower levels, in

which additional details for the design of the system

are additionally incorporated.

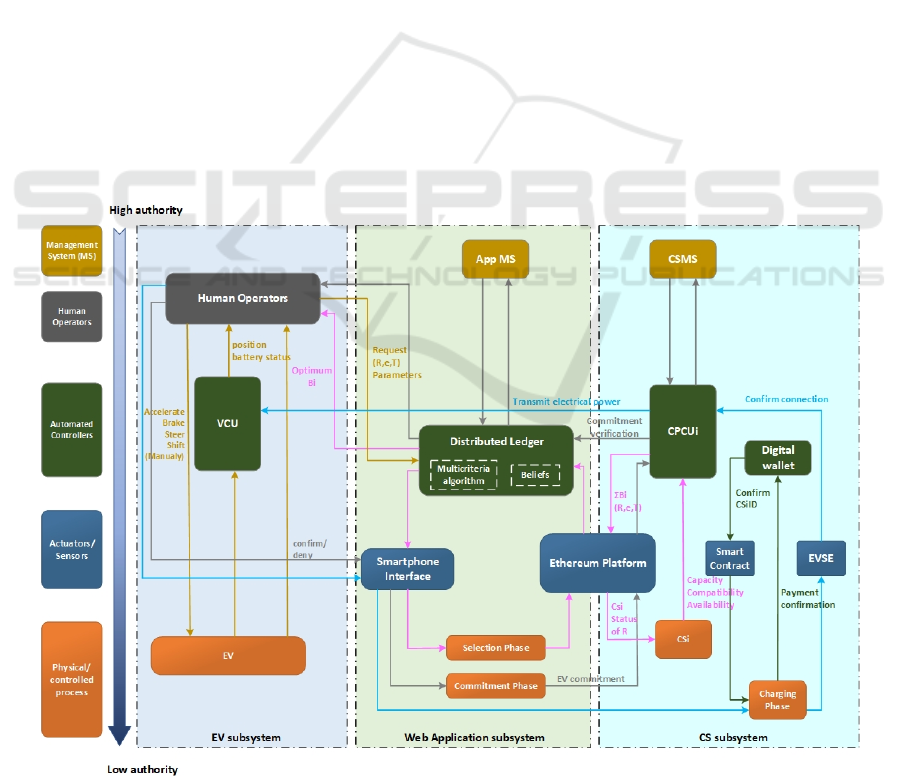

Figure 2: High level control structure with subsystems.

The control actions of the controllers and the

corresponding feedback in each control loop is

extracted and presented in Table 4.

4.3 Recognition of Unsafe Control

Actions

During this task the Unsafe Control Actions (UCAs)

for each control action are determined, through which

subsequently the Controller Constraints are defined.

There are four ways in which a Control Action (CA)

can become unsafe which are represented by the

following phrases (Leveson & Thomas, 2018):

• Control Action Not Provided

• Control Action Provided incorrectly

• Control Action Provided Too early / Too late / Out

of order

• Control Action Stopped too soon / Applied too

long)

There has been identified a non-exhaustive list of 64

unsafe control actions by following the structure:

<UCA Specification>:<Source> <Type> <Control

Action><Context><Link to Hazard>

and are organized into a table by control action, (an

example shown in Table 5) which contains an

indicative list of CA and UCAs. Controllers

constraints, consequently, arise as countermeasures

to unsafe control actions.

Table 5: Unsafe Control Actions.

Control Action

- CA

Not Provided Provided incorrectly

Provided Too early / too

late / Out of order

Stopped too soon /

Applied too long

Request

[ UCA -1]:

The application does

not secure the user's

personal data [L4, L5,

L6]

[ UCA -5]:

The user does not submit the

various parameters correctly

[L1, L2, L3, L8]

[ UCA -8]: The user sends

the request too late

[L1, L4, L8]

[ UCA -9]:

User stopped the submission

process early and the request

was not sent to the application

[L1, L3, L4]

Bidding

[ UCA -15]:

The CSs does not

process the request

[L3, L4, L8]

[ UCA -17]: The CSs does not

correctly estimate the available

energy capacity, availability or

compatibility with EV. [L1,

L2, L3, L4, L8, L9, L10]

[ UCA -19]:

The CSs submit bids before

checking available energy

capacity, availability or

compatibility [L1, L2, L3,

L4, L8, L9, L10]

[ UCA -22]: The CSs submit

bids with excess delay [L3,

L4]

Selection

[ UCA -24]:

The application

algorithm does not

send the bids

hierarchical lis

[L1, L4]

[ UCA -26]:

The user does not select

correctly from the bids list [L1,

L3, L4]

[ UCA -28]: The user

selects too early without

anticipating all bids from

CSs [L3, L4]

[ UCA -31]: User stopped the

process early and no CS was

selected [L3, L4]

Payment

[ UCA -56]: User does

not pay [L4, L7]

[ UCA -57]:

The user does not deposit the

correct payment amount [L4,

L7]

[ UCA -59]: The user pays

without completing the

charge [L1, L7, L8, L10]

N/A

Table 6: Loss Scenarios.

Unsafe Control

Action - UCA

Loss Scenario - LS Loss Scenario Type

[UCA-1]:

The application does not secure

the user's personal data

[LS-1]: The Distributed Ledger of the application

receives the EV user's personal data correctly but

manages it incorrectly, disrespecting the EV user

privacy

The auditor receives correct feedback /

information, but misinterprets or

ignores it

system

subsystem

Web App

subsystem

Control actions

feedback Input / Output

Hazard Analysis for Decentralized Charging Management of Electric Vehicles

225

4.4 Detection of Loss Scenarios

At fourth step the loss scenarios are defined, by

answering (Leveson & Thomas, 2018):

(a) Why do unsafe controls occur?

(b) Why are the control actions performed improperly

or not at all, leading to risks?

The process that the feedback is detected (e.g. with

sensors) and control actions are performed (e.g. with

actuators) is added through the reformation of the

control structure (Figure 3).

Based on this structure, scenarios leading to

unsafe control actions are initially identified,

indicatively depicted in Table 6.

This type of script can be created starting with a

UCA and working backwards to explain what might

cause the controller to provide (or not provide) this

control action. To create scenarios that include UCAs,

the causal factors (CFs) responsible for the unsafe

behaviour of the controller that triggered the UCA

must be considered. . In this process, CFs are the main

reasons that can lead control actions to become

UCAs. Following the CFs identification, and in order

to provide information on how to reduce the CF-

related risk associated with UCAs, the next step is to

identify appropriate “safeguards” for each CF. The

safeguards are actions required to either prevent the

causal scenario from occurring or reduce the impact

on the scenarios perceived by the relevant CF

(Karatzas et al., 2020).

5 RESULTS, DISCUSSION AND

CONCLUSION

The results of hazard analysis are the scenarios losses

which can be used to develop additional safety

requirements, define new safety constraints or

improve existing ones, and guide systems redesign

decisions before the actual development of the

proposed application. Through STPA

implementation, general observations have been

made:

• The STPA steps facilitates the work of the

analysts without strong experience in system

design.

• The control structure scheme contributes to a

better understanding of the system functional

characteristics and consequently to the

identification, visualization and confrontation of

operational performance gaps.

Figure 3: Control structure with actuators and sensors.

SMARTGREENS 2021 - 10th International Conference on Smart Cities and Green ICT Systems

226

• The gradual integration of information into the

control structure allows the smooth transition of

the reasoning process from an abstract schematic

representation to more detailed ones, avoiding

hasty and possibly unfounded conclusions of

analysts.

• The schematic representation of the control

structure of complex systems, as well as the

recording of the basic concepts for each step due

to the large extent of the tables, can sometimes be

challenging. This complexity issues are mitigated

with the use of software tools such as SafetyHAT.

Since the STPA method focuses on defining system-

level hazards, while there is no practical or reliable

way to assess each of the reported UCAs or

safeguards. The major advantage is that having the

whole system view can help in the hazard assessment

process when attempting to comprehend and evaluate

the efficiency of control measures. This mechanism

is useful in understanding where gaps in current

operational structures may exist and in implementing

targeted strategies through standard approaches of

risk assessment. This point is reinforced by the fact

that while there is potential for evolution in risk

management frameworks that place higher stress on

risk controls, such operational hazard assessment

methods in providing these controls still does not

exist (Karatzas et al., 2020).

The suggested method encourages analysts to

begin by studying an abstract control structure, which

is gradually redefined by incorporating more

information, such as the input of actuators and sensors

into each control loop, it is expected that with each

deepening the analysis improves. The analysis

conducted in this paper are basic prerequisites for the

redesign of the proposed charging application, in

order to correct the identified blurred points and avoid

losses during its actual development.

FUNDING

“This research is co-financed by Greece and the

European Union (European Social Fund- ESF)

through the Operational Programme «Human

Resources Development, Education and Lifelong

Learning 2014-2020» in the context of the project

“Development of Dynamic Pricing and Autonomous

Trading Application for Electric Vehicle Charging in

the Digital Energy Market context” (MIS 5047183).”

REFERENCES

Abdulkhaleq, A. & Wagner, S., 2015. XSTAMPP: An

eXtensible STAMP Platform for Safety Engineering. In

2015 STAMP Workshop, MIT, Boston, USA.

Friedberg, I., Mclaughlin, K., Smith, P., Laverty, D., &

Sezer, S., 2017. STPA-SafeSec: Safety and security

analysis for cyber-physical systems. In Journal of

Information Security and Applications, 34, 183-196.

Hollnagel, E., & Goteman, O., 2004., The functional

resonance accident model. In Proceedings of cognitive

system engineering in process plant, 155-161.

Hollnagel, E., 2004. Barriers and accident prevention,

Burlington, Hampshire, England, Burlington, VT:

Ashgate.

Horney, D., 2017. System-Theoretic Process Analysis and

Safety-Guided Design of Military Systems, M.S.

Thesis, MIT, Cambridge, MA (USA).

Karatzas S, Chassiakos A. System-Theoretic Process

Analysis (STPA) for Hazard Analysis in Complex

Systems: The Case of “Demand-Side Management in a

Smart Grid”. Systems.2020;8(3):33.

Krauss, S., Rejzeka M. & Hilbesa C., 2015. Tool

qualification considerations for tools supporting STPA.

In Procedia Engineering, 128, 15-24.

Leveson, N. & Thomas, J. ,2018. STPA Handbook, MIT

Press, Massachusetts, USA

Leveson, N., 2004. A new accident model for engineering

safer systems. In Safety Science, Vol. 42, pp. 237 – 270

Leveson, N., 2012. Engineering A Safer World: Systems

Thinking Applied to Safety, MIT Press, Cambridge,

MA.

Leveson, N., 2013. An STPA Primer, MIT Publication.

Ouyang, M., Hong, L., Yu, M. H., & Fei, Q., 2010.

STAMP-based analysis on the railway accident and

accident spreading taking the China-Jiaoji railway

accident for example. In Safety Science, 48:5, pp. 544-

555.

Qureshi, Z., 2008. A Review of Accident Modelling

Approaches for Complex Critical Sociotechnical

Systems, Defence Science and Technology

Organisation (DSTO), Australia.

Thomas, J.; Leveson, N.G., 2011. Performing hazard

analysis on complex, software and human-intensive

systems. In Proceedings of the 29th ISSC Conference

about System Safety, Las Vegas, NV, USA.

Volpe, The National Transportation Systems Center, 2014.

Transportation Systems Safety Hazard Analysis Tool

(SafetyHAT), Cambridge, MA.

Wienen, H. C. A., Bukhsh, F. A., Vriezekolk, E.,

&Wieringa, R. J., 2017. Accident Analysis Methods and

Models - a Systematic Literature Review, Centre for

Telematics and Information Technology (CTIT),

Technical Report No.TR-CTIT-17-04.

Hazard Analysis for Decentralized Charging Management of Electric Vehicles

227
