Container Allocation and Deallocation Traceability using Docker Swarm

with Consortium Hyperledger Blockchain

Marco A. Marques

1 a

, Charles C. Miers

1 b

and Marcos A. Simplicio Jr.

2 c

Graduate Program in Applied Computing (PPGCAP), Santa Catarina State University (UDESC), Brazil

Laboratory of Computer Networks and Architecture (LARC), University of S

ao Paulo (USP), Brazil

Keywords:

Docker, Blockchain, Monitoring, Container, Traceability.

Abstract:

Container-based virtualization enables the dynamic allocation of computational resources, thus address-

ing needs like scalability and fault tolerance. However, this added ﬂexibility brought by containerization

comes with a drawback: it makes system monitoring more challenging due to the large ﬂow of calls and

(de)allocations. In this article, we discuss how recording these operations in a blockchain-based data struc-

ture can facilitate auditing of employed resources, as well as analyses involving the chronology of performed

operations. In addition, the use of a blockchain distributes the credibility of record integrity among providers,

end-users, and developers of the container-based solution.

1 INTRODUCTION

A computing architecture based on microservices fa-

cilitates the construction of high performance and

scalable applications, since they can be fragmented

into independent parts for development, versioning,

and provisioning (Jamshidi et al., 2018). Contain-

ers are commonly considered the standard of mi-

croservices in the cloud, in particular, due to their

speed, ease of allocation, scalable management, and

resilience (Newman, 2015). Such beneﬁts led to the

development of many container orchestration plat-

forms. Designed to manage the deployment of con-

tainerized applications in large-scale agglomerates,

such platforms can execute hundreds of thousands of

jobs on different machines (Rodriguez and Buyya,

2019). As such, they became a core technology for

enabling the on-demand offering of computing infras-

tructure, platforms, and applications by modern cloud

providers.

In this context, providing tools for monitoring and

auditing the execution of the virtual environment is

an important requirement. After all, such tools allow

all actors involved in the cloud’s operation to moni-

tor and optimize the execution of applications, track

failures, conﬁgure billing modules, manage changes,

https://orcid.org/0000-0001-5800-8927

https://orcid.org/0000-0002-1976-0478

https://orcid.org/0000-0001-5227-7165

among other activities (Jim

enez et al., 2015). In gen-

eral, cloud computing providers supply a monitoring

system for all participants. Nevertheless, each actor

can implement an independent monitoring service if

desired (Dawadi et al., 2017). This possibility brings

more autonomy to the actors, who can then customize

the monitoring tools to their needs and gain further in-

sight on the usage of resources by their applications.

However, multiple independent monitoring systems

can result in disagreements among actors regarding

the information collected by their tools, resulting in

different views for the same scenario and difﬁcul-

ties in later attempts of mapping events from one log

into another. Centralized monitoring solutions, on the

other hand, limit customization, besides depending

directly on the trust placed on the system manager for

protecting the integrity of the collected data.

To address this issue, this work proposes and im-

plements a solution called event2ledger. This tool is

executed by each actor of the system for (1) collect-

ing container life cycle events using the Docker API,

(2) generating and signing the corresponding trans-

actions, and (3) sending them to a Hyperledger Fab-

ric consortium blockchain. The blockchain is main-

tained by the system actors, so any of them can val-

idate that transactions are issued by authorized par-

ties, that the application’s chaincode functions are sat-

isﬁed, and storing events after reaching a consensus

on their order. A proof-of-concept implementation is

described for enabling the monitoring of containers’

288

Marques, M., Miers, C. and Simplicio Jr., M.

Container Allocation and Deallocation Traceability using Docker Swarm with Consortium Hyperledger Blockchain.

DOI: 10.5220/0010493302880295

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 288-295

ISBN: 978-989-758-510-4

execution time via their life cycle events. We em-

phasize, though, that the same tool can be used for

collecting other events available in the Docker envi-

ronment.

The main contributions of this paper are: (i) the

design of a solution that collects container events in

a non-intrusive manner, sending them to Hyperledger

Fabric blockchain through signed transactions; (ii) the

implementation of a Hyperledger Fabric blockchain

to verify authorizations, reach a consensus and store

the collected transactions in a distributed ledger; and

(iii) the construction of an environment that facilitates

auditing and tracking anomalous (possibly malicious)

behavior or disagreements about container events data

collected. We emphasize, however, that the proposed

solution is not intended to prevent the action of mali-

cious agents (e.g., who omit or provide bogus infor-

mation to the blockchain). Instead, the goal of us-

ing a blockchain in this scenario is to create a veriﬁ-

able append-only log (Laurie, 2014), thus facilitating

the tracking of conﬂicts and discrepancies among data

collected by the event2ledger instances in the environ-

ment.

The rest of this work is organized as follows. Sec-

tion 2 delimits the problem to be addressed, as well

as the functional and non-functional requirements as-

sumed for the scenario. Section 3 details the proposed

solution, showing how it can address the problem of

traceability in containerized environments. Section 4

presents the related work. Section 5 describes a proof-

of-concept implementation of the solution. Section 6

presents the test performed and the results obtained,

which are then discussed in Section 6.1. Section 7

concludes the discussion and suggests ideas for future

works.

2 PROBLEM DEFINITION AND

REQUIREMENTS

In cloud computing systems, monitoring tools collect

data about the execution of the virtual environment

and then provide a set of relevant variables for anal-

ysis by administrators and/or automated mechanisms.

As discussed in Section 1, one issue in this scenario

is that the deployment of multiple monitoring tools

by different actors may result in conﬂicts between the

data collected, whereas centralized monitoring hin-

ders integrity checking in case of failures and limits

the customization capabilities. Addressing these con-

ﬂicts efﬁciently and effectively is the main goal of this

work.

In this article, we are particularly interested in

a container-based virtualization environment, which

provides a higher degree of dynamism than regular

virtual machines. To build a testbed where such con-

ﬂicts among monitoring tools are observable and a so-

lution can be deployed, one needs the following:

• A virtualization environment with a suitable con-

tainerization platform (e.g., Docker) and corre-

sponding orchestration tool (e.g., Docker Swarm).

• A multitude of nodes, each of which playing the

role of either provider, developer, or user, thus en-

suring decentralization of the monitoring tasks,

• Access to a repository for data storage, in which

the life cycle events collected by the solution will

be stored.

• Access to the orchestration API, with permission

to execute, suspend and terminate containers, to

generate the life cycle events, as well as collect

data on generated events.

In such an environment, developers deploy their ap-

plications in the form of multiple containers that are

instantiated on-demand, according to the user’s needs.

Monitoring the container’s execution is, thus, im-

portant to all involved actors: providers, develop-

ers, and users. Hence, any solution for this purpose

must be reliable and auditable, delivering optimiza-

tion and pricing capabilities in compliance with the

established service level agreement (SLA). To accom-

plish this goal, we deﬁne the following functional

(FR) and non-functional (NFR) requirements.

• FR1: Collect all creation, suspension, return, and

completion events related to containers in the vir-

tualization environment.

• FR2: Format and send the events according to the

storage repository;

• FR3: Promote consensus among the actors in-

volved in the process; and

• FR4: Store the validated records in a distributed

and tamper-protected repository accessible to all

actors involved in the process, thus allowing data

to be audited.

• NFR1: Adjust the volume available for storage of

collected events according to the size of the envi-

ronment and to the number of containers running;

• NFR2: Collect events of all containers in the en-

vironment; and

• NFR3: Limit the overhead introduced by the solu-

tion, so the environment’s performance is not no-

ticeably affected.

Container Allocation and Deallocation Traceability using Docker Swarm with Consortium Hyperledger Blockchain

289

3 PROPOSED SOLUTION

The details of container management may be quite

complex and depend on the speciﬁc orchestration

technology employed. Usually, the container life cy-

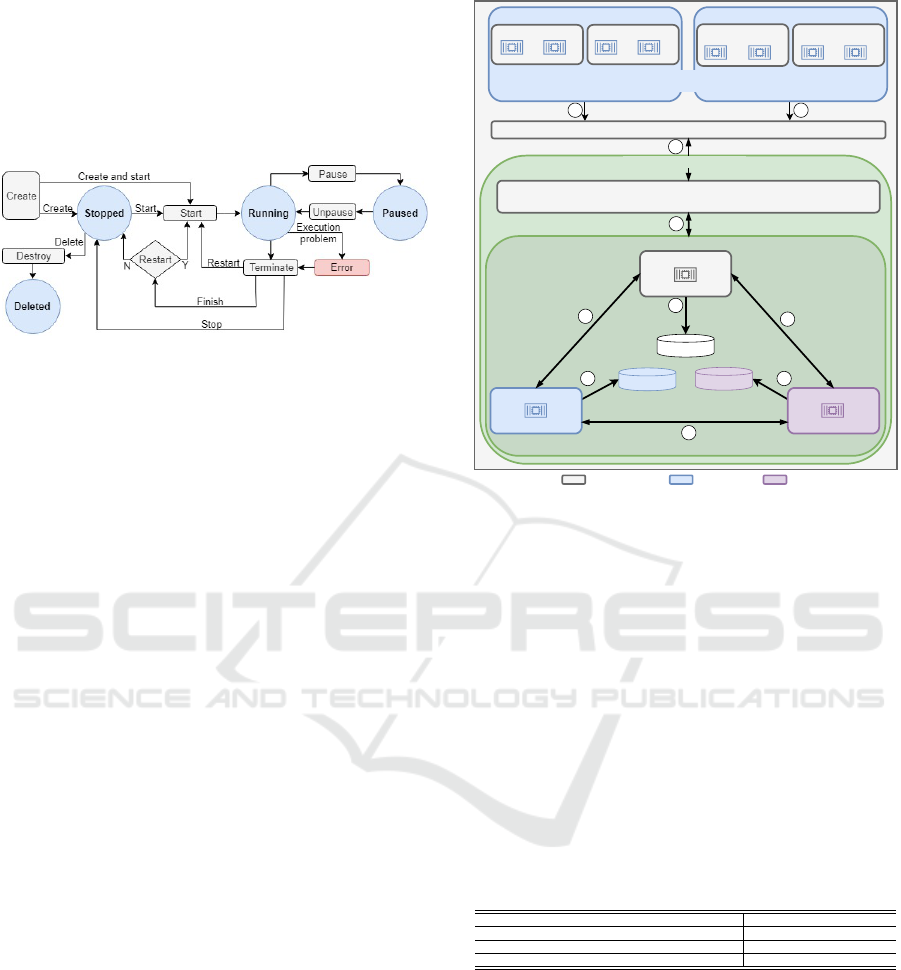

cle can be summarized as shown in Fig. 1.

Figure 1: Docker container life cycle.

Typically, the Docker container life cycle com-

prises four main states: stopped, running, paused, and

deleted. The transition between these states can be

triggered via a command-line interface or by an or-

chestrator. The Docker daemon is then responsible

for performing the action. Each object managed by

Docker (e.g., containers, volumes, networks, and im-

ages) has a set of events that can be collected and

stored. As the proposed solution aims to monitor the

container execution time, it focuses on events related

to state changes, namely: create, connect, start, kill,

die and destroy. However, it is possible to customize

the solution to collect other types of events, if needed.

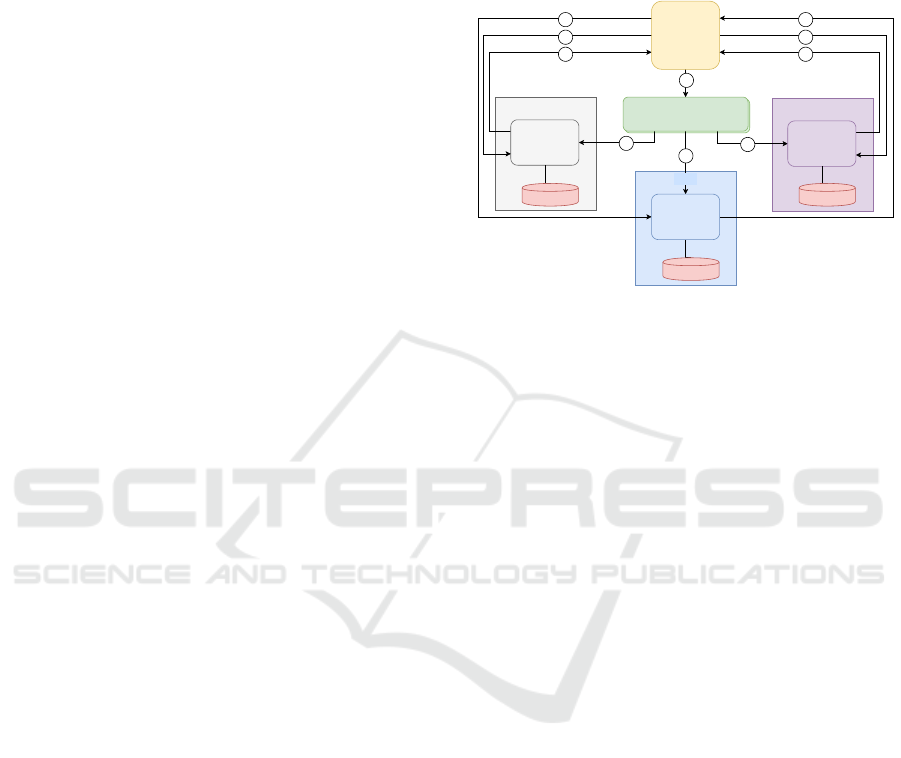

Figure 2 provides a general overview of the proposed

solution, showing how it interacts with Docker and

the Hyperledger Fabric blockchain.

In Figure 2, the Provider hosts the container vir-

tualization environment. In this environment, de-

velopers implement and offer their applications to

Users, who execute them on demand, generating

events (1). Every time a container has its life cycle

state changed, event2ledger collects the correspond-

ing event via Docker API (2). Then, a digitally signed

transaction containing relevant information about the

event is generated and sent to the blockchain while

the action is performed (3). The Hyperledger Fab-

ric blockchain ﬁrst veriﬁes if the transaction is cor-

rectly signed by the collector. Then, the applicable

chaincode function is invoked and executed by the

endorsing nodes. After execution, the transaction is

signed and sent back to the client. When the client

has enough signatures, the transaction is added to the

blockchain via a Raft consensus algorithm, a Crash

Fault Tolerant (CFT) implementation that supports

failure in up to one-third of its nodes. Transactions

are ordered and delivered to all actors (4), each of

which validates the transaction and stores the results

in its own ledger (5). All transactions submitted to

Application

Docker

event2ledger

Events collector and transaction generator

Hyperledger Fabric blockchain

Docker Worker

Peer

Docker Worker

Peer

Docker Worker

Peer

Conteiner events generation

Docker Worker Docker Worker

Application

Docker Worker Docker Worker

Proposed solution

Provider Client Developer

Ledger

5 5

Created by Developer and stored on provider's cloud environment

Ledger

Figure 2: Proposed solution.

the blockchain are stored even if the validation phase

fails; in this latter case, the transaction is labeled as

failed and does not update the ledger’s global state.

4 RELATED WORKS

To identify related works, we used the expression

[(docker OR container) AND monitoring] in the fol-

lowing scientiﬁc search engines: Google Scholar,

ACM Digital Library, IEEE Xplore, and Springer

Link. Table 1 summarizes the inclusion and exclusion

criteria adopted for the articles found in this manner.

Table 1: Inclusion and exclusion criteria.

Inclusion criteria Exclusion criteria

Articles written in English ”Gray” literature

Articles, abstracts, book chapters, and technical reports Publication date prior to 2012

Container monitoring in Docker environment

When works that are extensions of another were

identiﬁed, only the most recent version was consid-

ered. We note that the “gray” literature exclusion cri-

teria refer to publications (e.g., blogs and magazines)

that are not peer-reviewed and, hence, usually lack

scientiﬁc rigor. Also, as a second exclusion criterion,

we used the date of publication of 2012 because the

Docker technology was ﬁrst released into the public

domain in 2013 (Hykes, 2013), and since then be-

came one of the most successful container architec-

tures available.

After conducting the searches and applying the ﬁl-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

290

Table 2: Related papers vs. Functional requirements.

(Jo et al., 2018) (Dawadi et al., 2017) (Ciuffoletti, 2015) (Oliveira et al., 2017)

(Pourmajidi and Mi-

ranskyy, 2018)

(Collectd, 2020) (cAdvisor, 2020)

FR1 Yes Yes No No No Yes Yes

FR2 Yes Yes Yes Yes Yes Yes Yes

FR3 No No No No Yes No No

FR4 No No No Yes Yes Yes Yes

ters deﬁned as inclusion and exclusion criteria, 20001

results were obtained. To identify the relevance to the

proposed theme, the resulting works were analyzed,

initially, by title and keywords. Those considered rel-

evant were then selected and their abstract was ana-

lyzed. After this stage, 10 papers were selected for

reading, in which 5 papers were related to the subject:

• Light-Weight Service Lifecycle Management For

Edge Devices In I-IoT Domain (Jo et al., 2018): a

solution for managing the lifecycle of containers

using the Docker framework.

• CoMMoN: The Real-Time Container and Mi-

gration Monitoring as a Service in the Cloud

(Dawadi et al., 2017): a tool for collecting and

storing metrics and events, in addition to migrat-

ing Docker containers.

• Automated deployment of a microservice-based

monitoring infrastructure (Ciuffoletti, 2015): a

microservice monitoring structure ”as a service”.

• A Cloud-native Monitoring and Analytics Frame-

work (Oliveira et al., 2017): a structure for col-

lecting and storing container metrics in a dis-

tributed repository.

• Logchain: Blockchain-assisted Log Storage

(Pourmajidi and Miranskyy, 2018): uses a

blockchain-based logging system, aiming to en-

sure data immutability.

Table 2 presents a comparison between the functional

requirements of the proposed solution and the re-

lated papers identiﬁed. FR1 is attended by (Jo et al.,

2018) and (Dawadi et al., 2017), and by the Col-

lectd and cAdvisor tools, enabling the container life

cycle events to be collected in a non-intrusive way.

FR2, in turn, is fulﬁlled by all identiﬁed papers. FR3

requires veriﬁcation if there is a consensus among

the actors involved in the process or if conﬂicts ex-

ist. The solution proposed in (Pourmajidi and Miran-

skyy, 2018) is the only one, among identiﬁed pro-

posals, that tackles this requirement. Speciﬁcally,

that work assumes that data blocks are inserted into

a Blockchain using a consensus mechanism based on

Proof of Work (PoW), so different participants can

check data consistency before registration takes place.

Finally, FR4 speciﬁes that the collected data must be

stored in a distributed repository. The works proposed

by (Jo et al., 2018; ?) rely on centralized storage

of collected data and, thus, do not meet this require-

ment. Meanwhile, the scope of the proposal submit-

ted by (Ciuffoletti, 2015) does not cover the storage

of collected data. In contrast, the work presented

in (Oliveira et al., 2017) uses a distributed database,

whereas (Pourmajidi and Miranskyy, 2018) employs

a blockchain-based model, meeting the requirement.

Finally, CollectD and cAdvisor natively support data

exportation to various repository models, including

distributed ones, besides allowing the development of

new integration plugins.

In summary, the analysis of related works indi-

cates that none of them fully satisﬁes our FRs. Ac-

tually, the solution presented in (Pourmajidi and Mi-

ranskyy, 2018) is the one that comes closest, but it was

designed for the monitoring of computational clouds

in general, so it does not take care of the ﬁne granu-

larity and high dynamism involved in the monitoring

of container events. The open-source tools cAdvisor

and Collectd, on the other hand, are particularly inter-

esting for their capability of storing data in distributed

repositories, but none of them give on-the-ﬂy visibil-

ity to conﬂicts in the collected events (e.g., via a con-

sensus mechanism).

5 IMPLEMENTATION

The proposed solution has two components: (1)

event2ledger, responsible for collecting events and

generating transactions, and (2) a blockchain Hyper-

ledger Fabric, whose nodes belong to the actors in-

volved in the microservices ecosystem. Both com-

ponents are implemented in a Docker container envi-

ronment, over a GNU/Linux Ubuntu desktop 20.04

distribution, running on a virtual machine with 4

vCPU and 8Gb RAM. The event2ledger module is

then built as a containerized application, using a script

ﬁle (Dockerﬁle) to ensure that all dependencies are al-

ready installed. The Hyperledger Fabric blockchain,

in turn, demands the installation of a set of prereq-

uisites detailed in the ofﬁcial documentation (Hy-

perledger.Docs, 2021). Subsections 5.1 and 5.2 de-

scribe the event2ledger and the Hyperledger Fabric

blockchain, respectively.

Container Allocation and Deallocation Traceability using Docker Swarm with Consortium Hyperledger Blockchain

291

5.1 Event2ledger

The event2ledger is a containerized application devel-

oped in node.js, that can be implemented as a service

in the Docker Swarm, and have three functions: it

collects all the container lifecycle events in a non-

intrusive way, generates the transactions containing

the event collected, and send them to the blockchain

API. It can also be implemented directly on Docker,

through the docker run command. The app.js ﬁle con-

tains the code necessary to connects to the Docker

API, receive the events, generate and send the trans-

actions to Hyperledger Fabric API. To perform these

functions, it is necessary to provide the IP addresses

of Docker API and Hyperledger API and also the

JSON Web Token (JWT) used to connect to the Hy-

perledger API and send the transactions.

After the container creation and execution, the

event2ledger application connects to Docker API end-

point ”/events”, which streams in real-time the con-

tainer events generated. Then, for every event, it cre-

ates an array containing the received data and sends

it to the blockchain in JSON format, through a POST

request to Hyperledger Fabric API. The request head

must contain a valid JSON Web Token (JWT) token,

previously generated and associated with one of the

actors’ private keys, to be allowed to send the trans-

action. Its body, in turn, contains the chaincode func-

tion to be called, the endorsing peers’ addresses, the

chaincode name, and the event data.

5.2 Hyperledger Fabric Blockchain

The Hyperledger Fabric blockchain implemented in

this paper is a consortium model, composed of three

participants. Each participant has one peer, that is

responsible for endorsing, validate, and store the re-

ceived transactions. The blockchain has, also, three

orderer peers, responsible for the transaction order-

ing and distribution, and for reaching the consensus

through the Raft mechanism.

The Hyperledger Fabric transaction ﬂow has three

steps: execute, order, and validate. The process starts

with a transaction proposal that triggers a speciﬁc

chaincode function. In this model, the proposal is sent

to some peers, and the client needs to collect a given

number of endorsements before sending the transac-

tion to the orderer nodes. The endorsing process con-

sists of the execute phase, when the transactions are

executed, signed, and sent back to the client. When

the proposal has enough signatures to satisfy the en-

dorsement policy, it is submitted to the orderer node,

which orders the transactions and sends them to all

blockchain nodes. In the last step of the process, all

the peers validate the transactions, labeling them as

valid or invalid, and update the ledger world state.

Figure 3 presents a general overview of the Hyper-

ledger Fabric blockchain implemented and the trans-

action ﬂow.

Developer

Provider

Orderer nodes

Peer

CouchDB

API

Peer

CouchDB

Peer

CouchDB

User

Figure 3: Proposed Hyperledger Blockchain model.

The Hyperledger Fabric API (Figure 3) receives

the transaction sent by the event2ledger and sends it

to the endorsing peers (1). The endorsing peers ex-

ecute the transaction received, sign, and send it back

to the API (2). The API collects the endorsed trans-

actions until the endorsement policy is met. Then, it

sends the endorsed transaction to the ordering nodes

(3), which will order the transactions and broadcast

them to all nodes of the blockchain (4). These nodes

will validate the transaction and store its results on the

ledger (CouchDB).

All the nodes that compound the Fabric

blockchain, as the organization nodes, ordering

nodes, and CouchDB instances are implemented as

Docker containers. The proposed blockchain has

three ordering nodes, three endorsing and commit-

ting peers responsible for endorse and validate the

transactions, and three CouchDB instances, to store

the world state, one for each committing peer. The

implementation process creates a channel and joins

the blockchain nodes to it. Then, the chaincode

is installed on all endorsing nodes, containing a

set of functions that allow to create and verify the

events stored on the blockchain. The proposed

solution uses a Hyperledger Fabric API to receive

the transactions submitted by event2ledger. This API

grants the endpoint security through a JWT token,

that must be included on all calls. The API can

also be implemented as a container, improving the

solution scalability. The Table 3 presents the main

conﬁguration parameters applied to the blockchain.

Although it is possible for a node to belong to

more than one channel, this model includes the in-

stallation of only one channel on each node. The

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

292

Table 3: Blockchain conﬁguration parameters.

Parameter Value

Number of channels 1

Chaincode language Go

Ledger Couchdb

Endorsement policy Major Endorsement

Transactions per block 20

Block timeout 3s

chaincode used was developed in go, and has a set

of functions used to register the event, retrieve data

from all events and from a speciﬁc event. Other func-

tions can be added as needed, through chaincode up-

dates. The proposed solution uses CouchDB as the

blockchain ledger, allowing the elaboration of com-

plex queries. The endorsement policy adopted re-

quires that the transactions be validated by the ma-

jority of participants. As for block conﬁgurations, the

implemented model adopts blocks containing up to 20

transactions, with a timeout of 3 seconds (i.e., after 3

seconds, the block is sent even if it does not contain

20 transactions).

6 TESTS AND RESULTS

The purpose of the test plan developed for this work

is to verify that the events generated in the Docker en-

vironment are being properly collected and stored in

the Hyperledger Fabric blockchain. The proposed test

plan foresees the generation of a predeﬁned number

of container events, through a bash script. This script

has a loop that is executed ﬁve times and creates and

stops 20 containers, based on the hello-world Docker

image. These containers are created with a speciﬁc

name pattern, composed by ”IMG”+ n, in which n

is a number between 1 and 20. Each container cre-

ated generates three events: create, connect and start.

When the container is ﬁnalized, three events are also

created: die, disconnect and destroy. So, the execu-

tion of the script must result in 600 container events

that have to be collected by the event2ledger instance

in execution. Each event collected must be equiva-

lent to a transaction to be endorsed, ordered, and val-

idated using the Raft consensus mechanism, and its

result must be stored in the ledger. Thus, to validate

the proposed test plan, it is necessary to identify the

generated events in the blockchain.

To store the collected events on the blockchain,

event2ledger uses a chaincode function named cre-

ateEvent. This function, when executed, adds the

event data onto the blockchain and creates a registry

ID. This ID is a key composed of EVENT + i, where

i is a sequential number. The ID aims to be useful

to retrieve the events stored. Using a chaincode func-

tion named getAllEvents for this ID, it is possible to

obtain all the events stored on the blockchain. The

execution of this function should return 600 records,

one for each event collected. In addition, transactions

must have the signature of the nodes that endorsed

them, and their validation code. Considering the en-

dorsement policy applied in this work, the transac-

tions need to be endorsed by the majority of the nodes,

so it needs to have at least two endorser signatures.

Also, it is possible to verify the event’s origin using

the transaction sender’s key.

The script execution generated 600 events, of

which 300 during the start phase, and 300 during the

stop phase. The ﬁrst point to be veriﬁed is if all the

generated events were properly collected. To get ac-

cess to blocks and transactions data, this work used

Blockchain Explorer, a Hyperledger component that

has a friendly interface and is useful to navigate on

the blockchain and check blocks, transactions, met-

rics, and other information. The component dash-

board shows that 51 blocks were created after the

script execution, and the blockchain has 609 transac-

tions, of which 9 transactions were generated during

channel creation, node integration, and chaincode de-

ployment. Using the getAllEvents chaincode func-

tion it was also possible to retrieve the events stored

on the CouchDB ledger. This execution returned 600

events (EVENT0 - EVENT599), as expected previ-

ously. Then, the events were analyzed, to verify

if their contents were collected and stored correctly.

Code 1 brings an example of a collected event, stored

on the ledger.

Code 1: Collected event.

1 { ”KEY”: ”EVENT135”,

2 ”RECORD”: {

3 ”Action”: ”create”,

4 ”ActorID”: ”d06ee64bf817b7f8d0d40f93b1cc”,

5 ”EventID”: ”d06ee64bf817b7f8d0d40f93b1cc”,

6 ”Image”: ”hello-world”,

7 ”Type”: ”container”,

8 ”From”: ”hello-world”,

9 ”Name”: ”img4”,

10 ”Scope”: ”local”,

11 ”Status”: ”create”,

12 ”Time”: ”1610736410”,

13 ”TimeNano”: ”1610736410370693000”,

14 }}

Code 1 allows to view the details of a collected

event. The events are generated, collected, and stored

in JSON format. Its contents show the event key, the

action performed, actor and event identiﬁers, the im-

age used, type of event, the container name, and other

details as the timestamp. The analysis of the ledger

Container Allocation and Deallocation Traceability using Docker Swarm with Consortium Hyperledger Blockchain

293

Table 4: Functional Requirements vs Solution Proposed.

Functional Requirement Proposed solution Details

FR1 Uses Docker API Collect events using the Docker API endpoint /events

FR2 Uses JSON format The collected events are sent in JSON format, via POST call, to the Hyperledger Fabric API

FR3 Meets via blockchain Uses Raft mechanism to obtain consensus

FR4 Meets via blockchain Each blockchain node has its own CouchDB node for storing records

content shows a total of 600 records for the generated

events.

The second step of the test plan consists of check-

ing the validity of the transactions. As described

on 5.2, the valid transactions receives the validation

code 0, and are labeled as ”valid” at the end of the Hy-

perledger Fabric transaction ﬂow. To review the val-

idation status, it is necessary to verify the validation

code ﬁeld, in transaction details, as shown in Code 2.

Code 2: Transaction Details.

1 Transaction ID: 7de3eab67b3e9dad4d4a9c27c91ebe9b2c

2 Validation Code: 0 - VALID

3 Payload Proposal Hash:

5e48bb6283965c2141561b46ae8535ef9e4

4 Creator MSP: ProviderMSP

5 Endoser: ”ProviderMSP”,”DeveloperMSP”,”UserMSP”

6 Chaincode Name: eventdb

7 Type: ENDORSER TRANSACTION

8 Time: 2021-01-15T18:42:31.871Z

9 Reads:

10 Writes:

The Code 2 shows details about a valid transac-

tion, collected by Provider’s event2ledger instance, as

shown on Creator’s MSP ﬁeld. The Endorser ﬁeld

contains the signature of the transaction endorsers,

which are all the blockchain participants (Provider,

Developer, and User). Checking the validation code

of the transactions on the ledger was possible to con-

ﬁrm that all was considered valid and had its results

stored on the CouchDB ledger. Thus, the proposed

solution meets the deﬁned functional requirements

(Table 4).

The FR1 is serviced using the Docker API, which

streams the events in JSON format in real-time, en-

suring a non-intrusive collection method. To send the

collected event to the blockchain, the event2ledger

uses a POST call that contains the JWT token in

the head and the formatted transaction data in the

body. To meet the FR3, the proposed solution adopts

the Raft consensus mechanism, which not only han-

dles consensus but also provides fault tolerance. To

store the collected events, the proposed solution uses

a CouchDB distributed ledger implementation.

6.1 Discussion

The event2ledger has been conﬁgured to collect

events directly from the Docker Swarm master node,

allowing the collection of all events generated by ser-

vices, even if executed at other nodes. It was imple-

mented as a single container to test its functionality

but is also possible to implement the solution as a ser-

vice, ensuring its scalability and fault tolerance. In

the testing scenario implemented, the collection was

performed by only one of the actors (in this case, the

provider). To allow other actors to perform the col-

lection, additional JWT tokens associated with each

actor’s private keys must be generated and inserted

into the respective instances of the event2ledger. The

test results showed that the events generated on the

Docker environment were all collected and stored on

the blockchain. However, it is possible to implement

ﬁlters in the event2ledger so that only speciﬁc events

are collected and sent to the blockchain, improving

the application performance by focusing on the col-

lection and validation process only on desired events.

Despite the deﬁnition of the endorsement policy as

”Majority endorsement”, where validation is possible

with 2/3 of the total nodes, the transactions were en-

dorsed by all three nodes.

Although using the Hyperledger Fabric API fa-

cilitates integration, this layer adds complexity with

JWT use and increases the solution latency. An al-

ternative solution is to send the transaction using the

Hyperledger Fabric peer binary. In this way, it would

be possible to connect and send transactions directly

to the blockchain, using the event2ledger private key,

avoiding the need to create the JWT authentication to-

ken, and future improvement to the solution.

The number of orderer nodes deﬁned is related to

the Raft fault tolerance, given by 2f + 1, where f rep-

resents the number of failed nodes. In this way, the

adoption of 3 orderer nodes allows the fault tolerance

of one node, without impacting the blockchain execu-

tion. The increase in the number of orderer nodes has

the beneﬁt of greater fault tolerance. However, it im-

pacts an increase in network trafﬁc, which may result

in a reduction in performance.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

294

7 CONSIDERATIONS & FUTURE

WORK

The solution proposed was successful in collect and

store the events generated and, with minor adjust-

ments, can be implemented in environments that use

other orchestrators, like Kubernetes. The storage of

events on a blockchain made it possible to identify

the event collector through the private key used in

the transaction generation. Also, the distributed stor-

age and cryptographic chaining characteristics ensure

data availability and integrity.

It is important to note that the number of events

generated in container virtualization environments

can be high. Some blockchain conﬁgurations have a

direct impact on its performance (e.g., channel com-

position, endorsement policy, block size, and block

timeout) and must be adjusted according to the envi-

ronment to be monitored. Benchmark tools like Hy-

perledger Caliper can be useful to verify the ideal

blockchain conﬁguration in terms of performance

through transaction latency and throughput.

The Raft consensus mechanism allows an ad-

equate security level combined with good perfor-

mance, ﬁtting most of the use cases where the partici-

pants are reliable. However, some environments may

require a Byzantine fault-tolerant consensus mecha-

nism. The Hyperledger Fabric has a modular architec-

ture that allows replacement and customization of the

consensus mechanism but does not yet have a Byzan-

tine fault-tolerant consensus mechanism available.

As future works, we intend to develop a compo-

nent that will allow fast log conﬂict identiﬁcation be-

tween the actors regarding the collected events. To

verify the throughput of the proposed solution we

plan to execute a blockchain benchmark with Caliper,

that can be useful to optimize the blockchain conﬁg-

uration. We also intend to implement some of the

Byzantine fault-tolerant consensus mechanisms un-

der development, such as SMaRt-BFT (Bessani et al.,

2014), to verify the viability of the proposed solution

in environments where actors are not reliable.

ACKNOWLEDGMENTS

The authors thank the support of FAPESC, and

LabP2D / UDESC.

This work was supported by Ripple’s University

Blockchain Research Initiative (UBRI) and in part

by the Brazilian National Council for Scientiﬁc

and Technological Development (CNPq - grant

304643/2020-3).

REFERENCES

Bessani, A., Sousa, J., and Alchieri, E. (2014). State ma-

chine replication for the masses with BFT-SMART.

In 44th Annual IEEE/IFIP Int. Conf. on Dependable

Systems and Networks, pages 355–362.

cAdvisor (2020). cadvisor docs.

https://github.com/google/cadvisor/.

Ciuffoletti, A. (2015). Automated deployment of a

microservice-based monitoring infrastructure. Proce-

dia Computer Science, 68:163–172. 1st Int. Conf. on

Cloud Forward: From Distributed to Complete Com-

puting.

Collectd (2020). Collectd docs.

https://collectd.org/documentation.shtml.

Dawadi, B., Shakya, S., and Paudyal, R. (2017). Common:

The real-time container and migration monitoring as a

service in the cloud. Journal of the Institute of Engi-

neering, 12:51.

Hykes, S. (2013). The future of Linux containers. Pycon

US 2013. https://youtu.be/wW9CAH9nSLs.

Hyperledger.Docs (2021). Hyperledger fabric of-

ﬁcial documentation. https://hyperledger-

fabric.readthedocs.io/en/release-2.2/prereqs.html.

Jamshidi, P., Pahl, C., Mendonc¸a, N., Lewis, J., and Tilkov,

S. (2018). Microservices: The journey so far and chal-

lenges ahead. IEEE Software, 35(3):24–35.

Jim

enez, L., Sim

on, M., Schel

en, O., Kristiansson, J.,

Synnes, K., and

Ahlund, C. (2015). Coma: Resource

monitoring of docker containers. In CLOSER, pages

145–154.

Jo, H., Ha, J., and Jeong, M. (2018). Light-weight ser-

vice lifecycle management for edge devices in I-IoT

domain. In Int. Conf. on Information and Communi-

cation Technology Convergence (ICTC), pages 1380–

1382.

Laurie, B. (2014). Certiﬁcate transparency: Public, veriﬁ-

able, append-only logs. Queue, 12(8):10—-19.

Newman, S. (2015). Building Microservices. OReilly, 1

edition.

Oliveira, F., Suneja, S., Nadgowda, S., Nagpurkar, P., and

Isci, C. (2017). A cloud-native monitoring and ana-

lytics framework. Technical report, Technical Report

RC25669, IBM Research.

Pourmajidi, W. and Miranskyy, A. (2018). Logchain:

Blockchain-assisted log storage. In IEEE 11th Int.

Conf. on Cloud Computing (CLOUD), pages 978–

982.

Rodriguez, M. A. and Buyya, R. (2019). Container-based

cluster orchestration systems: A taxonomy and fu-

ture directions. Software: Practice and Experience,

49(5):698–719.

Container Allocation and Deallocation Traceability using Docker Swarm with Consortium Hyperledger Blockchain

295
