A Dependency-based Combinatorial Approach for Reducing Effort for

Scenario-based Safety Analysis of Autonomous Vehicles

Kaushik Madala

, Hyunsook Do

and Carlos Avalos-Gonzalez

Department of Computer Science and Engineering, University of North Texas, Denton, U.S.A.

kVA by UL, Portland, U.S.A.

Keywords:

Scenario-based Analysis, Safety Veriﬁcation, Operation Design Domain, Autonomous Vehicle Safety.

Abstract:

For an autonomous vehicle, to assure safety, we need to perform a thorough analysis considering the vehicle’s

intended operational design domain (ODD). This requires analysts and engineers to consider various operat-

ing environments (OEs) that can occur in the ODD, and the various scenarios that are possible within each

OE. However, the automotive safety standards ISO 26262 and ISO 21448 do not offer in-depth guidance on

what and how many scenarios need to be analyzed to ensure safety of a vehicle. Moreover, many existing

simulation tools and veriﬁcation approaches consider limited OEs and generate test cases exhaustively for

each scenario created by engineers within an OE. Such an analysis requires a signiﬁcant amount of time and

effort, but it still cannot ensure that various dependencies among ODD elements are covered. To address

these limitations, we propose a dependency-based combinatorial approach (DBCA), which uses in-parameter-

order-general (IPOG), a combinatorial testing algorithm to generate OEs and test cases for each scenario. To

evaluate DBCA, we applied it to the ODD elements extracted from ISO 21448, and to a highway cut-in sce-

nario. Our results show that DBCA reduced time and effort for analysis, and reduced the the number of OEs

and test cases for the scenario without missing dependencies.

1 INTRODUCTION

Scenario-based analysis plays a vital role in assur-

ing safety of an autonomous vehicle because vari-

ous known and unknown hazardous scenarios that

occur within a vehicle’s operational design domain

(ODD) can comprise the safety of the vehicle. Al-

though the automotive industrial safety standards ISO

26262 (ISO, 2018) and ISO 21448 (ISO/PAS, 2020)

offer guidance on how to analyze functional safety

(FuSa) and safety of the intended functionality (SO-

TIF) of a vehicle respectively, they do not offer in-

depth guidance on how to generate scenarios for an-

alyzing safety of a vehicle, and what and how many

scenarios will ensure that a vehicle is safe enough to

be deployed.

The current methods (Kalra and Paddock, 2016;

Akagi et al., 2019; Althoff and Lutz, 2018) for an-

alyzing safety of autonomous vehicles rely on either

the amount of miles traveled by the autonomous ve-

hicles or by verifying the behavior of vehicles mostly

on known safety-critical driving scenarios and then

ensuring that the vehicles meet a predeﬁned valida-

tion target (set by experts based on naturalistic driv-

ing data(VTTI, 2020b; VTTI, 2020a) or accident

based data (NHTSA, 2018)). For example, Altoff

and Lutz (Althoff and Lutz, 2018) proposed an ap-

proach for generating test cases for possible safety

critical scenarios for a vehicle based on its drivable

area. While these existing approaches aid in identify-

ing potential situations in which an autonomous ve-

hicle’s safety might be compromised, they still suffer

from the following limitations:

• Current approaches used in hazard analysis in

both Part 3 of ISO 26262, and Part 6 of ISO

21448 rely on brainstorming of experts to identify

scenarios and their corresponding operating envi-

ronments. If some scenarios or environments are

missed/overlooked during this analysis, then they

are not tested during simulation.

• The amount of miles becomes an effective met-

ric only if diverse and representative scenarios are

covered. If vehicle ﬂeets are tested on the same

road in simulation or in the real world, it is pos-

sible to miss some scenarios and operating condi-

tions that can occur within the deﬁned ODD.

• Current safety-critical scenario generation ap-

Madala, K., Do, H. and Avalos-Gonzalez, C.

A Dependency-based Combinatorial Approach for Reducing Effort for Scenario-based Safety Analysis of Autonomous Vehicles.

DOI: 10.5220/0010495502350246

In Proceedings of the 7th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2021), pages 235-246

ISBN: 978-989-758-513-5

235

proaches take into account different possible driv-

ing scenarios for a ﬁxed environment, i.e., for a

ﬁxed set of ODD elements and their attributes.

However, driving scenarios are just a part of

operating scenarios for an autonomous vehicle.

For a vehicle with driving automation, as men-

tioned in ISO 21448, to identify a scenario, we

should consider the combination of environmen-

tal factors (e.g., snowfall, rain), driving scenarios

(e.g., overtaking a vehicle, performing cut-in in

front of a vehicle), behaviors of agents involved

(e.g., pedestrians, other vehicles), road geometry

(e.g., straight road), road infrastructure (e.g., traf-

ﬁc signs) and goals/objectives of the scenario i.e.,

the tasks we want to accomplish in the scenario

(e.g, an ego vehicle should stop when a pedestrian

is crossing the road in city streets).

Moreover, the current simulation tools (e.g.,

CARLA (Dosovitskiy et al., 2017), Fortellix (Fortel-

lix, 2020)) require to create operating environments

before testing scenarios and most of the operating en-

vironments have been created based on customers’

needs (Fadaie, 2019). However, whether these oper-

ating environments can cover the entire operational

design domain (ODD) deﬁned by engineers of au-

tonomous vehicles is not veriﬁed. Also, most of the

current simulation tools perform exhaustive testing,

i.e., generating all possible test cases for each sce-

nario with all discrete parameter values, their ranges

and increments initialized by the engineers and run-

ning simulations within a ﬁxed operating environ-

ment. While tools such as Fortellix (Fortellix, 2020)

offers a means to combine scenarios and operating

conditions, the scenario description is restricted to

Open M-SDL (Fortellix, 2020) speciﬁcation, which

does not require to have all the essential ODD el-

ements and attributes we aim to cover as a part of

the ODD. Performing analysis with such tools does

not account for overlooked ODD elements or their

attributes. For example, if an attribute of a pedes-

trian such as race or gender cannot be set in a simula-

tion tool despite the presence of the attribute in ODD,

it may be ignored during the veriﬁcation using sim-

ulation. Further, given the complexity of ODD for

autonomous vehicles, simulating all potential scenar-

ios with operating environments might not be feasi-

ble. This is because the need for resource (e.g., time

and effort) increases as the complexity of the ODD

increases.

For example, let us consider the following factors

that are part of ODD (taken from Table B.3 of ISO

21448): climate, time of the day, road shape, road fea-

ture (e.g., tunnel, gate), condition of the road, light-

ing (e.g., glare), condition of the ego vehicle (e.g., a

sensor covered by dust), operation of the ego vehi-

cle (e.g., a vehicle is stopping), surrounding vehicles

(e.g., a vehicle to the left of the ego vehicle), road par-

ticipants (e.g., pedestrians), surrounding objects off-

roadway (e.g., a trafﬁc sign), objects on the roadway

(e.g., lane markings). Each of these factors can have

multiple values. For example, for ‘time of the day,’ its

values can be early morning, daytime, evening, and

nighttime. Based on the values given in Table B.3

of ISO 21448, the total number of combinations for

ODD factors is 169,554,739,200. Note that we have

not considered properties of agents (e.g., gender of a

pedestrian), vehicles (e.g., speed of the vehicle), en-

vironmental attributes (e.g., amount of snowfall) yet.

These combinations only represent operating en-

vironments and are still not complete as multiple

agent types and vehicle types are not considered. For

each of these combinations, we need to generate in-

stances of scenarios to test by considering properties

of the agents, environmental attributes, and an ego ve-

hicle. Examples of properties are the amount of rain-

fall (environmental), the number of randomly initial-

ized pedestrians (agents related), and a speed range

of the vehicle (ego vehicle related). The properties

values are manually selected/initialized by the simu-

lation engineers and experts. Test cases for simulation

are generated based on these properties by consider-

ing all possible combinations among the properties.

In the example properties considered above, if we as-

sume rainfall can range from 0 cm to 10 cm with an

increment of 0.5 cm, the number of randomly initial-

ized pedestrians can range from 0 to 20, with an incre-

ment of 1, and the speed range of a vehicle is consid-

ered to be between 30 mph and 90 mph, with an incre-

ment of 5 mph, then an exhaustive testing strategy re-

sult will be 21 (for rainfall)× 21 (for pedestrians)× 13

(for the speed range) = 5733 tests. As the number of

properties, their ranges, and their increments change,

this will result in a large number of tests. Creating a

large number of operating environments and perform-

ing exhaustive testing can be very expensive and of-

ten it is not feasible to do so. Moreover, analyzing

test cases that expose collisions and near misses from

a signiﬁcantly large number of test cases is difﬁcult as

often experts need to manually analyze the causes of

collisions and near misses.

To address these limitations, we propose a

dependency-based combinatorial approach (DBCA)

for operating environment identiﬁcation and test suite

optimization for analysis of scenarios. DBCA utilizes

IPOG (Lei et al., 2007; Lei et al., 2008), a widely

used combinatorial testing algorithm, to generate t-

way combinations of operating environments and test

cases for each scenario deﬁned in those operating en-

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

236

vironments. We chose a combinatorial approach be-

cause it is found to be effective and efﬁcient in test-

ing highly conﬁgurable systems (Kuhn et al., 2010;

Wotawa, 2017), which require to run without failures

on many thousands of conﬁgurations. Because au-

tonomous vehicles also need to ensure safety of the

system under various operating conditions, we be-

lieve a combinatorial approach will be a perfect solu-

tion for reducing the complexity of their safety anal-

ysis. The ‘t’ value in t-way combinations is manu-

ally chosen based on the dependencies among factors

being considered to generate operating environments

and instances of scenarios. To evaluate whether our

approach can aid in identifying as well as reducing

the number of operating environments and instances

of scenarios that needs to be considered for verify-

ing safety of an autonomous vehicle, we performed

a case study using Metamoto, a simulation tool. Our

results show that our approach is effective at reducing

the number of test cases for a scenario without affect-

ing the detection of collisions when compared to ex-

haustive approach. We also found that it is important

to consider the different operating environments that

need to be considered based on ODD deﬁned for an

autonomous vehicle as we found that often only lim-

ited ODD is considered in simulation thereby missing

potential unknown scenarios. Note that in this paper,

we restrict our analysis to vehicle level behavior and

do not discuss machine learning safety-based veriﬁ-

cation.

The rest of the paper is organized as follows. Sec-

tion 2 discusses background and related work. Sec-

tion 3 explains DBCA approach and Section 4 dis-

cusses the empirical study, its results, and threats.

Section 5 details the insights from results and limi-

tations of DBCA. Finally, we conclude in Section 6.

2 TERMINOLOGY AND

RELATED WORK

In this section, we discuss the various terminologies

we use throughout the paper and the related literature

to DBCA.

2.1 Terminology and Their Descriptions

1. Ego Vehicle: It is the autonomous system for

which we perform analysis.

2. Operational Design Domain (ODD): It is deﬁned

as a set of conditions that includes environmen-

tal factors, road infrastructural elements, agents

around vehicles, and various driving scenarios for

which a system or a feature of the system is de-

signed (BSI/PAS, 2020; ISO/PAS, 2020).

3. ODD Element: An entity or agent that is part

of the ODD. For example, weather and pedestri-

ans are ODD elements. Every ODD element has

corresponding values. For example, weather can

have multiple values: rainy, snowy, and sunny.

Every ODD element and every value of an ODD

element can have associated properties. For ex-

ample, when the weather is snowy, we can have a

property such as the amount of snowfall.

4. Operating Environment: The environment in

which an ego vehicle operates. It usually includes

the agents, road infrastructure and environmental

factors. An operating environment is a subset of

ODD, i.e., for a given ODD, we can identify many

operating environments. An example of an oper-

ating environment is a wet and straight highway

road with 3 lanes that has trucks and vehicles on

it, where the ego vehicle is moving forward.

5. Scenario: A scenario is a temporal sequence of

situations with actions and events in an operat-

ing environment where an ego vehicle aims to

achieve goals and objectives deﬁned by the engi-

neers (ISO/PAS, 2020). In a given operating en-

vironment, multiple scenarios can occur. For the

highway operating example discussed previously,

a scenario can be for the ego vehicle to reach des-

tination B without a collision while a lead vehi-

cle brakes suddenly. Note that every scenario can

have multiple instances. For the scenario exam-

ple discussed previously, we can generate various

instances by considering different separating dis-

tances between the lead and the ego vehicles, and

various braking force values for the lead vehicle.

6. IPOG Algorithm (Lei et al., 2007; Lei et al.,

2008): A combinatorial testing algorithm used to

generate t-way combinations of parameter values.

The value of ‘t’ is smaller when compared to the

total number of parameters. A t-way combina-

tion implies all combinations between any ‘t’ el-

ements are considered. For example, if we have

four parameters p1, p2, p3 and p4 with two val-

ues each, 2-way combinations of the parameters

represent the combinations in which all possible

pairs of values between every two parameters are

considered. In DBCA, we use IPOG algorithm

to generate combinations of ODD elements and

combinations of properties to generate instances

of a scenario.

7. Functional Safety (FuSa): It is a characteristic of

a system in which malfunctions of electrical and

electronic components do not result in an unrea-

A Dependency-based Combinatorial Approach for Reducing Effort for Scenario-based Safety Analysis of Autonomous Vehicles

237

sonable risk (ISO, 2018). The process of func-

tional safety analysis for automotive systems is

detailed in ISO 26262 (ISO, 2018).

8. Safety Of The Intended Functionality (SOTIF):

Unlike functional safety, safety of the intended

functionality is an absence of unreasonable risk

due to insufﬁciencies in deﬁning the functionali-

ties of the system (ISO/PAS, 2020). SOTIF aids in

reducing unknown risks as well as gaps in require-

ments and design. The SOTIF analysis process

for vehicles with driving automation is detailed in

ISO 21448 (ISO/PAS, 2020).

9. Exhaustive Simulation: If we run all possible

combinations of the parameters’ values for a given

scenario in a simulation tool, then we refer to it as

an exhaustive simulation. It takes signiﬁcantly a

high amount of time and resources.

2.2 Related Work

Generating scenarios for testing autonomous vehicles

is a challenging task. Koopman and Wagner (Koop-

man and Wagner, 2016) have indicated that complete

testing is infeasible for an autonomous vehicle. To

address this problem, to date, many researchers (Li

et al., 2020; Mullins et al., 2018; Nonnengart et al.,

2019; Akagi et al., 2019) have proposed techniques

to generate scenarios for simulation.

Some researchers (Li et al., 2020; Rocklage et al.,

2017; Duan et al., 2020; Gannous and Andrews,

2019) used combinatorial approaches to generate sce-

narios. For example, Li et al. (Li et al., 2020) pro-

posed an ontology-based combinatorial testing ap-

proach, in which ontology is used to identify param-

eters and their values, which are then given as input

to the combinatorial algorithm that generates n-way

combinations. The authors further reﬁne these combi-

nations to identify test cases corresponding to critical

scenarios by using a machine learning model. An-

other example is the static and hybrid scenario gen-

eration approach proposed by Rocklage et al. (Rock-

lage et al., 2017), in which the authors use combinato-

rial interaction testing to identify feasible trajectories

for motion planning in a given scenario using a back-

tracking algorithm for solving the constraints deﬁned

for checking feasibility of trajectory.

Other researchers (Cal

o et al., 2020; Mullins et al.,

2018) have proposed search-based techniques to gen-

erate scenarios. For example, Mullins et al. (Mullins

et al., 2018) proposed a framework for generating

scenarios using search strategy that performs adap-

tive sampling using surrogate optimization to iden-

tify high quality scenarios, followed by density based

clustering to group the scenarios in the order of their

effectiveness.

A few researchers (Nonnengart et al., 2019; Al-

thoff and Lutz, 2018) have proposed formal ap-

proaches to generate scenarios for autonomous ve-

hicles. For example, Nonnengart et al. (Nonnengart

et al., 2019) proposed a formal-method based ap-

proach called CriSGen, which is used to generate crit-

ical scenarios by formalizing abstract scenarios and

maneuvers and then performing a forward reachabil-

ity analysis to identify if a maneuver can result in an

unsafe state.

In addition to the aforementioned methodologies,

some researchers (Akagi et al., 2019; Koopman and

Wagner, 2016) have also used naturalistic driving

data (VTTI, 2020b; VTTI, 2020a; van Nes et al.,

2019) to generate scenarios. An example is the

framework by Akagi et al. (Akagi et al., 2019), in

which the authors generate scenarios from a prob-

abilistic model built using naturalistic driving data

(e.g., SHRP2 (VTTI, 2020b)), and sampling vehicle

kinetic information and trafﬁc risk index values.

While these techniques aid in identifying critical

scenarios, they do not consider whether the operating

environments they use cover all the ODD elements.

Moreover, to test a scenario, the techniques either pro-

duce test cases of parameters deﬁned for the scenario

either randomly or exhaustively. However, random

generation of tests does not guarantee to cover the

dependencies among systems’ components and ODD

elements, and exhaustive testing requires a signiﬁcant

amount of effort, time, and resources. Using DBCA,

we aim to overcome these limitations.

3 APPROACH

The overview of dependency-based combinatorial ap-

proach (DBCA) is shown in Figure 1. The ovals rep-

resent the steps in the approach and the rectangles rep-

resent the outputs from the steps which can be used

as inputs to their next steps. The parallelogram repre-

sents the existing combinatorial algorithm we use in

DBCA. The numbers in the ovals represent the step

numbers. Each step is described in detail as follows.

Step 1. Deﬁne ODD and Dependencies. As a ﬁrst

step of DBCA, we (stakeholders) deﬁne ODD of the

autonomous vehicle being analyzed. While ODD is

usually reﬁned when performing the hazard analy-

sis and risk assessment conducted during the SOTIF

analysis, in this paper, we assume that ODD has al-

ready been reﬁned and considered, and we focus more

on identifying operating environments and optimiz-

ing test cases to verify a scenario in simulation. As

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

238

1. Define ODD

and

dependencies

ODD elements, their

values, and

dependencies among

elements

2. Generate

operating

environments

(OE)

Operating

environments (OEs)

3. Generate

scenarios

for each OE

Stakeholders

Scenarios

4. Generate

test cases for

simulation

Test cases for

simulation

5. Run

simulation

Collision

cases

IPOG

Figure 1: Overview of dependency-based combinatorial approach (DBCA).

mentioned in Section 2, ODD comprises of ODD ele-

ments, their values, and properties. ODD elements in-

clude environmental factors (e.g., weather, time of the

day), agents (e.g., surrounding vehicles on the road),

road infrastructure (e.g., trafﬁc signs, zones, junc-

tions) and operations of the autonomous vehicle under

analysis, i.e., an ego vehicle (e.g., a vehicle is making

a left turn). A sample of the detailed list of ODD can

be found in BSI:PAS 1883 (BSI/PAS, 2020).

Every ODD element has corresponding values.

For example, weather can have values such as rainy,

snowy, cloudy, and clear. Every ODD element value

can have its associated properties/parameters. For

example, when the ODD element is weather and its

value is rainy, we can have a property such as the

amount of rain. After the ODD elements, their val-

ues, and properties are deﬁned, we identify depen-

dencies among ODD elements by considering their

values. For example, let us consider three ODD el-

ements: weather, road condition, and time of the day.

Weather can affect a road condition. For example,

a road that is not leveled properly might have pud-

dles when the weather is rainy. Hence, we consider

a dependency between weather and a road condition.

However, a road condition and weather do not affect

time of the day. Hence, we do not consider them to

be having any dependencies. We identify all such de-

pendencies and the absence of dependencies among

ODD elements.

In this paper, due to a lack of support for auto-

matic dependency identiﬁcations by the state-of-the-

art techniques, we identify dependencies manually

because it helps us in providing sufﬁcient evidence

and justiﬁcation during safety assessment of the vehi-

cle that our combinatorial approach reduced the num-

ber of operating environments and test cases for sce-

narios without overlooking any dependencies among

ODD elements.

Step 2. Generate Operating Environments. Af-

ter the dependencies among ODD elements are identi-

ﬁed, we ﬁnd the maximum number of ODD elements

that are dependent on each other. We identify this

maximum number as ‘t’ that is applied to IPOG (Lei

et al., 2007; Lei et al., 2008), a widely used combi-

natorial testing algorithm to produce t-way combina-

tions of ODD elements along with their values. These

combinations represent the potential operating envi-

ronments.

Let us consider the example of ODD elements we

have chosen in the previous step. The elements are

weather, a road condition, and time of the day. Let us

assume each of the elements to be having the follow-

ing values: weather - {rainy, snowy, cloudy, clear}

(4 values), road condition - {dry, wet with puddles,

wet with no puddles} (3 values), time of the day -

{day, dusk/dawn, night} (3 values). For this sim-

ple set of ODD elements, if we plan to generate all

possible combinations, we get 4×3×3 = 36 combi-

nations. However, as mentioned in the previous step,

only weather and road condition have a dependency

(e.g., a rainy weather can result in a wet road with

puddles). So, as long as we are able to cover all pos-

sible combinations between weather and road condi-

tion, we will be considering all possible dependencies

among elements. Hence, the ‘t’ values will be 2 for

this example. When we generate 2-way combinations

of the three ODD elements, 36 combinations reduce

to 12 combinations. Figure 2 illustrates the reduction

in the combinations. It can be observed from the ﬁg-

ure that the 2-way combinations not only covered all

possible combinations between {weather, road condi-

tion}, but also covers all possible combinations be-

tween {road condition, time of the day}, and {time of

the day, weather}.

We then go through these combinations that rep-

resent operating environments and check if the simu-

lation tool has environments that match the required

operating environments. If the tool does not offer

such environments, we request the engineers who are

responsible for the simulation tools to develop re-

A Dependency-based Combinatorial Approach for Reducing Effort for Scenario-based Safety Analysis of Autonomous Vehicles

239

Weather

Road condition

Time of the day

Rainy

Wet without puddles

Day

Rainy

Wet without puddles

Dawn/Dusk

Rainy

Wet without puddles

Night

Rainy

Wet with puddles

Day

…..

Clear

Wet with puddles

Day

Clear

Wet with puddles

Dawn/Dusk

Clear

Wet with puddles

Night

Clear

Dry

Day

Clear

Dry

Dawn/Dusk

Clear

Dry

Night

Weather

Road condition

Time of the day

Rainy

Wet without puddles

Day

Rainy

Wet with puddles

Night

Rainy

Dry

Dusk/Dawn

Cloudy

Dry

Night

Cloudy

Wet with puddles

Day

Cloudy

Wet without puddles

Dusk/Dawn

Snowy

Dry

Day

Snowy

Wet with puddles

Dusk/Dawn

Snowy

Wet without puddles

Night

Clear

Dry

Day

Clear

Wet with puddles

Dusk/Dawn

Clear

Wet without puddles

Night

All possible combinations between the

three ODD elements

Total combinations = 36

2-way

IPOG

2-way combinations = 12

All possible combinations between every two ODD

elements are covered

Figure 2: Example of illustrating the reduction in the number of combinations of ODD elements using combinatorial approach.

quired environments by providing information on the

elements that need to be present in those environ-

ments respectively.

Step 3. Generate Scenarios for Each Operating

Environment (OE). As mentioned above, we con-

sider each combination of ODD elements along with

their corresponding values as an operating environ-

ment. In a given operating environment, various sce-

narios can occur. This is because according to ISO

21448 (ISO/PAS, 2020), every scenario requires to

have a goal or objective deﬁned. An example of a

goal can be ”an ego vehicle travels from location A to

location B in the map in 5 minutes without any col-

lision.” Because this approach relies on expertise of

engineers, in our approach, deﬁning goals and objec-

tives is manual.

Each scenario can have multiple unique instances

because the various properties and parameters can be

associated with each ODD element. For example, if

we consider the weather to be rainy, the road condi-

tion to be wet with puddles, and time of the day to

be night, then their corresponding properties can be

the amount of rainfall, the density of the road pud-

dles (the number of puddles per square meter in a

road), and time in PM/AM. Note that the properties

of the ODD elements must be chosen based on the

goals/objectives of the scenario.

Let us assume, that we have a rainfall range estab-

lished from 0 cm to 15 cm with an increment of 1 cm

(a total of 16 values), the density of road puddles to

be ranging from 0 to 1, with an increment of 0.1 (a

total of 11 values), and time in PM/AM to be rang-

ing from 7 PM to 4 AM, with an one hour increment

(10 values). Let us also assume that we have consid-

ered the ego vehicle to be traveling in a straight line

at 60 kmph. For this circumstance and given prop-

erty values, the total number of possible instances of

a high-level scenario that can occur within an operat-

ing environment is 16×11×10 = 1760 combinations.

However, as the number of ODD elements, their

values, their properties and the ranges of the proper-

ties increase, the number of combinations rise dras-

tically. Hence, similar to previous step, we iden-

tify dependencies among properties/parameters of the

ODD elements and identify a ‘p’ value, where ‘p’ is

the maximum number of properties/parameters which

can affect each other. In the above example, the

amount of rainfall, time in PM/AM and density of

puddles are not dependent on each other. However,

the amount of the rainfall might affect the puddle wa-

ter level. Hence, we can deﬁne ’p’ as 2. When we

generate 2-way combinations for the three properties,

the number of combinations is reduced from 1760 to

176.

Step 4. Generate Test Cases for Simulation.

Once the various instances that need to be consid-

ered for each scenario along with its corresponding

goals/objectives are identiﬁed, test cases are gener-

ated. This is done by using simulation tools, where

we can specify the property values, their range and

associated increment. If such a functionality is not

present, the test cases need to be created manually or

we need to write a script which offers automated sup-

port to run simulation for various cases we want to

evaluate. In DBCA approach, for the previous sce-

nario that has 176 instances, we generate correspond-

ing 176 test cases. A test case will fail if the scenario’s

goal/objective fails.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

240

Step 5. Run Simulation. After the test cases for

simulation are generated, we evaluate them in a sim-

ulation tool. If the objective deﬁned is violated or

there is a potential crash, the simulation tool will fail

the test case. Based on these failures, we identify

the potential causes for collisions and undesired be-

haviors and discuss corresponding solutions (e.g, de-

sign modiﬁcation, enhancement of functions) among

stakeholders including domain experts and engineers.

4 EMPIRICAL STUDY

To evaluate DBCA, we conducted an empirical study

using Metamoto (Metamoto, 2020), a cloud-based

simulation tool, with the focus on the following re-

search questions:

RQ1. How efﬁcient is DBCA over exhaustive

simulation?

RQ2. Does reduction in the number test cases af-

fect DBCA’s ability to identify root causes of colli-

sions over exhaustive simulation?

4.1 Object of Analysis

To analyze DBCA, we considered a list of scenario

factors listed in Table B.3 in ISO 21448 (ISO/PAS,

2020) for deﬁning ODD. The table contains values for

12 ODD elements such as climate (8 values), time of

the day (4 values), road shape (16 values), feature of

the road (8 values), condition of the road (6 values),

lighting (5 values), ego vehicle’s perception of condi-

tion (10 values), operation of the ego vehicle (14 val-

ues), surrounding vehicles (14 values), other road par-

ticipants (4 values), objects in the surroundings (16

values), and objects on the road-way (11 values). The

list of elements and their values is shown in Table 1.

It can be observed that many of the values in the table

can be further subdivided. For example, for ODD el-

ement “surrounding vehicle,” we have ”bicycle” as a

value. However, a bicycle itself can be moving along

the vehicle, crossing across the road, or coming in the

opposite direction but in a bike lane. However, we

only consider the values deﬁned in Table B.3 in ISO

21448 to limit the scope of the analysis.

For test case generation, we focused on a vehicle

cut-in scenario (illustrated in Figure 3), where a lead

vehicle tries to cut-in to the path of the ego-vehicle,

i.e., an autonomous vehicle being analyzed. The ego-

vehicle we analyzed is a SAE level 2 system (Com-

mittee et al., 2014), which has a lane keeping assist

and a cruise control. We have also considered a city

street with passengers scenario for a SAE level 4 ve-

hicle (Committee et al., 2014) with cameras and a LI-

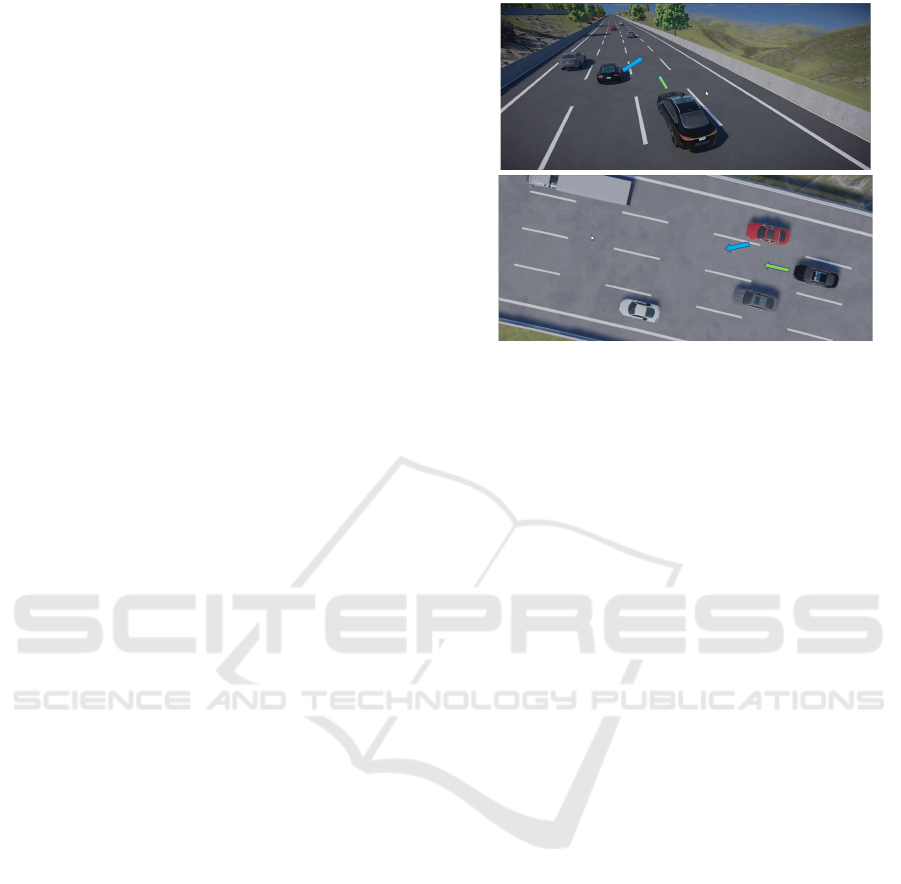

Figure 3: Example illustrations of cut-in cases possible

within the highway cut-in scenario.

DAR. However, for the level 4 system, the simulation

tool gave time-out errors for most of the test cases.

Upon analysis, we found that it was a simulation tool

issue. Hence, we do not discuss results of a SAE level

4 vehicle in this paper. Rather we focus on the level

2 system. Table 2 shows a list of parameters we used

for generating test cases for the level 2 system along

with their ranges, step size (how much increment we

have used between two values when generating test

case), and the total number of values we considered

for each of the parameter, respectively.

4.2 Variables

Independent Variable. The independent variable is

the type of technique we used to generate operating

environments and instances of scenarios.

We have one heuristic technique and one control

technique as follows.

Heuristic: The heuristic technique we used in our

study is our proposed DBCA approach, which uses

IPOG (Lei et al., 2007; Lei et al., 2008), a combinato-

rial algorithm to reduce the number of combinations

for operating environments as well as instances of a

scenario.

Control: The control technique used in our study

is the exhaustive technique where all possible com-

binations of values of ODD elements are considered

for operating environments, and all possible combina-

tions of property or parameter values are considered

for generating instances of a scenario.

Dependent Variables. The dependent variables for

RQ1 are time taken for creating operating environ-

ments and time taken for running instances of simula-

tion. and for RQ2 is the number of root causes result-

A Dependency-based Combinatorial Approach for Reducing Effort for Scenario-based Safety Analysis of Autonomous Vehicles

241

Table 1: ODD elements and their values from Table B.3 of ISO 21448 (ISO/PAS, 2020).

ODD element Values

Climate ﬁne, cloudy, rainy, sleet, snow, hail, fog, wind

Time of the day early morning, daytime, evening, nighttime

Road shape straight, curve, downhill, uphill, banked road, step difference, uneven spot, Belgian

brick road, narrow road, wide road, median, manhole cover, tollgate, merging on the

roadway, branching, pothole

Feature of the road tunnel, underpass, bridges, skyways, cloverleaf, diamond, toll booth, gate

Condition of the road dry, wet, low µ path, crossover road, water trough, gravel road

Lighting direct sunlight, moon light, street lamp, backlight, twilight

Ego vehicle’s irregular disturbance by sensor, variation of sensor, sensor fogged up, dirtied sensor,

perception of vehicle posture, vehicle situation (e.g,. towing), real vehicle weight, distribution of

condition weight, tire, brake pad

Operation of the ego accelerating, decelerating, driving at constant speed, stopping of the vehicle, drive

vehicle at high speed, drive at low speed, making a turn, making a sudden traversing,

passing, right or left turn, construction zone detour, approaching intersection,

roundabout, crossing railroad track

Surrounding vehicles position of surrounding car, preceding vehicle makes sudden deceleration, preceding

vehicle makes deceleration, preceding vehicle makes acceleration, preceding vehicle

makes a sudden acceleration, interrupting vehicle, trailing vehicle in stop and go

trafﬁc, vehicle to the right of ego vehicle going in same direction, vehicle to the

left of ego vehicle going in same direction, oncoming vehicle, high beam from

oncoming vehicle, a motor cycle passing by, bicycle, heavy interferences from other

vehicles

Other road pedestrian walking across, truck, three-wheeled motorcycle, peculiar vehicle

participants

Objects in sidewall, upside sign, side sign, pole, tunnel, multi-storey parking space, beneath a

surroundings viaduct, kerb, guardrail, pylon, vehicle stopping on the side of the road, animal

jumping out, railway crossing, construction site, marked crosswalk, water alongside

road

Objects on road-way reﬂectors, solid lines, dashed lines, cross walk, rumble strips, speed bumps,

informational (e.g., arrow, speed limit), none, interrupted, degraded lane markings,

multiple lane markings

ing in collision. Note that the number of root causes

resulting in collision is different from the number of

collisions detected. For example, let us consider an

autonomous vehicle that has eight collisions detected,

four due to incorrect sensor reading, and four due to

heavy rain. In this case, while the number of colli-

sions is eight, the number of root causes is only two.

4.3 Experimental Procedure

In our study, we utilized advanced combinatorial test-

ing for software (ACTS) tool (Yu et al., 2013), which

uses IPOG to generate combinations. For evaluating

operating environments, creating scenarios and test

cases, we used a proprietary simulation tool, which

runs simulations on a cloud.

To conduct our study, we began with the ODD el-

ements deﬁned in Table 1. For the exhaustive tech-

nique, we calculated all possible combinations of

ODD elements that need to be considered for oper-

ating environments. In the meanwhile, we also iden-

tiﬁed the dependencies among 12 ODD elements. We

have considered both direct dependencies and indirect

dependencies to identify the ‘t’ value for generating t-

way combinations of ODD elements with ACTS tool.

For example, climate can affect the behaviors of sen-

sors in the ego vehicle thereby affecting its perception

of the condition, i.e., being unable to assess the cor-

rect situation which the ego vehicle encounters with

respect to its operating environment. We consider this

to be a direct dependency. Climate can also affect op-

eration of the ego vehicle because of its impact on the

ego vehicle’s perception of its condition with respect

to operating environment. Hence, we can consider

climate and the ego vehicle’s operation to have an in-

direct dependency. Based on the dependencies, we

decided to vary t-value from 2 to 4 to see how signif-

icantly the number of operating environments might

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

242

Table 2: Parameters considered for test cases.

Parameter Range Step size # of values

Road marking

deterioration 0–1 1 2

Road wetness 0–1 1 2

Road puddles 0–1 1 2

# of random

vehicles 0–20 5 5

Ego vehicle’s 500–

start distance 2000 100 16

Table 3: Fixed Parameters and their respective values.

Parameter Range Fixed value

Density of clouds 0–1 0.2

Amount of rain 0–1 0

Lead vehicle’s

collision avoidance 0–1 0

Lead vehicle’s

start distance 500–2000 910

Initial lead vehicle’s

start distance 500-2000 880

Ego vehicle’s

collision avoidance 0–1 0

differ.

Once the operating environments analysis is com-

plete, we performed scenario analysis. As mentioned

earlier in our study, we focus on analyzing instances

of a scenario in which a lead vehicle tries to cut into

the path of the level 2 ego vehicle. Thus, we consid-

ered a simulation environment that meets the needs

of the required operating environment. If the operat-

ing environment is not present then we should discuss

with simulation engineers and create a correspond-

ing environment to run simulation. The goal we de-

ﬁned for the scenario being simulated is for the ego-

vehicle to reach a pre-deﬁned location without colli-

sion. Since the simulation tool we used has a 800 jobs

limit, i.e., we cannot submit more than 800 test cases

at a time. Therefore, we ﬁxed values of some param-

eters and varied values of other parameters. The ﬁxed

parameters and their corresponding values are shown

in Table 3 and the range values for parameters are

found in Table 2 along with the step size and total

number of parameter values we used for each param-

eter. We chose larger step sizes because we believe

that once we identify a problematic range for the pa-

rameter, we can focus on the speciﬁc range and use

a smaller step size for the problematic range. This

paves a path for hierarchical analysis rather than per-

forming an exhaustive analysis. It can be observed

from Table 3 that the start distance of the lead vehicle

(the vehicle in front of the ego vehicle) is ﬁxed to 910

and the start distance of the initial lead vehicle (the ve-

hicle which is in front of all vehicles in the scenario)

is ﬁxed to 880. These values are chosen arbitrarily

to see how the vehicles will be initialized if the ego

vehicle’s position is set to be before the lead vehicle

in the test case. We chose both the lead vehicle’s and

the ego vehicle’s collision avoidance as zero due to

the following reasons: (1) we wanted to minimize the

simulation runs due to resource constraints and job

limits (the number of test cases that can be submitted

at once, which is 800 in our case). Since we already

have a randomized parameter “# of random vehicles”,

adding more randomness to the instances of scenarios

such as making collision avoidance as 0.5, where a

vehicle can collide another vehicle with a 50% prob-

ability (chosen randomly), will require more runs to

gain sufﬁcient conﬁdence in the results. (2) by mak-

ing collision avoidance of both ego vehicle and lead

vehicle zero, we can identify if the DBCA technique

can identify same collision causes as exhaustive tech-

nique even when vehicles are randomly initialized.

After ﬁxing the parameter values, we generated

an exhaustive set of test cases for simulation using

the simulation tool. For the combinatorial analysis,

we created combinations of parameter values using

ACTS tool, and then created test cases in the simula-

tion tool. For parameter values, we chose a ‘p’ value

of 2 to generate p-way combinations. This is because

the only parameters that have a partial dependency are

road wetness and road puddles. We then ran these test

cases in the simulation tool to identify collision cases.

Note that, since we have some randomness present

for each test case due to a parameter “random num-

ber of vehicles”, we ran test suite for each approach

10 times. Once the results of test cases are collected,

we analyzed the failed test cases to identify causes of

collision and discussed with stakeholders about pos-

sible solutions and next steps. The results reported

are the average of results found over 10 iterations of

simulations.

4.4 Results

RQ1 Results. For RQ1, we analyzed the efﬁciency

of DBCA over exhaustive simulation. For 12 ODD

elements deﬁned in Table 1, the total number of com-

binations that is required to be considered for creating

operating environments for each technique is shown

in Table 4. It can be observed from the table that

the exhaustive technique generated 169,554,739,200

combinations for operating environments; the num-

ber of combinations is signiﬁcantly larger than that

of 2-way, 3-way or 4-way combinations generated

using DBCA. Each of the combinations represents

A Dependency-based Combinatorial Approach for Reducing Effort for Scenario-based Safety Analysis of Autonomous Vehicles

243

Table 4: Number of combinations generated for operating

environments using heuristic and control techniques.

Type Technique # of combinations

Heuristic DBCA 266 (2-way), 4032 (3-way),

55075 (4-way)

Control Exhaustive 169554739200

Table 5: Number of test cases generated (represented as # of

TC) using heuristic and control techniques and time taken

for running them in the cloud (represented as TT).

Type Technique # of TC TT

Heuristic DBCA 80 (2-way) 104 min

Control Exhaustive 640 225 min

a potential operating environment and an environ-

ment corresponding to this combination needs to

be checked for its presence in the simulation tool

manually. If no such environment is present in the

simulation tool, then the environment needs to be

created manually, which can take from a few minutes

to days depending on the complexity. Hence, we

can conclude that DBCA requires less effort over the

exhaustive technique.

Similarly, for the 5 parameter values in Table 2,

the number of test cases produced using DBCA and

the exhaustive approach and the approximate time

taken for each of their iteration using the simulation

tool are shown in Table 5. We can observe that DBCA

reduces the number of test cases by 87.5% and re-

duces the time required for running simulations in

cloud by ≈51% compared to the exhaustive approach.

RQ2 Results. For RQ2, we analyzed the number

of root causes for collision identiﬁed for DBCA and

the exhaustive approach, respectively. The results are

shown in the Table 6. While we have 63 collision

cases stemming from the results of 640 test cases for

the exhaustive approach, and only 10 collision cases

stemming from the results of 80 test cases for DBCA,

the number of root causes for collisions remained

same for both approaches. We found that the colli-

sion occurred irrespective of other parameter values

when the ego vehicle’s start distance is 800 and 1000.

This is because of lack of sufﬁcient distance between

the lead vehicle and ego vehicle, there by resulting in

collision. When the ego vehicle’s starting distance is

900, then the collision is nearly missed, hence the test

cases are passed. Although the number of collision

cases reported for the exhaustive approach is 63, the

expected count is 80. The remaining 17 are reported

under the different category due to inherent problems

in the simulation tool, where a surrounding vehicle’s

hard braking infraction can result in a failure of a test

case, even if it is not related to an ego vehicle.

Table 6: Number of root causes for collisions found from

the test cases generated using heuristic and control tech-

niques.

Type Technique # of root causes

Heuristic DBCA 2

Control Exhaustive 2

4.5 Threats to Validity

First, the combinations generated by DBCA or the

exhaustive approach can have feasible or unfeasible

combinations. While this can be easily resolved by

adding constraints to the tools while generating com-

binations, it is essential to analyze both feasible and

unfeasible combinations as they might aid in uncov-

ering unknown safety issues. This helps in reducing

the unknown risks as required by ISO 21448 standard.

Second, random initialization of agents or vehicles in

a scenario can affect the results. To reduce the ef-

fect of randomization, we ran each test suite 10 times

using the simulation tool, and averaged the results.

Third, our results are based on Metamoto simulation

tool. So, they might not be generalized to other in-

dustrial tools or open source tools. Nevertheless, the

insights we provide based on the results can be use-

ful for other simulation tools that are intended for au-

tonomous vehicles.

5 DISCUSSION

From the results of our study, we found that DBCA

approach reduces the effort and time for analysis in

simulation tools over exhaustive approach. We also

found that we can identify the same number of root

causes for collisions as exhaustive approach using

DBCA, making it reliable to use for generating test

cases for simulation for autonomous vehicles.

Importance of ‘t’ and ’p’ Value in DBCA: While

combinatorial approach is found to be useful, it can

be effective only if we choose the right ‘t’ and ‘p’ val-

ues for generating combinations. For combinatorial

testing of software applications it is found that 2-way

interactions can expose approximately 62% to 97% of

the faults, 3-way interactions can expose 87% to 99%

of the faults, and 4-way interactions can expose 96%

to 100% of faults. However, whether such is the case

with safety-critical and complex systems such as au-

tonomous vehicle is yet to be veriﬁed.

To identify the right ‘t’ value used to generate t-

way combinations of ODD elements, it is essential to

perform a thorough analysis of dependencies among

ODD elements. Missing dependencies can result

in missing some important combinations thereby re-

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

244

sulting in overlooking some operating environments,

which can increase the chances of facing unknown

risks for autonomous vehicles. Similarly, ‘p’ value

used to generate p-way combinations of properties of

elements, i.e., parameters for simulation, must be cho-

sen based on dependencies among parameters. Miss-

ing dependencies among properties of the elements

considered for a scenario can result in missing critical

test cases, thereby overlooking safety issues. A poten-

tial future direction to explore in this area is to study

how percentages of collision causes that can be found

vary with increment in ‘t’ and ‘p’ values, and if the re-

quired ‘t’ an ‘p’ values are less than the ones deﬁned

by identifying dependencies among ODD elements,

and properties/parameters of scenario respectively.

Insights on Simulation Tools for Autonomous

Vehicles: During the analysis of our results, we found

that it is important to ensure proper working of sim-

ulation tools before running simulations. We found

that often in the case of the Metamoto tool we used in

our study, even though we are focusing on identifying

collision of the ego vehicle, a randomly initialized

vehicle’s hard brake infraction also resulted in failure

of test cases. Moreover, the simulation tool does not

generate any metrics for ODD elements coverage

based on operating environments we deﬁne or sce-

nario coverage for each operating environment. Such

metrics should be considered as a part of simulation

tool.

A major ﬁnding we identiﬁed for the simulation

tool is that there is not effect of randomly initialized

vehicles on the results of our test cases. We analyzed

the results further to understand why we have such

an unexpected behavior among the results. We found

that simulation tools by default assume vehicles

when being initialized follows the trafﬁc rules and

maintain minimal separation. However, this should

be left to the user, as a separate mechanism to specify

scenario rules or simulation rules, as assuming

vehicles always follow rules can result in overlooking

unknown scenarios, there by increasing unknown

risks for an autonomous vehicle.

Practical Implications for Industry: Using DBCA,

automotive engineers and safety analysts can iden-

tify the various operating environments that need to

be created as a part of simulation for analysis of

autonomous vehicle’s behaviors with less effort and

time. This also helps in simplifying the complexity

of hazard and risk assessments performed as a part of

FuSa and SOTIF analyses, where we need to consider

various possible scenarios a vehicle can be in. Sim-

ilarly DBCA can also reduce the effort and time re-

quired for running simulation by optimizing the num-

ber of test cases while simultaneously ensuring all de-

pendencies among the properties/parameters are sat-

isﬁed.

Limitations: Despite the advantages of DBCA ap-

proach, it suffers from limitations. First, the identi-

ﬁcation of dependencies among ODD elements and

among properties/parameters used for generating in-

stances of scenarios is a manual process. We can

address this limitation by automating the process us-

ing property relation tables, and generating inferences

from the tables. Another limitation is that we did not

deﬁne any systematic procedure for deﬁning goals or

objectives for scenarios in this paper. We plan to ad-

dress this by suggesting various goals and objectives

that can be used for a scenario based on its ODD ele-

ments and properties by using a recommender system.

6 CONCLUSION AND FUTURE

WORK

In this paper, we proposed dependency-based com-

binatorial approach (DBCA) to reduce the effort for

identifying the various operating environments and

various instances for a scenario in an operating en-

vironment for autonomous vehicles. DBCA utilizes

the combinatorial algorithm IPOG (Lei et al., 2007;

Lei et al., 2008) to generate t-way combinations of

ODD elements to generate combinations that repre-

sent operating environments, and p-way combinations

of properties (or parameters) of elements chosen for a

scenario, where ‘t’ and ‘p’ values are deﬁned by iden-

tifying dependencies among ODD elements and prop-

erties of elements, respectively. To evaluate DBCA

approach, we conducted an empirical study by con-

sidering ODD elements listed in Table B.3 of ISO

21448 (ISO/PAS, 2020) and a highway cut-in sce-

nario, and compared DBCA with the exhaustive tech-

nique, which generates all possible combinations of

values of ODD elements to generate operating envi-

ronments, and all possible combinations of values of

properties to generate instances for a scenario. We

found that DBCA reduces the time requires for run-

ning simulations signiﬁcantly up to 51% without af-

fecting the number of collision causes identiﬁed.

As a part of future work, we plan to address

the limitations discussed in Section 5 and incorpo-

rate ethical assessment of safety into our approach

based on industrial standards such as ISO/AWI

39003 (ISO/AWi, 2021) We also plan to deﬁne

dependency-based coverage criteria that aid in an-

alyzing whether the engineers overlooked any of

the operating environments or test cases for scenar-

ios. We also plan to conduct a comprehensive study

A Dependency-based Combinatorial Approach for Reducing Effort for Scenario-based Safety Analysis of Autonomous Vehicles

245

for various scenarios using multiple simulation tools

(both industrial and open source) and study the effec-

tiveness of DBCA approach under a broader context.

REFERENCES

Akagi, Y., Kato, R., Kitajima, S., Antona-Makoshi, J.,

and Uchida, N. (2019). A risk-index based sampling

method to generate scenarios for the evaluation of au-

tomated driving vehicle safety*. In 2019 IEEE In-

telligent Transportation Systems Conference (ITSC),

pages 667–672.

Althoff, M. and Lutz, S. (2018). Automatic generation of

safety-critical test scenarios for collision avoidance of

road vehicles. In 2018 IEEE Intelligent Vehicles Sym-

posium (IV), pages 1326–1333.

BSI/PAS (2020). 1883:2020. Operational Design Do-

main (ODD) taxonomy for an automated driving sys-

tem (ADS) – Speciﬁcation.

Cal

o, A., Arcaini, P., Ali, S., Hauer, F., and Ishikawa, F.

(2020). Generating avoidable collision scenarios for

testing autonomous driving systems. In 2020 IEEE

13th International Conference on Software Testing,

Validation and Veriﬁcation (ICST), pages 375–386.

Committee, S. O.-R. A. V. S. et al. (2014). Taxonomy and

deﬁnitions for terms related to on-road motor vehicle

automated driving systems. SAE Standard J, 3016:1–

16.

Dosovitskiy, A., Ros, G., Codevilla, F., Lopez, A., and

Koltun, V. (2017). Carla: An open urban driving sim-

ulator. In Conference on Robot Learning, pages 1–16.

Duan, J., Gao, F., and He, Y. (2020). Test scenario genera-

tion and optimization technology for intelligent driv-

ing systems. IEEE Intelligent Transportation Systems

Magazine.

Fadaie, J. (2019). The state of modeling, simulation, and

data utilization within industry: An autonomous vehi-

cles perspective. CoRR, abs/1910.06075.

Fortellix (2020). Open M-SDL, Measurable Scenario De-

scription Language.

Gannous, A. and Andrews, A. (2019). Integrating safety

certiﬁcation into model-based testing of safety-critical

systems. In 2019 IEEE 30th International Symposium

on Software Reliability Engineering (ISSRE), pages

250–260. IEEE.

ISO (2018). 26262. Road Vehicles – Functional Safety.

ISO/AWi (2021). 39003. Road Trafﬁc Safety (RTS) — Guid-

ance on safety ethical considerations for autonomous

vehicles.

ISO/PAS (2020). 21448. Road vehicles - Safety of the in-

tended functionality.

Kalra, N. and Paddock, S. M. (2016). Driving to safety:

How many miles of driving would it take to demon-

strate autonomous vehicle reliability? Transportation

Research Part A: Policy and Practice, 94:182 – 193.

Koopman, P. and Wagner, M. (2016). Challenges in au-

tonomous vehicle testing and validation.

Kuhn, D. R., Kacker, R. N., and Lei, Y. (2010). Practi-

cal combinatorial testing. NIST special Publication,

800(142):142.

Lei, Y., Kacker, R., Kuhn, D. R., Okun, V., and Lawrence,

J. (2007). Ipog: A general strategy for t-way software

testing. In 14th Annual IEEE International Confer-

ence and Workshops on the Engineering of Computer-

Based Systems (ECBS’07), pages 549–556. IEEE.

Lei, Y., Kacker, R., Kuhn, D. R., Okun, V., and Lawrence,

J. (2008). Ipog/ipog-d: efﬁcient test generation for

multi-way combinatorial testing. Software Testing,

Veriﬁcation and Reliability, 18(3):125–148.

Li, Y., Tao, J., and Wotawa, F. (2020). Ontology-based

test generation for automated and autonomous driv-

ing functions. Information and Software Technology,

117:106200.

Metamoto (2020). Simulation as a service for autonomous

systems.

Mullins, G. E., Stankiewicz, P. G., Hawthorne, R. C., and

Gupta, S. K. (2018). Adaptive generation of challeng-

ing scenarios for testing and evaluation of autonomous

vehicles. Journal of Systems and Software, 137:197 –

215.

NHTSA (2018). Fatality Analysis and Reporting System

(FARS) Data Tables.

Nonnengart, A., Klusch, M., and M

uller, C. (2019).

Crisgen: Constraint-based generation of critical sce-

narios for autonomous vehicles. In International Sym-

posium on Formal Methods, pages 233–248. Springer.

Rocklage, E., Kraft, H., Karatas, A., and Seewig, J. (2017).

Automated scenario generation for regression testing

of autonomous vehicles. In 2017 IEEE 20th Interna-

tional Conference on Intelligent Transportation Sys-

tems (ITSC), pages 476–483.

van Nes, N., B

argman, J., Christoph, M., and van Schagen,

I. (2019). The potential of naturalistic driving for in-

depth understanding of driver behavior: Udrive results

and beyond. Safety Science, 119:11 – 20.

VTTI (2020a). Canadian NDS Data.

VTTI (2020b). SHRP2 NDS Data.

Wotawa, F. (2017). Testing autonomous and highly conﬁg-

urable systems: Challenges and feasible solutions. In

Automated Driving, pages 519–532. Springer.

Yu, L., Lei, Y., Kacker, R. N., and Kuhn, D. R. (2013). Acts:

A combinatorial test generation tool. In 2013 IEEE

Sixth International Conference on Software Testing,

Veriﬁcation and Validation, pages 370–375. IEEE.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

246
