Holistic Health Records towards Personalized Healthcare

Athanasios Kiourtis

, Argyro Mavrogiorgou

, Dimosthenis Kyriazis

, Francesco Torelli

Domenico Martino

and Antonio De Nigro

Department of Digital Systems, University of Piraeus, Piraeus, Greece

Engineering Ingegneria Informatica, SpA, R&D Laboratory, Rome, Italy

Keywords: CrowdHEALTH, HL7 FHIR, Holistic Health Records, Interoperability, Personalized Healthcare.

Abstract: Current healthcare systems include platforms that provide data not linked to each other. However, linking

clinical information to other people’s life data would be beneficial in understanding the effects of prevention

strategies, and diseases. More specifically, in a context with several data sources, setting of a baseline allowing

the aggregation of information, avoiding ambiguities, is crucial. This manuscript presents the Holistic Health

Records (HHRs), as health records that intend to provide a complete picture of a patient, including all health

determinants. This data may be produced by different systems at different times of the patient’s life, including

data related to regular patientcare and non-medical data that may affect the patient’s state of health. Many

standards have been defined with this purpose, with HL7 Fast Healthcare Interoperability Resources (FHIR)

being mostly tailored to the current needs. Hence, the HHR model based on HL7 FHIR has been designed,

representing information about persons, their roles, their healthcare organizations, diagnosis and clinical

findings of the patients, among others. The HHR model aims on guaranteeing interoperability and being

implemented on top of existing FHIR libraries and is also intended to be usable independently from FHIR

and applicable for different purposes than only exchanging health data.

1 INTRODUCTION

The explosion of healthcare services is leading to the

creation of several devices and platforms that, one

independently from the others, provide data on the

citizen’s life (Mavrogiorgou, 2017). Linking clinical

information with other citizens’ life data would be of

benefit for learning about outcomes of prevention

strategies, diseases, and efficiency of clinical

pathways (Kiourtis, 2019). The challenge is to

combine all the available data to exploit the

community knowledge benefits, by building the

“Holistic Health Records” (HHRs) that include any

information that is relevant to a citizen’s health (i.e.

medical, clinical, lifestyle, social care data, etc.).

Even though thousands of medical data models exist

(Geßner, 2017), they are mainly focused on the

integration of data from clinical trials. More general

interoperability data models (e.g. OpenEHR

(openEHR, 2021), HL7 Fast Healthcare

Interoperability Resources (HL7 FHIR) (HL7 FHIR,

2021) are sufficiently general and extensible to cover

holistic needs, but do not guarantee a full

homogeneity, as they leave freedom to represent the

same information using different data structures or

different coding systems.

The data model of the HL7 FHIR revolves around

a series of interoperability artefacts composed of a set

of modular components called “resources”. These

resources are discrete information units with defined

behaviour and meaning, describing what information

can be collected for each type of clinical information.

Currently, there exist different resources for

structuring information from a patient, an adverse

reaction, a procedure, and an observation, among

many others. Within FHIR, the different types of

resources can be classified in six major categories: (a)

Clinical: content of clinical record, (b) Identification:

supporting entities involved in the care process, (c)

Workflow: management of the healthcare process, (d)

Financial: resources that support the billing and

payment parts of FHIR, (e) Conformance: resources

that manage specification, development and testing of

FHIR solutions, and (f) Infrastructure: general

functionality and resources for internal FHIR

requirements. The content of the FHIR resources can

be represented in different formats such as XML,

JSON and Turtle, although other formats are also

Kiourtis, A., Mavrogiorgou, A., Kyriazis, D., Torelli, F., Martino, D. and De Nigro, A.

Holistic Health Records towards Personalized Healthcare.

DOI: 10.5220/0010509300780089

In Proceedings of the 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2021), pages 78-89

ISBN: 978-989-758-506-7

allowed. Consequently, it is possible to obtain

information structured according to the FHIR

resource data model, and represented in one of these

formats, resulting that this information can be

readable by both humans and machines. Within this

standard, 119 other resources (apart from the patient

resource) are defined at different maturity levels. To

this context, HL7 aims to define and limit the

structures used for the exchange of clinical

information.

Regarding the different coding systems, while a

terminology can refer to several different things, in

healthcare it is associated with the “language” used to

code entries in Electronic Health Records (EHRs)

(Monsen, 2019) including LOINC (LOINC, 2021),

SNOMED-CT (SNOMED-CT, 2021), ICD-10 (ICD-

10, 2021), or ICD-9 (ICD-9, 2021), among others.

Most people encounter medical terminologies at

some point in their lives – whether it is as physicians,

medical purchasers, or patients. In the world of EHRs,

terminology is one of the key parts for achieving real

interoperability between healthcare systems and

integrating their data. For instance, in the case that it

is needed to send data between two systems, for the

data to be usable, these systems must “communicate”

in the same language. This means that the codes from

one system must be compatible with the codes from

the other system. While it can be easy to combine data

from multiple systems in one place, in the case that

these codes cannot be mapped to one another, then the

data remain locked (Mavrogiorgou, 2017). Currently,

there exist several standards. As a result, a lot of

research is performed to map these various

vocabularies so that one can move easily from one to

the other, as long as one of the key ones listed earlier

is used. To this end, there is work that has been done

and is ongoing, such as mappings between ICD-9 and

ICD-10, LOINC and CPT (CPT, 2021), or LOINC

and SNOMED CT.

In this context, it should be noted that medical

information is typically represented following some

specific standards. The SNOMED-CT terminology is

an ontology that defines (some) concepts, such as,

some diseases in terms of their cause, the part of the

body they affect and how they can be diagnosed. It

also includes some food categories, sport categories

or activities of daily living. The Open Biomedical

Ontologies (OBO) consortium (Smith, 2007) is an

initiative trying to integrate the multiple ontologies

developed in the biomedical domain, which also

includes ontologies formalizing patient medical care

and EHRs. The International Classification of

Functioning, Disability and Health (ICF) (Cieza,

2002) is an ontology classifying health and health-

related domains from a body perspective, a personal

activities perspective and a societal perspective. It

classifies according to the body structure (i.e. eye,

ear, digestive systems, etc.), the body function (i.e.

mental, voice, etc.), activities and participations and

the environmental context. Thus, it contains medical

categories as well as some social categories as part of

the activities, participations, and environmental

domains. All concepts are linked to the ICD code in

the ICD terminology. The National Cancer Institute

Thesaurus (NCIT) (Zhe, 2002) is a reference

thesaurus covering biomedical concepts and inter-

concept relationships. As part of that, it also includes

medical categories, categories for physical activities,

social activities and behavioural categories.

However, a major problem is the success of using

ontologies in many domains, as it leads to the

development of many different not necessarily linked

ontologies and taxonomies. This creates in practice

the problem of interoperability, both at the taxonomic

and the semantic levels. To overcome that problem,

major effort is provided from initiatives, such as OBO

and BioPortal (Noy, 2009). It is also the motivation

for the OntoHub (Mossakowski, 2014) repository,

which behind the scenes attempts to utilize alignment

techniques from formal methods for the ontology

domain. The Medical Subject Headings (MeSH)

(Lipscomb, 2000) is a vocabulary maintained by the

US National Library of Medicine (NLM) (Lindberg,

1990). It is a hierarchically organized terminology of

biomedical information contained in NLM database,

including MEDLINE®/PubMed® (Fontelo, 2005). It

is often combined information following the RxNorm

(Liu, 2005), as well as the LOINC standard for

medical laboratory observations. Therefore, the mere

adoption of interoperability standards is not sufficient

to query health data coming from various health data

sources and systems, in a uniform, efficient,

complete, and unambiguous way.

In this manuscript, it is presented the data

integration approach in the form of HHRs that has

been adopted by CrowdHEALTH (Kyriazis, 2017).

CrowdHEALTH is a digital healthcare system aiming

to exploit big data techniques, applied to extended

health records and collective health knowledge (i.e.

clustered records), to evaluate healthcare governance

policies. One of the pillars of the CrowdHEALTH

system is the development and exploitation of the

HHRs. HHRs are intended to provide an integrated

view of the patient, including all health determinants.

Such health-related data may be produced by

different human actors or systems, in different

moments of a patient’s life, and include both i)

medical data, associated with regular patientcare or a

Holistic Health Records towards Personalized Healthcare

part of a clinical program, and ii) non-medical data

that may have an impact on the patient’s health status.

HHRs potentially include: (a) social and lifestyle data

collected by either the patient or other individuals

(e.g. family members, friends), (b) social care data

collected from social care providers, (c) physiological

and environmental data collected by medical devices

and sensors, (d) clinical data coming from healthcare

information systems and produced by healthcare

professionals (e.g. primary care systems and

electronic medical records), (e) laboratory medical

data, and (f) nutrition data.

The rest of this document is structured as follows.

Section 2 describes the HHR model, its goal and the

approach followed to realize it, aiming at satisfying

various data requirements, while Section 3 reports the

experimentation, the evaluation and the development

steps followed towards the creation of the HHR

model, through an easily followed example. To this

end, Section 4 includes an overall discussion of the

current results, including our conclusions and next

steps.

2 METHOD

2.1 Main Principles of the HRR Model

The goal of the CrowdHEALTH personalized

healthcare system is the development of a set of data

analysis tools that can be applied to different use

cases, possibly merging data coming from different

contexts. Therefore, there is the need to define one

integrated model for HHRs, in order to guarantee the

possibility to apply these tools to all produced data.

For these reasons, firstly the HHR model has to

represent in a consistent way all the data required by

the specific use cases. Secondly, the model is

intended to be a seed for future extensions. Thus, it

includes also types of data that are not currently

required but are considered likely to be used in the

near future or are useful to exemplify how the model

can be extended in the future. Thirdly, the model is

defined using existing models as a reference. In

particular, the FHIR standard has been selected as the

main reference for the definition of the HHR model.

While this standard is still under development and is

mainly capable to represent clinical data, it already

includes the possibility to represent data that is not

necessarily clinical, such as information coming from

environment sensors or related to the social aspects.

Moreover, thanks to the adoption of the concept of

“resources” and the definition of a flexible extension

mechanism, the FHIR model is conceived from the

fundament to be applicable in different contexts.

Together with the FHIR standard, CrowdHEALTH

also considers ontologies at the state of the art, useful

to qualify entity types that correspond to

specializations or abstractions of entities represented

by FHIR elements. Fourthly, the HHR model is

designed at conceptual level and in parallel mapped

with existing standards. The model is provided both

in a semiformal format, using UML, and in a

completely formal format, using a tiny XML

language, the HHR mapping language that was

created in the context of CrowdHEALTH. The HHR

mapping language allows to express in a simple way

both the structure of the model and its mapping to

FHIR and to existing or new terminologies. Several

constraints are imposed to the designer of the HHR

model to guarantee the feasibility of a direct mapping

to FHIR. The reason for not using directly the

selected reference standard is to untie the HHR model

from choices related only to the FHIR

implementation (for instance to simplify the

implementation of restful services), and make explicit

in the model some aspects that are implicit in FHIR,

so to ease the usage of the HHR model independently

from FHIR. Therefore, the HHR model aims on the

one hand to be easily implementable on top of

existing FHIR implementations, and on the other

hand it is also intended to be easily implementable

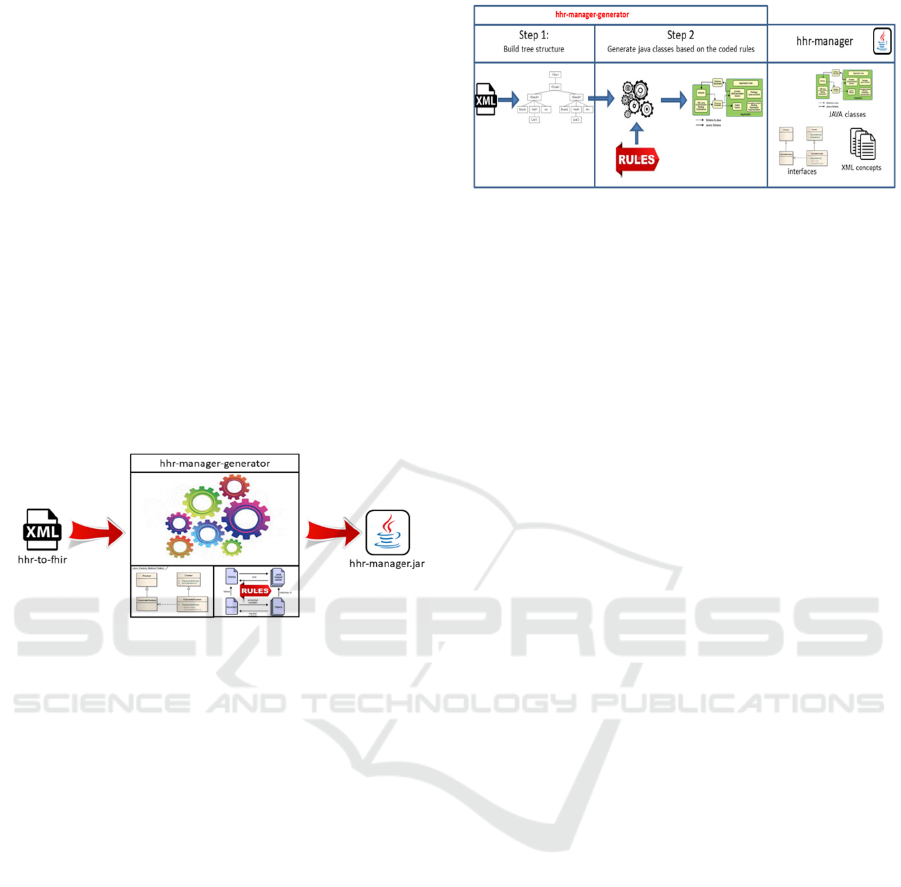

using different technologies. For example, the

CrowdHEALTH systems uses a Java implementation

of the HHR model, which is automatically generated

using the HHR mapping language and is different

from FHIR implementations, although easily

convertible to it.

2.2 Organization of the HHR Model

Similarly, to some of the existing standards, the HHR

model is described in a semi-formal way using UML.

Differently from other models, the HHR model also

has a completely formal description expressed with

the HHR mapping language (not described in this

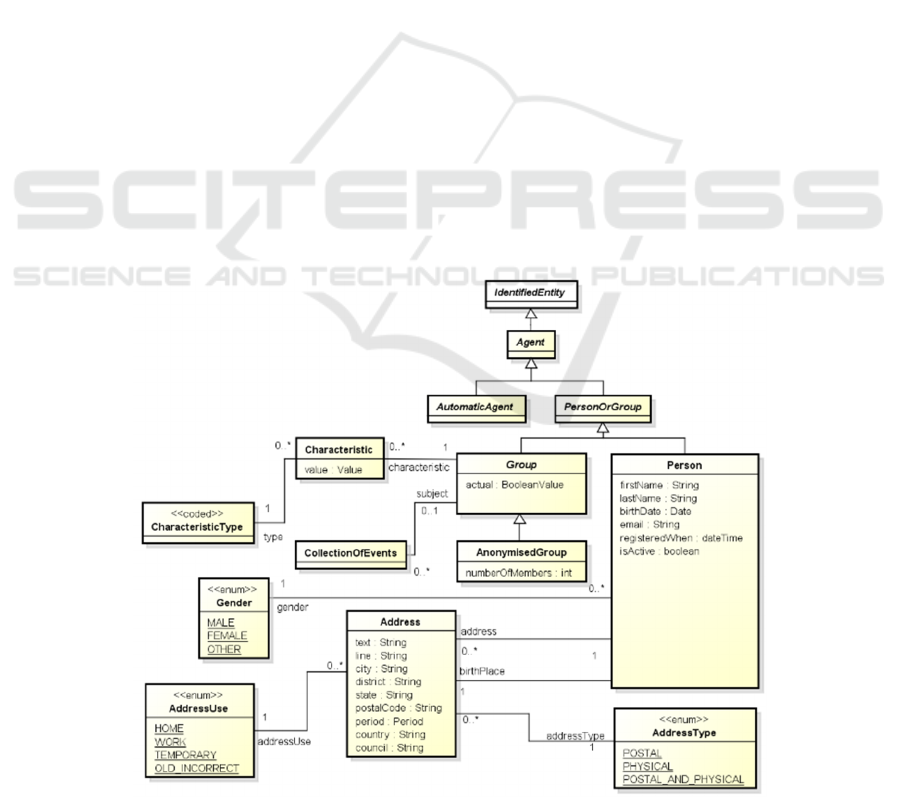

manuscript). The overall model is divided in several

packages to simplify the representation and the

description of the reported information. Each package

collects information related to a specific topic (e.g.

the representation of the information characterizing a

Person, clinical Conditions of patients or

Measurements performed on Persons). For each

fragment, the description of each entity and its

relationships with the other entities in the fragment is

reported. Although the model is split in several

packages, its classes belonging to different packages

have always different names, in order to reduce the

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

risk of misunderstanding and enable also

implementations that put all classes in a single

software package.

2.3 Level of Abstraction and Scope of

the HHR Model

As a rule, each class of the HHR model corresponds

to a resource type or a data type of the FHIR model,

with the difference that the HHR model is designed at

an ontological level and is more specialized than the

FHIR model. The usage of an ontological approach is

in particular evident in two aspects that distinguish

the HHR model from the FHIR model. One aspect is

that the multiplicity constraints on the UML

associations and attributes do not represent integrity

constraints, as in the case of FHIR, but represent real

world existence constraints. For instance, if an

attribute has minimum multiplicity equal to 1, this

does not imply that the value of that attribute must be

mandatorily stored or transmitted when exchanging

data, but only implies that at least one value of that

attribute always exists in the world, and this

information is actually not stored in any information

system or not transmitted. All the attributes of the

entities in the HHR model are not mandatory, i.e.

their values are not required to be stored or

transmitted for each data transmission occurrence.

Another aspect is the usage of abstract classes that

have no direct corresponding type in FHIR but

correspond to super-types of FHIR resource types.

Such classes are introduced to make explicit some

semantic commonalities that are implicit in the FHIR

model. Moreover, in order to represent ontological

distinctions that cannot be expressed with standard

UML, a specific stereotype and pattern is adopted.

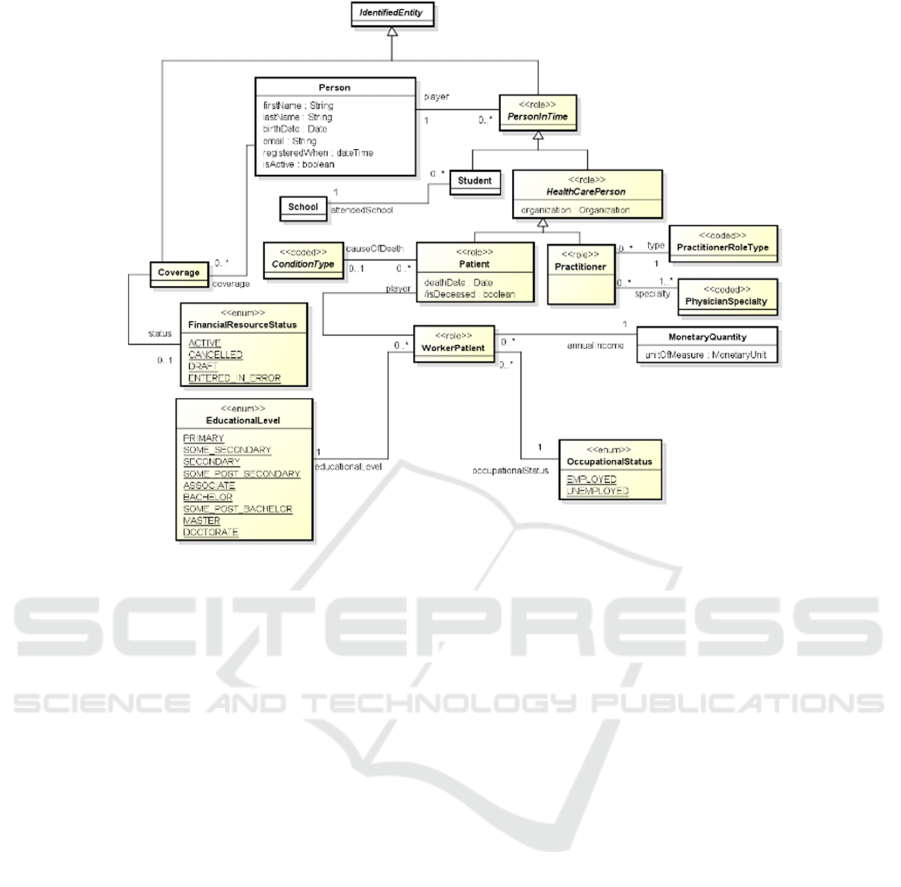

For example, classes of entities (e.g. Patient) that

correspond to roles of instances of other classes (e.g.

Person), are marked with the stereotype <role> and

use the standard relation “player” to associate the

entity (e.g. the person) that plays the role. If needed,

implementations of the HHR model may exploit the

explicit representation of roles and accept to assign

instances of a certain role as a value of attributes

whose type is not that role, but it is the type of the

instances that may play that role (e.g. accepting a

Practitioner as value of an attribute expecting a

Person). However, this cannot be realized for the vice

versa scenario (i.e. it is forbidden to assign a Person

to an attribute expecting a Practitioner). When a class

C has numerous subclasses, but these subclasses add

no specific attributes or constraints, then the

subclasses are reified. Each subclass is represented by

an item of an enumeration (stereotype <enum>) and a

mandatory attribute of the class C (with name Ctype)

is used to represent the specific subclass of the

instance. For example, the subclasses of the class

Condition correspond to values of the enumeration

ConditionType and the specific subclass of a

Condition instance is represented by the value of the

attribute named conditionType. The fact that the

HHR model is more specialized than the FHIR model

is also evident in several aspects. The most important

aspect in the HHR model is the absence of classes and

elements that are present in FHIR, since they are not

needed by the current CrowdHEALTH use cases.

Moreover, an HHR class that corresponds to a certain

FHIR resource class may have explicit subclasses that

are not represented as distinct resource classes in

FHIR. Differently from the addition of new attributes,

usually the introduction in the HHR model of these

explicit subclasses does not require a corresponding

FHIR extension. The instances of all such HHR

subclasses correspond to instances of the same FHIR

resource class, and their semantic type is distinct by

assigning a specific value, chosen from specific

terminologies, to a “category” or “code” attribute of

the resource class. The values of these attributes are

fixed by the HHR model, in order to assure that the

same type of data is always represented using the

same terms from the same terminologies. In other

terms, the HHR model explicitly and unambiguously

represents concepts that are needed by the

CrowdHEALTH use cases and either are implicit in

FHIR or need a FHIR extension.

As mentioned above, a few constraints are

imposed to the HHR model to guarantee an easy

mapping with FHIR and with specific coding

systems. The main constraint is that any leaf element

of the HHR model (i.e. any class, attribute or

association that does not have subclasses or

specializations) must correspond to exactly one

(resource or data) type of the FHIR model, i.e. all

possible instances of an HHR class must represent the

same entities of possible instances of only one

corresponding FHIR class. Another constraint is that

each instance of an HHR class must correspond to

exactly one instance of the FHIR model. On the other

hand, any non-leaf element of the HHR model, is

considered ontologically “abstract” (i.e. all its

representable instances or values must be instances or

values of some subclass). This is intended to avoid the

usage of instances of non-leaf classes to represent

unintended entities. Implementations may impose the

instantiation of only leaf classes. As HHR classes are

conceptual, advanced implementations may also

allow to instantiate non-leaf classes of the HHR

model, in order to allow to represent entities whose

Holistic Health Records towards Personalized Healthcare

type is not completely known, possibly allowing to

specify a more specific type in a second moment (i.e.

allowing the same instance to conceptually move

from a superclass to a subclass when more

information is available). Although the semantics of

the HHR elements are usually more specific than the

ones of the FHIR model, in order to make the

mapping more evident, the name of the most general

HHR element that is mapped to a specific FHIR

element usually takes the same name of the

corresponding FHIR element. In any case, different

names are chosen when the semantics of the HHR

element are specific and would be misleading to

adopt the same name with FHIR. The detailed

specialization of the HHR model, with respect to

more general-purpose standards, has the advantage of

reducing the ambiguity of the model and simplifying

its comprehension, thus mitigating the risk that

different standard elements are used to represent the

same type of information. The final version of the

HHR model aims to represent the information

enabling the execution of all the use cases of the

CrowdHEALTH system.

2.4 Steps Followed to Define the HHR

Model

Following the general incremental development

approach of the CrowdHEALTH project, the

development of the HHR model followed a multi-

cycles process, producing two different versions of

the HHR model aligned with corresponding versions

of the use case requirements. In each development

cycle, different tasks have been performed.

(i) Firstly, each use case leader has been asked to

describe the information that she would like to store

and analyse using the CrowdHEALTH tools,

focusing on the data needed for the first version of

their use case implementation. A template was

provided to each use case to perform this description.

It was asked to create and describe a UML conceptual

diagram representing the type of entities and

relationships described by their data source

(abstracting from implementation details of the actual

database scheme). It was also asked to describe, using

specific tables, each attribute of each entity and the

corresponding cardinality and value constraints. In

the second cycle this description has been in some

case produced by extending the one produced during

the first cycle, and in some other case, starting the

process from scratch to obtain a better model.

(ii) Secondly, different analysts have been

assigned to each use case, in order to clarify

ambiguity issues related to their data source and to

express a mapping of their dataset scheme to the

FHIR model, in order to disambiguate the semantics

of each type, relationship and attribute. The mapping

was expressed using specific tables and the FHIRPath

language.

(iii) Thirdly, all the conceptual models produced

by the use cases have been merged, one by one, in a

unique HHR model. In this phase, different

conceptual classes that different use cases had

mapped to the same FHIR classes or to FHIR classes

with similar semantics have been merged in a unique

HHR class, or in different subclasses of a same

abstract HHR class. The same analyses have been

performed for attributes and associations.

(iv) Fourthly, it took place the formalization of the

mapping to FHIR using the same semi-formal

approach used for the mapping of data source

conceptual schemes.

(v) Fifthly, it took place the definition of the HHR

model and of the mapping to FHIR using the formal

XML language specified by the CrowdHEALTH

project.

The resulting specification distinguish general

purpose concepts that are included in the HHR model,

and extensions to the HHR model required by specific

use cases. The extensions of the HHR model are

formalized in the same way of the HHR model, but

are not considered mandatory parts of the HHR

model, because they represent information that is

meaningful only to a specific organization and does

not need to be exchanged in a standardized way with

other organizations.

2.5 Health-related Aspects Covered by

the HHR Model

The data types that are covered by the HHR model

belong to nine different categories. In particular:

(i) Physical activities: workouts, biodata and

fitness tests performed by a person or groups of

persons.

(ii) Lifestyle: data concerning sleep, substances

consumption such as alcohol, tobacco or recreational

drugs. It also covers data regarding daily habits.

(iii) Social: data related to social interactions, such

as the emotion, the number of the contact in the phone

or the number of exchanged multimedia items.

(iv) Events: all aspects concerning episode of care,

hospitalizations, clinical procedures, laboratory tests

and care plans.

(v) Medications: all data regarding the

prescription, request, and assumption of medication.

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

(vi) Conditions: symptoms, diagnosis, allergies,

and intolerances that a specific patient or group of

patients suffer.

(vii) Nutrition: all data regarding the food and

beverage intake.

(viii) Administrative: demographics and other

administrative information about an individual or

group of individuals. It also includes information

about the educational level, occupational status and

assurance of individuals, and information about

organizations.

(ix) Measurements: measurements and simple

assertions about a patient, device, or other subject. It

also includes collective health measurements about a

group of persons sharing common characteristics.

2.6 Health-related Aspects Covered by

the HHR Model

This sub-section presents the “Person” package of the

HHR model, which specifies classes, attributes and

roles characterizing a person or a group of people.

Fig. 1 illustrates a UML class diagram that includes

the class Person of the HHR model, which represents

demographics and administrative information about a

person that is independent of any specific health

context. The gender is modelled by the Gender

enumeration, while her address and birthplace are

modelled with the class Address, having a specific

AddressUse and AddressType. The same figure

illustrates the class Group, which represents a group

of people sharing a common set of characteristics

and/or a common set of CollectionOfEvents. The

reification of a valorised property/attribute is

represented by the class Characteristic, while the

CharacteristicType is the attribute/property that is

reified by a characteristic. Group is specialized in

AnonymisedGroup when the identity of their

members is unknown. Person and Group inherit from

PersonOrGroup together with AutomaticAgent, the

unique identifier from their superclass Agent, from

which a specific person or group of persons may be

identified in CrowdHEALTH.

The Class Coverage (shown in Fig. 2), associated

to Person, is intended to provide the high-level

identifiers and potentially descriptions of an

insurance plan, which may be used to pay for, in part

or in whole, the provision of healthcare products and

services. Its status is modelled with the

FinancialResouceStatus enumeration. A same person

can play different individual roles into different

contexts. Each individual role of the same person is

represented by a different instance of the class

PersonInTime. An instance of PersonInTime is a

view of a person related to a specific time frame

and/or a specific context (depending from the specific

subclass). This means that a same person may

correspond to several instances of PersonInTime,

where each instance describes information of the

person that is specific to the corresponding role, and

Figure 1: HHR demographic attributes characterizing a person.

Holistic Health Records towards Personalized Healthcare

Figure 2: HHR attributes characterizing the roles of a person.

it is related using the “player” association-end, to the

person that plays that role. In particular, a person has

the role Patient when she is the subject of the

healthcare activities provided by HealthCare

professionals.

If the same person has been assisted by two

different healthcare providers, then it plays two

different Patient roles (corresponding to two different

instances of the class Patient). On the other side, a

person has the role of Practitioner when she is a

qualified medical doctor, with one or more

PractitionerSpecialty, and works for a specific

organization. If the same practitioner works for

different organizations, it plays two different

instances of PractitionerRoleType, corresponding to

the set of the roles that a practitioner may perform at

an organization for a specific period. The superclass

of Patient and Practitioner is HealthCarePerson,

representing any person that plays a role in an

HealthCareOrganization. The role of WorkerPatient

is played by a Person that performs a specific work in

a specific frame of time that has an EducationLevel

and an occupationalStatus with a specific annual

income represented by the class MonetaryQuantity.

When a Patient passed away, the cause of the death is

represented by an instance of the class

ConditionType.

3 RESULTS

3.1 Source Code

A specific Java library, called HHR Manager, allows

to instantiate and modify in-memory Java objects that

are compliant to the HHR conceptual model. Based

on what has been described in Section 2, in order to

produce the HHR conceptual model, the HHR model

has been first formalized using a language called

“HHR mapping language”. This is an XML language,

specifically designed for the HHR model, that allows

to specify in a machine-interpretable way the

structure of HHR types and map them to the structure

of corresponding FHIR resources. The HHR mapping

language is basically a declarative language for

defining and mapping document oriented (i.e. tree-

like) data structures and exploits the FHIRPath

language to navigate such structures. The HHR

mapping language can be considered as an alternative

to the FHIR mapping language, that is currently being

specified as part of the FHIR standard. The FHIR

mapping language is an imperative language and

arguably more powerful than the “HHR mapping

language”, but often produces complex descriptions.

Instead the “HHR mapping language” is intended to

be more lightweight. The current prototype of the

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

HHR Manager is released on the Artefacts repository

of the CrowdHEALTH project as a jar file named

“hhr-manager-1.3.5.jar”, while the machine-

interpretable definition and mapping of the HHR

model is released as a separate XML file named

“hhr_to_fhir”. The HHR Manager is written in Java

8, while the mapping file is written in XML version

1.0. The HHR Manager generator is released on the

repository of the project as jar file named “hhr-

manager-generator”.

3.2 HHR Manager Library

The hhr-manager library is the output of another

developed tool called “hhr-manager-generator”. It

takes as an input the hhr-to-fhir xml file defining the

structure of all classes, attributes and enumerations

included in the HHR model and produces in output

the java code of the hhr manager library (Fig. 3).

Figure 3: The hhr-manager-generator tool.

The hhr-manager-generator tool consists of three

parts:

(i) A set of predefined interfaces to instantiate

and serialize/de-serialize the HHR objects and HHR

concepts (HHRFactory, ConcreteHHRFactory and

Serializer). They are not produced by the tool but they

were written by hands and hard-coded.

(ii) The implementation of a set of rules to

generate the source code (of abstract and concrete

java classes, java interfaces, java enumerations,

attributes, getter and setter methods). There is a set of

rule for each kind of tag of the hhr-maping-language.

(iii) The implementation of a set of rules aiming to

add JAXB annotations to serialize/de-serialize HHR

objects to/from XML documents.

The hhr-manager-generator works in two phases

(Fig. 4): in the first phase a parser analyses the

definition of the HHR model given as input (hhr-to-

fhir.xml) expresses using the hhr mapping language

and builds a hierarchical tree structure. The structure

of the tree is then navigated and the rules for

generation of source code and JAXB annotations are

applied.

Figure 4: Functionality of the hhr-manager-generator.

The output is the generation of the hhr-manager

library containing the source code of Java classes, the

interfaces to instantiate and serialize/de-serialize hhr

objects and standard xml files for the concepts included

in HHR model. Thanks to the hhr-manager-generator

tool it is easy to update the source code of the hhr-

manager whenever new classes, new attributes (or

changes to the existing ones) are added to the HHR

model expressed by the input file hhr-to-fhir.xml.

The introduction of this new tool allows to each

use case (or other stakeholder) to extend the HHR

model by editing the file hhr-to-fhir.xml and generate

the corresponding hhr-manager library. Therefore,

the developer of a use case may choose to use just the

provided XML file describing the final version of the

HHR model or can add it whatever extensions

extension is needed.

Moreover, if some use case requires just to add

new instances to some coded class, then it is not

needed to re-generate the HHR manager. The distinct

files that defined the instances of the <coded> classes

are loaded and interpreted at runtime, therefore the

developer of the use case has just to extend the

content of these files.

3.3 Working Environment

The HHR Manager depends on a standard java virtual

machine that supports Java 8. It can be imported in

any compatible project. Similarly, the mapping file

may be read with any XML parser compatible with

XML version 1.0. Also, the hhr-manager-generator

requires a virtual machine supporting Java 8.

3.4 HHR to FHIR Mapping Example

This section reports an example of usage of the HHR

mapping language. In particular, it shows how to map

the class CarePlan of the HHR model. It maps the

HHR class CarePlan to the homonymous FHIR

resource type CarePlan. An instance of HHR

CarePlan is converted to an instance of FHIR

CarePlan, its attributes type, intent and status are

Holistic Health Records towards Personalized Healthcare

mapped respectively to the attributes type, intend and

status of the FHIR resource CarePlan. It should be

noted that, when a class (like CarePlan, in this

example) inherits from a supertype (PersonOrEvent,

in this example), the mapping of all the inherited

attributes may be specified within the definition of the

supertype. If the supertype inherits from another

supertype the mapping is also inherited by the its

supertype and so on. The specification of the mapping

of an HHR class ends where there is a type without

any supertype. In the case of the class CarePlan of the

HHR model, the mapping to FHIR ends in the class

IdentifiedEntity which has not any supertype (the

inheritance chain is IdentifiedEntity,

PersonOrGroupEvent, CarePlan).

The attribute identifier of the HHR class CarePlan

is mapped to the attribute identifier of the FHIR type

CarePlan. The mapping of this attribute is contained

in the tag <class> of the HHR conceptual class

IdentifiedEntity. Note that this HHR conceptual class

has no correspondent FHIR type (indeed the tag-

attribute fhirName is empty). More in details the

value attribute of HHR Identifier is mapped to the

value attribute of FHIR identifier while the attribute

system of the HHR class Identifier is mapped to the

attribute system of the FHIR type Identifier. Note that

isMultipleValue=”true” so there can be more than one

value for the attribute identifier.

The HHR class Agent has no corresponding FHIR

type and therefore the fhirName is set to the empty

string. It is an abstract class having as superclass

IdentifierEntity.

Also, the HHR class PersonOrGroupEvent has no

corresponding FHIR type and its attributes are

mapped within the tags <class> of the subclasses.

The attribute performer of HHR abstract type

Agent is mapped to the attribute performer.actor of

the target FHIR resource type. Note that

isMultipleValue = ”true” so there can be more than

one instance of the attribute performer. The attribute

subject (of HHR abstract type PersonOrGroup) is

mapped to the FHIR attribute subject of the target

resource. The attribute note is mapped to the FHIR

attribute comment. The remaining attributes are

mapped to FHIR extensions of the target FHIR

resource, each one having a specific

StructureDefinition.

 asserter (of type HHR abstract class

HealthCarePerson) which StructureDefinition is

defined at http://hl7.org/fhir/StructureDefinition/

asserter

 isAutomatic (of HHR type boolean) which
