Involving Humans in the Cryptographic Loop: Introduction and Threat

Analysis of EEVEHAC

Julius Hekkala

, Sara Nikula

, Outi-Marja Latvala

and Kimmo Halunen

2,3

VTT Technical Research Centre of Finland, Kaitov

ayl

a 1, Oulu, Finland

University of Oulu, Faculty of Information Technology and Electrical Engineering, Oulu, Finland

National Defence University, Department of Military Technology, Helsinki, Finland

Keywords:

Human Understandable Cryptography, Visualizable Cryptography, Narrative Authentication, Secure Channel.

Abstract:

Our digital lives rely on modern cryptography that is based on complicated mathematics average human users

cannot follow. Previous attempts at adding the human user into the cryptographic loop include things like

Human Authenticated Key Exchange and visualizable cryptography. This paper presents our proof-of-concept

implementation of these ideas as a system called EEVEHAC. It utilizes human capabilities to achieve an end-

to-end encrypted channel between a user and a server that is authenticated with human senses and can be used

through untrusted environments. The security of this complete system is analyzed. We ﬁnd that the combina-

tion of the two different systems into EEVEHAC on a theoretical level retains the security of the individual

systems. We also identify the weaknesses of this implementation and discuss options for overcoming them.

1 INTRODUCTION

Modern cryptographic systems protect users and ser-

vices from many threats such as loss of conﬁdential

information or unauthorized access. However, for the

human end users these cryptographic protections are

opaque and it is very hard for them to gain informa-

tion on whether the cryptographic protocol has been

correctly executed in human understandable terms.

There are many methods that could provide some

human understandable elements to cryptography, e.g.,

visual cryptography (Naor and Shamir, 1994). But,

there is more to trusting cryptography than visually

decrypting some outcomes. For example, key gen-

eration and exchange are important procedures that

have great impact on the security of a system, and

human-compatible functions (Boldyreva et al., 2017)

provide ﬁrst solutions to this problem. An interested

reader can read a recent review by Halunen and Lat-

vala (2021) for more examples of cryptography and

human abilities.

Despite the promising developments on individual

components that try to make cryptography more hu-

man friendly, there has not been a complete system

that combines all the needed aspects for an encrypted

communications channel. In this paper we introduce

and provide a threat analysis of EEVEHAC (End-

to-End Visualizable Encrypted and Human Authen-

ticated Channel), a system that combines Human Au-

thenticated Key Exchange (HAKE) (Boldyreva et al.,

2017) and a visualizable encryption scheme (Forte

et al., 2014). Even though these concepts have been

studied in former papers, no papers discussing them

as an integrated system have been published.

The paper is organized as follows. Section 2 con-

tains an overview of the whole system, and a threat

model for the whole system is presented. In section

3, the HAKE utilising stories and colors and its threat

analysis is presented. Section 4 covers the visualiz-

ably encrypted channel, threats related to it and its

security analysis. Section 5 includes security analysis

of the whole EEVEHAC system. Finally, discussion

and conclusion sections close our paper.

2 OVERVIEW OF EEVEHAC

EEVEHAC utilizes HAKE by Boldyreva et al. (2017)

in establishing keys between a server and a mobile

device. The keys are used in visualizable encryption,

which is utilized in establishing a secure channel be-

tween the human user and the server, via an untrusted

terminal. This channel can be used for, e.g., perform-

ing a simple PIN authentication. Figure 1 presents

a schematic overview of the EEVEHAC system and

Figures 2 and 4 showcase our implementation.

Hekkala, J., Nikula, S., Latvala, O. and Halunen, K.

Involving Humans in the Cryptographic Loop: Introduction and Threat Analysis of EEVEHAC.

DOI: 10.5220/0010517806590664

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 659-664

ISBN: 978-989-758-524-1

659

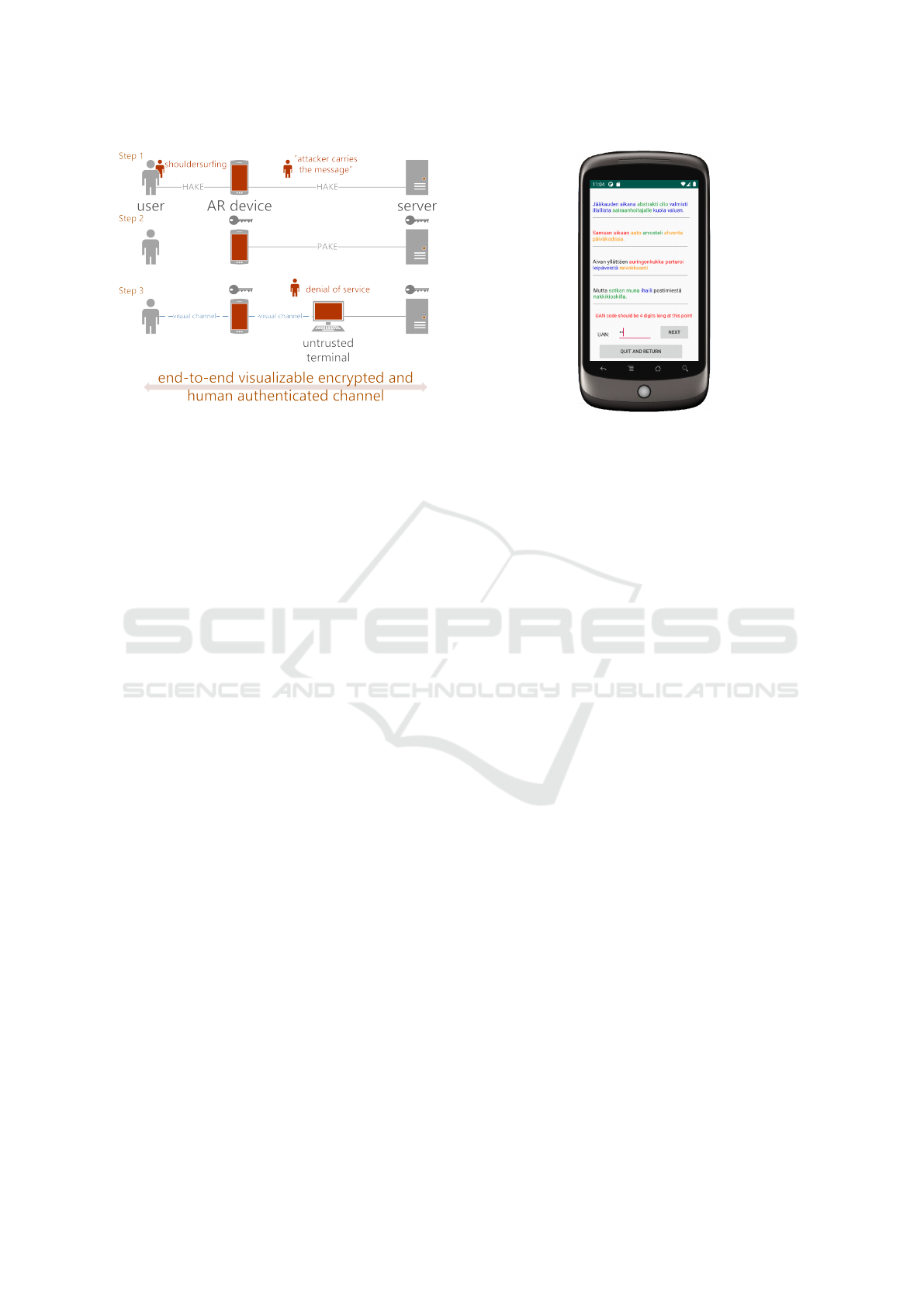

Figure 1: Overview of the EEVEHAC system. Steps 1 and

2 cover the ﬁrst part (HAKE) of the system. The third step

covers the second part of the system, i.e. the visualizable

encryption scheme. An attacker may be physically present

or online in the connection to the server.

In Figure 1 we have depicted a trusted user’s device,

that has a camera and a screen for augmented real-

ity (AR) purposes, a server, and an untrusted terminal

in a public space. A story database and the keys for

the visualizable encryption scheme are stored on the

user’s device and on the server. There are three actors:

the user, the server and an attacker.

The objective of the user is to log into the service,

the server’s is to allow legitimate users to log in. An

attacker’s objective is to steal the user’s credentials.

There are two types of keys the attacker could ob-

tain: the long term keys generated during the HAKE

phase and the short term session keys used with the vi-

sual channel. The long term keys are more valuable.

Threats towards the server are ruled out of scope.

We assume that the user’s device is trusted: there

is no malware and no one else can access it. The pub-

lic device is untrusted: it may have malware, anyone

can access it and actions on it are visible to onlookers.

The server is neutral: there are no protocol violations.

The story database needed for the ﬁrst step is public,

but the color mapping for each user is secret. Com-

munication between the public device and the server

is unsecured and there is only a visual channel be-

tween the public device and the user’s device.

The threat model used in this paper is based on the

well-known Dolev-Yao model (Dolev and Yao, 1983).

This model has several parties using the same com-

munication protocol: All messages are encrypted, and

only the legitimate receiver possesses the decryption

key. Anyone can read, copy and resend messages and

anyone can write and send forged messages. The at-

tacker is a legitimate user of the communication net-

work trying to obtain the original plaintexts.

Figure 2: Inserting the UAN code in our implementation.

In our scenario, an attacker on the Internet is able to

see and manipulate messages between the user’s de-

vice and the server, as well as the untrusted terminal

and the server. This is depicted as the ”attacker car-

ries the message” -ﬁgurine in Figure 1. An attacker

present on the use location may be able to see critical

information on the personal device, or be able to dis-

rupt the visual channel by, e.g., standing in the way

(”shouldersurﬁng” and ”denial of service”).

3 HAKE FOR EEVEHAC

Boldyreva et al. (2017) present the Human Authen-

ticated Key Exchange protocol, a new type of inter-

action between a human user and a server. The user

receives a challenge from a server, computes the an-

swer in their head and responds. The messages sent

need to be human readable or human writable, and

the mathematical operations human computable.

The value of including this protocol in our system

is that it involves the human user in the authentica-

tion phase at a new level. In contrast to traditional

cryptographic protocols, the human user can compute

the answer in their head and thus it should be clear

to them why the authentication protocol succeeded,

increasing trust towards the system and further inter-

actions between the user and the server.

3.1 Our Implementation

HAKE in EEVEHAC is the Basic Generic HAKE

protocol by Boldyreva et al. (2017). For the Password

Authenticated Key Exchange (PAKE) part of the pro-

tocol we used the Encrypted Key Exchange (Bellovin

and Merritt, 1992). The result of the human under-

standable function is used in PAKE to encrypt the ﬁrst

SECRYPT 2021 - 18th International Conference on Security and Cryptography

660

messages sent between the client and the server.

Our HAKE schema is based on a story and a map-

ping between colors and numbers. First, the user and

the server establish a long time secret as the user reg-

isters to the service. In this phase, the user gets a story

and an identifying user number. Basis of the story is

automatically generated by the server, but the user can

modify it, balancing the strengths and weaknesses of

machine and human generated stories. Machine gen-

erated stories are random and hard to guess, whereas

human generated stories are easier to remember (So-

mayaji et al., 2013).

The user also gets a color-to-number mapping,

which includes six numbers corresponding to six col-

ors in our implementation. The colors are the same

for every user, but the numbers vary between users.

The user needs to memorize this secret mapping in

order to use it in every authentication session in the

future.

In the login phase, the user sees colored, gram-

matically correct sentences on the screen of their de-

vice (Figure 2). Some of the sentences come from

the original story, but one word has been changed in

them. The user detects the changed words and notes

their colors. Next they recall the corresponding num-

bers and count modulo 10 of the sum of these num-

bers. The result is entered in the Unique Authentica-

tion Number (UAN) sequence. These steps are iter-

ated as many times as is the length of the UAN.

3.2 Threat Model of HAKE

The goal is that the user can establish a secure channel

with the server based on their knowledge of the long

time secret: the user and the server exchange keys for

subsequent phases, and nobody else has knowledge

of these keys. The long time secret should not be re-

vealed even if an attacker sees some challenges and

responses in a key exchange session.

The threat model assumes that there is a human

computable function, and a channel between the user

and the server is established by applying this function

to the challenges and answering them correctly. Our

HAKE protocol consists of sum and modulo opera-

tions based on the user’s story and color-to-number-

mapping. A secure HAKE protocol should not re-

veal the long term secret even if a limited number of

challenge-response-pairs were leaked. Furthermore,

the attacker should not be able to build a connec-

tion with the server by impersonating the user, or vice

versa, without knowledge of the long time secret.

In the registration phase, there is a risk of a man-

in-the-middle attack. Since the registration is con-

ducted on a computer with Internet connection (e.g.

TLS) to the server, threats concerning it are the same

as with any communication over the Internet.

If an attacker can obtain the long term key via

breaking the HAKE protocol, the visual channel be-

tween the user and the server would no more be se-

cure. Our threat model related to this case has ele-

ments similar to presented by Boldyreva et al. (2017).

We consider two types of attacks: a brute force at-

tack, where an attacker tries to complete the protocol

by guessing, and a man-in-the-middle attack, where

an attacker is eavesdropping on a real authentication

session. In the latter case, the attacker can try to ﬁg-

ure out the long time secret by numerically analyzing

challenges and responses. In this case, an attacker can

also modify the messages sent by the server, to try to

derive even more information about the long time se-

cret.

3.2.1 Security Analysis of HAKE

Currently, whoever possesses the user number can ask

for challenges from the server. Because the server

only modiﬁes the clauses in the user’s story by chang-

ing one word at a time, after seeing 2 or 3 authen-

tication sessions it becomes easy to infer the origi-

nal story. Thus, the security of the UAN protocol is

based solely on the color-to-number mapping. Be-

cause this protocol is executed only rarely, we ex-

pect that the user can make sure the environment is

safe (e.g., by doing it at home). However, we will

go through a scenario where a shoulder surfer is able

to see some challenge-response -pairs in a UAN ses-

sion, and analyze their possibilities to break the pro-

tocol. Moreover, an active attacker can be more ef-

ﬁcient than a passive one, since they can pick opti-

mal challenges to get the most information out of the

challenge-response-pairs.

Every UAN code consists of four digits. Thus the

probability that an adversary can, if only given one

pure guess, correctly guess the UAN code is 1/10000.

Considering the color-to-number mapping, there are

in total 6

possible mappings between six colors and

ten numbers. Thus, the probability that an adversary

can correctly guess the mapping without any addi-

tional information is 1/(6

An attacker listening to messages sent in one or

more UAN sessions can derive information of the

long time secret either by constructing a list of cor-

rect answers corresponding to a speciﬁc color combi-

nation, or by trying to ﬁgure out the secret color-to-

number-mapping. With n different colors, it is possi-

ble to make n(n − 1)/2 +n combinations; n(n − 1)/2

combinations of two different colors and all n colors

combined with themselves. In our implementation,

there are six colors and 21 possible color combina-

Involving Humans in the Cryptographic Loop: Introduction and Threat Analysis of EEVEHAC

661

tions. After seeing challenges and responses in one

UAN session, an attacker would have seen approxi-

mately 4 different color combinations, and 17 remain

unknown. To successfully impersonate the user, an at-

tacker would need information on all the asked color

combinations in the four challenges sent by the server.

The probability that all four challenges in the next

UAN session only include color combinations already

seen by an attacker is (x/(n ∗ (n − 1)/2 + n))

, where

x is the amount of different color combinations seen

by an attacker and n is the amount of colors.

Another way to break the UAN protocol is to de-

rive information about the color-to-number-mapping

by comparing challenges and responses. Because the

user is counting modulo 10 of the sums, every digit

entered in the UAN code can be derived from two

different numbers, e.g. 3mod10 = 13 mod 10 = 3.

For every such number pair there are ﬁve combina-

tions of two different numbers which result to this

number when summed together: e.g., 5 + 8 = 13 and

3 + 0 = 3. In order to make use of this information

in subsequent authentication sessions, the adversary

must not only know which two numbers were added

together but also which color corresponded to which

number. In this case every pair of numbers can be

derived from two different mappings, e.g., red = 5

and green = 8 or vice versa. Because there were ﬁve

possible number combinations yielding the outputted

digit and two possible mappings per one combination,

one answer to a challenge including two different col-

ors can be derived from ten different color-to-number

mappings. This is illustrated in Figure 3a. The case

with one color seen twice is illustrated in Figure 3b.

4 VISUALIZABLE CHANNEL

The second part of EEVEHAC is an end-to-end visu-

alizably encrypted channel. For this purpose, EEVE-

HAC implements EyeDecrypt (Forte et al., 2014).

The original model consists of a user’s personal de-

vice with the app installed, a server and an adversary.

Data moving in the visualizably encrypted channel is

divided into frames and blocks. A frame represents

the contents shown on the screen of the untrusted de-

vice at one point of time and is divided into multiple

blocks. In our implementation a frame contains six

blocks (QR codes in 3x2-grid).

According to the model, an adversary can manip-

ulate the untrusted device and also shoulder-surf. Ac-

tive adversaries can manipulate the communication

between the server and the untrusted device and thus

deploy e.g. man-in-the-middle attacks, while passive

adversaries observe the user’s inputs and the screen

of the untrusted device. Forte et al. (2014) deﬁne the

security of EyeDecrypt in terms of how much infor-

mation can leak from the system to the adversary: the

visual representation of the current frame, any user

input or information gained from active tampering.

Forte et al. (2014) also formally deﬁne visual-

izable encryption and its security proof. Because

EEVEHAC includes the whole EyeDecrypt scheme,

we assume the security proofs presented in the paper

hold for the visualizably encrypted end-to-end chan-

nel part of EEVEHAC. EyeDecrypt requires a visual

encoding scheme that fulﬁlls certain requirements:

the visual encoder needs to encode a single unit of

code in a single block, the system must be able to de-

crypt multiple blocks at once and know and interpret

the spatial arrangement of the blocks.

4.1 Our Implementation

In our proof-of-concept implementation, the un-

trusted device and the trusted server run on the same

laptop. For the user’s trusted device, we used a smart-

phone. After completing the HAKE phase the server

and the user’s smartphone have matching AES (Dae-

men and Rijmen, 2002) and HMAC (Krawczyk et al.,

1997) keys that are used to encrypt and decrypt mes-

sages as well as to authenticate the server’s messages.

The server sends the encrypted messages to the

untrusted device, which shows them in their respec-

tive positions in the UI grid as QR codes. The user

scans them with the smartphone camera. When the

application recognizes all 6 QR codes simultaneously

in a single frame of the camera feed, it starts process-

ing the QR codes. The application checks the posi-

tions of the QR codes: incorrect positions are indi-

cated to the user with red frames on the QR codes in

the camera view. Correct positions are indicated with

green frames, see Figure 4. If the messages are uncor-

rupted, the application can decrypt them correctly and

show the plaintext to the user in the camera view on

top of the QR codes. If the application cannot decrypt

the ciphertexts to understandable messages, the user

can see that something has gone wrong.

5 SECURITY ANALYSIS

This section contains security analysis of the whole

EEVEHAC system. We consider both active and pas-

sive attacks. Active attacks include things like copy-

ing or forging messages, while a passive attacker only

observes the user and service provider.

An active attacker could try to impersonate the

user or the server. If they manage to break the HAKE

SECRYPT 2021 - 18th International Conference on Security and Cryptography

662

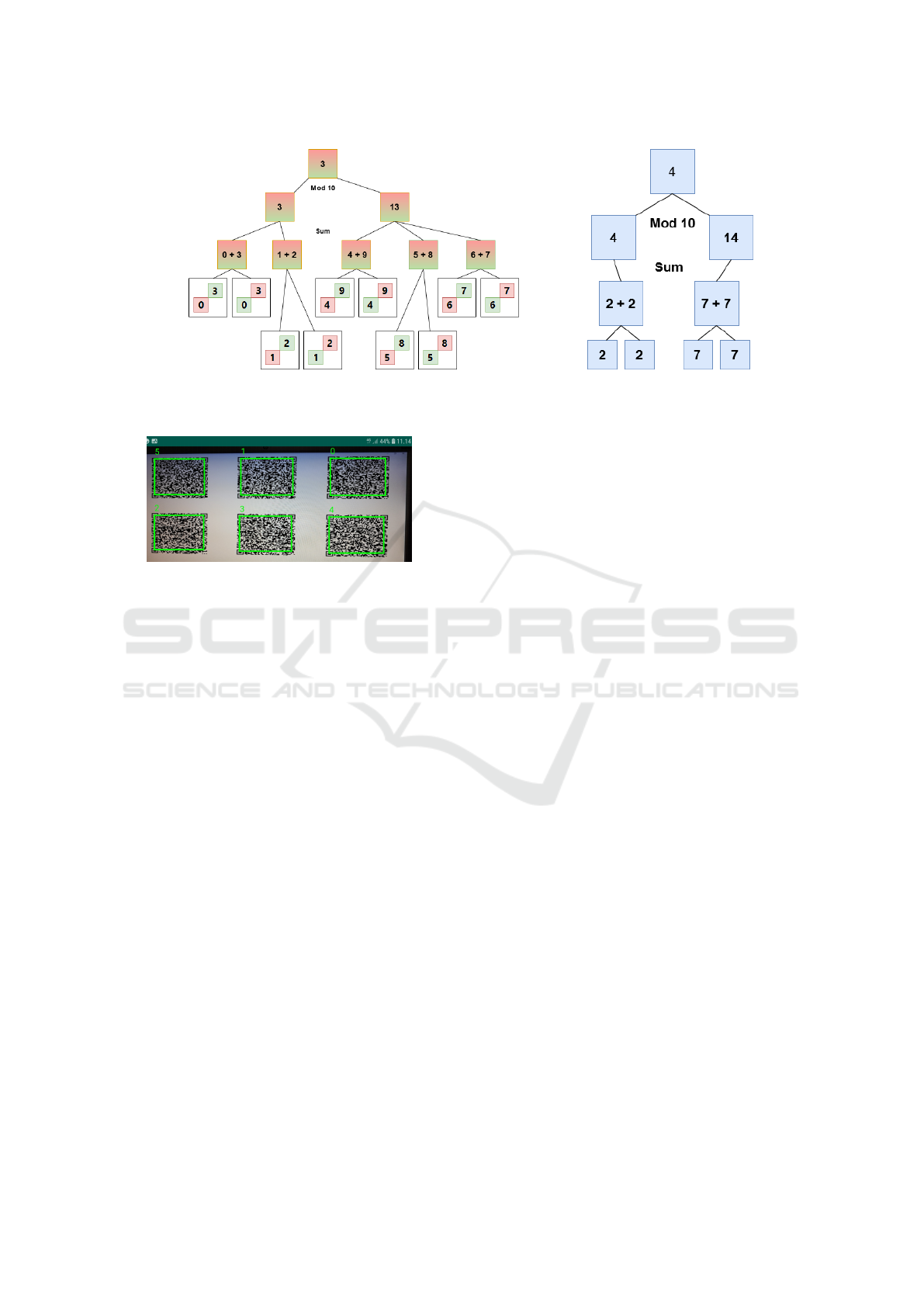

(a) Using two different colors (b) The same color used twice

Figure 3: Example cases of deriving numbers for UAN.

Figure 4: Scanning QR codes in our implementation.

protocol they would gain access to a new long term

key that is used in encrypting the messages in the

second phase. The acquired key would be different

than the long term key previously used between the

user and the server. A resulting mismatch between

the server and user keys means that the second phase

is unsuccessful, alerting the user to something be-

ing wrong and re-doing the HAKE phase. Moreover,

messages sent before the impersonation cannot be de-

crypted with short term session keys derived from the

new long term key. If the impersonation attack is

successful simultaneously in both directions and the

HAKE protocol is broken, all three parties would have

the same long term key, and EEVEHAC is defeated.

If the attacker acquires an established long term

key on the user’s device, they could examine all mes-

saging between the user and the server without alert-

ing either party and the EEVEHAC system would not

work. This could be done by planting malware on the

user’s device. However, this contradicts our original

assumption that the user’s device is trusted.

What happens when the long term keys are not

compromised? Now, the attack focuses on the latter

phase of EEVEHAC, which uses short term session

keys and is used more often than the HAKE phase

discussed above.

An attacker is assumed to be able to attach them-

selves between the server and untrusted device and

read and edit the messages. Not sending the messages

forward or replacing them with random data works as

a denial of service. Unless the attacker has access to

the most current AES and HMAC keys, they are not

able to produce coherent messages that would fool the

application in the user’s smartphone.

When the untrusted terminal is used in a public

space, we assume that a shoulder surfer can see all the

blocks in the frames and what inputs the user makes.

The decrypted data, however, is only visible on the

user’s device. If the attacker wanted to see it they

would need to be very close to the user, risking detec-

tion. If EEVEHAC was run on a futuristic AR device

like smart glasses, risk of shoulder surﬁng would be

minimal.

6 DISCUSSION

The security analysis of the HAKE part of EEVEHAC

revealed that the security level of the current imple-

mentation is poor. There are at least two options for

improving it: adding more colors or making the user-

speciﬁc story secret.

Increasing the number of colors from 6 to 10

would increase the number of possible color combi-

nations from 21 to 55. However, this might not be

user friendly: it would be more difﬁcult to learn the

mapping, and there is a limited number of clearly dis-

tinguishable colors available. The color choices need

to take into account visual impairments and the fact

that different devices display color differently. The

calculations involved in the HAKE phase might also

disadvantage some people.

Protecting the user-speciﬁc story would increase

the computational difﬁculty of breaking the UAN pro-

tocol: an eavesdropper seeing clauses on the screen

would no longer know which colors are added to-

gether, because they would not know which words

Involving Humans in the Cryptographic Loop: Introduction and Threat Analysis of EEVEHAC

663

are wrong. In the current implementation, one chal-

lenge in the UAN protocol includes four clauses on

the screen, one clause includes ﬁve words, and there

are six colors in use. Thus, an attacker would need

to consider several possible color combinations at ev-

ery response. They would be able to break the color-

to-number mapping only by seeing several successful

UAN protocols, which is highly unlikely, because the

protocol is conducted rarely and it is assumed that the

surroundings are safe.

Using a personal word database might make it eas-

ier for a human user to remember the story, if they

were allowed to add some new words of their choice

to be used in the story upon registering to the service.

On the other hand, that could also be a risk: many

users would probably pick personal or otherwise devi-

ating words, which would be easy to spot when shoul-

der surﬁng.

Using more advanced techniques in story gener-

ation phase might be advantageous. In the current

implementation, even though the clauses are gram-

matically correct, the result is not very coherent or

meaningful. By utilizing technology such as GPT-3

(Brown et al., 2020), which is capable of producing

texts resembling human-generated ones, it would be

possible to make the story memorable and still main-

tain its randomness.

For the visual channel, we would recommend us-

ing a visual encoding scheme different from QR codes

in a real use scenario. QR codes cannot be placed

as densely as other visual encoding schemes, as they

require ”free zones” around them. With some other

visual encoding scheme, the GUI could achieve a

cleaner look as well.

Performance of the application is also important.

The user needs to be able to view a whole frame at

once, and the application needs to be able to decipher

the picture. With bigger QR codes the application rec-

ognizes the elements more easily, improving the per-

formance. When developing an application like this

for real users, usage optimization and achieving high

enough framerate are extremely important. No one

will use the application if the camera view lags visi-

bly or if the application has great difﬁculties scanning

the frame. Finally, if the system was implemented on

smart glasses, the GUI and application performance

would need their own consideration.

Next step for our work on EEVEHAC is usability

testing. The usability of the ﬁrst phase of HAKE can

be compared to other results on the usability of human

computable functions. The second phase has few di-

rect comparisons, but its usability can be analyzed by

how much physical effort it takes to use the devices.

7 CONCLUSIONS

In this paper, we presented the EEVEHAC (End-to-

End Visualizable Encrypted and Human Authenti-

cated Channel) system. The main purpose of EEVE-

HAC is to involve the human user in the cryptographic

process in order to enhance understanding and trust in

the digital systems that are a crucial part of our every-

day lives. Our security analysis indicates that EEVE-

HAC can achieve as high a security level as its in-

dividual parts. Our proof-of-concept implementation

is not secure enough for real world usage but imple-

mentations of EEVEHAC can easily be modiﬁed to

achieve higher security.

REFERENCES

Bellovin, S. M. and Merritt, M. (1992). Encrypted key ex-

change: Password-based protocols secure against dictio-

nary attacks. In Proceedings of the 1992 IEEE Sympo-

sium on Security and Privacy, SP ’92, page 72, USA.

IEEE Computer Society.

Boldyreva, A., Chen, S., Dupont, P.-A., and Pointcheval, D.

(2017). Human computing for handling strong corrup-

tions in authenticated key exchange. In Computer Se-

curity Foundations Symposium (CSF), 2017 IEEE 30th,

pages 159–175. IEEE.

Brown, T. B., Mann, B., Ryder, N., Subbiah, M., Kaplan,

J., Dhariwal, P., Neelakantan, A., Shyam, P., Sastry, G.,

Askell, A., Agarwal, S., Herbert-Voss, A., Krueger, G.,

Henighan, T., Child, R., Ramesh, A., Ziegler, D. M., Wu,

J., Winter, C., Hesse, C., Chen, M., Sigler, E., Litwin, M.,

Gray, S., Chess, B., Clark, J., Berner, C., McCandlish,

S., Radford, A., Sutskever, I., and Amodei, D. (2020).

Language models are few-shot learners.

Daemen, J. and Rijmen, V. (2002). The design of Rijndael,

volume 2. Springer.

Dolev, D. and Yao, A. (1983). On the security of public

key protocols. IEEE Transactions on Information The-

ory, 29(2):198–208.

Forte, A. G., Garay, J. A., Jim, T., and Vahlis, Y. (2014).

EyeDecrypt—private interactions in plain sight. In Inter-

national Conference on Security and Cryptography for

Networks, pages 255–276. Springer.

Halunen, K. and Latvala, O.-M. (2021). Review of the use

of human senses and capabilities in cryptography. Com-

puter Science Review, 39:100340.

Krawczyk, H., Bellare, M., and Canetti, R. (1997). HMAC:

Keyed-hashing for message authentication.

Naor, M. and Shamir, A. (1994). Visual cryptography. In

Workshop on the Theory and Application of of Crypto-

graphic Techniques, pages 1–12. Springer.

Somayaji, A., Mould, D., and Brown, C. (2013). Towards

narrative authentication: Or, against boring authentica-

tion. In Proceedings of the 2013 New Security Paradigms

Workshop, pages 57–64.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

664
