Empirical Security and Privacy Analysis of Mobile Symptom Checking

Apps on Google Play

I. Wayan Budi Sentana

1 a

, Muhammad Ikram

1 b

, Mohamed Ali Kaafar

1 c

and Shlomo Berkovsky

2 d

Department of Computing, Macquarie University, 4 Research Park Drive, Macquarie Park, NSW, Australia

Centre for Health Informatics, Australian Institute of Health Innovation, Macquarie University,

75 Talavera Rd, North Ryde, NSW, Australia

{

Keywords:

Android Apps, Privacy, Security, Static Analysis, Dynamic Fingerprinting.

Abstract:

Smartphone technology has drastically improved over the past decade. These improvements have seen the

creation of specialized health applications, which offer consumers a range of health-related activities such as

tracking and checking symptoms of health conditions or diseases through their smartphones. We term these

applications as Symptom Checking apps or simply SymptomCheckers. Due to the sensitive nature of the private

data they collect, store and manage, leakage of user information could result in signiﬁcant consequences. In

this paper, we use a combination of techniques from both static and dynamic analysis to detect, trace and cat-

egorize security and privacy issues in 36 popular SymptomCheckers on Google Play. Our analyses reveal that

SymptomCheckers request a signiﬁcantly higher number of sensitive permissions and embed a higher number

of third-party tracking libraries for targeted advertisements and analytics exploiting the privileged access of the

SymptomCheckers in which they exist, as a mean of collecting and sharing critically sensitive data about the

user and their device. We ﬁnd that these are sharing the data that they collect through unencrypted plain text

to the third-party advertisers and, in some cases, to malicious domains. The results reveal that the exploitation

of SymptomCheckers is present in popular apps, still readily available on Google Play.

1 INTRODUCTION

Smartphone users are increasingly using their smart-

phones for health-related activities. The majority of

smartphones now have the ability to passively collect

health data as users progress through their day (Trifan

et al., 2019). The result of this passive logging has

been the creation of specialized health-related mobile

applications (SymptomCheckers) which track, man-

age and store the health data of users. The logging

capabilities of SymptomCheckers go beyond passive

tracking, as users can self-monitor their activities and

manually record their personal data. A wide variety of

categories are offered including; exercise and ﬁtness

tracker, sleep patterns and quality, cardiology and vas-

cular health, mental and emotional health, and blood

sugar levels for diabetes (Smahel et al., 2019).

Leveraging upon previous work (Ikram et al.,

https://orcid.org/0000-0003-3559-5123

https://orcid.org/0000-0003-0336-0602

https://orcid.org/0000-0003-2714-0276

https://orcid.org/0000-0003-2638-4121

2016), this paper presents the ﬁrst characterization

study of SymptomCheckers with a focus on security

and privacy offered by these apps. In particular, we

perform static and dynamic analysis to analyze the

Android permissions, the presence of malicious code

as well as third-party tracking libraries, and inves-

tigate the (un)encrypted trafﬁc for content and end-

points of the exﬁltrated sensitive data.

We collect and extract from a corpus of more than

1.7 million Android apps, 36 SymptomChecker for

which the name or the description suggest they en-

able to either track or check health-related activities

of users. We then manually check that the apps actu-

ally fall into the category of SymptomChecker (§ 2.1).

We use a set of tools to decompile the SymptomChek-

ers and analyze the source code of each of the mobile

SymptomChekers. We then inspect the apps to reveal

the presence of third-party tracking libraries and sen-

sitive permissions for critical resources on users’ mo-

bile devices. We summarize our analysis as follow:

• 13.8% (5) of SymptomCheckers’ use a vulnerable

encryption scheme (i.e., SHA1+RSA) for signing

Sentana, I., Ikram, M., Kaafar, M. and Berkovsky, S.

Empirical Security and Privacy Analysis of Mobile Symptom Checking Apps on Google Play.

DOI: 10.5220/0010520106650673

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 665-673

ISBN: 978-989-758-524-1

665

certiﬁcates and security purposes.

• 44.4% (16), 58.3% (21), and 63.86% (23) of

SymptomCheckers provide Exported Activities,

Exported Services and Exported Broadcast Re-

ceiver, respectively, which can be exploited by

a malicious app. We found that 10.81% (4) of

SymptomCheckers contain malware code embed-

ded in their source codes.

• To avoid source code analysis 89% (32) of Symp-

tomChekers rely upon different types of anti-

analytics or obfuscation techniques.

• 22.2% (8) of SymptomChekers embed at least ﬁve

different third-party tracking and advertisement

libraries sharing sensitive user information such

as location with third-party analytics and adver-

tisers.

• 5% of the trafﬁc generated by SymptomCheck-

ers’ use insecure HTTP protocol for transmitting

users’ sensitive data in plaintext which can be in-

tercepted and modiﬁed by malicious in-path prox-

ies.

2 DATA COLLECTION AND

ANALYSIS METHODOLOGY

In this Section, we present our data collection and

analysis methodology.

2.1 Data Collection Methodology

Given that the Google Play store does not contain

“Symptom Checking” apps’ category, we devise a

search methodology to ﬁnd SymptomCheckers on

Google Play. First, we use several keywords in-

cluding “symptom”, “SymptomChecker”, and “health

checker” in the description of 1.7 million Android

applications collected in (Ikram and Kaafar, 2017).

We obtain 353 apps that match those keywords. We

manually check the descriptions of 353 apps to en-

sure our SymptomCheckers apps are real Symptom-

Checker. We removed apps containing symptom

trackers, health dictionaries or apps that are used to

store only user-health history. We also discard the

apps used for the learning process by medical students

or the apps used to assist health practitioners. Over-

all we found 36 apps that met our search criteria and

manual inspection.

We use gplaycli (matlink, 2018) to download 36

apps and collect textual information including apps

unique identiﬁer, category and price, regional avail-

ability, description, number of installs, developer in-

formation, user reviews, and apps rating. 32 (88.8%)

Table 1: Top 5 Free SymptomCheckers sort by number of

installs. The lower part of the table summarises the average

statics of SymptomCheckers.

# Apps ID # of Installs Rating

1 com.webmd.android 10,000,000+ 4.44

2 com.ada.app 5,000,000+ 4.74

3 md.your 1,000,000+ 4.1

4 com.mayoclinic.patient 1,000,000+ 3.9

5 com.programming. 500,000+ 4.52

progressive.diagnoseapp

Average Statistics:

Avg. # of Install 50,000+

Avg. # of Ratings 3.27

out of 36 SymptomCheckers have a single APK and

4(11.1%) apps have multiple APK to support different

models and versions of the Android operating system

(OS).

Table 1 shows the top 5 SymptomCheckers apps

sort by number of install and average ratings. Among

the 36 apps, 83.3% (30) apps have at least 1,000 de-

vices. We found that WebMD (com.webmd.android)

is the most popular app with at least 10 Million in-

stalls. The average rating, number of raters, and num-

ber of reviews are respectively 3.27, 10646.81, and

4341.35, showing the popularity of SymptomCheck-

ers among users. We also found that ADA Symptom

Checker (com.ada.app) is highly rated by 290,484 of

users with average rating of 4.74.

2.2 Analysis Methodology

To have a wider perspective of the existing Symptom-

Checkers security, we perform comprehensive static

(or source code) and dynamic (or runtime network

trafﬁc) analysis to inspect apps’ source code and in-

vestigate the apps’ behavior during the runtime, re-

spectively. We also conduct user review analysis to

determine the user perception of the analyzed Symp-

tomCheckers.

Static Analysis. An APK is a mobile app pack-

age ﬁle format supported by the Android OS for dis-

tribution and installation. APK encloses all of the

program’s codes and it supports resources including

.dex ﬁles, resources, assets, certiﬁcates, and mani-

fest ﬁle, which are considered as the important objects

in this SymptomCheckers static analysis. Since the

APK distributed in byte-code format, we conduct pre-

processing by leveraging APKTool (Apktool, 2020)

to decompile the APK into Smali format and get all

those ﬁles that will be useful in the following further

analysis:

1. Certiﬁcate Signing Mechanism. Android OS re-

quires all APKs to be digitally signed with a cer-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

666

tiﬁcate before it is uploaded to Google Play Store

or installed on a device. Application signing sim-

pliﬁes developers to identify the app’s author and

to update their application without administering

complicated permissions and interface. This pro-

cess also becomes an insurance policy for devel-

opers in terms of apps’ integrity and the account-

ability of their apps’ behavior thus preventing ad-

versaries from inserting malware into legitimate

apps by modifying and repackaging apps on the

apps market (SSL, 2020).

To evaluate the certiﬁcate signing mechanism

adopted by the SymptomCheckers, we extract the

CERT.RSA ﬁle among all the ﬁles generated during

the apps de-compilation via APKTool. We cus-

tomize a script leveraging Keytool (Oracle, 2020)

to obtain encryption and hashing mechanisms as

well as the length of the public key of certiﬁcates.

2. Apps’s Requested Permissions. The permission

system is a core security architecture in the An-

droid OS. All applications request permissions

to access sensitive data, system features, com-

ponents, or other sensitive resources in the op-

erating system are managed by these systems.

Once granted, apps may collaborate with a po-

tentially malicious application to perform various

attacks such as permission escalation (Melamed,

2020). In this study, we ﬁrst parse Manifest.xml

of SymptomCheckers to determine the requested

permissions and to analyze any potentially dan-

gerous permissions. We then observe whether all

the available list permissions are used by the func-

tions in the respective SymptomCheckers. There-

fore, we map the API calls or methods of each app

with the permission requests in the Manifest using

AXPLORER (Backes et al., 2016). As a result, all

permission lists in the SymptomCheckers are re-

quested at least once in the API calls or methods.

3. Exported Component Analysis. Android apps

consist of several components: Activity, Service,

Content Provider, and Broadcast Receiver. These

components collaborate with each other to im-

plement and provide apps’ functionalities. Com-

monly, a function in an app will be triggered by

the user via the activity. The Android platform

allows these components to be accessed and trig-

gered from other applications by setting the ex-

ported status equal to True. However, this ex-

ported component is also a surface attack for mal-

ware to exploit an app. Melamed et al., (Melamed,

2020) demonstrates how these exported compo-

nents can manipulate apps’ components to com-

promise apps for malicious activities (CWE-926,

2020). To identify the presence of an exported

component in the SymptomCheckers, we use the

Android Drozer(F-Secure-Labs, 2020) to analyze

the Manifest ﬁle for each app. Drozer–a com-

monly used penetration testing tool–uses several

checks to exploit vulnerabilities in mobile apps.

4. Malware Detection. To detect the presence of

malicious codes in the SymptomCheckers, we

scan APKs using VirusTotal (VirusTotal, 2020).

VirusTotal is a multitude of malware scanning

tools that provide a comprehensive result by ag-

gregating more than 70 anti-virus engine and

URL/domain blacklisting services. The tools have

been widely used to identify the emergence of ma-

licious apps, executable ﬁles, application software

as well as domains. To automate the scanning pro-

cess, we take advantage of the API provided by

VirusTotal, and create a script to upload all sam-

ples to the VirusTotal repository.

5. Obfuscations Detection. Obfuscation technique

refers to any means of evading, obscuring, or dis-

rupting the analysis process by parties other than

application developers. These techniques have

both positive and negative sides. On the one hand,

this technique is useful to hardening the apps and

protecting the source code against analyzing and

reproducing. On the other hand, this technique

can be used by malware developers to evade basic

analysis layers of application distribution services

such as Google Play (Chau and Jung, 2019). Re-

search in (He et al., 2020) found that 52% of its

malware samples leverage this technique to evade

the analysis tools.

To detect such behavior in the SymptomCheck-

ers, we use APKID(RedNaga, 2016) to analyze

the .dex ﬁles obtained in decompiled APK. AP-

KID returns at least one compiler name for each

APK. If the apps leveraging any anti-analysis

technique, the APKID will return several labels

that we grouped as a manipulator, anti-virtual ma-

chine (vm), anti-debug, anti-disassembly, and ob-

fuscator.

6. Trackers Analysis. The existence of third-party

libraries and trackers on android apps has raised

privacy and security concernsThese third-party li-

braries can exchange information and infer user

personal information based on demographic data

and user behavior harvested during user interac-

tion with the apps. To reveal the existence of

these libraries, we analyze the decompiled APK

and comprehensively search sub-directories in de-

compiled APKs. These unique directories names

correspond to the libraries embedded by apps’ de-

velopers in the source codes. We rely on our list

Empirical Security and Privacy Analysis of Mobile Symptom Checking Apps on Google Play

667

of libraries to the previous research conducted in

(Ikram and Kaafar, 2017) to ﬁlter and obtain the

third-parties in SymptomChecking apps.

Dynamic Analysis. We conduct runtime network be-

havior (also called dynamic analysis) to measure the

security and privacy of SymptomCheckers apps dur-

ing the runtime by capturing the trafﬁc transmitted by

Apps to the Internet. To avoid the obfuscation (i.e.,

Anti-Virtual Machine) techniques, often used by cer-

tain apps, we use a dedicated Android device and

channeling the connection via MITMProxy (mitm-

proxy, 2020) to the WiFi access point. Since all the

SymptomCheckers developed in SDK version 25 or

above, we create a script to add self-signed security

certiﬁcate exemption to read the trafﬁc transmitted in

HTTPS protocol.

Given that the number of SymptomCheckers is

small, once the apps installed on the device, we nav-

igate the apps manually and observe all activities on

the apps while MITMProxy intercepts the transmis-

sion between each app to the internet. We then con-

vert the intercepted trafﬁc to HTTP/S Archive (.har)

ﬁle to simplify trafﬁc analysis of each Symptom-

Checkers. We extract the secure communication line

and privacy factors by observing the potential of pri-

vacy leaks. From the security factor, we analyzed the

percentage of the encrypted HTTPS protocol adop-

tion on the SymptomCheckers’ communication lines.

For this purpose, we extract intercepted unique URLs

and identify the type of transmission protocol used.

User-review Analysis. A user review analysis was

performed to capture the users’ perceptions of Symp-

tomCheckers. In this analysis, we have fetched

Google Play store reviews (N = 76,817) of 30 apps.

App reviews were categorized as positive (with 3, 4,

or 5 stars ratings) and negative (with 1 or 2 stars rat-

ings). We focus on the 1 or 2 stars with average rat-

ings ≤ 2 to investigate the concerns around the app

functionality, security, and privacy conduct. We ob-

tained the complete list of reviews from the app’s

home page on the Google Play store. Leveraging on

previous work (Ikram and Kaafar, 2017), we used an

automated keywords-based search method and em-

ployed manual classiﬁcation of the users’ text to clas-

sify them into various types of complaints. First, we

created dictionaries of keywords

, as listed in Table 5,

belonging to different complaints’ categories to ﬁlter

reviews and then performed manual validation of the

resultant complaints categories. The co-authors were

involved in manual validation. Based on this man-

ual observation, each author re-classiﬁed each users’

For instance, keyword ‘force close’ mapped to

‘bugs’ under app’s ‘usability’ category and ‘personal

data’ mapped to ‘privacy’ for the ‘Privacy’ category.

Table 2: Summary of Certiﬁcate Signing Analysis; Top :

Certiﬁcate signing mechanism ; Bottom: Public Key length

present in Digital certiﬁcate.

Signature Algo. # of Apps, N=36 (%)

SHA256 + RSA 31 (86.1%)

SHA1 + RSA (weak) 5 (13.8%)

Key Length (bits) # of Apps, N=36 (%))

4096 15 (41.6%)

2048 21 (58.3%)

comment into only one of the 12 classes of complaint

categories.

3 ANALYSIS

We explore the vulnerability of SymptomCheckers by

identifying security gaps, suspicious behavior, level

of communication security and user perspective. The

results of the analysis present several aspects includ-

ing; The strength of the encryption algorithm, ex-

ploitation of attack surface, intrusive permission, sus-

picious malware and anti-analysis appearance, adop-

tion of secure communication protocol, and user-

related security aspects.

3.1 Certiﬁcate Signing Mechanisms

We found 31 (86.1%) of the analyzed Symp-

tomCheckers use vulnerable and weak encryption

schemes such as SHA256 and RSA for signing and

security purposes. While the remaining 5 (13.8%)

apps were signed using a combination of SHA1 and

RSA encryption mechanism thus potentially expos-

ing legitimate SymtomCheckers to modiﬁcation and

repackaging by malicious developers (SSL, 2020).

We also include the length of the public key as part

of the security measurement in the SymptomCheck-

ers certiﬁcate signing scheme. We are referring to

the minimum standard public key length of 2048 bits

published by (CSRC, 2016). As shown in Table 2, all

SymptomCheckers have met minimum security stan-

dards of public key length, where 21 (58.3%) apps use

a public key with a length of 2048 bits and 15 (41.6%)

apps leverage 4096 bits.

3.2 Permission Analysis

Figure 1 depicts the number and types of different per-

missions requested by SymptomCheckers. We found

that 55% of SymptomCheckers request at most 10

permissions while 39% of the SymptomCheckers ac-

quire resources protected by ‘Dangerous’ permission.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

668

Out of a total of 427 permission requests, 73 % (312)

permissions are categorized as dangerous, 20 % (84)

were categorized as normal, and 8 % (33) permissions

were categorized as signatures. The number of dan-

gerous permissions is requested by 33 of the 36 apps

on the SymptomCheckers list.

From a total of 79 unique type permissions,

INTERNET is the most requested permission by 32

different apps while WRITE EXTERNAL STORAGE and

WAKE LOCK are requested by 22 and 19 Symptom-

Checkers, respectively.

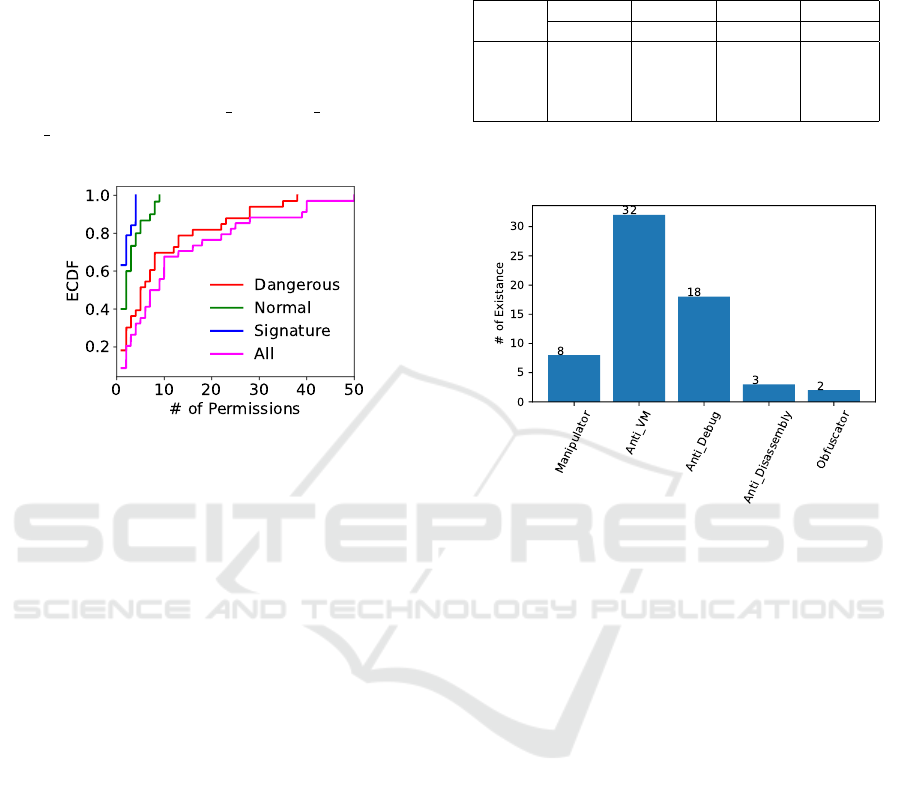

Figure 1: Empirical cumulative distribution function

(ECDF) of permissions requested by SymptomCheckers.

3.3 Exported Component Analysis

We found 44.4 % (16), 58.3 % (21) and 63.86 %

(23) of the analyzed SymptomCheckers apps contain

exported activities, exported services and exported

broadcast receivers, respectively. None of Symptom-

Checkers apps containing exported content provider.

In total there are 74 Exported Activities, 42 Exported

Services, 78 Exported Broadcast Receivers and none

Exported Content Provider.

We group the apps based on the number of ex-

ported components in each app as shown in Table 3.

We found that 11 (30.5 %) apps have exported com-

ponents while 21 (58.3 %) apps have exported ser-

vices, and 18 (50 %) apps have exported broadcast

receivers, in the range of 1 to 5 respectively. In ad-

dition, there are 9 (25 %) apps that have exported

components in the range of 6 to 10. We also no-

tice massive exported activities by WebMD with 12

activities, indicating that there are 12 surface attacks

that can be exploited by malicious activities in this

app. Upon scanning SymptomCheckers using Virus-

Total, we ﬁnd 4 (10.81%) apps have malware codes

in their source codes according to Virustotal. For in-

stace, WebMD consists of 66 activities, 10 Services,

11 Broadcast Receivers, and 6 Content Providers.

Table 3: Summary of exported components; here Act = ex-

ported activities ; Ser = exported services; Rec = exported

broadcast receivers; Pro = exported content Providers; A =

number of apps ; C = number of exported components.

Range Act Ser Rec Pro

A C A C A C A C

>10 1 12 0 0 0 0 0 0

6-10 4 36 0 0 5 30 0 0

1-5 11 26 21 42 18 46 0 0

0 20 0 15 0 13 2 36 0

3.4 Obfuscation Analysis

Figure 2: Anti-Analysis techniques adopted by Symptom-

Checkers. 89% SymptomCheckers apps leveraging anti-

VM technique to detect emulated environment.

We found that 89% of the analyzed SymtomCheckers

use at least one of the following obfuscation (or anti-

analysis) techniques in their source codes.

• Manipulator. Each SymptomChecker’s APK

consists of Dalvix Executable (.dex) ﬁles con-

verted from Java.class using (originally) dx com-

piler. We marked the apps containing the manip-

ulator if the .dex ﬁles were created using other

than dx compiler. As shown in ﬁgure 2, we

found that 8 (22%) SymptomCheckers leverage

dexmerge compiler to protect their source codes.

• Anti Virtual Machine. This technique is used to

detect whether the apps are running on the em-

ulator or real devices. The emulator detection

aims to increase the difﬁculty level of apps run-

ning on emulators which impedes certain reverse-

engineering tools and techniques.

We found 32 SymptomCheckers use anti-virtual

machine techniques to check the emulator pres-

ence based on various indicators in build.prop and

Telephony Manager.

• Anti Debug. There are two levels of debug-

ging as well as anti-debugging protocol in An-

droid (OWASP, 2020). First, the debugging can

Empirical Security and Privacy Analysis of Mobile Symptom Checking Apps on Google Play

669

be conducted at the Java level using Java Debug

Wire Protocol (JDWP) which is used as a commu-

nication protocol between debugger and Java Vir-

tual Machine. Second, we can conduct debugging

at the native layer level by using ptrace in Linux

system call. This anti-debugging level check is

also known as a traditional anti-debugging pro-

cess. We found 18 (50%) SymptomCheckers tai-

lor anti-debug techniques to avoid source code

analysis tools. All of those apps detect debug-

gable state by activated isDebuggerConnected()

routine in android.os.Debug class, which is part

of JDWP anti-debugging level technique.

• Anti Disassembly. A common technique to pro-

tect the byte-code in Android is to create the

important code segment in C or C++ using Na-

tive Development Kit (NDK)(SIMFORM, 2015).

NDK provides platform libraries to manage na-

tive activities and access physical device compo-

nents(Developer, 2020). NDK uses CMake as

a native library compiler that creates a different

byte-code structure compared to the code written

in Java or Kotlin. Hence, it impedes common An-

droid tools such as APKTool or Smali to disas-

semble the byte-code.

We found 3 (8%) SymptomCheckers use anti-

disassembly techniques, including AITibot , App-

stronout and Mayo Clinic. Analysis of those apps

returns the value of “illegal class name”, indicat-

ing the decompiler result violating the standard

structure of Java or Kotlin.

• Obfuscator. Code obfuscation is the process of

modifying code into meaningless phrases by re-

naming or encrypting the ﬁle names, methods,

or strings without reducing the code functional-

ity. The aim is to protect the executable ﬁle from

being analyzed or being reversed by an unautho-

rized party. Proguard and Dexguard are two most

common tools utilized in Android programming

obfuscation.

We found 2 (6%) SymptomCheckers deploying

obfuscators. Analysis results on Healthily return

‘unreadable ﬁeld names’ and ‘unreadable method

names’ indicating that a certain number of ﬁeld

names and method names in that app were re-

named or encrypted. However, APKID failed to

identify the tools used to conduct obfuscation.

While analysis on Mayo Clinic identiﬁes the apps

adopting Dexguard to conduct the obfuscation.

Table 4: Top 5 Third Party Libraries in SymptomCheckers.

No Third Party Libraries Count

1 Google Firebase Analytics 16

2 Google AdMob 14

3 Google CrashLytics 11

4 Google Analytics 10

5 Facebook Login 9

Table 5: Summary of Trafﬁc Analysis. 19% trafﬁc directed

to third-party domains and 1% of the trafﬁc relying on un-

encrypted HTTP protocol.

Unique URL HTTP HTTPS

First-party 1283 (81%) 69(4%) 1214 (77%)

Third-party 301 (19%) 5 (1%) 296 (19%)

Total 1584 (100%) 74 (5%) 1510 (95%)

3.5 Third-party Ads and Tracking

Analysis

The results of the tracking library analysis show

that 69% (25) SymptomCheckers adopt at least one

tracker while 22% (8) of the analyzed apps leverage

more than 5 tracking libraries in their code. For in-

stance, com.caidr.apk, with 100,000+ installations

and 4.1 average ratings, has the highest number (10)

of tracking and advertisement libraries. The app con-

sists of 26 activities where almost 50% of the activ-

ities are proposed to handle third-party libraries in-

cluding trackers.

We also analyze the type of third-party libraries.

We found that Google Analytics, Google Tag Man-

ager, Google Admob, Google Firebase Analytic, and

Google CraschLytic, and the Facebook group con-

sisting of Facebook Ads, Facebook are the most in-

tegrated third-party libraries by SymptomCheckers.

Table 4 shows the Top 5 third-party libraries used

in SymptomCheckers. Although each library collects

limited information, when all these libraries exchange

information, it raises concerns about privacy viola-

tions because these third-party libraries can infer per-

sonal information based on the behavior and demo-

graphic data exchanges (Seneviratne et al., 2015).

3.6 Trafﬁc Analysis

Overall, we obtained 1,584 unique URLs from the

trafﬁc of the analyzed SymptomCheckers. We found

that 74 (5%) communications are done via HTTP pro-

tocol while 3 SymptomCheckers communicate 50%

of their trafﬁc un-encrypted using HTTP while 95%

of the SymptomCheckers use HTTPS for secure com-

munication.

To observe potential privacy leaks, we consider

the existence of third-party libraries adopted by each

SECRYPT 2021 - 18th International Conference on Security and Cryptography

670

Table 6: Analysis of users’ perception of SymptomCheckers analyzed through user reviews categories and keywords.

Complaint Category #Comp (%) # Apps (%) Case-insensitive, Searched Keywords

Usability

Bugs 429(20.64) 12(41) force close; crash; bug; freeze; glitch; froze; stuck; stick; error;

disconnect; not work; not working

Battery 74(3.56) 9(31) battery; cpu; processor; processing; ram ; memory

Mobile Data 87(4.19) 10(34) mobile data; gb; mb; background data;

Mal-behaviour

Scam 28(1.35) 6(21) scam; credit card; bad business; bad app

Adult 23(1.11) 6(21) porn; adult; adult ad

Offensive/Hate 2(0.10) 2(7) hate; offensive; sexist; LGBT; trolling; racism; offensive; is-

lamophobia; vile word; minorities; hate speech; shit storm

Privacy

Privacy 53(2.55) 7(24) privacy; private; personal details; personal info; personal data

Ads 1280(61.60) 24(83) ads; ad; advertisement; advertising; intrusive; annoying ad;

popup; inappropriate; video ads; in-app ads

Trackers 43(2.07) 10(34) tracker; track; tracking

Security

Security 12(0.58) 4(14) security; tls; certiﬁcate; attack

Malware 5(0.24) 3(10) malware; trojan; adware; phishing; suspicious; malicious; spy-

ware

Intrusive Permissions 42(2.02) 6(21) permission

SymptomCheckers. Hence, we refer to Section 3.5 to

create a list of third-party libraries and compare it to

the intercepted unique URLs. We then categorize the

corresponding URLs as trafﬁc that directed to third-

party domains and the rest is trafﬁc that directed to

domains provided by the app developer (ﬁrst-party)

or domains that are used to support apps functional-

ity. The percentage of trafﬁc leading to a third-party

domain is an indicator of a possible privacy leak.

We found 81% of the SymptomCheckers’ trafﬁc is

destined towards the ﬁrst-party domain or apps sup-

porting domain. However, out of 1,584 total trafﬁc

intercepted, there are 301 (19 %) unique URLs that

point to third-party domains. Moreover, 8 (22%) apps

had trafﬁc leading to a third-party with more than

50% of the total trafﬁc. This indicates that the app

uses more than 50% of its functionality for third-party

libraries.

We provide a summary of trafﬁc analysis in Table

5. Of 1,584 intercepted unique URLs, there are 1,510

(95%) trafﬁc transmitted over the encrypted HTTPS

protocol line and 74 (5%) trafﬁc transmitted via the

un-encrypted HTTP protocol. In addition, of the total

Unique URLs, there are 1,283 (81%) URLs pointing

to ﬁrst-party or supporting domains and 301 (19%)

URLs pointing to third-party domains. In more detail,

69 (4%) of trafﬁc to the ﬁrst-party domain is trans-

mitted via the un-encrypted HTTP and 1,214 (77%)

of trafﬁc to the ﬁrst-party domain is transmitted via

the encrypted HTTP. While, 5 (1%) and 296 (19%)

unique URLs were directed to the third-party domain

via HTTP and HTTPS, respectively.

3.7 User Perception Analysis

We obtain N = 4,807 negative (1 or 2 stars) reviews

to analyze the users’ perception of app usability, ma-

licious behavior (or mal-behavior), privacy, and se-

curity. Users often complained about apps’ usability

(see Table 6) where bugs, battery and mobile data is-

sues caused frustration. We found that 429 (20.64%)

complaints were made for 12 (41%) apps where users

raised their concerns and requested to ﬁx the usability

issues to improve the user experience. While some

might ﬁnd the app useful but an apparent usability

issue may hinder the useful experience. Some users

stated that “great app is very useful; however I have

gotten a lot of ‘force close’ messages please ﬁx”,

“would not load pictures and kept freezing” or “had

to uninstall as they kept crashing every time you open

the app”.

Apps’ mal-behavior had captured minor users’ at-

tention where such apps were listed as scams and

raised concerns about presenting adult or offensive

content. The user stated as “No way to verify that this

is a legitimate app. No clear connection to the NHS.

Looks like a scam to steal personal information”.

Notably, under the privacy category users

mainly complained about in-app advertisements 1280

(61.60%) for 24 (83%) reviewed apps.Users elab-

orated “don’t want seeing this app advertisement

through my phone”, “I need to answer your questions

and all I see is advertisement...” or “... I cannot ﬁnd

anything not my blood type not my last appointment

everything is advertisement...”. Comparatively user

reviews suggest little understanding of apps privacy

Empirical Security and Privacy Analysis of Mobile Symptom Checking Apps on Google Play

671

and tracking behaviour. However, some users stated

“privacy policy is bad”, “sharing personal data is not

cool“ or “removed the app after ﬁnding out that it

shared private health data with third-parties”.

Similar to privacy users’ perception of apps secu-

rity was also limited. There were minor complaints

made for app security, presence of malware and app

requiring intrusive permissions as shown in Table 6.

Users mentioned their concerns for speciﬁc apps as

“security risk, asks for personal details that would fa-

cilitate identity theft. if in doubt be cautious” or “spy-

ware, why does it need my device serial number; my

location; read SD card; to record audio when I get up

and go to sleep; all combined with full internet ac-

cess?”.

Overall, only bugs (20.64%) in 12 apps and ads

(61.60%) present in 24 apps captured the most users’

attention where other privacy and security issues were

mainly neglected.

4 CONCLUSION

The increasing number of mobile SymptomCheckers

available on apps’ markets such as Google Play and

the growing number of complaints raised by users in-

dicate serious security and privacy as well as usabil-

ity issues thus necessitate the urge to analyze this un-

explored eco-system. The average mobile user rates

SymptomCheckers positively even when 10% have

malware presence. According to our study, 3% of

negative reviews are related to (or concerned with)

the security and privacy issues of SymptomCheckers.

Our app review analysis suggests an alarming situa-

tion as users show minimal interest or awareness of

SymptomCheckers privacy and security.

The results found in this paper reveal that the ex-

ploitation of SymptomCheckers is present in popular

apps, still readily available on Google Play and we

believe that our work could be extended to study the

qualitative analysis such as users satisfaction and ef-

fectiveness of SymptomCheckers.

ACKNOWLEDGEMENTS

The ﬁrst Author is a Scholarship Awardee of the

Indonesian Endowment Fund for Education (LPDP)

of the Republic of Indonesia, with the LPDP ID

20193221014024. This research is partially funded

by the Optus Macquarie University Cyber Security

Hub.

REFERENCES

Apktool (2020). A tool for reverse engineering 3rd party,

closed, binary android apps. https://ibotpeaches.

github.io/Apktool/.

Backes, M., Bugiel, S., Derr, E., McDaniel, P., Octeau, D.,

and Weisgerber, S. (2016). On demystifying the an-

droid application framework: Re-visiting android per-

mission speciﬁcation analysis. In USENIX Sec.

Chau, N. and Jung, S. (2019). An entropy-based solution

for identifying android packers. IEEE Access.

CSRC (2016). Recommendation for key management,

part 1: General (revision 3), computer security re-

source center. https://csrc.nist.gov/publications/detail/

sp/800-57-part-1/rev-3/archive/2012-07-10.

CWE-926 (2020). Cwe-926: Improper export of android

application components. https://cwe.mitre.org/data/

deﬁnitions/926.html. Accessed: 18/12/2020.

Developer, A. (2020). The android ndk: toolset

that lets you implement parts of your app in na-

tive code, using languages such as c and c++.

https://developer.android.com/ndk.

F-Secure-Labs (2020). Drozer: Comprehensive secu-

rity and attack framework for android. https://labs.

f-secure.com/tools/drozer/. Accessed: 18/12/2020.

He, R., Wang, H., Xia, P., Wang, L., Li, Y., Wu, L., Zhou,

Y., Luo, X., Guo, Y., and Xu, G. (2020). Beyond the

virus: A ﬁrst look at coronavirus-themed mobile mal-

ware.

Ikram, M. and Kaafar, M. A. (2017). A ﬁrst look at mobile

ad-blocking apps. In 2017 IEEE 16th International

Symposium on Network Computing and Applications

(NCA), pages 1–8. IEEE.

Ikram, M., Vallina-Rodriguez, N., Seneviratne, S., Kaafar,

M. A., and Paxson, V. (2016). An analysis of the

privacy and security risks of android vpn permission-

enabled apps. In IMC.

matlink (2018). Google play downloader via command line

v3.25. https://github.com/matlink/gplaycli. Accessed:

10/10/2020.

Melamed, T. (2020). Hacking android

apps through exposed components.

https://www.linkedin.com/pulse/hacking-android-

apps-through-exposed-components-tal-melamed.

mitmproxy (2020). - an interactive https proxy. https://

mitmproxy.org.

Oracle (2020). keytool. https://docs.oracle.com/javase/

8/docs/technotes/tools/unix/keytool.html. Accessed:

18/12/2020.

OWASP (2020). Testing anti-debugging detection

(mstg-resilience-2) - android anti-reversing

defenses. https://mobile-security.gitbook.io/

mobile-security-testing-guide/android-testing-guide/

0x05j-testing-resiliency-against-reverse-engineering.

OWASP Mobile Security Guide - Accessed:

18/01/2020.

RedNaga (2016). Apkid - anti-analyisis open source tools.

https://github.com/rednaga/APKiD.

Seneviratne, S., Kolamunna, H., and Seneviratne, A.

(2015). A measurement study of tracking in paid mo-

bile applications. In WiSeC.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

672

SIMFORM (2015). How to avoid reverse engineering of

your android app? https://www.simform.com/how

-to-avoid-reverse-engineering-of-your-android-app/.

Smahel, D., Elavsky, S., and Machackova, H. (2019). Func-

tions of mhealth applications: A user’s perspective.

Health informatics journal, 25(3):1065–1075.

SSL (2020). Why you need code signing certiﬁcate

for your android app? https://aboutssl.org/why

-you-need-code-signing-certiﬁcate-for-android-app/.

Trifan, A., Oliveira, M., and Oliveira, J. L. (2019). Pas-

sive sensing of health outcomes through smartphones:

Systematic review of current solutions and possible

limitations. JMIR mHealth and uHealth.

VirusTotal (2020). Multitude anti-virus engines. https://

www.virustotal.com/gui/home/upload.

Empirical Security and Privacy Analysis of Mobile Symptom Checking Apps on Google Play

673
