BlockJack: Towards Improved Prevention of IP Preﬁx Hijacking Attacks

in Inter-domain Routing via Blockchain

I. Wayan Budi Sentana

, Muhammad Ikram

and Mohamed Ali Kaafar

Department of Computing, Macquarie University, 4 Research Park Drive, Macquarie Park, Sydney, Australia

Keywords:

Blockchain, Border Gateway Protocol, Preﬁx Authorization, Preﬁx Hijacking, Preﬁx Veriﬁcation.

Abstract:

We propose “BlockJack”, a system based on a distributed and tamper-proof consortium Blockchain that aims

at blocking IP preﬁx hijacking in the Border Gateway Protocol (BGP). BlockJack provides a synchroniza-

tion amongst a BlockChain and BGP networks through interfaces ensuring operational independence. This

approach preserves the legacy system and accommodates the impact of a race condition if the Blockchain

process exceeds the BGP update intervals. BlockJack is also resilient to dynamic routing path changes during

the occurrence of the IP preﬁx hijacking in the routing tables. We implement BlockJack using Hyperledger

Fabric Blockchain and Quagga software package and we perform an initial set of experiments to evaluate

its efﬁcacy. We evaluate the performance and resilience of BlockJack in various attack scenarios including

single and multiple paths attacks, and attacks from random sources. Our results show that BlockJack is able to

handle multiple attacks caused by Autonomous Systems (AS) path changes during a BGP preﬁx hijacking. In

experiment settings with 50 random routers, BlockJack takes on average 0.08 seconds (with standard deviation

of 0.04 seconds) to block BGP preﬁx hijacking attacks.

1 INTRODUCTION

Border Gateway Protocol (BGP)–also known as the

Inter-domain routing protocol–is a path-vector proto-

col that regulates the connectivity and information ex-

change among Autonomous Systems (AS).

Based on

data presented in APNIC Research and Development

(AS 65000), there are currently almost 70,000 unique

ASN seen in their BGP routing table (BGP-Potaroo,

2020). Each AS maintains a number of IP Preﬁxes (in

short Preﬁxes) and domains assigned by the Internet

Assigned Number Authority through Regional Inter-

net Registries (RIR).

To hijack an IP preﬁx, an adversary router (or

AS) advertises a (fake) IP preﬁx that belongs to an-

other router (or AS). When the adversary AS con-

ducts a preﬁx advertisement, BGP sends the preﬁx

to all neighbours on the Internet. As a result, the

trafﬁc that is supposed to reach the original AS, is

redirected to the adversary AS which may result in

https://orcid.org/0000-0003-3559-5123

https://orcid.org/0000-0003-0336-0602

https://orcid.org/0000-0003-2714-0276

An AS is an independent network that comprises the Inter-

net and each AS assigned a 16-bit or 32-bit unique number

known as Autonomous System Number (ASN).

unavailability of Internet services for the targeted AS

and other breaches of the security of the Internet traf-

ﬁc. Besides adversarial considerations, instances of

IP Preﬁx hijacking can be due unintentional network

mis-conﬁgurations (e.g. during network setup (Hope,

2020)).

To prevent BGP hijacking and to enable the val-

idation of the origin of BGP announcements, IETF

(the Internet Engineering Task Force) supports the

Resource Public Key Infrastructure (RPKI) through

RFC 6480. IETF further released RFC 6482 for Route

Origin Authorization (ROA) and RFC 6483 for Route

Origin Veriﬁcation (ROV). ROA is a process where

an AS authorizes a number of preﬁxes to be adver-

tised under its jurisdiction, and stores it as a tuple of

IP preﬁx, AS (owner), the maximum length of AS and

expiry date of each IP block (Iamartino et al., 2015).

To prevent preﬁx hijacking, the tuple can be utilized

during ROV process to verify whether or not an AS

advertises the authorized preﬁx.

The RPKI architecture gradually delegates the

process of securing BGP from Internet Assigned

Numbers Authority (IANA) as the global regulator

to Regional Internet Registrar (RIR), Internet Service

Providers (ISPs) and private network companies (Liu

et al., 2016). Each of these institutions is allowed to

674

Sentana, I., Ikram, M. and Kaafar, M.

BlockJack: Towards Improved Prevention of IP Preﬁx Hijacking Attacks in Inter-domain Routing via Blockchain.

DOI: 10.5220/0010521106740679

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 674-679

ISBN: 978-989-758-524-1

publish a Certiﬁcate of Authority (CA) to its down-

stream network and keep the Resource of Certiﬁ-

cate (RC) in its storage. This process is considered

to be rather risky as any attack or a potential miss-

conﬁguration on the upstream network can cause the

failure of the entire downstream network. This hier-

archical structure also provides the privilege for the

upstream network to overwrite the RC of its down-

stream network (Cooper et al., 2013).

We propose BlockJack, a consortium

blockchain-based system to prevent IP preﬁx hi-

jacking in Border Gateway Protocol. Instead of

providing a centralized repository as in RPKI,

BlockJack introduces a distributed repository of IP

preﬁx-ASN pairs in consortium blockchain nodes for

preﬁx authorization and preﬁx veriﬁcation purposes.

The BlockJack system also stores the consortium

member’s CA in each AS repository to eliminate the

drawback of a centralized or hierarchical public key

infrastructure-based scheme.

BlockJack independently runs Blockchain along

with BGP network. It creates an interoperable module

to synchronise the operations of the Blockchain and

BGP network thus, unlike (Liu et al., 2020), Block-

Jack eliminates the need for router software update.

The architecture of BlockJack provides reliability by

avoiding the race conditions between the BGP Update

Message

and the Blockchain process, such as preﬁx

authorization or preﬁx veriﬁcation. A race condition

occurs when the Blockchain transaction runs inside

the BGP protocol loop and exceeds the BGP Update

Message interval.

To improve robustness of BlockJack’s to the dy-

namic nature of BGP AS Path

changes and AS path

divergence–oscillating AS Path changes during the

preﬁx hijacking, BlockJack stores only the preﬁx and

AS origin in the Blockchain. BlockJack uses Next

Hop

information to identify the neighbouring AS

that contributes to the addition of preﬁx in the routing

table, in order to create the Inbound ﬁlter. In case of

a hijacking event, an inbound ﬁlter blocks the incom-

ing Preﬁxes from a certain AS through the immediate

neighbors. This approach reduces the number of ver-

iﬁcation and authorization process to the Blockchain

caused by dynamic change of AS Path.

The rest of this paper is organized as follows. Sec-

BGP Update Message is a signal used to refresh the con-

tent of BGP routing tables. The default Update message

interval for Cisco router is 30 seconds (Vinit and Brad,

2018).

AS Path is a parameter that stores the list of AS and use to

retrieve the preﬁx source.

Next Hop is a parameter used to identify the immediate

router in a given AS Path.

tion 2 describes the architecture and mechanisms that

support BlockJack operations. Section 3 describes

Test-bed, BlockJack’s test scenarios and analysis of

our experiments. While Section 4 presents related

work and Section 5 concludes our research.

2 SYSTEM ARCHITECTURE

AND MECHANISM

In this section, we present the architecture, process

and mechanism of BlockJack.

2.1 System Architecture

BlockJack consists of the following three main mod-

ules as depicted in Figure 1:

• Blockchain. To regulate the interaction among

ASes demanding a highly trusted environ-

ment, we leverage Hyperledger Fabric (Linux-

Foundation, 2020) to build the Blockchain

module. Unlike public-based (permissionless)

Blockchain (such as Bitcoin or Ethereum), Hy-

perledger Fabric eliminates the role of miners in

tethering the new blocks to the existing blocks

by adding several components.

The consen-

sus mechanism ensures only trusted and known

consortium members to participate in Blockchain

transactions.

• Proﬁler. This module consists of the process for

generating the private key, public key, and X.509

certiﬁcate for admin and routers in each AS. To

store these credentials, Proﬁler offers a wallet and

provides a REST based API to share the creden-

tials among different (sub)modules of BlockJack.

• Dispatcher. This module conducts routine tasks

to monitor the routing tables and dispatches ﬁlter-

ing commands if there is any updates about the

BGP routing tables.

2.2 BlockJack’s Mechanisms

BlockJack consists of supporting (control) and main

mechanisms. Supporting mechanism operates the

Blockchain network, creates credentials, initializes

the Blockchain, and registers an admin router for con-

trol and monitoring purpose. In the following, we

Hyperledger Fabric provide Orderer, Commiter, Chain-

code, Endorser and Fabric CA to support the blockchain

transaction mechanism known as consensus (Linux-

Foundation, 2020).

BlockJack: Towards Improved Prevention of IP Preﬁx Hijacking Attacks in Inter-domain Routing via Blockchain

675

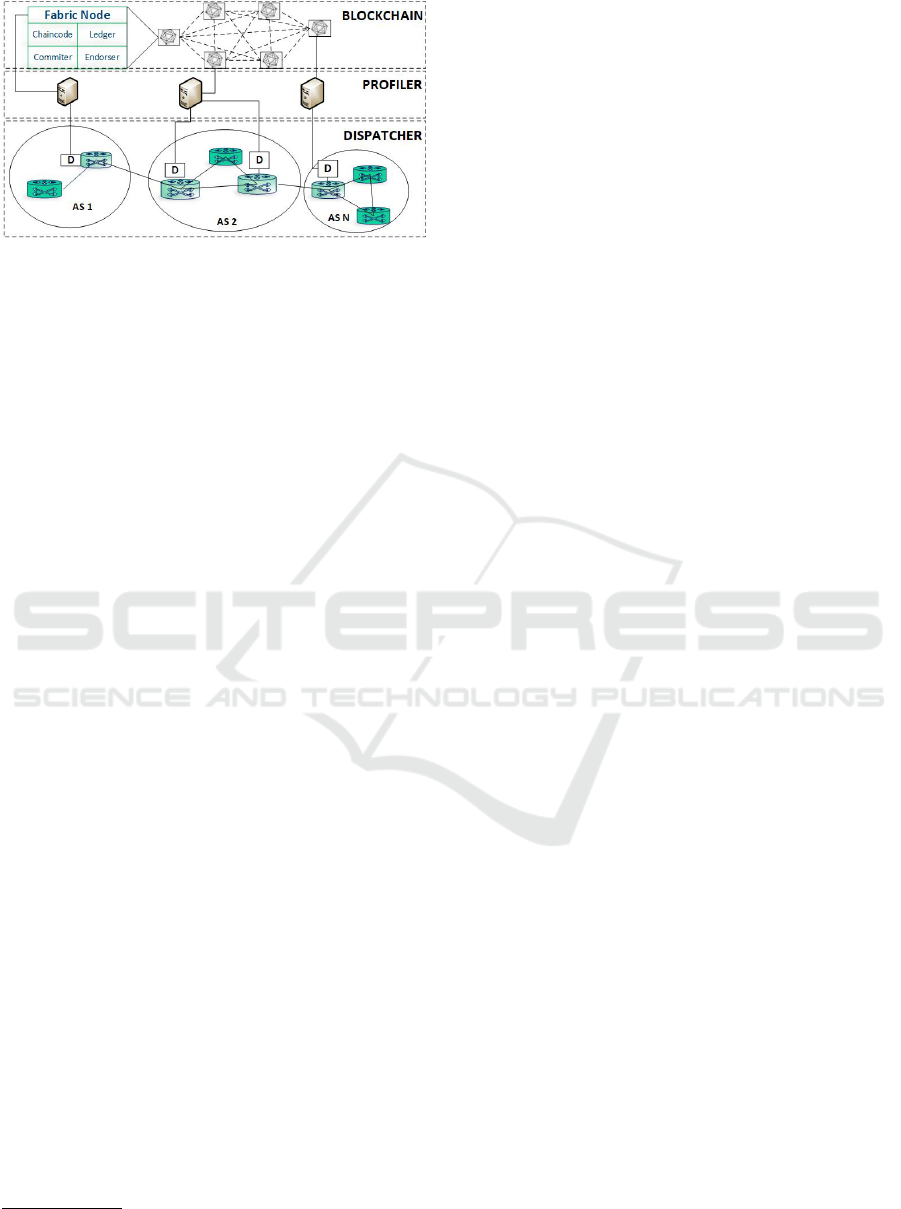

Figure 1: An overview of the three modules of BlockJack.

The Blockchain module is handling data storage and data

query while Proﬁler acts as a bridge between Blockchain

and Dispatcher as well as to store the Credentials of each

router. Dispatcher monitors routers and dispatches ﬁlter

commands if Preﬁx Hijacking occurs.

provide more details about the main mechanisms in

BlockJack:

• Preﬁx Authorization. This mechanism validates

and proves that the preﬁx belongs to speciﬁc

ASes. To claim the ownership of a Preﬁx, an AS

ﬁrst starts the Dispatcher module to read the BGP

routing table and captures the valid-best route

from the preﬁxes list. If a new preﬁx is found,

Dispatcher sends an HTTPS request to the Pro-

ﬁler asking for preﬁx addition to the Blockchain.

In the Proﬁler, the REST API server receives the

request and authenticates the request to the router

proﬁle. The Proﬁler then adds the router creden-

tials to the request and sends it to the Blockchain.

In the Blockchain, Endorser veriﬁes the request

based on the contract written in the Chaincode.

Once the request complies with the smart con-

tract, the Endorser sends the preﬁx to the Orderer

and then initiates the consensus mechanism in

the Blockchain. The Orderer module distributes

the requests to all consortium members and gets

the approval from at least 50% of the consortium

members. When consensus is reached, the Or-

derer signals the Committer to seal the transaction

and adds a new block into the Blockchain ledger.

At the end of the Blockchain transaction, the Or-

derer creates a new World State

and distributes

it to the whole blockchain nodes.

• Preﬁx Veriﬁcation. Preﬁx Veriﬁcation module

aims to check whether the announcement received

by the router from its neighbors contains the au-

thorized preﬁx. For this purpose, BlockJack

compares the preﬁxes found in the routing table

with the preﬁxes stored in the Blockchain. Pre-

World State is a current state of database (Ledger) in

blockchain.

ﬁx Veriﬁcation mechanism starts when the Dis-

patcher Module ﬁnds a new preﬁxes announce-

ment from the router’s neighbor, and then requests

for veriﬁcation to the Blockchain through Pro-

ﬁler. In the Proﬁler, Rest API server conducts

authentication against the router credentials, and

then sends the request to the Blockchain. In the

Blockchain, the Chaincode veriﬁes the compli-

ance of the request and then query the Ledger.

The query result publishes three kinds of signals;

Valid, Invalid, and Unknown. The Valid signal in-

dicates that the preﬁx sent to the Blockchain is

available and corresponds to the legitimate AS

Number. While, an Invalid signal denotes that

the preﬁx exists in the Ledger but corresponds to

different AS Number. This invalid signal can in-

dicate that a BGP preﬁx hijacking occurs in the

network. The Unknown signal indicates neither

the preﬁx nor the AS Number are available in the

Ledger. When the Dispatcher accepts the Invalid

signal, then it produces Inbound ﬁlter commands

to block the announcement from the AS that was

indicated as a source of the preﬁx hijacking.

3 TESTBED SETUP AND

EVALUATION

This section presents our experimental testbed and

analysis.

3.1 Experiment Testbed

Blockchain module of BlockJack is implemented us-

ing Hyperledger Fabric. Each Blockchain node, in-

cluding Orderer, Fabric CA, and Chaincode are run-

ning in a separated Docker container. For the Proﬁler

module, we tailor Node JS to create the admin func-

tion, router registration, and REST API server. Using

Python and shell script, we develop the Dispatcher

module. While develop BGP network environment

leveraging Quagga router software, and for this re-

search, we use Dockerized Quagga image produced

by (Chiodi, 2020). In our testbed, each router runs in

a separate detach-mode Docker container connected

by a customized virtual network. We use the testbed

and conduct several sets of experiments to evaluate

the performance and resiliency of BlockJack against

BGP hijacking attacks. We provide further details in

the following:

Performance Evaluation. We aim to evaluate the

performance of our BlockJack in terms processing

time required for handling preﬁx authorization and

veriﬁcation requests. To this end, we conduct two

SECRYPT 2021 - 18th International Conference on Security and Cryptography

676

sets of experiments

and record the processing time

of the authorization and veriﬁcation mechanisms of

BlockJack. In particular, we generate sets of ran-

dom preﬁxes from a BlockJack router and query the

Blockchain ledger to determine the authorization and

veriﬁcation times required by our proposed systems.

For the preﬁx authorization setup, we create a

function in the Dispatcher module to send a various

number of preﬁxes into the Blockchain to measure

BlockJack performance in handling preﬁx authoriza-

tion. Each preﬁx authorization process followed by

commit order so each preﬁx addition will be adding a

block in the Blockchain. At the end of the experiment

there will be a thousand blocks in the chain. To mea-

sure the preﬁx veriﬁcation time, we create a script so

the Dispatcher can send a various number of preﬁxes

to be veriﬁed by Blockchain with 1000 blocks.

Resiliency Evaluation. Resiliency evaluation aims

at observing the BlockJack’s neutralizing capabili-

ties against the preﬁx hijacking attacks. To measure

the resiliency of BlockJack, we leverage Quagga and

Docker in the higher computing environment

and

create several network topologies with various num-

ber of routers. We measure the preﬁx hijacking neu-

tralization in two stages including Preﬁx Prepend-

ing and Neutralization. Preﬁx Prepending is the pro-

cess of adding an ASN to the AS-path parameter

in the BGP table for each AS passed by a preﬁx.

In this experiment, the prepending time is equal to

the time needed by the adversarial preﬁx to arrive at

the router where the Dispatcher resides (BlockJack

router) and disrupts the original preﬁx as the route

with the valid-best status. While, Neutralization is

the stage where BlockJack detects, veriﬁes, and sends

ﬁlter commands to the router to neutralize hijacking.

By measuring the prepending (BGP hijacking attack)

time and neutralization (blocking) time, we determine

the duration of BGP hijacking attacks and the efﬁ-

ciency of BlockJack to neutralize the attacks, respec-

tively.

For this experiment, we create the following three

different scenarios as:

• Single Path Attack Scenario. We create a bi-

nary tree-like network topology and deploy the

dispatcher on the router which is located at the

root. We prepared ﬁve adversarial preﬁxes that

would be used by routers located in the farthest

branch to hijack the preﬁxes announced by routers

in the leaf of the tree. These attacks create single

paths when they reach the BlockJack router i.e.,

Experiments were performed on a workstation with

Ubuntu 18.04, CPU 2.7GHZ, and RAM 16GB.

Experiment conduct in Cluster Server with 4 core CPU,

128 GB of memory, 500 GB HD running on Ubuntu 18.04.

root of the tree.

• Multiple Path Attack Scenario. This scenario is

designed to examine BlockJack’s resilience in an-

ticipating routing path changes that occur during

BGP preﬁx hijacking. In this scenario, we modify

the binary tree network topology in the ﬁrst sce-

nario by setting up BGP peering for each branch

at the same level. This will cause each announced

preﬁx to have more than one path when it reach

BlockJack router at the root of the tree.

• Random Attack Scenario. This scenario is set

up to examine the BlockJack resilience in a very

random BGP environment. We made several ran-

dom network topologies with various numbers of

routers. The connectivity level in each experiment

was set to 25% indicating that a node has a prob-

ability to be connected to 25% of the total nodes

on the network. For each set of experiments, for

realistic evaluation, we randomly place the Dis-

patcher and ﬁve random adversarial preﬁxes in

our testbed.

Limitations. We collect 25 experimental results for

each scenario in networks consisting of 20 to 60

routers. We observe that our testbed suffers with the

increase in number of routers. Docker network shares

the same Linux kernel to handle all virtual networks

running on top of the Docker container. This condi-

tion causes an overload on the virtual network. It also

causes the Hyperledger failure to install the Chain-

code (smart contract) on the Blockchain node through

the corresponding port.

Table 1: Time recorded by BlockJack to authorize and ver-

ify preﬁxes. Each preﬁx addition followed by commit pro-

cess and create a new block.

# of Pref. Authorization Veriﬁcation

(Block) Avg. (s) Total (s) Avg. (s) Total (s)

100 2.16 216.21 0.1 10.27

500 2.15 1,076.61 0.09 47.38

1,000 2.15 2,154.32 0.09 92.12

3.2 Analysis

Performance Analysis. This Section presents, the

performance analysis of BlockJack in terms of time

required for preﬁx authorization and veriﬁcation:

Preﬁx Authorization Analysis. Table 1 shows pre-

ﬁx authorization time increase gradually according to

the number of preﬁxes sent to the Blockchain. On

average, BlockJack needs 2,154.32 seconds to autho-

rize 1,000 preﬁxes with an average authorization time

of 2.16 seconds. This heavy or expensive process is

caused by a complex consensus mechanism during

BlockJack: Towards Improved Prevention of IP Preﬁx Hijacking Attacks in Inter-domain Routing via Blockchain

677

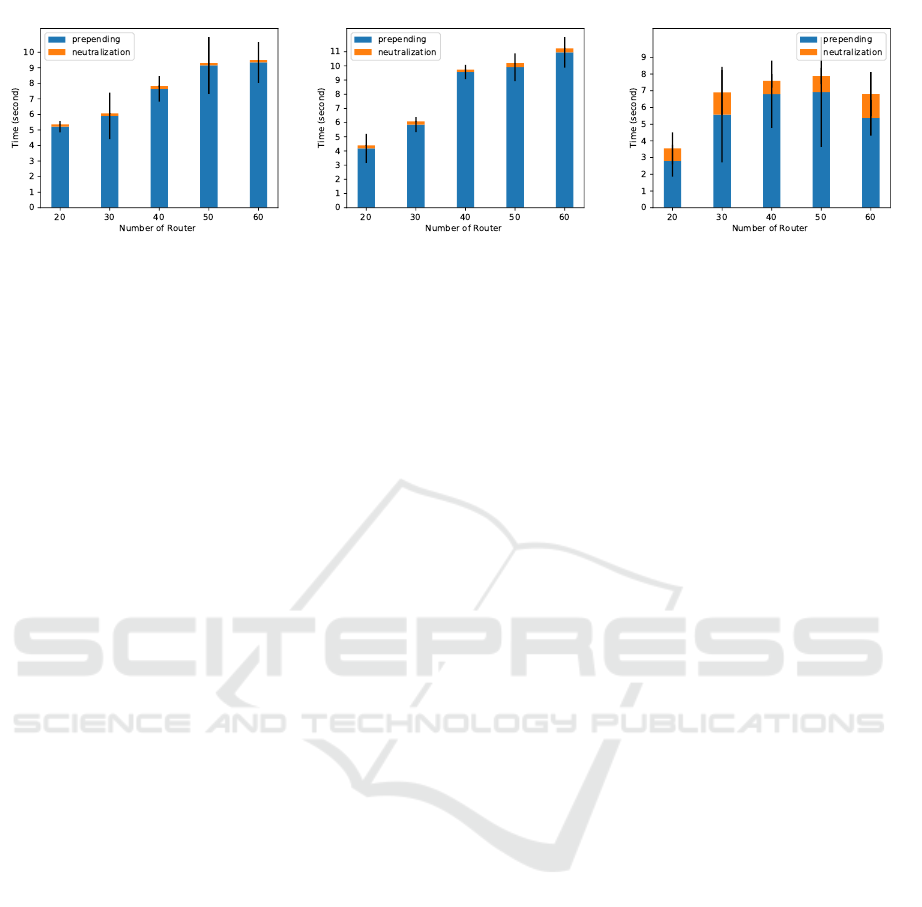

(a) Single Path Attack. (b) Multiple Path Attack. (c) Random attack.

Figure 2: Resiliency evaluation results. The prepending time record increases gradually as the number of routers increases

in single path and multiple path attack scenarios. While, the prepending time for random attacks ﬂuctuates. All prepending

times are presented in the form of time / 10 seconds.

the block addition to the chain.

Based on that result, if the BGP update interval

is 30 seconds, the maximum preﬁxes that can be au-

thorized in one interval is 13 preﬁxes which is higher

than 12 preﬁxes average announcement per AS origin

as shown in (Tony Bates, 2020). Hence, in this case,

BlockJack can handle the average preﬁxes announce-

ment in real world condition in one BGP update mes-

sage interval simultaneously without the assistant of

the local ROA cache, disregarding the network trafﬁc

delay.

We then compare this preﬁx authorization result to

the real condition of the preﬁx ownership. According

to (Tony Bates, 2020), the highest number of preﬁxes

announced by an AS is recorded by AS8151 (Uninet

S.A. de C.V., MX) with 8125 preﬁxes. In this case,

BlockJack needs 625 BGP update interval or 17,550

seconds to authorize the whole preﬁxes when it runs

for the ﬁrst time which potentially creates a race con-

dition between BGP Update interval and preﬁx au-

thorization if the Blockchain node embeds inside the

router machine and depends on the BGP message

signal. The time taken to access Blockchain during

the authorization process far exceeds the BGP update

message interval. Hence, the Blocjack’s decoupling

of Blockchain and routing environment helps in re-

solving any potential race-conditions.

Preﬁx Veriﬁcation Analysis. The experiment re-

sult in Table 1 shows that the preﬁx veriﬁcation pro-

cess is much lighter than that of preﬁx authorization.

For instance, BlockJack needs 92.12 seconds to verify

1,000 preﬁxes or on average of 0.09 second per preﬁx.

Given the worst case scenario that the growth projec-

tion of 150 preﬁxes per day (Geoff, 2020) appear in

the concurrent time, and assume that the same amount

of preﬁx withdrew in the same time, then BlockJack

only need 27 seconds to verify the 300 updated pre-

ﬁxes. This record is below the 30 seconds BGP Up-

date message interval. Hence, in this case Block-

Jack can handle Preﬁx veriﬁcation without local ROV

cache assistance.

However, verifying the global BGP routing table

would be so challenging to conduct in one BGP up-

date message interval. Expect that the number of the

global routing table is 850,000 (BGP-Potaroo, 2020)

and assume that the veriﬁcation time per preﬁx is

0.09 seconds, then the total time needed by Block-

Jack to verify those preﬁxes on the ﬁrst time running

is 76,500 seconds. That result is equal to 2,550 of

the BGP UPDATE message interval. Hence, the ex-

istence of a local ROV cache is crucial to reduce the

veriﬁcation request during the BlockJack operation.

The Dispatcher can compare the entry of BGP rout-

ing table and the local ROV cache to ﬁnd a new preﬁx

announcement or withdrawal occurrences, and then

verify those preﬁxes. As an addition, any veriﬁcation

that exceeds the BGP message interval is not impact-

ing the BlockJack because the Dispatcher is not de-

pendent on any BGP message signal.

Resiliency Analysis. BlockJack is able to neutralize

all adversarial preﬁxes that disrupt the BGP routing

table in the three attacking scenarios. The results of

BlockJack’s resilience evaluation are depicted in Fig-

ure 2. We observe that the average prepending time

increases gradually in accordance with the router ad-

dition in single path and multiple path attack scenar-

ios, while the average prepending time for random at-

tacks seems to ﬂuctuate. The lowest prepending times

for each single path, multiple path and random at-

tack scenario were 28.068, 41.855, and 52.101 sec-

onds, which are recorded during the experiment with

20 routers. The average prepending time for all exper-

imental sets on single path, multiple paths and random

attack scenarios, respectively, is 74.527, 80.9088, and

54.9572 seconds.

Neutralization time looks constant in all scenarios

with an average of 0.1516 seconds in single path sce-

narios and 0.2362 seconds in multiple path scenarios,

except for random attack scenarios which record an

average neutralization time of 1.0484 seconds. The

SECRYPT 2021 - 18th International Conference on Security and Cryptography

678

amount of neutralization time in random attack sce-

narios is up to 5 times compared to multiple path

scenarios. This is because the number of neighbors

in the random attack scenario is greater than multi-

ple path scenarios. From the ﬁve adversarial preﬁxes

sent, the average number of attacks on the random

scenario reaches 10.08 attacks, compared to 4.52 at-

tacks received by BlockJack routers in multiple path

attack scenarios. If we take a sample of random attack

scenario with 50 routers, on average BlockJack needs

0.957 seconds to neutralize 12.04 attacks of ﬁve ex-

periment attempts. That record is equal to 0.08 sec-

onds to neutralize a single attack.

The standard deviation of prepending and neu-

tralization time is also seen constant in single path

and multiple path scenarios with an average range

of 8.2488 seconds to 11.6154 seconds for prepending

time and 0.0162 seconds to 0.0188 seconds for neu-

tralization time. While the average standard deviation

of prepending and neutralization time in the random

attack scenario was recorded at 20.3712 seconds and

0.8998 seconds, respectively.

4 RELATED WORK

The closest work to our research is the work proposed

by Sﬁrakis et al., (Sﬁrakis and Kotronis, 2019). In

the paper Sﬁrakis et al., introduced the concept of

a Blockchain-based preﬁx hijacking prevention us-

ing Bitcoin. The proposed system has been tested

in Quagga router software. However, this system re-

quired the AS owner to provide share coins for every

preﬁx authorization or preﬁx veriﬁcation requests, as

the blockchain need miners to attach new blocks to

the blockchain.

5 CONCLUSION

Although the Preﬁx Authorization and Preﬁx Ver-

iﬁcation processes can ideally be handled in one

BGP Update message, several conditions will cause

a race condition between processes that occur on

the Blockchain and processes that occur in BGP. In

this paper we presented how Blockjack addresses this

speciﬁc issue. BlockJack also manages dynamic-

multiple hijacking scenarios due to changes in the

BGP attribute values which cause dynamic changes

in determining the best-valid path in the BGP routing

table.

ACKNOWLEDGEMENTS

The ﬁrst Author is a Scholarship Awardee of the

Indonesian Endowment Fund for Education (LPDP)

of the Republic of Indonesia, with the LPDP ID

20193221014024. This research is partially funded

by the Optus Macquarie University Cyber Security

Hub.

REFERENCES

BGP-Potaroo (2020). Bgp analysis report-bgp table. https://

bgp.potaroo.net/index-bgp.html. BGP Table Data last

accessed 1 July 2020.

Chiodi, P. C. (2020). Quagga router software code

@github. https://github.com/pierky/dockerﬁles/tree/

master/quagga. last accessed 1 July 2020.

Cooper, D., Heilman, E., Brogle, K., Reyzin, L., and Gold-

berg, S. (2013). On the risk of misbehaving rpki au-

thorities. In Proceedings of the Twelfth ACM Work-

shop on Hot Topics in Networks, HotNets-XII, New

York, NY, USA. Association for Computing Machin-

ery.

Geoff, H. (2020). Bgp in 2019 – the bgp table. https://blog.

apnic.net/2020/01/14/bgp-in-2019-the-bgp-table/.

Blog APNIC last accessed 1 Juli 2020.

Hope, A. (2020). Russian rostelecom compro-

mises internet trafﬁc through bgp hijack-

ing. https://www.cpomagazine.com/cyber-

security/russian-rostelecom-compromises-internet-

trafﬁc-through-bgp-hijacking. Accessed: 18/12/2020.

Iamartino, D., Pelsser, C., and Bush, R. (2015). Measur-

ing bgp route origin registration and validation. In

Mirkovic, J. and Liu, Y., editors, Passive and Active

Measurement, pages 28–40, Cham. Springer Interna-

tional Publishing.

Linux-Foundation (2020). Hyperledger fabric release

2.0. https://hyperledger-fabric.readthedocs.io/en/

release-2.0/whatis.html. Hyperledger Fabric Release

2.0 readthedocs last accessed 1 July 2020.

Liu, X., Yan, Z., Geng, G., Lee, X., Tseng, S.-S., and Ku,

C.-H. (2016). Rpki deployment: Risks and alternative

solutions. In Zin, T. T., Lin, J. C.-W., Pan, J.-S., Tin,

P., and Yokota, M., editors, Genetic and Evolutionary

Computing, pages 299–310, Cham. Springer Interna-

tional Publishing.

Liu, Y., Zhang, S., Zhu, H., Wan, P.-J., Gao, L., Zhang, Y.,

and Tian, Z. (2020). A novel routing veriﬁcation ap-

proach based on blockchain for inter-domain routing

in smart metropolitan area networks. Journal of Par-

allel and Distributed Computing, 142:77 – 89.

Sﬁrakis, I. and Kotronis, V. (2019). Validating IP

preﬁxes and as-paths with blockchains. CoRR,

abs/1906.03172.

Tony Bates, Philip Smith, G. H. (2020). Cidr report for 1

jul 20. https://www.cidr-report.org/as2.0/. CIDR Data

report last accessed 1 July 2020.

Vinit, J. and Brad, E. (2018). BGP Message. Cisco Press,

San Fransisco.

BlockJack: Towards Improved Prevention of IP Preﬁx Hijacking Attacks in Inter-domain Routing via Blockchain

679
