Safety-conﬁguration of Autonomous Bus in Pedestrian Zone

Qazi Hamza Jan and Karsten Berns

Robotics Research Lab, Technische Universit

at Kaiserslautern, 67663 Kaiserslautern, Germany

Keywords:

Safety, Autonomous Bus, Pedestrian-zone, Safety Certiﬁcation, Certiﬁed System, Driver-less Vehicles.

Abstract:

For self-driving vehicles to be equally trusted by the community like conventional vehicles and become a

pivotal part of transportation, it is crucial to guarantee the safety of such vehicles. Safety must ensure that

the vehicle will not collide with other obstacles and always stop in case of system failure. The vehicle used

for the safety-conﬁguration explained in this paper is a mini-bus that can carry around 10 passengers. It

is intended to drive in a pedestrian-zone, an environment that involves many pedestrians and cyclists apart

from occasional vehicles in a close-ﬁtting space. Besides the manufacturer’s basic system provided to enable

safety, safety certiﬁed system were added to trigger the safety at speciﬁc conditions. This includes emergency

buttons, wireless safety system and conﬁgurable laser-scanners. This will allow the vehicle to stop based on

physically activating the safety or automatically by laser-scanners. After various tests, the vehicle was able

to brake immediately. This safety system is guaranteed not be inﬂuenced or disabled by any external system.

This safety-conﬁguration is to facilitate the entire system for safety-certiﬁcation in the future.

1 INTRODUCTION

For all types of Autonomous Vehicles (AVs), safety

is the paramount concernment for researchers. Re-

dundant solutions are added to AVs to avoid any fatal

crash. From present statistics in (Hicks, 2018), the

crash rate of AV is lower then the human crash rate. It

is justiﬁable to argue that there is still insufﬁcient data

to deduce that AVs are safer than human driven vehi-

cles. Authors in (Kalra and Paddock, 2016), have sta-

tistically reasoned that AVs still need to drive several

miles without failure to remain below a benchmark of

failure rate. They have also argued about the number

of miles required to achieve the comparison between

between AVs and human crash rates. But to achieve

this level of conﬁdence, it is important to assure that

the AVs are safe even in a failure-state. AVs should

be capable to permanently halt after an extreme haz-

ardous fault.

In Germany, exists pedestrian-zones in numerous

parts of the city. According to the German Road Traf-

ﬁc Act (StVO), these zones are indicated by Trafﬁc

Calming zone signs or pedestrian marking. These

areas are meant for pedestrians. Delivery and resi-

dents’ vehicles are usually allowed in such zones with

speciﬁc rules. Pedestrians have high priority in such

zones. For an approved vehicle to drive in such a zone

should be at a walking pace. Presently, the allowance

of driver-less vehicles in such zones for carrying pas-

Figure 1: Driver-less bus model planned to drive in Tech-

nische Universit

at Kaiserslautern.

sengers along the stretch of the pedestrian-zone is un-

der process. To enable this allowance, it is important

that the vehicle must comply with the safety standards

provided by the local trafﬁc authorities.

For AVs, particularly driving in pedestrian-zone,

it should pass all the standard safety-related tests pro-

vided by the local trafﬁc authorities to make certain

that they will never even slightly press against any

pedestrian in the case of any malfunction. It should

also be taken into consideration the ludicrous behav-

ior of the pedestrians towards the vehicle. Such be-

havior may include intentionally jumping in front of

the vehicle or playing around the vehicle for amuse-

698

Jan, Q. and Berns, K.

Safety-conﬁguration of Autonomous Bus in Pedestrian Zone.

DOI: 10.5220/0010526106980705

In Proceedings of the 7th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2021), pages 698-705

ISBN: 978-989-758-513-5

ment. Here the aim is to provide safety not from per-

ception and mapping algorithms but from the basic

hardware which is always active. When either some-

one reaches the unsafe vicinity of the vehicle or the

system crashes, then the braking must be possible.

One possible scenario is when an unaware pedestrian

steps in front of the vehicle and the navigation algo-

rithm does not react timely or misses such danger.

The vehicle must react to such situations. These are

hard brakes that have no interference from any human

error or navigation algorithms.

For proving the AV to be safe, it should adhere

to standards. These standards are a general set of

rules which speciﬁes that safety will be guaranteed

in all situations. Different tests are performed based

on these standards to check their effectiveness. This

paper focuses on explaining the safety conﬁguration,

speciﬁcally for autonomous-bus shown in Figure 1.

This bus is the ﬁrst model to drive on the campus of

Technische Universit

at Kaiserslautern. It can carry 10

passengers and is intended to drive from building to

building on the university campus. Safety parame-

ters are discussed in this paper to understand how the

safety conﬁguration should look like. This safety con-

ﬁguration is then extendable to other AVs by changing

the safety-parameters and adding redundant systems

based on the application. Different levels of safety are

discussed, from the noncritical level which is safety

programmed in software to the utmost critical level,

i.e., directly low-level hardware in the vehicle.

The following sections are arranged as follows.

Section 2 discussed the related work, Section 3 ex-

plains the concept of safety layers which was imple-

mented for our AV. To verify the system, the structure

for experiments is explained in Section 4 and the con-

clusion is addressed in Section 5.

2 RELATED-WORK

To test autonomous driving-related algorithms in the

urban environment, many researchers are using simu-

lation for safety purposes. The authors in (Jan et al.,

2019) have used simulation for driving autonomous

vehicle in a pedestrian zone. They have brought in-

teraction strategies in the navigation of autonomous

vehicles in the pedestrian zone. There is work for de-

veloping realistic pedestrians as in (Jan et al., 2020;

Alghodhaiﬁ and Lakshmanan, 2020). There are ap-

plications other than urban environment where simu-

lations are used as in (Husemann et al., 2020). But

there always remains a gap between simulation and

real-world testing. It is impossible to map all the re-

alistic behaviors in the simulations. Hence, after suc-

cessfully completing tests in simulation it is then to

be tested on a real vehicle. Considering the possible

incongruity of software with the hardware, the system

must be safe independent of any software or other in-

terference. All these applications are required to have

safe systems because there is always involvement of

humans in such areas.

Authors in (Reschka, 2016) have talked about

safety concept for autonomous vehicles. They have

focused on Safe State which according to safety stan-

dards depends on current situation and acceptable

threshold value. Acceptable level of risk must be

identiﬁed with reference to ISO 26262 standards.

Huang et al. (Huang et al., 2016) have given a review

on testing methods for AVs. They have presented dif-

ferent tests such as software testing, simulation test-

ing and AVs functional testing. They also discuss the

design and system validation which which depends on

functional requirements.

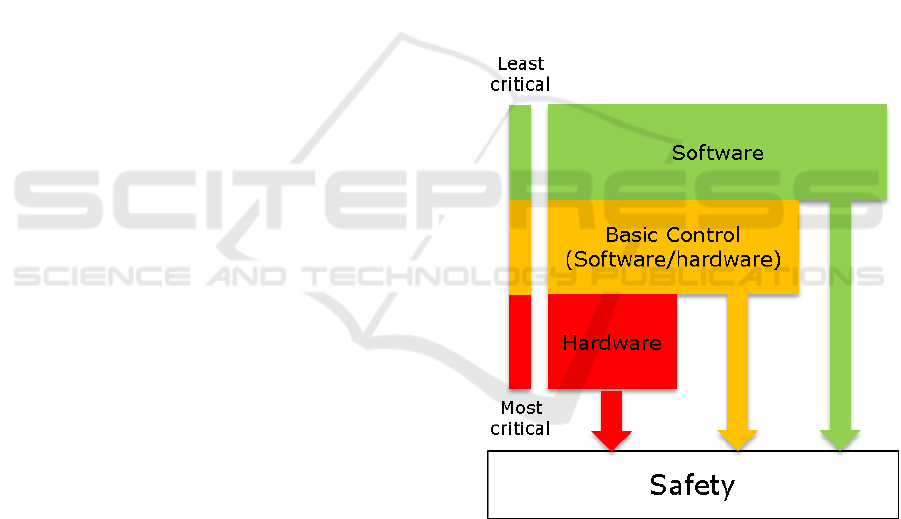

Figure 2: Representing the safety of the given system in

three levels from most critical to least critical.

Martin et al. (Martin et al., 2015) have in de-

tail talked about the certiﬁcation of autonomous ve-

hicles. They have given the process of standardiz-

ing the laws for AVs based on for National High-

way Trafﬁc Safety Administration (NHTSA) in the

United States. The NHTSA includes a variety of top-

ics from licensing of an operator to regulation for the

operation of an autonomous vehicle. A safety design

concept was brought in (Molina et al., 2017). They

have implemented an independent module known as

Autonomous Vehicle Control(AVC), which can be in-

Safety-conﬁguration of Autonomous Bus in Pedestrian Zone

699

stalled in the AV system and create a separate protec-

tion layer. It also accepts requests from a driver but

still ensures the safety of the system.

In (Aeberhard et al., 2015), the researchers have

tested their AVs on a German highway. They have

given an overall view of their system from perception

to vehicle control. They also mention to be certiﬁed

they need to drive thousands of kilometers which de-

lays the realistic requirement for their car production.

To pass the functional safety standard for road vehi-

cles, which is, ISO 26262, a thorough analysis is to

be done.

UL4600 standard is discussed in (Koopman et al.,

2019). They have focused on safety standards which

also addresses the use of Machine learning tech-

niques and unpredictable algorithms that are non-

deterministic. It is also required to update these stan-

dards to cope with the emerging technologies. Still, it

is unknown, how these standards must be applied.

It can be seen from the literature, that an indepen-

dent and reliable safety system is required to stop the

vehicle for different applications. Algorithms tested

in a virtual environment cannot be trusted directly.

Also, concrete policies should be shaped to certify

such vehicles. But to facilitate the certiﬁcation pro-

cess, the required certiﬁcation for the basic modules

must be accomplished. It should follow a set of cer-

tain general rules to ensure safety let alone the safety

regulations by the authorities.

3 SAFETY SYSTEM

CONFIGURATION

To ensure the safety of our AV in the pedestrian zone,

this section discusses in detail the safety-related con-

ﬁguration from the emergency-braking (hardware) to

planning-algorithms (software). The conﬁguration is

divided into three different levels which can be seen

in Figure 2. The bottom block shows the most critical

level of safety. This is because it is independent of

any external input and will always trigger safe stop in

case of any self failure or activation of safety param-

eter. The higher limits of every non-critical layer are

the lowest limit to the critical layer. All these layers

are described in the following section.

The overall construction is that there is a close-

loop circuit that runs through all the safety modules.

These devices must be safety certiﬁed. These devices

are shown in Figure 3. The orange line shows the

safety circuit line. The safety circuit line is a low volt-

age line that is connected to relays. When this line is

disrupted by any other module, it causes the motors to

deactivate and in return the safety brake is activated.

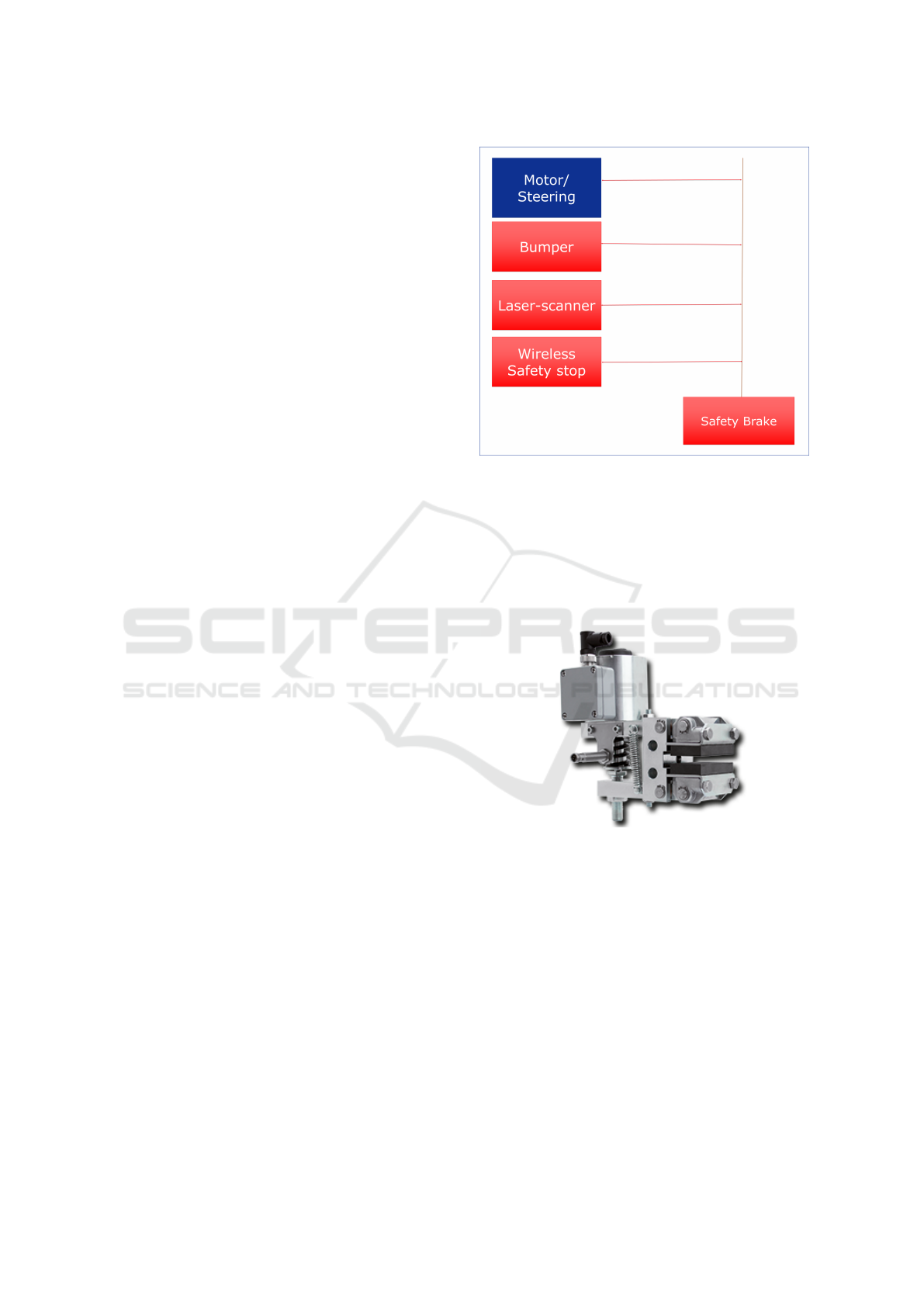

Figure 3: All the hardware module is connected to safety

circuit line. This line is directly connected to the safety

brake for emergency stop.

In ﬁgure 3, the circuit line in orange color is attached

to all the suitable modules.

For compliance with the safety standards, the

hardware must be safety certiﬁed. The details of the

hardware-speciﬁc are explained in this section.

Figure 4: Brake Caliper.

3.1 Hardware

The default hardware enables the system to brake in

case of any failure. This is veriﬁed by using a safety

circuit line which is then connected directly to Elec-

tromagnetic Brake Calipers. The brake model used in

the vehicle of ﬁgure 1 is DH012FEM. This brake is

electromagnetically released, enabling braking even

on voltage failure. Figure 4 shows the model of emer-

gency brakes. This brake is eligible to have the CSA

mark, which ensures that the product is tested for ap-

plicable standards by doing rigorous testing. It has a

clamping force of 1850 N which will ensure to over-

come the momentum of the vehicle.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

700

Table 1: The table shows failure/unsafe conditions.

Causes

Status

E-brake and

Motor

Over

speeding

> 8km/h

Battery Failure

E-Brake =

enabled

Motor =

disabled

Emergency

button

Pressed

Safety

bumper

Pressed

Door

contacts

Opened

(Driving)

Laser

scanners

Safety

Field Interrupted)

The instant the safety circuit line is out of power

due to any of the safety module, it disables the elec-

tric motors, and safety brakes in the front and rear are

enabled. The basic rule conformed with safety are de-

ﬁned in the Table 1.

For avoiding any disruption from other modules,

the safety hardware is segregated from the rest of the

hardware and software. This ensures that the safety

will always be active in the base level excluding the

failure from a higher level as designed in Figure. 2.

This will also guarantee that any programming error

from the human will never interfere with the safety

of the system. By doing so, the safety certiﬁcation of

the modules remains valid. All the connected safety

modules are explained in the following subsection.

3.1.1 Laser-scanners

For the vehicle given in Figure 1, system from SICK

is used to add other mechanisms of enabling

safety. SICK system provides a ﬂexibility in con-

ﬁguring the main controllers with the combination

of durable sensors. These systems are speciﬁcally

aimed in applications where human protection is re-

quired. Overall, SICK provides different solutions for

industries which are safe and efﬁcient. The vehicle is

equipped with the following modules from SICK:

1. Main-module: Programmable for inputs and out-

puts.

2. Gateway: For communicating with other sensors

and devices.

3. I/O Module: To get the inputs and outputs from

switches and sensors.

4. Motion Control Module: To integrate the motor

and steering encoders from the vehicle

https://www.sick.com/de/en

5. Safety Relay: To connect the system to safety cir-

cuit line.

6. Safety Relay: Add a mechanical switch to the sys-

tem

7. Safety Laser Scanners: For detection of obstacle

in a particular range.

The main module have Safety Integrity Level

(SIL) 3 and Safety Integrity Level, Claim Limit

(SILCL) 3. These SIL specify a target level of risk

reduction. These are measurements for Safety In-

strument Function (SIF) performance requirements.

There are four SILs deﬁned, with SIL1 being the

least and SIL4 as the highest dependable. Interna-

tional Electrotechnical Commission (IEC) provides

the standards for a vast range of technologies that con-

form to international standards. IEC 61508 has clas-

siﬁed SIL into two main classes; systematic safety

integrity and hardware safety integrity. All devices

having SIL certiﬁcation should achieve both of these

classes. The method for hardware safety integrity is to

use probabilistic analysis. The probability of danger-

ous failure per hour(PFH) deﬁned in IEC EN 61508

is between 0.0000001-00000001 for SIL3.

Figure 5: The ﬁgure shows the top view of vehicle with

SICK system installation layout. The red semi-circle in the

front and back shows the outdoorScan3 placed under the

safety bumper.

The main module does all the processing of con-

nected input/output devices. The connection can be

either through Gateway, I/O module, Motion control

module, or laser-scanner. The conﬁguration is done

in Safety Designer (SD) software which is a certi-

ﬁed tool provided by the SICK. SD software provides

all connection and conﬁguration handling for mod-

ules such as input/outputs, motion controllers, and

laser-scanners. The installation layout of the scan-

ner and SICK processing unit can be seen in Fig-

ure 5. Both the scanners are connected in a line-

Safety-conﬁguration of Autonomous Bus in Pedestrian Zone

701

conﬁguration with the main-module through Gateway

to get the safe inputs/outputs. Each laser-scanner is

conﬁgured separately to provide the required signals

to the main-module

1. Main-module: The main-module processes all the

signals from the input and output. These input and

output signals could be from input/output mod-

ules or laser-scanners. The processing is done

based on the valid conﬁguration saved in its sys-

tem plug. In the SD software, the main-module

has a logical editor, where, all the logic is imple-

mented based on the requirements.

2. Safety Laser Scanner: For laser-scanner, the out-

doorScan3

is used. The outdoorScan3 is certiﬁed

for use in an outdoor environment. It has a rugged

design with extra shockproof. It can be used in

slightly unfavorable weather conditions like rain,

snow, and fog. It has SIL2 and SILCL2. In the

event of a fault, the safety output via the network

becomes logic 0. This is detected by the main

module and the system enables the safety of the

vehicle.

The laser-scanner offers to create protective and

warning ﬁelds. These ﬁelds are conﬁgurable

shapes in the area of measurement of the scan-

ner, which when detects an obstacle within the

limits of that shape, disables the safe/unsafe out-

puts(depending on the ﬁeld) from the scanner.

This is very useful because there exists different

stopping distances at different velocities for vehi-

cles. It can be programmed to monitor 8 ﬁelds si-

multaneously. The characteristics of conﬁgurable

ﬁelds are:

(a) Warning ﬁeld: For functional use only with a

range of 40m.

(b) Protective Field: For detection and protection

with a range of 4m.

Figure 6: This is the top view of the vehicle at a close-ﬁtting

corner. The shape of ﬁeld must be changed to avoid static

obstacles otherwise it would always go to a stop position.

https://www.sick.com/de/en/opto-electronic-protective-

dev ices/safety-laser-scanners/outdoorscan3/c/g503552

128 monitoring cases can be set in the laser-

scanner. The relevant ﬁeld-sets can be assigned

to every monitoring cases, and activated based on

input provided to the laser-scanner. For the sce-

nario in this paper, the monitoring cases can be

seen in Section. 4. Speciﬁc monitoring cases is

active based the values set from the encoder read-

ing. Two encoders are used on from the motor for

speed measurement and the other from the steer-

ing. The more the speed is, the more stopping

distance and, hence the larger the ﬁeld is created.

This kind of design will enable the vehicle not

to collide at variable speeds and different steering

angles.

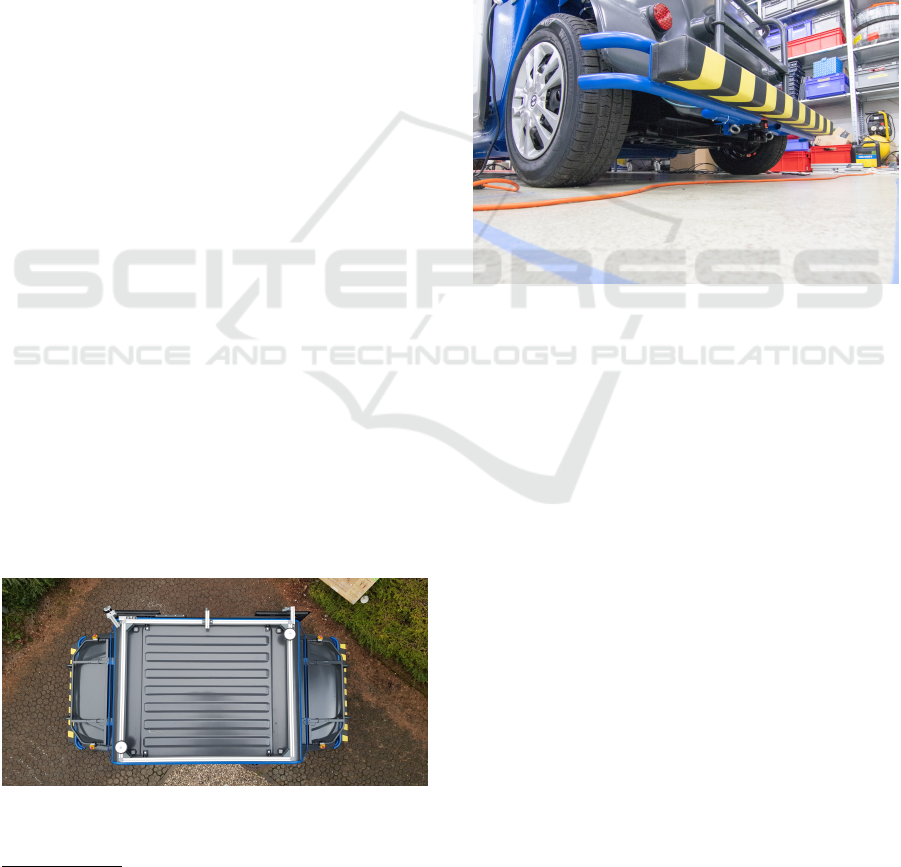

Figure 7: The safety bumper is shown in yellow and black

strip. Bumper placement for safe stop is place at the front

and rear.

As for the case of speed only, it is important to

change the ﬁeld shape to a pertinent steering. This

is due to the following reasons:

(a) It becomes critical when steering the vehicle.

As the vehicle has a double-Ackermann steer-

ing which can implies that both front and rear

wheels steer symmetrically. For this reason, it

is expected to have a smaller turning radius.

Protective ﬁelds must be designed such that it

is intercepted timely by the pedestrians walk-

ing alongside of the vehicle on a curve.

(b) Another explanation for designing the ﬁelds is

demanded at narrow turns. This can be seen in

Figure 6. As the narrow turn approaches, the

ﬁelds must shape in a way that avoids the in-

clusion of obstacles like bushes or other struc-

tures. Otherwise, the vehicle will always go to

a safety-stop state.

3.1.2 Safety Bumpers

The safety bumpers are used as last resort for safety

stop. These are active collision cushions which have

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

702

Figure 8: Grossfunk wireless safety switch for activation of

safety in the vehicle.

safety switch-off function. This is directly connected

to the safety circuit line. The position of the safety

bumper can be seen in Figure 7.

3.1.3 Wireless Safety Stop

For redundancy in activating of safety stop, a wireless

safety stop is installed directly with the safety line cir-

cuit. The component used is from Grossfunk. This

has a wireless remote and receiver which is securely

transmits data. It is activated when either the button

is pressed or the remote goes out of range. During the

initial operation and testing of the vehicle, the vehicle

will always be under direct sight of a human opera-

tor, so in case of emergency he/she can activate the

wireless stop.

3.1.4 Motor

Two 15kW motors are installed for the front and

rear wheels. These motors are controlled by motor-

controllers that take commands from the basic control

discussed in Section 3.2. The motors are deactivated

in case of emergency brakes. It has IP54 protection.

It also has a thermal sensor and encoder for feedback

to the motor-controller. These motors are powerful

enough to drive the vehicle up to 40 km/h.

3.2 Basic Control

The basic control between our software and hardware

is manufactured by Kompairobotics

. Our system can

communicate with the basic control through Ether-

net to a jetson where their architecture is active. All

https://kompairobotics.com/robot-kompai/

the basic conﬁgurations can be set in this architec-

ture. This includes velocity, steering, and other in-

put/output commands. It has a watchdog mechanism

between the low-level controller and all CAN devices.

If there is any dysfunction or no velocity command is

received then the emergency stop is activated.

3.3 Software

Safety is also taken into account from our au-

tonomous navigation architecture known as Ro-

bust bEhAvior-based ConTrolfor Off-road Navigation

(REACTiON) (Wolf et al., 2018). This is the least

critical in terms of safety but it is considered to re-

act ﬁrst to a situation. REACTiON takes into con-

sideration the vehicle kinematics and based on that it

autonomously drives the vehicle. It does all the path-

planning and avoids the static and dynamic obstacles.

This is done in order to avoid the activation of safety

brakes repeatedly.

The architecture has a safety module which cre-

ates virtual bumpers from the same front and rear

laser-scanner shown in Figure 5. The velocity de-

creases based on activation of these bumpers. Nor-

mal vehicle brakes are activated once the size of the

bumper becomes less then the threshold.

Table 2: The table shows the different monitoring cases and

the required ﬁelds.

Monitoring

Case

Description Fields

Driving

straight

When driving

straight the ﬁelds are

perfect square

Turning

right

At full steering

towards right

Turning

left

At full steering

towards left

4 EXPERIMENTS AND RESULTS

Due to the nature of the experiment, it is not possi-

ble to show the results in the paper. Since the experi-

ments were related explicitly to hardware testing. But

to explain the formation of the protective and warn-

ing ﬁelds, the vehicle turning radius is discussed and

the relevant created ﬁelds are shown in the Table 2.

Safety-conﬁguration of Autonomous Bus in Pedestrian Zone

703

Table 3: Chosen speed, steering angles and relevant moni-

toring case numbers. The numbers inside the table present

the monitoring cases which are assigned as MCXXX to the

laser-scanner.

Speed (km/h)

0 1 2 3 5 8

Steering angles (degrees)

-22 -220 -221 -222 X X X

-15 -150 -151 -152 -153 X X

-10 -100 -101 -102 -103 -105 X

-5 -50 -51 -52 -53 -55 X

0 00 01 02 03 05 08

5 50 51 52 53 55 X

10 100 101 102 103 105 X

15 150 151 152 153 X X

22 220 221 222 X X X

The discrete speeds are chosen from 0 km/h to 8 km/h.

Lower speeds are mostly selected because the vehi-

cle is expected to drive more at lower speeds. For our

case, the maximum threshold of highest driving speed

was 8 km/h. In case the vehicle reaches this speed,

SICK will enable safety brakes because it is never

expected to reach such speeds in a pedestrian zone.

The maximum steering the vehicle is able to achieve

is 22

◦

. 5

◦

angle of interval is selected for every chosen

speed. The Monitoring cases in the laser-scanner are

assigned base on the table. 3 for every speed and steer-

ing angle. X in Table 3 implies that monitoring case

for such a sequence of speed and steering is not pre-

ferred since high steering is unsuitable at high speeds,

especially in a pedestrian zone.

For ﬁelds at a particular steering, the turning ra-

dius of the vehicle was found by the following equa-

tion:

R =

(l/2)

+ l

cot

The equation was taken from (Bhavesh K.Gohil,

2018), where R is the turning radius, l is the distance

from front wheel to rear wheel. and α is the steer-

ing angle. After taking the dimensions of the bus and

maximum steering angle, it was noted that the turn-

ing radius for the vehicle in Figure 1 is 4.2m. This

is shown in ﬁgure. 9. Based on the values from the

steering encoders, the associated ﬁelds are activated.

This ﬁeld is made not larger then the outer and inner

turning radius of the vehicle. As mentioned in the sec-

tion 3.1.1, this is important when the vehicle reaches a

sharp corner. Figure 10 shows similar situations with

protective and warning ﬁelds. It can be seen that the

bushes are not taken as an obstacle of turning in the

other direction and the vehicle can easily turn without

safety brake activation.

Figure 9: The ﬁgure shows the protective ﬁeld in red and

warning ﬁeld in yellow for speed of 1km/h with full right

steering. The turning radius for this vehicle is 4.2m.

Figure 10: The ﬁgure show the perpective view of the ve-

hicle from image 6. The shape of the ﬁelds are such that it

turns in at the corner without enabling the safety brakes.

5 CONCLUSION

This paper has described the safety conﬁguration of

the Driver-less bus shown in Figure 1. This driver-

less bus is meant for driving autonomously in a

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

704

pedestrian-zone. The most important feature when

driving in such zones is the safety of the people and

environment. Hence, it is essential that the vehicle is

totally safe even during a malfunction or any glitch in

the system. This ensures that the vehicle should stop

in any case to avoid collision with the people or envi-

ronment. On the other hand, the vehicle should also

stop when someone is trying to compellingly mess-

around the vehicle. The hardware used for safety is

safety certiﬁed to fulﬁll the requirements of safety

certiﬁcation. By performing the tests, the vehicle was

able to stop at different speeds without colliding with

the obstacle by forging the system manually in all

possible ways.

The process of safety certiﬁcation for autonomous

vehicles is not deﬁned explicitly. It varies according

to application and country. But to achieve the certiﬁ-

cation in a later stage it is important to use and follow

the standard types of equipment that are already cer-

tiﬁed to ease the validation process.

REFERENCES

Aeberhard, M., Rauch, S., Bahram, M., Tanzmeister, G.,

Thomas, J., Pilat, Y., Homm, F., Huber, W., and

Kaempchen, N. (2015). Experience, results and

lessons learned from automated driving on germany’s

highways. IEEE Intelligent transportation systems

magazine, 7(1):42–57.

Alghodhaiﬁ, H. and Lakshmanan, S. (2020). Simulation-

based model for surrogate safety measures analysis

in automated vehicle-pedestrian conﬂict on an urban

environment. In Autonomous Systems: Sensors, Pro-

cessing, and Security for Vehicles and Infrastructure

2020, volume 11415, page 1141504. International So-

ciety for Optics and Photonics.

Bhavesh K.Gohil, Nilesh G. Joshi, H. B. P. P. B. K. (2018).

Optimization of steering system for four wheel vehi-

cle. IEEE Technology and Society Magazine, 6(8):52–

62.

Hicks, D. J. (2018). The safety of autonomous vehicles:

Lessons from philosophy of science. IEEE Technol-

ogy and Society Magazine, 37(1):62–69.

Huang, W., Wang, K., Lv, Y., and Zhu, F. (2016).

Autonomous vehicles testing methods review. In

2016 IEEE 19th International Conference on Intelli-

gent Transportation Systems (ITSC), pages 163–168.

IEEE.

Husemann, J., Wolf, P., Vierling, A., Berns, K., and Decker,

P. (2020). Towards high-quality road construction:

Using autonomous tandem rollers for asphalt com-

paction optimization. In ”Osumi, Hisashi”, F. H.

T. K., editor, Proceedings of the 37th International

Symposium on Automation and Robotics in Construc-

tion (ISARC), pages 90–97, Kitakyushu, Japan. Inter-

national Association for Automation and Robotics in

Construction (IAARC).

Jan, Q. H., Kleen, J. M. A., and Berns, K. (2020). Self-

aware pedestrians modeling for testing autonomous

vehicles in simulation. In VEHITS, pages 577–584.

Jan, Q. H., Klein, S., and Berns, K. (2019). Safe and efﬁ-

cient navigation of an autonomous shuttle in a pedes-

trian zone. In International Conference on Robotics in

Alpe-Adria Danube Region, pages 267–274. Springer.

Kalra, N. and Paddock, S. M. (2016). Driving to safety:

How many miles of driving would it take to demon-

strate autonomous vehicle reliability? Transportation

Research Part A: Policy and Practice, 94:182–193.

Koopman, P., Ferrell, U., Fratrik, F., and Wagner, M.

(2019). A safety standard approach for fully au-

tonomous vehicles. In Romanovsky, A., Troubitsyna,

E., Gashi, I., Schoitsch, E., and Bitsch, F., editors,

Computer Safety, Reliability, and Security, pages 326–

332, Cham. Springer International Publishing.

Martin, J., Kim, N., Mittal, D., and Chisholm, M. (2015).

Certiﬁcation for autonomous vehicles. Automative

Cyber-physical Systems course paper, University of

North Carolina, Chapel Hill, NC, USA.

Molina, C. B. S. T., De Almeida, J. R., Vismari, L. F.,

Gonzalez, R. I. R., Naufal, J. K., and Camargo, J.

(2017). Assuring fully autonomous vehicles safety by

design: The autonomous vehicle control (avc) mod-

ule strategy. In 2017 47th Annual IEEE/IFIP Inter-

national Conference on Dependable Systems and Net-

works Workshops (DSN-W), pages 16–21. IEEE.

Reschka, A. (2016). Safety concept for autonomous ve-

hicles. In Autonomous Driving, pages 473–496.

Springer.

Wolf, P., Ropertz, T., Berns, K., Thul, M., Wetzel, P.,

and Vogt, A. (2018). Behavior-based control for safe

and robust navigation of an unimog in off-road envi-

ronments. In Commercial Vehicle Technology 2018,

pages 63–76. Springer.

Safety-conﬁguration of Autonomous Bus in Pedestrian Zone

705
