Python and Malware: Developing Stealth and Evasive Malware without

Obfuscation

Vasilios Koutsokostas

and Constantinos Patsakis

1,2

Institute of Problem Solving, Department of Informatics, University of Piraeus, Piraeus, Greece

Information Management Systems Institute, Athena Research Center, Artemidos 6, Marousi 15125, Greece

Keywords:

Malware, Antivirus, Python, Evasion, Sandbox.

Abstract:

With the continuous rise of malicious campaigns and the exploitation of new attack vectors, it is necessary to

assess the efﬁcacy of the defensive mechanisms used to detect them. To this end, the contribution of our work

is twofold. First, it introduces a new method for obfuscating malicious code to bypass all static checks of

multi-engine scanners, such as VirusTotal. Interestingly, our approach to generating the malicious executables

is not based on introducing a new packer but on the augmentation of the capabilities of an existing and widely

used tool for packaging Python, PyInstaller but can be used for all similar packaging tools. As we prove, the

problem is deeper and inherent in almost all antivirus engines and not PyInstaller speciﬁc. Second, our work

exposes signiﬁcant issues of well-known sandboxes that allow malware to evade their checks. As a result,

we show that stealth and evasive malware can be efﬁciently developed, bypassing with ease state of the art

malware detection tools without raising any alert.

1 INTRODUCTION

Adversaries are continually trying to attack systems,

to gain access to information and other resources.

This leads to a continuous arms race that has signif-

icantly augmented the sophistication of the methods

used to penetrate systems and, to a lesser extent, those

deployed to protect them. Therefore, novel security

mechanisms are developed using advanced methods

to detect malicious patterns exploiting all possible

features, using machine learning and artiﬁcial intel-

ligence methods in the past few years. However, the

adversaries are crafting complex new attacks, exploit-

ing the human factor, and often resort to encryption

and other obfuscation methods to hide their malicious

trafﬁc and actions.

Malware, a piece of software that is crafted to per-

form a malicious task in a computing system, is a

problem which has plagued computing systems for

decades. Furthermore, the relatively recent introduc-

tion of cryptocurrencies has signiﬁcantly changed the

cybercrime ecosystem as it has provided a simple

monetisation method with some privacy guarantees.

Indeed, as reported by several sources, cybercrime

has become a multi-billion underground economy

with such economic impact ((IC3), 2019; Thomas,

2020) that the World Economic Forum considers it the

second most-concerning threat to global commerce

over the next decade (Forum, 2020).

The main pillars for detecting and analysing mal-

ware are static and dynamic analysis (Gandotra et al.,

2014). In the former, there is no execution of the ﬁle

under inspection. Therefore, we try to correlate pat-

terns in every aspect of the ﬁle that can be collected

without executing it, including but not limited to im-

ported libraries, ﬁle segments, API calls, strings, ﬁle

structure, entropy, etc. On the contrary, in dynamic

analysis, we open and/or execute the ﬁle in a con-

trolled testing environment (sandbox) to identify what

this piece of software does. In this regard, we keep

track of every possible network interaction, ﬁlesys-

tem change, memory dump, processes etc. (Or-Meir

et al., 2019), replicating a real-world host environ-

ment. Moreover, one may debug the binary to execute

it, possibly line by line, to understand what it does and

how, and even manipulate its behaviour.

The above methods are well-known to malware

authors who try to bypass them by introducing ob-

fuscation and other anti-analysis methods (Branco

et al., 2012). Modern malware frequently uses pack-

ers and encryption to obfuscate their contents and by-

pass static analysis checks by generating new binaries

with different static properties. Similarly, they are

often armoured with evasion methods to bypass dy-

Koutsokostas, V. and Patsakis, C.

Python and Malware: Developing Stealth and Evasive Malware without Obfuscation.

DOI: 10.5220/0010541501250136

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 125-136

ISBN: 978-989-758-524-1

125

namic analysis. Thus, they perform speciﬁc checks in

the system to determine whether they are being exe-

cuted in a virtual environment and if known protec-

tion mechanisms typical of sandboxes are running,

and can assess their execution mode to tell whether

they are being debugged (Issa, 2012). If any of these

checks is positive, the malware typically changes its

behaviour to harden and slow down its analysis. All

the above can come under one umbrella to facilitate

malware evasion by simultaneously packing the bi-

nary and armouring it with a myriad of evasion meth-

ods (Lit¸

a et al., 2018).

The main goal of this work is to assess the effort

and methods needed to create stealth malware. We

deﬁne this stealth concept in an objective and repeat-

able way. More precisely, we consider that a malware

sample is stealth if (i) it achieves a “clean sheet” after

inspection by multi-engine scanners, such as VirusTo-

tal (VT) and (ii) malware sandbox environments do

not consider it malicious per se. VT and other similar

services used statically examine the ﬁle with several

dozens of antiviruses (AVs). Therefore, even if an AV

may detect the malware on execution, VT’s verdict

might classify it as benign. Note that a clean sheet

verdict from VT, which has around 70 AVs clearly

shows the trend of the market, meaning that the rest

of the AVs, which are minor share of the market are

not expected to have different behaviour. Practically,

our work starts from understanding why some AVs

are erroneously ﬂagging some executables as mali-

cious and uncovers an inherent problem of AV en-

gines when handling Python ﬁles. This can be eas-

ily escalated to develop undetectable malware. What

is even more alarming is the fact that while one may

argue that there are several tricks to bypass static AV

tests by hiding the payload, we illustrate that a threat

actor does not need to cover the payload. Widely used

payloads can be simply embedded in Python and es-

cape the detection.

Nevertheless, it is clear that once the user is lured

to execute malware, it might be too late to block its ac-

tions. Moreover, we consider the malware as stealth

if it escapes detection from the state of the art mal-

ware sandboxes. To this end, we experimented with

the most well-known sandboxes publicly available on

the Internet. Our analysis and experiments have un-

covered signiﬁcant issues in these sandbox environ-

ments that allow malware to bypass them. Based on

the above, our work illustrates critical issues in detect-

ing malware that affects the whole ecosystem, span-

ning from how AVs statically recognise malware, to

the evasion from sandboxed environments. Practi-

cally, using our methods, one may efﬁciently develop

malware or armour an existing one so that that it is

not detected by a wide range of state of the art tools

used for detecting malware.

In what follows, we provide a brief overview of

the related work. Then, we discuss the conceptual ap-

proach for the development of stealth malware. In

Section 5, we analyse our experiments and the ex-

tracted results. Then, in Section 6, we discuss our

ﬁndings and their impact. The article concludes sum-

marising the contributions of our work and streamlin-

ing future work.

Ethical Compliance. Our work complies with the

standards for conducting offensive security in an eth-

ical way. To this end, we have responsibly disclosed

our ﬁndings to each sandbox provider individually

prior to submitting this work. Moreover, we have not

published nor communicated our methods to prevent

them from being used in the wild.

2 RELATED WORK

Similar to the use of sandboxes for cats, a malware

sandbox is a controlled virtualised environment in

which a potentially dangerous ﬁle is submitted for

inspection, so that it does not “litter” the rest of the

system. This environment will automatically exe-

cute/open the ﬁle and analyse its behaviour, such as

ﬁlesystem interaction, network connections, registry

changes and access, API calls, memory access, etc.

The virtualised and isolated nature of the environment

prevents the malware from causing any harm to the

system performing the analysis. Another approach

would be to actually debug the suspicious ﬁle and ex-

amine in detail command by command and even alter

its behaviour.

Clearly, the above is not the ideal for the adver-

sary, so almost all modern malware come equipped

with an evasion method leveraging, for instance,

sandbox and debugger detection methods. For the

sandbox evasion, the malware performs a broad range

of checks to assess the environment they are being

executed. In essence, the malware will look for envi-

ronmental artifacts (Bulazel and Yener, 2017) which

include but are not limited to hardware identiﬁers,

presence of user interaction, sensor readings, uptime,

usernames, timing discrepancies, registry values, and

hardware speciﬁcations (Martignoni et al., 2009; Shi

et al., 2014), see Figure 1. Therefore, such a mal-

ware would resolve to i) calls to the registry, check the

process list and ﬁlesystem to perform pattern match-

ing against a predeﬁned set of strings ii) time mea-

surements to determine whether the elapsed time is

aligned with the expected processing time and iii)

detect possible deviations from the outcome of spe-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

126

ciﬁc commands. The above indicates that minor de-

tails, for instance, the MAC address of the network

may easily reveal the virtualised environment as well

as the list of running processes or inconsistencies in

CPU/GPU speciﬁcations. Some malware may also

use logical bombs to deliver their payload. For in-

stance, the execution can be delayed based on time

constraints or enabled only after proper packet receipt

from a speciﬁc domain. In fact the time that a honey-

pot devotes for execution of a sample introduces many

differences on what data is collected. As recently re-

ported by K

uchler et al. (K

uchler et al., 2021), the

bulk most of the malware behavior is observed dur-

ing the ﬁrst two minutes of execution, while further

actions may take up to ten minutes.

It must be highlighted at this point that due to the

monetisation model (discussed later on), a sandbox

will not execute and inspect a binary for an arbitrary

amount of time. Additionally, to analyse as many

samples as possible, it cannot provide all the available

system resources. Therefore, by delaying the execu-

tion, allocating a lot of space and memory, a malware

may evade detection. Thus, the sharing of the pro-

cessing resources may easily expose the virtualised

environment as the VM could report the host’s proces-

sor with a fragment of the available cores. Recently

Huang et al. (Huang et al., 2020) introduced PiDi-

cators which do not use API calls but pure assembly

code and far fewer checks to determine whether a bi-

nary is being executed in a VM triggering far fewer

alerts. It has to be noted that the wide adoption of

virtualised environments in, e.g. cloud computing,

some malware is even more targeted, trying to detect

sandboxed environments and not simply virtualised

(Yokoyama et al., 2016). For more on evasion meth-

ods the interested reader may refer to (Chen et al.,

2008; Issa, 2012; Petsas et al., 2014; Uitto et al.,

2017; Veerappan et al., 2018; Aﬁanian et al., 2019;

Checkpoint Research, 2020; Apostolopoulos et al.,

2021).

Figure 1: Sandbox evasion methods overview.

These countermeasures from the malware have re-

sulted in the introduction of anti-evasion methods.

For instance, MALGENE (Kirat and Vigna, 2015) per-

forms data ﬂow analysis and data mining on the sys-

tem calls to determine whether the inspected binary

actions could be a result of an evasion method.

VM Cloak (Shi et al., 2017) checks the environ-

ment for misconﬁgurations and differences in execu-

tion environments that could reveal that the execution

is done in a VM, while Leguesse et al. (Leguesse

et al., 2017) harden Android sandboxes which have

more sensors to cover. A widely used project for hid-

ing Windows VMs is A. Ortega’s paﬁsh

which fo-

cuses on the checks that are performed by malware.

Recently, D’Elia et al. (Cono D’Elia et al., 2020)

introduced a dynamic binary instrumentation based

method, called BluePill which allows analysts to in-

strument the binaries they are dissecting evasive mal-

ware in a stealth way so that they cannot determine

that they are being debugged. Nevertheless, this is

another part of the continuous battle, bringing, for in-

stance, anti-anti evasion methods in this ﬁght (D’Elia

et al., 2019).

Finally, it should be noted that bare-metal mal-

ware execution environments, so the execution is per-

formed in an actual and not virtualised environment,

so there is no VM nor sandbox stain to cover, are also

considered in the literature (Kirat et al., 2011; Guan

et al., 2017; Kirat et al., 2014; Mutti et al., 2015;

Deng and Mirkovic, 2018), nevertheless, they cannot

be considered a practical solution for assessing mal-

ware samples at the desired rate as they cannot scale

efﬁciently.

3 PYTHON & PYINSTALLER

Python is an interpreted programming language with

continuous increasing popularity. Despite its read-

ability and simplicity, it has accumulated several fea-

tures over the years, making it very attractive for

scripting and Rapid Application Development. Cur-

rently, it is widely used for server-side web develop-

ment, machine learning, system scripting and secure

software-related engineering, especially offensive.

The fact that Python can be used in all major plat-

forms, as well as the fact that it is easy to write and

many exploits and offensive security tools, have been

written in Python has pushed a lot of malware au-

thors to write their malware in this programming lan-

guage

. However, we argue that there is another more

https://github.com/a0rtega/paﬁsh

https://unit42.paloaltonetworks.com/unit-42-

technical-analysis-seaduke/,https://blog.talosintelligence.

com/2020/04/poetrat-covid-19-lures.html,https:

//blog.netlab.360.com/not-really-new-pyhton-ddos-

bot-n3cr0m0rph-necromorph/,https://www.crowdstrike.

com/blog/bears-midst-intrusion-democratic-national-

committee/

Python and Malware: Developing Stealth and Evasive Malware without Obfuscation

127

important issue with Python that makes it more at-

tractive for malware authors. AVs have not properly

integrated this attack vector in their scope, as we will

show in the next paragraphs.

While Python is preinstalled by default in most

Unix-like operating systems, it is not the case of Win-

dows. Moreover, Python, as an interpreted language,

does not compile to create an executable. To create

an executable from a Python script, there are several

options, with the most popular one being PyInstaller.

PyInstaller takes as input a Python and tries to dis-

cover all its module and library dependencies that are

needed to properly execute it. To do this, PyInstaller

is recursively looking for imports of the necessary

ﬁles, until it reaches native Python modules and li-

braries. Once the dependencies are identiﬁed, instead

of keeping the Python scripts, PyInstaller keeps the

compiled Python scripts (.pyc ﬁles), usually referred

to as Python bytecode. These ﬁles, along with an ac-

tive Python interpreter and environment in the form of

what is called the bootloader, are copied in a folder.

Thus, PyInstaller allows the packaging of applications

in folders and unique executable ﬁles without the need

to have Python preinstalled.

The bootloader is the core component of PyIn-

staller as it prepares the environment for executing

the Python code and actually executes it. The boot-

loader is different for each architecture and highly

customizable. Once someone launches a bundled

Python application, the bootloader is initiated and

spawns another child process of itself. The parent

bootloader process handles the signals for the two

processes and uncompresses all the .pyc ﬁles in a

folder named MEIxxxxxx in the temp folder of the

host, where xxxxxx is a random number. The child

process loads the temporary Python environment with

all the needed modules and libraries for the script can

be imported and executes the script. Once the child

process terminates, the parent process will cleanup

and terminate as well.

To compress the ﬁles and create a single exe-

cutable, PyInstaller uses two compression methods,

ZlibArchives for Python compiled ﬁles (executable

Python zip archives) and CArchive for all other ﬁles.

In this work, we delibrately study PyInstaller as be-

yond being the most widely used solutions for cre-

ating executables from Python, many other installers

are based on it. Therefore, the issues reported in this

case can be escalated to other installers.

4 CONCEPTUAL APPROACH

Our work’s conceptual approach is to progressively

determine what triggers detection of a malicious bi-

nary in static and dynamic analysis and create patches

to remove it. We argue that if VirusTotal and other

similar engines consider a binary as benign and the

dynamic analysis from a sandbox does not trigger

an alert, the binary is deemed benign, even by secu-

rity savvies. In this regard, a suspicious indication

of sandbox would be considered simply suspicious.

Therefore, it will fall below the detection radars and

would be executed by a typical user. While we under-

stand that an anti-malware mechanism may detect it

upon execution, this is clearly too late in most cases.

Two individual streams emerged from this ba-

sic concept, targeting towards evading each analy-

sis. Once we developed the measures that bypassed

each one of them individually, we merged them into

a unique binary. Therefore, we will present the ap-

proach and experiments individually. As we will de-

tail in the next section, for the static analysis, we up-

loaded our samples to VirusTotal and used the detec-

tion output and classiﬁcation of each antivirus, the re-

ported YARA rules, as well as the community com-

ments to determine which static properties are the

ones that lead to the detection of the malware. To fur-

ther validate our results, we submitted our results to

two more similar engines. For the dynamic analysis

with sandboxes, we initially submitted some binaries

that collected data from each sandbox environment

and then used this as an input to armour our binary

with evasion measures. Notably, as discussed later in

the article, we identiﬁed several important issues for

many of the sandboxes that were responsibly commu-

nicated to them.

4.1 Bypassing Static Analysis

The methodology behind the technique to bypass the

static analysis stems from observations on PyInstaller

(https://www.pyinstaller.org/) 4.0 binaries. To gener-

ate an executable, PyInstaller adds a lot of “noise” to

the generated binaries, from, e.g. the libraries that are

appended, and even if the code is not malicious, many

AVs falsely treat the executable as malware. In fact,

as reported by the community, in numerous occasions

even simple “Hello world” Python scripts are ﬂagged

as malicious by several AVs as they consider binaries

generated by PyInstaller as malicious by default.

The latter exhibits an erroneous policy applied by

almost all AVs; at least the ones used in VT, when

handling binaries produced by PyInstaller. In prac-

tice, none of them understands its output; probably

SECRYPT 2021 - 18th International Conference on Security and Cryptography

128

because of its overblown added libraries. Therefore,

on the one hand, we have most antivirus for which

PyInstaller acts like an efﬁcient packer, so one can

hide arbitrary code in them. On the other hand, other

AVs have understood this capacity and immediately

ﬂag the binaries as malicious.

po w er s he l l - NoP - NonI - W H i d den - E x e c

Byp a s s - C o mma n d Ne w - O b j e c t Syst e m .

Net . S ock e t s . TC P Cl i e nt (" 10 .0 . 0. 1 "

,424 2 ) ; $s t ream = $ c lient . Get S t re a m

() ;[ byte []] $byt es = 0. . 6 5 53 5 | % {0 } ;

while (( $i = $st r eam . Re a d ( $bytes , 0,

$by tes . Le ngt h )) - ne 0) {; $data = (

Ne w -O b je c t - T yp e N am e S y ste m . Text .

AS C I I En c od i n g ) . Get S tr i n g ( $bytes ,0 ,

$i) ; $s e n d b a c k = ( i e x $data 2 >&1 |

Ou t -S t ri n g ) ; $s endback2 =

$sendback + " PS " + ( pwd ) . P a t h + " >

" ; $s e n d b y t e = ([ text . en c o di n g ] : :

ASCII ). G et B y te s ( $s e n d b a c k 2 ) ; $stream

. W r i t e ( $sendby te ,0 , $s e n d b y t e . L e n g th

) ; $stream . F l ush () }; $c lient . Cl o se ()

Listing 1: A typical Powershell reverse shell.

In what follows, we dig a bit deeper on the problem

with PyInstaller to understand the nature of the noise

that makes it act like a packer. We start with a simple

reverse shell with a PowerShell script which is typi-

cally ﬂagged by AVs. The one-line script is provided

in Listing 1. Note that similar backdoor mechanisms;

e.g. malicious PowerShell execution, are widely used

by malware in the wild. Two scripts, one in JavaScript

and one in Python were written appending the exact

same PowerShell code snippet to their body; there-

fore, no obfuscation is applied. While both of them

are plain ASCII ﬁles, with minimal differences in

their contents and the malicious string in plain sight,

there are signiﬁcant deviations on their detection from

AVs, see Figure 2, which are rather alarming. More

precisely, one may observe that the JavaScript ﬁle is

ﬂagged as malicious by four times more AVs than its

Python peer. Notably, none of them were identiﬁed

correctly, the JavaScript is considered as text and the

Python as Java. While the inconsistency in the de-

tection rate of AVs for almost the same plaintext ﬁle

cannot be easily understood, the compiled Python ﬁle

(pyc), and Python bytecode in general, illustrates a

more catastrophic result. None of the AVs is able to

recognise it as malicious; therefore, it shows that none

of the AVs understands what is inside a pyc ﬁle as the

conversion to the Python compiled ﬁle efﬁciently ob-

fuscates the contents of the script to bypass the static

analysis.

The above illustrates a clear strategy to bypass

static analysis for an executable. One has to write a

Python script which does all the “dirty job” and com-

pile it using PyInstaller to hide its malicious content.

Then, if we masquerade the PyInstaller enough so that

it is not considered as such, we may pass any exe-

cutable without any detection from the AVs.

Based on the above, our strategy is to exploit these

inefﬁciencies in handling binaries generated by PyIn-

staller. Thus, the plan is to use PyInstaller to create

the binaries out of malicious scripts, but then remove

all the possible static features that it appends from the

binary. The general outline of the method is illus-

trated in Algorithm 1.

4.2 Bypassing Dynamic Analysis

The dynamic analysis bypass is solely targeted to-

wards bypassing the checks performed by executing

the binary in a set of well-known and widely used

sandboxes. To this end, we ﬁrst created a set recon-

naissance of executables that were simply collecting

environmental data from each sandbox and perform-

ing some checks with a standard tool for assessing the

sandboxes’ quality for malware analysis, paﬁsh. Once

collected, the input was then sent to a server that we

controlled to gather and analyse it.

Beyond the output of paﬁsh, which identiﬁed sev-

eral misconﬁgurations and our own ﬁndings, one has

to consider some particular inherent issues that such

services have. The environmental ﬁndings have to be

considered in the scope of a service offered in a virtu-

alised environment, for a limited amount of time and

with the minimum amount of resources to allow for

scaling. As a result, a VM cannot always meet a typ-

ical computer’s speciﬁcations in terms of, e.g. mem-

ory, disk, etc.

Finally, one has also to consider that most sam-

ples in such a sandbox originate from users without

paid plans, so these are tested in VMs that are more

limited. Based on the market model (see Section 2), if

a ﬁle is considered benign by the static analysis, and

the sandboxes have not identiﬁed it as malicious, the

chances of the ﬁle being rescanned in a “better” VM

drop dramatically.

5 EXPERIMENTAL RESULTS

5.1 Static Malware Analysis

Following our ﬁndings for the handling of Python

bytecode, the main goal of the experiments is to alter

the executable in a way that it does not look generated

by PyInstaller. In our experiments, we opted to use

some standard malicious payloads as a codebase that

were executed through Python, create an executable

Python and Malware: Developing Stealth and Evasive Malware without Obfuscation

129

(a) JavaScript using PowerShell reverse

shell.

(b) Python using PowerShell reverse

shell.

Python using PowerShell reverse shell

script.

Figure 2: Scan results for reverse shell scripts using Javascript and Python.

Algorithm 1: Bypassing static analysis.

1: procedure OBFUSCATE PAYLOAD(x)

2: Select proper payload;

3: Parametrise the payload;

4: XOR the payload with a random key;

5: Convert the XORed payload to base64;

6: procedure PATCH BOOTLOADER(exe)

7: Rename PyInstaller references to a random

string

8: Rename ﬁles and their calls with pyi preﬁx

to a random preﬁx.

9: Replace default icons

10: Update linker’s ﬂags in WScript

11: procedure PATCH BINARY(exe)

12: Add version to the binary

13: Remove rich header

14: Rename RTDATA header to .bss

15: Recalculate PE32 checksum.

16: Select payload P

17: P’=Obfuscate payload(P)

18: Use a Python S script to call P’;

19: Build a PE32 executable from S to a single ﬁle to

generate the bootlader B

20: B’=Patch Bootloader(B)

21: Build the PE32 executable PE32 from S to a

single ﬁle with bootlader B’

22: PE32’=Patch Binary(PE32)

with the corresponding bootloader of PyInstaller, and

then make the necessary changes to the bootloader

and the executable to prevent AVs from detecting it.

Initially, we wrote a script with a known malicious

shellcode payload from msfvenom and a Powershell

command that downloads the EICAR anti-malware

testﬁle and XORed that Powershell command with a

random hard-coded string and converted it to base64.

The reason for these choices is that both of them are

well known to trigger AVs; therefore, if any of them

is identiﬁed by an AV or a sandbox, it will immedi-

ately ﬂag the ﬁle as malicious in both static and dy-

namic analysis. We compiled this script with PyIn-

staller and submitted the executable to VT. As shown

in Figure 4a, multiple AV engines reported our exe-

cutable as malicious. Moreover, we scanned a sim-

ple “hello world” Python script compiled with PyIn-

staller in VT, and it was also reported as malicious

by the same antivirus engines (Figure 4b), verifying

again the issues described in the previous section. To

further validate our results, we created some binaries

with the exact same functionality using C++, Rust,

and Go and submitted them for analysis to VT, see

Figures 4c, 4d and 4e respectively. It is important

to highlight in the latter ﬁgures that, contrary to the

ones for Python, the AVs have correctly identiﬁed the

presence of shellcode and Meterpreter, as shown by

the names that they attribute to our binaries. The dif-

ference is rather important since the shellcode is not

encoded in any of the implementations showing that

PyInstaller has efﬁciently hidden it from the AVs once

again.

Based on the above, it is apparent that by alter-

ing the PyInstaller ﬁngerprint on the executable, we

may evade the static analyses of many AVs. Thus, to

bypass PyInstaller identiﬁcation by AVs, we initially

made some clear “static” changes. These changes

were i) substitution of strings and ﬁles from “pyi ”

to a random short string, ii) rename of “PyInstaller”

strings to another random short string, iii) replace-

ment of the default icons, and iv) addition of ﬂags

to the linker in WScript, see Table 1. After these

changes, we built the new bootloader. We then com-

piled the malicious script with the modiﬁed PyIn-

staller bootloader, managing to reduce the AVs that

reported our executable as malicious to four (Figure

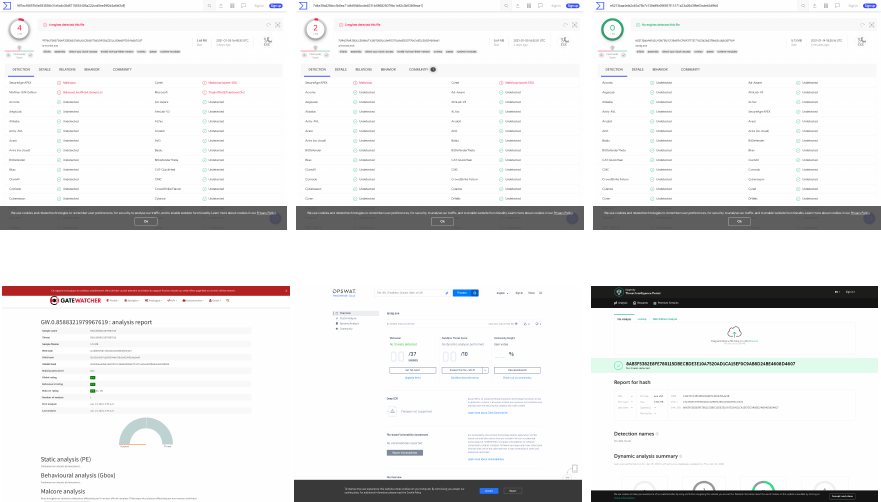

5a). Note that the aforementioned actions are bypass-

ing several checks with YARA rules that some AVs

SECRYPT 2021 - 18th International Conference on Security and Cryptography

130

might perform, see Figure 3.

Since our binary did not have any version informa-

tion, we added one and recompiled it. While a trivial

action, after scanning this executable on VT, the AVs

are reporting our binary as malicious was further re-

duced to two (Figure 5b). Finally, we opened the last

built of our executable with PEtools (https://github.

com/petoolse/petools), cleared the rich header and re-

named the RDATA header to .bss and recalculated the

checksum. The removal of the rich header was made

to prevent the detection of the binary through the sig-

nature of this header (Webster et al., 2017). This ﬁnal

executable achieved zero detections from VT, see Fig-

ure 5c. The result was also cross-validated with other

custom and multi-engine scanners, e.g. Kaspersky

Threat intelligence portal (https://opentip.kaspersky.

com/), Gatewatcher (https://intelligence.gatewatcher.

com/), MetaDefender (https://metadefender.opswat.

com/), see Figure 5f, 5d and 5e, respectively.

Table 1: Linker ﬂags for PyInstaller.

Flag Description

/BASE:0x00400000 Set base to default Windows PE image

base

/DYNAMICBASE:NO Disable dynamic base

/VERSION:5.2 Set image version

/RELEASE Set the checksum of the ﬁle

Figure 3: A common YARA rule for detecting PyInstaller.

Source: https://github.com/bartblaze/Yara-rules/blob/

5f4961049d0d510b11250d5628383398889fc881/rules/

generic/PyInstaller.yar.

5.2 Dynamic Analysis with Sandboxes

To assess the sandboxes and create a proper eva-

sion method, we ﬁrst need to establish a ground truth

baseline for the environment that the sandboxes use.

Therefore, the strategy is to initially create a binary

that collects intelligence and then aggregate it to make

a binary that exploits it to bypass the detection.

To this end, we ﬁrst created some reconnaissance

binaries that were submitted to Intezer, Any.run,

Triage, Hybrid Analysis, the public Cuckoo installa-

tion of the Estonian CERT (https://cuckoo.cert.ee/),

Cape, and Threat Grid sandboxes. However, not all

of them allowed Internet connections to the binaries.

Therefore, we used a machine with a public IP to col-

lect the input from the reconnaissance binaries when

the Internet connection was available. When this was

not the case, we manually inspected the logs that were

generated from the sandboxes as we wrote the corre-

sponding logs to the disk and registry.

To bypass the execution of our malicious code in a

sandbox environment, we analysed the collected data

to identify common deﬁciencies. The most signiﬁ-

cant misconﬁguration in almost all sandboxes was the

CPU speciﬁcations. More precisely, there were obvi-

ous contradictions regarding the threads and cores of

the reported CPU. For instance, a sandbox was report-

ing an AMD EPYC 7371 16-Core Processor, but in

the meantime, it was also reporting two cores and two

threads. Therefore, we collected all available CPU

speciﬁcations from Intel and AMD and added them as

dictionaries in our the evasive ﬁnal malware. An ag-

gregated table of the issues that we identiﬁed in each

sandbox is reported in Table 2 and will be further dis-

cussed in the following paragraphs.

Despite the identiﬁed deﬁciencies, bypassing all

of them in a binary is not straight forward. The rea-

son is that continuous calls to read registry values,

or WMI is triggering alerts in the sandboxes. Thus,

one needs to unify these checks and prioritise them

according to the “noise” they introduce to the sand-

box. Therefore, in our malicious binary, we intro-

duced several conditions before executing the pay-

load.

Firstly, we check whether any known sandbox or

VM process is running in the background. After-

wards, we check whether the threads of the system

are more than four and if the available RAM is more

than 1 GB which is the bare minimum for most of the

64bit modern computers. Then, we check whether

the system is powered on more than a threshold, e.g.

2-3 minutes. Next, we examine the foreground ap-

plications and the parent of the process of our bi-

nary. The reason for this check is the execution pro-

cess of a sandbox. In most cases, there is a dropper

script which opens the ﬁle and exits. However, in a

real-world execution environment, one would expect

that the user would have some other open programs,

whether this is the Explorer, Word, or a terminal that

would initiate the execution of the binary. Clearly,

Python and Malware: Developing Stealth and Evasive Malware without Obfuscation

131

(a) Original binary with PyInstaller (b) Hello world binary with PyInstaller. (c) C++ compiled executable with the

malicious payload.

(d) Rust compiled executable with the

malicious payload.

(e) Go compiled executable with the

malicious payload.

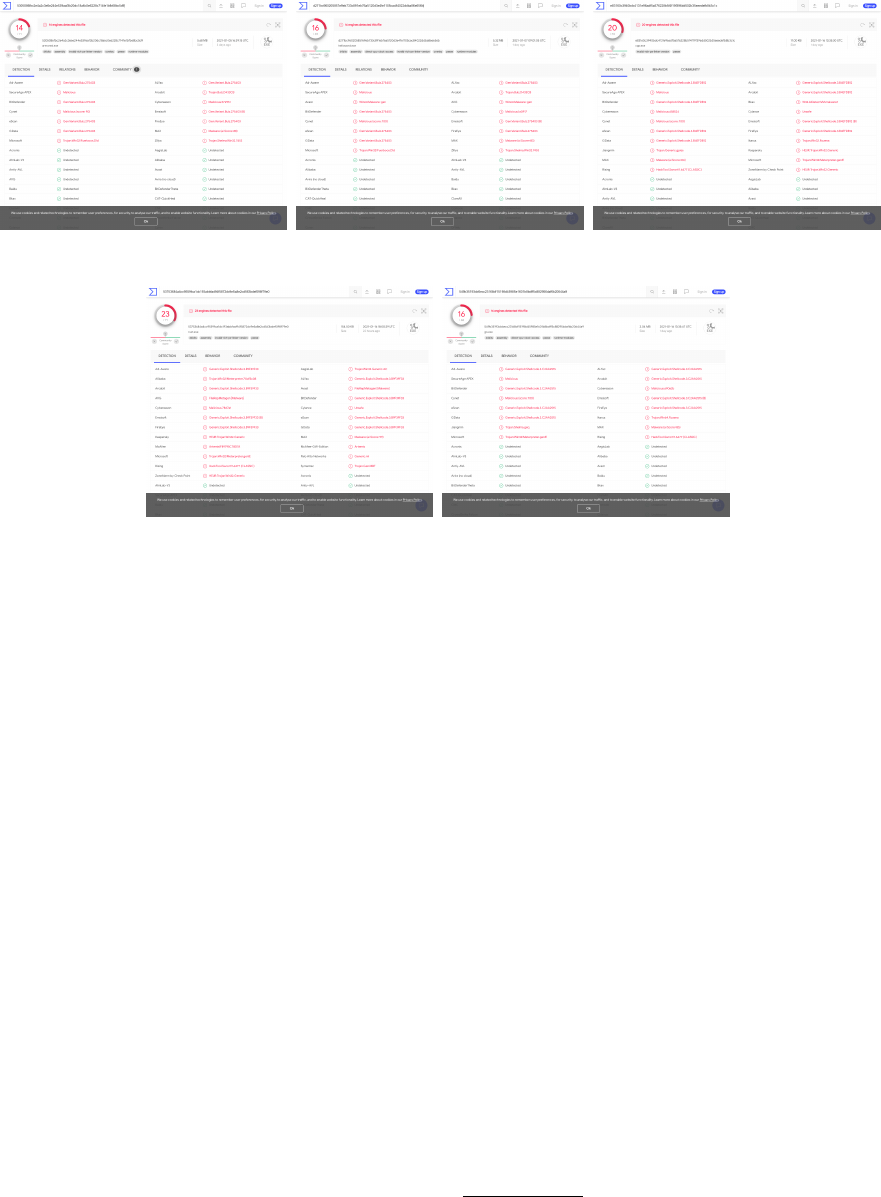

Figure 4: VT detection results for binaries from various languages.

if this is not the case, then some automated script

opened the binary for inspection.

Notably, up to this point, no ﬂag is triggered to

the sandbox as the checks do not perform any black-

listed operation and are considered benign by most of

them. If all these checks are passed, then we start the

registry checks via WMIC for the CPU model name.

We validate with our dictionary the existence of the

model and the consistency of the reported threads and

cores with the manufacturer’s actual ones. Usually,

this query to the registry is logged by the sandbox, but

without any signiﬁcant alert. Lastly, we query the reg-

istry, again via WMIC, to access system information

and ﬁnd known VM strings in the system model or

system manufacturer. Clearly, this is also logged by

the sandboxes, without though any high score to is-

sue a malicious verdict. Moreover, not all sandboxes

managed to reach this point of execution, so in many

instances, these logs were not complete in all of the

reports.

If any of these checks fail, we perform a grace-

ful exit, perform some arbitrary computations before-

hand, and add some noise in the analysis. How-

ever, after the successful pass of the aforementioned

checks, the malicious binary is executed. Quite

alarmingly, in all tested sandboxes, our evasion meth-

ods succeeded, achieving low scores in both the dy-

namic analysis, as well as the static analysis offered

by the sandboxes. In fact, all of them considered the

samples suspicious for spawning another process of

itself which can be considered a false-positive indica-

tion, but the malicious payload was not delivered as

the binary understood that it was executed in a sand-

box.

6 DISCUSSION

Given the inherent static analysis restrictions, low de-

tection rate from AVs in VT can be considered up to a

point expected as our approach is unique and creates

an unknown pattern. Nevertheless, the fact that our

samples do not simply have few detections, but actu-

ally zero is very alarming. It becomes even more wor-

rying because PyInstaller is a widely used tool that is

poorly handled. Even the slight changes introduced

by us signiﬁcantly reduced the AVs’ detection rate.

Notably, these methods can be applied to other lan-

guages’ packaging, e.g. for Go which is increasingly

being used by malware in the past few years

It is worth noticing that the above results indicate

https://unit42.paloaltonetworks.com/the-gopher-in-

the-room-analysis-of-golang-malware-in-the-wild/

SECRYPT 2021 - 18th International Conference on Security and Cryptography

132

(a) Patched binary with PyInstaller

strings removed.

(b) Patched binary with version ﬁx. (c) Final binary with all patches.

(d) GATEWATCHER scan results. (e) OPSWAT scan results. (f) Kaspersky static and dynamic analy-

sis results.

Figure 5: Screenshots of the results of our patched samples from multi-engine scanners.

that AVs do not efﬁciently handle large executables.

For instance, using the UPX feature of PyInstaller to

shrink the executable resulted in further detections of

the binary. Nevertheless, this can be attributed to the

UPX signature. However, the same behaviour was

noticed with, e.g. Nuitka (https://nuitka.net/) which

created far larger executables.

The results of the dynamic sandbox analysis can

be considered in many cases, catastrophic. The rea-

son is that our analysis showcases signiﬁcant issues

in the conﬁguration of the sandboxes that allow the

malware to fall below their radar. For instance, the

vast majority of sandboxes expose inconsistent CPU

speciﬁcations (processor name vs cores/CPU) while

we also noticed the use of non-existing CPU names

in one of them. Similar issues were also detected for

GPUs.

Differences between CPU timestamp counters

may be more challenging to patch; therefore, they

were encountered in most sandboxes. Quite inter-

estingly, the listing of well-known VM processes and

obvious VM related strings in Bios and system manu-

facturer (e.g. QEMU, KVM), small uptime, MAC ad-

dress vendor and low RAM, trivially exposed the vir-

tualisation environment indicating a poor conﬁgura-

tion of the sandbox environment. Moreover, we argue

that using a limited set of product Windows IDs that

we noticed can also be used to ﬁngerprint sandboxes

and bypass them. Therefore, the further randomisa-

tion of these IDs is necessary as the purchase of more

licences does not solve the problem completely.

Finally, we should also stress the complete ab-

sence of foreground processes in all sandboxes. In all

occasions, the binary started without any other win-

dow opened, clearly showing that a dropper initiated

the execution. While one may argue that malware

may consider this as part of its persistence, e.g. via

registry autorun, it would be relatively easy for the

malware to verify the claim and correlate it with the

uptime. Therefore, sandboxes must open a couple of

windows, e.g. Explorer, to denote some user-initiated

action for the binary execution and hide the dropper’s

existence.

7 CONCLUSIONS

Many issues arise from misclassiﬁcations and it is es-

sential to understand which features are the ones that

resulted to, e.g. a false positive. Based on this prob-

lematic, we studied the case of PyInstaller, a widely

used packaging tool for Python scripts. The generated

executables are erroneously ﬂagged as malicious re-

gardless of their content, as repeatedly reported online

by developers. While many malware authors have

Python and Malware: Developing Stealth and Evasive Malware without Obfuscation

133

Table 2: Identiﬁed misconﬁgurations and issues of sandbox environments.

Hybrid Thread

Rules Analysis Any.run Intezer Tria.ge Cuckoo Grid Cape

Non existing CPU name 7

Bad CPU speciﬁcations 7 7 7 7 7 7

Product Key reuse 7 7 7

Bad GPU name 7 7 7 7 7

Low Available Memory 7

Running known VM processes 7

Small uptime 7

Difference between CPU times-

tamp counters (rdtsc)

7 7 7 7 7

Bad MAC Address 7

Hypervisor bit in CPUId 7

Known VM brand string in Bios 7

Known VM brand string in Sys-

tem Manufacturer

recently switched to the use of PyInstaller to write

their malware, this does not justify why every exe-

cutable of PyInstaller should be treated as malicious.

On the contrary, it implies that AVs do not understand

the content of these ﬁles and treat them as malicious.

Based on this problematic, we have shown that the

problem is inherent as AVs cannot efﬁciently process

Python bytecode, which are included in PyInstaller.

As a result, we may develop malware which escapes

static analysis of all AVs by simply changing some

characteristics of PyInstaller binaries. Clearly, Python

bytecode decompilation is essential to prevent similar

attacks in the near future.

Based on our analysis, it is evident that apart from

clear misconﬁgurations, resource-wise limitations in

the sandboxes impose signiﬁcant constraints that en-

able their identiﬁcation. More precisely, to address

the numerous requests for scanning binaries, many

of the sandboxes resort to using a limited set of re-

sources (CPU/RAM) which especially for the CPU is

not properly handled. As illustrated, many of them

report contradictory conﬁgurations which can be eas-

ily detected and bypassed without issuing any signif-

icant alert. The analysis of a binary in a virtualised

environment which resembles a traditional, modern

PC system is very costly, let alone bear metal anal-

ysis. Nevertheless, with the continuous increase of

samples that have to be checked, the balance is going

to be signiﬁcantly tipped at the dispense of sandboxes.

The latter denotes a deﬁnite need to improve our ex-

isting sandboxes’ capabilities to, e.g. enable them to

report more realistic conﬁgurations without exposing

them. Moreover, we should further explore the anal-

ysis using symbolic execution of the binary to offer

a cost-efﬁcient alternative. Finally, despite the recent

advances in malware analysis and the numerous aca-

demic works and products touting almost absolute de-

tection rates, we illustrate that undetectable malware

might even be in plain sight and evade detection in

real-world experiments.

We argue that one can deploy even stealthier mal-

ware by minimising the ﬁlesystem footprint. To this

end, in future work we plan to rewrite the boot-

loader to extract all the necessary ﬁles in mem-

ory or use PyOxidizer (https://github.com/indygreg/

PyOxidizer), randomising ﬁle names in each com-

pilation, further reducing the pattern that one could

use to trace it. Fileless approaches (Kumar et al.,

2020) in which all the content is loaded in memory

through the use of, e.g. Living Off The Land Bina-

ries And Scripts (LOLBins and LOLScripts https://

github.com/LOLBAS-Project/LOLBAS) can further

decrease the detectability. In parallel, we plan to in-

vestigate other packaging and distribution tools for

other languages beyond Python to assess their obfus-

cation abilities.

ACKNOWLEDGEMENTS

This work was supported by the European Commis-

sion under the Horizon 2020 Programme (H2020), as

part of the projects CyberSec4Europe (https://www.

cybersec4europe.eu) (Grant Agreement no. 830929),

LOCARD (https://locard.eu) (Grant Agreement no.

832735).

The content of this article does not reﬂect the of-

ﬁcial opinion of the European Union. Responsibility

for the information and views expressed therein lies

entirely with the authors.

REFERENCES

Aﬁanian, A., Niksefat, S., Sadeghiyan, B., and Baptiste,

D. (2019). Malware dynamic analysis evasion tech-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

134

niques: A survey. ACM Computing Surveys (CSUR),

52(6):1–28.

Apostolopoulos, T., Katos, V., Choo, K. R., and Patsakis,

C. (2021). Resurrecting anti-virtualization and anti-

debugging: Unhooking your hooks. Future Genera-

tion Computer Systems, 116:393–405.

Branco, R. R., Barbosa, G. N., and Neto, P. D. (2012). Sci-

entiﬁc but not academical overview of malware anti-

debugging, anti-disassembly and anti-vm technolo-

gies. In Blackhat USA.

Bulazel, A. and Yener, B. (2017). A survey on auto-

mated dynamic malware analysis evasion and counter-

evasion: PC, mobile, and web. In Proceedings of the

1st Reversing and Offensive-oriented Trends Sympo-

sium, page 2, New York, NY, USA. ACM, ACM.

Checkpoint Research (2020). Evasion techniques. https:

//evasions.checkpoint.com/.

Chen, X., Andersen, J., Mao, Z. M., Bailey, M., and

Nazario, J. (2008). Towards an understanding of anti-

virtualization and anti-debugging behavior in modern

malware. In 2008 IEEE International Conference on

Dependable Systems and Networks With FTCS and

DCC (DSN), pages 177–186. IEEE, IEEE.

Cono D’Elia, D., Coppa, E., Palmaro, F., and Cavallaro, L.

(2020). On the dissection of evasive malware. IEEE

Transactions on Information Forensics and Security,

15:2750–2765.

D’Elia, D. C., Coppa, E., Nicchi, S., Palmaro, F., and Cav-

allaro, L. (2019). Sok: Using dynamic binary instru-

mentation for security (and how you may get caught

red handed). In Proceedings of the 2019 ACM Asia

Conference on Computer and Communications Secu-

rity, pages 15–27.

Deng, X. and Mirkovic, J. (2018). Malware analysis

through high-level behavior. In 11th USENIX Work-

shop on Cyber Security Experimentation and Test

(CSET 18), Baltimore, MD. USENIX Association.

Forum, W. E. (2020). Wild wide web consequences of digi-

tal fragmentation. https://reports.weforum.org/global-

risks-report-2020/wild-wide-web/.

Gandotra, E., Bansal, D., and Sofat, S. (2014). Malware

analysis and classiﬁcation: A survey. Journal of In-

formation Security, 2014.

Guan, L., Jia, S., Chen, B., Zhang, F., Luo, B., Lin, J., Liu,

P., Xing, X., and Xia, L. (2017). Supporting transpar-

ent snapshot for bare-metal malware analysis on mo-

bile devices. In Proceedings of the 33rd Annual Com-

puter Security Applications Conference, pages 339–

349, New York, NY, USA. ACM, ACM.

Huang, Q., Li, H., He, Y., Tai, J., and Jia, X. (2020). Pidica-

tors: An efﬁcient artifact to detect various vms. In In-

ternational Conference on Information and Commu-

nications Security, pages 259–275. Springer.

(IC3), I. C. C. C. (2019). 2019 internet crime report. https:

//pdf.ic3.gov/2019 IC3Report.pdf.

Issa, A. (2012). Anti-virtual machines and emulations.

Journal in Computer Virology, 8(4):141–149.

Kirat, D. and Vigna, G. (2015). Malgene: Automatic ex-

traction of malware analysis evasion signature. In

Proceedings of the 22nd ACM SIGSAC Conference on

Computer and Communications Security, pages 769–

780, New York, NY, USA. ACM, ACM.

Kirat, D., Vigna, G., and Kruegel, C. (2011). Barebox: efﬁ-

cient malware analysis on bare-metal. In Proceedings

of the 27th Annual Computer Security Applications

Conference, pages 403–412, New York, NY, USA.

ACM, ACM.

Kirat, D., Vigna, G., and Kruegel, C. (2014). Bare-

cloud: Bare-metal analysis-based evasive malware de-

tection. In USENIX Security Symposium, pages 287–

301, Berkeley, CA, USA. USENIX Association.

uchler, A., Mantovani, A., Han, Y., Bilge, L., and

Balzarotti, D. (2021). Does every second count? time-

based evolution of malware behavior in sandboxes. In

Proceedings of the Network and Distributed System

Security Symposium, NDSS. The Internet Society.

Kumar, S. et al. (2020). An emerging threat ﬁleless mal-

ware: a survey and research challenges. Cybersecu-

rity, 3(1):1–12.

Leguesse, Y., Vella, M., and Ellul, J. (2017). Androneo:

Hardening android malware sandboxes by predicting

evasion heuristics. In IFIP International Conference

on Information Security Theory and Practice, pages

140–152, Cham. Springer, Springer International Pub-

lishing.

Lit¸

a, C. V., Cosovan, D., and Gavrilut¸, D. (2018). Anti-

emulation trends in modern packers: a survey on the

evolution of anti-emulation techniques in upa pack-

ers. Journal of Computer Virology and Hacking Tech-

niques, 14(2):107–126.

Martignoni, L., Paleari, R., Roglia, G. F., and Bruschi,

D. (2009). Testing CPU emulators. In Proceedings

of the Eighteenth International Symposium on Soft-

ware Testing and Analysis, ISSTA ’09, pages 261–

272, New York, NY, USA. ACM.

Mutti, S., Fratantonio, Y., Bianchi, A., Invernizzi, L., Cor-

betta, J., Kirat, D., Kruegel, C., and Vigna, G. (2015).

Baredroid: Large-scale analysis of android apps on

real devices. In Proceedings of the 31st Annual Com-

puter Security Applications Conference, pages 71–80,

New York, NY, USA. ACM, ACM.

Or-Meir, O., Nissim, N., Elovici, Y., and Rokach, L. (2019).

Dynamic malware analysis in the modern era—a state

of the art survey. ACM Computing Surveys (CSUR),

52(5):1–48.

Petsas, T., Voyatzis, G., Athanasopoulos, E., Polychronakis,

M., and Ioannidis, S. (2014). Rage against the virtual

machine: Hindering dynamic analysis of android mal-

ware. In Proceedings of the Seventh European Work-

shop on System Security, EuroSec ’14, pages 5:1–5:6,

New York, NY, USA. ACM.

Shi, H., Alwabel, A., and Mirkovic, J. (2014). Cardi-

nal pill testing of system virtual machines. In 23rd

USENIX Security Symposium (USENIX Security 14),

pages 271–285, San Diego, CA.

Shi, H., Mirkovic, J., and Alwabel, A. (2017). Handling

anti-virtual machine techniques in malicious software.

ACM Transactions on Privacy and Security (TOPS),

21(1):2:1–2:31.

Thomas, D. S. (2020). Cybercrime losses: An examination

of us manufacturing and the total economy.

Python and Malware: Developing Stealth and Evasive Malware without Obfuscation

135

Uitto, J., Rauti, S., Laur

en, S., and Lepp

anen, V. (2017). A

survey on anti-honeypot and anti-introspection meth-

ods. In World Conference on Information Systems and

Technologies, pages 125–134. Springer.

Veerappan, C. S., Keong, P. L. K., Tang, Z., and Tan, F.

(2018). Taxonomy on malware evasion countermea-

sures techniques. In 2018 IEEE 4th World Forum on

Internet of Things (WF-IoT), pages 558–563. IEEE.

Webster, G. D., Kolosnjaji, B., von Pentz, C., Kirsch, J.,

Hanif, Z. D., Zarras, A., and Eckert, C. (2017). Find-

ing the needle: A study of the pe32 rich header and re-

spective malware triage. In International Conference

on Detection of Intrusions and Malware, and Vulner-

ability Assessment, pages 119–138. Springer.

Yokoyama, A., Ishii, K., Tanabe, R., Papa, Y., Yoshioka, K.,

Matsumoto, T., Kasama, T., Inoue, D., Brengel, M.,

Backes, M., et al. (2016). Sandprint: ﬁngerprinting

malware sandboxes to provide intelligence for sand-

box evasion. In International Symposium on Research

in Attacks, Intrusions, and Defenses, pages 165–187,

Cham. Springer, Springer International Publishing.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

136
