On Effects of Applying Predictive Caching for State Machines

James Ryan Perry Aky

uz and Tolga Ovatman

Department of Computer Engineering, Istanbul Technical University, 34469

Istanbul, Turkey

Keywords:

State Machines, Predictive Caching, Execution Path Prediction.

Abstract:

State machines are frequently used in software development, in many different contexts, ranging from mod-

eling control software to distributed applications that operate in cloud environments. We have implemented

and experimented on basic execution path-based predictive caching approaches for state machines to show

that due to the limited number of paths that can be taken during a state machine run better pre-fetching can

be achieved for state machine caches. We have applied our predictive approaches over least frequently used

(LFU) and least recently used (LRU) replacement on two different state machine instances run with real-world

execution traces.

1 INTRODUCTION

State machines are powerful formal models that are

being used in a wide area of applications to capture

the stateful behaviour of developed software. By their

description, state machines contain execution paths

that are repeatedly executed for different kinds of in-

put to perform the predetermined sequence of opera-

tions. This repetitive behaviour may be taken advan-

tage of to perform predictive caching decisions based

on the anticipated path that may be executed through

the use of historical execution information.

In this paper we investigate the effects of execu-

tion path-based predictive caching in state machine

implementations. Basically, on top of employing a

conventional cache replacement approach like Least

Frequently Used (LFU), we observe the recent exe-

cution of the state machine to predict which execu-

tion path is most likely to be taken in the future. Us-

ing statistics of the paths taken in the past, we direct

the cache pre-fetching decisions according to the most

likely path to be taken next.

We have used a data set based on actions per-

formed in a limited amount of time among a group

of Twitter users and implemented a state machine that

performs these actions on a simple database. We have

also used another state machine that has been derived

from GitHub interactions provided by a commercial

database vendor. We have applied a write back pol-

icy over an in memory cache that is capable of hold-

ing only a few objects from the database. Our results

https://orcid.org/0000-0001-5918-3145

show that applying a cumulative path probability cal-

culation approach in path prediction provides the best

results in pre-fetching.

Directing caching decisions on state machines

may speciﬁcally be important for environments where

relatively smaller state machines run simplistic func-

tionality with a limited amount of memory, such as

Internet of Things applications. Increasing the cache

hit ratio based on historical data can signiﬁcantly im-

prove energy consumption and run-time performance

of those devices as well.

Section 2 presents related work on predictive

caching in state machines. Section 3 presents our ex-

perimental data, state machines that are used in ex-

periments, and the approaches that we implemented.

Later in Section 4 we present the results of our ex-

periments and evaluate the results. In Section 5, we

conclude by mentioning possible future work.

2 RELATED WORK AND

LITERATURE REVIEW

Even though the use of caching to improve perfor-

mance has been a greatly investigated topic, there are

relatively a limited number of recent studies present

in the literature in the domain of state machines. For

a recent literature survey on proactive caching (we

use the more restrictive term predictive caching in

this paper), readers may refer to Sun Guolin et al.’s

work (Anokye et al., 2020).

In (Santos and Schiper, 2013), Santos et al. make

Akyüz, J. and Ovatman, T.

On Effects of Applying Predictive Caching for State Machines.

DOI: 10.5220/0010546001510157

In Proceedings of the 16th International Conference on Software Technologies (ICSOFT 2021), pages 151-157

ISBN: 978-989-758-523-4

151

use of State Machine Replication (SMR) where repli-

cated state machines have a cache of requests that

have been previously executed. This cache is con-

sulted by the replicas when a request is received. If

the request has already been executed, its previously

computed reply is sent by the replica to the client.

A service manager is used to manage events in se-

quence, executing them on the service and sending a

reply back to the client. Replies are cached to en-

sure at-most-once execution of requests. A Concur-

rentHashMap is used to reduce contention and im-

prove multi-threaded performance when under high

load from many threads.

For Scalable State Machine Replication (S-SMR)

in (Bezerra et al., 2014), when a command is exe-

cuted, the executing client multicasts the command

to all partitions that contain variables that the com-

mand reads or updates. An oracle is assumed to exist

that handles informing the client about which parti-

tions the command should be sent to. A server in a

partition is able to cache variables that are from other

partitions in multiple ways. They consider conserva-

tive caching and speculative caching.

With conservative caching, a server waits for a

message from a variable’s partition that says if the

cached value is still valid or not before executing a

read operation for that variable. If it’s been inval-

idated, the server discards the cached copy and re-

quests the value from the partition. With speculative

caching, it is assumed that the cached values are up

to date. A server will immediately get the cached

value from a read operation without using any vali-

dation messages. If the variable is invalidated by a

message from a server in the variable’s partition, the

server with the invalid value will be rolled back to be-

fore the operation, the cached value will be updated to

the new value, and execution will be resumed from the

earlier state. In (Le et al., 2016), Dynamic Scalable

State Machine Replication (DS-SMR) improves on

(Bezerra et al., 2014)’s S-SMR by giving each client

a local cache of the oracle’s partition information. If

the cache contains information about the variables in-

volved in a particular command, the oracle is not con-

sulted, improving scalability.

We may also mention Robbert van Renesse et al.’s

work (Marian et al., 2008), where they use a middle

tier state machine-like model to alleviate replication

of services, that may include caching. Even though

this study is quite out of scope of our study we still

mention it as a possible approach to handle caching

services on the cloud.

For Mobile Edge Caching in (Yao et al., 2019),

caching in the context of mobile edge networks is cov-

ered, including the issues of where, how, and what

to cache. They discuss caching locations, including

caching at user equipment, base stations, and relays,

as well as caching criteria such as cache hit prob-

ability, network throughput, content retrieval delay,

and energy efﬁciency. Several caching schemes are

mentioned, for example, distributed caching, in which

nodes use info from neighboring nodes to increase the

perceived cache size to the user.

In (Le et al., 2019), Le Hoang et al. propose Dy-

naStar, based on DS-SMR from (Le et al., 2016).

Their improvements over DS-SMR involve multicas-

ting of commands, caching of location information

from the oracle on the client, and re-partitioning of

a command’s variables to a target partition that exe-

cutes the command, replies, and returns the updated

variables to their partitions.

Last but not least we should also mention re-

cent studies of Changchuan Yin et al. (Chen et al.,

2017; Chen et al., 2019) where they utilized a liquid

state machine learning model to manage caching in

an LTE-U unmanned Aerial Vehicle Network. Com-

pared to our approach this study uses network level

information and the state machines come into action

as a learning model rather than the executed model

itself.

3 STATE MACHINE MODEL AND

EXPERIMENTAL DATA

3.1 Caching Approaches Used in

Experiments

Figure 1 presents the overall architecture we have

used to perform our experiments. As our state ma-

chine instance receives events, a cache managing

component accesses data from the database, caching

it locally. The cache manager also has a collection of

statistics that is used to determine likelihoods of what

event will be sent next. These statistics consist of sub-

sets of the full state machine history, with each subset

path containing the frequencies of the potential next

events. Based on these frequencies of previous events,

the most likely upcoming event can be predicted, and

the data that would be used by the resultant state can

be cached in advance.

We propose two approaches for predicting the

next set of objects to be fetched to the cache as fol-

lows. We use the notations in Table1 during our deﬁ-

nitions.

• Path based prediction: Based on the current state

of the state machine and the possible predecessors

paths, we choose the next most likely path and the

ICSOFT 2021 - 16th International Conference on Software Technologies

152

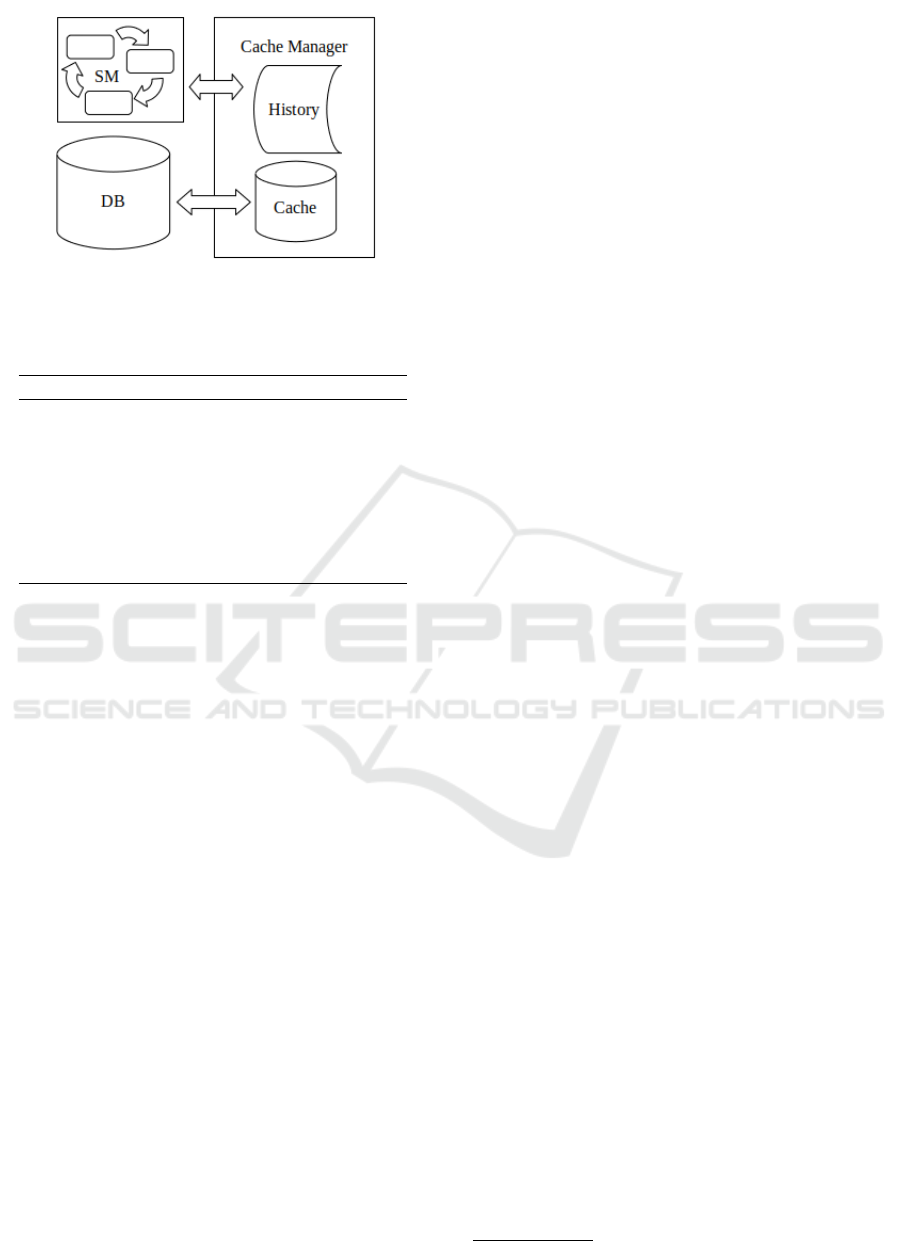

Figure 1: Overall system diagram, consisting of the state

machine, cache manager, and database.

Table 1: Notation used for state machines.

Type Symbol

State Machine SM = S ∪ T

States S : {S

, S

, . . . , S

}

Transitions T : S × E ×S

Events E : {E

, E

, . . . , E

}

Paths P : {P

, P

, . . . , P

}

Path P

: (T

, T

, . . .) | T

∈ T

Path fragment

of length n

: (T

, T

, . . . , T

n−1

) | T

∈ T

second most likely path to fetch their data. During

the execution of the state machine, after each state

change from P

to P

we fetch the possible set of

path fragments of a particular length of size n, that

may emerge from the current state P

and choose

the most likely two based on execution data. To

obtain path frequencies we analyze the execution

data of the state machine to count the number of

occurrences for possible future path fragments of

length n.

• Event based prediction: In this approach, based on

the current state, we determine the set of possible

predecessor events and assign a weight to each of

them based on the frequency of each event calcu-

lated by the execution data. Out of the weighted

events, we perform a weighted random selection,

repeat this process n times for each selected event

and pre-fetch the data of the selected event or

path.

We also use two different approaches during

the frequency calculations during the prediction ap-

proaches.

• On-the-ﬂy calculation: We only use the past ex-

ecution data that occurred up to a certain history

window size to calculate path/event frequencies.

Every time the state machine executes events that

match the width of window size we re-calculate

the path execution statistics from scratch, disre-

garding former event executions and taking the

most recent history window into account.

• Cumulative calculation: Like on-the-ﬂy calcula-

tion we use data from a certain history window.

However, instead of calculating probabilities from

the scratch every time, we cumulatively update

the probabilities every time the history window is

about to be updated with recent events.

We compare our proposed approaches against by

applying them over a well-known cache replace-

ment approaches: LFU and LRU. We compare our

approach among each other and with random pre-

fetching over varying cache sizes and history window

sizes to get an idea about how pre-fetching behaves

under different circumstances.

We have used a write back policy through all our

experiments where we write the updated value in the

cache whenever it is to be replaced. Since we only

experiment with a single instance, there weren’t any

observed side effect in terms of consistency.

3.2 Data Sets and State Machines Used

in Experiments

In our experiments we have chosen to use two dif-

ferent data sets to synthesize and experiment on ar-

tiﬁcial state machines. The ﬁrst data set we used is

the activity time graph of the Higgs Twitter data set

The Higgs Twitter data set contains action data from

300K users, with 170K tweets containing mentions,

36K replies to tweets, and 350K retweets, along with

follower data consisting of almost 15M connections

between users. In our experiments we have built a

simple state machine that contains the events ”tweet”,

”reply”, ”retweet” and ”follow” to process a subset

of the events available in this data set. We extracted

the relevant information from the data sets and pre-

processed them to ﬁlter out the unrelated columns and

rows.

All users are kept in a single set, where an individ-

ual user consists of an ID, a follower list, a following

list, and a timeline. The follower and following lists

are sets of users which make up those who the user

follows and those who follow the user. A timeline

consists of a collection of posts, where a post contains

a poster ID, mentioned ID, and a timestamp. For all

posts, which can be tweets (TW), retweets (RT), and

replies (RE), each row from the data set consists of

the user ID who posted the tweet, the user ID who was

mentioned, the timestamp of the post, and an identi-

ﬁer for what type of tweet it is, either TW, RT, or RE.

https://snap.stanford.edu/data/higgs-twitter.html

On Effects of Applying Predictive Caching for State Machines

153

Table 2: Notation used for Twitter data set.

Category Set

Users U = {u

, u

, ..., u

}

Followers F = { f

, f

, ..., f

}

= {u

, u

, ..., u

}

Posts P = {p

, p

, ..., p

}

Timelines T = {t

, t

, ..., t

}

= {p

, p

, ..., p

}

Table 3: Key for Twitter data set notation.

Symbol Meaning

U set of all users

an individual user

F set of sets of each user’s fol-

lowers

a set of the followers for user

a timestamp

P set of all posts

an individual post that was

posted at timestamp ts

T set of all timelines

ordered set of posts on the

timeline of user u

For additional clariﬁcation we present additional for-

mal deﬁnitions of the notation we have made use of

in our experiments in Tables 2 and 3.

Due to the relative simplicity of the Twitter data

set, our experiments were performed on a simple state

machine as illustrated in Figure 3. There exists basi-

cally four different states which navigate to a speciﬁc

state upon receiving an event such as tweet (TW), re-

ply (RE), retweet (RT) or follow (FL).

After receiving the event the state machine fetches

related data to the cache and performs necessary ac-

tions indicated in the ﬁgure. The tweet, retweet,

and reply paths update the data structures containing

the tweet timelines of the poster and their followers,

while the follow path updates the structures contain-

ing the following and follower lists of the involved

users. Simply each tweet, retweet and reply adds the

current post(p

cur

) to the speciﬁc users timeline while

each follow activity adds the follower (u

) to the fol-

lowed user’s (u

) followers list ( f

In the presented state machine a brief formal def-

inition to represent the performed action is presented

in the transitions; in the real implementation many

other pieces of data needs to be fetched to perform the

action. For instance, retweeting action needs to fetch

the speciﬁc user’s timeline to obtain information on

the tweet that is being retweeted.

The second data set we use is the GitHub activity

data served publicly by a commercial database ven-

Idle

Retweet

P = P ∪ p

cur

= t

∪ p

cur

P = P ∪ p

cur

= t

∪ p

cur

P = P ∪ p

cur

= t

∪ p

cur

= f

∪ p

cur

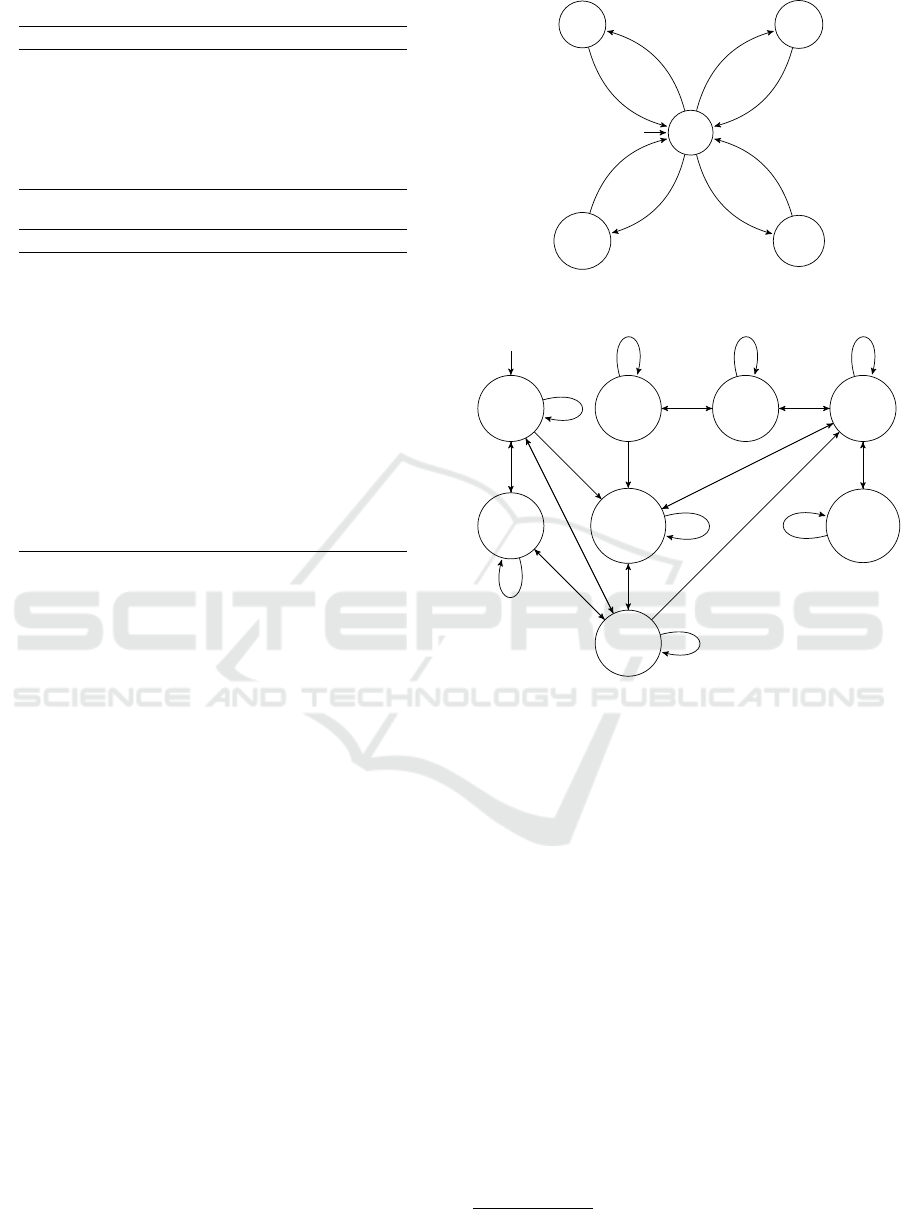

Figure 2: Model of the simple GitHub state machine used

in experiments.

Create

Delete

Fork

Pull

Request

Push

Watch

Issues

Issue

Comment

Figure 3: Model of the simple Github state machine used in

experiments.

dor

. This data set contains 3.5GB of 1.2M git activ-

ities for a set of 310K repositories. To construct an

artiﬁcial state machine based on this data we have an-

alyzed the sequence of events that has been issued per

repository basis and build a common state machine,

presented in Figure 2, that can properly handle 95%

of the events that occur for any repository in the data

set. During the execution of state machine instances

in our experiments, we properly drop out the infre-

quent activity (less than 5% of the whole data) that

doesn’t correspond to any transitions in the state ma-

chine. For brevity, we do not present the speciﬁc ac-

tivities that corresponds to each transition in Figure 2.

https://www.citusdata.com/blog/2017/01/27/

getting-started-with-github-events-data/

ICSOFT 2021 - 16th International Conference on Software Technologies

154

4 EXPERIMENTS AND

EVALUATION

Experiments were performed on a system running

Kubuntu with 12 Intel i7-9750H 2.60 GHz cores, 16

GB of RAM, and a 1 TB SSD. The client and state

machine are Java-based and making use of Spring for

state machines. They were kept in a Docker container

and communicated directly as to not induce any tim-

ing penalties from communicating over the network.

Trials were repeated over a variety of cache sizes

for prediction with cumulative and on-the-ﬂy statis-

tics calculation. With the on-the-ﬂy approach, statis-

tics were updated on-the-ﬂy as events were sent to the

state machine, while the cumulative approach updates

a set of statistics periodically. Each experiment was

conducted with varying amounts of space in the cache

1,000 to 50,000 objects, and varying history window

sizes from 10/15 to 50. The term history window size

in the experiments correspond to the term used in our

explanations in Section 3.1; it simply describes the

amount of past events to be considered when calcu-

lating path execution statistics.

(a) Prediction over LFU

(b) Prediction over LRU

Figure 4: Cache misses comparison for twitter state ma-

chine for a 5000 object cache and varying history window

sizes.

For the experiments using both of the state ma-

chines, every setup was sent events that compromised

all activities in the data set, with each of the setups

being repeated 10 times, averaging their results.

We present the cache miss rate comparisons

counted during the experiments on twitter state ma-

chine in Figures 4 and 5 to present results for varying

history window and cache sizes respectively. Each

subﬁgure individually presents results for prediction

over LFU and LRU separately.

From the experiments, we can see that predictive

(a) Prediction over LFU

(b) Prediction over LRU

Figure 5: Cache misses comparison for twitter state ma-

chine for a 25 object history window size and varying cache

sizes.

(a) Prediction over LFU

(b) Prediction over LRU

Figure 6: Cache misses comparison for github state ma-

chine for a 5000 object cache and varying history window

sizes.

caching performs better, in terms of cache miss ra-

tios, for on-the-ﬂy approach especially for larger his-

tory window sizes. As expected, the selection of re-

placement policy doesn’t effect the predictive caching

performance slightly, only for larger history windows.

Another observation from the results may be that,

by the increase of the cache size in terms of number

of cached objects, performance of predictive caching

deteriorates slower with respect to the cache size.

We present the cache miss rate comparisons

counted during the experiments on the GitHub state

machine in Figures 6 and 7. We obtain similar re-

sults in terms of comparison between prediction ap-

proaches for this set of experiments. On the other

hand, for this set of experiments, using a larger state

machine resulted in an increased performance for on-

On Effects of Applying Predictive Caching for State Machines

155

(a) Prediction over LFU

(b) Prediction over LRU

Figure 7: Cache misses comparison for github state ma-

chine for a 15 object history window size and varying cache

sizes.

the-ﬂy strategies where it greatly decreased the per-

formance of cumulative strategies.

As an overall evaluation of our experiments from

different perspectives, following results were ob-

tained:

• Path-based prediction versus event-based predic-

tion: Path based prediction provided better results

especially for smaller state machines, smaller

window sizes and smaller cache sizes. There were

almost no difference for the larger state machine

between the two approaches.

• On-the-ﬂy calculation versus cumulative history

calculation: From this perspective on-the-ﬂy cal-

culation is the obvious winner. Cumulative cal-

culation was only able to provide comparable but

still worse performance under few resources and

smaller state machines.

• Effects of state machine size: The GitHub state

machine, being a more complicated state machine

with more states and transitions, not only pre-

sented better results under on-the-ﬂy prediction,

it also deteriorated cumulative calculation perfor-

mance signiﬁcantly. The Twitter state machine,

on the other hand, provided more comparable, but

overall worse, results for prediction and history

calculation strategies.

• Effects of cache size: Cache didn’t make any im-

portant difference for the larger GitHub state ma-

chine. Larger cache sizes decreased all the strate-

gies’ performance slower with respect to the in-

crease in cache size for the Twitter state machine.

• Effects of cache replacement policy: There were

almost no difference in using different replace-

ment policies under predictive caching.

5 CONCLUSION

In this study, we examined predictive caching for state

machines, where the data to be pre-fetched to cache

is predicted using the historical data based on the

past execution of the state machine. Since the num-

ber of different paths that a state machine can take

is relatively limited, execution path-based predictive

caching is expected to perform better for state ma-

chines. Our experiments showed that, indeed, pre-

dictive caching increases the performance of replace-

ment algorithms, in terms of cache miss ratio, sig-

niﬁcantly when performed by collecting cumulative

statistics.

We plan to expand our study to perform more ex-

periments on different state machines and investigate

further the relation between cache size, history win-

dow size and prediction performance for path-based

prediction in state machines. We also plan to experi-

ment on multiple and replicated state machines where

write policies may greatly affect system performance.

Furthermore we may also adopt more intelligent ap-

proaches than simple statistics, such as artiﬁcial in-

telligence based approaches and/or deep learning, to

provide even fewer cache misses as future work.

ACKNOWLEDGMENT

This study is supported by the scientiﬁc and tech-

nological research council of Turkey (TUBITAK),

within the project numbered 118E887.

REFERENCES

Anokye, S., Mohammed, S., and Guolin, S. (2020). A sur-

vey on machine learning based proactive caching. ZTE

Communications, 17(4):46–55.

Bezerra, C. E., Pedone, F., and Van Renesse, R. (2014).

Scalable state-machine replication. In 2014 44th An-

nual IEEE/IFIP International Conference on Depend-

able Systems and Networks, pages 331–342. IEEE.

Chen, M., Saad, W., and Yin, C. (2017). Liquid state ma-

chine learning for resource allocation in a network of

cache-enabled lte-u uavs. In GLOBECOM 2017-2017

IEEE Global Communications Conference, pages 1–

6. IEEE.

Chen, M., Saad, W., and Yin, C. (2019). Liquid state

machine learning for resource and cache manage-

ment in lte-u unmanned aerial vehicle (uav) net-

works. IEEE Transactions on Wireless Communica-

tions, 18(3):1504–1517.

Le, L. H., Bezerra, C. E., and Pedone, F. (2016). Dy-

namic scalable state machine replication. In 2016 46th

ICSOFT 2021 - 16th International Conference on Software Technologies

156

Annual IEEE/IFIP International Conference on De-

pendable Systems and Networks (DSN), pages 13–24.

IEEE.

Le, L. H., Fynn, E., Eslahi-Kelorazi, M., Soul

e, R., and Pe-

done, F. (2019). Dynastar: Optimized dynamic par-

titioning for scalable state machine replication. In

2019 IEEE 39th International Conference on Dis-

tributed Computing Systems (ICDCS), pages 1453–

1465. IEEE.

Marian, T., Balakrishnan, M., Birman, K., and Van Renesse,

R. (2008). Tempest: Soft state replication in the ser-

vice tier. In 2008 IEEE International Conference on

Dependable Systems and Networks With FTCS and

DCC (DSN), pages 227–236. IEEE.

Santos, N. and Schiper, A. (2013). Achieving high-

throughput state machine replication in multi-core

systems. In 2013 IEEE 33rd International Confer-

ence on Distributed Computing Systems, pages 266–

275. Ieee.

Yao, J., Han, T., and Ansari, N. (2019). On mobile edge

caching. IEEE Communications Surveys & Tutorials,

21(3):2525–2553.

On Effects of Applying Predictive Caching for State Machines

157
