DQ-MeeRKat: Automating Data Quality Monitoring with a

Reference-Data-Proﬁle-Annotated Knowledge Graph

Lisa Ehrlinger

1,2 a

, Alexander Gindlhumer

, Lisa-Marie Huber

and Wolfram W

oß

Johannes Kepler University Linz, Altenberger Straße 69, 4040 Linz, Austria

Software Competence Center Hagenberg GmbH, Softwarepark 32a, 4232 Hagenberg, Austria

Keywords:

Data Quality Monitoring, Data Proﬁling, Automation, Knowledge Graphs, Heterogeneous Data, Sensor Data.

Abstract:

High data quality (e.g., completeness, accuracy, non-redundancy) is essential to ensure the trustworthiness

of AI applications. In such applications, huge amounts of data is integrated from different heterogeneous

sources and complete, global domain knowledge is often not available. This scenario has a number of negative

effects, in particular, it is difﬁcult to monitor data quality centrally and manual data curation is not feasible. To

overcome these problems, we developed DQ-MeeRKat, a data quality tool that implements a new method to

automate data quality monitoring. DQ-MeeRKat uses a knowledge graph to represent a global, homogenized

view of local data sources. This knowledge graph is annotated with reference data proﬁles, which serve as

quasi-gold-standard to automatically verify the quality of modiﬁed data. We evaluated DQ-MeeRKat on six

real-world data streams with qualitative feedback from the data owners. In contrast to existing data quality

tools, DQ-MeeRKat does not require domain experts to deﬁne rules, but can be fully automated.

1 INTRODUCTION

The main motivation for this paper can be summa-

rized with a quote from Mike Stonebraker that “with-

out clean data, machine learning is worthless”

. This

quote outlines the fact that the best artiﬁcial intelli-

gence (AI) model cannot provide reliable results with-

out high-quality training data (Fischer et al., 2021).

In a typical AI application, data is integrated

from heterogeneous sources into a central reposi-

tory (Stonebraker and Ilyas, 2018), which is the ba-

sis for training and testing computational models.

According to the Seattle Report on Database Re-

search (Abadi et al., 2019), the quality of data in

such applications cannot be taken for granted. De-

spite a precise deﬁnition of ETL (extract, transform,

load) processes, data quality (DQ) can vary over time,

either in the source systems, or through updates or

deletes in the central repository. Thus, it is crucial to

monitor DQ, because undetected DQ deterioration af-

fects data analysis results (Ehrlinger and W

oß, 2017).

The next step is automation, to cope with the speed

and volume of data, which quickly overwhelms any

DQ monitoring effort (Sebastian-Coleman, 2013).

https://orcid.org/0000-0001-5313-0368

https://www.youtube.com/watch?v=DX77pAHlVHY

Motivating Example. A company from the automo-

tive industry has several factories distributed globally.

While customer data is created manually by employ-

ees, sensor data from the entire production process is

collected automatically and stored in different grades

of granularity. Individual departments maintain their

own databases (DBs), ranging from relational DBs,

over semi-structured JSON ﬁles, to unstructured text

documents. Data comes in different variance (static

master data to highly volatile data streams) and with

different semantic expressiveness.

Challenges. Based on scenario above, the following

challenges can be identiﬁed: (C1) DQ problems oc-

cur over the entire data lifecycle, which is partially

caused by (C2) the absence of one global view on the

data. (C3) Semi- and unstructured data sources do not

enforce schema constraints and (C4) manual data cu-

ration is not feasible due to the large amounts of data

processed in these pipelines. The decisions taken by

AI applications in such a setting cannot be trusted.

Contributions. In this paper, we present DQ-

MeeRKat (Automated Data Quality Measurement

using a Reference-data-proﬁle-annotated Knowledge

Graph), a data quality tool, which addresses (C1–

C4) and enables automated DQ monitoring (ADQM)

in real-world AI applications. DQ-MeeRKat com-

bines the aspects of semantic data integration using

Ehrlinger, L., Gindlhumer, A., Huber, L. and Wöß, W.

DQ-MeeRKat: Automating Data Quality Monitoring with a Reference-Data-Proﬁle-Annotated Knowledge Graph.

DOI: 10.5220/0010546202150222

In Proceedings of the 10th International Conference on Data Science, Technology and Applications (DATA 2021), pages 215-222

ISBN: 978-989-758-521-0

215

a knowledge graph (KG) with our newly introduced

reference data proﬁles (RDPs) for ADQM. The appli-

cability of DQ-MeeRKat is demonstrated and eval-

uated with six data streams provided by Tributech

Solutions GmbH

. The signiﬁcant advantage of DQ-

MeeRKat in contrast to existing DQ tools is the fully

automated RDP-based approach into DQ monitoring,

which does not require domain experts to deﬁne rules.

2 RELATED WORK

ADQM describes the calculation and storage of DQ

measurements over time to ensure that the qualitative

condition of the data remains stable (Ehrlinger and

oß, 2017; Sebastian-Coleman, 2013). (Ehrlinger

and W

oß, 2017) deﬁned the requirements for ADQM

as follows: (R1) deﬁning a DQ measurement strategy,

(R2) setting up a DQ repository to store DQ measure-

ment results over time, (R3) deﬁning the analysis and

visualization of the DQ time series, and (R4) automat-

ing (i.e., scheduling) of DQ measurement. While

(R2–4) depend on the implementation, the question

“how DQ should actually be measured” is not trivial

and according to (Sebastian-Coleman, 2013) one of

the biggest challenges for DQ practitioners. The state

of the art offers two attempts to measure DQ: (1) the

theoretical perspective based on DQ dimensions and

metrics, and (2) the practitioners perspective imple-

mented in most DQ tools. Following, we discuss the

limitations of both perspectives for ADQM and ex-

plain the advantages of our RDP-based approach.

2.1 The Theoretical Perspective

(Wang and Strong, 1996) suggest to start a DQ project

with the selection of DQ dimensions (e.g., complete-

ness, accuracy, timeliness), which are then objec-

tively measured with DQ metrics (i.e., functions that

represent a dimension’s fulﬁllment with a numerical

value (Heinrich et al., 2018)). Although DQ dimen-

sions and metrics are commonly cited in DQ research,

a wide variety of deﬁnitions and classiﬁcations exist

for both DQ dimensions (Scannapieco and Catarci,

2002) and DQ metrics (Heinrich et al., 2018; Pipino

et al., 2005). The following limitations appear when

using DQ dimensions and metrics for ADQM:

• Ambiguous Deﬁnitions. Due to the wide variety

of deﬁnitions and classiﬁcations, practitioners of-

ten ﬁnd it unclear to decide which DQ dimensions

and metrics should be used for DQ measurement

in a speciﬁc context (Sebastian-Coleman, 2013).

https://www.tributech.io

• DQ Metrics are Not Practically Applicable.

(Bronselaer et al., 2018) point out that the ma-

jority of DQ metrics, speciﬁcally those that ad-

here to the requirements for DQ metrics deﬁned

by (Heinrich et al., 2018), cannot be well in-

terpreted and lack sound aggregation properties.

Many DQ metrics also rely on the existence of a

gold standard (a perfect reference), which is often

not available in practice (Ehrlinger et al., 2018).

Only few DQ tools actually implement DQ met-

rics, and these implementations are most often ap-

plicable on attribute-level only (Ehrlinger et al.,

2019).

2.2 The Practitioners Perspective

Most general-purpose DQ tools (e.g., Oracle

EDQ, SAS, Talend, Informatica as investigated

by (Ehrlinger et al., 2019) ) support a domain expert

in the creation of rules to resolve speciﬁc DQ prob-

lems, such as, duplicate records or missing values.

According to (Stonebraker and Ilyas, 2018), humans

can capture at most 500 rules, which is too little to

solve big data problems, but their creation is still a

very time-consuming and complex task for domain

experts. DQ-MeeRKat circumvents the manual

creation of DQ rules by implementing RDPs, which

can be initialized automatically.

Most DQ implementations from the DB commu-

nity focus on solving “point problems”, e.g., algo-

rithms for speciﬁc challenges (Abadi et al., 2019). In

addition to rule-based approaches, there exist a num-

ber of DQ tools dedicated to pattern-based error de-

tection, outlier detection, or data deduplication. All

of these tools are dedicated to a speciﬁc domain or

DQ task (Ehrlinger et al., 2019).

The most similar tool to DQ-MeeRKat in terms

of holistic DQ measurement is HoloDetect (Heidari

et al., 2019). In contrast to DQ-MeeRKat, HoloDe-

tect focuses on single tabular data ﬁles and does not

consider non-relational data sources. A further differ-

ence is the use of neural networks to learn error rep-

resentations, whereas we argue that explainability is a

core requirement for DQ measurement and therefore

focus on clearly interpretable statistics in the RDPs.

3 DQ-MeeRKat: APPROACH AND

IMPLEMENTATION

Based on the previous research in Section 2, we sug-

gest to use reference data proﬁles for ADQM. A

RDP is a composition of different data proﬁling tasks,

which can be calculated automatically and represent

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

216

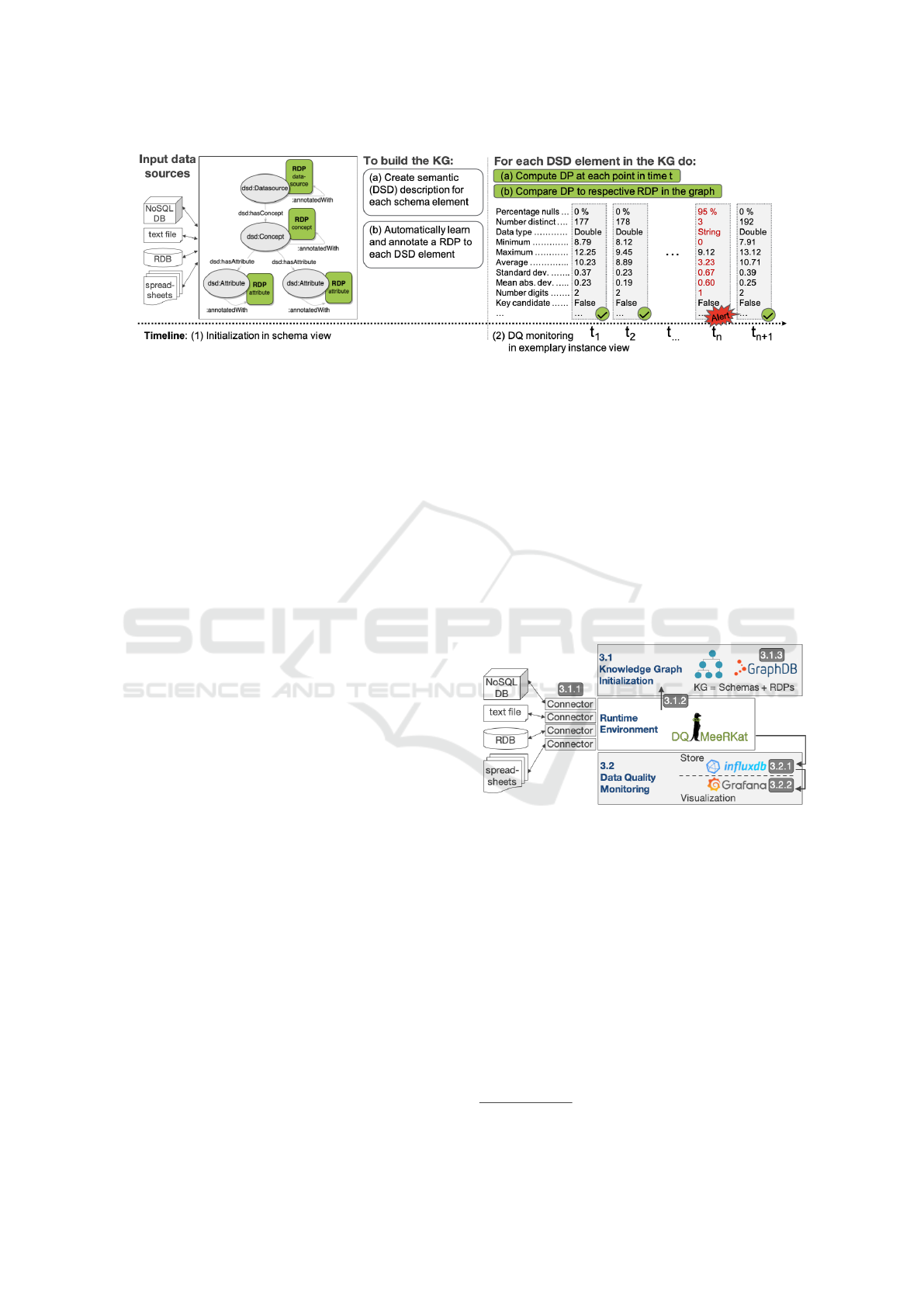

Figure 1: Overview on the approach and how to initialize the KG how to use it subsequently for DQ monitoring.

a quasi-gold-standard to verify whether DQ contin-

ues to conform to requirements. Figure 1 shows an

overview of the approach on how to perform ADQM

with RDPs. It is distinguished between two phases:

1. Initialization. Each input data source is described

with a set of schema elements in the KG (cf. Sec-

tion 3.1.1). For each schema element, a new RDP

is calculated and annotated, which stores informa-

tion about the desired target quality of the respec-

tive element (cf. Section 3.1.2).

2. DQ Monitoring. During runtime, current data

proﬁles (DPs) are calculated on-the-ﬂy, which

have the same skeletal structure as their corre-

sponding RDPs. In each DQ measurement run,

the current DP is veriﬁed against its RDP. Deviat-

ing conformance can trigger an alert and is stored

in a conformance report (CR).

Our RDP-based method for ADQM has the fol-

lowing advantages compared to existing solutions:

Data and Domain-independent Solution. While

most DQ tools allow DQ measurement on single tab-

ular ﬁles (Ehrlinger et al., 2019), the KG allows to in-

vestigate multiple heterogeneous data sources at once.

Automation. Initialization of DQ-MeeRKat, i.e.,

the creation of the KG (consisting of schema elements

and their annotated RDPs) can be done fully automat-

ically. This automated step replaces the arduous man-

ual DQ rule creation (Stonebraker and Ilyas, 2018).

DQ Dimensions Not Required. In contrast to the

dimension-oriented perspective on DQ, it is also not

necessary to develop DQ metrics and to try to map

them to DQ dimensions. Prior research shows that

very little generally applicable DQ metrics exist and

that they need to be developed separately for speciﬁc

domains (Bronselaer et al., 2018; Sebastian-Coleman,

2013). The RDP-based approach can be interpreted

as a measure-centered view with the aim to measure

what can be measured, and that automatically.

Figure 2 shows the architecture of DQ-MeeRKat

with the Java runtime environment in the center.

In alignment with the indices, we ﬁrst describe the

components for the initialization phase: (3.1.1) data

source connectors and data source description (DSD)

elements as the semantic abstraction layer for access-

ing heterogeneous data sources, (3.1.2) the creation

of RDPs and how they are annotated to DSD ele-

ments, and (3.1.3) GraphDB to store the entire KG.

Section 3.2 covers the components to deploy DQ-

MeeRKat for ADQM: (3.2.1) storage of DQ measure-

ments over time with InﬂuxDB, and (3.2.2) visualiza-

tion of the DQ time series with Grafana.

Figure 2: DQ-MeeRKat Architecture.

3.1 Components for Initialization Phase

3.1.1 Connectors and DSD Elements

For initializing the KG with semantic information

from different data sources, e.g., relational DBs, CSV

ﬁles, or NoSQL DBs, the data source connectors of

the DQ tool QuaIIe (Ehrlinger et al., 2018) have been

reused. The connectors enable access to heteroge-

neous data sources and transform their schema to a se-

mantic abstraction layer using the DSD vocabulary

Here, we list the most important terms and refer for

details on the connectors to (Ehrlinger et al., 2018):

Download the DSD vocabulary: http://dqm.faw.jku.at

DQ-MeeRKat: Automating Data Quality Monitoring with a Reference-Data-Proﬁle-Annotated Knowledge Graph

217

• A Datasource represents one schema of an infor-

mation source and has a type (e.g., relational DB)

and an arbitrary number of concepts.

• A Concept is a real-world object type and can,

e.g., be a table in a relational DB.

• An Attribute is a property of a concept or an as-

sociation; e.g., the column “ﬁrst name” provides

information about the concept “employees”.

We refer to these terms jointly as “DSD elements”.

During the initialization, the KG is created by map-

ping all data source schemas to their semantic rep-

resentation in the graph. This step is a prerequi-

site for comparing the quality of similar elements

(e.g., two tables storing customers) from different

data sources. To complete the KG, each DSD el-

ement is annotated with a RDP. Figure 1 shows a

schematic representation of the schema graph with

the DSD elements (white) along with their annotated

RDPs (green). Note that the schema graph is more

complex than a simple tree, but relationships (i.e., as-

sociations) have been omitted for clarity. The mir-

rored RDP graph is actually a tree where higher-level

RDPs (e.g., on concept or data source level) are par-

tially based on metrics of lower-level RDPs.

3.1.2 Initialization of Reference Data Proﬁles

During initialization, each DSD element is annotated

with a RDP, which model the qualitative target state of

the respective element. A RDP contains a set of data

proﬁling (DP) statistics, which are grouped into DP

categories and have three properties in common: a la-

bel for its identiﬁcation, a value representing the value

determined by the statistic, and valueClass storing the

corresponding data type of the value. The valueClass

allows an automated selection of the correct compu-

tation process. Table 1 outlines the current structure

of the RDPs (with respect to DP categories and statis-

tics) as well as the values for one data stream (cf. Sec-

tion 4.4 for details). Deviations from this target state

are reported and need to be further investigated.

We used the work on data proﬁling by (Abed-

jan et al., 2019) as starting point to populate our

RDPs. The current version of DQ-MeeRKat sup-

ports all single-column DP tasks from (Abedjan et al.,

2019), which are listed in Table 1, including infor-

mation like the number of distinct or null values,

data types of attributes, or occurring patterns and

their frequency (e.g., formatting of telephone num-

bers) (Abedjan et al., 2019). The evaluation of all

remaining DP tasks from (Abedjan et al., 2019) is

part of our ongoing research. Speciﬁcally, we are cur-

rently working on the incorporation of multi-column

DP tasks and ML models for outlier detection.

Table 1: RDP Structure and Values for ACC-UoD.

DP Category DP Statistic ACC-UoD Value

Cardinalities

RDP size 1,000

Number of nulls 0

Percentage of nulls 0 %

Number distinct 177

Uniqueness 17.7 %

Data types,

patterns, and

domains

Basic type Numeric

Data type Double

Minimum 8.7966

Maximum 12.2485

Average 10.2310

Median 10.2185

Standard deviation 0.3736

Mean absolute deviation 0.2256

Number of digits 2

Number of decimals 14

Histogram

Number of classes 11

Class range 0.3138

Bucket values [4, 10, 60, 223, 376,

240, 62, 16, 4, 2, 3]

Dependencies Key candidate false

3.1.3 Knowledge Graph Store

Knowledge graphs have become a powerful tool to

manage domain knowledge since their core strength

are (1) semantic data modeling, (2) enabling a homog-

enized view of integrated data sources, and (3) infer-

ence of new fact with a reasoner (Hogan et al., 2019).

DQ-MeeRKat uses a KG to store the global do-

main knowledge (consisting of single schema de-

scriptions) and their RDPs. Our schema descriptions

are based on the DSD vocabulary (Ehrlinger et al.,

2018), which is an extension of the W3C standards

Resource Description Framework (RDF)

and Web

Ontology Language (OWL)

. Since RDF and OWL

support is required to import and process DSD, we

use GraphDB

, formerly “OWLIM” (Kiryakov et al.,

2005), as KG store for DQ-MeeRKat. In contrast

to other investigated graph DBs (like AllegroGraph

or Virtuoso), it met all performance requirements

for our use case and integrated seamlessly with DQ-

MeeRKat and frameworks like RDF4J since it is fully

implemented in Java (Ledvinka and K

remen, 2019).

3.2 Components for DQ Monitoring

After the initialization phase of DQ-MeeRKat, which

is ideally performed on a cleaned subset of the data,

the quality of modiﬁed (i.e., inserted, updated, or

https://www.w3.org/RDF

https://www.w3.org/OWL

http://graphdb.ontotext.com

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

218

deleted) data in the data sources can be continuously

checked by comparing it to the respective RDP. In

each ADQM run, DQ-MeeRKat creates a new cur-

rent DP for each DSD element in the KG. These DPs

have the same skeletal structure as the RDP described

in Section 3.1.2. In addition to the three basic prop-

erties (label, value, and valueClass), the current DPs

also store the reference to their respective RDP. Thus,

each DP statistic could be veriﬁed independently.

Based on the foundations for ADQM (Ehrlinger

and W

oß, 2017), there are (in addition to automa-

tion and the selection of a proper DQ measurement

method) two more requirements for deploying our

framework over time: (3.2.1) to persist DQ measure-

ments with a timestamp, which indicates when the

measurement was taken, and (3.2.2) to visualize the

measurements to allow human supervision of outliers

and tracking the DQ development over time.

3.2.1 Data Quality Repository

We used InﬂuxDB to store DQ measurements over

time, which is the most popular time series DB ac-

cording to DB-Engines

and according to the discus-

sion by (Naqvi et al., 2017) suitable for our use case.

The enterprise version would also allow visualization,

which could be used instead of Grafana.

3.2.2 Visualization

Since DQ is usually perceived as subjective and

domain-dependent concept (Wang and Strong, 1996),

it is key to visualize the generated time series data

for the assessment through domain experts (comple-

mentary to automated post-analysis). Although it is

possible to use any visualization on top of InﬂuxDB,

we employed the well-known open-source software

Grafana

, which is also recommended by (Naqvi

et al., 2017). Grafana offers a customizable user inter-

face (UI) that is divided into dashboards, which group

DP statistics into separate visualization cases.

4 DEMONSTRATION AND

EVALUATION

In this section, we demonstrate and evaluate the ini-

talization (of the RDPs) as well as DQ monitoring

with DQ-MeeRKat. The data and setup used for the

experiments is described in Section 4.1. Following,

we conducted a qualitative evaluation in Section 4.2

https://db-engines.com/de/ranking/time+series+dbms

https://grafana.com

and demonstrate the applicability of DQ-MeeRKat by

means of two experiments: (1) to monitor the quality

of batch-loaded data in Section 4.3, and (2) to monitor

the quality of streaming data in Section 4.4.

4.1 Evaluation Data and Setup

For the evaluation, we used the six real-world data

streams listed in Table 2, which were recorded by an

automotive telematic device. The data was provided

by Tributech Solutions GmbH

, an Austrian company

that offers a solution for the audability of provisioned

data streams. In addition to the values collected by the

sensors, each data stream contains information about

the vehicle in which the device was mounted, a times-

tamp, a description of the sensor, the source system,

the controller, and the device group.

Table 2: Evaluation Data Sets.

Data Records Description

ACC-BoF 23,194 Acceleration measures whether the driver is

braking or pushing forward

ACC-StS 23,194 Lateral movement (acceleration – side to side)

ACC-UoD 23,194 Acceleration – up or down

D-Voltage 7,275 Device voltage

E-RPM 11,316 Engine revolutions per minute (RPM)

E-Speed 11,316 Engine speed

DQ-MeeRKat is available on GitHub

to support

further evaluations and repeatability. We used In-

ﬂuxDB version 1.7.7.1 and Grafana version 6.2.5. In-

formation on how to install the external requirements

to execute this demo are provided on GitHub.

Four steps are necessary to initialize DQ-

MeeRKat and to create a set of RDPs: (1) estab-

lish the connection to the data sources, (2) load the

schema information, (3) add the schema information

to the KG, and (4) start the automated creation of the

RDP for all DSD elements in the KG. In the follow-

ing, we simulated a setting with heterogeneous data

sources by storing each data streams in a different

DB. The ACC-BoF data stream is accessed through

a Cassandra connector and the ACC-UoD data stream

through the CSV connector.

Co nn ec to rC as sa nd ra c onn 1 = new C on ne ct or Ca ss an dr a (

→ " ho st " , " ACC - BoF " , " u ser " , " pw ") ;

Co nn ec to rC SV con n2 = new C on ne cto rC SV ( " pa th / ACC -

→ UoD . cs v", " ," , " \n " , " ACC - U oD ") ;

Da ta so urc e d sBo F = c onn 1 . lo ad Sch em a () ;

Da ta so urc e d sUo D = c onn 2 . lo ad Sch em a () ;

The class DSDKnowledgeGraph allows to handle

multiple DSD Datasource objects.

https://github.com/lisehr/dqmeerkat

DQ-MeeRKat: Automating Data Quality Monitoring with a Reference-Data-Proﬁle-Annotated Knowledge Graph

219

DS DK no wl ed ge Gr ap h kg = new D SD Kn ow le dgeGrap h ( "

→ A cce le ra ti on " );

kg . a dd Da ta so ur ce An dC on ne ct or ( dsBoF , conn1 );

kg . a dd Da ta so ur ce An dC on ne ct or ( dsUoD , conn2 );

With the following statement, all elements within

the KG are traversed and a new RDP is created for

each of them. The parameter RDP SIZE denotes the

number of records used to calculate the RDP.

kg . addD at aP ro fi le ( RDP _S IZE );

After the initial conﬁguration of the RDPs, a cur-

rent DP is created for each batch, which is then stored

in InﬂuxDB with the respective timestamp.

In fl ux DB Co nn ec ti on inf = new I nf lu xD BC on ne ct io n () ;

kg . a dd Pr of il es To In fl ux ( in f );

4.2 Qualitative Evaluation

To evaluate the quality of automatically generated

RDPs and to verify how much refactoring by do-

main experts is required after the initialization phase,

we consulted the data owners from Tributech Solu-

tions GmbH to verify the RDPs for the provided data

streams. While Table 1 shows the RDP for the ACC-

UoD data stream value, all other RDPs created in the

course of this evaluation are available online

. The

feedback is summarized as follows:

• RDP Quality: after detailed investigation, the

automatically generated RDPs were found to be

plausible and to ﬁt the provided data streams very

well. No surprising information and none that

contradicts the underlying data was found.

• Practical Relevance: since Tributech deals with

the auditability of provisioned data streams

, our

contact saw the major beneﬁt of our RDP-based

method in the automation of data stream moni-

toring. From the currently implemented statistics

in the RDPs, uniqueness and domain information

(such as minimum, maximum, median, average,

and standard deviation) are speciﬁcally relevant

parameters for this use case.

Generally, practical viability is hard to test with-

out a large user study. However, the feedback from

Tributech indicates the general practical relevance of

the current development status of DQ-MeeRKat.

The data owners proposed the following en-

hancements to continue improving the value of DQ-

MeeRKat for deployment in practice: (1) to support

the veriﬁcation of patterns in the data, e.g., to con-

tinuously monitor a speciﬁcally modeled temperature

RDPs to this evaluation: https://github.com/lisehr/

dq-meerkat/tree/master/documentation/TributechRDPs

curve in production data, (2) to take changes in the

RDP over time into account, e.g., when the occupancy

rate of a machine depends on the day of the week, and

(3) to enhance the interpretability for the end user,

e.g., by adding guidelines and clear descriptions of

the RDPs for less experienced users.

4.3 Experiment 1: Monitor the Quality

of Batch-loaded Data

In integration scenarios, data is usually loaded batch-

wise (e.g., via an ETL process) in periodic intervals

into a data warehouse or data lake (Giebler et al.,

2019). The task of an ADQM tool in such settings

is to verify whether the newly loaded data continues

to conform to the requirements modeled in the RDP.

To apply DQ-MeeRKat in real-world ETL scenarios,

we implemented the necessary extensions to use it as

plugin for the data integration tool Pentaho

When performing RDP-based ADQM with batch-

loaded data, 3 parameters need to be set: (1) a thresh-

old th to verify the conformance of a current DP to its

corresponding RDP, (2) the batch size bs, and (3) the

number of records to learn the RDP (RDP size rs). To

obtain the optimal parameter settings, we performed

an evaluation of the inﬂuence of the three parameters

on the average RDP conformance reported to the user

(cf. Figure 3). To simulate a scenario with batch-

loaded data, we grouped single records from the data

streams to batches and veriﬁed whether the current

DPs of the batch loaded at point t conforms to its

corresponding RDP. The transformation of streaming

data to batches with “window functions” is a common

technique to analyze data streams (Meng et al., 2016).

Figure 3: Parameter Evaluation.

It can be seen that a threshold of 0.1 is sufﬁcient

to achieve a very high conformance for the Tributech

data sets, which was expected by the data owners due

to the nature of the data. With respect to the batch size

and RDP size, 1,000 records turned out to be a good ﬁt

https://www.hitachivantara.com/de-de/products/

data-management-analytics/pentaho-platform/

pentaho-data-integration.html

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

220

for our data. Interestingly, the RDP conformance can

deteriorate with an increasing number of records for

learning the RDPs or current data proﬁles. This shows

that the selection of larger batch sizes (time windows)

moves the conformance focus from time-local infor-

mation to time-global information.

Table 3 shows the conformance report of all six

data six data streams using the parameter setting de-

termined in Figure 3. It can be seen that all vari-

ables (third column) except for the attribute “value”

conform perfectly to their corresponding RDP over

time. Since the sensor values are the only variables

with a relatively high variability, some values exceed

the boundaries deﬁned in the RDP when monitor-

ing the entire data. This conformance report can be

repeated for different data sets by executing RDP-

ConformanceTributechData.java from the GitHub de-

mos/repeatability folder

Table 3: RDP Conformance of Stream Data “Value” with

Threshold=0.1 and RDP Size=1,000.

CR % Value

bs=1,000

Value

bs=1

Other Variables

bs=1,000 ∨ 1

ACC-BoF 89.75 99.99 100

ACC-StS 86.34 99.98 100

ACC-UoD 93.17 94.73 100

D-Voltage 94.90 100 100

E-RPM 94.81 96.87 100

E-Speed 75.97 86.71 100

4.4 Experiment 2: Monitor the Quality

of Streaming Data

Grouping of multiple streaming records (i.e., win-

dowing) allows for the calculation of aggregates and

complex statistics (Meng et al., 2016). Comparing

only single records to their respective RDP precludes

the use of some statistics presented in Table 1, be-

cause they are either not calculable (e.g., variance) or

loose their semantic meaning (e.g., mean).

The third column in Table 3 shows the confor-

mance report of all six data stream values using the

same threshold and RDP size as for the batch data ex-

periment, but considers single records only. All other

variables (cf. fourth column) show the same perfect

conformance (100 %) as in the previous experiment.

It can be seen that the overall conformance of

the values is higher than with the batch-based con-

formance checks. Since no aggregation statistics are

compared but only (automatically generated) bound-

aries are checked, the proportion of statistics that

do not concern numeric variance (e.g., domain con-

straints, number of null values) is higher. This data set

contains only numeric deviations in DQ with respect

to the sensor values. Both experiments have their

application in practice: experiment 1 for ETL-based

data integration scenarios and experiment 2 for the

conformance veriﬁcation of sensor or other stream-

ing data that is not preprocessed by window func-

tions. This evaluation shows the differences between

the two use cases and that compliance ratings may not

be directly comparable between different systems and

parameterizations.

The generation of conformance reports as demon-

strated so far is useful for automated post-processing.

Each record exceeding the RDP boundaries can trig-

ger an alert or an automated DQ countermeasure can

be set in place (e.g., the imputation of a missing

value). In other applications, the visualization of the

DQ time series to a user might be more interesting.

Figure 4 shows an excerpt of the Grafana dashboard.

The green line in Figure 4 represents the current val-

ues of the data stream ACC-BoF. The minimum and

maximum values in the RDPs are colored (dark and

light) red, average and median (dark and light) blue,

and the standard deviation in purple. After a longer

time of DQ monitoring, the ACC-BoF value suddenly

increases to 8.00, which clearly exceeds the maxi-

mum value of 4.44 as deﬁned in the RDP. Follow-

ing, an automatic alert could be raised, which trig-

gers subsequent actions, e.g., prevents the data to be

stored in a central data store or requires intervention

of a domain expert. The visualization dashboard can

be invoked by executing DemoStreamingData.java

from demos/repeatability and further visualizations

are provided in the documentation/adqm-screenshots

folder of the GitHub repository

Figure 4: Visualization of RDP-based DQ Monitoring of

“Acceleration – Braking or Forward” Data Stream.

DQ-MeeRKat: Automating Data Quality Monitoring with a Reference-Data-Proﬁle-Annotated Knowledge Graph

221

5 CONCLUSION AND OUTLOOK

In this paper, we presented DQ-MeeRKat, a tool

that implements a reference-data-proﬁle-annotated

KG for automated DQ monitoring. We demonstrated

its applicability to (i) automatically learn RDPs for

heterogeneous data sources, and (ii) to calculate new

DPs on-the-ﬂy to verify that newly inserted or up-

dated data continues to conform to the constraints

stored in the RDPs. We are currently working on and

planning the following extensions:

• A UI to enable RDP reﬁnement for domain ex-

perts (cf. suggestion (3) by Tributech).

• As already incorporated in our vision, DQ-

MeeRKat aims to actively support the storage of

different versions per RDP.

• The overall vision for DQ-MeeRKat is to create

a comprehensive “AI-based surveillance state”,

which is capable of characterizing various kinds

of data to detect drifts and anomalies in DQ at the

earliest possible stage. Thus, we are going to en-

hance our RDPs with more complex statistics and

ML models, which are able to capture patterns in

the data (cf. suggestion (1) by Tributech). We will

focus on white-box models only since it is crucial

that statements about DQ are always explainable.

ACKNOWLEDGEMENTS

The research reported in this paper has been funded

by BMK, BMDW, and the Province of Upper Austria

in the frame of the COMET Programme managed by

FFG. The authors thank Patrick Lamplmair of Trib-

utech Solutions GmbH for providing the data streams.

REFERENCES

Abadi, D., Ailamaki, A., Andersen, D., Bailis, P., Balazin-

ska, M., Bernstein, P., Boncz, P., Chaudhuri, S., Che-

ung, A., Doan, A., et al. (2019). The Seattle Re-

port on Database Research. ACM SIGMOD Record,

48(4):44–53.

Abedjan, Z., Golab, L., Naumann, F., and Papenbrock, T.

(2019). Data Proﬁling. Synthesis Lectures on Data

Management, 10(4):1–154.

Bronselaer, A., De Mol, R., and De Tr

e, G. (2018). A

Measure-theoretic Foundation for Data Quality. IEEE

Transactions on Fuzzy Systems, 26(2):627–639.

Ehrlinger, L., Rusz, E., and W

oß, W. (2019). A Survey

of Data Quality Measurement and Monitoring Tools.

CoRR, abs/1907.08138:1–30.

Ehrlinger, L., Werth, B., and W

oß, W. (2018). Automated

Continuous Data Quality Measurement with QuaIIe.

International Journal on Advances in Software, 11(3

& 4):400–417.

Ehrlinger, L. and W

oß, W. (2017). Automated Data Qual-

ity Monitoring. In Proceedings of the 22nd MIT In-

ternational Conference on Information Quality (MIT

ICIQ), pages 15.1–15.9, UA Little Rock, AR, USA.

Fischer, L., Ehrlinger, L., Geist, V., Ramler, R., Sobieczky,

F., Zellinger, W., Brunner, D., Kumar, M., and Moser,

B. (2021). AI System Engineering–Key Challenges

and Lessons Learned. Machine Learning and Knowl-

edge Extraction, 3(1):56–83.

Giebler, C., Gr

oger, C., Hoos, E., Schwarz, H., and

Mitschang, B. (2019). Leveraging the Data Lake:

Current State and Challenges. In Big Data Analyt-

ics and Knowledge Discovery, pages 179–188, Cham.

Springer International Publishing.

Heidari, A., McGrath, J., Ilyas, I. F., and Rekatsinas, T.

(2019). Holodetect: Few-Shot Learning for Error De-

tection. In Intl. Conf. on Management of Data (SIG-

MOD’19), pages 829–846, New York, USA, ACM.

Heinrich, B., Hristova, D., Klier, M., Schiller, A., and

Szubartowicz, M. (2018). Requirements for Data

Quality Metrics. Journal of Data and Information

Quality, 9(2):12:1–12:32.

Hogan, A., Brickley, D., Gutierrez, C., Polleres, A., ,

and Zimmerman, A.(2019). (Re)Deﬁning Knowl-

edge Graphs. In Knowledge Graphs: New Directions

for Knowledge Representation on the Semantic Web

(Dagstuhl Seminar 18371), pages 74–79, Germany.

Kiryakov, A., Ognyanov, D., and Manov, D. (2005).

OWLIM – A Pragmatic Semantic Repository for

OWL. In International Conf. on Web Information Sys-

tems Engineering – WISE 2005 Workshops, vol.3807,

pages 182–192. Springer.

Ledvinka, M. and K

remen, P. (2019). A Comparison

of Object-Triple Mapping Libraries. Semantic Web,

pages 1–43. Preprint.

Meng, X., Bradley, J., Yavuz, B., Sparks, E., Venkataraman,

S., Liu, D., Freeman, J., Tsai, D., Amde, M., Owen,

S., et al. (2016). Mllib: Machine Learning in Apache

Spark. The Journal of Machine Learning Research,

17(1):1235–1241.

Naqvi, S. N. Z., Yfantidou, S., and Zim

anyi, E. (2017).

Time Series Databases and InﬂuxDB. Technical re-

port, Universit

e Libre de Bruxelles.

Pipino, L., Wang, R., Kopcso, D., and Rybolt, W. (2005).

Developing Measurement Scales for Data-Quality Di-

mensions. Information Quality, 1:37–52.

Scannapieco, M. and Catarci, T. (2002). Data Quality Under

a Computer Science Perspective. Archivi & Computer,

2:1–15.

Sebastian-Coleman, L. (2013). Measuring Data Quality for

Ongoing Improvement: A Data Quality Assessment

Framework. Elsevier, Waltham, MA, USA.

Stonebraker, M. and Ilyas, I. F. (2018). Data Integration:

The Current Status and the Way Forward. Bulletin of

the IEEE Computer Society Technical Committee on

Data Engineering, 41(2):3–9.

Wang, R. Y. and Strong, D. (1996). Beyond Accuracy:

What Data Quality Means to Data Consumers. Jour-

nal of Management Information Systems, 12(4):5–33.

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

222
