WFDU-net: A Workflow Notation for Sovereign Data Exchange

Heinrich Pettenpohl

, Daniel Tebernum

and Boris Otto

1,2

Data Business, Fraunhofer Institute for Software and Systems Engineering, Dortmund, Germany

Industrial Information Management, TU Dortmund University, Dortmund, Germany

Keywords: Petri Net, Data Sovereignty, WFD-net, Usage Control, CTL*.

Abstract: Data is the main driver of the digital economy. Accordingly, companies are interested in maintaining technical

control over the usage of their data at any given time. The International Data Spaces initiative addresses

exactly this aspect of data sovereignty with usage control enforcement. In this paper, we introduce the so-

called Workflow with Data and Usage control network (WFDU-net) model. The data consumer can visually

define his or her workflow using the WFDU-net model and annotate the data operations and context. With

model checking we validate that the WFDU-net follows the usage policies defined by the data owner.

Afterwards, the compliant WFDU-net can be executed by exporting the WFDU-net in a Petri Net Markup

Language (PNML). We evaluated our approach by using our example WFDU-net in a data analytics use case.

1 INTRODUCTION

Data is the main driver of the digital economy.

Therefore, the European Union (EU) wants to provide

users with tools to process their data and retain full

control of their data as it flows within the EU and

even across sectors (The European Data Strategy,

2020). This kind of control is needed both within an

enterprise and within a data ecosystem, when it comes

to data sharing between enterprises. Therefore, the

International Data Spaces Association (IDSA)

developed a reference architecture for sovereign data

exchange between enterprises (Otto & Jarke, 2019).

Data sovereignty means that the data owner can

decide what the data consumer may use the data for.

This is a contrast to today's widespread access

control, where only access but not use is regulated.

Technically, in the IDS, this means that the data

owner annotates his or her usage policies to the raw

data, so that the systems enforce these policies.

Therefore, the IDS use the concept of usage control

(Eitel et al., 2019) to provide the data owner with

control over his or her data while, at the same time,

allowing the data processing on the consumer side.

On the consumer side, there is often not only one

application processing the data, but a whole chain of

https://airflow.apache.org/

https://argoproj.github.io/projects/argo/

https://camel.apache.org/

applications. To link the applications with each other,

workflow engines (Apache Airflow

, Argo

) or

message routers (Apache Camel

, Apache NiFi

) or

message bus systems (Apache Kafka

, Apache

ActiveMQ

) are used today. In the IDS, exemplary

Apache Camel with ActiveMQ as well as Apache

Airflow are used to exchange data between the

applications. To enforce the IDS usage policies, the

enforcement tools hooking into the message systems

at runtime and check whether the usage policies are

being violated and, if so, interrupt the data flow. The

applications must also adhere to the terms of use.

The messaging systems do not natively support

usage control. The user of these messaging systems

mostly have to write down configuration files and use

programmatic APIs instead of graphical user

interfaces.

In this paper, we want to support the data owner

to see what his or her data is being used for and we

want to support the data consumer to dynamical

create workflows for data processing with a built-in

usage policy checking. Therefore, we present a

visualization of the workflow, which consists of a

control flow and a data flow. After designing the

workflow, we use model checking to validate whether

the workflow complies with the given usage policies.

Finally, the workflow can be executed.

https://nifi.apache.org/

https://kafka.apache.org/

https://activemq.apache.org/

Pettenpohl, H., Tebernum, D. and Otto, B.

WFDU-net: A Workﬂow Notation for Sovereign Data Exchange.

DOI: 10.5220/0010550402310240

In Proceedings of the 10th International Conference on Data Science, Technology and Applications (DATA 2021), pages 231-240

ISBN: 978-989-758-521-0

231

We will test the execution with the analytics

network approach developed by Tebernum et al.,

which is capable of following usage policies by

design. The overall approach allows us to validate the

workflow even before it is executed. This provides

the user with early feedback already during the design

phase. Additionally, we can forward the workflow

definition to the data owner to keep the data usage

transparent and allow him or her to check the validity

himself or herself.

So, in summary, we have three requirements:

 Graphical visualization of data flows

 Proven validation of data flows with reference

to usage policies at design time, so that data

flows do not simply break off.

 Conversion of the data flows to message

systems

The remainder of this paper is structured as

follows. Section 2 focuses on related work. Section 3

introduces WFDU-nets. In Section 4, we present a use

case that will be realized in the following sections. In

Section 5, we formalize the model checking rules and

implement them. Section 6 concludes the paper and

also provides limitations and future work.

2 RELATED WORK

First, we look at different modelling approaches to

select a graphical visualisation which also can prove

the usage policies. This will result into our research

gap. Then we look at existing usage control solutions

and how they enforce policies.

2.1 Petri Nets

In computer science, there are different types of

modelling for data in general and workflows in

particular. For example, it is possible to use Unified

Modeling Language (UML) (Object Management

Group [OMG], 2017), Business Process Modeling

Notation (BPMN) (Camunda services GmbH et al.,

2010), or Event-driven Process Chains (EPC) (Becker

et al., 2012). All these modelling languages were

extended over the time to fulfil different requirements.

However, we will focus on Petri nets for our approach

as they are mathematically well-founded and can

therefore be better used for analysis purposes in

addition to pure modelling (Murata, 1989; van der

Aalst, 1998). Furthermore, they can visualize the

workflow for the user and it can be used to visualize

the execution of a workflow via markings. There are

some variations of the original Petri nets (Murata,

1989), for example Coloured Petri Nets (Jensen, 2013),

where the colour can be used to attach information to a

token. Also, BPMN, EPC, and UML activity diagrams

can be translated into Petri nets.

Some work has been done to unify data and the

control flow in Petri nets. With Dual Workflow Nets

(DFN), Varea et al. (Varea et al., 2006) introduced a

Petri net model that combines control and data flows

in one Petri net with additionally added data

transitions. In contextual nets (Baldan et al., 2012),

flow relation itself is used to perform data operations

such as reading data within a Petri net. In PN-DO

(Petri Nets with Data Operation), Xiang et al. (Xiang

et al., 2017) customized a Petri net to generate,

update, and write data to places using a specialized

flow relation. Another method to add data flows to a

Workflow net (WF-net) is proposed with the WFIO-

net, where the data is explicitly modelled using

specific data places (Cong et al., 2014). This results

in a redefined transition fire method, so that standard

tools can no longer be used. (Katt et al., 2009) used

Coloured Petri nets to define a Usage control

Coloured Petri Net (UCPN) with colours for the three

main elements of a usage policy: subject, object, and

context. The UCPN is used to verify whether a

subject is allowed to use an object based on attributes.

However, the subject and the context in real world

examples are not free flowing, they are directly

attached to an application/transition and from our

view not a token/colour.

Another method is to include labels (function,

context, etc.) in the transitions and use a guard

function to select the correct data, as WFD-nets

(Workflow Nets with Data) do (Trčka et al., 2009).

The guard functions in WFD-nets use write, read, and

delete as data operations. WFD-nets are a specialized

form of WF-nets (Workflow-nets) (van der Aalst,

1997, 1998). WFD-nets are Petri nets with only one

start node and one end node, all other nodes have to

be located between the start and end node. The WFD-

nets is primarily designed to find data flow errors.

Our paper extends the WFD-nets to check usage

control policies.

2.2 Usage Control

In the early 2000s, Sandhu and Park introduced usage

control (UCON) as an extension of access control

(Sandhu & Park, 2003). This initial definition was

extended to UCON

ABC

, which comprises

Authorizations, oBligations, and Conditions,

referring to attributes of subjects and objects. Lili and

Zhigang introduced a CTL logic for usage control

enforcement (Lili & Zhigang, 2019). They defined

attributes attached to the subject, object, and context

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

232

to use the CTL logic for checking whether the

attributes are fulfilled for some policies. Another

approach is proposed in (Zhang et al., 2005) where

UCON

ABC

is formalized in Laport’s Temporal Logic

of Actions (TLA). Basin et al. used first-order

temporal logic to monitor usage control policies

(Basin et al., 2010; Basin et al., 2011). In (Pretschner

et al., 2009), a Linear Time Logic (LTL) dialect is

used to analyse policies. For dynamically changing

policies, (Elrakaiby & Pang, 2014)introduce an

Action Computation Tree Logic (ACTL) approach.

Zrenner et al. presented how usage control can be

used for business ecosystems, especially in the IDS

(Zrenner et al., 2019). With LUCON there is also a

framework to enforce policies in the IDS (Schütte &

Brost, 2018), the policies are described in a custom

DSL and translated into Prolog to realize enforcement

on the data flow.

3 WORKFLOW NETS WITH

DATA AND USAGE CONTROL

To model our approach, we are using workflow with

data nets (WFD-nets), which are specialized

workflow nets (WF-nets). A WF-net itself is a

specialized Petri net. Therefore, we start with a first

introduction of Petri nets. A Petri net is a graph with

two type of nodes: places and transition. The nodes

are connected with flow relations, where a flow

relation connects a place with a transition or vice

versa. The initial markers are tokens, which are

placed in places. When a transition fires, it consumes

a token from the previous place and generates a new

token behind it. A WF-net has exactly one source

place and one sink place and all nodes are on a path

from this source place to the sink place. We formalize

this in the following.

Definition 1. A WF-net is a Petri net Σ =

(𝑃,𝑇,𝐹,𝑀



), where:

𝑃 ∩ 𝑇 = ∅ 𝑎𝑛𝑑 𝑃 ∪ 𝑇 ≠ ∅ (1)

𝑃 is a finite set of places. (2)

𝑇 is a finite set of transitions 𝑇 such that 𝑃∩

𝑇=∅.

(3)

𝐹 ⊆ (𝑃 ×𝑇)∪(𝑇 ×𝑃) is a set of directed

flow relation.

(4)

𝑀



:𝑃→ℕ



is the initial marker. (5)

𝑝



∈𝑃 where 𝑝



is one source (start) place

such that 𝑝



⋅

=∅

(6)

𝑝



∈𝑃 where 𝑝



is one sink (end) place such

that 𝑝



⋅

=∅

(7)

Each node 𝑥∈𝑃∪𝑇is on a path from 𝑝



𝑝



(8)

∀𝑝 ∈ 𝑃,𝑀



(

𝑝

)

=1if 𝑝=𝑝



, and otherwise

𝑀



(

𝑝

)

=0.

(9)

A WF-net is used to model the control flow of

different activities from a starting point to the end of

the process. Beside this control flow, a typical

workflow also consists of a data flow. Thus, a WFD-

net is a WF-net that is extended with read, write,

erase, and guard operations for data elements. For

example, a transition may read a data element.

Therefore, this data element is expected to be written

before the transition is executed. The operation write

means that the data element gets a new value. If the

data element value is already written, it is overwritten

by the write operation. Next, the erase operation

deletes the value of the data element. Finally, the

guard operation is used to check a data element before

a transition is executed. For example, the guard tests

whether a data element is present or not. Therefore, it

reads the value of the data element, whether a value

is present or not, and afterwards executes the

transition or not.

Definition 2. A WFD-net (Trčka et al., 2009) is a 10-

tuple.



(𝑃,𝑇,𝐹,𝑀



,𝐷,𝐺



,𝑅𝑒𝑎𝑑,𝑊𝑟𝑖𝑡𝑒,𝐷𝑒𝑠𝑡𝑟𝑜𝑦,𝐺𝑢𝑎𝑟𝑑) ,

iff:

(𝑃,𝑇,𝐹,𝑀



) is a WF-net.

(1)

𝐷 is a set of data elements. (2)

𝐺



is a set of guards over 𝐷. (3)

Read: 𝑇→2



is the reading data labeling

function.

(4)

Write: 𝑇→2



is the writing data labeling

function.

(5)

Erase: 𝑇→2



is the erasing data labeling

function.

(6)

Next, we will enhance the WFD-net with usage

policy related information. To do this, we are looking

at what additional elements we need in the WFD-net.

3.1 Usage Policies

A Usage Policy describes what a subject can do on an

object in a related context. Therefore, a policy

WFDU-net: A Workﬂow Notation for Sovereign Data Exchange

233

consists of four main elements defined UCON

specifications (Park & Sandhu, 2004; Sandhu & Park,

2003): subjects, actions, objects, and context. For our

use case, we limit these elements to specific elements

of our workflow. A subject is always the application

connected to a transition in our WFD-net. Actions are

related to three different categories. First, there are

subject actions that are performed by a subject, as in

our case an application that writes, reads, or erase an

object. These operations can easily be extended to

more concrete operations like transform, update, etc.

in the future. Enforcement actions are actions that

have a monitor character, e.g. updating attributes,

logging a failed access, or checking a fulfilment of an

obligation. Finally, obliged actions are actions that

must be fulfilled by the subject. In the following, we

call them Policies. In our case, the data elements are

the objects. However, the context is still missing in

the WFD-net. It describes in which environment the

application is running, e.g. inside a company or in a

cloud. The specific environment labels must be

defined before the data owner has written his or her

policies so that he or she knows the labels and can use

them.

In the following definition, we connect applications

to WFD-net and add their context to the transitions. In

addition, we add policies to the data so that a Subject

is aware of them while using data elements.

Definition 3. A WFD-usage-control-net is a 15-

tuple Σ



=(𝑃,𝑇,𝐹,𝑀



,𝐷,𝐺



,𝑅𝑒𝑎𝑑,𝑊𝑟𝑖𝑡𝑒,

𝐸𝑟𝑎𝑠𝑒, 𝐺𝑢𝑎𝑟𝑑, 𝐴𝑝𝑝, 𝐶, 𝐶𝑜𝑛𝑡𝑒𝑥𝑡, 𝑅, 𝑅𝑢𝑙𝑒𝑠) iff,

(𝑃,𝑇,𝐹,𝑀



,𝐷,𝐺



,𝑅𝑒𝑎𝑑,𝑊𝑟𝑖𝑡𝑒,

𝐸𝑟𝑎𝑠𝑒,𝐺𝑢𝑎𝑟𝑑) is a WFD-net.

(1)

𝐴

𝑝𝑝 is a set of Applications.

(2)

C is a set of Context elements. (3)

𝑇=𝑇



∩𝑇



where 𝑇



is an application

transition and 𝑇



is a control flow transition

with not data relevant acitivity.

(4)

Context: 𝑇→2



is the context labeling

function.

(5)

ℛ

is a power set of a set of Policies.

(6)

DataPolicies: 𝐷→2

ℛ

is a DataPolicies

labelin

function.

(7)

In the following, we will introduce a use case and

implement it in an exemplary WFDU-net to make the

approach more tangible.

4 USE CASE: METADATA

EXTRACTION FOR A DATA

CATALOG SYSTEM

Since data is an important asset, enterprises are

interested in maintaining a good overview of it. In our

case, we assume that the data consumed from the IDS

should be listed in a data catalog. The data catalog

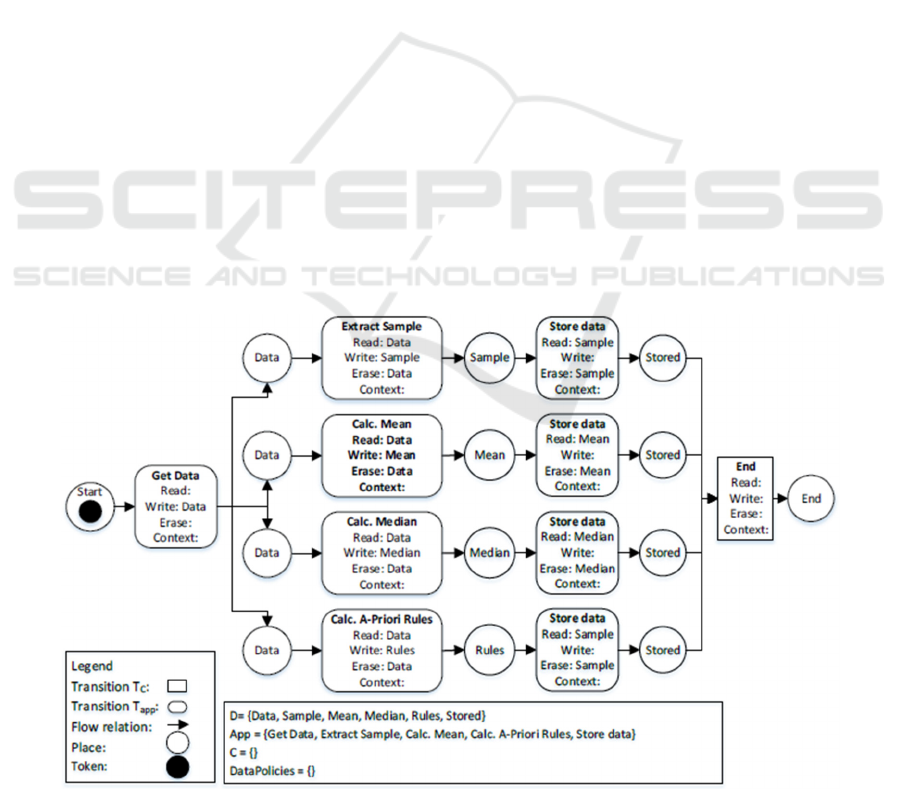

Figure 1: WFD-net for extracting metadata.

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

234

stores metadata about the data, thus providing

advanced search capabilities to find the needed data

more easily. Metadata can contain descriptive,

structural, as well as administrative information, which

is of great importance for running search queries and

finding data (Press, 2004). This can be very

heterogeneous depending on the data source. For text

files, an automatic detection of keywords may be

desirable. For images, an object recognition or

knowledge of location may be helpful. For domain-

specific data, a more specialized extraction of metadata

may be necessary. An enterprise can therefore pre-

define specific workflows and implement appropriate

analysis tasks to extract metadata for different data

types and use cases. A workflow engine located, for

example, on an enterprise server or in the cloud can

then execute these workflows.

However, there are situations where a workflow

cannot simply be executed as it is. This may be the

case, for example, if it is necessary to check in

advance whether individual steps of the workflow can

be applied to certain data. More experienced users

will then want to extend, shorten, or even completely

customize workflows for their own purposes. Even if

the workflows are customizable, the usage policies

specified by the data owner in the IDS have to be

enforced. For example, confidential management

documents should not be analyzed in a third-party

cloud application, but only within the company on

dedicated computers. Our visual notation helps users

understand, model, and validate workflows that can

support all these activities.

(Tebernum & Chabrowski, 2020) have designed

and implement an analytics network that is located

inside the boundaries of an enterprise and can be

utilized for the execution of metadata extraction

workflows. It is optimized for utilizing already

existing computing and storage resources, e.g. edge

devices. In addition, it consists of a decentralized data

management system that prevents centralized data

aggregation and allows data sovereignty to be

maintained. Due to the focus on the architectural

design, the authors did not provide a solution for a

workflow editor with build in formal validation

functionality. Workflows can only be written in the

appropriate workflow language with expert

knowledge and without further validation.

We address this shortcoming by applying the

notation presented in this paper to visualize, build,

and validate workflows for the proposed analytics

network. We also show how data sovereignty

properties can be applied.

The following example demonstrates how the

notation can be used to support users and apply usage

policies. The use case is located in the context of a

pharmaceutical enterprise. Much data is generated,

processed, bought, and sold on a regular basis. To keep

track of all this data and to make it easy searchable, a

data catalog is used. With predefined workflows, the

necessary metadata is extracted according to data type

and data domain. Figure 1 shows a shortened workflow

that calculates and extracts standard metadata from a

CSV files. For most files, the workflow can be used in

this way. Starting from the file to be processed, four

tasks are executed concurrently. Each subject action is

represented as a rectangular petri net transition with its

own read, write and erase functions. We distinguish

between rectangles with corners or rounded corners,

these represent control flow transitions or applications.

The circles represent petri net places in which the

tokens/data are located and can be consummated by

transitions, or the transitions generate the data for the

places behind them. In the figure, a sample is extracted

and statistical metrics are calculated. For the more

specific task of rule extractions, the analytics network

should perform the calculation on a computer

belonging to a high-performance group, this should be

added to the notation later.

4.1 Usage Policies

The provided data is purchased from the IDS and is

linked to some usage policies. One of these policies

specifies that only a certain number of copies of the

data may exist in the consumer company at the same

time. For our example, we assume a fictional case in

which the number is limited to a maximum of two

copies. Another term of use may specify that the data

must not pass national borders. Therefore, it must be

ensured that the data is not accidentally analyzed on

foreign computers, even if they are part of the

enterprise’s computer network structure. Due to the

unchanged. On the one hand, four tasks are performed

simultaneously, each holding its own copy of the file.

On the other hand, the workflow does not define any

geographic restrictions for the computers performing

the analysis tasks. Both policies are defined in the

following.

Policy 1. Data analysis only in my country: All data

processing must be done on computers in France.

Therefore, the policy ensures that the operations

using the data are only performed on transitions with

the context france. This is an authorization and

obligation rule defined by the UCON specification

which authorize a subject to use a resource and

WFDU-net: A Workﬂow Notation for Sovereign Data Exchange

235

determines via the obligation rule what tasks/actions

a subject must perform when a resource is used.

Policy 2. Only two copies can be used at the same

time: The policy ensures that only two copies of a data

set could be used in parallel. In fact, this means that a

maximum of only two transitions can executed at the

same time. This is a concurrency rule defined by the

UCON specification which expresses the way

multiple subjects are allowed to use a resource at the

same time.

Besides these two policies from the use case

above, we also consider generic policies that were

specified by the IDS initiative in (Eitel et al., 2019).

Policy 3. Allow/Inhibit the data usage for a specific

operation: The policy ensures that a particular

operation is allowed or inhibited to use the data. In

our case, we can distinguish between read, write, and

delete operations. However, it is easy to extend the

WFDU-net with more specific operations that can be

allowed or inhibited.

Policy 4. Use data and delete it after: After the data is

used by an application, it must be ensured that it is

deleted.

To check the policies described, we must first

define the model checking algorithm for the WFDU-

net. The model checking can then be used to check

whether the WFDU-net follows these usage policies

or break them.

5 FORMALIZATION AND

IMPLEMENTATION

First, we unfold the WFDU-net in a similar way to the

unfolding of a WFD-net (Trčka et al., 2009). We

preprocess our WFDU-net model and split each

transition 𝑡∈𝑇into its start 𝑡



and its end 𝑡



connected by a place 𝑝



. The transition is executed

𝑒𝑥𝑒𝑐(𝑡) if at least one token is in 𝑝



. To check

whether our model and all transitions follow our

defined policies, we will define model checking

formulas. For this purpose, we will first introduce the

Kripke structure and CTL* for our WFDU-net. Then,

we will formalize our policies.

5.1 CTL*

CTL* (computation tree logic with branching time

temporal logic) is a generalization of the two logics

LTL and CTL. CTL* uses a Kripke structure to define

states and their relation to each other. In this case, the

states are marking positions in the WF-net.

Definition 4. A Kripke structure (Trčka et al., 2009)

is a 4-tuple 𝑀 = (𝑆,𝑁,𝐿,→) where:

𝑆 is a finite se

of states.

(1)

𝑁 is a non-empty se

of atomic

ropositions.

(2)

𝐿:𝑆 → 2



is a state labeling function.

(3)

→⊆ 𝑆𝑥𝑆 is a transition relation.

(4)

An atomic proposition 𝑁 is a definition of a

marking in a state 𝑠. It is defined as 𝑁={𝑝≥𝑖|𝑝∈

𝑃,𝑖 ∈ ℕ where 𝑝≥𝑖 means that place 𝑝 holds at least

𝑖 tokens. The labels of states map the markings to the

sets of atomic propositions: ⋁

∈

𝑎𝑛𝑑 𝑖 ∈ ℕ,

(

𝑝≥

𝑖

)

∈𝐿

(

𝑚

)

iff 𝑚

(

𝑝

)

≥𝑖. Therefore, 𝐿(𝑠) is the set of

atomic propositions that hold in s. 𝑠→𝑠′ is the relation

from one state marking to another, which is a step from

a state 𝑠 to 𝑠’. Every step is a possible fired transition

in our WF-net. A path 𝜋 is then an infinite sequence of

states 𝜋= 𝑠



,𝑠



,𝑠



,… such that 𝑠



→𝑠



for all

0≤𝑘<𝑛,𝑠



↛ , and 𝑠



=𝑠



for all 𝑘≥𝑛.

𝜋



then denotes the path 𝑠



,𝑠



,𝑠



,….

Definition 5. (Trčka et al., 2009) We define two

classes of formulas: state Φ and path Ψ formulas.

They are defined by the syntax:

𝜙∷=𝑛|¬𝜙|𝜙∧𝜙|𝐸𝜓

𝜓∷= 𝜙

¬𝜓

𝜓∧𝜓

𝑋𝜓

𝜓⋃𝜓

with 𝑛∈𝑁,𝜙∈Φ, and 𝜓∈Ψ.

Definition 6. A state formula 𝜙 is valid in a state s

(notation: 𝑠⊨𝜙) and path formula 𝜓 is valid on a

path 𝜋 (notation: 𝜋⊨𝜓) (Trčka et al., 2009) when:

𝑠⊨𝑛if

𝑛∈𝐿(𝑠) (1)

𝑠⊨¬𝜙if

𝑠 ⊭ 𝜙 (2)

𝑠⊨𝜙



∧𝜙



𝑠⊨𝜙



𝑎𝑛𝑑 𝑠 ⊨ 𝜙



(3)

𝑠 ⊨ E𝜓 iff there exists a path 𝜋

from 𝑠 such that 𝜋 ⊨ 𝜓

(4)

𝜋⊨𝜙if

𝑠 is the first state o

𝜋 and 𝑠 ⊨ 𝜙 (5)

𝜋⊨¬𝜓if

𝜋⊭𝜓 (6)

𝜋⊨𝜓



∧𝜓



𝜋⊨𝜓



and 𝜋 ⊨ 𝜓



(7)

𝜋 ⊨ X𝜓 if

𝜋



⊨𝜓 (8)

𝜋⊨𝜓U𝜓



iff there exists a

𝑗

≥ 0 such that 𝜋



⊨𝜓



,and 𝜋



⊨ 𝜓 for all 0

≤𝑘<

𝑗

(9)

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

236

The above definitions are used to notate some

informal definition (Trčka et al., 2009): A𝜓 is

“𝜓 ℎ𝑜𝑙𝑑𝑠 along all paths”; E𝜓 is “𝜓 ℎ𝑜𝑙𝑑𝑠 along at

least one path”; F𝜓 is “𝜓 ℎ𝑜𝑙𝑑𝑠 in future”; EF𝜓 is

“𝜓 ℎ𝑜𝑙𝑑𝑠 in some future state”; 𝜓U𝜓’ is “𝜓 ℎ𝑜𝑙𝑑𝑠

until 𝜓′ holds”.

To define our policies as formula, we need to

define the atomic proposition. Therefore, we create

some abbreviations. To formulate that the transition 𝑡

is now executed and write the data element 𝑑∈𝐷, we

define 𝑤

(

𝑑

)

= ⋁

:∈

(



)

𝑒𝑥𝑒𝑐(𝑡). For read and

erase, the definition is 𝑟

(

𝑑

)

= ⋁

:∈

(



)

𝑒𝑥𝑒𝑐(𝑡)

and 𝑒

(

𝑑

)

= ⋁

:∈

(



)

𝑒𝑥𝑒𝑐(𝑡). To formulate that

the transition is executed in a special context 𝑐∈𝐶,

we define 𝑐𝑜𝑛

(

𝑐

)

=⋁

:∈

(



)

𝑒𝑥𝑒𝑐(𝑡). We also

define 𝑐ℎ𝑎𝑛𝑔𝑒(𝑡) for the set {𝑑|𝑑 ∈ 𝑤𝑟𝑖𝑡𝑒(𝑡) ∪

𝑒𝑟𝑎𝑠𝑒(𝑡) } and 𝑢𝑠𝑒(𝑡) for the set {𝑑|𝑑 ∈ 𝑟𝑒𝑎𝑑

(

𝑡

)

∪

𝑤𝑟𝑖𝑡𝑒

(

𝑡

)

∪𝑒𝑟𝑎𝑠𝑒

(

𝑡

)

 . The final state of the

workflow is denoted term, defined by 𝑒𝑛𝑑 = 1 ∧

⋀

∈{

(𝑝 = 0).

5.2 Model Checking Formulas

First, we have to check if the underlying WFD-net is

valid. The data operations are only labeled to the

transitions, so we have to use the formalized anti-

patterns from (Trčka et al., 2009), especially to check

missing data (is data read before it is written?) and

inconsistent data (is data written or erased while it is

being used in parallel?). Only if no data is missing and

no inconsistent data is possible, we can ensure that the

policies can be enforced. Missing data is defined as



¬𝑤

(

𝑑

)

U𝑟

(

𝑑

)

∨𝑒

(

𝑑

)





∨F𝑒

(

𝑑

)

∧



¬𝑤

(

𝑑

)

U𝑟

(

𝑑

)

∨𝑒

(

𝑑

)





] . In the first half, the

formula states that there is a path where no writing to

𝑑 happens until reading 𝑑 or erasing 𝑑 takes place.

The second part states that 𝑑 is erased and not written

again until it is read or erased. Inconsistent data is

defined as ⋁

∈:∈()

EF[(𝑒𝑥𝑒𝑐

(

𝑡

)

∧

⋁





:∈









𝑒𝑥𝑒𝑐

(

𝑡



)

)∨𝑝



≥2]. This means for a

transition 𝑡 where 𝑑 is changed during execution,

there is at least one more transition 𝑡’ where data is

used. The last part of the formula captures the fact that

a changing transition can be executed more than once

in parallel. Our policies are defined as follows.

Policy 1. Data Analysis Only in My Country. In our

case, the transitions with the context france are in the

country. To violate the policy, we have to check if there

is at least one path with read data and not 𝑐 = 𝑓𝑟𝑎𝑛𝑐𝑒

until the data is overwritten or erased or the workflow

terminates. This results in the formula EF[𝑤

(

𝑑

)

∧

(𝑟(𝑑) ∧ ¬𝑐𝑜𝑛

(

𝑐

)

U(𝑤

(

𝑑

)

∨𝑒

(

𝑑

)

∨𝑡𝑒𝑟𝑚).

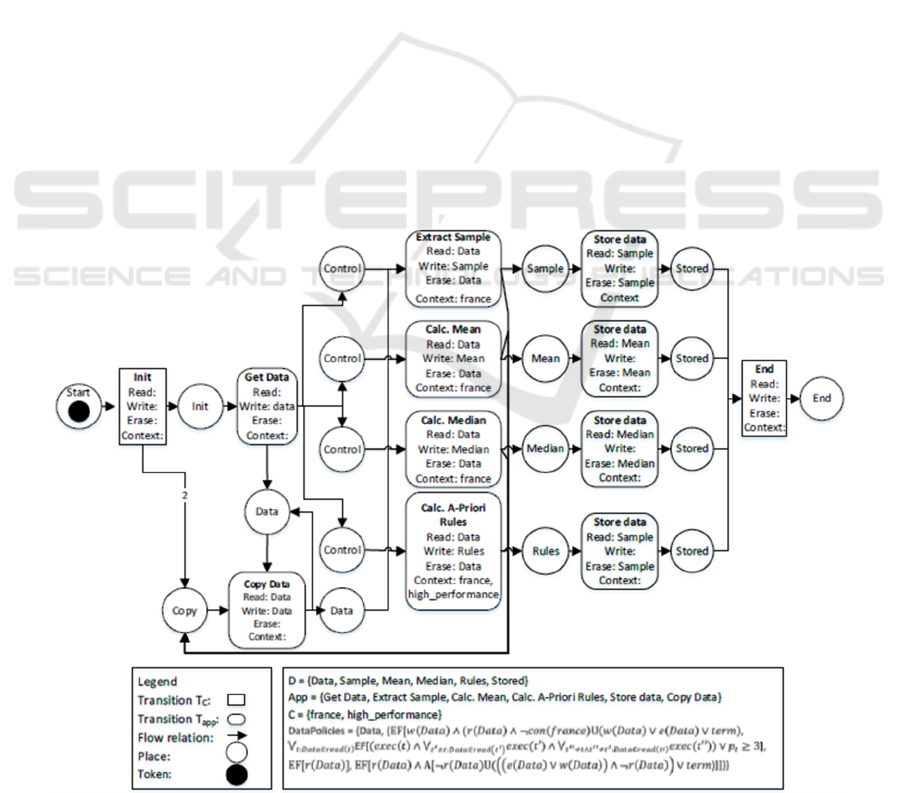

Figure 2: Policy compliant WFDU-net example for metadata extraction.

WFDU-net: A Workﬂow Notation for Sovereign Data Exchange

237

Policy 2. Only Two Copies Can be used at the

Same Time. With the purchased data set, only two

transition should be executed at the same time.

Therefore, we reformulate the policy to “Only two

reads in parallel are allowed”. To violate the policy,

there has to be a path where the data is read three

times in parallel.

 Read the data once: 𝐸𝐹

[

𝑤

(

𝑑

)

∧𝑟

(

𝑑

)

]

. Since

we check missing data in advance, we do not

have to check the write operation, as the

previous check would have already failed.

Therefore, the formula is:

EF[r(d)] = ⋁

:∈

(



)

EF[𝑒𝑥𝑒𝑐

(

𝑡

)

 Read the data twice:

⋁

:∈

(



)

EF[(𝑒𝑥𝑒𝑐

(

𝑡

)

∧

⋁

:∈

(



)

𝑒𝑥𝑒𝑐(𝑡)) ∨ 𝑝



≥2].

 Read the data three times:

⋁

:∈

(



)

EF[(𝑒𝑥𝑒𝑐

(

𝑡

)

∧

⋁





:∈









𝑒𝑥𝑒𝑐(𝑡′) ∧

⋁





∧







:∈

(



)

𝑒𝑥𝑒𝑐(𝑡′′)) ∨ 𝑝



≥3].

The formula for n times is similar to the previous

approaches.

Policy 3. Allow/Inhibit the Data Usage for a

Specific Operation. Firstly, we focus on inhibit the

read operation. To violate this policy, there is a path

where the data is read: EF[𝑟

(

𝑑

)

]. The formula for

writing or erasing data is built the same way. For the

validation that an operation is allowed, nothing needs

to be done, because it does not matter if the data is

used or not.

Policy 4. Use Data and Delete it After. The policy

is violated if there is a path where the data is read

( EF[𝑟

(

𝑑

)

∧…]) such that, in all possible

continuations of this path, no reading takes place until

the data gets erased, overwritten, or the workflow

terminates (A[¬𝑟(𝑑)U(



𝑒

(

𝑑

)

∨𝑤

(

𝑑

)

∧¬𝑟

(

𝑑

)



∨

𝑡𝑒𝑟𝑚 )]). As we assume that the operations are

executed in the order read, write, and erase, we have

to ensure, that the data is not read in a task before it is

erased or overwritten. The result formula is:

EF[𝑟

(

𝑑

)

∧A[¬𝑟(𝑑)U(



𝑒

(

𝑑

)

∨𝑤

(

𝑑

)

∧¬𝑟

(

𝑑

)



∨

𝑡𝑒𝑟𝑚)]].

5.3 Implementation

We used CPN Tools to model our WFDU-net and

check the patterns and policies from the previous

section. Since the given use case is not yet following

any policies, the model checking will fail. Figure 2

presents the redesigned compliant WFDU-net of

Figure 1. Please note that there are also other ways

than the proposed one to model the WFDU-net

compliant to the policies. We insert the labels to

annotate that the application is running inside the

company in France. First, an initial step named Init

was inserted. This allows a control flow before the

data flow, both to fetch the data exactly once (Get

Data) and to control that each subject action (Extract

Sample, Calc. Mean, Calc. Median, Calc A-Priori

Rules) is executed exactly once (see places to the left

of the subject actions). When initializing, two control

flow tokens are also created at the bottom left to

create exactly two copies of the data set. In the

process, the consummated data set is always created

again to the place above the Copy Data Transition

itself. The two resulting data copies are each used by

one of the subject action transitions. After completion

of the action, these again generate a new copy control

flow token to enable another copy of the data set. This

is done until each subject action is executed exactly

once, see control flow tokens from the very beginning

(to the left of the subject actions). This ensures that

there are always a maximum of two data sets for

simultaneous processing.

After the model is created and checked, we export

the Petri net to the Petri Net Markup Language

(PNML) which is an XML-based format. By

transpiling this into native workflow languages like

Argo or Airflow, the workflow can then be executed.

We tested this using the analytics network from

(Tebernum & Chabrowski, 2020).

6 CONCLUSIONS

We presented an approach to model the data flow for

data with usage policies. With this approach we tackle

our three requirements: (1) Graphical visualisation of

data flows; (2) Proven validation of data flows with

reference to usage policies at design time, so that data

flows do not simply break off; (3) Conversion of the

data flows to message systems. Therefore, we

developed a Workflow with Data and Usage control

network (WFDU-net) based on the WFD-net

approach (Trčka et al., 2009), so that also usage

policies can be validated, next to data flow errors.

To test our approach, we presented a use case

which is based on a real-life case of a pharmaceutical

company that buys data from the International Data

Spaces and has to enforce the given usage policies.

These policies where converted to CTL* logic and

then executed in CPN-Tools. We redesign the given

workflow of the underlying analytics network to be

compliant with the given policies, so that the model

checking is valid. Afterwards, existing workflow

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

238

engines and analytic networks can use the model. In

this context, we have shown that the approach can test

both context-based and parallel events. For this

purpose, all possible actions are calculated,

transferred into a Kripke structure and then checked.

One limitation is that the approach cannot test

temporal obligations at design time. Another

limitation of our approach is that only the whole petri

net can be validated with the given usage policies.

Checking partial sections, for example if the policy is

changed during the data flow, is not possible. We can

circumvent this fact by dividing the data flow into

appropriate sections.

In the future, we will provide more policy

definitions. In addition, we will introduce our own

tooling to read the IDS policies and automatically

generate the CTL* formulas for the model checking.

ACKNOWLEDGEMENTS

This work was funded by the German Federal

Ministry of Education and Research (BMBF) in

context of the InDaSpacePlus project (no.

01IS17031) and by the Fraunhofer-Cluster of

Excellence »Cognitive Internet Technologies«.

REFERENCES

Baldan, P., Bruni, A., Corradini, A., König, B., Rodríguez,

C., & Schwoon, S. (2012). Efficient unfolding of

contextual Petri nets. Theoretical Computer Science,

449, 2–22.

Basin, D., Harvan, M., Klaedtke, F., & Zălinescu, E. (2011).

MONPOLY: Monitoring usage-control policies. In

International conference on runtime verification (pp.

360–364). Springer.

Basin, D., Klaedtke, F., & Müller, S. (2010). Policy

monitoring in first-order temporal logic. In

International Conference on Computer Aided

Verification (pp. 1–18). Springer.

Becker, J., Probandt, W., & Vering, O. (2012).

Modellierungssprachen. In J. Becker, W. Probandt, &

O. Vering (Eds.), Grundsätze ordnungsmäßiger

Modellierung (pp. 4–30). Springer Berlin Heidelberg.

https://doi.org/10.1007/978-3-642-30412-5_2

Camunda services GmbH, IBM Corp., OMG, I., PNA

Group, SAP AG, & Trisotech, I. (June 2010). BPMN

2.0 by Example: Version 1.0. https://www.omg.org/cgi-

bin/doc?dtc/10-06-02

Cong, L. I., ZENG, Q., & Hua, D. (2014). Formulating the

data-flow modeling and verification for workflow: A

Petri net based approach. International Journal of

Science and Engineering Applications, 3, 107–112.

Eitel, A., Jung, C., Kühnle, C., Bruckner, F., Brost, G.,

Birnstill, P., Nagel, R., Bader, S., & Steinbuß, S. (2019).

Usage Control in the International Data Space:

Position Paper [Version 2.0]. https://www.interna

tionaldataspaces.org/wp-content/uploads/2020/06/

IDSA-Position-Paper-Usage-Control-in-IDS-2.0.pdf

Elrakaiby, Y., & Pang, J. (2014). Dynamic analysis of

usage control policies. In 2014 11th International

Conference on Security and Cryptography (SECRYPT)

(pp. 1–13). IEEE.

The European data strategy: Shaping Europe's digital

future. (2020). https://ec.europa.eu/commission/

presscorner/api/files/attachment/862109/European_dat

a_strategy_en.pdf.pdf

Jensen, K. (2013). Coloured Petri nets: basic concepts,

analysis methods and practical use (Vol. 1). Springer

Science & Business Media.

Katt, B., Zhang, X., & Hafner, M. (2009). Towards a usage

control policy specification with Petri nets. In OTM

Confederated International Conferences" On the Move

to Meaningful Internet Systems. Symposium conducted

at the meeting of Springer.

Lili, X., & Zhigang, Z. (2019). Formal Specification of

Concurrent Enforcement UCON Model with CTL

Logic. In International Conference on Artificial

Intelligence and Security (pp. 627–641). Springer.

Murata, T. (1989). Petri nets: Properties, analysis and

applications. Proceedings of the IEEE, 77(4), 541–580.

Object Management Group. (December 2017). OMG®

Unified Modeling Language® (OMG UML®): Version

2.5.1. https://www.omg.org/spec/UML/2.5.1/PDF

Otto, B., & Jarke, M. (2019). Designing a multi-sided data

platform: findings from the International Data Spaces

case. Electronic Markets

, 29(4), 561–580.

Park, J., & Sandhu, R. (2004). The UCONABC usage

control model. ACM Transactions on Information and

System Security (TISSEC), 7(1), 128–174.

Press, N. (2004). Understanding metadata. National

Information Standards Organization. ISBN1-880124-

62-9. Available at: www. niso. org/standards/resources

Pretschner, A., Rüesch, J., Schaefer, C., & Walter, T.

(2009). Formal analyses of usage control policies. In

2009 International Conference on Availability,

Reliability and Security (pp. 98–105). IEEE.

Sandhu, R., & Park, J. (2003). Usage control: A vision for

next generation access control. In International

Workshop on Mathematical Methods, Models, and

Architectures for Computer Network Security.

Symposium conducted at the meeting of Springer.

Schütte, J., & Brost, G. S. (2018). LUCON: Data flow

control for message-based IoT systems. In 2018 17th

IEEE International Conference On Trust, Security And

Privacy In Computing And Communications/12th IEEE

International Conference On Big Data Science And

Engineering (TrustCom/BigDataSE). Symposium

conducted at the meeting of IEEE.

Tebernum, D., & Chabrowski, D. (2020). A Conceptual

Framework for a Flexible Data Analytics Network.

Proceedings of the 9th International Conference on

Data Science, Technology and Applications(Volume 1).

WFDU-net: A Workﬂow Notation for Sovereign Data Exchange

239

Trčka, N., van der Aalst, W. M. P., & Sidorova, N. (2009).

Data-flow anti-patterns: Discovering data-flow errors

in workflows. In International Conference on

Advanced Information Systems Engineering.

Symposium conducted at the meeting of Springer.

van der Aalst, W. M. P. (1997). Verification of workflow

nets. In International Conference on Application and

Theory of Petri Nets. Symposium conducted at the

meeting of Springer.

van der Aalst, W. M. P. (1998). Three good reasons for

using a Petri-net-based workflow management system.

In Information and Process Integration in Enterprises

(pp. 161–182). Springer.

Varea, M., Al-Hashimi, B. M., Cortés, L. A., Eles, P., &

Peng, Z. (2006). Dual Flow Nets: Modeling the

control/data-flow relation in embedded systems. ACM

Transactions on Embedded Computing Systems (TECS),

5(1), 54–81.

Xiang, D., Liu, G., Yan, C., & Jiang, C. (2017). Detecting

data-flow errors based on Petri nets with data operations.

IEEE/CAA Journal of Automatica Sinica, 5(1), 251–

260.

Zhang, X., Parisi-Presicce, F., Sandhu, R., & Park, J. (2005).

Formal model and policy specification of usage control.

ACM Transactions on Information and System Security

(TISSEC), 8(4), 351–387.

Zrenner, J., Möller, F. O., Jung, C., Eitel, A., & Otto, B.

(2019). Usage control architecture options for data

sovereignty in business ecosystems. Journal of

Enterprise Information Management.

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

240
