Formal Proof of a Vulnerability in Z-Wave IoT Protocol

∗

Mario Lilli

, Chiara Braghin

and Elvinia Riccobene

Computer Science Department, Universit

a degli Studi di Milano, Italy

Keywords:

Z-Wave Protocol, IoT Security, MITM, Formal Veriﬁcation, Abstract State Machine, ASMETA.

Abstract:

Nowadays, IoT (Internet of Things) devices are becoming part of our daily life. Unfortunately, many of

them do not use standardized communication protocols with a provable security guarantee. The use of formal

methods is, therefore, highly demanded in order to perform property veriﬁcation and to prevent possible

threats and accidents to users. In this paper, we propose a formal veriﬁcation of the Z-Wave protocol, claimed

to be one of the most secure IoT communication protocols thanks to the new S2 Security class, recently

added. Speciﬁcally, our analysis targets the joining procedure of a device to the Z-Wave net. We exploit the

ASMETA formal framework to model the protocol and to perform formal analysis in terms of model validation

against informal documented requirements and veriﬁcation of the protocol correct behaviour with respect to

its security goals. The veriﬁcation process revealed a vulnerability that could be used to perform a successful

Man-In-The-Middle (MITM) attack compromising the secrecy of the exchanged symmetric keys.

1 INTRODUCTION

Nowadays, millions of IoT (Internet of Things) de-

vices (e.g., alarms, door locks, lights, sensors, etc.)

are becoming part of our daily life. They are used

in very different applications that in many cases are

security and safety critical services, as for example

gas monitoring, home door opening, etc. Installing

vulnerable or unsafe devices might have serious con-

sequences in terms of user’s privacy and safety, and

many alliance of corporations are adopting security

procedures to protect the trafﬁc generated by their

protocols. Nevertheless, the approaches adopted to

meet security requirements have often proven to be

insufﬁcient, and many of them do not use standard-

ized communication protocols with provable guaran-

tee of security and safety, which can be achieved only

by means of formal veriﬁcation (Hofer-Schmitz and

Stojanovi

c, 2020).

Among the plethora of IoT security protocols, the

Z-Wave protocol (Z-wave, 2020) is considered the

most promising in terms of security features offered.

It is a communication protocol designed primarily for

https://orcid.org/0000-0001-7236-9171

https://orcid.org/0000-0002-9756-4675

https://orcid.org/0000-0002-1400-1026

∗

The work was partially supported by the SEED Project

“Situational awareness in critical Infrastructure Environ-

ment (SENTINEL)”, Universit

a degli Studi di Milano.

home automation, and security is provided by mes-

sage encryption. It was proprietary for long time,

and this is the reason why the protocol has not been

largely investigated in literature. It became publicly

available only in 2017, then it has been updated with

a new security layer (S2 Security), overcoming the

shortcomings of the previous S0 security layer which

was found vulnerable (Fouladi and Ghanoun, 2013).

In this paper, we propose a formal veriﬁcation of

the Z-Wave protocol with S2 security layer in terms

of the Abstract State Machine formal method (B

orger

and Raschke, 2018; B

orger and St

ark, 2003) and we

exploit the validation and veriﬁcation techniques of-

fered by the supporting framework ASMETA (Ar-

caini et al., 2011). More precisely, our protocol anal-

ysis targets the joining procedure of a device to the Z-

Wave network, which involves the use of S2 security

class. It deﬁnes the key establishment phase, where a

new joining device negotiates with the controller the

symmetric keys that it will use to secure all commu-

nications with the other nodes of the network.

In order to verify if the protocol security goals are

satisﬁed, we also formalised a malicious adversary,

able to intercept and craft messages. Then, the for-

mal veriﬁcation of the joining procedure revealed a

feasible Man-In-The-Middle (MITM) attack. Indeed,

the model checker returned a path showing how an at-

tacker obtains all the encryption keys exchanged dur-

ing the joining procedure. We reported the vulner-

198

Lilli, M., Braghin, C. and Riccobene, E.

Formal Proof of a Vulnerability in Z-Wave IoT Protocol.

DOI: 10.5220/0010553301980209

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 198-209

ISBN: 978-989-758-524-1

ability to Silicon labs and Z-Wave Alliance. They

conﬁrmed that the attack works for one authentica-

tion method, is previously unknown, and is feasible

in practice. To avoid the exploitation of the ﬂaw, an

improved version of the protocol, called SmartStart,

employs a QR code scan of the DSK (Device Speciﬁc

Key) that renders the attack infeasible by removing

human operator error from the attack scenario.

The contribution of the paper is threefold:

• A rigorous and precise description of the Z-Wave

protocol with S2 security layer, overcoming the

limitation of a fragmented and unclear documen-

tation of the protocol.

• A scenario-based validation to check our model

against the protocol requirements.

• Veriﬁcation of the protocol security goals with the

detection of a MITM attack (conﬁrmed by proto-

col designers).

The rest of the paper is organised as follows. In

Sect. 2 we brieﬂy review existing results on formal

methods in the context of IoT security protocols. Sect.

3 presents in a concise way the theory behind the

ASM formal method and the ASMETA framework

with its analysis approaches; it also introduces the op-

eration of Z-Wave. Sect. 4 presents the ASM formal

modeling, validation and veriﬁcation of the protocol,

together with the attacker model and the description

of a feasible MITM attack. Sect. 5 concludes the pa-

per and outlines future research work.

2 RELATED WORK

Speciﬁcation and veriﬁcation of IoT protocols is a re-

cent topic in the context of formal methods, and small

literature exists in this area. A comprehensive re-

view on formal methods for IoT protocols is given

in (Hofer-Schmitz and Stojanovi

c, 2020). The pa-

per gives details both on the properties taken in con-

sideration, and on the methods applied. Moreover,

they identify four areas for the application of formal

methods: i) a functional area, concerning the veri-

ﬁcation of protocol stack and key management; ii)

a second one, regarding the extension of the proto-

col with provable enhanced security features; iii) a

third area on the evaluation of security properties; and

iv) the last one on the implementation veriﬁcation.

Among IoT protocols, the mostly analised are Zigbee,

LoRaWAN, Bluetooth, Narrowband IoT, 6LoWPAN,

5G. Z-Wave has small literature since it has been pro-

prietary for a long time. To the best of our knowledge,

the only contribution on formal methods applied to Z-

Wave protocol is that in (Mohsin et al., 2017). It in-

vestigates the possibility of ﬂaws generated by wrong

conﬁgurations in Z-Wave scenes.

The Zigbee protocol is analyzed in (Melaragno

et al., 2012) by using AVISPA and Casper, where

the existence of a known security ﬂaw is discov-

ered. AVISPA, in combination with the graphical tool

SPAN, allows a sort of protocol runtime veriﬁcation

where Message Sequence Charts are built during the

protocol execution and are used to check if the execu-

tion performs consistently with the expected message

exchange (Armando et al., 2005; Vigan

o, 2006).

Two versions of LoRaWAN are compared in (El-

defrawy et al., 2019) using models speciﬁed with

Scyther: for LoRaWAN v1.0, they ﬁnd some ﬂaws

already known in the literature, while they do not

ﬁnd any evident vulnerability in v1.1. However,

they claim that this is possibly due to the limita-

tion of Scyther in terms of veriﬁcation capabilities

and the Dolev-Yao assumption of perfect cryptogra-

phy (Dolev and Yao, 1983), under which the protocol

analysis is conducted.

Some of the Bluetooth protocol versions have

been veriﬁed with formal methods. Version v5.0-Part

I has been checked by Sun and Sun (Sun and Sun,

2019); they perform a formal analysis of the secure

simple pairing (SSP) that constitutes a considerable

part of the security in home automation scenarios.

Four different models are used depending on the ca-

pability of the device, but they all resist passive eaves-

dropping and MITM attacks.

Two schemas for the 6LoWPAN protocol have

been veriﬁed. (Qiu and Ma, 2016) proposes a se-

cure Proxy Mobile IPv6 (MPIPv6) that prevents some

attacks, including replay attacks, man-in-the-middle

attacks, privileged insider attacks and Sybil attacks.

The attacks and the schema are executed by using

AVISPA and a Java simulation. The work in (Qiu and

Ma, 2018) presents an extension schema of 6LoW-

PAN, which grants the CIA (Conﬁdentiality, Integrity

and Authenticity) for a group of resource-constrained

6LoWPAN devices. A method based on the BAN

logic and the tool Scyther proves the resistance of the

schema against replay, MITM, impersonation, privi-

leged insider, and Sybil attacks.

(Basin et al., 2018) provides a formal analysis of

the 5G authenticated key exchange (AKA) protocol.

They formalise the 5G AKA with Tamarin, and their

veriﬁcation shows possible privacy ﬂaws. They pro-

pose a provable ﬁx for the vulnerability found.

Although the results on formal analysis of the Z-

Wave protocol are very limited, the security of the

Z-Wave protocol has been instead investigated and

tested in practice, by means of test beds in real en-

vironments. In (Unwala et al., 2018), Z-Wave is

analysed with respect to common attacks to IoT sys-

Formal Proof of a Vulnerability in Z-Wave IoT Protocol

199

tems. In (Badenhop et al., 2017), the frame forward-

ing and topology management aspects of a previous

version of the Z-Wave routing protocol are reverse en-

gineered. Then, a security analysis is also performed

on the network and the possibility of modifying the

topology and routes by an outsider is found. In (Kim

et al., 2020), the authors propose three different attack

vectors that, if combined, can cause critical damage

(e.g., DoS).

3 BACKGROUND

3.1 Z-Wave Protocol

Z-Wave is a wireless radio frequency based communi-

cations protocol designed primarily for home automa-

tion, using frequencies from 865 to 926 MHz. Nodes

can be residential appliances or other devices, such as

lighting control, thermostats, security systems, win-

dows, locks and garage door openers.

A Z-Wave network is a mesh network using low-

energy radio waves to communicate: nodes within

range communicate directly with one another, remote

nodes rely on intermediate nodes (see Fig. 1). Nodes

can be either controllers or slaves: controllers are re-

sponsible for including and excluding nodes, and for

maintaining the routing table of the whole network,

whereas slaves are the real smart things of the net-

work composed of lights, switches, dimmers, sensors,

motors and other. In order to limit battery consump-

tion, nodes are alternatively active or in sleep mode.

Thus, only some nodes can relay a message.

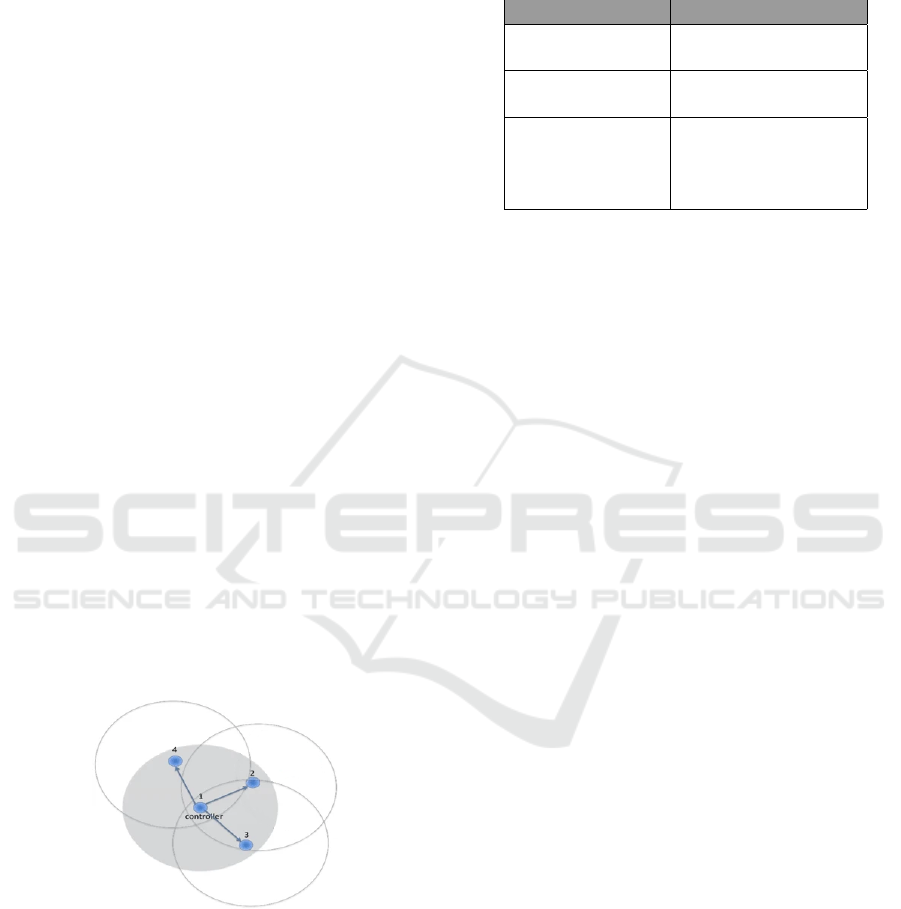

Figure 1: Z-wave network topology.

Z-Wave has been designed with security in mind: se-

curity is achieved by encrypting the messages ex-

changed between devices. The ﬁrst version of the

security layer (S0 Security) has been found vulner-

able due to a weak temporary key (Fouladi and Gha-

noun, 2013) during the joining phase. The new Z-

Wave security layer (S2 Security) evolves from S0

and provides messages integrity, conﬁdentiality, au-

thentication and data freshness, by using a combina-

tion of symmetric encryption and message authenti-

cation code (MAC) (as shown in Tab. 1).

Table 1: Security features of Z-Wave protocol.

Security Feature

Technique

Conﬁdentiality

Authentication

AES CCM mode

128 bit key

Integrity

AES CMAC mode

128 bit key

Freshness

Pre-Agreed

Nonces (PAN)

Multicast Pre-Agreed

Nonces (MPAN)

Each device has a role, and each role is linked to

one or more security classes by design. There are

four possible security classes: S2-AccessControl,

S2-Authenticated, S2-Unauthenticated and S0 for

retro compatibility. In general, door locks, garage

door openers and controllers fall at least into S2-

AccessControl class, whereas all types of secure end-

devices such as window blind motors, switchers,

other sensors and secondary controllers belong to S2-

Authenticated class. During the joining procedure, a

new device joining the network ﬁrst negotiates with

the controller the subset of its security classes that the

controller can handle. Then, the controller sends one

key for each security class it has been granted. In

this way, a Z-Wave network is segmented by grouping

nodes into security classes that communicate securely

using the same AES 128 bits key. The usage of dif-

ferent keys for each class protects the network when

one of the granted keys is compromised, by reducing

the number of devices using the compromised key.

Since AES-128 symmetric keys are used to se-

cure all communication between nodes, the key estab-

lishment phase, i.e., the joining procedure occurring

when a new device joins the network, is the core of

S2 Security layer. The procedure works in two steps

(see Fig. 2): during the ﬁrst phase, the two partici-

pants agree on a temporary AES key to be used in the

second phase of the protocol to encrypt the symmet-

ric keys granted to the new device. As a consequence,

key establishment relies on the secrecy of the tempo-

rary key K

: if the key is compromised, all the sym-

metric keys exchanged in the second part of the pro-

tocol are compromised. Therefore, in the following,

we discuss and analyse only the messages exchanged

during the ﬁrst phase of the protocol, and that can be

divided into three subsections:

1. A ﬁrst phase starting with the device announcing

its device type with a Node Information Frame

(NIF). Subsequently, controller A and slave B

agree on which security classes to share, by ex-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

200

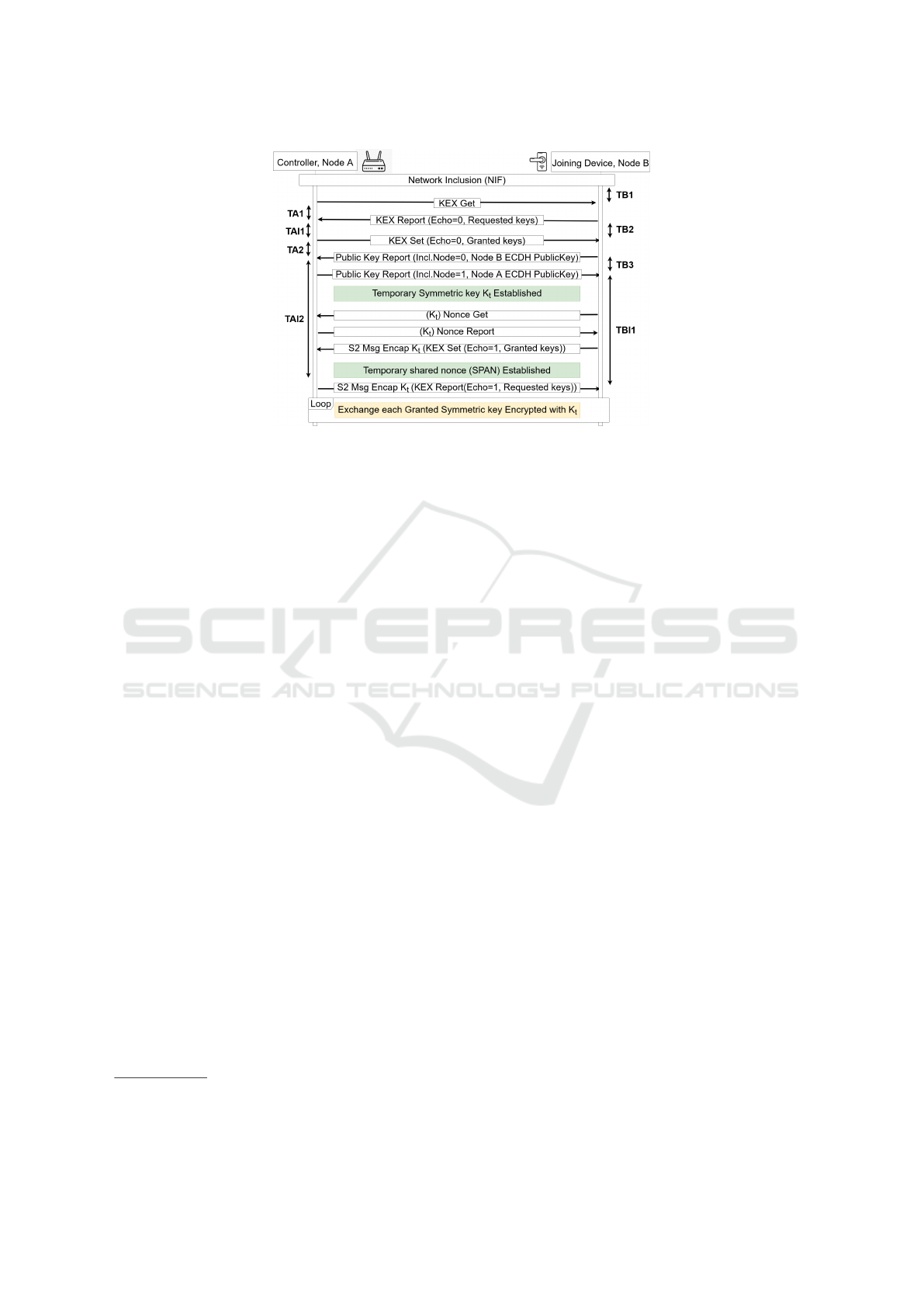

Figure 2: Z-Wave joining procedure.

changing KEX Get, KEX Report and KEX Set mes-

sages.

2. A second phase, where the two participants ex-

change their public keys, used to generate the tem-

porary encryption key by means of Elliptic Curve

Difﬁe-Hellman (ECDH) on Curve25519 with a

public key length of 256 bits. ECDH is a key

agreement protocol that allows two parties A and

B, both owning an elliptic-curve public-private

key pair, to establish a shared secret over an inse-

cure channel. Actor A computes the shared secret

with her/his own private key and B’s public key,

while B computes the same shared secret with B’s

private key and A’s public key. No one but A or

B can compute the shared secret, unless (s)he can

solve the elliptic curve discrete logarithm prob-

lem.

Since ECDH is vulnerable to a man-in-the-middle

attack, Z-Wave Alliance introduced (Z-Wave,

2020) three Out-Of-Band (OOB) authentication

to prevent eavesdropping and MITM attack vec-

tors. In order to continue the joining procedure,

the user can use one of the following methods:

(1) enter as a PIN the ﬁrst ﬁve digits of the DSK

(printed on the device), obfuscated during the RF

transmission; (2) verify the full DSK by visual

inspection; (3) scan a QR code to verify the full

DSK (p. 93, requirement CC:009..01.00.11.05F

in (Z-Wave, 2020)).

The attack presented here applies only to the ﬁrst

method: the PIN code is inserted on the controller

side if the slave device is S2 security native (i.e.,

released with S2 security), or on the slave side if

“The user MUST be prompted a dialog to visually validate

the bytes 3..16 of Node B’s DSK”.

the slave has been updated to S2 security.

3. The third section consists of a challenge-response

protocol based on a nonce allowing the controller

and slave to check if they both know K

. They also

resend KEX Report and KEX Set messages that are

used to assure no message tampering.

The protocol then continues with a loop assign-

ing an AES key for each granted class. Please notice

that many sub-phases of the protocol are temporised,

thus, if a message does not arrive in time, the slave or

controller will abort the joining procedure (e.g., timer

T B1 ends the procedure if message KEX Get takes

more than 30 seconds to arrive).

As an example, consider the case of a smart light

(node B) with native S2 security, asking to join the

network. In a normal execution of the protocol, the

light asks two security classes, S2 Unauthenticated

and S0, and receives the corresponding symmetric

keys. In case the network consists only of native S2

security devices, in order to strengthen the security of

its network, the user may disable class S0 security in

the controller (node A). In this speciﬁc scenario, let us

suppose that the KEX Report message sent from B to A

has been corrupted. As a consequence, the controller

receives the request only of S0 security class. This sit-

uation triggers the error message KEX FAIL KEX KEY

since the intersection between the requested security

classes and the granted security classes is empty. This

behaviour follows a security requirement expressed in

the protocol speciﬁcation.

3.2 Abstract State Machines

Abstract State Machines (ASMs) (B

orger and

Raschke, 2018; B

orger and St

ark, 2003) are an ex-

tension of Finite State Machines (FSMs).

Formal Proof of a Vulnerability in Z-Wave IoT Protocol

201

ASM states replace unstructured FSM control

states by algebraic structures, i.e., domains of objects

with functions and predicates deﬁned on them. An

ASM location, deﬁned as the pair (function-name,

list-of-parameter-values), represents the ASM con-

cept of basic object container. The couple (location,

value) represents a memory unit. Therefore, ASM

states can be viewed as a set of abstract memories.

State transitions are performed by ﬁring transition

rules, which express the modiﬁcation of functions in-

terpretation from one state to the next one and, there-

fore, they change location values. Location updates

are given as assignments of the form loc := v, where

loc is a location and v its new value. They are the

basic units of rules construction.

By a limited but powerful set of rule construc-

tors, location updates can be combined to express

other forms of machine actions as: guarded actions

(if-then, switch-case), simultaneous parallel ac-

tions (par and forall), sequential actions (seq),

non-deterministic actions (choose).

Functions which are not updated by rule transi-

tions are static. Those updated are dynamic, and dis-

tinguished in monitored (read by the machine and

modiﬁed by the environment), controlled (read and

written by the machine), shared (read and written by

the machine and its environment).

An ASM model has a predeﬁned structure con-

sisting of: a signature, which contains declarations of

domains and functions; a block of deﬁnitions of static

domains and functions, transition rules, state invari-

ants and properties to verify; a main rule, which is

the starting point of a machine computation; a set of

initial states, one of which is elected as default and

deﬁnes an initial value for the machine locations.

An ASM computation (or run) is deﬁned as a ﬁ-

nite or inﬁnite sequence S

, S

, . . . , S

, . . . of states of

the machine, where S

is an initial state and each S

n+1

is obtained from S

by ﬁring the unique main rule

which in turn could ﬁre other transitions rules.

ASMs allow modeling different computational

paradigms, from a single agent executing an ASM,

to distributed multiple agents, which is the computa-

tional paradigm we used in our Z-Wave model. A

multi-agent ASM is a family of pairs (a, ASM(a)),

where each a of a predeﬁned set Agent executes its

own machine ASM(a) (specifying the agent’s behav-

ior), and contributes to determine the next state by in-

teracting synchronously or asynchronously with the

other agents. A predeﬁned function program on Agent

is used to associate the ASM with an agent. Since

agents of a same kind (i.e., agents representing proto-

col slaves) have the same behaviour, within transition

rules, each agent can identify itself by means of a spe-

cial 0-ary function self : Agent which is interpreted by

each agent a as itself.

1 asm zwaveProtocol join

3 signature:

4 domain Slave subsetof Agent

5 domain Controller subsetof Agent

6 .....

7 static nodeA: Controller

8 static nodeB: Slave

9 ....

10 deﬁnitions:

11 main rule r Main =

12 par

13 program(nodeA)

14 program(nodeB)

15 endpar

16 default init s0:

17 function slaveState (a in Agent) = if (a = nodeB) then INIT SLV endif

18 function controllerState (c in Agent) = if (c = nodeA)

19 then INIT CTRL endif

20 ...

21 agent Controller:

22 r controllerRule[]

23 agent Slave:

24 r slaveRule[]

Code 1: Excerpt of the ASM model for Z-Wave protocol.

Code 1 shows an excerpt of the multi-agent ASM

model for the Z-Wave joining procedure between two

nodes (A and B), working as controller and as slave,

respectively. r controllerRule[] on line 21 is the

ASM program associated to an agent of type Con-

troller, while r slaveRule[] on line 23 is that of an

agent of type Slave; nodeA and nodeB are initiated as

the corresponding type of agents.

Tools & Validation and Veriﬁcation Techniques.

The ASM formal method is supported by the tool-

set ASMETA (ASM mETAmodeling) (Arcaini et al.,

2011) for model editing, validation and veriﬁcation.

Model construction, especially when taking the sys-

tem requirements from natural language, can often be

error prone. For this reason, it is essential to be able to

validate a model against its functional and non func-

tional requirements. ASM models can be validated in

terms of model simulation (by using AsmetaS), an-

imation (by AsmetaA), and scenarios execution (by

AsmetaV). In the latter case, each scenario contains

the expected system behavior, and the tool checks

whether the machine runs correctly. It is also pos-

sible to verify properties, expressed in temporal logic,

by means of model checking (with AsmetaSMV): the

tool will check if the property holds during all possi-

ble model executions.

Remark. ASMs offer several advantages as formal

method: (1) due to their pseudo-code format, they

can be easily understood by practitioners and can be

used for high-level programming; (2) they allow for

system speciﬁcation at any desired level of abstrac-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

202

tion; (3) they are executable models, so they are suit-

able also for lighter forms of model analysis such as

simple simulation to check model consistency w.r.t.

system requirements; (4) they support techniques for

mapping models to code (e.g., to C++ (Bonfanti et al.,

2020) or Java (Arcaini et al., 2017)); (5) they can

be used for modeling distributed systems, as IoT net-

works; (6) the ASMETA framework allow for an inte-

grated use of tools for different forms of model anal-

ysis, it is maintained and under continuous features

improvement.

4 Z-Wave FORMAL

VERIFICATION

In this section, we present the ASM speciﬁcation of

Z-Wave protocol. We started by deﬁning a model of

the joining procedure, which has been validated by

checking that, during the execution, it behaves as re-

quired in the protocol informal description. Then, we

explicitly modelled an attacker controlling the net-

work, able to delete, inject, modify and intercept any

message. The veriﬁcation phase highlighted a feasi-

ble MITM attack, where the attacker is able to ob-

tain the temporary AES key (and consequently also

the keys granted to a new device during the joining

phase).

4.1 ASM Model of the Joining

Procedure

As shown in the excerpt of Code 1, the controller

and the slave participating to the joining procedure

are modeled as two agents with their programs run-

ning independently. These programs can be viewed as

two separate ﬁnite state machines (FSMs) that change

their internal state only if a message arrives from the

other agent, or when a timer has expired.

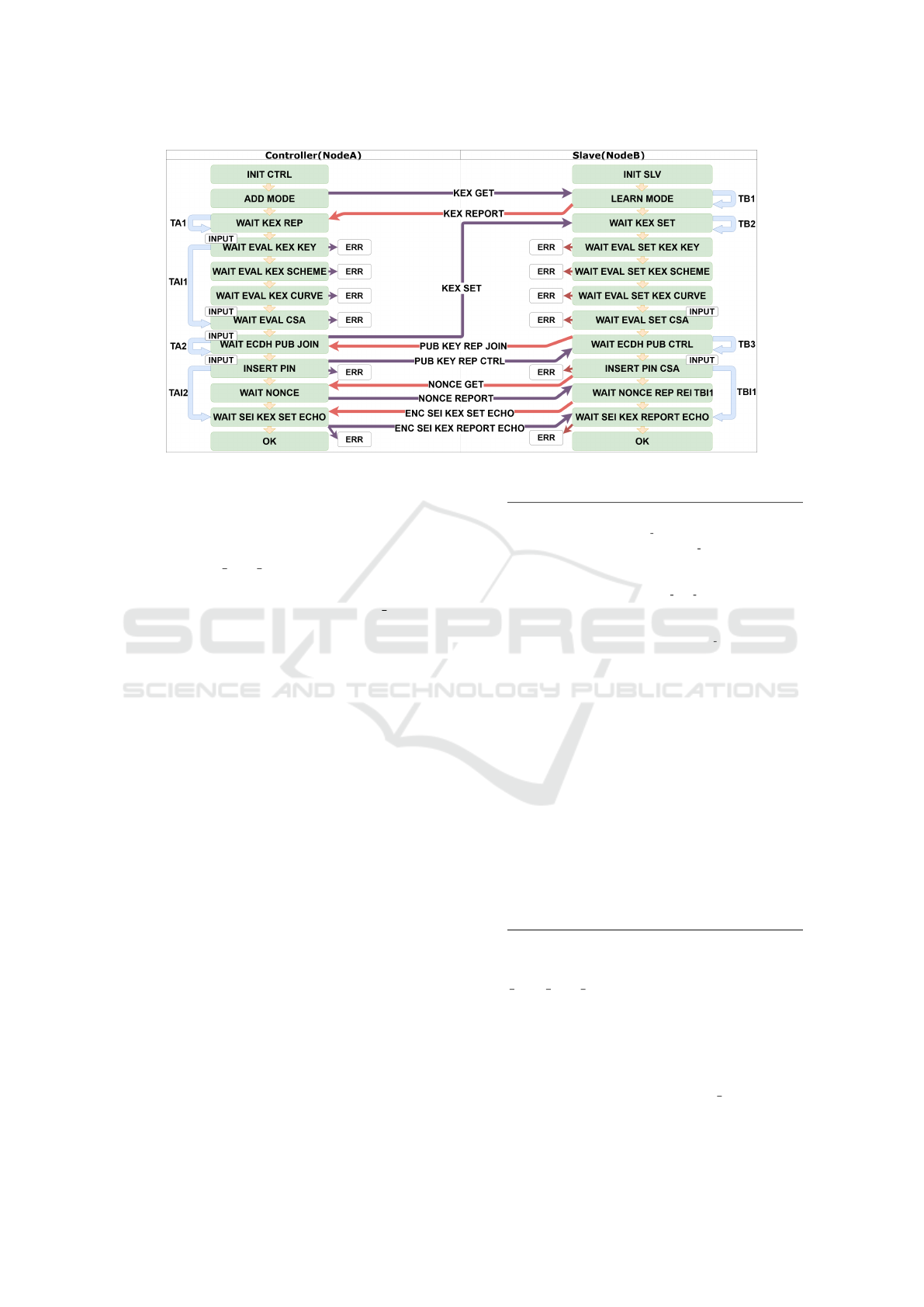

In Fig. 3, the ﬂow chart of the corresponding ASM

model is depicted. There are two swim-lines, one for

node A, the controller, and one for node B, the slave.

The node internal states are coloured in light green.

The ﬂow of a node behaviour is vertical, whereas the

horizontal ﬂow is given by the messages exchanged

between the two nodes. The mapping from Z-Wave

protocol description to ASMs is rather straightfor-

ward: for each message exchange in the green box

of Fig. 2, there is a corresponding state in Fig. 3 and

a transition rule is deﬁned. The INPUT box on some

states, e.g., on INSERT PIN state, models the fact that

a user is asked to perform an action without which it

is impossible to proceed to the next state. Mimicking

the protocol requirements, every time a control fails

(e.g, in case there is a security class mismatch be-

tween the requested classes and the granted classes,

or the wrong ECDH curve is asked - at the moment

the only possible curve is ECDH on Curve25519), the

node sends an error message to the other node and ter-

minates its execution.

As explained in Section 3.2, an ASM state con-

sists of objects’ domains and functions deﬁned on

them. For the sake of brevity, we cannot list all the

functions we deﬁned. We discuss the most impor-

tant ones. The internal state of agents is a controlled

function (slaveState or controllerState) that associates

a slave or a controller to its actual state. Protocol

messages are also represented by a controlled func-

tion named protocolMessage, where the ﬁrst param-

eter represents the message sender, while the second

indicates the receiver. As another example, each agent

has a matching type. The slave type SLAVETYPE is

used to specify the device type and the security class

the device belongs to. A monitored function slave:

SLAVE →SLAVETYPE is invoked during the agent

initialisation phase to setup the device type. Under

the assumption of joining a native S2 Security device,

as explained in Section 3.1, the input of the PIN code

takes place on the controller side in the INSERT PIN

state, otherwise, the user inputs the PIN code on the

slave side during the INSERT PIN CSA state. For the

slave, the invocation of the slave function corresponds

to the NIF of Fig. 2 sent by the slave to the controller

before the joining procedure starts.

Both in the controller and slave models, most of

the transition rules have the same structure: activation

is demanded to a rule guard that controls the current

state, the message received, and the time left. The

core of a rule consists of function updates changing

the internal state of the agent, setting a timer, and

crafting the next messages expected by the Z-Wave

protocol.

As an example, we describe in depth the KexRe-

port rule in Code 2, the other rules are similar:

• The ﬁrst line of code selects the controller or

the slave with whom the agent is communicating

(choose $ctrl in Controller) and emulates

the NodeID that is used in the network to identify

a device uniquely.

• Lines 2-4 specify the guard, which activates the

updates if it is true. The guard checks: (i) the

internal state of the slave (in this case the slave

must be in LEARN MODE state), (ii) the mes-

sage received (in this case the message must be

part of the negotiation part of the protocol, i.e.,

KEX GET), and (iii) if there is still some time for

the execution of the rule (by means of the mon-

Formal Proof of a Vulnerability in Z-Wave IoT Protocol

203

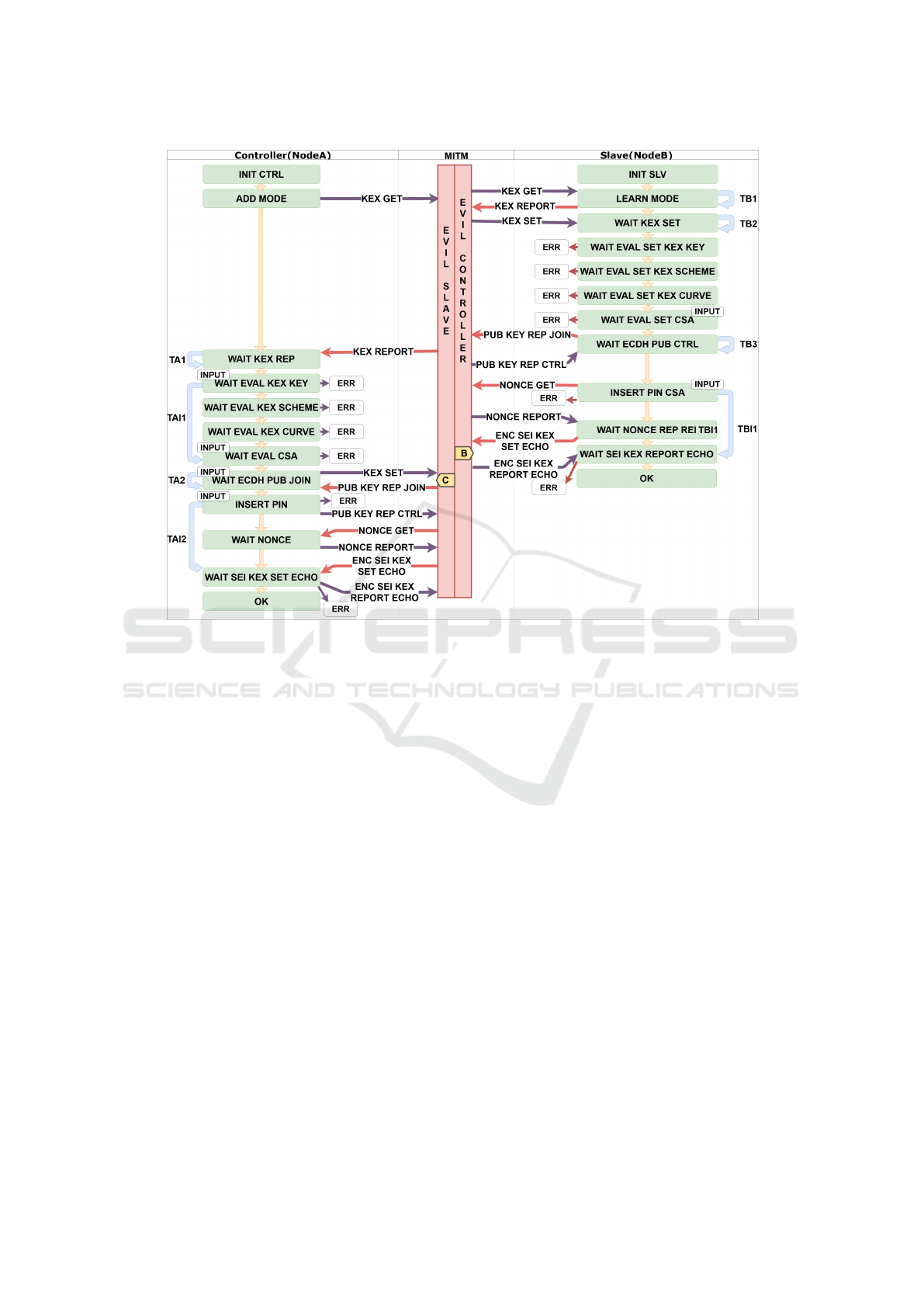

Figure 3: ASM model of Z-wave joining procedure.

itored function passed which tells if a timer has

expired).

• On Lines 6-8, the slave: (i) updates its internal

state to WAIT KEX SET, (ii) activates timer TB2,

and (iii) deactivates timer TB1.

• On Lines 9-17, the slave sends the KEX REPORT

message to the correct controller (line 9), and with

the expected payload (lines 11-17).

• On lines 18-25, the slave stores the message pay-

load locally for further computation (thanks to the

syntax (self, self)).

Some other transition rules are not covered by a timer,

or they execute only controls over the payload of

an already received message (e.g., EvalGrantKexKey

rule checks if the intersection between REQUESTED

KEY and GRANTED KEY is not empty, and then it

saves the GRANTED KEY locally).

Model Validation. Our model of the joining pro-

cedure has been validated by using the AsmetaV tool

in combination with the simulator AsmetaS. We ex-

pressed one scenario for each requirement in the Z-

Wave protocol documentation. Scenarios are written

in the Avalla language, providing special commands

to: set the values of monitored functions, perform one

step of simulation, exec rules or function updates,

check that some properties hold. By playing with a

combination of these commands, we were able to ex-

press signiﬁcant scenarios and check that the model

behaves as expected.

Code 3 shows (a fragment of) the validation scenario

of the security class mismatch case. In this scenario,

the joining procedure terminates throwing the error

1 choose ctrl in Controller with true do

2 if(slaveState( self ) = LEARN MODE

3 and protocolMessage( ctrl , self ) = KEX GET

4 and not passed( TB1 )) then

5 par

6 slaveState( self ) := WAIT KEX SET

7 star tTimer( TB2 ) := true

8 star tTimer( TB1 ) := false

9 protocolMessage( self, ctrl ) := KEX REPORT

10 // KEX REPORT payload

11 reqCsa( self , ctrl ) := slvCsa( self )

12 reqSkex( self , ctrl ) := slvSkex( self )

13 reqEcdh( self , ctrl ) := slvEcdh( self )

14 reqS2Access( self , ctrl ) := slvS2Access( self )

15 reqS2Auth( self , ctrl ) := slvS2Auth( self )

16 reqS2Unauth( self , ctrl ) := slvS2Unauth( self )

17 reqS0( self , ctrl ) := slvS0( self )

18 //save for control of authenticity

19 reqCsa( self, self ) := slvCsa( self )

20 reqSkex( self, self ) := slvSkex( self )

21 reqEcdh( self, self ) := slvEcdh( self )

22 reqS2Access( self, self ) := slvS2Access( self )

23 reqS2Auth( self, self ) := slvS2Auth( self )

24 reqS2Unauth( self, self) := slvS2Unauth( self )

25 reqS0( self, self ) := slvS0( self )

26 endpar

27 endif

Code 2: KexReport rule.

KEX FAIL KEX KEY. On line 4-5, we check that the

scenario is correctly set at the beginning of the joining

procedure. Then, on line 6-7, we set the type of the

controller and of the slave (recall that the slave is a na-

tive S2 security smart light). On lines 13-14, we sim-

ulate the user disabling class S0 security and an inter-

ference modifying the payload of KEX REPORT, i.e.,

the corruption of S2 Unauthenticated security class.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

204

After some intermediate simulation steps and checks,

on lines 18-20, we check that the controller (i) sends

the KEX FAIL KEX KEY error message to the slave,

(ii) goes in the ERROR C error state, and (iii) checks

if the slave is still in a WAIT KEX SET state. At the

end, on lines 23-24, we check that, after receiving the

ERROR S error message from the controller, the slave

has gone into the ERROR S error state, as expected.

1 scenario validation protocol ctrl key mismatch

2 load zwaveProtocol join.asm

4 check slaveState(nodeB) = INIT SLV

5 and controllerState(nodeA) = INIT CTRL;

6 set controller(nodeA) := CONTROLLER S2;

7 set slave(nodeB) := LIGHT NAT;

8 ...

9 step

10 ...

11 exec

12 par

13 ctrlS0(nodeA) := false

14 slvS2Unauth(nodeB) := false

15 endpar;

16 ...

17 step

18 check protocolMessage(nodeA,nodeB)= KEX FAIL KEX KEY

19 and slaveState(nodeB) = WAIT KEX SET and

20 controllerState(nodeA) = ERROR C;

21 ...

22 step

23 check protocolMessage(nodeA,nodeB)= KEX FAIL KEX KEY and

24 slaveState(nodeB) = ERROR S and

25 controllerState(nodeA) = ERROR C;

Code 3: Validation of key mismatch scenario.

Property Veriﬁcation. In order to verify that a spe-

ciﬁc security property holds in the model, the prop-

erty must be expressed as a CTL (Computation Tree

Logic, CTL for short) temporal logic formula and

proved to be true. We used the AsmetaSMV tool that

checks if a CTL formula holds in an ASM model by

exploiting the NuSMV model checker. The result, if the

model checker terminates, is a boolean condition: if it

is False, it means that the property is violated at least

once (and the tool returns the violating path), in case

of True, the property holds.

We examined many reachability and safety prop-

erties, and none of the properties we tested was ever

violated. For example, in the security class negotia-

tion phase of the joining procedure, we checked:

• If there exists a state in the future in which the

CONTROLLER S2 (nodeA) sends KEX SET with

an illegal scheme, expressed with the CTL for-

mula:

¬EF(controllerState(nodeA) = ERROR C ∧ slaveState(nodeB) =

ERROR S ∧ protocolMessage(nodeA,nodeB) =

KEX FAIL KEX KEY)

The evaluation of the formula is True, since with-

out an external interference the CONTROLLER

always sends the correct scheme.

• There is not a state in the future in which a SLAVE

sends KEX REPORT with an incompatible curve.

¬EF(controllerState(nodeA) = ERROR C ∧ slaveState(nodeB) =

ERROR S ∧ protocolMessage(nodeA,nodeB) =

KEX FAIL KEX CURVE)

The evaluation of the formula is True, since with-

out an external intervention it is impossible the

slave sends an incorrect curve.

We also speciﬁed CTL formulas to check the cor-

rectness of the parts of the protocol relying on timers.

In particular, we checked that a timer is running only

on the states it is assigned to. For example, for timer

TA1, the formula is:

¬AG((controllerState(nodeA) != WAIT KEX REP ∧

controllerState(nodeA) != TIMEOUT C) ⇒startTimer(TA1)= false)

In this formula, we checked that the only states

in which timer TA1 might be active are either

WAIT KEX REP or T IMEOUT C.

All the CTLs tested ensure that the joining proce-

dure behaves correctly.

4.2 ASM Model with an Attacker

In this section, we describe how we extended the join-

ing procedure model presented in Section 4.1 with

two new agents, ESLAVE and ECONTROLLER, mod-

elling an evil adversary trying to subvert the proto-

col. ECONTROLLER models an attacker impersonat-

ing a legitimate controller when communicating with

the slave, while ESLAVE does the opposite. The two

agents model an active attacker controlling the net-

work, thus able to intercept, modify, delete and inject

any message. In particular, we gave the attacker the

ability to execute a brute force attack to retrieve the

PIN code. This speciﬁc capability was given to the

attacker since, while formalising the protocol, we no-

ticed that the duration of timers TA1 and TA2 might be

overestimated, leaving enough time to an intruder to

execute a brute force attack to retrieve the PIN code.

Our goal is then to verify if a MITM can break the

joining procedure, obtaining by the entitled controller

the granted keys associated to the legitimate slave se-

curity classes.

In short, the attack works as follows: the attacker

exploits the session of the protocol between ECON-

TROLLER and SLAVE (called EC-S for short) in or-

der to obtain from the legitimate slave the ﬁrst 5 dig-

its of its public key, then (s)he uses them in the ses-

sion between CONTROLLER and ESLAVE (called C-

ES for short) to obtain the keys in place of the legiti-

Formal Proof of a Vulnerability in Z-Wave IoT Protocol

205

Figure 4: Flow chart of the MITM attack.

mate slave. To this aim, the ASM model works with

evil slave and evil controller sharing a memory, where

they store all the messages exchanged in the two ses-

sions of the protocol. In Fig. 4, the ﬂow chart of the

ASM model corresponding to the whole MITM attack

is depicted (in the picture, the brute force attack to ob-

tain the PIN is labeled with B, whereas label C iden-

tiﬁes the attack on the public key using generated by

knowing the PIN). In this case, there are three swim-

lines: the one on the left for node A, the legitimate

controller, the one on the right for node B, the legiti-

mate slave, and the one in the center for the two ASM

agents emulating the attacker. The right part of the

ﬂow chart depicts the messages exchanged during the

EC-S session of the protocol, while the left part shows

the C-ES session.

The attack begins after the new device has started

the joining procedure by announcing its device type

with the NIF, with the attacker impersonating the con-

troller and sending the KEX GET message to the de-

vice (i.e., the EC-S session starts). The attacker can

continue the execution of the protocol until (s)he re-

ceives the information of her/his interest, i.e., mes-

sage ENC SEI KEX SET ECHO, which is the target

of the ﬁrst part of the attack, since it can be used to

retrieve the initial 5 digits of the slave public key. The

5 digits are needed both in the EC-S and in the C-

ES session of the protocol. In the ﬁrst case, they are

needed to complete the EC-S session without making

the user suspect that the device has failed the join. In

the second case, they are necessary to continue the

C-ES protocol session (recall that, according to the

joining procedure: ﬁrst, the slave sends to the con-

troller its public key with the ﬁrst 5 digits obfuscated;

then, during the OOB authentication, the user manu-

ally inserts the ﬁrst 5 digits; ﬁnally, the controller uses

the slave public key and its own private key to gener-

ate with ECDH the temporary key K

used to encrypt

the requested keys). In this case, there is a time con-

straint: the attacker must get the 5 digits in the EC-S

protocol session in order to be able to send to the le-

gitimate controller a public key with the correct ﬁrst

5 digits (the ones the user will insert during OOB au-

thentication) before TA2 runs out in the C-ES session.

In order to obtain the slave public key in the EC-S

protocol session, the attacker has two options (before

TA1 and TA2 run out):

1. To perform a brute-force attack on temporary

AES 128 bits key K

, then derive the slave pub-

lic key by knowing K

and the controller private

SECRYPT 2021 - 18th International Conference on Security and Cryptography

206

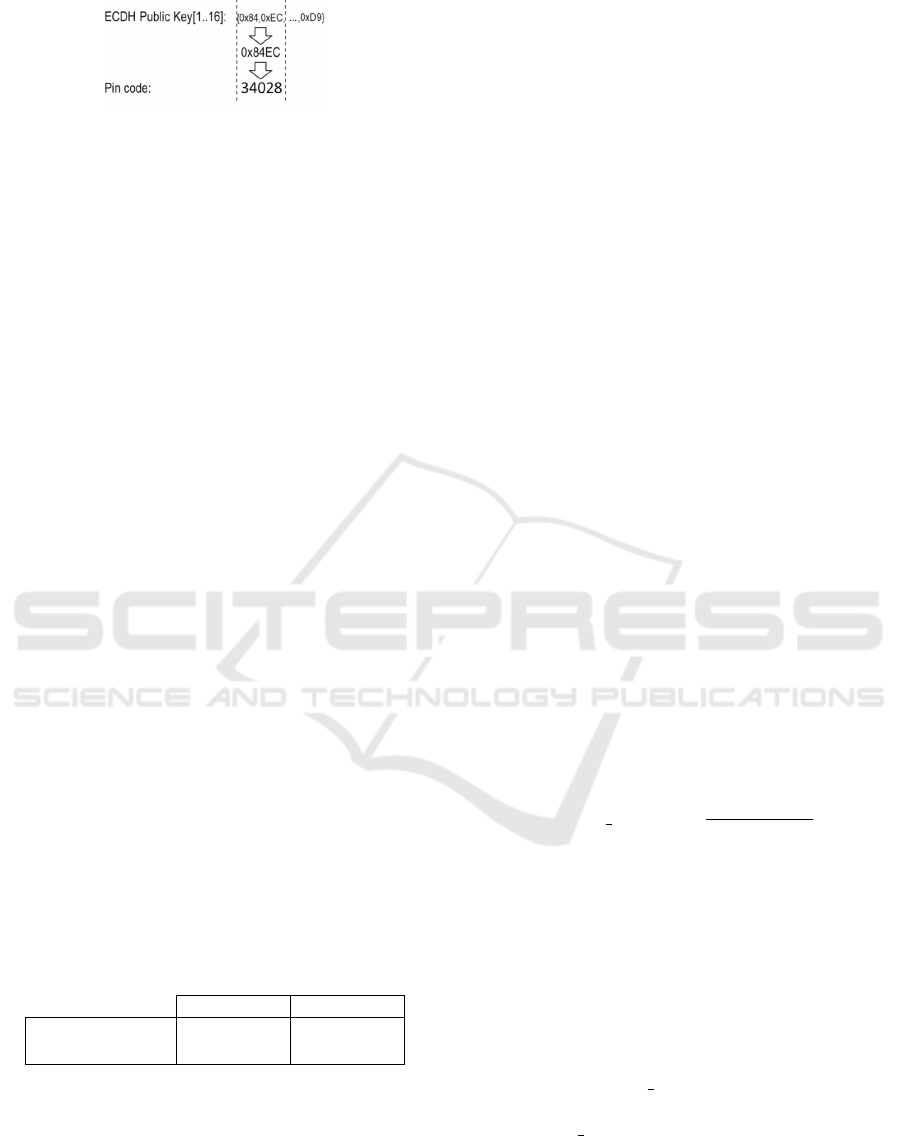

Figure 5: PIN number of bytes.

key (as described in Section 3.1, K

is generated

by the (evil) controller by using her/his own pri-

vate key and the slave’s public key). A brute force

attack on a 128 bits key would need to try 2

127

keys (on average), thus the time required would

be a lot longer than TA1+TA2. Therefore, this op-

tion is not feasible.

2. To take advantage of the fact that K

can be gen-

erated using ECDH either by knowing the legiti-

mate slave’s private key and the evil controller’s

public key, or the evil controller’s private key and

the legitimate slave’s public key. The attacker

(acting as a controller) knows her/his own private

key and the legitimate slave’s public key a part

from the ﬁrst 5 digits. According to Z-Wave doc-

umentation (see Fig. 5), the PIN code must be 5

decimal digits representing the value of the ﬁrst

2 bytes of the node’s device speciﬁc key. Since

the slave public key has the ﬁrst 2 bytes obfus-

cated, the evil controller has to guess only 2 bytes

in order to ﬁnd the correct public key. There-

fore, the size of the search space of the key is

reduced from 2

128

to 2

. More speciﬁcally, the

attacker has to generate with ECDH a key K for

all 2

combinations, and then check for which

combination it yields K = K

(by decrypting the 6

bytes message ENC SEI KEX SET ECHO). By us-

ing the OpenSSL command (version 1.0.2j) in de-

crypt mode on a notebook with 8 Gb of RAM and

Intel i7-8550U CPU (see Table 2 for performance

information), considering a 16 bytes packet, the

slave public key can be retrieved in around 65 ms.

Therefore, TA2 timeout (10s) gives the evil con-

troller plenty of time to complete the attack.

Table 2: AES 128 CCM decrypt single core performance.

16 bytes 64 bytes

Number of

Packets in 3 sec 304057417 184699602

In the EC-S parallel session of the protocol, at the be-

ginning, the attacker (impersonating the slave) is in

the ADD MODE state and intercepts the KEX GET

message. Although the attacker can respond immedi-

ately, (s)he waits to send the KEX REPORT message

received from the slave in order to take time. How-

ever, (s)he must send it before timer TA1 expires. Af-

terwards, the legitimate controller completes the ne-

gotiation phase and reaches the point in the protocol

where the joining device has to insert its public key

(with the ﬁrst 5 digits obfuscated) before TA2 expires.

At this point the attacker could:

• Use the public key (s)he obtained in the EC-S ses-

sion, but (s)he does not know the associated pri-

vate key and it would take too long to generate it

with another brute force attack.

• Create a pair of public-private keys and send the

public one to the controller. However, if the ﬁrst 5

digits do not match with the ones obtained in the

EC-S, the OOB authentication would fail.

• Create the public-private key pair so that the pub-

lic key contains the ﬁrst 5 digits obtained in the

EC-S session.

The last option slightly differs from the ﬁrst one: in

the latter case, the public key is crafted in a way that

only the ﬁrst 5 digits (i.e., 2 bytes) correspond to the

ones of the legitimate slave public key, not the whole

key. This fact simpliﬁes the attack: in this case, the

attacker may create in advance at least one key pair

(public and private) of the 2

possible ones (i.e., the

key pairs with the public key differing on the ﬁrst 2

bytes). Thus, the feasibility of the attack depends on

the number of keys the attacker has to generate to be

conﬁdent, with a good probability, that (s)he has got at

least one copy of the keys (s)he will need to complete

EC-S session of the protocol.

This probability can be expressed, as usual, as the

ratio between successful outcomes and all possible

outcomes. In our case, it yields:

P(gen success) =



y−2

−1





y+2

−1



Being y the total number of keys to generate, the nu-

merator corresponds to the multi-set binomial coefﬁ-

cient, which represents the number of ways of select-

ing a total of 2

out of y - 2

keys with unrestricted

repetition. The denominator shows all the possible

combination of the 2

unique public keys over a total

of y generated keys.

We use the formula to ﬁnd a feasible y, i.e., the

number of keys the attacker needs to generate off-line

to be sure with P(gen success) probability of ﬁnding

the 2

unique keys (s)he will need. With y = 2

, we

obtain P(gen success) = 80%. In average, for a good

home computer, the time interval for the generation

of a single key pair is between 10

-4

and 10

-6

seconds.

During the protocol attack, the evil slave looks for

a key with the same ﬁrst 2 bytes of the slave public

key obtained in the ﬁrst part of the attack among the

Formal Proof of a Vulnerability in Z-Wave IoT Protocol

207

ones in her/his hash table of pre-computed keys (see

Table 3 for an example), and sends it to the controller.

Table 3: Example of crafted public keys.

00000 26467 58443 24926 55534 27025 55113 08637

00001 43605 13128 01516 47089 25370 27578 61791

... ...

65365 49316 10780 35451 55217 51086 38075 23415

In a ideal run of the protocol, a user should check

the rest of the key digits visually, but the lack of atten-

tion of the user may make the attack fully successful.

Ironically, older devices that have been updated to

S2 Security are resistant to the attack. In fact, in this

case, the PIN code required is 4 bytes long (not only

2 bytes). Thus, the brute force attack would require

longer than TA1 + TA2.

Model Validation. The validation phase is slightly

different from 4.1 because the the attacker does not

propagate the error messages that are described in the

protocol. In this way, the complexity of the MITM

model is reduced and all the validation scenarios ex-

ecuted for the joining procedure are not of interest in

this analysis. The message ﬂow remains unchanged,

so we do not need to revalidate those parts. The val-

idation of this model is achieved by reproducing the

path obtained in the veriﬁcation phase that conﬁrms

the MITM attack feasibility. The scenario is repre-

sented in Code 4.

The nearToEnd monitored function acts as an in-

ternal timer that computes on the MITM agents an ap-

proximation of the CONTROLLER timer. This mon-

itored function is essential to maintain the model as

realistic as possible. In fact, in a real environment,

the attacker can only guess when the timer is started

when (s)he has received the messages. We added

to the MITM attacker model an invariant that grants

the temporal consistency between the passed and the

nearToEnd monitored function.

Property Veriﬁcation. The veriﬁcation is easy for

the MITM model, and it consists of the following

CTL formula:

• There is not a state in the future in which the

CONTROLLER and the SLAVE are both in the OK

state, that represents the ﬁnal state they reach only

when the protocol runs as expected.

¬EF(controllerState(nodeA) =OK C ∧ slaveState(nodeB) = OK S)

As expected, the model checker returns a path leading

to a state where the property does not hold, meaning

that an attack can be successful.

1 scenario validation protocol mitm

2 load zwaveProtocol join.asm

4 check slaveState(nodeB) = INIT SLV and

5 controllerState(nodeA) = INIT CTRL;

6 set controller(nodeA) := CONTROLLER S2;

7 set slave(nodeB) := GARAGE LOCK NAT;

8 set passed(TA1) := false;

9 ...

10 step

11 ...

12 set nearToEnd(TA1) := true;

13 step

14 check protocolMessage(nodeES,nodeA)=KEX REPORT and

15 protocolMessage(nodeEC,nodeB) = PUB KEY REP CTRL and

16 slaveState(nodeB) = WAIT ECDH PUB CTRL and

17 controllerState(nodeA) = WAIT KEX REP;

18 ...

19 step

20 ...

21 check protocolMessage(nodeA,nodeES)=EC KEX REPORT ECHO

22 and protocolMessage(nodeEC,nodeB)=EC KEX REPORT ECHO and

23 slaveState(nodeB) = OK S and controllerState(nodeA) = OK C;

Code 4: Successful MITM attack scenario.

5 CONCLUSION

In this paper, we present a formal analysis of the

Z-Wave protocol using S2 Security class, a security

layer required in every new certiﬁed IoT device. In

particular, we focus on the joining procedure, which

is the core part of the S2 Security layer, allowing a

new device to join the Z-Wave net and to obtain the

symmetric key to be used for future communication.

We model the protocol requirements by means of

an ASM model. As a consequence, we are able to

provide a rigorous and precise protocol description,

which is often ambiguous and fragmented in the of-

ﬁcial documentation. Moreover, we validate the pro-

tocol execution by means of a scenario-based tech-

nique, and we prove a sequence of reachability and

safety temporal properties to guarantee the correct-

ness of the joining procedure. We also formalise the

behaviour of an external actor behaving maliciously

with the capability of intercepting, modifying, delet-

ing and injecting messages. In particular, we give the

attacker the ability to execute a brute force attack to

retrieve the PIN code.

The veriﬁcation process revealed the possibility of

executing a MITM attack for the PIN-based OOB au-

thentication method under certain time constraints. Its

practical feasibility was conﬁrmed by the Silicon labs

and Z-Wave Alliance.

Our results show the importance of exploiting for-

mal methods during the design process of a security

SECRYPT 2021 - 18th International Conference on Security and Cryptography

208

protocol in order to ﬁnd vulnerabilities since the early

stages of protocol development.

As a short-term objective, we plan to further in-

vestigate the Z-Wave protocol, both by modeling the

application layer, and by covering the whole S2 Secu-

rity layer, searching for other vulnerabilities.

Since the mathematical base of formal methods

discourages designers from their usage, as a long-

term objective, we plan to develop a “user-friendly”

environment for the formal speciﬁcation, veriﬁcation

and development of IoT security protocols.

REFERENCES

Arcaini, P., Gargantini, A., and Riccobene, E. (2017). Rig-

orous development process of a safety-critical system:

from ASM models to Java code. Int. J. Softw. Tools

Technol. Transf., 19(2):247–269.

Arcaini, P., Gargantini, A., Riccobene, E., and Scandurra,

P. (2011). A model-driven process for engineering a

toolset for a formal method. Software: Practice and

Experience, 41(2):155–166.

Armando, A., Basin, D., Boichut, Y., Chevalier, Y., Com-

pagna, L., Cuellar, J., Drielsma, P. H., He

am, P. C.,

Kouchnarenko, O., Mantovani, J., M

odersheim, S.,

von Oheimb, D., Rusinowitch, M., Santiago, J., Tu-

ruani, M., Vigan

o, L., and Vigneron, L. (2005). The

AVISPA tool for the automated validation of inter-

net security protocols and applications. In Computer

Aided Veriﬁcation, pages 281–285. Springer.

Badenhop, C. W., Graham, S. R., Ramsey, B. W., Mullins,

B. E., and Mailloux, L. O. (2017). The z-wave routing

protocol and its security implications. Computers &

Security, 68:112–129.

Basin, D., Dreier, J., Hirschi, L., Radomirovic, S., Sasse,

R., and Stettler, V. (2018). A formal analysis of

5g authentication. In Proceedings of the 2018 ACM

SIGSAC Conference on Computer and Communica-

tions Security, CCS ’18, page 1383–1396, New York,

NY, USA. Association for Computing Machinery.

Bonfanti, S., Gargantini, A., and Mashkoor, A. (2020). De-

sign and validation of a C++ code generator from ab-

stract state machines speciﬁcations. J. Softw. Evol.

Process., 32(2).

orger, E. and Raschke, A. (2018). Modeling Companion

for Software Practitioners. Springer.

orger, E. and St

ark, R. (2003). Abstract State Machines:

A Method for High-Level System Design and Analysis.

Springer Verlag.

Dolev, D. and Yao, A. (1983). On the security of public key

protocols. IEEE Transactions on Information Theory,

29(2):198–208.

Eldefrawy, M., Butun, I., Pereira, N., and Gidlund, M.

(2019). Formal security analysis of lorawan. Com-

puter Networks, 148:328 – 339.

Fouladi, B. and Ghanoun, S. (2013). Security evaluation of

the z-wave wireless protocol. In Proceedings of Black

Hat USA, pages 1–2.

Hofer-Schmitz, K. and Stojanovi

c, B. (2020). Towards for-

mal veriﬁcation of IoT protocols: A review. Computer

Networks, 174:107233.

Kim, K., Cho, K., Lim, J., Jung, Y., Sung, M., Kim, S.,

and Kim, H. (2020). What’s your protocol: Vulnera-

bilities and security threats related to z-wave protocol.

Pervasive and Mobile Computing, 66.

Melaragno, A. P., Bandara, D., Wijesekera, D., and

Michael, J. B. (2012). Securing the zigbee protocol

in the smart grid. Computer, 45(4):92–94.

Mohsin, M., Sardar, M. U., Hasan, O., and Anwar, Z.

(2017). Iotriskanalyzer: A probabilistic model check-

ing based framework for formal risk analytics of the

internet of things. IEEE Access, 5:5494–5505.

Qiu, Y. and Ma, M. (2016). A pmipv6-based secured mobil-

ity scheme for 6lowpan. In 2016 IEEE Global Com-

munications Conference (GLOBECOM), pages 1–6.

Qiu, Y. and Ma, M. (2018). Secure group mobility support

for 6lowpan networks. IEEE Internet of Things Jour-

nal, 5(2):1131–1141.

Sun, D.-Z. and Sun, L. (2019). On secure simple pair-

ing in bluetooth standard v5.0-part i: Authenticated

link key security and its home automation and enter-

tainment applications. Sensors (Basel, Switzerland),

19(5):1158.

Unwala, I., Taqvi, Z., and Lu, J. (2018). Iot security: Zwave

and thread. In 2018 IEEE Green Technologies Confer-

ence (GreenTech), pages 176–182.

Vigan

o, L. (2006). Automated security protocol analysis

with the avispa tool. Electronic Notes in Theoreti-

cal Computer Science, 155:61 – 86. Proceedings of

the 21st Annual Conference on Mathematical Foun-

dations of Programming Semantics (MFPS XXI).

Z-wave (2020). Z-wave protocol. https://www.z-

wave.com/.

Z-Wave (2020). Z-wave protocol. https://www.silabs.com

/documents/login/miscellaneous/SDS13783-Z-Wave-

Transport-Encapsulation-Command-Class-

Speciﬁcation.pdf.

Formal Proof of a Vulnerability in Z-Wave IoT Protocol

209
