Multi-Attribute Relation Extraction (MARE): Simplifying the

Application of Relation Extraction

Lars Klöser

, Philipp Kohl

, Bodo Kraft

and Albert Zündorf

FH Aachen, University of Applied Sciences, Germany

University of Kassel, Germany

Keywords:

Natural Language Processing, Natural Language Understanding, Information Extraction, Relation Extraction,

Joint Relation Extraction, Event Extraction.

Abstract:

Natural language understanding’s relation extraction makes innovative and encouraging novel business con-

cepts possible and facilitates new digitilized decision-making processes. Current approaches allow the extrac-

tion of relations with a ﬁxed number of entities as attributes. Extracting relations with an arbitrary amount

of attributes requires complex systems and costly relation-trigger annotations to assist these systems. We in-

troduce multi-attribute relation extraction (MARE) as an assumption-less problem formulation with two ap-

proaches, facilitating an explicit mapping from business use cases to the data annotations. Avoiding elaborated

annotation constraints simpliﬁes the application of relation extraction approaches. The evaluation compares

our models to current state-of-the-art event extraction and binary relation extraction methods. Our approaches

show improvement compared to these on the extraction of general multi-attribute relations.

1 INTRODUCTION

Small and medium-sized enterprises (SMEs) increas-

ingly recognize the potential of natural language un-

derstanding and relation extraction to digitalize pro-

cesses and develop novel software products. Many

product visions include the extraction of variable-

sized sets of concept mentions as relations from texts

where existing data models deﬁne a set of potential

attributes per relation. But most current approaches

focus on the extraction of binary relations. E.g., the

number of many thousand biomedical scientiﬁc publi-

cations per week yielded the successful automation of

knowledge discovery (Tsujii et al., 2011; Kim et al.,

2011a; Kim et al., 2011b). In contrast to many other

domains, binarity’s structural constraint seems to be

reasonable due to cause-effect-relationships. The

extraction of more complex semantic relations cur-

rently requires the construction of sophisticated sys-

tems based on binary classiﬁcations. The ﬁeld of

event extraction covers such approaches. Events are

multi-attribute relations with so-called trigger anno-

tations. For example, in the following message about

a trafﬁc obstruction: A1 between Köln-Mühlheim and

Köln-Dellbrück objects on the road, both directions

closed. According to (Consortium, 2005) closed trig-

gers the event but provides no event-speciﬁc informa-

tion. Attributes assigned to such triggers build event

relations. The central role of trigger annotation results

in high-quality requirements and an increased annota-

tion effort.

This research introduces multi-attribute relation

extraction (MARE), a novel problem deﬁnition that

aims to simplify the application relation extraction ap-

proaches in practice. Multi-attribute relations:

• have a well-known set of potential roles for at-

tributes,

• make no assumptions on attributes’ multiplicity

building a relation instance, and

• do not rely on the trigger concept, indicating one’s

relation presence.

We introduce a sequence tagging and a span label-

ing approach to recognize entities and extract multi-

attribute relations between them in a joint model. We

analyze our approaches’ performance on the Smart-

Data corpus (Schiersch et al., 2018). This corpus

is the only available resource for relation extraction

on German texts. This corpus’s annotations include

named entities and multi-attribute relations between

those. We publish all data and source code connected

to the research in a GitHub repository

. Our main

https://github.com/MSLars/mare

148

Klöser, L., Kohl, P., Kraft, B. and Zündorf, A.

Multi-Attribute Relation Extraction (MARE): Simplifying the Application of Relation Extraction.

DOI: 10.5220/0010559201480156

In Proceedings of the 2nd International Conference on Deep Learning Theory and Applications (DeLTA 2021), pages 148-156

ISBN: 978-989-758-526-5

contributions can be summarized as follows:

• We formalize multi-attribute relation extraction

and introduce two problem-speciﬁc approaches.

• We show that the non-trigger-based approaches

have in general a better performance on the multi-

attribute relations in the SmartData corpus.

• We provide the ﬁrst reproducible evaluation of a

non-binary relation extraction approach on a Ger-

man corpus.

2 RELATED WORK

Relation extraction investigates the mutual relation

between named entities in texts to transfer the un-

structured information into predeﬁned schemas. Most

benchmark datasets consider only binary relations

(Mintz et al., 2009; Hendrickx et al., 2010).

Traditional binary relation extraction approaches

use part of speech tagging, dependency parsing, and

further steps to calculate input representations for ma-

chine learning models (Xu et al., 2013). Current state-

of-the-art models use transformer networks to calcu-

late highly contextualized representations of binary

relation candidates and combine these with special-

ized decision layers in a combined neural network (Li

and Tian, 2020; Eberts and Ulges, 2019).

As an extension to binary relation extraction, the

ﬁeld of n-ary relation extraction aims to detect re-

lations with a ﬁxed number of n arguments. (Peng

et al., 2017) extended recurrent neural networks to ef-

ﬁciently include syntactic dependency edges to build

contextualized relation representations. (Lai and Lu,

2021) presented a transformer-based approach for the

same experimental setup. Both focus on 3-ary rela-

tions.

Binary and small n-ary relation extraction ap-

proaches often enumerate sets of predicted entities as

a root for building relation candidates. We extract re-

lations with an arbitrary number of attributes avoid-

ing such an enumeration to prevent a combinatorial

explosion.

To extend the ﬁxed-size constraint, the ﬁeld of

event extraction deﬁnes events as multi-attribute re-

lations with one necessary trigger attribute. The trig-

ger indicates the presence of an event. Other entities

can be assigned to single triggers to form event rela-

tions (Consortium, 2005; Aguilar et al., 2014). Event

extraction approaches rely on this trigger annotations

(Xiang and Wang, 2019). All entities assigned to one

trigger form a multi-attribute relation. This reduces

the problem to a sequence of binary relation classiﬁ-

cations.

Traditionally, real-world relation extraction sys-

tems extract entities and their relationships in a pro-

cessing pipeline. Such systems suffer from error

propagation. The ﬁeld of joint relation extraction in-

vestigates models that extract entities and relations

in a single model. A common way to build a joint

model is to share the embedding layer across multiple

downstream tasks. (Wadden et al., 2019) introduced

a system that shares embeddings to extract named en-

tities, builds binary relation candidates, and classiﬁes

the relation between those. (Zheng et al., 2017; Liu

et al., 2019) introduce sequence label schemes to ex-

plicitly extract attributes and their relations in a sin-

gle classiﬁcation step. Our models similarly extract

more complex structures without an enumeration of

relation candidates. This avoids a combinatorial ex-

plosion for MARE. We apply novel transformer net-

work to receive contextualized text-embeddings (De-

vlin et al., 2019; Clark et al., 2020).

(Schiersch et al., 2018) introduced the Smart-

Data Corpus for relation extraction on German texts.

The annotated relations contain a various number of

mandatory and optional arguments. Section 3 an-

alyzes the corpus in great detail. The original pa-

per includes results of the relation extraction system

DARE (Xu et al., 2013). This evaluation consid-

ers only mandatory attribute roles for each relation.

We also consider optional attributes and analyze re-

sults on a more sophisticated problem setting. (Roller

et al., 2018) investigates the extraction of named enti-

ties and binary relations from German clinical reports.

Their corpus is unpublished.

3 DATA ANALYSIS

We train and evaluate our approaches on the Smart-

Data

corpus (Schiersch et al., 2018), a German cor-

pus provided by the DFKI

. The corpus contains man-

ually annotated trafﬁc and industry entities and rela-

tions in News, RSS feeds, and tweets.

The third corpus version contains 19,116 entities

and 1,264 relations in 2,322 documents with 141,344

words in total

. Table 1 shows the train-test-split pro-

vided by SmartData.

The inter-annotator agreement is on a moderate

level (Viera et al., 2005) with Cohen’s kappa co-

efﬁcient for entities of 0.58 and 0.51 for relations.

https://github.com/DFKI-NLP/smartdata-corpus

Deutsches Forschungszentrum für Künstliche Intelligenz

(Translation: German Research Center for Artiﬁcial Intel-

ligence)

Numbers differ from the original paper due to different

versions

Multi-Attribute Relation Extraction (MARE): Simplifying the Application of Relation Extraction

149

Table 1: The SmartData corpus’ train-test-split with the

number of relations and the fraction of documents in each

subset.

Data set Documents Relations Ratio

Training 1,864 1,007 0.8

Validation 228 129 0.1

Test 230 128 0.1

Sum 2,322 1,264 1

Figure 1: Structure of instances in the SmartData corpus.

Documents contain relations and entities. A relation has at

least two mandatory attributes. Each attribute has an en-

tity mention. Entities may function as attributes in zero or

multiple relations. E.g., the entity Location may serve as an

attribute in Accident and Obstruction at the same time.

DFKI describes their preprocessing steps in (Schier-

sch et al., 2018) and GitHub.

Figure 1 illustrates the data meta-model. Note that

a relation can have a variable number of attributes

and is not limited to a ﬁxed number. For each at-

tribute’s role a ﬁxed set of entity types may ﬁt: E.g.,

entity types such as Location-Street, Location-City or

Location-Route can serve interchangeably as an at-

tribute with role Location.

In the following, we explain the key characteris-

tics of the SmartData corpus.

Relations. The corpus provides 15 relation types

with two mandatory and arbitrary optional attributes.

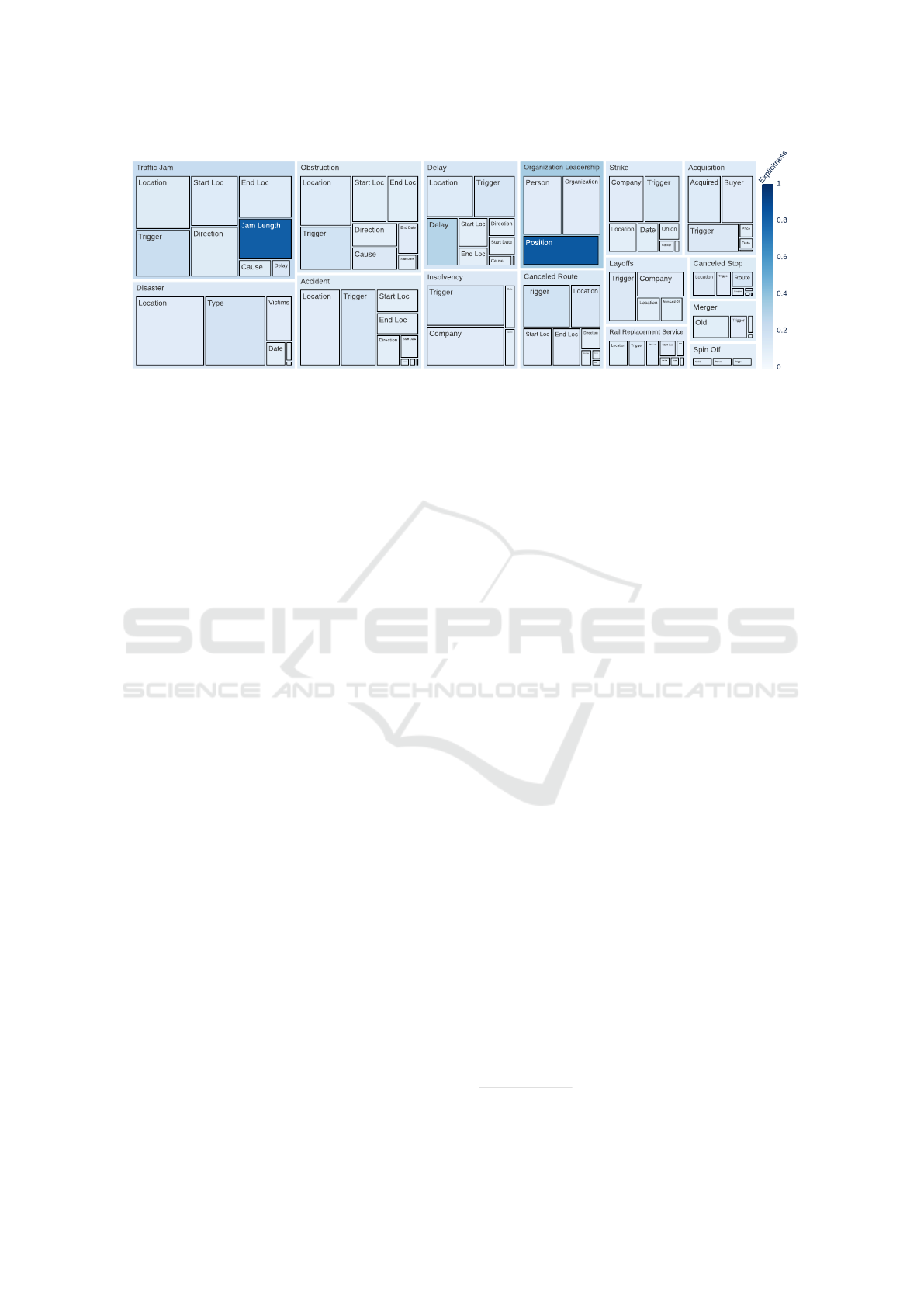

Figure 3 illustrates the relation’s and the attribute’s

distribution.

Entities. SmartData provides 16 ﬁne-grained en-

tity types. For a full list, see (Schiersch et al., 2018).

We introduce explicitness as metric to demonstrate

that only a few entity types are a strong indicator for

a relation (cf. Jam Length or Position in Figure 3).

Therefrom, MARE models have to learn a combined

view of entity compounds.

Variable Number of Relation Attributes. Each

relation contains at least one of each mandatory at-

tributes. They may or may not contain further op-

tional attributes. The example for Arguable differ-

ences in Figure 5 shows an RSS feed with an Ob-

struction relation. Only trigger and location attributes

are mandatory. StartLoc and EndLoc are optional at-

tributes.

Unbalanced. Unbalanced datasets raise the chal-

2 4 6 8 10

Obstruction

Accident

Delay

Disaster

CanceledStop

OrganizationLeadership

TrafficJam

Strike

Merger

CanceledRoute

RailReplacementService

SpinOff

Insolvency

Layoffs

Acquisition

Number of Attributes

Figure 2: Boxplot illustrating the distribution of the number

of attributes per relation. E.g., the number of Obstruction’s

attributes ranges from two to ten while other relations like

Insolvency do not show the same variance. Dots indicate

outliers.

lenge to learn the essential structure for underrepre-

sented data points and the other richer data points

(Mountassir et al., 2012). The dataset is unbalanced

in terms of relations as of attributes as well (cf. Fig-

ure 3): Trafﬁc Jam occurs approximately 10 times

more often than Spin Off. While Spin Off’s attributes

frequencies are quite equal, Trafﬁc Jam’s attributes

show a difference between the attribute’s distribu-

tion, which corresponds to mandatory and optional

attributes.

Improper Triggers. Other event extraction cor-

pora’s triggers are strictly deﬁned to one single

mandatory token or span due to its essential role as

relation indicator (Consortium, 2005; Aguilar et al.,

2014). SmartData does not follow these constraints:

the triggers are optional and not bound to consecutive

tokens or any speciﬁc lemma or part of speech. Thus,

this corpus impedes the application of current event

extraction approaches due to their assumption of one

existing trigger token/span.

Relations Share Entities. Multiple relations can

occur in one document. The corresponding relation’s

entities dot not have to be disjointed: e.g., Trafﬁc Jam

and Obstruction likely appear together and sharing lo-

cation attributes.

Different Register of Language. SmartData uses

different data sources leading to different distribu-

tions, and patterns models have to learn. While news

articles are continuous and grammatically valuable

text, Twitter and RSS feeds are often sentence frag-

ments.

The SmartData corpus provides relations with a

variable amount of attributes and without a regu-

lar trigger deﬁnition, making the corpus ﬁt into the

MARE deﬁnition. Modiﬁcations are necessary to ap-

ply current relation or event extraction approaches.

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

150

Figure 3: Distribution of relations and attributes. The rectangles’ sizes are proportional to the relation or attribute frequency.

The explicitness is the quotient of the attributes’ frequency and the total number of entities with an entity type suitable for the

speciﬁc attribute role. The metric indicates how reliably an entity type indicates a relation attribute.

4 MARE

This section formally introduces the concept of

multi-attribute relation extraction and introduces two

MARE approaches. We describe our evaluation

methodology, which includes the adaptation of an

event and binary relation extraction approach. We

compare both against the MARE approaches.

4.1 Deﬁnition

For a given text t = (t

, .. . ,t

) with n tokens,

S = {(t

, . . . ,t

) | for all i, j ∈ {1, . . . , n}, i ≤ j}

denotes the set of all text-spans. Let L be a set of re-

lation labels and A

be a set of attribute roles for each

relation label l ∈ L. The task is to predict a relation

set R for a given text t. Each relation instance r ∈ R

r = (l, {α

| for all i ∈ {1, . . . , m}})

consists of a relation label l and a variable number of

0 < m ≤ |S| attributes

= (s, a) ∈ S × A

for all i ∈ {1, . . . , m}.

Each span s ∈ S can contribute to at most one at-

tribute in each relation r ∈ R. But a span can con-

tribute to attributes in multiple relations. We explic-

itly allow relations with one attribute. We denote text-

spans s

i j

with i, j as start and end indices. Further,

A =

[

l∈L

is the set of all attribute roles.

The formal deﬁnition makes no difference be-

tween mandatory and optional attributes as in Sec-

tion 3. We still use this distinction for the model eval-

uation since a higher frequency of an attribute role

implies a better extraction performance.

4.2 Approaches

All approaches except the baselines use transformer

networks as contextualized embedders. Such net-

works compute contextualized representations with

a combination of multiple self-attention and feed-

forward-layers. They are trained in an unsupervised

fashion (Devlin et al., 2019). We apply a german

version of ELECTRA

(May and Reißel, 2020). Its

pretraining tasks focus on the models’ ability to de-

scribe the semantic structure of texts (Clark et al.,

2020). All approaches use the version of the Adam

optimization algorithm with weight decay introduced

in (Loshchilov and Hutter, 2019).

In the following, we use the deﬁnitions introduced

in Section 4.1.

4.2.1 Sequence Tagging

The unknown number of attributes in MARE requires

models that do not need to enumerate all relation can-

didates. (Zheng et al., 2017) introduced a tagging

scheme to formulate binary relation extraction as a se-

quence tagging problem.

T = {b, i} × L × A ∪ {o}

describes our tag-set. Tags that start with b and i mark

tokens as the beginning or inner part of an entity. For

the resulting entity spans, the label l ∈ L determines

the relation, and a ∈ A

determines the attribute role

for a relation determined by l. o marks tokens that do

not belong to an attribute.

From each tagged token sequence, we extract a

set of incoherent relation attributes. These attributes

https://huggingface.co/german-nlp-group/

electra-base-german-uncased

Multi-Attribute Relation Extraction (MARE): Simplifying the Application of Relation Extraction

151

are summarized to relation instances by their relation

label.

The embedded and contextualized input sequence

is the input for a feed-forward layer, which maps them

to label probabilities. A conditional random ﬁeld

determines the loss and the most probable label se-

quence. (Huang et al., 2015) describes the details of

conditional random ﬁelds for sequence tagging.

Our sequence tagging model avoids the enumera-

tion of all potential relation candidates. However, this

also leads to the two following limitations:

1. Shared Attributes Across Relations. Multi-

ple relations may have attributes with shared text

spans. Our tagging scheme can only assign each

span to at most one relation.

2. Multiple Relations with the Same Label. A

sample could have multiple relations with the

same relation label. For example, two accident

descriptions in one sample. A grouping based on

the label leads to a single relation instead of mul-

tiple instances.

We introduce a layer of business logic to deal with

such situations. In the case of shared attribute spans

across various relations, we check whether the cur-

rent relations have any missing mandatory attributes.

If so, we search for attribute types indicating shared

arguments. If such an attribute is within a maximum

relation width

, we use it to complete the relation.

In the following, we assume relation attributes to

be sorted by their span indices. To handle multiple

relations with the same label in one sample, we split

a grouped relation α

, ..., α

at an index i < n if the

subsets α

, . . . , α

and α

i+1

, . . . , α

contain all manda-

tory attributes and the distance between α

and α

i+1

exceeds the maximum relation width.

4.2.2 Span Labeling

Our second approach is motivated by (Liu et al.,

2019). They applied a sequence labeling approach

instead of sequence tagging. Labeling allows the

assignment of multiple attribute labels to each text-

span. We modify this approach and predict a relation-

attribute label for each possible text-span in a given

sample. As our sequence tagging approach, this ap-

proach does not need to enumerate all relation candi-

dates and resolves the limitation of shared attributes

across relations.

Let T = L × A be a set of labels indicating the re-

lation label and attribute role for a given text-span.

The maximum relation width is a hyperparameter and de-

termined by a hyperparameter search. The GitHub reposi-

tory contains the search conﬁguration and ﬁnal values.

Deutsche Bank Aufsichtsratschef Paul Achleitner bringt den ...

CONTEXTUALIZER

0 1 2 3 64 5

0 1 1 2 2 3 3 4 4 5 5 6

O O

OrgLead-Org OrgLead-Pos OrgLead-Per

Deutsche

Deutsche Bank

Bank ...

BUSINESS LOGIC

0 1 2 3 4 5 6

Figure 4: Illustration of the span labeling approach. The

input sequence is embedded and contextualized. Each text-

span within a maximum span width (2 in this example) is

transformed to a ﬁxed-length representation labeled with a

relation-label and argument-role combination. Finally, the

business logic groups attribute to relations.

The model predicts a probability P(t|s) for each label

t ∈ T and each span s ∈ S. A maximum span width

hyperparameter deﬁnes the maximum number of to-

kens per span in S. We apply a binary cross-entropy

loss function, which allows the assignment of multi-

ple labels per span.

Figure 4 illustrates our model architecture. The

span representations are computed with a self-

attention-based module from AllenNLP

. For a given

text with length n we compute contextualized embed-

dings (c

, . . . , c

) of dimension d. For each span s

i j

we have j − i + 1 embeddings (c

, . . . , c

). To get a

ﬁxed-length span representation of dimension d, we

calculate a linear combination of these embeddings.

A parameter matrix M ∈ R

d×1

calculates global at-

tention scores a

= c

· M for all i ∈ {1, . . . , n}. These

are used to calculate weigths w

, . . . , w

for a span s

i j

with

∑

i≤l≤ j

for all k ∈ {i, . . . , j}.

The softmax function ensures that the weights for

each span sum-up to 1. The ﬁnal span representations

are a linear combination of these weights and the em-

beddings.

A feed forward layer in combination with the

element-wise sigmoid function computes the label

probabilities for each span. Similar to the previous

approach, this leads to a set of grouped relation in-

stances. We apply the same business logic as in Sec-

tion 4.2.1 since the limitation of multiple relations

with the same label remains.

http://docs.allennlp.org/main/api/modules/span_

extractors/self_attentive_span_extractor/

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

152

4.2.3 Event Extraction

To apply event extraction approaches, we need to

specify an event trigger for each multi-attribute re-

lation. As Section 3 shows, some instances in the

SmartData corpus have no such annotations. If a re-

lation deﬁnition has no mandatory trigger attribute,

we deﬁned one mandatory attribute type for each re-

lation as the trigger. In the case of multiple and non-

conjunct trigger spans, we select the ﬁrst span as the

trigger. We did not apply more complex logic since

the set of relations with multiple triggers (78 of 1264)

is relatively small. The ﬁrst error situation in Sec-

tion 4.2.1 is unsolved if relations share triggers. Other

attributes can be shared across relations.

We apply Dygie++

as event extraction ap-

proach. As (Wadden et al., 2019) describes,

Dygie++ uses contextualized span representations,

similar to Section 4.2.2. Trigger detection and at-

tribute disambiguation use this shared span represen-

tations.

4.2.4 Binary Relation Extraction

Many binary relation extraction approaches classify

all possible pairs of entities as relation candidates,

as SpERT (Eberts and Ulges, 2019). In combination

with multi-class labeling, this solves both error situa-

tions in Section 4.2.1.

We apply SpERT to extract binary relations from

1,717 of 1,864 samples in the train split that contain

relations with exactly two mandatory attributes. The

next section introduces various evaluation strategies.

We introduce a binary relation extraction strategy to

compare the performance of SpERT against all other

approaches on the subset of valid binary relations.

4.3 Experimental Setup

We used AllenNLP (Gardner et al., 2017) and Pytorch

to implement the sequence tagging and span labeling

approach. Our GitHub repository contains modiﬁed

versions of Dygie++ and SpERT. These modiﬁca-

tions were necessary to integrate both approaches into

our experimental infrastructure.

Our GitHub repository contains a summary of all

hyperparameters and their values in the ﬁnal models.

All hyperparameters were determined with Optuna

We applied 50 optimization trials for each model. We

ﬁxed the learning rate for the transformer network’s

embedding layer to 5 · 10

−5

and 10

−3

for all other

network components. We selected a batch size of 6

https://github.com/dwadden/dygiepp

https://optuna.org/

for all MARE approaches, for SpERT and Dygie++

a batch size of 1.

We use various evaluation strategies to analyze the

predictions. The strategies aim to reﬂect the chal-

lenges of MARE on different levels of complexity.

• Attribute Recognition (AR). The evaluation is

made attribute wise. An attribute is considered

correct if its boundaries, relation label, and at-

tribute role are predicted correctly while not con-

sidering the grouping to a relation.

• Classiﬁcation (Cl). A prediction is correct if the

predicted label matches a gold relation label.

• Mandatory Relation Extraction (MRE). A pre-

diction is correct if all mandatory attributes and

the relation label match against the gold anno-

tation. Thus, the grouping of the mandatory at-

tributes to one relation is essential.

• Complete Relation Extraction (CRE). Mea-

sures the model’s capability of extracting the re-

lation with all attributes as a whole. Thus, a pre-

diction is considered correct if the model extracts

all attributes and groups them correctly into a re-

lation with the right relation label.

• Binary Relation Extraction (BRE). This is the

MRE strategy on the subset of samples that con-

tains only relations with exactly two mandatory

arguments. This strategy allows a comparison be-

tween SpERT and all other approaches.

We include the baseline (DARE) from (Schiersch

et al., 2018), which focuses on the mandatory argu-

ments and uses gold entity annotations. Our own

baseline is a modiﬁcation of the sequence tagging ap-

proach. We replace the pretrained transformer net-

work with a combination of GloVe

word vectors

(Pennington et al., 2014) and character level CNN as

embedding layer. A Bi-GRU layer contextualizes the

inputs.

Our computational setup contains two nodes with

Intel Xeon Platinum 8168 CPUs, Nvidia Quadro

P5000 GPUs with 16 GB RAM, and Ubuntu 18.04

OS. A hyperparameter search took approximately 24

hours.

5 RESULTS

The metrics in Table 2 measure different capabilities

necessary to extract all attributes, their roles, and the

relation label in combination. In general, as the re-

quirements of the metrics increase, the metrics’ val-

ues decrease.

https://deepset.ai/german-word-embeddings

Multi-Attribute Relation Extraction (MARE): Simplifying the Application of Relation Extraction

153

The span labeling approach increases the event ex-

traction AR results by 0.06 and the Cl results by 0.04

in the F1 scores. We observe that both MARE ap-

proaches perform better than Dygie++ on the com-

plete dataset. The similar MRE score and the in-

creased AR and CRE scores indicate that MARE

models extract optional and potentially less-frequent

arguments more reliably. A reduction to the subset

of documents with exactly two mandatory arguments

leads to higher general scores but a much higher

increase for Dygie++ than for the MARE models.

Both observations indicate that model architectures

with fewer structural assumptions are better suitable

for the corpus’ unique characteristics as described in

Section 3.

Table 2: Model evaluation on the test set based on different

strategies, see Section 4.3. Precision, Recall and F1 score

serve as comparison metrics.

Model AR Cl MRE CRE BRE

MARE F1 .66 .76 .45 .30 .47

Seq. Tag. P .66 .73 .43 .28 .44

R .66 .80 .48 .31 .49

MARE F1 .70 .80 .47 .29 .49

Span Lab. P .75 .80 .47 .29 .49

R .65 .80 .47 .29 .49

F1 .64 .76 .46 .25 .53

Dygie++ P .63 .77 .47 .26 .55

R .65 .74 .45 .25 .52

F1 - - - - .51

SpERT P - - - - .57

R - - - - .45

MARE F1 .60 .68 .39 .26 .41

Baseline P .66 .68 .40 .26 .40

R .55 .67 .39 .26 .41

F1 - - .28 - -

DARE P - - .53 - -

R - - .19 - -

The difference between the MARE baseline and

both MARE approaches shows the positive effect of

pretrained transformer networks. Despite the gen-

eral weaker performance of DARE, which uses an au-

tomatically selected rule-set, the original benchmark

has the highest MRE precision score. This indicates a

high certainty in extracted relations and a high num-

ber of false negatives because of the low recall score.

The evaluation of SpERT shows a clear improve-

ment compared to our MARE baseline. SpERT per-

forms also better than our MARE models on BRE.

Table 3 shows how trigger annotations effect

MARE models’ performance. Evaluations on the re-

duced set of non-trigger attributes of MARE mod-

els trained both with or without trigger annotations

Table 3: Comparison of approaches trained with and with-

out trigger annotations. We exclude trigger entities from the

score computations.

Model AR F1 MRE F1

Seq. Tag. with Trigger .64 .49

Seq. Tag. without Trigger .64 .51

Span Lab. with Trigger .67 .52

Span Lab. without Trigger .66 .54

Dygie++. with Trigger .62 .53

do not show a signiﬁcant difference in AR and MRE

scores. Our models’ performance without trigger an-

notations is comparable to state-of-the-art event ex-

traction on multi-attribute relations from the Smart-

Data corpus. The MARE models AR score is better

than Dygie++’s. That proves MARE’s ability to ex-

tract optional and less-frequent attributes.

Compared to Table 2 the AR scores decrease, in-

dicating that the models extract trigger attributes reli-

ably. Without trigger attributes many single-attribute

relations remain. This simpliﬁes the MRE task and

causes the increased MRE scores.

Since relation extraction is a task on a high se-

mantic level and SmartData’s gold annotations con-

tain a certain degree of inconsistency, we provide a

manual error analysis to understand our models’ pre-

diction characteristics better.

5.1 Error Inspection

We conducted a manual comparison of the differ-

ences between the gold annotations and the models’

predictions. The following error-equivalence-classes

emerge from our manual inspection. All examples

mentioned in the following enumeration refer to Fig-

ure 5.

1. Arguable Differences. The models’ predictions

are often reasonable even if the gold data con-

tain divergent annotations. The example shows an

Obstruction relation, in which the marathon rep-

resents the Obstruction-Cause. The gold annota-

tion does not reﬂect this circumstance. Arguable

differences indicate that our models learned cer-

tain semantic concepts. Some generalizations in

the predictions lead to false positives lowering the

evaluation metrics.

2. Semantic Depending Relation Classes. Some

relation classes, such as Accident and Obstruction

have a strong semantic relationship. Therefore,

instances of these relations are often nested and

share entity spans as attributes. The annotations

of these shared attributes are often ﬂawed. The

example shows an Obstruction caused by a Disas-

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

154

Arguable differences

Prediction

Gold Annotations

The Kiellinie is closed between Bernhard-Harms-Weg and Feldstraße until approximately 4.30 p.m. because of a marathon.

Obst-Loc Obst-Trigger Obst-StartLoc

Obst-EndLoc

Obst-Loc Obst-Trigger Obst-StartLoc

Obst-EndLoc

Obst-EndDate

Obst-EndDate Obst-Cause

Text:

Semantic depending relation classes

Gold Obstruction

Gold Disaster

K5900 between Mühlheim an der Donau and Stetten in the district of Tuttlingen is a risk of flooding , both directions blocked.

Loc

Loc StartLoc EndLoc

Type

Direction Trigger

Text:

Contextualized relation mentions

Prediction

OrgLead-Per

OrgLead-Pos

OrgLead-Org

Martin Zielke is allegedly going to be head of Commerzbank.

Text:

Inconsistent predictions

Obstruction

Cancelded Route

Loc

StartLoc

Trigger

the route between Hirschaid and Forschheim is still blocked.

Text:

EndLoc

Other errors

Gold Disaster

Trigger Loc

An IS subsidiary persistently claims to have crashed the Russian passenger plane on #Sinai

Text:

Figure 5: Examples for error classes. Colored boxes indicate the relations and their attributes. The attributes role is textually

annotated. Predictions made by the span labeling approach.

ter. The gold annotation contains two separate re-

lations and does not express this dependency. The

trigger of the Disaster could also be interpreted as

the cause of the Obstruction. This distinction is

challenging for the models.

3. Contextualized Relation Mentions. Many sup-

posed relation instances appear in a presuming

context. Words like allegedly indicate assump-

tions rather than facts. The example shows a pre-

sumption about an Organization Leadership. In

many of these cases, the models predicted relation

instances.

4. Inconsistent Predictions. The example shows an

Obstruction relation, where the model predicted

all roles correctly. The relation label for the End

Location belongs to a similar semantic relation. If

the missing attributes are not mandatory, such sit-

uations cannot be resolved by the business logic.

5. Other Errors. Many relations are not recognized

by the models. Often such errors occur in sen-

tences with less grammatical structure and sen-

tences that contain many special characters like

’@’, ’#’ or typical trigger phrases that do not be-

long to any relation. The example shows a Disas-

ter that no model predicted.

The results indicate that current event or binary re-

lation extraction approaches outperform MARE mod-

els on the task of binary relation extraction. However,

as we weaken the structural requirements, MARE

models become superior. The introduced MARE

approaches allow the extraction of complex multi-

attribute relations from plain text without an enumer-

ation of all relation candidates. The limitations of

our approaches, see Section 4.2, had no severe impact

concerning the smart data corpus.

6 CONCLUSION

We introduced multi-attribute relation extraction and

differentiated this deﬁnition from current terminology

as n-ary relation extraction and event extraction. Our

problem deﬁnition leads to simpliﬁed approaches for

extracting relations with an arbitrary amount of at-

tributes by avoiding the usage of candidate enumer-

ation and the trigger concept.

MARE models are superior if the relations do not

ﬁt into binary or event schema. They avoid structural

constraints and perform better than current state-of-

the-art relation and event extraction approaches on the

SmartData corpus.

We plan to involve the manual analysis results in

the construction of improved MARE approaches in

the future. Mostly we want to address the limitations

the MARE approaches have and the incorporation of

the relation-speciﬁc context.

REFERENCES

Aguilar, J., Beller, C., McNamee, P., Van Durme, B.,

Strassel, S., Song, Z., and Ellis, J. (2014). A Compar-

ison of the Events and Relations Across ACE, ERE,

TAC-KBP, and FrameNet Annotation Standards. In

Proceedings of the Second Workshop on EVENTS:

Deﬁnition, Detection, Coreference, and Representa-

tion, pages 45–53, Baltimore, Maryland, USA. Asso-

ciation for Computational Linguistics.

Clark, K., Luong, M.-T., Le, Q. V., and Manning,

C. D. (2020). ELECTRA: Pre-training Text En-

coders as Discriminators Rather Than Generators.

arXiv:2003.10555 [cs]. arXiv: 2003.10555.

Consortium, L. D. (2005). Ace (automatic content ex-

traction) english annotation guidelines for events.

page 77.

Multi-Attribute Relation Extraction (MARE): Simplifying the Application of Relation Extraction

155

Devlin, J., Chang, M.-W., Lee, K., and Toutanova,

K. (2019). BERT: Pre-training of Deep Bidirec-

tional Transformers for Language Understanding.

arXiv:1810.04805 [cs]. arXiv: 1810.04805.

Eberts, M. and Ulges, A. (2019). Span-based Joint En-

tity and Relation Extraction with Transformer Pre-

training. arXiv:1909.07755 [cs]. arXiv: 1909.07755.

Gardner, M., Grus, J., Neumann, M., Tafjord, O., Dasigi, P.,

Liu, N. F., Peters, M., Schmitz, M., and Zettlemoyer,

L. S. (2017). Allennlp: A deep semantic natural lan-

guage processing platform.

Hendrickx, I., Kim, S. N., Kozareva, Z., Nakov, P.,

Ó Séaghdha, D., Padó, S., Pennacchiotti, M., Ro-

mano, L., and Szpakowicz, S. (2010). SemEval-2010

Task 8: Multi-Way Classiﬁcation of Semantic Rela-

tions between Pairs of Nominals. In Proceedings of

the 5th International Workshop on Semantic Evalua-

tion, pages 33–38, Uppsala, Sweden. Association for

Computational Linguistics.

Huang, Z., Xu, W., and Yu, K. (2015). Bidirec-

tional LSTM-CRF Models for Sequence Tagging.

arXiv:1508.01991 [cs]. arXiv: 1508.01991.

Kim, J.-D., Pyysalo, S., Ohta, T., Bossy, R., Nguyen, N.,

and Tsujii, J. (2011a). Overview of BioNLP shared

task 2011. In Proceedings of BioNLP Shared Task

2011 Workshop, pages 1–6, Portland, Oregon, USA.

Association for Computational Linguistics.

Kim, J.-D., Wang, Y., Takagi, T., and Yonezawa, A.

(2011b). Overview of Genia event task in BioNLP

shared task 2011. In Proceedings of BioNLP Shared

Task 2011 Workshop, pages 7–15, Portland, Oregon,

USA. Association for Computational Linguistics.

Lai, P.-T. and Lu, Z. (2021). BERT-GT: Cross-sentence n

-ary relation extraction with BERT and graph trans-

former. Bioinformatics.

Li, C. and Tian, Y. (2020). Downstream Model Design of

Pre-trained Language Model for Relation Extraction

Task. arXiv:2004.03786 [cs]. arXiv: 2004.03786 ver-

sion: 1.

Liu, Y., Li, A., Huang, J., Zheng, X., Wang, H., Han, W.,

and Wang, Z. (2019). Joint Extraction of Entities and

Relations Based on Multi-label Classiﬁcation. In 2019

IEEE Fourth International Conference on Data Sci-

ence in Cyberspace (DSC), pages 106–111.

Loshchilov, I. and Hutter, F. (2019). Decoupled Weight

Decay Regularization. arXiv:1711.05101 [cs, math].

arXiv: 1711.05101.

May, P. and Reißel, P. (2020). German electra uncased.

Mintz, M., Bills, S., Snow, R., and Jurafsky, D. (2009). Dis-

tant supervision for relation extraction without labeled

data. In Proceedings of the Joint Conference of the

47th Annual Meeting of the ACL and the 4th Inter-

national Joint Conference on Natural Language Pro-

cessing of the AFNLP: Volume 2 - ACL-IJCNLP ’09,

volume 2, page 1003, Suntec, Singapore. Association

for Computational Linguistics.

Mountassir, A., Benbrahim, H., and Berrada, I. (2012). An

empirical study to address the problem of unbalanced

data sets in sentiment classiﬁcation. In 2012 IEEE

International Conference on Systems, Man, and Cy-

bernetics (SMC), pages 3298–3303.

Peng, N., Poon, H., Quirk, C., Toutanova, K., and Yih, W.-

t. (2017). Cross-Sentence N-ary Relation Extraction

with Graph LSTMs. Transactions of the Association

for Computational Linguistics, 5:101–115.

Pennington, J., Socher, R., and Manning, C. (2014). GloVe:

Global vectors for word representation. In Proceed-

ings of the 2014 Conference on Empirical Methods in

Natural Language Processing (EMNLP), pages 1532–

1543, Doha, Qatar. Association for Computational

Linguistics.

Roller, R., Rethmeier, N., Thomas, P., Hübner, M., Uszko-

reit, H., Staeck, O., Budde, K., Halleck, F., and

Schmidt, D. (2018). Detecting Named Entities and

Relations in German Clinical Reports. In Rehm, G.

and Declerck, T., editors, Language Technologies for

the Challenges of the Digital Age, Lecture Notes in

Computer Science, pages 146–154, Cham. Springer

International Publishing.

Schiersch, M., Mironova, V., Schmitt, M., Thomas, P.,

Gabryszak, A., and Hennig, L. (2018). A Ger-

man Corpus for Fine-Grained Named Entity Recog-

nition and Relation Extraction of Trafﬁc and Industry

Events. page 8.

Tsujii, J., Kim, J.-D., and Pyysalo, S., editors (2011).

Proceedings of BioNLP Shared Task 2011 Workshop,

Portland, Oregon, USA. Association for Computa-

tional Linguistics.

Viera, A. J., Garrett, J. M., et al. (2005). Understanding in-

terobserver agreement: the kappa statistic. Fam med,

37(5):360–363.

Wadden, D., Wennberg, U., Luan, Y., and Hajishirzi, H.

(2019). Entity, Relation, and Event Extraction with

Contextualized Span Representations. In Proceed-

ings of the 2019 Conference on Empirical Methods

in Natural Language Processing and the 9th Inter-

national Joint Conference on Natural Language Pro-

cessing (EMNLP-IJCNLP), pages 5784–5789, Hong

Kong, China. Association for Computational Linguis-

tics.

Xiang, W. and Wang, B. (2019). A Survey of Event Ex-

traction From Text. IEEE Access, 7:173111–173137.

Conference Name: IEEE Access.

Xu, F., Uszkoreit, H., Li, H., Adolphs, P., and Cheng, X.

(2013). Domain Adaptive Relation Extraction for Se-

mantic Web.

Zheng, S., Wang, F., Bao, H., Hao, Y., Zhou, P., and Xu,

B. (2017). Joint Extraction of Entities and Relations

Based on a Novel Tagging Scheme. arXiv:1706.05075

[cs]. arXiv: 1706.05075.

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

156
