Semantic Analysis of Chest X-Ray using an Attention-based CNN

Technique

Rishabh Dhenkawat

, Snehal Saini

, Nagendra Pratap Singh

Department of CSE, National Institute of Technology, Hamirpur (H.P.),India

Department of ECE, National Institute of Technology, Hamirpur (H.P.),India

Keywords: CNN, LSTM, Deep Learning, Additive Attention, Teacher Force.

Abstract: The world today is suffering from a huge pan-demic. COVID-19 has infected 106M people around the

globe causing 2.33M deaths, as of February 9, 2021. To control the disease from spreading more and to

provide accurate health care to existing patients, detection of COVID-19 at an early stage is important. As

per the World Health Organization (WHO), diagnosing pneumonia is the most common way of detecting

COVID-19. 172K deaths were reported in the USA between February 2020 and January 29, 2021, that was

caused by pneumonia and COVID-19 together. In many situations, a chest X-ray is used to determine the

type of pneumonia. We present a deep learning model to generate a report of a chest x-ray image using

image captioning with an attention mechanism.

1 INTRODUCTION

Computer vision-based diagnosis provides an

automatic classification and suggestions for

reference to improves diagnosis’s accuracy and

efficiency. In the past few years, many deep learning

and machine learning algorithms are used for the

classification of medical images, SVM, K-nearest

neighbors, random forest, and other techniques are

included. They can be used in a variety of medical

image processing applications.

Using old machine learning methods poses two

major difficulties. First, the inaccurate results due to

the limited processing of large input. Secondly, the

use of manual feature extractions instead of learning

valid features. Thus, deep learning methods are

preferred for medical image processing.

learning’s technology has a wide variety of

applications in healthcare image processing, such as

diagnosis and organ segmentation. The convolution

neural network cnn has been used extensively in

several pieces of research that include reading and

interpreting ct images for medical applications. Deep

learning is a representation learning technique that

connects different layers and nonlinear components

efficiently to obtain various representation levels.

Deep learning algorithms have two essential

characteristics: local connectivity and shared

weights (CNN). Deep learning is widely used in

image analysis because of all these features, which

make it much easier to handle complex data

processing tasks. Convolution layer, pooling layers,

and fully connected layers are the three layers that

make up the CNN architecture. Convolution layers

extract features from the previous layer, pooling

layers minimize computational complexity, and

completely connected layers, eventually, are used to

extract features from the previous layer. A recurrent

neural network (RNN) is used to process sequence

data in order to recognize things. Since words in a

sentence are semantically related, word generation

uses previous word knowledge to predict the next

word in the sentence. In RNN, the current output of

a sequence is related to the previous output, enabling

word relationships to be determined. It is used to

model temporary sequences and their long-range

dependencies because of the property of feedback

connections.

In this paper, we propose a CNN-LSTM chest-x-

ray image semantic analysis focused on an attention

process to produce a description of the chest x-ray

images. In the deep learning model, we used the idea

of the attention to highlight the infection regions in

the lungs. Two types of attention mechanisms in

deep learning are local attention and global attention.

In our pour model, we used Local Attention, also

known as additive attention or Bahdanau Attention.

218

Dhenkawat, R., Saini, S. and Singh, N.

Semantic Analysis of Chest X-ray using an Attention-based CNN Technique.

DOI: 10.5220/0010567200003161

In Proceedings of the 3rd International Conference on Advanced Computing and Software Engineering (ICACSE 2021), pages 218-223

ISBN: 978-989-758-544-9

As a result, the model assists in the analysis and

clarification of chest x-ray images, automatically

supplying doctors with valuable knowledge about

the input x-ray image. Two types of chest x-ray

images available are frontal and lateral sides. Using

these two types of images as data, our model

generates a report for these chest x-ray images. To

construct a deep learning model, we present a

predictive model that uses both image and text

processing. This paper uses chest X-ray images from

Indiana University’s large Chest X-Ray dataset to

describe the model’s architecture and detection

efficiency

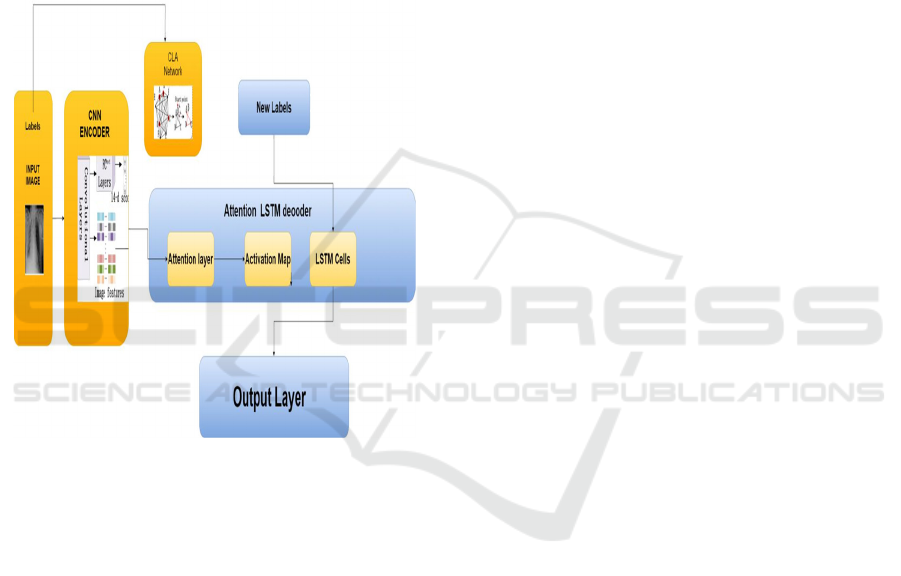

Figure 1: Model Flow

2 METHODOLOGY

2.1 Overview

We have used an encoder and a decoder architecture

with an attention mechanism and compared it with

encoder and decoder architecture without attention.

Here Convolution Neural Network is taken as an

encoder to extract visual features, this encoder will

output image feature vectors. Resulted feature

vectors will be taken as input to an additive

attention-based LSTM decoder. LSTM decoder took

image feature vector and sequence vec-tor to process

reports. An image classification using InceptionV3

model over chest dataset is used with this

classification model the weights were saved over the

training and later used in Encoder feature extraction

by using the saved weights to InceptionV3.

2.2 CNN Encoder

The Convolution Neural Network is popular in deep

learning due to its ability to learn and represent

image feature vectors. Many frameworks like

VGG16, Resnet, Inception, and Densenet are trained

on Imagenet Dataset containing 1.3 million natural

images. Due to the difference between medical chest

images and natural images, In-ceptionV3 is again

trained on labeled chest x-ray images to improve

transfer efficiency. The encoder is a single linear

model which is fully connected. The input X-ray

image is fed to InceptionV3 which extracts the

features of two images are adds them. Then they are

input to the FC layer and an output vector is

obtained. The encoder’s last hidden state is

connected to the Decoder.

2.3 LSTM Decoder

Recurrent Neural Networks models the non-static

behavior of sequences through connections between

different units. LSTM is a type of RNN which have

3 added states as forget state, input state, and output

gates. Hence the LSTM layer is present in the

decoder which does language modeling up to word

level. The first step receives encoded output from

the encoder and the ¡start¿ vector. The input is

passed to the LSTM layer with additive attention.

The output vector is two vectors one is the predicted

label and the other is the previous hidden state of the

decoder, this feedback goes again to the decoder on

each time step

2.4 Attention Mechanism

Attentive neural networks are used in wide-ranging

applications like summary formation, translation,

photo captioning, etc. They act as tools to take

account of hidden feature maps which make

networks analyze important regions. It provides

weights to each channel in the feature map.

Attention is of 2 types:

Global Attention (Luong’s Attention): Attention

is placed on each and every source position.

Local Attention (Bahdanau Attention): Only

some of the source positions receive attention.

In this work, we are using Local Attention(

known as Bahdanau Attention) or additive attention

which is placed only on a few source positions. As

Global attention takes account of all sources side

words for all target words, it becomes

computationally very expensive and not efficient

when translating long sentences. To address this

Semantic Analysis of Chest X-ray using an Attention-based CNN Technique

219

problem, additive attention is employed, which

focuses only on a small portion or subset of the

encoder’s hidden states per target word.

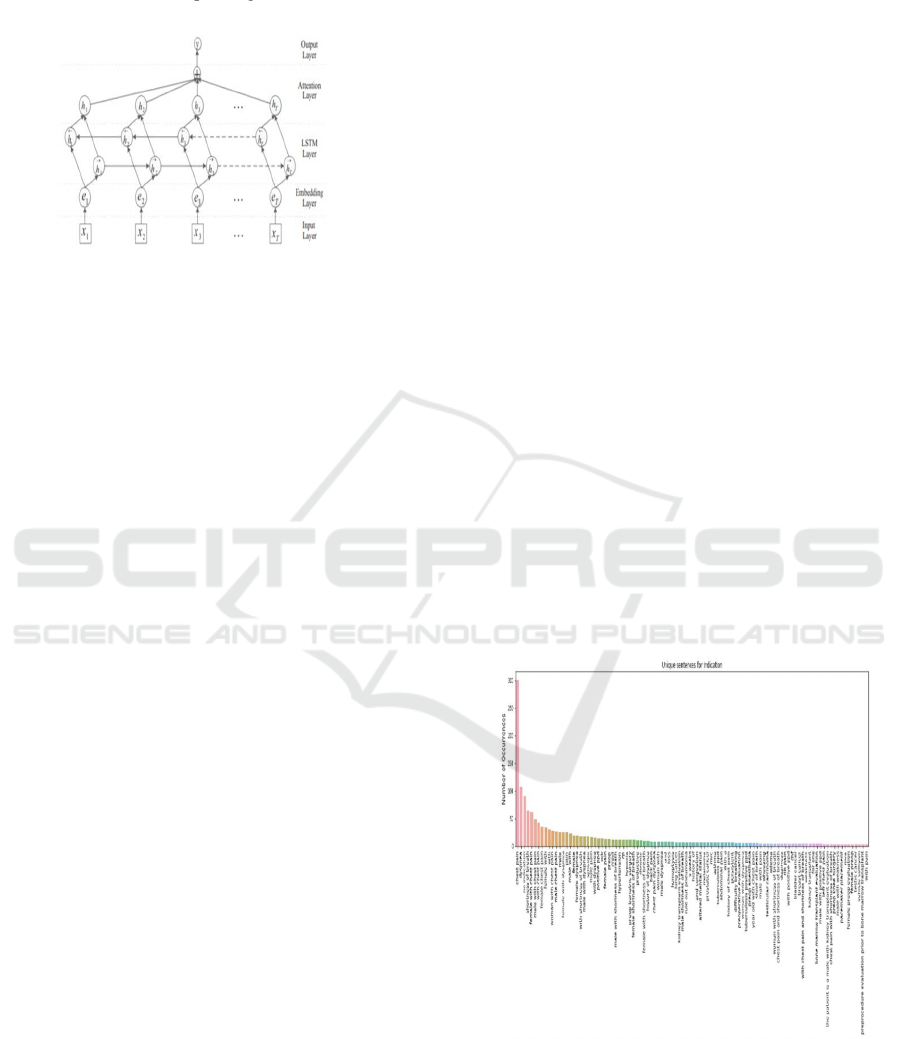

Figure 2: LSTM with attention

2.5 Model Architecture

The model proposed in this paper contains five

components: Input layer input labels are given to the

model and then summed with the image feature

vectors. The embedding layer is then used to map

each label to a low-dimensional vector. LSTM layer

is used to get high-level features, from step these

LSTM layers are repeated twice to understand

features in more depth. A weight vector is provided

by the Attention layer, and it also merges word-level

features from each time step into a sentence-level

feature vector, by multiplying the weight vector.

Finally, the sentence-level feature vector in the

output layer is finally used for relation classification.

3 EXPERIMENTS

3.1 Dataset

We have used Indiana University’s vast chest X-rays

dataset provided by the Open-i service of the

National Library of Medicine. The dataset contains

7000 chest x-rays from various hospitals along with

3,900 associated radiology reports. Each report is

associated with two different views of the chest, i.e.,

a frontal and a lateral view. The associated tags

contain the basic findings from the x-ray images

which are used to train the model so as to generate

image captions later on.

3.2 Exploratory Data Analysis

Before jumping to the main code, we analyzed the

dataset to visualize some of its important

characteristics. For eg, by performing text analysis

on the impression column target variable we got the

bar plot of the most unique sentences for indication

in the x-ray reports and the frequency of their

occurrences.

By generating a word cloud we can see the most

occurring words in the sentences present in x-ray

reports. Some of these words are chest pain,

shortness, breath, male, female, dyspnea, and

indication. The word cloud is used to represent the

words having the maximum word count in the

impression column target variable.

Further, we visualize the word count distribution

plot for the impression column target variable. This

plot offers better insights to see the minimum and

maximum word count. From the plot, we conclude

that the minimum word count is 1, the maximum

word count is 122 and the median word count is 5.0.

Further, we analyze the distribution of image

count per patient using a bar plot and we see that the

minimum image count is 1 and the maximum image

count is 5.

Since two types of chest x-ray images are

available to us which are frontal and lateral view. By

selecting a sample data point we find out the total

number of images present for that particular patient,

its findings, and impressions. From here, we analyze

that there are multiple images associated with every

patient.

Figure 3: Bar Plot of unique sentences for

indication

ICACSE 2021 - International Conference on Advanced Computing and Software Engineering

220

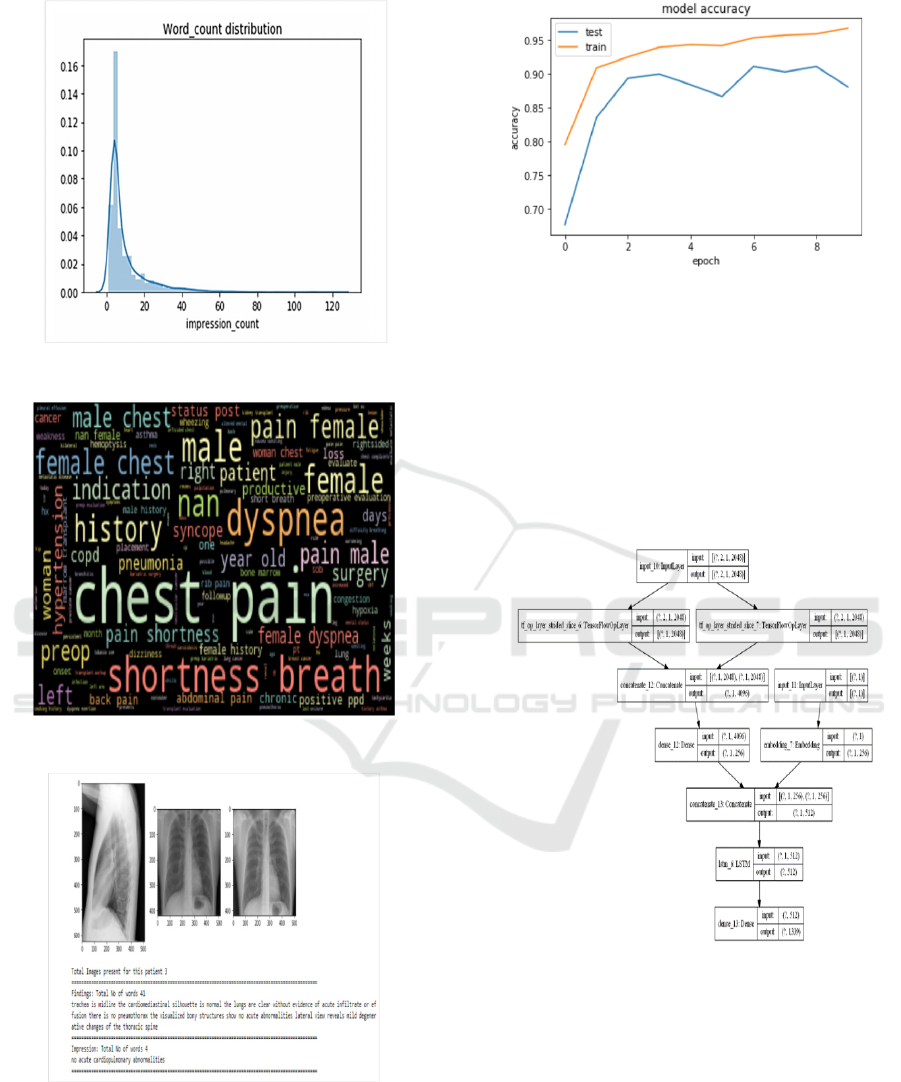

Figure 4: Word count distribution plot

Figure 5: Word cloud for impression column

Figure 6: Results for a sample data point

Figure 7: Model Accuracy for prepossessing

3.3 Pre-processing and Training

The transfer learning method is used for the image to

feature vector conversion and text data tokenization

is used for dataset preparation. InceptionV3 model

trained on imagenet is used. A classifier to detect

which type of disease the person is suffering from

was made. Once classification was done weights of

the trained model were saved in hd5 format.

Figure 8: CNN-LSTM without attention architecture

3.4 Model without Attention

Mechanism

3.4.1 Encoder Architecture

Single fully connected layer linear output is used.

Before we pass to the FC layer, two image tensors

were added and pass to FC layer. This layer outputs

the shape of batch size and embedding dimension.

Semantic Analysis of Chest X-ray using an Attention-based CNN Technique

221

3.4.2 Decoder Architecture

It contains an embedding LSTM layer and dense

layer which outputs shape (batch size, vocab size).

3.4.3 Model Training

In the training phase, the Teacher forcing is used. for

training recurrent neural networks that use the output

from a previous step as an input. In training, a

“start” token is used to start the process and the

generated word in the output sequence is used as

input on the subsequent time step along with other

input like an image or a source text. Until the end,

the same recursive output as the input method is

used till better results are generated.

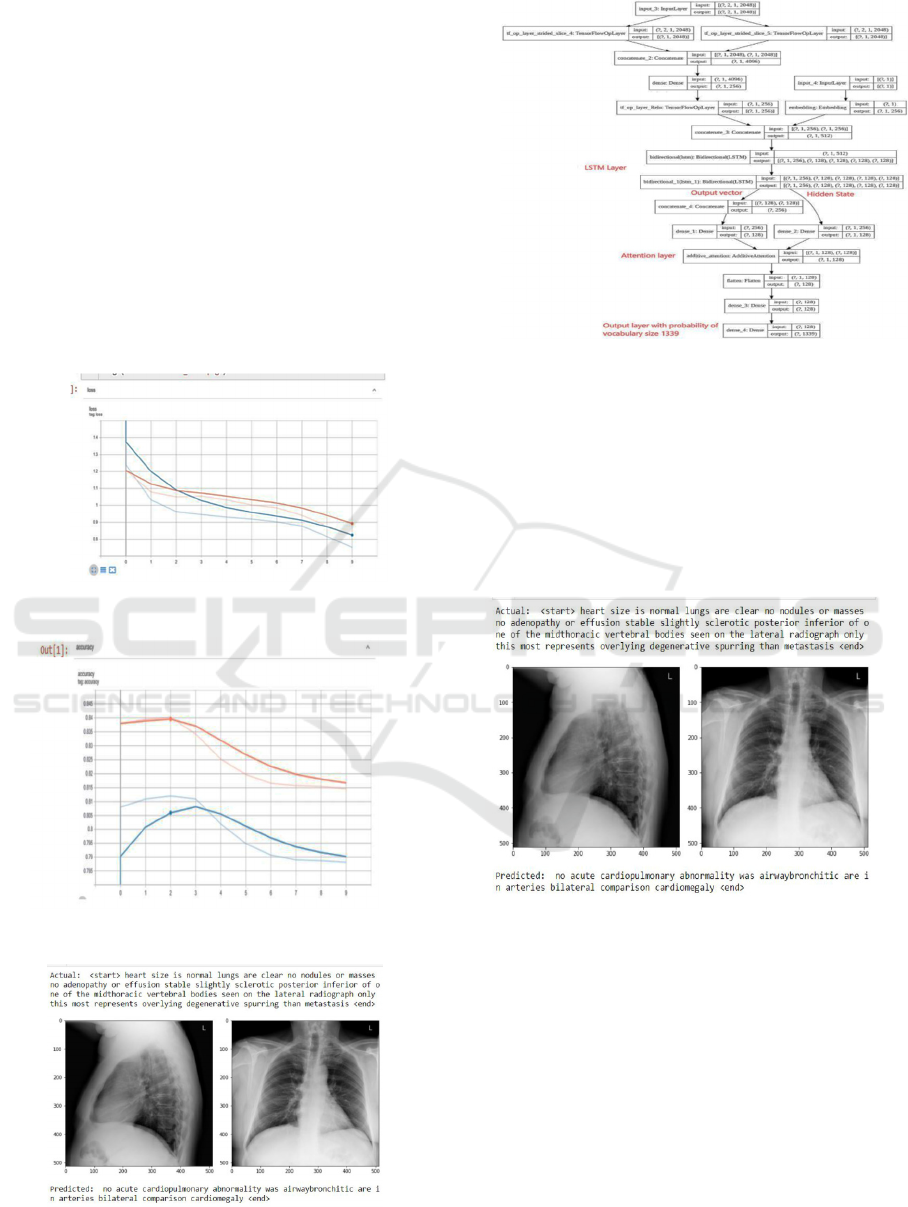

Figure 9: CNN-LSTM without attention loss

Figure 10: CNN-LSTM without attention accuracy

Figure 11: CNN-LSTM without attention resulted report

Figure 12: CNN-LSTM with attention architecture

3.5 Model with an Attention

Mechanism

The encoder part is the same as the previous model

architecture and summed image vector with a single

fully connected layer. In the decoder part lstm with

attention is used. Here additive attention (Local or

Bahdanau attention) is used.

Figure 13: CNN-LSTM with additive attention resulted

report

3.5.1 Model Evaluation

Beam search-based teacher forcing method is used

to find the resulting sentence. Beam search is used

here, as it chooses the most probable next step when

the sequence is made. It uses all possible next steps

and takes most likely k. Here k is user-specified and

controls the number of searches.

ICACSE 2021 - International Conference on Advanced Computing and Software Engineering

222

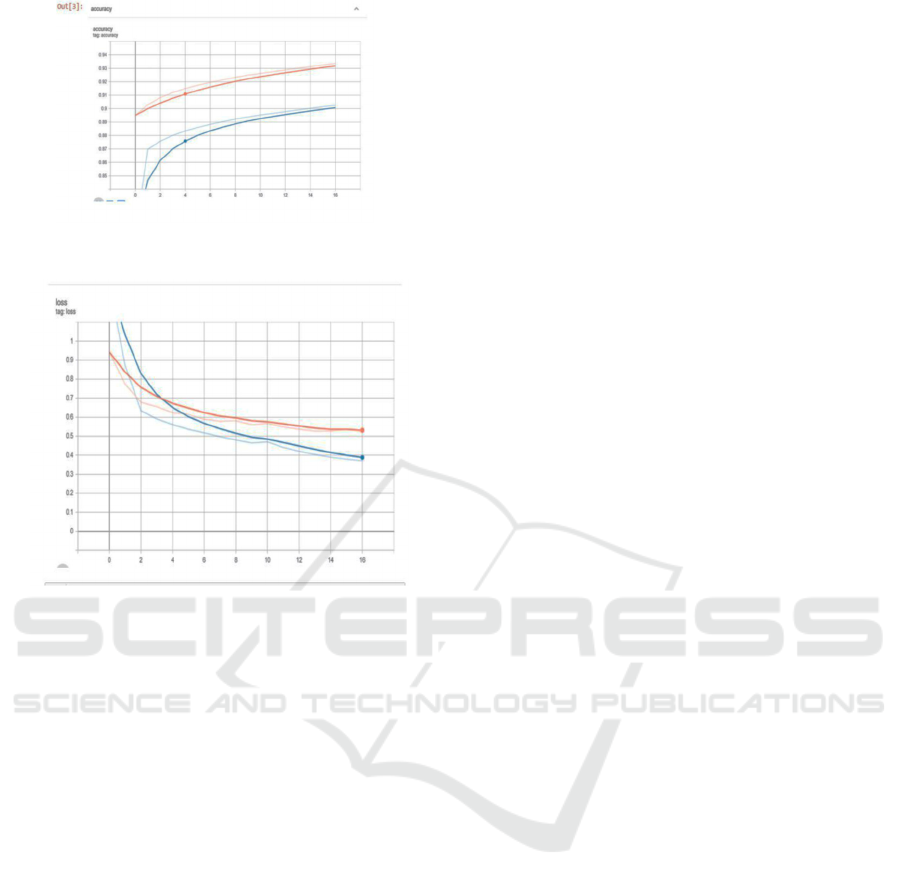

Figure 14: CNN-LSTM with additive attention accuracy

Figure 15: CNN-LSTM with additive attention loss

4 CONCLUSIONS

By comparing the results, Model Architecture of

attention-Based Long Short-Term Memory

Networks for Relation for the Classification worked

well in classification tasks than without attention.

Loss is converged to 0.3with an accuracy of 89

percent train and 92 percent validation from the

result we can see there is a similarity between each

predicted and actual output. Thus, by using the

attention mechanism, along with conventional deep

learning methods, we can improve the accuracy of

the model.

ACKNOWLEDGEMENTS

This paper and the research behind it would not have

been possible without the exceptional support of my

supervisor, Dr. Nagendra sir. His enthusiasm,

knowledge, and exacting attention to detail have

been an inspiration and kept my work on track from

our coding to the final draft of this paper. The

magnanimity and proficiency of one and all have

enhanced this study in innumerable ways and saved

us from many errors.

REFERENCES

Bahdanau, D., Cho, K. H., Bengio, Y. (2015). Neural

machine translation by jointly learning to align and

translate. Paper presented at 3rd International

Conference on Learning Representations, ICLR 2015,

San Diego, United States.

CNN+CNN: Convolutional Decoders for Image

Captioning. / Wang, Qingzhong; Chan, Antoni B

Yang, Z., Yuan, Y., Wu, Y., Salakhutdinov, R., and

Cohen, W. W., “Review Networks for Caption

Generation” 2016.

Semantic Analysis of Chest X-ray using an Attention-based CNN Technique

223
