CAD-based Grasp and Motion Planning for Process Automation in

Fused Deposition Modelling

Andreas Wiedholz

, Michael Heider

2 a

, Richard Nordsieck

, Andreas Angerer

, Simon Dietrich

and J

org H

ahner

2 b

XITASO GmbH IT & Software Solutions, Augsburg, Germany

Organic Computing Group, University of Augsburg, Germany

Faculty of Electrical Engineering, University of Applied Sciences Augsburg, Germany

simon.dietrich@hs-augsburg.de

Keywords:

Grasp Planning, Motion Planning, Planning, Robotic Pick, Automation, ROS, Digital Twin.

Abstract:

Planning the right grasp pose and motion into it has been a problem in the robotic community for more than 20

years. This paper presents a model-based approach for a Pick action of a robot that increases the automation

of FDM based additive manufacturing by removing a produced object from the build plate. We treat grasp

pose planning, motion planning and simulation-based veriﬁcation as separate components to allow a high

exchangeability. When testing a variety of different object geometries, feasible grasps and motions were

obtained for all objects. We also found that the computation time is highly dependent on the random seed,

leading us to employ a system of budgeted runs for which we report the estimated success probability and

expected running time. Within the budget, some objects never found feasible picks. Thus, we rotated these

objects by 90

◦

which lead to a substantial improvement in success probabilities.

1 INTRODUCTION

Planning grasps and motions are widely researched

problems in the robotic community, often ad-

dressed independently due to their great complexity

(Fontanals et al., 2014; Ghalamzan E. et al., 2016).

However, this renders the consideration of mutual in-

ﬂuences impossible and results in a missing plausi-

bility check. For example, if grasping is planned,

the resulting pose might be unavailable due to a re-

stricted kinematic. A grasp planner determines a suit-

able pose for the robot gripper in relation to an object

it is supposed to grasp. This pose should lead to a

grasp forming either a positive or non-positive con-

nection which secures the object during movement.

The motion planner, in contrast, determines a motion

from a start pose to a target pose. If the robot has to

do a Pick and Place manoeuvre, the robot ﬁrst adopts

the target pose before being able to grasp the object.

Subsequently, the robot moves it to the desired loca-

tion before releasing it.

In this paper, we present a new architecture to de-

https://orcid.org/0000-0003-3140-1993

https://orcid.org/0000-0003-0107-264X

termine grasp poses as well as motions to perform

a Pick manoeuvre. Since initial experiments have

shown that in our case study Place manoeuvres are

trivial, we focused our evaluation on the Pick ma-

noeuvre. We consider both robot and object location

as well as its orientation to be known and the environ-

ment to be free of unexpected obstacles. Although

object geometries can vary widely, they are known

prior to planning through exact CAD models. We sit-

uate our approach at a CAD based grasp and motion

planning system (CAROL) in the context of fused de-

position modelling (FDM)—an additive manufactur-

ing (AM) technique. Here, we encounter a large va-

riety of objects that need to be grasped differently.

However, as producing an object takes at least 15-20

minutes (and sometimes substantially longer), sufﬁ-

cient time remains for planning anew. Additionally,

in FDM, the exact CAD-models are always available

as well as the information about the position and ori-

entation of the object on the build plate and the target

position. Furthermore, the position and orientiation

of the object on the build plate can both be set freely.

In AM objects are rarely produced in large quanti-

ties and the variety of objects is considerable. There-

450

Wiedholz, A., Heider, M., Nordsieck, R., Angerer, A., Dietrich, S. and Hähner, J.

CAD-based Grasp and Motion Planning for Process Automation in Fused Deposition Modelling.

DOI: 10.5220/0010571204500458

In Proceedings of the 18th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2021), pages 450-458

ISBN: 978-989-758-522-7

fore, programming the robot manually for each object

(or even type of object) is not feasible. While in re-

cent years numerous approaches using machine learn-

ing for grasp planning have been studied (Zelch et al.,

2020), they share difﬁculties of generalizing to pre-

viously unknown objects and are typically trained on

domain speciﬁc datasets as shown by Zunjani et al.

(2018) and Depierre et al. (2018). Since all informa-

tion is known a priori in our use case, we are able

to circumvent these limitations by relying on a com-

pletely model-based approach.

In our evaluation we combine an explicit grasp

planning with an explicit motion planning based on

the exact 3D models of robot, environment and gras-

pable object. Explicit in this context means that we

do not estimate poses (Chen et al., 2018) or execute

random motions (Garg et al., 2020) towards a de-

sired pose. In theory, however, our approach does not

rely on this explicitness as we are able to validate the

planned motions and grasps through our simulation

which constitutes a digital twin.

2 RELATED WORK

In the past years, the state of the art in grasp planning

changed more and more from CAD-based (Miller

et al., 2003; Gatrell, 1989) to computer vision (Zhao

et al., 2019; Huang et al., 2020) and machine learn-

ing (ML) (Zunjani et al., 2018; Depierre et al., 2018)

based approaches. One possible reason for this trend

is the shifting of robot applications and their use cases

in recent years. In many current applications, the

robot has to recognize and pick up unsorted objects

lying on a desk in front of the robot (Tanwani et al.,

2019; Lee and Lee, 2020). In these scenarios, avail-

able information about the object geometry or posi-

tion is insufﬁcient to manipulate it using a robot arm.

Therefore, a common approach is to use cameras and

computer vision to acquire the missing information.

Also, new technologies, big databases and well

trained networks help to improve the performance and

success rate of ML-based robot applications. Neu-

ral networks, in particular Convolutional Neural Net-

works (CNNs), are being used to predict grasp con-

ﬁgurations in robot applications. Mahler et al. (2018)

developed Dex-Net, which relies on CNNs to plan ro-

bust grasps. With the help of this network, it was pos-

sible to execute grasp planning with a cellphone and

an augmented reality app (Zhang et al., 2020). Fur-

thermore, Kumra and Kanan (2017) present a robotic

grasp detection system that uses an RGB-D image

of a scene to extract features of the environment and

then uses a CNN to predict the grasp conﬁguration for

the object to be grasped. Another approach that uses

learning systems is from Bohg and Kragic (2010).

The authors train a machine learning model from sev-

eral examples and test it on novel objects. With their

experiments, they show that a non-linear classiﬁca-

tion algorithm with shape context can lead to a stable

detection of grasping points for many different ob-

jects.

Model-based approaches require exact knowledge

of the environment, including all possible obstacles

if the robot is not equipped with collision avoidance,

which is a cost factor in real-world problems. Hou

et al. (2018) tried to achieve a more stable grasp by

pivoting and compliant rolling (rolling a grasped ob-

ject over the surface to improve the grasp quality) af-

ter the gripper ﬁrst grasped the object. To achieve

lower computation times Goldfeder et al. (2007) sim-

plify CAD models with the help of decomposition

trees and superquadrics. Superquadrics are objects

with a simple geometry such as a cylinder or cuboids.

The authors ﬁrst abstract the complex object with

only one superquadric. The abstraction is iteratively

reﬁned until a satisfactory precision is reached by

adding more superquadrics. Then they start to plan

and execute the grasp.

For real world applications not only grasp plan-

ning but also motion planning is required. Depend-

ing on the use case you may dispense with an exact

grasp planning and use a grasp pose estimation in-

stead. Huang et al. (2020) implemented a moving

object tracking algorithm that detects and grasps an

object that moves on a conveyor belt setup or with a

random motion. One possibility for planning a move-

ment is to use a Voronoi diagram as seen by Dorn

et al. (2020): In their paper, they present the genera-

tion of Voronoi diagrams using a voxelization of the

surface with a GPU render approach. The accuracy

of their diagram for subsequent path planning meets

requirements of only a few millimetres tolerance.

Many approaches use point clouds to acquire in-

formation about the object and use it to calculate a

feasible target pose (Gonc¸alves and Lima, 2019; Rosa

et al., 2016).

These sorts of approaches often use RGB-D cam-

eras to generate these point clouds of the object for

planning. As shown by Chen et al. (2018), some in-

formation about the object is lost when only using

point clouds even if there are two cameras installed.

Garg et al. (2020) describe a system that helps one-

armed people to grasp objects from their environ-

ment by marking an object the robot is supposed to

grasp with a laser pointer. With a stereo-camera and

OpenCV, information about the object is gathered in

the form of point clouds and used in the motion plan-

CAD-based Grasp and Motion Planning for Process Automation in Fused Deposition Modelling

451

ning with ROS (Quigley et al., 2009) and MoveIt!

orner et al., 2019). Huh et al. (2018) present a

sampling-based motion planning method for Pick and

Place manoeuvres with high DoF manipulators. Their

approach efﬁciently selects the optimal grasp pose for

manipulators with redundant degrees of freedom, thus

achieving much lower computation times than other

sampling-based motion planners. In an ROS context,

MoveIt! is a widely used tool for CAD and sampling

based motion planning. The latest version of MoveIt!

offers a continuous collision detection

and a grasp

planner

which uses Dex-Net as described by Mahler

et al. (2018). We provide the same functionality but

enable exchangeability of speciﬁc components e. g. if

a non-integrated component is anticipated to lead to

better results. In addition, we use the exact 3D mod-

els of all objects involved in the process for grasp as

well as for motion planning.

As the additive manufacturing scenario provides

us with exact models, we have more detailed informa-

tion available than computer vision based estimation

methods (Chen et al., 2018), which we utilize to gen-

erate better grasps. Another method that utilizes 3D

models to improve picking and detaching target ob-

jects in an additive manufacturing scenario is shown

by Becker et al. (2020). They use CAD models (i.e.

STL ﬁles) and combine them with GCODE—FDM

printer instructions that are used to print each layer

of the object—to generate collision free trajectories.

In contrast to this approach we ﬁrst have to calcu-

late target robot poses because we have to grasp ob-

jects we do not have precalculated good grasp poses

for. In contrast to Fontanals et al. (2014), we sepa-

rate grasp and motion planing, rather than integrating

them. This provides the beneﬁt that if either grasp

planner, motion planner or simulation do not work

perfectly for a speciﬁc use case or scenario, they are

easily exchangeable. This is aided by deﬁning ab-

stract interfaces, each of which aims to address in-

dividual sub-problems.

3 METHODOLOGY

In this section, we introduce our approach of a CAD

based grasp and motion planning system (CAROL).

Figure 1 shows the general workﬂow as a state

machine. The states are named gp for grasp planning,

mp for motion planning, sim for simulation and r for

https://ros-planning.github.io/moveit tutorials/doc/

bullet collision checker/bullet collision checker.html

https://ros-planning.github.io/moveit tutorials/doc/

moveit deep grasps/moveit deep grasps tutorial.html

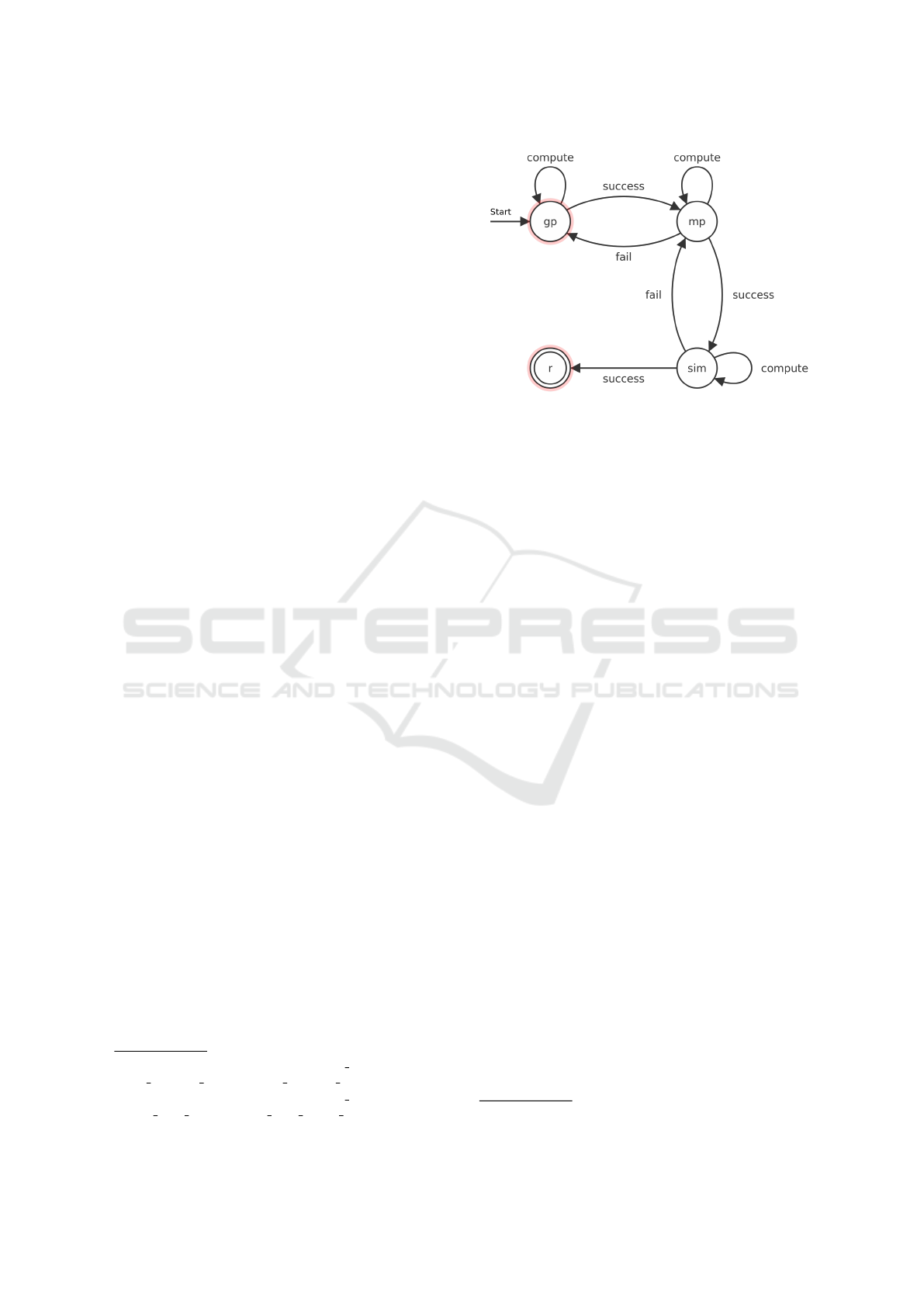

Figure 1: Finite state machine of the process for planning a

movement for the robot.

robot. The exchange of data between grasp and

motion planning and simulation is limited to the

necessary information (i.e. grasp poses, gripper

positions or desired joint positions required during

pathing). As soon as the grasp planner has found

good grasps, these grasps will be sent to the motion

planner. The motion planner then tries to ﬁnd a ﬁtting

motion and if it succeeds, the motion is validated in

a simulation. If no motion could be found or if all

motions found were rejected by the simulation, the

grasp planner is executed to ﬁnd new grasps. This is

repeated until a motion is validated in the simulation

and can be sent to the robot for execution.

We use GraspIt! (version 4.0.0) (Miller and Allen,

2004) for grasp planning, MoveIt! (version 1.0.7) for

motion planning and Gazebo

(version 9.0) as sim-

ulation. GraspIt! tests thousands of possible grasp

conﬁgurations, evaluates these non-positive connec-

tions according to Grasp Wrench Space quality met-

rics and returns the best ones. The kinematic of the

robot is not considered in GraspIt!, which leads to

the generation of non-feasible grasp poses. MoveIt!

wraps the Open Motion Planning Library (OMPL)

(Sucan et al., 2012). Of the sampling based motion

planning algorithms implemented in OMPL we use

RRT* (Noreen et al., 2016). Gazebo is an often used

simulation for robotics applications, in particular in

conjunction with the Robot Operating System (ROS).

We use ROS for connecting all these components. In

this ROS context, we implemented nodes, which use

GraspIt! or MoveIt! and manage the reactions of the

components to speciﬁc events e. g. failure in motion

planning or rejection of a motion in the simulation.

The huge advantage of implementing a separate node

for every sub-problem is the easy interchangeability

of the planners. This interchangeability is further re-

http://gazebosim.org/

ICINCO 2021 - 18th International Conference on Informatics in Control, Automation and Robotics

452

inforced by relying on standard message types of ROS

for data exchange. Therefore, no component speciﬁc

messages are needed. We found that MoveIt!’s stan-

dard hyperparameter settings were appropriate for our

use case. The code, installation and usage instructions

are freely available on GitHub

4 CASE STUDY

CAROL is developed in the context of a research

project with the aim to optimize the parameteriza-

tion process of fused deposition modelling by study-

ing environmental inﬂuences on the process (Nord-

sieck et al., 2019). To this end, we extract rules based

on operator interactions (Nordsieck et al., 2021) and

combine them with learning systems (Heider et al.,

2020) which requires an accurate dataset. To build

this dataset, we perform extensive series of test prints

of different objects. After each print job, the printed

object currently has to be removed manually from the

printing plate before the next print job can start. To

reduce the manual effort and increase throughput of

print jobs, we want to automate this process by using

a robot to remove constructed objects from the build

plate. Thus, the research question for this case study

can be formulated as follows:

Is it feasible to achieve robust robot-based

automation in unloading varying printed parts from

an FDM printer?

Figure 2 shows our real world setup with a 5 DoF

manipulator Kuka YouBot placed in front of a Creal-

ity Ender 3 printer. An example showing the setup in

motion executing CAROLs instructions can be found

here

. A Raspberry Pi 2B with OctoPrint

(version

1.3.11) is connected to the Ender 3. OctoPrint is a

web interface with which a user can control an FDM

printer, upload ﬁles to print, access information from

sensors and add plugins for additional functionality.

In Figure 3, an example architecture for automat-

ing object removal with a robot in an FDM scenario is

shown. A slicer, e. g. Cura

, turns STL ﬁles into ma-

chine readable GCode. The STL ﬁles and the GCode

are uploaded to a database from which a machine

control system (MCS)—in our case OctoPrint—can

obtain the GCode and manage the FDM printer. The

MCS also triggers CAROL, which fetches the re-

quired data from the database and starts the planning

https://github.com/XITASO/CAROL

https://xitaso.com/wp-content/uploads/carol.mp4

https://octoprint.org/

https://ultimaker.com/de/software/ultimaker-cura

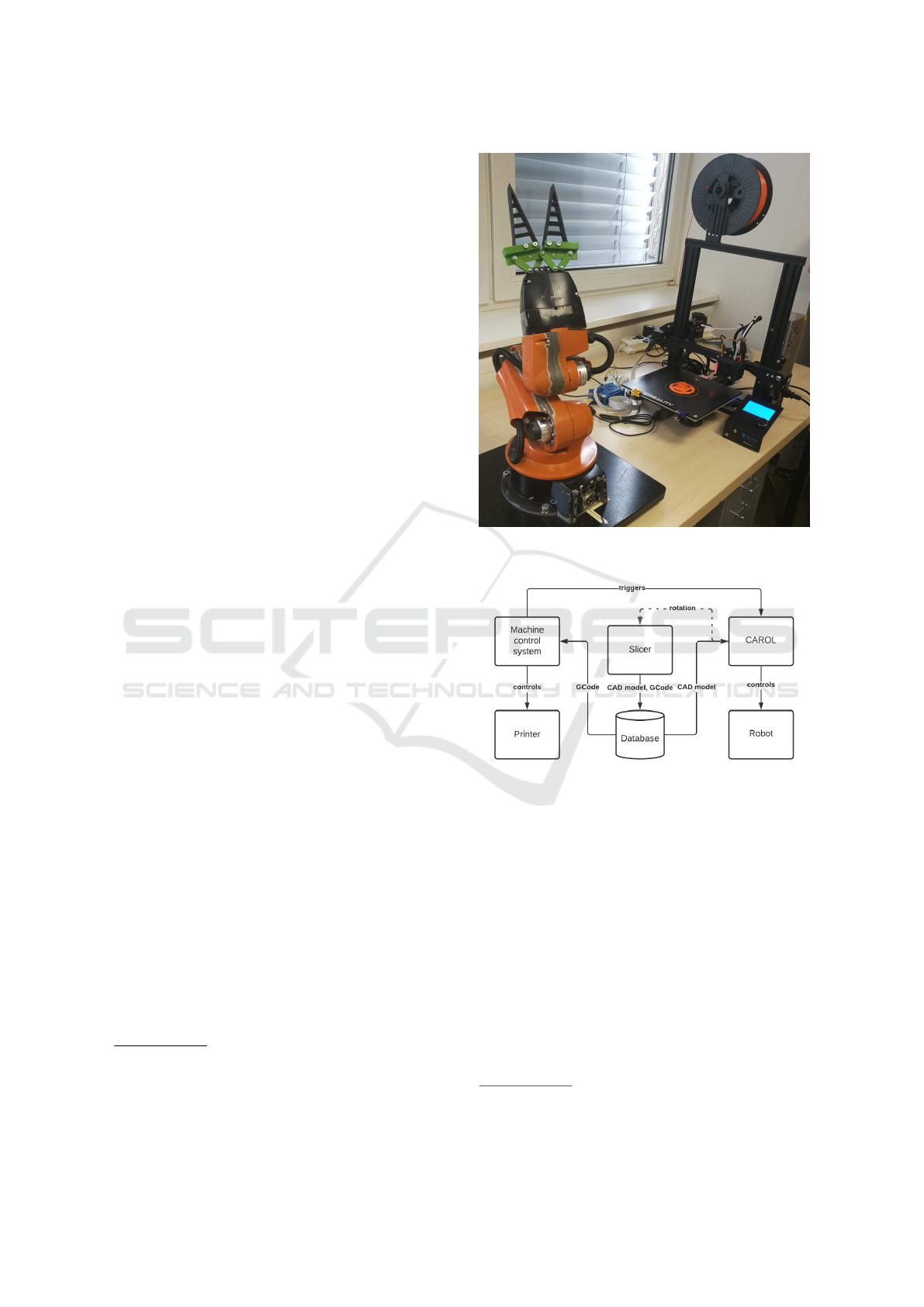

Figure 2: Real world setup with the robot (using a soft grip-

per) in front of the cartesian FDM printer.

Figure 3: Our software architecture for integrating robotic

automation into FDM.

and execution of the robot movement. It is fur-

thermore possible (but not yet implemented in our

work) to let CAROL control the rotation of the

printed object by specifying the desired rotation in

the Slicer component.

Using the youBot poses signiﬁcant challenges to

CAROL: aside from the kinematic restrictions caused

by having only 5 DoF, the YouBot suffers from addi-

tional restrictions due to its rigid gripper, which strug-

gles to grasp complex objects.

To address the grasping related restrictions, we

also evaluated a contact-driven deformation based

soft gripper

, that is more likely to successfully grasp

or manipulate a large variety of objects (Shintake

et al., 2018). However, the soft gripper introduces

http://www.youbot-store.com/developers/

soft-two-ﬁnger-gripper-75

CAD-based Grasp and Motion Planning for Process Automation in Fused Deposition Modelling

453

new kinematic restrictions to be solved during plan-

ning due to its bigger size. Nevertheless, from our

point of view these challenges will help the general-

ity and transferability of our approach CAROL—if it

can handle them, it should be easily adaptable to stan-

dard 6 DOF robots.

5 EVALUATION

To evaluate our approach, we designed experiments in

which we placed the robot in different positions rela-

tive to the FDM printer, manipulated objects with dif-

ferent geometries and utilized two different grippers.

The robot was placed to the left (−90

◦

), in front (0

◦

)

or to the right (+90

◦

) of the FDM printer. We sus-

pected the difﬁculty of ﬁnding a grasp to also vary

with object orientation. Thus, we utilized a two tiered

experimental design. Firstly, we tested CAROL with

the object’s default orientation, which is determined

by the way the slicer places the object on the build

plate based on the information contained in the CAD

model. Secondly, we rotated the object by 90

◦

along

the z-axis and re-applied CAROL. To conserve com-

putation time, we only performed the second tier ex-

periment series whenever the ﬁrst tier showed sub par

results. We ran each experiment 30 times to elim-

inate statistical inﬂuence. A run is successful (and

completes) if CAROL was able to ﬁnd a feasible mo-

tion into a pose that allows to grasp the desired object.

This motion has to be collision-free and validated by

the digital twin in the simulation. GraspIt! as well as

the motion planning algorithms wrapped by MoveIt!

are probabilistic. Thus, restarts of those components

(unless initialised using the same seed) explore the

search space differently. Runs are budgeted, i.e. af-

ter a certain amount of computation time was spent,

the run is stopped even without ﬁnding a valid motion

and grasp. As we expect the production process of a

singular object to take at least 20 minutes (including

the time to preheat the components and let the ob-

ject cool down to solidify), we set that budget to 20

minutes, although feasible solutions are usually found

much faster, cf. Table 2. The evaluation can easily

run on typical ofﬁce hardware without the need for

high performance computing. In our case we utilised

a Lenovo Thinkpad T470p with an Intel

 Core

i7-

7700HQ@2.80 GHz and 16 GB RAM. The ROS in-

terface

we used for GraspIt! does not support multi-

threading. However, motion planning with MoveIt!

has better multi-threading support and runs on at least

two cores simultaneously.

https://github.com/JenniferBuehler/graspit-pkgs

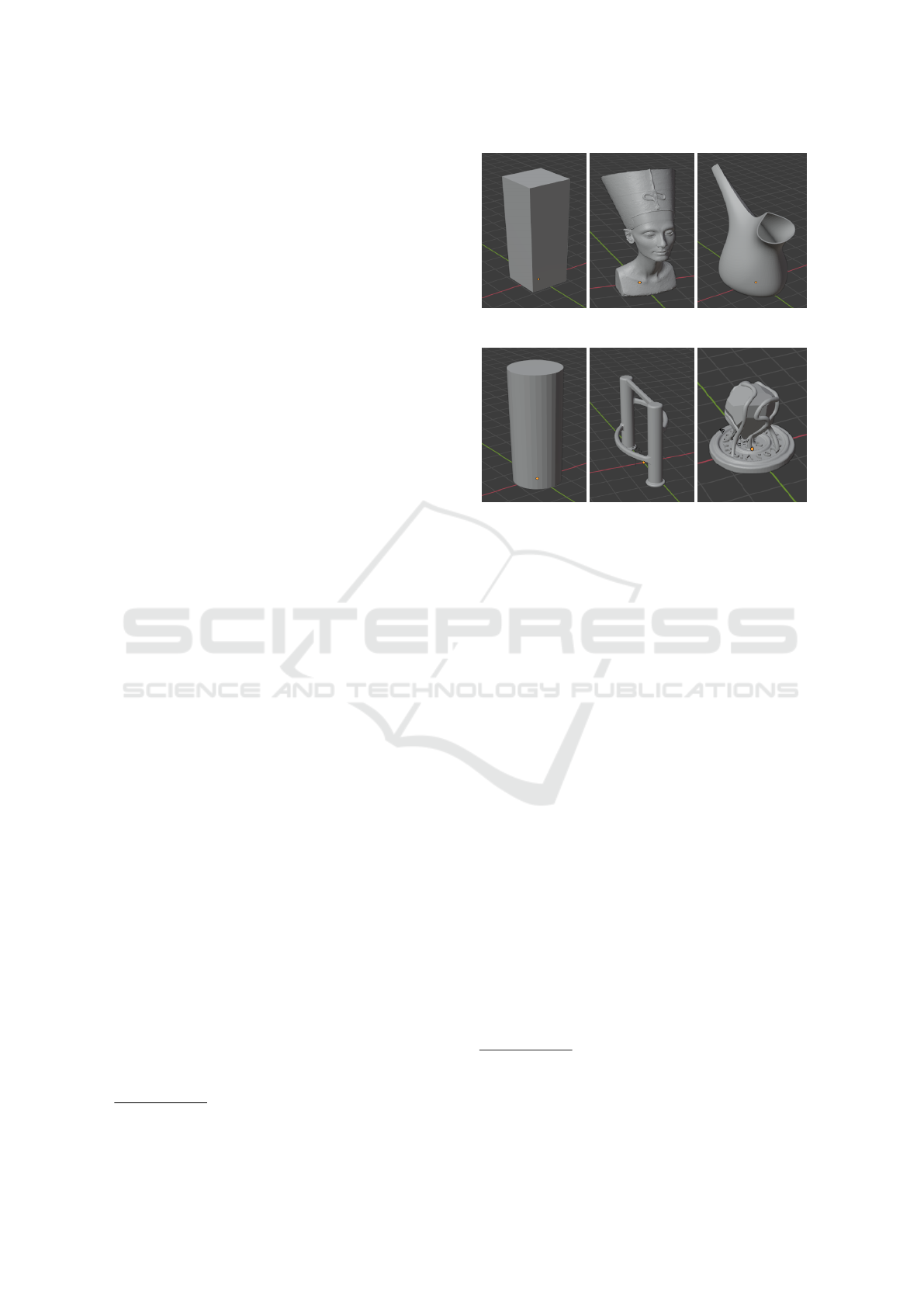

(a) Box.

(b) Nefertiti

. (c) Watering can

(d) Cylinder.

(e) 3D print test

. (f) Stone

Figure 4: Objects of widely varying geometry tested with

CAROL.

For evaluation, we utilise the Estimated Success

Probability (ESP) which describes the probability of

ﬁnding a motion that is validated by the simulation

in a single run. As we deﬁne ﬁnding a feasible solu-

tion as a successful run, the ESP is equivalent to the

Feasibility Rate. ESP is determined by the ratio of

successful runs to the total number of runs.

The six objects of varying geometrical complex-

ity for which we evaluated CAROL are shown in Fig-

ure 4. In the depiction, they are rotated for the best

visibility of their geometrical features.

The results of our experiments presented in Ta-

ble 1 show that all objects are graspable from at least

one position of the robot relative to the FDM printer.

However, the rotation of the object by 90

◦

(denoted

by r behind the reference) achieved successful runs

without the need to modify the robot’s position. Thus,

we conclude that when runs are not successful after a

certain amount of computation budget was spent, the

rotated object should be tested instead. In our experi-

ence, rotating the object did not negatively impact the

production process. Note that the success rate is fore-

most dependent on the grasp poses provided by the

grasp planner, with some poses not feasible in cer-

tain robot positions. For instance, in our experiments

with objects 4b and 4e, the original success rates dif-

https://www.thingiverse.com/thing:1376105

https://www.thingiverse.com/thing:770590

https://www.thingiverse.com/thing:2397160

ICINCO 2021 - 18th International Conference on Informatics in Control, Automation and Robotics

454

Table 1: Estimated Success Probability (ESP) [%] of a bud-

geted run to ﬁnd a feasible solution.

parallel gripper soft gripper

obj left front right left front right

4a 93 57 73 53 80 67

4b 3 80 0 0 50 0

4b r 97 3 90 30 13 40

4c 80 7 57 23 63 3

4c r 0 90 7 77 33 63

4d 20 17 17 47 23 23

4e 37 90 13 0 93 0

4e r 70 0 93 93 0 90

4f 97 67 13 27 20 13

Table 2: Expected running time (ERT) [min:sec] to ﬁnd a

feasible solution. ∞ is used to denote experiments for which

no solution was found in the given computation budget.

parallel gripper soft gripper

obj left front right left front right

4a 4:55 5:43 6:14 6:48 7:13 5:54

4b 7:42 5:35 ∞ ∞ 7:21 ∞

4b r 5:11 9:19 5:22 6:29 6:44 6:48

4c 5:48 2:14 8:04 10:47 7:15 16:51

4c r ∞ 5:36 8:09 6:33 10:35 7:27

4d 5:53 8:50 7:46 11:45 10:20 6:00

4e 9:16 6:24 6:43 ∞ 4:54 ∞

4e r 6:09 ∞ 8:32 3:00 ∞ 7:19

4f 4:03 9:19 8:33 10:26 5:43 19:28

fer considerably from the rates of the rotated object.

Objects such as 4a and 4d, that should not neces-

sitate a speciﬁc orientation of the robot due to their

symmetry, have approximately the same success rates

for at least two of the tested positions. The angular ge-

ometry of object 4a results in more stable grasps from

certain poses than others, whereas for object 4d, the

orientation of the grasp pose has no inﬂuence on the

grasp quality. Object 4d is an especially interesting

case as its seemingly simple geometry would indicate

that it is easy to grasp. Nonetheless, neither compu-

tation times nor success rates reﬂect that assumption.

A likely explanation is that, as it is round, the grip-

per connects to a limited contact area, which leads to

unstable grasps.

We assume that the importance of the grasp pose is

increased because we have a missing DoF in our ma-

nipulator that is ﬁxed in a certain position. Therefore,

we are only able to accept a limited range of orienta-

tions in our target pose. Additionally, in the case of

the parallel gripper, we want to grasp objects that just

ﬁt in between the ﬁngers. Consequently, there is not

much space available to accept target poses with ori-

entations slightly out of our range for desired poses.

The expected running time (ERT) (Price, 1997) is

the computation time we expect a successful run to

take in order to ﬁnd a validated motion. The ERT is

calculated as follows, with n as number of successful

planning attempts and t

as the time to conclude a

singular run m ∈ {0, ..., n}:

ERT

object

∑

m=1

The ERT—in combination with the ESP—indicates

whether the time to plan a grasp and motion is sufﬁ-

cient if we consider continuous production of objects.

Note that unsuccessful runs always consume the al-

lotted budget and that we assume a ﬁxed and limited

hardware.

The results of our experiments in regards to ERT

are shown in Table 2. An ERT with the value ∞ is

placed whenever we were not able to ﬁnd a valid mo-

tion for an experiment. We observe an ERT of ∞ in

experiments 6b, 6c r, 6e and 6e r. However, if the

object was rotated, we were able to ﬁnd a valid mo-

tion for all cases. Consequently, it can plausibly be

assumed that a speciﬁc point exists at which it would

be more efﬁcient to restart the planning process with a

rotated object. Finding this point would require exten-

sive statistical analysis which we have not performed

yet. However, employing this principle, CAROL can

automatically ﬁnd a valid motion for 100% of tested

objects. From our experience, we can furthermore as-

sume that users will require only moderate amounts of

experience to estimate productive rotations from the

object geometry alone.

Interestingly, ESP and ERT do not seem to in-

versely correlate. Hence, it seems likely that some

random seeds used by our planning processes are in-

herently better suited for exploration than others. The

presented times may seem very high in comparison

to state-of-the-art evaluations shown by (Meijer et al.,

2017; Yang et al., 2018). However, it has to be noted

that their evaluations refer only to motion planning

by itself. A target pose was given beforehand and

did therefore not have to be computed. Of the pre-

sented times, our grasp planner takes about two thirds

(66%) of the total computation time, thus, exchang-

ing GraspIt! with a faster grasp planner would reduce

the total computation time considerably. This eval-

uation should show that our approach with separated

grasp and motion planning is able to ﬁnd a simulation-

approved collision free trajectory to grasp every tested

object even for a 5 DOF manipulator. In contrast

to other approaches for grasp and motion planning

(Fontanals et al., 2014; Vahrenkamp et al., 2010), our

approach allows to easily exchange all components

such as grasp planner, motion planner or the robot.

CAD-based Grasp and Motion Planning for Process Automation in Fused Deposition Modelling

455

Coming back to the research question established

in Section 4, we can now answer it as follows: Yes, ro-

bust robot-based automation in unloading FDM print-

ers is feasible based on our approach and state-of-the-

art automatic planning algorithms—at least if the ro-

tation of the printed objects is actively controlled or

the robot has a sufﬁciently large workspace. In the

case of the YouBot, the workspace could be extended

by placing it on its mobile robot base, which poses

new challenges of course, e.g. regarding positioning

accuracy.

6 FUTURE WORK

For our use case, the overall results are sufﬁcient as

computation times were lower than individual pro-

duction times, which allows us to automate object re-

moval. However, we intend to further evaluate the

degree of certainty of the simulation by conducting

more real world experiments.

Furthermore, we would like to evaluate the ap-

plicability of our approach to other domains such as

CNC milling. If the approach is to be transferred

to domains with stricter requirements for computa-

tional time, ERT should be improved to avoid in-

creased hardware requirements. The biggest room

for improvement lies within the generation of feasi-

ble grasps. Therefore, evaluating other grasp planners

or at least multi-threading GraspIt! should be consid-

ered. To the best of our knowledge, there are no ap-

proaches that use a CAD-based ANN for grasp plan-

ning. Consequently, we want to develop one and eval-

uate its performance by comparing it with point cloud

based ANN approaches such as (Staub et al., 2019).

While we expect that improvements in regards to ESP

should be marginal, the computation time is likely to

be reduced. Another possible improvement could be

provided by a grasp planner that is able to take the

object’s and gripper’s geometry into consideration to

produce grasps that form positive connections.

We also expect improvements by employing a

grasp planner capable of considering previous suc-

cessful grasps when generating new ones to increase

the probability of generating a feasible grasp, in turn

also decreasing computation times. As our current

data set of successful grasps is quite small, training

machine learning models for grasp estimation based

on object geometry is not yet feasible. However, con-

tinued use of our setup or validation with GraspIt!

and a simulation will help us create a suitable dataset.

A possible candidate architecture for a machine learn-

ing model is Dex-Net (Mahler et al., 2018), which

already contains a multitude of objects and feasible

grasps for parallel jaw grippers.

Another improvement with regards to grasp plan-

ning would be better handling of the soft gripper with

more contact points and a physics enabled simulation.

To the best of our knowledge, robots with 6 or 7

DoF are more common than those with 5 DoF. Conse-

quently, the effect of the missing DoF should be eval-

uated. We expect it to negatively affect ESP and ERT

since, with an additional DoF, more grasp poses de-

termined by the grasp planning can be reached, hence

resulting in a higher probability and lower computa-

tion times to ﬁnd successful grasp-motion combina-

tions. Given that CAROL is indeed able to work with

only 5 DoF this can also help further validate our ap-

proach. Additionally, we want to extend CAROL by

the capability to automatically rotate the object and

reiterate grasp and motion planning if a valid motion

could not be found (cf. Figure 3).

7 CONCLUSION

We presented CAROL, an entirely model-based grasp

and motion planning approach to unload a print bed

in FDM-based manufacturing. CAROL successfully

integrates motion planning, grasp planning and a dig-

ital twin in simulation for veriﬁcation before online

execution. We designed our approach with a focus

on low coupling. Every component is independent of

the others and can therefore be exchanged comfort-

ably without requiring code changes in other com-

ponents. In our evaluation, we have shown that we

are able to ﬁnd both grasp and motion that were vali-

dated by the simulation for all objects. In preliminary

real world tests, we found that, with a soft gripper, all

pick manoeuvres were successful, although we plan

on expanding these tests in the future as we further in-

tegrate CAROL into our additive manufacturing sce-

nario. However, we note that the computation time

differs between objects. One reason for the arguably

large computation time is that we aim to use a 5 DoF

robot with its kinematic limitations, which are not

easily considered in grasp planning. This leads to the

generation of grasps that are not feasible for the robot

restarting planning until feasible grasps are found.

The grasp planning component GraspIt! takes

about two thirds (66%) of the total computation time.

Thus, we identify the future improvement of this com-

ponent as the most important. However, even now,

grasps are usually found acceptably fast for the appli-

cation in an additive manufacturing setting where in-

dividual production times are high. On standard ofﬁce

hardware, we can still operate multiple robot printer

setups at once.

ICINCO 2021 - 18th International Conference on Informatics in Control, Automation and Robotics

456

CAROL has three main advantages over vision

guided approaches: (1) higher grasp precision, which

is obtained by utilizing information about the object’s

geometry; (2) no sensory requirements (e. g. camera);

(3) easy adaptability to other domains.

Thus, CAROL provides highly precise grasps as

well as veriﬁed collision avoidance for geometrically

complex objects while requiring neither expensive

computing nor complex sensory hardware. In addi-

tion, the simple interchangeability of its major com-

ponents allows for independent further optimization

and adaptation as required in different settings and

target domains.

REFERENCES

Becker, P., Eichmann, C., Roennau, A., and Dillmann, R.

(2020). Automation of post-processing in additive

manufacturing with industrial robots. In 2020 IEEE

16th International Conference on Automation Science

and Engineering (CASE), pages 1578–1583.

Bohg, J. and Kragic, D. (2010). Learning grasping points

with shape context. Robotics and Autonomous Sys-

tems, 58(4):362–377.

Chen, Y., Sun, G., Lin, H., and Chen, S. (2018). Ran-

dom bin picking with multi-view image acquisition

and cad-based pose estimation. In 2018 IEEE Interna-

tional Conference on Systems, Man, and Cybernetics

(SMC), pages 2218–2223.

Depierre, A., Dellandr

ea, E., and Chen, L. (2018).

Jacquard: A Large Scale Dataset for Robotic Grasp

Detection. In 2018 IEEE/RSJ International Confer-

ence on Intelligent Robots and Systems (IROS), pages

3511–3516.

Dorn, S., Wolpert, N., and Sch

omer, E. (2020). Voxel-

based General Voronoi Diagram for Complex Data

with Application on Motion Planning. In 2020 IEEE

International Conference on Robotics and Automation

(ICRA), pages 137–143.

Fontanals, J., Dang-Vu, B., Porges, O., Rosell, J., and Roa,

M. A. (2014). Integrated grasp and motion planning

using independent contact regions. In 2014 IEEE-RAS

International Conference on Humanoid Robots, pages

887–893.

Garg, V., Sharma, T., Kumar, A., and Rastogi, V. (2020).

Handaid: A seven DoF Semi-Autonomous Robotic

Manipulator. In 2020 5th International Conference

on Control and Robotics Engineering (ICCRE), pages

37–41.

Gatrell, L. B. (1989). CAD-based grasp synthesis utiliz-

ing polygons, edges and vertexes. In Proceedings,

1989 International Conference on Robotics and Au-

tomation, pages 184–189 vol.1.

Ghalamzan E., A. M., Mavrakis, N., Kopicki, M., Stolkin,

R., and Leonardis, A. (2016). Task-relevant grasp se-

lection: A joint solution to planning grasps and ma-

nipulative motion trajectories. In 2016 IEEE/RSJ In-

ternational Conference on Intelligent Robots and Sys-

tems (IROS), pages 907–914.

Goldfeder, C., Allen, P. K., Lackner, C., and Pelossof, R.

(2007). Grasp Planning via Decomposition Trees. In

Proceedings 2007 IEEE International Conference on

Robotics and Automation, pages 4679–4684.

Gonc¸alves, J. and Lima, P. (2019). Grasp Planning

with Incomplete Knowledge About the Object to

be Grasped. In 2019 IEEE International Confer-

ence on Autonomous Robot Systems and Competitions

(ICARSC), pages 1–6.

orner, M., Haschke, R., Ritter, H., and Zhang, J. (2019).

MoveIt! Task Constructor for Task-Level Motion

Planning. In 2019 International Conference on

Robotics and Automation (ICRA), pages 190–196.

Heider, M., P

atzel, D., and H

ahner, J. (2020). Towards

a Pittsburgh-Style LCS for Learning Manufacturing

Machinery Parametrizations. In Proceedings of the

2020 Genetic and Evolutionary Computation Confer-

ence Companion, GECCO ’20, pages 127–128, New

York, NY, USA. Association for Computing Machin-

ery.

Hou, Y., Jia, Z., and Mason, M. T. (2018). Fast Planning

for 3D Any-Pose-Reorienting Using Pivoting. In 2018

IEEE International Conference on Robotics and Au-

tomation (ICRA), pages 1631–1638.

Huang, J., Zhang, F., Dong, X., Yang, R., Xie, J., and

Shang, W. (2020). Vision-guided Dynamic Object

Grasping of Robotic Manipulators. In 2020 IEEE In-

ternational Conference on Mechatronics and Automa-

tion (ICMA), pages 460–465.

Huh, J., Lee, B., and Lee, D. D. (2018). Constrained

sampling-based planning for grasping and manipu-

lation. In 2018 IEEE International Conference on

Robotics and Automation (ICRA), pages 223–230.

Kumra, S. and Kanan, C. (2017). Robotic grasp detec-

tion using deep convolutional neural networks. In

2017 IEEE/RSJ International Conference on Intelli-

gent Robots and Systems (IROS), pages 769–776.

Lee, S. and Lee, Y. (2020). Real-Time Industrial Bin-

Picking with a Hybrid Deep Learning-Engineering

Approach. In 2020 IEEE International Conference

on Big Data and Smart Computing (BigComp), pages

584–588.

Mahler, J., Matl, M., Liu, X., Li, A., Gealy, D., and Gold-

berg, K. (2018). Dex-Net 3.0: Computing Robust

Vacuum Suction Grasp Targets in Point Clouds Using

a New Analytic Model and Deep Learning. In 2018

IEEE International Conference on Robotics and Au-

tomation (ICRA), pages 5620–5627.

Meijer, J., Lei, Q., and Wisse, M. (2017). An empirical

study of single-query motion planning for grasp exe-

cution. In 2017 IEEE International Conference on Ad-

vanced Intelligent Mechatronics (AIM), pages 1234–

1241.

Miller, A. T. and Allen, P. K. (2004). Graspit! a versa-

tile simulator for robotic grasping. IEEE Robotics Au-

tomation Magazine, 11(4):110–122.

Miller, A. T., Knoop, S., Christensen, H. I., and Allen,

P. K. (2003). Automatic grasp planning using shape

CAD-based Grasp and Motion Planning for Process Automation in Fused Deposition Modelling

457

primitives. In 2003 IEEE International Conference

on Robotics and Automation (Cat. No.03CH37422),

volume 2, pages 1824–1829 vol.2.

Nordsieck, R., Heider, M., Angerer, A., and H

ahner, J.

(2019). Towards Automated Parameter Optimisation

of Machinery by Persisting Expert Knowledge. pages

406–413.

Nordsieck, R., Heider, M., Winschel, A., and H

ahner,

J. (2021). Knowledge Extraction via Decentral-

ized Knowledge Graph Aggregation. In 2021 IEEE

15th International Conference on Semantic Comput-

ing (ICSC), pages 92–99.

Noreen, I., Khan, A., Habib, Z., et al. (2016). Optimal

path planning using RRT* based approaches: a sur-

vey and future directions. Int. J. Adv. Comput. Sci.

Appl, 7(11):97–107.

Price, K. V. (1997). Differential evolution vs. the functions

of the 2/sup nd/ ICEO. In Proceedings of 1997 IEEE

International Conference on Evolutionary Computa-

tion (ICEC ’97), pages 153–157.

Quigley, M., Conley, K., Gerkey, B., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. (2009). ROS: an

open-source Robot Operating System. volume 3.

Rosa, S., Russo, A., Saglinbeni, A., and Toscana, G.

(2016). Vocal interaction with a 7-DOF robotic arm

for object detection, learning and grasping. In 2016

11th ACM/IEEE International Conference on Human-

Robot Interaction (HRI), pages 505–506.

Shintake, J., Cacucciolo, V., Floreano, D., and Shea, H.

(2018). Soft robotic grippers. Advanced Materials,

30(29):1707035.

Staub, B., Tanwani, A. K., Mahler, J., Breyer, M., Laskey,

M., Takaoka, Y., Bajracharya, M., Siegwart, R., and

Goldberg, K. (2019). Dex-Net MM: Deep Grasping

for Surface Decluttering with a Low-Precision Mobile

Manipulator. In 2019 IEEE 15th International Confer-

ence on Automation Science and Engineering (CASE),

pages 1373–1379.

Sucan, I. A., Moll, M., and Kavraki, L. E. (2012). The Open

Motion Planning Library. IEEE Robotics Automation

Magazine, 19(4):72–82.

Tanwani, A. K., Mor, N., Kubiatowicz, J., Gonzalez, J. E.,

and Goldberg, K. (2019). A Fog Robotics Approach to

Deep Robot Learning: Application to Object Recog-

nition and Grasp Planning in Surface Decluttering. In

2019 International Conference on Robotics and Au-

tomation (ICRA), pages 4559–4566.

Vahrenkamp, N., Do, M., Asfour, T., and Dillmann, R.

(2010). Integrated grasp and motion planning. In 2010

IEEE International Conference on Robotics and Au-

tomation, pages 2883–2888.

Yang, Y., Merkt, W., Ivan, V., and Vijayakumar, S.

(2018). Planning in time-conﬁguration space for ef-

ﬁcient pick-and-place in non-static environments with

temporal constraints. In 2018 IEEE-RAS 18th Interna-

tional Conference on Humanoid Robots (Humanoids),

pages 1–9.

Zelch, C., Peters, J., and von Stryk, O. (2020). Learning

control policies from optimal trajectories. In 2020

IEEE International Conference on Robotics and Au-

tomation (ICRA), pages 2529–2535.

Zhang, H., Ichnowski, J., Avigal, Y., Gonzales, J., Sto-

ica, I., and Goldberg, K. (2020). Dex-Net AR: Dis-

tributed Deep Grasp Planning Using a Commodity

Cellphone and Augmented Reality App. In 2020 IEEE

International Conference on Robotics and Automation

(ICRA), pages 552–558.

Zhao, S., Xu, Y., and Tan, Y. (2019). Detecting grasping po-

sitions and postures in 3D point clouds by geometric

constraints. In 2019 IEEE International Conference

on Unmanned Systems (ICUS), pages 443–449.

Zunjani, F. H., Sen, S., Shekhar, H., Powale, A., Godnaik,

D., and Nandi, G. C. (2018). Intent-based Object

Grasping by a Robot using Deep Learning. In 2018

IEEE 8th International Advance Computing Confer-

ence (IACC), pages 246–251.

ICINCO 2021 - 18th International Conference on Informatics in Control, Automation and Robotics

458
