SecSDN: A Novel Architecture for a Secure SDN

Parjanya Vyas and R. K. Shyamasundar

Department of Computer Science and Engineering, Indian Institute of Technology Bombay, Mumbai 400076, India

Keywords:

Software Deﬁned Networking, SDN Security, Network Security.

Abstract:

Security of SDN has been an important focus of research. Attempts to uncover security vulnerabilities in

SDN points to two major causes: (i) Inherent assumption of switches being severely limited in intelligence,

(ii) Lack of authentication in the communication between controllers and switches. The assumption that

switches have limited intelligence, and can only do the task of packet forwarding, further leads to the inference

of switches never being actively corrupt or operated by malicious entities. While such an assumption is

reasonable for SDN data centers operated within the bounds of a single organization, it is incorrect for larger

scaled inter-networking. In this paper, we propose SecSDN, an architecture and a protocol using repetitive

hashing to authenticate the communicating parties, securely verify consistency of ﬂow tables residing inside

the switches and detect their malicious behaviour within a predeﬁned constant time frame. Using such a

technique, we arrive at an infrastructure that can securely perform functions as envisaged in SDN. We establish

the correctness of SecSDN and the simulations show that the overhead incurred is virtually non-existent.

1 INTRODUCTION

Software Deﬁned Networking (SDN) offers a ﬂexible,

programmable, and adaptable architectural frame-

work to a spectrum of innovations that can result in

widespread practical implementations. SDN has been

tested and deployed successfully in many of the ma-

jor and widespread data centers (Yap, ; Bidkar, 2014).

Kreutz et al. provide an excellent summary of SDN

and its related research efforts in (et al., 2015).

Controller is the most important component of

SDN providing a clear and strict separation of data

and control planes. Forwarding switches are deemed

to be devices that perform simple forwarding func-

tions as per the ﬂow rules in the ﬂow table. Flow

tables are populated by commands issued by the

controller and interpreted by the forwarding devices.

While such simplicity in functionality is sufﬁcient in

a well orchestrated system, it becomes difﬁcult to re-

alize trust among distributed components that are in-

variably distrusted. Lack of authentication mecha-

nism adds a signiﬁcant complexity to this problem.

Feghali et al., (Feghali et al., 2015), study various se-

curity problems due to authentication and the assump-

tions discussed above. Ofﬁcial OpenFlow speciﬁca-

tion describes TLS authentication to be an optional

feature leading to several manufacturers ignoring it.

Switches are usually treated as “dumb forwarding de-

vices” – thus refraining from implementing the cru-

cial security mechanism.

Identifying a malfunctioning or malicious switch

in a large scale SDN is an arduous task. Most com-

monly exercised approach to identify malfunctioning

switch is to dump ﬂow tables of all the suspected

switches and manually check them for inconsisten-

cies. A compromised switch with adversarial inten-

tions would easily be able to deviate from the pro-

tocol. Serious SDN security issues have been nicely

summarized in (Scott-Hayward et al., 2013). Major

security problems like man-in-the-middle (MitM) at-

tack and forging identity arise due to lack of proper

authentication between the controller and switches.

In this paper, we propose an enhanced OpenFlow

protocol and a controller architecture keeping the ra-

tionale invariant. The proposed architecture ensures

a robust 2-way authentication in the communication

between the controller and the OpenFlow switch. It

further enables veriﬁcation of the correct implemen-

tation of ﬂow table commands by ensuring ﬂow table

consistency. These are achieved without losing out on

performance that is key to SDN popularity and accep-

tance. In our architecture, we introduce the notion of

‘veriﬁcation hash’ – that is computed using repetitive

hashing. Veriﬁcation hash serves dual purpose - It (i)

ensures that a data plane switch follows the controller

commands correctly maintaining consistency of ﬂow

Vyas, P. and Shyamasundar, R.

SecSDN: A Novel Architecture for a Secure SDN.

DOI: 10.5220/0010575505870594

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 587-594

ISBN: 978-989-758-524-1

587

tables and (ii) authenticates both the communicating

parties - controller and data plane switch. We also

provide security guarantees of the solution.

2 SDN SECURITY: THREATS

AND CAUSES

Current applications of SDN assume that the network

is inside the domain of a single secure organization.

The controller and the forwarding switches are trusted

and do not need authentication. The data plane de-

vices are assumed to be simple forwarding devices

with limited intelligence and computing capabilities.

Under these assumptions, SDN could work securely

as the possibility of identity forgery and device cor-

ruption is no longer extant. Therefore, authentication

for communications is kept optional even in the lat-

est version of OpenFlow speciﬁcation (ONF, 2019) -

justiﬁed by the dire need of scalability and reduced

latency.

In real life, many of these assumptions do not

hold. SDNs are implemented in data-centers that de-

ﬁne inter-network communication interfaces. In other

words, the assumption of the network operating in-

side the canopy of a single organization fails. Rich

feature sets provided by data plane devices contradict

the assumption of their limited intelligence. For such

inter-networking communications where the involved

parties are mutually untrusted, a robust 2-way authen-

tication and veriﬁcation is necessary to ensure secu-

rity and integrity of the network.

Scott-Hayward S. et al.,(Scott-Hayward et al.,

2013) have explored various security threats possible

in current SDN architectures. Brooks et al.,(Brooks

and Yang, 2015), present a practical MiTM against

OpenDayLight (ODL) SDN controller. Antikainen

M. et al.,(Antikainen et al., 2014), show how a com-

promised OpenFlow switch can be used to attack an

SDN. Liyanage et al.,(Liyanage, 2015), review se-

curity challenges faced by future Software Deﬁned

Mobile Networks (SDMN) and propose an architec-

ture to solve these problems. Khurshid et al., (Khur-

shid et al., 2013), propose a framework to verify and

maintain network-wide invariants in real time in a

SDN. A separate multi-layered security module along

with IPSec tunnelling has been proposed in (Liyan-

age, 2015). (Hussein et al., 2016) proposes an en-

tire separate plane dedicated for security. A database

deﬁned network (DDN) called ‘Ravel’(Wang et al.,

2016) has been proposed to implement SDN using

databases. To secure the DDN, access controls have

been deﬁned in (Glaeser and Wang, 2016) using row

level database security.

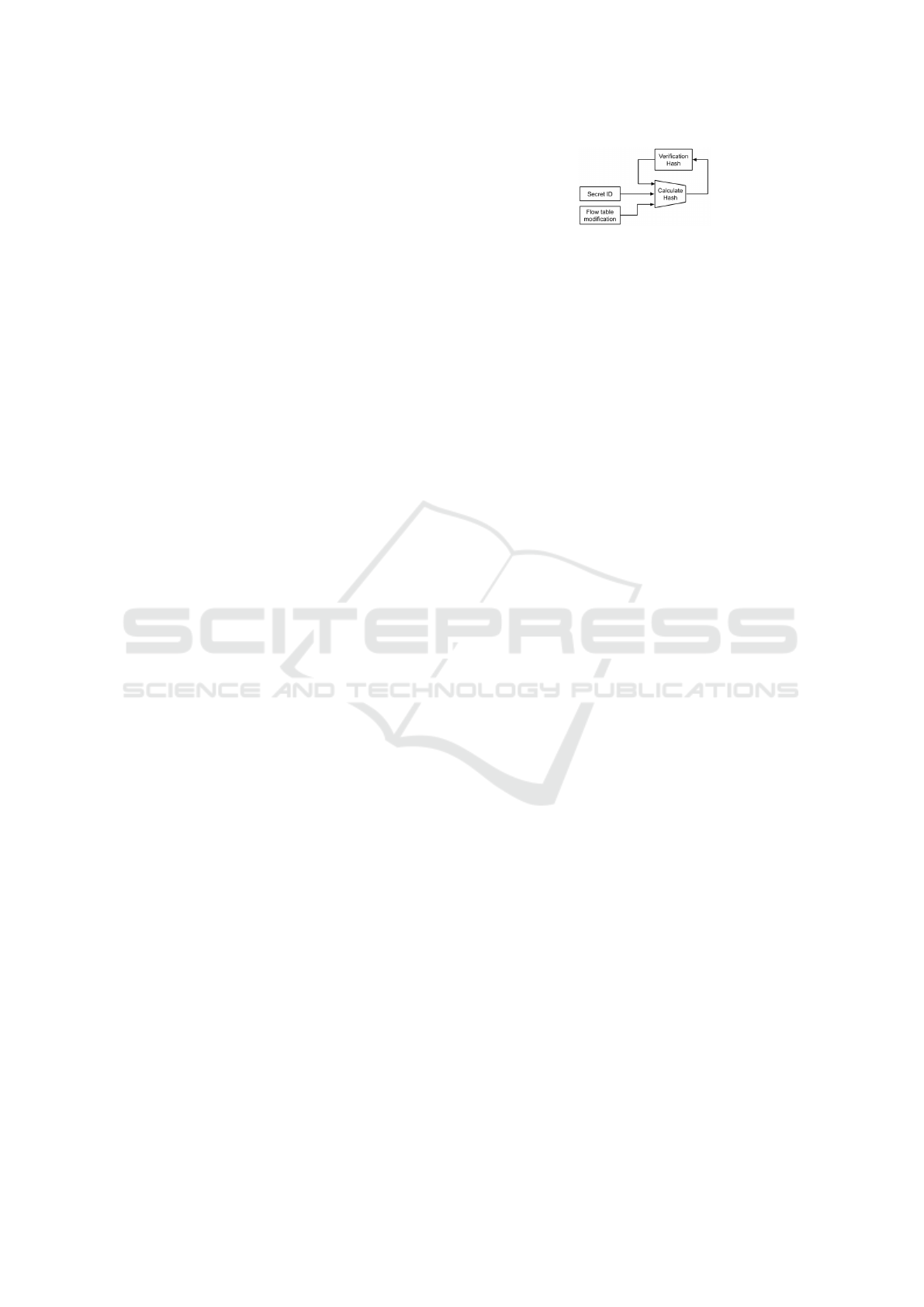

Figure 1: Veriﬁcation hash using repetitive hashing.

Various solutions to overcome security vulnerabilities

of SDN have been realized through insertion of non-

trivial modules between control plane and data plane

or implementing a wrapper for OpenFlow switches.

While each solves a particular issue, it generally takes

a long time to detect inconsistency between ﬂow ta-

ble of a switch and the view of its controller. There

is a non-negligible observable overhead resulting in

degradation of performance of the switch, controller,

and/or the network. Finally, interceptors introduced

generally contradict the SDN philosophy of clean sep-

aration between control and data plane operations. In

summary, the two main issues of security in SDN are:

(i) Lack of a robust 2-way authentication protocol.

(ii) Actual ﬂow table residing inside the switches, and

its view represented in the controller can vary over

time. Such inconsistencies are logically incorrect and

can be leveraged by attackers to inject malicious ﬂow

rules.

We overcome these issues using the concept of

veriﬁcation hash calculated using repetitive hashing

depicted in Figure 1. Veriﬁcation hash provides a ro-

bust authentication cum integrity mechanism when-

ever a data-plane switch and controller communicate.

The concept of repetitive hashing ensures consistency

of ﬂow tables to prevent any unwanted injections

of malicious ﬂow rules in the ﬂow tables of honest

switches. Keeping in line with this spirit, we propose

“SecSDN”, as a novel architecture and a protocol that

uses repetitive hashing to ensure security of SDN.

3 SecSDN: A NOVEL

ARCHITECTURE

3.1 Realizing Flow Table Integrity

We impose a compulsory acknowledgement scheme

on forwarding switches by modifying the existing

OpenFlow protocol to verify the consistency of ﬂow

tables used by forwarding switches. Controller al-

ways maintains a hash of the current ﬂow table of the

switch. As and when the ﬂow table changes are done,

the controller updates the hash. The controller also

keeps track of the changes done in the ﬂow table by

the switch, through a trusted monitoring code. When-

ever a change in ﬂow table is detected, the monitoring

SECRYPT 2021 - 18th International Conference on Security and Cryptography

588

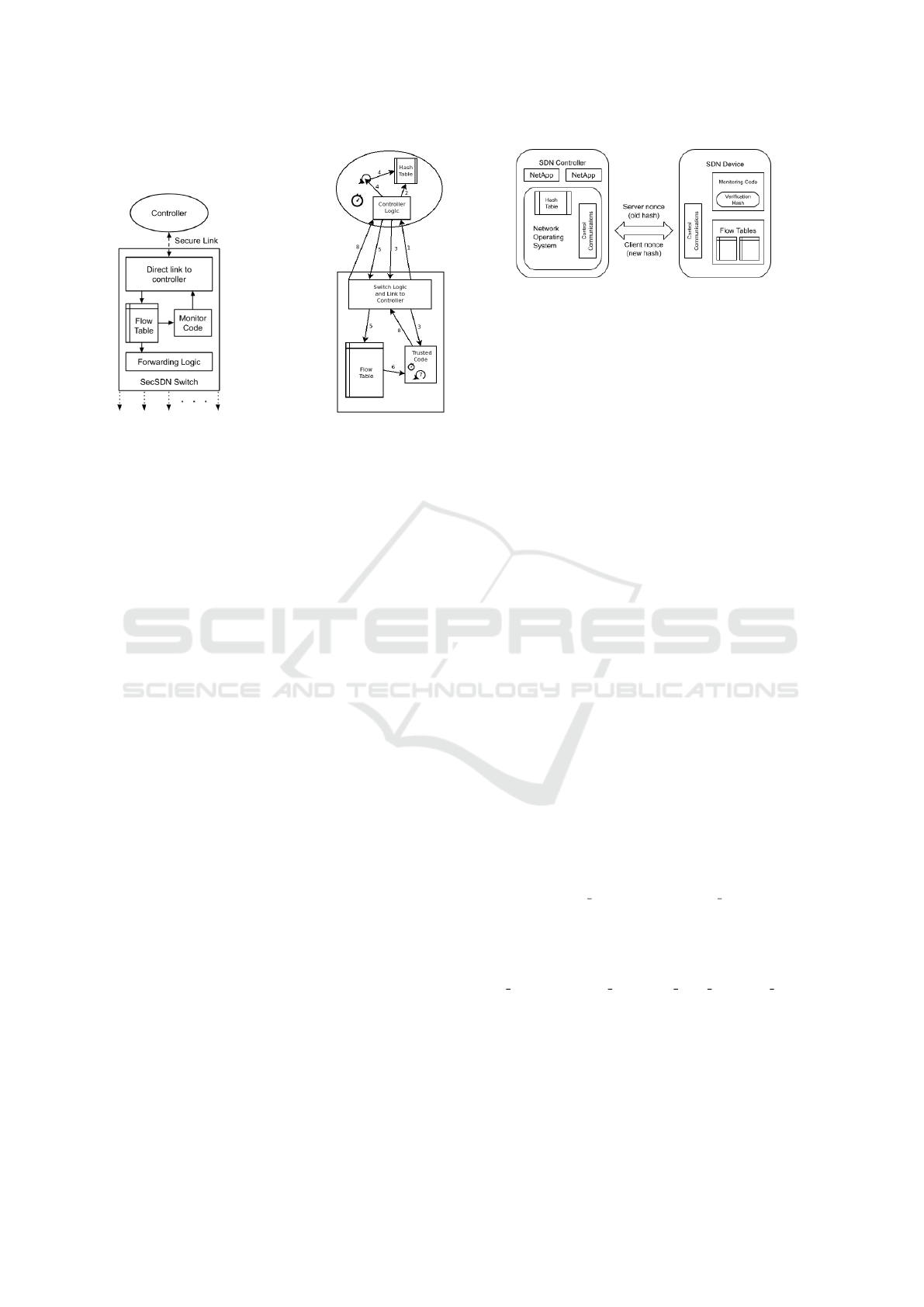

(a) Switch archi-

tecture

(b) Protocol Inter-

actions

Figure 2: SecSDN Architecture and Protocol Interactions.

code simply calculates a hash of these latest changes

and sends it to the controller. The veriﬁcation is done

by comparing the hash sent by the monitoring code

and the hash of the latest ﬂow table present in the con-

troller. The actual expression used to calculate and

refresh the hashes is described in section 3.3.

As a byproduct, our hashing mechanism, achieves

a 2-way authentication mechanism to authenticate

communicating entities - the switch and the con-

troller. By using hashes stored in the controller and

switches as server and client nonce, and the identity

of the switch as a shared secret, a structure similar to

the standard authentication protocol is realized with-

out using any additional packet or a cryptographic

mechanism. We argue that the protocol provides a

foolproof authentication using which, the Authentica-

tion Property, is ensured (cf. Theorem 1 in Section

4).

3.2 SecSDN Architecture

To overcome the problem of authentication and con-

sistency veriﬁcation, a concise way of acknowledge-

ment in terms of a simple proof of correct execution is

required. Consistency essentially means the view of

the ﬂow table residing in the switch and the view of

the ﬂow table present in the controller are the same.

For succinctly representing the state of a data object

such as the ﬂow table, a ﬁxed length hash can be used.

We use such a hash as an acknowledgement by the

switches to verify their correct execution of controller

commands.

We extend the existing OpenFlow south-bound in-

terface by adding a single ﬁeld in the packet struc-

ture of all the message types used in south-bound

Figure 3: The SecSDN protocol diagram.

interface. We add an extra ﬁeld called a ‘veriﬁca-

tion hash’ in all the types of OpenFlow packets that

are from switch to controllerThese packets mainly in-

clude types, ‘packet-in’, ‘FlowRemoved’, ‘GetConﬁ-

gRes’, etc., that are all the message types for commu-

nication from switch to controller. Additionally, all

the switches in the network will have a small trusted

code that can access the ﬂow table directly. The

trusted code can either be installed by a trusted man-

ufacturer, or as stated in the protocol later, can be in-

stalled by the controller as the result of ﬁrst commu-

nication between the switch and the controller. The

broad proposed architecture called SecSDN is shown

in Figure 2a.

3.3 Protocol Description

Figure 3 depicts a schematic diagram of SecSDN pro-

tocol that improves upon the existing OpenFlow pro-

tocol shown in (et al., 2015). Figure 2b shows inter-

actions in the protocol used in SecSDN. SecSDN pro-

tocol in described detail along with interactions be-

tween the controller and a switch.

SecSDN utilizes the concept of repetitive hashing

to represent the ﬂow table states. As shown in Fig-

ure 3, every data-plane switch maintains a monitoring

code, that contains a veriﬁcation hash. The controller

maintains a hash table that stores all the veriﬁcation

hashes corresponding to the data-plane devices exist-

ing in the network. The initial hash is calculated using

Formula 1.

initial hash = Hash(secret id) (1)

As and when the ﬂow table changes in the switch, the

monitoring code updates the recent hash using expres-

sion 2.

new hash = Hash(sec id + chngd f low rule + old hash)

(2)

Whenever the controller needs to send a packet to a

switch, it places the old hash present in its ﬂow table

with the packet intended for the switch. This hash

serves the purpose of a server nonce. The switch

places the newly calculated (using the expression 2)

veriﬁcation hash in the response packet. This hash

SecSDN: A Novel Architecture for a Secure SDN

589

servers two purposes: (i) it is used for veriﬁcation

of the ﬂow table by the controller and (ii) it serves

as a client nonce in the authentication mechanism.

Whenever the controller receives a message from the

switch, it veriﬁes that the hash present in the packet

matches with the hash from the hash table. In case

the hashes do not match, the switch is reported as a

malfunctioning switch to the networking application

(NetApp) and necessary steps are taken as deﬁned by

the NetApp.

Interpretation of labelled messages in Figure 2b:

1. A switch is newly connected in the network and es-

tablishes a TCP channel with the controller normally.

2. Controller maintains a veriﬁcation hash corre-

sponding to the latest ﬂow table change for every

switch in the network. The initial value of the hash

would be the hash of the switch’s unique and secret

id, which is not known to anyone else apart from the

controller and the trusted code. 3. Inside the ‘Fea-

tureReq’ message that is the ﬁrst message received

by the switch, the controller provides a signed trusted

code, that is to be installed on the switch. The trusted

code is obfuscated to hide all the secret information

and prevent tampering. It is implied that the switch

responds with the ‘FeatureRes’ message that would

additionally contain the secure acknowledgement that

the code is successfully installed and is not tampered

with.

4. Whenever the controller wants to send a packet to

the switch for changing its ﬂow rule, the hash corre-

sponding to that switch is updated using Formula 2.

The controller also initiates a count-down for check-

ing how long has it been till the change in the hash is

acknowledged.

5. The controller sends command for modifying the

ﬂow table and switch changes the same accordingly.

6. Trusted code residing in the switch keeps monitor-

ing the ﬂow table and maintains the latest hash.

7. As soon as it detects any change in the ﬂow table

made by the switch, it updates its hash in the same

way as above. The code also initiates a count-down

to measure how long has it been till it has acknowl-

edged the change in hash.

8. Whenever a switch wants to communicate with the

controller using one of the message types (‘packet-

in’, ‘FlowRemoved’, ‘GetConﬁgRes’, etc), after cre-

ating the packet, it queries the latest hash from the

trusted code and puts it in the additional ﬁeld of ‘ver-

iﬁcation hash’ as shown in Figure 2a. Timeout for

the acknowledgement is reset when this message is

sent to the controller. If the count-down timer goes

off without any message being sent to the controller,

then a special acknowledgement message containing

the updated hash is sent to the controller for verifying

the correctness of the ﬂow table by the trusted code.

9. Whenever the controller receives a packet from the

switch, before performing the intended task, it ﬁrst

matches the hash residing in the packet with the hash

maintained by itself for the particular switch and re-

sets the acknowledgement timer.

10. If the hashes match, the normal operations pro-

ceed, else a malfunctioning or adversarial switch is

detected and appropriate steps are taken as deﬁned by

the policy of the controller.

11. If the acknowledgment timer in the controller

goes of without receiving the acknowledgement for

the change, then appropriate steps as deﬁned by the

management policy are taken to check what is wrong

with the switch.

The protocol ensures two important properties that

lay the foundation of the security guarantees provided

by the architecture. The ﬁrst property is called Com-

pulsory Acknowledgement, which says “Whenever

the recent hash is recalculated by an honest Open-

Flow switch, an acknowledgement is always sent to

the controller within a constant timeframe”. This is

ensured by the timers presented in the protocol above.

The detailed description and proof of this theorem are

presented as Theorem 2 in Section 4.

Second, the most important property central to our

architecture is the property of Threat Detection - “An

OpenFlow switch that does not follow the controller

commands would always be caught within a constant

time frame”. This property ensures that a malicious,

malfunctioning or misconﬁgured switch is always de-

tected within a constant amount of time. This time is

dictated by the countdown values set in the controller

and switch timers. These values also serve as a secu-

rity parameter to tune in between the performance and

security provided by the protocol. Theorem 4 given in

Section 4, articulates threat detection and it’s proof.

4 SecSDN SECURITY

CHARACTERIZATION

Assumptions. SecSDN is secure under the assump-

tion that the SDN controller and the designed Trust-

Code is secure; this is a natural assumption (similar

to assuming the kernel of an OS is secure). We elab-

orate these assumptions to convince the reader of the

naturalness of the assumptions.

Assumption 1 Controller is Fully Trusted: Primary

objective of SecSDN is to secure the controller from

potentially malicious forwarding switches by secur-

ing the south-bound interface assuming the controller

is trusted. This is quite a natural assumption in the

context of SDN rationale.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

590

Assumption 2 Monitoring Code is Trusted and Can-

not be Tampered: The monitoring code is installed

by the controller in the forwarding switches as part of

their ﬁrst interaction. The trusted controller installs

the trusted monitoring code.

In a sense, the switches present in the network

are potentially corruptible entities and include them

in our threat model. The monitoring code resides in-

side the switch, and for the trust of monitoring code

to hold, its’ integrity must be intact. Therefore, the

monitoring code needs to be tamper proof.

Threat Model. As described in Section 4, we com-

pletely trust the controller and the monitoring code

provided by the controller. The attacks (if any) in

SecSDN are thus possible through (i) a switch con-

nected to the SDN; the switch might try and deviate

from the protocol, or (ii) eavesdropping communica-

tions between the controller and the switch. Thus,

attackers are capable of snifﬁng, hijacking, tamper-

ing or replaying packets from/to the switch. Note

that the attackers are not capable of breaking crypto-

primitives.

Security Characterization.

Theorem 1. Authentication: A third party entity can-

not assume the identity of a genuine OpenFlow switch

or the SDN controller once the communication chan-

nel is established.

Proof. Proof depends on two assumptions (i) Secrecy

of the switch identity and (ii) Security of the hashing

algorithm. Assuming that the communication chan-

nel is set up and the hashes are correctly initialized

in the OpenFlow switch and the controller, the recent

hash itself works as a valid nonce. Properly authenti-

cated client-server communication protocol that prov-

ably prevents man-in-the-middle (MiTM) and other

such attacks uses client and server nonces.Here, the

nonce protect the client and the server from replay

attacks by making the message unique. Property of

hashing algorithm prevents the output of the freshly

calculated hash being repeated. In SecSDN, when-

ever controller issues a command to the switch (Step

5 in Section 3.3), the current hash of the switch is used

as the server nonce. During acknowledgement (Step

8 in Section 3.3) to the controller the newly refreshed

hash is used as the client nonce in the authentication

mechanism. Finally, the secret identity of the switch

is used as the secret input to the hash function.

From the above argument, it follows that the mes-

sage structure and protocol that SecSDN uses, com-

prise of all the necessary components and functions

for a two-way authenticated communication. The se-

curity of such mechanism can always be guaranteed

if (i) nonces are uniformly random and (ii) they have

negligible repeat probability. These follow from the

properties of the hash functions that the uniform ran-

domness is guaranteed by the security of the hash

function and every time the hash is recalculated, it

uses the old hash as an input, making the input, and

by deﬁnition the output, unique. Hence, the proba-

bility that a nonce is repeated is negligible. There-

fore, the communication is always authenticated, and

a third party cannot assume the identity of an Open-

Flow switch or the controller.

Authentication ensures that a third party cannot forge

identity of a genuine SDN controller or switch. It further

assures that during an ongoing communication between a

controller and a switch, it is not possible for an unautho-

rized malicious entity to launch MiTM.

Theorem 2. Compulsory Acknowledgement: Whenever

the recent hash is recalculated by an honest OpenFlow

switch, an acknowledgement is always sent to the controller

within a bounded time.

Proof. Here, we use the assumption of reliability of

the communication channel and the trusted nature of

the monitoring code. Whenever a hash is recalculated

in a switch (Step 7 in Section 3.3), a timer is started by

the monitoring code. There are two possible scenar-

ios: (i) If there is a message to be sent to the controller

by the switch before the timer goes off, then the recent

hash is piggybacked with this message and sent to the

controller as a piggybacked acknowledgement (Step

8 in Section 3.3). (ii) If the timer goes off, without

any message sent to the controller by the switch, then

monitoring code creates a special acknowledgement

packet along with the recent hash and sends it to the

controller (Step 8 in Sec. 3.3).

Hence, in both the cases above, an acknowledge-

ment is always sent to the controller within a constant

time frame dictated by the timer residing in the mon-

itoring code.

Compulsory acknowledgement property assures that

changes done in the ﬂow table by an honest switch is al-

ways sent to the controller as an acknowledgement. The

acknowledgement might be delayed by a bounded time to

improve the overall network performance, but eventually it

will always be sent.

Theorem 3. Consistency: Recent hash maintained

inside the monitoring code of an honest OpenFlow

switch and the one maintained inside the controller

would eventually always match within a bounded

time.

Proof. The hashing function used in the controller

and the switches is the same. An initial value of the

recent hash is calculated by hashing the secret identity

(after Step 3 shown in Section 3.3), which is provided

SecSDN: A Novel Architecture for a Secure SDN

591

by the controller. Hence, the initial hash calculated

by the controller (during Step 2 in Section 3.3) and the

switch would be exactly the same. The recent hash re-

sides inside the monitoring code and is isolated from

the environment. It can be modiﬁed only by the mon-

itoring code. Hence, the only time the hash changes

is when it is changed by the monitoring code (Step 7

in Section 3.3). The trusted and veriﬁed nature of the

monitoring code along with the authentication prop-

erty proved in Theorem 1 forbids any entity other than

the authenticated controller to change the recent hash.

Hence, the hash only changes when the ﬂow table is

required to be changed, which in turn is commanded

by the authenticated SDN controller.

Whenever the controller issues a command to

change the ﬂow table, it recalculates it’s own recent

hash using the expression deﬁned in step 4 of the pro-

tocol description. This is exactly the same expression

used by the monitoring code to recalculate the recent

hash in the switch when a change in the ﬂow table is

detected. According to Theorem 2, the recalculated

recent hash will always be sent to the controller for

an acknowledgement; hence, both the versions of the

hash will match, as soon as the modiﬁcation is com-

plete in both - the controller and the switch.

Steps above cover all possibilities when the most

recent hash is changed either in controller or switch.

Given the reliability of the communication channel,

hashes in the controller and switch will always match

and hence the theorem.

Consistency property ensures that the actual ﬂow table

residing inside the switch and its view present in the con-

troller match. Recent hash is a unique representation of the

state of the ﬂow table and assuring the matching of hashes,

automatically veriﬁes that the actual ﬂow table and its view

in the controller are same.

Theorem 4. Threat Detection: A switch that does not

follow the controller commands will always be caught

within a bounded time.

Proof. A dishonest switch can only evade the con-

troller commands in three possible ways: (1) It mod-

iﬁes the ﬂow table wrongly (during Step 5 of Section

3.3), (2) It discards the controller command altogether

(The latter part of Step 5 in Section 3.3 is dropped),

and (3) It prevents the monitoring code from commu-

nicating with the controller (The latter part of Step 5

in Section 3.3 is dropped).

If the ﬂow table is modiﬁed differently, then the

hash calculated by the monitoring code will not match

the hash calculated by the controller, due to the prop-

erty of the hashing function and the uniqueness guar-

anteed by the hashing formula. The switch, in this

case, is caught almost instantaneously.

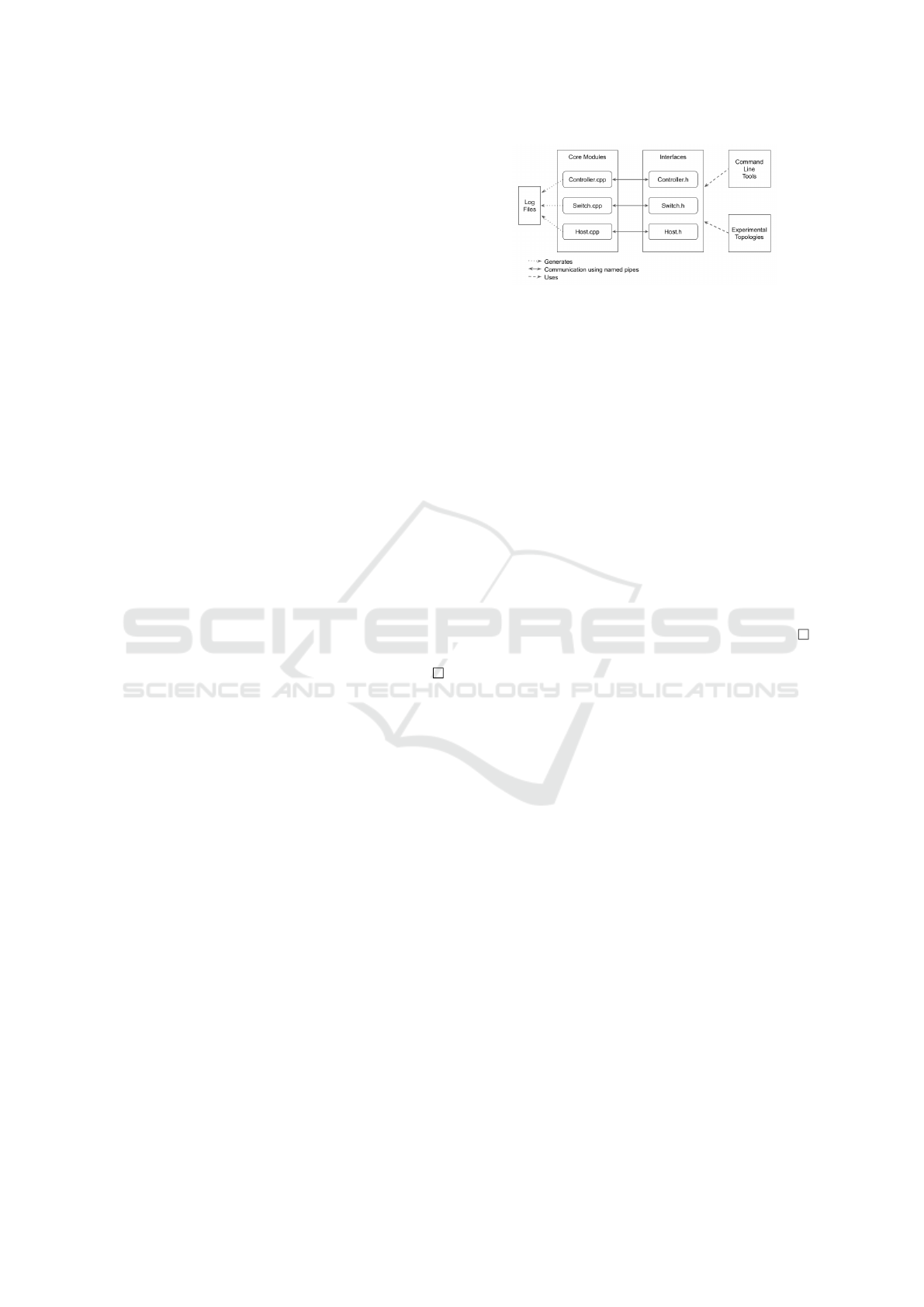

Figure 4: A schematic diagram of secure SDN simulator.

If it discards the controller command without modi-

fying the ﬂow table (scenario 2) or prevents outgoing

communication from the monitoring code (scenario

3), the timer started in the controller will eventually

go off without receiving an acknowledgement from

the switch. Hence, the switch will be caught in the

time frame deﬁned by the controller timer, that is con-

stant.

A scenario where the outgoing communication

from the monitoring code is captured and corrupted

or modiﬁed is not possible because the authentication

mechanism requires a valid hash to be presented to

the controller along with the acknowledgement. This

valid hash can only be calculated if the switch iden-

tity is known, that is assumed to be a secret. Hence,

the integrity of messages between the controller and

the switch cannot be broken without immediate de-

tection.

Threat detection property states that a malicious or

malfunctioning switch that wrongly populates a ﬂow

table is eventually always detected within a bounded

time.

5 PERFORMANCE EVALUATION

We have built a proof of concept of SecSDN as a se-

cure SDN simulator. SecSDN simulator works in two

different modes: (i) normal and (ii) secure. In nor-

mal mode, the authentication and veriﬁcation mech-

anisms described in the earlier sections are disabled.

In secure mode, the protocol described in Section 3.3

is activated and the consistency of the ﬂow table is

veriﬁed using SHA256 hash. A schematic diagram

depicting the architecture is shown in Figure 4.

We use appropriate metrics deﬁned in (Isaia and

Guan, 2016) for benchmarking our simulator. We

evaluate our implementation using three different

topologies with variable number of nodes (N) or

switches with N = 10, 50 and 100 for both ‘normal’

and ‘secure’ cases. Topology 1 shown in Figure 5a

corresponds to measuring performance when there is

a bottleneck link. Variable number of messages that

SECRYPT 2021 - 18th International Conference on Security and Cryptography

592

Table 1: Performance measurements for Topology T1.

N=10 N=50 N=100

Normal Secure Normal Secure Normal Secure

Total ﬂows 10 10 50 50 100 100

Total time to add all ﬂows 434 655 2497 2824 4250 5392

Total network data sent to add all ﬂows 272 912 1474 4674 3074 9474

Total packets sent to add all ﬂows 20 20 100 100 200 200

Total messages sent 10 10 50 50 100 100

Total message propagation time 2599 2564 11852 11599 24972 23287

Average ﬂow length 4 4 4 4 4 4

Average time to add one ﬂow 43.4 65.5 49.94 56.48 42.5 53.92

Average network data sent to add one ﬂow 27.2 91.2 29.48 93.48 30.74 94.74

Average packets sent to add one ﬂow 2 2 2 2 2 2

Average message propagation time 259.9 256.4 237.04 231.98 249.72 232.87

Table 2: Performance measurements for Topology T2.

N=10 N=50 N=100

Normal Secure Normal Secure Normal Secure

Total ﬂows 19 19 99 99 199 199

Total time to add all ﬂows 1463 2319 27908 51183 113587 173597

Total network data sent to add all ﬂows 1529 6233 39099 127003 165846 501750

Total packets sent to add all ﬂows 109 109 2549 2549 10099 10099

Total messages sent 19 19 99 99 199 199

Total message propagation time 3096 3248 44476 40892 164229 154357

Average ﬂow length 7 7 27 27 52 52

Average time to add one ﬂow 77 122.05 281.9 517 570.79 872.347

Average network data sent to add one ﬂow 80.47 328.05 394.94 1282.86 833.4 2521.36

Average packets sent to add one ﬂow 5.74 5.74 25.75 25.75 50.75 50.75

Average message propagation time 162.95 170.95 449.25 413.05 825.27 775.66

Table 3: Performance measurements for Topology T3.

N=10 N=50 N=100

Normal Secure Normal Secure Normal Secure

Total ﬂows 9 9 49 49 99 99

Total time to add all ﬂows 345 537 1768 2491 3658 5173

Total network data sent to add all ﬂows 118 406 717 2285 1468 4636

Total packets sent to add all ﬂows 9 9 49 49 99 99

Total messages sent 9 9 49 49 99 99

Total message propagation time 1592 1529 8535 7482 17333 17260

Average ﬂow length 3 3 3 3 3 3

Average time to add one ﬂow 38.33 59.67 36.08 50.84 36.95 52.25

Average network data sent to add one ﬂow 13.11 45.11 14.63 46.63 14.83 46.83

Average packets sent to add one ﬂow 1 1 1 1 1 1

Average message propagation time 176.89 169.89 174.18 152.69 175.08 174.34

use the bottleneck link are sent simultaneously. The

performance of SecSDN is measured for 10, 50 and

100 messages for this scenario. Topology 2 shown

in Figure 5b corresponds to measuring performance

when the topology is ‘linear’ and there are ﬂows of

varied lengths present in the network. In the experi-

ments with value of N = 10, 19 ﬂows with minimum

length of 3 to maximum length of 12 are present. Sim-

ilarly for N = 50, 99 ﬂows of length 3 to 52 and for N

= 100, 199 ﬂows of length 3 to 102 are present in the

network. Topology 3 shown in Figure 5c corresponds

to measuring performance when the topology is ‘star’

and there is maximum load on a single switch. In this

case, all ﬂows are of length 3 but all of them passes

through the same switch. In the experiments with N

= 10, 50 and 100 a single switch maintains connec-

tion with the controller and 10, 50 and 100 hosts and

manages 9, 49 and 99 ﬂows respectively.

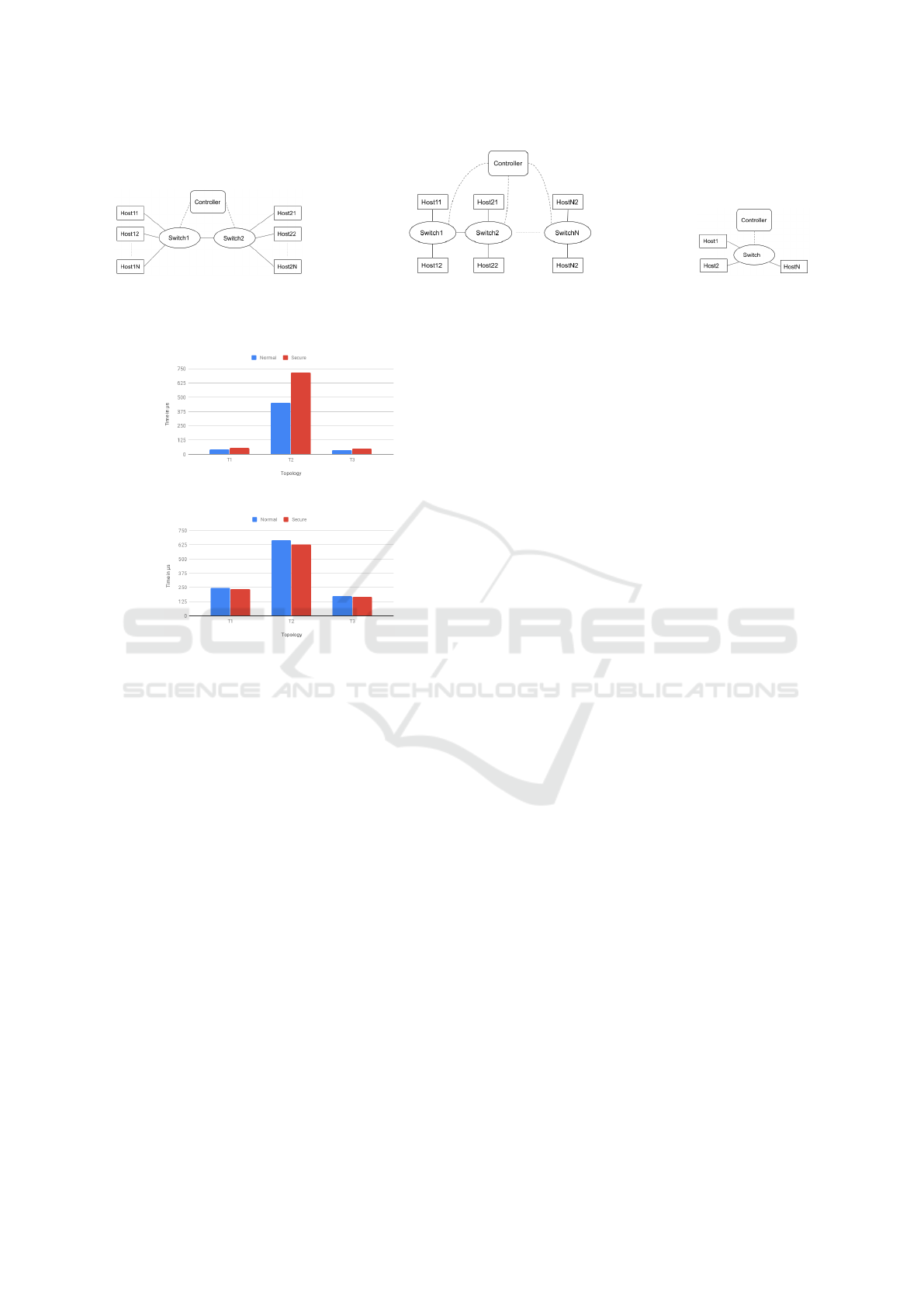

Topologies are shown in the ﬁgures 5a, 5b, 5c and

their experimental results are shown in tables 1, 2, 3.

Time is measured in microseconds (µs) unit and the

network data is measured in bytes (B).

5.1 Discussion

Figure 6 and Figure 7 show bar charts depicting com-

parison of average time to add one ﬂow and compari-

son of average message propagation time for a single

Table 4: Overhead incurred in SecSDN vs SDN.

Topology Total switch count

Overhead Factors

Flow setup time Flow setup data Flow setup packets Message propagation time

20 0.51 2.35 0 -0.01

100 0.13 2.17 0 -0.02

200 0.27 2.08 0 -0.07

147 0.59 3.08 0 0.05

2747 0.83 2.25 0 -0.08

10497 0.53 2.03 0 -0.06

9 0.56 2.44 0 -0.04

49 0.41 2.19 0 -0.12

99 0.41 2.16 0 0

message of 512 bytes in the topologies described ear-

lier. As seen from the results in the Table 4 and chart

shown in Figure 7, the message propagation and mes-

sage forwarding are completely independent of the

secure nature of the topology. The protocol only af-

fects the setup phase of the network when ﬂows are

being initialized. The piggybacking used in the pro-

tocol design is highly effective as clearly seen from

the fact that number of network packets required for

initializing ﬂows remains exactly the same for SDN

and SecSDN setups.

As the number of ﬂows and the average length

of the individual ﬂows increase, the number of net-

work bytes sent to initialize these ﬂows increase in

SecSDN. This is so since every ﬂow table modiﬁca-

tion in a switch requires an acknowledgement with

recalculated hash sent to the controller. SHA256 is

used to generate a 32 bytes hash per ﬂow table mod-

iﬁcation. Hence, every time a ﬂow is added, all the

switches present in the path of the ﬂow needs to send

an extra 32 bytes to the controller as an ack. This

means, as and when the ﬂow length and the number

of ﬂows increase, the network bytes sent to add these

ﬂows would also increase with a factor of 32 bytes per

switch in all the ﬂows. But compared to the real time

data with size of thousands of megabytes that usually

ﬂows in the networks, this amount is negligible in a

large scale SDN topology. As a result of increase in

data bytes while initializing ﬂows, time to initialize

ﬂows will also increase linearly as seen from Figure

6. Every time a ﬂow is initialized, the controller as

well as the switch need to calculate a new SHA256

hash for every switch in the ﬂow path. The additional

hash computations, and the time taken to transmit the

32 bytes hash would result in additional time for ﬂow

initialization.

6 CONCLUSION AND FUTURE

WORK

In this paper, we have envisaged SecSDN as an efﬁ-

cient architecture using an enhanced OpenFlow pro-

tocol that authenticates and securely veriﬁes consis-

tency of ﬂow tables in switches across SDN using

repetitive hashing. It is shown that SecSDN realizes

security in SDN via a simple robust authentication,

SecSDN: A Novel Architecture for a Secure SDN

593

(a) Topology 1 (b) Topology 2 (c) Topology 3

Figure 5: Topologies chosen for experimental evaluation.

Figure 6: Average time to add one ﬂow in SecSDN vs SDN.

Figure 7: Avg message propagation time: SecSDN vs SDN.

maintaining a clean separation between control and

data plane operations. It detects a malicious switch in

a constant time - bound by a timer value - that serves

as a security parameter to tune between desired se-

curity and performance. Our initial simulations show

that the overhead incurred is virtually non-existent –

thus showing the power of SecSDN both in theory and

practice. In short, SecSDN provides a good architec-

tural basis for building secure SDNs.

To sum up, SecSDN architecture provides a

promising proven concept towards building a secure

SDN as compared to other approaches.

ACKNOWLEDGMENTS

The work was done at the Information Security Re-

search and Development Centre (ISRDC) of Indian

Institute of Technology Bombay, sponsored by the

Ministry of Electronics and Information Technology,

GOI.

REFERENCES

Antikainen, M., Aura, T., and S

arel

a, M. (2014). Spook in

your network: Attacking an sdn with a compromised

openﬂow switch. In Secure IT Systems, pages 229–

244. Springer Int. Publisher.

Bidkar, S. e. a. (2014). Field trial of a software deﬁned net-

work (sdn) using carrier ethernet and segment routing

in a tier-1 provider. In IEEE Global Communications

Conference, pages 2166–2172.

Brooks, M. and Yang, B. (2015). A man-in-the-middle at-

tack against opendaylight sdn controller. In 4th ACM

Conf. on Research in Information Technology, RIIT

’15, pages 45–49.

et al., D. K. (2015). Software-deﬁned networking: A com-

prehensive survey. Proc. of the IEEE, 103(1):14–76.

Feghali, A., Kilany, R., and Chamoun, M. (2015). Sdn secu-

rity problems and solutions analysis. In Int. Conf. on

Protocol Engineering (ICPE) and Int. Conf. on New

Technologies of Distributed Systems (NTDS), pages 1–

Glaeser, N. and Wang, A. (2016). Access control for a

database-deﬁned network. In 2016 IEEE 37th Sarnoff

Symposium, pages 1–2.

Hussein, A., Elhajj, I. H., Chehab, A., and Kayssi, A.

(2016). Sdn security plane: An architecture for re-

silient security services. In 2016 IEEE Int. Conf. on

Cloud Engineering Workshop (IC2EW), pages 54–59.

Isaia, P. and Guan, L. (2016). Performance benchmarking

of sdn experimental platforms. In 2016 IEEE NetSoft,

pages 116–120.

Khurshid, A., Zou, X., Zhou, W., Caesar, M., and Godfrey,

P. B. (2013). Veriﬂow: Verifying network-wide in-

variants in real time. In 10th {USENIX} {NSDI} 13,

pages 15–27.

Liyanage, M. e. a. (2015). Security for future software de-

ﬁned mobile networks. In 9th Int. Conf. on Next Gen-

eration Mobile Applications, Services and Technolo-

gies, pages 256–264.

ONF (2019). Sdn technical speciﬁcations.

Scott-Hayward, S., O’Callaghan, G., and Sezer, S. (2013).

Sdn security: A survey. In 2013 IEEE SDN For Future

Networks and Services (SDN4FNS), pages 1–7.

Wang, A., Mei, X., Croft, J., Caesar, M., and Godfrey, B.

(2016). Ravel: A database-deﬁned network. In Proc.

of the Symposium on SDN Research, page 5. ACM.

Yap, K.-K. e. a. Taking the edge off with espresso: Scale, re-

liability and programmability for global internet peer-

ing. In Proc. ACM SIGCOMM 2017, pages 432–445.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

594
