Towards Automatically Generating a Personalized Code Formatting

Mechanism

Thomas Karanikiotis

, Kyriakos C. Chatzidimitriou

and Andreas L. Symeonidis

Dept. of Electrical and Computer Eng., Aristotle University of Thessaloniki, Thessaloniki, Greece

Keywords:

Source Code Formatting, Code Style, Source Code Readability, LSTM, SVM One-Class.

Abstract:

Source code readability and comprehensibility are continuously gaining interest, due to the wide adoption

of component-based software development and the (re)use of software residing in code hosting platforms.

Consistent code styling and formatting across a project tend to improve readability, while most code formatting

approaches rely on a set of rules deﬁned by experts, that aspire to model a commonly accepted formatting.

This approach is usually based on the experts’ expertise, is time-consuming and does not take into account the

way a team develops software. Thus, it becomes too intrusive and, in many cases, is not adopted. In this work

we present an automated mechanism, that, given a set of source code ﬁles, can be trained to recognize the

formatting style used across a project and identify deviations, in a completely unsupervised manner. At ﬁrst,

source code is transformed into small meaningful pieces, called tokens, which are used to train the models of

our mechanism, in order to predict the probability of a token being wrongly positioned. Preliminary evaluation

on various axes indicates that our approach can effectively detect formatting deviations from the project’s code

styling and provide actionable recommendations to the developer.

1 INTRODUCTION

Source code readability has recently gained much

research interest and is considered of vital

importance for developers, especially those working

under a component-based software engineering

scheme. It is a quite complex concept and includes

factors such as understanding of the control ﬂow, the

functionality and the purpose of a given software

component. At the same time, source code

readability is highly related to maintainability and

reusability, pillar aspects of software quality.

In this context, the importance of readability is

obvious and a number of recent approaches aspire to

quantify readability of a source code component

(Scalabrino et al., 2018; Scalabrino et al., 2016;

Posnett et al., 2011); still, the selection of metrics

that properly quantify readability is under heavy

debate. What has been proven, though, is that the

selection of a suitable code styling and correct

formatting approach can improve source code

readability and can enhance the capability of the

developers to comprehend the content, the

https://orcid.org/0000-0001-6117-8222

https://orcid.org/0000-0003-0715-1197

https://orcid.org/0000-0003-0235-6046

functionality and the intention of the source code

(Tysell Sundkvist and Persson, 2017); on the

contrary, different coding styles affect readability

(Lee et al., 2013). At the same time, studies have

shown that the indentation applied on source code,

which is a part of code formatting, directly affects

comprehensibility (Kesler et al., 1984).

There have been several efforts that mainly aspire

to identify styling errors and deviations from a

priorly accepted set of formatting rules and, possibly,

provide styling ﬁxes (Loriot et al., 2019; Markovtsev

et al., 2019; Prabhu et al., 2017). The majority of the

related approaches make use of a predeﬁned set of

”globally” accepted formatting rules and, based on

these rules, try to identify pieces of code that diverge

from them. These rules can only be turned on/off and

the developers are not able to alter any of them, or

add their own. In addition, some approaches

(Allamanis et al., 2014), aspire to identify alterations

on identiﬁer or method names, sequence of function

calls or code structure that could make the code more

interpretable, focusing on program comprehension,

rather than on readability from the code styling

perspective.

The majority of the aforementioned approaches

aspire to provide a mechanism that models a

Karanikiotis, T., Chatzidimitriou, K. and Symeonidis, A.

Towards Automatically Generating a Personalized Code Formatting Mechanism.

DOI: 10.5220/0010579900900101

In Proceedings of the 16th International Conference on Software Technologies (ICSOFT 2021), pages 90-101

ISBN: 978-989-758-523-4

commonly accepted code styling and can help

developers apply it in practice. However, as teams

vary in skills and have different needs, not all styling

guidelines can apply to each one of them. At the

same time, the process of properly conﬁguring the

set of formatting rules to match the needs of a

speciﬁc team can be a quite time consuming and

complex task, especially when there is a large group

of developers that participate in a team. Thus, an

unsupervised system that could model the desired

formatting style of a team is needed, which, based on

an existing project, could identify any styling

deviations from it.

In this work, we present an automated

mechanism that can learn the code style used in a

project or a repository in a completely unsupervised

manner. This mechanism can be used by single

developers or a team of developers with minimal

prior project knowledge, in order to detect and

highlight the points within a source code that deviate

from the global styling applied in the whole project.

Using this tool, a team of developers could keep a

common formatting across the whole project,

making it easier for them to maintain or reuse certain

pieces of code, or cooperate. At the same time, with

the appropriate selection of the data that will be used

for training, our approach can act like a common

formatter, which learns globally accepted styling

rules with no supervision and detects deviations from

them.

The rest of this paper is organized as follows.

Section II reviews the recent approaches on source

code formatting and discusses how our work

differentiates and further extends them. Our

methodology, as well as the models we have

developed and the data used to train the models are

depicted in Section III, while in Section IV we

evaluate the performance of our approach in the

detection of formatting errors. Finally, in Section V

we analyze potential threats to our internal and

external validity, while in Section VI we discuss the

conclusions of our approach and provide insights for

further research.

2 RELATED WORK

The importance of source code readability and

comprehension has gained increasing interest during

the recent years, especially in the cases where the

software development process involves large teams

of developers or the component-based software

development paradigm is followed. Such cases

require projects to be processed quickly and maintain

a standard level of quality and readability is

considered a success or fail factor. Additionally, in

the context of software quality, readability is one of

the software attributes that is closely linked to

maintainability, which, as the importance of correct

and evolving code is given, has gained the attention

of research approaches in the recent years.

While software readability and code

comprehension have abstract meanings and their

quantiﬁcation is still to be clariﬁed, the code styling

and formatting approach used across the source code

can unquestionably ease the process of reading and

understanding the functionality, the intentions and

the content of a given source code. Code indentation,

one of the most important attributes of code

formatting, has been proven to change the way a

developer perceives the content of the source code,

separates the various blocks of code that may appear

and apprehends their purpose. Persson and Sundkvist

(Tysell Sundkvist and Persson, 2017) argue that the

readability and interpretation of source code can be

improved by the use of correct indentation, providing

faster understanding of the code purpose and

functionality as the source code size increases.

Hindle et al. (Hindle et al., 2008) conducted a study

about the relationship between the shape that is

drawn from the code indentation and the code

block’s syntactic structure. The study concluded that

there is a high correlation between the indentation

shape and the code structure, which can help the

developers better perceive the content of the given

code.

Prabhu et al. (Prabhu et al., 2017), on the other

hand, focus on building an editor that can separate

the content of the source code from the presentation

(e.g. styling) and provide features such as

auto-format coding, including auto-indentation and

auto-spacing. However, the auto-formatting features

are strictly based on algorithms developed by the

authors, that aspire to follow a global styling pattern

and do not allow alterations. Additionally, Wang et

al. (Wang et al., 2011) built a heuristic method in

order to segment a given Java method into

meaningful blocks that implement different

functionalities, trying to ease the developer’s task to

comprehend the code functionality. At the same

time, there are a lot of tools, like Indent (GNU

Project, 2007) and Prettier (Prettier, 2017), that,

based on a set of expert-deﬁned rules, aspire to detect

styling mismatches and pieces of code that diverge

from the ”ground truth”.

While there are a lot of approaches that aspire to

detect code formatting errors based on a set of

predeﬁned rules and, possibly, provide ﬁxes (Loriot

Towards Automatically Generating a Personalized Code Formatting Mechanism

et al., 2019), developers are not able to edit these

rules or add their own, in order to build a custom

code styling that best matches their needs. In large

teams of developers, maintaining a common

formatting, that is also conﬁgured according to their

requirements, is a crucial factor towards quality

code. The work of Kesler et al. (Kesler et al., 1984)

supports this argument; they ran an experiment on

the effects of no indentation, excessive indentation

and a moderate indentation on the comprehensibility

of a program. The results of the experiment depicted

that, while the moderate indentation seems to yield

the best results, one can conclude that there is no

perfect indentation style and it should be chosen

carefully at each time. Miara et al. (Miara et al.,

1983) conducted a study for the most popular and

most used indentations, which concluded that

multiple and different indentation styles may be

found across programs and the level of indentation

could be a crucial factor for code comprehensibility.

Therefore, there is a need for models that could

identify the code formatting that is used across the

same project and detect deviations from it.

Towards dynamic adaptation and homogenization

of code styling, Allamanis et al. (Allamanis et al.,

2014) carried out one of the ﬁrst approaches towards

learning the styling used by one or more developers

in a single project and, then, detecting and

identifying variations from it. The authors built a

framework, called NATURALIZE, that could suggest

identiﬁer names and styling changes in the given

source code, in order to increase styling consistency

across the ﬁles of a project. While NATURALIZE

was proven effective for providing accurate

suggestions, it could process only local context and

could not incorporate semantically valid suggestions,

while it was mainly focused on the use of indentation

and whitespaces and not on other aspects of code

formatting (e.g. the placement of comments within

the code). Furthermore, Parr et al. (Parr and Vinju,

2016) proposed CODEBUFF, a code formatter based

on machine learning, that could automatically create

universal code formatters built from the grammar of

any given language. CODEBUFF achieved quite

good results, but it was based on a complex model

trained by trial and error, with no generalization

capabilities. Moreover, it could not handle some

ordinary cases, such as mixed indentation with tabs

and spaces or mixed quotes with single and double

quotes. Towards avoiding these limitations,

Markovtsev et al. (Markovtsev et al., 2019) created a

tool, called STYLE-ANALYZER, which can mine the

formatting style of a given Git repository, identify

style inconsistencies and propose ﬁxes. Even though

STYLE-ANALYZER can achieve pretty good results

at modelling the code styling of the respective

project, the proposed model is quite complex and

time-consuming and is targeted only on javascript

source code. Finally, Ogura et al. (Ogura et al., 2018)

proposed STYLECOORDINATOR, a tool that can

help developers maintain a consistent code styling

across their project and, also, use their own local

formatting style. StyleCoordinator could process the

code of a repository and produce a styling

conﬁguration stored in a ﬁle. This conﬁguration ﬁle

would then be used to provide consistency in every

new or modiﬁed ﬁle in the user’s repository.

However, StyleCoordinator is initially based on a

common convention conﬁguration, in order to ensure

consistency, and is not able to extract the code

styling selected by the user from the ground, while

its efﬁciency is yet to be clariﬁed.

In this work, we aspire to confront the main

limitations introduced in the aforementioned related

approaches. We propose a generalizable model,

which can dynamically learn the formatting style

applied across a project or set of ﬁles and, then,

identify and highlight any deviations from it. Using

our approach, single developers or teams of

developers are able to feed their existing source code

ﬁles to indicate the desired formatting and then use

the generated model to format future code in the

same styling. This way they can save time in

understanding their source code, while helping their

team keep a uniform way of developing software.

Our approach requires no speciﬁc domain knowledge

or even rules customisation, which most of the recent

linters and style checkers need.

3 METHODOLOGY

In this section we design our formatting error

detection system (shown in Figure 1) based on two

approaches that aspire to model the formatting of a

given source code from different aspects: the

generative model and the outlier detection model.

3.1 User Dataset

In the ﬁrst step towards creating our system, the set

of source code ﬁles that will determine the selected

formatting style needs to be deﬁned. This is one of

the main points where our system differentiates from

other similar approaches. Instead of using a set of

predeﬁned formatting rules to determine styling

deviations, we allow every developer or team of

developers to use their own source code ﬁles to

ICSOFT 2021 - 16th International Conference on Software Technologies

User

Dataset

[0,1,3,2,]

Tokenizer &

Vectorizer

Formatting

Error

Position

Generative

Model

Outlier Detection

Model

Figure 1: Overview of the Formatting Error Detection Methodology.

deﬁne the desired code styling. The rest of our

modelling procedure simply adapts to the provided

dataset and, thus, our system is dataset agnostic.

In order to showcase the performance of our

approach on frequently encountered formatting

errors that have been found across projects, we

trained our formatting error detection mechanism on

a code writing style that is widely used by

developers. Speciﬁcally, we made use of the dataset

used by Santos et al. (Santos et al., 2018). The

authors mined the top 10,000 Java repositories and

extracted the latest snapshot of the default branch,

keeping only the syntactically-valid Java ﬁles. In

total 2,322,481 Java ﬁles were collected.

While these ﬁles are syntactically valid and

depict the formatting style used by most of the

developers, we also want to ensure that they do not

diverge from widely known formatting rules, in order

to evaluate the ability of our mechanism to identify

also commonly found styling deviations. Thus, a set

of rules has been deﬁned manually, which describes

the occasions when a formatting error occurs. We

created a set of 22 regular expressions that are able to

identify the corresponding formatting errors that

occur in a single Java ﬁle. Table 1 depicts a regular

expression of our corpus and a corresponding

example of source code, where the formatting error

is identiﬁed by the expression. The complete corpus

of our 22 regular expressions can be found on our

page

. It should be noted once again that the

selection of widely known formatting errors is used

only for showcasing and does not affect the adaptive

nature of our approach, while each developer could

train the system with his/her own speciﬁc code

styling guidelines, just by providing a set of source

code ﬁles.

Using the set of the 22 regular expressions we

deﬁned, we were able to identify 10,000 Java ﬁles

from the dataset used by Santos et al., that did not

contain any formatting deviations from the

commonly accepted standards and, thus, could be

used as the basis for the training of our models.

https://gist.github.com/karanikiotis/

263251decb86f839a3265cc2306355b2

Table 1: A regular expression used to identify a semicolon

that appears on the next line.

Regular Expression ”[\r\n];”

Source Code Example

System.out.println(”Hello World”)

;

3.2 Tokenizer & Vectorizer

Before the source code is further processed by our

models, it needs to be transformed into a suitable

form. This procedure is called tokenization and

transforms the source code into a set of tokens. Each

programming language consists of a list of all

possible unique tokens, which is called vocabulary,

and contains all the possible keywords and operators

used by the language. The source code contains also

a set of out-of-vocabulary tokens, which are the

variable names, string literals and numbers used by

the developer. These tokens are usually projected

into an abstract form and they are represented by the

respective token that indicates the corresponding

category the token belongs to (variable, string or

number).

In this work, our main target was token

differentiation regarding the way they are placed

between the rest of the tokens of the source code.

The tokenizer identiﬁes and abstracts the set of

variables, strings and numbers used by the developer,

detects the set of keywords and groups tokens with

similar formatting behaviors and returns the set of

tokens identiﬁed, as well as the number of characters

each token occupies in the initial source code. Table

2 depicts some example of keywords identiﬁed in the

initial source code by the tokenizer and the

corresponding token they are transformed into.

Table 2: Examples of keywords and their respective tokens.

Token Name Token Symbol Keywords

KEYWORD <keyword> break, for, if, return, ...

LIT <lit> ﬂoat, int, void, ...

LITERAL <literal> true, false, null

NUMBER <number> 123, 5.2, 10, 1, 0, ...

STRING <word> ”a”, ”hello”, ...

Towards Automatically Generating a Personalized Code Formatting Mechanism

Using the tokenizer, each token from the initial

source code is categorized into the appropriate token

category. For example, whenever any of the words

true, false or null are identiﬁed in the source code,

they are transformed and treated with the token

LITERAL. Special attention was required in the

correct tokenization of indentation characters (e.g.

whitespaces and tabs), brackets and special symbols,

such as semicolons, which are vital for an

appropriate code styling.

In order to convert source code into a form that is

suitable for training our models, a two step procedure

is followed. First, the source code is tokenized using

the aforementioned tokenizer and, thus, a set of

tokens is returned. Subsequently, this set of tokens is

processed to extract the total vocabulary of tokens

used. Each token is then assigned a positive integer

index, that will then be used as the input in the

following models. Table 3 depicts an example of a

full transformation; the initial source code is

transformed to a numeric vector that can be treated

by our models.

Table 3: The tokenization pipeline from the source code

to a numeric vector. The vocabulary indexes for this

example are ”<lit>” = 0, ”<space>” = 1, ”<word>” =

2, ”<equal>” = 3, ”<number>” = 4 and ”<semicolon>”

= 5.

Source Code int x = 1;

Tokens

[’<lit>’, ’<space>’, ’<word>’,

’<space>’,’<equal>’, ’<space>’,

’<number>’, ’<semicolon>’]

Tokens Lengths [3, 1, 1, 1, 1, 1, 1, 1]

Vectorization [0, 1, 2, 1, 3, 1, 4, 5]

3.3 Model Generation

Given the sequence of tokens that appear in the

training corpus and that constitute the formatting

style that will be followed, we trained two different

models that aspire to detect a formatting error. The

main goal of our modelling approach is to

approximate a function that, given a set of tokens,

determines the possibility of a token being wrongly

positioned among the others, i.e. a formatting error.

In order to do so, each token coming from the source

code needs to be assigned a likelihood of being a

formatting error, as shown in the following equation:

P( f ormatting error token|context) (1)

Each of the two models used in our approach,

aspires to approximate the aforementioned

probability from its own perspective for every token

that appears in the source code. The ﬁnal

probabilities are then calculated by aggregating the

outputs of the respective models.

3.3.1 Generative Model

Given a series of tokens that have already been

identiﬁed in the source code, the generative model

predicts the next token that will be found, assigning a

probability at each possible token from the

vocabulary. The technology employed to accomplish

this goal is a long short-term memory (LSTM)

(Hochreiter and Schmidhuber, 1997) recurrent neural

network. LSTM neural networks are an extension of

RNNs (recurrent neural networks), that resolve the

vanishing gradient problem and, thus, can memorize

past data easier. LSTMs have been proven really

effective in processing source code and predicting

the next tokens in a sequence of previous ones

(Hellendoorn and Devanbu, 2017).

Our modelling goal using the LSTMs is to

approximate a function that, given the previous n − 1

tokens that have been identiﬁed in the series of

source code tokens, approximates the probability of

the next token to be found. LSTMs return an array of

probabilities that depict the likelihood of the next

token to be the respective one. It can be also

considered as a categorical distribution of the

probability across the vocabulary of all possible

tokens. The following equation depicts the

categorical distribution, i.e. the vector of

probabilities given by the LSTMs:

P(next token|context) =











P(< word > |context)

P(< space > |context)

P(< number > |context)

...

(2)

Figure 2 illustrates the way the LSTM predicts the

token <semicolon> given the previous tokens from

the source code ”int x = 1;”.

As already mentioned, the LSTM neural network

calculates a vector of probabilities for each token

from the vocabulary of the possible ones, which

depict the likelihood of each token to be the next one

to be identiﬁed in the series of tokens. By inverting

this probability, we can approximate the probability

of identifying any other token, except from the

respective one, which can also be considered as the

probability of the respective token being wrongly

placed in the speciﬁc position in the source code.

The following equation depicts the probability of the

token <tok> being wrongly positioned, i.e. the

probabilities of every other possible token:

ICSOFT 2021 - 16th International Conference on Software Technologies

Source Code:

Tokens:

Context Adjacent

LSTM:

int

x 1 ;

Figure 2: The LSTM prediction of the adjacent token, given the source code ”int x = 1;”.

P(<tok> wrong|context) =

1 − P(next tok =< tok > |context) (3)

where <next tok> is the next token in the

sequence of the previously identiﬁed context.

We feed-forward the LSTM architecture with the

tokens coming from the source code that needs to be

checked for formatting errors. It should be noted

that, in order for the ﬁrst n tokens of the source code

to be checked also by the LSTMs, we manually

added a set of n starting tokens, so the ﬁrst token to

be predicted from the architecture is the actual ﬁrst

token of the code. For the creation of the LSTM

neural network we made use of the Keras

deep

neural network framework, with two layers of 400

LSTM nodes each, parameters that were selected

upon testing. The sliding window that was applied to

the tokens of the source code in order to create the

input vector was chosen to have a context length of

20 tokens, as it was proven to be effective on source

code (White et al., 2015); A window of 20 tokens is

selected at each time-step and is given as input to the

LSTM network. The model outputs the probability

of each possible token to be the next one in the

series. We compare these probabilities with the

actual next token and, using equation 3, we transform

this probability into an error probability.

3.3.2 Outlier Detection Model

The problem of identifying a piece of source code

that diverges from the common formatting style can

also be seen from a different perspective, which is

the classiﬁcation approach using n-grams. N-grams

are a set of n continuous tokens from the given

source code. Figure 3 illustrates the procedure of

tokenizing the source code ”int x = 1;” and splitting

the generated tokens into different n-grams, with n =

1, n = 2 and n = 3.

By transforming the source code into a set of

n-grams, we can approach the formatting error

detection problem from the outlier detection

https://github.com/keras-team/keras

perspective. Using this perspective, we aspire to

detect n-grams in the source code that is examined

for formatting errors, which have not been previously

met in the training corpus, e.g. the set of ﬁles that

deﬁne the developer’s coding style. Indeed, if the

most of the n-grams a speciﬁc token participates in

are classiﬁed as outliers, then, probably, this

particular token has not been previously used in this

way and constitutes a formatting error.

The technology we employed for the outlier

detection was a Support Vector Machine - SVM

One-Class algorithm, which has been proven

successful in outlier detection problems (Seo, 2007).

The SVM One-Class model is trained using only

data coming from the original (or ”positive”) class,

this way identifying new data that deviate from the

”normal” behavior. In our approach, the model is

trained on n-grams coming from the training corpus,

which deﬁne the developer’s preferable code styling,

and is then used to detect n-grams that diverge.

As multiple and previously unknown n-grams

may be found during the prediction stage of the SVM

One-Class, the model has to be ﬂexible and adaptive.

However, the tuning of the SVM parameters, which

are the nu and gamma parameters, tends to conﬁne

the model. In order to overcome this limitation, we

applied the following approach: instead of simply

using one single SVM One-Class model, with a

certain set of nu and gamma parameters, we created

a set of SVM models with various nu-gamma pairs,

that aspire to cover a large area of the ﬁne-tuning

procedure. Each model is trained separately and,

then, all the predictions are aggregated, leading to

the ﬁnal prediction.

As our primary modelling target is the prediction

of the probability of a single token being a formatting

error, we cannot make use of the classiﬁcation of an

n-gram into the original or the outliers class. Instead,

we take into account the prediction probabilities that

are produced by each model. The n-gram is feeded

into all the different SVM One-Class models, which

return their prediction probabilities of the n-gram

being an outlier, i.e. the n-gram does not have the

same behavior with the ones met in the training

Towards Automatically Generating a Personalized Code Formatting Mechanism

Source Code:

Tokens:

N=1:

int

N=2:

x 1 ;

N=3:

Figure 3: The n-grams that are produced from the source code ”int x = 1;” for n = 1, n = 2 and n = 3. For n = 1 the unigrams

are ”<lit>”, ”<space>”, etc., for n = 2 the bigrams are ”<lit> <space>”, ”<space> <word>”, etc. and for n = 3 the

trigrams are ”<lit> <space> <word>”, ”<space> <word> <space>”, etc.

corpus. Subsequently, the predictions of all SVM

models are being aggregated and the ﬁnal prediction

for the n-gram is made.

Finally, each token coming from the source code

is assigned a probability of being a formatting error

as the mean probability of all the n-grams it

participates. Equation 4 depicts the calculation of the

formatting error probability for the token <tok>,

where n-grams is the set of all n-grams the token

participates in, SVM models is the set of all the SVM

models we used and context is the previously

identiﬁed context.

P(<tok> being wrong|context) =

∑

n−grams

∑

SV M models

model

(n-gram is outlier) (4)

3.3.3 Final Pipeline

The ﬁnal pipeline of our approach is the merging of

the two models, as illustrated in Figure 1. Overall,

the source code that needs to be checked for

formatting errors is ﬁrstly tokenized and then is

forwarded into the two selected models, the LSTM

and the SVM One-Class. For each token found in the

initial source code, the models output their

probabilities of the token being wrongful present in

the speciﬁc position. In the aggregation stage, the

two predictions are combined to form the ﬁnal

prediction of the system. By averaging the

probabilities calculated from each model, we were

able to ﬁx some ambiguous decisions made by a

single model, i.e. a token probably misclassiﬁed as

formatting error but with low prediction probability

from the one model, would be correctly classiﬁed

with a high probability from the second one. Finally,

the tokens along with their respective probabilities

are being sorted to create a descending order of

tokens possibly being formatting errors.

4 EVALUATION

In this section we evaluate our methodology for

detecting formatting errors and deviations from a

globally used code styling. At ﬁrst, in an effort to

evaluate our system, we apply our methodology on

the codrep dataset

, in order to measure its

performance. Additionally, towards the evaluation of

the effectiveness of our approach in practice, we

apply our system in real-world scenarios, in order to

assess its ability of providing actionable

recommendations that can be used in practice during

development.

4.1 System Evaluation

In the ﬁrst step towards assessing the effectiveness of

our system and identifying code styling

inconsistencies and pieces of code that diverge from

a common formatting, we tested our system against

data coming from the Codrep competition (Codrep,

2019). Codrep is a competition for applying machine

learning on source code. The main task of the codrep

2019 competition was the identiﬁcation of the

position in a code ﬁle in which a formatting error

appears. Codrep dataset consists of 8,000 Java ﬁles,

each one of which contains a single formatting error

in a speciﬁc character position. An additional ﬁle is

given, which includes the character position the

formatting error appears for each one of the 8,000

https://github.com/KTH/codrep-2019/tree/master/

Datasets

ICSOFT 2021 - 16th International Conference on Software Technologies

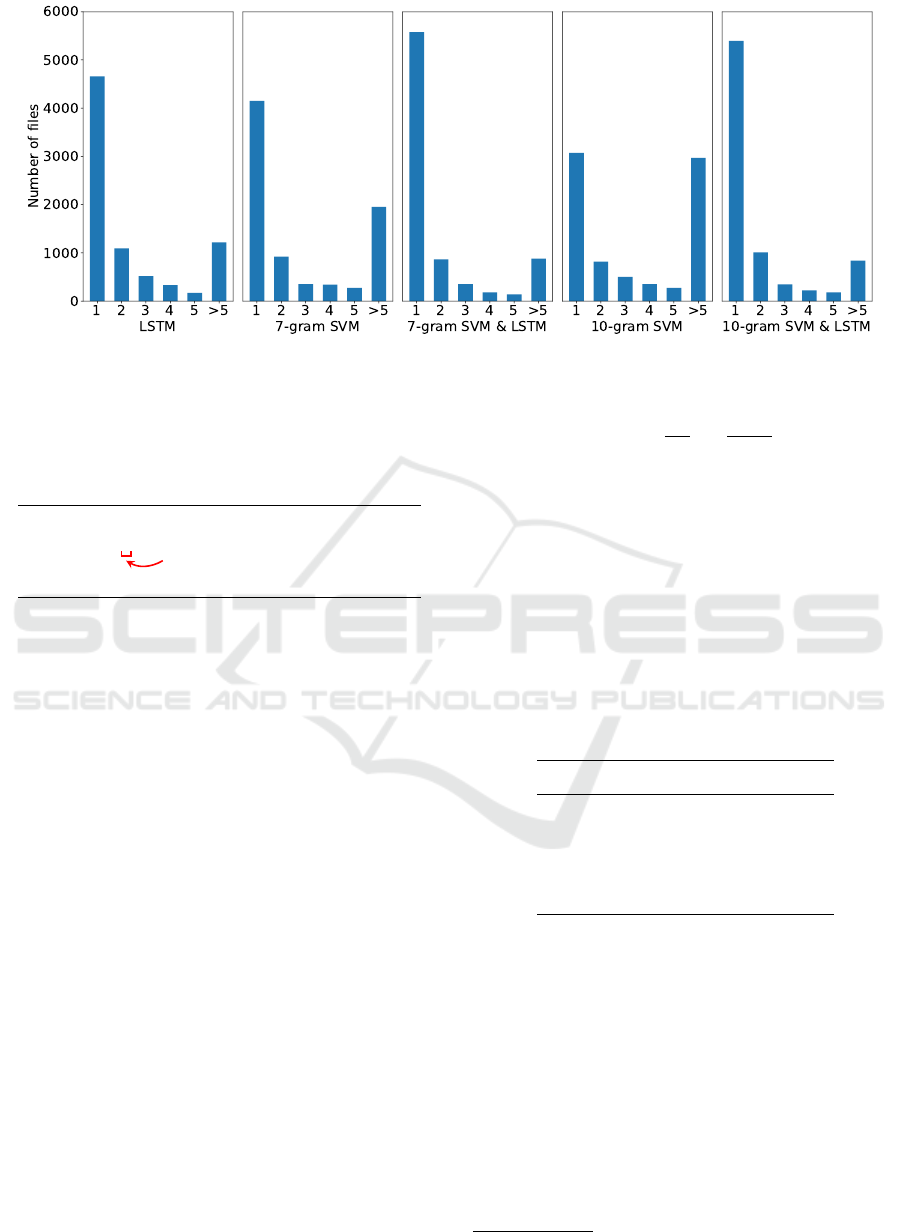

Figure 4: The histograms of the positions the correct answer was found in.

ﬁles. Figure 5 depicts an example, in which a

formatting error appears. In this case, the formatting

error is the unnecessary space that appears in

character position 30.

1 public class test{

2 int a = 1 ;

3 }

Figure 5: Example of code ﬁle containing a single

formatting error in character position 30.

The rules of the codrep competition are quite

simple. The program has to take as input a source

code ﬁle and output a descending ranking of the

characters offsets, according to the probabilities that

are calculated and estimate their likelihood of

containing a formatting error. The ﬁnal ranking of

the characters is compared with the actual character

that contains the formatting error and the evaluation

metric is calculated.

The evaluation metric used by codrep to evaluate

the performance of a system in identifying the

formatting error position is the Mean Reciprocal

Rank (MRR). The reciprocal rank for one prediction

is calculated using the inverse of the rank in an

ordered list the correct answer is found for a given

ﬁle q. The MRR is the average value of the

reciprocal ranks for every ﬁle q in the set of the total

evaluation ﬁles Q. The following equation depicts

the calculation of the MRR, in a set of ﬁles Q to be

predicted, where rank

is the position of the correct

answer in the ordered list of predictions and |Q| is

the number of ﬁles used in the evaluation:

MRR =

|Q|

∑

q∈Q

rank

(5)

The MRR is always a value in the interval [0, 1],

where an MRR value of 1 is the best possible score

and depicts that the ﬁrst prediction in the ordered list

is the correct position of the formatting error, while

an MRR value of 0 means that the correct position

was not found. Table 4 depicts the MRR obtained

using our approach only with the generative model,

only with the outlier detection model and with both

the models combined. The n-grams we selected to

use were 7-grams and 10-grams.

Table 4: MRRs of LSTM and SVM models.

Model MRR

LSTM 0.70

7-gram SVM 0.63

7-gram SVM & LSTM 0.78

10-gram SVM 0.57

10-gram SVM & LSTM 0.85

According to the MRR values depicted in Table

4, the combined model, consisted of both the LSTM

and the 10-gram SVM yields the best results. These

values are well above the ones from random guessing

the position of the formatting error. Santos et al.

(Santos et al., 2018) calculated that, for a ﬁle of 100

lines and 10 tokens per line, the random guessing

would achieve an MRR of 0.002.

It should be noted at this point that we selected not

to compare the MRR values of our approach with the

results coming from the actual Codrep competition

as the rules of the competition were not quite strict

https://github.com/KTH/codrep-2019

Towards Automatically Generating a Personalized Code Formatting Mechanism

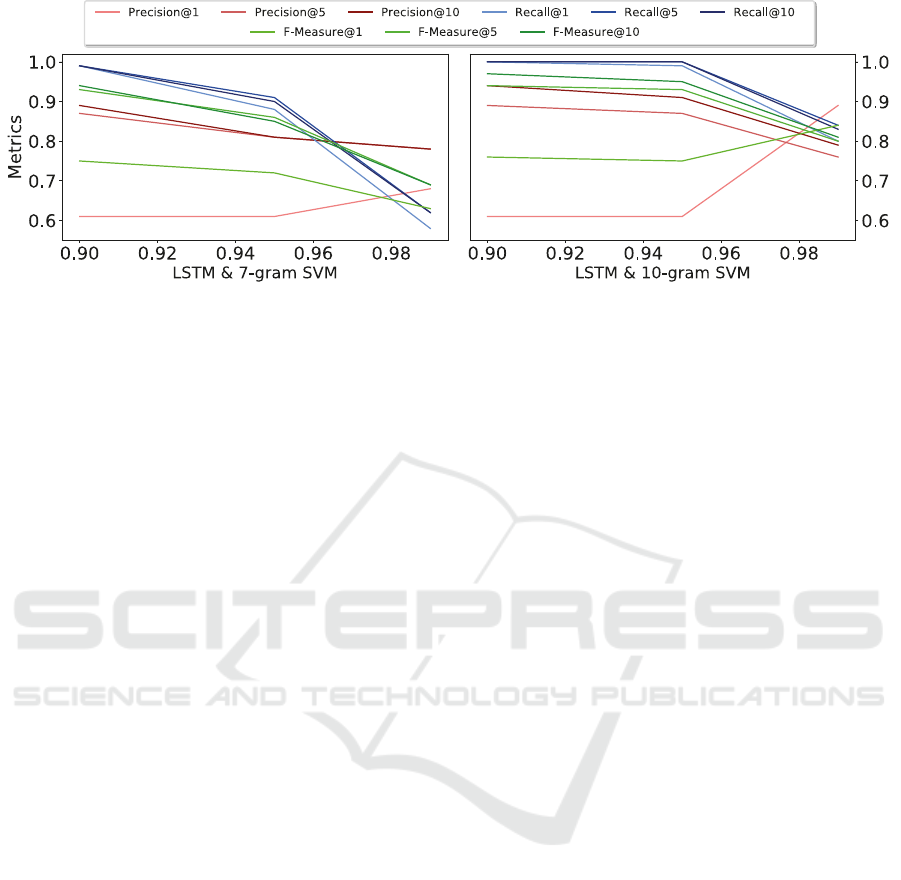

Figure 6: The precision, recall and f-measure metrics for various k and threshold values.

and the participants were allowed to use any possible

technique to identify the formatting errors, e.g. using

regular expressions, while a training set containing a

lot of similar formatting errors was given to them a

priori.

However, the MRR is a quite strict and

conservative metric and its values can be

signiﬁcantly reduced just by some bad predictions.

Indeed, in a case where the correct answer is ranked

ﬁrst 50% of cases and second the other 50%, the

MRR value would be just 0.75, despite the fact that

this model would probably be considered acceptable.

In order to cope with the strictness of the MRR

metric, we also calculated the histograms of the

position in the ordered list the correct answer was

found. Figure 4 illustrates these histograms. The

height of each bar displays the number of ﬁles for

which the correct prediction was found on that

position.

The results from Table 4 and Figure 4 show that

the correct prediction, i.e. the identiﬁcation of the

formatting error within the source code, is the ﬁrst

one for the most of the times. The combination of the

two models, LSTM and SVM, clearly improved the

results, while the selection of 10-grams over 7-grams

had also a positive impact.

Moreover, in an attempt to further examine the

performance of our approach in identifying

formatting errors and deviations from the globally

used code styling, we evaluated our system in the

following scenario. From the sorted list of tokens,

along with their probabilities of being a formatting

error, only the ﬁrst k tokens are returned to the user,

as long as their probability of being a formatting

error is above a predeﬁned threshold. For these

tokens, we examine whether the actual formatting

error is included and, based on that, we calculate the

metrics precision@k, recall@k and f-measure@k.

Figure 6 illustrates these metrics calculated for the

best two of the previous models (the combination of

7-gram SVM and LSTM and the combination of

10-gram SVM and LSTM) and using various

thresholds in the range 0.90 − 1.0 and values 1, 5 and

10 for k.

From the results illustrated above, we can

conclude that the 10-gram SVM along with the

LSTM performs better with a precision value of 0.9,

a recall value of 1.0 and an f-measure value of 0.95

for k = 10 and threshold = 0.95. A system with the

aforementioned parameters could correctly identify

deviations from the globally used formatting and

provide useful suggestions to the developer about

possible ﬁxes.

4.2 Application of Formatting Error

Detection in Practice

In order to further assess the effectiveness of our

approach in providing actual and useful

recommendations that can be used in practice during

the development process, we applied our

methodology in certain use-cases, in which we aspire

to identify the applicability of the formatting error

detection system in practice. Thus, we randomly

selected some small Java ﬁles from the most popular

open-source GitHub repositories, in which our

methodology would be applied to.

Figure 7a presents the initial source code of the

ﬁrst ﬁle to be evaluated by our system. In this

occasion a formatting error is detected in line 8 and

concerns the extra use of a new-line character (the

character before the red circle). It is obvious that the

insertion of just one new character can complicate

and possibly reduce the overall code readability and

comprehensibility, as there is no correct indentation.

Our system identiﬁes the formatting error

position in the ﬁrst place of the sorted predictions

and returns this prediction to the developer, in an

attempt to ﬁx this error and improve the readability

ICSOFT 2021 - 16th International Conference on Software Technologies

1 package com.developmentontheedge.sql.model;

3 public class SqlQuery

4 {

5 public static AstStart parse(String

query)

6 {

7 return parse(query,

DefaultParserContext.getInstance

());

8 }

10 public static AstStart parse(String

query, ParserContext context)

11 {

12 SqlParser parser = new SqlParser();

13 parser.setContext(context);

14 parser.parse(query);

15 return parser.getStartNode();

16 }

17 }

(a) Initial version of ﬁle

1 package com.developmentontheedge.sql.model;

3 public class SqlQuery

4 {

5 public static AstStart parse(String

query)

6 {

7 return parse(query,

DefaultParserContext.getInstance

());

8 }

10 public static AstStart parse(String

query, ParserContext context)

11 {

12 SqlParser parser = new SqlParser();

13 parser.setContext(context);

14 parser.parse(query);

15 return parser.getStartNode();

16 }

17 }

(b) Final version of ﬁle

Figure 7: First use case.

1 package com.developmentontheedge.sql.model;

3 public class PredefinedFunction

implements Function

4 {

5 private final int maxNumberOfParams;

7 /

Returns the biggest possible

number of required parameters,

or -1 if any number of

parameters is allowed.

11 @Override

12 public int maxNumberOfParams()

13 {

14 return maxNumberOfParams;

15 }

16 }

(a) Initial version of ﬁle

1 package com.developmentontheedge.sql.model;

3 public class PredefinedFunction

implements Function

4 {

5 private final int maxNumberOfParams;

7 /

Returns the biggest possible

number of required parameters,

or -1 if any number of

parameters is allowed.

11 @Override

12 public int maxNumberOfParams()

13 {

14 return maxNumberOfParams;

15 }

16 }

(b) Final version of ﬁle

Figure 8: Second use case.

of the ﬁle. Indeed, the ﬁnal version of the ﬁle, which

is displayed in Figure 7b, where the developer has

taken into account the system’s prediction, is easier

for the developers to understand, as the correct

indentation can be a valuable guidance towards the

code ﬂow comprehension.

Figure 8a illustrates a different example, in

which, in the initial source code of the ﬁle, the

formatting error is detected in line 12 and concerns

the extra use of a tab character (depicted in the

Figure). Again, the insertion of just one new

character alters the way a developer can read the

code and understand its content.

Our approach detects the formatting error and

ranks it ﬁrst among the set of all possible positions

and returns this suggestion to the developer, in order

for the formatting error to be ﬁxed. Once again, the

ﬁnal version of the ﬁle, that is displayed in Figure 8b,

is easier for the developers to comprehend, as the

reading procedure follows a natural ﬂow.

Despite these examples seem small and the ﬁxes

seem insigniﬁcant, they can be quite important in

Towards Automatically Generating a Personalized Code Formatting Mechanism

large projects, in which different and various

developers participate with various coding styles.

Detecting and ﬁxing these formatting errors could

noticeably improve readability and code

comprehensibility.

5 THREATS TO VALIDITY

Our approach towards identifying and detecting

formatting errors and formatting deviations from the

selected ground truth seems to achieve high internal

validity, as it was proved by the evaluation of our

system in the previous section.

When it comes to the external validity of our

approach, there are some limitations and threats that

need to be considered and span along the following

axes: 1) the selected use case and 2) the deﬁnition of

the ground truth along with the selection of the

training dataset. Our design choice to apply our

methodology on detecting formatting errors based on

the codrep competition is just one of the use cases

our system can be applied to. One threat to the

external validity of our approach lies on the

evaluation of our approach on different scenarios, i.e.

the generalization of our approach on a set of

different code stylings. However, the selected use

case is considered as the most common and

necessary one, while it does not differ signiﬁcantly

from the other scenarios. Additionally, for the

creation of the ground truth, i.e. the set of ﬁles that

deﬁne the most used code styling, we made use of a

dataset created by Santos et al. (Santos et al., 2018),

mining the top 10,000 Java repositories from Github.

While more or different projects could be used for

the creation of our ground truth and the training of

our system on a selected formatting, our

methodology can be applied as-is using a different

benchmark or pristine dataset that can cover multiple

and different evaluation scenarios.

6 CONCLUSIONS AND FUTURE

WORK

In this work, we proposed an automated formatting

error detection methodology, which is based on two

algorithms, LSTM and SVM, that aspire to model

the problem from different perspectives. One of the

basic contributions of our approach is that it does not

need to be pre-trained based on a dataset or based on

a set of predeﬁned rules, that allow only minor

modiﬁcations, but it can learn the coding style used

in a project and detect deviations from it in a

completely unsupervised manner, without the need

of experts or prior domain knowledge. The

evaluation of our approach in two diverse axes

indicates that our system can effectively identify

formatting deviations from the coding style used as

ground truth and provide actionable and useful

recommendations to the developers, enhancing the

readability degree and ensuring the styling

consistency across the project.

While the use of globally adopted code styling in

the evaluation stage of our approach indicates that

our methodology could also be used as a common

formatter, the main contribution of our approach lies

on the unsupervised code styling consistency held

across a project or set of ﬁles. Should a team of

developers apply our methodology across a project,

every team member will be motivated to follow the

common code styling from the ground, improving

the maintenance and the evolution of the software.

Future work relies on several axes. Firstly, a

ﬁxing mechanism could be built that, based on the

formatting error detection approach of this work,

would provide actual recommendations to the

developers about changes that could ﬁx the error,

without changing the functionality of the code.

Additionally, a thorough evaluation mechanism

could be created that could qualitatively or

quantitively assess the performance of the complete

system in detecting and ﬁxing formatting errors, as

well as the readability improvement achieved.

Moreover, we would suggest the creation of a tool or

plugin for a set of commonly used IDEs, that would

predict the formatting errors, while the developer is

typing, highlight these errors and suggest possible

ﬁxes. Finally, we could alter the training dataset by

using projects with different characteristics and,

especially, small projects with developers that use

different formatting styles, in order to evaluate the

performance of our approach in a small code basis

with high formatting ﬂuctuations.

ACKNOWLEDGEMENTS

This research has been co-ﬁnanced by the European

Regional Development Fund of the European Union

and Greek national funds through the Operational

Program Competitiveness, Entrepreneurship and

Innovation, under the call RESEARCH – CREATE –

INNOVATE (project code:T1EDK-04673).

ICSOFT 2021 - 16th International Conference on Software Technologies

100

REFERENCES

Allamanis, M., Barr, E. T., Bird, C., and Sutton, C. (2014).

Learning natural coding conventions. In Proceedings

of the 22nd ACM SIGSOFT International Symposium

on Foundations of Software Engineering, FSE 2014,

page 281–293, New York, NY, USA. Association for

Computing Machinery.

Codrep (2019). Codrep 2019. https://github.com/KTH/

codrep-2019. Accessed: 2020-09-27.

GNU Project (2007). Indent - gnu project. https://www.

gnu.org/software/indent/. Accessed: 2020-09-27.

Hellendoorn, V. J. and Devanbu, P. (2017). Are deep

neural networks the best choice for modeling source

code? In Proceedings of the 2017 11th Joint

Meeting on Foundations of Software Engineering,

ESEC/FSE 2017, page 763–773, New York, NY,

USA. Association for Computing Machinery.

Hindle, A., Godfrey, M. W., and Holt, R. C. (2008). From

indentation shapes to code structures. In 2008 Eighth

IEEE International Working Conference on Source

Code Analysis and Manipulation, pages 111–120.

Hochreiter, S. and Schmidhuber, J. (1997). Lstm can solve

hard long time lag problems. In Mozer, M. C., Jordan,

M. I., and Petsche, T., editors, Advances in Neural

Information Processing Systems 9, pages 473–479.

MIT Press.

Kesler, T. E., Uram, R. B., Magareh-Abed, F., Fritzsche, A.,

Amport, C., and Dunsmore, H. (1984). The effect of

indentation on program comprehension. International

Journal of Man-Machine Studies, 21(5):415 – 428.

Lee, T., Lee, J.-B., and In, H. (2013). A study of different

coding styles affecting code readability. International

Journal of Software Engineering and Its Applications,

7:413–422.

Loriot, B., Madeiral, F., and Monperrus, M. (2019). Styler:

Learning formatting conventions to repair checkstyle

errors. CoRR, abs/1904.01754.

Markovtsev, V., Long, W., Mougard, H., Slavnov, K., and

Bulychev, E. (2019). Style-analyzer: Fixing code

style inconsistencies with interpretable unsupervised

algorithms. volume 2019-May, pages 468–478.

Miara, R. J., Musselman, J. A., Navarro, J. A., and

Shneiderman, B. (1983). Program indentation and

comprehensibility. Commun. ACM, 26(11):861–867.

Ogura, N., Matsumoto, S., Hata, H., and Kusumoto, S.

(2018). Bring your own coding style. In 2018 IEEE

25th International Conference on Software Analysis,

Evolution and Reengineering (SANER), pages 527–

531.

Parr, T. and Vinju, J. (2016). Towards a universal code

formatter through machine learning. In Proceedings

of the 2016 ACM SIGPLAN International Conference

on Software Language Engineering, SLE 2016, page

137–151, New York, NY, USA. Association for

Computing Machinery.

Posnett, D., Hindle, A., and Devanbu, P. (2011). A

simpler model of software readability. In Proceedings

of the 8th Working Conference on Mining Software

Repositories, MSR ’11, page 73–82, New York, NY,

USA. Association for Computing Machinery.

Prabhu, R., Phutane, N., Dhar, S., and Doiphode, S.

(2017). Dynamic formatting of source code in editors.

In 2017 International Conference on Innovations in

Information, Embedded and Communication Systems

(ICIIECS), pages 1–6.

Prettier (2017). Prettier. https://prettier.io/. Accessed:

2020-09-27.

Santos, E. A., Campbell, J. C., Patel, D., Hindle, A.,

and Amaral, J. N. (2018). Syntax and sensibility:

Using language models to detect and correct syntax

errors. In 2018 IEEE 25th International Conference

on Software Analysis, Evolution and Reengineering

(SANER), pages 311–322.

Scalabrino, S., Linares-V

asquez, M., Poshyvanyk, D.,

and Oliveto, R. (2016). Improving code readability

models with textual features. In 2016 IEEE 24th

International Conference on Program Comprehension

(ICPC), pages 1–10.

Scalabrino, S., Linares-V

asquez, M., Oliveto, R., and

Poshyvanyk, D. (2018). A comprehensive model for

code readability. Journal of Software: Evolution and

Process, 30.

Seo, K.-K. (2007). An application of one-class support

vector machines in content-based image retrieval.

Expert Systems with Applications, 33(2):491 – 498.

Tysell Sundkvist, L. and Persson, E. (2017). Code

Styling and its Effects on Code Readability and

Interpretation. PhD thesis, KTH Royal Institute of

Technology.

Wang, X., Pollock, L., and Vijay-Shanker, K. (2011).

Automatic segmentation of method code into

meaningful blocks to improve readability. In 2011

18th Working Conference on Reverse Engineering,

pages 35–44.

White, M., Vendome, C., Linares-V

asquez, M., and

Poshyvanyk, D. (2015). Toward deep learning

software repositories. In Proceedings of the

12th Working Conference on Mining Software

Repositories, MSR ’15, page 334–345. IEEE Press.

Towards Automatically Generating a Personalized Code Formatting Mechanism

101
