Transfer Learning for Just-in-Time Design Smells Prediction using

Temporal Convolutional Networks

Pasquale Ardimento

1 a

, Lerina Aversano

2 b

, Mario Luca Bernardi

2 c

, Marta Cimitile

3 d

and

Martina Iammarino

2 e

Computer Science Department, University of Bari Aldo Moro, Via E. Orabona 4, Bari, Italy

University of Sannio, Benevento, Italy

Unitelma Sapienza, University of Rome, Italy

Keywords:

Design Smells Prediction, Software Quality, Deep Learning, Transfer Learning.

Abstract:

This paper investigates whether the adoption of a transfer learning approach can be effective for just-in-time

design smells prediction. The approach uses a variant of Temporal Convolutional Networks to predict design

smells and a carefully selected ﬁne-grained process and product metrics. The validation is performed on a

dataset composed of three open-source systems and includes a comparison between transfer and direct learn-

ing. The hypothesis, which we want to verify, is that the proposed transfer learning approach is feasible to

transfer the knowledge gained on mature systems to the system of interest to make reliable predictions even

at the beginning of development when the available historical data is limited. The obtained results show that,

when the class imbalance is high, the transfer learning provides F1-scores very close to the ones obtained by

direct learning.

1 INTRODUCTION

In software engineering, design smells are deﬁned as

aspects that violate the fundamental principles of soft-

ware design and negatively affect it (Suryanarayana

et al., 2015). Unmanaged design smells can often

lead to signiﬁcant technical problems and increase

the effort required for maintenance and evolution

(Aversano. et al., 2020). Several approaches and

tools are recently proposed to identify design smells

(Alkharabsheh et al., 2018): some of these (Sharma

et al., 2019; Al-Shaaby, 2020) use machine learning

and deep learning techniques to perform both design

smell detection and prediction.

Deep neural network approaches have proven to

be effective in metric-based prediction tasks but are

thwarted by software systems speciﬁc properties.

First of all, software projects at the beginning of their

development cycle, have insufﬁcient data (Kitchen-

https://orcid.org/0000-0001-6134-2993

https://orcid.org/0000-0003-2436-6835

https://orcid.org/0000-0002-3223-7032

https://orcid.org/0000-0003-2403-8313

https://orcid.org/0000-0001-8025-733X

ham et al., 2007) to allow training of deep neural net-

works and even mature systems usually have imbal-

anced smelly revisions ratios making training steps

very difﬁcult or even unfeasible. This paper inves-

tigates whether the adoption of a transfer learning ap-

proach can be effective in mitigating both problems.

Transfer learning (Lumini and Nanni, 2019) allows

training a prediction model using knowledge gathered

from other projects with known smells. This helps to

obtain satisfying predictions even in the early stage

of the development life cycle. However, to increase

the data availability, system evolution data is collected

at the commit level through the assessment of inter-

nal quality metrics and process development metrics.

The speciﬁc process metrics allow us to also capture

the software development process and the developers’

behavior. This study proposes an adequate neural net-

work architecture effective for the given prediction

task. The reference architecture is a Temporal Con-

volutional Network (TCN): this kind of neural net-

work is characterized by casualness in the convolu-

tion architecture design (Bai et al., 2018) making it

suitable to our prediction problem where the causal

relationships among the metrics evolution and design

smells presence should be learned. To validate the

310

Ardimento, P., Aversano, L., Bernardi, M., Cimitile, M. and Iammarino, M.

Transfer Learning for Just-in-Time Design Smells Prediction using Temporal Convolutional Networks.

DOI: 10.5220/0010602203100317

In Proceedings of the 16th International Conference on Software Technologies (ICSOFT 2021), pages 310-317

ISBN: 978-989-758-523-4

proposed approach, we conducted an experiment on

three well-known open-source software systems and

we compare transfer and direct learning results.

In Section 2 some backgrounds about transfer

learning and design smell are discussed. In Section

3 the related work is discussed. The proposed trans-

fer/direct learning approach, the adopted features, the

data extraction process and the TCN architecture are

described in Section 4. The experiment description

is provided in Section 5, while the experiment results

are discussed in Section 6. Finally, in Section 7 and

8 respectively, the threats to validity and the conclu-

sions are discussed.

2 BACKGROUND

2.1 Transfer Learning

In some real-world machine learning scenarios, train-

ing data and testing data are not taken from the same

domain because there are cases where training data is

expensive or difﬁcult to collect. Therefore, there is a

need to create high-performance learners trained with

more easily obtained data from different domains.

This methodology is referred to as transfer learning.

With the transfer learning approach, a neural network

trained for a task is reused as a model on a second task

(Lumini and Nanni, 2019). Due to the wide applica-

tion prospects, transfer learning has become a popular

and promising area in machine learning. In (Zhuang

et al., 2020) there is a survey that systematizes the ex-

isting transfer learning researches, as well as summa-

rizes and interprets the mechanisms and the strategies

in a comprehensive way, which may help readers have

a better understanding of the current research status

and ideas. There are different categories of transfer

learning. The instance-based transfer learning utilizes

similar instances in the source domain to establish the

prediction model for the target domain. One of the

most representative instance-based transfer learning

methods is TradaBoost proposed by Dai et al. (Dai

et al., 2007), which is based on AdaBoost. Another

one is the kernel mean matching method after the in-

stances are redistributed in reproducing kernel Hilbert

space (Huang et al., 2006). The feature-based transfer

learning, the main idea of which is to use the source

domain instances to generate instances in the target

domain. For the transfer between two domains of

different characteristics, Nam and Kim (Nam et al.,

2017) migrated through two steps of feature selection

and connection and achieved relatively good perfor-

mance. An additional feature-based transfer learning

method is proposed by Pan et al. (Pan et al., 2011).

This method proposes a representation through a new

learning method, transfer component analysis (TCA),

for domain adaptation to map the source and target

domains from the original feature space to a poten-

tial one. In this paper, we used a special case of

transfer learning, called domain adaptation (Pan et al.,

2011). In this case, source (external projects) and

target (project to be predicted) domains are different

while sharing the same learning task. In particular,

we considered a model that has learned to classify

and predict smells in software projects and is used for

classifying smells in a different software project.

2.2 Design Smells

This study refers to the design smells reported in

(Girish Suryanarayana, 2014), and uses the known

Designite software design quality assessment tool

(Sharma et al., 2016) to detect these design smells

from the software systems. The design smells con-

sidered in this study are the following:

• Multifaced Abstraction (MA): It arises when

more responsibilities are designated to the same

abstraction.

• Unutilized Abstraction (UNA): It indicates that

there is an abstraction that is (i) unused, (ii) not

directly used or, (iii) not reachable. This smell

can be of two types, respectively named Unrefer-

enced Abstractions and Orphan Abstractions. The

former are unused concrete classes. The latter

are stand-alone interfaces/abstract classes without

any subtypes.

• Unnecessary Abstraction (UA): It arises when in

the software design unnecessary abstraction is in-

troduced. It causes the violation of the abstract

principle asserting that the abstract entities should

have only one responsibility and this responsibil-

ity should have high importance.

• Imperative Abstraction (IA): It indicates that an

operation is transformed into a class. However,

this smell looks like a class with a unique method.

• Deﬁcient Encapsulation (DE): It occurs when the

abstraction encapsulation is not sufﬁcient. There

are two possible types: lenient and vulnerable en-

capsulation. Lenient encapsulation occurs when a

member of abstraction can access in a more per-

missive way than required. The latter indicates the

vulnerability of an abstraction state for misuse or

corruption (implementation details are not more

adequately protected).

• Unexploited Encapsulation (UE): It arises when

the explicit type checks are used by client codes

Transfer Learning for Just-in-Time Design Smells Prediction using Temporal Convolutional Networks

311

while the variation in type already encapsulated

within a hierarchy should be exploited.

• Broken Modularization (BM): It indicates that

data or methods that should be into a single ab-

straction are distributed along with several ab-

stractions.

• Cyclically-dependent Modularization (CMD): It

arises when two or more class-level abstractions

are directly or indirectly dependent on each other.

In this case, tight coupling is created between

these abstractions.

3 RELATED WORK

Several detection approaches and tools (Imran, 2019;

Alkharabsheh et al., 2018) for design smells are re-

cently proposed. Mainly, these approaches allow

detecting design smells (and the consequent design

problems) once they already exist in the code. Other

studies explore the adoption of machine learning

smell techniques (Sharma et al., 2019; Al-Shaaby,

2020) as an alternative to traditional design smells de-

tection approaches. In particular, in (Sharma et al.,

2019) existing metric-based methods and different

deep learning architectures (i.e., Convolution Neu-

ral Networks (CNNs), Recurrent Neural Networks

(RNNs)) are used to detect one design smell in C

code. However, authors in (Al-Shaaby, 2020) high-

light that the research in the ﬁeld of application of

machine learning algorithms to detect code smells is

quite immature. In this context, authors in (Sharma

et al., 2019; Di Nucci et al., 2018) highlight that a lim-

itation of the existing studies is that they never con-

sider the possibility to exploit the availability of tools

and data about code smells in a programming lan-

guage as the training set for machine learning mod-

els that address similar problems on other languages.

Starting from this idea, in this study, we aim to use

the data extracted from software projects with a high

amount of design smells for training deep learning

models useful to predict design smells in projects with

a more limited number of data. To the best of our

knowledge, this is the ﬁrst time that transfer learn-

ing is applied to design smell prediction using metric-

based supervised learning. Differently from (Sharma

et al., 2019) that exploits transfer learning for de-

sign smell detection from source code, in this study

we propose a metric-based approach introducing both

product and process metrics to perform design smell

prediction at class and commit level across a corpus

of open-source software projects, comparing direct

and transfer learning performances. Moreover, this

study adopted a Temporal Convolutional Networks

(TCN) approach characterized by casualness in the

convolution architecture design (Bai et al., 2018) that

make it particularly suitable for our prediction prob-

lem where the causal relationships among the metrics

evolution over time and design smell presence need to

be learned.

4 THE TRANSFER LEARNING

APPROACH

In this study, classiﬁers are trained using historical

data from different adult systems that have similar

properties. The built classiﬁers are then used to pre-

dict design smells on the system under study. Figure 2

depicts the performed transfer learning schema. The

upper side of the ﬁgure shows the learning transfer

activities allowing to improve the transfer of train-

ing. Starting from software project historical data,

we cleaned the raw dataset by removing incomplete

and wrong sampled data sessions and normalizing

the attributes (min-max normalization). Then the set

of considered features are extracted according to the

proposed data extraction process (the proposed fea-

ture model and the data extraction process will be de-

scribed in the following section). The data extraction

step generates an integrated dataset collecting design

smells data and metrics data. This allows to start of

the training of the classiﬁers (one for each considered

design smell) and generates the transfer model. We

deﬁned a set of labeled traces T = (M, l), where M is

an instance associated with a label l ∈ {U

, . . . , U

which represents a design smell introduction. For

each M, the process computes a feature vector V

sub-

mitted to the model in the training phase. To perform

validation during the training step, a 10-fold cross-

validation is used (Stone, 1974). When a target soft-

ware project is evaluated a new data extraction pro-

cess is executed (lower side of the ﬁgure). In this

step, the process and product metrics are extracted

and sent to the classiﬁer. The classiﬁer takes as in-

put the transfer model and the metrics data to perform

the design smell prediction. More details about the

proposed TCN classiﬁer will be reported in Section

4.2.

4.1 Data Extraction

Figure 1 depicts the data extraction steps required for

the training process. First of all, for each considered

system, the change (revision) history is gathered com-

mit per commit from the GitHub repository. All the

commits log messages so obtained are, then, analyzed

ICSOFT 2021 - 16th International Conference on Software Technologies

312

and parsed to report all the changes of the ﬁles con-

tained in the code repository. In particular, as reported

in the Commits Log Analyzer box, the extracted com-

mits logs are analyzed to obtain the process metrics

dataset while the commits’ source code is used to per-

form smell detection and product metrics evaluation

(Designite box and CK+JaSoMe box). In this step,

the analysis of the source code at each commit has

been performed to understand and measure its evo-

lution over time, commit per commit. The product

metrics are computed by using JaSoMe

(Java Source

Metrics) and CK

object-oriented metrics extractors.

They are both open-source code analyzers that mine

internal quality metrics from projects based on source

code alone.

To detect the design smells, the Designite

tool

has been used. It is a software design and quality as-

sessment tool allowing to perform a comprehensive

design smells detection and a detailed metrics analy-

sis.

The obtained smell dataset and the product met-

rics dataset are related through a smell-metrics match-

ing activity. Finally, the process metrics and the prod-

uct metrics (within their related smells) are integrated

and stored in a single data set.

As product metrics, we considered the well-

known Chidamber and Kemerer metrics (Chidamber

and Kemerer, 1994) and the MOOD Metrics (e Abreu

and Carapuça, 1994). While, as process metrics, use-

ful to capture both the kind of changes that are per-

formed to source code elements and the properties of

authors and committers performing such change, we

considered the following ones deﬁned as follows:

• Developer Seniority (SEN): It measures the

time, expressed in days, between the ﬁrst commit

and the last commit authored by developer d

. Its

formula is:

SEN(c

) = Cd(c

) − Fc(d

)

where:

: the commit for which we want to evaluate the

author’s seniority.

: the developer who authored the commit c

Cd(c

): the date of the commit c

Fc(d

): the date of the ﬁrst commit authored in

the source code repository by developer d

• Owned Commit (OC): It considers the set of ﬁle

owners as the committers that performed together,

on the ﬁle, a given percentage (speciﬁcally, 50%)

https://github.com/rodhilton/jasome

https://github.com/mauricioaniche/ck

https://www.designite-tools.com

of the total number of commits that occurred on

that ﬁle. In our context, we tag as owners the set of

the developers that collectively performed at least

half of the total changes on that ﬁle.

• Number of File Owners (NFOWN): Given the

deﬁnitions above, this can be deﬁned, for a ﬁle f

and a commit c

, as the cardinality of the owners

of the ﬁle f

at commit c

• Owned File Ratio (OFR): For a developer d

, a

ﬁle f

and a commit c

, this is the ratio R(d

, f

, c

)

of changes performed by d

with respect to the to-

tal changes performed by all developers on ﬁle f

from the start of the observation period (i.e., in the

commits interval [c

,. . . ,c

]).

Additional process metrics describe ﬁle or devel-

oper properties and can be easily computed using

VCS logs. The Time since the last commit (TSLC),

for a given ﬁle f

and a commit c

, is the number of

days passed since the last commit on f

. For a given

developer d

, the Commit Frequency (CF) is the

number of commits by month authored by d

whereas

the Mean time between commits (MTBC) is the av-

erage time (in days) between all subsequent commits

authored by d

4.2 TCN Classiﬁer

This study is based on a TCN architecture. In par-

ticular, in the TCN network, we use a hierarchical

attention mechanism through the network levels in-

troduced by (Yang et al., 2016) and applied in (Ardi-

mento. et al., 2020), because it helps the standard

TCN architecture to learn more efﬁciently the com-

plex temporal relationships present in multivariate

time series of internal quality metrics evolution. Ac-

cording to this architecture, if the network has n hid-

den levels, a matrix Li is deﬁned, it includes the con-

volutional activations on each layer i (with i = 0,1, ...,

n ) deﬁned as:

= [l

, l

, ..., l

], L

∈ R

K×T

where K represents the number of ﬁlters present in

each level.

During the training phase, validation is done

through 10-fold cross-validation (Stone, 1974). Fur-

thermore, the evaluation of the trained prediction

model is carried out using real data that the network

has never seen before, data contained in the test set

made of classes, and therefore of smells. In particu-

lar, the architecture in question was trained using the

cross-entropy loss function (Mannor et al., 2005).

The network was developed using the Python pro-

gramming language and, in particular, the libraries

Transfer Learning for Just-in-Time Design Smells Prediction using Temporal Convolutional Networks

313

Github

MOOD+Aniche/CK+JaSoMe

ProductMetrics

Evaluation

Smell-Metrics

Matching

Commits

Log

analyzer

Commits

Sourcecode

Smell Dataset

Product Metrics Dataset

Process Metrics Dataset

Commits Log

Integrated

Dataset

Integration

Revision

Extraction

Designite

DesignSmellDetection

Figure 1: Toolchain used in the data extraction process.

Integrated Dataset

Transfer Model

Software Projects Data

Target Software Project

Data

Extraction

Metrics

Data

Model

Training

Design Smells Data

Data

Extraction

Metrics

Data

Design

Smell

Predicon

Figure 2: Transfer Learning for Cross-Project Design Smells Prediction.

Tensorﬂow

and Keras

were used to implement the

designed deep neural network architecture.

5 EXPERIMENT DESCRIPTION

The research goal discussed in the introduction can be

formulated as the following research question:

RQ: What is the performance of the TCN model to

predict design smells occurrences when trained on the

proposed features set on data collected across differ-

ent systems?

This research question investigates if the performance

of the TCN model is effective when trained using

Transfer Learning (TL), i.e. trained on a set of soft-

ware systems different than those on which it is val-

idated. The results are compared to those obtained

with Direct Learning considered as the baseline in our

https://www.tensorﬂow.org

https://keras.io

work. This baseline is built on a learning approach

based on the TCN model using data extracted from

the same system under study. For all these models,

hyper-parameters optimization is performed and the

comparison is conducted comparing models with the

best conﬁgurations of each considered model (due to

space constraints, we only report information about

best parameter conﬁgurations for the TCN model).

To evaluate the performance of the prediction, the

F1 score is computed. It is evaluated as the harmonic

average of the precision and the recall metrics. Pre-

cision is the number of corrected positive results di-

vided by the number of all positive results returned

by the models. The recall is the number of corrected

positive results divided by the number of all relevant

samples.

Also notice that we train a single classiﬁer for

each design smell since the relationships among the

features and the smells can be quite different and a

single neural multinomial classiﬁer would be unable

to perform adequately.

ICSOFT 2021 - 16th International Conference on Software Technologies

314

Table 1: An overview of the analyzed systems (commits and revisions by system and smell).

Systems → ZooKeeper JFreeChart Jackson DF

From—To dates → Nov 2007—Mar 2020 Jun 2007—Feb 2020 Jan 2011—Mar 2020

Total commits → 2101 3786 1901

Total revisions → 1264735 403467 253176

Imperative Abstraction (IA) 14088 2097 0

Multifaceted Abstraction (MA) 1021 1781 0

Unnecessary Abstraction (UA) 25259 3823 85166

Unutilized Abstraction (UNA) 796138 285607 134819

Deﬁcient Encapsulation (DE) 163204 57478 185501

Unexploited Encapsulation (UE) 5028 0 0

Broken Modularization (BM) 15418 1774 1040

Design Smells



Cyclic D. Modularization (CDM) 146644 36591 5244

Table 2: Class imbalance for the analyzed systems.

Class imbalance ZooKeeper JFreeChart Jackson DF

IA 97.77 98.96 -

MA 99.83 88.11 -

UA 96.00 98.10 32.72

UNA 25.89 41.57 6.50

DE 74.19 71.51 46.54

UE 99.20 - -

BM 97.56 99.12 99.17

CDM 76.81 81.86 95.86

5.1 Dataset Construction

In the experiments, a dataset composed of data

gathered from three Java open-source projects

(ZooKeeper

, JFreeChart

, Jackson DataFormats

) is considered. The selected software projects

have these characteristics: i) their programming lan-

guage is Java; ii) the corresponding repository is not

archived and more than 20 releases are available; iii)

they differ for application domains, sizes, number of

revisions; iv) they are adopted in other studies. The

project names are reported in the ﬁrst row of Ta-

ble 1. The table also reports for each considered de-

sign smell the number of occurrences in the analyzed

system.

6 DISCUSSION OF RESULTS

In this section, results obtained from direct learning

and transfer learning are shown and compared.

Table 3 reports the F1-score obtained, for the best

hyper-parameters combination, by the TCN model

https://github.com/apache/zookeeper

https://github.com/jfree/jfreechart

https://github.com/FasterXML/jackson-dataformat-xml

A replication package containing the dataset used for train-

ing is provided at https://bit.ly/3lpEoMq

Table 3: Best F1-score for each smell and each system ob-

tained by TCN model using direct learning approach.

Software Systems

Design Smells ZooKeeper JFreeChart Jackson DF DL F1

IA 0,12 0,45 - 0,45

MA 0,24 0,33 - 0,33

UA 0,45 0,55 0,97 0,97

UNA 0,94 0,96 0,96 0,96

DE 0,89 0,96 0,95 0,96

UE 0,68 - - 0,68

BM 0,38 0,56 0,28 0,65

CDM 0,91 0,94 0,72 0,94

Table 4: Best F1-score for each smell and each system ob-

tained by TCN model using transfer learning approach.

Software Systems

Design Smells ZooKeeper JFreeChart Jackson DF TL F1

IA 0,13 0,42 - 0,42

MA 0,22 0,31 - 0,31

UA 0,43 0,53 0,94 0,94

UNA 0,92 0,91 0,93 0,93

DE 0,89 0,91 0,90 0,91

UE 0,76 - - 0,76

BM 0,33 0,54 0,26 0,54

CDM 0,92 0,94 0,76 0,94

for each considered design smell when direct learn-

ing (DR) is used. The table shows that TCN perfor-

mance strongly depends on the smell. Best perfor-

mance is obtained by the UNA and DE smells. For

some smells, the F1 score can not be evaluated since

they are not present in the analyzed systems. To better

understand the obtained results, in Table 2, the class

imbalance evaluated for each analyzed system is re-

ported. It represents the level of balancing between

smelly-not smelly classes in the system and its val-

ues range between 0 and 100. A value equal to 0

means absence of unbalance while a value equal to

100 means that there is a total unbalance of smelly

and not-smelly classes. Notice that for systems with

higher class imbalance, e.g. IA and MA, the ob-

tained performance is low. Table 4 shows the best

F1-score for the best hyper-parameters combination,

by the TCN model for each considered design smell

Transfer Learning for Just-in-Time Design Smells Prediction using Temporal Convolutional Networks

315

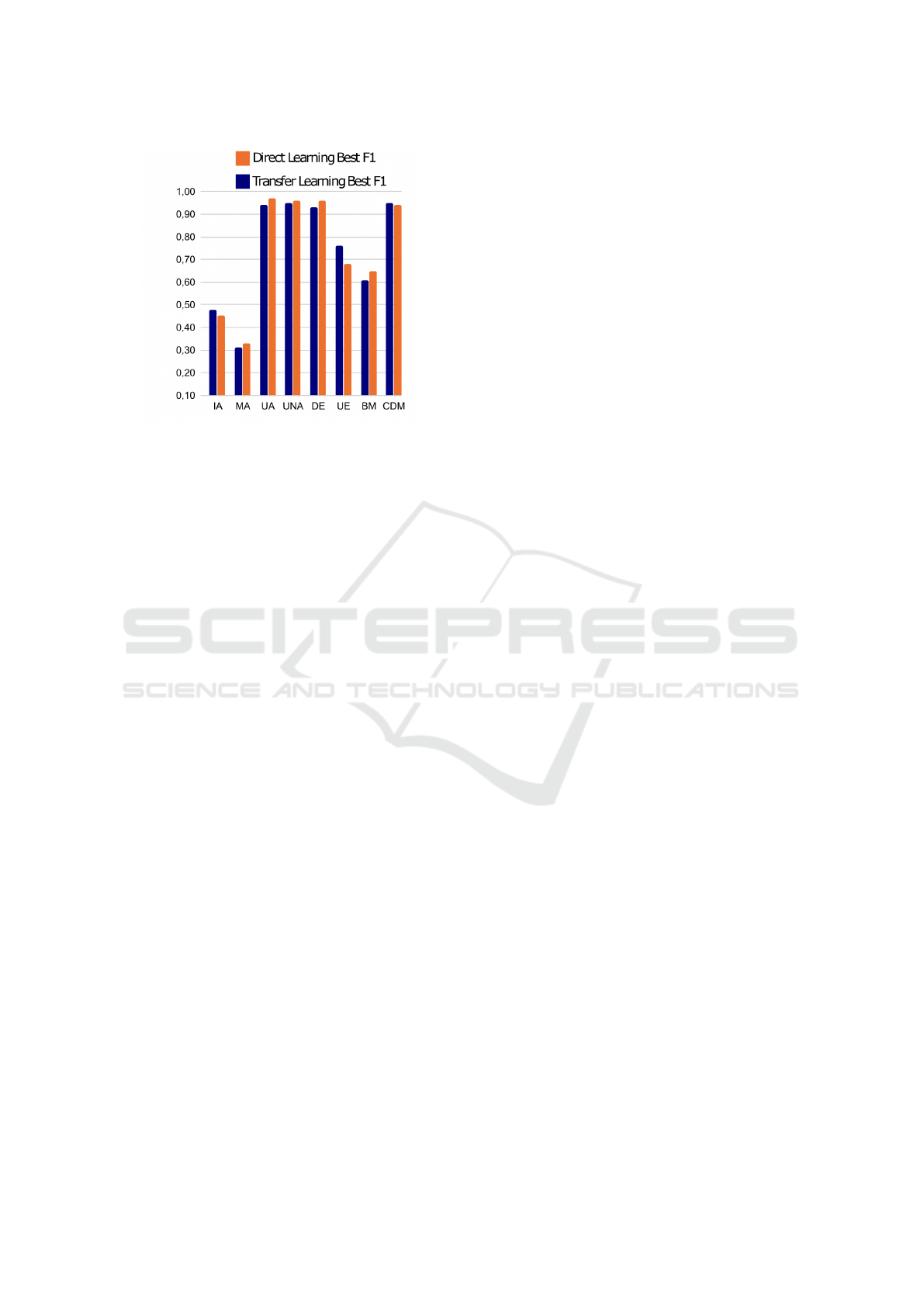

Figure 3: F1-score for TCN with direct learning (DL-Best

F1) vs TCN with transfer learning (TL-Best F1).

when transfer learning (TL) is used. The table shows

that, also in this case, good performance is obtained

for all the systems with a lower class imbalance. It

is also worth noting that for class imbalance smaller

than 95% TCN F1-score is always over 0.9. This sug-

gests that there is a critical threshold behind which the

training performance starts to deteriorate.

A comparison between the F1-score of DL and

TL is depicted in Figure 3. It can be observed that

for some kind of design smells the obtained val-

ues are very satisfying, i.e. for Unutilized Abstrac-

tion, Unnecessary Abstraction, Deﬁcient Encapsula-

tion, Cyclically Dependent Modularization. For some

other kind of design smells the F1-score results are

not positive, i.e. the Imperative Abstraction and Mul-

tifaced Abstraction design smells. However, the more

interesting aspect of these results is that the transfer

learning results obtained in any kind of design smell

are comparable to the ones obtained by direct learn-

ing. This means that the obtained model, especially in

the case of design smell with a high F1-score, can be

effectively used to predict changes introducing smells

even in software projects without a sufﬁcient number

of available data. This means that transfer learning

can effectively be used when to predict the design

smell of new projects with limited history.

7 THREATS TO VALIDITY

We analyzed and mitigated the following threats to

the validity of our study:

• accuracy of the tools: three widespread tools

respectively called Designite, CK, and JaSoMe

were used;

• wrong evaluation of the design smells: several ex-

perts performed sample checks that include man-

ual inspection and majority voting of evaluated

data ensuring consistency;

• meaningfulness of metrics: an accurate process of

data gathering was performed.

• generalization of results: well-known software

projects with different sizes, dimensions, do-

mains, timeframe, and number of commits were

selected.

Finally, our work only considers systems written in

Java because the tools used to perform design smells

detection and metrics assessment exclusively work

only on Java programs. For this reason, we cannot

generalize the obtained results to systems written in

different languages. Similarly, we did not consider

projects belonging to the industrial context.

8 CONCLUSIONS

In this study, we proposed and evaluated the adoption

of a transfer learning approach to address the just-in-

time design smells prediction problem. The empiri-

cal results show that when the class is well balanced

the prediction model is effective for direct learning

and is usable as an alternative with comparable re-

sults. Moreover, the results show that transfer learn-

ing provides F1 scores very close to the ones obtained

by direct learning. To generalize our ﬁndings, future

work will be devoted to replicating this study on more

and larger open-source systems. Another research di-

rection is related to experimenting with novel neural

network architectures suitable for multi-variate time

series prediction problems.

REFERENCES

Al-Shaaby, A. and, A. H. A. M. B. (2020). Smell detec-

tion using machine learning techniques: A systematic

literature review. Arab J Sci Eng 45, 2341-2369.

Alkharabsheh, K., Crespo, Y., Manso, E., and Taboada,

J. A. (2018). Software design smell detection: a sys-

tematic mapping study. Software Quality Journal,

pages 1–80.

Ardimento., P., Aversano., L., Bernardi., M., and Cimi-

tile., M. (2020). Temporal convolutional networks for

just-in-time software defect prediction. In Proceed-

ings of the 15th International Conference on Software

Technologies - ICSOFT,, pages 384–393. INSTICC,

SciTePress.

Aversano., L., Bernardi., M., Cimitile., M., Iammarino., M.,

and Romanyuk., K. (2020). Investigating on the rela-

ICSOFT 2021 - 16th International Conference on Software Technologies

316

tionships between design smells removals and refac-

torings. In Proceedings of the 15th International Con-

ference on Software Technologies - ICSOFT,, pages

212–219. INSTICC, SciTePress.

Bai, S., Kolter, J. Z., and Koltun, V. (2018). An em-

pirical evaluation of generic convolutional and re-

current networks for sequence modeling. CoRR,

abs/1803.01271.

Chidamber, S. R. and Kemerer, C. F. (1994). A metrics

suite for object oriented design. IEEE Transactions

on Software Engineering, 20(6):476–493.

Dai, W., Yang, Q., Xue, G., and Yu, Y. (2007). Boosting for

transfer learning. In Ghahramani, Z., editor, Machine

Learning, Proceedings of the Twenty-Fourth Interna-

tional Conference (ICML 2007), Corvallis, Oregon,

USA, June 20-24, 2007, volume 227, pages 193–200.

ACM.

Di Nucci, D., Palomba, F., Tamburri, D. A., Serebrenik,

A., and De Lucia, A. (2018). Detecting code smells

using machine learning techniques: Are we there

yet? In 2018 IEEE 25th International Conference

on Software Analysis, Evolution and Reengineering

(SANER), pages 612–621.

e Abreu, F. B. and Carapuça, R. (1994). Candidate metrics

for object-oriented software within a taxonomy frame-

work. Journal of Systems and Software, 26(1):87–96.

Girish Suryanarayana, Ganesh Samarthyam, T. S. (2014).

Refactoring for Software Design Smells: Managing

Technical Debt. Morgan Kaufmann.

Huang, J., Smola, A. J., Gretton, A., Borgwardt, K. M.,

and Schölkopf, B. (2006). Correcting sample selec-

tion bias by unlabeled data. In Schölkopf, B., Platt,

J. C., and Hofmann, T., editors, Advances in Neural

Information Processing Systems 19: Proceedings of

the 2006 Conference, Vancouver, British Columbia,

Canada, December 4-7, 2006, pages 601–608. MIT

Press.

Imran, A. (2019). Design smell detection and analysis for

open source java software. In 2019 IEEE Interna-

tional Conference on Software Maintenance and Evo-

lution (ICSME), pages 644–648.

Kitchenham, B. A., Mendes, E., and Travassos, G. H.

(2007). Cross versus within-company cost estimation

studies: A systematic review. IEEE Transactions on

Software Engineering, 33(5):316–329.

Lumini, A. and Nanni, L. (2019). Deep learning and trans-

fer learning features for plankton classiﬁcation. Eco-

logical informatics, 51:33–43.

Mannor, S., Peleg, D., and Rubinstein, R. (2005). The cross

entropy method for classiﬁcation. In Proceedings

of the 22Nd International Conference on Machine

Learning, ICML ’05, pages 561–568, New York, NY,

USA. ACM.

Nam, J., Fu, W., Kim, S., Menzies, T., and Tan, L. (2017).

Heterogeneous defect prediction. IEEE Transactions

on Software Engineering, 44(9):874–896.

Pan, S., Tsang, I., Kwok, J., and Yang, Q. (2011). Domain

adaptation via transfer component analysis. IEEE

transactions on neural networks / a publication of the

IEEE Neural Networks Council, 22:199–210.

Sharma, T., Efstathiou, V., Louridas, P., and Spinellis, D.

(2019). On the feasibility of transfer-learning code

smells using deep learning. CoRR, abs/1904.03031.

Sharma, T., Mishra, P., and Tiwari, R. (2016). Designite -

a software design quality assessment tool. In 2016

IEEE/ACM 1st International Workshop on Bringing

Architectural Design Thinking Into Developers’ Daily

Activities (BRIDGE), pages 1–4.

Stone, M. (1974). Cross-validatory choice and assessment

of statistical predictions. Roy. Stat. Soc., 36:111–147.

Suryanarayana, G., Samarthyam, G., and Sharma, T.

(2015). Chapter 2 - design smells. In Suryanarayana,

G., Samarthyam, G., and Sharma, T., editors, Refac-

toring for Software Design Smells, pages 9 – 19. Mor-

gan Kaufmann, Boston.

Yang, Z., Yang, D., Dyer, C., He, X., Smola, A., and Hovy,

E. (2016). Hierarchical attention networks for docu-

ment classiﬁcation. In Proceedings of NAACL-HLT

2016, pages 1480–1489, San Diego, California. Asso-

ciation for Computational Linguistics.

Zhuang, F., Qi, Z., Duan, K., Xi, D., Zhu, Y., Zhu, H.,

Xiong, H., and He, Q. (2020). A comprehensive sur-

vey on transfer learning. Proceedings of the IEEE,

109(1):43–76.

Transfer Learning for Just-in-Time Design Smells Prediction using Temporal Convolutional Networks

317
