Responding to Living-Off-the-Land Tactics using

Just-In-Time Memory Forensics (JIT-MF) for Android

Jennifer Bellizzi

1 a

, Mark Vella

1 b

, Christian Colombo

1 c

and Julio Hernandez-Castro

2 d

Department of Computer Science, University of Malta, Msida, Malta

School of Computing, Cornwallis South, University of Kent, Canterbury, U.K.

christian.colombo}@um.edu.mt,

Keywords:

Memory Forensics, Android Security, Digital Forensics, Incident Response, Forensic Timelines.

Abstract:

Digital investigations of stealthy attacks on Android devices pose particular challenges to incident responders.

Whereas consequential late detection demands accurate and comprehensive forensic timelines to reconstruct

all malicious activities, reduced forensic footprints with minimal malware involvement, such as when Living-

Off-the-Land (LOtL) tactics are adopted, leave investigators little evidence to work with. Volatile memory

forensics can be an effective approach since app execution of any form is always bound to leave a trail of

evidence in memory, even if perhaps ephemeral. Just-In-Time Memory Forensics (JIT-MF) is a recently pro-

posed technique that describes a framework to process memory forensics on existing stock Android devices,

without compromising their security by requiring them to be rooted. Within this framework, JIT-MF drivers

are designed to promptly dump in-memory evidence related to app usage or misuse. In this work, we primar-

ily introduce a conceptualized presentation of JIT-MF drivers. Subsequently, through a series of case studies

involving the hijacking of widely-used messaging apps, we show that when the target apps are forensically en-

hanced with JIT-MF drivers, investigators can generate richer forensic timelines to support their investigation,

which are on average 26% closer to ground truth.

1 INTRODUCTION

The use of process memory forensics is increasingly

becoming a necessity when investigating advanced

stealthy cyberattack incidents targeting smartphones

(Case et al., 2020; Ali-Gombe et al., 2020; Bha-

tia et al., 2018; Taubmann et al., 2018). This is

the reality incident responders face amidst the limi-

tations and barriers of the more forensically sound,

but alas limited, state-of-the-art mobile forensics. In

this work, our primary concern is Android malware

that exhibits long-term stealth by evading early detec-

tion mechanisms, which eventually is only detected

through its consequences. Speciﬁcally, we focus on

attacks that hijack the messaging functionality of An-

droid devices to hide compromising communication

of a criminal nature behind victim devices or else spy

on them through unlawful interception. In the even-

tuality that device owners notice suspicious activity

https://orcid.org/0000-0003-1754-9473

https://orcid.org/0000-0002-6483-9054

https://orcid.org/0000-0002-2844-5728

https://orcid.org/0000-0002-6432-5328

and hand their device over for further investigation,

incident responders would need to investigate — uti-

lizing a forensic timeline (Guðjónsson, 2010) — all

the activities undertaken by threat actors through the

deployed malware.

Android accessibility trojans are a case in point

(Stefanko, Lukas, 2020; ThreatFabric, 2020). This at-

tack vector has been shown to enable stealthy Living-

Off-the-Land (LOtL) tactics (Campbell, Christopher

and Graeber, Matthew, 2013), where key attack steps

get delegated to benign apps, possibly only requiring

the use of malware during an initial setup phase. In

similar scenarios, trying to establish a forensic time-

line solely from sources found on non-volatile ﬂash

memory, whether on-chip or removable, can prove

futile even after many barriers to forensic evidence

collection are overcome. The root cause is that the

forensic artefacts constituting attack evidence would

have been erased from storage or never even created

to begin with. Volatile memory can be an effective

forensic source in such circumstances. No matter how

stealthy an attack can be, its execution through mal-

ware or benign victim apps has to occur in memory

(Case and Richard III, 2017). Therefore, any result-

356

Bellizzi, J., Vella, M., Colombo, C. and Hernandez-Castro, J.

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android.

DOI: 10.5220/0010603603560369

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 356-369

ISBN: 978-989-758-524-1

ing evidence has to be present in process memory,

even if just brieﬂy. While full-device static dumps of

volatile memory typically require an unlocked boot-

loader and customized ﬁrmware, dynamic dumps of

process memory do not necessarily face similar re-

strictions (Bellizzi et al., 2021). We show that this is

the case when deployed using a mix of static and dy-

namic app instrumentation, at least when not involv-

ing system apps and services.

Just-In-time Memory Forensics (JIT-MF) is a

framework for live process memory forensics, with

an initial study describing how to formulate and im-

plement JIT-MF drivers (Bellizzi et al., 2021). These

drivers are responsible for establishing the points in

time when memory dumps should be triggered and

the heap/native memory areas/objects to be included.

While in this paper we implement drivers in the con-

text of message hijacking, these are meant to be con-

ﬁgurable to cater for other investigative scenarios un-

related to message hijacking.

Figure 1 shows the complete JIT-MF workﬂow.

Starting with a forensic readiness stage (Luttgens

et al., 2014), targeted users along with their devices

and apps are identiﬁed during an asset management

exercise (step 1). These users can be high-proﬁle em-

ployees of government agencies or even private citi-

zens whose devices may be the target of resourceful

attackers for various reasons. Once a risk assessment

is carried out, those apps that pose a particular risk,

say messaging apps, are instrumented with JIT-MF

drivers (step 2). With JIT-MF, the forensic acquisi-

tion of memory dumps is triggered by speciﬁc app

events identiﬁed as trigger points by JIT-MF drivers

(step 3). These memory dumps contain either raw bi-

naries from memory segments or else readily-carved

and parsed objects along with tagged metadata, e.g. in

JSON format. These two acquisition methods are re-

ferred to as ofﬂine and online respectively, depending

on how object carving and parsing are carried out.

Once suspicious activity is noticed, with alerts

possibly raised by the device owners themselves or

by incident responders during routine checks, the JIT-

MF dumps are merged with other forensic sources

to produce a forensic timeline (steps 4 and 5). JIT-

MF’s scope is that of producing a richer forensic

timeline, aiming for a comprehensive reconstruction

of app activity, supporting investigators to establish

the full picture of the incident. Techniques, such as

comparisons with a baseline of known normal de-

vice/app usage or cross-checking with cyber threat in-

telligence feeds, can then be used to identify attack-

related, non-consented app usage. The entire work-

ﬂow steps should be recorded, accompanied with full

metadata, hashes, and digital signatures, thus keeping

a complete chain of custody (Cosic and Baca, 2010).

In this manner, all the acquired evidence remains ad-

missible to a court of law if need be.

JIT-MF drivers can be deployed on stock non-

rooted devices without requiring any ﬁrmware alter-

ations and are compatible with encrypted devices. By

avoiding an approach based entirely on forensically

enhancing the Android kernel or individual app code-

bases, JIT-MF can work with what is already de-

ployed in the ﬁeld. This approach avoids making

any form of imposition on future releases of Android

and/or apps developed for the platform. While not

clashing with device access controls, such as screen

and bootloader locks, JIT-MF does require the de-

vice owner’s collaboration. This assumption’s realism

rests on the fact that device owners are the potential

victims rather than perpetrators.

The key proposition of this paper is that through

JIT-MF tools and their drivers, timely captured

volatile memory can be used as an additional forensic

source to help reconstruct incident scenarios in a more

comprehensive manner, better supporting incident in-

vestigations that involve stealthy, long-running cy-

berattacks targeting Android smartphones, and their

owners alike. We make the following contributions:

• Provide a conceptual, generic description of JIT-

MF drivers, along with a methodology for their

implementations.

• Six JIT-MF drivers for popular messaging

apps, covering both SMS and instant messag-

ing, supporting investigators to determine any

malicious/non-consented activity.

• Experimentation involving stealthy messaging hi-

jack case studies, demonstrating how using JIT-

MF drivers results in richer forensic timelines, as

compared to solely relying on forensic sources

used by state-of-the-art mobile forensics tools.

2 BACKGROUND

Given the nature of apps that are typically installed on

smartphones, ranging from messaging, voice/video

calls, to the camera, navigation, calendar, and social

networking, just to name a few, mobile devices are

nowadays both a rich source of evidence as well as

a primary target for cyberattacks (Scrivens and Lin,

2017).

2.1 Android Forensics

Forensic Sources. Android on-chip and removable

ﬂash memory constitute primary forensic sources,

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

357

Forensic

readiness

Forensic

acquisition

Forensic

analysis

1. Asset

management

Targeted

> Apps

> Devices

> Users

2. Instrumentation

JIT-MF

drivers

3. Event-triggered

memory dumps (JIT-MF)

5.Timeline

analysis

4. Non-volatile memory

Device logs,

Backup, Cloud,

External sources

Chain of custody

Figure 1: The JIT-MF workﬂow.

both device-wide and app-speciﬁc. System-wide

sources can provide supplementary information about

the underlying Linux kernel activities (via dmesg),

system and device-wide app event logging (via

logcat), user account audits, running services, de-

vice chipset info, cellular and Wi-Fi network activi-

ties (via dumpsys) (Hoog, 2011). The /data/data

sub-tree of the Android ﬁle-system inside the

userdata partition, along with the sdcard partition,

is where it starts to get interesting, with app data typ-

ically stored in XML or SQLite ﬁles. Another foren-

sic source typically associated with mobile devices is

cloud storage. Given the large multimedia ﬁles han-

dled by Android apps, combined with the available

storage, cloud storage has become a popular medium

for long-term storage, even used seamlessly by apps

for regular operation and backups. App data is in-

creasingly being stored in encrypted form for security

and privacy purposes (e.g. practically all mainstream

messaging apps (Anglano et al., 2017)). Beyond the

app-level, device-wide disk encryption has seen an

evolution across Android versions. Full disk encryp-

tion (FDE) has now been replaced by ﬁle-based en-

cryption (FBE) in Android 10 (Google, a), rendering

it more practical and more stable, e.g. the alarm clock

works even if the screen is locked and a full factory

reset is no longer necessary if the device runs out of

power before it shuts down properly.

Acquisition and Analysis. Evidence acquisition on

Android can be carried out using logical or physical

imaging (Srivastava and Tapaswi, 2015). Simply put,

logical acquisition relies on some existing source to

parse raw data to decode OS ﬁlesystem or app con-

tent. Android’s ﬁlesystem and SQLite parsers are typ-

ical examples. App backup utilities and cloud storage

interfaces are further examples. On the other hand,

physical imaging provides exact bit-for-bit copies of

ﬂash memory partitions and can be conducted purely

at the hardware level (e.g. through JTAG). All acqui-

sition methods have to deal with Android’s security

barriers. For software-based acquisition, the barri-

ers range from locked screens to password-protected

cloud storage and rooting the device to gain access

to /data/data/. Rooting relies upon exploiting

some kernel or ﬁrmware ﬂashing protocol vulnerabil-

ity (Yang et al., 2015; Srivastava and Tapaswi, 2015),

or else ﬂashing a custom recovery partition through

which to add some root-privileged utility. The lat-

ter may get further complicated by locked bootload-

ers. While hardware-based acquisitions can bypass

the above barriers, any form of physical imaging has

to deal with FDE and FBE.

The starting point for forensic analysis pretty

much depends on what kind of acquisition is per-

formed (Hoog, 2011). In this case of physical acqui-

sition, it is necessary to ﬁrst identify the ﬁlesystem

concerned, typically EXT and YAFFS, to extract the

individual ﬁles with possible decryption efforts. This

ﬁrst pass brings the evidence to a state equivalent to

a logically acquired one. A typical analysis pass for

Android constitutes SQLite ﬁle parsing, given its in-

herent Android support. From this point onwards, de-

coding of app evidence is pretty much app-speciﬁc.

Mobile Forensics Tools. As such, any mobile

forensics tool, e.g. Oxygen Forensics, or Cellebrite’s

UFED, can be seen as a collection of acquisition op-

tions, equipped with rooting exploits and hardware

interfacing cables, passcode brute-forcing methods,

SECRYPT 2021 - 18th International Conference on Security and Cryptography

358

along with parsing/analysis modules for ﬁlesystems,

database, and app data formats. Ancillary analysis

features, including timeline generators, can provide a

ﬁnal professional touch to the product.

2.2 Forensic Timelines

Forensic timeline generation is widely considered to

be the forensic analysis exercise that brings together

all the collected evidence. It supports an investiga-

tor in reconstructing the hypothesized incident/crime

scenario (Hargreaves and Patterson, 2012). The richer

the timelines, the greater the support for an investi-

gator to reconstruct an intrusion/crime scene, thereby

answering critical questions about an incident.

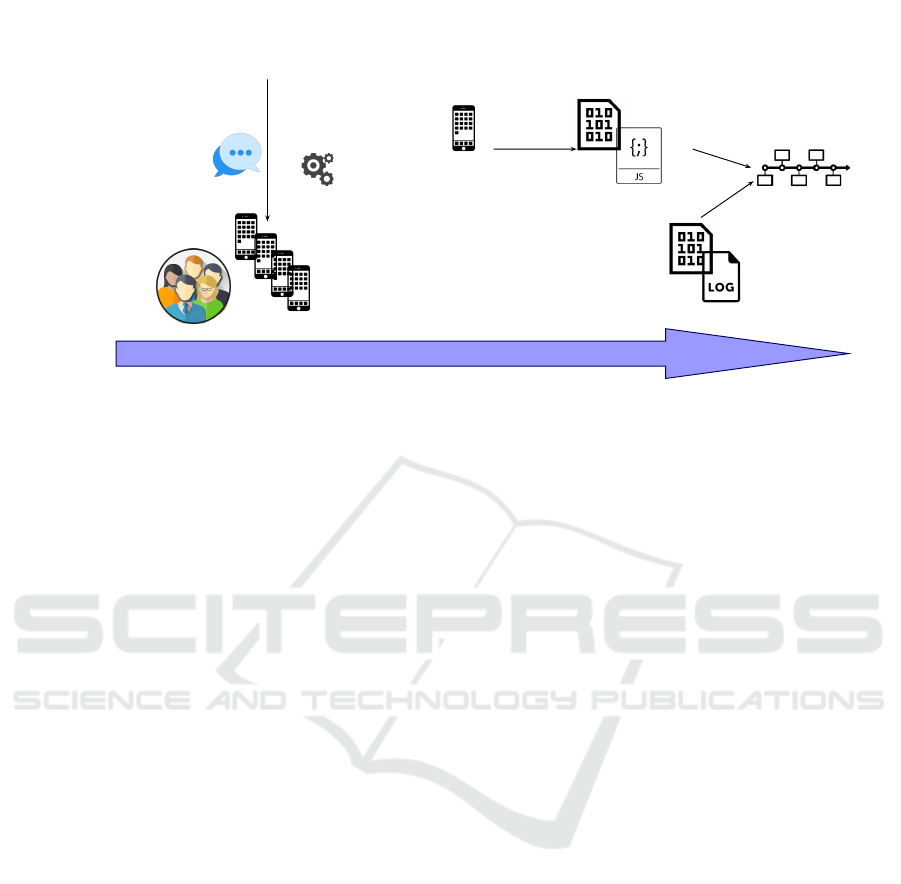

In the case of a messaging hijack, see Figure 2

(top), the generated timeline can uncover a pattern

matching a cyber threat intelligence feed for mobile

botnet activity that could be leveraged for a crime

messaging proxy. Else, see Figure 2 (bottom), time-

line events can be compared to a baseline to identify

unusual/suspicious activity. Both approaches can in-

dicate the presence of an ongoing cyberattack, with a

comprehensive timeline providing crucial support.

2.3 Just-In-Time Memory Forensics

(JIT-MF)

JIT-MF is a framework that enables live process mem-

ory forensics in a setting involving attacks that del-

egate key steps to benign apps, possibly only mini-

mally employing malware. JIT-MF is conceived to be

adopted by incident response tools for stock smart-

phones without breaking any of their security con-

trols. Rather, given that its main purpose is to pro-

tect the device owner from cyberattacks and the per-

petrators behind them, it assumes the device owner’s

collaboration. Initial experimentation showed JIT-

MF’s effectiveness to dump ephemeral artefacts at

practical overheads. Moreover, while JIT-MF drivers

are app- and incident scenario-speciﬁc by design,

the work involved in deﬁning trigger points only re-

quires a black-box analysis of target apps. An in-

depth comprehension only concerns the evidence ob-

jects themselves, e.g. the structure of objects rep-

resenting message objects or messaging activity in

SMS or instant messengers. On the downside, pend-

ing some form of privacy-preserving computation to

be added to JIT-MF, privacy concerns must be ad-

dressed solely through procedural rather than tech-

nical controls. Limitations also apply in terms of

clashes with anti-repackaging measures and depen-

dency on Android RunTime (ART) data structures

bound to change between Android versions.

2.4 Related Work

The topic of Android messaging timelining has al-

ready received attention from various works (Akinbi

and Ojie, 2021; Anglano et al., 2017; Anglano, 2014).

Their focus, however, is exclusive to content stored

on internal ﬂash memory, typically SQLite database

schemas and any corresponding encryption and de-

cryption key location. Also, the automated analysis

of forensic timelines (Chabot et al., 2015; Moham-

mad and Alqahtani, 2019) is orthogonal to our work.

JIT-MF’s scope is to provide a solution for rendering

the acquisition of incident-related evidence as com-

prehensive as possible, as otherwise no manual or au-

tomated process would be able to reconstruct the in-

cident.

JIT-MF relies on a combination of static and dy-

namic instrumentation of compiled code to imple-

ment trigger points as in-line function hooks and the

memory dumping process in the form of instrumen-

tation code. Binary instrumentation also underpins

various other Android security techniques where it is

required to operate within real-time parameters (Dia-

mantaris et al., 2019; Heuser et al., 2014; Chen et al.,

2017; Li et al., 2015). Furthermore, JIT-MF con-

siders the temporal aspect of volatile memory foren-

sic collection concerned with the timely collection

of ephemeral artifacts. Other temporal aspects that

got the attention of similar memory forensics stud-

ies concern the memory smearing problem of full de-

vice memory dumps (Pagani et al., 2019) and the ex-

traction of the temporal dimension from static dumps

(Saltaformaggio et al., 2015; Ali-Gombe et al., 2019).

In this work, we focus on the attack vector

presented by Android accessibility services since it

presents an ongoing threat, with multiple recent inci-

dents gaining a world-wide reach (Whittaker, Zack,

2020; Stefanko, Lukas, 2020; ThreatFabric, 2020).

Crucially, for incident response, the resulting reduced

forensic footprint for any attack employing it has also

been demonstrated (Leguesse et al., 2020). Yet, other

attack vectors may also present the same opportunity

for LOtL tactics. Zygote and binder infection com-

bined with a rooting exploit (Kaspersky, 2016), as

well as app-level virtualization frameworks (Shi et al.,

2019) and third-party library infections (Diamantaris

et al., 2019) provide further attack vectors, resulting

in similarly stealthy attacks and for which JIT-MF

could be a solution in terms of incident response.

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

359

:30 12 :30

:30

:30 :30

:30

:3013 14 15 16 17 18 19 ….

:30

:30 :30 :30

:30

13 14 15 16 17 18 19

‘Normal’ messaging

activity pattern

Matches mobile botnet heartbeat

(cross-check with threat intelligence)

Messaging crime proxy?

Unlawful interception?

‘Unusually high’ chat

browsing

‘Normal’ messaging

activity pattern

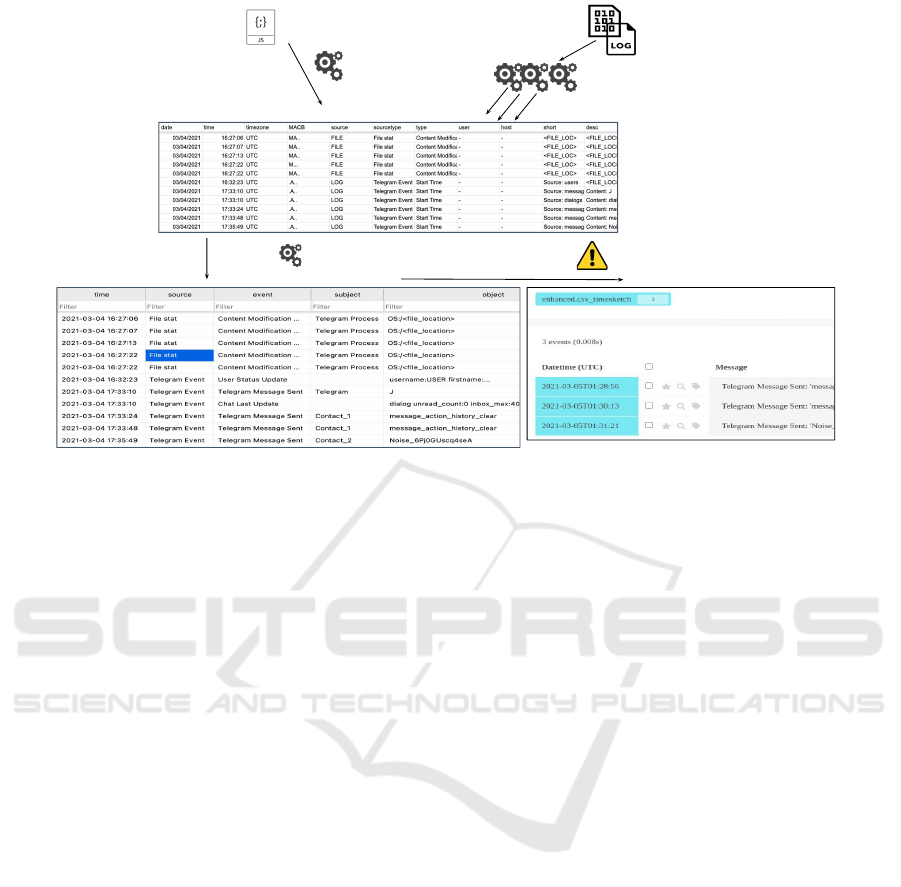

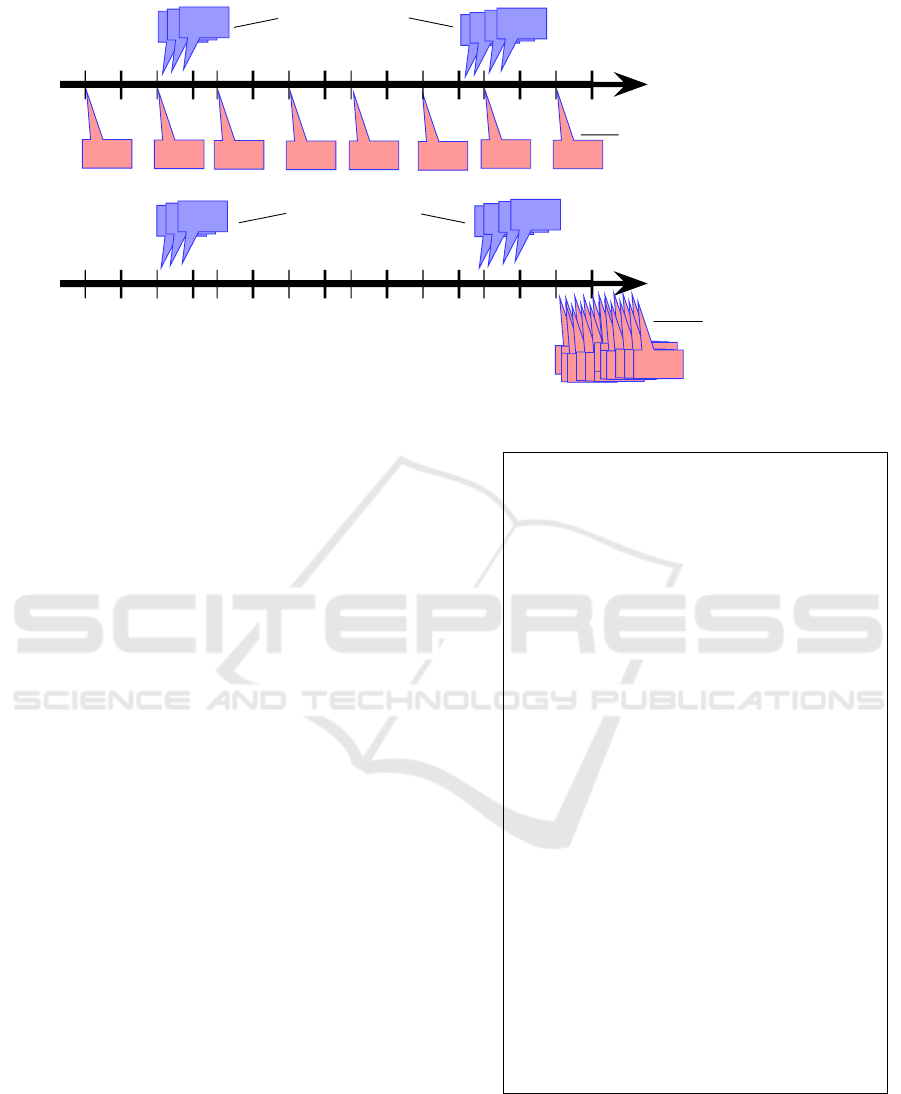

Figure 2: Forensic timelines supporting cyber-attack investigations.

3 JIT-MF DRIVERS

While JIT-MF (Bellizzi et al., 2021) deﬁnes com-

mon steps to be followed by every JIT-MF tool,

those aspects that are speciﬁc to the investigation

scenario/target app pair at hand are described and

eventually implemented by JIT-MF drivers. Con-

ceptually, their deﬁnition starts with identifying the

in-memory evidence objects of interest, which may

correspond in some way to attack steps. Next comes

trigger point selection, which corresponds to function

hooks being placed in native or managed code at the

implementation level. Trigger points can be rendered

more speciﬁc through complementary conditions

deﬁned over function arguments. The acquisition

method must be deﬁned as either online or ofﬂine,

specifying whether object carving/parsing is carried

out prior to memory dumping or else afterwards.

Finally, a sampling strategy is deﬁned to maintain a

manageable amount of dumps. Listing 1 presents a

template generically describing JIT-MF drivers.

Lines 1-2 identify the driver (Driver_ID) and link

it with its intended app/incident Scope. Lines 4-12

enlist a driver’s attributes and their types (attribute :

type), with tuples denoted by <>, sets by {x,y,z...}, or-

dered lists by [], key-value pairs by <key,value> and

enumerations with {val1|val2|...}. Function parame-

ters are identiﬁed by the ﬁnal parenthesis (), and these

correspond to internal functions in the drivers (lines

20-36). Globals is a key-value meant for miscella-

neous usage.

init() presents the only interfaces exposed to the

JIT-MF tool environment. It is called during tool

1 Driver_ID : s t r i n g

2 Scope : <app , i n c i d e n t _ s c e n a r i o >

3 / ∗ A t t r i b u t e s ∗ /

4 Evidence_ob jects : {< ev e n t : s t r i n g , o b j e c t _ n am e : s t r i n g ,

5 c a r v e _ o b j e c t _ t y p e ( ) , p a r s e _ o b j e c t _ t y p e ( ) , {

t r i g g e r i d s } > , . . . }

6 Acquisition : { o n l i n e | o f f l i n e }

7 Triggers : {< t r i g g e r _ i d : s t r i n g , < h o o k e d_ fu n c t i o n _ na me :

s t r i n g ,

8 l e v e l : { n a t i v e | r t } , t r i g g e r _ p r e d i c a t e ( ) > ,

9 t r i g g e r _ c a l l b a c k ( ) > , . . . . }

10 Sampling_strategy : s a m p l i n g _ p r e d i c a t e ( )

11 Log_location : s t r i n g

12 Globals : {< key , v a l u e > , . . . }

13 / ∗ E x po se d i n t e r f a c e ∗ /

14 bo o l init ( c o n f i g : {< key , v a l u e > , . . . } ) {

15 set_globals ( c o n f i g : {< key , v a l u e > , . . . } ) ;

16 f o r a l l e n t r i e s i n Triggers :

17 place_native

hook ( ) ⊕ place_rt_hook ( ) ;

18 }

19 / ∗ I n t e r n a l f u n c t i o n s ∗ /

20 bo o l trigger_predicate

( para m s : {< key , v a l u e > , . . . } ) {

21 d e c i d e on w h e t he r t o f i r e t h e c o r r e s p o n d i n g

t r i g g e r ;

22 }

23 vo i d trigger_callback

( t h r e a d _ c o n t e x t : {< key , v a l u e > ,

. . . } ) {

24 i f trigger_predicate

&& sampling_ predicate r e t u r n t r u e :

25 p e r f o rm memory f o r e n s i c s on t h e c u r r e n t a p p

s t a t e ;

26 }

27 [ o b j e c t : a d d r e s s , . . . ] carve_ob ject_type

( fr o m : a d d r e s s ,

28 t o : a d d r e s s ) {

29 a t t e m p t o b j e c t c a r v i n g i n t h e g i v e n memory

r a n g e ;

30 }

31 [ f i e l d : t y p e , . . . ] parse_ob ject_type

( a t : a d d r e s s ) {

32 p a r s e o b j e c t f i e l d s s t a r t i n g a t t h e g i v e n

a d d r e s s ;

33 }

34 bo o l sampling_predicate ( t h r e a d _ c o n t e x t : {< key , v a l u e > ,

. . . } ) {

35 d e c i d e on w h e t he r t o f o l l o w up a t r i g g e r by a

memory dump ;

36 }

Listing 1: JIT-MF driver template.

initialization and takes care of initializing Globals

and most importantly sets up the event Triggers by

calling place_native|rt_hook(). This function returns

a boolean (bool) indicating success or otherwise.

Trigger_predicate() and Trigger_callback() must be

SECRYPT 2021 - 18th International Conference on Security and Cryptography

360

deﬁned per entry in Triggers. Triggers may concern

either native or rt function hook, with the latter

implying the device’s runtime environment, e.g.

ART in the case for Android. The same applies for

carve_object_type() and parse_object_type(), which

have to be both deﬁned per entry in Evidence_objects,

at least for online Acquisition. All these functions

require a JIT-MF runtime for their implementation.

Listing 2 presents this runtime assumed by JIT-MF

drivers which needs to be catered for by the JIT-MF

tool.

1 bo o l set/get_global ( c o n f i g : <key , v a l u e > )

2 bo o l place/remove_native_hook ( module ! f u n c t i o n ) ;

3 bo o l place/remove_rt_hook ( na m espa c e . o b j e c t . me t hod ) ;

4 [ < s t a r t : a d d r e s s , end : a d d r e s s , p e r m i s s i o n s : {−−−|r

−−|rw − | rwx | . . . } ,

5 m a p p e d _ f i l e : s t r i n g > , . . . ] list_memory_segments ( ) ;

6 bo o l set_memory_permissions ( s eg m e n tb a s e : a d d r e s s ,

7 p e r m i s s i o n s : {−−−|r −−|rw − | rwx | . . . } ) ;

8 [ by t e , . . . ] read_memory ( a t : a d d r e s s , l e n g t h : i n t e g e r ) ;

9 bo o l dump_memory_segment ( from : a d d r e s s , t o : a d d r e s s ,

10 l o c a t i o n : s t r i n g ) ;

11 bo o l dump_native_ob ject ( fr o m : a d d r e s s , t o : a d d r e s s ,

l o c a t i o n : s t r i n g ,

12 carve_ob ject_type

( ) , parse_ob ject_ty pe

( ) ) ;

13 bo o l dump_rt_ob ject ( na m espa c e . o b j e c t , carve_ob ject_type

( ) ,

14 parse_ob ject_ty pe

) ;

15 r e t u r n _ t y p e call_native_ f unction ( a t : a d d r e s s ) ;

16 r e t u r n _ t y p e call_rt_ f unction ( nam e s pac e . o b j e c t . m e thod ) ;

17 bo o l append_log ( p a t h : s t r i n g , v a l u e : s t r i n g ) ;

Listing 2: JIT-MF driver runtime.

Lines 1-3 are Globals access and native/rt function-

hooking functions called from init() and any other

driver internal functions as needed. Lines 4-16 are

process memory interacting functions, starting off

list_memory_segments() in order to make sure the

driver does not attempt to access un-mapped memory,

or segments for which it has insufﬁcient permissions.

Memory dumping may therefore require adjust-

ing permissions through set_memory_permissions(),

as well as checking memory content through

read_memory(). While for ofﬂine Acquisition, call-

ing dump_memory_segment may sufﬁce, for online

acquisition the driver is also required to carve ob-

jects and parse their ﬁelds. dump_native_object()

and dump_rt_object are utility functions that do just

that, taking the appropriate carve_object_type() and

parse_object_type() callback functions as parameters.

Separate rt and native versions are needed since the rt

version may leverage calling runtime functions in or-

der to locate the required objects. Similarly, the native

version may leverage any memory allocators being

used to manage native objects. call_native_function()

and call_rt_function() functions are utility functions

that may be needed by both driver and runtime func-

tions. Finally, append_log() (line 17) is responsible to

produce the actual JIT-MF dump to the location spec-

iﬁed by the driver’s Log_location.

4 METHODOLOGY

Before proceeding to demonstrate the value that JIT-

MF drivers (section 5) add through their role as foren-

sic sources in incident response, we ﬁrst explain how

speciﬁc JIT-MF drivers were constructed for the case

studies considered. We also describe the methodol-

ogy used to merge the JIT-MF forensic sources with

all other available sources and the eventual resulting

timelines of the incidents concerned.

4.1 JIT-MF Driver Deﬁnition

Taking previous experiment results (Bellizzi et al.,

2021) as guidance for JIT-MF driver deﬁnition,

white-box analysis of the apps concerned should

be restricted to Evidence_ob jects identiﬁcation and

implementing their corresponding carving/parsing.

Consequently, some form of app code comprehen-

sion or reversing is required. On the other hand,

Triggers identiﬁcation should follow a black-box ap-

proach. The implication is that the hooked func-

tions can be identiﬁed based on calls made to An-

droid APIs, well-known third-party libraries, or even

Linux system calls performed by the app, rather than

hooking the app’s internal functions. The ﬁnalized

methodology that was adopted in this regard follows:

• Evidence_objects: These objects are identiﬁed as

those whose presence in memory, in the context

of a speciﬁc trigger point, implies the execution

of some speciﬁc app functionality, possibly a del-

egated attack step. Not all objects are associated

with the same level of granularity concerning app

events; some objects may be highly indicative of a

detailed app event, e.g. a message object with an

attribute sent=true|false, others may only reﬂect

vague app usage across a time period. Therefore

when selecting evidence objects, one has to keep

in mind how tightly coupled the presence of the

objects is with the app functionality that needs to

be uncovered.

• Triggers: Taking into account an attack scenario,

corresponding target app functionality, and the as-

sociated evidence objects, trigger points are se-

lected based on the code that processes the said

objects, speciﬁcally concerning: i) The storing

and loading of the objects from storage; ii) The

transferring of objects over the network; or else

iii) Any object transformation of some sort (e.g.

display on-screen etc.). As yet, we are limited to

introducing trigger points only in the main process

of an app.

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

361

4.2 Forensic Timeline Analysis

Forensic timeline generation considers all those

sources that can shed light on app usage. These

range from the device-wide logcat to app-speciﬁc

sources inside /data/data, as well as inside remov-

able storage which can be found in the sdcard parti-

tion and whose mount point is device-speciﬁc. When-

ever the same data could be obtained from multiple

sources, we opt for local device acquisition, rather

than cloud or backups, to facilitate experimentation.

These forensic sources, as explained in section 2.1,

are representative of those targeted by state-of-the-art

mobile forensics tools, typically also requiring device

rooting or a combination of hardware-based physical

acquisition and content decryption. These baseline

sources are complemented by those provided by JIT-

MF drivers.

Figure 3 shows the processes that transform the

forensic footprints obtained from the aforementioned

forensic sources to ﬁnished forensic timelines. This

pipeline is based on Chabot et al.’s (Chabot et al.,

2014) methodology. It revolves around the creation

of a knowledge representation model as derived from

multiple forensic sources. It presents a canonical se-

mantic view of the combined sources upon which

forensic timeline (or other) analysis can be conducted.

This model is populated with scenario events derived

from forensic footprints, which are the raw forensic

artefacts collected from the different forensic sources.

These events are associated with subjects that partici-

pate or are affected by the events and the objects acted

upon by subjects. Events can subsequently be corre-

lated based on common subjects, objects, as well as

temporal relations or expert rule-sets. Relations es-

tablished by this process correspond either to a rela-

tion of composition or causation.

The ﬁrst three steps in Figure 3 consist of forensic

footprint extraction. For JIT-MF we refer to a com-

bined dump containing unique, readily carved and

parsed memory objects. All sources are decoded and

merged as a Plaso (Guðjónsson, 2010) super timeline

using the psteal utility, and for which we developed

a JIT-MF Plaso parser. A loader utility was devel-

oped for Step 4 that traverses the super timeline and

populates the knowledge model, which we store in an

SQLite database table. The events in this table cor-

respond to messaging events of some form depending

on the forensic source. For example, JIT-MF drivers

and messaging backups can pinpoint events at the

ﬁnest possible level of granularity, indicating whether

a speciﬁc event is a message send or receive, the re-

cipient/sender. Other sources, such as the ﬁle-system

source (file stat), can only provide a coarser level

of events related to the reading/writing of app-speciﬁc

messaging database ﬁles on the device. We stick to a

ﬂat model for this experimentation, with events con-

sidered atomic and their associated subjects and ob-

jects corresponding to message recipients and con-

tent, respectively. Step 5 takes alerts of suspicious

activity as input. Alert information based on a seed

event is converted into SQL queries that encode the

required subject/object/temporal/event type correla-

tions. The query then outputs those events associated

with the initial alert. This event sequence provides the

timeline for the incident in question, and for which, in

step 6, we used Timesketch (Google, b) for visual-

ization.

5 EXPERIMENTATION

To demonstrate the added value that JIT-MF tools

provide during incident response, in comparison with

current mobile forensics tools, we consider a suite of

case studies inspired by real-life accessibility attack

scenarios that target messaging apps. Each case study

assumes a high-proﬁle target victim ("John"), whose

Android mobile device stores conﬁdential data. John

makes use of multiple messaging apps which have

been forensically enhanced with JIT-MF due to the

potentially heightened threats that his device may

face. John receives an email to download a free ver-

sion of an app that he currently pays for on his mobile

device. He downloads it and becomes a victim of a

long-term stealthy attack.

Setup. Pushbullet(v18.4.0), Telegram(v5.12.0)

and Signal(v5.4.12) are popular SMS and Instant

Messaging apps, respectively, used in our case

studies. The messaging hijack scenarios considered

involve unlawful interception and crime-proxying.

For the case studies involving Telegram and Signal,

these attacks are carried out using the Android

Metasploit attack suite, whereas, for Pushbullet,

these attacks are executed through Selenium. Since

most state-of-art forensic sources require a rooted

device, a rooted emulator is used in our experiment,

which also enabled ease of automation. The emu-

lator used was Google Pixel 3XL developer phone

running Android 10. The JIT-MF driver runtime

was provided by a subset of the Frida

runtime,

and JIT-MF drivers were implemented as Javascript

code for Frida’s Gadget shared library. The JIT-MF

drivers used in all case studies have the following at-

tributes: Acquisition = online, Sampling = 1 in 5

(active for a second every 5 seconds) and

https://frida.re/docs/android/

SECRYPT 2021 - 18th International Conference on Security and Cryptography

362

Parsed JIT-MF dumps

Non-volatile memory

Device logs,

Backup, Cloud

3. Plaso super timeline (psteal)

1.JIT-MF

Plaso parser

2.Misc.

Plaso parsers

Knowledge model (SQLite)

6. Timeline (Timesketch)

4. Load

5. SQL queries based on an

alert-related seed event

Figure 3: The forensic timeline generation processes.

Log_location=/<external_storage>/jitmﬂogs. Table

1 lists the properties of the state-of-the-art forensic

sources considered, their method of acquisition and

required parsers for populating a Plaso super time-

line. Apart from the JIT-MF Plaso parser, additional

parsers for the app-speciﬁc databases (including

write-ahead-log database) and logcat were created.

Case Study Setup. In each of the case studies: the

emulator is started, the target app is instrumented, le-

gitimate trafﬁc (noise) and malicious events are simu-

lated, forensic sources of evidence are collected (both

baseline and JIT-MF sources), and timelines are pro-

duced based on a knowledge model. The output of

these steps are the following generated timelines:

• a Ground Truth Timeline generated by logging the

individual attack steps of the executed accessibil-

ity attack.

• Baseline Timelines generated by querying a

knowledge model made up of state-of-the-art

forensic sources and

• JIT-MF Timelines generated by querying a knowl-

edge model made up of both baseline sources and

JIT-MF dumps.

While there is only one ground truth timeline, multi-

ple JIT-MF and baseline timelines can be created per

case study depending on the different seed event cor-

relations. These timelines are populated with events

outputted from a query, run on the knowledge model,

that starts off from a seed event. In each case study,

the malicious event (attack) is executed three times to

ensure that the ground truth timeline contains more

than one event. Noise is generated with respect to this

value. Some of the attacks used in these case studies

make use of rate-limited API calls to a server back-

end, which only allows 150 consecutive calls to be

made from the same device. Since an attack is ex-

ecuted three times per case study, and the API call

limit is 150, each case study is simulated 50 times —

each time obtaining the timelines above.

Timeline Comparison. The JIT-MF Timeline and

Baseline Timeline are compared to the Ground Truth

Timeline based on: i) completeness of timeline, i.e.

lack of missing events; ii) accuracy of the timelines

with respect to the sequence in which the events hap-

pened and the difference between the recorded time

of an event in the ground truth timeline and the JIT-

MF timeline. Preliminary runs showed that baseline

forensic sources could provide different metadata de-

pending on the app in use. Therefore, the matching

criteria for a matched event between either of the gen-

erated timelines and the ground truth timeline are ad-

justed in the case studies to beneﬁt from the evidence

typically found in baseline forensic sources.

A: Telegram Crime-Proxy

Accessibility Attack. An accessibility attack

targets John’s Telegram app and is used by an

attacker to send messages to a co-conspirator going

by the username "Alice" on Telegram. The attacker

misuses the victim’s Telegram app to send messages

to "Alice" and instantly deletes them.

Setup. John makes use of his Telegram app regularly

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

363

Table 1: Forensic Sources and Parsers.

Case

Study

Location on device

Source

type

Contents

Acquisition

& Decoding

Requires

rooting

Plaso parsers

A,D

/data/org.telegram.messenger/.../cache4.

Baseline Telegram database

adb pull,

Teleparser

Yes

Teleparser

parser

A,D

/data/org.telegram.messenger/.../cache4.

db-wal

Baseline

Latest changes to Telegram’s

database

adb pull,

Walitean

Yes Walitean parser

B,E /<removable_storage>/.../signal.backup Baseline Signal backup database

Signal DB

decryptor

Yes

Signal database

parser

D,F

/data/data/com.android.providers.

telephony/.../mmssms.db

Baseline SMS database adb pull Yes

mmssms.db

Plaso parser

D,F

/data/data/com.pushbullet.android/.../

pushes.db

Baseline Pushbullet message database adb pull Yes

Pushbullet

parser

A-F /data/<app_pkg_name>/* Baseline App speciﬁc ﬁles, cache ﬁles adb pull Yes

File stat Plaso

parser

A-F /<removable_storage>/<app_pkg_name> Baseline Media ﬁles adb pull No

File stat Plaso

parser

A-F logcat Baseline System logs adb logcat No Logcat parser

A-F /<removable_storage>/jitmﬂogs JIT-MF JIT-MF memory dumps adb pull No JIT-MF parser

to communicate with his family and friends. He sends

six Telegram messages to his relatives before enter-

ing a meeting, then goes silent. The attacker notices

the decrease in Telegram activity and decides to use

this time to communicate with "Alice" three times.

He waits 10 - 20 seconds (randomly generated using

rand) every time before messaging "Alice". The at-

tacker tries to execute the attack as quickly as possible

to retain stealth but gives an allowance of 10 seconds

within the attack to allow for any delays within the

app. John continues using Telegram thereafter and

sends six messages to his friend. John’s messages

take this form: Noise_ < Random10− 100− letters >

whereas those sent by the attacker are similar to

Sending_Attack_#Iteration.

Investigation. John notices a new chat on his phone

with the username "Alice" with no messages. He

brushes it off but is contacted later that week by

investigators who told him that his phone was used to

send messages containing the speciﬁc keywords. He

takes his phone to be examined. His phone is already

equipped with a JIT-MF driver that has the below

attributes:

Evidence_objects: {<"Telegram Message Sent",

"org.telegram.messenger.MessageObject",

{"TG_CP}">}

Triggers: {<"TG_CP<", "send", native, network>>}

This attack step involves the sending of a message

over the network. Therefore the selected trigger point

is the send system call, and the evidence object is the

Telegram message itself.

The seed event is generated based on the alert

ﬂagged, which gives the investigators three possible

starting points to use when formulating the queries to

be executed on the different knowledge models.

Seed Event: Subject: Alice, Object: *speciﬁc key-

words*, Event type: Message Sent, Time: last 7 days

Matching criteria: The criteria for an event in the

baseline or enhanced timelines to match the ground

truth timeline is the presence of the speciﬁc message

content that was sent within the event.

B: Signal Crime-Proxy

Accessibility Attack. An accessibility attack

targets John’s Signal app and is used by an attacker

to send messages to a co-conspirator going by the

username "Alice" on Signal. The attacker misuses

the victim’s Signal app to send messages to "Alice"

and instantly deletes them.

Setup. This case study is identical to the one de-

scribed in the previous section.

Investigation. John’s phone is already equipped with

a JIT-MF driver that has the below attributes:

Evidence_objects: {<"Signal Message Sent","org.

thoughtcrime.securesms.conversation.

ConversationMessage", {"SIG_CP"}>}

Triggers: {<"SIGNAL_CP",<"write", native, stor-

age>>}

Similar to the previous case study, the evidence ob-

ject is the Signal message itself. Signal does not make

use of the send system call however when sending a

message. The write system call is used as a trigger

point, which writes to the local database and over the

network.

Seed Event: Subject: Alice, Object: *speciﬁc key-

words*, Event type: Message Sent, Time: last 7 days

Matching Criteria: An event stating that a message

was sent to Alice’s number.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

364

C: Pushbullet Crime-Proxy

Accessibility Attack. John’s Facebook creden-

tials are stolen by an attacker using a phishing

accessibility attack akin to Eventbot(Whittaker, Zack,

2020). The attacker uses the stolen credentials to

proxy SMSs, through John’s Pushbullet app, from his

web browser.

Setup. John does not use SMS functionality on

his phone but is aware that he receives many ad-

vertisement messages. John receives six ad mes-

sages prior to entering a meeting. The attacker no-

tices the decrease in activity and decides to use this

time to communicate with "Alice" three times. He

waits 10 - 20 seconds (randomly generated using

rand), then opens his browser and sends three mes-

sages to "Alice". Messages received by John take

this form: Noise_ < Random10 − 100 − letters >

whereas those sent by the attacker are similar to this:

Sending_Attack_#Iteration.

Investigation. John receives a hefty bill at the end

of the month from his telephony provider, attributing

most of the cost to message sending. He notices a

new number that is not on his contact list and takes his

phone to be examined. His phone is already equipped

with a JIT-MF driver that has the below attributes:

Evidence_objects: {<"Message Sent","org.json.

JSONObject",{"PB_CP"}>}

Triggers: {<"PB_CP",<"write",native,storage>>}

Pushbullet stores message objects in JSON structures.

A write system call trigger point occurs when a mes-

sage is sent, at which point the process memory con-

tains the message sent, stored in JSON.

Seed Event: <Subject: *suspicious number*, Event

type: Message Sent>, Time: last month

Matching Criteria: A message sent to the suspicious

number.

D: Telegram Unlawful Interception

Accessibility Attack. An accessibility attack

targets John’s Telegram app and is used by an

attacker to intercept messages sent to the username

"CEO" (John’s boss - with whom conﬁdential data is

shared). The attacker misuses John’s Telegram app to

grab messages exchanged with "CEO" and Telegram.

Setup. John makes use of his Telegram app regu-

larly to communicate with his CEO. John sends mes-

sages to his CEO multiple times during the day but

goes silent during three meetings. The attacker no-

tices the decrease in Telegram activity and decides to

use this time to spy on John’s correspondence with

his CEO. He waits 10 - 20 seconds (randomly gen-

erated using rand), then opens Telegram, loads the

"CEO" chat, intercepts the messages loaded on the

screen then closes the app quickly. Messages sent by

John take this form: Con f idential_ < Random10 −

100 − letters >.

Investigation. John’s phone is already equipped with

a JIT-MF driver that has the below attributes:

Evidence_objects: {<"Telegram Chat Intercepted",

"org.telegram.messenger.MessageObject",

{"TG_SP"}>}

Triggers: {<"TG_SP",<"recv",native,network>>}

In the case of an unlawful interception attack, one of

the attack steps involves the reading of a message,

therefore the evidence object is the message itself.

Since Telegram is a cloud-based app, some messages

are stored on the device, and others are loaded

and received from cloud storage over the network.

Therefore the selected trigger point is the recv

system call.

Seed Event: Subject: CEO, Object: *conﬁdential

message*, Event type: Message Read/Loaded/Chat

activity, Time: date of message sent/received

Matching Criteria: An event type indicating chat ac-

tivity, loading or reading of "CEO" messages. The

message object itself does not correspond directly to

an attack step. That is, the message object in mem-

ory does not contain metadata about whether it was

read but rather that it was either sent or received at

some point. JIT-MF forensic sources identify a chat

interception event instead as multiple message objects

exchanged with the same contact, all having been

dumped at the same timestamp. Furthermore, the

timestamp of these events must occur in the database

any time after the sending time to avoid including data

related to when the message was initially sent or re-

ceived.

E: Signal Unlawful Interception

Accessibility Attack. An accessibility attack

targets John’s Signal app and is used by an attacker

to intercept messages sent to the username "CEO".

The attacker misuses John’s Signal app to open a

conﬁdential chat with the username "CEO" and grabs

the messages that appear on the screen. Finally, the

attacker closes Signal.

Setup. This case study is identical to the previous

one.

Investigation. John’s phone is already equipped with

a JIT-MF driver that has the below attributes:

Evidence_objects: {<"Signal Chat Intercepted",

"org.thoughtcrime.securesms.conversation.

ConversationMessage",{"SIGNAL_SP"}>}

Triggers: {<"SIG_SP",<"open",native,storage>>}

Similar to the previous case study, the evidence object

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

365

is the Signal message that was intercepted. Signal is

not a cloud based app and uses solely on-device stor-

age. Therefore we select the open system call which

is used to open the database ﬁle from which messages

are loaded to be read.

Seed Event: Subject: CEO, Object: *conﬁdential

message*, Event type: Message Read/Loaded/Chat

activity, Time: date of message sent/received

Matching Criteria: As previous case study.

F: Pushbullet Unlawful Interception

Accessibility Attack. John’s Facebook creden-

tials are stolen by an attacker using a phishing

accessibility attack. The attacker now has access to

any messages sent or received by John through a

syncing event on John’s phone.

Setup. John makes use of his SMS app regularly to

communicate with his CEO. John sends messages to

his CEO multiple times during the day but goes silent

during three meetings. Unbeknownst to him, the at-

tacker is immediately intercepting all of John’s ongo-

ing SMS activity.

Investigation. John’s phone is already equipped with

a JIT-MF driver that has the below attributes:

Evidence_objects: {<"Chat Intercepted", "org.

json.JSONObject",{"PB_SP"}}

Triggers: {<"PB_SP",<"android.content.

Intent.createFromParcel",rt,network>>}

Unlike Telegram and Signal, Pushbullet spawns sev-

eral sub-processes to sync activity generated on the

device with that stored in the cloud. While in Case

Study C5 the attack involves a level of interaction

with the device (since the SMS has to be sent from

the device after receiving an instruction from the

browser), in this case, any message sent or received is

assumed to automatically have been intercepted. The

trigger point selected is one of the Android API calls

used by the Pushbullet to sync sent/received messages

via Firebase. The only evidence object, related to an

attack step, that can be retrieved from memory for this

case study, is a JSON object containing "push" event

metadata which indicates message content has been

synced.

Seed Event: Subject: CEO, Object: *conﬁdential

message*, Event type: Message Read/Loaded/Chat

activity, Time: date of message sent/received

Matching Criteria: As previous case study.

5.1 Results

Table 2 shows a comparison between the generated

JIT-MF timelines and Baseline timelines, per seed

event correlation, to the ground truth timeline. The

generated timelines included events unrelated to the

attack steps (noise); therefore, precision and recall

were used. Precision is a value between 0 and 1,

which denotes the average relevant captured events.

The higher the value, the larger the portion that at-

tack steps make up of the timeline, i.e. little noise

was present. Where the value is ’-’, no events were

captured. Recall denotes how many of the executed

attack steps were uncovered. Similarly, the higher the

value between 0 and 1, the more attack steps that were

captured. Timeline difference was calculated using

Jaccard dissimilarity on the set of true events uncov-

ered by the generated timelines and the ground truth

timeline. In this case, the higher the value between 0

and 1, the more dissimilar the generated timeline is to

the ground truth.

Primary Contributors to Timeline Similarity. The

timeline difference values in the table show that over-

all JIT-MF timelines are at least as similar to the

ground truth as baseline timelines. While the dissim-

ilarity for the baseline timelines varies substantially

within a single case study, this is not the case for

JIT-MF timelines whose distance from ground truth

remains roughly the same. Since JIT-MF forensic

sources include ﬁner-grained evidence (message con-

tent, recipient, date. . . ), the chosen seed event corre-

lation has little to no effect on the output timeline.

In contrast, evidence from baseline sources is not as

rich, with correlation becoming a critical factor affect-

ing the resulting timelines. Due to the ﬁner-grained

metadata available in JIT-MF forensic sources, we can

say that even in the scenarios where JIT-MF time-

lines are equivalent to the baseline in event sequences,

these can provide the investigator with richer time-

lines through more informative events.

The table also shows that JIT-MF timelines are

more similar to the ground truth in the case of unlaw-

ful interception (case studies D-F) in comparison with

the baseline sources, which do not include enough ev-

idence pointing to message reading or browsing chat

activity.

Primary Contributors to Timeline Dissimilarity.

JIT-MF timelines were most dissimilar from the

ground truth in the last case study. The main dif-

ferences from the other case studies here were: i)

Many of the app’s functionality was delegated to

sub-processes that were not instrumented, and ii)

The evidence object deﬁned in the JIT-MF driver

was a coarser-grained object (JSON object containing

"push" event). Both of these limitations in JIT-MF’s

driver implementation contributed to a JIT-MF time-

line whose gain on the baseline timeline was minimal,

with regard to ground truth timeline similarity.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

366

Table 2: Timeline comparison.

Case Study

Seed event -

Correlation

Baseline JIT-MF Timeline

Recall Precision

Timeline difference

(Jaccard dissimilarity)

Recall Precision

Timeline difference

(Jaccard dissimilarity)

Subject 0 - 1 0.98 1 0.02

Object 1 0.66 0 1 0.66 0

Event Type 1 0.01 0 1 0.01 0

Subject 1 0.07 0 1 0.06 0

Object 0 - 1 0.87 1 0.13

Event Type 1 0.11 0 1 0.07 0

Subject 1 1 0 1 1 0

Event Type 1 0.23 0 1 0.23 0

Subject 0 - 1 0.49 0.46 0.51

Object 0 - 1 0.49 0.45 0.51

Event Type 0 - 1 0.49 0.45 0.51

Subject 0.99 0.97 0.01 0.99 0.21 0.01

Object 0 - 1 0.58 0.23 0.42

Event Type 0.13 0.01 0.87 0.63 0.02 0.37

Subject 0 0 1 0 0 1

Object 0 0 1 0 0 1

Event Type 0 - 1 0.02 1 0.98

Furthermore, while JIT-MF timelines are more

similar to the ground truth timeline than baseline

timelines in cases involving unlawful interception (D-

F), they are less similar to the ground truth timelines

when compared to JIT-MF timelines obtained for the

crime proxy case studies (A-C). The difference be-

tween these sets of case studies is that in crime proxy

scenarios, the evidence object deﬁned in the JIT-MF

driver is the ﬁne-grained message object that con-

tains metadata tightly linked to the event itself. In

unlawful interception scenarios, we are after coarser-

grained events (an indication of a chat being intercept-

ed/synced) since key objects in memory are either not

present or do not contain indicative metadata of the

ongoing event.

JIT-MF Timeline Sequence Accuracy. Using

Kendall Tau distance, we were able to conclude that

the sequence of captured events in JIT-MF timelines

(containing only ground truth events) is always iden-

tical to that in the ground truth timeline. Additionally,

the standard deviation between the time of the events

logged in the ground truth timelines and that logged

in JIT-MF timelines deviates on average by at most

62s.

Performance Overheads. The practical overheads

recorded in the initial JIT-MF study (Bellizzi et al.,

2021) were conﬁrmed. With JIT-MF drivers enabled,

only an average increase of 0.5s was registered in

Pushbullet turnaround times for SMS operations, as

observed from the web browser’s Javascript console.

Janky frames

is an indicator of non-smooth user in-

https://developer.android.com/topic/performance/

vitals/render

teractions with GUI apps. With JIT-MF drivers en-

abled Telegram and Signal had an average increase of

1.59% and 3.53% of Janky frames, respectively; that

is, the performance penalty overall was less than 4%.

6 DISCUSSION

Provision of Context for Evidence Objects by Trig-

ger Points. The selection of trigger points is not

only crucial to solving the problem of timely dump-

ing ephemeral evidence objects in memory. Trig-

ger points also provide the necessary context for a

dumped evidence object. Results show that JIT-

MF tools are most successful in generating a quasi-

identical timeline to the ground truth timeline when

both trigger point and the evidence object are tightly

linked to the attack step that needs to be uncovered.

For instance, a send system call and a message object

are directly linked to an attack step involving an at-

tacker misusing a victim’s phone to proxy a message.

Level of Event Granularity Associated with In-

memory Objects. The level of granularity for the

events associated with in-memory objects is not al-

ways enough for accurate association with speciﬁc

app use/misuse events. In the case of coarser-grained

events, due to the lack of metadata within the col-

lected evidence, we noticed that, while still present,

the additional information as compared to baseline

timelines diminishes considerably. This seems to be

the root cause for a diminishing return when we com-

pared crime-proxy timelines with those obtained for

unlawful interception.

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

367

Further Evolution of JIT-MF. JIT-MF operates un-

der the assumption that by targeting evidence objects

representing core app functionality (e.g. message ob-

jects in messaging apps), we may uncover relevant

attack events. However, the issues mentioned above

emerge as a result of this. An approach that merits fur-

ther investigation is to produce a JIT-MF driver such

that: i) Selected trigger points could provide more

context to the evidence object being dumped and ii)

Evidence objects can be more tightly coupled with

app use/misuse. This would mean that although a

black-box approach to selecting trigger points is suc-

cessful in dumping ephemeral objects in memory, a

white-box approach might be preferred, particularly

in scenarios where the attack step does not have ﬁne-

grained metadata related to ongoing activity, neces-

sary to deduce ongoing actions. Therefore the evi-

dence object itself requires further context. Deeper

app analysis may also be required when selecting an

evidence object more suited to target speciﬁc attack

steps, which becomes even more challenging when

addressing obfuscated code where the implementa-

tion of an object within the app is obscure.

Threats to Validity. Except for Pushbullet, the two

forensic sources making up the baseline in four of the

six case studies are logcat and write-ahead log ﬁles

containing incomplete forensic footprints and are sub-

ject to frequent log rotation. When performing longer

runs with more iterations of the attack component, we

noticed that out of 250 deleted messages, the write-

ahead log ﬁle could only expose 20 unique messages.

The same argument can be made for logcat. Since

these logs are not captured in a timely and permanent

manner, they would be futile in the case of a long-

term stealthy attack. The same point cannot be said

for Pushbullet based on the obtained results. How-

ever, a slightly more sophisticated malware consist-

ing of a second stage which deletes sent messages on

the device would expose the limitations of the exist-

ing baseline. On the other hand, a JIT-MF-based tool

can timely capture and store the evidence object for

the possible forensic analysis required at a later stage.

A sampling property enables the tool to reduce the

amount of storage occupied. However, if the device

is running low on storage, then a JIT-MF based tool

would run into the same issues of evidence availabil-

ity as the baseline sources.

Finally, the app and incident scenarios considered

in this experiment are only related to messaging hi-

jacks. Other apps may still be subject to issues that

require further experimentation.

7 CONCLUSIONS

Stealthy Android malware based on accessibility has

made it difﬁcult for digital forensic investigators to

uncover the attack steps involved in an incident. Pre-

vious work has shown that using a JIT-MF tool is

crucial in dumping key ephemeral in-memory objects

that can be linked to attack steps. In this paper, we

demonstrate the extent to which JIT-MF tools can

enrich forensic sources by comparing the enhanced

timelines generated by JIT-MF tools to timelines gen-

erated by existing baseline sources. Results show that

while JIT-MF does improve on timelines generated

by baseline sources without compromising the secu-

rity of the device, the information gain obtained in the

timeline depends on the level of granularity of the at-

tack step linked to the identiﬁed evidence object.

ACKNOWLEDGEMENTS

This work is supported by the LOCARD Project un-

der Grant H2020-SU-SEC-2018-832735.

REFERENCES

Akinbi, A. and Ojie, E. (2021). Forensic analysis of open-

source XMPP/Jabber multi-client instant messaging

apps on Android smartphones. SN Applied Sciences,

3(4):1–14.

Ali-Gombe, A., Sudhakaran, S., Case, A., and Richard III,

G. G. (2019). DroidScraper: a tool for Android in-

memory object recovery and reconstruction. In RAID,

pages 547–559.

Ali-Gombe, A., Tambaoan, A., Gurfolino, A., and

Richard III, G. G. (2020). App-agnostic post-

execution semantic analysis of Android in-memory

forensics artifacts. In ACSAC, pages 28–41.

Anglano, C. (2014). Forensic analysis of WhatsApp mes-

senger on Android smartphones. Digital Investiga-

tion, 11(3):201–213.

Anglano, C., Canonico, M., and Guazzone, M. (2017).

Forensic analysis of telegram messenger on android

smartphones. Digital Investigation, 23:31–49.

Bellizzi, J., Vella, M., Colombo, C., and Hernandez-Castro,

J. (2021). Real-time triggering of Android memory

dumps for stealthy attack investigation. In NordSec,

pages 20–36.

Bhatia, R., Saltaformaggio, B., Yang, S. J., Ali-Gombe,

A. I., Zhang, X., Xu, D., and Richard III, G. G. (2018).

Tipped off by your memory allocator: Device-wide

user activity sequencing from Android memory im-

ages. In NDSS.

Campbell, Christopher and Graeber, Matthew (2013). Liv-

ing Off the Land: A Minimalist’s Guide to Windows

SECRYPT 2021 - 18th International Conference on Security and Cryptography

368

Post-Exploitation. http://www.irongeek.com. Ac-

cessed: 24.03.2021.

Case, A., Maggio, R. D., Firoz-Ul-Amin, M., Jalalzai,

M. M., Ali-Gombe, A., Sun, M., and Richard III,

G. G. (2020). Hooktracer: Automatic detection and

analysis of keystroke loggers using memory forensics.

Computers & Security, 96:101872.

Case, A. and Richard III, G. G. (2017). Memory forensics:

The path forward. Digital Investigation, 20:23–33.

Chabot, Y., Bertaux, A., Nicolle, C., and Kechadi, M.-T.

(2014). A complete formalized knowledge represen-

tation model for advanced digital forensics timeline

analysis. Digital Investigation, 11:S95–S105.

Chabot, Y., Bertaux, A., Nicolle, C., and Kechadi, T.

(2015). An ontology-based approach for the recon-

struction and analysis of digital incidents timelines.

Digital Investigation, 15:83–100.

Chen, J., Wang, C., Zhao, Z., Chen, K., Du, R., and Ahn,

G.-J. (2017). Uncovering the face of android ran-

somware: Characterization and real-time detection.

IEEE TIFS, 13(5):1286–1300.

Cosic, J. and Baca, M. (2010). A framework to (im) prove

“chain of custody” in digital investigation process. In

CECIIS, page 435.

Diamantaris, M., Papadopoulos, E. P., Markatos, E. P.,

Ioannidis, S., and Polakis, J. (2019). Reaper: real-

time app analysis for augmenting the Android permis-

sion system. In ACM CODASPY, pages 37–48.

Google. File-based encryption. https://source.android.com/

security/encryption/ﬁle-based Accessed: 24.03.2021.

Google. Timesketch: forensic timeline analysis. https://

github.com/google/timesketch Accessed: 24.03.2021.

Guðjónsson, K. (2010). Mastering the super timeline with

log2timeline. SANS Institute.

Hargreaves, C. and Patterson, J. (2012). An automated time-

line reconstruction approach for digital forensic inves-

tigations. Digital Investigation, 9:S69–S79.

Heuser, S., Nadkarni, A., Enck, W., and Sadeghi, A.-R.

(2014). ASM: A programmable interface for extend-

ing Android security. In USENIX, pages 1005–1019.

Hoog, A. (2011). Android forensics: investigation, analysis

and mobile security for Google Android.

Kaspersky (2016). Triada: organized crime on An-

droid. https://www.kaspersky.com/blog/triada-trojan/

11481. Accessed: 24.03.2021.

Leguesse, Y., Vella, M., Colombo, C., and Hernandez-

Castro, J. (2020). Reducing the forensic footprint with

Android accessibility attacks. In STM, pages 22–38.

Li, S., Chen, J., Spyridopoulos, T., Andriotis, P., Lud-

winiak, R., and Russell, G. (2015). Real-time moni-

toring of privacy abuses and intrusion detection in An-

droid system. In HAS, pages 379–390.

Luttgens, J. T., Pepe, M., and Mandia, K. (2014). Incident

Response & Computer Forensics. McGraw-Hill Edu-

cation Group, 3rd edition.

Mohammad, R. M. A. and Alqahtani, M. (2019). A com-

parison of machine learning techniques for ﬁle system

forensics analysis. Journal of Information Security

and Applications, 46:53–61.

Pagani, F., Fedorov, O., and Balzarotti, D. (2019). Intro-

ducing the temporal dimension to memory forensics.

ACM TOPS, 22(2):1–21.

Saltaformaggio, B., Bhatia, R., Gu, Z., Zhang, X., and

Xu, D. (2015). Vcr: App-agnostic recovery of pho-

tographic evidence from android device memory im-

ages. In ACM SIGSAC, pages 146–157.

Scrivens, N. and Lin, X. (2017). Android digital forensics:

data, extraction and analysis. In ACM, pages 1–10.

Shi, L., Fu, J., Guo, Z., and Ming, J. (2019). “jekyll and

Hyde” is risky: Shared-everything threat mitigation in

dual-instance apps. In MOBISYS, pages 222–235.

Srivastava, H. and Tapaswi, S. (2015). Logical acquisition

and analysis of data from android mobile devices. In-

formation & Computer Security.

Stefanko, Lukas (2020). Insidious Android malware

gives up all malicious features but one to gain stealth.

https://www.welivesecurity.com/2020/05/22/insidious-

android-malware-gives-up-all-malicious-features

-but-one-gain-stealth/. Accessed: 24.03.2021.

Taubmann, B., Alabduljaleel, O., and Reiser, H. P. (2018).

DroidKex: Fast extraction of ephemeral TLS keys

from the memory of Android apps. Digital Investi-

gation, 26:S67–S76.

ThreatFabric (2020). 2020 - year of the RAT. https://www.

threatfabric.com/blogs/2020_year_of_the_rat.html.

Accessed: 24.03.2021.

Whittaker, Zack (2020). Eventbot: A new mobile bank-

ing trojan is born. https://www.cybereason.com/blog/

eventbot-a-new-mobile-banking-trojan-is-born. Ac-

cessed: 24.03.2021.

Yang, S. J., Choi, J. H., Kim, K. B., and Chang, T. (2015).

New acquisition method based on ﬁrmware update

protocols for android smartphones. Digital Investiga-

tion, 14:S68–S76.

Responding to Living-Off-the-Land Tactics using Just-In-Time Memory Forensics (JIT-MF) for Android

369
