Enhanced AI On-the-Edge 3D Vision Accelerated Point Cloud Spatial

Computing Solution

Gaurav Kumar Wankar

and Shubham Vohra

Neal Analytics Services Private Limited, Pune, Maharashtra, 411014, India

Keywords: Industry - 4.0, Industry - 5.0, Digital Transformation, Business Transformation, Disruptive Technologies, 3D

Vision, Product Market, Immersive Business Solutions, Artificial Intelligence, Deep Learning, Voxelization,

PointNet, Pointpillars, Point Cloud, NVIDIA Jetson Tx2, Azure Kinect DK, GPU, Edge Applications, Edge

AI, AI On-the-Edge, Transformative Experiences, Smart Everything Revolution.

Abstract: With the emergence of Industry - 5.0, the 3D Vision Product Market is growing rapidly. Leveraging

Disruptive Technologies, we are exploring Artificial Intelligence driven Advanced 3D Vision immersive

Business Solutions with transformative experiences leveraging Deep Learning accelerated with Voxelization,

PointPillars and PointNet approaches for classification of Point Clouds enhancing the feature extraction to be

more accurate bringing our work and data to life. NVIDIA Jetson Tx2 targeted at power constrained AI on-

the-edge applications maintains awareness of its surroundings by visualizing in 3D space leveraging Azure

Kinect DK depth sensing instead of 2D space thereby improving the performance in Edge AI computing

device. Leveraging state of the art technologies converging AI and Mixed Reality we further encourage the

readers to explore the possibilities of Next Generation services bringing accurate and immersive real-world

information allowing decision-making based on Digital Reality driving Digital Transformation.

1 INTRODUCTION

With the beginning of 2

quarter of 2021, the

Business market is evolving rapidly exploring Digital

Transformation. Now it is time for us to start thinking

about reshaping the Organizational future course

leveraging Industry - 4.0 solutions towards Industry -

5.0. While all the previous industrial revolutions are

about utilizing technology to optimize and better the

means of production. Industry 5.0 exclusively focuses

on alliance between humans and smart systems.

As per the Gartner Hype cycle (Gartner, 2021) as

shown in Figure 1.1, the current market is exploring

towards the three themes. Interfaces and experiences,

Business enablers and Productivity revolution.

Leveraging few of these Disruptive Technologies

towards Edge AI, in this paper we are exploring new

business solutions creating transformative

experiences with cutting-edge spatial computing

capabilities leading the Next Generation of Human

Machine Interaction.

https://orcid.org/0000-0001-7298-0480

https://orcid.org/0000-0002-9758-3390

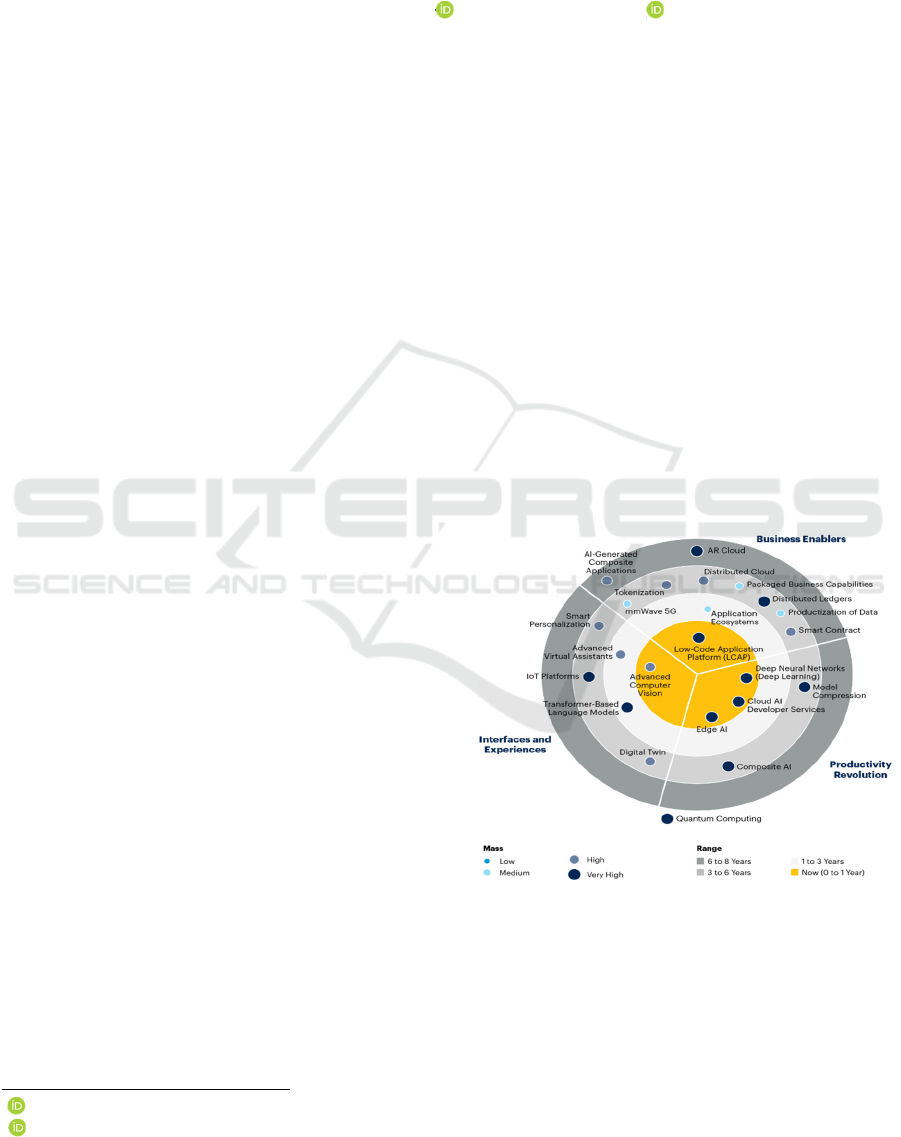

Figure 1.1: Impactful and Emerging Technologies from

Gartner Trends for 2021 (Gartner, 2021).

With the advent of Industry - 4.0, the 2

wave of

computing is driven by GPUs for Edge Analytics and

AI on-the-edge applications.

Designing hardware accelerators for AI on-the-

edge applications involves performing acrobatics

362

Wankar, G. and Vohra, S.

Enhanced AI On-the-Edge 3D Vision Accelerated Point Cloud Spatial Computing Solution.

DOI: 10.5220/0010616203620369

In Proceedings of the 10th International Conference on Data Science, Technology and Applications (DATA 2021), pages 362-369

ISBN: 978-989-758-521-0

amidst the constraints of low-power achieving high

performance. NVIDIA's Jetson is a promising

platform for Embedded AI achieving a balance

between the above objectives.

GPUs are known for their efficient capabilities of

parallel processing. This is very useful as the system

needs to filter thousands of data frames quickly to

react according to the situation.

Voxels till Industry - 4.0 has been considered a

bottleneck for engineering, as the hardware was not

capable for processing them. Now with the arrival of

Industry - 5.0, leveraging the state of art technologies

such as GPU, TPU, VPU, FPGA accelerated Deep

Learning for High Performance Computing clusters,

voxels are accelerating AI on-the-edge solutions

providing more precise renderings for visualization.

In this paper, we are leveraging Azure Kinect DK

for obtaining the 3D vision point clouds for object

detection along with the computing capabilities of

NVIDIA’s Jetson device for faster processing in real-

time.

2 RELATED WORK

2.1 3D Vision Cameras

When we open our eyes on a well-known scene, we

form an intuitive acquaintance of identifiable objects

organized in the 3D spatial background. This is

extended by our brain adapting to new surroundings

captured though our eyes, sorting and combining

them with prior knowledge to create the immersive

experience.

Today with the emerging 3D vision cameras

accelerating AI on-the-Edge solutions is pretty much

feasible. Leveraging Azure Kinect DK with advanced

computer vision models we are gaining deeper

understanding of the physical environment and the

objects present in the scene (David Coulter, 2019).

3D Vision based depth processing with object

detection is quite fascinating and extensively studied

for Embedded Vision applications.

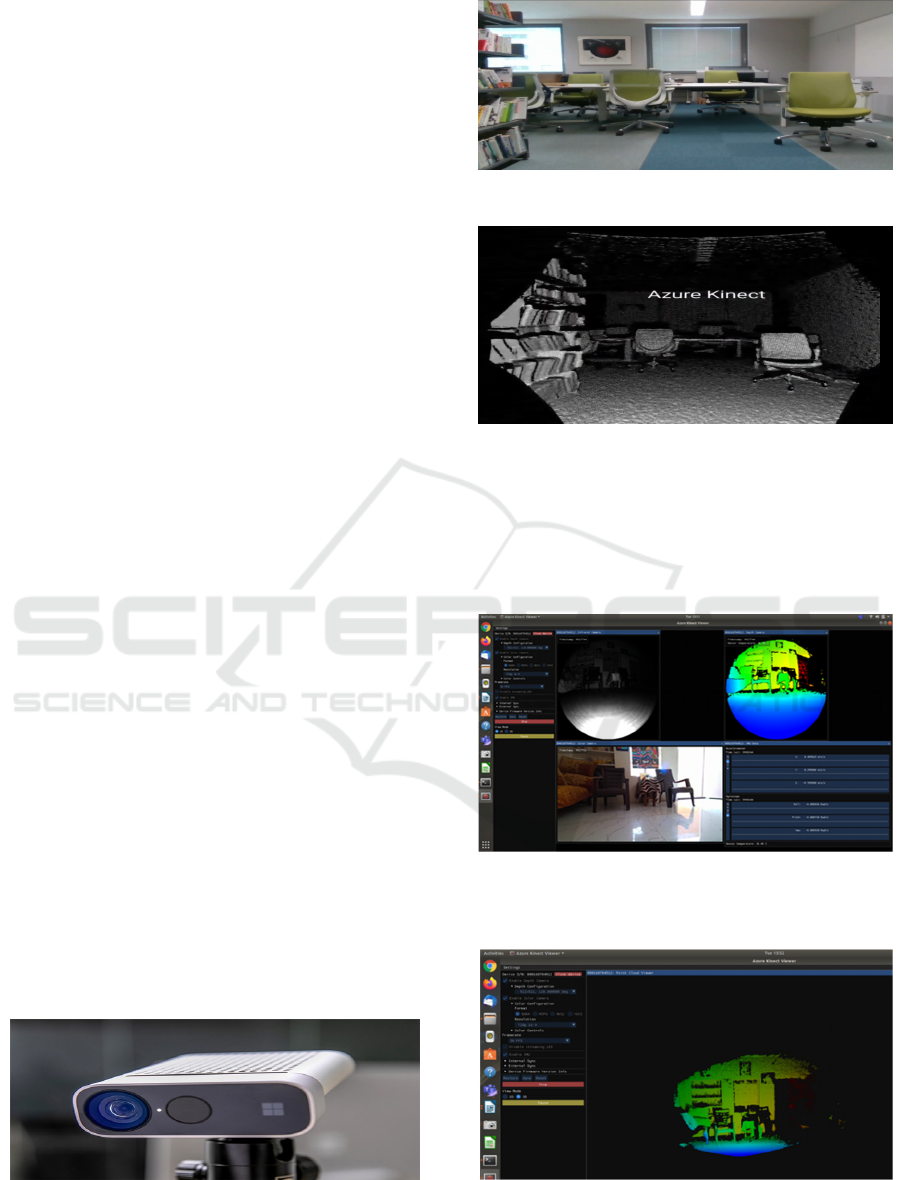

Figure 2.1.1: Azure Kinect DK.

Figure 2.1.2: Scene captured by RGB Camera.

Figure 2.1.3: Scene visualized by Azure Kinect DK.

The figure 2.1.1 is representing Azure Kinect DK

camera. The figures from 2.1.2 & 2.1.3 are

representing the scene visualization from RGB

Camera, Point Cloud data from Azure Kinect DK

cameras respectively.

Figure 2.1.4: Azure Kinect 512x512 K4aviewer results

visualizing the scenes from RGB, Infrared & Depth

cameras corresponding to 720p resolution.

Figure 2.1.5: Azure Kinect 512x512 K4aviewer results

visualizing the Point Cloud scene corresponding to 720p

resolution.

Enhanced AI On-the-Edge 3D Vision Accelerated Point Cloud Spatial Computing Solution

363

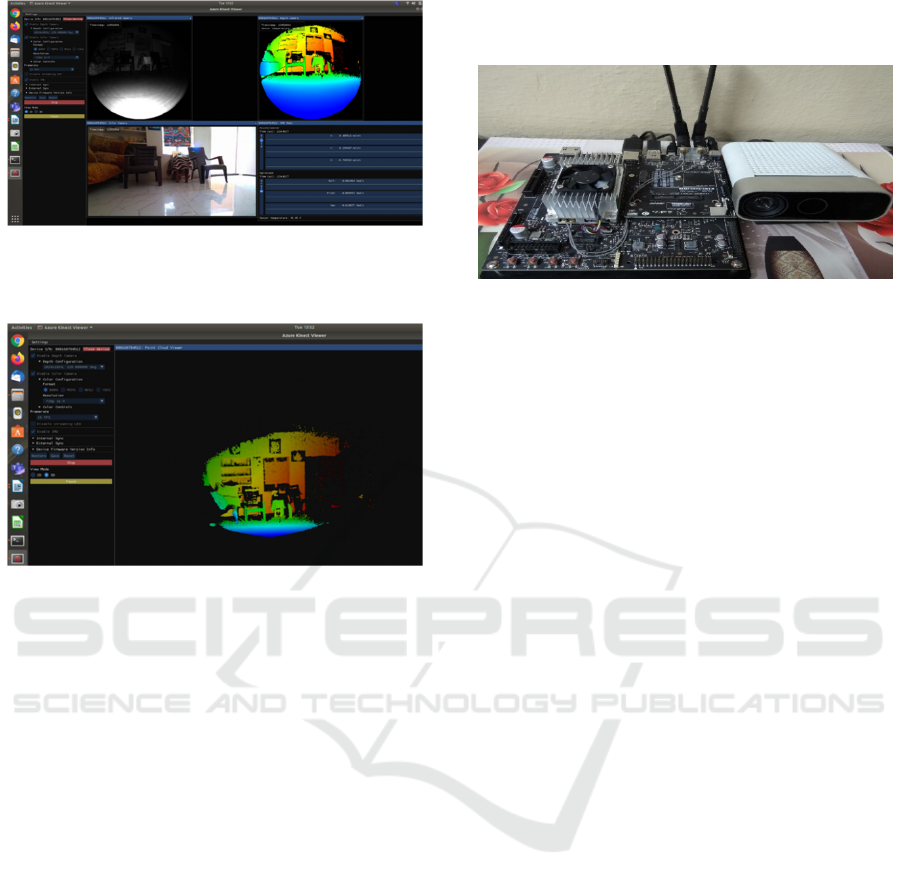

Figure 2.1.6: Azure Kinect 1024x1024 K4aviewer results

visualizing the scenes from RGB, Infrared & Depth

cameras corresponding to 720p resolution.

Figure 2.1.7: Azure Kinect 1024x1024 K4aviewer results

visualizing the Point Cloud scene corresponding to 720p

resolution.

The figures from 2.1.4 to 2.1.7 are representing

the RGB, Infrared, Depth and Point Cloud results

obtained from Azure Kinect DK correspondingly.

2.2 NVIDIA Jetson Tx2

NVIDIA Jetson Tx2 designed explicitly for High

performance AI on-the-edge applications, housing

both GPU and CPU on the same System-on-Chip

(SoC) achieving faster processing supporting the

emerging deep neural networks. (NVIDIA, 2021).

Jetson Tx2 leverages Pascal GPU architecture to

increase performance upon Streaming Multiprocessor

(SM). The Graphics Processing Cluster (GPC)

includes multiple SM units and a Raster Engine for

computing, rasterization, shading and texturing.

Jetson Tx2 runs more efficiently between 5 watts

at max efficiency and 15 watts at max performance.

(NVIDIA, 2021). It has better power efficiency

making it ideal for AI on-the-edge applications such

as autonomous vehicles, drones, virtual reality and

mixed reality applications.

The figure 2.2.1 corresponds to NVIDIA Jetson

Tx2 connected with the Azure Kinect DK leveraging

the GPU parallel computing capabilities on the data

obtained from the camera.

Figure 2.2.1: Edge AI Setup Leveraging Azure Kinect DK

Accelerated with NVIDIA Jetson Tx2.

2.3 Emergence of AI-on-the-Edge

With the rise of Industry - 5.0 we are at the cusp of

technology explosion driving innovation.

Convergence of various technologies such as Big

Data, Artificial Intelligence and Deep Learning

incorporates AI on-the-edge applications.

With these rapidly evolving technologies such as

Intel Movidius VPUs, NVIDIA GPUs, Intel Nervana

Neural Network Processors (NNP), Google Tensor

Processing Units (TPUs), Intel FPGA, Xilinx FPGA

etc., the deep learning algorithms are emerging with

advanced architectures leading to better performance,

reducing latency and achieving higher throughput

exploring unlimited possibilities leveraging

Disruptive Technologies.

Leveraging the state of art technologies with deep

learning architectures opens New Product Market

providing immersive Business solutions. Exploring

various approaches towards computer vision leads us

to CNN, DNN, CuDNN, Mask R-CNN, Mesh R-

CNN, LSTM, GoogLeNet, ResNet, SegNet and

YOLO approaches which are trained on 2D data.

With the focus on Industry - 5.0 (Atwell, 2017)

real-time applications, point-cloud based 3D deep

learning is gaining pace rapidly as it involves an end-

to-end deep learning network acquiring features

directly from the point clouds.

3D object recognition, 3D object segmentation

and point-wise semantic segmentation tasks are

crucial component for applications which are tightly

constrained by hardware resources and battery.

Therefore, it is important to design efficient and fast

3D deep learning models for real-time applications on

the edge such as virtual reality, mixed reality and

autonomous driving.

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

364

3 ASSESSED ARCHITECTURES

In this paper, we are exploring few approaches for

working on 3D data leveraging NVIDIA Jetson

platform providing enhanced solutions.

We review both hardware and algorithmic

approaches performed for running Deep Learning

algorithms on NVIDIA Jetson and demonstrate the

real-life applications. While the paper focuses on

NVIDIA Jetson as an Edge device, these approaches

also apply to the prevailing and future AI on-the-edge

devices running AI algorithms on low-cost, low-

power platforms. We are seeking to provide a glimpse

of the recent progress towards the vision of "Smart

Everything Revolution" (NVIDIA B. C., 2019).

3.1 Voxelization Approach

With the emergence of Industry - 5.0, the craze for

volumetric data is growing rapidly enhancing cutting

edge abilities for visual communication by providing

more precise renderings.

Voxel is referred as a Pixel that has a volume. It

can be distinguished as a smallest cube forming a 3D

perspective of an image. Pixel, on the other hand is

referred as a smallest square from a 2D plane which

contains a single-color value and positional data

associated with it.

The process of adding depth to a 2D plane using

volumetric data (x, y, z, v) where v stands for volume

is called as Voxelization. This approach transforms

the Point Cloud into a voxel grid by rasterizing using

3D CNN techniques.

3.1.1 VoxelNet Approach

VoxelNet is a 3D detection network which splits the

point cloud into 3D voxels and alters them into

unified representation of a single voxel feature

encoding (VFE) layer. (Yin Zhou, 2017).

Thus, the point cloud is Voxelized and then

connected to a Region Proposal Network to

instantaneously acquire the discriminatory feature

representation from the point clouds and predict

accurate bounding boxes generating detections.

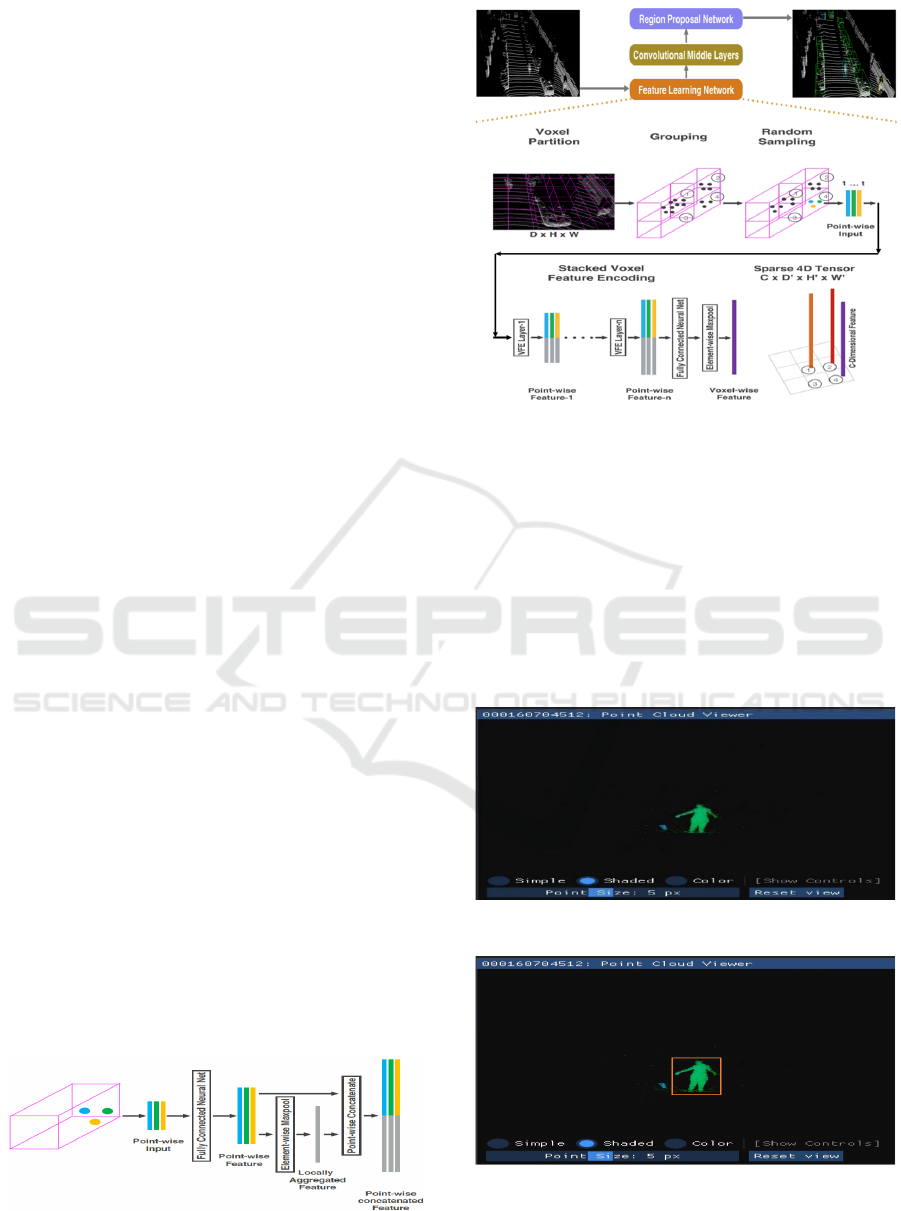

Figure 3.1.1: Voxel feature encoding (VFE) layer.

Figure 3.1.2: VoxelNet feature learning architecture.

The VFE layer converges point-wise and locally

aggregated features. Stacking multiple VFE layers

permits learning complex features for portraying

local 3D shape data. (Yin Zhou, 2017). VoxelNet

classifies the point cloud into 3D voxels, converts

each voxel with stacked VFE layers and then DNN

estimates local voxel features, transforming the point

cloud into a high-level volumetric feature

representation. Finally, RPN analyses this

representation and yields the detection result.

Figure 3.1.3: Azure Kinect Point Cloud Scene.

Figure 3.1.4: Human detection by VoxelNet approach from

the Azure Kinect Point Cloud.

Enhanced AI On-the-Edge 3D Vision Accelerated Point Cloud Spatial Computing Solution

365

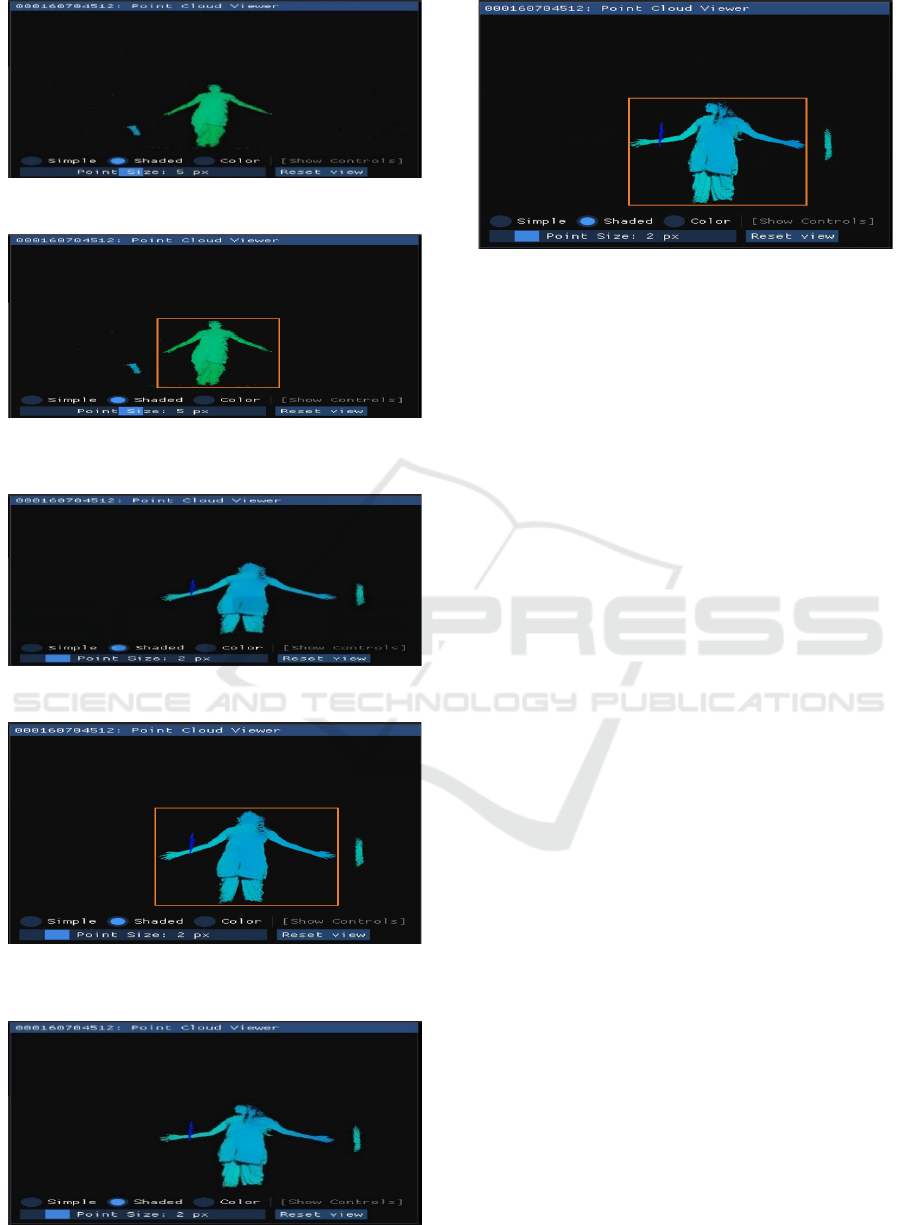

Figure 3.1.5: Azure Kinect Point Cloud Scene.

Figure 3.1.6: Human detection by VoxelNet approach from

the Azure Kinect Point Cloud.

Figure 3.1.7: Azure Kinect Point Cloud Scene.

Figure 3.1.8: Human detection by VoxelNet approach from

the Azure Kinect Point Cloud.

Figure 3.1.9: Azure Kinect Point Cloud Scene.

Figure 3.1.10: Human detection by VoxelNet approach

from the Azure Kinect Point Cloud.

The Figures 3.1.3 to 3.1.10 are representing the

VoxelNet approach operating on the raw point cloud

data obtained from Azure Kinect Dk detecting

humans in the point cloud scene.

The VoxelNet approach predicts and detects the

human from the Point Cloud obtained from Azure

Kinect DK with an accuracy of 90%.

Thus, benefiting from the sparse point cloud and

parallel computing on the voxel grid.

3.2 PointPillars & PointNet Approach

PointPillars approach converts the raw point cloud

data into a vertical pillar like structure having the

same intensity values as the point cloud. PointNet

performs semantic segmentation and classification

over this data. It uses a novel feature encoder for

performing feature extraction to precisely predict

objects from a 3D plane. (Lang, 2019).

While the conventional approach of Voxelization

requires volumetric data like Voxels causing

deprecation in quality of details while sampling the

data, the PointPillars approach overcomes this

drawback by transforming the raw Point Cloud data

into pillar like structures as an input to the simplified

PointNet which can be then leveraged by the Deep

Learning Network.

The PointPillars network (Lang, 2019) has 3

stages. In the 1

stage the novel encoder transforms

the point cloud to a sparse pseudo image by

transforming point cloud into PointPillars and then

using a sorted edition of PointNet network learns the

representation of point clouds as PointPillars.

PointNet identifies each object from vivid classes

making a remarkable progress in scene semantic

segmentation classifying every voxel belonging to the

particular class of objects. Thus, maintaining the

variance after performing various transformation like

translating or even rotation of objects from the 3D

plane.

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

366

In the 2

stage the 2D Convolutional backbone

processes this pseudo image in a high-level

representation. Finally in the 3

stage the detection

head detects objects and creates bounding boxes

around them.

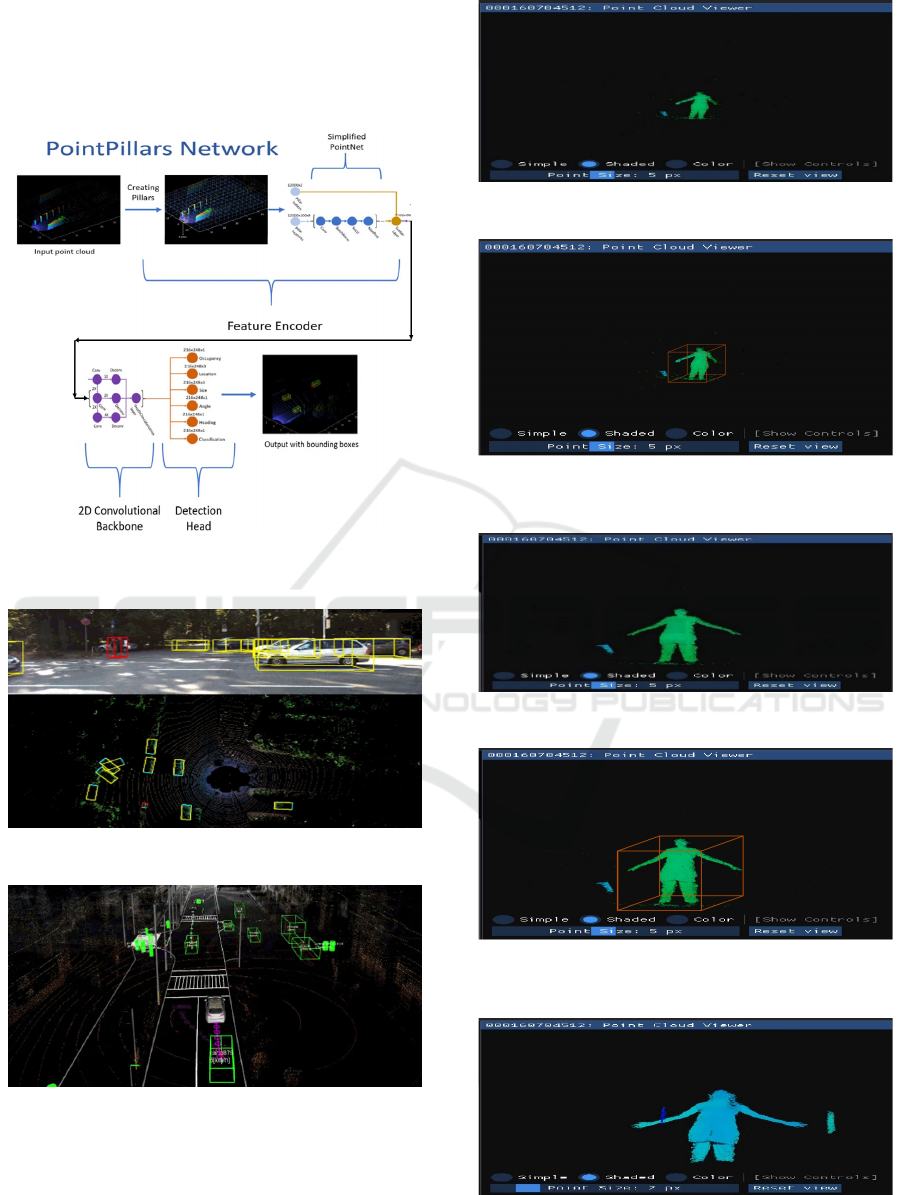

Figure 3.2.1: Network architecture for PointPillars

approach.

Figure 3.2.2: Visual perception using PointPillars.

Figure 3.2.3: Numerous objects detected by PointPillars.

The Figures 3.2.2 and 3.2.3 are representing the

PointPillars approach discovering numerous objects

in the Point Cloud visualization.

Figure 3.2.4: Azure Kinect Point Cloud Scene.

Figure 3.2.5: Human detection by PointPillars and PointNet

approach from the Point Cloud.

Figure 3.2.6: Azure Kinect Point Cloud Scene.

Figure 3.2.7: Human detection by PointPillars and PointNet

approach from the Point Cloud.

Figure 3.2.8: Azure Kinect Point Cloud Scene.

Enhanced AI On-the-Edge 3D Vision Accelerated Point Cloud Spatial Computing Solution

367

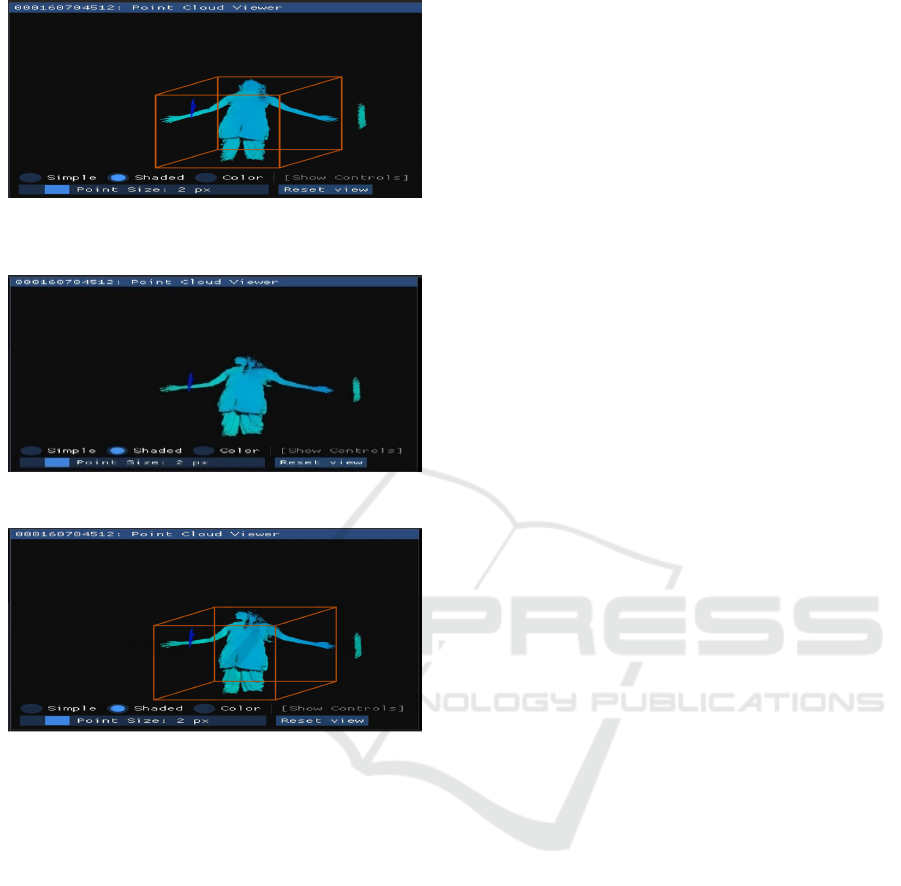

Figure 3.2.9: Human detection by PointPillars and PointNet

approach from the Point Cloud.

Figure 3.2.10: Azure Kinect Point Cloud Scene.

Figure 3.2.11: Human detection by PointPillars and

PointNet approach from the Point Cloud.

The Figures 3.2.4 to 3.2.11 are representing the

PointPillars approach operating on the raw point

cloud data obtained from Azure Kinect Dk detecting

humans in the point cloud scene.

The PointPillars approach predicts and detects the

human from the Point Cloud obtained from Azure

Kinect DK with an accuracy of 95%.

Thus, benefiting from the sparse point cloud and

parallel computing on the PointPillars leveraging

NVIDIA Jetson Tx2.

4 FUTURE PERSPECTIVE

With the emergence of Industry - 5.0, the 3D Vision

Product Market is growing tremendously. Azure

Kinect DK working alongside with Microsoft's Azure

leveraging Cognitive Services enhances the feature

extraction to be more accurate.

Leveraging vision and speech analytics we can

effectively enhance the immersive detection and

decision-making experience.

Thus, providing innovative Business-to-Business

(B2B) and Business-to-consumer (B2C) solutions

across various industry verticals such as Robotics,

Digital Twins, Self-Driving Vehicles, Drones,

Photogrammetry, Healthcare, Retail and

Manufacturing industries.

Converging AI and Mixed Reality opens a New

Generation of services bringing accurate immersive

real-world information allowing decision-making

based on Digital Reality driving Digital

Transformation.

5 CONCLUSIONS

We would like to conclude that, with the rise of

Industry - 5.0 we are moving towards the

convergence of various fields concentrating on

alliance between humans and smart systems. We are

exploring transformative experiences accelerated

with NVIDIA Jetson Tx2 edge computing leveraging

the state of art Deep Learning algorithms such as

Voxelization, PointNet and PointPillars Network

approaches for enhancing the feature extraction and

object detection form the Point Cloud data with

cutting-edge spatial computing capabilities.

Thus, leading towards the Next Generation of

Human Machine Interaction breathing New Life into

the future of Immersive Business Transformation.

ACKNOWLEDGEMENT

It gives us immense pleasure to extend our gratitude

towards Neal Analytics Services Private Limited for

encouraging, motivating and providing us the

necessary support along with the computational

resources required throughout the entire journey of

exploring this project.

REFERENCES

Alex H. Lang, S. V. (2019). PointPillars: Fast Encoders for

Object Detection from Point Clouds.

https://arxiv.org/abs/1812.05784.

Atwell, C. (2017). Yes, Industry 5.0 is Already on the

Horizon. https://www.machinedesign.com/automation-

iiot/article/21835933/yes-industry-50-is-ready-on-the-

horizon. Last accessed on Sept 12, 2017.

DATA 2021 - 10th International Conference on Data Science, Technology and Applications

368

B. Li, T. Z. (2016). Vehicle detection from 3d lidar using

fully convolutional network. Robotics: Science and

Systems.

Cabanes, Q. S. (2017). Object detection and recognition in

smart vehicle applications: Point cloud-based approach.

Ninth International Conference on Ubiquitous and

Future Networks, (pp. 287-289).

Chen, X. M. (2017). Multi-View 3D Object Detection

Network for Autonomous Driving. IEEE Conference

on Computer Vision and Pattern Recognition (CVPR)

(pp. 6526-6534). doi: 10.1109/CVPR.2017.691.

David Coulter, P. M. (2019). Azure Kinect DK

documentation. https://docs.microsoft.com/en-us/

azure/kinect-dk/. Last accessed on Jun 26, 2019.

Gartner. (2021). 4 Impactful Technologies from the Gartner

Emerging Technologies and Trends Impact Radar for

2021. https://www.gartner.com/smarterwithgartner/4-

impactful-technologies-from-the-gartner-emerging-

technologies-and-trends-impact-radar-for-2021/. Last

accessed on Jan 18, 2021.

Geiger, A. L. (2013). Vision meets Robotics: The KITTI

Dataset. International Journal of Robotics Research

(IJRR).

Intel. (2019). Beginner’s guide to depth.

https://www.intelrealsense.com/beginners-guide-to-

depth/. Last accessed on Jul 15, 2019.

Lang, A. H. (2019). PointPillars: Fast Encoders for Object

Detection from Point Clouds. IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR),

(pp. 12689-12697).

Microsoft. (2021). Azure Kinect DK: Developer kit with

advanced AI sensors for building computer vision and

speech models. https://azure.microsoft.com/en-

in/services/kinect-dk/.

NVIDIA. (2021). DATA SHEET NVIDIA Jetson TX2

Series System-on-Module. https://developer.download.

nvidia.com/assets/embedded/secure/jetson/TX2/docs/J

etson-TX2-Series-Module-Datasheet-v1.8.pdf?nstEXJ

Xxf7pNVJaKPAZFKcUQJis2UqnnKPC9kw04moG3z

J3rKBd9ECfWOzQ9i3Ispxa4ZLf4eTKJ95-Gryf3wYj

gTgpDpREROe_ejvwPx7fDboumngyRgRvA6boB37h

Ie_BCWy. Last accessed on Apr, 2021.

NVIDIA, B. C. (2019). 5G Meets AI: NVIDIA CEO

Details ‘Smart Everything Revolution,’ EGX for Edge

AI, Partnerships with Leading Companies.

https://blogs.nvidia.com/blog/2019/10/21/5g-meets-ai-

nvidia-egx-edge-ai/. Last accessed on Oct 21, 2019.

Qi, C. R. (2018). Frustum PointNets for 3D Object

Detection from RGB-D Data. IEEE/CVF Conference

on Computer Vision and Pattern Recognition, (pp. 918-

927).

Shaoshuai Shi, C. G. (2019). PV-RCNN: Point-Voxel

Feature Set Abstraction for 3D Object Detection.

https://arxiv.org/abs/1912.13192.

Stanisz, J., Lis, K., Kryjak, T., & Gorgon, M. (2020).

Optimization of the PointPillars network for 3D object

detection in point clouds. https://doi.org/10.36227/

techrxiv.12593555.v1. TechRxiv.

Tang, H. C. (2017). Multi-cue pedestrian detection from 3D

point cloud data. IEEE International Conference on

Multimedia and Expo (ICME), (pp. 1279-1284.).

X. Chen, K. K. (2016). Monocular 3d object detection for

autonomous driving. IEEE CVPR.

Yin Zhou, O. T. (2017). VoxelNet: End-to-End Learning

for Point Cloud Based 3D Object Detection.

https://arxiv.org/abs/1711.06396.

Enhanced AI On-the-Edge 3D Vision Accelerated Point Cloud Spatial Computing Solution

369
