RoBINN: Robust Bird Species Identiﬁcation using Neural Network

Chirag Samal

, Prince Yadav

, Sakshi Singh

, Satyanarayana Vollala

and Amrita Mishra

Dept. of Electronics and Communication Engineering, International Institute of Information Technology,

Naya Raipur, India

Dept. of Computer Science and Engineering, International Institute of Information Technology, Naya Raipur, India

International Institute of Information Technology, Bangalore, India

Keywords:

Deep Learning, Bird Species Identiﬁcation, Speech Recognition, Convolutional Neural Network.

Abstract:

Recent developments in machine and deep learning have made it possible to expand the realms of traditional

audio pattern recognition to real-time and practical applications. This work proposes a novel framework for

robust bird species identiﬁcation using the neural network (RoBINN) based on their unique vocal signatures.

To make the network robust and efﬁcient, data augmentation is performed to create synthetic training sam-

ples for bird species with less available recordings. Further, inherent properties of audio signals are suitably

leveraged via effective speech recognition-based feature engineering techniques to develop an end-to-end con-

volutional neural network (CNN). Additionally, the proposed model architecture for the CNN framework

employs residual learning and attention mechanism to generate attention-aware features, which enhances the

overall accuracy of birdcall identiﬁcation. The proposed architecture employs an exhaustive dataset with

21375 recordings corresponding to 264 bird species. Experimental results validate the proposed bird species

classiﬁcation technique in terms of accuracy, F1-score, and binary cross-entropy loss.

1 INTRODUCTION AND

RELATED WORKS

With the advancements in machine and deep learn-

ing (DL) techniques, audio and speech recognition

have evoked widespread interest from industry and

academia. To this end, bird species identiﬁcation via

their unique chirping sounds is one of the emerg-

ing applications of ML and DL in speech recogni-

tion. The number and diversity of bird species in

an ecosystem is a critical indicator of the biodiversity

and sustainability of the natural habitat (Priyadarshani

et al., 2018). Thus, bird species identiﬁcation has be-

come fundamental to worldwide research related to

the ecosystem’s overall health and well-being.

Identifying bird species via appearance is tedious

in nature and has led to the development of various

audio-based recognition methods (Lasseck, 2018),

(Sankupellay and Konovalov, 2018), (Chakraborty

et al., 2016). However, classiﬁcation via such tradi-

tional approaches are challenging due to the presence

of background noise and multiple bird species in the

same recording clip. Moreover, conventional audio

recognition approaches that perform audio tagging,

emotion and music classiﬁcation, and sound event de-

tection, etc. employ smaller datasets, thereby result-

ing in low accuracy (Kong et al., 2020).

In this regard, with the easy access of large

datasets to the research community combined with

the success of ML and DL in multi-faceted engineer-

ing paradigms, several recent works such as (Gyires-

oth and Czeba, 2016) ,(Sang et al., 2018), (Xie et al.,

2019), (Sankupellay and Konovalov, 2018) employ

deep convolutional neural networks (CNNs) for bird

species identiﬁcation. However, the authors therein

consider the classiﬁcation of 11 and 46 species, re-

spectively. Further, the results are observed to be less

accurate with an increase in the number of species,

thereby making their performances highly dependent

on the number of bird species.

The work in (Zhao et al., 2017) employs the Gaus-

sian mixture model along with support vector ma-

chines (SVMs) to perform the classiﬁcation of 11

species. However, the proposed approach was ob-

served to be inaccurate for multiple concurrent bird

acoustic events. Next, the work (Chakraborty et al.,

2016) performed classiﬁcation of 26 species using dy-

namic kernel-based SVM and deep neural network

(DNN). However, the authors therein did not account

for the noisy environment condition. The subsequent

Samal, C., Yadav, P., Singh, S., Vollala, S. and Mishra, A.

RoBINN: Robust Bird Species Identiﬁcation using Neural Network.

DOI: 10.5220/0010647500310038

In Proceedings of the 18th International Conference on Signal Processing and Multimedia Applications (SIGMAP 2021), pages 31-38

ISBN: 978-989-758-525-8

work in (Kong et al., 2020) employed pre-trained au-

dio neural networks (PANNs) on a very large scale au-

dio dataset, and its architecture included Wavegram-

Logmel-CNN. However, the approach achieved an ac-

curacy of 43.9% on AudioSet tagging.

Thus, motivated by the success of DNNs, this pa-

per develops a novel deep learning-based identiﬁca-

tion system for bird species in order to address the

voids of the recent state-of-the-art works. Further, it

is demonstrated that the proposed framework achieves

desirable accuracy under noisy environments and can

differentiate between the different species in a multi-

species audio clip. The novelty and main contribu-

tions of the paper can be summarized as follows.

• A novel end-to-end bio-acoustic signal recogni-

tion system is developed for bird species classi-

ﬁcation using audio recordings containing multi-

species birdcalls as well as accounting for a noisy

environment.

• The robust bird species identiﬁcation using neu-

ral network (RoBINN) architecture is developed

wherein the attention mechanism is embedded

into the network via residual learning to generate

attention aware features and reﬁne adaptive fea-

tures.

• Exhaustive experiments demonstrate that the pro-

posed RoBINN framework is precise as well as

superior to state-of-the-art bird species identiﬁca-

tion architectures.

The usage of the term ‘robust’ in the proposed de-

sign has a two-fold signiﬁcance. Firstly, RoBINN

can successfully perform bird species identiﬁcation in

challenging noisy environments. Secondly, by virtue

of the residual learning and attention mechanism as-

pects in the proposed architecture, complex spectral

features present in the audio clips can be identiﬁed to

yield more precise results.

The remainder of the paper is organized as fol-

lows. Section II describes the overall workﬂow of the

proposed RoBINN framework for bird species iden-

tiﬁcation followed by the detailed model architecture

in Section III. The experimental results and discussion

are presented in Section IV followed by the conclud-

ing remarks in Section V.

2 OVERALL WORKFLOW OF

THE PROPOSED ROBINN

FRAMEWORK

This section presents a brief overview of the various

components involved in the proposed deep learning-

based bird identiﬁcation framework.

2.1 Dataset Description

The dataset used in this work is ‘Cornell Bird Chal-

lenge’ (CBC)’ dataset (Cornell Lab of Ornithology,

2020) obtained from xeno-canto.org (Planqu

e et al.,

2005). The dataset includes 264 unique bird species

with 21375 recordings belonging to different bird

sounds. The training data consists of both audio data

and metadata which includes various parameters such

as type of audio channel, length, altitude, dates, lo-

cation, etc. The audio data is sampled at 8 different

sampling frequencies, out of which more than 95%

are sampled at 44.1 kHz and 48 kHz. Further, visual

information of about 75.8% of the birds is available

while recording the training data at 64 different loca-

tions, each associated with the latitude and longitude

of the concerned area. The duration of each audio sig-

nal in the training data varies from 5 seconds to 500

seconds.

2.2 Data Preprocessing

The training data comprises of audio ﬁles in 8 dif-

ferent sampling frequencies which are re-sampled to

a common sampling frequency of 32 kHz. Subse-

quently, short-time Fourier transform (STFT) is em-

ployed to obtain the spectrogram of the entire audio

event in a windowed manner. The STFT parame-

ters such as the window width and degree of over-

lap between successive windows are chosen similar

to (Zhao et al., 2017).

2.3 Data Augmentation

For training a DNN, a large amount of data sam-

ples are required corresponding to each of the bird

species. The training dataset comprises of some bird

species with fewer samples. Thus, data augmentation

approach has been employed to create new and syn-

thetic training samples by adding small perturbations

to the initial training set. The various data augmenta-

tion techniques employed in this work are discussed

as follows.

2.3.1 Standardization

Standardization technique generates a synthetic sam-

ple ¯x as

¯x =

x − µ

(1)

where x, µ, and σ denote the actual sample point,

mean and standard deviation corresponding to all the

samples in the dataset.

SIGMAP 2021 - 18th International Conference on Signal Processing and Multimedia Applications

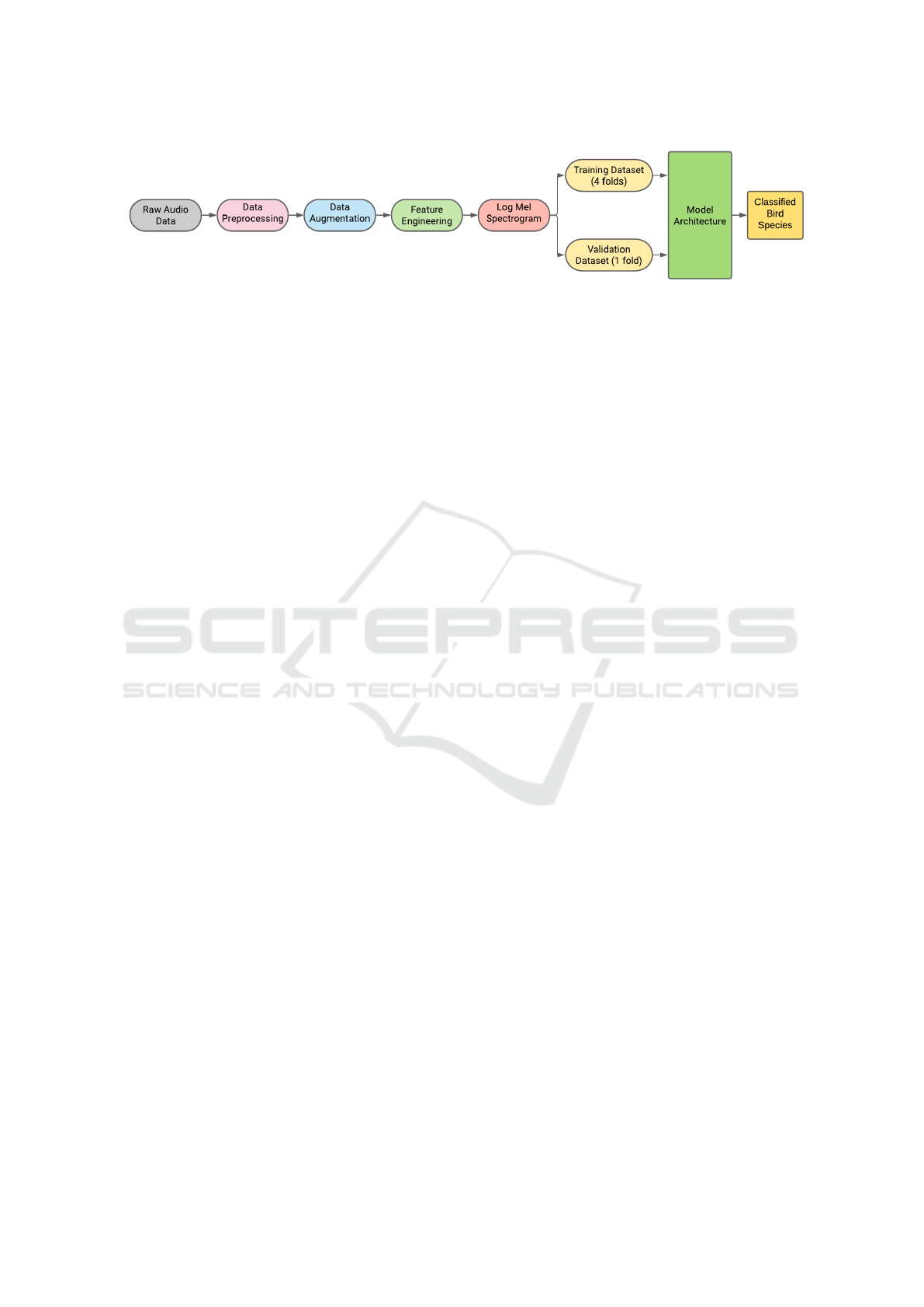

Figure 1: Work ﬂow diagram for proposed DL-based bird identiﬁcation framework: RoBINN.

2.3.2 Adding White Noise

To enhance the performance of the proposed model

under noisy conditions, additive white Gaussian noise

(AWGN) is added to the audio signal data.

2.3.3 Audio Shifting

The audio clip is shifted towards the left or right di-

rection with a random time scale. For example, if the

audio is shifted towards left or right with x seconds,

the ﬁrst or the last x seconds will be marked as zero,

respectively. This work considers a random shifting

of the bird sounds by 5000 µs similar to the related

work in (Schl

uter and Grill, 2015).

2.3.4 Audio Stretching

The speed of the audio clip is modiﬁed by a factor

without affecting the pitch. A factor of 1.2 is con-

sidered for the work under discussion similar to the

related work in (Schl

uter and Grill, 2015).

2.3.5 Changing the Pitch

The pitch of the sound is either lowered or raised by

keeping the speed of sound constant. Each sample

was pitch shifted by 10 values ranging from -10 to

10.

2.3.6 Mixup

Mixup corresponds to training of the DNN on convex

combinations of pairs of training examples and their

corresponding classes (Zhang et al., 2017). The vir-

tual training sample ¯x is constructed by employing the

input vectors x

and x

¯x = λx

+ (1 −λ)x

(2)

where λ ∈ [0, 1] denotes a tuning parameter and its

corresponding label y can be obtained as

¯y = λy

+ (1 − λ)y

(3)

where y

and y

denote one-hot label encodings.

2.3.7 SpecAugment

Similar to the work in (Park et al., 2019), using time

and frequency masking techniques, this data augmen-

tation technique is applied to the log-mel spectrogram

of an audio clip.

2.4 Feature Engineering

Feature engineering, one of the most essential compo-

nents of an ML process, creates features that enable

the simpler functioning of the ML-based algorithms

by using relevant domain knowledge. Thus, the per-

formance of any ML algorithm critically depends on

the features on which the training and testing are per-

formed.

The basic spectral properties are obtained by

transforming the time-based raw audio signal into its

frequency domain counterpart via the Fourier trans-

form. A frequency representation is essential for ex-

traction of useful characteristics of the signal. This

signal is further divided into segments to get a spec-

trum, which determines the strength of the signal over

various frequencies present in the waveform. Fur-

ther, the frequencies present in the segments are con-

verted into log-mel scales. One of the major steps

is to pass the spectrum through the mel-frequency ﬁl-

ters/analyser to get the log-mel spectrums (Kahl et al.,

2019) as it concentrates on only certain spectral com-

ponents. As a function of frequency regions, these ﬁl-

ters are spaced non-uniformly on the frequency axis.

Log-mel spectrograms are visual representations of

frequency differences in the received log-mel spec-

trums.

2.5 Log-mel Spectrogram

The mel-scaled spectrogram is evaluated employing

the time-series input and subsequently this power

spectrogram is converted to decibel (dB) units. The

minimum and maximum frequencies for the thresh-

old are set as 50 Hz and 16 kHz respectively. The

spectrogram is then resized to 224*224 to ﬁt into the

proposed network architecture. The other parameters

RoBINN: Robust Bird Species Identiﬁcation using Neural Network

selected for the generation of the mel spectrograms

are sampling rate of 32 KHz and 64 number of mel

bins. A window length of 1024 is chosen which de-

scribes the size of the window employed to evaluate

discrete Fourier Transform (DFT) of the audio signal.

The hop length which refers to the extent of the win-

dow shift along the audio signal during the processing

of the short-term Fourier transform is set as 320. Let

the mel-spectrum be represented as X [k]. The loga-

rithm of the mel-spectrum logX[k] can be expressed

as (Yan et al., 2019)

logX[k] = logH[k] + logE[k] (4)

where H[k] and E[k] denote the spectrum envelope

and spectrum details, respectively. On taking Inverse

DFT of the above equation one obtains,

x[k] = h[k] + e[k], (5)

where x[k] is referred to as cepstrum, h[k] repre-

sents the spectral envelope and is termed as the Mel-

frequency cepstral coefﬁcients (MFCC) .

A block diagram representation of the overall work-

ﬂow of the proposed DL-based bird identiﬁcation

framework: RoBINN is given in Fig. 1.

3 SYSTEM OVERVIEW

This section details the various components of the

proposed model architecture.

3.1 Mish Activation Function

Conventional ResNet-based architectures typically

employ rectiﬁed linear unit (ReLU) activation func-

tion. However, a major disadvantage associated with

the ReLU activation function is that it loses the gradi-

ent information caused by the breakdown of negative

inputs to zero. To overcome this shortcoming, sev-

eral activation functions have been proposed in liter-

ature namely Leaky ReLU, ELU, SELU, swish, Mish

etc. Despite Mish having the most complex interfer-

ence, it has been demonstrated to provide better em-

pirical results in comparison to others (Misra, 2019).

Thus, this work employs the Mish activation function

in the basic block. Mish is a non-monotonically self-

regulating activation function and is unlimited in the

positive direction i.e can have much higher positive

values (Misra, 2019). The slight allowance for neg-

ative values enables the network for better gradient

ﬂow in comparison to absolute zero limit as in ReLU.

For an input x, the mish function f (x) can be mathe-

matically deﬁned as [give ref]

f (x) = x ∗ tanh(ln(1 + e

)). (6)

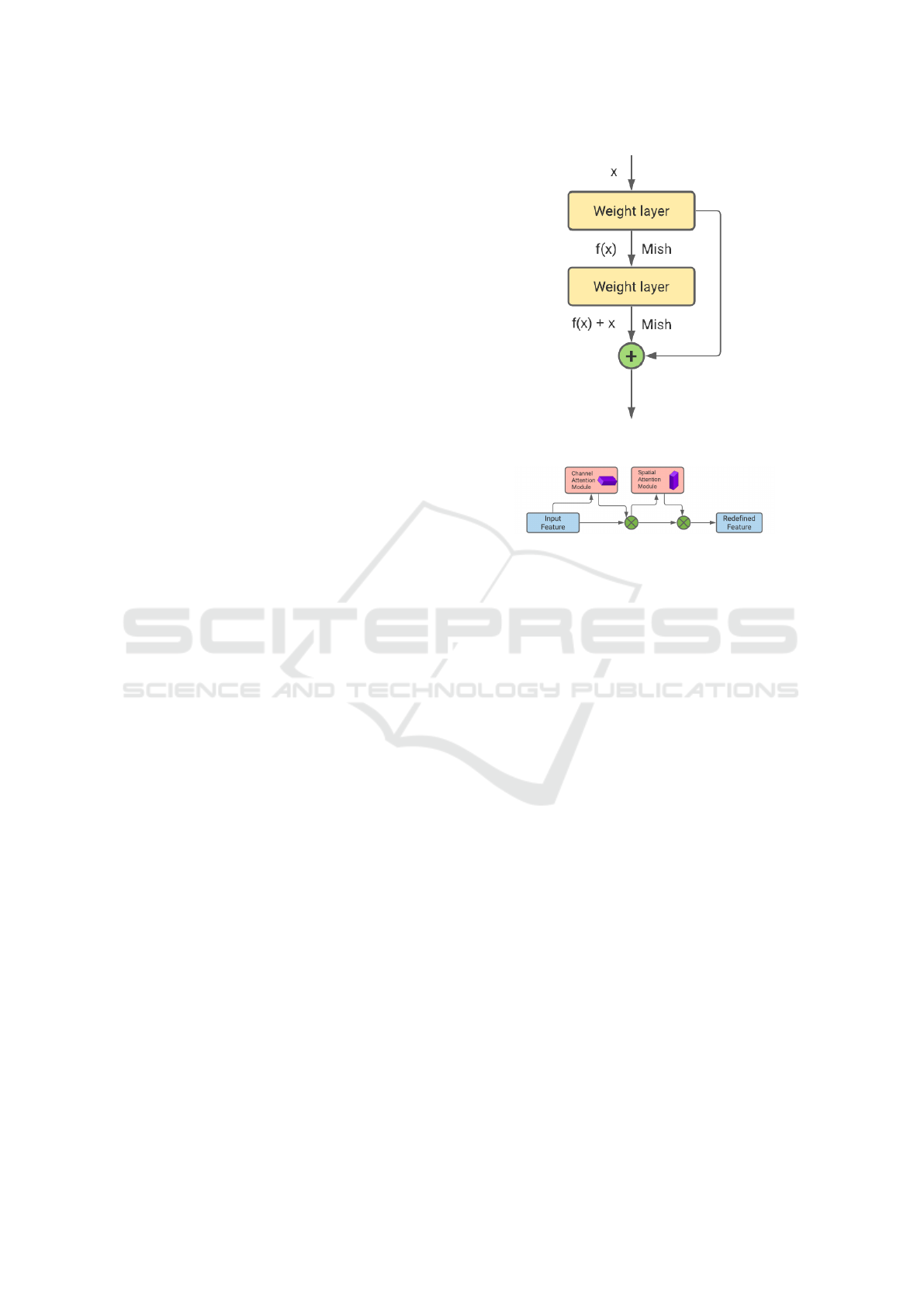

Figure 2: Basic block for residual learning.

Figure 3: General architecture of convolutional block atten-

tion module (CBAM).

3.2 Residual Blocks

Residual blocks are skip-connection blocks used in

the input layer to learn residual functions. The output

mapping H(x) can be expressed as f (x) + x, where x

denotes the residual. The basic idea behind residual

block is that optimising residual mapping is simpler

than optimising unreferenced mapping. Fig. 2 gives a

pictorial representation of the basic residual learning

block wherein the activation function from the previ-

ous layers is being added to the activation of a deeper

layer in the network. This work employs the Mish

activation function in both basic and residual blocks.

3.3 Convolutional Block Attention

Module (CBAM)

It’s an attention module for the CNN framework (Woo

et al., 2018). CBAM converts intermediate function

maps into spatial and channel dimensions to derive at-

tention maps. The attention map is then element-wise

multiplied with the input function map to produce a

reﬁned and highlighted output. Let the intermediate

feature map be represented as F ∈ R

C×H×W

, where C,

H, and W denote the number of channels, height, and

width of the feature map, respectively.

The channel and spatial attention maps can be ex-

pressed as M

∈ R

C×1×1

and M

∈ R

1×H×W

, respec-

SIGMAP 2021 - 18th International Conference on Signal Processing and Multimedia Applications

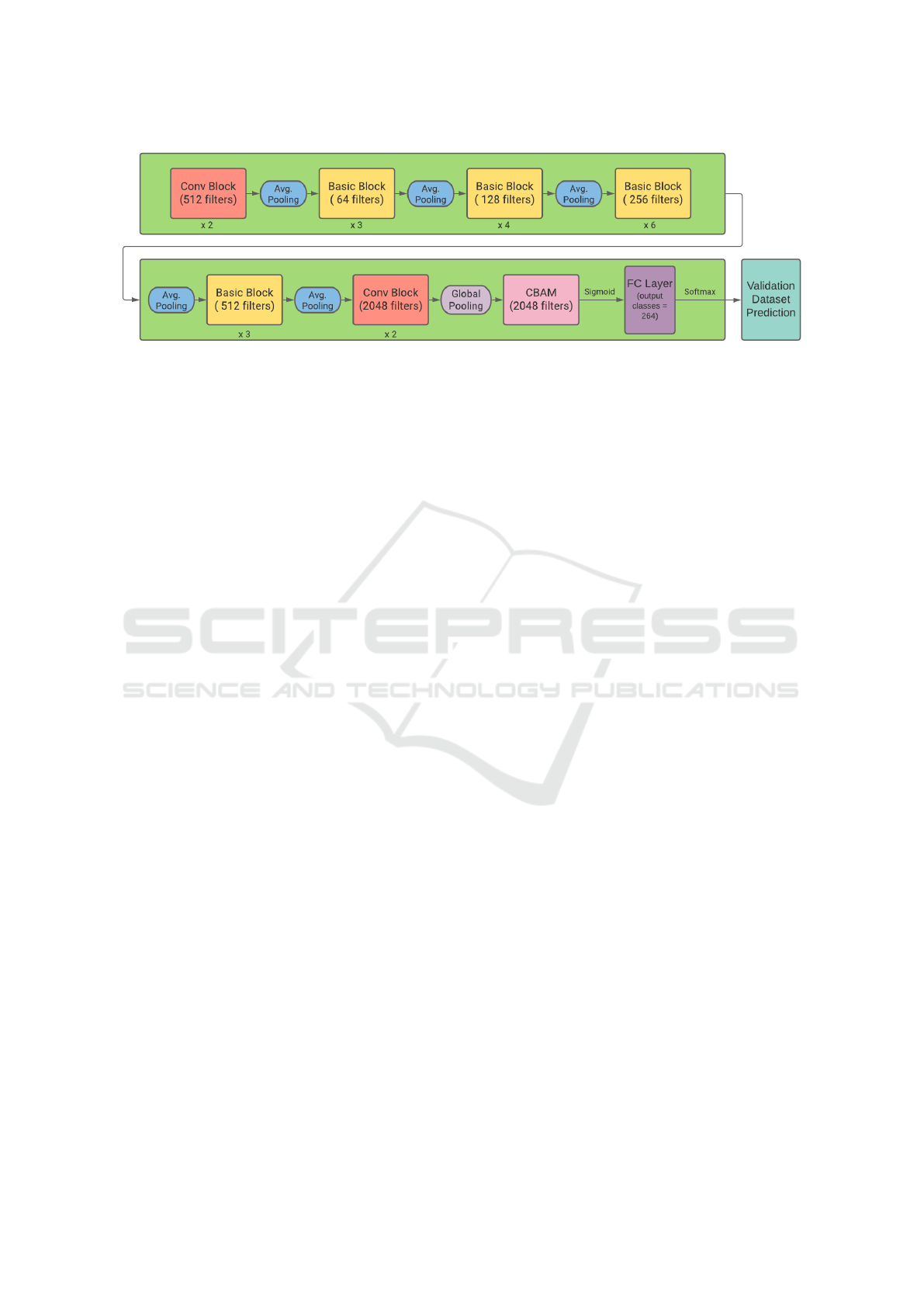

Figure 4: Model architecture of RoBINN.

tively. The entire process can be expressed as

= M

(F) ⊗ F (7)

= M

) ⊗ F

(8)

where F

and F

denote channel-reﬁned feature, ﬁ-

nal reﬁned output respectively and ⊗ represents el-

ement wise multiplication. The attention values are

scattered along the spatial dimension during multipli-

cation. The channel and spatial modules can be ar-

ranged in a sequential or parallel manner. Research

shows that sequential arrangement tends to achieve

better result in comparison to the parallel one. Fur-

ther, in sequential arrangement, channel ﬁrst-order is

marginally better in comparison to spatial ﬁrst-order.

3.4 Model Architecture

This section describes the proposed model architec-

ture in detail. Fig. 4 depicts the block diagram rep-

resentation of the architecture. It consists of a total

number of 38 layers embedded with an attention mod-

ule. Log-mel spectrogram with 1000 frames and 64

mel bins of the audio data is taken as input in the de-

signed model architecture. The proposed model ar-

chitecture is parameterized as follows:

• l

-l

: Each of the two layers is represented by

a ConvBlock which comprises of a convolution

layer with kernel size 3 × 3 and 512 channel ﬁl-

ters. The output representation of the convolution

layer is subsampled using the average pooling of

size 2 × 2.

• l

-l

: Represented by three sequential basic

blocks which is a skip-connection block that con-

sists of two convolutional layers of 64 channel ﬁl-

ters and 3 × 3 kernel size.

• l

-l

: Represented by 4 sequential basic blocks

with 128 channel ﬁlters of kernel size 3 × 3.

• l

-l

: Represented by 6 sequential basic blocks.

Each convolutional layer consists of 256 channel

ﬁlters of kernel size 3 × 3.

• l

-l

: 3 sequential basic blocks are used to repre-

sent these layers with 512 channel ﬁlters of kernel

size 3 × 3.

• l

-l

: Represented by two ConvBlocks. The

output feature map from l

is subsampled via

global average pooling to generate a ﬁxed length

vector from the feature maps.

• CBAM : To generate attention aware features, it

sequentially infers attention maps along two dif-

ferent dimensions, channel and spatial, from an

input function map. It is followed by the sigmoid

function.

• l

-l

: In this, a fully connected layer of 2048

hidden units is added to extract the embedding

features to enhance representation ability of the

signal. This is followed by another fully con-

nected layer which incorporates softmax function

to calculate the probabilities for the bird species.

Here, each convolutional layer is followed by batch

normalization (Ioffe and Szegedy, 2015) and then

non-linear Mish activation function is employed.

Dropout is applied after every downsampling opera-

tion and fully connected layer to prevent overﬁtting

of the network.

4 EXPERIMENTAL RESULTS

AND DISCUSSION

In this section, after the initial training on the record-

ings of the train data, the experimental results for the

validation set are obtained and analyzed. The dataset

used in this study is the ’Cornell Bird Challenge’

(CBC)’ dataset (Cornell Lab of Ornithology, 2020),

which was collected from xeno-canto.org (Planqu

et al., 2005). The dataset is highly skewed since the

number of recordings for a few species was very low,

while others had a large number of recordings. Fur-

ther, the recordings differed in length, quality and the

amount of noise. The various parameters used for the

RoBINN: Robust Bird Species Identiﬁcation using Neural Network

(a) (b)

Figure 5: (a) Accuracy score plot (b) Binary cross-entropy plot.

(a) (b)

(c)

Figure 6: (a) Precision score plot (b) Recall score plot (c) F1-score plot.

proposed RoBINN framework are summarized in Ta-

ble 1.

Table 1: Parameters for experimental setup.

Model Conﬁguration

Parameter Value

Sample Rate 32000 Hz

Window Size 1024

Hop Size 320

Mel-bins 64

Minimum Frequency 50 Hz

Maximum Frequency 14000 Hz

Number of Classes 264

Dropout Probability 0.4

Maximum Epochs 50

K-cross validation 5

Input Spectrogram Size 224

Learning Rate 0.001

The model is trained for 50 epochs using K-cross val-

idation with K = 5. The binary cross-entropy (BCE)

loss function is chosen for optimization of the weights

associated with the proposed RoBINN framework.

This particular choice of the loss function is made ow-

ing to the following reasons. Firstly, it is well-known

that the BCE loss function is evaluated for every out-

put class and is independent of the other classes. Sec-

ondly, for a multi-label classiﬁcation problem, the NN

should be designed such that the condition that an el-

ement belongs to a particular class does not inﬂuence

the decision for other classes. Let an audio clip be

denoted by x

, where n is the index of the audio clip

and y

∈ {0,1}

denotes the label of x

. The quan-

tity f (x

) ∈ [0,1]

corresponds to the soft probabili-

ties provided by the model where k represents the to-

tal number of classes. The BCE loss function l can be

evaluated as (Yi-de et al., 2004)

l = −

∑

n=1

ln f (x

) + (1 − y

)ln(1 − f (x

)) (9)

where N is the total number of audio clips.The Adam

SIGMAP 2021 - 18th International Conference on Signal Processing and Multimedia Applications

Table 2: Test F1-score comparison on the Cornell BirdCall Challenge dataset.

Paper Methodology F1-score

(Incze et al., 2018) A MobileNet pre-trained CNN model employing spectro-

grams of the audio clips.

0.474

(Knight et al., 2020) An AlexNet-based architecture which employs spectro-

grams of different frequency and amplitude scales for

bird species classiﬁcation.

0.423

(Koh et al., 2019) An inception-v3 model with Adam optimizer which en-

hanced the results of the baseline ResNet-18 architecture.

0.567

(Sankupellay and Kono-

valov, 2018)

The ResNet-50 architecture was used to automate the

identiﬁcation of bird species using audio syllables as the

basic recognition unit.

0.614

Proposed RoBINN An automated bird species identiﬁcation framework

based on residual learning and attention mechanism.

0.632

optimizer is employed instead of the conventional

stochastic gradient descent to update the weights

of the network during the training period. Hyper-

parameters like the learning rate and momentum are

tuned during the training process to achieve accu-

rate results. The initial learning rate is set as 0.001

and subsequently adjusted based on the loss func-

tion. Further, in order to facilitate identiﬁcation of

primary as well as any secondary bird species which

may be present in the audio recording, RoBINN per-

forms both frame and clip-level classiﬁcation. Each

audio clip is segregated into multiple frames. A clas-

siﬁer is employed per frame to yield the class exis-

tence probabilities followed by an aggregation of the

classiﬁer results for the entire audio clip.

The following performance metrics are employed

for evaluation of the RoBINN framework:

• Classiﬁcation Accuracy: Ratio of correctly clas-

siﬁed bird species samples to the total number of

samples.

• Precision : The ratio of true positives to the sum

of true positives and false positives.

• Recall : The ratio of true positives to the sum of

true positives and false negatives.

• F1-score : Harmonic mean of recall and precision.

Experiments were carried out on the training set

and evaluated on the test set. The various perfor-

mance metrics discussed earlier have been demon-

strated for the test dataset in ﬁgures 5(a)-(b) and 6(a)-

(c). The accuracy score versus number of epochs is

demonstrated in Fig. 5(a). It can be observed that

the accuracy score converges to a value of 0.64374

after 50 epochs.The BCE loss plot from Fig. 5(b)

is observed to attain a value of 0.0103. In addi-

tion, the precision and recall scores after each epoch

have been plotted in ﬁgures 6(a) and 6(b) respectively.

Further, the precision and recall scores are observed

to converge to 0.6435 and 0.6356, respectively after

50 epochs. The maximum F1-score achieved by the

proposed RoBINN framework is 0.63221 as demon-

strated in Fig.6(c).

Table 2 illustrates a comparison of the proposed

RoBINN framework with state-of-the-art bird species

identiﬁcation systems. F1-score is employed to evalu-

ate various models owing to the imbalanced class dis-

tribution of the bird species classiﬁcation problem. In

order to perform a fair comparison, only the proposed

architecture is replaced with the respective neural net-

works of the existing works while the remaining pa-

rameters are kept same as that of RoBINN. It can be

concluded from Table 2 that the proposed RoBINN

framework exhibits a superior bird species identiﬁca-

tion in comparison to the existing studies.

5 CONCLUSIONS AND FUTURE

SCOPE

Recent developments in the ﬁeld of deep and machine

learning have encouraged researchers to re-examine

the traditional approaches to solve a wide range of

engineering problems. Towards this end, bird species

identiﬁcation, a real-time application of audio/speech

recognition has generated a lot of interest owing to

its importance in studies related to the well-being of

natural habitat. This paper proposes an end-to-end au-

tomatic bird identiﬁcation technique RoBINN, which

employs some aspects of conventional speech recog-

nition via feature engineering into a robust and ef-

ﬁcient deep neural network. Further, the model ar-

chitecture incorporates residual learning and attention

mechanism to generate attention aware features for

enhancing the accuracy of bird species recognition.

Exhaustive experimental results validate the optimal-

ity and precision of the proposed RoBINN framework

RoBINN: Robust Bird Species Identiﬁcation using Neural Network

for bird species identiﬁcation in comparison to the ex-

isting works. In conclusion, the proposed method can

be deemed suitable for practical bio-acoustic monitor-

ing of bird species in terrestrial environments and can

be considered for deployment on a wider scale.

Future extensions of the work will explore vali-

dation of the proposed RoBINN framework using an

external dataset and study of recent transformer-based

DL model for bird species identiﬁcation.

REFERENCES

Chakraborty, D., Mukker, P., Rajan, P., and Dileep, A. D.

(2016). Bird call identiﬁcation using dynamic kernel

based support vector machines and deep neural net-

works. In 2016 15th IEEE International Conference

on Machine Learning and Applications (ICMLA),

pages 280–285. IEEE.

Cornell Lab of Ornithology (2020). Cornell Bird-

call Identiﬁcation. https://www.kaggle.com/c/

birdsong-recognition. Online; accessed 15 Oc-

tober 2020.

Gyires-T

oth, B. and Czeba, B. (2016). Convolutional neu-

ral networks for large-scale bird song classiﬁcation in

noisy environment.

Incze, A., Jancs

o, H.-B., Szil

agyi, Z., Farkas, A., and Su-

lyok, C. (2018). Bird sound recognition using a con-

volutional neural network. In 2018 IEEE 16th Inter-

national Symposium on Intelligent Systems and Infor-

matics (SISY), pages 000295–000300. IEEE.

Ioffe, S. and Szegedy, C. (2015). Batch normalization: Ac-

celerating deep network training by reducing internal

covariate shift. arXiv preprint arXiv:1502.03167.

Kahl, S., St

oter, F.-R., Go

eau, H., Glotin, H., Planque, R.,

Vellinga, W.-P., and Joly, A. (2019). Overview of

birdclef 2019: large-scale bird recognition in sound-

scapes. In Working Notes of CLEF 2019-Conference

and Labs of the Evaluation Forum, number 2380,

pages 1–9. CEUR.

Knight, E. C., Poo Hernandez, S., Bayne, E. M., Bulitko,

V., and Tucker, B. V. (2020). Pre-processing spectro-

gram parameters improve the accuracy of bioacous-

tic classiﬁcation using convolutional neural networks.

Bioacoustics, 29(3):337–355.

Koh, C.-Y., Chang, J.-Y., Tai, C.-L., Huang, D.-Y., Hsieh,

H.-H., and Liu, Y.-W. (2019). Bird sound classiﬁca-

tion using convolutional neural networks. In CLEF

(Working Notes).

Kong, Q., Cao, Y., Iqbal, T., Wang, Y., Wang, W., and

Plumbley, M. D. (2020). Panns: Large-scale pre-

trained audio neural networks for audio pattern recog-

nition. IEEE/ACM Transactions on Audio, Speech,

and Language Processing, 28:2880–2894.

Lasseck, M. (2018). Audio-based Bird Species Identiﬁca-

tion with Deep Convolutional Neural Networks. In

CLEF (Working Notes).

Misra, D. (2019). Mish: A self regularized non-

monotonic neural activation function. arXiv preprint

arXiv:1908.08681.

Park, D. S., Chan, W., Zhang, Y., Chiu, C.-C., Zoph, B.,

Cubuk, E. D., and Le, Q. V. (2019). Specaugment:

A simple data augmentation method for automatic

speech recognition. arXiv preprint arXiv:1904.08779.

Planqu

e, B., Vellinga, W., Pieterse, S., and Jongsma, J.

(2005). Xeno-canto: sharing bird sounds from around

the world.

Priyadarshani, N., Marsland, S., and Castro, I. (2018). Au-

tomated birdsong recognition in complex acoustic en-

vironments: a review. Journal of Avian Biology,

49(5):jav–01447.

Sang, J., Park, S., and Lee, J. (2018). Convolutional re-

current neural networks for urban sound classiﬁcation

using raw waveforms. pages 2444–2448.

Sankupellay, M. and Konovalov, D. (2018). Bird call recog-

nition using deep convolutional neural network resnet-

50. In Proc. ACOUSTICS, volume 7, pages 1–8.

Schl

uter, J. and Grill, T. (2015). Exploring data augmenta-

tion for improved singing voice detection with neural

networks. In ISMIR, pages 121–126.

Woo, S., Park, J., Lee, J.-Y., and So Kweon, I. (2018).

Cbam: Convolutional block attention module. In Pro-

ceedings of the European conference on computer vi-

sion (ECCV), pages 3–19.

Xie, J., Hu, K., Zhu, M., Yu, J., and Zhu, Q. (2019). Inves-

tigation of different cnn-based models for improved

bird sound classiﬁcation. IEEE Access, 7:175353–

175361.

Yan, G., Wang, M., Liu, X., and Song, X. (2019).

Sound event recognition based in feature combina-

tion with low snr. In 2019 International Conference

on Artiﬁcial Intelligence and Advanced Manufactur-

ing (AIAM), pages 109–114.

Yi-de, M., Qing, L., and Zhi-Bai, Q. (2004). Automated im-

age segmentation using improved PCNN model based

on cross-entropy. In Proceedings of 2004 Interna-

tional Symposium on Intelligent Multimedia, Video

and Speech Processing, 2004., pages 743–746. IEEE.

Zhang, H., Cisse, M., Dauphin, Y. N., and Lopez-Paz, D.

(2017). mixup: Beyond empirical risk minimization.

arXiv preprint arXiv:1710.09412.

Zhao, Z., Zhang, S.-h., Xu, Z.-y., Bellisario, K., Dai, N.-h.,

Omrani, H., and Pijanowski, B. C. (2017). Automated

bird acoustic event detection and robust species clas-

siﬁcation. Ecological Informatics, 39:99–108.

SIGMAP 2021 - 18th International Conference on Signal Processing and Multimedia Applications
