Implicitly using Human Skeleton in Self-supervised Learning: Inﬂuence

on Spatio-temporal Puzzle Solving and on Video Action Recognition

Mathieu Riand

1,2

, Laurent Doll

and Patrick Le Callet

CEA Tech Pays de la Loire, 44340 Bouguenais, France

Equipe Image Perception et Interaction, Laboratoire des Sciences du Num

erique de Nantes, Nantes University,

Keywords:

Self-supervised Learning, Siamese Network, Skeleton Keypoints, Action Recognition, Few-shot Learning.

Abstract:

In this paper we studied the inﬂuence of adding skeleton data on top of human actions videos when performing

self-supervised learning and action recognition. We show that adding this information without additional

constraints actually hurts the accuracy of the network; we argue that the added skeleton is not considered by

the network and seen as a noise masking part of the natural image. We bring ﬁrst results on puzzle solving and

video action recognition to support this hypothesis.

1 INTRODUCTION

Action recognition (Yamato et al., 1992) can provide

various informations for a robot-related task, like giv-

ing an action plan by cutting a video demonstration in

multiple sub-videos, each corresponding to a lower-

level action. However, action recognition is a task that

requires a consequent amount of annotations which

can be laborious to produce.

Meanwhile, in the recent years, self-supervised

learning (Chen et al., 2020) has emerged as a conve-

nient solution to the global lack of annotated data; in-

deed, there is a large amount of available raw data that

are widely collected from many sources (YouTube

videos, for instance), but the number of annotations

remains very small in comparison. Self-supervised

learning then offers a way of reducing the number

of needed annotations for action recognition, by ﬁrst

pretaining the models on a pretext task in which la-

bels are automatically obtained from the data; this

pretraining allows the model to grasp a representation

of the data in its intermediate layers that is hopefully

helpful for the target task, action recognition.

Finally, skeleton data has appeared to be very use-

ful for action recognition (Li et al., 2017a); architec-

tures taking sequences of body poses as input have

been designed in order to solve this problem, and pre-

text tasks based on skeleton also have been proposed

for self-supervised learning.

In this work, we tried to add the skeleton as an im-

plicit information in the data, by adding it on top of

the videos, and mesured the inﬂuence of this added

signal on two tasks : puzzle solving, a self-supervised

task, and action recognition, trained from scratch. In

the ﬁrst section, we will go over works related to ac-

tion recognition and self-supervised learning. Then,

we will introduce our method and share our ﬁrst re-

sults. Finally, we will make some remarks on the pre-

sented results and conclude.

2 RELATED WORK

In this section, we review works covering action

recognition and the use of self-supervised learning in

this context. We will then focus on the speciﬁc pre-

text task that jigsaw puzzles represent, and ﬁnally end

by discussing the different uses that have been made

when it comes to human skeleton data.

2.1 Action Recognition

Action recognition (AR) is the task that consists in

assigning an action label to a video clip (Jhuang et al.,

2013) or a speciﬁc location of it, also called action

classiﬁcation.

Most approaches are applied on video datasets

such as HMBD51 (Kuehne et al., 2011); the used ar-

chitectures are thus of the same kind as the ones used

for classical image classiﬁcation, namely Convolu-

tional Neural Networks (CNNs). (Tran et al., 2018)

128

Riand, M., Dollé, L. and Le Callet, P.

Implicitly using Human Skeleton in Self-supervised Learning: Inﬂuence on Spatio-temporal Puzzle Solving and on Video Action Recognition.

DOI: 10.5220/0010689500003061

In Proceedings of the 2nd International Conference on Robotics, Computer Vision and Intelligent Systems (ROBOVIS 2021), pages 128-135

ISBN: 978-989-758-537-1

proposed to use 3D convolutional networks, or 3DC-

NNs, and showed that they were suited for performing

action recognition on videos. Moreover, they built a

spatiotemporal convolutional block usable in CNNs

instead of classical convolutions to boost their perfor-

mance on datasets such as HMBD51.

(Girdhar and Ramanan, 2017) introduced atten-

tional pooling as an alternative pooling layer in

CNNs; this was a way of linking attention concepts

and action recognition, and it actually yielded great

improvements over state-of-the-art AR benchmarks.

Finally, works such as (Yan et al., 2018) used

skeleton sequences instead of simple videos; this al-

lowed to use a Graph Convolutional Network (GCN)

that brougth better results for action recognition over

classical methods such as CNNs.

2.2 Self-supervised Learning

Self-supervised learning is a branch of unsupervised

learning that has been widely explored in recent years;

it is unsupervised in the sense that the supervisory sig-

nal is automatically extracted from the data along the

inputs. This allows to train a neural network on what

is called a pretext task (or pseudo-task), which can

take various forms that we will detail here; the idea

behind this is to ﬁnd a task that, in order to be solved,

needs high-level concepts to be grasped by the inter-

mediate layers of the network. The same network can

thus be ﬁne tuned on the target task (see Figure 1), for

instance action recognition, hoping that the concepts

learned during pretraining allow a better performance

of the network compared to a random initialisation of

its weights.

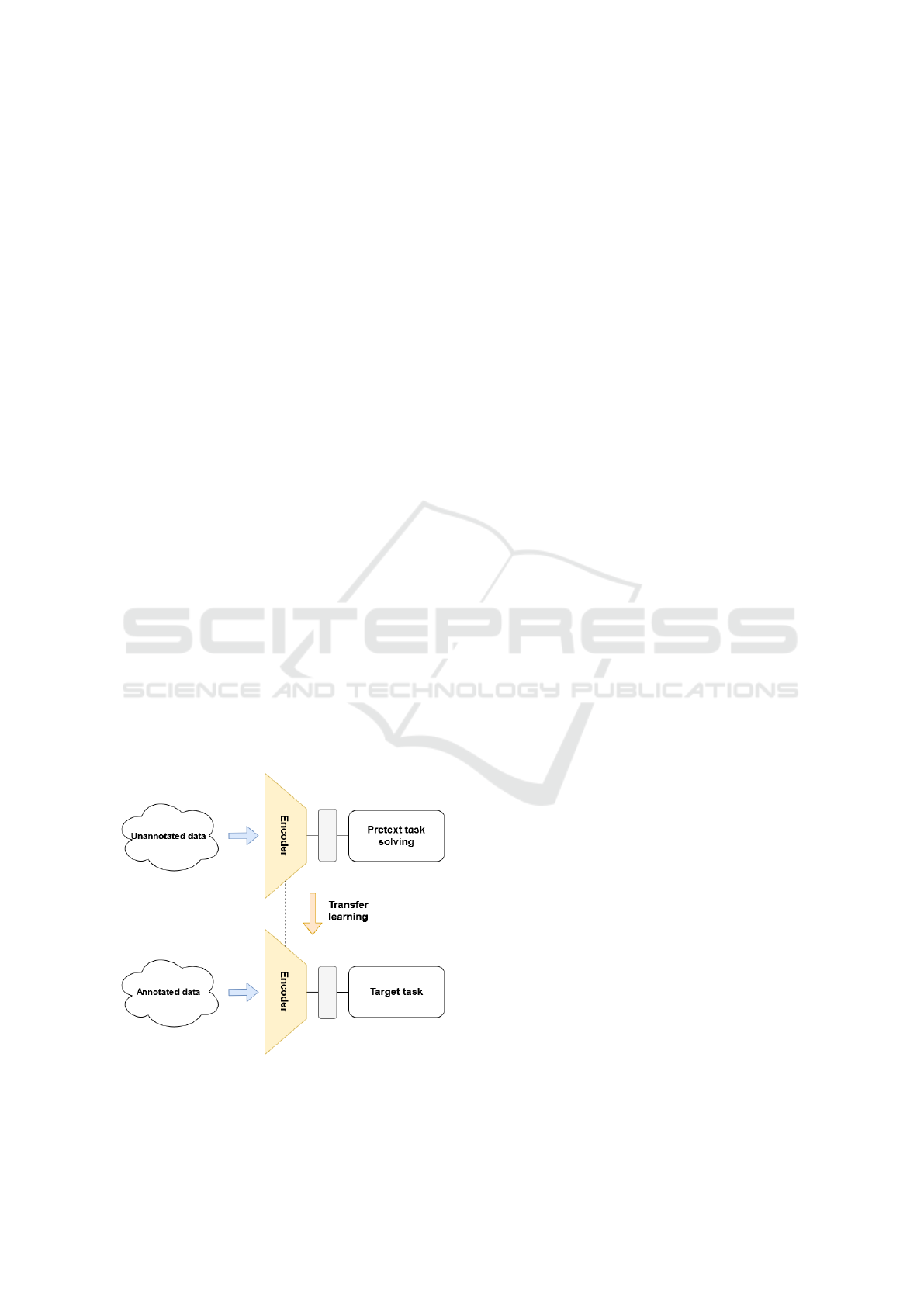

Figure 1: A classical self-supervised learning setup; an en-

coder is ﬁrst trained on a pretext task with unannotated data,

then ﬁne tuned on the target task with annotations.

For action recognition, most datasets are built us-

ing images or videos; this means that most pretext

tasks are visual tasks. One of them is colourisation,

which was ﬁrst introduced in (Zhang et al., 2016); the

objective here is to preemptively transform a colour

image into its grayscale counterpart, and train the net-

work to output coloured pictures given the grayscale

ones. Features learned through colourisation often

prove useful for target tasks such as object detection.

(Vondrick et al., 2018) and (Li et al., 2019) have

used colourisation in a different way on videos; a ref-

erence frame is given as input along another one in

grayscale later in the video. The pretext task is still

to recolour the image, but the network has a sup-

port frame to get information from. Those works

have shown that this colourisation task led the net-

work to learn trackers intrisically, especially for ob-

jects. However, this kind of tasks fails to grasp essen-

tial concepts in videos, since the temporal dimension

is not taken into account.

In this spirit, works like (Sumer et al., 2017) pro-

posed to learn jointly temporal and spatial cues; in

this work, the network tries to predict if two cropped

bounding boxes from a video are close to each other

in time. Other temporal pretext tasks based on video

frames include complete sequence ordering, where

the system must output the permutation that has been

done on multiple consecutive frames, as in (Lee et al.,

2017), or more simply output if the given sequence is

indeed ordered or not, like in (Misra et al., 2016).

(Sumer et al., 2017) rely on contrastive learning,

which is another complete branch of self-supervised

learning, recently brought up to date by the work of

(Chen et al., 2020); in this application, random data

augmentations are applied to pictures from ImageNet,

like color distortion, gaussian noise, or even mask-

ing a part of the image. The network is then trained

to predict if two transformed pictures come from the

same original image. The principle behind contrastive

learning is to build positive and negative pairs that

the system must try to differentiate; in (Sumer et al.,

2017), positive pairs are the ones that contain tem-

porally close frames. Pairs can also be formed with

object detection results, as in (Pirk et al., 2019); pos-

itive pairs are attracted in the representation space,

while they are pushed away from the negative ones.

This training naturally converges towards a disentan-

gled representation of objects, where similar objects

are close to each other.

Pretext tasks are sometimes directly applied to in-

termediate results obtained on the data, like object

proposals in (Pirk et al., 2019), or human body key-

points detection; (Wang et al., 2019) proposes to use

statistics related to motion and appearance in videos,

Implicitly using Human Skeleton in Self-supervised Learning: Inﬂuence on Spatio-temporal Puzzle Solving and on Video Action

Recognition

129

for instance the position of the region with the largest

motion. Those statistics are extracted from videos,

and then used as labels; the network must predict in

which area of the video we can ﬁnd any of those la-

bels. This way, a representation of the data sensitive

to movement and appearance is learned.

In (Lin et al., 2020) several pretext tasks based on

human skeleton detection results are proposed, and

solved at the same time; for example, given a tempo-

ral sequence of skeleton poses, the network is asked

to predict the end of the sequence while seeing only

the beginning.

It is noteworthy that while a vast majority of works

related to self-supervised learning focuses on design-

ing new pretext tasks or new ways to combine them,

some works like (Kolesnikov et al., 2019) focus on

the model used to perform the pretext task, and on

the inﬂuence of this model on the quality of the rep-

resentation learned. They notably showed that better

results on a pretext task do not necessarily translate

to a better representation of the data neither to better

results on the target task.

Finally, (Su et al., 2020) has shown that self-

supervision is very beneﬁcial to few-shot learning, es-

pecially when the pretext task is very complex, and

that using more unlabelled data for pretraining is use-

ful only if they come from the same domain as the

ones used for the few-shot task. This is partly why

in this work we used the same dataset for the self-

supervised task that the one on which we want to per-

form action recognition.

2.3 Jigsaw Puzzles as a Pretext Task

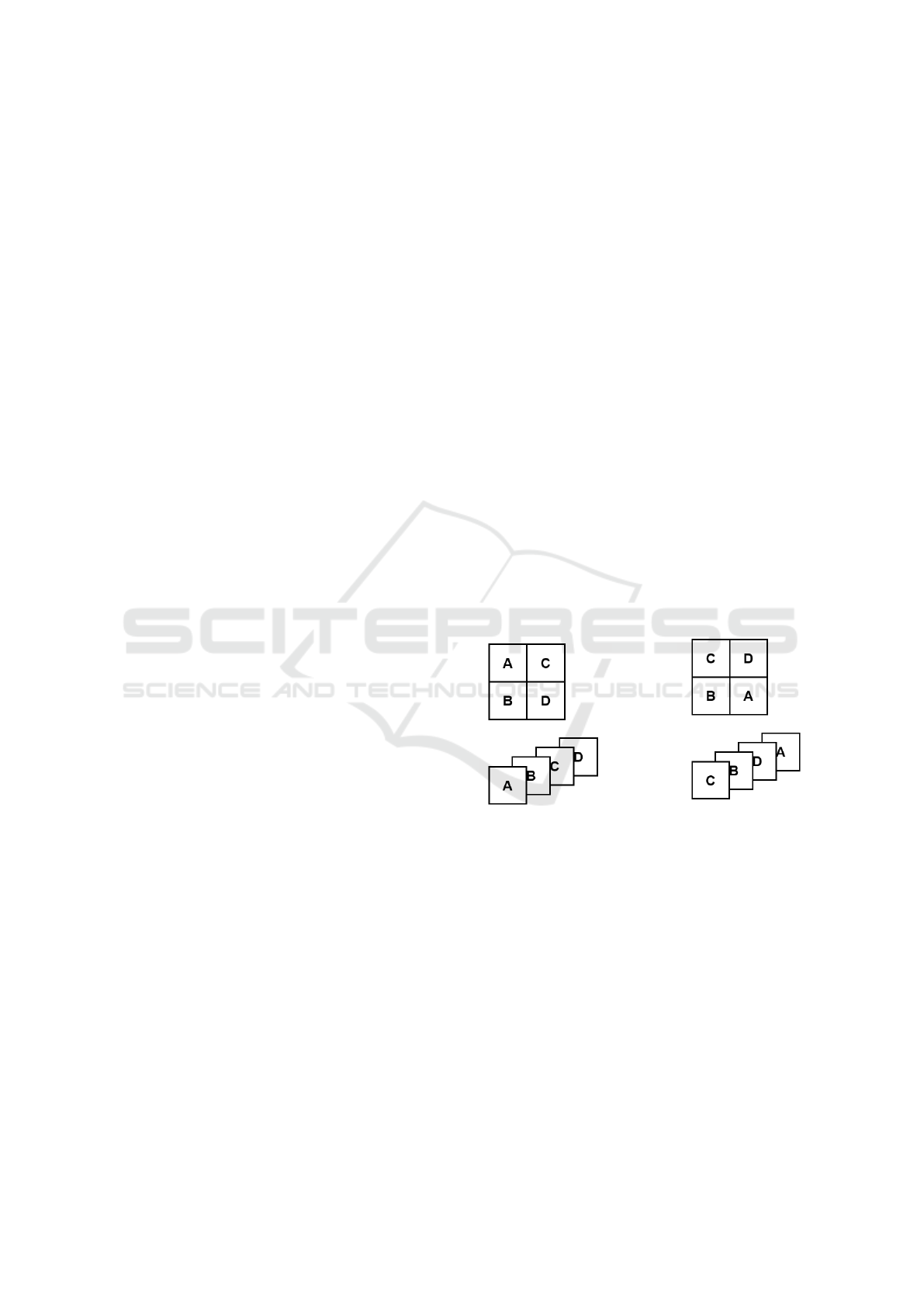

The pretext task used in this work is the solving of

jigsaw puzzles; this task consists in dividing an im-

age in several same-sized patches, and in shufﬂing

them. When solving spatial puzzles, humans use their

knowledge about how objects look, where they are

generally located, etc; when solving temporal puz-

zles, they can use informations related to movements,

such as their direction; by teaching a network to solve

puzzles, it is expected that it learns such useful con-

cepts in the process. In our case, the network must

predict which permutations have been done on the

video patches; this brings the problem back to a clas-

siﬁcation problem, where the system must output a

class corresponding to the way the puzzle pieces have

been shufﬂed (for instance, for 4 pieces, 4! = 24 per-

mutations are possible, thus we will have 24 possible

classes). The shufﬂing can be done spatially, or tem-

porally if applied to a video, which is equivalent to

reordering a video sequence as in (Lee et al., 2017).

Early works like (Noroozi and Favaro, 2016) tend

to use still images to solve spatial puzzles; the con-

volutional neural network (CNN) trained on puzzle

solving is then repurposed to solve an object detec-

tion task, for instance. But with the recent growing

interest for video data and action recognition, the fo-

cus switched on puzzles applied to image sequences,

called spatio-temporal puzzles. Different approaches

are defended when it comes to spatio-temporal jig-

saw puzzles; on one hand, some works such as (Ah-

san et al., 2018) deﬁne them as a unique task, where

both spatial and temporal shufﬂing are done simulta-

neously. More precisely, 3 frames of the video are

taken as inputs, and each one is cut in 4 patches; the

simplest method would be to simply shufﬂe those 12

patches, and train a CNN to reorder them back, but

it is a very hard and underconstrained task. In their

work, the patches are ﬁrst shufﬂed in their own frame,

and then the frames are shufﬂed together; we still have

a spatio-temporal shufﬂing, but the puzzle solving is

made simpler thanks to those additional constraints.

On the other hand, works like (Kim et al., 2018)

create separately temporal and spatial puzzles, but

they feed them to the same network. Permutation

classes are shared across both types of puzzles (see

Figure 2), so the network is forced to discover and

use features that are useful to both sides of the wanted

spatiotemporal representation.

(a) Original sample. (b) Permuted sample.

Figure 2: Shared classes between spatial (top) and temporal

(bottom) puzzles. Permutations are equivalent between the

two types of puzzles as presented here : top-left in spatial is

equivalent to ﬁrst in temporal, bottom-left to second, etc.

2.4 Skeleton Data Usage

In this last part, we will cover a few works that used

skeleton data as their main input.

The most simple way to feed a skeleton in a net-

work is to simply consider it as numerical data (Li

et al., 2017b), namely the coordinates of each key-

point, that can then be processed by a network to

predict action labels, for instance. (Lin et al., 2020)

ROBOVIS 2021 - 2nd International Conference on Robotics, Computer Vision and Intelligent Systems

130

also used raw skeleton sequences as inputs for self-

supervised learning.

Other works such as (Shi et al., 2019) and (Yan

et al., 2018) take advantage of the fact that skeletons

are naturally graphs. In (Shi et al., 2019), motion in-

formation is also encoded in a similar graph structure;

both graphs are fed in a two-stream Graph Convolu-

tional Neural Network (GCNN). In (Yan et al., 2018),

the graph has two kinds of edges : intra-body edges

link body joints together, and inter-frame edges link

similar joints across time. This way a compact graph

representing the whole skeleton sequence is obtained

and can be processed by a Spatial Temporal GCNN.

Finally, as in (Li et al., 2017a) or (Wu et al.,

2019a), the whole skeleton video sequence can be

converted to one single RGB image; this image can

then be processed by traditional CNNs to perform

action recognition on them. For instance, each row

of the image can represent one frame, each column

a joint of the skeleton, and RGB values are for the

XYZ coordinates; this 2D representation can also be

learned.

3 METHOD

3.1 Spatio-temporal Puzzles

Our work draws its main inspiration from (Kim et al.,

2018); from a set of video demonstrations performed

by different actors, we extract spatial and temporal

puzzles composed of 4 pieces. We generate a number

of puzzles proportional to the duration of each video.

When created, a jigsaw puzzle can either be temporal

or spatial, each with a 50% probability. In our work,

a puzzle piece is an image, but we also ran some ex-

periments on videos; in both cases, the ﬁrst step in

the puzzle generation process is to pick a reference

frame that serves as a starting point in time for puz-

zles. Then, the video is spatially cut in 4 corners of

the same size, and is also temporally cut every 2 sec-

onds, as presented in Figure 3; this forms what (Kim

et al., 2018) called space-time cuboids. Finally, we

apply a random permutation among the 24 available

to those cuboids.

Puzzles are fed in a 4-headed siamese-like

network (see Figure 7), where each head is a

CNN/3DCNN that extracts features from the im-

ages/videos, respectively; as in a siamese network,

weights are shared between all 4 heads. The obtained

outputs are then concatenated, and a ﬁnal fully con-

nected layer allows the network to make a prediction

regarding the class of the puzzle.

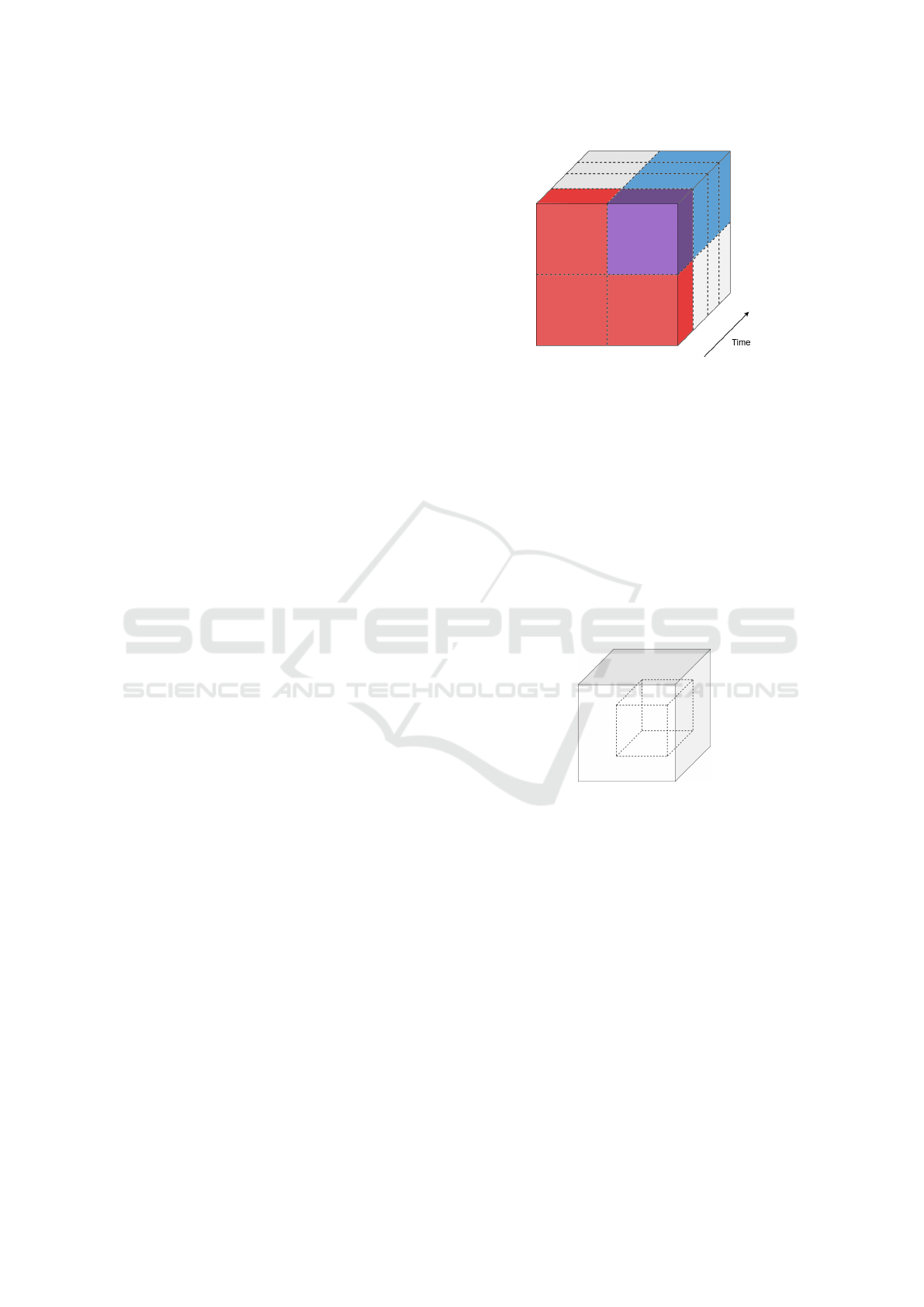

Figure 3: Extracting puzzles from videos; in our method,

videos are cut both spatially and temporally in cuboids.

Then we can chose between creating a spatial puzzle with

the red cuboids, or a temporal puzzle with the blue ones.

The main difference of this work compared to

other puzzle-based methods is that we added the re-

sults of a body keypoint detector applied to every

frame of the videos directly on the image (see Figure

5 and Figure 6); more precisely, we draw the human

skeleton on top of each video frame when an actor

is present. This is what we called implicitly adding

skeleton information on the image.

3.2 Additional Processing

Figure 4: Subsampling of a puzzle piece : given a video

clip, we select a spatial crop of the video, and only keep

half of its duration.

As in most self-supervised learning works, we ap-

plied some transformations to the data in order to keep

the network from learning using low-level cues with-

out any semantical meaning. First, as used in (Lee

et al., 2017), we performed channel replication on

the images; this method consists in randomly chos-

ing one of the color channels and copying its values

to the other 2 channels (we can also perform channel

splitting, where we only keep one channel). Classical

grayscale images depend on all 3 colors, contrarily

to the ones obtained through channel replication; as

shown in (Lee et al., 2017), using gray images makes

the task more challenging for the network, forcing it

to discover features that are unrelated to color, and

improving its results on action recognition.

Implicitly using Human Skeleton in Self-supervised Learning: Inﬂuence on Spatio-temporal Puzzle Solving and on Video Action

Recognition

131

As in (Kim et al., 2018), we also randomly sub-

sample all of our puzzle pieces, both in time and

space (Figure 4); this causes the cuboids to not be

aligned in both dimensions, which in turn keeps the

network from learning by just aligning edges of ob-

jects or shapes, which holds very little interest as fea-

tures learned through self-supervised learning.

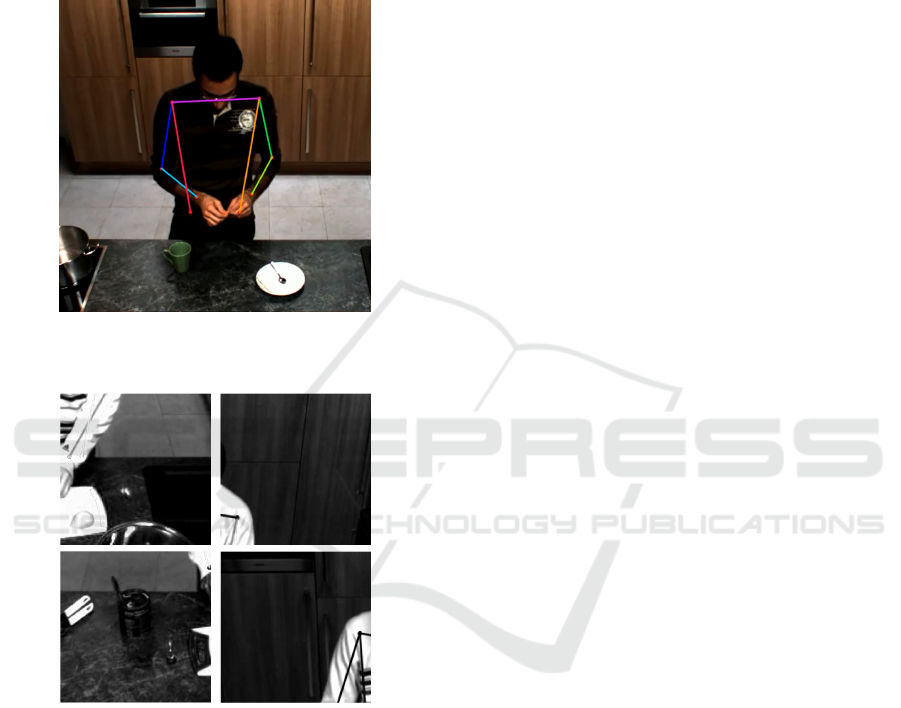

Figure 5: Human skeleton keypoints and edges added on

top of a MPII Cooking 2 Dataset video frame.

Figure 6: An example of a spatial puzzle used in our self-

supervised learning experiments; both actor’s shoulders are

on the right pieces; top-left piece contains actor’s left arm.

3.3 Transfering Knowledge

Our target task is video action recognition, which

in our case could also be named video label predic-

tion; usually, when performing transfer learning from

a self-supervised pretrained network, as in (Kim et al.,

2018), only one of the 4 heads is kept to act as an

encoder for the target task, and the ﬁnal layers are re-

placed to match the new dimension of the output. This

means that only one video clip is fed into the network

in order to predict the action that is performed in this

precise timelapse.

We take a different approach to this video label

prediction problem; rather than predicting the action

performed in the video clip, we want to be able to pre-

dict the global action performed in the whole video.

In order to do this, each video in the dataset is sepa-

rated in four parts of equal size, and an image (or a

video clip) is randomly extracted from each of those

parts. This allows us to get 4 clips that are representa-

tive of the whole video; we can repeat this operation

any number of time to generate several quadruplets

for one video, which is our way of generating anno-

tated data for action recognition at no cost. The 4 clips

can then be fed in the same network that was used for

spatio-temporal puzzle solving, with the last layer be-

ing changed to ﬁt the number of action classes in the

dataset.

4 EXPERIMENTS

4.1 Dataset

For our experiments, we used the MPII (Max

Planck Institute for Informatics) Cooking 2 Dataset

(Rohrbach et al., 2015); it consists of 273 videos of

actors performing recipes in a kitchen. 59 differ-

ent recipes are available, such as ”pouring a beer”

or ”preparing a salad”; given the limited number of

videos, each recipe is performed between 1 and 11

times by a different actor. This was one of the rea-

son we chose this dataset; it allows us to set ourselves

in a context of few-shot learning, where very few ex-

amples are available for each action, leading to the

quadruplets generation we discussed before. Also the

level of the annotations in the MPII Cooking 2 Dataset

was perfectly suited for an action recognition task in a

robotic context : the annotations consist in high-level

manipulation tasks, not in atomic actions (”grasp”,

”drop”...) nor high-level human actions that involves

the whole human body (”playing basketball”, ”danc-

ing”...).

Regarding the augmentation of this dataset with

human skeleton data, we used the PyTorch implemen-

tation of Keypoint R-CNN (Wu et al., 2019b), avail-

able in the torchvision package, in order to perform

skeleton keypoints detection on each video frame, as

shown in Figure 5. Then the keypoints and skeleton

edges were drawn on top of the videos using OpenCV

(Bradski, 2000); videos were cropped around the

center of the skeleton in a 640*640 pixels window.

When creating the puzzle pieces, each cuboid was

then a 320*320*120 video (the temporal dimension

is mesured in frames); after subsampling, each puz-

zle piece was reduced to a 240*240*60 area, namely

ROBOVIS 2021 - 2nd International Conference on Robotics, Computer Vision and Intelligent Systems

132

Figure 7: The typical architecture used in this work; each head takes a puzzle piece as input and extracts features from it. All

four heads’ outputs are then concatenated, and used by a fully connected layer to make a prediction regarding the class of the

puzzle.

2 seconds long video clips, and channel replication

was applied, resulting in puzzles such as the one pre-

sented in Figure 6. We created around 13000 puzzles

both with and without skeleton from the MPII Cook-

ing 2 Dataset; the 2 sets of puzzles were identical, the

only difference being the presence of the skeleton on

the image for the ﬁrst set.

4.2 Models

As mentionned, we used a siamese-like architecture

(Figure 7) to process spatio-temporal puzzles. In the

case where images were used, each head was com-

posed of 6 2D convolutional layers (with respectively

32, 64, 128, 256, 512 and 512 ﬁlters); kernel size was

(3,3) and padding was set to 1. Each layer was fol-

lowed by a LeakyReLu activation function, and a max

pooling operation : from layers 1 to 4, ﬁlter size was

(2,2), and it was (3,3) for convolutional layers 5 and

6. After concatenation of the outputs of the 4 heads

and the fully connected layer, a softmax layer was ap-

plied to output classiﬁcation scores. The model was

implemented using PyTorch.

4.3 Results

All trainings reported here have been run for 500

epochs.

We ﬁrst present the mean accuracy obtained on the

testing set for the spatio-temporal puzzle solving task,

reported in Table 1, for different learning rate values.

As we can see, there is no major improvement in

terms of accuracy from adding the skeleton; for high

Table 1: Final mean accuracy on test set for spatio-temporal

puzzle solving (lr = learning rate).

With skeleton Without skeleton

lr = 0.1 0.292 0.325

lr = 0.02 0.300 0.308

lr = 0.01 0.323 0.324

lr = 0.001 0.314 0.311

learning rates the network actually reaches worse per-

formances when the skeleton is present. It can also

be noted that the reached accuracy is quite low in

both cases. To see where the network was struggling

the most, we ran additional experiments with a 0.01

learning rate either only on temporal puzzles or on

spatial puzzles (see Table 2).

Table 2: Final mean accuracy on test set for temporal and

spatial puzzle solving.

With skeleton Without skeleton

Temporal

puzzles

0.037 0.049

Spatial

puzzles

0.765 0.780

It appears clearly that the temporal puzzles were

reducing the overall accuracy of the network that was

trained to solve both types of puzzles, since networks

trained only on temporally shufﬂed data achieve very

poor performances, comparable to random predic-

tions. Meanwhile, spatial puzzles are easily solved,

and the models achieve a good accuracy considering

the difﬁculty of the task. However, in both cases the

gap between skeleton and non-skeleton puzzles still

holds.

Implicitly using Human Skeleton in Self-supervised Learning: Inﬂuence on Spatio-temporal Puzzle Solving and on Video Action

Recognition

133

Finally, we also trained the same type of architec-

ture (4-headed siamese network) to solve the action

recognition problem from scratch, namely without a

self-supervised pretraining. Results over 3 different

trainings are reported in Table 3.

Table 3: Final accuracies on test set for the action recogni-

tion task trained from scratch.

With skeleton Without skeleton

Training 1 0.651 0.692

Training 2 0.577 0.644

Training 3 0.650 0.657

Even trained from scratch, both networks man-

age to predict the right labels consistantly, especially

given the high number of classes (59), and the difﬁ-

culty of predicting a video label from only 4 represen-

tative still images. Once again we can notice the same

gap in accuracy when adding the skeleton.

5 DISCUSSION

In the previous section, we have seen that the pro-

posed architecture fails to solve temporal, and thus

spatio-temporal, puzzles; nevertheless, the network

performs well on both spatial puzzle solving and

video action recognition. We also observed that

adding skeleton data directly on top of images without

explicitly specifying it to the network does not yield

improved results, and even actually hurts its perfor-

mance on all tasks. This implies that the network does

not consider the skeleton, and that it only acts as a

noise over the natural image behind it. This hypothe-

sis makes sense since the added skeleton can actually

be considered as a mask placed in front of the videos,

which hides part of the information, hence the deteri-

oration in accuracy.

We still have to run some experiments on trans-

fering knowledge learned in a self-supervised way

onto an action recognition task to see if this differ-

ence in accuracy still holds, but the initial results pre-

sented here allow us to conclude that simply adding

the skeleton on images is not enough for it to be

grasped by the network.

To ﬁx this issue, we will constrain more the puz-

zles over the skeleton data; namely, instead of simply

adding it on top of the video frames, we could ﬁnd

ways to include this information such that the network

will tend to look at it. We can think of this as skeleton

as an additional supervisory signal for learning from

images, such as in (Alwassel et al., 2020) where audio

was used to supervise video learning and vice versa.

We will also run experiments without channel

replication applied to the videos; while it forces the

network to grasp features unrelated to color, this pre-

processing also destroys part of the information that

is contained in natural images.

Another line of research we will explore consists

in using the skeleton as an input in itself, on which

we will also perform self-supervised tasks. We could

then fuse results from both types of inputs to improve

the performance of action recognition from human-
