An Open-source Testbed for IoT Systems

Augusto Ciuffoletti

Department of Computer Science, University of Pisa, L.go B Pontecorvo, Pisa, Italy

Keywords:

Internet of Things, Docker, Energy Saving, Key-value Database, IoT Testbed.

Abstract:

A research team that wants to validate a new IoT solution has to implement a testbed. It is a complex step

since it must provide a realistic environment, and this may require skills that are not present in the team. This

paper explores the requirements of an IoT testbed and proposes an open-source solution based on low-cost

and widely available components and technologies. The testbed implements an architecture consisting of a

collector managing several edge devices. Security levels and duty-cycle are tunable depending on the speciﬁc

application. After analyzing the testbed requirements, the paper illustrates a template that uses WiFi for the

link layer, HTTPS for structured communication, an ESP8266 board for edge units, and a RaspberryPi for the

collector.

1 INTRODUCTION

When an IoT project reaches the point where em-

pirical evidence of consistency and performance is

needed, the team faces the new task of designing and

implementing a testbed to carry out the experimental

activity. To this end, the team needs to consider many

aspects, possibly not considered at design time, vital

for trial signiﬁcance. Most likely, the skills internal to

the workgroup do not cover some key technology.

Consider, for instance, the case of an IoT system

that controls a watering system for agriculture. The

task of the project consists of developing a sensor em-

ploying new technology for watering control, for in-

stance, based on light reﬂection on vegetation, and

the team ﬁnally develops a new device with appropri-

ate features. After successful lab experiments, they

want to deploy the system on the ﬁeld with a limited

number of sensors. The team, probably composed of

experts in sensors and hardware design, has to design

a network with a server supporting the sensors with

networking, storage, control, etc. Given the limited

experience in such ﬁelds, the team needs to call in

new participants, or the experiment will likely exhibit

weaknesses in security and data management.

This paper suggests the possibility of creating a

general-purpose framework for IoT applications that

enables the team in the above example to inject the

new sensor in a deﬁned and easily deployable archi-

tecture and carry out a signiﬁcant experimental activ-

https://orcid.org/0000-0002-9734-2044

ity. This approach simpliﬁes the task and improves

results in several use cases as:

• application of a proposed sensor design to a given

application, as seen above

• application of a proposed communication proto-

col in sensor communication

• application of a proposed data management in a

distributed IoT system

This paper represents an early step in that direc-

tion and, for this reason, starts discussing the fea-

tures of such an experimental framework. Such fea-

tures correspond to the non-functional properties that

need to be present to deploy a testbed. Some of them

should be tunable to suit the speciﬁc application: for

instance, the example above might not insist on secu-

rity aspects.

After the abstract discussion, the paper describes

a concrete implementation of the testbed, giving a de-

tailed description of a template architecture: the hard-

ware components are devices available off the shelf,

communication uses standard protocols, the software

architecture follows widely accepted conventions and

tools, the code is available on GitHub.

2 RELATED WORKS

Several articles in the literature propose frameworks

for the design of IoT systems. We have selected some

that help to situate the content of this paper. A search

Ciuffoletti, A.

An Open-source Testbed for IoT Systems.

DOI: 10.5220/0010710400003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 397-403

ISBN: 978-989-758-536-4; ISSN: 2184-3252

397

for the IoT framework keywords in Google Scholar

returns them as prominent, so they are likely to be

representative of the state-of-the-art.

Some (Gelogo et al., 2015; Pasha and Shah, 2018)

concentrate on healthcare systems, a kind of appli-

cation with a remarkable social impact. It is go-

ing to gain momentum in the coming years, also be-

cause of the COVID-19 epidemic event. The term

of u-health is introduced (Gelogo et al., 2015) to in-

dicate the ubiquitous availability of medical assis-

tance. The system has three components: a Body

Area Network (BAN), made of networked sensors, an

Intelligent Medical System that ﬁlters data from the

BAN to identify emergency conditions, and an Hos-

pital System that manages patients data and takes care

of detected emergencies. Another paper on e-health

IoT systems (Pasha and Shah, 2018) reveals the role

of speciﬁc protocols for network management, high-

lighting the role played by those explicitly designed

for constrained devices. Both papers stress the im-

portance of security issues in e-health systems but fail

to outline a solution. The former announces a future

prototype implementation, while the second reports

about the network utilization obtained from a proto-

type implementation using the Contiki operating sys-

tem (Dunkels et al., 2004).

Security issues are the focus of other papers, also

applying to a blockchain system called EdgeChain

(Pan et al., 2019). Falling in the category of permis-

sioned blockchain systems, it is more suitable to IoT

systems, characterized by constrained devices. The

IoT framework contains speciﬁc modules in charge

of implementing the blockchain service (Ethereum)

as well as a mechanism for implementing smart con-

tracts that are useful to regulate access to computing

and networking resources. The paper is exhaustive

regarding the speciﬁc issue but disregarding the pres-

ence of constrained devices and energy-saving poli-

cies. The authors report an experimental testbed using

RaspberryPi 3 Model B as edge devices and a Cisco

3850 switch.

Smart-cities are another frequently found use case

for IoT systems. The provision of open-source results

is regarded as relevant in a paper from the Univer-

sity of Bologna (Calderoni et al., 2019), which pro-

vides a reference platform that is useful as a testbed

for smart-city prototypes. The platform integrates

the networking and application functionalities, giving

the designer full access to conﬁguration details. The

paper discusses the details of security policies intro-

duced by AWT and Microsoft Azure, but the testbed

in itself does not address the issue. Likewise, the au-

thors do not address power-saving mechanisms.

Long Sun et al. (Sun et al., 2017) propose an ab-

stract model that makes use of microservices for the

implementation of the middleware of an IoT system,

managing each of them independently. The paper de-

tails the architecture of an IoT system from the sen-

sor/actuator layer, where microservices are special-

ized to interact with a hardware device, up to the data

management layer. The paper highlights the role of

communication protocols in the interaction between

microservices and edge devices. One of the services

is in charge of managing security aspects. The model

does not take into account energy aspects. The paper

reports an experiment and illustrates the operation of

a REST API that is part of it. To this end, it provides

the source code of two functions: one to create a new

device and another to add a trigger to an edge device.

Compared to the above articles, the present pa-

per shares the intent of discussing the relevant fea-

tures of an IoT system. In contrast, the result of such

a discussion is not the generation of a collection of

modules and speciﬁcations to address a speciﬁc issue

but the identiﬁcation of the basic non-functional fea-

tures that the system must exhibit. Then we outline

an abstract architecture that can be used as a refer-

ence for many use cases. The ﬁnal step is a detailed

description of an instance of such an abstract architec-

ture. The implementation makes use of conventional

technologies and is exhaustively deﬁned and publicly

available. One way to take advantage of such result is

to inject in the testbed the non-conventional solutions

under evaluation, siding, or replacing, the provided

ones in a way that has much in common with the de-

pendency injection used in software engineering.

3 SYSTEM MODEL

This section explores the abstract requirements of an

IoT testbed without reference to a speciﬁc technology.

Although experimental results strongly depend on the

adopted technology, the fundamental features of the

testbed, related to the speciﬁcity of IoT applications,

are to some extent invariant. In this sense, adopting

a shared testbed simpliﬁes the comparison of imple-

mentations that use different technologies.

This section contains dedicated subsections for

each of the non-functional requirements that needs to

be present in the testbed for IoT.

3.1 Layered Architecture

A layered infrastructure is a widely adopted model to

ensure the scalability of an IoT system. This model

envisions edge units, sensors, and actuators as orga-

nized into clusters, each containing an infrastructure

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

398

component (here called collector but often indicated

also as sink or concentrator). Such a component pro-

vides edge units with various kinds of services, In-

ternet connectivity included. Collectors are in their

turn connected to servers, either on-premises or in the

cloud.

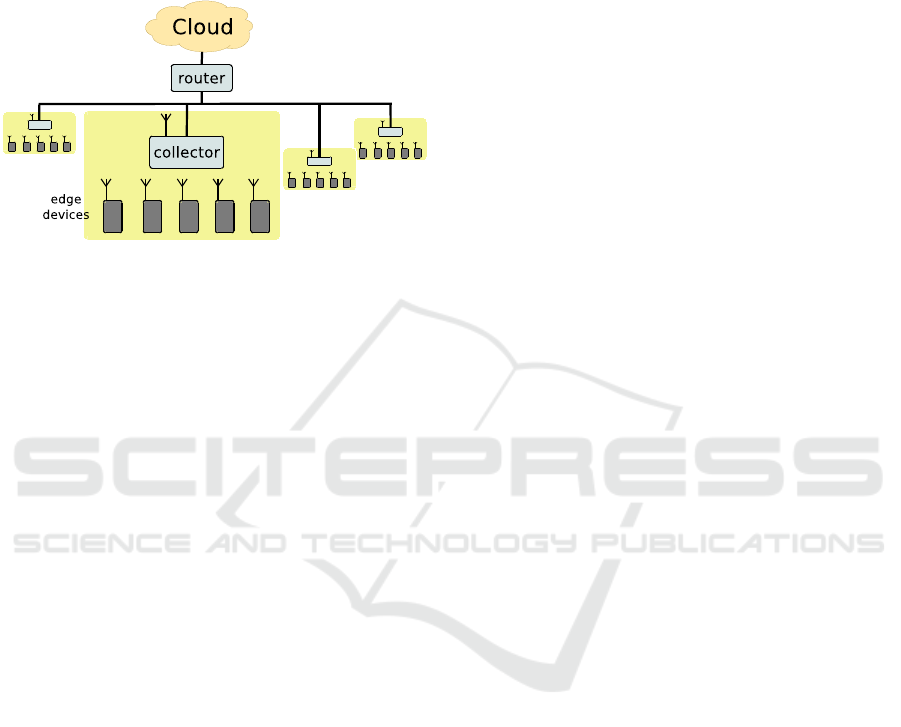

Figure 1: A typical layered architecture with adopted termi-

nology.

The testbed illustrated in this paper covers the last

two abstractions layers and proposes a template ar-

chitecture with one collector serving several edge de-

vices.

3.2 Flexible Support for Low-energy

Options

There are many reasons why an IoT system must be

very careful with energy consumption. When edge

components receive power from batteries, that param-

eter determines the quantity of waste produced (in

terms of exhausted batteries) and device autonomy (in

terms of the life of the edge unit if the operation is

unattended or of the frequency of operator interven-

tion). When the design includes energy harvesting

capabilities, the cost of generators and accumulators

depends on energy consumption. Instead, when edge

units receive power from the electric grid, the impact

of energy consumption is considered negligible. A

general-purpose testbed for IoT systems must allow

the researcher to experiment with a wide range of op-

tions regarding energy.

Left alone that different boards exhibit different

energy ﬁgures, duty cycling is the primary tool in the

hands of the designer to reduce power consumption.

Such a technique depends on the device’s capability

of entering a suspend state characterized by a substan-

tial reduction of energy consumption. To take advan-

tage of this, the device should remain in the suspend

state as long as possible and wake up only when its

operation is needed. The testbed should provide sup-

port to a wide range of suspend modes and implement

a one-ﬁt-all solution to assist the researcher that is not

speciﬁcally interested in this topic.

3.3 Flexible Support for Security

The importance of security varies from project to

project. There are cases when the data gathered from

edge units are sensible at different degrees, other

where only credentials need to be kept secure. The

testbed should provide a range of vanilla solutions,

leaving the researcher free to explore other solutions

within the provided framework.

3.4 Open-source

The open-source nature of the testbed is mandatory.

The researcher must be able to modify any part of

it and to publish solutions and experimental results

without the risk of breaking copyrights. This recom-

mendation is equally valid for software, communica-

tion protocols, and hardware design.

3.5 Modularity

Modularity is one of the ways to implement a ”sepa-

ration of concern” paradigm in the design of a system.

In our case, this allows the researcher to conduct ex-

periments on a speciﬁc module disregarding, as far as

possible, the rest of the system. Also, the deployment

of the experimental infrastructure is simpliﬁed if or-

ganized into modules with moderate dependencies.

3.6 Low Cost

Given its short-term nature, a testbed needs to be in-

expensive since cost has an inﬂuence on adoption.

One example addresses a researcher developing a new

solution speciﬁc for one aspect of the IoT stack: a

testbed that requires investments not directly related

to the research focus is not attractive. Another case is

that of a team that wants to reproduce a documented

solution for further study. In this case, an expensive

testbed might dis-encourage the researchers from ex-

actly replicating it, which instead would be the best

option from a scientiﬁc point of view.

4 A TEMPLATE FOR AN IoT

TESTBED

Once deﬁned the relevant features of a testbed for IoT

projects, the next step is to implement a template.

The template is a running implementation with all

the relevant details in place but with the ﬂexibility

An Open-source Testbed for IoT Systems

399

needed to host a speciﬁc experiment. This section

outlines the design of such a system, with reference

to the features introduced in the previous section.

4.1 Hardware Architecture

The reference architecture features a collector in

charge of managing a set of edge devices, the sensors.

The number of supported edge devices depends on

the interconnection technology, but this arrangement

is the basis for a scalable system, possibly replicated

and rooted in a multi-layered architecture. Figure 1

illustrates a system composed of four sub-systems of

this kind.

The relevant options in the implementation of

such an architecture are the hardware components and

the interconnection technology. The aim is that the

resulting system is a vanilla solution that does not in-

troduce unneeded or exotic features.

This paper adopts an ESP8266 board for edge de-

vices and a RaspberryPi for the sink unit.

The ESP8266 is a widely available microcon-

troller with an embedded WiFi interface capable of

running HTTPS client-side sessions. The microcon-

troller runs a single program stored in a Flash mem-

ory. Many boards based on such a chip simplify the

ﬂashing operation using an appropriate IDE. The Ar-

duino open-source IDE supports the whole process,

from coding in a C++ dialect to ﬂashing.

One rationale for adopting the ESP8266 is its wide

commercial availability and low cost (less than 10$).

The raw board can be readily complemented with ad-

ditional capabilities using plug-in shield boards, but,

alone, has the essential features of an edge device, as

outlined below. Another with more advanced features

and a comparable price is also available (ESP32), but

here we opt for the one with lower power consump-

tion.

The board embeds a WiFi interface: this greatly

simpliﬁes the hardware design, allowing minimal or

no cabling. In addition, its internal design is ready for

low-energy operation and provides:

• an assortment of low-energy operation modes in-

cluded a deep-sleep with power consumption in

the range of µW

• the capability of leaving low energy modes by in-

terrupt or timer event (max 1 hour period)

• an onboard SRAM to keep persistent data during

deep-sleep periods

The RaspberryPi is a one-board computer based

on a quad-core ARM-Cortex processor running a

fully featured operating system; the reference one is

Raspian, a Debian/Linux adapted to run on the Rasp-

berryPI hardware. Like ESP8266 boards, it is com-

monly available off the shelf at a price ranging from

50$ to 75$. Depending on the model, the RaspberryPI

features Ethernet and WiFi network interfaces, USB,

HDMI, and Webcam plugs. The persistent memory

for the operating system and the workspace are on an

SD card.

When both Ethernet and WiFi interfaces are

present, the RaspberryPi can be easily turned into a

WiFi Access Point, possibly providing Internet ac-

cess to WiFi stations. The RPi is sufﬁciently powerful

to host database systems and other services, provided

that the workload is consistent with its computing ca-

pacity.

Three RPi models are currently avaliable:

RPi 2 (2015, 900MHz/32bit), the RPi 3 (2016,

1.2GHz/64bit), and RPi 4 (2019, 1.5GHz/64bit).

The combination of ESP8266-based boards for the

sensors and an RPi as a component coupling a WiFi

access point and a data concentrator is a viable so-

lution for our testbed, being open-source and inex-

pensive. In the rest of this section, we reﬁne our

design considering the other non-functional require-

ments: modularity, low-energy operation, and ﬂexible

security.

4.2 Modularity

The layered architecture is the basis for a modular

(and scalable) hardware architecture. Software mod-

ularity too plays a relevant role and allows adapting

the testbed to a speciﬁc task.

As a general rule, the structure of the software

running on the ESP8266 board is application-speciﬁc

with limited margins to introduce a generic modular

pattern. The low-power modes have a well-deﬁned

and documented IDE (Espressif, 2016) so that it is

pointless introducing an additional wrapper.

In contrast, the software architecture of the RPi

sink is complex, and a modular organization is needed

to simplify its targeting to a speciﬁc application. For

instance, regarding the conﬁguration of the network

layer protocol (e.g., replacing WiFi with LoRaWAN),

the application layer protocol (e.g., replacing HTTP

with CoAP), the storage management (e.g., using a

relational DB or other ways to manage sensors data).

A dockerized architecture suits the need for mod-

ularity and easy conﬁguration. The designer requir-

ing a given operation plugs in the appropriate dockers

and interconnects them in a virtual network. Follow-

ing such an approach, the RPi runs the Docker host-

ing software, and the desired Dockers are loaded and

run. Dockers can be either available from the hub

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

400

(https://hub.docker.com) or designed on purpose and

easily shareable on multiple installations (consider,

for instance, a testbed with multiple concentrators).

The conﬁguration instructions, networking included,

are written in one single docker-compose.yml ﬁle.

The adoption of the Docker technology is limited

to conﬁguration options that do not impact hardware

devices. For instance, switching from WiFi to Lo-

RaWAN cannot be easily managed with the Docker

technology. In this case, it is probably better to leave

the task to conﬁguration scripts for the speciﬁc tech-

nology.

4.3 Flexible Low-energy Conﬁguration

There are two kinds of low-energy operation: soft

and deep sleep. During a soft-sleep period, the fun-

damental computing capabilities of the system are

operational or in a low-power state, while energy-

consuming ones are disabled. For instance, the

ESP8266 has two sleep modes that can be considered

as soft-sleep (Espressif, 2016):

• modem sleep: the WiFi modem is off when un-

used, keeping into account the need to receive

beacon frames (the frequency of which is in

the range of seconds, conﬁgurable in the Access

Point)

• light sleep: suspends the CPU and disables the

modem

The conﬁguration of a speciﬁc soft-sleep policy has a

limited impact on components outside the sensor it-

self. For instance, to tune the beacon frequency to

extend modem-sleep periods.

In contrast, the management of deep-sleep peri-

ods has an impact on system-level design. The reason

is that, during a deep sleep interval, most of the chip

components do not receive power at all. A relevant ef-

fect is that the working memory loses its content. An-

other is that the system clock stops measuring time.

To avoid zero-knowledge wake-up, the sensor needs

to backup working data and record their address to re-

trieve them when waking up. Similarly, a networked

component provides the time of the day and the cal-

endar date (if needed by the application).

Most modern microcontrollers (the ESP8266 in-

cluded) embed the functionalities needed to imple-

ment an efﬁcient deep-sleep policy. Such support

consists of a clock with a small RAM kept powered

even during deep-sleep periods. As a general rule,

their characteristics are not for general-purpose solu-

tions, but they provide substantial help: for instance,

in the case of an ESP8266, the clock accuracy is in

the percent range, and persistent memory capacity is

of a few KBytes. Therefore the clock is appropriate

to time a periodic wake-up, and the memory can save

a link to external storage.

In the proposed architecture, the component pro-

viding storage and time services is primarily the con-

centrator. A Linux server can provide various kinds

of clock synchronization services, depending on the

accuracy required by the application. The Network

Time Protocol (Mills et al., 2010) is easily installed

and may provide microsecond synchronization on

suitable networks. If sensor operation only requires

a generic time of day with a one-second precision, a

viable alternative is piggybacking timestamps to other

messages.

Regarding the support for the remote storage of

edge devices, a suitable solution consists of using a

REDIS https://redis.io/ key-value storage: the key, a

random string, is recorded in the persistent RAM on

the edge component, while the value can be any sort

of — possibly bulky — data, like an image, a sound

spectrum, or a GPS track, that is associated to the key

in the REDIS database.

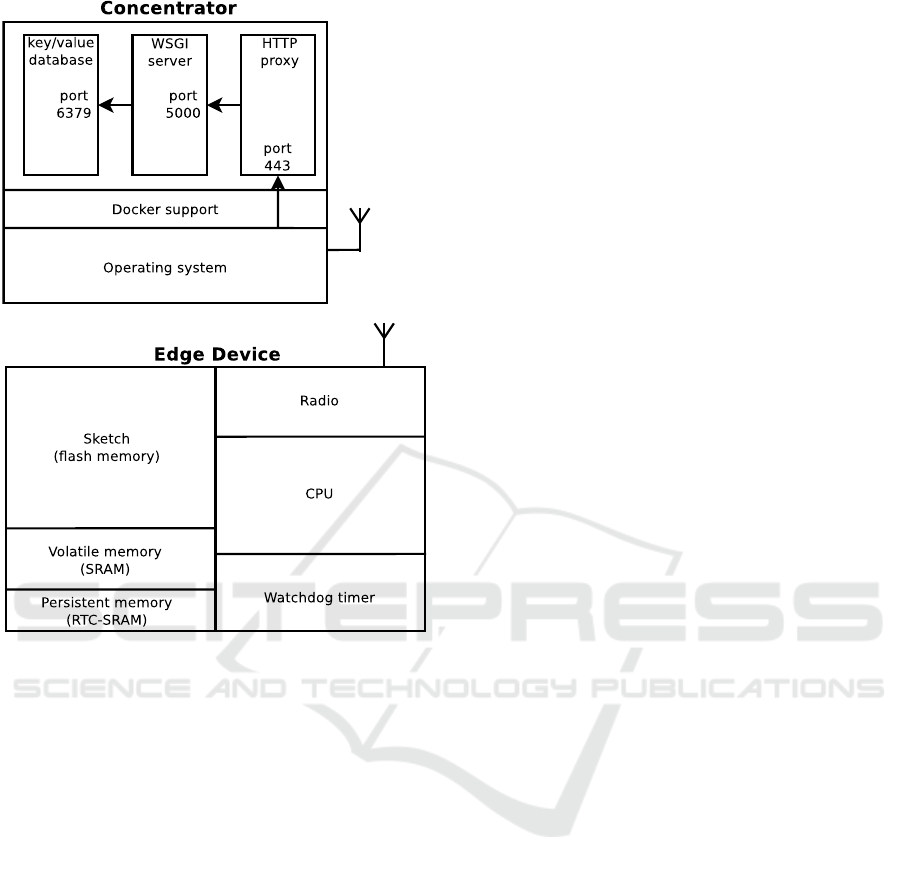

According to the Dockerized structure of the con-

centrator, a Docker container with one of the REDIS

images found in the hub implements the database.

The REDIS database access is through a REST

server hosted on the concentrator. The HTTP service

should offer three basic CRUD operations associated

with REST verbs:

• create a new key (PUT)

• record a value associated with a key (POST)

• download the value associated with a key (GET)

• deleted an unused key and the associated value

(DELETE)

The design of the REST server follows any server-

side web framework: the template uses Flask/Python.

A custom Docker image embeds the server together

with the Python libraries and other dependencies. In

this way, the deployment of architectures containing

several sinks is straightforward.

It is appropriate to introduce an HTTP proxy in

front of the Flask server to improve server security

and performance. The popular Nginx proxy is well

suited for this task and is available as a Docker image.

At this point, the internal structure of the tem-

plate testbed, summarized in ﬁgure 2, is sufﬁciently

deﬁned.

4.4 Flexible Security Support

The relevance of security aspects changes depending

on the application. A watering plant produces infor-

mation that is of limited interest for a potential in-

An Open-source Testbed for IoT Systems

401

Figure 2: Outline of the internal structure of the Concentra-

tor and of the Edge device.

truder, but its design should nonetheless avoid denial

of service attacks. In contrast, an automotive control

has to be more cautious about the possibility of an in-

trusion. In the extreme, a medical system has to pro-

tect every piece of information it produces, especially

when it can be associated with an individual.

For such reason, the rules to access the key-value

service depend on the application, so that the template

has to be ﬂexible enough to implement a range of so-

lutions.

A key-value system natively supports mild secu-

rity. If the number of keys is sufﬁciently high and

their values are well randomized, then it is difﬁcult

for an intruder to ﬁnd a used key and take the place of

a trusted sensor. This argument allows claiming the

GET, POST, and DELETE verbs are sufﬁciently se-

cured, but not the PUT, which creates a new key/value

pair. The attack pattern, in this case, consists of gain-

ing access to the network and issue PUT requests to

introduce noxious data or saturate database capacity.

In conclusion, securing the PUT operation is relevant

even for mildly critical applications. The mediation

of a trusted component, which authorizes a PUT re-

quest, solves the problem. Such a component may be

an operator equipped with a smartphone with an au-

thentication mechanism or a computer that ﬂashes an

assigned key in the mote Flash memory.

The presence of a trusted component in the chain

does not guarantee against the possibility that this

same component steals a valid key, thus acquiring the

capability to conﬁgure an intrusive edge device or to

access data that can be associated with a speciﬁc sen-

sor. For instance, this may generate a leakage of sen-

sitive data in an e-health system. A way to avoid this

problem consists of changing the key at each GET op-

eration to make meaningless the — possibly stolen

— initial key. According to this mechanism, upon

receiving a legal GET request, the server changes the

key associated with the value and returns the requester

the value together with the new key. This technique

also marginally improves the security level provided

by a random key of a given length for the following

reason. Without the key-swapping mechanism, the in-

truder certainly ﬁnds a valid key by scanning all pos-

sible keys. Instead, with the key-swapping mecha-

nism in place, the scanning technique is not success-

ful since any key may become valid after having been

discovered as non-valid.

The above mechanism does not protect against the

case that data stored in the database are stolen by

physically removing the SD card from the concentra-

tor device. Although the data cannot be associated

with a deﬁned sensor, the anonymized data can be

equally considered sensible for the organization. In

this case, the sensor should encrypt the data associ-

ated using a key, known solely to the sensor itself,

generated when the mote is switched on, recorded in

the persistent RAM, and used at each POST (to en-

crypt), and GET (to decrypt) operation.

With the above mechanisms in place and using

the HTTPS protocol, the testbed is resistant to a wide

range of attacks. But, in case of failure of an edge de-

vice, there is no way to recover orphaned data. Find-

ing a compromise between fault tolerance and secu-

rity is a task that a ﬂexible IoT testbed helps to solve.

4.5 Experimental Results and Code

Availability

The tests run on a prototype conﬁrm that the testbed is

suitable for generic experimental setups. One relevant

aspect is the capacity of the Raspberry Pi to support

a signiﬁcant number of hosts. We have evidence that

the device can support a load of 100 edge devices each

running an operation every 10s with a limited impact

on service times. In contrast, the Raspberry Pi has

limits when operating as an access point, and inde-

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

402

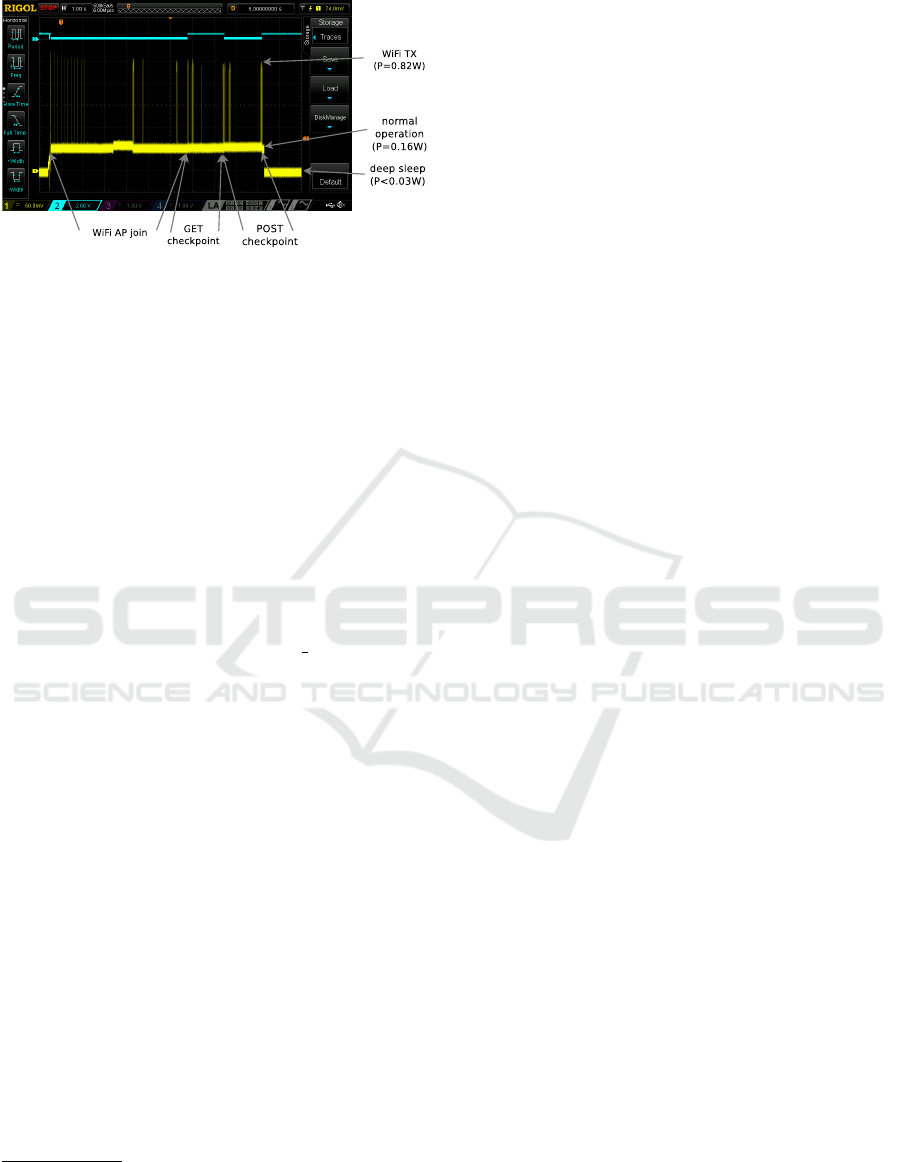

Figure 3: Trace of one operation cycle on the Wemos board

- Current consumption is measured on a 1 Ohm shunt in

series with power supply (3.3V), which introduces an ob-

servable noise.

pendent tests

claim that it cannot support more than

19 simultaneous connections. A typical operation cy-

cle with a negligible time spent in payload operation

has a duration of approximately 8 seconds, distributed

as follows: 5 seconds to join the WiFi infrastructure,

and 1.5 seconds each for the GET operation to re-

trieve a checkpoint from the Redis Database, and the

POST operation to store a new checkpoint back into

the database.

The software for testbed edge and collector de-

vices is available from two public Github reposito-

ries: one is dedicated to the ESP8266 (https://github.

com/AugustoCiuffoletti/IoTTemplate esp8266), an-

other to the sofware running on the Raspberry Pi

(https://github.com/AugustoCiuffoletti/kviot).

5 CONCLUSIONS

IoT systems involve a stack of technologies, from

the physical layer to the application, with speciﬁc

requirements: a research effort usually targets one

of such aspects. To validate a result, the research

team has to produce a testbed to run experiments,

frequently overlooking the details that are not the re-

search focus: this may damage the validity and inter-

est of experimental results. This paper deals with the

design and implementation of a testbed for IoT sys-

tems that allows the designer to focus on one aspect

injecting the new piece of technology in a framework

bility, energy-saving, and security.

We have currently tested the soundness of the

solution described in this paper. A Research-

There are many posts on this topic with

unchecked experimental data. A reliable one might

be https://raspberrypi.stackexchange.com/questions/50162/

maximum-wi-ﬁ-clients-on-pi-3-hotspot

Gate project with links to GitHub repositories will

report about developments: ”A framework for

IoT systems” ()https://www.researchgate.net/project/

A-testbed-for-IoT-solutions ).

REFERENCES

Calderoni, L., Magnani, A., and Maio, D. (2019). Iot man-

ager: An open-source iot framework for smart cities.

Journal of Systems Architecture, 98:413–423.

Dunkels, A., Gronvall, B., and Voigt, T. (2004). Contiki-

a lightweight and ﬂexible operating system for tiny

networked sensors. In 29th annual IEEE international

conference on local computer networks, pages 455–

462. IEEE.

Espressif (2016). ESP8266 Low Power Solutions. Espressif

Systems IOT Team, v 1.1 edition.

Gelogo, Y. E., Hwang, H. J., and Kim, H.-K. (2015). Inter-

net of things (iot) framework for u-healthcare system.

International Journal of Smart Home, 9(11):323–330.

Mills, D., Martin, J., Burbank, J., and Kasch, W. (2010).

Network Time Protocol Version 4: Protocol and Algo-

rithms Speciﬁcation. RFC 5905 (Proposed Standard).

Pan, J., Wang, J., Hester, A., Alqerm, I., Liu, Y., and Zhao,

Y. (2019). Edgechain: An edge-iot framework and

prototype based on blockchain and smart contracts.

IEEE Internet of Things Journal, 6(3):4719–4732.

Pasha, M. and Shah, S. M. W. (2018). Framework for e-

health systems in iot-based environments. Wireless

Communications and Mobile Computing, 2018.

Sun, L., Li, Y., and Memon, R. A. (2017). An open

iot framework based on microservices architecture.

China Communications, 14(2):154–162.

An Open-source Testbed for IoT Systems

403
