A Practical Experience Applying Security Audit Techniques in an

Industrial e-Health System Which Uses an Open Source ERP

Juli

an G

omez

, Miguel

A. Olivero

, J. A. Garc

ıa-Garc

ıa

and Mar

ıa J. Escalona

Web Engineering and Early Testing (IWT2, Ingenier

ıa Web y Testing Temprano), University of Seville, Spain

Keywords:

Audit, Cybersecurity, Odoo, Healthcare, Pentest, Pentesting, Security.

Abstract:

Healthcare institutions is an ever-innovative ﬁeld, in which modernization is moving forward taking giant

steps. This modernization, so called “digitization”, brings up some concerns that should be carefully consid-

ered. Currently, the most sensible concerning in this ﬁeld is the management of Electronic Health Record and

patients’ data privacy. Health-related data in healthcare systems are under strict regulations, such as the EU’s

General Data Protection Regulation (GDPR), whose non-compliance imposes huge penalties and ﬁnes. Cy-

bersecurity in healthcare plays an important role at protecting these sensitive data, which are highly valuable

for criminals. Security experts follow already existing security frameworks to orchestrate the security assess-

ment process, so that the auditing process is as complete and as organized as possible. This study extends the

lifecycle of a security assessment framework and conducts an exploitation and vulnerabilities’ analysis on an

actual industrial scenario. The results of this security audit shows that even if the system is heavily fortiﬁed,

there can be still some vulnerabilities.

1 INTRODUCTION

Cybersecurity is a ﬁeld that is located within com-

puter science, but is related to other disciplines such

as law, legislation, and security and control forces.

According to ISO/IEC 27032:2012 (ISO, 2012), cy-

bersecurity is “the preservation of conﬁdentiality, in-

tegrity and availability of information in cyberspace.

In addition, other properties such as authenticity, ac-

countability, non-repudiation, and reliability may also

be involved.”. In the end, cybersecurity is in charge of

defending the information of computer systems and

electronic communication.

Personal data is always sensitive information, but

even more so in the case of healthcare systems. In or-

der to manage and successfully conduct audits, a set

of steps or phases should be followed. It is with a

structured set of step that the security audit is com-

plete and thorough. Such steps or phases are estab-

lished through the security frameworks.

However, a gap has been identiﬁed. The current

frameworks have a set of structured phases that aim at

ensuring that the security audit is as complete as pos-

https://orcid.org/0000-0002-3157-1469

https://orcid.org/0000-0002-6627-3699

https://orcid.org/0000-0003-2680-1327

https://orcid.org/0000-0002-6435-1497

sible. But they lack on analysis on source code. This

study extends the auditing process by including an ad-

ditional stage consisting on performing analysis to the

source code of a system. The inclusion of this phase

leads to the strengthen of the auditing process. Be-

sides the additional phase, this study also shows how

a security audit of an actual Electronic Health Record

(EHR)-related system has been performed through an

industrial case scenario.

After following a set of phases established by the

frameworks, a new phase consisting in applying tech-

niques of static analysis is proposed. This new phase

adds a security layer in the process of auditing a sys-

tem, needed in critical systems such as the ones in

healthcare.

Since the audited system is a live system of a in-

dustrial healthcare institution, its name shall not be

disclosed due to privacy reasons. The remaining of

this paper is organized as follows: Section 2 and 3

introduces the background and summarizes some re-

lated work. Section 4, presents the execution of the

security audit and its results. This section has been

organized in 5 subsections, each one corresponding

to one of the phases given by the audit frameworks.

Finally, the last section states a set of conclusions and

suggests some research lines that as future work.

482

Gómez, J., Olivero, M., García-García, J. and Escalona, M.

A Practical Experience Applying Security Audit Techniques in an Industrial e-Health System Which Uses an Open Source ERP.

DOI: 10.5220/0010714500003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 482-489

ISBN: 978-989-758-536-4; ISSN: 2184-3252

2 BACKGROUND

Every year, ISACA publishes a summary of the state

of the art, i.e. the state of the ﬁeld and the latest inno-

vations in cybersecurity. The report can be found on

the ofﬁcial ISACA website (ISACA, 2021).

The 2021 report gets the data after doing a macro

survey in the last quarter of 2020 to professionals in

the ﬁeld, of different nationalities, ages and with dif-

ferent years of experience. Demand is on the rise

and more and more professionals are needed. More

than 60% of respondents describe the situation in their

company’s cybersecurity department as “signiﬁcantly

understaffed”. The report points out that business un-

derstood from the traditional point of view does not

work well. The cybersecurity workforce is scarce and,

in the future, will probably continue to be scarce, be-

cause it takes a long time to train a professional from

a theoretical point of view.

To conclude, ISACA expects that 2021 will be the

year in which companies will start hiring as many

professionals as there are vacancies to ﬁll. In addi-

tion, it is suggested not to overestimate the effect of

“digitized classes” in education, since the skills that

are most lacking are the interpersonal ones: the soft-

skills.

3 SECURITY AUDIT

FRAMEWORK

This section will look at how the security audit it-

self has been managed. The ﬁrst step to take when

choosing a methodology is to know which ones there

are and what each of them consists of in brief. The

ﬁve most popular ones are the following (Gkoutzama-

nis, 2020): OSSTMM, OWASP Web Security Testing

Guide, NIST SP 800-115, PTES and ISSAF.

3.1 Standardized Frameworks

Regarding the security audit framework itself, OS-

STMM and OWASP Web Security Testing Guide

have been chosen. These two frameworks are de facto

standards in the ﬁeld of cybersecurity. Unlike PTES

or ISSAF, the ﬁrst ones on the list are very popular

and are still being updated today. In the case of OS-

STMM, it is particularly effective, because within the

existing general and broad methodologies, it is the

most comprehensive of all, considering aspects that

other guides do not consider, such as the human as-

pect. Regarding the OWASP Web Security Testing

Guide, it is a very popular guide to perform security

audits on web applications. Since the system that will

be audited is a web system, this guide is ideal. For all

these reasons, these are the two frameworks that the

study will be working with.

In addition to the phases, there are different types

of audits. Each of the phases will fall into one of the

three kinds here explained:

• Black Box. This audit is the process that would be

followed by someone totally external to the sys-

tem, who has no prior ideas about how the system

is developed from the inside. This type of audit

simulates the state that a cybercriminal who is go-

ing to attack a system would start from and has to

gradually gather information.

• White Box. This type of audit is the complete op-

posite of the black box audit, as the auditor now

has all the information on how the system is de-

veloped inside and can see the source code. How-

ever, he has no prior knowledge of what attack

vectors he is going to test yet, nor what vulnera-

bilities there may be.

• Grey Box. This type of audit relies on the audi-

tor having partial knowledge of the details of the

system. In fact, it is the type of audit that most

auditors start from: they know what type of sys-

tem they are going to audit in broad strokes. For

example, in the case of the system of this project,

the only previous information before the security

audit was that the system uses an Odoo 11 web

system.

These three types of auditing are not mutually ex-

clusive and are actually performed all at once. Gener-

ally, a passive scan of the application without know-

ing anything (black box) is what goes ﬁrst and then

goes the speciﬁc details (the source code, conﬁg-

uration ﬁles, platform where the application is de-

ployed...).

After looking at the types of audit, it will be ex-

plained which are the phases that will be developed

during the security audit. These phases have been es-

tablished after combining the OSSTMM framework

and the OWASP framework. In addition to that com-

bination, a new phase is proposed. Such phase re-

ceives the name of “Static analysis” and it aims at

analyzing the source code of the system in order to

discover new vulnerabilities.

The visual representation of the ﬂow of a security

audit can be seen on Figure 1, being “Static analysis”

the highlighted in blue. The phases are:

1. Scope. Deﬁnition of the scope and objectives of

the audit. See section 4.1.

2. Social Engineering. Social engineering tech-

niques will be used to try to breach the system

A Practical Experience Applying Security Audit Techniques in an Industrial e-Health System Which Uses an Open Source ERP

483

starting from the weakest link in the chain: the

users. In this paper, this phase will not be dis-

cussed due to length restrictions. See section 5.

3. Vulnerability Analysis. The vulnerabilities will

be analyzed if they are corrected. In addition, it

will be checked if the system is vulnerable to the

vulnerabilities published in the OWASP Top 10.

See section 4.2.

4. Vulnerability Exploitation. Some of the vulner-

abilities found will be exploited. See section 4.3

5. Static Analysis. The source code will be passed

through code analyzers to ﬁnd memory bugs and

bad input sanitization. This is the phase proposed

by this study. See section 4.4.

6. Writing the Report. An executive report that

contains all of the knowledge that has been gener-

ated. See section 4.5.

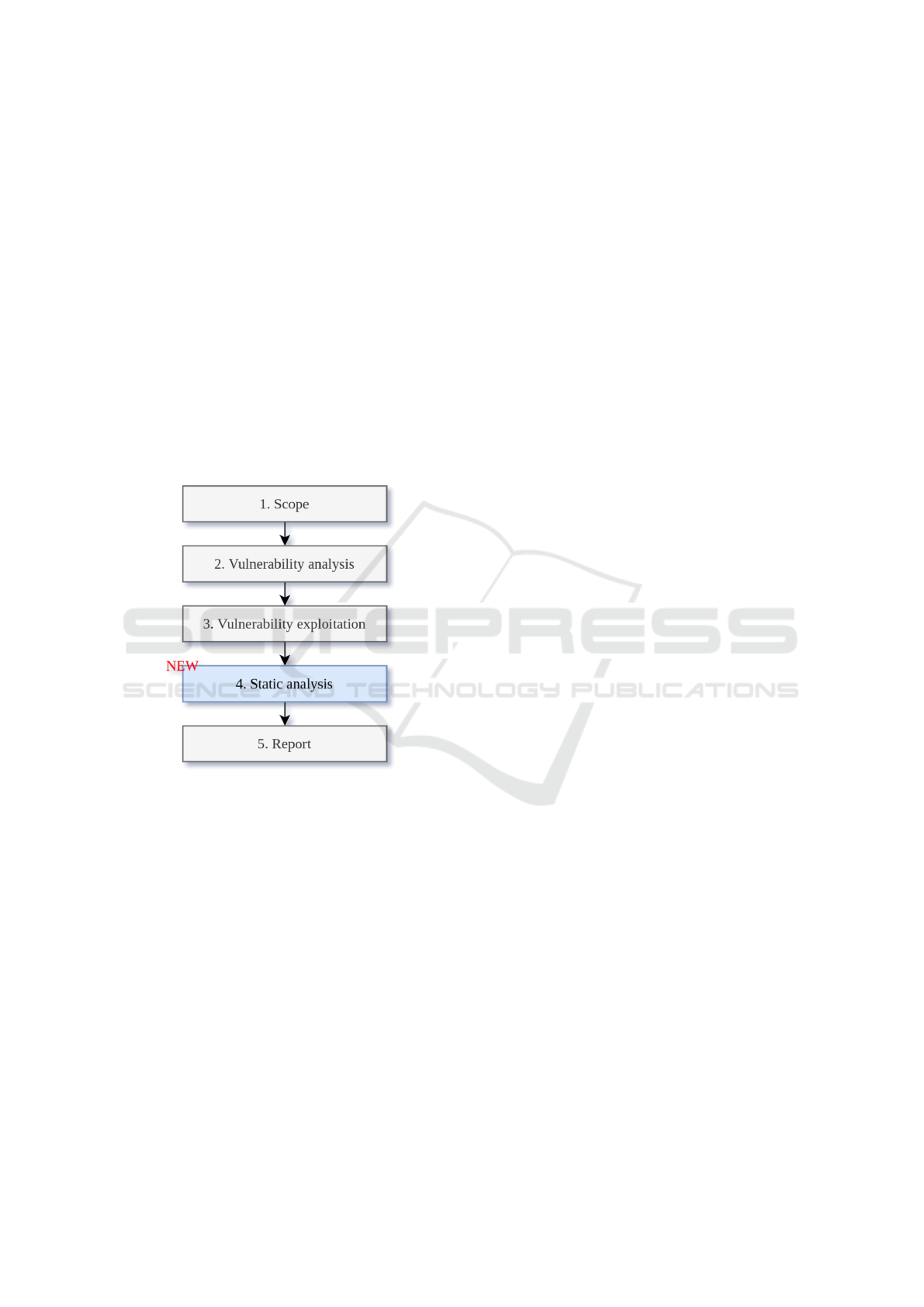

Figure 1: Phases of the security audit.

3.2 Phase Addition Proposal

Static code analysis is done on the code without ex-

ecuting it. The main difference from the programs

used in the other sections (4.2), is that with those pro-

grams the analysis was performed on the live applica-

tion (so-called dynamic analysis), while for this static

analysis only the source code is needed.

Static analysis makes it possible to detect vulnera-

bilities that otherwise would not be easily detected be-

cause the functionality will not be executed and will

need a trigger or because a piece of code is not ex-

posed to users.

This static analysis of code is not usually done in

audits that follow step by step the frameworks, per-

haps because they are more associated with being

run on the Continuous Integration tool pipeline when

code is uploaded to a repository. However, the power

and utility that these analyses provide should not be

underestimated, because on many occasions security

analysis programs miss vulnerabilities that without

analyzing the code would be impossible to detect.

It is assumed that a cybercriminal would not have

access to the source code of an application in any

case, but that would be relying too much on the fact

that such access is impossible to obtain. In fact, cy-

bercriminals can make use of social engineering tech-

niques in order to gain access to source code. It is this

distrust that leads us to improve the source code of

our system, even when it is difﬁcult - not impossible -

for a cybercriminal to gain access.

4 EXECUTION OF THE

SECURITY AUDIT

Each of the proposed phases of the security audit will

be covered in this section, except the social engineer-

ing phase, due to limitations in length.

4.1 Scope

This phase is of the kind “Grey box”.

The ﬁrst phase of a security audit is to deﬁne

the scope. Scope refers to exactly what parts of the

system are to be audited and under what conditions,

not to be confused with the scope of the paper itself,

which is the performance of a security audit and the

proposal of a new phase in the auditing process.

To know what alternatives there are to audit, the

best option is to consult checklists to provide a scope

as complete as possible. One such checklist is the

OWASP ASVS checklist (OWASP, 2019). It provides

steps to follow to investigate a system in depth. Al-

though this list is already quite comprehensive, it is

good practice to consult other lists to make the scope

even more complete. Brieﬂy summarizing,it is as fol-

lows:

• Process abuse and social engineering.

• Application architecture identiﬁcation.

• Evaluate which parts of the system are critical.

• Authentication.

• Authorization.

• Validation of inputs.

• Bugs in application logic.

• Web Server and Framework.

• Context-Dependent Encounters.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

484

Once the alternatives that exist to audit are known,

a meeting with the client to deﬁne the scope needs to

take place. Everything that was going to be audited

was also discussed. The following list reﬂects what is

included in the scope:

• This project’s entire system: Login page, Internal

page, Custom modules, Known vulnerabilities of

Odoo 11.

• Basis security protocols analysis such as SSL and

HTTPS.

• If the following can be obtained or modiﬁed: Con-

ﬁguration of any kind, Directory browsing, .htac-

cess

4.2 Vulnerability Analysis

This phase is of the kind “Black box”.

Vulnerability analysis is one of the most impor-

tant phases to be performed in a security audit. These

vulnerabilities are present in information systems of

all kinds: bugs in application logic, user inputs that

are not properly escaped or sanitized, redirects.... The

list is long. This section explores how vulnerability

scanning can be done, what tools and techniques are

available, and what it is for.

To make vulnerability scanning as complete as

possible, there are numerous guides with lists of vul-

nerabilities to check, both manually and with an au-

tomated tool. One such guide is the OWASP top 10

(OWASP, 2017). However, if a more exhaustive list

is needed, the OWASP ASVS (OWASP, 2019) can be

checked. The OWASP Top 10 has the following as a

summary:

1. Injection: Injection ﬂaws, such as SQL, NoSQL,

OS, and LDAP injection.

2. Broken Authentication: Application functions re-

lated to authentication and session management

are often implemented incorrectly, allowing at-

tackers to compromise passwords, keys, or ses-

sion tokens.

3. Sensitive Data Exposure: Many web applications

and APIs do not properly protect sensitive data,

such as ﬁnancial, healthcare, and PII.

4. XML External Entities (XXE): Many older or

poorly conﬁgured XML processors evaluate ex-

ternal entity references within XML documents.

5. Broken Access Control: Restrictions on what au-

thenticated users are allowed to do are often not

properly enforced.

6. Security Misconﬁguration: Misconﬁguration is

the most commonly seen issue. This is commonly

a result of insecure default conﬁgurations and ver-

bose error messages containing sensitive informa-

tion.

7. Cross-Site Scripting XSS: XSS ﬂaws occur when-

ever an application includes untrusted data in a

new web page without proper validation or escap-

ing.

8. Insecure Deserialization: Insecure deserialization

often leads to remote code execution.

9. Using Components with Known Vulnerabilities:

Components, such as libraries, frameworks, and

other software modules, run with the same privi-

leges as the application.

10. Insufﬁcient Logging & Monitoring: Insufﬁcient

logging and monitoring, coupled with missing or

ineffective integration with incident response, al-

lows attackers to further attack systems and main-

tain persistence

As with other areas of software engineering, the

discovery of these vulnerabilities is not a complete

process. When an application is in the testing phase

and there is no warning in the tool used to test the ap-

plication, it does not mean that it is known with cer-

tainty that the application will not have ﬂaws, but that

the tool does not ﬁnd more and that what has been

tested does not give ﬂaws. It does not mean that there

cannot be others. Usually, these tools use an oracle,

which evaluates based on parameters that are speci-

ﬁed if there are bugs in a part of the code or not. This

is why it is said that the testing phase is not complete.

All the bugs in an application cannot be discovered

and it will never be certain that a piece of software is

free of bugs.

The same is true for security auditing. When us-

ing an auditing application or even auditing manually

without the help of tools, certainty that the system will

not have more vulnerabilities is not a given. The pro-

gram will test for known vulnerabilities and will try

to be as complete as possible, but there may be vul-

nerabilities that it cannot discover, for example, be-

cause they are of the type zero day, vulnerabilities

that have not been published and that the person who

knows about the vulnerability can exploit. This is why

it is so difﬁcult to determine whether an audit is com-

plete or not. The only way to do so is to trust that the

security auditor, with the experience and knowledge

he has, will report as many vulnerabilities as he ﬁnds

and will always try to do as complete an audit job as

possible.

Knowing that a tool cannot discover all of the vul-

nerabilities of a system, the following sections are

presented.

A Practical Experience Applying Security Audit Techniques in an Industrial e-Health System Which Uses an Open Source ERP

485

Vulnerability scanning tools compete in a niche

market that is hotly contested. There are few free pro-

grams, and those that do offer free versions lack many

of the features that are really needed. These licenses

can cost as much as 3600 euros per year, as is the case

with Nessus, or as affordable as 360 euros per year, as

is the case of Burp suite. In fact, the best strategy is

to combine various tools as they often have different

ways of reporting vulnerabilities.

After comparing Nesus, SolarWinds MSP,

OWASP ZAP, Burp Suite and Rapid7 InsightVM,

two of the most widespread tools in the cybersecurity

ﬁeld have been used when scanning for vulnerabili-

ties in a system: OWASP ZAP and Burp Suite. These

two programs are dynamic scanners, i.e. they analyze

the running system and take it as if it were a black

box without seeing its source code, which automate

the vulnerability discovery process.

4.2.1 OWASP ZAP

The conﬁguration of the tools is not a trivial process,

because to give an example, the application to be au-

dited has a login system whose access has to be de-

scribed in the tool.

The tool is conﬁgured by adding to the “scope”

the URL to be audited. With respect to this login,

the tool needs an anti CSRF token, which brieﬂy, is a

token that prevents a user from executing in their web

browser malicious content from the web page where

they are authenticated.

The tool has two scanners. The passive scanner

makes no changes to the web application, i.e. it only

makes GET requests. The passive scanner is also

called spider and collects information from the appli-

cation bit by bit. There is another type of scan: the ac-

tive scan. This scan makes changes to the application,

i.e. it will be able to execute more HTTP commands

besides GET, such as POST, PUT, DELETE.... It is a

much more aggressive scan, since it will try to exploit

as many security ﬂaws as it ﬁnds. It should not be run

on production systems as it will try to crash the sys-

tem. In fact, during the execution of this type of scan,

the URL that was provided to me with the copy of the

production system crashed due to the high number of

requests. If this were to happen on a production sys-

tem, it could be catastrophic.

The tool, after being run for a couple of hours,

ﬁnds as many vulnerabilities as it can and then gen-

erates a report with all vulnerabilities, their severity

and their solution. Perhaps this report is the most im-

portant part of running the tool because it is what the

development team uses to ﬁx the vulnerabilities.

4.2.2 Burp Suite

The conﬁguration of Burp suite is signiﬁcantly sim-

pler than that of ZAP. For login, Burp suite opens a

browser window and copies the clicks and keyboard

inputs and then plays them back. There is only one

type of scan that takes out all the vulnerabilities it

ﬁnds. However, it does not have the HUD, so the se-

curity audit is not as interactive.

As with ZAP, Burp Suite generates a report with

all the vulnerabilities it ﬁnds. Example of this report

can be found in (Burp Suite, 2019).

4.3 Vulnerability Exploitation

This phase is of the kind “Black box”.

This section aims to further investigate vulnera-

bilities that have been discovered in the previous sec-

tions, as well as to consider as false positives some

vulnerabilities that in fact are not. No new tools have

been used to investigate vulnerabilities, except those

already used (OWASP ZAP and Burp suite), because

all tests have been done manually to eliminate false

positives.

The analysis tools give the severity and conﬁdence

of the vulnerability. Their severity indicates how

high a priority they should be given to ﬁx, and the

conﬁdence indicates how certain the vulnerability is

present or if it is a false positive. Both tools produce

tables that indicate the severity of the vulnerability,

and in the case of Burp suite, it also indicates how

conﬁdent Burp suite is regarding a false positive.

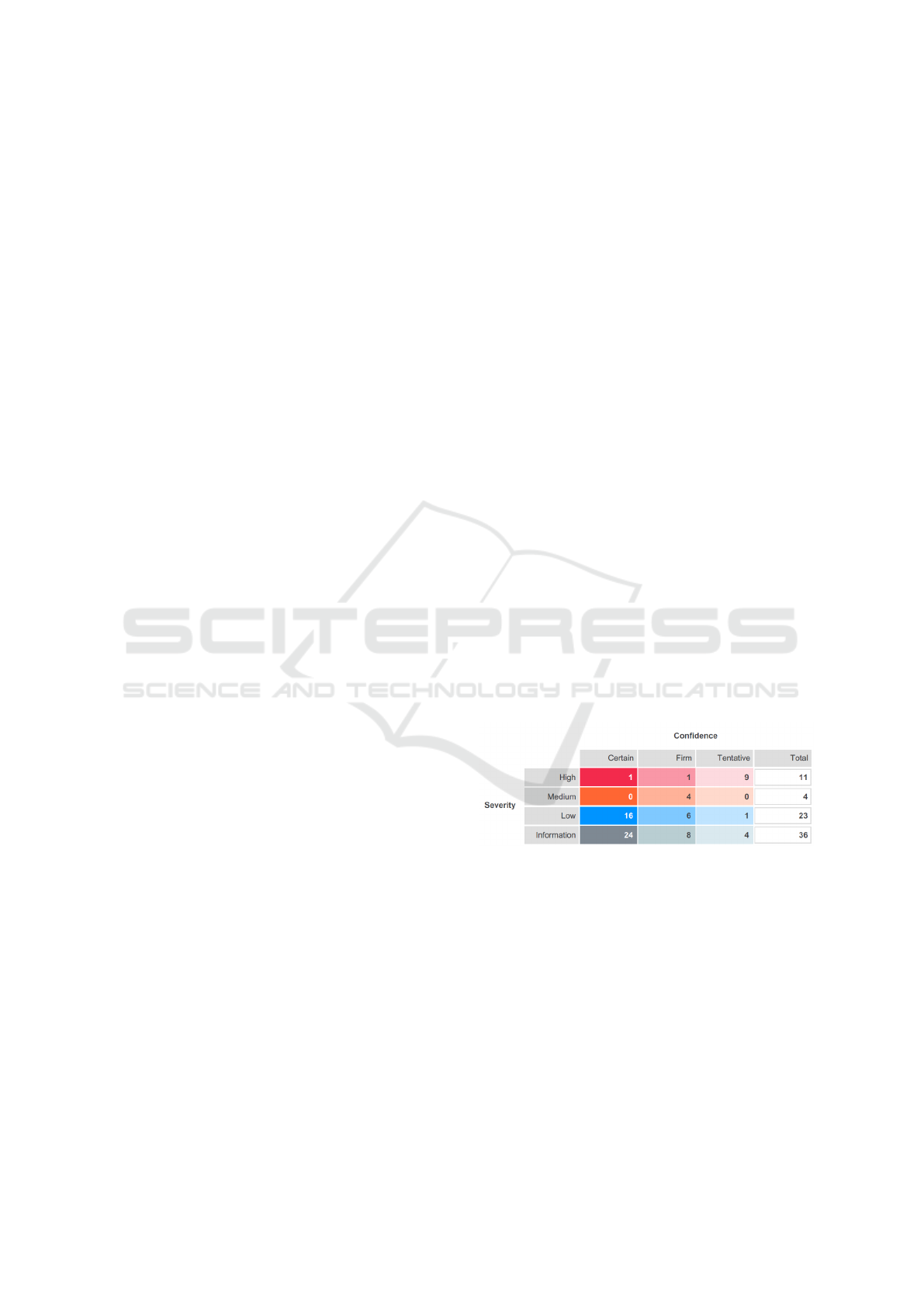

Figure 2: Table generated by Burp Suite.

The OWASP ZAP report has reported 16 alerts,

with a total of 395 instances. Burp suite has reported

74 vulnerabilities and they are represented in the ﬁg-

ure 2. As it can be seen, this table is insightful for the

auditor since it gives the auditor what to audit ﬁrst:

those vulnerabilities with higher risk and conﬁdence.

In total there are more than 450 vulnerabilities to

be investigated. Normally in an enterprise environ-

ment an estimate of how long it would take to inves-

tigate all vulnerabilities is usually given based on the

number found. Due to limitations in length of the pre-

sented work, two of the most critical vulnerabilities

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

486

reported by OWASP ZAP will be further inves-

tigated and other two by Burp suite.

4.3.1 Vulnerability 1: Redirects

This ﬁrst vulnerability is present in two forms: as Ex-

ternal redirect and as XSS Reﬂected. They have high

severity and medium conﬁdence. If we look at the url,

the common path of the two vulnerabilities is.

https://o****n.com/web/session/logout?redirect=

This path itself is very dangerous because it is vul-

nerable to an XSS and redirect attack. An XSS attack

is an attack that relies on an attacker being able to in-

ject Javascript code into a web page. In this case, an

attacker could inject code to steal users’ cookie infor-

mation, for example.

If the URL is further investigated, the logout page

shows a new aspect. There are, in fact, two hidden

ﬁelds: one with an anti CSRF token and another with

the name redirect, which corresponds to the redirect

of the URL marked as vulnerable. It is therefore con-

cluded that the login page also has this vulnerability.

If an attacker wanted to exploit it, he would only have

to put in a URL a redirect parameter as follows:

https://o***n.com/web/login?redirect=https://

github.com/

and a URL to which you would like to redirect.

This way, after the users enter their data, they will be

redirected to github.com (in this example).

To ﬁx this vulnerability, it is recommended that

the development team try to do the login and logout

redirects without relying on hidden ﬁelds in forms,

but instead do it with session cookies or in an internal

way.

4.3.2 Vulnerability 2: DOM XSS

This vulnerability actually has nine instances. They

have high severity and tentative conﬁdence. The ex-

ploitability of these vulnerabilities, if the notes of the

report is looked at, depends on jQuery libraries. These

two vulnerabilities are, in effect, the same and occur

because of the multiple vulnerabilities that are present

in jQuery version 1.11.1. It is recommended that the

company upgrades to the latest version of jQuery and

always keeps its dependencies up to date.

4.3.3 Vulnerability 3: SQL Injection

Path traversals (also called Directory traversals) are

vulnerabilities that allow attackers to break out of the

var/www folder where the web is hosted on the server

and be able to query and modify ﬁles on the server.

This vulnerability has been reported by OWASP ZAP

with eight instances that have high severity and low

conﬁdence.

There is a total of eight declared instances, which

have different URLs. However, in all URLs the pa-

rameter that could be changed to an escape path is the

last one. For example, in the ﬁrst instance, it is:

https://o***n.com/web/dataset/call_kw

/mail.message/load_views

This should change load views to an escape path.

To exploit this vulnerability, escape paths of the

kind ../../../etc/passwd and with encoding such as

..%252f..%252f..%252fetc/passwd were used.

If the server is vulnerable it should return the ﬁle

etc/passwd. However, after testing the escape paths

listed in the snippet above, no way to escape to parent

folders containing other ﬁles has been found, so it is

declared as a false positive.

4.4 Static Analysis

This phase is of the kind “White box”. With this

phase, it is expected to discover new vulnerabilities

not previously discovered. This phase is proposed by

this study. This phase adds completeness to the se-

curity audit, since some vulnerabilities that cannot be

discovered without exploring the source code of a sys-

tem, can be discovered with the use of static analyz-

ers.

This phase consists in performing a static analy-

sis, which consists in analyzing the source code of an

application to discover new vulnerabilities that classi-

cal dynamic analysis tools do not ﬁnd. This extension

enhances the completeness of the audit since new vul-

nerabilities that could not have been found are now

discovered, thus resulting in a more complete audit.

The static code analysis is done on the code with-

out executing it. The main difference from the pro-

grams used in the other sections, is that with those

programs the analysis was done on the live applica-

tion, while for this static analysis only the source code

is needed. Static analysis makes it possible to detect

vulnerabilities that otherwise would not be easily de-

tected because the functionality will not be executed

and will need encouragement or because a piece of

code is not exposed to users.

We believe that this phase is key in the process of

auditing because it discovers new vulnerabilities. A

security audit aims to be as complete and sound as

possible. Static analysis is yet another ﬁeld to make

progress at, because there are few static tools that fo-

cus on security and not performance o type-checking,

for instance.

Code parsers usually have underneath them an

Abstract Syntax Tree (AST). These ASTs represent

A Practical Experience Applying Security Audit Techniques in an Industrial e-Health System Which Uses an Open Source ERP

487

a program hierarchically, whose representation is the

same as the compilers do. They are said to be of ab-

stract syntax because the representation does not de-

pend on the language itself that is being used. Thus,

a function would have the same representation in C,

Java or Python. In ASTs, the inner nodes represent

operators and the last nodes, called leaves, represent

variables. To identify vulnerabilities, static analyz-

ers using this technique traverse the tree looking for

ﬂaws in a function’s logic. One visual representation

of such AST of a simple PHP function can be seen on

Figure 3.

Figure 3: Sample AST of a PHP function.

There are multiple lists that compile the static

tools that are open source. An example of one of the

most complete list is (Analysis-Tools-Dev, 2021). Af-

ter obtaining security tools from the previously com-

mented list, a comparison between the following tools

took place: py ﬁnd injection, Sonarqube, Dlint, At-

tackFlow, pyre and Bandit. The tools selected for the

project were: Banding, Dlint and Sonarqube.

4.4.1 Bandit

Bandit is a tool from PyCQA. According to its own

GitHub description it is “a tool designed to ﬁnd com-

mon security problems in Python code. To do this

Bandit processes each ﬁle, builds an AST from it, and

runs the appropriate plugins against the AST nodes.

Once Bandit has ﬁnished scanning all ﬁles, it gener-

ates a report.” The installation of the tool is very sim-

ple and execution is automatic. As an example, the

following fragment shows a vulnerability discovered

by Bandit.

>> Issue: [B110:try_except_pass] Try, Except,

Pass detected.

Severity: Low Confidence: High

Location: ./src/addons/imedea_andrology

/models/andrology_episode.py:317

More Info: https://bandit.readthedocs.io/en

/latest/plugins/b110_try_except_pass.html

4.4.2 Dlint

Dlint is a static analysis tool of Dlint-py. As with Ban-

dit, its goal is to detect security ﬂaws in Python code.

Its installation and conﬁguration are straightforward.

As an example, the following fragment shows a vul-

nerability discovered by Dlint.

./src/addons/imedea_project/models/cycle_items

/defrosting.py:3:1: DUO107 insecure use of XML

modules, prefer "defusedxml"

./src/addons/imedea_project/models/cycle_items

/embryonic_study.py:3:1: DUO107 insecure use of

XML modules, prefer "defusedxml"

4.4.3 Sonarqube

Sonarqube is a platform that performs static code

analysis. Sonarqube has several versions: the com-

munity version (open source) and the developer, en-

terprise and data center versions (paid). One of the

most useful features of Sonarqube is the generation of

reports. Unfortunately reports can only be generated

natively in the paid versions and in the community

version you have to rely on a plugin developed by the

community (Cnescatlab, 2021). This plugin only sup-

ports up to version 8.2 of Sonarqube, from February

2020, when the latest is 8.9, from June 2021. That is

why Sonarqube has been run twice in total, once with

8.2 to generate the report that will go later in the Ex-

ecutive Report, and another in which it is run without

report. In fact, the two versions report totally differ-

ent vulnerabilities and bugs, so it is useful to run both

versions.

4.5 Executive Report

The Executive Report is a document that is given to

the different departments of a company so that all staff

can understand the work that has been done and the

vulnerabilities in it. For conﬁdentiality reasons, the

report that has been generated for the present project

cannot be publicly released.

This report is the part that a security auditor usu-

ally likes the least because it is based on creating doc-

umentation and not on investigating vulnerabilities.

However, this is perhaps the most crucial part of the

audit. During the previous sections there has not re-

ally been any material produced that would be of any

beneﬁt. The importance of this report is highly em-

phasized.

There are two main readers of this report: senior

management, who are interested in the general high-

level details, and the developers who have to ﬁx the

vulnerabilities through a series of technical steps, as

well as some ideas to ﬁx the vulnerabilities.

5 CONCLUSIONS AND FUTURE

WORK

Companies around the world are undergoing digiti-

zation, which is driving them to use more and more

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

488

healthcare systems. These healthcare systems are not

without security holes, which cybercriminals can ex-

ploit. Hence the need to perform security audits, espe-

cially in the audited system, because being a system in

production in a health institution, the data it contains

are very sensitive. In this project an audit has been

done on a system in production implemented in an in-

dustrial scenario, more precisely in a healthcare sys-

tem currently in production. The system uses Odoo

11 ERP to store their patients data.

This study reviews security audit orchestration

frameworks. After having identiﬁed a gap where

frameworks could be more complete, an extension is

proposed by adding a phase to the auditing process.

This phase consists in performing a static analy-

sis, which consists in analyzing the source code of an

application to discover new vulnerabilities that classi-

cal dynamic analysis tools do not ﬁnd. This extension

enhances the completeness of the audit since new vul-

nerabilities that could not have been found are now

discovered, thus resulting in a more complete audit.

Besides the addition of the new phase, the study

shows how a real security audit on a live, industrial

healthcare system is performed. More precisely, ﬁrst,

in the section of the scope, it is stated what can be au-

dited. In the section of the analysis (4.2) tools are exe-

cuted that identify computer vulnerabilities and in the

section of the exploitation (4.3) it is tried to deepen

in the most critical vulnerabilities. Another analysis

is done in the static analysis section (4.4). This time,

the tools are run only on the custom code of the mod-

ules. Finally, all the knowledge generated is collected

in the Executive Report (4.5).

In light of the results, it can be concluded that

critical and highly conﬁdential systems, it should be

subject of periodic security audits, in order to protect

such conﬁdentiality. In addition to that fact, the new

proposed phase succeeds in discovering vulnerabil-

ities that classic dynamic analysis tools cannot dis-

cover.

Future work might be oriented in various direc-

tions according to the examined perspectives and

identiﬁed gaps, such as the social engineering one. A

social engineering audit, which explores the human

factor of a system, may be as important as a technical

audit of the system, since there is no point in having a

technically fortiﬁed system if employees later reveal

sensitive information. The work could be expanded

in regard to the phase of testing the source code by,

for instance, giving speciﬁc step to achieve the de-

sired completeness of testing the source code. The

methods and comparison of different tools can also be

expanded. Due to time and length constraints, more

experimental results are needed.

Finally, it could be also investigated the option of

including artiﬁcial intelligence to improve the analy-

sis and perhaps the tools that use artiﬁcial intelligence

can ﬁnd vulnerabilities that others cannot.

ACKNOWLEDGMENTS

This work has been partially supported by the NICO

project (PID2019-105455GB-C31) of the Spanish the

Ministry of Science, Economy and University and

NDT4.0 (US-1251532) of the Andalusian Regional

Ministry of Economy and Knowledge.

REFERENCES

Analysis-Tools-Dev (2021). github.com/analysis-tools-

dev/static-analysis. github. Online; Accessed on June

2021.

Burp Suite (2019). Burp suite scanner sample report.

https://portswigger.net/burp

/samplereport/burpscannersamplereport. Online; Ac-

cessed on July 2021.

Cnescatlab (2021). cnescatlab/sonar-cnes-report. github.

https://github.com/cnescatlab/sonar-cnes-report. On-

line; Accessed on June 2021.

Gkoutzamanis, D. (2020). Five penetration test-

ing frameworks and methodologies. cisotimes.

https://cisotimes.com/ﬁve-top-penetration-testing-

frameworks-and-methodologies/. Online; Accessed

on March 2021.

ISACA (2021). State of cybersecurity 2021.

https://www.isaca.org/go/state-of-cybersecurity-

2021. Online; Accessed on June 2021.

ISO (2012). Information technology — security

techniques — guidelines for cybersecurity.

https://www.iso.org/standard/44375.html. Online;

Accessed on June 2021.

OWASP (2017). Owasp top ten. https://owasp.org/www-

project-top-ten/. Online; Accessed on June 2021.

OWASP (2019). Owasp application security veriﬁca-

tion standard. owasp. https://owasp.org/www-project-

application-security-veriﬁcation-standard/. Online;

Accessed on June 2021.

A Practical Experience Applying Security Audit Techniques in an Industrial e-Health System Which Uses an Open Source ERP

489
