Experimental Evaluation of the Message Formats’ Impact for

Communication in Multi-party Edge Computing Applications

Tarciso Braz de Oliveira Filho

1 a

, Dalton C

ezane Gomes Valadares

1,2 b

, Thiago Fonseca Meneses

Adauto Ferreira de Barros

, Aramis Sales Araujo

and Danilo F. S. Santos

Federal University of Campina Grande, VIRTUS - Research, Development and Innovation Center,

Campina Grande, PB, Brazil

Federal Institute of Pernambuco, Caruaru, PE, Brazil

Keywords:

Message Formats, Edge Computing, Video Inference Applications.

Abstract:

The increasing integration of 5G, multi-access edge computing (MEC), and microservices, beneﬁts the de-

velopment of applications that demand low coupling, low communication latency, high scalability, and high

availability. An usual scenario that deals with such requirements is a video application, either to process in-

ference on video images or process video analytics. Given that video data are considered heavy to process

and transmit, we should investigate the best way to handle such data. This work presents an experimental

setup for the comparison between four data formats used to send video frames among distributed application

components in a MEC server. We measured and analyzed the communication latency when sending video

data between distributed parties, considering three scenarios.

1 INTRODUCTION

Currently, we have a trend of deploying the dis-

tributed systems’ architectures among different mi-

croservices. Microservices are services with speciﬁc

purposes, developed and deployed independently, al-

lowing an easier provision and management of sys-

tems that require high concurrency, high availabil-

ity, high scalability, and low coupling (Liu et al.,

2020). Many application providers deploy their mi-

croservices in cloud servers, but the deployment pos-

sibilities are growing with the increasing adoption of

fog and edge computing (Zou et al., 2019; Sunyaev,

2020). Besides, related to the edge computing con-

cept, there is still the multi-access edge computing

(MEC, previously called mobile edge computing) (Fi-

lali et al., 2020), which enables the cloud/edge bene-

ﬁts for telecommunication operators. Thus, with the

adoption of the 5G and its enabling technologies (e.g.,

network function virtualization and network slices),

the application providers begin to deploy their mi-

croservices also at MEC servers.

The power of 5G, MEC, and microservices in-

tegration becomes an enabler to the many applica-

https://orcid.org/0000-0001-8620-3877

https://orcid.org/0000-0003-1709-0404

tions that demand video processing with strict re-

quirements, such as low communication latency and

high video quality. For instance, a process that can

beneﬁt from this integration is automatic video tag-

ging, which assigns meaningful human-friendly in-

formation to video frames (Arca et al., 2020). An-

other application that beneﬁts from those technolo-

gies is video inferencing, such as a monitoring system

that performs pedestrian recognition (Xu et al., 2020).

Given the vast possibility of different applications,

developers can use many possible technologies and

tools for developing and integrating such applications.

Although the distributed systems can interoperate in

diverse ways, a concern arises when efﬁcient commu-

nication is required: what is the most suitable data

format to send video data (frames) among distributed

components?

We decided to answer that question as a project

decision once we are developing a platform to help

in the deployment process of artiﬁcial intelligence

applications in MEC servers. As a proof of con-

cept, we have implemented a video inference appli-

cation to work as one of the possible use cases. Dur-

ing the development, we faced some communication

problems when transmitting and processing the video

frames. For this reason, we created a testbed to eval-

uate the communication between distributed compo-

534

Filho, T., Valadares, D., Meneses, T., Ferreira de Barros, A., Araujo, A. and Santos, D.

Experimental Evaluation of the Message Formats’ Impact for Communication in Multi-party Edge Computing Applications.

DOI: 10.5220/0010717700003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 534-543

ISBN: 978-989-758-536-4; ISSN: 2184-3252

nents of the video inference application, deploying

them in the MEC server. We performed experiments

to measure the communication latency when consid-

ering different scenarios and data formats to send the

video frames.

To guide the investigation to answer the research

questions, we deﬁned the business and technical prob-

lems as follow:

• Business problem: Investigate means of transmit-

ting and receiving video data efﬁciently among

distributed components in a MEC server;

• Technical problems:

– Implement a testbed considering the communi-

cation of video data among distributed compo-

nents using different data formats;

– Measure and compare the communication la-

tency among the distributed components con-

sidering distinct scenarios and data formats.

The main contributions of this paper are:

• a framework to evaluate communication be-

tween distributed components, considering differ-

ent message formats. This framework can help

when other formats and scenarios need evaluation,

or other metrics are necessary, allowing the devel-

opers to benchmark the interested metrics;

• a framework’s implementation, considering a dis-

tributed video inference application and different

deployments in a MEC server;

• a comparison of four message formats for ex-

changing JPEG-compressed images between the

components of a distributed video inference appli-

cation. For this comparison, the experiments con-

sidered the following formats: byte array, base64-

encoded byte array, base64-encoded string, and

JSON-encapsulated base64-encoded string;

The remainder of this paper follows this structure:

Section 2 presents the background, which brieﬂy de-

scribes the gRPC technology and usual message for-

mats generally used to exchange data among different

applications; Section 3 presents some works related

to the content of this paper; Section 4 describes the

methodological design deﬁned to guide the execution

of the experiments; Section 5 exhibits and discuss the

obtained results; and Section 6 ﬁnally concludes this

paper, presenting a summary and suggesting future

work.

2 BACKGROUND

2.1 Multi-access Edge Computing

Multi-access edge computing (MEC) refers to appli-

cations that enable the provision of telecommunica-

tions and IT services, resources such as storage and

computing, whose beneﬁts range from low latency

to optimized use in the mobile backhaul of network

operators, providing cloud computing beneﬁts at the

edge of the RAN (Radio Access Network) (Taleb

et al., 2017).

The use of 5G technology will bring an unimag-

inable increase in trafﬁc volume of networks and

computing demands, due to the emergence of new

compute-intensive applications and the Internet of

Things (IoT). According to Pam et al. (Pham et al.,

2020) how to perform intensive computing on end-

users, those with limited devices, has recently become

a natural concern. Thus, MEC emerges as a key tech-

nology in the emerging ﬁfth-generation (5G) network,

hosting computationally intensive applications, pro-

cessing large volumes of data close to users, which

will enable applications such as driverless vehicles,

VR/AR, robotics, and immersive media. Despite this,

the use of the MEC is still in its infancy and requires a

constant effort from the academic and industrial com-

munities (Pham et al., 2020).

2.2 Video Analytics

Video analysis is a subset of computer vision and

of artiﬁcial intelligence that analyze images from a

camera to recognize humans, vehicles, objects, and

events. It has advancement, but they have come at the

computing and network cost. Low-latency video an-

alytic is becoming increasingly important in security

and smart city scenarios (Yi et al., 2017).

According to Pasandi (Pasandi and Nadeem,

2020) more and more organizations are using video

analytics, deploying hundreds of cameras for various

types of applications, from monitoring industrial or

agricultural sites to retail.

As Zhang et al. (Zhang et al., 2017), it is neces-

sary to develop efﬁcient components to use the data

power offered by the cameras. The use of edge com-

puting, where thousands of devices will be connected

and streaming video, brings the challenge of reduc-

ing bandwidth and response time. The solution for

large-scale real-time video analytic currently uses dis-

tributed architectures using public cloud, but with

trade-offs in quality, delay and reconﬁguration (Anan-

thanarayanan et al., 2017).

Experimental Evaluation of the Message Formats’ Impact for Communication in Multi-party Edge Computing Applications

535

2.3 GRPC

GRPC

is a open-source Remote Procedure Call

(RPC) framework that aims to connect applications

with a fast and sleek communication independent of

running environment. Bringing scalability and a sim-

ple service deﬁnition with bi-directional streaming for

a server-client structure.

For communication purposes, gRPC allows differ-

ent parts of the system to exchange data that is es-

sential for the application to function. With gRPC, a

component is able to delegate the processing of part

of its ﬂow to a specialized module that integrates the

system, creating a distributed network of processes.

In this sense, it is necessary that the communication

is well deﬁned and structured, allowing both parties

to be aware of what will be necessary for implementa-

tion and what is the expected result of this process. To

achieve this, an Interface Deﬁnition Language (IDL)

is used, which will deﬁne what can be accessed by the

client module, what must be consumed by the server

module and, ﬁnally, what will be delivered at the end

of the execution of the process.

Normally, gRPC makes use of Protocol Buffer, an

IDL that performs the serialization and structuring of

transported data. This ensures that the service has

a well-deﬁned interface and enables communication

in a language-agnostic and platform-neutral way (In-

drasiri and Kuruppu, 2020). With this deﬁnition, the

server and client code are generated, making it eas-

ier for the developer to identify how the communi-

cation between the different platforms will be carried

out (Ara

ujo et al., 2020). Both generated codes work

similarly to a local call and gRPC handles the com-

plexity needed to carry out this communication.

In the context of Edge Computing, gRPC becomes

an interesting solution, providing an efﬁcient archi-

tecture with low resource use of the embedded sys-

tems involved, as evaluated by Ara

ujo et al. (Ara

ujo

et al., 2020). Therefore, with the need for commu-

nication between different application modules, the

choice for gRPC has become a trend in the devel-

opment of distributed technologies (Indrasiri and Ku-

ruppu, 2020).

3 RELATED WORK

Although we have not found works comparing data

formats, we can see works highlighting speciﬁc for-

mats, whether exploring their capabilities or propos-

ing improvements. For instance, Taktek et al. (Taktek

https://grpc.io

et al., 2018) compare two schemes for labeling oper-

ation in native XML databases. For the comparison,

the authors employed UTF-8, UTF-16, and UTF-23

for the encoding and decoding processes. Psaila et

al. (Psaila. et al., 2020) presented a model to handle

GeoJSON documents.

Proos et al. compared three messaging protocols

considering a scenario of Internet of Vehicles and two

serialization formats (Protobuf and Flatbuffers). Re-

garding the serialization formats, they concluded that

Protobuf, which is used by gRPC, has a faster serial-

ization speed and smaller serialized message size.

With the use of MEC, the academic community

and industry seek to solve problems with workloads

and application response time at the edge. Randazzo

and Tinnirello (Randazzo and Tinnirello, 2019) pro-

pose that a standardized architecture must be designed

to perform the migration of services to the MEC in a

safe and timely manner. He assesses that the ﬁnal so-

lution can be architecture with the advantages of us-

ing VM, in terms of security, and containers related to

performance in the data processing.

According to Sawant (Sawant, 2019), the expo-

nential increase in data volume is characterized by

heterogeneous formats and disparate data sources. As

a result, the task of transmitting uniform data to anal-

ysis systems becomes complex, increasing the com-

plexity of current systems.

4 EXPERIMENTAL DESIGN

The experiments were run in different scenarios, vary-

ing the pipeline architecture and the image data for-

mat exchanged between client and server. Several

time measurements were performed to describe the

latency of each step of the pipeline, being able to per-

form a deeper analysis. The scenarios are described

in detail below.

4.1 Architectural Designs

There are three basic components comprising the ex-

periment architecture:

• the RTSP Video Stream, which combines a ffm-

peg

video stream and a Real-Time Streaming

Protocol - RTSP(Rao et al., 1998) server

• the gRPC-MLInference Client, which queries the

server with images to perform inference on, com-

posed of:

http://ffmpeg.org/

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

536

MEC VM (4 vCPUs - 8GB RAM - No GPU)

gRPC

Client

gRPC ML-Inference

Server

RTSP

Video Stream

MEC VM 1 (4 vCPUs - 8GB RAM - No GPU) MEC VM 2 (4 vCPUs - 8GB RAM - No GPU)

gRPC

Client

gRPC ML-Inference

Server

RTSP

Video Stream

MEC Network

MEC Host Machine

External VM (4 vCPUs - 8GB RAM - No GPU) MEC VM (4 vCPUs - 8GB RAM - No GPU)

gRPC

Client

gRPC ML-Inference

Server

RTSP

Video Stream

MEC Network

a) Single-VM

b) Multi-VM

c) Remote MEC

Figure 1: Experiment Architectural Designs: a) Single-VM,

b) Multi-VM, c) Remote MEC.

– VideoHUB, responsible for retrieving video

frames from the RTSP stream and preparing

them for inference

– DemoApp, responsible for receiving and dis-

playing the inference results

• the gRPC-MLInference Server, which receives

frames and performs Object Detection inference

on them using an OpenVINO-optimized

SSD

MobileNET ML model (Sandler et al., 2018).

The scenarios were executed in a Nokia Airframe

server powered by the Intel

 Xeon

 processor E5-

2600 v3 family with up to 14 cores per socket. We

used Openstack as an IaaS platform, provisioning at

all four virtual machines each with 4 vCPU and 8GB

of RAM in a MEC server and one external virtual ma-

chine with 4 vCPU and 8GB of RAM.

4.1.1 MEC Single-VM

The Single-VM architectural design consists of the

deployment of both gRPC-MLInference client and

server on the same machine. In this experiment, we

used a MEC infrastructure, deploying the components

on a single MEC virtual machine, as depicted in Fig-

ure 1-a.

https://docs.openvinotoolkit.org/

Figure 2: Experiment Input Video Screenshot.

4.1.2 MEC Multi-VM

The Multi-VM architectural design consists of the de-

ployment of gRPC-MLInference client and server on

different machines within MEC. In this case, com-

ponents were deployed on separate MEC virtual ma-

chines, as can be seen in Figure 1-b.

4.1.3 Remote MEC

The Remote MEC architectural design consists of the

deployment of the gRPC-MLInference server on a

MEC machine, and the client on an external machine

within the same network (see Figure 1-c).

4.2 Data Formats

The second factor of variation in the experiment is the

format of the data exchanged between the client and

server through gRPC. The hypothesis is that the data

format and its inherent attributes affect the transmis-

sion speed and, therefore, the latency. The video used

as input for the experiment had a FULL-HD Resolu-

tion (1080p) encoded in H.264 portraying a car trip in

the city of S

ao Paulo, Brazil, as depicted in Figure 2.

To access the baseline transmission time measure-

ments for the chosen protocol in this experiment, a

base message consisted of a single Boolean value. As

for the transmission of video frames, a JPEG encod-

ing was chosen, paired with Base64 encoding combi-

nations as shown below.

• JPEG-compressed image

– JPEG image byte array

– Base64-encoded JPEG image byte array

– Base64-encoded JPEG image string

– JSON-encapsulated Base64-encoded JPEG im-

age string

These particular combinations have been chosen

for their popularity in web applications and to intro-

duce a variation in data size and encoding/decoding

complexity.

Experimental Evaluation of the Message Formats’ Impact for Communication in Multi-party Edge Computing Applications

537

4.3 Latency Measurements

As a means to perform an effective evaluation of the

performance of the Inference Pipeline with respect to

time, we deﬁne a set of latency measurements, col-

lected for each combination of the experiment vari-

ables. Each measurement is described in detail below.

Their time unit is milliseconds (ms).

• Client Frame Handling - time taken for pre-

processing of the original frame and post-

processing of the inference frame on the client

• Server Frame Handling - time taken for pre-

processing of the original frame and post-

processing of the inference frame on the server

• Round Transmission Time (RTT) - time taken for

the original frame to go from the client to the

server and for the inferred frame to go from the

server to the client

• Inference Time - time taken for the server to per-

form inference on the original frame

4.4 Aggregation Functions Applied

In order to have a consistent evaluation, the frame in-

ference pipeline is run 1000 rounds for each experi-

mental setup variables (architecture and data format)

combination, collecting the values for each latency

measurement. Finally, the values were averaged us-

ing the aggregation functions described below.

• Median - characterizes the average value of each

latency measurement

• Standard Deviation - characterizes the variance

observed in the values of each latency measure-

ment

5 RESULTS AND DISCUSSION

5.1 Average Latency Measurements

Observed

Initially, we analyze the average (median) latency

measurements for each experimental design scenario,

as described in the previous section.

5.1.1 MEC Single-VM

The median values of each latency measurement ob-

tained from the experiment round on the MEC Single-

VM architecture can be seen in Table 1. By analyzing

them, we notice that:

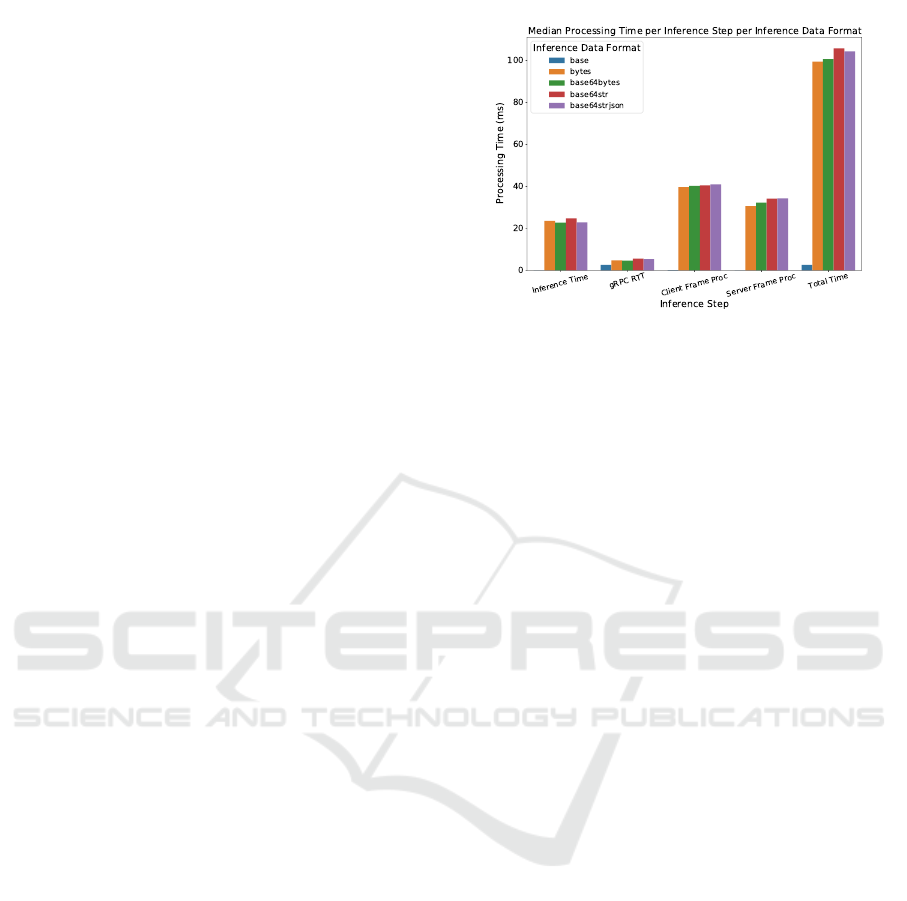

Figure 3: MEC Single-VM Median Latency Measurements

per Inference Data Format.

• gRPC Round Transmission Time is around 2.5 ms

for the base message and increases to 5.5 ms in the

slowest setting (Base64-encoded string frame for-

mat). As the architectural design in Single-VM,

this is the time the message takes to hit the net-

work card and fall back to the server process port.

• Client frame processing time is around 40 ms and

Server frame processing time is between 30 ms

and 34 ms. These steps dominate the latency, sig-

naling there might be some improvement by in-

vesting in data formats which simplify frame en-

coding and decoding.

• Inference Time ranges between 22 ms and 25

ms (in an 8GB-RAM/4-vCPU virtual machine),

keeping in mind that both client and server are us-

ing the same computing and memory resources.

• Total Time stays between 99 ms and 105 ms, pro-

viding an output video of around 10 fps.

A visual comparison of the latency measurements

observed on the MEC Single-VM architecture for the

different data formats can be seen in Figure 3. By

examining it, we conclude that:

• Although the difference observed in latency

among the data formats is not large, the bytes

data format presents the overall lowest latency

measurements among the experimented data for-

mats, contributing to the hypothesis that raw for-

mats promote better performance due to the lack

of pre/post-processing.

• Overall, the different data formats behave very

similarly in terms of latency for each inference

pipeline step.

5.1.2 MEC Multi-VM

The median values of each latency measurement ob-

tained from the experiment round on the MEC Multi-

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

538

Table 1: MEC Single-VM Median Latency Measurements.

Data Format Client Frame Proc gRPC RTT Inference Time Server Frame Proc Total Time

base 0.02 2.55 0.0 0.01 2.58

base64bytes 40.21 4.64 22.68 32.18 100.67

base64str 40.45 5.5 24.76 34.11 105.73

base64strjson 40.89 5.29 22.87 34.31 104.32

bytes 39.59 4.66 23.54 30.6 99.42

Table 2: MEC Multi-VM Median Latency Measurements.

Data Format Client Frame Proc gRPC RTT Inference Time Server Frame Proc Total Time

base 0.18 3.18 0.0 0.0 3.19

base64bytes 4.66 769.24 2.76 3.39 769.48

base64str 4.31 769.14 3.25 3.05 769.54

base64strjson 4.7 940.51 3.7 3.5 940.41

bytes 4.24 545.28 4.16 3.46 544.9

Figure 4: MEC Multi-VM Median Latency Measurements

per Inference Data Format.

VM architecture can be seen in Table 2. By analyzing

them, we notice that:

• gRPC Round Transmission Time does not in-

crease much when moving from a single-vm to

a multi-vm architecture, reaching at most 6.8 ms

on the slowest data format (Base64 String JSON),

which indicates the communication between VMs

within the same host is very efﬁcient, not causing

signiﬁcant impact on the inference pipeline per-

formance.

• Client and Server frame processing time presents

a very similar range as the one observed in the

Single-VM architecture.

• Inference Time is lower when compared to the

Single-VM architecture, taking between 15 ms

and 16 ms (reduction of 7-9 ms). This might be

due to the separation of client and server in dif-

ferent environments, not sharing resources, leav-

ing more resources for the inference (in an 8GB-

RAM/4-vCPU virtual machine).

• Total Time decreases as well, pulled by the lower

inference time, providing an output video with a

bit more than 10 fps.

A visual comparison of the latency measurements

observed on the MEC Multi-VM architecture for the

different data formats can be seen in Figure 4. By

examining it, we conclude that:

• Following the trend of the Single-VM Architec-

ture, the difference observed in latency among the

data formats is not large, but the bytes data format

presents the overall lowest latency measurements

among the experimented data formats.

• Again, the different data formats behave very

similarly in terms of latency for each inference

pipeline step.

5.1.3 Remote MEC

The median values of each latency measurement ob-

tained from the experiment round on the Remote

MEC architecture can be seen in Table 3. By ana-

lyzing them, we notice that:

• gRPC Round Transmission Time increases drasti-

cally (around 5 times) from the values observed in

the previous rounds, reaching up to 23 ms on the

slowest data format (Base64 String JSON), which

indicates the communication between VMs in dif-

ferent hosts and, thus, subject to network trafﬁc

Experimental Evaluation of the Message Formats’ Impact for Communication in Multi-party Edge Computing Applications

539

Table 3: Remote MEC Median Latency Measurements.

Data Format Client Frame Proc gRPC RTT Inference Time Server Frame Proc Total Time

base 0.02 3.83 0.0 0.0 3.86

base64bytes 31.53 21.4 16.63 29.68 102.42

base64str 31.69 22.84 16.75 31.01 105.54

base64strjson 32.35 23.39 16.81 31.58 107.79

bytes 30.75 19.67 17.23 28.23 101.39

Figure 5: Remote MEC Median Latency Measurements per

Inference Data Format.

and anomalies decreases inference pipeline per-

formance.

• Server frame processing time presents a very sim-

ilar range as the one observed in the Single and

Multi-VM architecture. Client frame processing,

in turn, is lower, probably due to the fact that

client VM host has robust computing specs.

• Inference Time is very similar to the observed

in Multi-VM architecture, contributing to the hy-

pothesis that due to the separation of client and

server in different environments, not sharing re-

sources, there are more resources for the inference

in the server VM.

• Total Time increases, pulled by the higher gRPC

Round Transmission Time, providing an output

video with a bit less than 10 fps.

A visual comparison of the latency measurements

observed on the MEC Multi-VM architecture for the

different data formats can be seen in Figure 5. By

examining it, we conclude that:

• Following the trend of both previous architec-

tures, the difference observed in latency among

the data formats is not large, but the bytes data

format presents the overall lowest latency mea-

surements among the experimented data formats.

• Once more, the different data formats behave very

similarly in terms of latency for each inference

pipeline step.

5.1.4 Discussion

Analyzing the results obtained for the different sce-

narios, we can conclude:

• gRPC behaves well in a controlled network envi-

ronment, but is dramatically affected by network

trafﬁc.

• gRPC communication performance is not signif-

icantly decreased if pipeline components are in

separated VMs in the same host (MEC host in this

case).

• Inference time beneﬁts from a robust or lightly-

loaded infrastructure.

• In all evaluated scenarios, the client and server

frame processing time dominated the latency, in-

dicating there might be some room from improve-

ment on these steps of the pipeline.

• In all evaluated scenarios, the raw bytes data for-

mat presents slightly better performance than the

others.

5.2 Variability Observed in Latency

Measurements

Finally, we analyze the latency measurements for

each experimental design scenario, as described in the

previous section.

5.2.1 MEC Single-VM

Each latency measurement obtained from the experi-

ment round on the MEC Single-VM architecture can

be seen in Table 4. By analyzing them, we notice

that all latency measurements in all formats are rea-

sonably low, which indicates this scenario provides

high stability to the pipeline performance.

A visual comparison of the latency measurements

on the MEC Single-VM architecture for the different

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

540

Table 4: MEC Single-VM Latency Measurements (in ms).

Data Format Client Frame Proc gRPC RTT Inference Time Server Frame Proc Total Time

base 0.01 1.91 0.0 0.0 1.91

base64bytes 4.94 2.2 6.37 4.5 11.5

base64str 4.3 3.26 6.24 3.74 10.36

base64strjson 4.33 2.83 6.54 4.24 11.72

bytes 4.25 2.65 6.01 3.79 10.1

Figure 6: MEC Single-VM Latency Measurements per In-

ference Data Format.

data formats can be seen in Figure 6. By examining

it, we conclude that the difference observed in latency

among the data formats is not large, but the bytes data

format presents the overall lowest latency measure-

ments among the experimented data formats. In ad-

dition, the different data formats behave very simi-

larly in terms of latency variability for each inference

pipeline step.

5.2.2 MEC Multi-VM

The latency measurements obtained from the experi-

ment round on the MEC Multi-VM architecture can

be seen in Table 5. By analyzing them, we notice

that all latency measurements are reasonably low, ex-

cept for the gRPC Round Transmission Time, which

ranges from 545 ms (raw bytes format) to 940 ms

(Base64 String JSON format), indicating some vari-

ability (instability) in the pipeline performance for

this scenario which cannot be seen in the chosen av-

erage latency metric.

A visual comparison of the latency measurements

on the MEC Multi-VM architecture for the different

data formats can be seen in Figure 7. By examining

it, we conclude that:

• The gRPC Round Transmission Time dominates

the total latency of the pipeline measurements.

Figure 7: MEC Multi-VM Latency Measurements per In-

ference Data Format.

Figure 8: Remote MEC Latency Measurements per Infer-

ence Data Format.

• The bytes data format presents the overall lowest

latency measurements among the experimented

data formats.

• The different data formats behave very similarly

in terms of latency variability for each inference

pipeline step.

5.2.3 Remote MEC

Each latency measurement obtained from the experi-

ment round on the Remote MEC architecture can be

seen in Table 6. By analyzing them, we notice that

once more the latency of the gRPC Round Transmis-

Experimental Evaluation of the Message Formats’ Impact for Communication in Multi-party Edge Computing Applications

541

Table 5: MEC Multi-VM Latency Measurements (in ms).

Data Format Client Frame Proc gRPC RTT Inference Time Server Frame Proc Total Time

base 0.18 3.18 0.0 0.0 3.19

base64bytes 4.66 769.24 2.76 3.39 769.48

base64str 4.31 769.14 3.25 3.05 769.54

base64strjson 4.7 940.51 3.7 3.5 940.41

bytes 4.24 545.28 4.16 3.46 544.9

Table 6: Remote MEC Latency Measurements (in ms).

Data Format Client Frame Proc gRPC RTT Inference Time Server Frame Proc Total Time

base 0.02 1.26 0.0 0.0 1.26

base64bytes 6.31 3634.34 2.81 3.72 3634.58

base64str 12.0 3875.19 3.22 3.45 3876.23

base64strjson 7.82 3403.95 3.89 3.33 3404.0

bytes 8.2 4403.59 3.33 3.32 4404.22

sion Time pops up, this time even higher than in the

Multi-VM architecture, now ranging from 3400 ms

(Base64 String JSON format) to 4403 ms (raw bytes

format), indicating high variability (instability) in the

pipeline performance for this scenario which cannot

be seen in the chosen average latency metric.

A visual comparison of the latency measurements

on the Remote MEC architecture for the different data

formats can be seen in Figure 8. By examining it, we

conclude that:

• The gRPC Round Transmission Time dominates

the total latency of the pipeline measurements.

• Surprisingly, the Base64 String JSON format

presents the overall lowest latency measurements

among the experimented data formats, with the

raw bytes format presenting the highest latency

values.

• The different data formats behave very similarly

in terms of latency variability for each inference

pipeline step.

5.2.4 Discussion

Analyzing the results obtained for the latency metric

in the different scenarios, we can conclude:

• gRPC is very stable when not using network, but

can become dramatically unstable when subject to

network trafﬁc (even in the same host).

• Except for gRPC Round Transmission Time,

all latency measurements present reasonably low

variability (high stability) for all evaluated scenar-

ios.

6 CONCLUSION

Motivated by a project decision when developing a

video application, which should be deployed in a

MEC server, we decided to analyze different data

formats to transmit video frames. Thus, we imple-

mented a testbed in the MEC server, considering three

different scenarios for the distributed components of

the application. For each scenario, we performed

experiments considering the communication among

the components when transmitting video frames. For

each communication cycle, we measured the latency.

The experiments considered four data formats for the

video frames: bytes, base64 bytes, base64 string,

and base64 string JSON. We also measured the com-

munication latency during the gRPC use. The re-

sults demonstrate that all the formats present similar

latency measurements with a slight vantage for the

bytes format in two of the three scenarios. We can

also conclude that gRPC is very stable for scenarios

without network trafﬁc.

As future work, we suggest:

• Run the experiments varying the scenarios (e.g.,

using another deployment variations for the com-

ponents and other data formats);

• Investigate ways to make the pre and post-

processing of video frames (encoding/decoding)

more efﬁcient once this is the operation dominat-

ing the communication latency:

• Understand what makes gRPC unstable when

subject to the network trafﬁc (even inside the same

host);

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

542

• Perform experiments running the components in-

side VMs with more CPU and RAM to analyze

the impact in the frame processing and inference

process.

ACKNOWLEDGEMENTS

We thank the Center of Research, Development, and

Innovation for Information, Communication, and Au-

tomation Technologies - VIRTUS/UFCG for support-

ing this work’s development. This work was partially

ﬁnanced by the 3rd RDI Agreement between SOF-

TEX and UFCG - Project Edge Framework.

REFERENCES

Ananthanarayanan, G., Bahl, P., Bod

ık, P., Chintalapudi,

K., Philipose, M., Ravindranath, L., and Sinha, S.

(2017). Real-time video analytics: The killer app for

edge computing. Computer, 50(10):58–67.

Ara

ujo, M., Maia, M. E. F., Rego, P. A. L., and De Souza,

J. N. (2020). Performance analysis of computational

ofﬂoading on embedded platforms using the gRPC

framework. In Mena, F. M., Yucatan, U. A. D., Mex-

ico, Duarte, E., of Parana, F. U., and Brazil, editors,

8th International Workshop on ADVANCEs in ICT In-

frastructures and Services (ADVANCE 2020), pages

1–8, Canc

un, Mexico. Candy E. Sansores, Universi-

dad del Caribe, Mexico, Nazim Agoulmine, IBISC

Lab, University of Evry - Paris-Saclay University.

Arca, A., Carta, S., Giuliani, A., Stanciu, M., and Recupero,

D. (2020). Automated tag enrichment by semantically

related trends. In Marchiori, M., Mayo, F., and Filipe,

J., editors, WEBIST 2020 - Proceedings of the 16th

International Conference on Web Information Systems

and Technologies, pages 183–193. SciTePress.

Filali, A., Abouaomar, A., Cherkaoui, S., Kobbane, A., and

Guizani, M. (2020). Multi-access edge computing: A

survey. IEEE Access, 8:197017–197046.

Indrasiri, K. and Kuruppu, D. (2020). gRPC: up and run-

ning: building cloud native applications with Go and

Java for Docker and Kubernetes. O’Reilly Media.

Liu, G., Huang, B., Liang, Z., Qin, M., Zhou, H., and Li, Z.

(2020). Microservices: architecture, container, and

challenges. In 2020 IEEE 20th International Con-

ference on Software Quality, Reliability and Security

Companion (QRS-C), pages 629–635.

Pasandi, H. B. and Nadeem, T. (2020). Convince: Col-

laborative cross-camera video analytics at the edge.

In 2020 IEEE International Conference on Pervasive

Computing and Communications Workshops (PerCom

Workshops), pages 1–5.

Pham, Q.-V., Fang, F., Ha, V. N., Piran, M. J., Le, M., Le,

L. B., Hwang, W.-J., and Ding, Z. (2020). A survey of

multi-access edge computing in 5g and beyond: Fun-

damentals, technology integration, and state-of-the-

art. IEEE Access, 8:116974–117017.

Psaila., G., Marrara., S., and Fosci., P. (2020). Soft query-

ing geojson documents within the j-co framework.

In Proceedings of the 16th International Conference

on Web Information Systems and Technologies - WE-

BIST,, pages 253–265. INSTICC, SciTePress.

Randazzo, A. and Tinnirello, I. (2019). Kata containers:

An emerging architecture for enabling mec services in

fast and secure way. In 2019 Sixth International Con-

ference on Internet of Things: Systems, Management

and Security (IOTSMS), pages 209–214.

Rao, A., Lanphier, R., and Schulzrinne, H. (1998). Real

Time Streaming Protocol (RTSP). RFC 2326.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residuals

and linear bottlenecks. pages 4510–4520.

Sawant, O. V. (2019). Combating dirty data using data vir-

tualization. In 2019 IEEE 5th International Confer-

ence for Convergence in Technology (I2CT), pages 1–

Sunyaev, A. (2020). Fog and Edge Computing, pages 237–

264. Springer International Publishing, Cham.

Taktek., E., Thakker., D., and Neagu., D. (2018). Compari-

son between range-based and preﬁx dewey encoding.

In Proceedings of the 14th International Conference

on Web Information Systems and Technologies - WE-

BIST,, pages 364–368. INSTICC, SciTePress.

Taleb, T., Samdanis, K., Mada, B., Flinck, H., Dutta, S., and

Sabella, D. (2017). On multi-access edge computing:

A survey of the emerging 5g network edge cloud ar-

chitecture and orchestration. IEEE Communications

Surveys Tutorials, 19(3):1657–1681.

Xu, Z., Wu, J., Xia, Q., Zhou, P., Ren, J., and Liang, H.

(2020). Identity-aware attribute recognition via real-

time distributed inference in mobile edge clouds. MM

’20, page 3265–3273, New York, NY, USA. Associa-

tion for Computing Machinery.

Yi, S., Hao, Z., Zhang, Q., Zhang, Q., Shi, W., and Li,

Q. (2017). Lavea: Latency-aware video analytics on

edge computing platform. In Proceedings of the Sec-

ond ACM/IEEE Symposium on Edge Computing, SEC

’17, New York, NY, USA. Association for Computing

Machinery.

Zhang, H., Ananthanarayanan, G., Bodik, P., Philipose,

M., Bahl, P., and Freedman, M. J. (2017). Live

video analytics at scale with approximation and delay-

tolerance. In Proceedings of the 14th USENIX Confer-

ence on Networked Systems Design and Implementa-

tion, NSDI’17, page 377–392, USA. USENIX Asso-

ciation.

Zou, Z., Jin, Y., Nevalainen, P., Huan, Y., Heikkonen, J.,

and Westerlund, T. (2019). Edge and fog computing

enabled ai for iot-an overview. In 2019 IEEE Inter-

national Conference on Artiﬁcial Intelligence Circuits

and Systems (AICAS), pages 51–56.

Experimental Evaluation of the Message Formats’ Impact for Communication in Multi-party Edge Computing Applications

543
