A Model Driven Framework for the Development of Adaptable REST

SERVICES

Adil Kenzi

and Fadoua Yakine

LISA Laboratory, Sidi Mohamed Ben Abdellah University, FEZ, Morocco

Keywords: REST, UML Profile, Restful Web Services, MDD/MDA, Adaptability, Service Modeling.

Abstract: REST (Representational State Transfer) is an architecture style for distributed, open, loosely coupled and

decentralized hypermedia systems such as the Web. In the context of this architectural style, Restful Web

services has gained significant attention in both academy and industry sectors. Restful Services may interact

with several types of service requesters. Therefore, the key issue is how to deal with the challenge of

adaptability of Restful Services. In this paper, we propose a framework for the development of adaptable

REST services. The core building blocks of this framework is a Unified Modeling Language profile called

RESTVSoaML, and its associated tool support RESTVSoaMLTool. RESTVSoaML aims the modeling of

adaptable Restful Web services regardless of standards and implementation platforms. RESTVSoamLTool

is an MDD tool that enables the generation of code by using a model transformation language, from high

level models defined with our profile RESTVSoaML. In particular, it permits the generation of the description

of each RESTFUL service and its implementation.

1 INTRODUCTION

REST (Representational State Transfer) is an

architecture style for distributed, open, loosely

coupled and decentralized hypermedia systems such

as the Web (Pautasso, Wilde and Alarcon, 2013). In

the context of this architectural style, Restful Web

services has gained significant attention in both

academy and industry sectors in comparison to SOAP

services. Many mainstream Service providers (e.g.

Yahoo, Google, and Facebook) has adopted REST

Services due to its simplicity of use.

Restful Web Services can be viewed as software

services which are published on the Web. Such

services probably interacts with several types of

service requesters that have different needs and

requirements. Therefore, the central problem is the

design and development of highly

adaptable/personalized Restful services. To tackle

this problem, we put forward a model driven

framework for the design and development of

adaptable Restful services based application. Such a

framework provides the necessary capabilities to

model users’ needs and requirements early in the

https://orcid.org/0000-0002-5800-1968

https://orcid.org/0000-0001-9789-6146

development lifecycle of service based applications

and enables the automatic code generation from high

level platform independent models. Indeed, several

approaches have been proposed to take into account

several aspects of service requesters needs such as the

adaptation to their profiles (Chang and Kim, 2007),

the management of their access rights (Hafner and

Breu, 2008) (Fink, Koch and Oancea, 2003) or the

adaptation to their contexts (device, location)

(Bouguettaya and Yang, 2009). Nevertheless, to the

best of our knowledge, there is no framework that

enables the modeling of users’ needs by separating

their concerns early in the development process of

service based application and permitting the

automatic generation of code following the model

driven development principles.

In this paper, we propose a model driven

framework for the design and development of

adaptable Restful Services. The core building blocks

of this framework are: a UML profile called

RESTVSoaML and A MDD tool. (1)RESTVSoaML

(REST View based Service Oriented Architecture

Modeling Language) is a UML profile enabling the

design and specification of adaptable Restful

544

Kenzi, A. and Yakine, F.

A Model Driven Framework for the Development of Adaptable REST SERVICES.

DOI: 10.5220/0010718200003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 544-552

ISBN: 978-989-758-536-4; ISSN: 2184-3252

Services. Such UML profile defines a set of

stereotypes that allows the representation of

adaptable Restful Services in a high level of

abstraction. The key element of the proposed profile

is the REST multiview service defined as a first class

modeling entity that allows the representation of the

needs and requirements of users by separating their

concerns early in the development lifecycle of

Services based Applications. The REST multiview

service as a new modeling entity provides, in addition

to the simple interfaces, interfaces which have the

characteristic of being flexible and adaptable to the

different type of service requesters.

(2) The MDD tool associated to the profile called

RESTVSoaMLTool allows the automatic generation

of code from high level models following the MDA

principles and standards. It permits also the

deployment of each REST multiview service. In a

first phase, RESTVSoaMLTool accepts in input

platform independent models that describe the

structure and functionalities of systems according to

the actors interacting with each service and by using

a model transformation language, it generates

automatically the description of each REST

multiview service (e.g. WADL) and its

implementation (e.g., JAX-RS).

The rest of this paper is structured as follows:

Section 2 presents our UML profile RESTVSoaML.

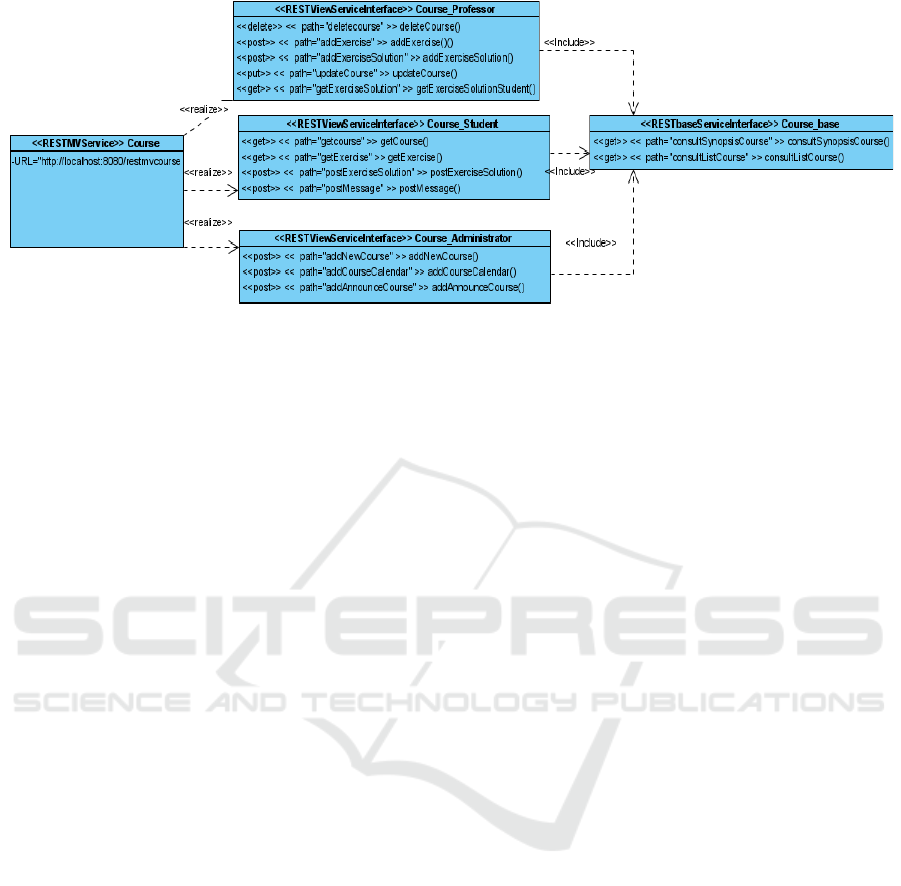

In section 3, we illustrate the applicability of our

profile on the basis of a motivating example. In

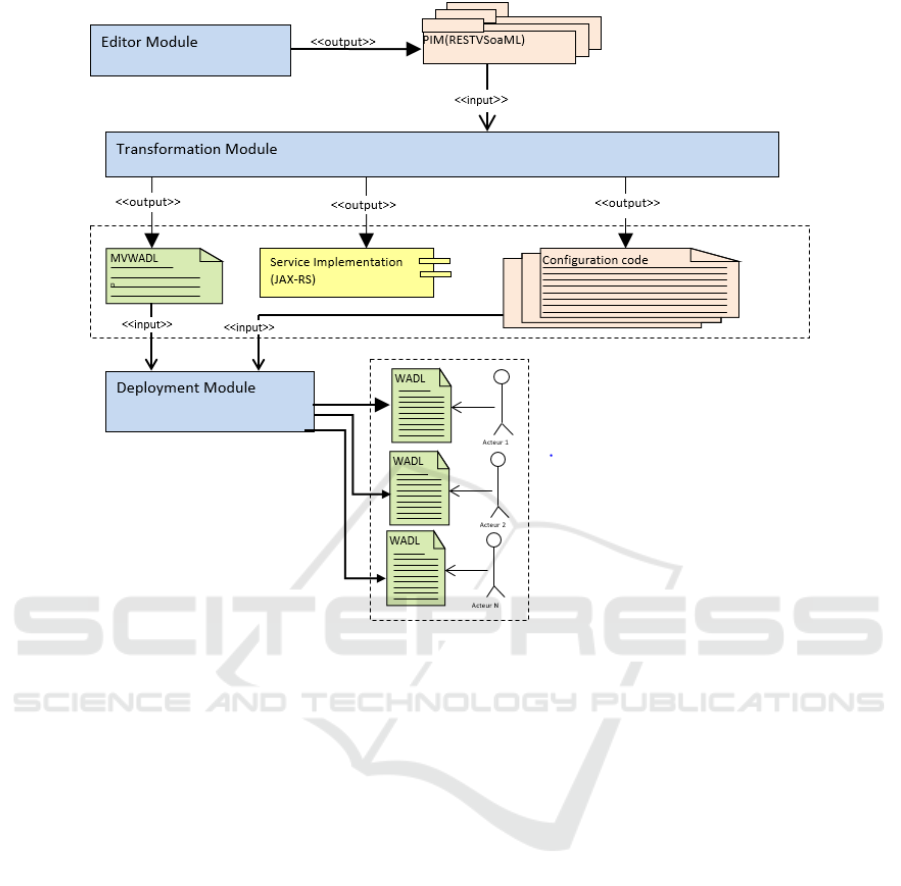

Section 4, we present an overview of the

RESTVSoaMLTool tool allowing both the edition

and transformation of models and deployment

services. Section 5 illustrates the steps to generate the

WADL description. Section 6 presents some related

works, and in Section 7 we give a conclusion and

perspectives to our work.

2 A UML PROFILE FOR

RESTFUL ADAPTABLE

SERVICES

The objective of this section is to present the first

component of our approach: the UML profile for

adaptable restful services. To this end, we put forward

the REST MULTIVIEW SERVICE CONCEPT.

Finally, we describe our UML profile for the

modeling of adaptable restful services.

2.1 Rest Multiview Service Concept

The concept of view is principally adopted in

different computing fields such as Database

Management System (Rafanelli, 2002), Workflow,

Web Services (Fink, Koch and Oancea, 2003)

(Maamar et al., 2005) (Rademacher et al., 2019) etc.

In the context of this paper, we adopt the view

concept as a means of functional separation of

concerns by highlighting what is expected to a

specific type of actor. Generally, the separation of

concerns (Ossher and Tarr, 2001) helps in writing

software that is modularized by concern; modeling

concerns and their relationships and extracting

concerns that are tangled with others.

We define the concept of REST multiview service

as a first class modeling element that illustrates the

user needs and requirements early in the development

process of service based applications. The REST

multiview service enables the capture of the various

needs of service clients by separating their concerns.

For each service consumer, the service must provide

the required capabilities that correspond to the needs

of users invoking the service. From an

analysis/design viewpoint, the central problem

therefore, is how to model the multidimensional

aspect of the needs of the various actors interacting

with the same service. Thus, a REST multiview

service provides in addition to the simple interfaces

that characterize the service, service interfaces which

are able to describe the capabilities of services

according to the profiles of users interacting with the

same service. We call this type of interfaces a

RESTViewServiceInterface. For each REST

multiview service, we group semantically the various

RESTviewServiceInterafece in a set of packages.

Each package called RESTMVServiceInterface is

composed of a base interface

(RESTbaseServiceInterface) and the set of view

interfaces (RESTviewServiceInterface).The

RESTbaseServiceInterface permits the

representation of the functionalities of services

required by all kinds of users. In contrast, the

RESTviewServiceInterface permits the

representation of the functionalities required by a

specific kind of user. These functionalities are

accessible only if the specific user is in interaction

with the service. The RESTviewServiceInterface

depends on the base interface in the sense where the

functionalities of the RESTbaseServiceInterface are

implicitly shared by all views interfaces.

A Model Driven Framework for the Development of Adaptable REST SERVICES

545

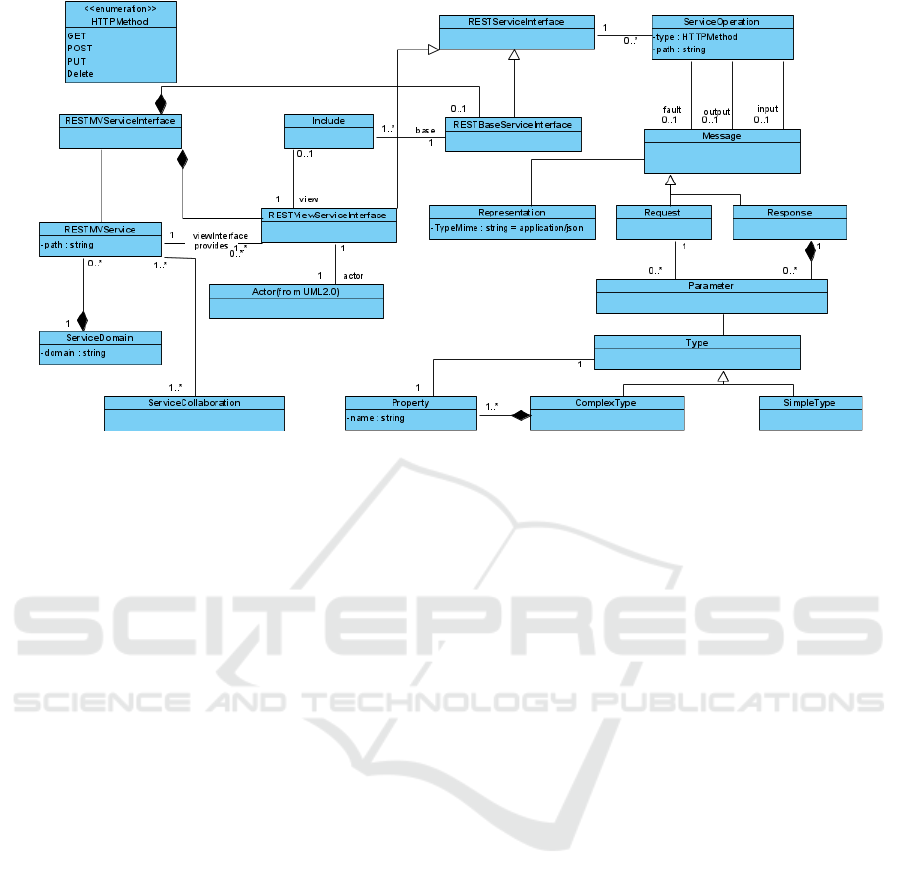

Figure 1: Excerpt of the RESTVSOAMLMetamodel.

2.2 A UML Profile for Adaptable

Restful Services

The REST multiview service as a first class modeling

entity plays a crucial role in the specification of

adaptable service based applications. Indeed, in

Service Computing the service is a fundamental

element for the development of interoperable,

evolvable, distributed information systems

(Papazoglou, 2008).Each service oriented system is

mainly composed of a set of services which are

described, published, discovered and can be

assembled in order to create more complex based

systems and distributed applications in a cost and

time effectiveness way.

Obviously, the REST multiview service

constitutes the core building block of our approach,

however it is insufficient to describe all aspects

(structural and behavioral) of service oriented

systems such as the information models associated

with each service or the service collaboration which

must specify the composition of REST multiview

services to cope with the complex nature of users’

needs that an atomic service does not deal with them.

Hence, we must define other concepts and notations

in order to describe the various aspects of an

adaptable service oriented systems. Such concepts

and notations are defined in the context of our UML

profile RESTVSoaML.

RESTVSoaML allows the modeling and

specification of adaptable service oriented systems. It

defines a consistent set of stereotypes, its associated

notations, constraints and semantics. In other words,

the profile defines a Domain Specific Language

(DSL) providing designers the necessary capabilities

to design an adaptable Service based application in

high level of abstraction regardless of implementation

platforms (dotNet, JEE, etc.) and standards (WADL,

XML, etc.).

Figure 1 depicts the RESTVSoaML metamodel.

Such metamodel plays an important role in the

process of the automatic code generation, especially

in the context of a Model Driven System

Development (MDSD). Generally, the profile defines

in addition to the RESTMultiview service, the

RESTMVServiceInterface,

RESTbaseServiceInterface,

RESTviewServiceInterface described in the

previous section, the following stereotypes.

Message: The stereotype Message represents the

structures of data exchanged between service and

service clients. These informations consist of data

passed as input or output of a service operation. The

use of this stereotype may be optional since it is

possibly to use the parameters of each service

operation in order to define messages.

A message stereotype has a property to specify its

assumed encoding form (text, xml, json, etc.). A

message may not have operations, it may have public

properties and associations to each other messages.

Service Interface: The stereotype service

interface is a modeling entity that represents the

functional capabilities of a given service as a set of

operations provided to its service clients. The service

interface in addition to the service implementation

constitutes a key artifact of the concept service in SC.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

546

In the case of web service technology as a Web based

implementation of Service Computing, each service

interface is described by means of a WSDL or WADL

document.

Service Domains: The stereotype “Service

Domains “ represents some logical or physical

boundary of the system. In fact, the specificity of

SOA is the integration of application both intra an

inter-enterprises, so it is necessary to distinguish

between the different collaborating domains.

ServiceCollaboration: The stereotype

“ServiceCollaboration” allows the specification of a

set of atomic services in order to create more complex

added value service in a high level of abstraction.

3 DLS CASE STUDY:

ABSTRACTION LAYERS

Our case study is a simplified version of a DLS

(Distance Learning System). Our objective is to use

this simplified version in order to validate and illustrate

our approach. The DLS interacts mainly with three

actors: Students, Teachers and Administrators. For

each actor, the DLS must provide only the

functionalities corresponding to its needs. It allows

students to apply for courses, access to documentation

(slides, web pages, text, etc.), make exercises,

communicate with teachers, and take exams. The DLS

provides for students runtime sequences, such as

getting the next item in a sequence. DLS can be

distributed over several sites, and is managed by a

responsible whose job consists in: Student registration

(registering students for available courses); Resource

management (creating, updating and removing

resources, their availability and their interactions) and

Content management (creating, updating, organizing

and publishing information resources). Teachers use

the DLS in order to propose and update their own

courses; plan learning experiences and units of work

for delivery on or off line; access curriculum outcomes

and record student assessments. They are in charge of

writing exam subjects.

In order to develop an adaptable service oriented

DLS, we have defined several abstraction layers to

master the complexity associated to such systems.

Globally, we have defined three abstraction layers: the

business layers, the logical layer and the physical layer.

The Business Layer: The business layer is defined

on the basis of a set of models in order to describe the

business requirements. In this layer, we have used the

formalism of use cases allowing the formalization of

user requirements.

The Logical Layer: The objective of the logical

layer is the description of the services which will

compose the system at a high level of abstraction. In

our approach, the logical layer is mainly composed of

a collection of REST multiview services. In the context

of our case study, we have identified some relevant

DLS REST multiview services. The identification of

these multiview services is based on the development

process defined in (Kenzi et al., 2009). Such

development process allows the transformation of the

business models into multiview services models.

The multiview service model of the DLS is

composed mainly of the REST multiview services:

Registration, Course, Documentation and Exam.

Such services are multiview since they interact with

many actors: Teacher, Student and Administrator. For

example, Registration service provides the student

with the required functionalities in order to register

while it enables an administrator to manage the

registration of students, to fix the registration fees to

given courses and to make decisions about the

registration of students. The Course service provides

functionalities permitting students to apply for

courses. They can have access to exercises, ask

questions, consult projects, take quizzes and post

messages to discussion forums relating to a specific

course. It also enables Teacher to create courses, to

answer to students’ questions, to propose exercises

and to reply to messages of discussion forums. The

administrator uses course service in order to fix

course fees, to manage the calendar of courses, to

affect courses responsible. The Documentation

service allows Teacher to upload documents

concerning specific course, to update/delete the

content. It permits students to download the required

documentation (pdf file, ppt files, audio/video, etc).

The Exam Service enables students to take exams, to

download exam subjects, to ask questions, to consult

their marks. It also permits to Teacher to add exams,

to answer students’ questions. Figure 2 illustrates

examples of multiview services, specially, the

multiview service Course. Each Multiview Service

provides a set of viewServiceInterface and a

baseServiceInterface that specifies the function-

alities of the service required by all types of actors.

The viewServiceInterface highlights the service

capabilities required by a specific type of actor.

The physical layer consists of various Service

based applications artifacts. It is primarily composed

from the multiview service descriptions, multiview

service implementations with a given programming

language (e.g., Java, C#, etc), the BPEL code as well

as various non-functional properties such as XACML

policies for the management of access control.

A Model Driven Framework for the Development of Adaptable REST SERVICES

547

Figure 2: An example of REST multiview Service.

4 RESTVSOAMLTOOL: A

MODEL DRIVEN

DEVELOPMENT TOOL FOR

ADAPTABLE RESTFUL

SERVICES

Our approach for developing adaptable service based

applications is based on two components: the

RESTVSOAML profile and its tool support called

RESTVSoaMLTool. As illustrated in the previous

sections, RESTVSoaML allows the description of

adaptable SOA applications at high level of

abstraction. The RESTVSoaMLTool aims the edition

of models, the automatic generation of code from

these models as well as the deployment of the REST

mutiview service descriptions following the web

service reference architecture. For these purpose,

RESTVSoaMLTool is composed of three main

modules, as depicted in figure 3:

1. The Editor module that enables the edition of

RESTVSoaML models on the basis of the EMF

(www.eclipse.org/emf/) tools such as Ecore.

2. The transformation module allows the generation

of code from the edited models. It is based on two

complementary transformations targeting two

specific platforms. Each transformation is carried

out on two steps: Model to Model transformation

and Model to Code transformation. The first

transformation aims the generation of the REST

multiview service description that conforms to

the WADL. The second transformation aims the

generation of the service implementation

according to a particular implementation

platform (dotNet, JEE, etc.). In our approach, we

have chosen JAX-RS as an implementation

platform. Indeed, JAX-R is used to implement

Restful web services in JEE platforms. To

achieve the transformation targeting a JAX-RS

implementation platform, we firstly define the

JAX-RS metamodel. Secondly, we specify the

mapping of the RESTVSoaML metamodel as

source metamodel to the JAX-RS metamodel as

a target metamodel by identifying the equivalent

elements. Thirdly, we define the transformation

rules which implement the equivalences between

the source and target metamodel elements.

Finally, we define additional transformations in

order to generate the java code as an

implementation of the multiviews service.

3. The deployment module allows the deployment

of each generated REST in a given application

server such as Apache Tomcat or GlassFish.

5 GENERATION OF MVWADL

DOCUMENT

In this section, we present our extension to WADL

called MVWADL for the description of REST

multiview Service and its metamodel. Also, we

illustrate how to generate MVWADL documents

5.1 MVWADL Metamodel

WADL (Hadley, 2006) is an XML based language for

the description of RESTfull Web services. WADL

plays the same role as WSDL for SOAP Web

Services. WADL describes the interfaces of restful

and the relationships between them. Moreover, It

permits the definition of the media types used for the

representation of the HTTP request as well as the

HTTP response. However, the WADL specification

does not take into account the profile of users that

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

548

Figure 3: Main modules of RESTVSoaMLTool.

interact with the service. Indeed, two service

requesters with different profiles can have the same

WADL. To deal with this problem, we put forward

a lightweight extension of the WADL specification

called MVWADL (MultiView Web Application

Description language) in order to describe the REST

multiview service. The purpose of this extension is

twofold. Firstly, MVWADL describes in a single

XML file all REST service interfaces both simple and

multiview interfaces. Secondly, it permits the

adaptation of this description taking into account the

profile (i.e the role) of the user invoking the service

by providing a WADL description adapted to the

users’ profiles. We have also defined the Multiview

WADL Meta-model (cf. Figure 4) as an extension of

WADL meta-model in order to take into account the

profile of the user interacting with the service. This

extension is carried out by means of an element

called “actor”. Such an element permits the

definition of the profile interacting with the service.

It is associated with different element of WADL that

must be adapted to users’ profiles such as Resource,

grammars, etc.

In addition to the actor element, the MVWADL

metamodel is composed from the following elements:

• application is the root element in a WADL

document. It defines global information about

services, especially references to the schema

definition.

• Resources is an element that contains all the

resources provided by a RESTful Web

Services. This element defines a base attribute

which identifies the common path used by all

resources in the RESTful Web Services.

• grammars: This element includes the

definition of data formats using the include

element, which references the data format with

the href attribute.

• resource is child element of the resources

element used for defining a collection of

resources. Each resource is identified by

unique URI and can also comprise the

element param to identify the path parameters

contained in the request.

• method: The element resource may be

associated with one or more method element.

The element method defines the HTTP

method (e.g. get, put, post, delete). Each

method has as an input a request and

produces in output a response.

A Model Driven Framework for the Development of Adaptable REST SERVICES

549

• request: A request can have one or more

child elements for example:

o representation: This element defines the

internet media type (JSON, XML, HTML,

text, …) for the body of the request

o param: This element defines the query or

header parameter contained in the request

• response: The element response defines the

result of the call of a method on a resource.

The response element contains the optional

status code contained in the HTTP response

and can also contains the data in given

produced by a HTTP method, especially in the

case of a GET method. A response can have

several child elements such as:

o representation: This element describes

the internet media type for the response

body returned by the execution of a restful

web service method.

o param: This element defines the HTTP

header parameters contained in the

response.

5.2 Transformation Module: The

Generation of MVWADL

Document

Model transformation (Brambilla, Cabot and

Wimmer, 2017) is a key technique in model driven

Engineering. We distinguish between two types of

model Transformation: Model to model (M2M)

transformation and Model to Text (M2T)

transformation. In M2M transformation, the input and

the output parameters of the transformation are

models while in M2T transformation, the output is

Text String. In our approach, the transformation is

carried out on two phases: the mapping phase and the

definition of transformation rules phase. In the

mapping phase, we have determined the elements of

the source metamodel which are equivalent to the

elements of the target metamodel. Table I shows a

possible mapping from the RESTVSoaML

metamodel to the MVWADL metamodel. In this

table, the first column contains the elements of the

MVWADL metamodel. The second column presents

its equivalents elements from RESTVSoaML

metamodel.

Table 1: Mapping between WADL element and

RESTVSoaML.

MVWADL element RESTVsoaML

Application RESTMVservice

Grammars T

Resource RESTServiceInterface,

RESTviewServiceInterface,

RESTBaseServiceInterface

Metho

ServiceOperation

Request Request

The mapping specification allows the

specification of the equivalent elements between the

source and target metamodels elements. The second

phase of the transformation process consists on the

definition of the transformation rules using a model

transformation language.

Figure 4: The MVWADL metamodel.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

550

In the context of our Framework, we are using

ATL (Atlas Transformation Language) language to

implement a set of transformation rules that allows the

M2M and M2T transformations in order to generate

MVWADL documents.

After the generation of MVWADL, the

deployment module can also produce a standard

WADL document for each actor interacting with the

multiview REST service as depicted in figure 3.

6 RELATED WORK

Model driven web service development has been an

active area of research in software engineering. Thus,

Gronmo et al. (Gronmo et al., 2004) , Bezivin et al.

(Bezivin et al., 2004) and Yu et al. (Yu et al., 2007)

propose several approaches in the MDA context for

the development of web service systems. These

approaches target the automatic generation of the

code from a given PIM. They are based essentially on

the elaboration of PIM on the basis of a high level

modeling language (UML, EDOC). Then, this PIM

will be transformed in a web service platform by

using a transformation model language (ATL, QVT)

or a specific tool such as presented by Gronmo et al.

(Gronmo et al., 2004). Douibi et al.(Ed-Douibi et al.,

2016) put forward an approach called EMF REST,

using EMF data models and allows the generation of

web applications according to the REST principles.

Haupt et al. (Haupt et al., 2014) propose a

multilayered metamodel for restful applications. The

authors illustrate an implementation of their approach

on the basis of a metamodel and a method. In the

same context, Terzic et al. (Terzić et al., 2018)

present the MicroBuildertool for the specification of

REST services. MicroBuilder is based mainly on two

modules: the MicroDSL and the MicroGen.

MicroDSL defines a DSL for the specification of

REST services. MicroGen allows the generation of

executable programs from high levels models defined

by MicroDSL.(Rossi, 2016) put forward a model-

driven approach to REST API development; two

main phases are identified : (i) the definition of

specific UML profile for modeling REST API and

(ii) a model transformation that uses RAML as an

intermediate notation that can be exploited to

automatically generate documentation as well as

code for various languages/platforms. In the same

objective, (Zolotas et al., 2017) present a model

driven engineering engine that allows fast design and

implementation of restful Web Services. The

proposed approach allows developers to design their

envisioned system on the basis of software

requirements in multimodal format. The input model

for the MDE engine is created from textual

requirements and graphical storyboards. Then, the

MDE engine applies model to model transformations

(CIM to PIM, PIM to PSM, PSM to code) in order to

generate a restful ready to deploy web service. More

recently, (Alulema et al., 2020) propose a model-

driven engineering approach for the service

integration of IoT systems. In particular, the authors

developed a tool for modelling IoT nodes with

communication and integration capabilities. It

consists of a graphic editor and a code generator,

which generates software artefacts (IOT nodes,

RESTful Web service, etc.).

Despites, several MDA approaches have been

proposed in order to user into account. Thus, (Hafner

and Breu, 2008) presented a model driven security

engineering framework focusing on trust

management issues. This framework permits the

generation of platform specific security models such

as XACML models via a set of transformation rules.

(D’Ambrogio, 2006) defines model driven

approach for the generation of Q-WSDL(Qos–

enabled WSDL) specification.

(Ortiz and Hernandez, 2006) propose an approach

that combines between the SCA(Service Component

Architecture), the Aspect Oriented Programming and

the MDA in order to deal with the extra-functional

properties such as encryption, logging, real time,

etc.).

The main difference between these approaches

and ours, resides in the PIM and PSM levels. The PIM

which we put forward is essentially composed of

REST multiview services that represent the users’

needs and requirements.

7 CONCLUSIONS

In this paper, we have proposed a model driven

framework for the design and development of highly

adaptable Restful services. therefore, we have firstly

presented a UML profile that enables the

specification of Adaptable REST Services. Such

UML profile defines a set of stereotypes allowing the

representation of adaptable Service based

applications in a high level of abstraction. The key

element of the proposed profile is the REST

multiview service defined as a first class modeling

entity that allows the representation of the needs and

requirements of users by separating their concerns

early in the development lifecycle of service based

Applications.

A Model Driven Framework for the Development of Adaptable REST SERVICES

551

The second contribution of our approach is the

tool RESTVSoaMLTool as a MDD tool associated

with the profile enabling the automatic generation of

code (e.g., WADL description) from high level

models according to the MDA principles and

standards.

REFERENCES

Alulema, D. et al. (2020) ‘A model-driven engineering

approach for the service integration of IoT systems’,

Cluster Computing, 23(3), pp. 1937–1954.

Bezivin, J. et al. (2004) ‘Applying MDA approach for web

service platform’, in Proceedings. Eighth IEEE

International Enterprise Distributed Object Computing

Conference, 2004. EDOC 2004., pp. 58–70.

Bouguettaya, A. and Yang, X. (2009) Access to Mobile

Services.

Brambilla, M., Cabot, J. and Wimmer, M. (2017) ‘Model-

driven software engineering in practice’, Synthesis

lectures on software engineering, 3(1), pp. 1–207.

Chang, S. H. and Kim, S. D. (2007) ‘A service-oriented

analysis and design approach to developing adaptable

services’, in IEEE International Conference on

Services Computing (SCC 2007), pp. 204–211.

D’Ambrogio, A. (2006) ‘A model-driven wsdl extension

for describing the qos ofweb services’, in 2006 IEEE

International Conference on Web Services (ICWS’06),

pp. 789–796.

Ed-Douibi, H. et al. (2016) ‘EMF-REST: generation of

RESTful APIs from models’, in Proceedings of the 31st

Annual ACM Symposium on Applied Computing, pp.

1446–1453.

Fink, T., Koch, M. and Oancea, C. (2003) ‘Specification

and enforcement of access control in heterogeneous

distributed applications’, in International Conference

on Web Services, pp. 88–100.

Gronmo, R. et al. (2004) ‘Model-driven web service

development’, International Journal of web Services

Research (IJWSR), 1(4), pp. 1–13.

Hadley, M. J. (2006) ‘Web application description language

(WADL)’. Sun Microsystems, Inc.

Hafner, M. and Breu, R. (2008) Security engineering for

service-oriented architectures. Springer Science \&

Business Media.

Haupt, F. et al. (2014) ‘A model-driven approach for REST

compliant services’, in 2014 IEEE International

Conference on Web Services, pp. 129–136.

Kenzi, A. et al. (2009) ‘A model driven framework for

multiview service oriented system development’, in

Aboulhamid, E. M. and Sevillano, J. L. (eds) The 7th

{IEEE/ACS} International Conference on Computer

Systems and Applications, {AICCSA} 2009, Rabat,

Morocco, May 10-13, 2009. {IEEE} Computer Society,

pp. 404–411. doi: 10.1109/AICCSA.2009.5069357.

Maamar, Z. et al. (2005) ‘Views in composite web

services’, IEEE internet computing, 9(4), pp. 79–84.

Ortiz, G. and Hernandez, J. (2006) ‘Toward UML profiles

for web services and their extra-functional properties’,

in 2006 IEEE International Conference on Web

Services (ICWS’06), pp. 889–892.

Ossher, H. and Tarr, P. (2001) ‘Using multidimensional

separation of concerns to (re) shape evolving software’,

Communications of the ACM, 44(10), pp. 43–50.

Papazoglou, M. (2008) Web services: principles and

technology. Pearson Education.

Pautasso, C., Wilde, E. and Alarcon, R. (2013) REST:

advanced research topics and practical applications.

Springer.

Rademacher, F. et al. (2019) ‘Specific Model-Driven

Microservice Development with Interlinked Modeling

Languages’, in 2019 IEEE International Conference on

Service-Oriented System Engineering (SOSE), pp. 57–

5709.

Rafanelli, M. (2002) Multidimensional Databases:

Problems and Solutions: Problems and Solutions. IGI

Global.

Rossi, D. (2016) ‘UML-based Model-Driven REST API

Development.’, in WEBIST (1), pp. 194–201.

Terzić, B. et al. (2018) ‘Development and evaluation of

MicroBuilder: a Model-Driven tool for the

specification of REST Microservice Software

Architectures’, Enterprise Information Systems, 12(8–

9), pp. 1034–1057.

Yu, X. et al. (2007) ‘A model-driven development

framework for enterprise Web services’, Information

Systems Frontiers, 9(4), pp. 391–409.

Zolotas, C. et al. (2017) ‘From requirements to source code:

a Model-Driven Engineering approach for RESTful

web services’, Automated Software Engineering, 24(4),

pp. 791–838.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

552
