Road Traffic Management: Control of Intersections

Chaymae Chouiekh

, Ali Yahyaouy

, My Abdelouahed Sabri

, Abdellah Aarab

and Badraddine

Aghoutane

University of Sidi Mohamed BenAbdellah Faculty of Sciences Dhar El Mahraz, LISAC Laboratory, Fez,Morocco

University Moulay Ismail, Computer Science and Applications Laboratory, Meknes,Morocco

Keywords: Road traffic simulation, Reinforcement Learning, SUMO, Q-learning, Control of intersections.

Abstract: The road traffic problem is a social and economic enigma that contributes to a permanent increase in mortality rate

so that traffic management in main road networks has become a significant challenge in many systems. To

solve this problem, there are many solutions to manage intersections as they are leading causes of congestion

generation, especially in the parts of space shared by vehicles. The most straightforward and most well-known

solutions are the traffic lights and the "STOP" signs, which generally promote one flow over another. Such

events cause delays for vehicles because they force them to stop frequently and for varying periods. If vehicles

flows are significant, these local delays can lead to congestion. For this reason, this research is interested in

studying the problem of vehicle intersections where we present a reinforcement learning model that is the

development and implementation of one of the reinforcement learning algorithms (Q-learning) to simulate

road traffic using the SUMO road traffic simulator.

1 INTRODUCTION

The development and evaluation of reinforcement

learning techniques in real-world problems are far

from trivial. One such task is to simulate the

dynamics of an environment and the behavioral

interactions of agents. Nevertheless, Reinforcement

learning has been applied successfully and has given

promising results in several areas (Future, 2020), such

as traffic, networks. Intelligence robotics, games

(Hassabis, 2016), among others. A particularly

relevant field is that of trafficking. It is well known

that traffic problems are encountered every day, even

in small towns. As such, trafficking has attracted

particular attention from the artificial intelligence

community.

In particular, given its distributed and autonomous

nature, the traffic has shown an exciting testbed for

reinforcement learning algorithms.

However, an important aspect to consider here

concerns how these scenarios are validated. In

general, the deployment of new technologies in traffic

areas is only possible after extensive experimentation.

Thus, traffic simulation appears to be a safe and

economically efficient way to validate such scenarios.

Here, it is necessary to model the driver’s behavior

and simulate vehicles on the road network.

A representative tool here is the SUMO simulator,

which models the system at a microscopic level, i.e.,

even the position and speed of vehicles are simulated.

On the one hand, the most straightforward approach

is to use existing libraries that facilitate this process

by providing algorithms and validation scenarios

(Liza Lunardi, Gabriel De Oliveira, & L. C. Bazzan,

2017). However, no such library model presents the

required level of detail.

Moreover, extending these libraries to work with

natural traffic environments (for example, using the

SUMO simulator) is not a simple process.

In this context, we have taken the initiative to

develop a road traffic management approach by

analyzing intersections that aim to facilitate the

development and validation of reinforcement

learning techniques. Specifically, it includes

implementations of well-known reinforcement

learning algorithms (Q-learning). It also contains

traffic environments(Simulated using SUMO),

allowing validation of reinforcement learning

algorithms in very detailed traffic simulations.

Chouiekh, C., Yahyaouy, A., Sabri, M., Aarab, A. and Aghoutane, B.

Road Trafﬁc Management: Control of Intersections..

DOI: 10.5220/0010731800003101

In Proceedings of the 2nd International Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 239-243

ISBN: 978-989-758-559-3

239

2 ASSOCIATED APPROACHES

In this section, we rely on the book (S. Mammar,

2007) where we extract some of the most widely used

systemic approaches to solving traffic problems that

we are primarily interested in studying the

intersections and discussing some of the

disadvantages of these approaches:

TRANSYT (Traffic Network study Tool

(G.E.Robinson, 1992) Is one of the first proposed

systems that were based on off-line optimization that

generates optimal coordination plans between signal

lights of a network for a given time. TRANSYT

requires many input parameters, such as the geometry

of the intersections arteries, the flow of vehicles, the

rate of vehicles on each exit track of each intersection,

the minimum green light time, initial light plans, and

initial values for cycle times and phase shifts.

TRANSYT is a centralized system and is not

traffic-responsive (A.A. Guebert et G. Sparks, 1990).

The SCOOT (Split cycle and offset optimization

Technique) (P. B. Hunt, D. I. Robertson, R. D.

Bretherton et R. I. Winton, 1981) is an urban traffic

control system that is operational in more than 30

cities in the United Kingdome and abroad, it is a fully

adaptive system that collects data from vehicle

detectors and then calculates parameters that reduce

delays and stops. It is a decentralized system and

wholly adapted to the traffic situation.

Nevertheless, SCOOT remains a weak adaptive

system compared to others, given its slight gradual

variations phases in each cycle.

3 AGENT ARCHITECTURE

Also called soft bot ('robot software') (J.Ferber, 1995)

is a computer science software that performs various

actions on a continuous and autonomous basis on

behalf of an individual or an organization. An

intelligent agent is most often classified according to

the role he plays. The agent-based architecture

corresponds to intelligent systems control and

software agent layouts, representing the connections

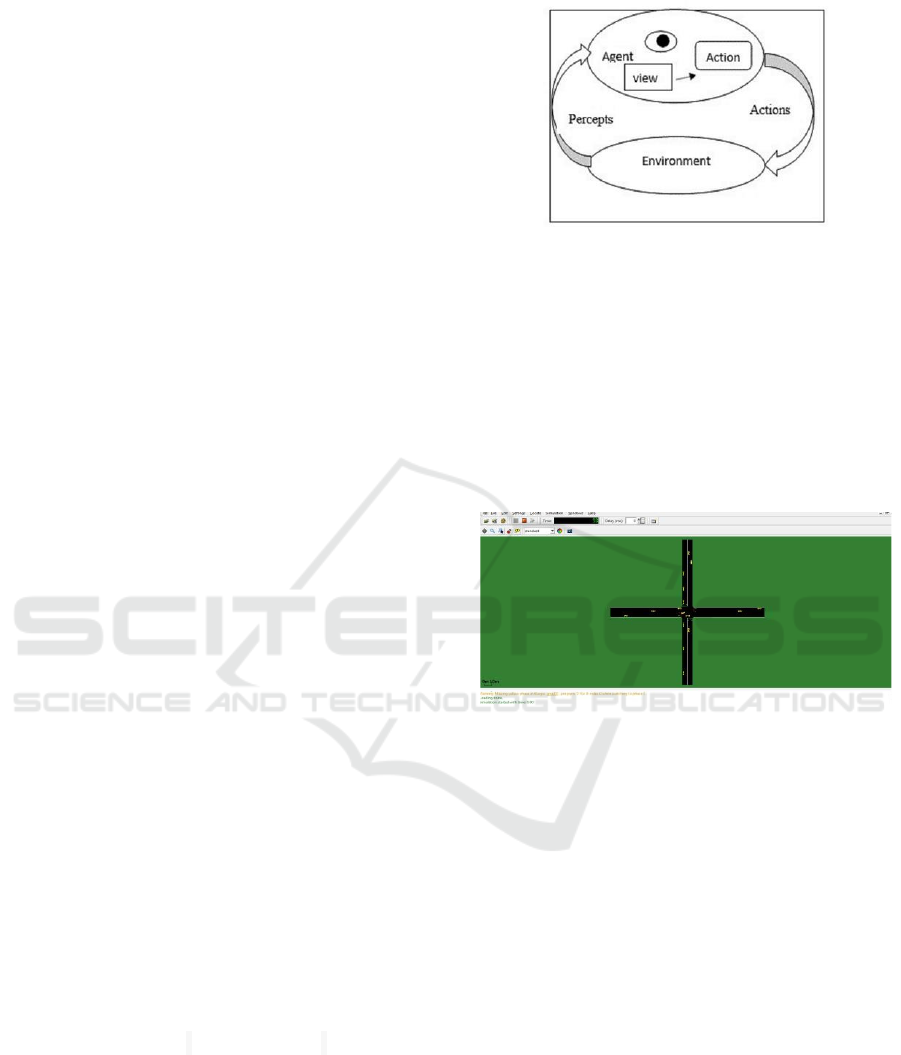

between the components as shown in Figure 1:

Figure 1: Agent architecture.

4 TRAFFIC SIMULATION

As we did not find a suitable data source for our

target, we decided to simulate the data from a road

network using the SUMO road simulator, where I

performed simulations at intersections of the crossing

type as shown in Figure 2:



Figure 2: Simulation of vehicle intersections at crossroads.

5 LEARNING BY

REINFORCEMENT

Learning by reinforcement is a learning method for

Machine Learning models (Issam, 2012) (S.Sutton &

Barto, 2020). In other words, it let the algorithm learn

from its own mistakes. To learn how to make the right

decisions, artificial intelligence is directly confronted

with choices. If they are wrong, they will be

penalized. On the opposite, if they make the right

decision, they will be rewarded. To obtain even more

rewards, Artificial intelligence will do its best to

optimize its decision-making (M.Baland,

D.Loenzien, P.Haond, 2006) as we show in Figure 3:

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

240

Figure 3: Learning by reinforcement scenario.

6 REINFORCEMENT LEARNING

ALGORITHMS

Exploration: Exploration, where we gather more

information that could lead us to better decisions in

the future.

Exploitation: Exploitation, where we make the best

decision based on current information.

Epsilon greedy algorithm: Epsilon Greedy

(P.Review, 2017) is a simple method to balance

exploration and exploitation by choosing between

exploration and random exploitation. It is pretty

simple, epsilon was used to evaluate the exploration

rate, it is a percentage, and greedy says it means

taking the optimal actions that we think optimal at the

time t, and so epsilon greedy is the Tradeoff between

exploration and exploitation (Baeldung, 2021).

Q-function: Q-value function is an exact method used

to solve the learning by reinforcement problem. The

purpose of the task is to find the expected usefulness

from the states by acting a and (subsequently) by

acting optimally. Let's say indeed what is the number

of rewards that I can hope to have from that state one

looks towards the future, In the other words, it defines

the value of taking action A in state S under a policy,

denoted by (S, A), as the expected return R starting

from Staking action a, and after that following policy

(IA, 2020). One of the critical properties of Q is that

it must satisfy the Bellman optimality equation,

according to which the optimal Q value for a state

given action is equal to the maximum reward that the

agent can get from an action in the current state and

the maximum discount reward that he can get from

any possible peer state-action that follows. The

equation looks like this:

Bellman Equation (Zhu & Jia, 2020): The Bellman

equation shows up everywhere in the Reinforcement

Learning literature, being one of the central elements

of many Reinforcement Learning algorithms. It

allows a redefinition of the Q value function

recursively. So, it gives us a way to determine the

optimal policy:

Q π (s, a) =

∑

𝑃







𝑟



𝑠, 𝑎







𝛾.

∑

𝜋



𝑎



𝑠





. Q πs′, a′



(2)

So, we are looking to find the optimal state-action

value function that indicates the maximum reward we

are going to get if we are in state s and taking action

A from there on-wards:

Q * (s, a) =max π Q π (s, a) (3)

Bellman proved that the optimal state-action value

function in state s and taking action a is

Q * (s, a) =

∑

𝑃







𝑟



𝑠, 𝑎







𝛾. max





𝑄

∗

s′, a′

(4)

Q-learning algorithm: Q-Learning (K.S.Hwang, S.W.

Tan, C.C.Chen, 2004) is a basic form of strengthening

learning that uses Q values (also known as action

values) to improve the behavior of the learning agent.

This is the process of iterative updating of Q values

for each state-action pair using the Bellman equation.

Q-learning is arguably one of the most applied

representative reinforcement learning approaches and

one of the off-policy strategies. Since the emergence

of Q-learning, many studies have described its uses in

reinforcement learning and artificial intelligence

problems (Beakche, Myeonghwi, Gaspard, & Jong

Wook, 2019).

Q table: This table will allow us to know the

expectation of reward for each case for each action.

In the initial case, the number of rewards is zero. This

q-table becomes a reference table for our agent to

select the best action based on the q-value (Violante,

2019).

7 PROPOSED SYSTEM

To improve network traffic, we can play on the layout

of the signaling where we control the state of the

signaling light using the simulator of road traffic

SUMO which we offer a sumo map that we can

transform into a dataset that has visualized as we see

in Table 1:

Q π (s, a) = E π [Rt |s

= s, A

= a] = Eπ

[

∑

𝛾







𝑟



| s

= s, A

= a]

)

Road Trafﬁc Management: Control of Intersections.

241

Table 1: Extraction result of the data concerning the

connections between the nodes.

Node1 Node2

-gneE0 gneE3

-gneE0 gneE2

-gneE0 gneE1

-gneE1 gneE3

-gneE1 gneE0

-gneE1 gneE3

-gneE2 gneE2

-gneE2 gneE0

-gneE2 gneE3

-gneE3 gneE2

Q-learning Optimization:

Trained Model:

To create our training algorithm, first of all, when

our agent explores the environment during ten

episodes we initialize our matrix Q-table which has

N columns and M rows such as N is the number of

actions and M is the number of states, then we

randomly select our action (left, right, low, high....)

or we exploit the Q-values that are already

calculated by using the epsilon value and compare it

to the random-uniform function (0,1), which returns

an arbitrary number between 0 and 1 and to get the

next state and reward we perform the chosen action

in the environment. And finally, we calculate the

maximum Q-value of the actions corresponding to

next-state, to be easily able to update our Q-value

with the new q-value. This process is repeated over

and over again until learning is stopped. In this way,

Q-table is updated.

Model Evaluation: Let us evaluate the performance of

our model. We do not need to explore actions further,

so now the following action is always selected using

the best Q-value.

It can be seen from the assessment that we show

Figure 4, that the performance of the officer has

improved considerably and the fact that he does not

meet any penalty does not mean that he has chosen

the right action.

With Q-learning during exploration, the agent makes

mistakes at the beginning, but once he has sufficiently

explored (given most states), he can act judiciously

by maximizing rewards by performing intelligent

movements.



Figure 4: Evaluation result of the model.

8 CONCLUSIONS

We developed a road traffic management model by

analysing intersections in a road traffic simulation

environment (SUMO). We had the opportunity to put

into practice and implement the Q- learning model,

which is based on reinforcement learning to manage

intersections. This method is effective in

overestimating action values under certain conditions

to optimize intersections. However, it was not

previously known whether, in practice, such

overestimation is shared, whether it adversely affects

performance and whether it can generally be avoided,

which is why there are many ways to improve it.

REFERENCES

A.A. Guebert et G. Sparks. (1990). Timing plan sensitivity

to changes in platoon dispersion. Santa Barbara:

California.

Baeldung. (January 15, 2021). Epsilon-Greedy Q-learning.

Beach, o., Myeonghwi, K., Gaspard, H., & Jong Wook

, K. (September 2019). Q-Learning Algorithms: A

Comprehensive Classification and Applications. IEEE

Access PP(99).

Crites, R., & Barto, A. (1996). Improving Elevator

Performance Using Reinforcement Learning. advances

in Neural Information Processing Systems 8.

Future, H. (2020, février 3). Apprentissage par

renforcement : une IA puissante dans toujours plus de

domaines.

G.E.Robinson. (1992). Regulation of division of labor in

insect societies. Annual review of entomology,

37(1):637-665.

Hassabis, D. S. (Wednesday, January 27, 2016). AlphaGo:

Mastering the ancient game of Go with Machine

Learning.

IA, J. T. (Jun 11, 2020). The Bellman Equation. V-function

and Q-function Explained.

Issam, E. A. (05/04/2012 ). Apprentissage par renforcement

– de la théorie à la pratique.

J.Ferber. (1995). Les systèmes multi-agents, vers une

intelligence collective. InterEditions.

K.S.Hwang, S.W. Tan,C.C.Chen. (2004). Cooperative

strategy based on adaptive Q-learning for robot soccer

systems.

Liza Lunardi, L., Gabriel De Oliveira , R., & L. C. Bazzan,

A. (May 2017). Developing a Python Reinforcement

Learning Library for Traffic Simulation. Proceedings of

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

242

the 17th Adaptive Learning Agents Workshop. São

Paulo.

M.Baland, D.Loenzien, P.Haond. (2006). Intelligence

Artificielle. Pearson Education.

P. B. Hunt, D. I. Robertson, R. D. Bretherton et R. I.

Winton. (1981). SCOOT a responsive traffic method of

coordinating signals. TRRL: Rapport technique.

P.Review. (2017). The Authors. Elsevier B.V.

Ramos, G. D. (May 2017). Developing a Python

Reinforcement Learning Library for Traffic

Simulation. Proceedings of the 17th Adaptive Learning

Agents Workshop. São Paulo.

S.MAMMAR. (2007). Systèmes de Transport Intelligents,

modélisation, information et contrôle. Lavoisier.

S.Sutton, R., & Barto, A. G. (6 février 2020).

Reinforcement Learning. The MIT Press.

Violante, A. (Mars 13 2019). Simple Reinforcement

Learning: Q-learning.

Zhu, Y., & Jia, G. (2020). Dynamic Programming and

Hamilton–Jacobi–Bellman Equations on Time Scales.

Road Trafﬁc Management: Control of Intersections.

243
