An Interactive Environment to Support Agent-based Graph

Programming

Daniel Blashaw

and Munehiro Fukuda

Division of Computing and Software Systems, University of Washington Bothell, U.S.A.

Keywords:

ABM, Visualization, Big Graphs, Parallel Computing.

Abstract:

We apply agent-based modeling (ABM) to distributed graph analysis where a large number of reactive agents

roam over a distributed graph to ﬁnd its structural attributes, (e.g., signiﬁcant subgraphs including triangles in

a social network and network motifs in a biological network). Of importance is providing data scientists with

an interactive environment to support agent-based graph programming, which enables interactive veriﬁcation

of agent behaviors, trial-and-error operations, and visualization of graphs and agent activities. This paper

presents and evaluates our implementation techniques of these interactive features.

1 INTRODUCTION

In contrast to conventional data streaming, we ap-

ply agent-based modeling (ABM) to big-data com-

puting (Fukuda et al., 2020). More speciﬁcally, in-

stead of streaming data to analyzers such as Spark

we construct a distributed data structure, dispatch re-

active agents to it as mobile analyzers, and ﬁnd its

structural attribute in their emergent collective group

behavior. For instance, triangles in a given social net-

work is considered as a useful factor to measure the

intimacy among the network users and can be counted

by walking agents three times over the network.

Distributed data structures have been facilitated

for years in well-known parallel and distributed sys-

tems. GlobalArray constructs multi-dimensional ar-

rays on top of MPI (Nieplocha et al., 2006). Pregel

is a large-scale graph library based on inter-vertex

message passing (Malewicz et al., 2010) and is used

in Spark’s data streaming as GraphX. RepastHPC is

the parallel version of Repast Simphony

that distin-

guishes spatial and network projections.

Focusing on graph analysis, these systems how-

ever have substantial difﬁculties in implementing

our agent-based approach: GlobalArray could repre-

sent a graph with an adjacency matrix but does not

support element-to-element communication, thus ob-

structing agent communication nor movement; Pregel

https://orcid.org/0000-0002-0822-6667

https://orcid.org/0000-0001-7285-2569

http://spark.apache.org/

https://repast.github.io/

and GraphX nail computation in their vertices, im-

mobilizing agents over a graph; and RepastHPC is

meant for traditional ABM simulation, not consider-

ing parallel ﬁle I/Os nor interactive operations on its

network projections. Given this background, we fa-

cilitated distributed graph construction, agents’ graph

traversal and visualization in the MASS (multi-agent

spatial simulation) library (Gilroy et al., 2020).

Of importance is providing data scientists with an

interactive environment to support agent-based graph

programming, which includes interactive veriﬁcation

of agent behaviors, capability of trial-and-error opera-

tions, and visualization of graphs and agent activities.

This paper presents and evaluates our implementation

techniques of these interactive features.

The rest of this paper is organized as follows:

Section 2 differentiates our interactive environment

from the related work in graph programming; Sec-

tion 3 gives technical details on the MASS interac-

tive features and their implementation; Section 4 eval-

uates MASS execution overheads, programmability

improvements, and visualization; and Section 5 con-

cludes our discussions as mentioning our future plans.

2 RELATED WORK

This section compares related systems from the fol-

lowing four viewpoints: (1) potential of distributed

graph analysis with agents, (2) agent tracking over

a distributed graph, (3) forward and backward graph

analysis, and (4) visualization of graphs and agents.

148

Blashaw, D. and Fukuda, M.

An Interactive Environment to Support Agent-based Graph Programming.

DOI: 10.5220/0010776400003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 1, pages 148-155

ISBN: 978-989-758-547-0; ISSN: 2184-433X

2.1 Distributed Graph Analysis with

Agents

NetLogo

and Repast Simphony are capable of sim-

ulating networked agents or agent movements over

a network, respectively using network extensions or

network projections. However, the biggest challenge

results from their single-computing execution that

limits graph scalability. In fact, our scalability test

shows that Repast Simphony suffers from counting

the number of triangles in a graph only with 3,000

vertices (Wenger et al., 2021).

RepastHPC and FLAME

are MPI-supported par-

allel ABM simulators. Since their paramount goal is

parallel performance in native execution, their MPI-

based C/C++ implementation does not consider in-

teractive operations that are essential to the speed or

the serving layer in big-data computing. Furthermore,

they cannot initialize a graph in parallel as rank 0 must

read an input ﬁle sequentially.

WAVE (Sapaty and Borst, 1996) and UCI Mes-

sengers (Bic et al., 1996) are mobile-agent execution

platforms, both allowing their agents to construct and

to roam over a distributed graph at run-time. Their

drawback is the necessity of describing graph con-

struction logics in their agent code, which in turn

means that they are incapable of automating graph

construction from an input ﬁle and are thus unsuited

to big-data computing.

2.2 Agent Tracking

ProvMASS (Davis et al., 2018) provides MASS users

with a novel approach for tracking data provenance in

a distributed setting. This data provenance includes

agent data, simulation space, and cluster node infor-

mation, and is captured to ﬁle at run-time. Although

these data provenance features contribute to analyz-

ing agent behavior, they have a signiﬁcant impact on

simulation performance.

Repast Simphony, on the other hand, has a

lightweight implementation for tracking agent data,

but settings must be pre-conﬁgured before running

the simulation and recorded agent data can only be

written to console or ﬁle. This is useful for review-

ing agent information but does not facilitate interac-

tive uses nor operations on the agent data in a running

simulation.

IBM Aglets (Lange and Oshima, 1998) allows

users to communicate with the agent servers named

Tahiti. Through Tahiti’s GUI, users can create, clone,

https://ccl.northwestern.edu/netlogo/

http://www.ﬂame.ac.uk/

inspect, dialogue with, retract, and destroy agents.

However, since Aglets are intended to work on In-

ternet tasks, they do not distinguish distributed data

structures nor duplicate too many instances through

the GUI menus.

2.3 Forward and Backward Graph

Analysis

We anticipate that data scientists may want to conduct

various analyses on the same graph, (e.g., centrality

and clustering analyses on the same biological net-

work). These operations need to retract agents or even

roll back computation, which are then followed by a

new analysis. Some systems indirectly or directly im-

plement such forward and backward computation as

follows:

Optimistic synchronization in parallel simula-

tors (Wang and Zhang, 2017) allows each computing

node to take repetitive snapshots of ongoing computa-

tion for the purpose of rolling back to the computation

and accepting tardy messages from slower computing

nodes. As their checkpointing and rollback operations

are system-initiated features, users cannot use them

intentionally for their trial-and-error analysis.

The UCI Messengers system implements the op-

timistic synchronization in the execution platforms so

that agents can automatically go back to a network

node they previously visited. Needless to say, agent

checkpointing and rollback are carried out automati-

cally and thus not user-controllable.

Looking at single-CPU execution, Repast Sim-

phony requires that all graph and agent information

be set prior to execution of the simulation and does

not support incremental backtracking or manipulation

of a running simulation.

2.4 Graph Visualization

Single-CPU ABM simulators furnish non-computing

users with a plenty of graph analyzing and visualiza-

tion features. NetLogo arranges an IDE-based graph

visualization with its network extension, while forc-

ing users to pre-conﬁgure visualizations and lacks the

mid-simulation control features. Repast Simphony is

equipped with JUNG (O’Madadhain et al., 2003) as

its internal graph tool, which in turn means that data

scientists need to embed visualization logics in their

graph programming.

Cytoscape

is an open-source network visualiza-

tion tool with the following three graph-programming

supports: (1) extensive ﬁle support for importing

http://cytoscape.org/

An Interactive Environment to Support Agent-based Graph Programming

149

graphs into Cytoscape, (2) native functionality for dy-

namic manipulation of existing graph structures, and

(3) the use of the OSGi framework to make its com-

ponents modular and easily extensible. Needless to

say, Cytoscape is not concerned with agent activities

on a Cytoscape graph.

We should emphasize that all these graph visual-

ization endeavors are limited to single-CPU execu-

tion, thus unable to address the demand for large-scale

graph analysis.

In summary of this section, agent-based graph

programming needs to address interactive and scal-

ability problems in the following three areas:

1. Agent Tracking: quickly observing a large num-

ber of agents traversing a graph;

2. Forward and Backward Computation: inter-

actively retracting active agents, restoring former

graph states, and dispatching new agents; and

3. Graph Visualization: dynamically modifying

graphs through GUI and visualizing agent activ-

ities on a graph.

3 INTERACTIVE FEATURES AND

THEIR IMPLEMENTATION

In the following, we brieﬂy introduce the MASS li-

brary and thereafter explain our technical solutions

to three interactive graph-programming features: (1)

agent tracking, (2) forward and backward computa-

tion, and (3) graph visualization.

3.1 MASS Library

The MASS library represents ABM using the two

modeling objects: Places and Agents. Places is

a computational space implemented with a multi-

dimensional array, distributed over a cluster sys-

tem. Agents is a collection of reactive agents within

the computation. An agent has navigational auton-

omy of traversing places. The MASS library func-

tions using a master-worker pattern to control the

computation. User applications interact with the

MASS master node that runs their main() function;

starts MASS workers with MASS.init(); invokes a

parallel function call at each place or each agent

with Places.callAll(func) or Agents.callAll(func); ex-

changes data among places in an inter-place RPC

form with Places.exchangeAll(func); clones, kills,

and moves agents within Agents.manageAll(); and ter-

minates the MASS workers with MASS.ﬁnish().

To ease graph programming, MASS derives

GraphPlaces from the Places base (Gilroy et al.,

2020). Using this class, users can initialize a dis-

tributed graph with an input ﬁle in XML, HIPPIE,

CSV, and text formats. As GraphPlaces can grow by

adding a new Places instance to itself, users can in-

crementally construct the graph with addVertex() and

addEdge(). The MASS library interfaces with Cy-

toscape for GUI-enabled graph construction and vi-

sualization as well as with JShell (Oracle, 2017) for

interactive agent deployment over the graph.

3.2 Agent Tracking

We implemented an agent-tracking feature in MASS,

based on the following three design strategies: (1) en-

abling quick observation of many agent activities, (2)

generating consistent agent propagation history, and

(3) facilitating a straightforward, easy-to-use agent-

tracking API.

To pursue the performance consideration, instead

of allowing each agent to carry its travel history with

it, we added to each place the AgentHistoryMan-

ager class that is responsible for managing which

agents or classes of agents are being tracked and

then recording history each time a tracked agent vis-

its that place. Importantly, this means agent history

is stored on the Places but not on the Agents; this

maintains execution performance by ensuring agents

remain lightweight for serialization and transfer be-

tween computing nodes. The trade-off is that agent

history is distributed amongst the cluster nodes during

execution which introduces some complications when

extracting the data, especially when child agents are

involved.

In many applications, agents will come to deci-

sion points at which their instructions indicate they

need to travel to multiple places at once. In these in-

stances, the parent agent will move to one place, and

then a child agent will be spawned for each of the

other available places. At this point, if agents are be-

ing tracked by their class name, then places will be-

gin gathering data on the newly spawned child agents.

This pattern may continue throughout the computa-

tion, causing multiple waves of child agents to spawn

at various times in the computation. The issue that

arises from this process is that the child agents will

have an incomplete history, because they did not exist

at the beginning of execution.

To help illustrate this problem, consider the Tri-

angle Counting benchmark application running on a

sample graph shown in Figure 1. Triangle Counting

is solved in four ABM simulation cycles: (time 0)

one agent is spawned on each available place; (time

1-2) each agent propagates itself to all neighboring

places with a lessor index value than the current place

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

150

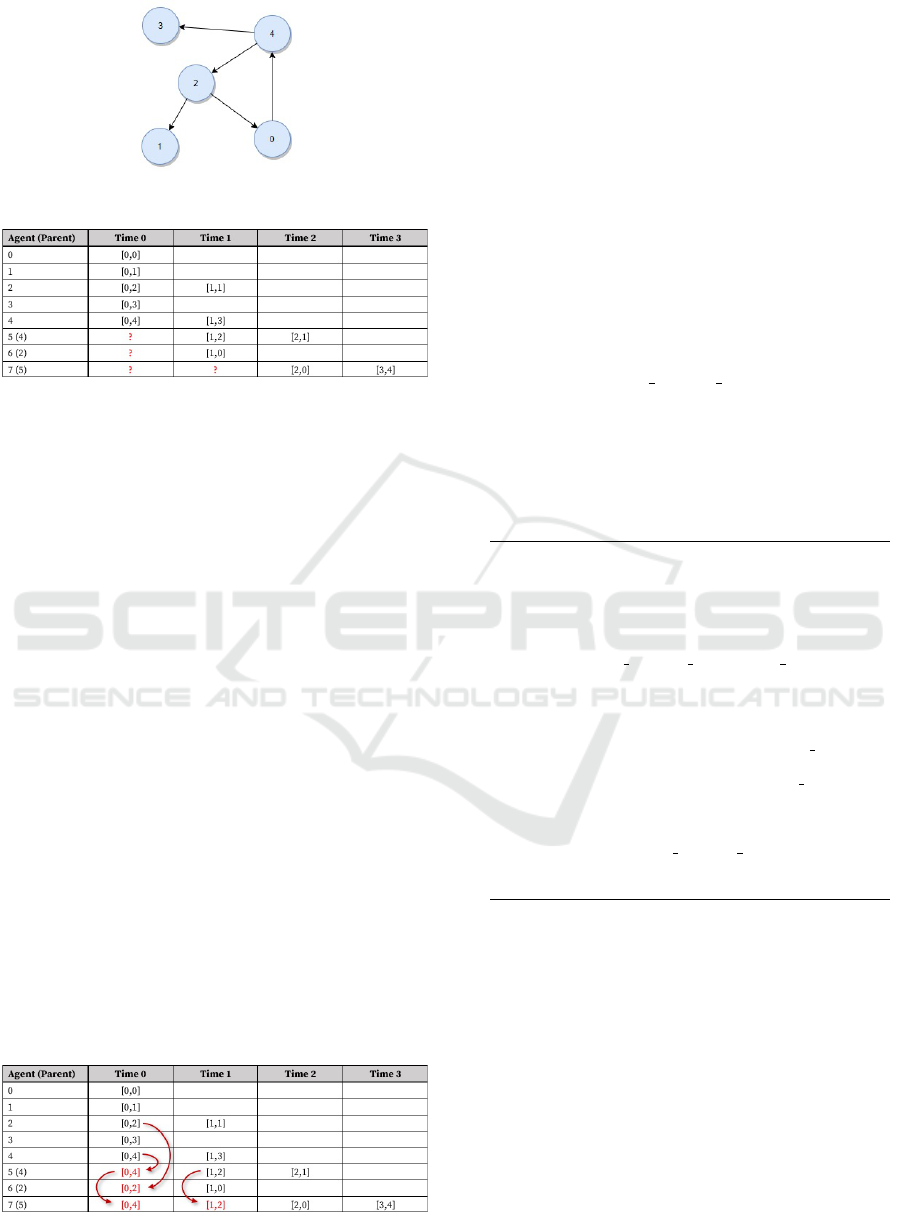

Figure 1: A sample graph.

Figure 2: Agent history before parent propagation, where

[t,v] means: at time t, a given agent visited vertex v.

(which results in spawning children if more than one

neighbors ﬁts this criterion); and (time 3) all remain-

ing agents attempt to return to their original source.

Figure 2 shows the history captured for each agent

as this benchmark application plays out; note that

child agents are missing their parent itinerary before

they were spawned. This missing piece of data is

needed for the user application to correctly determine

the path the agents traveled along, i.e., the edges of the

triangles. In the ﬁgure, agent 7 is the only agent that

completed its path at time 3, but its complete path is

unknown because agent 7 is a child and did not spawn

until time 2. Further, agent 7 is agent 5’s child and

agent 5 is also agent 4’s child. So, even if we retrieve

information from agent 5, the data will remain incom-

plete unless we also pull information from agent 4.

Thus, we need to solve this problem depth-ﬁrst recur-

sively at the time agent 7’s history is extracted.

Figure 3 illustrates the result of propagating data

from parent agents, with the red arrows indicating the

ﬂow of information from parent to child. In the case

of agent 7, we see that it retrieved results directly from

parent agent 5, after agent 5 retrieved its own history

from parent agent 4. Now, from agent 7’s movement

history, we can correctly conclude the triangle found

from this simulation is between vertices 4, 2, and 0.

Figure 3: Agent history after parent propagation.

Listing 1 shows a code snippet to initiate agent

tracking and to collect agent travel history. The

main() program creates a graph (line 5) and initializes

AgentHistoryManager at each graph place (line 6).

Once an agent class is registered for tracking, the user

program may continue execution without worrying

about tracking data. Each time the manageAll() func-

tion is invoked, the MASS library will keep track of

all associated agent movements. Although the code

invokes manageAll() twice for each loop iteration,

one in line 10 for spawning children and the other

in line 12 for moving all the agents to neighboring

places, manageAll() internally counts these two invo-

cations as one logical time event. This gives users a

simple view of agent dissemination. Finally, main()

can retrieve all the agent travel histories through

graph.callAll(AGENT TRACE GET) (line 14). This

retrieval process internally consolidates all collected

results into a single, cleaned, and sorted AgentHisto-

ryCollection object. It is at this step that parent-data

propagation occurs.

Listing 1: Using MASS agent tracking.

1 import MASS.∗;

2 public class Analysis {

3 public void main(String[] args) {

4 MASS.init();

5 GraphPlaces graph = new GraphPlaces( ... );

6 graph.callAll(places.

AGENT TRACE REGISTER CLASS,

Crawler.class.getName());

7 Agents crawlers = new Agents(‘‘Crawler’’, graph

);

8 while ( crawlers.hasAgents() ) {

9 crawlers.callAll(ClawlerAgent.spawn );

10 crawlers.manageAll();

11 crawlers.callAll(ClawlerAgent.walk );

12 crawlers.manageAll();

13 }

14 AgentHistoryCollection history = graph.callAll(

places.AGENT TRACE GET);

15 MASS.ﬁnish();

16 } }

3.3 Forward and Backward

Computation

We have leveraged the MASS library’s interface to

JShell named InMASS (Alghamdi, 2020) for forward

and backward computation.

In conventional data streaming, Spark ad-

dresses forward/backward computation with im-

mutable RDDs that create new versions upon any

transformation applied to them, and thus keeps old

RDDs retrievable with their references. This strat-

egy takes the same effect as checkpointing and roll-

back of computation. To avoid generating too many

snapshots of RDD, Spark carries out lazy evaluation

An Interactive Environment to Support Agent-based Graph Programming

151

of RDD transformations until they really need to be

evaluated for passing their changes to RDD actions

(which produce non-RDD values). In agent-based

graph programming, agents travel or propagate over a

graph as changing each data item. This in turn means

that, if we use the same strategy as Spark’s dataset

immutability, we need to take a snapshot every time

an agent changes each vertex. Furthermore, unlike

Spark’s RDD, (i.e., a collection of data items), a graph

needs more disk space for storing its serialized data

upon a checkpointing and more time for de-serializing

it upon a rollback. Taking these overheads in consid-

eration, we implemented interactive parallelization in

the MASS library as follows:

1. Maintaining only One Snapshot of Computa-

tion: MASS users are supposed to commit their

operations to an in-memory graph once they have

no intention to roll back beyond this checkpoint.

This saves the secondary storage space.

2. Maintaining a History of Previous MASS

Function Calls: The MASS library will keep

recording any MASS functions invoked since the

last snapshot was taken, so that MASS can rebuild

any past graph structure between the snapshot and

the latest graph state.

3. Rolling Back Computation by Re-executing

Functions in History: Upon a user-speciﬁed roll-

back, the MASS library will re-apply previous

function calls to the snapshot in a chronological

order all the way to the rollback point. While

this rollback scheme needs a substantial time to

rebuild a past graph, the normal computation can

run faster without continuously taking a snapshot

of ongoing executions onto disk.

At the highest level, InMASS is simply a wrap-

per class that initializes a JShell window and receives

MASS statements from users. The challenges of In-

MASS implementation, however, revolve around (1)

making JShell function properly for all cluster nodes

in a distributed environment and (2) deciding how to

save and reload computation state for checkpoint and

rollback functionality.

To address issue 1, we customized a Java class

loader named InMASSLoader that facilitates distribu-

tion of new classes’ bytecode from the MASS mas-

ter to worker nodes. Once all computing nodes are

aware of the new classes, they use new MASSObject-

InputStream and MASSObjectOutputStream functions

to assist in serialization and deserialization of these

dynamic classes.

To address issue 2, we had Agents and Places in-

herit AgentsInternal and PlacesInternal serializable

classes to facilitate serialization and deserialization of

all agents and places data. Then, each MASS worker

process gathers all hash tables containing all Agents

and Places instances, and holds them in one single

object named MState. This is the object to be saved

and updated on checkpoint and rollback. (Note that

users can choose a checkpoint storage from active

memory, temporary disk location, or a speciﬁed ﬁle

in disk.) To facilitate user ability to rollback to states

other than the original checkpoint, the MASS master

process prepares the MHistory object to keep a log of

all API calls to Agents and Places and to store their

bytecode to enable re-execution on demand. Conse-

quently, when a user requests rollback to “step 5”, for

example, the original snapshot will be loaded from

MState, and then MHistory will execute the next ﬁve

API calls that follow the snapshot.

3.4 Graph and Agent Visualization

To facilitate visualization and validation of agent ac-

tivities over a distributed graph, we have extended

the existing MASS-Cytoscape integration, based on

the following three implementation strategies: (1) al-

lowing users to focus on programming their graph

application, (2) following the OSGi framework to

modularize MASS-related plugins, and (3) allowing

large-scale graphs to be visualized by retrieving par-

tial graphs from MASS.

3.4.1 Usability Enhancement

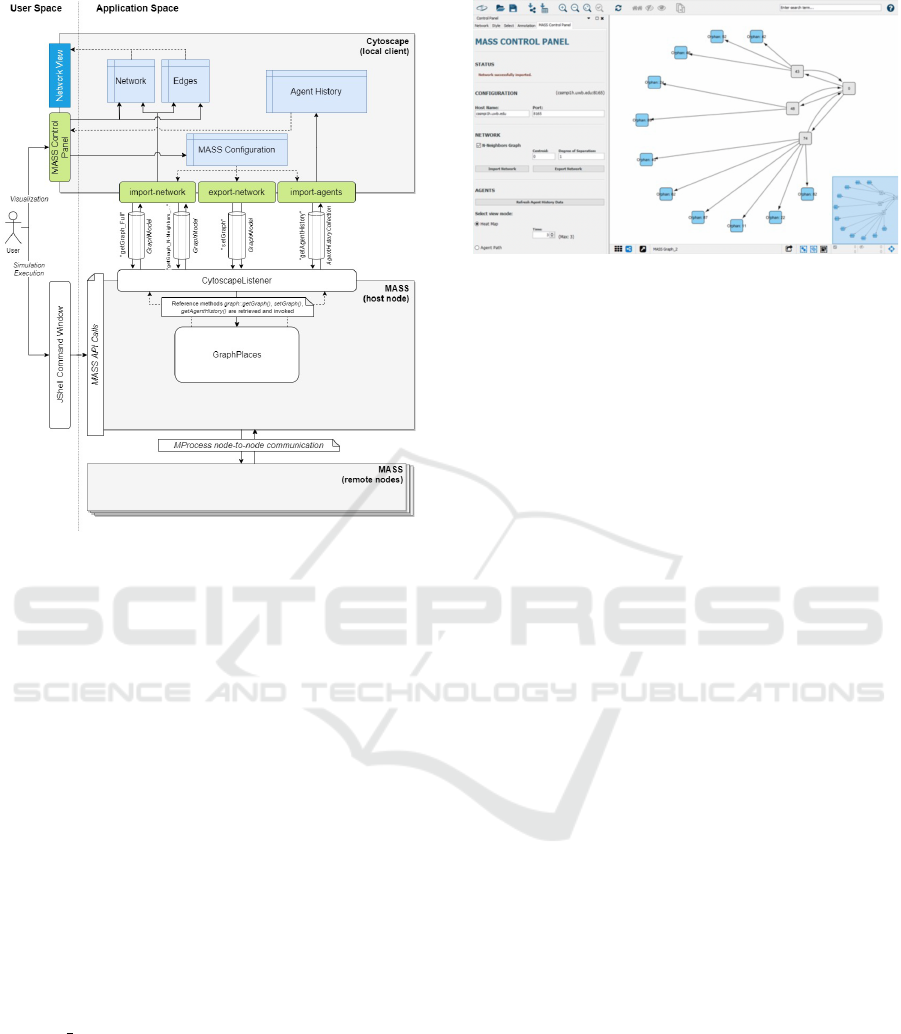

Figure 4 presents an overview of the MASS-

Cytoscape architecture. We have illustrated the user’s

two points of interaction on the left side of the ﬁg-

ure, with the JShell window for running their code in

MASS and with the MASS Control Panel for manag-

ing their data ﬂow and visualization in Cytoscape.

The MASS Control Panel serves three main func-

tions. First, it provides a single point of interaction for

the user by internally managing the data transfer plu-

gins: import-network, export-network, and import-

agents. Second, it provides the ability to manipu-

late the MASS Conﬁguration tables that inform the

data transfer plugins of how to ﬁnd the MASS com-

putation and what data to pull back into Cytoscape.

Lastly, it provides the interface and logic for visualiz-

ing agent movement through manipulation of the Cy-

toscape data tables and network view.

In MASS, the CytoscapeListener class must be

started by the user application to open a TCP-based

communication port for MASS-Cytoscape communi-

cation. This listener will then ﬁeld any requests from

Cytoscape by ﬁrst parsing the request, then obtaining

reference to the corresponding GraphPlaces method,

and ﬁnally invoking that method and returning the re-

sults to the requesting Cytoscape plugin. Internally,

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

152

Figure 4: MASS-Cytoscape integrated architecture.

the GraphPlaces methods utilize standard MASS in-

ternal APIs, such as callAll(), to communicate with

the rest of the cluster and set or retrieve the appropri-

ate information.

Visualizations in Cytoscape are all controlled by

two factors: the layout and the network view. While

we utilized the “Circular” layout, (i.e., one of Cy-

toscape’s defaults), we customized the network view

to change edge thickness and vertex color for visual-

izing agent travel histories.

3.4.2 Modularity and Expandability

Cytoscape plugin components must follow OSGi to

modularize them in a bundle. Since each bun-

dle is self-contained, plugin developers are respon-

sible to coordinate bundle invocations and to pro-

vide bundle-to-bundle data communication. We han-

dle this communication using a shared table named

“MASS Conﬁguration table” within the Cytoscape

environment. The table includes ﬁelds for the MASS

host name and port as well as other ﬁelds used for par-

tial graph streaming. The MASS Control Panel writes

new values to the table after taking inputs from the UI

and the data transfer plugins read in relevant informa-

tion each time a new data transfer task is created. To

tolerate any ordered start-up of bundle, the panel also

maintains a reference to each of the data transfer plu-

gins and the ability to test and reacquire the reference.

Figure 5: N-neighbors retrieval with centroid = 0, DoS = 1.

3.4.3 Graph Scalability

Visualization of a partial graph is important in situa-

tions where the MASS cluster is operating on a graph

too large to be stored in a single machine. To allow

the visualization environment to support the scale of

these graphs, we have implemented an optional “N-

Neighbors” approach to graph retrieval from MASS.

This requires the user to provide a centroid node ID

as well as determine the degrees of separation (DoS)

that should be imported. DoS is interpreted as the

number of neighbor rings that we would like to visu-

alize. Shown in Figure 5, if the user selects “1” DoS

then the graph retrieval will bring back the centroid

node as well as one ring of immediate neighbors.

To manage this request on the MASS side of the

program, the MASS master node ﬁrst receives the

request, saves centroid and DoS information, and

then invokes GraphPlaces’s getGraphNNeighbors()

method. This method iteratively queries the remote

workers for each DoS requested, passing a list each

time to ensure only the required graph vertices are

sent back. This approach is critical when a given

graph is too large for a single machine.

4 EVALUATION

We evaluated the MASS interactive environment in

the following three criteria: (1) execution perfor-

mance, (2) ease of programming, and (3) usefulness

of visualization. Our evaluation used a cluster of eight

computing nodes, each with an Intel Xeon Gold 6130

CPU at 2.10GHz and 20GB memory.

4.1 Execution Performance

We ﬁrst compared the execution performance be-

tween the agent-tracking API and the conventional

history-passing technique (i.e., maintaining and pass-

An Interactive Environment to Support Agent-based Graph Programming

153

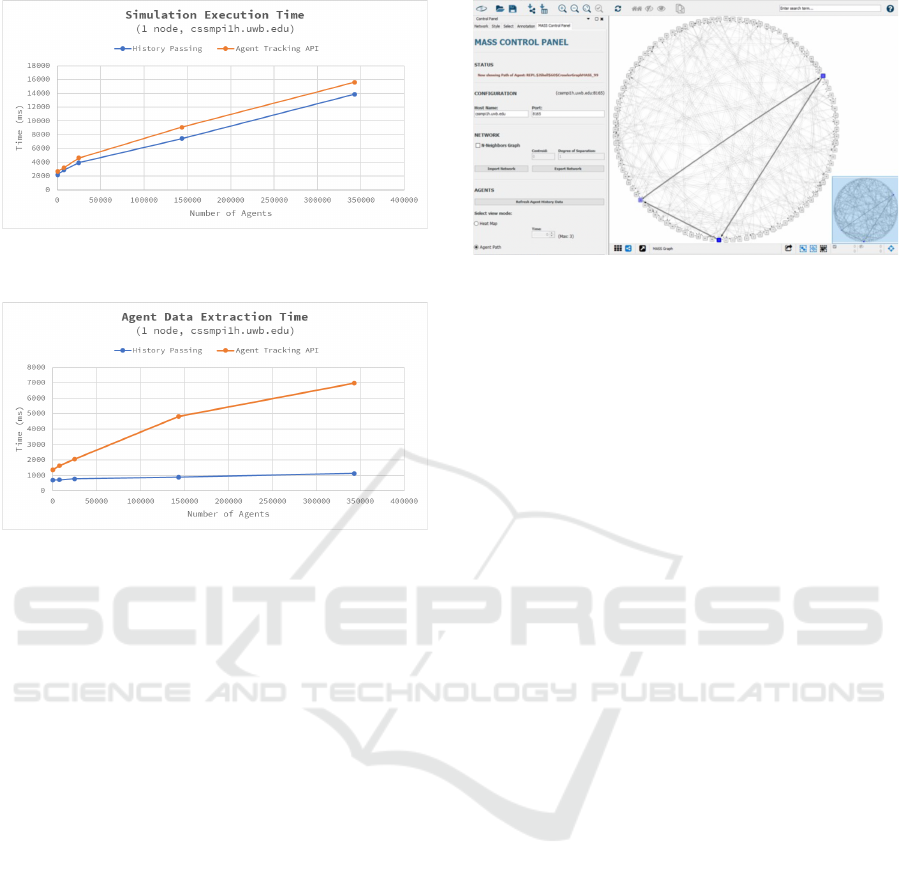

Figure 6: Performance of triangle counting with agent-

tracking API versus history-passing technique.

Figure 7: Agent data extraction overheads incurred by

agent-tracking API and history-passing technique.

ing a travel history from a parent to its children di-

rectly every time new children was spawned). We uti-

lized the agent-based Triangle Counting benchmark

application for this comparison.

Since the agent population increases exponen-

tially when the graph expands, we use the total num-

ber of agents to provide context to our results. Fig-

ure 6 shows Triangle Counting’s execution time as

increasing the number of agents. Note that we calcu-

lated the average of ﬁve measurements. Beyond 140K

agents, we observe approximately 1,700ms ( 11-18%)

slower performance when using the agent-tracking

API. This increase in processing time is due to the

added overhead from data capture methods invoked

when agents are spawning and moving. This gap

widens slightly when running in multi-node conﬁg-

urations due to network latency, but the correlation

between the two techniques remains consistent.

Figure 7 compares agent-tracking API and the

history-passing technique in their overheads when ex-

tracting agent data. We conversely observe a signiﬁ-

cant gap in performance between the two techniques

regarding agent-data extraction time. This is because

the agent-tracking API returns all agent data from

places and takes additional step to clean, sort, and

propagate the data upon retrieval.

Figure 8: Agent path visualization.

4.2 Programmability Evaluation

The following qualitatively compares the history-

passing technique and the agent-tracking API:

1. History-passing Technique: only works for

agents that are alive upon data extraction and re-

quires the user to have additional understanding

of the MASS library, which resulted in more lines

of code, (i.e., 15 lines)

2. Agent-tracking API: presents history for all reg-

istered agents at any point of execution, can be

initiated and then ignored until needed, which is

more intuitive with 13 lines of code for inexperi-

enced MASS users.

4.3 Graph and Agent Visualization

We have implemented two agent visualizations in Cy-

toscape: Agent Path and Heat Map. Both visualiza-

tions are generated using the MASS Control Panel

and each can be manipulated in the network view.

Agent Path is shown in Figure 8 and provides the

user with the ability to review the complete path of

any individual agent. The more recent movements

are represented with a darker node and thicker edge.

If an agent ever traverses a non-existing edge, then

a dashed line is created to signal the issue to the

user. This view is particularly useful in computation,

such as Triangle Counting, where the pattern of agent

movement determines the success of the application.

The Heat Map visualization, shown in Figure 9,

provides the user a representation of all agents ac-

tive in the simulation at a point in time with darker

nodes representing higher concentrations of agents.

The user is then able to cycle through the time vari-

able of the computation to observe movement patterns

of the entire group. This visualization is best applied

to use cases such as in network centrality analyses, in

which we seek to observe aggregate movement pat-

terns centralized around particular vertices of interest

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

154

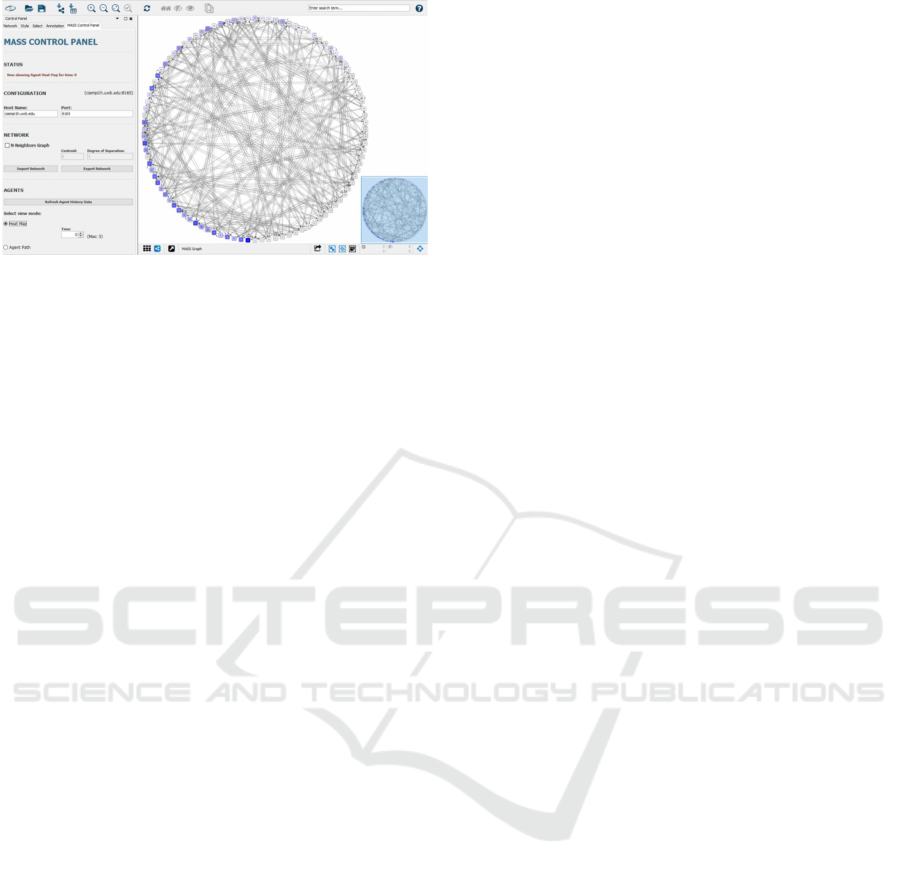

Figure 9: Heat map visualization.

in graph analysis.

In comparison with MASS, Repast Simphony pro-

vides a GUI for both execution and visualization

of graph analysis through their integration with the

Eclipse IDE. This integration also provides plugin

support for 2D/3D visualization of the simulation

“Context”, (which corresponds to MASS Places and

Agents.) The visualizations, known as “Projections”,

(which includes “Network Projections”) are conﬁg-

ured through the IDE before starting the simulation

and are strictly synchronized with simulation execu-

tion. Repast Simphony does provide statistics and

logging features for reviewing historical data, but the

simulation itself is limited to only stepping forward

through execution or running the simulation at full

speed.

Contrary to that, MASS separates the execution

and visualization aspects of the system into two win-

dows. Computation is handled through the command-

line interface, which also enables forward and back-

ward stepping through the inclusion of JShell with

checkpointing and rollback features. Visualization is

then managed separately through the Cytoscape GUI

and MASS-speciﬁc extensions. Adding support for

agent visualization in this work brings MASS on par

with Repast Simphony as far as what objects can be

visualized, but our visualizations are still limited to

2D views. Most importantly, the separation of view

and execution concerns allows for the visualization to

be completed asynchronously and the visualizations

to be adjusted as desired through the Cytoscape GUI

without the need to pre-conﬁgure or restart a compu-

tation.

5 CONCLUSIONS

To enable more rapid development and exploration

when building agent-based graph programs, we intro-

duced new APIs for tracking agent data, incorporated

an interface for forward and backward computation

with JShell, and expanded integration of Cytoscape

for visualization of MASS GraphPlaces and asso-

ciated Agents. Veriﬁcation using Triangle Counting

showed minimal impact on execution performance,

though increased overheads on agent-data extraction

times.

Our future work is two-fold in Cytoscape ex-

pansion: (1) visualization capabilities of multi-

dimensional arrays and binary/quad trees and (2) ﬁl-

tering capabilities of agents to capture for their graph

traverse, (e.g., those alive at a particular time or

marked as a successful traveler).

REFERENCES

Alghamdi, N. (2020). Supporting Interactive Computing

Features for MASS Library: Rollback and Monitoring

System. Technical report, UW Bothell.

Bic, L. et al. (1996). Distributed Computing Using Au-

tonomous Objects. IEEE Computer, 29(8):55–61.

Davis, D. B. et al. (2018). Data provenance for agent-

based models in a distributed memory. Informatics,

5(2):https://doi.org/10.3390/informatics5020018.

Fukuda, M., Gordon, C., Mert, U., and Sell, M. (2020).

Agent-Based Computational Framework for Dis-

tributed Analysis. IEEE Computer, 53(3):16–25.

Gilroy, J., Paronyan, S., Acoltz, J., and Fukuda, M. (2020).

Agent-Navigable Dynamic Graph Construction and

Visualization over Distributed Memory. In 7th Int’l

Workshop on BigGraphs’20, pages 2957–2966. IEEE.

Lange, D. B. and Oshima, M. (1998). Programming and

Deploying Java Mobile Agents with Aglets. Addison

Wesley Professional.

Malewicz et al. (2010). Pregel: a system for large-scale

graph processing. In Proc. of the 2010 ACM SIG-

MOD, pages 135–146, New York, NY, USA.

Nieplocha, J. et al. (2006). Advances, Applications and Per-

formance of the Global Arrays Shared Memory Pro-

gramming Toolkit. Int’l Journal of High Performance

Computing Applications, Vol.20(No.2):203–231.

O’Madadhain, J. et al. (2003). The JUNG (Java Universal

Network/Graph) Framework. Technical Report UCI-

ICS 03-17, School of ICS, UC Irvine.

Oracle (2017). Java Platform, Standard Edition, Java Shell

User’s Guide, Release 9. Technical Report E87478-

01, Oracle.

Sapaty, P. and Borst, P. (1996). Wave: mobile intelligence in

open networks. In Proc of COM’96, pages 192–195,

Portland, OR.

Wang, X. and Zhang, L. (2017). The research of the roll-

back mechanism in parallel simulation. In 13th IEEE

ISADS, pages 90–95.

Wenger, M., Acoltzi, J., and Fukuda, M. (2021). Comparing

Thread Migration, Mobile Agents, and ABM Simula-

tors in Distributed Data. In PAAMS 2021, pages 328–

340, Salamanca, Spain.

An Interactive Environment to Support Agent-based Graph Programming

155
