Multi-agent Transfer Learning in Reinforcement Learning-based

Ride-sharing Systems

Alberto Castagna and Ivana Dusparic

School of Computer Science and Statistics, Trinity College Dublin, Ireland

Keywords:

Reinforcement Learning, Ride-sharing, Transfer Learning, Multi-agent.

Abstract:

Reinforcement learning (RL) has been used in a range of simulated real-world tasks, e.g., sensor coordination,

trafﬁc light control, and on-demand mobility services. However, real world deployments are rare, as RL

struggles with dynamic nature of real world environments, requiring time for learning a task and adapting to

changes in the environment. Transfer Learning (TL) can help lower these adaptation times. In particular, there

is a signiﬁcant potential of applying TL in multi-agent RL systems, where multiple agents can share knowledge

with each other, as well as with new agents that join the system. To obtain the most from inter-agent transfer,

transfer roles (i.e., determining which agents act as sources and which as targets), as well as relevant transfer

content parameters (e.g., transfer size) should be selected dynamically in each particular situation. As a ﬁrst

step towards fully dynamic transfers, in this paper we investigate the impact of TL transfer parameters with

ﬁxed source and target roles. Speciﬁcally, we label every agent-environment interaction with agent’s epistemic

conﬁdence, and we ﬁlter the shared examples using varying threshold levels and sample sizes. We investigate

impact of these parameters in two scenarios, a standard predator-prey RL benchmark and a simulation of a

ride-sharing system with 200 vehicle agents and 10,000 ride-requests.

1 INTRODUCTION

Reinforcement learning (RL) has shown good perfor-

mance in addressing a variety of tasks, from naive

games to more complicated problems that require

synchronization. RL enables an intelligent agent op-

timize its performance in a speciﬁc task, however,

when a change in the underlying environment or a

task occurs, the performance of an agent often sharply

decrease. Thus, RL often performs very well in a sim-

ulated environment but struggles in real world evolv-

ing environments since it requires a constant updating

of the knowledge.

To discuss issues of applying RL in such real

world applications, in this work we apply multi-agent

RL for the ride-request assignment in a Mobility On-

Demand (MoD) system. Ride-request assignment is a

widely studied task, addressed as global optimization

problem (Fagnant and Kockelman, 2016; Wen et al.,

2017; Liu and Samaranayake, 2019) or locally by dis-

tributing the control at vehicles level (Castagna et al.,

2020; Castagna et al., 2021; Gu

eriau et al., 2020; Al-

Abbasi et al., 2019). Recent works adopt the use of

RL where an agent controls a single vehicle, as we do

in this paper. The type of changes that RL might need

to adapt to in an MoD system, but which have not

been addressed in literature, can, for example, be that

road layouts change, e.g., due to closure, or that de-

mand load or pattern changes over time, temporarily

or permanently.

A possible solution to these issues is to apply

transfer learning (TL) in conjunction with RL. Once

encounters a new situation, an agent can reuse knowl-

edge from other agents or its previous collected ex-

periences in order to boost its initial performance

in the new situation. For example, MoD system in

(Castagna et al., 2021) replicates full knowledge from

one agent to others. When a new agent joins the ﬂeet,

it can inherit knowledge good enough to be produc-

tive with no delay. Another approach to transferring

knowledge across similarly deﬁned tasks is by ﬁne

tuning previous performance; this process replicates

the knowledge from one agent to the other and af-

terwards, the receiving agent performs a reﬁnement

step to tune the received knowledge in its own set-

tings and environment. As an example, (Wang et al.,

2018b) proposes ﬁne-tuning in rider-driver assign-

ment problem across scenarios with different under-

lying dynamics, e.g., demand patterns and road struc-

ture. However, ﬁne-tuning protocols are usually ap-

120

Castagna, A. and Dusparic, I.

Multi-agent Transfer Learning in Reinforcement Learning-based Ride-sharing Systems.

DOI: 10.5220/0010785200003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 2, pages 120-130

ISBN: 978-989-758-547-0; ISSN: 2184-433X

plied when the differences are relatively small. The

time required for the receiving agent to adapt the re-

ceived information is related to the gap magnitude be-

tween source and destination conditions. As this be-

come wider, as more time the agent needs to reﬁne the

knowledge.

Transferring from a source to a very different tar-

get task, could lead to so-called negative transfer, as

result the second agent requires longer time to solve

the task compared to an agent that is learning from

scratch. When negative transfer happens, on top of

the time needed to solve the task, receiving agent need

additional time to forget the wrong injected knowl-

edge. Therefore, while TL can signiﬁcantly improve

the performance of an RL system, the knowledge

transferred needs to be carefully selected and inte-

grated, to prevent negative transfer resulting in even

worse performance than without deploying TL.

TL can also be applicable when multiple agents

are learning a task simultaneously. By exploiting

transfer techniques, agents can collaborate to achieve

a faster convergence rate. When applied in real-time,

further challenges need to be addressed, such as se-

lecting the best agent as source of transfer among

those available.

As the ﬁrst step towards this vision in which

agents in a multi-agent system continually share the

knowledge with evolving parameters, in this paper

we study the impact of parameters used when select-

ing the knowledge to be transferred, but in an ofﬂine

transfer scenario, where the roles of sender and re-

ceiver are well deﬁned. Speciﬁcally, we bootstrap the

agent with agent-environment interactions collected

from other agents across similar scenarios. Trans-

ferred knowledge is annotated with a value depict-

ing agent’s conﬁdence in that particular experience,

as in (Ilhan et al., 2019; Silva et al., 2020b). We

study TL performance using different batches of ex-

periences, varying quantity of information shared as

well as its ”quality”, as determined by adjusting the

conﬁdence threshold level.

We perform the transfer across agents performing

the same task, but in completely different underlying

environment dynamics. The target agent has to per-

form a full training cycle in the novel environment,

but prior to that it inherits knowledge from another

trained agent in order to bootstrap the performance

achieved.

In our initial investigations presented in this paper,

we focus on a simple case where just two agents are

involved and the underlying learning model is repre-

sented by a neural network for both. Transfer goal

focuses on improving the performance on receiving

side and therefore, the communication is one way.

For our implementation, we combine Proxi-

mal Policy Optimization (PPO) (Schulman et al.,

2017), with external knowledge in form of agent-

environment interactions. Unlike off-policy algo-

rithms that use two different policies to sample and

optimize, on-policy PPO assumes that the experience

used to optimize the policy is drawn by the very same

policy. Therefore, we extend PPO to bootstrap exter-

nal information to perform few steps of PPO gradient

descent optimization before exploration begins.

Evaluation is performed in two application areas:

benchmark environment predator-prey and ride shar-

ing simulation. The latter experiments are carried out

on a simulated MoD environment with ride-sharing

enabled vehicles. Requests are obtained from New

York City dataset (NYC Taxi and Limousine Com-

mission, 2020) and simulation performed in the Sim-

ulator of Urban MObility (SUMO). Finally, we com-

pare the performance against baselines: (1) policy

transfer and (2) learning from scratch.

Contribution of this paper is therefore twofold:

1) we evaluate the impact of transferring conﬁdence

labelled agent-environment interactions by varying

the transfer batch size and ﬁltering using different

threshold level; 2) we study applicability of TL in a

Mobility-on-Demand system with ride-sharing (RS)

enabled vehicles under different demand patterns.

The rest of this paper is organised as follows. Sec-

tion 2 reviews relevant work related to experience

reusing in transfer learning applied to RL. Section 3

describes in detail the process used to share experi-

ence within this research, Section 4 presents the sce-

narios, Section 5 discusses the results and discuss the

ﬁndings while Section 6 concludes this manuscript by

giving further research directions.

2 BACKGROUND

This section introduces the reader to previous re-

lated work on transfer learning and on the rider-driver

matching problem for mobility on-demand system, ﬁ-

nally discusses available methodologies to estimate

agent’s conﬁdence.

2.1 Rider-driver Matching Problem

Rider-driver matching problem is addressed using

a wide range of both centralized and decentralized

techniques, with different inputs and assumptions.

Generally, centralized aims to directly optimize the

global performance, i.e., minimising the travelled dis-

tance (Liu and Samaranayake, 2019; Fagnant and

Kockelman, 2016; Wen et al., 2017) while decentral-

Multi-agent Transfer Learning in Reinforcement Learning-based Ride-sharing Systems

121

ized addresses the problem from a single vehicle per-

spective where each vehicle is independent and un-

aware of others doing. Decentralized approaches of-

ten rely on RL where each vehicle is controlled by a

single agent (Castagna et al., 2020; Castagna et al.,

2021; Gueriau and Dusparic, 2018; Gu

eriau et al.,

2020; Al-Abbasi et al., 2019).

Transfer Learning in Rider-driver Assignment.

Within rider-driver dispatch problem there are not

many works that bootstrap external knowledge apply-

ing TL. Previously, (Castagna et al., 2021) designed a

multi-agent collaborative algorithm to obtain a main

knowledge that is then replicated to other agents. In

detail, multiple agents were learning to satisfy ride-

requests in a iterative way where the set of available

requests was composed by unserved requests from

previous vehicles. Finally, obtained knowledge is

replicated to other agents and no further reﬁnement

steps are performed.

On the other hand, (Wang et al., 2018a; Wang

et al., 2018b), bootstrap previous acquired knowledge

with a ﬁne-tuning process to leverage a pre-trained

learning model. Here, authors use a deep learning

model and transfer a pre-trained neural network to tar-

get environments with different demand pattern and

road infrastructure. This technique limits the range of

applicable algorithms to those with a neural network

underlying as it is feasible to transfer just the layers

weights, i.e., is not possible to transfer knowledge to

tabular model. Furthermore, any change in the neural

network architecture require further steps to adapt the

pre-trained layers.

(Wan et al., 2021) proposes an approach to trans-

fer from source to a target environment. The goal is

to ﬁne-tune knowledge by adapting the source value-

function to a target task with a concordance penalty

that expresses the similar patterns between the two

tasks, i.e. demand pattern. Thus, it can be applied

to a range of RL techniques regardless the underly-

ing representation. Nevertheless, a strong limitation

of this work is the need of prior knowledge over the

relation between source and target tasks.

2.2 Transfer Learning

Transfer learning is a widely used technique in a

variety of ﬁelds, (Zhuang et al., 2020) provides an

overview of the state of the art approaches across

many domains. In this work we apply TL from agent

to agent. We analyse the two agents case and from

now on, we refer to the agent that is providing in-

formation as source agent, while the other as target

agent. The latter processes external knowledge to

boost the performance within its task.

When transferring across agents, tasks are nor-

mally equally deﬁned, therefore state representations,

action sets and reward models are the same. Despite

these similarities, there can be some intrinsic char-

acteristics of the environment that may differ, e.g.,

within MoD scenario, different conﬁgurations of the

road network, different trafﬁc loads or different de-

mand pattern.

Existing applications of TL applied to RL are

many, varying by type of transferred knowledge and

technique used. For example, experience sharing

where agents share experience in form of agent-

environment interactions (de la Cruz Jr et al., 2019;

Lazaric et al., 2008) as we do within this work, policy

transfer where a trained model is replicated to a novel

agent as in (Wang et al., 2018b), advice-based where

an expert or another agent is available on-demand to

support the learning phase of an agent (Fachantidis

et al., 2017; Silva et al., 2020a), and ﬁnally by more

sophisticated and task-related techniques as in (Wan

et al., 2021). Previous work also investigated the im-

pact of transfer parameter selection in the context of

tabular RL (Taylor et al., 2019), and concluded that

frequency and size of the transfer, as well as how is

the knowledge incorporated on the target agent, has

signiﬁcant impact on the performance of the target

agents.

2.3 Conﬁdence Estimator

For estimating the agent’s conﬁdence within a state

are available several possibilities that suit tabular and

deep learning models. A naive approach could be

to count the agent visits over states or to deﬁne a

function over it as in (Zhu, 2020). However, this

becomes unfeasible whenever the state space is too

wide or continuous as in our MoD scenario. More

sophisticated models range from the use of a Gaus-

sian model with a conﬁdence function deﬁned over

it (Taylor, 2018), changes on neural network struc-

ture (Silva et al., 2020a) and ﬁnally using external

tool to compute it as Random Network Distillation

(RND) (Burda et al., 2018). RND has been presented

as a tool to regulate exploration by curiosity but has

been already used as uncertainty estimator for a RL

agent by (Ilhan et al., 2019). A neural network is

trained to predict the output of a target rough network,

while uncertainty is deﬁned as discrepancy across the

two networks output.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

122

Algorithm 1: Process for source agent that stores agent-

environment interactions.

Initialize experience buffer EB

for e in episodes do

repeat

observe state s

take an action a

observe action, reward r and next state s

′

if time to update policy then

optimize policy for K epochs on collected

interactions

optimize RND on visited states

end if

if ep > episode from saved experience then

estimate agent conﬁdence u over s through

RND

add (s, a, r, s

′

, u) to buffer EB

end if

until episode is complete or max steps is reached

end for

3 CONFIDENCE-BASED

TRANSFER LEARNING

Within this section we introduce the design of transfer

learning approach we have implemented to evaluate

conﬁdence and sample size impact in transfer learn-

ing.

We assume that agents explore at a different time

the same or similar tasks (but performed in a dif-

ferent underlying environment). Thus, no knowl-

edge mapping is required as both agents have the

same set of sensors and actuators. Algorithm 1, de-

scribes the process of source agent that collects sam-

ples, represented as a tuple: (s

, a

, r

, s

′

, u

), hence

stores agent-environment interactions plus a conﬁ-

dence value computed over the visited state. The lat-

ter value depicts state-related agent epistemic conﬁ-

dence at time t of the visit. In detail, u stands for

uncertainty and therefore, higher is the value lower is

the agent’s conﬁdence within that state.

Once the ﬁrst agent has accomplished the train-

ing, buffer of collected experience is transferred to a

receiving agent. The latter ﬁlters the received knowl-

edge based on interaction’s conﬁdence u and conﬁ-

dence threshold t and draws a certain number of sam-

ples to pre-train its learning model as in Algorithm 2.

This technique is applicable to RL algorithms re-

gardless the underlying representation, e.g., tabular

model or through a neural network. Our implemen-

tation uses policy-based deep RL algorithm called

proximal policy optimization (PPO) (Schulman et al.,

Algorithm 2: Flow of target agent that samples interactions.

Input: experience buffer EB, threshold t, transfer

budget B

Initialize agent

sample from EB B interactions where u < t

train agent with experience sampled

for e in episodes do

repeat

observe state s

take an action a

observe action, reward r and next state s

′

if time to update policy then

optimize policy for K epochs on collected

interactions

end if

until episode is complete or max steps is reached

end for

2017). PPO is an on-policy algorithm that optimises a

policy by gradient descent, meaning that the updated

policy and the one used to produce samples are the

same. Therefore, to not compromise the optimisation

process, we limit the bootstrapping of external knowl-

edge before the learning phase commence. While off-

policy algorithms might be naturally more suitable

for reusing experience, in this paper we based it on

PPO, due to faster convergence rates and its previous

successes in ride-sharing application (Castagna et al.,

2021).

4 EVALUATION

ENVIRONMENTS

This section introduces the scenarios used to perform

evaluation, and the parameters used in these scenar-

ios.

4.1 Predator-prey

Predator-prey environment is based on an existing

version of a grid-world implementation (Chevalier-

Boisvert et al., 2018). Figure 1 shows a basic conﬁg-

uration of the environment. Task starts with a random

allocation of predator and preys around the grid, while

ends whether the predator, represented as a front-

oriented ﬁlled triangle, catches all the same colour-

based preys, depicted as pierced triangles. The en-

vironment is partially observable as the agent knows

only the 3 x 3 grid in its ﬁeld of vision, which in the

ﬁgure is highlighted in front of it. To fulﬁl the goal, a

predator is enabled to move forward, turn left or right,

wait and perform a catch action. With the latter, a

Multi-agent Transfer Learning in Reinforcement Learning-based Ride-sharing Systems

123

Figure 1: Instance of 9x9 grid predator prey environment

with a single predator (ﬁlled triangle), and multiple preys

(pierced triangles). Predator perceives the highlighted 3x3

grid in front of it and its goal is to catch the preys.

predator can catch a prey when it is in the consecutive

cell.

Prey follows a random policy to escape from the

predator, as follows: stay in the same position with

10% of probability, turn left or right with 25% chance

each, and move forward with 40% probability.

The reward model is designed to encourage preda-

tor to catch the prey faster; the agent receives a living

penalty according to the action taken, −0.01 for turn

and step actions, −0.25 when staying still and ﬁnally

−0.5 for a missed catch. However, whether the catch

succeeds agent receives a positive reward of 1. The

conﬁguration used within this work is reported in Ta-

ble 1.

For evaluation purpose, we use this benchmark

scenario to study the impact of sharing agent-

environment interactions from a pre-trained agent to a

new ”blank” agent. Source of transfer is an agent that

performs well enough to accomplish the given task.

During exploration, this agent labels interactions with

its epistemic conﬁdence over the visited state. Thus,

conﬁdence is estimated on the number of state visits

updated to the timestep of the sampling. Afterward,

knowledge is ﬁltered by a speciﬁed conﬁdence thresh-

old and transferred to the experience buffer of the new

agent. The new agent samples a number of interac-

tions from the buffer and pre-trains its learning model

before exploring.

We study the impact of leveraging collected expe-

rience by varying threshold conﬁdence level and num-

ber of interactions sampled. By doing so, we aim to

gain insights into how is the second agent behaviour

inﬂuenced by the amount of samples passed and by

the quality of injected knowledge.

4.2 Ride-sharing-enabled Mobility on

Demand Scenario

For the real world case study we use the system pre-

sented in (Castagna et al., 2021). However, we port

the implementation into a widely used trafﬁc simula-

tor of urban mobility, SUMO (Lopez et al., 2018), to

increase realistic trafﬁc movement and conditions.

Agent’s goal is to maximise the amount of ride-

request served. To serve all the requests, a ﬂeet of

5-seater RS-enabled vehicles is dispatched. Control

is distributed at vehicle level and therefore, each car

is controlled by a single agent with no communication

nor coordination with others.

At each timestep, each RL vehicle agent knows its

location, number of unoccupied seats and destination

of the request that can be served the quickest, among

those that it has assigned. Furthermore, an agent re-

ceives information about the three closest requests in

the neighbourhood, with an number of passengers that

could ﬁt on board and that could be picked up before

request’s expiration time. A representation of state

and perception is shown in Figure 2. For each of these

requests, agent knows request origin, request destina-

tion, number of passengers and minimum detour time

from the current route to reach the pick-up point and

destination point of the request.

After evaluating state and perception, an agent can

take one of the 5 actions available, (1) being parked,

vehicle stays parked for a predeﬁned amount of time,

(2) drop-off, vehicle drives towards its destination and

ﬁnally, (3) pick-up, where agent drives to pick-up

point of the selected request. Note that agent can de-

cide to pick one of the three available requests and

as results, agent has three different pick-up options,

resulting in total of 5 available actions.

Vehicle position is updated in real-time, however

decision process is triggered on the conclusion of an

action, i.e, vehicle arrives to pick-up or drop-off lo-

cation. On top of that, a vehicle can evaluate to pick

further requests while is serving others. This evalua-

tion step is allowed whenever the vehicle is further

from arrival point and has at least a free seat. All

vehicles within the ﬂeet are synchronized under the

same clock, therefore evaluation process is performed

following a FIFO queue. Given the task’s nature, an

episode begins with the vehicle spawn and terminates

when there are no further request to be served.

Reward scheme is designed to minimise the cumu-

lated delay for each of the action taken by the agent.

Therefore, is deﬁned as the elapsed time from the

agent’s decision to the end of the action. First, when

an action is not possible to accomplish, agent receives

a penalty of -1. Second, when agent decides of being

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

124

Figure 2: Representation of vehicle status with the three

requests perceived in the neighbourhood.

parked, receives a penalty deﬁned over the elapsed

time:

−x

x+delay

, where x is set to 5 whether agent is

not serving any request, else to 1. Third, while drop-

ping off, reward is deﬁned as follow, exp(

1+delay

Last, on pick-up reward given to an agent is deﬁned

x+delay

,where x is ﬁxed to 1 whether the request

picked is the ﬁrst, 2 otherwise. Reward model has

been designed in that way to normalize delay into

(0,1) interval.

To emulate a real-world scenario, we use ride-

requests data from (Gu

eriau et al., 2020), where au-

thors have aggregated NYC taxi trips from 50 con-

secutive Mondays between July 2015 and June 2016

in Manhattan zone (NYC Taxi and Limousine Com-

mission, 2020). Trips are then organized on a time-

base schedule. Finally, we obtained 4 datasets repre-

senting peak times, morning, afternoon evening and

night. Within this research, we use the morning peak

slot (from 7 to 10 am) and the evening (from 6 to 9

pm).

We use these different datasets to evaluate the

impact of sharing experience among same tasks but

varying the underlying demand pattern. We let agents

explore and collect interactions by serving requests

from the morning set and afterwards we leverage part

of the collected experience to pre-train agents that

operate in the evening shift. In detail, 200 vehicles

are dispatched during simulation to serve the demand.

To evaluate our work, we use two demand loads and

we execute the system in the following conditions, 1)

train and test on morning peak; 2) train and test on

evening peak; 3) train on morning peak and test on

evening peak; lastly, 4) train on morning peak, trans-

fer knowledge to a new agent that will then be further

trained and tested on evening peak.

5 EVALUATION RESULTS AND

ANALYSIS

This section presents and discuss the results achieved

through simulations in the two evaluation environ-

ments and is organized in two parts. First, we discuss

the beneﬁt of reusing experience in predator-prey sce-

nario and second, in MoD scenario.

5.1 Predator-prey

To evaluate the performance obtained within

predator-prey scenario we studied agent’s learning

curve, by analysing the reward.

For the following set of experiments, Table 1 sum-

marises the conﬁguration of the environment, while

Table 3 reports the simulation parameters for the task.

We set RND size to 1024 as we discovered to be

a good trade off between performance and network

size.

Within this work, we let the source agent to col-

lect experience from the last 20% episodes and we

vary the number of drawn interactions from the trans-

fer buffer (5,000 and 10,000) and conﬁdence thresh-

old for ﬁltering interactions. Figure 3 depicts the

achieved results by varying both parameters. As

threshold, we used few hardcoded task-related values

empirically obtained (0.015, 0.02, and 0.05) and two

others computed over the transfer buffer (mean and

median conﬁdence values).

In addition, we compare achieved results against

four different baselines and we show the results

through Figure 4. As ﬁrst baseline, we propose a no-

transfer agent, i.e., an agent that addresses the task for

the ﬁrst time with no external support. Other base-

lines included an additional agent that can support

the learning phase by providing advice when needed.

As transfer framework for these baselines, we opted

for the teacher-student paradigm (Torrey and Taylor,

2013), where student is represented by the learning

agent while teacher is the additional agent that al-

ready accomplished the task obtaining good perfor-

mance. Among the transfer-enabled baselines we can

distinguish three cases: ﬁrst advice at beginning, as

we noticed that the initial episodes are the hardest

for an agent to exhibit good behaviour, second mis-

take correction, where teacher supervises student by

providing advice when the latter misbehaves accord-

ing to teacher’s expectation and last, conﬁdence based

ε−decay (Norouzi et al., 2020), where student asks

for advice following an ε−decay probability when

it has lower conﬁdence than teacher. In all teacher-

supported baselines, as is the standard in teacher-

student TL related work, we set a maximum budget

Multi-agent Transfer Learning in Reinforcement Learning-based Ride-sharing Systems

125

for exchanging advice in order to match the number

of sampled interactions.

Figure 3 shows the results achieved by varying

ﬁlter threshold on receiving side organized by the

amount of sampled interactions, 5,000 (a) and 10,000

(b). Impact of threshold is mild compared to transfer

buffer size; contrary to what we intuitively expected,

using less samples (5,000) has shown a greater im-

provement of the performance against a no transfer

enabled agent. Regardless of the transfer settings,

agent performance is overall better compared to a no

transfer agent. In a few of the cases we observe a

jumpstart, i.e., an improved performance since the

very beginning. However, we cannot do a linear com-

parison between transfer and no-transfer results be-

cause the former exploits external knowledge result-

ing in a few additional episodes. Nevertheless, most

of transfer-enabled instances are able to outperform a

no transfer agent since the beginning as we can easily

notice from Figure 3a.

Tuning the right threshold could be very expen-

sive in term of time as it is task-dependent and might

not results in the expected outcome (i.e., resulting in

a negative transfer). Nevertheless, Figure 4 shows a

signiﬁcant gap between our proposal and the evalu-

ated baselines. In particular, we can notice from Fig-

ure 4a that when the transfer budget is low, our pro-

posal stands out from the others and enables the agent

to reach very soon good performance that are kept

over time.

Table 1: Parameters in predator-prey environment.

Parameter Value

grid size 9

#teams 1

#predators 1

#preys 2

grid-view size 3

rewards

successful catch 1

missed catch -.5

hold position -.25

turn or step penalty -.01

5.2 Mobility on Demand

For this scenario we adopted a MoD previously evalu-

ated against multiple baselines with and without ride-

sharing and rebalancing (Castagna et al., 2021), there-

fore in this work we solely focus on evaluating the im-

pact of TL. Table 2 presents the environment related

settings while, Table 3 reports the learning model con-

ﬁguration.

We rely on common metrics used to evaluate per-

Table 2: Parameters in Mobility-on-Demand scenario.

Parameter Value

ﬂeet size 200

#seats 5

#available requests 7-10am 9663

#available requests 6-9pm 9662

training rounds 6

training vehicle per round 10

Table 3: Simulation settings for predator-prey (PP) and

Mobility-on-Demand (MoD) scenarios.

Parameter PP MoD

# episodes 3000 N/A

max #steps 500 N/A

#hidden layer(s) 1 4

size hidden layer(s) 64 128

gamma .99 .999

learning rate .001 1e-4

update iter 500 32

epochs 10 10

ε−clip .2 .2

RND size 1024 1024

formances of MoD system. On passenger side, we

evaluate waiting time, deﬁned as time elapsed from

moment that request is being made until the passen-

ger pick-up by the ride-sharing vehicle. Furthermore,

as Table 4 reports, we take into account detour ra-

tio (D

) that captures the additional distance driven

by the vehicle with the passenger over the expected

distance without ride-sharing enabled. At the overall

ﬂeet level we evaluate percentage of requests being

served in ride-sharing(%RS) and demand satisfaction

rate (% Served Reqs.). Finally, on vehicle level we

evaluate the passenger distribution across the avail-

able vehicles, reporting the variance of passengers

distribution (σ pass) in Table 4, alongside the aver-

age travelled distance covered by vehicles during the

whole simulation (d

We compare our TL-enabled MoD, TL-enabled

test 6-9pm against two baselines:

1. Train 7-10am test 6-9pm, where we transfer the

learnt model from an agent trained on the morning

demand set (7-10am) to evening set (6-9pm)

2. Train & test 6-9pm where an agent learns over the

evening set and is evaluated over the same dataset.

We also present the results achieved on the morn-

ing peak by agent trained on the same set of re-

quests (Train & test 7-10am). The latter provides ex-

perience that we have used within our proposal where

a novel agent, following Algorithm 2, preprocesses

received knowledge and then performs a training on

evening demand set (6-9pm).

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

126

(a) (b)

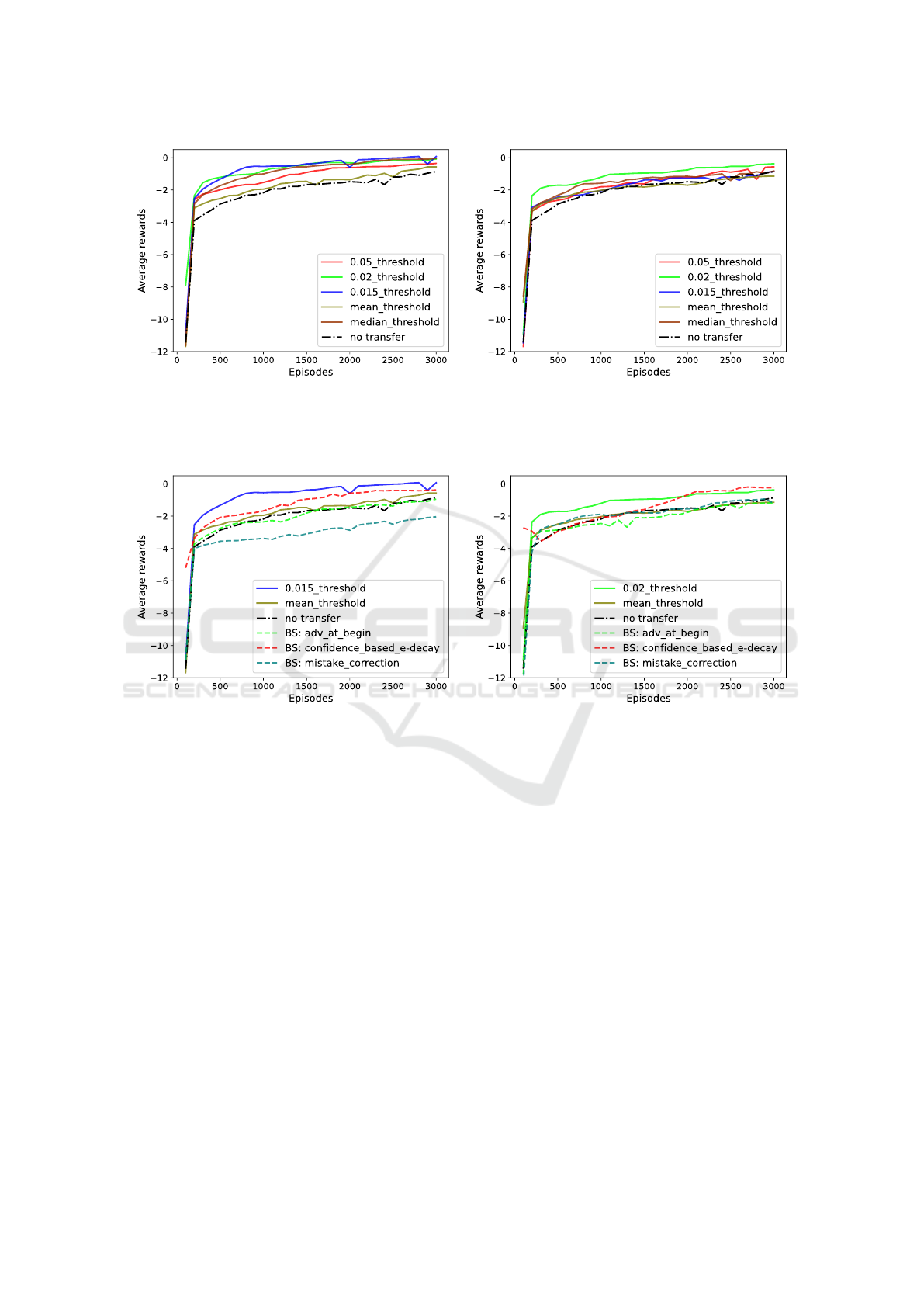

Figure 3: Comparison of averaged reward with different number of interactions sampled by the transfer buffer, 5.000 (a) and

10.000 (b). Results are obtained as average over 50 simulations in predator prey scenario enabling transfer learning.

(a) (b)

Figure 4: Comparison of best and worst instance against proposed baselines with different number of interactions sampled

by the transfer buffer, 5.000 (a) and 10.000 (b). Results are obtained as average over 50 simulations in predator prey scenario

enabling transfer learning.

The details of how we conducted experience in

our TL-based scenario TL-enabled test 6-9pm are as

follows. To collect enough samples, agent training

in Train & test 7-10am required a larger set of re-

quests. Hence we used 30,000 requests maintaining

the scheme of 6 rounds with 10 vehicles, forming a

60 episodes training. In detail, each vehicle selects

requests to be served from the pool of requests that

previous vehicles could not accomplish. Once a round

is completed, request set is restored and a new cycle

can begin. All vehicles contribute to the same model,

which is later replicated to all the 200 vehicles oper-

ating in morning and evening shifts.

Agent was enabled to store knowledge only over

the ﬁnal 40% episodes and it collected approximately

14,000 interactions. Uncertainty interval for the col-

lect interactions was really broad, 17 - 500,000, with

average being 50,000 and with approximately 6,000

interactions having a state with no requests in agent

neighbourhood and an associated uncertainty lower

than 450.

Initially, we performed the tests with multiple

thresholds applied to uncertainty level of interactions

reused. First, we provided to target agent the whole

set (approximately 14,000 interactions) without ap-

plying any ﬁlter. Second, we discarded all interac-

tions composed by a state with no requests in proxim-

ity of the vehicle and from those we sampled 5,000 in-

teractions. Third, we set the threshold to 50,000, uti-

lizing only samples with uncertainty under that num-

ber, resulting in around 10,000 available interactions.

However, all of these initial tests failed to run to

completion because they overloaded the SUMO en-

gine with requests leading to a crash. Nevertheless,

Multi-agent Transfer Learning in Reinforcement Learning-based Ride-sharing Systems

127

the early stages of the experiments were useful in or-

der to tune the threshold. For the ﬁnal experiment, re-

sults of which we present here we halve the available

interactions for target agent by setting the threshold

to 10,000 taking all the interactions with lower un-

certainty. Agent randomly samples 5,000 interactions

and pre-train its learning model. Finally, it performs

a 6 rounds with 10 vehicles training.

We present the simulation results in Table 4 and

Figure 5. We show the waiting time for requests in

(a), the distribution of passengers served per vehicle

in (b) and the travelled distance per vehicle in (c).

Note that green scenario, (Train & test 7-10am),

reports a longer distance covered by vehicles due to

a greater number of requests satisﬁed. Our scenario

TL-enabled test 6-9pm, enable the system to cover

further requests when compared to baselines on same

demand set. As Table 4 reports, it enables the ﬂeet

to cover 79% of demand while Train 7-10 test 6-9pm

and Train & test 6-9pm stop at 77% and 76%. Fur-

thermore, despite the few additional requests served,

average vehicles mileage is lowered by 5 km per ve-

hicle (82 km) against (87km). Although, passengers

distribution is unbalanced compared to baselines, as

variance is almost doubled (41.12) against (21.65 and

19.35)

Eventually, while maintaining a fair RS rate (93)

compared to baselines (99), our scenario almost

halves the average request detour ratio (5.23) com-

pared to baselines (9 and 9.11), resulting in less kilo-

metres travelled onboard for passengers before reach-

ing their destination.

When leveraging experience across equal-deﬁned

task as within our predator-prey simulations, target

agent is enabled to outperform a no-transfer agent and

baselines. In detail, TL-enabled agent overcomes no-

transfer enabled agent performance in less than a half

episodes.

On the other hand, when applying TL to a more

complicated scenario, as our real-world MoD simu-

lator, it demands a not trivial evaluation over transfer

parameters. However, in our experiment, agents are

able to satisfy a greater number of passengers while

reducing travelled distance and improving rider expe-

rience. In fact, detour ratio, deﬁned as distance trav-

elled by passengers onboard of MoD vehicle against

expected travelled distance on a solo trip, is sharply

decreased when compared against other scenarios.

6 CONCLUSION AND FUTURE

WORK

In this paper we presented an experience-sharing

(transfer learning) strategy to leverage collected ex-

perience across same tasks executed in different en-

vironment dynamics. A ﬁrst agent (source), collects

samples throughout exploration while learning a task,

that are then transferred to a second agent (target).

The latter, preprocesses its learning model by sam-

pling a certain amount of interactions from receiving

buffer. We have analysed the performance varying

transfer parameters in two scenarios, predator-prey,

where target and source agent address the very same

task, and a mobility on demand scenario where source

and target are evaluated on a same task but under dif-

ferent underlying ride request demand.

We generally noticed that within the predator-prey

scenario, by enabling TL, agent which receives trans-

ferred data is able to outperform a standard agent

which learns from scratch.

These improvements are more difﬁcult to notice

in a simulated real world environment since we do not

track the reward achieved by the agents but we rely on

domain-speciﬁc performance measures dependent on

our application area. However, we can still notice an

improvement in the ride-requests satisﬁed and in the

distance travelled by the vehicles. When we compare

TL-enabled agent against agent learning from scratch

on the same set of demand, we can notice that ride-

sharing ratio is slightly decreased in favour of a lower

detour ratio. As a result, passengers lower the time

spent onboard by reaching faster their ﬁnal destina-

tion.

This paper presents a ﬁrst step in a wider work on

multi-agent experience sharing in real-time. In this

research, we evaluated the impact and the feasibil-

ity of deﬁning parameters and threshold in experience

reusing with ﬁxed roles of information sender and re-

ceiver.

As a next step, we plan to evaluate ”importance”

of the states for the target agent, in order to reduce

transfers in less important states to save communica-

tion budget if needed. For example, we have observed

that a source agent has high conﬁdence in its knowl-

edge about the state in which there are no requests

to serve, but since there is less potential for ”mis-

take” actions when there are no requests, transferring

knowledge in this situation might not be crucial. Af-

terward, we plan to bootstrap knowledge across sce-

narios with different road structure to further test the

reliability of TL applied to simulation of real-world

case and develop the full dynamic online multi-agent

TL system.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

128

(a) Waiting time for request

(b) Number of passengers served per vehicle

Figure 5: Comparison of simulation results for the analysed scenarios over the following metrics: (a) waiting time, (b)

passengers distribution per vehicle and (c) distance travelled by vehicle. The y-axis represents the probability that a request

for (a) or vehicle in (b, c) assumes a certain value. Note that results are obtained from a single simulation run.

Table 4: Performance metrics across all 5 evaluated approaches in ride-sharing scenario.

Scenarios

%Served requests

%RS

σ pass d

(km)

Train & test 7-10am

93 93 76.61 140 9.4

Train 7-10am test 6-9pm

77 99 21.65 87 9

Train&test 6-9pm

76 99 19.35 87 9.11

TL-enabled test 6-9pm

79 93 41.12 82 5.23

ACKNOWLEDGEMENTS

This work was sponsored, in part, by the Science

Foundation Ireland under Grant No. 18/CRT/6223

(Centre for Research Training in Artiﬁcial Intelli-

gence), and Grant No. 16/SP/3804 (Enable).

REFERENCES

Al-Abbasi, A. O., Ghosh, A., and Aggarwal, V. (2019).

Deeppool: Distributed model-free algorithm for ride-

sharing using deep reinforcement learning. IEEE

Transactions on Intelligent Transportation Systems,

20(12):4714–4727.

Burda, Y., Edwards, H., Storkey, A., and Klimov, O. (2018).

Exploration by random network distillation.

Castagna, A., Gu

eriau, M., Vizzari, G., and Dusparic, I.

(2020). Demand-responsive zone generation for real-

time vehicle rebalancing in ride-sharing ﬂeets. In

11th International Workshop on Agents in Trafﬁc and

Transportation (ATT 2020) at ECAI 2020.

Castagna, A., Gu

eriau, M., Vizzari, G., and Dusparic, I.

(2021). Demand-responsive rebalancing zone genera-

tion for reinforcement learning-based on-demand mo-

bility. AI Communications, pages 1–16.

Chevalier-Boisvert, M., Willems, L., and Pal, S. (2018).

Minimalistic gridworld environment for openai gym.

https://github.com/maximecb/gym-minigrid.

de la Cruz Jr, G. V., Du, Y., and Taylor, M. E. (2019). Pre-

training neural networks with human demonstrations

for deep reinforcement learning.

Multi-agent Transfer Learning in Reinforcement Learning-based Ride-sharing Systems

129

Fachantidis, A., Taylor, M., and Vlahavas, I. (2017). Learn-

ing to teach reinforcement learning agents. Machine

Learning and Knowledge Extraction, 1(1):21–42.

Fagnant, D. and Kockelman, K. (2016). Dynamic ride-

sharing and ﬂeet sizing for a system of shared au-

tonomous vehicles in Austin, texas. Transportation,

45.

eriau, M., Cugurullo, F., Acheampong, R. A., and Dus-

paric, I. (2020). Shared autonomous mobility on de-

mand: A learning-based approach and its performance

in the presence of trafﬁc congestion. IEEE Intelligent

Transportation Systems Magazine, 12(4):208–218.

Gueriau, M. and Dusparic, I. (2018). Samod: Shared

autonomous mobility-on-demand using decentralized

reinforcement learning. In The 21st IEEE Interna-

tional Conference on Intelligent Transportation Sys-

tems.

Ilhan, E., Gow, J., and Perez Liebana, D. (2019). Teaching

on a budget in multi-agent deep reinforcement learn-

ing. pages 1–8.

Lazaric, A., Restelli, M., and Bonarini, A. (2008). Transfer

of samples in batch reinforcement learning. In Pro-

ceedings of the 25th International Conference on Ma-

chine Learning, ICML ’08, page 544–551, New York,

NY, USA. Association for Computing Machinery.

Liu, Y. and Samaranayake, S. (2019). Proactive rebalancing

and speed-up techniques for on-demand high capacity

vehicle pooling. CoRR.

Lopez, P. A., Behrisch, M., Bieker-Walz, L., Erdmann, J.,

otter

od, Y., Hilbrich, R., L

ucken, L., Rummel, J.,

Wagner, P., and Wiessner, E. (2018). Microscopic

trafﬁc simulation using sumo. In 2018 21st Interna-

tional Conference on Intelligent Transportation Sys-

tems (ITSC), pages 2575–2582.

Norouzi, M., Abdoos, M., and Bazzan, A. (2020). Experi-

ence classiﬁcation for transfer learning in trafﬁc signal

control. The Journal of Supercomputing.

NYC Taxi and Limousine Commission (2020). Tlc trip

record data.

Schulman, J., Wolski, F., Dhariwal, P., Radford, A., and

Klimov, O. (2017). Proximal policy optimization al-

gorithms. CoRR, abs/1707.06347.

Silva, F., Hernandez-Leal, P., Kartal, B., and Taylor, M.

(2020a). Uncertainty-aware action advising for deep

reinforcement learning agents.

Silva, F. L. D., Hernandez-Leal, P., Kartal, B., and Taylor,

M. D. (2020b). Uncertainty-aware action advising for

deep reinforcement learning agents. In AAAI.

Taylor, A., Dusparic, I., Gu

eriau, M., and Clarke, S.

(2019). Parallel transfer learning in multi-agent sys-

tems: What, when and how to transfer? In 2019

International Joint Conference on Neural Networks

(IJCNN), pages 1–8.

Taylor, M. E. (2018). Improving reinforcement learning

with human input. In Proceedings of the Twenty-

Seventh International Joint Conference on Artiﬁcial

Intelligence, IJCAI-18, pages 5724–5728. Interna-

tional Joint Conferences on Artiﬁcial Intelligence Or-

ganization.

Torrey, L. and Taylor, M. (2013). Teaching on a budget:

Agents advising agents in reinforcement learning. In

Proceedings of the 2013 international conference on

Autonomous agents and multi-agent systems, pages

1053–1060.

Wan, R., Zhang, S., Shi, C., Luo, S., and Song, R. (2021).

Pattern transfer learning for reinforcement learning in

order dispatching. arXiv preprint arXiv:2105.13218.

Wang, L., Guo, B., and Yang, Q. (2018a). Smart city de-

velopment with urban transfer learning. Computer,

51:32–41.

Wang, Z., Qin, Z., Tang, X., Ye, J., and Zhu, H. (2018b).

Deep reinforcement learning with knowledge transfer

for online rides order dispatching. pages 617–626.

Wen, J., Zhao, J., and Jaillet, P. (2017). Rebalancing shared

mobility-on-demand systems: A reinforcement learn-

ing approach. In 2017 IEEE 20th International Con-

ference on Intelligent Transportation Systems (ITSC),

pages 220–225. IEEE.

Zhu, C. (2020). Learning by reusing previous advice in

teacher-student paradigm. In Proceedings of the 2020

International Conference on Autonomous Agents and

Multi-Agent Systems, Underline Science Inc.

Zhuang, F., Qi, Z., Duan, K., Xi, D., Zhu, Y., Zhu, H.,

Xiong, H., and He, Q. (2020). A comprehensive sur-

vey on transfer learning. Proceedings of the IEEE,

109(1):43–76.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

130
