Neural Network-based Human Motion Smoother

Mathias Bastholm

, Stella Graßhof

and Sami S. Brandt

Computer Science Department, IT University of Copenhagen, Denmark

Keywords:

Recurrent Neural Networks, Reconstruction, Computer Vision, Animation Denoising.

Abstract:

Recording real life human motion as a skinned mesh animation with an acceptable quality is usually difﬁcult.

Even though recent advances in pose estimation have enabled motion capture from off-the-shelf webcams,

the low quality makes it infeasible for use in production quality animation. This work proposes to use recent

advances in the prediction of human motion through neural networks to augment low quality human motion,

in an effort to bridge the gap between cheap recording methods and high quality recording. First, a model,

competitive with prior work in short-term human motion prediction, is constructed. Then, the model is trained

to clean up motion from two low quality input sources, mimicking a real world scenario of recording human

motion through two webcams. Experiments on simulated data show that the model is capable of signiﬁcantly

reducing noise, and it opens the way for future work to test the model on annotated data.

1 INTRODUCTION

Humanoid 3D meshes are usually driven by a skele-

ton. These skeletons are then either animated by hand

or by using motion capture (MoCap) to capture real

life human motion as digital animations. Animating

skeletons by hand is a time-consuming process and re-

quires a skilled animator. Likewise, MoCap requires

specialized equipment and often also requires an an-

imator to clean up the recorded data. Animating hu-

manoids thus consumes a lot of time and money for

content creators, and might drive them to choose not

to include an animation at all.

Recently several solutions allowing for Mo-

Cap from a single video camera have been pub-

lished (Rong et al., 2020; Joo et al., 2020; Shi et al.,

2020; Pavllo et al., 2019b). These are not widely

used, which is likely because the quality is much

lower than that of MoCap and hand-crafted anima-

tions. They would require a signiﬁcant clean up pass

by an animator in order to be of use, even for projects

with relatively low animation quality requirements.

Recurrent neural networks (RNNs) architectures

have made great progress in predicting human mo-

tion (Pavllo et al., 2019a; Martinez et al., 2017; Chiu

et al., 2018; Gopalakrishnan et al., 2019), and have

been shown to work for other tasks that involve gen-

erating human motion (Harvey et al., 2020). As such,

this work sets out to explore the feasibility of adapting

https://orcid.org/0000-0001-9897-0002

https://orcid.org/0000-0002-6791-7425

https://orcid.org/0000-0003-2141-9815

existing human motion prediction architectures to the

task of cleaning up human motion. This would allow

for using cheap, realtime MoCap solutions based on

webcams to capture human motion.

This paper is organized as follows. First, the re-

lated work is described in section 2. Then prior work

on predicting human motion is replicated, and ex-

tended to the task of motion augmentation in sec-

tion 3. Results of the proposed models on both predi-

cation and augmentation of human motion can then be

seen in section 4. Finally, we conclude this paper by

a throughout discussion, and future work in section 5.

2 RELATED WORK

Working with human data necessitates choosing a

sparse representation of the data, as dense represen-

tations make computations infeasible.

The Skinned Multi-Person Linear (SMPL) fam-

ily of humanoid models (Loper et al., 2015; Romero

et al., 2017; Pavlakos et al., 2019; Osman et al., 2020)

consists of several models that express the pose and

shape of human bodies in a sparse manner. This is

accomplished by representing the human as a skinned

mesh, with blend shapes representing the shape of the

human, and the underlying skeleton of the skinned

mesh representing the pose. Having chosen one repre-

sentation of human motion, new samples can be gen-

erated using neural networks based on different kinds

of input. For example several methods (Holden et al.,

2017; Zhang et al., 2018; Starke et al., 2019; Starke

Bastholm, M., Graßhof, S. and Brandt, S.

Neural Network-based Human Motion Smoother.

DOI: 10.5220/0010790500003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 24-30

ISBN: 978-989-758-549-4; ISSN: 2184-4313

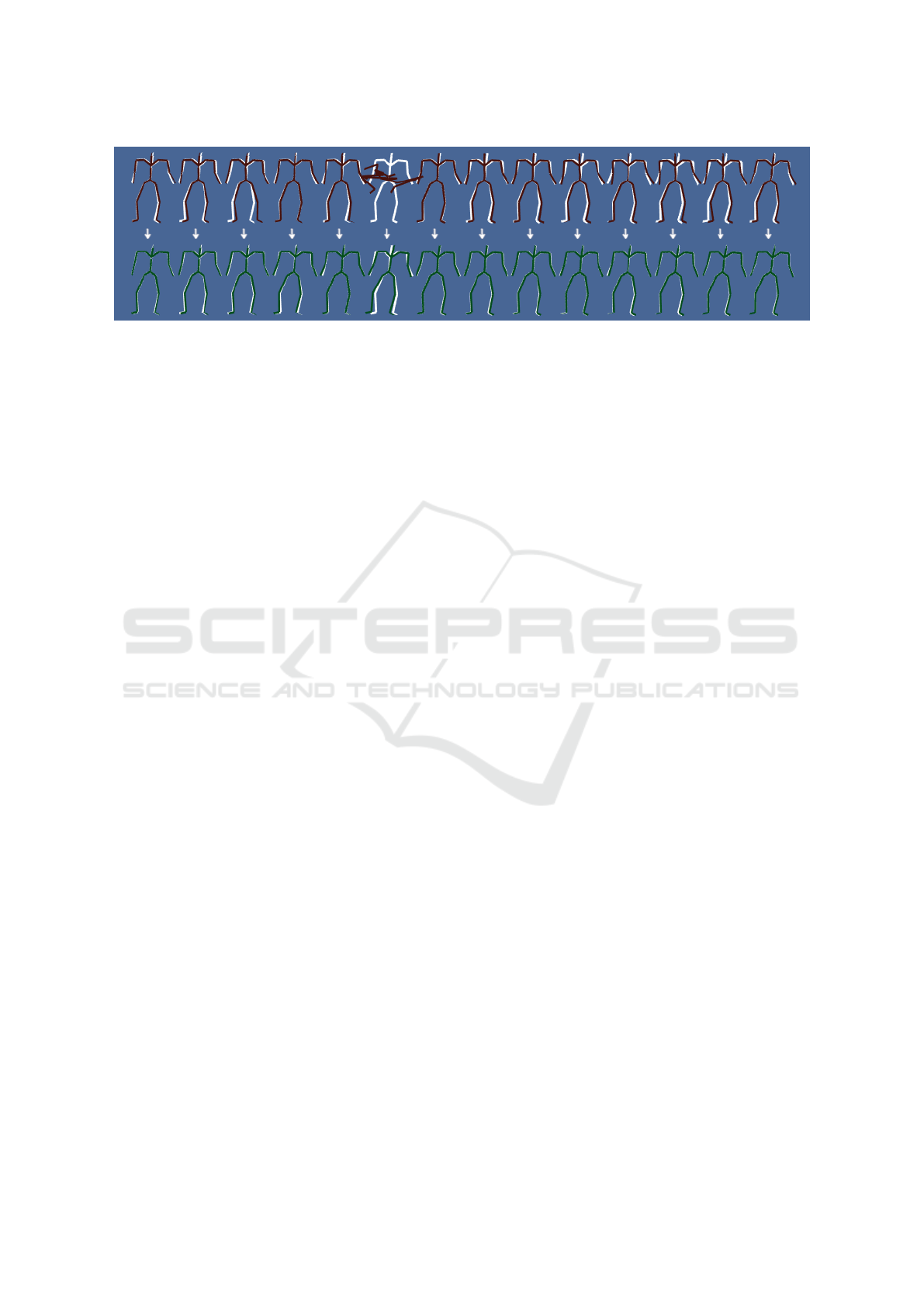

Figure 1: The top row shows input data in red, the bottom row shows the output of our model in green, and both rows show

ground truth in white.

et al., 2020; Ling et al., 2020; Holden et al., 2020) ex-

ist that generate humanoid motion based on user in-

put, such as a joystick or a goal position. This is par-

ticularly relevant for the video game industry, where

player controlled characters are common. However,

this setting is not directly applicable to the task of

cleaning up human motion.

Instead of using a skinned mesh, so-called mo-

tion capture markers (MoCap markers), can be used

to represent human body motion by a sparse set of

points. MoCap markers represent physical points

in space traditionally recorded by a Mocap system.

E.g., a marker could be one small white ball attached

to a key point, i.e., one joint, on the captured per-

son. Holden (Holden, 2018) used a multi-layer per-

ceptron (MLP) with skip connections inspired by the

ResNet (He et al., 2015) architecture, to remove com-

mon noise on MoCap marker position introduced by

most motion capture setups. The model is not eas-

ily integrated into existing workﬂows that operate on

humanoid motion, as it operates on MoCap markers,

which means that a separate post-processing step is

needed in order to obtain a humanoid skeleton.

Another branch of methods that deal with gen-

erating human motion is human motion prediction.

One such method is QuaterNet (Pavllo et al., 2019a)

as proposed by Pavllo et al., which consists of a 2-

layer RNN predicting future human motion from past

motion, using a forwards kinematics (FK) loss. In

that work the authors represent rotations as quater-

nions, opposed to previous work where Euler angles

or exponential maps are frequently employed. The

choice is motivated by the fact that Euler angles and

axis-angle representations come with several prob-

lems: non-uniqueness, discontinuity in the represen-

tation space, and singularities, which are not exhibited

by quaternions. QuaterNet also introduces a normal-

ization loss, as normalized quaternions are required

to represent valid rotations. The FK loss is calculated

by performing FK and then taking the positional loss

of the joints. FK is when the joint positions are cal-

culated from the joint rotations using the pre-deﬁned

skeleton. FK loss helps against the positional error in-

troduced on the outer limbs by rotational error on the

inner limbs, as the positional error of the outer limbs

is affected by the rotational error of all parent limbs

in the kinematic chain.

Building on previous work on motion prediction,

such as QuaterNet, Harvey et al. (Harvey et al., 2020)

propose a model that can ﬁll in gaps of missing mo-

tion in a given motion sequence. It takes past mo-

tion and a target frame as input, and then generates

the frames in-between using an RNN. To help the

model maintain temporal coherency a time-to-arrival

embedding is added to the input frames, which tells

the model how many frames are left before the target

frame is reached. This is the same approach as the po-

sitional embeddings in transformers (Vaswani et al.,

2017). They introduce an adversarial loss based on

Least Squares Generative Adversarial Network (Mao

et al., 2017) (LSGAN), which is applied in order to

create realistic looking and temporally coherent mo-

tion. A foot contact loss is also introduced, which

gives an indication of whether each foot is touching

the ground. This information stabilizes the feet as a

post-processing step, which helps to combat a phe-

nomenon commonly known as foot sliding. Foot loss

can also be found in other recent work involving hu-

man motion, such as MotioNet (Shi et al., 2020).

3 METHODS

First, a model for prediction is constructed as a base-

line model for dealing with human motions, for which

we employ existing knowledge about RNNs for mo-

tion prediction. In the following step the prediction

model is extended to be able to perform motion aug-

mentation instead of prediction. This builds on a

model architecture that is known to handle humanoid

motion well in a prediction context, but now augments

frames instead of predicting them.

Neural Network-based Human Motion Smoother

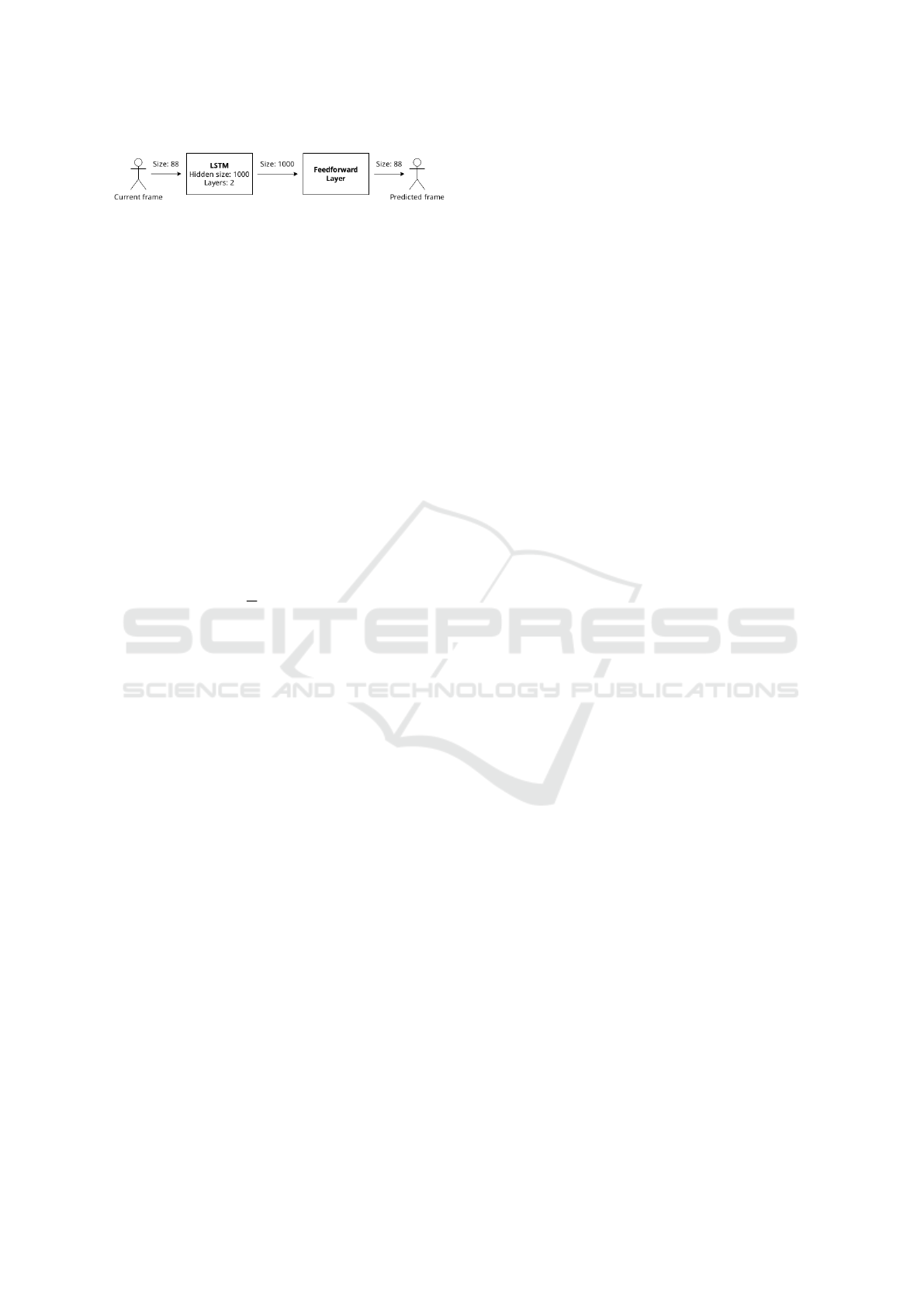

Figure 2: The architecture of the prediction model.

3.1 Prediction Model

The prediction model is trained to predict human mo-

tion, which means given a past frame of human mo-

tion it predicts the next frame. The model is based

on the short term version of QuaterNet (Pavllo et al.,

2019a), with two notable differences. First, a long

short-term memory (LSTM) network is used in place

of a gated recurrent unit (GRU) network, motivated

by results from Harvey et al. (Harvey et al., 2020).

Secondly, the rotational loss is calculated as the L1

loss of the quaternions, as opposed to taking the L1

loss of the Euler angles constructed from the quater-

nions. This rotational loss combines rotational error

and quaternion normalization error, eliminating the

need for an explicit quaternion normalization loss.

This means that for a predicted sequence

X and the

ground truth X the loss is deﬁned as

prediction

∑

t=0

∑

j=0



t, j

− X

t, j



, (1)

where T is the sequence length, and J is amount of

joints in the skeleton. The prediction model consists

of a two layer LSTM encoder with a hidden size of

1000 and a decoder. The decoder consists of a sim-

ple feedforward layer, added to convert from the hid-

den size of 1000 to the target output size of 88. The

network is given 50 past frames and then outputs a

single predicted frame. During training, this process

is repeated to generate 10 predicted frames, with the

past frames containing the past model outputs. See

Figure 2 for a visualization of this architecture.

3.2 Augmentation Model

The augmentation model augments human motion,

which means given a noisy frame it outputs a frame

without noise. The model is based on the prediction

model, and uses a two layer LSTM with a hidden size

of 1000 for encoding and a feedforward layer for de-

coding.

For augmentation two input sources are used, re-

ﬂecting a real world usage of having two different

cameras from different angles with slightly different

error patterns. This is handled by adding different

noise to the same input frame. The corresponding two

frames are then concatenated together increasing the

input size of the LSTM to twice the size of a single

frame. The loss is the same as that of the prediction

model, as shown in Equation 1.

The network is then given all frames from each

input source one pair at a time, and for each pair of

frames given to the network it outputs an augmented

frame corresponding to that pair of noisy frames.

When training the size of each input source is limited

for batching purposes, but for evaluation the network

runs on all the frames.

3.3 Datasets

This work uses two datasets, the ﬁrst is the Archive

of Motion Capture as Surface Shapes (AMASS)

database (Mahmood et al., 2019), which consists of

many datasets, but for this work only the CMU sub-

set is used (Carnegie Mellon University, 2003). The

dataset consists of 2605 humanoid motions across 106

subjects, totalling 552 minutes of motions at vary-

ing framerates and 3.5M frames. We use Fairmo-

tion (Gopinath and Won, 2020) to load and manipu-

late the motions from this dataset. The data is split so

that 90% of the motions are used for training, 5% for

validation, and 5% for testing. A single training step

through each of the models require at least 60 frames,

as such motions with less than 60 frames have been

excluded. The second dataset used is the Human3.6M

dataset (Ionescu et al., 2014; Catalin Ionescu, 2011),

which consists of 210 motions across 7 subjects, total-

ing 176 minutes of motions at 50 frames per second

and 0.5M frames. The dataset is split into training

and test data by using all motions from subject 5 as

test data and the rest as training data, as in previous

work (Martinez et al., 2017; Pavllo et al., 2019a; Har-

vey et al., 2020).

The framerate differs between motions in the

datasets used. To prevent this from affecting the

model all motions are resampled to 25 fps. This

is done by either discarding frames or interpolating

frames, depending on whether downsampling or up-

sampling is needed.

Both the prediction and augmentation model are

trained on data from AMASS, whereas the predic-

tion model is also trained and evaluated on the Hu-

man3.6M dataset. This is done in order to compare

with previous work, as all previous work evaluates

on the Human3.6M dataset, but only some use the

AMASS dataset. This is necessary, as a model can-

not be trained on the AMASS dataset and then eval-

uated on Human3.6M dataset, as the two datasets use

different skeletons with a different joint count.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

Table 1: Results of our prediction model on the Human3.6M dataset compared to reported results of Zero-velocity (Martinez

et al., 2017), QuaterNet (Pavllo et al., 2019a), TP-RNN (Chiu et al., 2018), ERD-QV (Harvey et al., 2020), and VGRU-

rl (Gopalakrishnan et al., 2019). The values are the mean squared loss after converting the rotations to euler angles, as

described by Equation 11.

Walking Eating Smoking Discussion

milliseconds 80 160 320 400 80 160 320 400 80 160 320 400 80 160 320 400

Zero-velocity 0.39 0.68 0.99 1.15 0.27 0.48 0.73 0.86 0.26 0.48 0.97 0.95 0.31 0.67 0.94 1.04

QuaterNet 0.21 0.34 0.56 0.62 0.20 0.35 0.58 0.70 0.25 0.47 0.93 0.90 0.26 0.60 0.85 0.93

TP-RNN 0.25 0.41 0.58 0.65 0.20 0.33 0.53 0.67 0.26 0.47 0.88 0.90 0.30 0.66 0.96 1.04

ERD-QV 0.20 0.34 0.56 0.64 0.18 0.33 0.53 0.63 0.23 0.47 0.96 0.99 0.23 0.59 0.86 0.93

VGRU-rl 0.34 0.47 0.64 0.72 0.27 0.40 0.64 0.79 0.36 0.61 0.85 0.92 0.46 0.82 0.95 1.21

Our model 0.24 0.40 0.61 0.68 0.21 0.37 0.57 0.69 0.23 0.44 0.89 0.88 0.26 0.64 0.93 1.00

3.4 Generating Data for Supervised

Learning

The datasets do not have any annotations, which

means that in order to perform supervised learning

target data has to be generated. For the prediction

task this is done by taking 60 frames from a motion

and then splitting it into 50 past and 10 future frames.

The past frames are the features, and the future frames

are the targets.

For the augmentation task, target data is generated

by taking 60 frames from a motion and then splitting

it into 50 past and 10 future frames. Noise is then ap-

plied to both the past and future frames. The past and

future frames with added noise are the input features,

and the future frames without noise are the target out-

puts. The noise deﬁned as

N = B + I + L

, (2)

and consists of three kinds of noise. Let N denote the

normal distribution and B the Bernoulli distribution.

The bias

B ∼ N (0, θ

), (3)

∼ N (µ

, σ

), (4)

represents that joint rotations captured through web-

cam pose detection models usually have a constant

bias, depending on the subject captured. Imprecision

noise

I ∼ N (0, θ

), (5)

∼ N (µ

, σ

), (6)

represents small differences from the ground truth

that occurs in the joint rotations captured through we-

bcam pose detection models. Lost tracking noise with

∼ B(p), (7)

∼ N (0, θ

), (8)

∼ N (µ

, σ

), (9)

represents that sometimes a joint is not recognized,

giving completely arbitrary values for that joint rota-

tion. This noise consists of the probability that a given

is frame suffers from lost tracking L

, and the noise

applied if the frame does suffer from lost tracking L

Then if q denotes the motions of the dataset, the input

features F are then deﬁned as

m,t, j,a

= q

m,t, j,a

+ N (10)

where m is the human motion, t is the frame, j is the

joint, and a is the axis.

4 EXPERIMENTS

4.1 Prediction Model

The prediction model is evaluated using the same loss

function as used by Quaternet (Pavllo et al., 2019a),

which is deﬁned as

mae

∑

t, j





Φ(

t, j

) − Φ

Φ(X

t, j

) + π



mod 2π − π



(11)

where

X is the predicted sequence, and X is the

ground truth, T is the sequence length, J is the num-

ber of joints in the skeleton, and Φ

Φ is a function con-

verting quaternions into Euler angles. The model is

trained and evaluated on the Human3.6M dataset, of

which the evaluation results can be seen in Table 1.

4.2 Augmentation Model

The model is trained and evaluated on the CMU

dataset with data generated according to subsec-

tion 3.4, with µ

= µ

= 0.005, σ

= σ

= 0.002,

= 1, σ

= 0.01, and p = 0.01. Samples are only

drawn from θ once per motion, to ensure that each

motion has unique distributions of noise, so that the

model learns to remove general noise, and is not tied

Neural Network-based Human Motion Smoother

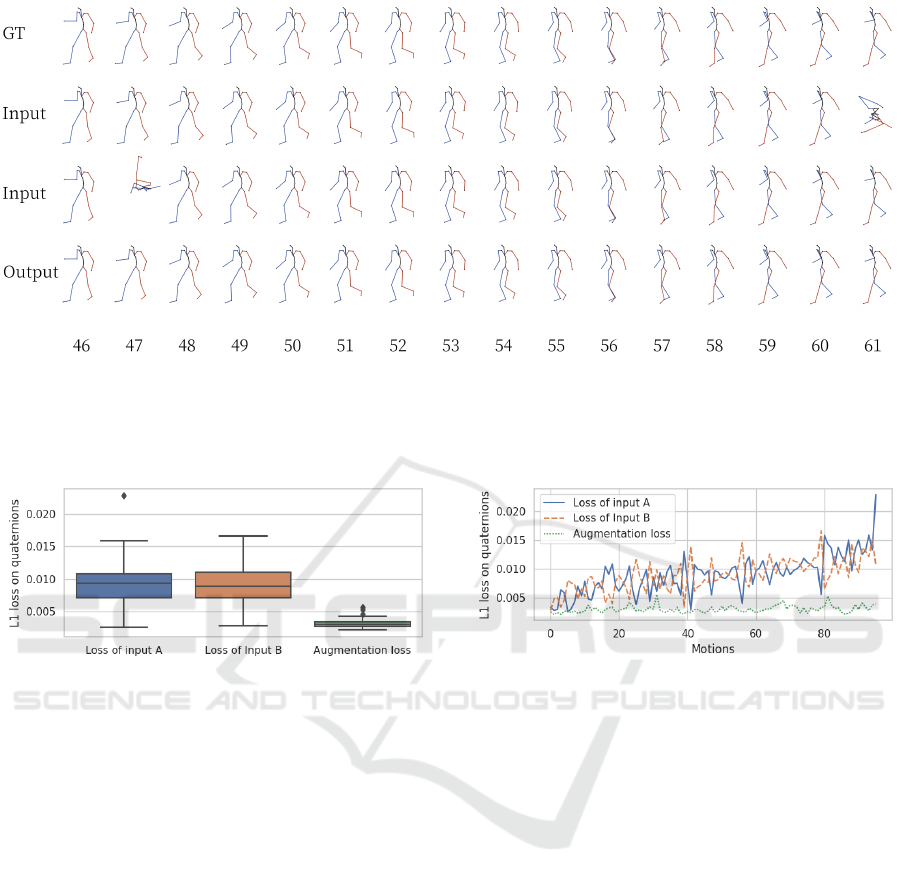

Figure 3: Visualization showing 15 frames of subject 6, trial 5 from the CMU dataset. The ﬁrst row shows the ground truth

pose. The second and third rows show the input to the model. For each frame the values from the second and third rows are

concatenated and input to the model, the output is then displayed on the fourth row. Notice that the model is robust to lost

frames, as seen in frame 47 and 61. A video showcasing the results of the model is available at https://i.imgur.com/gS3Pin8.

mp4.

Figure 4: Comparison of the L1 loss of the input data

and the augmentation model for the test data of the CMU

dataset. Input A and B refers to the two views of the input

before concatenation.

to a speciﬁc distribution. A summarized result of

evaluation on test data can be seen in Figure 4 (c.f.

Figure 5). The ﬁgure shows the L1 loss on rotations

represented as quaternions computed for the entire se-

quence. These results show that the model is able to

greatly reduce the noise, conﬁrming that an LSTM-

based model is able to perform noise reduction on hu-

man motion. Note that the test data is generated using

the same noise function as in training, and that an out-

of-bounds annotated dataset would give a clearer pic-

ture how well the model would perform in the wild.

subsection 4.3 elaborates on why an out-of-bounds

dataset is preferable. Several frames of input, output,

and ground truth data are visualized in Figure 3.

4.3 Suitability of Evaluation Data

To the best of our knowledge, no dataset exists for

the task of augmenting or cleaning up skinned hu-

man motion. This by extension means that no dataset

exists for augmenting skinned human motion, that

Figure 5: The L1 loss of the augmentation model for the test

data of the CMU dataset compared to the loss of the input

sequences. The x-axis represents test motions sorted by the

average loss across the two input sequences for that motion.

Input A and B refers to the two views of the input before

concatenation.

originates from pose detection performed on webcam

videos using neural networks. Furthermore, creating

such a dataset requires deep knowledge of human ani-

mation, thus making the creation of such a dataset out

of scope for this work.

This is not a problem when training the network,

as training data can be generated. It is however a

problem when evaluating the network, because neural

networks are susceptible to shortcut learning (Geirhos

et al., 2020), where they take shortcuts instead of

learning the intended generalized solution. For exam-

ple, a neural network trained to classify objects might

erroneously take the background into account, lead-

ing to mislabellings.

One way to mitigate shortcut learning is not to

evaluate the network on data from the same dataset

used for training the network. In other words, it is not

enough to split a single dataset into training, valida-

tion and testing, as this makes the test set independent

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

and identically distributed (i.i.d.) with regards to the

training set. Instead, one ought to use one or sev-

eral datasets for testing and evaluation, that have sys-

tematic differences from the training dataset, making

them out-of-distribution (o.o.d.).

Now, as mentioned previously this is unfeasible,

which means that the ﬁnal model evaluation is sus-

ceptible to shortcut learning. The evaluation data is

related to the training data in two ways. First off, the

evaluation data comes from the same dataset mak-

ing it i.i.d. with respect to the motions it contains.

Secondly, the source of the noise used to generate

the input motions is not the actual noise introduced,

when going through a webcam-based pose estimation

pipeline, but instead the same noise estimation used

as when training the network.

As such, the validation data used represent the

best possible effort, given the limited data availabil-

ity for this task. However, should datasets of skinned

human motion augmentation become generally avail-

able, it would then be desirable to re-evaluate the

model on those o.o.d. datasets.

5 CONCLUSION

An LSTM-based prediction model is constructed and

shown to be competitive with prior work on the task

of predicting human motion. The same approach is

then used to train an augmentation model, that is ca-

pable of cleaning up and merging two noisy motions

into a single motion. This shows that an LSTM-based

architecture is viable for augmenting human motions,

when evaluated on generated data. The lack of an-

notated data to evaluate on, means that it is unclear

how the model performs on real life data. Overcom-

ing this limitation and implementing various potential

improvements is a topic for future work.

REFERENCES

Carnegie Mellon University (2003). CMU MoCap Dataset.

Catalin Ionescu, Fuxin Li, C. S. (2011). Latent structured

models for human pose estimation. In International

Conference on Computer Vision.

Chiu, H., Adeli, E., Wang, B., Huang, D.-A., and Niebles,

J. C. (2018). Action-agnostic human pose forecasting.

Geirhos, R., Jacobsen, J.-H., Michaelis, C., Zemel, R.,

Brendel, W., Bethge, M., and Wichmann, F. A. (2020).

Shortcut learning in deep neural networks. Nature

Machine Intelligence, 2(11):665–673.

Gopalakrishnan, A., Mali, A., Kifer, D., Giles, C. L., and

Ororbia, A. G. (2019). A neural temporal model for

human motion prediction.

Gopinath, D. and Won, J. (2020). fairmotion - tools to load,

process and visualize motion capture data. Github.

Harvey, F. G., Yurick, M., Nowrouzezahrai, D., and Pal, C.

(2020). Robust motion in-betweening. ACM Transac-

tions on Graphics, 39(4).

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep resid-

ual learning for image recognition.

Holden, D. (2018). Robust solving of optical motion cap-

ture data by denoising. ACM Trans. Graph., 37(4).

Holden, D., Kanoun, O., Perepichka, M., and Popa, T.

(2020). Learned motion matching. ACM Trans.

Graph., 39(4).

Holden, D., Komura, T., and Saito, J. (2017). Phase-

functioned neural networks for character control.

ACM Trans. Graph., 36(4).

Ionescu, C., Papava, D., Olaru, V., and Sminchisescu, C.

(2014). Human3.6m: Large scale datasets and pre-

dictive methods for 3d human sensing in natural envi-

ronments. IEEE Transactions on Pattern Analysis and

Machine Intelligence.

Joo, H., Neverova, N., and Vedaldi, A. (2020). Exemplar

ﬁne-tuning for 3d human model ﬁtting towards in-the-

wild 3d human pose estimation.

Ling, H. Y., Zinno, F., Cheng, G., and Van De Panne, M.

(2020). Character controllers using motion vaes. ACM

Trans. Graph., 39(4).

Loper, M., Mahmood, N., Romero, J., Pons-Moll, G., and

Black, M. J. (2015). SMPL: A skinned multi-person

linear model. ACM Trans. Graphics (Proc. SIG-

GRAPH Asia), 34(6):248:1–248:16.

Mahmood, N., Ghorbani, N., Troje, N. F., Pons-Moll, G.,

and Black, M. J. (2019). AMASS: Archive of motion

capture as surface shapes. In International Conference

on Computer Vision, pages 5442–5451.

Mao, X., Li, Q., Xie, H., Lau, R. Y. K., Wang, Z., and Smol-

ley, S. P. (2017). Least squares generative adversarial

networks.

Martinez, J., Black, M. J., and Romero, J. (2017). On

human motion prediction using recurrent neural net-

works.

Osman, A. A. A., Bolkart, T., and Black, M. J. (2020).

STAR: A sparse trained articulated human body re-

gressor. In European Conference on Computer Vision

(ECCV), pages 598–613.

Pavlakos, G., Choutas, V., Ghorbani, N., Bolkart, T., Os-

man, A. A. A., Tzionas, D., and Black, M. J. (2019).

Expressive body capture: 3D hands, face, and body

from a single image. In Proceedings IEEE Conf. on

Computer Vision and Pattern Recognition (CVPR),

pages 10975–10985.

Pavllo, D., Feichtenhofer, C., Auli, M., and Grangier, D.

(2019a). Modeling human motion with quaternion-

based neural networks. International Journal of Com-

puter Vision, 128(4):855–872.

Pavllo, D., Feichtenhofer, C., Grangier, D., and Auli, M.

(2019b). 3d human pose estimation in video with tem-

poral convolutions and semi-supervised training. In

Conference on Computer Vision and Pattern Recogni-

tion (CVPR).

Neural Network-based Human Motion Smoother

Romero, J., Tzionas, D., and Black, M. J. (2017). Embod-

ied hands: Modeling and capturing hands and bodies

together. ACM Transactions on Graphics, (Proc. SIG-

GRAPH Asia), 36(6).

Rong, Y., Shiratori, T., and Joo, H. (2020). Frankmocap:

Fast monocular 3d hand and body motion capture by

regression and integration.

Shi, M., Aberman, K., Aristidou, A., Komura, T., Lischin-

ski, D., Cohen-Or, D., and Chen, B. (2020). Mo-

tionet: 3d human motion reconstruction from monoc-

ular video with skeleton consistency.

Starke, S., Zhang, H., Komura, T., and Saito, J. (2019).

Neural state machine for character-scene interactions.

ACM Trans. Graph., 38(6).

Starke, S., Zhao, Y., Komura, T., and Zaman, K. (2020). Lo-

cal motion phases for learning multi-contact character

movements. ACM Trans. Graph., 39(4).

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need.

Zhang, H., Starke, S., Komura, T., and Saito, J. (2018).

Mode-adaptive neural networks for quadruped motion

control. ACM Trans. Graph., 37(4).

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
