Cluster Crash: Learning from Recent Vulnerabilities in Communication

Stacks

Anne Borcherding

1,3 a

, Philipp Takacs

and J

urgen Beyerer

1,2,3

Fraunhofer Institute of Optronics, System Technologies and Image Exploitation IOSB, Karlsruhe, Germany

Vision and Fusion Laboratory (IES), Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany

KASTEL Security Research Labs, Karlsruhe, Germany

Keywords:

Industrial Control Systems, Anti-Patterns, Vulnerability Testing, Ripple20, Amnesia:33, Urgent/11.

Abstract:

To ensure functionality and security of network stacks in industrial device, thorough testing is necessary. This

includes blackbox network fuzzing, where ﬁelds in network packets are ﬁlled with unexpected values to test

the device’s behavior in edge cases. Due to resource constraints, the tests need to be efﬁcient and such the

input values need to be chosen intelligently. Previous solutions use heuristics based on vague knowledge from

previous projects to make these decisions. We aim to structure existing knowledge by deﬁning Vulnerabil-

ity Anti-Patterns for network communication stacks based on an analysis of the recent vulnerability groups

Ripple20, Amnesia:33, and Urgent/11. For our evaluation, we implement fuzzing test scripts based on the

Vulnerability Anti-Patterns and run them against 8 industrial device from 5 different device classes. We show

(I) that similar vulnerabilities occur in implementations of the same protocol as well as in different protocols,

(II) that similar vulnerabilities also spread over different device classes, and (III) that test scripts based on the

Vulnerability Anti-Patterns help to identify these vulnerabilities.

1 INTRODUCTION

Industrial Control Systems (ICSs) are elementary to

provide a fast, reliable and ﬂexible production. The

term ICS comprises different types of control sys-

tems, including the necessary industrial device, sys-

tems and networks. Due to high requirements regard-

ing digitalisation and complexity, modern industrial

device consist of a plethora of components. In order

to provide reliable and secure services, thorough tests

of the components need to be conducted. One impor-

tant part of a thorough test of an industrial device is

to conduct blackbox tests, which do not consider any

internal details of the Device under Test (DUT), but

test the DUT from the outside. In the domain of in-

dustrial device, blackbox tests are usually performed

via the Ethernet interface. Amongst other, these tests

can reveal vulnerabilities in the communication with

other devices and especially vulnerabilities regarding

the handling of malformed communication packets.

Errors in communication stacks can lead to a crash of

the affected device and such to a potential outage of

the whole industrial facility (Pfrang et al., 2018).

https://orcid.org/0000-0002-8144-2382

Many of these vulnerabilities are caused by soft-

ware errors that have been created during the design

or development of the industrial device. One way

to describe the design or development decisions that

lead to these errors are Anti-Patterns or Vulnerability

Anti-Patterns (VAPs) (Nafees et al., 2018). VAPs help

to communicate design and coding practices that po-

tentially lead to vulnerable code. Although VAPs are

intended to prevent errors and vulnerabilities during

design and development, we propose to use them to

build targeted blackbox tests.

One possible technique for blackbox tests of in-

dustrial device is blackbox fuzzing. Even though clas-

sic fuzzing has been introduced in the 1980s, it is

still relevant and helps to ﬁnd vulnerabilities (Miller

et al., 2020). For blackbox network fuzzing, one usu-

ally tests several expected or unexpected values for

the different ﬁelds of a network packet. Due to time

and resource restrictions, it is usually not possible to

test all ﬁelds with all possible values. We propose to

use the information derived from previous vulnerabil-

ity groups represented as VAPs to guide the prioriti-

zation of ﬁelds and values.

Our aim is to understand which VAPs form the ba-

sis of recently published vulnerabilities in communi-

334

Borcherding, A., Takacs, P. and Beyerer, J.

Cluster Crash: Learning from Recent Vulnerabilities in Communication Stacks.

DOI: 10.5220/0010806300003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 334-344

ISBN: 978-989-758-553-1; ISSN: 2184-4356

cation stacks of industrial device, and how this infor-

mation can be used to test industrial device more efﬁ-

ciently. In order to achieve this, we analyze three vul-

nerability groups that have been published recently:

Ripple20 (Kohl and Oberman, 2020; Kohl et al.,

2020), Amnesia:33 (dos Santos et al., 2021), and Ur-

gent/11 (Seri et al., 2019). All of these vulnerabili-

ties concern communication stacks for standard Inter-

net protocols such as TCP, DNS, and IPv4, which are

also used in industrial device. Based on our analy-

sis, we develop VAPs for the communication stacks.

Subsequently, we use these VAPs to develop blackbox

fuzzing test scripts that aim to test a given blackbox

industrial device for the implementation errors result-

ing from these VAPs.

For the evaluation of our test scripts, we use 8

industrial device from 5 device classes. We run the

test scripts against the devices and observe their be-

havior. As a result, we observed three crashes and

9 anomalies in the behavior of the industrial device.

Our evaluation shows that similar vulnerabilities oc-

cur in implementations of the same protocol as well as

in different protocols. In addition, we show that sim-

ilar vulnerabilities also spread over different device

classes and that the test scripts we developed based

on the VAPs help to identify these vulnerabilities.

In summary, our main contributions are:

• We analyse the vulnerabilities of Ripple20, Am-

nesia:33, and Urgent/11, and identify VAPs for

the development of communication stacks.

• We implement fuzzing test scripts to search for

implementations of the VAPs in a blackbox set-

ting, and evaluate the test scripts using 8 industrial

devices.

The rest of this paper is structured as follows. Sec-

tion 2 presents related work in the domains of black-

box fuzzing for industrial device, vulnerability scan-

ning, and Anti-Patterns. Our analysis of the recent

vulnerability groups Ripple20, Urgent/11, and Am-

nesia:33 is described in Section 3. The test scripts we

implemented based on these VAPs are described in

Section 4. In Section 5, we evaluate the VAPs and

test scripts. This section also describes our method-

ology, presents the results and discusses them. Sec-

tion 6 concludes our work.

2 RELATED WORK

Our work is located in the domain of blackbox

fuzzing for industrial device and also touches the do-

mains of vulnerability scanning, and Anti-Patterns.

Blackbox Fuzzing for Industrial Devices. The

framework for blackbox network fuzzing for in-

dustrial device ISuTest is presented by Pfrang et

al. (Pfrang et al., 2017). The included fuzzer gener-

ates new test cases based on heuristics which are used

to determine which values should be used for a packet

ﬁeld with a certain data type. As a basis for these

heuristics, the authors use knowledge from previous

projects. Our work chooses a more general approach

by identifying VAPs and then deriving promising ﬁeld

types and values based on these VAPs.

Vulnerability Scanning. In contrast to fuzzing,

vulnerability scanning generally is less intrusive. The

aim of vulnerability scanning is to check whether the

DUT contains vulnerable software by identifying the

software running on the DUT. For the vulnerability

groups considered in this work, vulnerability scan-

ners have been developed. These scanners aim to

detect whether the considered DUT includes one of

the vulnerable communication stacks. For Ripple20,

a scanner was developed by JSOF which can be re-

ceived upon request. Forescout published their scan-

ner for Amnesia:33 on GitHub

. Likewise, ArmisSe-

curity published a scanner for Urgent/11

. In general,

all three scanners use active ﬁngerprinting to deter-

mine whether the DUT includes one of the vulnerable

stacks. Due to the high impact that one single small

corrupted component can have on a wide range of do-

mains, it is especially challenging to ﬁnd all vulnera-

ble communication stacks. In addition, ﬁngerprinting

for ICSs has some special challenges (Caselli et al.,

2013). In contrast, our work aims to actively test for

the implementations of VAPs. With this, it has poten-

tially a higher impact on the availability of the DUT

since it might crash during the testing. However, with

the active tests, one can be sure that a DUT is indeed

vulnerable if the tests report a crash.

Anti-Patterns. Anti-Patterns are usually used to de-

scribe common errors during the design or develop-

ment of software (Tuma et al., 2019; Hecht et al.,

2015), for management (Julisch, 2013), and for vul-

nerabilities in design or development (Nafees et al.,

2018). Examples for such Anti-Patterns are the use

of deprecated software or missing authentication. In

addition, performance Anti-Patterns have been pre-

sented for communication (Wert et al., 2014; Tru-

biani et al., 2018), for cyber physical systems (Smith,

2020), and for simulated models (Arrieta et al., 2018).

https://github.com/Forescout/project-memoria-

detector

https://github.com/armissecurity/urgent11-detector

Cluster Crash: Learning from Recent Vulnerabilities in Communication Stacks

335

Table 1: Stacks affected by the vulnerabilities published by

Ripple20, Amnesia:33, and Urgent/11.

Stack Language Availability

Ripple20

Treck TCP/IP C closed source

Amnesia:33

lwIP C open source

uIP C open source

Nut/Net C open source

FNET C open source

picoTCP C open source

CycloneTCP C open source

uC/TCP-IP C open source

Urgent/11

Interpeak IPNet C closed source

None of the Anti-Patterns in literature concern the se-

curity or vulnerabilities of network protocols, indus-

trial device, or cyber physical systems. Nevertheless,

the various applications of Anti-Patterns show that

they are an accepted method to approach the preven-

tion of errors. In our work, we aim to ﬁnd implemen-

tations of errors that have not been prevented during

design or development.

We base the representation and description of our

Anti-Patterns on the VAPs Template presented by

Nafees et al. (Nafees et al., 2018).

3 ANTI-PATTERN ANALYSIS

The aim of our analysis is to understand which sim-

ilarities occur in the recently published vulnerability

groups and to develop corresponding VAPs. The au-

thors of Amnesia:33 state that their analysis shows

that “implementing the same protocols under simi-

lar constraints tends to produce similar bugs in sim-

ilar places” (dos Santos et al., 2021, page 22). With

our analysis, we want to additionally analyze whether

similar issues and VAPs also occur in implementa-

tions of different protocols.

In order to do so, we analyze the vulnerabilities

published under the names of Ripple20, Urgent/11,

and Amnesia:33. The nine stacks in which the vul-

nerabilities have been found are presented in Ta-

ble 1. Amnesia:33 analyzed seven open source stacks

whereas Ripple20 and Urgent/11 analyzed one closed

source stack respectively. All in all, the three vulnera-

bility groups consist of 63 vulnerabilities. One of the

vulnerabilities (CVE-2020-11904) is not concerned

ARP

DHCPv4

DHCPv6

DNS

Ethernet

ICMPv4

ICMPv6

IGMP

IPv4

IPv4 in IPv4

IPv6

LLMNR

mDNS

RARP

TCP

UDP

number of reported vulnerabilities

length / offset domain name other

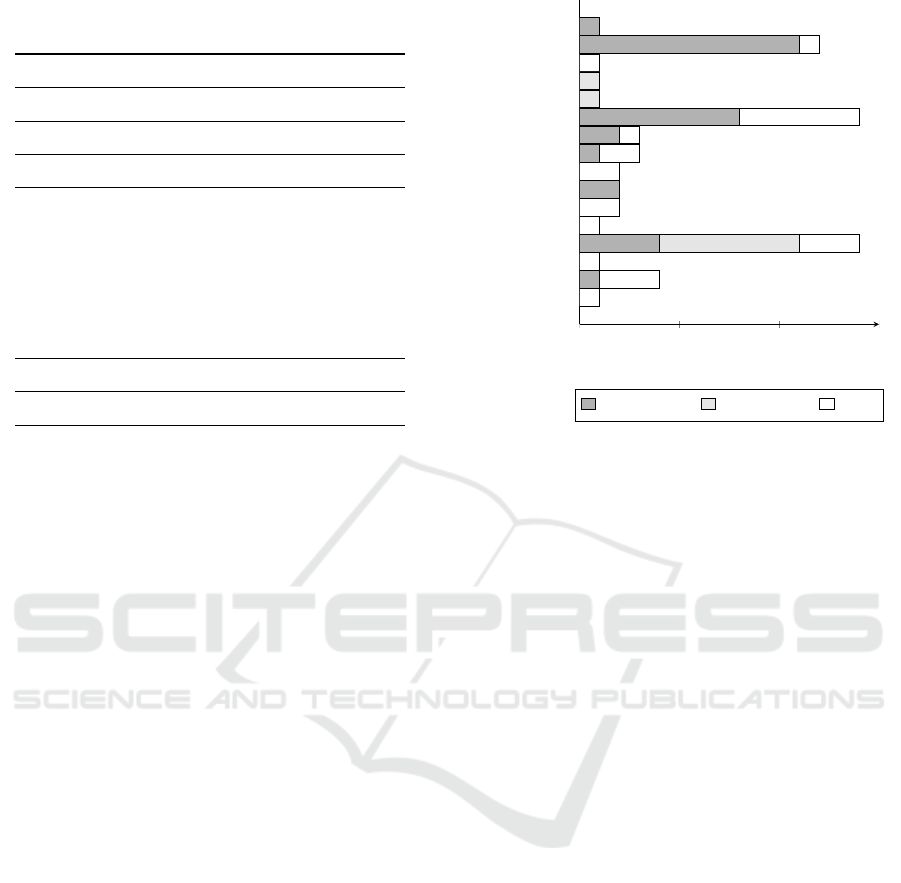

Figure 1: Number and type of vulnerabilities present in Rip-

ple20, Urgent/11, and Amnesia:33, sorted by protocol.

with a speciﬁc protocol but is a protocol-independent

issue of the Treck stack. This is why we exclude the

vulnerability from our analysis. Another vulnerabil-

ity (CVE-2020-13987) is concerned with TCP as well

as with UDP which we consider as two different vul-

nerabilities for our analysis.

First, we classify the vulnerabilities based on the

packet ﬁeld the vulnerability occurs in. Second, we

cluster the ﬁelds and vulnerabilities of the different

protocols in order to ﬁnd similarities. Third, we

choose the most common ﬁelds and vulnerabilities to

develop corresponding VAPs and test scripts.

Our analysis shows that more than half of the vul-

nerabilities are caused by a length / offset ﬁeld, or

the domain name. For both ﬁelds, the checks and the

parsing is complex and error prone (see Sections 3.1

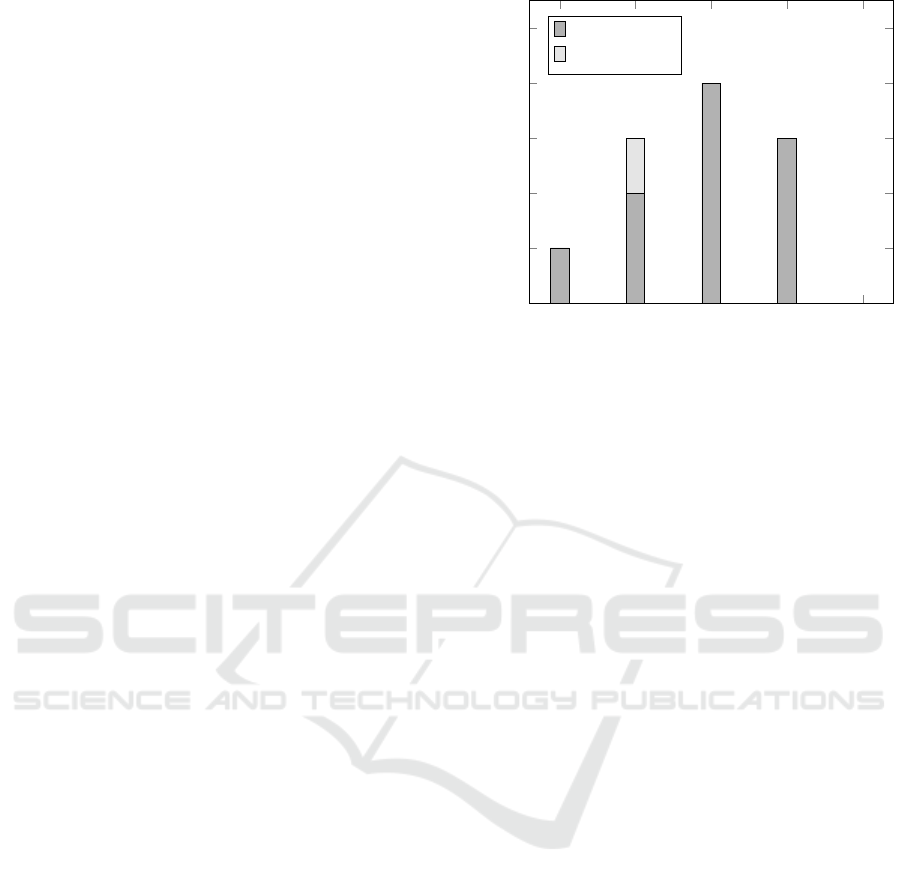

and 3.2 for more details). Figure 1 shows how the

vulnerabilities are spread over the different protocols.

The vulnerabilities that have been reported in the vul-

nerability groups are represented by one bar for each

protocol. Within one bar, the vulnerabilities are again

classiﬁed by the ﬁeld the vulnerability occurs in. The

two most common ﬁelds (length / offset ﬁelds and do-

main name) are highlighted respectively. We catego-

rize length and offset ﬁelds together, since the under-

lying handling and resulting errors are similar. Out

of the 63 vulnerabilities, 29 (46.03%) are concerned

with a length / offset ﬁeld and 9 (14.29%) are con-

cerned with the domain name. The next most occur-

ring ﬁeld, id, only occurred 2 times (3.17%).

Figure 1 shows that the vulnerabilities concern-

ing a length / offset ﬁeld spread over almost all proto-

cols. This already points towards a spreading of simi-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

336

lar issues over different protocols. In contrast, vulner-

abilities concerning the domain name only occurred

in DNS and LLMNR even though domain names are

also used in DHCP, DHCPv6 and ICMPv6.

Since the length / offset and domain name are re-

sponsible for more than 50% of the reported vulnera-

bilities, we will use these ﬁeld types for the formula-

tion of VAPs. We will then use these Anti-Patterns to

design and develop test scripts in order to ﬁnd imple-

mentations of these VAPs.

3.1 Lengths and Offsets

Our analysis shows that 46.03% of the reported vul-

nerabilities are concerned with invalid or unexpected

values in length / offset ﬁelds. From our point of

view, there are two main reasons for the high num-

ber of these vulnerabilities. The ﬁrst reason is that

all the investigated TCP/IP stacks are implemented in

C. In C, many robustness issues are caused by missing

boundary checks (Fetzer and Xiao, 2002) which often

are triggered by unexpected or misﬁt lengths and off-

sets. The second reason is that there are many lengths

and offsets in the investigated protocols. For exam-

ple, TCP includes six length or offset ﬁelds. Each of

these six ﬁelds poses a parser the challenge to verify

and parse them correctly.

In addition, protocol standards usually focus on

the parsing of packets that are compliant to the stan-

dard and not all requirements for the lengths and off-

sets are deﬁned explicitly in the standard (dos Santos

et al., 2021). Necessary checks for validity are even

harder because some lengths interact with each other

and depend on the current data. This is why parsing

the lengths and offsets is error prone, especially re-

garding possible edge cases.

As an example, we want to have a closer look to

the option length ﬁeld of TCP. A necessary insight

is that a valid option length value cannot be higher

than the length of the remaining data of the header.

The option that is described by the option length

is itself contained in the header and such a value

longer than the remainder of the header would surely

be invalid. In order to check whether the option

length of a given packet is compliant with this re-

quirement, several calculations need to be conducted.

For the necessary comparison, one needs to calcu-

late how much data is left in the header. This in-

cludes the steps to (I) multiply the data offset by

four to receive the full length of the data in Bytes,

and to (II) subtract the length of the already parsed

data. Then, the validity check of the option length

can be conducted by comparing the calculated possi-

ble length and the given option length. Additional

necessary checks are for example that (I) the already

parsed data is at least 20 bytes long, since this is the

length of a header without options, and (II) that the

data offset multiplied by four is not greater than

the available data from the IP layer. This small exam-

ple makes apparent that different checks are necessary

that partly depend on different ﬁelds of the current

packet.

3.2 Domain Names

Of the vulnerabilities reported by Ripple20, Amne-

sia:33, and Urgent/11, 14.29% are concerned with

domain names. Technically, the issues with domain

names are also concerned with length, offsets and ter-

mination. Nevertheless, we handle these issues sepa-

rately. The ﬁrst reason for this is that DNS is a widely

used protocol and in many cases, DUTs will just parse

any crafted DNS packet. Second, domain names com-

bine many ways to use length and offsets such that it

poses even more challenges to a parser.

The speciﬁcation of DNS can be found in

RFC 1034 and RFC 1035 (Mockapetris, 1987a;

Mockapetris, 1987b). Domain names are usually

represented as a list of labels separated by dots (e.g.

my.domain.xy). To encode them, the length of

each label is prepended to the labels respectively.

The example domain would be encoded as follows:

chars 2 m y 6 d o m a i n 2 x y 0

bytes 02 6D 79 06 64 6F 6D 61 69 6E 02 78 79 00

A valid domain name encoding is always terminated

with a length byte of zero, which is the length of the

root domain.

In order to reduce redundancy, DNS supports a

feature called compression. This feature acts like a

pointer and allows to reference a prior list of labels.

With this, it is not necessary to encode the same list

of labels twice.

A full DNS packet contains different sections,

where each has its own lengths, offsets and other spe-

cialities, making parsing a DNS packet error prone.

These sections include the header, the question sec-

tion, and three resource records sections. The ques-

tion section deﬁnes the question that is being asked

by the speciﬁc request. Each resource record section

includes a variable number of resource records. A re-

source record speciﬁes the domain name, the type, the

class, and the time to live for a resource. This com-

plexity is reﬂected by the vulnerabilities found, which

concern out-of-bounds read and write, remote code

execution and denial of service amongst others.

Cluster Crash: Learning from Recent Vulnerabilities in Communication Stacks

337

3.3 Analysis Conclusions

Our analysis indicates that the vulnerabilities reported

by Ripple20, Amnesia:33, and Urgent/11, show sim-

ilarities over different implementations but also over

different protocols. For example, CVE-2020-11912

allows an out-of-bounds read caused by improper in-

put validation based on a missing sanity check regard-

ing the TCP option length and the actual length of

the TCP options. This vulnerability was reported

as part of Ripple20. Similarly, CVE-2020-17441 also

leads to an out-of-bounds read caused by improper in-

put validation and is based on a missing sanity check

regarding the IPv6 payload length and the actual

length of the payload. It was reported as part of Am-

nesia:33. Both vulnerabilities are caused by a missing

sanity check regarding the given length and the actual

length of the data. They occur in different protocols

and at different places.

The six VAPs resulting from our analysis are pub-

lished on GitHub

. We use these VAPs and the de-

tailed results of our analysis to construct test scripts

which test for the VAPs and vulnerability types.

4 TEST SCRIPTS

Based on our analysis, we implement 15 fuzzing test

scripts. As has been stated, we implement our test

scripts from a blackbox point of view. That means on

the one hand that we do not have any insight into the

source code during the development and on the other

hand that the test scripts interact with the DUT only

via the Ethernet interface. In general, the aim of the

test scripts is to provoke anomalies or crashes in the

tested devices.

In order to make our test scripts usable for contin-

uous testing, we designed the test scripts in a way that

they can easily be integrated into the security testing

framework ISuTest (Pfrang et al., 2017). To show the

integratability, we developed proof-of-concept imple-

mentations of our test scripts for ISuTest. In the stan-

dalone implementations of the test scripts, a security

analyst needs to analyze the behavior of the industrial

device during the tests. With the integration of the test

scripts into the security testing framework ISuTest, an

automated monitoring of the industrial device would

be possible.

Since the scripts can provoke crashes of industrial

device via routable protocols, but we still want to sup-

port scientiﬁc reproducibility, the standalone imple-

https://github.com/anneborcherding/

vulnerability-anti-patterns

mentations of the test scripts are provided upon re-

quest.

For the implementation of the test scripts, we con-

sider DHCPv4, DNS, IPv4, TCP, and UDP. We chose

these protocols based on the protocols that showed the

most vulnerabilities during our analysis, and based on

practical considerations. As a ﬁst selection criterion,

we select the protocols that show most vulnerabilities.

This includes DNS and IPv6 (14 vulnerabilities each),

TCP (12 vulnerabilities), DHCPv4 (4 vulnerabilities),

IPv4 and IPv4 in IPv4 (3 vulnerabilities each), and

ICMPv4, ICMPv6 and IGMP (2 vulnerabilities each).

Since the UDP protocol has shown a vulnerability

based on a length ﬁeld and is widespread, we addi-

tionally consider it. From this set of protocols, we

select the protocols that are present in current indus-

trial device, since our research is located in this do-

main. This leads to a selection of DHCPv4, DNS,

IPv4, TCP, ICMP, and UDP. Each of these protocols

except ICMP includes testable length / offset ﬁelds

and domain names. This is why our ﬁnal set of pro-

tocols to be considered for our test scripts contains

DHCPv4, DNS, IPv4, TCP, and UDP.

Table 2 shows the packet ﬁelds we consider for

our test scripts based on our analysis of the affected

ﬁelds in Ripple20, Urgent/11, and Amnesia:33. For

DHCP, we include two additional test scripts which

also concern lengths of packet ﬁelds. First, we imple-

ment a test script to test for string termination issues

in the DHCP options payload. In C, a string is usu-

ally terminated by a byte with a value of zero. For

our test, we include a string that includes the zero

byte in its middle (e.g. example\0string). With

this, we can check if the DUT handles this unexpected

string termination well. Second, we implement a test

script to test how the DUT reacts to a DHCP options

payload with a length of zero. Again, we want to

test if the DUT can handle this unexpected payload

length. Another speciality is the use of DHCP with

the domain search option (option 119) (Aboba and

Cheshire, 2002). With this option set, one can con-

ﬁgure the domain search list. Caused by this direct

connection to DNS, it includes similar ﬁelds, and we

can implement similar test scripts.

The test scripts can be categorized in three groups:

stateless, request response and stateful. In the fol-

lowing subsections, we present details on our imple-

mentation, for which we use Scapy

as a basis. Since

Scapy is designed to be a high level API for packet

generation, some packet ﬁelds are not intended to be

set programmatically. This is why we need to use

workarounds at some places, which are also described

in the following.

https://scapy.net

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

338

Table 2: Packet ﬁelds considered in the test scripts, and their

types (length/offset (l/o) or domain name (dn)).

Protocol Type Field

IPv4 l/o length

l/o internal header length (ihl)

l/o option length

TCP l/o data offset

l/o option length

l/o urgent pointer

UDP l/o length

DHCP l/o option length

dn search option

l/o option payload termination

l/o zero length option payload

DNS dn compression pointer

dn label length

l/o qdcount

l/o rdlength

4.1 Stateless Protocols

Stateless protocols do not contain a state and such are

easier to test since there is no need to, for example,

establish a connection before sending a packet. For

our evaluation, this includes IPv4 and UDP. The ba-

sic approach of the stateless test scripts is to create a

packet, send it to the DUT, and check the response.

It is important to add a meaningful payload to the

packet. With this, the probability that the DUT drops

the packet at an early stage is decreased. For IPv4,

we are using ICMPv4 as payload. Regarding UDP,

the used payload depends on the DUTs. Some indus-

trial device accept LLDP or DNS resolver payloads,

or it might be the case that the DHCP implementation

accepts packets. If there is no service on the DUT

that accepts UDP-based packets, a request-response

protocol needs to be used on top of the UDP packet.

Most of the test scripts regarding IPv4 and UDP

can be implemented with Scapy in a straight forward

way. We use Scapy to generate a packet, change the

corresponding ﬁeld and send the packet to the DUT.

Since most of the ﬁelds only contain a few bytes, we

are able to test the full input space for these ﬁelds.

However, for the implementation of test scripts re-

garding the IP options, some additional work needs to

be done since Scapy’s interface doesn’t allow to set

the length of an option. In general, this is a helpful in-

terface, but for our test scripts, we intentionally want

to set the length in a wrong way. As a workaround,

we generate the options manually and append them

as a payload to the IP layer. In addition, the IP header

length and the checksum must be set properly.

4.2 Request-response Protocols

From the protocols considered for the test scripts,

DHCP and DNS can be categorized as request-

response protocols. That means that no complex state

machine is required to test these protocols. Neverthe-

less, implementing the test scripts for DHCP and DNS

is more challenging than the test scripts for stateless

protocols. Since most industrial device implement the

client of the protocol, the test script needs to repre-

sent the server. An additional challenge is that the

ﬁrst paket of the communication has to be sent by

the DUT, and the communication cannot be initiated

by the test script. For each ﬁeld and each value that

should be tested, the DUT needs to send one request.

The answer to this request is then crafted according to

the test script and sent to the DUT.

For the implementation, we encapsulate the mu-

tation of the packet deﬁned by the test script from

the implementation of the protocol server. As a basis

for the implementation of the protocol server, we use

Scapy’s AnsweringMachine. This part implements

the general protocol behavior and is the same for each

test script. The other part, the mutation of the packet,

depends on the test script and interacts with the server

implementation via an interface. For DHCP, we im-

plement an interface to control the DHCP options

which are handled by Scapy similar to the IP options,

and such are not fully controllable via the Scapy in-

terface. Our interface allows to set the options and the

option lengths independent of the actual content. For

DNS, we implement an interface to build the DNS

packets. With the interface, we are able to control

each part of the DNS packet. For example, it is possi-

ble to change the length of a label or to set a compres-

sion pointer to an arbitrary value. With this design

and implementation, we can build the test scripts for

the different ﬁelds (see Table 2).

Depending on the protocol, there are several ways

to trigger the DUT to generate a request. Regarding

DHCP, one can choose between two reasonable ways.

On the one hand, the DUT usually will generate a

DHCP request after booting. On the other hand, a

DUT will send a new DHCP request after a timeout

which can be set by the DHCP server (Droms, 1993).

For our test scripts, we choose the option based on the

timeout since a reboot of a industrial device can take

even longer than the time needed to wait for the time-

out. We set the renewal timeout to 10 seconds, and

the lease time to 20 seconds. As a result, the DUT

will send a new request after a time between 10 or 20

seconds, depending on the implementation. This still

is a long time and such the tests need some time to

ﬁnish (see Section 5.3.2 for an evaluation).

Cluster Crash: Learning from Recent Vulnerabilities in Communication Stacks

339

Regarding DNS, the possibilities to trigger a re-

quest highly depend on the concrete industrial device,

its device type and implemented features. For exam-

ple, one of the DUTs used in our evaluation provides

a dDNS implementation which can be used to trigger

a DNS request on a conﬁgurable frequency. A dif-

ferent DUT can be conﬁgured to send mails based on

different events. This will trigger a DNS request as

well. Note that these conﬁgurations do not break the

blackbox assumption since they can be conducted by

using the Ethernet interface. In general, the DNS test

scripts require a individual conﬁguration of the DUT

for it so send DNS request as often as possible.

4.3 Stateful Protocols

We also consider TCP, which is a highly stateful pro-

tocol. That means that out implementation needs to

generate, keep and cleanup the current state. Fuzzing

stateful protocols has been identiﬁed as a challenge by

ohme et al. (B

ohme et al., 2021). In order to reach a

vulnerability in a deeper state of the protocol, one ﬁrst

needs to execute the steps that are necessary to reach

said state. One speciﬁc challenge is to maintain the

state during the tests since the tests may interact with

the state. Each test script needs to establish a spe-

ciﬁc state, run the tests and reset the state afterwards.

Some test scripts additionally need to interact with the

general state machine. Depending on the payload of

the TCP packet, the test script also needs to be aware

of the payload’s protocol. For example, it might be

necessary to make a valid HTTP request on top of the

tested TCP packet. Only with this valid payload the

packet will be accepted und further processed by the

DUT. Similar to the implementations of the stateless

and request-response protocols, we implement an in-

terface to set the options, and we need to recalculate

the checksum.

5 EVALUATION

The aim of our work is to understand whether simi-

lar vulnerabilities occur in implementations of differ-

ent protocols, and whether blackbox test scripts can

be used to identify these vulnerabilities. Additionally,

this can be used to guide blackbox fuzzers, making

them more efﬁcient. For the evaluation of these ques-

tions and of the implemented test scripts, we choose

8 industrial device from 5 device classes as a basis.

We set up and conﬁgure the industrial device, run our

scripts and analyse the resulting behavior of the in-

dustrial device. The following section describes our

methodology, presents the results and discusses them.

Since our aim is to generally explore the spreading

of vulnerabilities and not to explicitly point out single

vendors, the used industrial device are identiﬁed by

pseudonyms. The vulnerabilities we ﬁnd during our

work are disclosed responsibly and in collaboration

with the vendors.

5.1 Methodology

Before the presentation of the results, we present

our methodology. This includes the formulation of

our hypotheses and the presentation of our evaluation

strategy.

5.1.1 Hypotheses

Our evaluation is driven by the following hypotheses:

H.1 Similar vulnerabilities do not only occur in im-

plementations of the same protocol but also in

different protocols.

H.2 Black-box test scripts derived from previously

deﬁned VAPs help to identify vulnerabilities.

H.3 Implementations of the VAPs are present in

different device classes.

5.1.2 Strategy

Depending on the protocols each industrial de-

vice supports, we use our implemented test scripts to

test the devices for vulnerabilities. During the whole

process, the industrial device are blackboxes. This

represents the view of an attacker who aims to ﬁnd

vulnerabilities in industrial device, but also the view

of a test late in the development life cycle. With

this, we are able to evaluate realistically how our ap-

proaches and test scripts work in a blackbox setting.

The devices we choose are not known to be vulner-

able with regard to the analysed vulnerability groups

Ripple20, Urgent/11, and Amnesia:33. This supports

our aim to evaluate whether the identiﬁed VAPs can

be transferred to other stacks and devices.

5.2 Devices under Test

We include 8 industrial device from 5 different de-

vice classes in our evaluation. The two leftmost

columns of Table 3 list the DUTs as well as their

device classes. It can be seen that the industrial de-

vice cover a wide range of device classes. A ﬁnger-

printing showed that each of the DUTs uses a unique

stack. This increases the variance, and the coverage

of the DUTs even more. In the following, we give a

short overview on the functions and specialities of the

device classes considered in this evaluation (ﬁrewall,

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

340

controller, gateway, I/O device, and sensor). In order

to follow a responsible disclosure strategy, we will not

include details on the manufacturers of the devices.

We reported the vulnerabilities to the concerned man-

ufacturers, and we will publish the vulnerabilities af-

ter the disclosure process is ﬁnished.

Firewall. A ﬁrewall connects two or more network

segments and restricts the trafﬁc between the network

segments. FW1 is a ﬁrewall that provides an HTTPS

Webserver for conﬁguration purposes.

Controller. Controllers have the task to control and

monitor the ICS. Additionally, they can collect and

analyse data from the industrial device. For our eval-

uation, we choose two controllers: Ctl1 and Ctl2.

Ctl1 is a safety controller which means that it is espe-

cially suited for applications with high safety require-

ments. This includes higher requirements regarding

redundancy and reliability.

Gateway. The two gateways, GW1 and GW2, are

OPC UA Gateways. That means that they connect

different communication protocols to OPC UA, which

is a machine-to-machine communication protocol for

industrial automation. With this, data from different

sources can be combined and analyzed.

I/O Device. In general, industrial I/O devices con-

nect analog and digital actuators and sensors to the

controllers. I/O2 is an I/O device that couples

PROFINET communication from the controllers to

digital or analog signals. I/O1 translates the commu-

nication between PROFINET and I/O Link, and digi-

tal and analog signals.

Sensor. Sens1 is a temperature sensor that provides

its measurements using different communication pro-

tocols such as FTP, SNMP, and MQTT. In addition,

Sens1 provides a web application which also shows

the current measurements but can additionally be used

for conﬁguration purposes.

5.3 Results

We present the results of our evaluation in this section,

whereas Section 5.4 discusses the presented results.

The test scripts lead to crashes of the DUTs as well

as to anomalies in their behavior. We chose the term

ﬁnding as an umbrella term for crashes and anomalies.

DHCPv4

DNS

IPv4

TCP

UDP

#ﬁndings

length / offset

domain name

Figure 2: Findings (crashes and anomalies) identiﬁed by the

test scripts, sorted by the protocol they concern.

5.3.1 Findings

During our evaluation, we observed 11 ﬁndings. Fig-

ure 2 presents the ﬁndings sorted by the affected pro-

tocol, and the type of the ﬁnding (length/offset or do-

main name). The test scripts provoked ﬁndings in

each of the considered protocols except UDP. Most

ﬁndings are concerned with IPv4.

The more detailed overview of the results pre-

sented in Table 3 shows that we observed anomalies in

IPv4 and TCP, and crashes in DHCPv4 and DNS. In

the table, anomalies are represented by A and crashes

by C. Checkmarks (X) represent runs that did not lead

to a ﬁnding, and dashes (-) represent combinations

which were not run since the DUT did not support the

protocol. Three DUTs did not show any ﬁnding, for

the remaining ﬁve DUTs, ﬁndings can be reported.

Two crashes we observed regarding DNS (see Ta-

ble 3) are resulting from an rdlength value bigger

than the available data. In our cases, the value of

rdlength was expected to be 4. For Sens1 as well

as for GW2, an unexpected value for rdlength leads

to the behavior that the DUT no longer sends DNS

requests. We conclude that the DNS resolver crashes

because of this unexpected value. Interestingly, the

concrete value differs. The resolver of Sens1 crashes

if rdlength is set to 0x084a, and the resolver of

GW2 crashes for the value 0xfd8c.

The third crash regarding DNS is concerned with

the compression pointer. GW2 stops sending DNS re-

quests after two responses with compression pointers

(0x05 and 0x06). However, the DUT is still running,

and with the webinterface a DNS request can still be

triggered. Based on our observations, we assume that

the NTPd process, which generates regular DNS re-

Cluster Crash: Learning from Recent Vulnerabilities in Communication Stacks

341

Table 3: Crashes (C) and anomalies (A) of the DUTs pro-

voked by the test scripts. Checkmarks (X) represent runs

that did not provoke an anomaly or a crash, and dashes

(-) represent combinations where the DUT does not support

the corresponding protocol.

ID Device Class IPv4 TCP UDP DHCPv4 DNS

len ihl optlen len optlen urgent len optlen search term zero compr ptr labellen qdcount rdlen

Sens1 Sensor X X A X X X X C - X X - - - C

FW1 Firewall X X A X X X X X X X X X X X X

Ctl1 Controller X X X X X X X - - - - - - - -

Ctl2 Controller X X A X X A X X X X X X X X X

I/O1 I/O Device X X X X X X X - - - - - - - -

I/O2 I/O Device X X X X X X X - - - - - - - -

GW1 Gateway X X X X X A X X X X X - - - -

GW2 Gateway X X A X X A X X X X X C - X C

quests, has crashed. After a reboot, the NTPd works

again as expected.

The test script concerning the option length of

DHCPv4 provoked a full crash of Sens1. If the DHCP

ACK packet does not contain the values expected by

the DUT, the DHCP client as well as the other ser-

vices crash. After a reboot, the DUT and all of its

services are up and running again.

The test script regarding the urgent pointer

leads to anomalies in three industrial device. If the

urgent pointer is set to zero, the industrial de-

vice return different HTTP response codes. This is

an unexpected behavior since the urgent data re-

quires at least one byte (Seri et al., 2019). Expected

would be the same response as for requests without

the urgent flag set, closing the connection or ig-

noring the packet. With the urgent pointer point-

ing inside the available data, GW2 and GW1 response

sometimes with a 400 Bad Requests and sometimes

with a 200 Ok. However, GW2 also sometimes re-

sponses with 401 Unauthorized which is the ex-

pected behavior since GW2 uses HTTP Authentica-

tion. From a blackbox perspective, we interpret this

behavior as an anomalie in the HTTP implementa-

tion since the urget pointer inﬂuences the HTTP

response code.

Regarding IP, the test script regarding the option

length lead to similar anomalies in four industrial

device. Even in cases in which the option length is

too short or too long, the DUTs reﬂects the content

of the options to the sender. This also includes cases

in which the content of the options is not parseable.

Our analyses suggest that this anomaly can not be ex-

ploited. Still, the ﬁnding is communicated to the ven-

dors of the effected DUTs.

5.3.2 Duration

Our evaluation of the timing performance shows high

differences between the protocols, as expected. The

results of our evaluation are shown in Figure 3, where

each bar represents the mean duration of a run of all

the test scripts concerned with the corresponding pro-

tocol. With this, we want to give a sense of how long

the tests for one protocol need. As can be seen in the

ﬁgure, the test scripts for DNS need much longer than

the other test scripts. The reason for this is that the

DUT needs to send the ﬁrst packet of the connection

and this needs its time (see also Section 4.2).

5.4 Discussion

Our evaluation gives valuable results regarding the

hypotheses formulated in Section 5.1.1. In the fol-

lowing, we discuss the implications of our results in

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

342

0 1 2 3 4

·10

DHCPv4

DNS

IPv4

TCP

UDP

12h 2d 4d

1.24 · 10

3.36 · 10

1.36 · 10

1.88 · 10

77,108

Mean duration of test in seconds

Test scripts

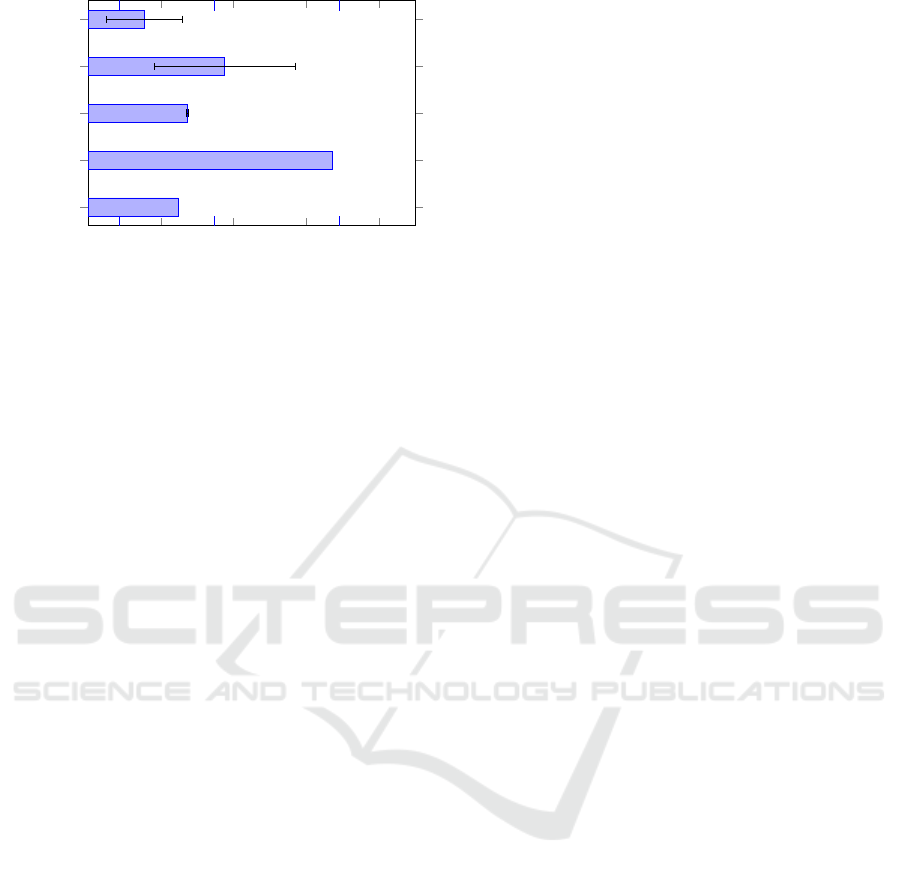

Figure 3: Mean duration of tests including 95%-quantile.

regard to the hypotheses and further discuss expla-

nations for interesting observations as well as limi-

tations.

First, our evaluation supports H1 since the re-

sults show that similar vulnerabilities do not only oc-

cur in the same protocol but also in different proto-

cols. For example, this is the case for length val-

ues which are greater than the available data. On the

one hand, in DNS we observed a crash caused by a

rdlength value bigger then the available data. On

the other hand, the anomalies found in IP are based

on an option length value bigger then the available

data. Additionally, our results also support the hy-

potheses that similar vulnerabilities can be found in

different implementations of the same stack, which

has been formulated by dos Santos el al. (dos Santos

et al., 2021). This is for example shown by the similar

behavior of Sens1, FW1, Ctl2, and GW2 regarding the

IPv4 option length.

Second, our implementation and evaluation sup-

port H2. The blackbox test scripts we developed

based on the VAPs are indeed able to identify anoma-

lies and crashes related to the VAPs. For exam-

ple, this is shown by the ﬁndings regarding the

urgent pointer which represent an implementation

of VAP1: Assume validity of length / offset ﬁeld. A de-

tailed description of the VAPs has been published on

GitHub.

Third, out evaluation supports H3 since the results

include ﬁndings of the same VAPs in different device

classes. For example, this is the case for the ﬁnd-

ing regarding the IPv4 option length. In this case,

four devices from four different device classes (sen-

sor, ﬁrewall, controller and gateway) show the same

anomaly in their behavior. The controller and the

gateway additionally share the anomaly in behavior

regarding the TCP urgent pointer.

Our experiments show no ﬁndings regarding

UDP. The reason for this could be that UDP is the

least complex protocol we tested and such vulnera-

bilities are less likely. This is also supported by the

previous reported vulnerabilities where only one vul-

nerability was reported in UDP.

One of our assumptions is the realistic setting that

we see the DUTs as true blackboxes. On the one hand,

this allows us to truly understand how the tests and

evaluations need to be conducted to be realistic for

blackbox testers. On the other hand, this setting al-

lows to take the attacker’s point of view which helps

to understand possible approaches and attacks. How-

ever, this assumption also restricts our possibilities to

evaluate the vulnerabilities in some sense. The ﬁrst

restriction is that we are not able to tell which stacks

are used by the DUTs. As has been stated earlier,

we compensate for this missing information by using

ﬁngerprinting techniques. By using nmap, we ﬁnger-

print the different stacks and were able to tell that all

used DUTs include different stacks. With this, we

are able to show that similar vulnerabilities occur in

different stacks. The second restriction concerns the

analysis of the found vulnerabilities. To be sure which

ﬁnding correlates to which VAP, one would need to

see the source code and analyse the reason for the

anomaly or crash. Nevertheless, the behavior that is

visible from the outside already gives hints to which

VAP an anomaly or crash is related. For a deep anal-

ysis of the ﬁndings in relation to the VAPs, one needs

to break the blackbox assumption. We are working in

this direction by disclosing the vulnerabilities to the

vendors and by cooperating with the vendors. This

helps to understand the vulnerabilities better and also

helps to make the industrial device more secure.

6 CONCLUSIONS

In this work, we analyzed the vulnerability groups

Ripple20, Amnesia:33, and Urgent/11, developed

VAPs, and implemented test scripts based on these

VAPs. Our evaluation shows that these test scripts

help to identify vulnerabilities based on the VAPs. In

addition, it shows that similar vulnerabilities occur in

implementations of the same protocol as well as in

different protocols, and that these similar vulnerabil-

ities also spread over different device classes. With

this, we build a base for more efﬁcient fuzzing strate-

gies based on a structured way to organize knowledge

regarding usual vulnerabilities.

The test scripts we developed include speciﬁc in-

formation that can be used to crash industrial de-

vice. Nevertheless, in order to support scientiﬁc re-

producibility, our standalone test scripts can be re-

ceived upon request.

Cluster Crash: Learning from Recent Vulnerabilities in Communication Stacks

343

Future work comprises the extension of our ap-

proach to other domains and vulnerability groups. It

would be interesting to analyze whether our Vulner-

ability Anti-Patterns and test scripts are also appli-

cable to IoT and IIoT protocols and devices. From

our point of view, our Vulnerability Anti-Patterns and

test scripts are written in a generic way so that this

should be possible. In addition, one could include

other vulnerability groups (e.g. INFRA:HALT) into

the analysis and develop new test scripts if neces-

sary. To advance the automation of our test scripts,

the stateful answering machines that we developed for

our test scripts could be integrated to the security test-

ing framework ISuTest as well.

ACKNOWLEDGEMENTS

This work was supported by funding from the topic

Engineering Secure Systems of the Helmholtz As-

sociation (HGF) and by KASTEL Security Research

Labs.

REFERENCES

Aboba, B. and Cheshire, S. (2002). Dynamic host conﬁgu-

ration protocol (dhcp) domain search option. Techni-

cal report, Apple Computer, Inc.

Arrieta, A., Wang, S., Arruabarrena, A., Markiegi, U.,

Sagardui, G., and Etxeberria, L. (2018). Multi-

objective black-box test case selection for cost-

effectively testing simulation models. In Proceedings

of the Genetic and Evolutionary Computation Confer-

ence, pages 1411–1418.

ohme, M., Cadar, C., and Roychoudhury, A. (2021).

Fuzzing: Challenges and reﬂections. IEEE Softw.,

38(3):79–86.

Caselli, M., Had

ziosmanovi

c, D., Zambon, E., and Kargl,

F. (2013). On the feasibility of device ﬁngerprinting

in industrial control systems. In International Work-

shop on Critical Information Infrastructures Security,

pages 155–166. Springer.

dos Santos, D., Dashevskyi, S., Wetzels, J., and Amri, A.

(2021). Amnesia:33 - how tcp/ip stacks breed criti-

cal vulnerabilities in iot, ot and it devices. Technical

report, Forescout Research Labs.

Droms, R. (1993). Dynamic host conﬁguration protocol.

RFC 1541, RFC Editor. http://www.rfc-editor.org/rfc/

rfc1541.txt.

Fetzer, C. and Xiao, Z. (2002). An automated approach

to increasing the robustness of c libraries. In Proceed-

ings International Conference on Dependable Systems

and Networks, pages 155–164. IEEE.

Hecht, G., Rouvoy, R., Moha, N., and Duchien, L. (2015).

Detecting antipatterns in android apps. In 2015 2nd

ACM international conference on mobile software en-

gineering and systems, pages 148–149. IEEE.

Julisch, K. (2013). Understanding and overcoming cy-

ber security anti-patterns. Computer Networks,

57(10):2206–2211.

Kohl, M. and Oberman, S. (2020). Ripple 20 - CVE-2020-

11896 RCE CVE-2020-11898 Info Leak. Technical

report, JSOF Research Lab.

Kohl, M., Sch

on, A., and Oberman, S. (2020). Ripple 20

- CVE-2020-11901. Technical report, JSOF Research

Lab.

Miller, B., Zhang, M., and Heymann, E. (2020). The rele-

vance of classic fuzz testing: Have we solved this one?

IEEE Transactions on Software Engineering.

Mockapetris, P. (1987a). Domain names - concepts and fa-

cilities. STD 13, RFC Editor. http://www.rfc-editor.

org/rfc/rfc1034.txt.

Mockapetris, P. (1987b). Domain names - implementation

and speciﬁcation. STD 13, RFC Editor. http://www.

rfc-editor.org/rfc/rfc1035.txt.

Nafees, T., Coull, N., Ferguson, I., and Sampson, A. (2018).

Vulnerability anti-patterns: a timeless way to capture

poor software practices (vulnerabilities). In 24th Con-

ference on Pattern Languages of Programs, page 23.

The Hillside Group.

Pfrang, S., Meier, D., Friedrich, M., and Beyerer, J. (2018).

Advancing protocol fuzzing for industrial automation

and control systems. In ICISSP, pages 570–580.

Pfrang, S., Meier, D., and Kautz, V. (2017). Towards a mod-

ular security testing framework for industrial automa-

tion and control systems: Isutest. In 2017 22nd IEEE

International Conference on Emerging Technologies

and Factory Automation (ETFA), pages 1–5. IEEE.

Seri, B., Vishnepolsky, G., and Zusman, D. (2019). Ur-

gent/11 - critical vulnerabilities to remotely compro-

mise vxworks, the most popular rtos. Technical report,

ARMIS.

Smith, C. U. (2020). Software performance antipat-

terns in cyber-physical systems. In Proceedings of

the ACM/SPEC International Conference on Perfor-

mance Engineering, pages 173–180.

Trubiani, C., Bran, A., van Hoorn, A., Avritzer, A., and

Knoche, H. (2018). Exploiting load testing and proﬁl-

ing for performance antipattern detection. Information

and Software Technology, 95:329–345.

Tuma, K., Hosseini, D., Malamas, K., and Scandariato,

R. (2019). Inspection guidelines to identify security

design ﬂaws. In Proceedings of the 13th European

Conference on Software Architecture-Volume 2, pages

116–122.

Wert, A., Oehler, M., Heger, C., and Farahbod, R. (2014).

Automatic detection of performance anti-patterns in

inter-component communications. In Proceedings

of the 10th international ACM Sigsoft conference on

Quality of software architectures, pages 3–12.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

344
