Evaluation of Generative Adversarial Network Generated Super

Resolution Images for Micro Expression Recognition

Pratikshya Sharma

, Sonya Coleman

, Pratheepan Yogarajah

, Laurence Taggart

and Pradeepa Samarasinghe

School of Computing, Engineering & Intelligent Systems, Ulster University, Northern Ireland, U.K.

School of Nursing & Health Research, Ulster University, Northern Ireland, U.K.

Department of Information Technology, Malabe, Sri Lanka

Keywords: Micro Expression, General Adversarial Network, Super Resolution.

Abstract: The Advancements in micro expression recognition techniques are accelerating at an exceptional rate in recent

years. Envisaging a real environment, the recordings captured in our everyday life are prime sources for many

studies, but these data often suffer from poor quality. Consequently, this has opened up a new research

direction involving low resolution micro expression images. Identifying a particular class of micro expression

among several classes is extremely challenging due to less distinct inter-class discriminative features. Low

resolution of such images further diminishes the discriminative power of micro facial features. Undoubtedly,

this increases the recognition challenge by twofold. To address the issue of low-resolution for facial micro

expression, this work proposes a novel approach that employs a super resolution technique using Generative

Adversarial Network and its variant. Additionally, Local Binary Pattern & Local phase quantization on three

orthogonal planes are used for extracting facial micro features. The overall performance is evaluated based

on recognition accuracy obtained using a support vector machine. Also, image quality metrics are used for

evaluating reconstruction performance. Low resolution images simulated from the SMIC-HS dataset are used

for testing the proposed approach and experimental results demonstrate its usefulness.

1 INTRODUCTION

Expressing emotion is a habitual means of putting

across one’s feelings and generally comes naturally to

humans. Verbal or non-verbal expressions of such

emotions play a vital role in perceiving a human’s

mindset. Such emotions when channelled facially are

commonly known as facial expressions and identified

as non-verbal expressions. By gauging the extent to

which an expression lingers on the face, determines

whether it is a macro or micro expression. Macro

expressions last for longer than micro expressions,

typically beyond the micro expression duration of

0.04 to 0.2 of one second (Liong, See, Wong, &

Phan, 2018). Controlling the appearance of micro

expressions on the face is extremely difficult for an

individual which makes it appear more natural,

thereby contributing for accurate estimation of one’s

emotion (Ekman & Friesen,1969) (Ekman,2009). The

process involved in recognizing such fleeting

expressions is comparatively much more difficult

than macro expressions. However, recent trends

clearly demonstrate successful advancements of

recognition techniques using both shallow and deep

learning methods for facial micro expression (Oh,

See, Le Ngo, Phan, & Baskaran, 2018). Micro

Expression Recognition (MER) is a substantially

widespread inter-disciplinary application area. Some

application areas include autism, psychology, crowd

scenarios, airport security and criminal investigations

(Ekman & Friesen,1969) (Ekman,2009) (Oh et al.,

2018). Such diverse application areas implicitly

spawn situations where images to be analysed are of

poor quality. The quality may be affected due to

certain realistic situations like images acquired in

poor lighting conditions, images taken using low-cost

imaging devices, downloaded images, images stored

in restricted memory capacity etc. Such images have

insufficient resolution which makes it extremely

difficult for both humans and machines to utilize the

available information. These situations have given

rise to a new research direction that needs to cater to

the low resolution (LR) problem particularly for

micro expressions (Zhao & Li, 2019) (Li, G., Shi,

560

Sharma, P., Coleman, S., Yogarajah, P., Taggart, L. and Samarasinghe, P.

Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition.

DOI: 10.5220/0010820100003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 560-569

ISBN: 978-989-758-549-4; ISSN: 2184-4313

 2022 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

Peng, & Zhao, 2019). Dispersed and loosely aligned

pixels in LR images result in comparatively fewer

image details within them than standard resolution

images. This obviously makes them appear pixelated,

less precise, blurrier, and granular. On the other hand,

a more concentrated and compact pixel arrangement

makes high resolution (HR) images appear crisper

and clearer. Implicitly, such images contain denser

image details. Broadly, images with LR differ from

HR images mainly in terms of pixel density per unit

area and degree of coherence. A substantial lack of

salient information (e.g., texture details, high

frequency information etc.) in LR images makes the

process of attribute extraction extremely challenging

and laborious. The task of estimating a HR image by

reconstructing an image from a LR input image is

generally known as image super resolution (ISR) and

the reconstructed image is known as a super-resolved

image. Several innovative deep convolutional neural

networks (e.g., CNNs) are now available with

variations that exploit residual dense networks

(RDN), residual dense blocks (RDB) and recursive

learning architectures (Ledig et al., Jul 2017) (Hung,

Wang, & Jiang, 2019) (Wang et al., 2019) (Zhang,

Tian, Kong, Zhong, & Fu, Jun 2018), and have been

successfully applied to super resolution (SR)

problem. The main motive behind super resolving LR

facial images is to recover essential facial details. For

face SR algorithms, the challenge is not only to

reconstruct the face, but also to maintain attribute

consistency with the original HR images. Thus,

restoring face details in the reconstructed image is

vital for face SR algorithms, to facilitate facial

expression analysis. Variation in facial expressions

among different classes of micro expression is very

limited. These expressions are very subtle and have

comparatively less distinct inter-class discriminative

attributes. Lack of explicit inter-class attributes in

micro expression, in addition to inadequate

availability of information due to LR, along with the

absence of a suitable LR micro expression dataset

further increases the difficulty level of the overall

MER task (Li et al., 2019). Some popular feature

extraction techniques that have been employed for

micro expression include Local Binary Pattern on

Three Orthogonal Planes (LBP-TOP) (Yan et al.,

2014), Histogram of Oriented Gradient on Three

Orthogonal Planes (HOG-TOP) (Li, X. et al., 2018),

Histogram of Image Oriented Gradient on Three

Orthogonal Planes (HIGO) (Li et al., 2018), Local

Binary Patterns with Six Intersection Points (LBP-

SIP) (Wang, Y., See, Phan, & Oh, 2015) and Local

Phase Quantization on Three Orthogonal Plane

(LPQ-TOP) (Zong et al., 2018) (Sharma, Coleman, &

Yogarajah, 2019; Sharma, Coleman, Yogarajah,

Taggart, & Samarasinghe, Jan 10, 2021)

To address some of the problems of LR micro

expressions discussed earlier, (Li et al., 2019)

proposed reconstructing higher resolution images

from LR images by employing a face hallucination

algorithm on individual frames. At present datasets

available for micro expression contain only HR

images. For instance, Spontaneous Micro-expression

database (SMIC-HS) (Xiaobai Li, Pfister, Xiaohua

Huang, Guoying Zhao, & Pietikainen, Apr 2013)

micro expression dataset contains HR images with

resolution of 190 x 230 approximately, whereas LR

images are usually below 50 x 50 resolution (Li et al.,

2019). Hence in their work (Li et al., 2019), LR micro

expression image dataset was obtained by simulating

three existing HR micro expression image datasets

i.e., CASMEII (Yan et al., 2014), Spontaneous

Micro-expression database (SMIC-HS) and SMIC-

subHS (Xiaobai Li et al., Apr 2013). Through

experimental results an improvement on overall

classification accuracy was achieved on these

datasets. However, low accuracy for individual

classes was also observed alongside this. From the

results obtained, a drastic decline in the recognition

accuracy was observed for expressions with

exceptionally low resolution. Datasets from

CASMEII and SMIC-HS yielded higher magnitude

of misclassification than SMIC-subHS. It was

observed that the reliability and validity of any facial

expression analysis approach is directly affected by

the resolution of the input image used hence acquiring

decent resolution for the reconstructed facial micro

expression images was crucial when employing SR.

Apart from (Li et al., 2019), work involving face SR

for expression analysis has employed macro

expressions, thus SR on micro expression is a unique

concept introduced by (Li et al., 2019).

Taking this concept further, our work attempts to

introduce deep learning technique into the LR micro

expression recognition framework. Specifically, we

propose Generative Adversarial Network (GAN)

(Goodfellow et al., 2014) technique and its variant

and evaluate its performance in solving the issue of

low resolution targeting micro expression. At present

GAN has not been applied specifically for low

resolution micro expression problem, this work is a

first attempt to realise it. The proposed recognition

framework aims to combine the best features from

handcrafted methods and deep learning techniques.

Low resolution ME images obtained by simulating

data from SMIC-HS are used to test our proposed

approach. SR algorithms can be applied to both

videos and images with LR to obtain its

Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition

561

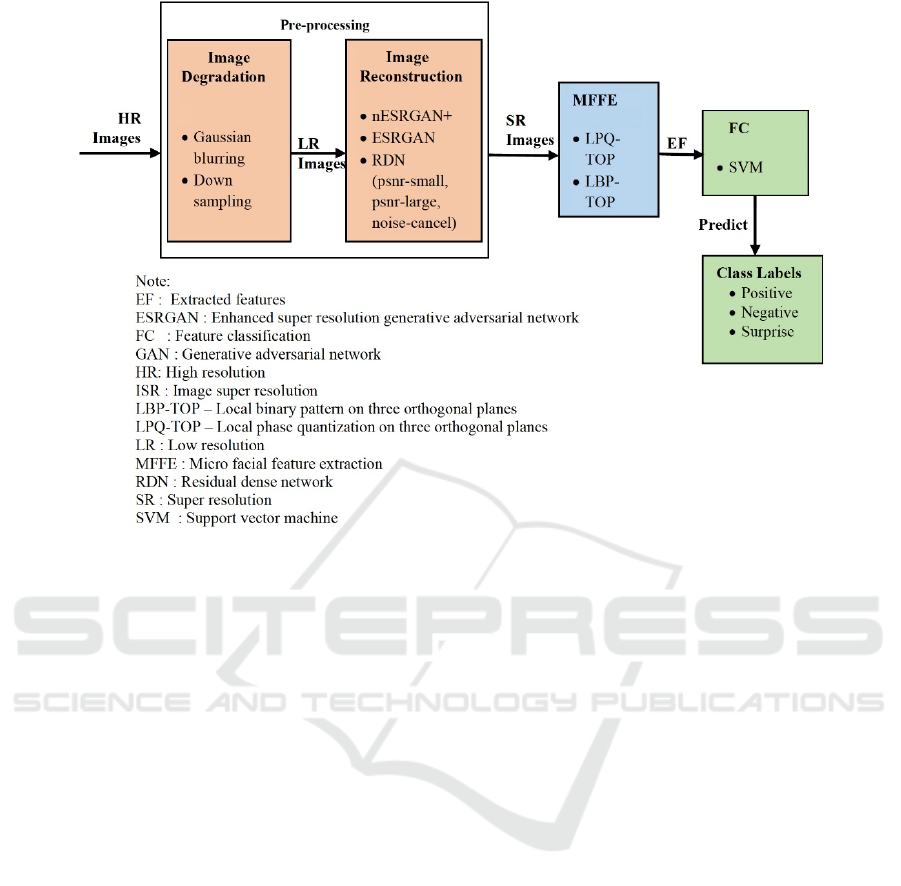

Figure 1: Proposed framework employing GAN based image reconstruction before microexpression recognition.

corresponding super-resolved videos and images.

Alternatively, SR images can also be estimated using

LR video. In our work we consider using LR images

only, throughout the reconstruction process. For

extracting micro facial features, we use LBP-TOP

and LPQ-TOP along with a support vector machine

(SVM) (Chang & Lin, 2011) for classifying data into

various emotion classes like positive, negative and

surprise.

The main contributions of this work are: (1)

introducing GAN based model as a solution to the

low-resolution MER problem; (2) a comprehensive

analysis of the LBP-TOP & LPQ-TOP extraction

techniques for SR and LR images at various

resolutions; (3) providing an exhaustive performance

evaluation of GAN and its variants for MER task.

2 THE PROPOSED MICRO

EXPRESSION

RECONSTRUCTION &

RECOGNITION FRAMEWORK

To deal with the issue of low resolution in images

consisting of micro expressions, we propose a

framework with GAN based super resolution image

reconstruction module along with three other

standard modules namely, image degradation, micro

facial feature extraction and feature classification as

shown in Figure 1. The initial two modules, image

degradation and image reconstruction, are also known

as pre-processing modules. They are employed to

prepare the datasets for the recognition task. This is

followed by a micro facial feature extraction module

where the essential micro features are extracted from

the input facial images. As a final step, the

classification module manages the task of assigning

appropriate class labels based on the extracted

features. This entire process is termed as the micro

expression recognition system. All these modules are

briefly discussed in this section.

2.1 Image Degradation

To test our proposed framework, we use a popular

micro expression dataset: SMIC-HS. As discussed

earlier, this dataset contains HR images, therefore the

SR algorithm cannot be used on them directly. These

algorithms are suitable for LR images hence, we

simulate a LR micro expression dataset from these

existing HR micro expression datasets. To construct

deteriorated images, we apply down sampling and

Gaussian blurring on the existing HR micro

expression images of SMIC-HS dataset. This process

of creating images with loss of quality from its HR

images is known as image degradation and can be

expressed using equation (1) (Li et al., 2019). The

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

562

symbol 𝑆 denotes down sampling, 𝑌 denotes

blurring, 𝑍 denotes high resolution, 𝑥 is other

additive noise and 𝐿 represents the LR image

obtained.

𝐿𝑆𝑌𝑍𝑥 (1)

Images produced using such a degradation model

appear blurrier and lose their quality. These effects

along with the extent of loss of image details in the

degraded images can be observed in resultant images

presented in section 3. Thus, it is evident that both

HR and LR images differ in terms of quality, as well

as resolution. These newly created SMIC-HS datasets

with degraded images, simulated from existing HR

datasets are now suitable to be used with SR

algorithms.

2.2 Image Reconstruction

Here, we aim to upscale LR images using SR

techniques. To do so, we have considered five

different models namely Enhanced Super Resolution

Generative Adversarial Network (ESRGAN) (Wang

et al., 2019), further improving Enhanced Super

Resolution Generative Adersarial Network

(nESRGAN+) (Rakotonirina & Rasoanaivo, May

2020), basic model based on peak signal to noise ratio

(PSNR) namely, psnr-large and psnr-small (Zhang et

al., Jun 2018) (Ledig et al., Jul 2017) and artefact

cancelling Generative Adversarial Network model

(noise-cancel) (Zhang et al., Jun 2018). In our work

these super resolution algorithms employ LR images,

simulated from the SMIC-HS dataset. Ideally GAN

based super resolution algorithm consists of three

vital components namely generator, discriminator,

and a loss function. The generator function estimates

a HR image for the corresponding LR image whereas,

the discriminator estimates if the generated image is

realistic enough. Additionally, the loss function

essentially helps in optimizing the overall GAN

framework. A brief description of these five models

is presented in this section.

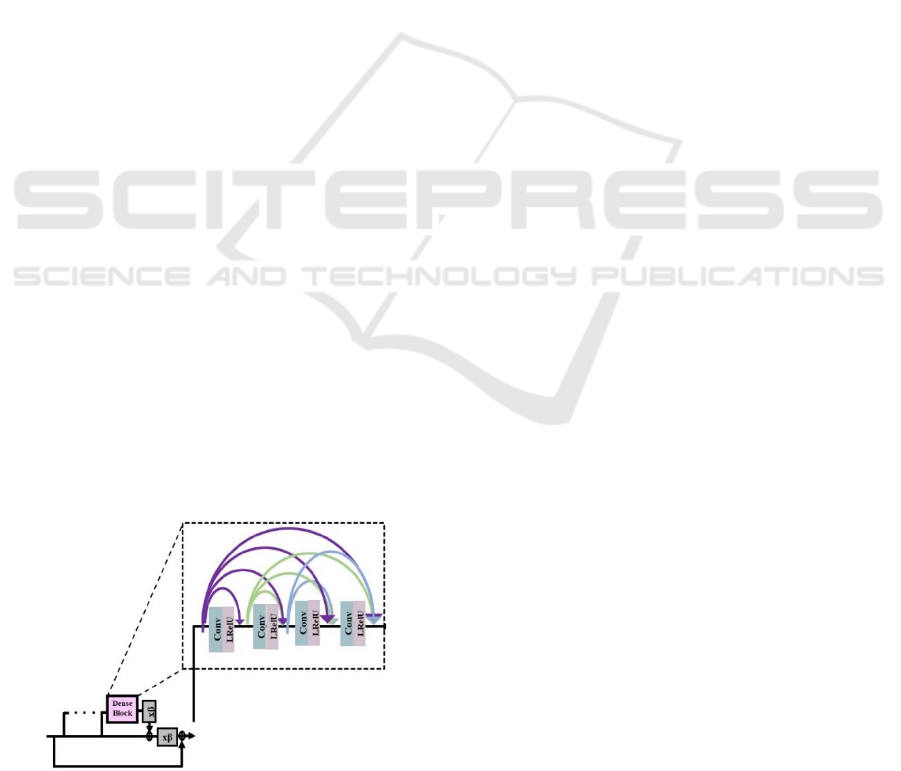

Figure 2: Residual in Residual Dense Block architecture

(RRDB) (Wang et al., 2018).

2.2.1 Enhanced Super Resolution

Generative Adversarial Network

(ESRGAN)

During implementation, to achieve upscaling, a

deeper network is employed in ESRGAN using

residuals in the residual dense network (RRDN) with

its architecture as described in (Wang et al., 2019).

Fundamentally RRDN is built using several residuals

in a residual dense block (RRDB) (see Figure. 2).

Further, each RRDB consists of several residual

dense blocks (RDB). The architecture used to build

the residual dense network (RDN) consisting of RDB

is adapted from (Zhang et al., Jun 2018) (see Figure.

3 & 4). The RDN was introduced for exploiting the

hierarchical features from all its convolution layers

which had not been accomplished by previous CNN

based SR algorithms. RDN is composed of RDB

which is a densely connected CNN capable of

extracting ample local features. Also, due to a

contiguous memory (CM) mechanism between

several RDBs, it is capable of continuously learning

from more improved features. To achieve this, every

layer of the current RDB is fed with the state of the

preceding RDB. If F

d-1

denotes the input

and F

denotes the output for d

RDB with G

feature maps

for both input and output, then the output of its c

convolution layer is given by (Zhang et al., Jun 2018):

𝐹𝜎𝑊

,

𝐹



,𝐹

,

,…,𝐹

,

 (2)

In equation (2), the activation function is rectified

linear unit (ReLU) denoted by 𝜎, the weight for c

convolutional layer is represented by 𝑊

,

, and the

feature maps produced by (d-1) RDB in its

concatenated form is given by 𝐹



,𝐹

,

,…,𝐹

,

.

The convolutional layers in the d

RDB are 1, ….,

(c-1) which produce a feature map G

+(c-1) x G,

where G represents feature map for 𝐹

,

. Thus, a

direct connection is established between successive

layers and the output of each layer and RDB. To

downsize the extracted features the d

RDB is

directly fed with (d-1)

RDB feature maps in

concatenated form. Also, the output information is

regulated using a 1x1 convolutional layer. Since the

architecture is a combination of local residual

learning and dense connections, this architecture is

often known as a residual dense block. To extract

shallow features RDN uses two convolutional layers.

A composite function used in RDN involves

operations like convolutional and rectified linear unit

(ReLU) (Zhang et al., Jun 2018) (see Figure 3).

Meanwhile, global features are also extracted

exploiting the hierarchical structure using similar

procedures. The discriminator network used consists

of a custom architecture from (Ledig et al., Jul 2017)

Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition

563

and the deep features are extracted using Keras

VGG19 network. Upscaled images obtained from

their corresponding LR images with the process

described here are all super-resolved images.

Instances of such super-resolved images obtained are

presented in section 3.

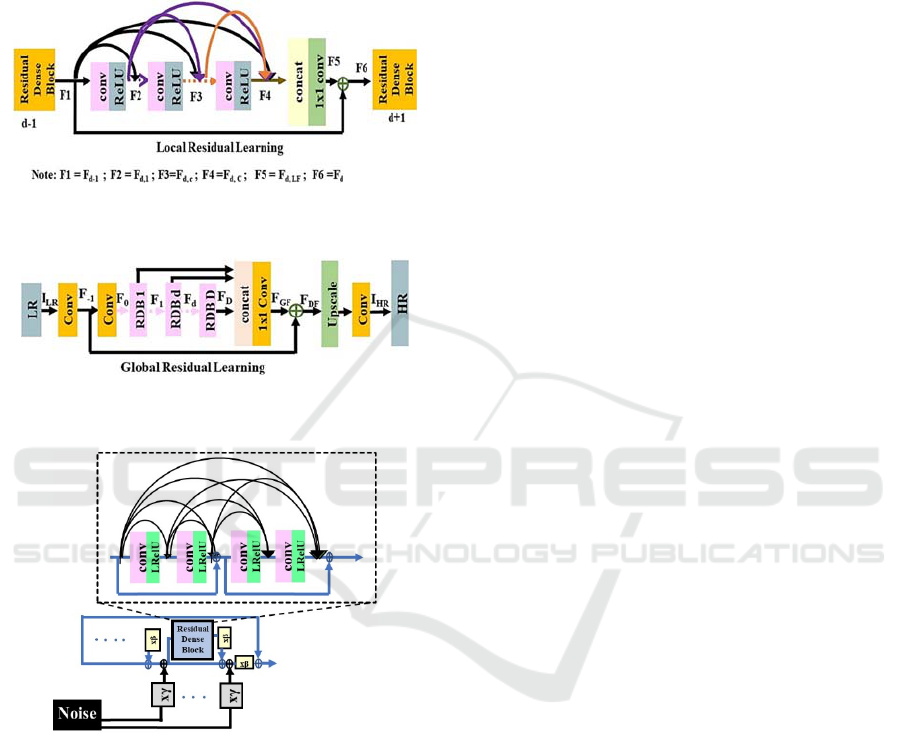

Figure 3: Architecture of Residual Dense Block (RDB)

(Zhang et al., Jun 2018).

Figure 4: Architecture of Residual Dense Network (RDN)

(Zhang et al., Jun 2018).

Figure 5: Architecture used in nESRGAN+ (Rakotonirina

& Rasoanaivo, May 2020).

2.2.2 Further Improving Enhanced Super

Resolution Generative Adversarial

Network (nESRGAN+)

To improvise the existing ESRGAN model, two

changes were introduced. Firstly, in the existing

dense block of ESRGAN model a residual learning

was added to enhance the network capacity (see

Figure 5). Secondly, the architecture of the generator

was modified by injecting noise at input to explore

the impact of stochastic variations (see Figure 5). This

improvised model was named as nESRGAN+ which

aimed at producing more realistic super-resolved

images with further image details. This SR model for

our work is taken from (Rakotonirina & Rasoanaivo,

May 2020).

2.2.3 Basic Model with Residual Dense

Network (RDN)

The architecture of this model consists of residual

dense block (RDB) where a preceding RDB is

directly connected to current RDB (see Figure 3).

This type of dense network utilizes hierarchical

features from all the convolutional layers and is

termed as residual dense network (RDN) (see Figure

4). To extract low-level features RDN uses two

convolutional layers. After extraction of local and

global features up-sampling is achieved. An abstract

view of the procedure followed in this model is

depicted in Figure 3 and Figure 4 (Zhang et al., Jun

2018). For creating the RDN model using a PSNR

driven approach two different training methods were

performed namely psnr-small and psnr large. In the

psnr-small method RDN model was built by training

the network on image patches with low PSNR value.

Similarly, in the psnr-large method the network was

trained on image patches with high PSNR value.

These methods will be referred to as psnr-large and

psnr-small

in our work hereon. The architecture

employed in this method is taken from (Zhang et al.,

Jun 2018).

2.2.4 Artefact Cancelling Generative

Adversarial Network

In addition to PSNR driven approach, another set of

RDN model was built, trained on adversarial and

VGG features losses known as artefact cancelling

GANs model (noise-cancel) (Ledig et al., Jul 2017;

Zhang et al., Jun 2018). Here, an adversarial

component is added to the loss function that exploits

GAN based training approach. The final weights are

obtained by combining weights produced in different

training sessions. The training is performed on

different datasets along with VGG19 perceptual loss.

Unlike PSNR driven approach which focuses on pixel

level reconstruction, this method focuses its

reconstruction at perceptual level. The discriminator

network employed in this model is taken from (Ledig

et al., Jul 2017). This method will be referred to as

noise-cancel in our work hereon.

2.3 Micro Facial Feature Extraction

For extracting micro facial features, we have

employed two methods: Local Binary Pattern on

Three Orthogonal Plane (LBP-TOP) and Local Phase

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

564

Quantization on Three Orthogonal Plane(LPQ-TOP).

LBP-TOP is widely popular for micro expression and

has been used for baseline evaluation (Yan et al.,

2014). LPQ-TOP method was implemented in (Zong

et al., 2018) for designing cross database micro

expressions. Exploiting this idea further, (Sharma et

al.,2019; Sharma, Coleman, Yogarajah, Taggart, &

Samarasinghe, Jan 10, 2021) tested its effectiveness

as a micro feature extraction technique with a positive

outcome. Thus, building on these groundworks, in

this research micro facial features were extracted by

conducting two sets of experiments. In the first set of

experiment, using LPQ-TOP technique features were

extracted from images with micro expression. As the

name suggests this technique uses local phase

information computed using Short Term Fourier

Transform to describe the image textures defined by

equation (3) for a given rectangular M x M

neighbourhood, Ɲx (Heikkila & Ojansivu, Aug 2009;

Ojansivu & Heikkilä, 2008; Päivärinta, Rahtu, &

Heikkilä, 2011):

𝐹



𝑢,x





𝐲

∈



𝑓



𝑥𝑦



𝑒







𝑤





𝑓



(3)

For a frequency u its basis vector is denoted by w

and

represents the vector containing M x M samples

taken from Ɲ

. At four frequency points the local

Fourier coefficients are computed denoted as : u

=[a

, 0]

, u

=[0 , a]

, u

=[a , a]

, u

=[a , -a]

, with a as

a scalar frequency. Ultimately resulting in a vector F

for every pixel position, given as:

=[F(u

,x), F(u

,x)] (4)

For each component in F

, its real and imaginary parts

are examined for its sign by applying a scalar

quantizer given in equation (5).

𝑞







1, i

𝑔



 0 is true

0, otherwise

(5)

With binary coding given in equation (6), the

resultant 8-bit binary coefficient 𝑞



𝑥 is then

represented in the form of integers.

𝑓





𝑥



𝑞









(6)

The LPQ features are extracted from three planes i.e.,

XT,YT and XY and stacked into a histogram to be

used later.

In the second set of experiments the LBP-TOP

method was used to extract the desired micro facial

features. For a center pixel, c with cordinates 𝑥



,𝑦



,

with P neighbouring pixel at R radius, the LBP is

computed using equation (7) and (8) (Yan et al.,

2014).

𝐿𝐵𝑃







𝑥



,𝑦





𝑠





g











(7)

𝑠



𝑥





1,𝑥  0

0,𝑥  0

(8)

In equation (7), g



and g



denote grey values for the

neighbour pixel and centre pixel respectively ,2



represents the weight on the neighbouring pixel at 𝑝

location where, 𝑝0,…,P1 and 𝑠



𝑥



equation (8) manages the sign issue. The LBP

computation is performed on all three planes i.e., XY,

YT and XT planes, which are later concatenated to

form a single feature vector.

2.4 Feature Classification

To keep the classification process simple, in our work

we have chosen to use a supervised learning-based

method named Support Vector Machine (SVM)

(Chang & Lin, 2011). In our experiment, datasets were

separated into two sets namely training and testing.

Individual instances of data in the training set contain

several attributes and class labels. Based on this

information and test data attributes, the SVM builds a

model capable of predicting class labels for each

instance of such test data. Throughout the

experiments conducted in this work classification is

achieved using a multi-class SVM classifier. To

identify the right hyperplane that best differentiates

various classes, it uses the kernel trick. The three most

popular kernel functions used with SVM are linear,

polynomial, and radial basis function denoted by

equation (9), (10) and (11) respectively (Chang & Lin,

2011).

𝐾x

 ,



x







(9)

𝐾x

 ,











𝑟



0

(10)

𝐾x

 ,



exp

||x



x





,

0

(11)

The symbols 𝑑, 𝑟 and γ used in these three equations

are called the kernel parameters, x





 represent

training samples and 𝑇 denotes the transpose

operation. In equation (10), d refers to polynomial

degree, 𝑟 is coefficient, and γ in equation (10) and

(11) is the gamma parameter that describes the scale

of influence of each training sample.

3 EXPERIMENTS RESULTS AND

DISCUSSION

As stated earlier, experiments were performed using

the SMIC-HS datasets which contains 164 micro

Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition

565

expression samples identified as 51 positive, 70

negative and 43 surprise class labels. The facial

resolution of these HR images is 190 x 230

approximately. To create images suitable for the

super resolution algorithm we simulate LR dataset by

applying degradation method described in section

2.1. Details of implementations and parameters used

for various SR models and feature extraction methods

in our work are presented in this section.

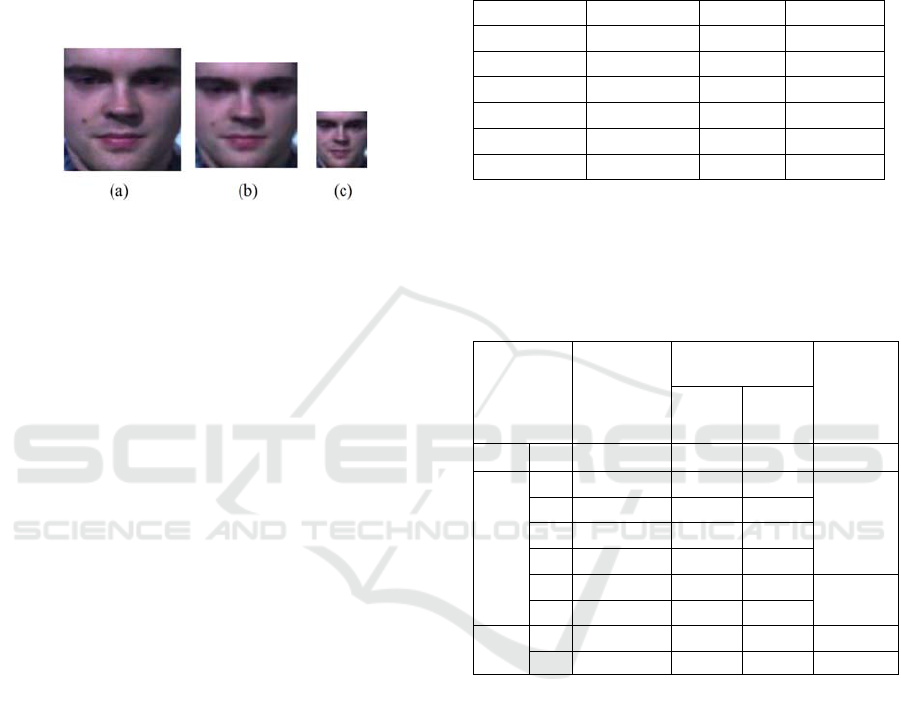

Figure 6: (a) Instance of HR 128x128.(b) LR image at

64x64 and (c) LR image at 32x32 simulated from SMIC-

HS dataset by applying image degradation.

3.1 Implementation Details

Following the work by (Li et al., 2019) the resolution

of the original HR images is set to a standard size of

128 x128 (see Figure 6. (a)) for obtaining LR images.

Particularly, these HR images are down sampled by 2

and 4 times to obtain images of size 64x64 and 32x32

(see Figure 6. (b)&(c)), referred to as LR64 and LR32

respectively from hereon. Instances of these LR64

and LR32 are then upscaled using different super

resolution algorithm with scaling factor set to two

(x2) and four (x4) respectively as described in section

2.2 to obtain 128 x 128 super resolved images (see

Figure.7), to be referred as SR64 and SR32

respectively from hereon.

In the basic model with RDN architecture

parameter D refers to number of RDB, C refers to

number of convolutional layers that are stacked inside

a RDB, G refers to number of feature maps of every

convolution layer that exists in RDBs, G

refers

to the

output filters i.e., number of feature maps for

convolutions that are outside of RDBs and of every

RDB output. The values for these parameters

employed in the psnr-large model is C=6,

D=20,G=64, G

=64 and x2. For psnr-small model

parameter values used were C=3,D=10, G=64, G

=64

and x2. In the noise-cancel model parameters were set

to C=6, D=20,G=64, G

=64 and x2. Thus, using psnr-

small, psnr-large, and noise-cancel models three sets

of SR64 datasets was obtained.

To achieve super resolution with ESRGAN, four

convolution layers are used in each RDB(C=4) , three

RDB inside each RRDB (D=3) and ten RRDB(T=10).

Each RDB further consists of 32 convolutional output

filters (G) along with 32 output filters (G

) for each

RDB. For ESRGAN training, the learning rate is set

to 0.0004, with a decay frequency of 100 and 0.5

decay factor.

Table 1: PSNR and SSIM.

Method Resolution PSNR SSIM

ESRGAN SR64 35.79 0.9826

psnr-large SR64 36.58 0.9789

psnr-small SR64 37.41 0.9827

noise-cancel SR64 30.38 0.9412

ESRGAN SR32 29.5 0.8502

nESRGAN+ SR32 23.08 0.7601

Note: SR64 denotes upscaling from 64 to 128 (x2 scale factor) and

SR32 denotes upscaling from 32 to 128 (x4 scale factor).

Bold indicates best value obtained in our work.

Table 2: Micro expression recognition accuracy obtained at

various resolutions using different super resolution models

on SMIC-HS dataset.

Resolution

Method

Accuracy %

(our)

Others

(Li et al.,

2019)

LBP-

TOP

LPQ-

TOP

HR 128 - 50.06 52.43 50.00

64 ESRGAN 51.43 52.43

52.44

64 psnr-large 50.67 52.00

64 psnr-small 51.45 52.43

64 noise-cancel 49.39 51.82

32 ESRGAN 49.82 50.60

51.83

32 nESRGAN+ 49.24 50.00

64 - 49.2 49.39 50.00

32 - 44.25 48.17 46.95

Note: SR64 denotes upscaling from 64 to 128 (x2 scale factor) and

SR32 denotes upscaling from 32 to 128 (x4 scale factor).

Bold indicates best values obtained in our work.

The weight of the loss function is set to 1 for the

generator and 0.003 for the discriminator during

training. The GAN is optimized using Adam with β1

set to 0.9 and β2 set to 0.999 during this training

phase. The discriminator is implemented with a

kernel size set to 3 and α set to 0.2 in LeakyReLU.

The size of all convolution layers is kept as 3x3

throughout the experiment. However, for local and

global feature fusion its size is set to 1x1. Using this

ESRGAN model two sets of super resolved datasets

were obtained i.e., SR64 and SR32 by setting scale

factor to 2 and 4 respectively. For basic model and

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

566

x 2 (i.e., 64 to 128) x 4 (i.e., 32 to 128)

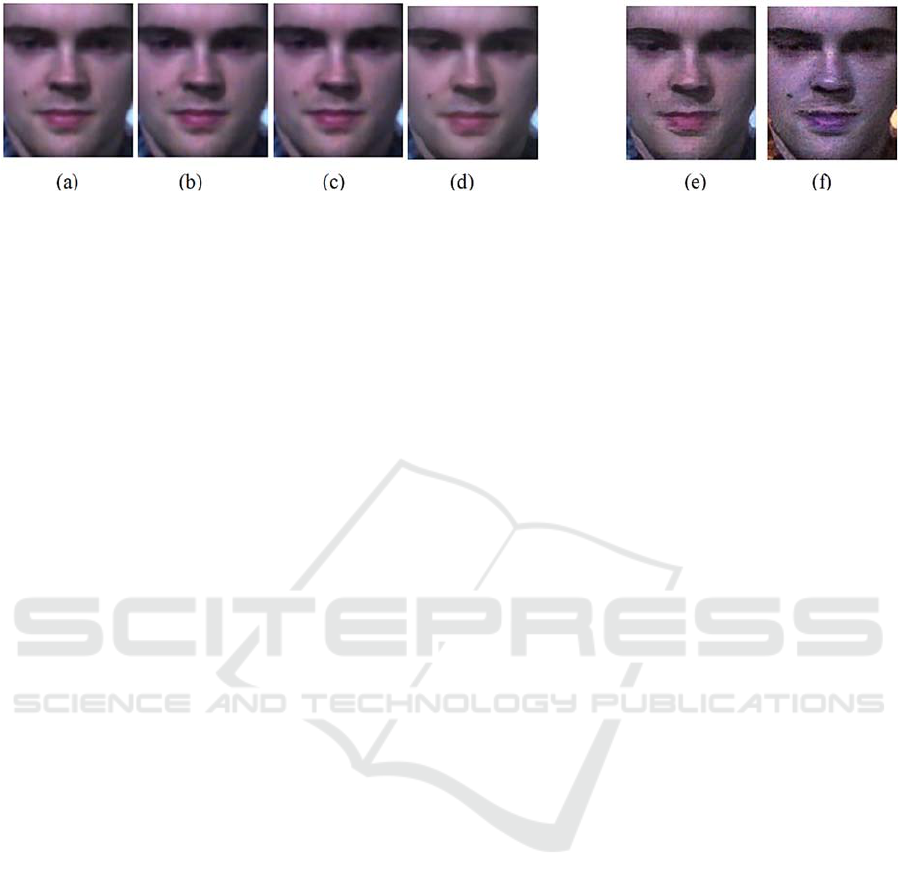

Figure 7: Super resolved images (128 x128) generated by ESRGAN model (a) & (e), psnr - large basic model (b), psnr-small

basic model (c), artefact cancelling GAN model (d) and nESRGAN+ model (f).

ESRGAN implementation the parameter settings are

taken from (Francesco et al., 2018).

The nESRGAN+ uses Adam optimizer with

initial learning rate set to 10

-4

, 3x3 convolutional

kernels, 10 residual blocks and x4. Most of the

parameter settings of ESRGAN were kept intact

while implementing nESRGAN+. With this model

one set of super-resolved datasets was obtained i.e.,

SR32. The performance of the SR algorithm can be

determined by evaluating two quality metrics i.e.,

peak signal to noise ratio (PSNR) and structural

similarity index measure (SSIM) (Horé & Ziou, Aug

2010; Wang et al., 2019). Fundamentally, a high

PSNR value (in decibels, dB) and SSIM value closer

to 1 indicates better quality reconstructed images. The

PSNR and SSIM values are obtained by comparing

HR images with the reconstructed images. The

average PSNR and SSIM values obtained for

resultant image sequences at various resolutions are

presented in Table I for various SR models. The

performance of all reconstruction models based on

these values are discussed in section 3.2. along with

the reconstructed images presented in Figure 7. In

addition, overall recognition performance of

proposed framework is also discussed in the same

section.

3.2 Results & Discussion

From the results obtained in Table 1, we can ascertain

that the results for super resolved images, constructed

using the proposed approach, is proportional to the

input resolution used. Numerically, this is evident

since PSNR and SSIM values at SR64 is higher by

6.29 and 0.1324 than SR32 using ESRGAN method.

Likewise, both these image metrics are higher for

SR64 than SR32 for all the models. The best

reconstruction performance for micro expression is

given by psnr-small model with 37.41dB PSNR and

0.9827 SSIM image metric considering both the scale

factor. Using x2, both the PSNR driven approach

have better PSNR values for super resolved micro

expression images than ESRGAN method. For the

same scale factor, the lowest reconstruction

performance was given by noise-cancel model, but its

image quality metrics are still higher than those

images produced at x4 with ESRGAN and its variant.

However, when comparing the SSIM metric at x2, the

performance of psnr-small and ESRGAN is almost

similar, with ESRGAN behind by only 0.0001. For

x4, reconstruction using ESRGAN method is better

than that of nESRGAN+ with PSNR higher by

6.42dB and SSIM higher by 0.0901. The

reconstructed images obtained using both these

methods for x4 are not as good as those obtained at

x2 with other models. In overall we can say that

images reconstructed using LR64 at x2 is better than

those obtained using LR32 at x4. Thus, this

strengthens the fact that quality of input images does

affect the super resolution reconstruction process for

micro expression as well. Visually the performance

of these methods can be observed through the

reconstructed images presented in Figure7.

The recognition performance obtained for all

five super resolution methods employed with both

feature extraction methods is recorded in Table 2. In

line with the performance observations made for

reconstruction through PSNR and SSIM results, the

ME recognition performance also reflects the same

notion by producing comparatively higher accuracy

values at SR64 in comparison to SR32. This

observation holds true for both the feature extraction

techniques. Best recognition performance on SMIC-

HS dataset recorded was 52.43%. This accuracy was

obtained for both psnr-small and ESRGAN

reconstructed images, with features extracted using

LPQ-TOP. For LBP-TOP method at x2 the highest

recognition accuracy observed was 51.45% using

psnr-small super resolution model. Similarly, for the

same feature extraction method at x4 the highest

accuracy observed was 49.82%, obtained using

ESRGAN super resolution model. For the same scale

factor recognition accuracy of 50.60% was obtained

Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition

567

for ESRGAN reconstructed images, extracted using

LPQ-TOP. Thus, at x4 the combination of ESRGAN

and LPQ-TOP seemed to work well whereas, at x2

both ESRGAN and psnr-small with LPQ-TOP

produced higher results. The framework seemed to

produce higher accuracy when features were

extracted using LPQ-TOP than LBP-TOP. It must be

noted that recognition accuracy obtained using

ESRGAN and psnr-small model are almost similar at

x2. This could be due to the quality of reconstructed

images obtained which is almost similar for these two

methods as reflected by SSIM values. Similarly, the

image quality metrics obtained at x2 was lowest for

noise-cancel model hence same observation is

reflected during recognition performance as well.

Ideally nESRGAN+ is an improvement over

ESRGAN method and expected to produce better

reconstructed images at perceptual level, however in

our implementation ESRGAN performed much

better. At this stage it is difficult to say what

influenced this, however we assume the noise

injection could have further diminished the image

quality affecting the overall recognition performance.

More in-depth investigation is required to make this

inference which will be an interesting development

for the proposed framework. With the recognition

accuracy achieved through this work, we can say that

GAN based SR methods have helped in recovering

micro expression image details to some extent.

Though more robust training maybe required to

achieve a decent improvement for micro expression

images especially for noise-cancel and nESRGAN+

model. It must be mentioned here that at present only

one work exist that have addressed the LR cases for

micro expression (Li et al., 2019), but have not

considered deep learning-based method however, we

have considered their work for comparison.

4 CONCLUSIONS

Through this work we present a comprehensive

investigation of a GAN based approach for

recognizing micro expressions in low resolution

images. With a target to achieve a quality upscaled

image, we introduce deep learning-based

reconstruction into the MER framework. The method

was successful in recreating micro facial image

details and implicitly helped to boost the overall

recognition accuracy at all instances. The aim of this

extensive study was to eventually provide a novel

deep learning-based pipeline for solving low

resolution MER problem and also to provide an

analysis of GAN based methods specifically for low

resolution problem for ME. The results achieved

clearly imply that GAN and its variants can be

exploited further for optimizing this specific problem

targeting micro expression. Though our work is

currently at an elementary stage, yet the results

achieved are promising. Experimenting with low

resolution micro expressions was a challenge due to

the unavailability of such a dataset. It must be

mentioned here that the current work does not address

the dataset imbalance that exists for most of the

available ME datasets, overcoming this limitation can

certainly be another target for future work to achieve

more robust performance.

REFERENCES

Chang, C., & Lin, C. (2011). LIBSVM. ACM Transactions

on Intelligent Systems and Technology, 2(3), 1-27.

doi:10.1145/1961189.1961199.

Ekman, P., & Friesen, W.V. (1969) Nonverbal Leakage and

Clues to Deception, Psychiatry, 32:1, 88-106, DOI:

10.1080/00332747.1969.11023575.

Ekman P, “Telling Lies: Clues to deceit in the marketplace,

politics, and marriage”, (Revised Edition), WW Norton

& Company, 2009.

Francesco,C. & Dat, T .,(2018), “Image Super Resolution”,

2018,https://github.com/idealo/image-super-

resolution.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., & Bengio,

Y. (2014). Generative adversarial networks.

Communications of the ACM, 63(11), 1406-2661.

Heikkila. J., & Ojansivu V.,(2008) “Blur insensitive texture

classification using local phase quantization”,

International conference on image and signal

processing. Springer, pp. 236–243, 2008.

doi:10.1007/978-3-540-69905-7_27.

Heikkila, J., & Ojansivu, V. (Aug 2009). Methods for local

phase quantization in blur-insensitive image analysis.

Paper presented at the pp. 104-111.

doi:10.1109/LNLA.2009.5278397.

Horé, A., & Ziou, D. (Aug 2010). Image Quality Metrics:

PSNR vs. SSIM. Paper presented at the pp. 2366-2369.

doi:10.1109/ICPR.2010.579.

Hung, K., Wang, K., & Jiang, J. (2019). Image interpolation

using convolutional neural networks with deep

recursive residual learning. Multimedia Tools and

Applications, 78(16), 22813-22831.

doi:10.1007/s11042-019-7633-1.

Ledig, C., Theis, L., Huszar, F., Caballero, J., Cunningham,

A., Acosta, A., et al. (Jul 2017). Photo-Realistic Single

Image Super-Resolution Using a Generative

Adversarial Network. CVPR, pp. 105-114.

doi:10.1109/CVPR.2017.19.

Li, G., Shi, J., Peng, J., & Zhao, G. (2019). Micro-

expression Recognition Under Low-resolution Cases,

14th International Joint Conference on Computer

Vision, Imaging and Computer Graphics Theory and

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

568

Applications - Volume 5: VISAPP, ISBN 978-989-758-

354-4,pages427-434,2019.doi:10.5220/0007373

604270434.

Li, X., Hong, X., Moilanen, A., Huang, X., Pfister, T.,

Zhao, G., et al. (2018). Towards Reading Hidden

Emotions: A Comparative Study of Spontaneous

Micro-Expression Spotting and Recognition Methods.

IEEE Transactions on Affective Computing,9(4),563-

577. doi: 10.1109/TAFFC.2017 .2667642

Liong, S., See, J., Wong, K., & Phan, R. C. -. (2018). Less

is more: Micro-expression recognition from video

using apex frame. Signal Processing. Image

Communication,62,82-92. doi:10.1016/j.image.2017

.11.006.

Oh, Y., See, J., Le Ngo, A. C., Phan, N. W., & Baskaran,

V. M. (2018). A Survey of Automatic Facial Micro-

Expression Analysis: Databases, Methods, and

Challenges Frontiers Media SA.doi:10.3389/fpsyg.

2018.01128.

Päivärinta, J., Rahtu, E., & Heikkilä, J. (2011). Volume

Local Phase Quantization for Blur-Insensitive Dynamic

Texture Classification. Image Analysis (pp. 360-369).

Berlin, Heidelberg: Springer Berlin Heidelberg.

doi:10.1007/978-3-642-21227-7_34.

Rakotonirina, N. C., & Rasoanaivo, A. (May 2020).

ESRGAN+ : Further Improving Enhanced Super-

Resolution Generative Adversarial Network. Paper

presented at the pp. 3637-3641.

doi:10.1109/ICASSP40776.2020.9054071.

Sharma, P., Coleman, S., & Yogarajah, P.(2019). Micro

Expression Classification Accuracy Assessment Irish

Machine Vision & Image Processing, Dublin,

Ireland,August28-30, 2019.doi:10.21427/kbny-0a41.

Sharma, P., Coleman, S., Yogarajah, P., Taggart, L., &

Samarasinghe, P. (Jan 10, 2021). Magnifying

Spontaneous Facial Micro Expressions for Improved

Recognition. Paper presented at the pp. 7930-7936.

doi:10.1109/ICPR48806.2021.9412585.

Wang, X., Yu, K., Wu, S., Gu, J., Liu, Y., Dong, C., et al.

(2019). ESRGAN: Enhanced Super-Resolution

Generative Adversarial Networks. Computer Vision –

ECCV 2018 Workshops (pp. 63-79). Cham: Springer

International Publishing. doi:10.1007/978-3-030-

11021-5_5.

Wang Y, See J, Phan RC-W, Oh Y-H (2015) Efficient

Spatio-Temporal Local Binary Patterns for

Spontaneous Facial Micro-Expression Recognition.

PLoSONE10(5):e0124674. https://doi.org/10.1371/

journal.pone.0124674

Xiaobai Li, Pfister, T., Xiaohua Huang, Guoying Zhao, &

Pietikainen, M. (Apr 2013). A Spontaneous Micro-

expression Database: Inducement, collection and

baseline. Paper presented at the pp. 1-6.

doi:10.1109/FG.2013.6553717.

Yan, W., Li, X., Wang, S., Zhao, G., Liu, Y., Chen, Y., et

al. (2014). CASME II: An Improved Spontaneous

Micro-Expression Database and the Baseline

Evaluation. PloS One, 9(1), e86041.

doi:10.1371/journal.pone.0086041.

Zhang, Y., Tian, Y., Kong, Y., Zhong, B., & Fu, Y. (Jun

2018). Residual Dense Network for Image Super-

Resolution.CVPRpp.2472-2481. doi:10.1109/CVPR.

2018.00262.

Zhao, G., & Li, X. (2019). Automatic Micro-Expression

Analysis: Open Challenges Frontiers Media SA.

doi:10.3389/fpsyg.2019.01833.

Zong, Y., Zhang, T., Zheng, W., Hong, X., Tang, C., Cui,

Z., et al. (2018). Cross-Database Micro-Expression

Recognition: A Benchmark. Retrieved from

https://arxiv.org/abs/1812.07742.

Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition

569
