DenseHMM: Learning Hidden Markov Models by Learning Dense

Representations

Joachim Sicking

1,2

, Maximilian Pintz

1,3

, Maram Akila

and Tim Wirtz

1,2

Fraunhofer IAIS, Sankt Augustin, Germany

Fraunhofer Center for Machine Learning, Sankt Augustin, Germany

University of Bonn, Bonn, Germany

Keywords:

Hidden Markov Model, Representation Learning, Gradient Descent Optimization.

Abstract:

We propose DenseHMM – a modiﬁcation of Hidden Markov Models (HMMs) that allows to learn dense

representations of both the hidden states and the (discrete) observables. Compared to the standard HMM,

transition probabilities are not atomic but composed of these representations via kernelization. Our approach

enables constraint-free and gradient-based optimization. We propose two optimization schemes that make use

of this: a modiﬁcation of the Baum-Welch algorithm and a direct co-occurrence optimization. The latter one is

highly scalable and comes empirically without loss of performance compared to standard HMMs. We show

that the non-linearity of the kernelization is crucial for the expressiveness of the representations. The properties

of the DenseHMM like learned co-occurrences and log-likelihoods are studied empirically on synthetic and

biomedical datasets.

1 INTRODUCTION

Hidden Markov Models (Rabiner and Juang, 1986)

have been a state-of-the-art approach for modelling

sequential data for more than three decades (Hin-

ton et al., 2012). Their success story is proven by

a large number of applications ranging from natural

language modelling (Chen and Goodman, 1999) and

automatic speech recognition (Bahl et al., 1986; Varga

and Moore, 1990) over ﬁnancial services (Bhusari and

Patil, 2016) to robotics (Fu et al., 2016). While still be-

ing used frequently, many more recent approaches are

based on neural networks instead, like feed-forward

neural networks (Schmidhuber, 2015), recurrent neu-

ral networks (Hochreiter and Schmidhuber, 1997) or

spiked neural networks (Tavanaei et al., 2019). How-

ever, the recent breakthroughs in the ﬁeld of neural

networks (LeCun et al., 2015; Schmidhuber, 2015;

Goodfellow et al., 2016; Minar and Naher, 2018; Deng

et al., 2013; Paul et al., 2015; Wu et al., 2020) are

accompanied by an almost equally big lack of their

theoretical understanding. In contrast, HMMs come

with a broad theoretical understanding, for instance

of the parameter estimation (Yang et al., 2017), con-

vergence (Wu, 1983; Dempster et al., 1977), con-

sistency (Leroux, 1992) and short-term prediction

performance (Sharan et al., 2018), despite of their

non-convex optimization landscape.

Different from HMMs, (neural) representa-

tion learning became more prominent only re-

cently (Mikolov et al., 2013b; Pennington et al., 2014).

From the very ﬁrst day following their release, ap-

proaches like word2vec or Glove (Mikolov et al.,

2013b; Pennington et al., 2014; Mikolov et al., 2013a;

Le and Mikolov, 2014) that yield dense representations

for state sequences, have signiﬁcantly emphasized the

value of pre-trained representations of discrete sequen-

tial data for downstream tasks (Kim, 2014; Wang et al.,

2019). Since then those found application not only

in language modeling (Mikolov et al., 2013c; Zhang

et al., 2016b; Li and Yang, 2018; Almeida and Xexéo,

2019) but also in biology (Asgari and Mofrad, 2015;

Zou et al., 2019), graph analysis (Perozzi et al., 2014;

Grover and Leskovec, 2016) and even banking (Bal-

dassini and Serrano, 2018). Similar approaches have

received an overwhelming attention and became part

of the respective state-of-the-art approaches.

Ever since, the quality of representation models

increased steadily, driven especially by the natural

language community. Recently, so-called transformer

networks (Vaswani et al., 2017) were put forward, com-

plex deep architectures that leverage attention mecha-

nisms (Bahdanau et al., 2015; Kim et al., 2017). Their

complexity and tremendously large amounts of com-

Sicking, J., Pintz, M., Akila, M. and Wirtz, T.

DenseHMM: Learning Hidden Markov Models by Learning Dense Representations.

DOI: 10.5220/0010821800003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 237-248

ISBN: 978-989-758-549-4; ISSN: 2184-4313

237

pute and training data lead again to remarkable im-

provements on a multitude of natural language pro-

cessing (NLP) tasks (Devlin et al., 2019).

These developments are particularly driven by the

question on how to optimally embed discrete sequences

into a continuous space. However, many existing ap-

proaches identify optimality solely with performance

and put less emphasize on aspects like conceptual sim-

plicity and theoretical soundness. Intensiﬁed discus-

sions on well-understood and therefore trustworthy

machine learning (Saltzer and Schroeder, 1975; Dwork

et al., 2012; Amodei et al., 2016; Gu et al., 2017;

Varshney, 2019; Toreini et al., 2020; Brundage et al.,

2020) indicate, however, that these latter aspects be-

come more and more crucial or even mandatory for

real-world learning systems. This holds especially true

when representing biological structures and systems

as derived insights may be used in downstream appli-

cations, e.g. of medical nature where physical harm

can occur.

In light of this, we propose DenseHMM – a modi-

ﬁcation of Hidden Markov Models that allows to learn

dense representations of both the hidden states and

the discrete observables

(Figure 1)

. Compared to the

standard HMM, transition probabilities are not atomic

but composed of these representations. Concretely, we

contribute

•

a parameter-efﬁcient, non-linear matrix factoriza-

tion for HMMs,

•

two competitive approaches to optimize the result-

ing DenseHMM

•

and an empirical study of its performance and prop-

erties on diverse datasets.

The rest of the work is organized as follows: ﬁrst,

we present related work on HMM parameter learn-

ing and matrix-factorization approaches in section 2.

Next, DenseHMM and its optimization schemes are

introduced in section 3. We study the effect of its soft-

max non-linearity and conduct empirical analyses and

comparisons with standard HMMs in sections 4 and 5,

respectively. A discussion in section 6 concludes our

paper.

2 RELATED WORK

HMMs are generative models with Markov proper-

ties for sequences of either discrete or continuous ob-

servation symbols (Rabiner, 1989). They assume a

number of non-observable (hidden) states that drive

the dynamics of the generated sequences. If domain

expertise allows to interpret these drivers, HMMs can

be fully understood. This distinguishes HMMs from

sequence-modelling neural networks like long short-

term memory networks (Hochreiter and Schmidhuber,

1997) and temporal convolutional networks (Bai et al.,

2018). More recent latent variable models that keep

the discrete structure of the latent space make use of,

e.g., Indian buffet processes (Grifﬁths and Ghahra-

mani, 2011). These allow to dynamically adapt the

dimension of the latent space dependent on data com-

plexity and thus afford more ﬂexible modelling. While

we stay in the HMM model class, we argue that our

approach allows to extend or reduce the latent space in

a more principled way compared to standard HMMs.

Various approaches exist to learn the parameters of

hidden Markov models: A classical one is the Baum-

Welch algorithm (Rabiner, 1989) that handles the com-

plexity of the joint likelihood of hidden states and

observables by introducing an iterative two-step pro-

cedure that makes use of the forward-backward al-

gorithm (Rabiner and Juang, 1986). Another algo-

rithm for (local) likelihood maximization is (Baldi and

Chauvin, 1994). The authors of (Huang et al., 2018)

study HMM learning on observation co-occurrences

instead of observation sequences. Based on moments,

i.e. co- and triple-occurrences, bounds on the em-

pirical probabilities can be derived via spectral de-

composition (Anandkumar et al., 2012). Approaches

from Bayesian data analysis comprise Markov chain

Monte Carlo (MCMC) and variational

inference (VI)

While MCMC can provide more stable and better re-

sults (Rybert Sipos, 2016), it traditionally suffers from

poor scalability. A more scalable stochastic-gradient

MCMC algorithm that tackles mini-batching of se-

quentially dependent data is (Ma et al., 2017). The

same authors propose a stochastic VI (SVI) algorithm

(Foti et al., 2014) that shares some technical details

with (Ma et al., 2017). SVI for hierarchical Dirich-

let process (HDP) HMMs is considered in (Zhang

et al., 2016a). For our DenseHMM, we adapt two

non-Bayesian procedures: the Baum-Welch algorithm

(Rabiner, 1989) and direct co-occurrence optimization

(Huang et al., 2018). The latter we optimize, solely

for convenience, using a deep learning framework.

In (Tran et al., 2016) this idea was carried further, al-

lowing different modiﬁcations to the original HMM

context. Already earlier, combinations of HMMs and

neural networks were employed, for instance for auto-

matic speech recognition (Bourlard et al., 1992; Moon

and Hwang, 1997; Trentin and Gori, 1999).

Non-negative matrix factorization (NMF, (Lee and

Seung, 1999)) splits a matrix into a pair of low-rank

matrices with solely positive components. NMF for

HMM learning is used, e.g., in (Lakshminarayanan

and Raich, 2010; Cybenko and Crespi, 2011). In

See appendix C for details.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

238

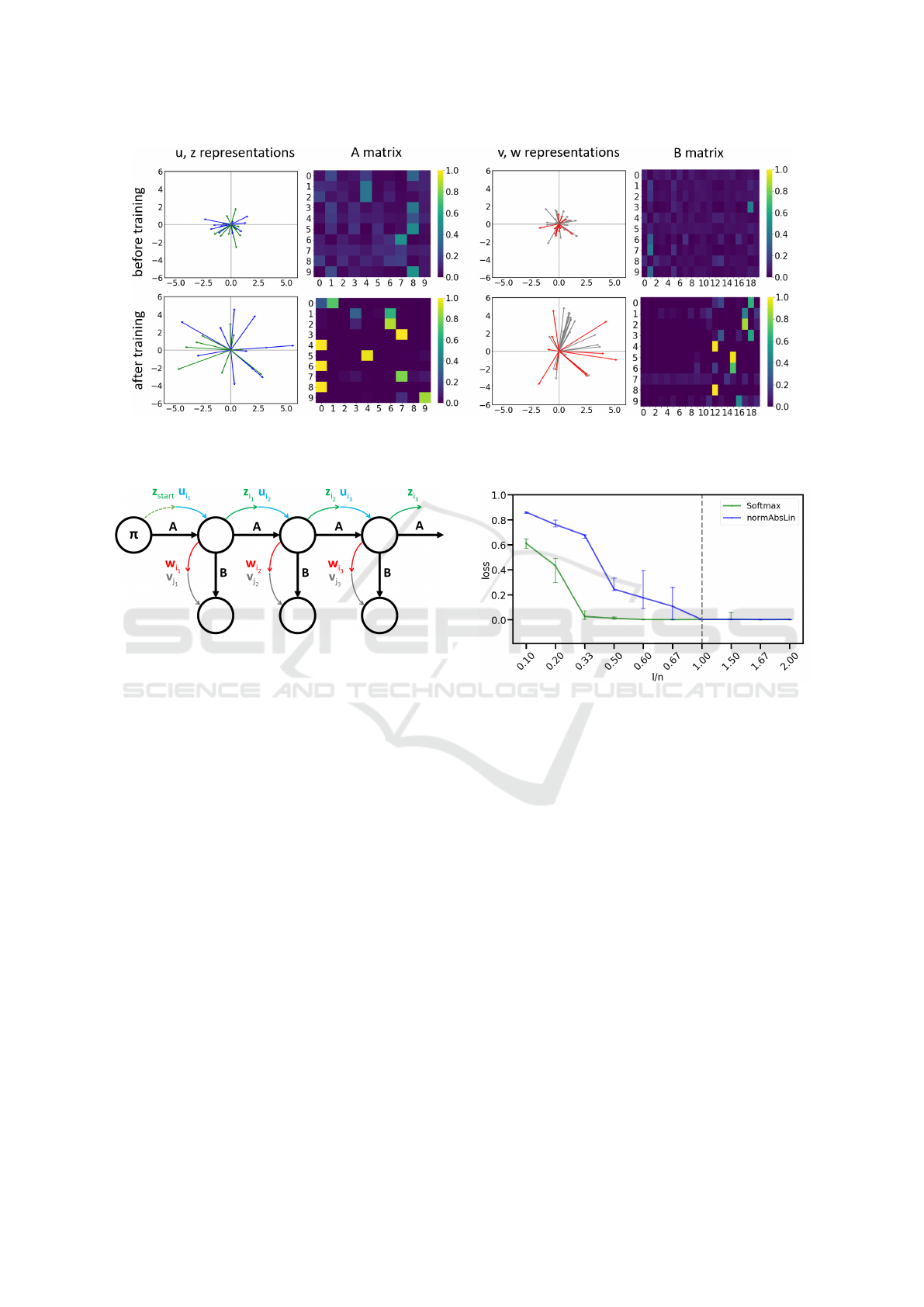

Figure 1: Exemplary DenseHMM to visualize the inner workings of our approach. All model components are shown before

(top row) and after training (bottom row). The transition matrices

(second column) and

(fourth column) are learned by

learning dense representations (ﬁrst and third column). All representations are initialized by a standard Gaussian.

Figure 2: Structure of the DenseHMM. The HMM parame-

ters A,

and

are composed of vector representations such

that A = A(U, Z), B = B(V,W) and π = π(U,z

start

contrast, we combine matrix factorization with a non-

linear kernel function to ensure non-negativity and

normalization of the HMM transition matrices. Fur-

ther foci of recent work on HMMs are identiﬁability

(Huang et al., 2018), i.e. uniqueness guarantees for an

obtained model, and optimized priors over transition

distributions (Qiao et al., 2015).

3 STRUCTURE AND

OPTIMIZATION OF THE DENSE

HMM

A HMM is deﬁned by two time-discrete stochastic pro-

cesses:

}

t∈N

is a Markov chain over hidden states

S = {s

}

i=1

and

}

t∈N

is a process over observable

states

O = {o

}

i=1

. The central assumption of HMMs

is that the probability to observe

= y

depends only

on the current state of the hidden process and the

probability to ﬁnd

= x

only on the the previous

state of the hidden process,

t−1

= x

t−1

for all

t ∈ N

We denote the state-transition matrix as

A ∈ R

n×n

Figure 3: Approximation quality of non-linear matrix fac-

torizations. The optimization errors (median, 25/75 per-

centile) of softmax (green) and normAbsLin (blue) matrices

are shown over the ratio of representation length

and matrix

size n. The vertical line indicates l = n.

with

i j

= P(X

= s

| X

t−1

= s

)

, the emission matrix

B ∈ R

n×m

with

i j

= P(Y

= o

| X

= s

)

and the

initial state distribution as

π ∈ R

with

= P(X

= s

)

A HMM is fully parametrized by λ = (A,B,π).

HMMs can be seen as extensions of Markov chains

(MCs) which are in turn closely related to word2vec

embeddings. Let us elaborate on this: A MC has

no hidden states and is deﬁned by just one process

}

t∈N

over observables. The transition dynamics of

the states of the MC is described by a transition ma-

trix

and an initial distribution

. Being in a given

state

, the MC models conditional probabilities of

the form

p(s

| s

)

. MCs are structurally similar to

the approaches that learn word2vec representations,

i.e. continuous bag of words and skip-gram (Mikolov

et al., 2013b). Both models learn transitions between

the words of a text corpus. Each word

of the vocab-

ulary is represented by a learned dense vector

. The

transition probabilities between words are recovered

DenseHMM: Learning Hidden Markov Models by Learning Dense Representations

239

from the scalar products of these vectors:

p(w

| w

) =

exp(u

· v

)

∑

exp(u

· v

)

∝ exp(u

· v

). (1)

The learned word2vec representations are low-

dimensional and context-based, i.e. they contain se-

mantic information. This is in contrast to the trivial

and high-dimensional one-hot (or bag-of-word) encod-

ings.

Here we transfer the non-linear factorization ap-

proach of word2vec (eq. 1) to HMMs. This is done

by composing

A,B

and

of dense vector representa-

tions such that

i j

= a

i j

(U,Z) =

exp(u

· z

)

∑

k∈[n]

exp(u

· z

)

, (2a)

= b

(V,W) =

exp(v

· w

)

∑

′

∈[m]

exp(v

′

· w

)

, (2b)

= π

(U,z

start

) =

exp(u

· z

start

)

∑

k∈[n]

exp(u

· z

start

)

, (2c)

for

i, j ∈ [n]

and

k ∈ [m]

. Let us motivate this transfor-

mation (Fig. 2) piece by piece: each representation

vector corresponds to either a hidden state (

)

or an observation (

). The vector

(

) is the incom-

ing (outgoing) representation of hidden state

along

the (hidden) Markov chain.

is the outgoing rep-

resentation of hidden state

towards the observation

symbols. These are described by the

. All vectors

are real-valued and of length

and

each depend

on two kinds of representations instead of only one to

enable non-symmetric transition matrices. Addition-

ally, to choose

independent of

, as is typical for

HMMs, we need

as a third hidden representation. It

is convenient to summarize all representation vectors

of one kind in a matrix (U , V ,W , Z).

A softmax kernel maps the scalar products of the

representations onto the HMM parameters

A,B

and

. Softmax maps to the simplex and thus ensures

i j

to be in

[0,1]

as well as row-wise normalization

and

. While a different kernel function

may be chosen, a strong non-linearity, such as in the

softmax kernel, is essential to obtain matrices

and

with high ranks (compare experiments in section

4).

This non-linear kernelization enables constraint-

free optimization which is a central property of our

approach. We use this fact in two different ways:

we derive a modiﬁed expectation-maximization (EM)

scheme in section 3.1 and study an alternative to

EM optimization that is based on co-occurrences in

section 3.2.

3.1

EM Optimization: a Gradient-based

M-step

We brieﬂy recapitulate the EM-based Baum-Welch

algorithm (Bishop, 2007) and adapt it to learn the

proposed representations as part of the M-step:

Given a sequence

of length

T ∈ N

over observa-

tions

, the Baum-Welch algorithm ﬁnds parameters

that (locally) maximize the observation likelihoods.

A latent distribution

over the hidden states

is intro-

duced such that the log-likelihood of the sequence

decomposes as follows:

L(Q,λ) = logP(o,λ) =

L(Q,λ) + KL(Q||P(· | o, λ))

KL(P||Q)

de-

notes the Kullback-Leibler divergence from

with

P,Q

being probability distributions and

L(Q,λ) =

∑

x∈S

Q(x)log [P(x, o;λ)/Q(x)]

. Start-

ing from an initial guess for

, the algorithm alternates

between two sub-procedures, the E- and M-step: In

the E-step, the forward-backward algorithm (Bishop,

2007) is used to update

Q = P(· | o; λ)

, which maxi-

mizes

L(Q,λ)

for ﬁxed

. The efﬁcient computation

of the conditional probabilities

(s,s

′

) := P(X

t−1

s,X

= s

′

| o)

and

(s) := P(X

= s | o)

for

s,s

′

∈ S

crucial for the E-step. In the M-step, the latent distribu-

tion

is ﬁxed and

L(Q,λ)

is maximized w.r.t.

under

normalization constraints. As the Kullback-Leibler di-

vergence

is set to zero in each E-step, the function

to maximize in the M-step becomes

L(Q,λ) =

∑

x∈S

Q(x)log

P(x,o; λ)

Q(x)

∑

x∈S

P(x | o; λ

old

)log

P(x,o; λ)

P(x | o; λ

old

)

with

old

being the parameter obtained in the previous

M-step. Applying the logarithm to

P(x,o; λ)

, which

has a product structure due to the Markov properties,

splits the optimization objective into three summands.

Each term depends on only one of the parameters

A,B, π:

∗

,π

∗

= arg max

A,B,π

L(Q,λ)

=arg max

A,B,π

(Q,A) + L

(Q,B) + L

(Q,π).

Due to structural similarities between the three sum-

mands, we consider only

in the following. The

treatment of

and

can be found in appendix A.

For L

, we have

(Q,A) =

∑

i∈[n]

P(s

| o; λ

old

)

∑

t=2

log(a

t−1

)

with multi-index

= s

,...,s

. The next step is to re-

write

in terms of

and to use Lagrange multipliers

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

240

to ensure normalization. This gives the following part

of the full Lagrangian

L =

∑

i, j∈[n]

∑

t=2

)log a

i j

∑

i∈[n]



1 −

∑

j∈[n]

i j



with Lagrange multipliers

for each

i ∈ [n]

to ensure

that A is a proper transition matrix.

To optimize DenseHMM, we leave the E-step

unchanged and modify the M-step by applying the

parametrization of

, i.e. equations (2a)-(2c), to the

Lagrangian

. Please note that we can drop all nor-

malization constraints as they are explicitly enforced

by the softmax function. This turns the original con-

strained optimization problem of the M-step into an

unconstrained one, leading to a Lagrangian of the form

dense

with

dense

∑

i, j∈[n]

∑

t=2

· z

−

∑

i, j∈[n]

∑

t=2

)log

∑

k∈[n]

exp(u

· z

We optimize

dense

with gradient-decent procedures

such as SGD (Bottou, 2010) and Adam (Kingma and

Ba, 2015).

3.2 Direct Optimization of Observation

Co-occurrences: Gradient-based and

Scalable

Inspired by (Huang et al., 2018), we investigate an

alternative to the EM scheme: directly optimizing

co-occurrence probabilities. The ground truth co-

occurrences

Ω

are obtained from training data

by calculating the relative frequencies of subsequent

pairs

(t),o

(t + 1)) ∈ O

. If we know that

is gen-

erated by a HMM with a stationary hidden process,

we can easily compute

Ω

analytically as follows:

we summarize all co-occurrence probabilities

Ω

i j

P(Y

= o

t+1

= o

)

for

i, j ∈ [m]

in a co-occurrence

matrix

Ω = B

ΘB

with

= P(X

= s

t+1

= s

)

for

k, l ∈ [n]

. We can further write

= P(X

t+1

| X

= s

)P(X

= s

) = A

for

i, j ∈ [n]

under the

assumption that

is the stationary distribution of

i.e.

∑

i j

for all

i, j ∈ [n]

. Then, we obtain the

co-occurrence probabilities

Ω

i j

∑

k,l∈[n]

l j

for i, j ∈ [m]. (3)

Parametrizing the matrices

and

according to eq.

(2a,2b) yields

Ω

dense

i j

(U , V ,W , Z)

∑

k,l∈[n]

(V,W)a

(U,Z)b

l j

(V,W)

for

i, j ∈ [m]

. Please note that

is not parametrized

here. Following our stationarity demand it is chosen as

the eigenvector v

λ=1

. We minimize the squared

distance between

Ω

dense

and

Ω

w.r.t. the vector rep-

resentations, i.e.

argmin

U ,V ,W ,Z

||Ω

− Ω

dense

(U , V ,W , Z)||

using gradient-decent procedures like SGD and Adam.

4 PROPERTIES OF THE DENSE

HMM

To further motivate our approach, please note that a

standard HMM with

hidden states and

observa-

tion symbols has

+ n(m − 1) − 1

degrees of free-

dom (DOFs), whereas a DenseHMM with represen-

tation length

has

l(3n + m + 1)

DOFs. Therefore,

a low-dimensional representation length

leads to

DenseHMMs with less DOFs compared to a standard

HMM for many values of

and

. A linear factoriza-

tion with representation length

l < n

leads to rank

for the matrices

and

, whereas a non-linear factor-

ization can yield more expressive full rank matrices.

This effect of non-linearities may be best understood

with a simple toy example: assume a 2x2 matrix with

co-linear columns:

[[1,2],[2, 4]]

. Applying a softmax

column-wise leads to a matrix

∝ [[e,e

],C[e

]]

with

linearly independent columns. More general, the soft-

max rescales and rotates each column of

U Z

and

V W

differently and (except for special cases) thus

increases the matrix rank to full rank. It is worth to

mention that any other kernel

k : R

× R

→ R

could

be used instead of exp in the softmax to recover the

HMM parameters from the representations, e.g. sig-

moid, ReLU or RBFs.

As non-linear matrix factorization is a central

building block of our approach, we compare the

approximation quality of softmax with an appropriate

linear factorization in the following setup: we generate

a Dirichlet-distributed ground truth matrix

∈ R

n×n

and approximate it (i) by

A = softmax(UZ)

deﬁned

softmax(UZ)

= exp



(UZ)



∑

exp((UZ)

)

and (ii) by a normalized absolute matrix

product

A = normAbsLin(UZ)

deﬁned by

normAbsLin(UZ)

= |(UZ)

∑

|(UZ)

. Note

that we report the resulting error

A − A

divided

||A

to get comparable losses independent of

the size of

. These optimizations are performed

for matrix sizes

n = 3,5, 10

, several representation

lengths

and

different

for each

(n,l)

pair.

Table 1 in appendix A provides all considered

(n,l)

pairs and detailed results. Fig. 3 shows that the

softmax non-linearity yields closer approximations of

DenseHMM: Learning Hidden Markov Models by Learning Dense Representations

241

compared to normAbsLin. Moreover, we observe

on a qualitative level signiﬁcantly faster convergence

for softmax as

increases. For softmax, vector lengths

l ≈ n/3

sufﬁce to closely ﬁt

while the piece-wise

linear normAbsLin requires

l = n

. This result is in

accordance with our remarks above.

5 EMPIRICAL EVALUATION

We investigate the outlined optimization schemes

w.r.t. obtained model quality and behaviors. We com-

pare the following types of models:

dense

a DenseHMM optimized with the EM

optimization scheme (section 3.1),

direct

dense

a DenseHMM optimized with direct op-

timization of co-occurrences (section

3.2),

stand

a standard HMM optimized with

the Baum-Welch algorithm (Rabiner,

1989).

These models all have the same number of hidden

states

and observation symbols

. If a standard

HMM and a DenseHMM use the same

and

, one of

the models may have less DOFs than the other (cp. sec-

tion 4). Therefore, we also consider the model

fair

stand

which is a standard HMM with a similar amount of

DOFs compared to a given

dense

model. We denote

the number of hidden states in

fair

stand

fair

, which

is the positive solution of

fair

+ n

fair

(m − 1) − 1 =

l(3n +m + 1)

rounded to the nearest integer. Note that

fair

can get signiﬁcantly larger than

for

l > n

and

therefore

fair

stand

is expected to outperform the other

models in these cases.

We use two standard measures to assess

model quality: the co-occurrence mean absolute

deviation (MAD)

and the normalized negative log-

likelihood (NLL). The MAD between two co-

occurrence matrices

Ω

and

Ω

model

is deﬁned as

1/m

∑

i, j∈[m]

|Ω

model

i j

− Ω

i j

. We compute both

Ω

and

Ω

model

based on sufﬁciently long sampled se-

quences (more details in appendix C). In the case

of synthetically generated ground truth sequences,

we compute

Ω

analytically instead. In addition,

we take a look at the negative log-likelihood of the

ground truth test sequences

test

}

under the model,

i.e.

NLL = −

∑

logP(o

test

;λ)

. We conduct experi-

ments with

n ∈ {3,5, 10}

and different representation

lengths

for each

. For each

(n,l)

combination, we

run

experiments with different train-test splits. We

evaluate the median and 25/75 percentiles of the co-

occurrence MADs and the normalized NLLs for each

of the four models (see appendix C for details).

In the following, we consider synthetically gener-

ated data as well as two real-world datasets: amino

acid sequences from the RCSB PDB dataset (Berman

et al., 2000) and part-of-speech tag sequences of

biomedical text (Smith et al., 2004), referred to as

the MedPost dataset.

Synthetic Sequences. We sample training and test

ground truth sequences from a standard HMM

syn

that is constructed as follows: Each row of the tran-

sition matrices

and

is drawn from a Dirichlet

distribution

Dir(α)

, where all entries in

are set to

a ﬁxed value

α = 0.1

. The initial state distribution

is set to the normalized eigenvector

λ=1

. This

renders

syn

stationary and allows a simple analytical

calculation of

Ω

according to eq. 3. For both training

and testing, we sample

sequences, each of length

200

with

m = n

emission symbols. Figure 4 left shows

our evaluation w.r.t. co-occurrence MADs. Note that

the performance of

stand

changes slightly with

for

ﬁxed

as training is performed on different sequences

for every

(n,l)

pair. This is because the sequences

are re-drawn from

syn

for every experiment. The

standard HMMs and

direct

dense

perform similarly, with

direct

dense

performing slightly better throughout the ex-

periments and especially for

n = 3

dense

shows a

higher MAD than the other models. The good perfor-

mance of

direct

dense

may be explained by the fact that it

optimizes a function similar to co-occurrence MADs,

whereas the other models aim to optimize negative log-

likelihoods. The results in Figure 4 right show that the

DenseHMMs reach comparable NLLs, although the

standard HMMs perform slightly better in this metric.

Proteins. The RCSB PDB dataset (Berman et al.,

2000) consists of

512,145

amino acid sequences from

which we only take the ﬁrst

1,024

. After applying

preprocessing (described in further detail in appendix

C), we randomly shufﬂe the sequences and split train

and test data 50:50 for each experiment. Figure 5 left

shows the results of our evaluation w.r.t. co-occurrence

MADs.

dense

performs slightly worse than both

stand

and

fair

stand

. We observe that

direct

dense

yields the

best results. While the co-occurrence MADs of

dense

stand

and

fair

stand

stay roughly constant throughout

different experiments,

direct

dense

can utilize larger

and

to further decrease co-occurrence MADs. As can be

seen in Figure 5 right, all models achieve almost identi-

cal normalized NLLs throughout the experiments. The

results suggest that model size has only a minor im-

pact on normalized NLL performance for the protein

dataset.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

242

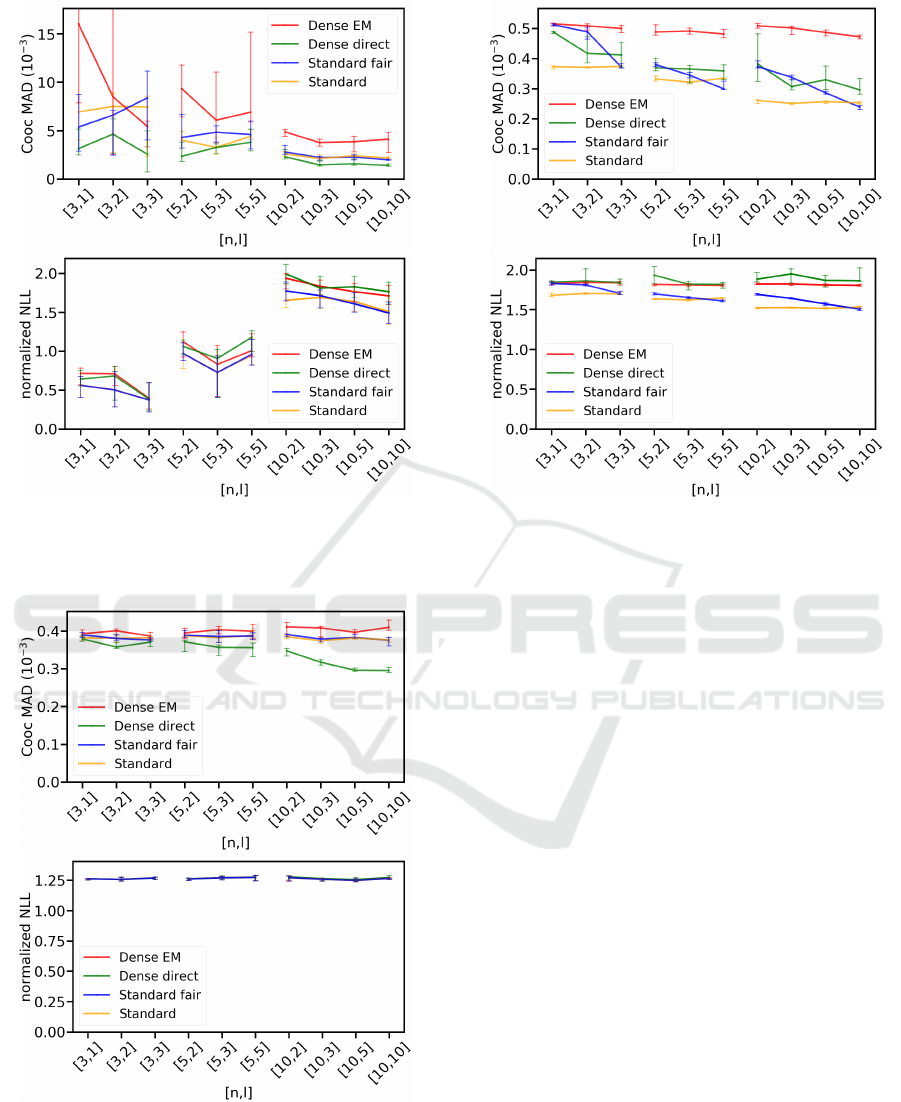

Figure 4: Co-occurrence mean absolute deviation (left) and

normalized negative log-likelihood (right) of the models

dense

direct

dense

fair

stand

on synthetically generated

sequences evaluated for multiple combinations of n and l.

Figure 5: Co-occurrence mean absolute deviation (left) and

normalized negative log-likelihood (right) of the models

dense

direct

dense

fair

stand

on amino acid sequences

evaluated for multiple combinations of n and l.

Part-of-Speech Sequences. The MedPost dataset

(Smith et al., 2004) consists of

5,700

sentences. Each

Figure 6: Co-occurrence mean absolute deviation (left) and

normalized negative log-likelihood (right) of the models

dense

direct

dense

fair

stand

on part-of-speech tag se-

quences (Medpost) evaluated for multiple combinations of

and l.

sentence consists of words that are tagged with one of

part-of-speech items. Sequences of part-of-speech

tags are considered such that each sequence corre-

sponds to one sentence. We apply preprocessing sim-

ilar to the protein dataset (more details in appendix

C). The sequences are randomly shufﬂed and train and

test data is split 50:50 for each experiment. Figure

6 left shows performance of our models in terms of

co-occurrence MADs. We see that the performance

of the standard HMM models as well as

direct

dense

in-

creases with increasing

. The number of hidden states

seems to be a major driver of performance. Accord-

ingly,

fair

stand

improves with growing

fair

(l) ∝ l

. Plus,

we have

fair

> n

for

l ≈ n

which fully explains why

fair

stand

is the best performing model in these cases.

Overall,

direct

dense

performs competitive to

fair

stand

, es-

pecially for the practically more relevant cases with

l < n

. Similar to the other datasets,

dense

performs

worse than the other models and is barely affected by

increasing

. Both DenseHMM models have increas-

ing performance for increasing

. Normalized NLLs

(Figure 6 right) are best for the standard HMM models.

Both DenseHMM models achieve similar normalized

NLLs, which are slightly worse than the ones achieved

by the standard HMM models.

DenseHMM: Learning Hidden Markov Models by Learning Dense Representations

243

6 DISCUSSION

We learn hidden Markov models by learning dense,

real-valued vector representations for its hidden and

observable states. The involved softmax non-linearity

enables to learn high-rank transition matrices, i.e. pre-

vents that the matrix ranks are immediately determined

by the chosen (in most cases) low-dimensional repre-

sentation length. We successfully optimize our models

in two different ways and ﬁnd direct co-occurrence

optimization to yield competitive results compared to

the standard HMM. This optimization technique re-

quires only one gradient descent procedure and no

iterative multi-step schemes. It is highly scalable with

training data size and also with model size - as it is

implemented in a modern deep-learning framework.

The optimization is stable and does neither require

ﬁne-tuning of learning rate nor of the representation

initializations. We release our full tensorﬂow code to

foster active use of DenseHMM in the community.

We leave it to future work to adapt DenseHMMs to

HMMs with continuous emissions and study variants

of DenseHMM with fewer kinds of learnable repre-

sentations. First experiments with DenseHMMs that

learn only

and

lead to almost comparable model

quality. From a practitioner’s viewpoint, it is worth

to investigate how DenseHMM and the learned repre-

sentations perform on downstream tasks. Using the

MedPost dataset, one could consider part-of-speech

labeling of word sequences via the Viterbi algorithm

after identifying the hidden states of the model with

a pre-deﬁned set of ground truth tags. For the protein

dataset, a comparison with LSTM-based and BERT

embeddings (Bepler and Berger, 2019; Min et al.,

2019) could help to understand similarities and dif-

ferences resulting from modern representation learn-

ing techniques. An analysis of geometrical proper-

ties of the learned representations seems promising

for systems with

l ≫ 1

exp(l)

many vectors can

be almost-orthogonal in

. The

representations

are a natural choice for such a study as they directly

correspond to observation items. The integration of

Bayesian optimization techniques like MCMC and VI

with DenseHMM is another research avenue.

ACKNOWLEDGEMENTS

The research of J. Sicking and T. Wirtz was funded by

the Fraunhofer Center for Machine Learning within

the Fraunhofer Cluster for Cognitive Internet Tech-

nologies. The work of M. Pintz and M. Akila was

funded by the German Federal Ministry of Education

and Research, ML2R - no. 01S18038B. The authors

thank Jasmin Brandt for fruitful discussions.

REFERENCES

Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A., Dean,

J., Devin, M., Ghemawat, S., Irving, G., Isard, M., et al.

(2016). Tensorﬂow: A system for large-scale machine

learning. In 12th USENIX Symposium on Operating

Systems Design and Implementation, pages 265–283.

Almeida, F. and Xexéo, G. (2019). Word embeddings: A

survey. arXiv preprint arXiv:1901.09069.

Amodei, D., Olah, C., Steinhardt, J., Christiano, P., Schul-

man, J., and Mané, D. (2016). Concrete problems in

AI safety. arXiv preprint arXiv:1606.06565.

Anandkumar, A., Hsu, D. J., and Kakade, S. M. (2012).

A method of moments for mixture models and hid-

den Markov models. In Mannor, S., Srebro, N., and

Williamson, R. C., editors, COLT 2012 - The 25th

Annual Conference on Learning Theory, June 25-27,

2012, Edinburgh, Scotland, volume 23 of JMLR Pro-

ceedings, pages 33.1–33.34. JMLR.org.

Asgari, E. and Mofrad, M. R. (2015). Continuous distributed

representation of biological sequences for deep pro-

teomics and genomics. PloS One, 10(11):e0141287.

Bahdanau, D., Cho, K., and Bengio, Y. (2015). Neural

machine translation by jointly learning to align and

translate. In Bengio, Y. and LeCun, Y., editors, 3rd

International Conference on Learning Representations,

ICLR 2015, San Diego, CA, USA, May 7-9, 2015, Con-

ference Track Proceedings.

Bahl, L., Brown, P., De Souza, P., and Mercer, R. (1986).

Maximum mutual information estimation of hidden

Markov model parameters for speech recognition. In

ICASSP’86. IEEE International Conference on Acous-

tics, Speech, and Signal Processing, volume 11, pages

49–52. IEEE.

Bai, S., Kolter, J. Z., and Koltun, V. (2018). An empir-

ical evaluation of generic convolutional and recur-

rent networks for sequence modeling. arXiv preprint

arXiv:1803.01271.

Baldassini, L. and Serrano, J. A. R. (2018). client2vec:

towards systematic baselines for banking applications.

arXiv preprint arXiv:1802.04198.

Baldi, P. and Chauvin, Y. (1994). Smooth on-line learning

algorithms for hidden Markov models. Neural Compu-

tation, 6(2):307–318.

Bepler, T. and Berger, B. (2019). Learning protein sequence

embeddings using information from structure. In 7th

International Conference on Learning Representations,

ICLR 2019, New Orleans, LA, USA, May 6-9, 2019.

Berman, H. M., Westbrook, J., Feng, Z., Gilliland, G., Bhat,

T. N., Weissig, H., Shindyalov, I. N., and Bourne, P. E.

(2000). The protein data bank. Nucleic acids research,

28(1):235–242.

Bhusari, V. and Patil, S. (2016). Study of hidden Markov

model in credit card fraudulent detection. In 2016

World Conference on Futuristic Trends in Research

and Innovation for Social Welfare (Startup Conclave),

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

244

pages 1–4. IEEE.

Bishop, C. M. (2007). Pattern Recognition and Ma-

chine Learning (Information Science and Statistics).

Springer, 1 edition.

Bottou, L. (2010). Large-scale machine learning with

stochastic gradient descent. In Proceedings of COMP-

STAT’2010, pages 177–186. Springer.

Bourlard, H., Morgan, N., and Renals, S. (1992). Neural

nets and hidden Markov models: Review and general-

izations. Speech Communication, 11(2-3):237–246.

Brundage, M., Avin, S., Wang, J., Belﬁeld, H., Krueger, G.,

Hadﬁeld, G., Khlaaf, H., Yang, J., Toner, H., Fong,

R., et al. (2020). Toward trustworthy AI development:

Mechanisms for supporting veriﬁable claims. arXiv

preprint arXiv:2004.07213.

Chen, S. F. and Goodman, J. (1999). An empirical study of

smoothing techniques for language modeling. Com-

puter Speech & Language, 13(4):359–394.

Cybenko, G. and Crespi, V. (2011). Learning hidden

Markov models using nonnegative matrix factorization.

IEEE Transactions on Information Theory, 57(6):3963–

3970.

Dempster, A. P., Laird, N. M., and Rubin, D. B. (1977).

Maximum likelihood from incomplete data via the EM

algorithm. Journal of the Royal Statistical Society:

Series B (Methodological), 39(1):1–22.

Deng, L., Li, J., Huang, J.-T., Yao, K., Yu, D., Seide, F.,

Seltzer, M., Zweig, G., He, X., Williams, J., et al.

(2013). Recent advances in deep learning for speech

research at Microsoft. In 2013 IEEE International Con-

ference on Acoustics, Speech and Signal Processing,

pages 8604–8608. IEEE.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2019).

BERT: pre-training of deep bidirectional transformers

for language understanding. In Burstein, J., Doran,

C., and Solorio, T., editors, Proceedings of the 2019

Conference of the North American Chapter of the As-

sociation for Computational Linguistics: Human Lan-

guage Technologies, NAACL-HLT 2019, Minneapolis,

MN, USA, June 2-7, 2019, Volume 1 (Long and Short

Papers), pages 4171–4186. Association for Computa-

tional Linguistics.

Dwork, C., Hardt, M., Pitassi, T., Reingold, O., and Zemel,

R. (2012). Fairness through awareness. In Proceedings

of the 3rd Innovations in Theoretical Computer Science

Conference, pages 214–226.

Foti, N., Xu, J., Laird, D., and Fox, E. (2014). Stochastic

variational inference for hidden Markov models. In

Advances in Neural Information Processing Systems,

pages 3599–3607.

Fu, R., Wang, H., and Zhao, W. (2016). Dynamic driver

fatigue detection using hidden Markov model in real

driving condition. Expert Systems with Applications,

63:397–411.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

learning. MIT press.

Grifﬁths, T. L. and Ghahramani, Z. (2011). The Indian

buffet process: An introduction and review. Journal of

Machine Learning Research, 12(Apr):1185–1224.

Grover, A. and Leskovec, J. (2016). node2vec: Scalable fea-

ture learning for networks. In Proceedings of the 22nd

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, pages 855–864.

ACM.

Gu, T., Dolan-Gavitt, B., and Garg, S. (2017). Badnets: Iden-

tifying vulnerabilities in the machine learning model

supply chain. arXiv preprint arXiv:1708.06733.

Hinton, G., Deng, L., Yu, D., Dahl, G. E., Mohamed, A.-

r., Jaitly, N., Senior, A., Vanhoucke, V., Nguyen, P.,

Sainath, T. N., et al. (2012). Deep neural networks for

acoustic modeling in speech recognition: The shared

views of four research groups. IEEE Signal Processing

Magazine, 29(6):82–97.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural Computation, 9(8):1735–1780.

Huang, K., Fu, X., and Sidiropoulos, N. (2018). Learning

hidden Markov models from pairwise co-occurrences

with application to topic modeling. In Proceedings of

the 35th International Conference on Machine Learn-

ing, pages 2068–2077. PMLR.

Kim, Y. (2014). Convolutional neural networks for sentence

classiﬁcation. In Proceedings of the 2014 Conference

on Empirical Methods in Natural Language Processing

(EMNLP), pages 1746–1751, Doha, Qatar. Association

for Computational Linguistics.

Kim, Y., Denton, C., Hoang, L., and Rush, A. M. (2017).

Structured attention networks. In 5th International

Conference on Learning Representations, ICLR 2017,

Toulon, France, April 24-26, 2017, Conference Track

Proceedings. OpenReview.net.

Kingma, D. P. and Ba, J. (2015). Adam: A method for

stochastic optimization. In Bengio, Y. and LeCun,

Y., editors, 3rd International Conference on Learning

Representations, ICLR 2015, San Diego, CA, USA,

May 7-9, 2015, Conference Track Proceedings.

Lakshminarayanan, B. and Raich, R. (2010). Non-negative

matrix factorization for parameter estimation in hidden

Markov models. In 2010 IEEE International Workshop

on Machine Learning for Signal Processing, pages 89–

94. IEEE.

Le, Q. and Mikolov, T. (2014). Distributed representations of

sentences and documents. In International Conference

on Machine Learning, pages 1188–1196.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learning.

Nature, 521(7553):436–444.

Lee, D. D. and Seung, H. S. (1999). Learning the parts of

objects by non-negative matrix factorization. Nature,

401(6755):788–791.

Leroux, B. G. (1992). Maximum-likelihood estimation for

hidden Markov models. Stochastic Processes and their

Applications, 40(1):127–143.

Li, Y. and Yang, T. (2018). Word embedding for understand-

ing natural language: a survey. In Guide to Big Data

Applications, pages 83–104. Springer.

Ma, Y.-A., Foti, N. J., and Fox, E. B. (2017). Stochastic

gradient MCMC methods for hidden Markov models.

In Proceedings of the 34th International Conference

on Machine Learning-Volume 70, pages 2265–2274.

JMLR. org.

DenseHMM: Learning Hidden Markov Models by Learning Dense Representations

245

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013a).

Efﬁcient estimation of word representations in vector

space. In Bengio, Y. and LeCun, Y., editors, 1st In-

ternational Conference on Learning Representations,

ICLR 2013, Scottsdale, Arizona, USA, May 2-4, 2013,

Workshop Track Proceedings.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013b). Distributed representations of words

and phrases and their compositionality. In Advances in

Neural Information Processing Systems, pages 3111–

3119.

Mikolov, T., Yih, W.-t., and Zweig, G. (2013c). Linguistic

regularities in continuous space word representations.

In Proceedings of the 2013 Conference of the North

American Chapter of the Association For Computa-

tional Linguistics: Human Language Technologies,

pages 746–751.

Min, S., Park, S., Kim, S., Choi, H.-S., and Yoon, S. (2019).

Pre-training of deep bidirectional protein sequence rep-

resentations with structural information. Neural In-

formation Processing Systems, Workshop on Learning

Meaningful Representations of Life.

Minar, M. R. and Naher, J. (2018). Recent advances

in deep learning: An overview. arXiv preprint

arXiv:1807.08169.

Moon, S. and Hwang, J.-N. (1997). Robust speech recogni-

tion based on joint model and feature space optimiza-

tion of hidden Markov models. IEEE Transactions on

Neural Networks, 8(2):194–204.

Paul, S., Singh, L., et al. (2015). A review on advances in

deep learning. In 2015 IEEE Workshop on Computa-

tional Intelligence: Theories, Applications and Future

Directions (WCI), pages 1–6. IEEE.

Pennington, J., Socher, R., and Manning, C. (2014). Glove:

Global vectors for word representation. In Proceedings

of the 2014 Conference on Empirical Methods in Natu-

ral Language Processing (EMNLP), pages 1532–1543.

Perozzi, B., Al-Rfou, R., and Skiena, S. (2014). Deep-

walk: Online learning of social representations. In

Proceedings of the 20th ACM SIGKDD International

Conference on Knowledge Discovery and Data Mining,

pages 701–710. ACM.

Qiao, M., Bian, W., Da Xu, R. Y., and Tao, D. (2015). Diver-

siﬁed hidden Markov models for sequential labeling.

IEEE Transactions on Knowledge and Data Engineer-

ing, 27(11):2947–2960.

Rabiner, L. R. (1989). A tutorial on hidden Markov models

and selected applications in speech recognition. Pro-

ceedings of the IEEE, 77(2):257–286.

Rabiner, L. R. and Juang, B.-H. (1986). An introduction to

hidden Markov models. IEEE ASSP Magazine, 3(1):4–

16.

Rybert Sipos, I. (2016). Parallel stratiﬁed MCMC sampling

of AR-HMMs for stochastic time series prediction. In

Proceedings of the 4th Stochastic Modeling Techniques

and Data Analysis International Conference with De-

mographics Workshop (SMTDA 2016). Valletta, Malta:

University of Malta, pages 361–364.

Saltzer, J. H. and Schroeder, M. D. (1975). The protection

of information in computer systems. Proceedings of

the IEEE, 63(9):1278–1308.

Schmidhuber, J. (2015). Deep learning in neural networks:

An overview. Neural Networks, 61:85–117.

Sharan, V., Kakade, S., Liang, P., and Valiant, G. (2018).

Prediction with a short memory. In Proceedings of the

50th Annual ACM SIGACT Symposium on Theory of

Computing, pages 1074–1087. ACM.

Smith, L., Rindﬂesch, T., and Wilbur, W. J. (2004). MedPost:

a part-of-speech tagger for bioMedical text. Bioinfor-

matics, 20(14):2320–2321.

Tavanaei, A., Ghodrati, M., Kheradpisheh, S. R., Masquelier,

T., and Maida, A. (2019). Deep learning in spiking

neural networks. Neural Networks, 111:47–63.

Toreini, E., Aitken, M., Coopamootoo, K., Elliott, K., Zelaya,

C. G., and van Moorsel, A. (2020). The relationship

between trust in AI and trustworthy machine learning

technologies. In Proceedings of the 2020 Conference

on Fairness, Accountability, and Transparency, pages

272–283.

Tran, K. M., Bisk, Y., Vaswani, A., Marcu, D., and Knight, K.

(2016). Unsupervised neural hidden Markov models.

In SPNLP@EMNLP, pages 63–71.

Trentin, E. and Gori, M. (1999). Combining neural networks

and hidden Markov models for speech recognition.

Neural Nets WIRN VIETRI-98, pages 63–79.

Varga, A. and Moore, R. K. (1990). Hidden Markov model

decomposition of speech and noise. In International

Conference on Acoustics, Speech, and Signal Process-

ing, pages 845–848. IEEE.

Varshney, K. R. (2019). Trustworthy machine learning and

artiﬁcial intelligence. XRDS: Crossroads, The ACM

Magazine for Students, 25(3):26–29.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I. (2017).

Attention is all you need. In Advances in Neural Infor-

mation Processing Systems, pages 5998–6008.

Wang, B., Wang, A., Chen, F., Wang, Y., and Kuo, C.-C. J.

(2019). Evaluating word embedding models: Meth-

ods and experimental results. APSIPA transactions on

signal and information processing, 8.

Wu, C. J. (1983). On the convergence properties of the EM

algorithm. The Annals of Statistics, pages 95–103.

Wu, X., Sahoo, D., and Hoi, S. C. (2020). Recent advances

in deep learning for object detection. Neurocomputing.

Yang, F., Balakrishnan, S., and Wainwright, M. J. (2017).

Statistical and computational guarantees for the Baum-

Welch algorithm. The Journal of Machine Learning

Research, 18(1):4528–4580.

Zhang, A., Gultekin, S., and Paisley, J. (2016a). Stochastic

variational inference for the HDP-HMM. In Artiﬁcial

Intelligence and Statistics, pages 800–808.

Zhang, Y., Rahman, M. M., Braylan, A., Dang, B., Chang,

H., Kim, H., McNamara, Q., Angert, A., Banner, E.,

Khetan, V., McDonnell, T., Nguyen, A. T., Xu, D., Wal-

lace, B. C., and Lease, M. (2016b). Neural information

retrieval: A literature review. CoRR, abs/1611.06792.

Zou, Q., Xing, P., Wei, L., and Liu, B. (2019). Gene2vec:

gene subsequence embedding for prediction of mam-

malian N6-methyladenosine sites from mRNA. RNA,

25(2):205–218.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

246

APPENDIX

A Full Lagrangians of Standard

HMM and DenseHMM

The full Lagrangian of the standard HMM model in

the M-step reads

L =

∑

i, j∈[n]

∑

t=2

)log a

i j

∑

i∈[n]



1 −

∑

j∈[n]

i j



∑

i∈[n]

∑

t=1

)log b

i, j

∑

i∈[n]



1 −

∑

j∈[m]

i j



∑

i∈[n]

)log π



1 −

∑

i∈[n]



where

describes the index of the observation ob-

served at time

and

ϕ,ε

are Lagrange multipliers. Ap-

plying the transformations A

(

U, Z

)

, B

(

V,W

)

and

π = π(

start

)

yields the full Lagrangian of the

DenseHMM:

dense

∑

i, j∈[n]

∑

t=2

· z

−

∑

i, j∈[n]

∑

t=2

)log

∑

k∈[n]

exp(u

· z

)

∑

i∈[n]

∑

t=1

· w

−

∑

i∈[n]

∑

t=1

)log

∑

j∈[m]

exp(v

· w

)

∑

i∈[n]

· z

start

−

∑

i∈[n]

)log

∑

j∈[n]

exp(u

· z

start

B Non-linear A-Matrix Factorization

All matrix sizes

and representation lengths

that

contribute to the visualized

l/n

ratios in Figure 3 are

shown in Table 1.

C Implementation Details and Data

Preprocessing

Implementation Details. The backbone of our im-

plementation is the library

hmmlearn

that provides

functions to optimize and score HMMs. The optimiza-

tion schemes for the DenseHMM models

dense

and

direct

dense

are implemented in tensorﬂow (Abadi et al.,

2016). Both models use

tf.train.AdamOptimizer

with a ﬁxed learning rate for optimization. At this point

we note that experiments done with other optimizers

such that

tf.train.GradientDescentOptimizer

lead to similar results in the evaluation. The repre-

sentations are initialized using a standard isotropic

Gaussian distribution.

NLL

values are normalized by

the number of test sequences and by the maximum test

sequence length.

Hardware Used. All experiments are conducted

on a

Intel(R) Xeon(R) Silver 4116 CPU

with

2.10GHz and a NVidia Tesla V100.

Protein Dataset Preprocessing. The ﬁrst

1,024

se-

quences of the RCSB PDB dataset have

unique

symbols. We cut each sequence after a length of

512

Note that less than

4.9%

of the

1,024

sequences ex-

ceed that length. Additionally, we collect the symbols

of lowest frequency that together make up less than

0.2%

of all symbols in the sequences and map them

onto one residual symbol. This reduces the number of

unique symbols in the sequences from 22 to 19.

Part-of-speech Sequences Preprocessing. We take

1,000

sequences from the Medpost dataset (from

tag_mb.ioc

) and cut them after a length of

which

affects less than

15%

of all sequences. We also collect

the tags of lowest frequency that together make up less

than

of all tags in the sequences and map them

onto one residual tag. This reduces the number of tag

items from 60 to 42.

Calculation of

Ω

and

Ω

Model

. The co-occurrence

matrices

Ω

model

and

Ω

used to calculate the co-

occurrence MADs in section 5 are estimated by

counting subsequent pairs of observation symbols

(t),o

(t + 1)) ∈ O

. For real-world data,

Ω

is es-

timated based on the test data ground truth sequences.

Equally long sequences sampled from the trained

model are used to estimate

Ω

model

. In case of synthetic

data, Ω

is calculated analytically (eq. 3) instead.

https://github.com/hmmlearn/hmmlearn

DenseHMM: Learning Hidden Markov Models by Learning Dense Representations

247

Table 1: Approximation errors (median with 25/75 percentile) of normAbsLin-based and softmax-based matrix factorizations

for different matrix sizes n and representation lengths l.

n l median (25/75 percentile) of loss(

A,A

)

A = normAbsLin(UZ)

A = softmax(UZ)

3 1 0.678 (0.652/0.696) 0.048 (0.004/0.110)

3 2 0.162 (0.002/0.270) 0.001 (0.000/0.001)

3 3 0.001 (0.001/0.001) 0.001 (0.000/0.001)

3 5 0.001 (0.001/0.001) 0.001 (0.001/0.001)

5 1 0.769 (0.745/0.827) 0.453 (0.321/0.505)

5 3 0.346 (0.093/0.396) 0.001 (0.001/0.003)

5 5 0.001 (0.001/0.002) 0.001 (0.001/0.001)

5 10 0.001 (0.001/0.002) 0.002 (0.001/0.003)

10 1 0.862 (0.851/0.868) 0.616 (0.581/0.645)

10 5 0.310 (0.235/0.345) 0.012 (0.005/0.028)

10 10 0.002 (0.002/0.002) 0.003 (0.002/0.005)

10 15 0.002 (0.002/0.002) 0.003 (0.003/0.043)

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

248
