From Monolithic Models to Agile Micromodels

Sebastian Copei

, Christoph Eickhoff

, Adam Malik

, Natascha Nolte

, Ulrich Norbisrath

Jonas Sorgalla

, Jens H. Weber

and Albert Zündorf

Kassel University, Germany

Adam Malik Consulting, Germany

Tartu University, Estonia

Dortmund Uni. App., Germany

University of Victoria, Canada

jonas.sorgalla@fh-dortmund.de, jens@uvic.ca, zuendorf@uni-kassel.de

Keywords:

Modeling, Work Flow, Event Based Systems, Micromodels.

Abstract:

This paper proposes a new modeling approach that allows to split classical monolithic class models into a

system of small micromodels. The events of such a system are modeled through an additional Event Storming.

This new approach facilitates evolution as Event Storming uses events with relatively simple structures and new

events may be added easily. Similarly, sets of micromodels are more evolveable as changes remain local to

only those micromodels that are concerned by the particular subset of changed events. Different micromodels

communicate via a small set of dedicated “interface" events, which again aids evolution.

1 INTRODUCTION

In our modern world, software systems, e.g. in health-

care, are characterized by ever-increasing complexity.

A trend whose end is not in sight. A classic approach

taught today by universities around the globe to deal

with this complexity is to use a holistic model in de-

sign, implementation, and communication of a soft-

ware system (Brambilla et al., 2017). Another popular

academic option is the use of a common domain model.

This results in an architecture where multiple compo-

nents collaborate on a common database that holds

the whole model. Inspired by Richardson (Richardson,

2018), we call such big uniform models monolithic

models. In our experience, such monolithic models

quickly gain signiﬁcant complexity and become a ma-

jor obstacle to maintenance and evolution - curiously,

these challenges led us originally to the usage of mod-

els in software engineering.

In this article, we propose to rethink the use of

models in the software engineering process. In our

vision, we move away from the demand of a holistic

model to multiple micromodels that represent only a

fragment of a complex system in the software engi-

neering process. In detail, we propose Event Storming

(Brandolini, 2013) to model the central workﬂows of

our system based on a common event model, cf. Fig-

ure 1. This common event model may become pretty

large (some thousand event types), thus we structure

it into bounded contexts and group the events, accord-

ingly, cf. Figure 3. Next, our process foresees to model

the structure of the events, i.e. the data that each event

transports cf. Figure 2. This event data model is then

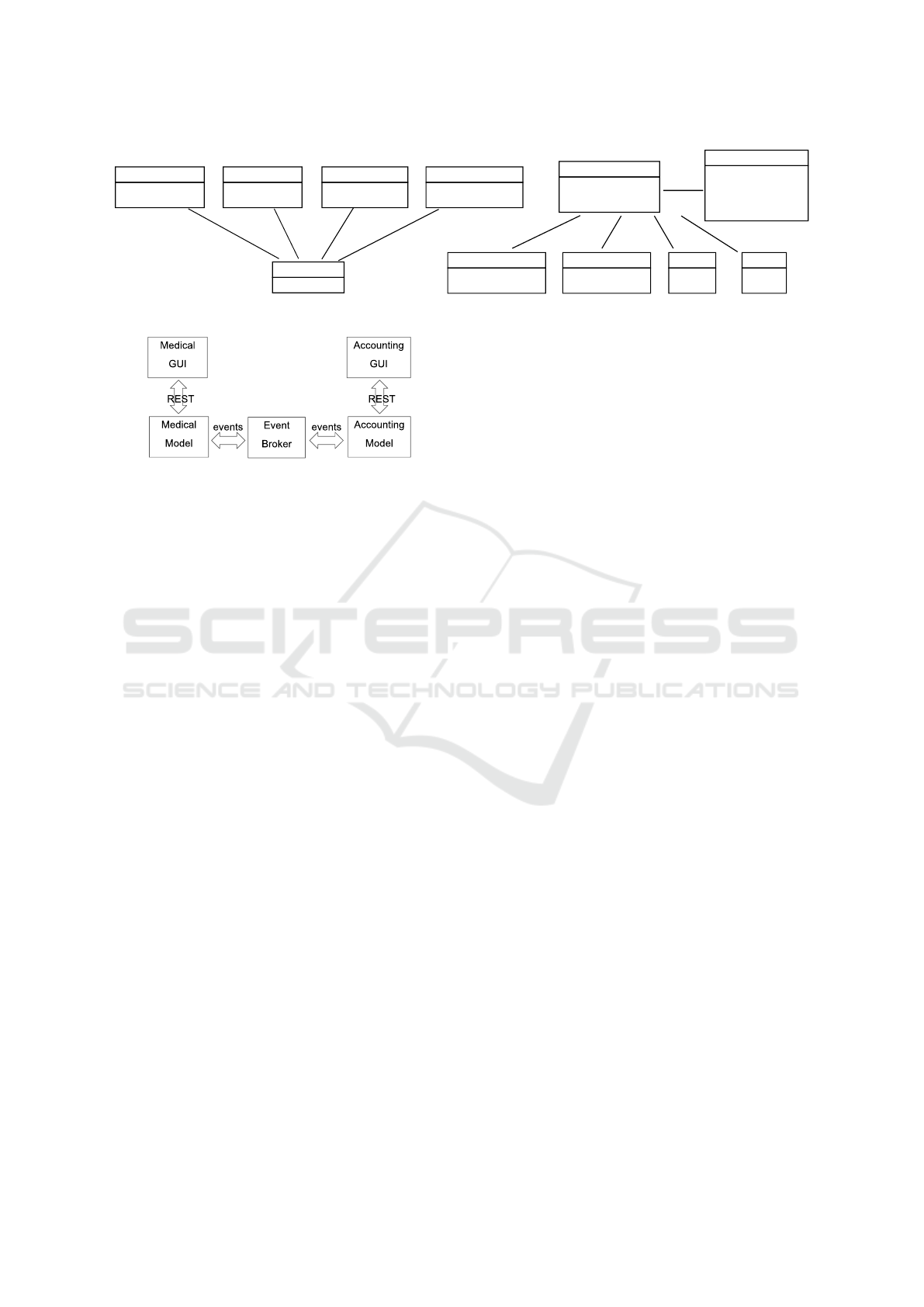

used as event schema for an event broker that is the

core of the proposed event based architecture. Here,

a generic event broker or messaging service, such as

Kafka

, may be used (cf. Figure 6). In addition, the

grouping of events into bounded contexts may result

in topics for the event broker. Event schema and topics

facilitate a type safe communication.

Based on this event model and the bounded con-

texts, we derive micromodels. A micromodel uses

event handlers to map events into an object oriented

data model that allows to implement complex algo-

rithmic tasks and e.g. supports special model queries.

Based on these micromodels, we propose (web based)

GUI components. The GUI components may use

REST requests to retrieve relevant data from our mi-

cromodels and to present this data in dedicated views.

Then the GUI components provide dialogues and in-

teractions that enable their users to execute their tasks.

Eventually, these tasks raise events to notify relevant

https://kafka.apache.org/

Copei, S., Eickhoff, C., Malik, A., Nolte, N., Norbisrath, U., Sorgalla, J., Weber, J. and Zündorf, A.

From Monolithic Models to Agile Micromodels.

DOI: 10.5220/0010837200003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 227-233

ISBN: 978-989-758-550-0; ISSN: 2184-4348

227

micromodels and to trigger subsequent tasks.

The overall development process is iterative and

agile, i.e. at any point in time, there may be multiple

teams working on different features in different phases

of the development lifecycle in parallel. Based on a

continuous integration and deployment process, the

whole system is constantly evolving.

The remainder of the paper is structured as fol-

lows. In Section 2 we present related work. Section 3

elaborates about the connection between Event Storm-

ing and micromodeling in detail. Section 4 especially

addresses the concern for model evolution and, last,

Section 5 concludes the paper.

2 RELATED WORK

Classical modeling approaches opt for a common en-

terprise wide or domain wide model. We call this a

monolithic model. As example, the medical domain

has a standardized domain model, the Reference Infor-

mation Model (RIM) that is provided by the Health

Level 7 (HL7) standard in version 3 (HL7, ). The RIM

is the basis for deriving even more complex models

for processing and exchanging medical information.

This complexity has been difﬁcult and costly to imple-

ment. Thus, in version 4 of the HL7 standard, the RIM

and its derived holistic models have been replaced by

multiple smaller models, so called Fast Healthcare In-

teroperability Resources (FHIR). This relates closely

to our idea of micromodels. However, HL7 is not

yet using Event Storming as a means for modeling

the main workﬂows and as start for the modeling and

development process.

In industry, the derivation of suitable software ar-

chitectures using Event Storming is an established

practice. For example, Junker (Junker, 2021) describes

a corresponding approach using Event Storming to

derive service boundaries in a microservice architec-

ture in the context of platforms in the healthcare sector.

However, Junker does not refer to an event based archi-

tecture but her microservices exchange more complex

documents which results in a more strong coupling of

microservices.

Generally, the idea of using partitioned smaller

models to address the problem of growing model com-

plexity is a well established method. For example

Scheidgen et al. (Scheidgen et al., 2012) describe a

process to split models into smaller fragments to cope

with transportation and persistence of large models.

Also, the area of Collaborative Model-Driven Soft-

ware Engineering (Di Ruscio et al., 2018) provides

concepts to create smaller models to describe a larger

complex software system. We support these efforts,

but go a step further in our vision. Instead of reassem-

bling smaller models, we think that within the software

engineering process of modern applications it is not

necessary to have a uniﬁed, large model of the system

by using the proposed micromodel approach. In addi-

tion, the combination of micromodels with an Event

Storming model is new.

3 EVENT STORMING AND

MICROMODELING

In the following, we illustrate our approach using the

example of a software application for a family doc-

tor. As proposed, the modeling starts with an Event

Storming workshop, cf. (Brandolini, 2013). During

the Event Storming workshop a large group of domain

experts and future users collects domain events us-

ing orange sticky notes that name relevant events in

past tense, e.g. patient registered. A detailed Event

Storming may contain additional sticky notes (using

other colors) that may model commands, policies, read

models, etc. cf. (Brandolini, 2013). cf. Figure 1.

Figure 2 shows a small cutout of an Event Storming

for our medical example. We start with a disease regis-

tered event that adds a disease to our system. Then test

registered events add tests that allow to identify symp-

toms. A patient registered event adds a patient and a

consultation registered event protocols a consultation

where the doctor does tests to identify symptoms that

result in the diagnosis of a disease and a treatment.

Compared to business process models (BPM)

(Recker et al., 2009), Event Storming models work-

ﬂows in a very informal way. According to Brandolini

the informal approach is a major advantage of the

Event Storming model as it allows to involve domain

experts and future users very easily. However, to turn

an Event Storming into software we need to add more

details. This shall be done by a requirements engineer

or a software engineer. For the medical example some

engineer reﬁnes the initial Event Storming notes by

adding example data. We call this step event modeling,

cf. Figure 9. The event model speciﬁes the structure of

the events of our system. It is important input for the

implementation or conﬁguration of the event broker

used in our approach, cf. Figure 6. In Figure 2 we use

a simpliﬁed YAML notation for our event modeling

data. For example, the disease registered event shows a

name attribute and a symptoms attribute that consists of

a list of symptom names. Similarly, the test registered

event has attributes for the type and for the symptom

that the test clariﬁes and for the price of the test. Note,

the data model for our events has a relatively simple

overall structure: there are event types with primitive

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

228

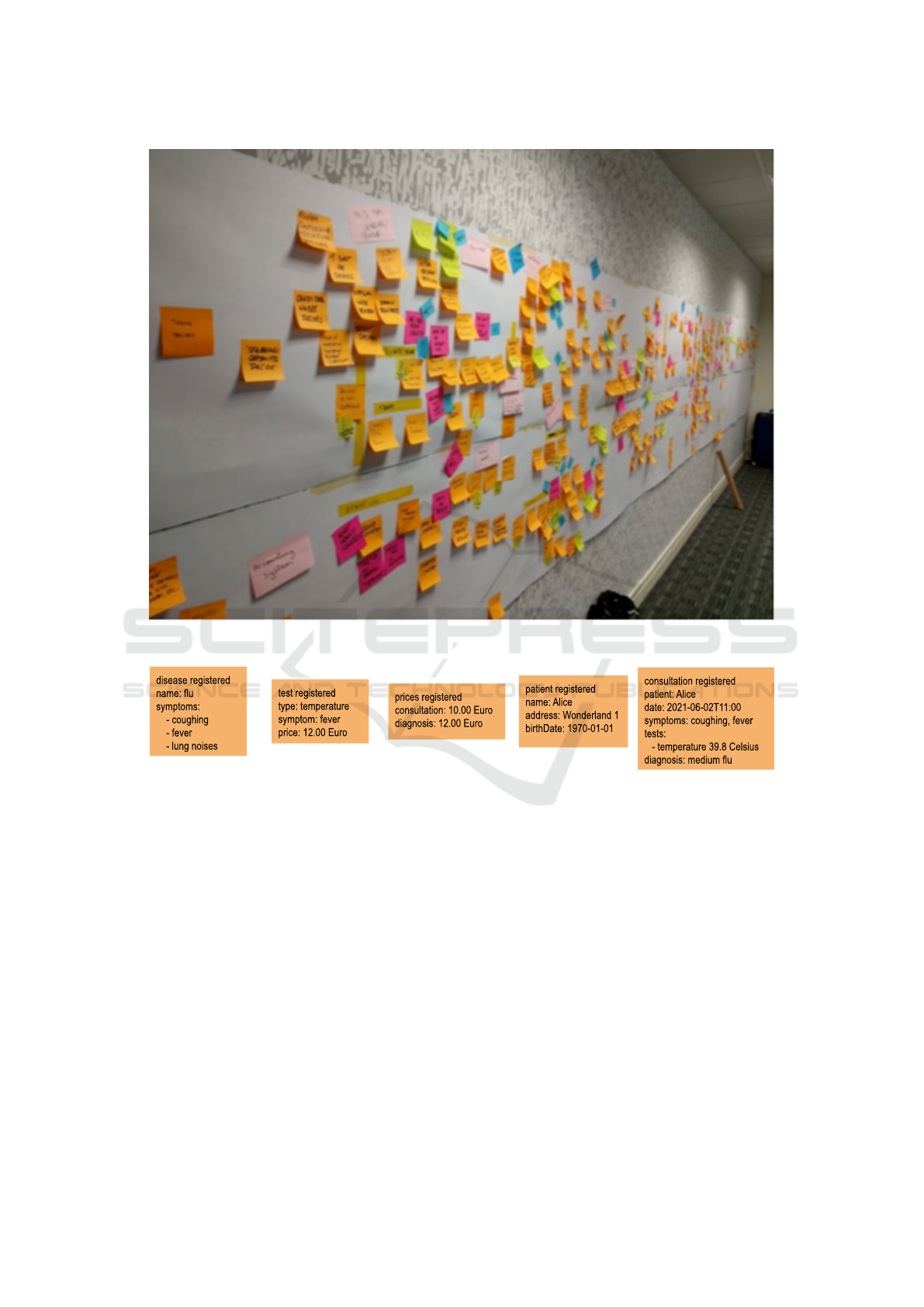

Figure 1: Event Storming Big Picture (general example taken from (Brandolini, 2013)).

Figure 2: Event Storming Model for the medical domain (small cutout).

attributes only. Complex relations are not represented

by associations between different event types. Instead

our approach uses unique keys like a patient’s name

or some patient id, or the names of diseases and symp-

toms. While such keys create hidden relationships,

Event Storming is tuned to deal with such hidden com-

plexity by using a ubiquitous language, i.e. consistent

naming of attributes throughout all events or at least

throughout a bounded context, cf. (Brandolini, 2013),

(Evans, 2004) and Figure 3. Still, Event Storming

models may easily comprise several thousand events

and become very large. Event Storming makes its over-

all model size manageable by grouping related events

into so-called bounded contexts (Evans, 2004). Ac-

cording to Conway’s law (Conway, 1968), in a larger

enterprise a bounded context typically covers work-

ﬂow parts that are internal e.g. to a certain department

or organizational unit. By focusing on smaller organi-

zational units, it becomes easier to come up with an

appropriate Event Storming model and with consistent

event data models that stick to a consistent ubiquitous

language. Later on, most micromodels will only fo-

cus on a single or a few bounded contexts and thus

deal with limited complexity. Domain events that hand

over a workﬂow from one organizational unit to the

next are exchanged between multiple bounded con-

texts. These higher level events need to be discussed

at least between the participating organizational units

and also between the teams in charge of the corre-

sponding micromodels. In the implementation we also

propose to use the bounded contexts as topics for the

event broker. Such topics give structure to the event

model and facilitate to identify the events relevant for

a micromodel.

From Monolithic Models to Agile Micromodels

229

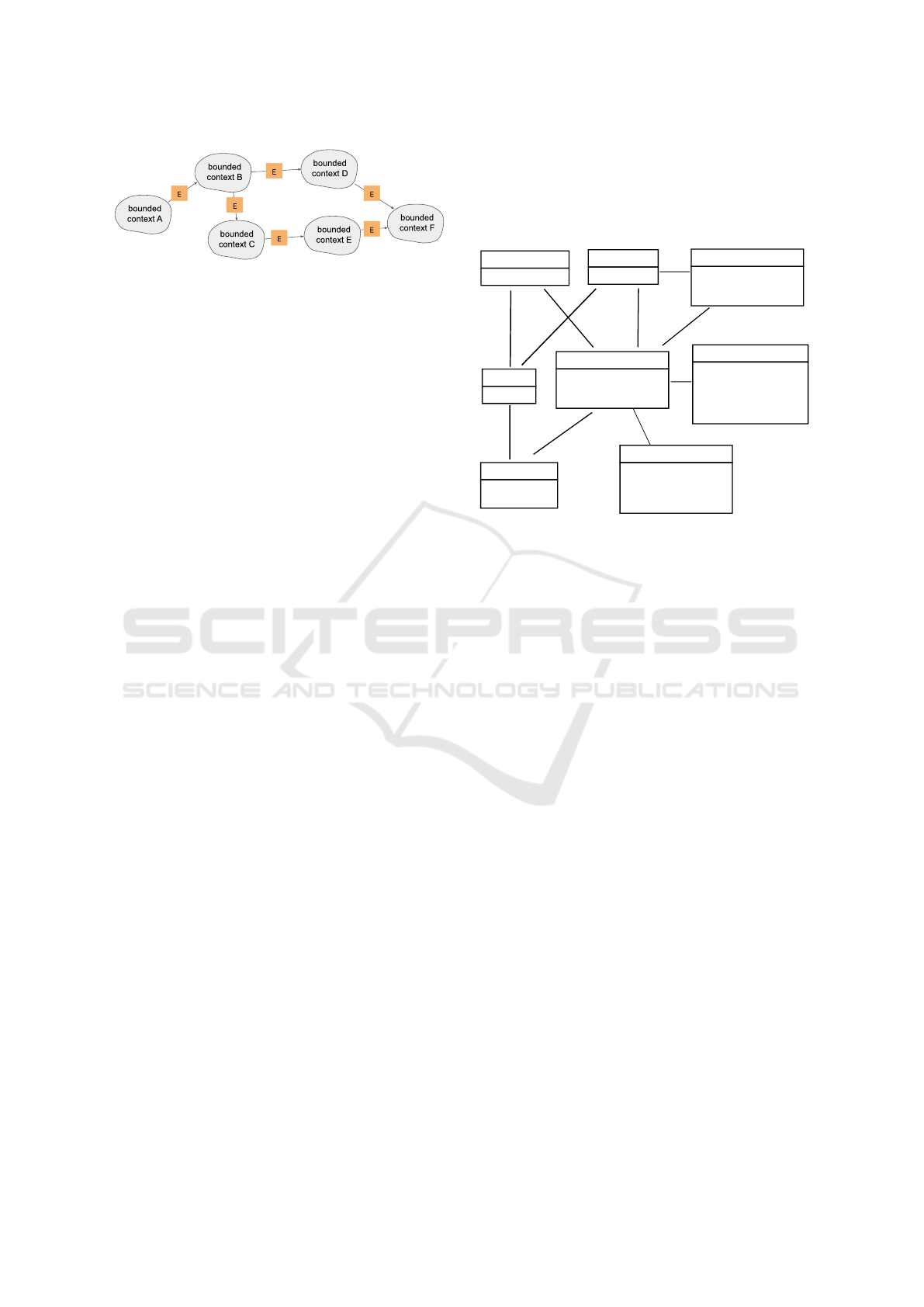

Figure 3: Bounded Contexts Model.

While Event Storming is effective for modeling

workﬂows, such a workﬂow model is not well suited

for certain complex algorithmic tasks. Thus, for com-

plex algorithmic tasks or for complex data queries we

propose e.g. object oriented micromodels. In the fam-

ily doctor example, we use a medical micromodel for

tests and symptoms and diseases, cf. Figure 4. The

medical micromodel is designed to help the doctor

during a consultation to identify the tests that may be

used to clarify certain symptoms that indicate certain

diseases. Figure 5 shows a cutout of an object diagram

for our accounting micromodel.

Our approach uses an event based architecture, cf.

(Richardson, 2018), cf. Figure 6. This means, the

micromodels subscribe with the event broker as lis-

tener for the event types or topics they are interested

in. For each interesting event type, the micromodel

provides an event handler. On event arrival, the respon-

sible event handler maps the event to the correspond-

ing object structures (e.g. within a local database)

that then may be queried e.g. by a GUI to show a

list of tests or diseases to the family doctor. Simi-

larly, an event may be raised by a GUI e.g. when

the family doctor enters data during a consultation cf.

Figure 6. Such user events may be sent to a local mi-

cromodel ﬁrst and then the micromodel may forward

these events to an event broker which forwards the

event to other interested (i.e. subscribed) micromod-

els. For example our disease registered event created

the ﬂu:Disease object and the Symptom objects at the

top of Figure 4. However, disease registered events

are ignored by our accounting micromodel. The test

registered event resulted in the t101:Test object in our

medical model (at the top right of Figure 4) and in the

temperature:PriceItem object within our accounting

micromodel (in the middle of Figure 5). The patient

registered event results in a p42:Patient object within

both micromodels. However, note that the two mi-

cromodels use the state attribute in different manners.

Within the medical micromodel, the consultation regis-

tered event results in a c1337:Consultation object that

identiﬁes a medium ﬂu as diagnosis. In addition, the

state attribute of the patient is set to see again as the

doctor wants another consultation within some days.

(We use the term “medium ﬂu" in lieu of a precise

clinical code to increase readability for the reader.)

Within the accounting micromodel the same event cre-

ates a c1337:Invoice object, that lists the prices for the

used tests and the consultation and the diagnosis itself.

In addition the accounting model sets the state of its

Patient to pending as the invoice is not yet paid.

p42 :Patient

address = "Wonderland 1"

birthDate = "1970-01-01"

fullName = "Alice"

id = "p42"

state = "see again"

flu :Disease

id = "flu"

coughing :Symptom

id = "coughing"

fever :Symptom

id = "fever"

d301 :Diagnosis

id = "d301"

state = "medium"

c1337 :Consultation

date = "2021-06-02T11:00"

doctor = "Dr. Bob"

id = "c1337"

consultations

symptomssymptoms

con

pat

t101 :Test

date = "2021-06-02T11:00"

id = "t101"

result = "39.8 Celsius"

t201 :Treatment

date = "2021-06-02T11:00"

drug = "IBU 400"

frequency = "1-1-1"

id = "t201"

parent

tests

parent

diagnosis

treatments

parent

consultations

symptoms

diseases

symptoms

diseases

diagnoses

disease

symp

test

Figure 4: Medical Model.

Ideally, each micromodel deals only with a small

set of related events from some bounded context(s).

Each micromodel focuses on a certain logical aspect

e.g. to support a certain user for a small number of

workﬂow steps. Therefore, micromodels remain rela-

tively simple and easy to maintain.

4 EVOLUTION

As discussed, we propose an agile and evolutionary

modeling approach. The activities are grouped into

three major workﬂows for events, micromodels, and

GUIs, cf. Figure 9. Evolution usually starts within

Event Storming activities. The developer may change

some workﬂow part by adding new events, by extend-

ing existing events, or by deprecating events. While en-

suring safe and consistent workﬂows is hard, the tech-

nical steps at the event level are quite simple. Within

the event modeling activity the developer adds a de-

scription of the events’ data ﬁelds and extends the

event schema of the event broker, accordingly.

Eventually, the new events need to be raised and

handled by some micromodel(s) which requires to add

e.g. new GUI dialogues and appropriate event handlers

to the implementation of these micromodels. Adding a

new event handler is relatively simple, as this is a quite

local change that usually does not require to refactor

large parts of the corresponding micromodel. As soon

as everything is implemented, the application may start

to raise the new events.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

230

price list :PriceList

id = "price list"

consultation :PriceItem

id = "consultation"

price = 10.0

items

parent

diagnosis :PriceItem

id = "diagnosis"

price = 12.0

items

parent

temperature :PriceItem

id = "temperature"

price = 12.0

items

parent

lungs listening :PriceItem

id = "lungs listening"

price = 8.0

items

parent

p42 :Patient

address = "Wonderland 1"

birthDate = "1970-01-01"

fullName = "Alice"

id = "p42"

state = "pending"

c1337 :Invoice

date = "2021-06-02T11:00"

id = "c1337"

total = 42.0

invoices

patient

c1337.consultation :Item

id = "c1337.consultation"

price = 10.0

items

parent

c1337.diagnosis :Item

id = "c1337.diagnosis"

price = 12.0

items

parent

t101 :Item

id = "t101"

price = 12.0

items

parent

t102 :Item

id = "t102"

price = 8.0

items

parent

Figure 5: Accounting Model.

Figure 6: Micromodel Architecture.

For event deprecation, the workﬂows may stop to

use the deprecated event as soon as the affected micro-

models have implemented the GUI and the handlers

for the new workﬂow events. As soon as the old events

are no longer raised, the developer may remove the

corresponding event handlers from the micromodels.

However, the application may contain some micromod-

els that e.g. do statistics on the event history, e.g. mean

waiting time, etc. Such parts may deal with old events

for a longer time. Changing the data model of an al-

ready used event e.g. by adding additional attributes

would require the event handlers to be updated, accord-

ingly. However, there may be old micromodels that

either still raise the (old) event or handle only the old

events. All these micromodels need to be adapted to

the new event structure. This will be done by different

persons or teams at different speeds. Thus, during a

certain period, we may need to deal with old and new

versions of events in parallel. This may be achieved by

adding version information to the event which even-

tually results in a new event type. Thus, we propose

to handle changes to the data model of an event by

creating a new event type (e.g. by adding a version

post-ﬁx to the event type like disease registered v2 and

by deprecating the old event type).

Another kind of evolution is a major change to

the algorithmic requirements or to the model queries

for one of our micromodels. Such a major change

probably requires a refactoring or new modeling of

the current data model and the adaption of all event

handlers that contribute to the data model. In addition,

a migration of existing data may be required before

the new micromodel is deployed. For this kind of

evolution, all the existing model evolution techniques

may be used. As our architecture is event based, de-

velopers may also build (parts of) the new data model

by re-executing some old events with the help of the

new event handlers. If necessary, an explicit migration

strategy can be added to the Event Storming / work-

ﬂow description of the application, followed by the

implementation, deployment, and execution of these

workﬂow parts. This allows incorporation of some

manual steps (e.g. re-enter old data) into the migration

of your micromodel. This idea has e.g. been proposed

by (Jacobson et al., 2013). Eventually, we claim that it

is easier to migrate a small micromodel than to migrate

a similar change within a complex monolithic model.

As an alternative for refactoring an old micromodel

and for handling new events within existing micromod-

els, we can evolve our system by introducing a new

micromodel that handles the new events and supports

the new query model. Adding a new micromodel has

the advantage that we do not need to deal with old

code but we almost have a green ﬁeld project. Actu-

ally, the new micromodel will also need to listen to

some old events in order to incorporate information of

old system parts. Identifying and incorporating rele-

vant old events is facilitated e.g. through the bounded

contexts of our Event Storming. In addition, the events

are relatively simple, thus subscribing to some relevant

event will hopefully not require to incorporate a large

number of additional events that the relevant event

depends on.

As an example consider that the family doctor

wants to offer Covid-19 vaccinations in Germany

(early in 2021) and thus the family doctor needs some

software computing the priorities for patients that ask

for a vaccination. The computation of a Covid-19

priority needs the age of the patient and some extra

priority e.g. for people that work in health care jobs

and some priority for people with certain diseases. To

address these issues, in the example we introduce a

Covid-19 risk registered event, that e.g. adds 2 points

to the priority of patients with a ﬂu, cf. Figure 7. In ad-

dition, we introduce a Covid-19 vaccination requested

event that records the patient and optionally a job re-

lated extra priority, cf. Figure 7.

As shown in Figure 8, the new Covid-19 micro-

model ﬁrst handles Covid-19 risk registered events and

From Monolithic Models to Agile Micromodels

231

adds corresponding Disease objects to our Covid-19

micromodel. Similarly, an event handler for Covid-

19 vaccination requested events adds patients to our

Covid-19 model. As we need the age of patients, the

Covid-19 micromodel also subscribes to patient regis-

tered events. To identify interested patients, we use a

ﬁlter on patient registered events that returns patients

that have requested a vaccination. Finally, we need the

consultation registered events of interested patients to

identify relevant diseases of these patients. This allows

us to compute e.g. the priority of Alice as 51 years old

plus 40 points for working in health care plus 2 points

for having a ﬂu resulting in 93 points.

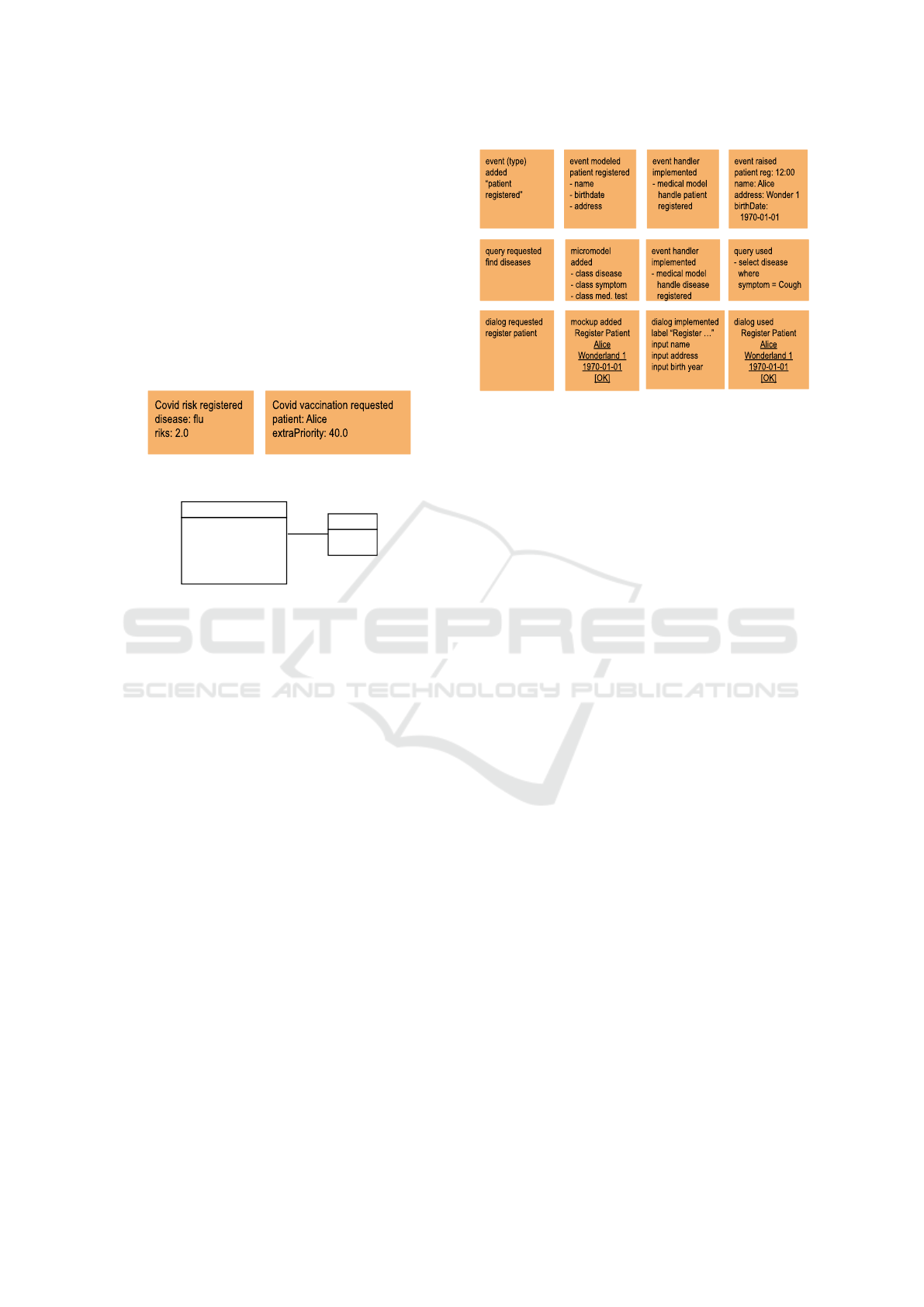

Figure 7: Covid Events.

p42 :Patient

address = "Wonderland 1"

birthDate = "1970-01-01"

extraPriority = 40.0

fullName = "Alice"

id = "p42"

priority = 93.0

flu :Disease

id = "flu"

risk = 2.0

diseases

patients

Figure 8: Covid Events and Model.

The important design decision here is that the

Covid-19 micromodel relies only on local events. We

might have been tempted to retrieve the diseases of

a patient from the medical model. However, when

micromodels use each other directly, we soon end up

in a complex network of micromodels that is as hard

to maintain and evolve as a monolithic model. Having

the Covid-19 micromodel directly accessing the medi-

cal micromodel would create a dependency between

these two models. Whenever we wanted to restructure

the medical model, the Covid-19 micromodel would

be affected. By basing the Covid-19 micromodel on

events only, such dependencies are avoided. On the

other hand, the Covid-19 micromodel now needs to

identify the consultation registered event as the event

relevant for the retrieval of diseases and to some extend

the handler for consultation registered events repeats

work already done in the medical micromodel. In

order to identify the relevant events, the bounded con-

texts of the Event Storming provides us with guidance

for our search. Similarly, the Covid-19 micromodel

is interested only in the diagnosis of a Consultation

Registered event, thus only little work is repeated.

Figure 9: Modeling and Development Process.

5 CONCLUSIONS

Classical modeling uses e.g. a domain model that cov-

ers almost all aspects of a certain domain. Such a

monolithic model soon becomes complex and hard to

maintain. Splitting a large monolithic model into mul-

tiple event based micromodels results in a separation of

concerns that facilitates modeling and evolution. For

example, in a monolithic model, our Covid-19 priority

computation would touch the single global model with

all the details of symptoms, tests, consultations, and

invoices. It only needs to know, whether the current

patient has a common cold or the ﬂu. It would then add

a priority attribute to our global patient class which

would likely collide with other priority attributes and

would add more complexity to all other system parts

and may require complex data migration.

Micromodels are dedicated for small purposes

and thus avoid complexity and achieve ﬂexibility.

Note, micromodels frequently contain overlapping

data, for example each of our micromodels has a Pa-

tient class. However, while these different patient

classes have some common attributes, each patient

class has micromodel-speciﬁc attributes that serve the

needs of its respective micromodel. Within a micro-

model such special attributes are introduced, easily,

without cluttering a common monolithic model.

The basis for our micromodeling approach is Event

Storming. It provides us with bounded contexts and a

ubiquitous language, e.g. for events and their attributes.

Event Storming also assigns clear ownership for events

and the resulting model changes. This avoids a lot of

merge conﬂicts usually related to distributed appli-

cations. Finally, our micromodels communicate via

ﬁne grained events rather than exchanging complex

documents. The medical model raises consultation

registered events instead of sending a complete list of

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

232

diseases, symptoms, tests, patients, and this week’s

consultations to our accounting service. This allows

for agile development and evolution of event handlers.

Our co-author Adam Malik currently evaluates the

Event Storming and micromodeling approach in an in-

dustrial project. Adam is the lead architect of a project

in the domain of billing of health clinics in Germany.

Using Event Storming helped indeed to capture institu-

tional knowledge as well as deriving bounded contexts

and identifying respective micromodels. So far, the

micromodels enabled fast iterative development. We

will report, whether the project keeps agile while it

grows.

REFERENCES

Brambilla, M., Cabot, J., and Wimmer, M. (2017). Model-

driven software engineering in practice, second edition.

Synthesis Lectures on Software Engineering, 3(1):1–

207.

Brandolini, A. (2013). Introducing event storming. Available

at: goo. gl/GMzzDv [Last accessed: 8 July 2017].

Conway, M. E. (1968). How do committees invent. Datama-

tion, 14(4):28–31.

Di Ruscio, D., Franzago, M., Malavolta, I., and Muccini, H.

(2018). Collaborative model-driven software engineer-

ing: A classiﬁcation framework and a research map

[extended abstract]. In 2018 IEEE/ACM 40th Inter-

national Conference on Software Engineering (ICSE),

pages 535–535.

Evans, E. (2004). Domain-driven design: tackling complex-

ity in the heart of software. Addison-Wesley Profes-

sional.

HL7. Health level 7 standard. http://www.hl7.org/.

Jacobson, I., Ng, P.-W., McMahon, P. E., Spence, I., and Lid-

man, S. (2013). The essence of software Engineering:

applying the SEMAT kernel. Addison-Wesley.

Junker, A. (2021). Microservices as architectural style. In

Glauner, P., Plugmann, P., and Lerzynski, G., editors,

Digitalization in Healthcare: Implementing Innova-

tion and Artiﬁcial Intelligence, Future of Business and

Finance, pages 177–190. Springer, Cham.

Recker, J., Rosemann, M., Indulska, M., and Green, P.

(2009). Business process modeling-a comparative anal-

ysis. Journal of the association for information systems,

10(4):1.

Richardson, C. (2018). Microservices patterns. Manning

Publications Company,.

Scheidgen, M., Zubow, A., Fischer, J., and Kolbe, T. H.

(2012). Automated and transparent model fragmen-

tation for persisting large models. In International

Conference on Model Driven Engineering Languages

and Systems, pages 102–118. Springer.

From Monolithic Models to Agile Micromodels

233
