Experimental Comparison of Two Goal-oriented Analysis Techniques

Carlos Cano-Genoves

, Silvia Abrahão

and Emilio Insfran

Department of Computer Science, Universitat Politècnica de València, Camino de vera, s/n 46022, Valencia, Spain

Keywords: Goal-models, Goal-oriented Analysis Techniques, Controlled Experiment.

Abstract: Background: Goal-oriented analysis techniques help reason and make decisions about goal models. These

models may represent the stakeholders’ intentions with respect to the software system to be developed. In a

previous work, we proposed VeGAn, a goal-oriented analysis technique that follows a value-driven approach

in order to support decision-making. Aims: This paper compares the VeGAn technique with the GRL-Quant

technique, with respect to the accuracy of goal model element prioritization, the participants’ prioritization

time, and their perceptions of the quality of the analysis results (perceived satisfaction). Method: A controlled

experiment was carried out with 64 Computer Science undergraduate students who analyzed a goal model

using each of the techniques compared. Results: The results of the experiment show that there are no

significant differences between prioritization time. However, the perceived satisfaction was superior for

VeGAn, although the prioritization accuracy of GRL-Quant was better for one particular system. Conclusions:

While further research is required in order to strengthen these results, the experiment provides preliminary

results on the usefulness of both goal-oriented analysis techniques. Several insights have emerged from this

study, and also opportunities to improve both techniques.

1 INTRODUCTION

Goal models are often used in the early elicitation of

requirements, since they make it possible to represent

stakeholders’ motivations regarding the system to be

developed. Goal-oriented analysis techniques are

used to analyze goal models, and analyses of this

nature can help analysts to make decisions by

providing an assessment of the satisfaction of goals,

evaluating alternatives or identifying conflicts.

Several goal-oriented analysis techniques have

been proposed over the last 25 years. These

techniques employ different approaches for goal-

model analysis, including systematic propagation,

simulation, planning, or techniques based on

multiple-criteria decision-making. However, these

techniques assume a value-neutral approach in which

all goals are equally important. Moreover, little

attention has been paid to the empirical evaluation of

this kind of techniques.

In a previous work (Cano-Genoves et al. 2019),

we introduced VeGAn formerly known as GATHA

https://orcid.org/0000-0001-5201-9449

https://orcid.org/0000-0003-3580-2014

https://orcid.org/0000-0003-0855-5564

as a goal-oriented analysis technique that follows the

principles of Value-Based Software Engineering.

This technique allows the different intentional

elements of a goal model to be prioritized according

to the value that they provide to the system’s

stakeholders (Boehm 2006). The main contribution of

this technique is the performance of the prioritization

of intentional elements througth fuzzy logic. In this

way, we combine both quantitative and qualitative

values when initially assigning the relative

importance to intentional elements rather than

choosing between them, which is the common

practice of existing analysis techniques. The use of

fuzzy logic solves the existing difficulty of assigning

specific values (e.g. 37, 38, 39) to determine the

importance of intentional elements (quantitative

approaches), and avoids the problem of losing

precision when assigning values from a small set of

alternatives (e.g. low, medium, high) (qualitative

approaches).

In this paper we, therefore, present a controlled

experiment whose objective is to compare VeGAn

with GRL-Quant (Amyot et al. 2010), a goal-oriented

242

Cano-Genoves, C., Abrahão, S. and Insfran, E.

Experimental Comparison of Two Goal-oriented Analysis Techniques.

DOI: 10.5220/0010847000003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 242-251

ISBN: 978-989-758-550-0; ISSN: 2184-4348

analysis technique that allows a quantitative

evaluation of the satisfaction of actors and intentional

elements of a goal model. The reason for selecting

this analysis technique is that both the authors and the

technique are well known and relevant within the

goal-oriented analysis community, GRL-Quant and

VeGAn use the same goal modeling language and this

technique appears partially proposed in the GRL

language standard. The two techniques are compared

with respect to the prioritization accuracy,

prioritization time and perceived satisfaction using

both techniques. This is the first experiment to

compare the use of a fuzzy logic-based goal-oriented

analysis technique with a quantitative technique as

regards the prioritization of intentional elements.

Among the motivations for conducting this

experiment is that there are very few studies

comparing goal-orianted analysis techniques. Of

those that do, two studies (Horkoff and Yu 2011),

(Horkoff and Yu 2013) should be highlighted. In the

first study, a classification of 25 analysis techniques

based on their characteristics was carried out without

considering their usefulness or which is better. In the

second one, a comparison of seven techniques was

performed under the premise that the techniques

should be reliable if the results obtained for all of

them are similar. The main difference between this

comparison and ours is that we are interested in not

only the precision of the results but also the

participants’ perceptions of the results of the analysis

performed.

With regard to empirical studies performed in the

goal-oriented analysis area, most of them analyze a

single goal-oriented analysis technique. For example,

(Ernst, Mylopoulos, and Wang 2009) performed an

experiment in order to evaluate the scalability of a

proposed technique. (Liaskos, Jalman, and Aranda

2012) performed an experiment in order to evaluate

whether the Analytic Hierarchy Process (AHP)

approach can be used to quantitatively assess

contribution relationships in goal models. (Horkoff

and Yu 2010) performed an experiment in order to

compare the manual analysis of a goal model with an

automated analysis through the use of an interactive

evaluation procedure that they proposed.

This paper is structured as follows. Section 2

provides the background to the goal-oriented analysis

techniques compared in this work, while Section 3

introduces the design and execution of the experiment

carried out to compare GRL-Quant and VeGAn,

whose results are subsequently presented in Section

4. Section 5 discusses the threats to validity. Finally,

Section 6 presents our conclusions and future work.

2 GOAL-ORIENTED ANALYSIS

TECHNIQUES COMPARED

The GRL-Quant (Amyot et al. 2010) approach is a

goal-oriented analysis technique that uses a

quantitative forward propagation to assess whether

the intentional elements of a goal model can be

satisfied. This technique has two activities.

The first activity (optional) is to prioritize the

intentional elements of a goal model, for this each

stakeholder assigns an importance of between 0 and

100 to each of his/her intentional elements. In the

event that no importance is assigned, the element is

considered to have an importance of 0 and therefore

it is not considered to calculate the actor's satisfaction.

The second activity is to select a set of intentional

elements from which to propagate, and then

automatically propagate through the relationships so

as to discover which intentional elements would be

satisfied. The satisfaction is a number between 100

(totally satisfied) and -100 (fully denied satisfaction).

The propagation rules used by the GRL-Quant

technique for each for the relationships are:

 AND decomposition links: The satisfaction of

the decomposed intentional element is equal to

the minimum satisfaction of the elements that

compose it.

 OR decomposition links: The satisfaction of the

intentional element decomposed is equal to the

maximum satisfaction of the intentional element

into which it is decomposed.

 XOR decomposition links: It propagates the

elements as an OR decomposition, but only an

intentional element of the decomposition can be

initialized at the time of propagation.

 Contribution links: The satisfaction of the

intentional element contributed is the

satisfaction of the intentional element that

contributes, multiplied by the weight of the

contribution divided by 100.

 Dependency links: The satisfaction of the

intentional element depender is equal to the

minimum satisfaction of the depender and the

dependee.

We have made the following two minor

modifications to the GRL-Quant technique for the

purpose of comparing it with the VeGAn technique.

First, we have automated the propagation, such that

the result obtained is the propagation of each

individual intentional element (with the exception of

decompositions, in which the satisfaction score is

obtained from its children). The reason we have

automated the procedure is because it has scalability

Experimental Comparison of Two Goal-oriented Analysis Techniques

243

issues when working with large models, however we

continue to provide feedback on how satisfaction has

been calculated. Second, we have added a third

activity (evaluation) for the purpose of comparison.

The evaluation consists of the stakeholder assigning

a degree of agreement with the satisfaction score

obtained for each intentional element, comparing it

with the satisfaction of the elements of that actor. For

example, the element U.G1 (Learn) has been

evaluated as “Strongly Agree” because it is the

element that provides the most satisfaction for that

actor (24.12) and that is aligned with the highest

importance of this objective (100). However, if the

satisfaction resulting from this element were less than

the satisfaction of another intentional element of that

actor, the stakeholder might not be satisfied with it,

since he/she would say that there is something that is

more important than his/her objective.

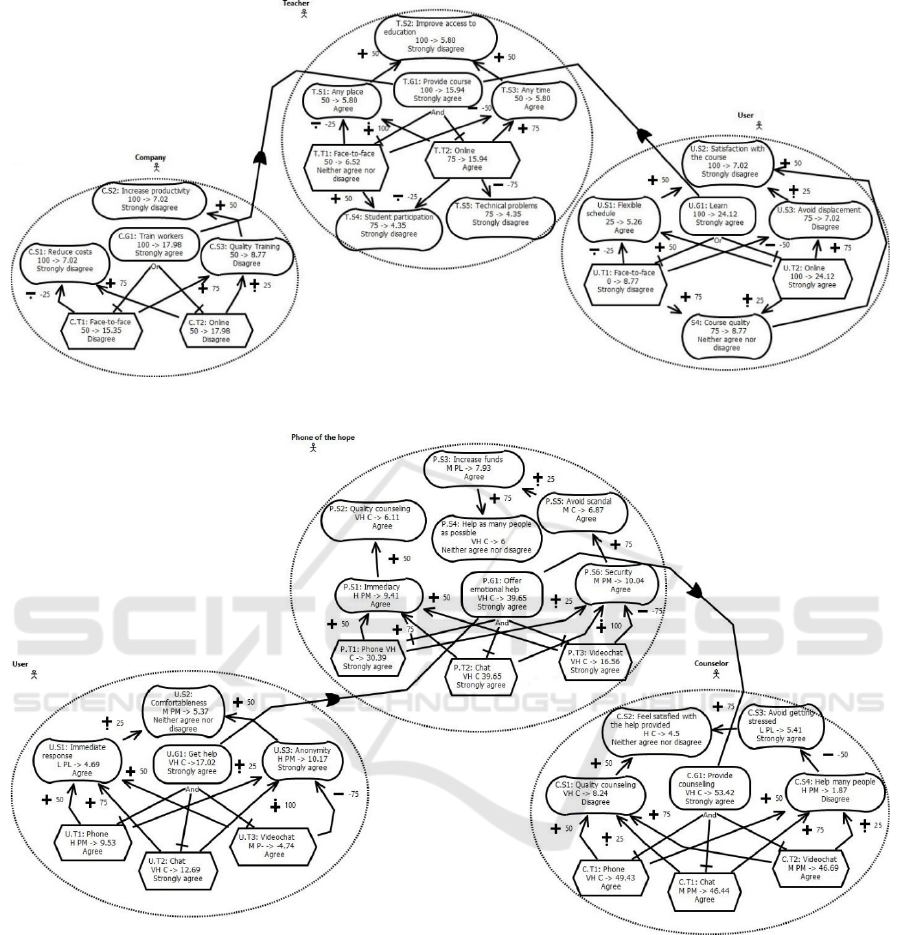

Figure 1 shows an analysis result obtained for the

GRL-Quant technique by a participant in one of the

systems used in the experiment. The number on the

left-hand side of the arrow is the assigned importance,

while the number on the right-hand side is the

calculated satisfaction score. This score represents the

satisfaction of the stakeholder with the result obtained

by applying GRL-Quant. The text that appears below

it is the result of the evaluation phase, i.e., the

perceived satisfaction assigned by the participant to

each intentional element, whose values can be one of

the following: Strongly agree, Agree, Neither agree

nor disagree, Disagree or Strongly disagree.

The VeGAn (Cano-Genoves et al. 2019)

approach is a goal-oriented analysis technique that

uses a qualitative prioritization and systematic

propagation together with Fuzzy Multiple-Criteria

Decision-Making (FMCDM) to calculate how

valuable each intentional element of a goal model is.

This technique has three activities.

The first activity consists of prioritizing the

intentional elements. To do this, each stakeholder

assigns an importance level (Very High, High,

Medium, Low, Very Low) and a confidence level

(Possibly More, Confident, Possibly Less) regarding

the importance assigned to each of his/her intentional

elements. Note that from the point of view of the

stakeholder two qualitative values are assigned to

each intentional element (importance and confidence

levels), however, internally, these two values are

combined with fuzzy logic to obtain a more precise

measure of his/her intentional elements’ relative

importance.

The second activity (propagation) consists of

calculating the value of each intentional element

considering that each intentional element is not

isolated but related to other intentional elements in

the model. To do this, the impact that each intentional

element has on the rest of the model elements is

automatically calculated on the basis of the different

relationships among the elements in the model.

The calculated impact and the importance

assigned by the stakeholders are then fuzzified, i.e.,

the corresponding fuzzy number that represents the

range of possible values is determined. For example,

an intentional element with a Very High importance

level is fuzzified to (80, 100), meaning that this

element has an importance of between 80 and 100,

but without knowing the exact number.

A variation of the FTOPSIS (Fuzzy Technique of

Order Preference Similarity to the Ideal Solution)

(Chen 2000) technique is subsequently employed to

calculate the value of each intentional element by

using this fuzzified importance level and the impact

between the intentional elements.

The propagation rules used by VeGAn to

calculate the impact that an intentional element has on

another depending on the type of relationship are the

following:

 Decomposition links: The impact of the

intentional element is distributed between the

intentional element that is composed, taking into

account its weight for the intentional element

that is decomposed. Furthermore, the impact of

the intentional elements of an AND

decomposition is propagated to the intentional

element that is composed. If the decomposition

is of type OR or XOR, only the impact of the

most valuable child will be obtained.

 Contribution links: The impact of the intentional

element that contributes is the impact of the

element contributed multiplied by the weight of

the contribution divided by 100.

 Dependency links: The impact the of intentional

element depended on has the maximum impact

on the element that depends.

Finally, the third activity is evaluation. This is

performed by the stakeholders in order to assess their

agreement with the calculated value of each

intentional element. This activity can help detect

problems in the prioritization of intentional elements,

in the weights that the different links of the goal

models may have, or in the propagation activity.

Figure 2 shows an analysis result obtained for the

VeGAn technique by a participant in one of the

systems of the experiment. The codes on the left-hand

side of the arrow are the acronyms of the assigned

importance level (i.e., VH, H, M, L, VL) and

confidence level (i.e., PM, C, PL) while the number

on the right-hand side of the arrow is the calculated

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

244

Figure 1: Analysis result of a participant using the edX system with the GRL-Quant technique.

Figure 2: Analysis result of a participant using the Hope system with the VeGAn technique.

value. For example, “VH C -> 6” from the intentional

element P.S4 means that this element has a Very High

level of importance, a Confident level of confidence

and a calculated value of 6. The text that appears

below it is the result of the evaluation phase (e.g., the

perceived satisfaction assigned by the participant to

the P.S4 element is “Neither agree nor disagree”).

3 CONTROLLED EXPERIMENT

On the basis of the Goal-Question-Metric (GQM)

template (Basili and Rombach 1988), the goal of the

experiment is to analyze GRL-Quant and VeGAn for

the purpose of assessing them with respect to the

accuracy of the prioritization (i.e., prioritization

accuracy), the participants’ prioritization time, and

their perceptions regarding the quality of the analysis

results (perceived satisfaction) from the point of view

Experimental Comparison of Two Goal-oriented Analysis Techniques

245

of novice software engineers in the context of

Computer Science undergraduate students. Although

experienced analysts and practitioners would have

been preferable, we focused on the profile of novice

software engineers since our objective was to obtain

initial insights into the usefulness of these techniques

as regards supporting decision making. The research

questions addressed were:

 RQ1: Which technique allows analysts to

prioritize intentional elements more

accurately?

 RQ2: Which technique allows analysts to

prioritize intentional elements faster?

 RQ3: Which technique is perceived to provide

better analysis results?

3.1 Context Selection

The context of this study is the analysis of two goal

models when novice software engineers employ goal-

oriented analysis techniques.

Experimental Objects: The goal models to be

analyzed using both techniques were selected and

adapted from requirements engineering literature:

 O1 – Hope (Horkoff and Yu 2016): the purpose

of this system is to offer users an online

counselling service for people in crisis

situations. This system is shown in Figure 2.

 O2 – edX (Liu and Yu 2004): the purpose of

this system is to offer an online education

platform that helps increase access to

education. This system is shown in Figure 1.

Selection of Participants: The participants

comprised 64 Computer Science undergraduate

students at the Universitat Politècnica de València

enrolled in a Requirements Engineering course. The

participants were selected by means of convenience

sampling. Since we were focusing on the profile of

novice analysts, we selected participants with no

previous knowledge of goal models and goal-oriented

analysis. We verified this assumption by means of a

pre-questionnaire. All the participants were

volunteers and were aware of the practical and

pedagogical purposes of the experiment, but the

research questions were not disclosed to them. The

participants were not rewarded for their effort.

3.2 Variable Selection

The main independent variable was the goal-oriented

analysis technique, that could assume two possible

values: GRL-Quant and VeGAn. The secondary

independent variable was the experimental object,

which had two possible values: Hope and edX.

There are three dependent variables: prioritization

accuracy and prioritization time and perceived

satisfaction.

The Prioritization Accuracy (PA) variable was

used to assess the correctness (whether the

importance conforms to the expected importance) and

completeness (whether all the intentional elements

have been prioritized). This variable was measured by

using an information retrieval-based approach

(Frakes and Baeza-Yates 1992) that has been used in

other SE experiments (Abrahão et al. 2019) to

compare models with a Golden Solution (i.e., the

correct set of relative importance assigned by a

domain expert) regarding each intentional element.

One of the materials provided to the participants was

an Annex with a description of Personas (Cooper

1999) (for each stakeholder) in order to assist the

participants to assign the relative importance to the

elements in the goal model in an attempt to ensure that

the assignment would not be so subjective. As an

example, if the behavioral pattern of a Persona

suggests that is impatient, when the participant

assigns a relative importance to an intentional

element such as “fast response”, a value of Very High

(VeGAn) / 100 (GRL-Quant) or High (VeGAn) / 75

(GRL-Quant) should be assigned.

We, therefore, used the harmonic mean of

precision and recall, attaining a balance between the

correctness and completeness of the importance

assigned to each intentional element within a goal

model by employing the following equation:

F-measure

element

∩GS

element

)

Where P

element

indicates assigned importance

elements of a given goal model by a participant and

GSelement indicates the known correct set of

expected importance assigned that can be easily

derived by means of a Golden Solution. Since the

golden solution might have been biased by the

expert’s experience, the elements of a goal model can

have several prioritization solutions, we considered

only these first solutions as a baseline, which could

evolve if the participants added new correct solutions.

The Prioritization Time (PT) variable was

measured as the total time (in minutes) taken by a

participant to assign a relative importance to all the

intentional elements of the goal model.

The Perceived Satisfaction (PS) measured how

satisfied the participant was with the analysis results

obtained after using the technique. The participant,

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

246

therefore, had to evaluate the propagation result

obtained for each intentional element by using a 5-

point Likert scale, ranging from 1 (strongly disagree)

to 5 (strongly agree).

3.3 Hypotheses

The null hypotheses of the experiment can be

summarized as follows:

 H1

: PA (GRL-Quant) = PA (VeGAn)

 H2

: PT (GRL-Quant) = PT (VeGAn)

 H3

: PS (GRL-Quant) = PS (VeGAn)

The goal of the statistical analysis was to reject

these hypotheses and possibly accept the alternative

ones (e.g., H1

= ¬H1

). All the hypotheses are two-

sided because we did not postulate that any effect

would occur as a result of the use of these goal-

oriented analysis techniques.

3.4 Experimental Design and Task

A balanced between-subjects with a confounding

effect design was employed, that is, a participant used

one of the techniques with one of the experimental

objects. We, therefore, had four treatments, owing to

the combinations of goal-oriented analysis technique

and system. The reason why two experimental objects

were used in each group was to minimize the

domain/system effect. The design chosen mitigated

possible learning effects, since none of the

participants repeated any goal-oriented analysis

technique or system while carrying out the

experiment. Table 1 shows the experimental design.

Table 1: Experimental Design.

Run 1 (Control

rou

Run 1 (Experimental

rou

Treatment

GRL-Quant,

VeGAn, Hope

GRL-Quant,

edX

VeGAn, edX

Prior to the experiment, the participants attended

a training session concerning the use of the goal-

oriented analysis techniques and performed an

exercise. The tasks to be carried out without imposed

time limit for both techniques were the following:

1. Goal Model Understanding: The participants

had to read a description of a goal model and

answer a set of control questions. These

questions helped the participants to focus on

understanding the goal model and allowed us to

control their comprehension of the problem.

2. Intentional Element Prioritization: The

participants had to assign an importance level

to each intentional element of the goal model.

To do this, the participant had to understand the

needs and goals of the stakeholders, through

the use of the Persona technique (Cooper

1999), and prioritize the intentional elements.

3. Goal-oriented Analysis: The participants used

an Excel file with macros that automated the

calculation of satisfaction / value of each

intentional element, given the level of

importance.

4. Evaluation: The participants evaluated the

analysis results obtained using the technique by

assigning a degree of agreement with the

results obtained to each intentional element of

the model. They had to use the Persona

technique to understand the stakeholders’

needs and goals.

The documents supporting the training in the

experimental task included:

 Four kinds of booklets covering the four

possible combinations of both goal-oriented

analysis techniques and experimental objects

(GRL-Quant-O1, GRL-Quant-O2, VeGAn-

O1, VeGAn-O2). These booklets described the

experimental task to be performed.

 Two appendices containing a detailed

explanation of each goal-oriented analysis

technique.

 One appendix containing the Personas

employed to describe each stakeholder and

help the participants to understand the

stakeholders’ needs, goals and points of view.

 Four Excel files with macros covering the four

possible combinations of both goal-oriented

analysis techniques and experimental objects

with which to automatize the propagation of

both techniques.

The experiment materials, including the

survey questionnaire, are available at

https://research.webs.upv.es/modelsward2022/. The

material is in Spanish, which is the mother tongue of

the participants in the experiment.

3.5 Data Analysis

The results were collected using the booklets (in order

to ascertain the time needed to prioritize (PT)), the

Excel files provided (in order to discover the

prioritization accuracy (PA) and perceived

satisfaction (PS)). We used descriptive analysis,

violin plots and statistical tests to analyze the data

Experimental Comparison of Two Goal-oriented Analysis Techniques

247

collected from the experiment. As is usual, in all the

tests, we accepted a probability of 5% of committing

a Type-I error, i.e., rejecting the null hypothesis when

it is actually true.

The data analysis was carried out by employing

the following steps:

1. We first carried out a descriptive study of the

measures for the dependent variables.

2. We analyzed the characteristics of the data in

order to determine which test would be most

appropriate to test our hypotheses. Since the

sample size of the experiment was less than 50,

we applied the Shapiro-Wilk and Brown-

Forsythe Levene-type tests in order to verify

the normality and homogeneity of the data.

3. We analyzed whether there was any interaction

between the independent variables. We used

ANOVA when the data was normally

distributed and the variances were

homogeneous, and the Kruskal-Wallis test

when the ANOVA assumptions were not met.

4. This depended on the results of step 3:

 When an interaction was detected, we

performed a post-hoc analysis to

determine which treatments were

significant. A Mann–Whitney test or a t-

test was used for this purpose, depending

on the normality of the data distribution.

 When an interaction between the

independent variables was not detected,

we combined the data and compared the

treatments by using a two-way ANOVA or

the Mann–Whitney test (when the

ANOVA assumptions were not met).

4 RESULTS

In this section, we discuss the experimental results by

quantitatively analyzing the data according to the

hypotheses stated. The results were obtained by using

SPSS v20 and R v4.0.1. A qualitative analysis based

on the feedback obtained from the open questions of

the post-task questionnaire is also provided.

4.1 Descriptive Statistics and

Exploratory Analysis

Table 2 shows a summary of the results of the goal

model analysis task performed, divided by Technique

and System. At a glance, it will be noted that the

participants prioritized more accurately when

analyzing the edX system with the GRL-Quant

technique. However, the participants perceived the

results obtained with the VeGAn technique to be

more satisfactory than when using the GRL-Quant

technique. With respect to the prioritization time,

there is no differences between the techniques or the

systems.

Table 2: Summary of Descriptive Analysis Grouped by

Technique.

Var. Tech. System Mean Median

Std.

Dev

GRL-

Quant

All 68.4 67 10.3

Hope 62.2 64 7.44

edX 74.5 76 9.17

VeGAn

All 59.2 58.5 8.17

e 59 58 9.10

edX 58.9 59 7.41

GRL-

Quant

All 17 16 7.47

Hope 17.1 15.5 7.72

edX 16.2 16 7.39

VeGAn

All 18 18 5.85

e 18.6 18.5 5.23

edX 17.3 17 6.45

GRL-

Quant

All 3.38 3.45 0.38

Hope 3.38 3.52 0.41

edX 3.39 3.30 0.37

VeGAn

All 3.71 3.86 0.48

e 3.69 3.86 0.51

edX 3.64 3.85 0.56

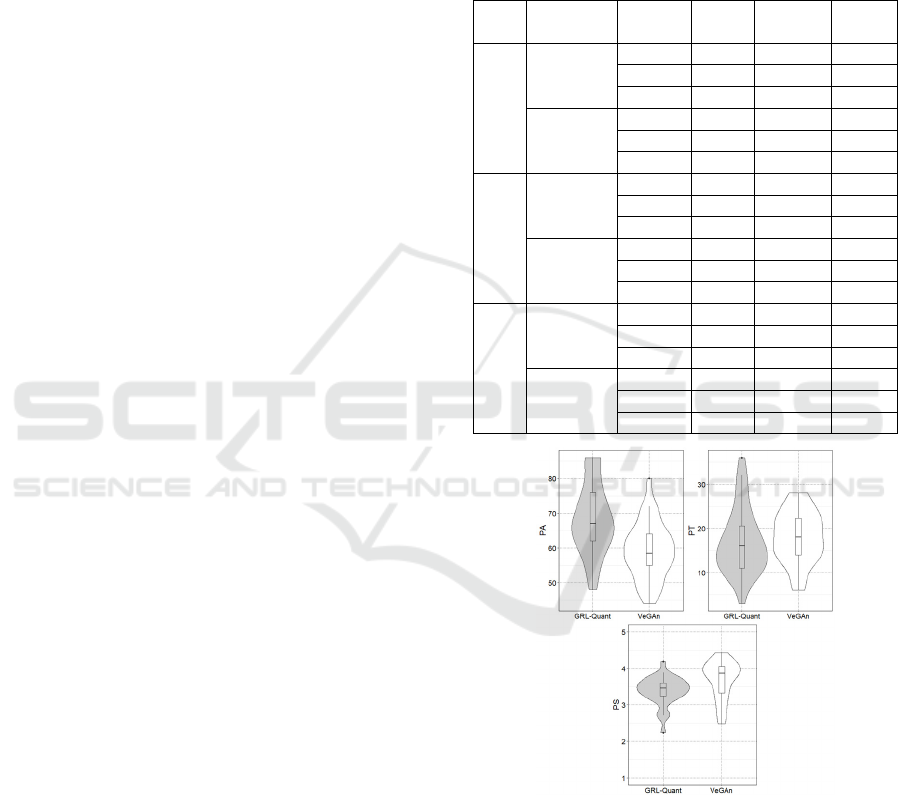

Figure 3: Violin plot of PA, PT and PS variables split by

technique.

The overall comparison of the two techniques

without splitting by system is visually represented in

Figure 3 by means of violin plots. The visual

representation of the variable Prioritization Accuracy

(PA) suggests that there is a difference between both

techniques in favor of GRL-Quant, but the

representation of the variables Prioritization Time

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

248

(PT) and Perceived Satisfaction (PS) the suggest that

there is no difference between the techniques.

4.2 Hypotheses Testing

Table 3 shows the results obtained after testing the

effects of the technique, system, and their interactions

for the Prioritization Accuracy (PA), Prioritization

Time (PT) and Perceived Satisfaction (PS).

Table 3: Summary of statistics for the dataset.

Var. Inter. Tech.

favor

System

favor

PA 0.000* 0.000#

GRL-

Quant

0.203# -

PT 0.970 $ 0.557$ - 0.399$ -

PS 0.009* 0.000# VeGAn 0.973# -

$ ANOVA; *Kruskal-Wallis; #Mann-Whitney

4.2.1 Testing Prioritization Accuracy

The Kruskal-Wallis test indicates that there is an

interaction between the technique and the system (p-

value = 0.000), signifying that it was necessary to

carry out a post-hoc analysis. The results of the

analysis detect two interactions, as shown in Table 4.

The interactions show that the participants obtained

greater accuracy when they used the GRL-Quant

technique to prioritize the edX system. This

interaction leaded us to detect a significant difference

between techniques, which occurred only when the

edX system was analyzed.

Table 4: Test results for the post-hoc analysis for PA.

Interaction Combination p-value

In favor

Technique

over

System

G vs V with edX 0.000 # G

G vs V with

0.357 & -

System

over

Technique

edX vs Hope

with G

0.001 # edX

edX vs Hope

with V

0.264 & -

G GRL-Quant; V VeGAn; $ ANOVA; #Mann-Whitney

These results can be seen in Table 2, in which the

mean of GRL-Quant is higher when the edX system

is analyzed. The null hypothesis H1

could not,

therefore, be rejected except when the edX system

was analyzed. This result may indicate that the

participants’ accuracy was greater when using the

GRL-Quant technique to analyze goal models of

domains like edX, but this assumption should be

validated in further experiments.

These results may be owing to the fact that both

techniques prioritize in different ways. On the one

hand, GRL-Quant uses a quantitative scale, on which

the user has to assign a value of between 0 and 100.

On the other, VeGAn uses a qualitative scale on

which the user has to assign one of the following

values: Very High, High, Medium, Low, Very Low.

4.2.2 Testing Prioritization Time

The ANOVA test performed did not detect an

interaction or a significant difference as regards the

technique used or the system analyzed. The

difference between the two techniques in terms of

prioritization time is not statistically significant. The

null hypothesis H2

could not consequently be

rejected, since the time taken by the participants to

prioritize was similar when using both techniques.

These results may be owing to the fact that the

prioritization of both techniques is quite similar and

that the difference between them does not affect the

time required to prioritize.

4.2.3 Testing Perceived Satisfaction

The Kruskal-Wallis test indicates that there is an

interaction between the technique and the system (p-

value = 0.009), signifying that it was necessary to

carry out a post-hoc analysis. We then performed a

post-hoc analysis using a t-test and a Mann-Whitney

test (depending on the normality of the data) to detect

which pairs of treatments were significantly different.

The results suggest that there are two significant

interactions, as shown in Table 5. The interactions

detected show that the participants perceived the

analysis results obtained by the VeGAn technique to

be more satisfactory, regardless of the system.

Table 5: Test results for the post-hoc analysis for PS.

Interaction Combination p-value

In favor

Technique

over

System

G vs V with edX 0.027 & V

G vs V with

Hope

0.014 # V

System

over

Technique

edX vs Hope

with G

0.663 # -

edX vs Hope

with V

0.850 # -

G GRL-Quant; V VeGAn; $ ANOVA; #Mann-Whitney

One of the possible reasons for this is that the

techniques analyze differently, and that VeGAn takes

more factors into account such as the importance of

the stakeholders or their confidence level as regards

the assigned relative importance.

Experimental Comparison of Two Goal-oriented Analysis Techniques

249

4.5 Summary of the Results

A summary of the results obtained is provided in

Table 6. The most prominent result is that the

participants perceived the analysis results obtained by

VeGAn to be more satisfactory.

Table 6: Summary of results.

otheses Status In favor of

: PA

Could not be

ected*

GRL-Quant

anal

zin

edX

: PT

Could not be

rejecte

: PS Re

ecte

VeGAn

*Interaction detected

The H1

could not be rejected because no

significant difference was detected when we

compared the PA of the techniques regarding the

analysis of the Hope system. However, the

interactions detected shown that the participants’

accuracy was greater when using GRL-Quant to

analyze the edX system. Overall, these results may

suggest that the scale of VeGAn can be improved by

experimenting with different ranges.

Regarding the PT, the results show that there is

neither an interaction effect nor a difference in means

between technique and system for this variable.

Hypothesis H2

could not, therefore, be rejected, as

no significant difference was detected as regards the

time taken by the participants to prioritize.

Regarding the PS, we found interaction between

the technique and the system, but this interaction

occurred between the techniques, regardless of the

system. It was, therefore, possible to reject hypothesis

in favor of VeGAn. These may suggest that the

results of VeGAn are perceived more satisfactorily

than those of GRL-Quant.

5 THREATS TO VALIDITY

In this section, we discuss some of the issues that

might have threatened the validity of this experiment.

Regarding the internal validity the design of the

experiment helped mitigate the learning effect, since

each participant used only one goal-oriented analysis

technique. In addition, none of the participants had

prior experience of goal-oriented analysis techniques.

The exchange of information between the participants

was avoided by using two different experimental

objects and monitoring the participants during the

experiment. The understandability of the materials

was assessed by conducting a pilot study.

Regarding the external validity the

representativeness of the results could have been

affected by the experimental objects used, the context

and the participants selected. The experimental task

can be considered realistic for small-sized projects,

and they are not trivial. The experiment was

conducted with students with no experience in goal-

oriented analysis techniques who received only

limited training in the techniques. However, their

profile was not very different to that of junior

software analysts. Experiments in industrial contexts

are, therefore, required in order to increase our

awareness as regards these results.

With regard to the measures used to quantify the

dependent variables, the prioritization accuracy was

measured using an information retrieval-based

approach together with the Persona (Cooper 1999)

technique in order to avoid any subjective evaluation.

In the case of the prioritization time, we asked the

participants to write down their starting and finishing

times when they accomplished the prioritization time.

The main threat is the validity of the statistical

tests applied. This threat was alleviated by using

commonly accepted tests employed in the empirical

SE community (Maxwell 2002), but more

replications are needed in order to confirm these

results. These results could be owing to the fact that

GRL-Quant and VeGAn calculate the results

differently and that VeGAn takes more factors into

account, such as the importance of the stakeholders or

confidence with the assigned importance.

6 CONCLUSIONS

The results show that the participants perceived the

results of VeGAn more satisfactorily than those of

GRL-Quant. Although this is still a preliminary

result, it encourages us to continue improving VeGAn

and to explore its use in more complex scenarios. An

interaction for the prioritization accuracy was

identified when GRL-Quant was used on the edX

system. We did not anticipate this interaction, since

we expected VeGAn to have greater prioritization

accuracy owing to the scale it uses (qualitative),

which is closer to natural language. We shall further

investigate this result in order to understand the

reasons behind it and to improve VeGAn. However,

since VeGAn’s major contribution is its fuzzy logic-

based propagation, which performs the value

calculation, we consider that the overall result of this

preliminary experiment is satisfactory.

From a research perspective, these results may be

of interest since we compared the accuracy of the

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

250

prioritization of intentional elements when using a

quantitative propagation technique, GRL-Quant, with

a fuzzy logic one, VeGAn. Moreover, the

participants’ use of the Persona (Cooper 1999)

technique helped them understand the stakeholders’

point of view and these could be considered as

surrogates for actual stakeholders when performing

these kind of studies. Of course, if the VeGAn

technique is used in a context with practitioners and

customers, the prioritization should be performed by

the actual stakeholders, and we would also need to

study how the technique behaves in this scenario.

As future work, we plan to implement a tool that

will provide technological support to the VeGAn

technique. Given the high number and complexity of

calculations, we consider that this tool will potentially

make it possible to reach a large number of users of

goal models interested in a value-driven analysis of

their models. We additionally plan to carry out

replications of this experiment in order to be able to

verify and generalize the results obtained. Finally, we

also plan to compare VeGAn with other goal-oriented

analysis techniques in order to see whether or not

there are significant differences among them.

ACKNOWLEDGEMENTS

This work was supported by the grant TIN2017-

84550-R (Adapt@Cloud project) funded by

MCIN/AEI/10.13039/501100011033 and the

“Programa de Ayudas de Investigación y Desarrollo”

(PAID-01-17) from the Universitat Politècnica de

València.

REFERENCES

Abrahão, S., Insfran, E., Gonzalez-Ladron-de-Guevara, F.,

Fernandez-Diego, M., Cano-Genoves, C., & de

Oliveira, R. P. (2019). Assessing the effectiveness of

goal-oriented modeling languages: A family of

experiments. Information and Software

Technology, 116, 106171.

Amyot, D., Ghanavati, S., Horkoff, J., Mussbacher, G.,

Peyton, L., & Yu, E. (2010). Evaluating goal models

within the goal ‐ oriented requirement language.

International Journal of Intelligent Systems, 25(8),

841-877.

Basili, V. R., & Rombach, H. D. (1988). The TAME

project: Towards improvement-oriented software

environments. IEEE Transactions on software

engineering, 14(6), 758-773.

Boehm, B. W. (2006). Value-based software engineering:

Overview and agenda. In Biffl, S., Aurum, A., Boehm,

B., Erdogmus, H., & Grünbacher, P. (Eds.) Value-based

software engineering, 3-14. Springer.

Cano-Genoves, C., Insfran, E., Abrahao, S., Fernandez-

Diego, M., & González-Ladrón-de-Guevara, F. (2019).

A value-based approach for reasoning with goal

models. In Proceedings of the 28th International

Conference on Information Systems Development

(ISD2019), Toulon, France

Chen, C. T. (2000). Extensions of the TOPSIS for group

decision-making under fuzzy environment. Fuzzy sets

and systems, 114(1), 1-9.

Cooper, A. (1999). The inmates are running the asylum. In

Software-Ergonomie’99 (pp. 17-17). Vieweg+ Teubner

Verlag, Wiesbaden.

Ernst, N. A., Mylopoulos, J., & Wang, Y. (2009).

Requirements evolution and what (research) to do about

it. In Design Requirements Engineering: A Ten-Year

Perspective (pp. 186-214). Springer, Berlin,

Heidelberg.

Frakes, W. B., & Baeza-Yates, R. (Eds.). (1992).

Information retrieval: data structures and algorithms.

Prentice-Hall, Inc.

Horkoff, J., & Yu, E. (2010). Interactive analysis of agent-

goal models in enterprise modeling. International

Journal of Information System Modeling and Design

(IJISMD), 1(4), 1-23.

Horkoff, J., & Yu, E. (2011). Analyzing goal models:

different approaches and how to choose among them.

In Proceedings of the 2011 ACM Symposium on

Applied Computing (pp. 675-682).

Horkoff, J., & Yu, E. (2013). Comparison and evaluation of

goal-oriented satisfaction analysis techniques.

Requirements Engineering, 18(3), 199-222.

Horkoff, J., & Yu, E. (2016). Interactive goal model

analysis for early requirements engineering.

Requirements Engineering, 21(1), 29-61.

Liaskos, S., Jalman, R., & Aranda, J. (2012). On eliciting

contribution measures in goal models. In 20th IEEE

International Requirements Engineering Conference

(RE) (pp. 221-230). IEEE.

Liu, L., & Yu, E. (2004). Designing information systems in

social context: a goal and scenario modelling approach.

Information systems, 29(2), 187-203.

Maxwell, K. D. (2002). Applied Statistics for Software

Managers. Prentice-Hall, Inc.

Experimental Comparison of Two Goal-oriented Analysis Techniques

251
