An Effective Deep Network for Head Pose Estimation without Keypoints

Chien Thai

, Viet Tran, Minh Bui, Huong Ninh and Hai Tran

Computer Vision Department, Optoelectronics Center, Viettel Aerospace Institute, Vietnam

Keywords:

Head Pose Estimation, Knowledge Distillation, Convolutional Neural Network.

Abstract:

Human head pose estimation is an essential problem in facial analysis in recent years that has a lot of computer

vision applications such as gaze estimation, virtual reality, driver assistance. Because of the importance of the

head pose estimation problem, it is necessary to design a compact model to resolve this task in order to reduce

the computational cost when deploying on facial analysis-based applications such as large camera surveillance

systems, AI cameras while maintaining accuracy. In this work, we propose a lightweight model that effectively

addresses the head pose estimation problem. Our approach has two main steps. 1) We ﬁrst train many teacher

models on the synthesis dataset - 300W-LPA to get the head pose pseudo labels. 2) We design an architecture

with the ResNet18 backbone and train our proposed model with the ensemble of these pseudo labels via the

knowledge distillation process. To evaluate the effectiveness of our model, we use AFLW-2000 and BIWI -

two real-world head pose datasets. Experimental results show that our proposed model signiﬁcantly improves

the accuracy in comparison with the state-of-the-art head pose estimation methods. Furthermore, our model

has the real-time speed of ∼300 FPS when inferring on Tesla V100.

1 INTRODUCTION

Head pose estimation (HPE) is an important prob-

lem in facial analysis that has been extensively re-

searched in recent years. Its application can be widely

observed in lots of intelligent computer vision sys-

tems including virtual reality (Kumar et al., 2017),

driver assistance (Schwarz et al., 2017; Murphy-

Chutorian et al., 2007), gaze estimation (Murphy-

Chutorian and Trivedi, 2008), human-computer inter-

action (Seemann et al., 2004; Wang et al., 2019) and

smart city surveillance.

The objective of head pose estimation is to ac-

curately identify the orientation of heads of individ-

uals found in images. Existing methods to solve

this problem can be divided into two primary cate-

gories: landmark-based approaches (Cao et al., 2014;

Lathuili

ere et al., 2017; Fanelli et al., 2011; Xiong

and De la Torre, 2015; Sun et al., 2013; Xin et al.,

2021; Bulat and Tzimiropoulos, 2017; DeMenthon

and Davis, 1995) and landmark-free approach (Ruiz

et al., 2018; Yang et al., 2019; Zhou and Gregson,

2020; Chang et al., 2017). Landmark-based methods

use facial keypoints extracted by landmark detectors

to regress the head pose angle. Recently, these ap-

proaches have achieved remarkable results since the

https://orcid.org/0000-0002-5098-6862

usage of deep neural networks has greatly enhanced

the quality of landmark detectors. However, the prob-

lem remains challenging due to the fact that not only a

minor error of landmark detectors may adversely af-

fect the head pose estimation but learning the rela-

tion between the geometric distribution of facial land-

marks and head poses is not a trivial task. Further-

more, using landmark detection as a preprocessing

step imposes a computational burden for the whole

process of estimating head angle which hinders its us-

age for real-time applications. Landmark-free meth-

ods, on the other hand, directly predict the head poses

from images without detecting facial keypoints which

results in their fast execution time.

In addition to the above approaches, some works

utilize depth information from depth cameras (Meyer

et al., 2015; Fanelli et al., 2011; Mukherjee and

Robertson, 2015; Martin et al., 2014). Although this

approach provides a prominent result, it still has some

limitations. The depth cameras are sensitive to illu-

mination change and light conditions so that they of-

ten yield substandard results in an uncontrolled envi-

ronment. Moreover, they are very expensive and use

more storage and transfer time, so they are often im-

practical for real-time applications.

Because of the importance of the head pose es-

timation problem and in order to minimize the pro-

Thai, C., Tran, V., Bui, M., Ninh, H. and Tran, H.

An Effective Deep Network for Head Pose Estimation without Keypoints.

DOI: 10.5220/0010870900003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 90-98

ISBN: 978-989-758-549-4; ISSN: 2184-4313

cessing time of the model when deploying on large

systems or embedded platforms, our goal is to design

a lightweight architecture that solves this task while

still guaranteeing remarkable performance. For hav-

ing a compact and simple model, our network uses

ResNet18 architecture as a backbone. The contribu-

tions of our work can be summarized as follows:

• We address a major mistake found in HopeNet

(Ruiz et al., 2018) in which annotated face boxes

are mislabeled. We prove that correcting those

mislabeled boxes can signiﬁcantly improve the

accuracy of the head pose estimation task.

• An end-to-end deep architecture designed to solve

head pose estimation problem is proposed. A

lightweight model is trained to this task via the

knowledge distillation process.

• Experiments are conducted to evaluate the per-

formance of our method on two challenging

head pose datasets (BIWI and AFLW-2000).

Our method achieves state-of-the-art performance

when evaluating on the head pose dataset.

The rest of the paper is organized as follows: Sec-

tion 2 puts forward some related works on head pose

estimation problem. In section 3, we present our pro-

posed method. Section 4 discusses the datasets, ex-

periments, results, and ablation study. Finally, the

conclusion and future work are discussed in Section

2 RELATED WORKS

Convolutional Neural Networks. (CNNs) are

widely used in computer vision tasks and gradu-

ally replace the traditional image processing methods.

CNN is designed to automatically learn the spatial

features of the image by using convolution kernels.

With many convolutional layers, deep networks can

extract high-level semantic features. He et al. (He

et al., 2016) propose the Residual Network to train the

much deeper convolutional neural network. ResNet

uses a skip connection between the current layer and

the previous layer which can learn the identity map-

ping and solve the vanishing gradient problem. Be-

cause of its powerful and simple architecture, ResNet

and its variants (Xie et al., 2017; Zhang et al., 2020;

Gao et al., 2019) are widely used in many computer

vision applications and deliver high performance.

Human Head Pose Estimation. has been re-

searched over the past 25 years with many different

approaches. Appearance Template (Niyogi and Free-

man, 1996; Beymer, 1994; Sherrah et al., 2001; Ng

and Gong, 2002; Sherrah et al., 1999) is the method

that compares the input image with a set of labeled

templates and assigns it to the most similar template.

Detector arrays (Huang et al., 1998; Zhang et al.,

2006; Jones and Viola, 2003) estimate head pose by

training multiple face detectors for the different dis-

crete poses.

Many approaches are based on facial landmarks

from the input image to estimate the head pose. With

the progress of landmarks detection, landmark-based

methods demonstrate superior performance. Demen-

thon et al. (DeMenthon and Davis, 1995) pro-

posed Pose from Orthography and Scaling with Iter-

ations which determines the head pose by 3D com-

puter vision techniques for the given 2D face land-

marks. FAN (Bulat and Tzimiropoulos, 2017) us-

ing deep neural network to estimate 3D face models.

EVA-GCN (Xin et al., 2021) constructs a landmark-

connection graph and leverages the Graph Convolu-

tion Network (Yan et al., 2018) to learn the nonlinear

relationships between head poses and distribution of

facial keypoints.

Multi-task methods combine the head pose es-

timation problem with other related facial analysis

problems, such as face detection, keypoints detection.

Some works show that learning with related tasks

yields better results than learning individual tasks in-

dependently (Chen et al., 2014; Kumar et al., 2017;

Zhu and Ramanan, 2012; Ranjan et al., 2017b). KE-

PLER (Kumar et al., 2017) predicts face detection

and pose estimation jointly by using Heatmap-CNN

to capture structured global and local features. Hy-

perface (Ranjan et al., 2017a) presents a convolu-

tional neural network for simultaneous face detection,

landmarks localization, pose estimation, and gender

recognition.

Gu et al. (Gu et al., 2017) proposed a dynamic

facial analysis that uses a recurrent neural network.

They improve head pose estimation and facial land-

marks localization by leveraging the time dimension

from videos instead of a single frame.

For accurate head pose estimation, some methods

utilize 3D information of depth images. Meyer et al.

(Meyer et al., 2015) perform head pose estimation by

registering 3D morphable models to depth images, us-

ing the particle swarm optimization and the iterative

closest point algorithm. Fanelli et al. (Fanelli et al.,

2011) using Random Regression Forests to regress the

head pose estimation of depth images.

Recent works directly predict the Euler angles

from a single RGB image by using a deep neural net-

work and achieve prominent performance. HopeNet

(Ruiz et al., 2018) proposed a multi-loss framework

that combines binned pose classiﬁcation and regres-

An Effective Deep Network for Head Pose Estimation without Keypoints

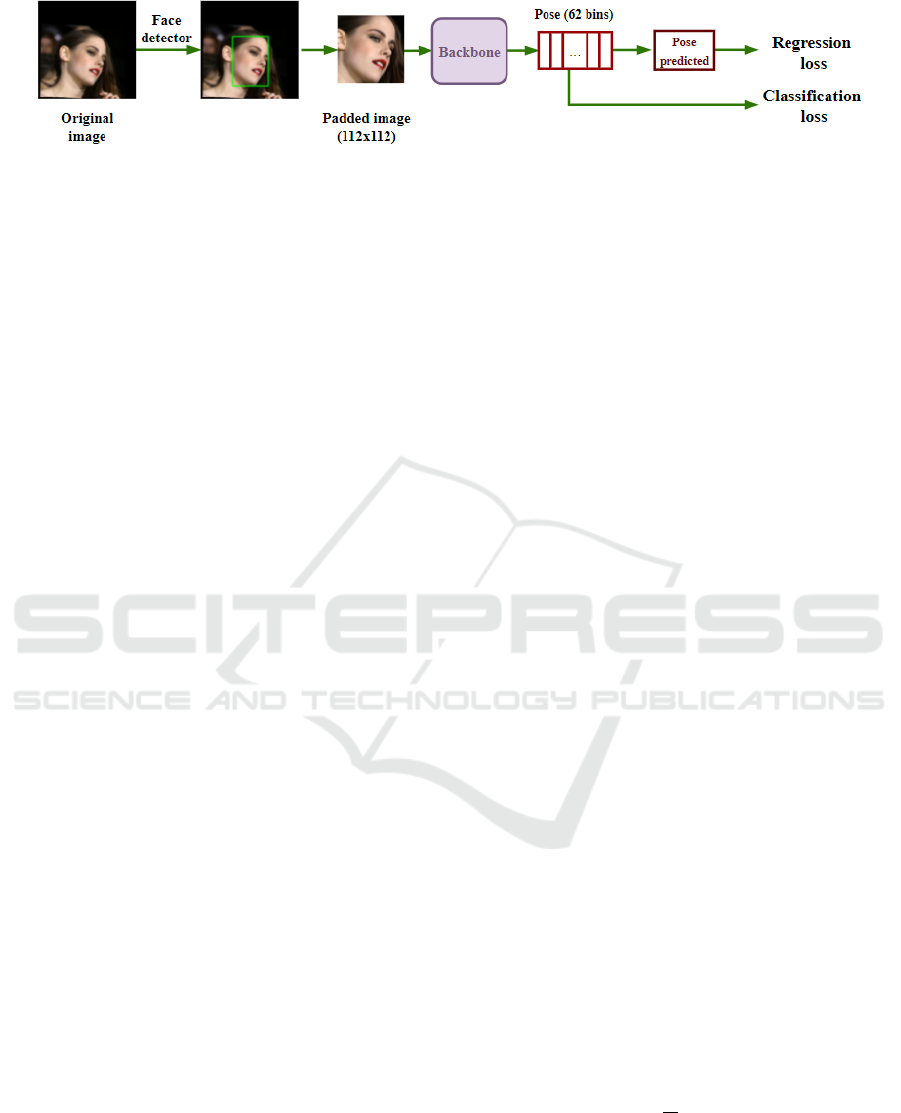

Figure 1: The overview of the head pose model. The original image is passed through the face detector to get the bounding

box of the objective face. The detected face is padded to a squared image and resized to 112x112. The head pose model

extract 62 dimensions distribution vector for the given image. The predicted pose is calculated by the expectation of this

vector. For each Euler angle, the classiﬁcation loss is the cross-entropy loss between distribution vector and one-hot vector,

the regression loss is the mean square error of ground truth and predicted pose.

sion loss for each Euler angle. By using a very stable

softmax layer and cross-entropy for binned classiﬁca-

tion loss, the network obtained robust neighborhood

prediction of the head pose. FSA-Net (Yang et al.,

2019) employs the soft stagewise regression scheme

by training classiﬁcation and regression objectives of

the features from multiple stages. It provides a com-

pact model and accurate prediction. WHENet (Zhou

and Gregson, 2020) proposed wrapped loss to esti-

mate the full 360-degree range of yaw angle. Our

proposed network has similar architecture to HopeNet

(Ruiz et al., 2018), but has a smaller model size and

achieves better performance on two challenging head

pose datasets - BIWI and AFLW-2000.

3 PROPOSED METHOD

In this section, we describe the major disadvantage of

previous work and the method to mitigate this prob-

lem. After that, we explain the proposed method to

construct an effective head pose estimation model via

knowledge distillation process.

The head pose estimation problem can be mathe-

matically formulated as: Given a set of training im-

ages X = {x

|i = 1..N} and ground truth Y = {y

|i =

1..N}, where N is number of images, and y

is 3D vec-

tor of image x

corresponding to three Euler angles

(yaw, pitch, roll), the goal is to ﬁnd a function F so

that the absolute difference between F(x) and the real

head pose y for the given image x as small as possible.

Inspired by HopeNet (Ruiz et al., 2018), we de-

sign a network using a multi-loss framework to solve

this problem. HopeNet casts the regression problem

of head pose estimation as a classiﬁcation problem by

dividing the poses range into 66 bins, each bin con-

tains 3 units of degree. The predicted pose is the ex-

pected value of classes distribution.

Further investigating HopeNet, we found that it is

the preprocessing data that hinders its performance.

They loosely crop around the bounding box of a face

on the image and resize the cropped image to 224x224

before ﬁtting the model. Because the height of the

face bounding box is often longer than the width, it

slightly changes the real head pose and causes a neg-

ative effect on the training and testing phase.

To mitigate this problem, we padded the bounding

box of face to squared shape. Given a bounding box

, y

, x

, y

), the padding size k is calculated by |x

– x

– y

+ y

| (the absolute difference between width

and height). If the height h = x

– x

is longer than the

width w = y

– y

, the new coordinates of bounding

box (x

, y

, x

, y

) are:

= x

= y

− [k/2]

= y

+ [k/2]

and vice versa. After getting the square image of

faces, we resize it to (112, 112) in order to decrease

the computation cost when training and inference.

Unlike HopeNet, we divide the poses range from

-93 to 93 into 62 bins for each Euler angle. The clas-

siﬁcation loss of angle is cross-entropy loss between

softmax output of model and pose’s corresponding

one-hot vector:

angle

cls

∑

i=1

∗ log( ˆy

) (1)

where y

and ˆy

are respectively one-hot vector of

pose and predicted softmax output for given input x

The predicted pose of x

is expected values of soft-

max output that is denoted by r

. The regression loss

of angle is mean squared error between the ground

truth labels y

and the predicted pose r

angle

reg

∑

i=1

− y

(2)

The total loss is composed by three separate

losses, each loss is calculated by the sum of classi-

ﬁcation and regression loss of angle, as following:

L =

∑

angle

cls

+ L

angle

reg

(3)

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

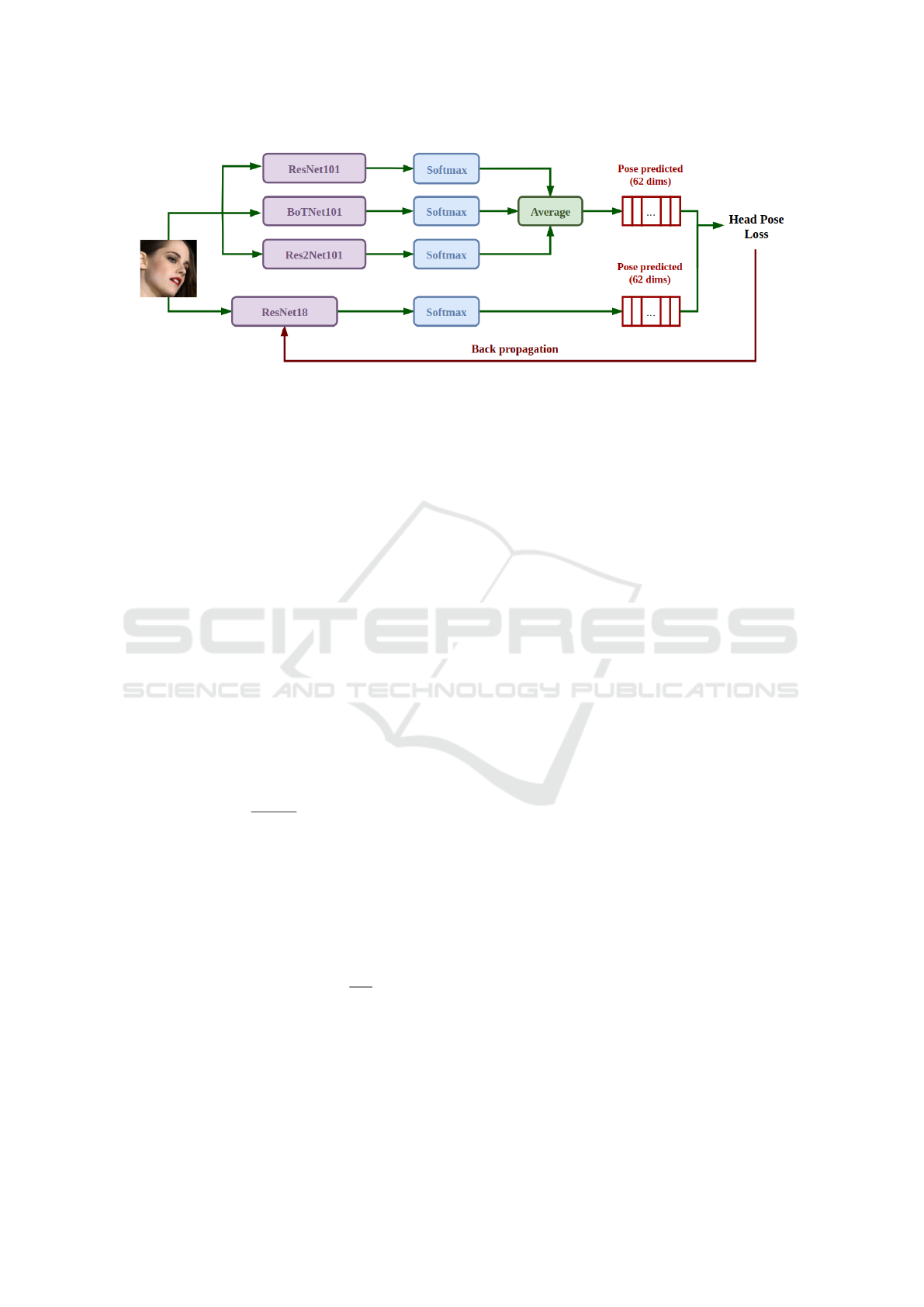

Figure 2: The overview of proposed method. The student model using ResNet18 backbone. The head pose loss is the sum of

Kullback-Leibler Divergence loss between softmax output of student model and ensemble output of head pose teacher models

on each of yaw, pitch, roll angle. The total loss is sum of distillation loss of three Euler angles.

where angle ∈ {yaw, pitch,roll}

The above method uses hard labels to train head

pose estimation models. Inspired by (Hinton et al.,

2015), we use knowledge distillation to construct a

compact model while enhancing the performance of

this task. Our network uses ResNet18 (He et al.,

2016) as the backbone, a simple and small architec-

ture which is trained to match the output of head

pose teacher models (pseudo label). With supervised

learning, models are trained to match the same la-

bels but with the different initiation and architectures,

they will focus on distinctive features. So, we ensem-

ble outputs of several strong head pose models to get

more informative teacher features.

Given N

teacher

head pose models, we ensemble

by calculating mean regression outputs of them. It

is equal to the expected value of mean softmax out-

puts of these models. So, the output after ensemble n

teacher head pose models is:

ens

teacher

∑

j=1

ˆy

(4)

where ˆy

is softmax ouput of head pose teacher model

j for given image x

The loss function for head pose task is Kullback-

Leibler Divergence between softmax output of stu-

dent model ˆy

and output ensemble of n teacher mod-

els y

ens

head pose

= −

∑

i=1

ens

∗ log(

ˆy

ens

) (5)

Because head pose estimation is a challeng-

ing task, we found that the stronger model with a

lot of parameters and computation cost, the more

model’s capacity to achieve good results. Base on

the performance on ImageNet dataset (Deng et al.,

2009), we train three head pose teacher models from

scratch whose backbones are chosen respectively as

ResNet101 (He et al., 2016), BotNet101 (Srinivas

et al., 2021), and Res2Net101 (Gao et al., 2019). Af-

ter that, we train a head pose model with backbone

ResNet18 by the aforementioned head pose knowl-

edge distillation strategy.

In our experiment, we observed that the big mod-

els (teacher models) often give larger probabilities to

the bins in the proximity of the truth bin and smaller

scores to the ones far away. This is valuable informa-

tion (i.e. the faces in a bin are more likely the faces

in its neighbor bins) but it has very little effect on the

cross entropy cost function during training if the prob-

abilities are so close to zero. This means the soft tar-

gets of the teacher models attain a variety of informa-

tion than one-hot labels, which helps the small model

(student model) learn easily. So, we argue that the

distilled model can preserve the generalization of the

teacher models and reaches highly accurate results.

4 EXPERIMENTAL RESULTS

In this section, we describe the datasets for train-

ing and testing, implementation, results, comparisons

with other state-of-the-art methods and the ablation

study.

4.1 Dataset

Headpose Dataset: In our experiment, we use three

popular datasets for the head pose estimation prob-

lem: 300W-LPA (Hsu et al., 2019), AFLW-2000 (Zhu

and Ramanan, 2012), and BIWI (Fanelli et al., 2011)

datasets. 300W-LPA is a synthetically expanded

dataset that provides over 350000 images across large

poses. The AFLW-2000 dataset provides head pose

An Effective Deep Network for Head Pose Estimation without Keypoints

Table 1: Mean average error of Euler angles across both state-of-the-art landmark-based and landmark-free methods on the

BIWI and AFLW2000 dataset.

BIWI AFLW-

2000

Model Yaw Pitch Roll MAE Yaw Pitch Roll MAE

KEPLER (Kumar et al., 2017) 8.80 17.3 16.2 13.9 - - - -

FAN (Bulat and Tzimiropoulos, 2017) 8.53 7.48 7.63 7.89 6.36 12.3 8.71 9.12

Dlib (Kazemi and Sullivan, 2014) 16.8 13.8 6.19 12.2 23.1 13.6 10.5 15.8

3DDFA (Zhu et al., 2016) - - - - 5.40 8.53 8.25 7.39

EVA-GCN (Xin et al., 2021) 4.01 4.78 2.98 3.92 4.46 5.34 4.11 4.64

HopeNet (α = 2) (Ruiz et al., 2018) 5.17 6.98 3.39 5.18 6.47 6.56 5.44 6.16

HopeNet (α = 1) (Ruiz et al., 2018) 4.81 6.61 3.27 4.90 6.92 6.64 5.67 6.41

SSR-Net-MD (Yang et al., 2018) 4.49 6.31 3.61 4.65 5.14 7.09 5.89 6.01

FSA-Caps-Fusion (Yang et al., 2019) 4.27 4.96 2.76 4.00 4.50 6.08 4.64 5.07

WHENet-V (Zhou and Gregson, 2020) 3.60 4.10 2.73 3.48 4.44 5.75 4.31 4.83

EHPNet (Ours) 3.68 4.03 2.57 3.43 3.23 5.54 3.88 4.15

Figure 3: Some examples of face image from the datasets.

The ﬁrst row is from the 300W-LPA (Hsu et al., 2019)

which is a synthetically dataset. The second row and third

row are respectively from the AFLW-2000 (Zhu et al., 2016)

and BIWI (Fanelli et al., 2011) - two real-world datasets.

ground truth and corresponds to 68 landmark points

among 2000 3-D face images. Images in the AFLW-

2000 dataset have large pose annotation and various

lighting conditions. BIWI dataset uses a Kinect v2

device to record RGB-D video of different subjects.

It contains 24 videos of 20 subjects across different

head poses. There are roughly 15000 samples in this

dataset, each sample contains RGB and depth images,

and pose annotations were created by using depth in-

formation.

Following HopeNet, we use 300-LPA for training

while testing on AFLW-2000 and BIWI - two real-

world datasets. In our case, we only use RGB im-

ages for training in these datasets. We run RetinaFace

(Deng et al., 2019) on all images to get the coordinate

of the bounding box of faces.

4.2 Implementation

For better estimating on low-resolution face images,

we augment the head pose training dataset by random

downsampling and upsampling to original image size,

randomly adjust brightness and contrast, blur by ran-

dom Gaussian kernel. We randomly ﬂip the image

and relabel the yaw and roll angle of the ﬂip image to

-yaw and -roll to get more training data.

We use Pytorch for implementing the proposed

network. We use 100 epochs to train the teacher net-

works with hard labels and 200 epochs for the knowl-

edge distillation process. The chosen optimizer is

Adam with initial learning-rate is 1e-4. The learn-

ing rate is reduced by the cosine annealing strategy.

The experiments are performed on a computer with a

Tesla V100 GPU.

4.3 Results

We compare our proposed network with other state-

of-the-art head pose estimation methods on BIWI

and AFLW datasets. KEPLER (Kumar et al., 2017),

FAN (Bulat and Tzimiropoulos, 2017), Dlib (Kazemi

and Sullivan, 2014) and EVA-GCN (Xin et al.,

2021) are landmark-based methods. KEPLER (Ku-

mar et al., 2017) uses a modiﬁed GoogleNet to pre-

dict facial landmark points and pose at the same

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

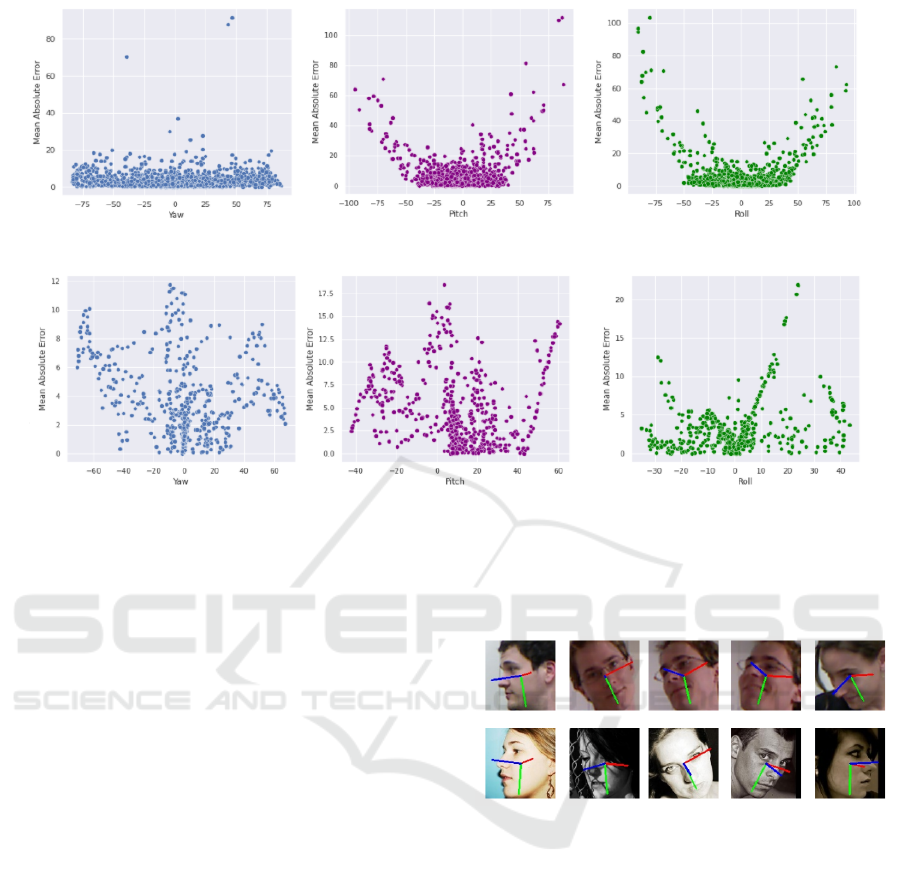

Figure 4: The scatter plot between yaw, pitch, roll values and errors on AFLW-2000 dataset.

Figure 5: The scatter plot between yaw, pitch, roll values and errors on BIWI Dataset.

time. Dlib (Kazemi and Sullivan, 2014) is a face

library that uses an ensemble of regression trees

to detect landmarks. FAN (Bulat and Tzimiropou-

los, 2017) is a state-of-the-art landmark detection

method. EVA-GCN (Xin et al., 2021) is a state-

of-the-art landmark-based method which constructs a

landmark-connection graph and leverages the Graph

Convolution Network (Yan et al., 2018) to learn the

nonlinear relationships between head poses and dis-

tribution of facial keypoints. HopeNet (Ruiz et al.,

2018), FSANet (Yang et al., 2019) and WHENet

(Zhou and Gregson, 2020) are landmark free meth-

ods which treat the regression problem as classiﬁca-

tion problem by dividing the poses range to different

classes. The α coefﬁcient of HopeNet is the weight of

the regression losses.

Table 1 shows the comparisons of our proposed

network with these above models respectively on

BIWI and AFLW-2000 datasets. The evaluation met-

ric is the mean absolute error.

As shown in Table 1, our proposed EHPNet

achieves state-of-the-arts on both AFLW-2000 and

BIWI datasets. It outperforms the previous state-of-

the-art WHENet by respectively 14.9% and 1.15%.

EHPNet has a similar architecture with WHENet and

HopeNet but uses a smaller model and image size.

Even so, it has more signiﬁcant improvement com-

pared to WHENet and HopeNet. Furthermore, our

model has a real-time speed of 300FPS when infer-

ring on Tesla V100.

Figure 6 shows some visualization of predicted

images on BIWI, AFLW-2000. Besides achieving

good results on images with variant poses and vari-

ous lighting conditions, the network can also predict

well on face images with high occlusion.

Figure 6: Results of the proposed network. The blue line in-

dicates towards the front of the face, the green line pointing

downward direction and the red line pointing to the side.

The ﬁrst row is the prediction on the BIWI dataset. The

second row is the estimation result on images with various

lighting conditions of AFLW-2000.

The scatter diagrams in Figure 4 and Figure 5

show the inﬂuence of the pose’s value on prediction

results for each angle on the AFLW-2000 and BIWI

datasets. On AFLW-2000, the yaw angle has a smaller

mean absolute error than pitch and roll angles and has

a stable prediction for pose range. For the pitch and

roll angles, the model tends to predict well if the value

of pose is as close to 0. As shown in Figure 4, there is

some prediction that has a very big error. We ﬁnd that

this happens because the head poses on AFLW-2000

are provided by using 3D landmarks, so some exam-

ples can have a big difference in a pose if viewed as

RGB images. On the BIWI dataset, the discrepancy

An Effective Deep Network for Head Pose Estimation without Keypoints

Table 2: The impact of different backbone and distillation training on head pose estimation models. The evaluation metric is

the mean absolute error of Euler angles.

BIWI AFLW-

2000

Backbone Yaw Pitch Roll MAE Yaw Pitch Roll MAE

ResNet18 3.969 4.849 2.869 3.897 3.785 5.642 4.238 4.555

ResNet101 3.680 3.945 2.755 3.460 3.249 5.276 3.821 4.115

BotNet101 3.876 4.066 2.528 3.489 3.559 5.109 3.697 4.135

Res2Net101 3.827 3.939 2.669 3.478 3.223 5.080 3.556 3.953

Ensemble 3.688 3.859 2.508 3.352 3.169 5.009 3.560 3.913

Distilled ResNet18 3.683 4.033 2.571 3.429 3.226 5.345 3.876 4.148

between ground truth and prediction is not signiﬁcant

but the trending is slightly changed. The model pre-

dicts better on yaw and roll angle. The higher pose’s

value of pitch angle leads to face occlusion in the im-

age and makes the model confused. As shown in Fig-

ure 5, many samples from the BIWI dataset don’t fol-

low the trend. For example, a sample which has a

yaw angle value close to zero has a maximum error.

In our experiments, we observed that, although it has

a small value of the yaw angle, it has a large pitch and

roll so the face can be occluded, and leads to wrong

predictions.

4.4 Ablation Study

We have conducted the ablation study when changing

the backbone and using a pseudo label from teacher

models for the head pose estimation task. As shown in

Table 2, the result has signiﬁcant improvement when

using padding instead of resizing the cropped face im-

age like HopeNet. By using ensemble, the mean ab-

solute errors are slightly decreased on both BIWI and

AFLW datasets. The small head pose model achieves

better accuracy when training via the knowledge dis-

tillation process. With ResNet18 as a backbone, the

pose model using pseudo labels from the output of en-

semble many teacher models is better than the same

model using the hard label. The distilled head pose

model has equivalent results to its teacher, even bet-

ter.

In our experiment, we observed that these mod-

els can predict the same result for the yaw angle.

But for pitch and roll angle, the complex head pose

model works better. Among three teacher models,

each one can predict better at a speciﬁc pose interval

(i.e. model ResNet101 achieves the smallest error of

yaw with 3.680, while Res2Net101 outperforms the

two others with the pitch error of 3.939 and the last

one BotNet101 attains the best roll error of 2.528),

but worse at the others. By preserving the generaliza-

tion of each model, the ensemble results have a stable

prediction on the poses range. Overall, training the

baseline model with hard targets leads to severe over-

ﬁtting, whereas training the same model with ensem-

ble soft targets is able to recover better generalization

and achieves competitive results.

5 CONCLUSIONS

In this paper, we have presented an EHPNet, which

can directly, accurately and robustly predict the head

rotation from a single RGB image. This is achieved

by mitigating the disadvantages of previous work,

along with distilling the knowledge from many ro-

bust head pose estimation teacher models. By us-

ing ResNet18 architecture as a backbone, the model

is compact and usable in many computer vision

applications. The proposed network outperforms

both landmark-based and landmark-free methods and

achieves state-of-the-art results on both the AFLW-

2000 and BIWI datasets, with higher respectively

14.9% and 1.15% than WHENet.

In the future, we would like to use a lower com-

putation network as well as reduce the input image

resolution. Besides, more effective knowledge dis-

tillation techniques will be used to help the student

model achieve better accuracy.

REFERENCES

Beymer, D. (1994). Face recognition under varying pose.

In CVPR, volume 94, page 137. Citeseer.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

Bulat, A. and Tzimiropoulos, G. (2017). How far are

we from solving the 2d & 3d face alignment prob-

lem?(and a dataset of 230,000 3d facial landmarks).

In Proceedings of the IEEE International Conference

on Computer Vision, pages 1021–1030.

Cao, X., Wei, Y., Wen, F., and Sun, J. (2014). Face align-

ment by explicit shape regression. International jour-

nal of computer vision, 107(2):177–190.

Chang, F.-J., Tuan Tran, A., Hassner, T., Masi, I., Nevatia,

R., and Medioni, G. (2017). Faceposenet: Making a

case for landmark-free face alignment. In Proceed-

ings of the IEEE International Conference on Com-

puter Vision Workshops, pages 1599–1608.

Chen, D., Ren, S., Wei, Y., Cao, X., and Sun, J. (2014).

Joint cascade face detection and alignment. In Euro-

pean conference on computer vision, pages 109–122.

Springer.

DeMenthon, D. F. and Davis, L. S. (1995). Model-based

object pose in 25 lines of code. International journal

of computer vision, 15(1-2):123–141.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Deng, J., Guo, J., Zhou, Y., Yu, J., Kotsia, I., and Zafeiriou,

S. (2019). Retinaface: Single-stage dense face locali-

sation in the wild. arXiv preprint arXiv:1905.00641.

Fanelli, G., Weise, T., Gall, J., and Van Gool, L. (2011).

Real time head pose estimation from consumer depth

cameras. In Joint pattern recognition symposium,

pages 101–110. Springer.

Gao, S., Cheng, M.-M., Zhao, K., Zhang, X.-Y., Yang, M.-

H., and Torr, P. H. (2019). Res2net: A new multi-scale

backbone architecture. IEEE transactions on pattern

analysis and machine intelligence.

Gu, J., Yang, X., De Mello, S., and Kautz, J. (2017). Dy-

namic facial analysis: From bayesian ﬁltering to re-

current neural network. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 1548–1557.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hinton, G., Vinyals, O., and Dean, J. (2015). Distilling

the knowledge in a neural network. arXiv preprint

arXiv:1503.02531.

Hsu, G.-S., Huang, W.-F., and Yap, M. H. (2019). Edge-

embedded multi-dropout framework for real-time face

alignment. IEEE Access, 8:6032–6044.

Huang, J., Shao, X., and Wechsler, H. (1998). Face pose

discrimination using support vector machines (svm).

In Proceedings. fourteenth international conference

on pattern recognition (Cat. No. 98EX170), volume 1,

pages 154–156. IEEE.

Jones, M. and Viola, P. (2003). Fast multi-view face detec-

tion. Mitsubishi Electric Research Lab TR-20003-96,

3(14):2.

Kazemi, V. and Sullivan, J. (2014). One millisecond face

alignment with an ensemble of regression trees. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 1867–1874.

Kumar, A., Alavi, A., and Chellappa, R. (2017). Kepler:

Keypoint and pose estimation of unconstrained faces

by learning efﬁcient h-cnn regressors. In 2017 12th

ieee international conference on automatic face &

gesture recognition (fg 2017), pages 258–265. IEEE.

Lathuili

ere, S., Juge, R., Mesejo, P., Munoz-Salinas, R., and

Horaud, R. (2017). Deep mixture of linear inverse

regressions applied to head-pose estimation. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition, pages 4817–4825.

Martin, M., Van De Camp, F., and Stiefelhagen, R. (2014).

Real time head model creation and head pose estima-

tion on consumer depth cameras. In 2014 2nd Inter-

national Conference on 3D Vision, volume 1, pages

641–648. IEEE.

Meyer, G. P., Gupta, S., Frosio, I., Reddy, D., and Kautz, J.

(2015). Robust model-based 3d head pose estimation.

In Proceedings of the IEEE international conference

on computer vision, pages 3649–3657.

Mukherjee, S. S. and Robertson, N. M. (2015). Deep head

pose: Gaze-direction estimation in multimodal video.

IEEE Transactions on Multimedia, 17(11):2094–

2107.

Murphy-Chutorian, E., Doshi, A., and Trivedi, M. M.

(2007). Head pose estimation for driver assistance

systems: A robust algorithm and experimental evalua-

tion. In 2007 IEEE intelligent transportation systems

conference, pages 709–714. IEEE.

Murphy-Chutorian, E. and Trivedi, M. M. (2008). Head

pose estimation in computer vision: A survey. IEEE

transactions on pattern analysis and machine intelli-

gence, 31(4):607–626.

Ng, J. and Gong, S. (2002). Composite support vector ma-

chines for detection of faces across views and pose es-

timation. Image and Vision Computing, 20(5-6):359–

368.

Niyogi, S. and Freeman, W. T. (1996). Example-based head

tracking. In Proceedings of the second international

conference on automatic face and gesture recognition,

pages 374–378. IEEE.

Ranjan, R., Patel, V. M., and Chellappa, R. (2017a). Hy-

perface: A deep multi-task learning framework for

face detection, landmark localization, pose estimation,

and gender recognition. IEEE transactions on pattern

analysis and machine intelligence, 41(1):121–135.

Ranjan, R., Sankaranarayanan, S., Castillo, C. D., and Chel-

lappa, R. (2017b). An all-in-one convolutional neu-

ral network for face analysis. In 2017 12th IEEE In-

ternational Conference on Automatic Face & Gesture

Recognition (FG 2017), pages 17–24. IEEE.

Ruiz, N., Chong, E., and Rehg, J. M. (2018). Fine-grained

head pose estimation without keypoints. In Proceed-

ings of the IEEE conference on computer vision and

pattern recognition workshops, pages 2074–2083.

Schwarz, A., Haurilet, M., Martinez, M., and Stiefelhagen,

R. (2017). Driveahead-a large-scale driver head pose

An Effective Deep Network for Head Pose Estimation without Keypoints

dataset. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition Workshops,

pages 1–10.

Seemann, E., Nickel, K., and Stiefelhagen, R. (2004). Head

pose estimation using stereo vision for human-robot

interaction. In Sixth IEEE International Conference

on Automatic Face and Gesture Recognition, 2004.

Proceedings., pages 626–631. IEEE.

Sherrah, J., Gong, S., and Ong, E.-J. (1999). Understand-

ing pose discrimination in similarity space. In BMVC,

pages 1–10. Citeseer.

Sherrah, J., Gong, S., and Ong, E.-J. (2001). Face distri-

butions in similarity space under varying head pose.

Image and Vision Computing, 19(12):807–819.

Srinivas, A., Lin, T.-Y., Parmar, N., Shlens, J., Abbeel, P.,

and Vaswani, A. (2021). Bottleneck transformers for

visual recognition. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 16519–16529.

Sun, Y., Wang, X., and Tang, X. (2013). Deep convolu-

tional network cascade for facial point detection. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3476–3483.

Wang, Y., Liang, W., Shen, J., Jia, Y., and Yu, L.-F. (2019).

A deep coarse-to-ﬁne network for head pose estima-

tion from synthetic data. Pattern Recognition, 94:196–

206.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2017).

Aggregated residual transformations for deep neural

networks. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 1492–

1500.

Xin, M., Mo, S., and Lin, Y. (2021). Eva-gcn: Head pose

estimation based on graph convolutional networks. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 1462–

1471.

Xiong, X. and De la Torre, F. (2015). Global supervised de-

scent method. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

2664–2673.

Yan, S., Xiong, Y., and Lin, D. (2018). Spatial temporal

graph convolutional networks for skeleton-based ac-

tion recognition. In Thirty-second AAAI conference

on artiﬁcial intelligence.

Yang, T.-Y., Chen, Y.-T., Lin, Y.-Y., and Chuang, Y.-Y.

(2019). Fsa-net: Learning ﬁne-grained structure ag-

gregation for head pose estimation from a single im-

age. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

1087–1096.

Yang, T.-Y., Huang, Y.-H., Lin, Y.-Y., Hsiu, P.-C., and

Chuang, Y.-Y. (2018). Ssr-net: A compact soft stage-

wise regression network for age estimation. In IJCAI,

volume 5, page 7.

Zhang, H., Wu, C., Zhang, Z., Zhu, Y., Lin, H., Zhang,

Z., Sun, Y., He, T., Mueller, J., Manmatha, R., et al.

(2020). Resnest: Split-attention networks. arXiv

preprint arXiv:2004.08955.

Zhang, Z., Hu, Y., Liu, M., and Huang, T. (2006). Head

pose estimation in seminar room using multi view face

detectors. In International evaluation workshop on

classiﬁcation of events, activities and relationships,

pages 299–304. Springer.

Zhou, Y. and Gregson, J. (2020). Whenet: Real-time ﬁne-

grained estimation for wide range head pose. arXiv

preprint arXiv:2005.10353.

Zhu, X., Lei, Z., Liu, X., Shi, H., and Li, S. Z. (2016). Face

alignment across large poses: A 3d solution. In Pro-

ceedings of the IEEE conference on computer vision

and pattern recognition, pages 146–155.

Zhu, X. and Ramanan, D. (2012). Face detection, pose es-

timation, and landmark localization in the wild. In

2012 IEEE conference on computer vision and pattern

recognition, pages 2879–2886. IEEE.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
