Towards a Goal-oriented Method for Software Solutions Prioritization

Prisca Petelo, Abderrahmane Leshob

, Benzarti Imen

and Hafedh Mili

University of Quebec at Montreal, Montreal, Canada

Keywords:

Goal Modeling, Archimate, Goal-oriented Requirement Language, Software Prioritization, Model-driven

Design, Enterprise Architecture, Solutions Architecture.

Abstract:

Architecture practitioners, such as enterprise architects, solutions architects, and application architects are

often faced with the problem of selecting the best software solutions that implement the requirements and

satisfy the business objectives. Examples of these solutions are: web services, software components, and full

software applications. To identify the best solution, architects often have to prioritize the candidate solutions

according to a set of criteria, such as their quality attributes, their contributions to satisfy the (business)

objectives, and their cost of implementation. This work aims to design a method that helps architects to

identify the optimal solution that achieves the requirements and efﬁciently satisﬁes the business objectives.

The proposed method is composed of three steps. First, it builds a goal model that links each candidate solution

to: i) the functional requirements to be implemented and ii) the desired objectives to be satisﬁed. The goal

model uses the Archimate language. It connects the requirements, goals and solutions together according to the

Goal-oriented Requirement Language (GRL) rules. Second, the method computes automatically satisfaction

scores that measure the effectiveness of each solution. Third, the method prioritizes the solutions according to

their satisfaction scores. This work presents the principles underlying the proposed method and discusses its

possible application in the practice.

1 INTRODUCTION

Architecture practitioners are often faced with

the problem of selecting the software solution

that best meets their organization needs among a

set of candidate solutions. Business Architects,

working with business analysts are responsible for

elaborating business cases that propose different

candidate solutions and then do a comparative

study in order to select the best one that achieves

stakeholders requirements and objectives. Solutions

and application architects must select the best

components, services and frameworks that implement

the software functional requirements and that

efﬁciently achieve the quality attributes. Enterprise

architects must identify the best solutions to automate

business processes. For example, to automate a

business process, an enterprise architect may choose

either a Service-Oriented Architecture (SOA)-based

solution, a BPM (Business Process Management)

solution or an ERP (enterprise resource planning).

https://orcid.org/0000-0002-4066-3111

https://orcid.org/0000-0003-0658-9605

https://orcid.org/0000-0002-1220-9042

To select the best solution(s), architects need

to prioritize the candidate solutions according to a

set of criteria, such as their quality attributes, their

contributions to satisfy the (business) objectives, and

their cost of implementation. Although prioritization

of the solutions plays a crucial role in enterprise

architecture (EA), business and solutions architecture,

few methods were proposed in the literature. Existing

prioritization approaches, including (Badidi, 2013;

Czekster et al., 2019; Kwong et al., 2010; Maximilien

and Singh, 2004; Min, 1992; Wei et al., 2005; Ziaee

et al., 2006) suffer from a number of limitations

including complexity and usability.

In this paper, we propose a new easy-to-

use method that helps architecture practitioners to

prioritize software solutions. The prioritization

process is based on the requirements that the solutions

must implement and the business objectives they

need to satisfy. The proposed method is goal-

oriented. It combines two languages: the Archimate

language, a language for modeling EA and the Goal-

oriented Requirement Language (GRL) that allows

the assessment of the relative effectiveness of design

alternatives, such as candidate solutions. First, the

Petelo, P., Leshob, A., Imen, B. and Mili, H.

Towards a Goal-oriented Method for Software Solutions Prioritization.

DOI: 10.5220/0010891500003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 287-293

ISBN: 978-989-758-550-0; ISSN: 2184-4348

287

method builds an Archimate-based goal model that

links candidate solutions (e.g., payment web service)

to the functional requirements (e.g., pay by credit

card) to be implemented and the desired objectives

(e.g., Secure payment) to be satisﬁed. The goal

model connects Archimate requirements, goals and

solutions according to the GRL rules and constraints.

Second, it computes automatically satisfaction scores

that measure the effectiveness of the solutions. Third,

the method prioritizes the solutions according to their

satisfaction score obtained in the previous step. The

higher the score is, the better is the solution.

This research has been conducted following the

design science methodology (Peffers et al., 2007).

The design science research approach aims to

answer questions related to relevant issues through

the creation of innovative artifacts (Peffers et al.,

2007). The artifact proposed in this research is a

prioritization method.

The remainder of the paper is organized as

follows. Section 2 describes our goal-oriented

method for software solutions prioritization using

a document management system. It also presents

the basic concepts of the Archimate and the GRL

languages. Section 3 surveys related work. Section

4 draws our conclusions and outlines directions for

future research.

2 A GOAL-ORIENTED METHOD

FOR SOFTWARE SOLUTIONS

PRIORITIZATION

Our goal is to design an easy-to-use method that helps

architecture practitioners such as enterprise architects

and solutions architects to prioritize candidates

solutions according to their ability to implement the

requirements and their contributions to satisfy the

software and stakeholders goals.

To provide an easy-to-use method that targets

a large community of architecture practitioners, we

chose the Open Group Archimate language (The

Open Group, 2019) to design the models. We also

needed a goal language that i) links the requirements,

solutions and goals, and ii) provides a mechanism

to evaluate the impact of the choice of solutions

on the business objectives. Among goal modeling

languages KAOS (Keep All Objects Satisﬁed) (van

Lamsweerde, 2004), GRL (ITU-T, 2012), and i* (Yu,

1997), we found that GRL is suitable to design our

method as it is a standard, lightweight, and easy to

integrate with the Archimate language.

2.1 ArchiMate Language

ArchiMate is an EA modeling language that has

been adopted as a standard by the Open Group

(Jonkers et al., 2011). Archimate allows the creation

of models to build an EA (Jonkers et al., 2017).

It is made up of two dimensions: the layer and

aspect dimensions (Gaydamaka, 2019; Jonkers et al.,

2017). The layers represent the successive levels of

abstraction at which a business is modeled and the

aspects represent the different concerns to be modeled

(Gaydamaka, 2019). Archimate is composed of

ﬁve layers, namely Strategy, Business, Application,

Technology, Implementation and Migration and four

aspects, namely Passive structure, Behavior, Active

Structure, and Motivation (The Open Group, 2019).

The Archimate aspects have been inspired by the

natural language. Active structure elements (e.g.,

actor, role, application component) are the subjects

that can perform behavior. Behavior elements

represent the dynamic aspects (e.g., business process,

business interaction, event) of the organization.

Passive structure elements (e.g., product, business

object) can be accessed by behavior elements (The

Open Group, 2019). Motivation elements (e.g.,

goal, requirement) represent the reason behind the

architecture or the behavior (The Open Group, 2019).

Strategy layer elements are used to model the

strategic direction of the organization. These

elements are used to model how the organization

wants to create value, the resources needed, and

how it plans to use these resources. Business layer

elements (e.g., business service) allow to model

the operational aspects of the organization (The

Open Group, 2019). Business layer models are

technology-independent. Application layer elements

(e.g., application service, application component)

model the application architecture (The Open Group,

2019). Technology layer elements are used to model

the technology architecture of the organization (The

Open Group, 2019). Physical layer elements allow

modeling the physical world (The Open Group,

2019). These elements are included as an extension

to the technology layer. The Implementation and

Migration layers support the implementation of the

architectures and their migration (The Open Group,

2019).

2.2 GRL Language

GRL is a goal-oriented modeling language (ITU-T,

2012). It allows to model the requirements to be

achieved by the solutions, the goals to be satisﬁed,

the tasks and their relationships. Figure 2 presents

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

288

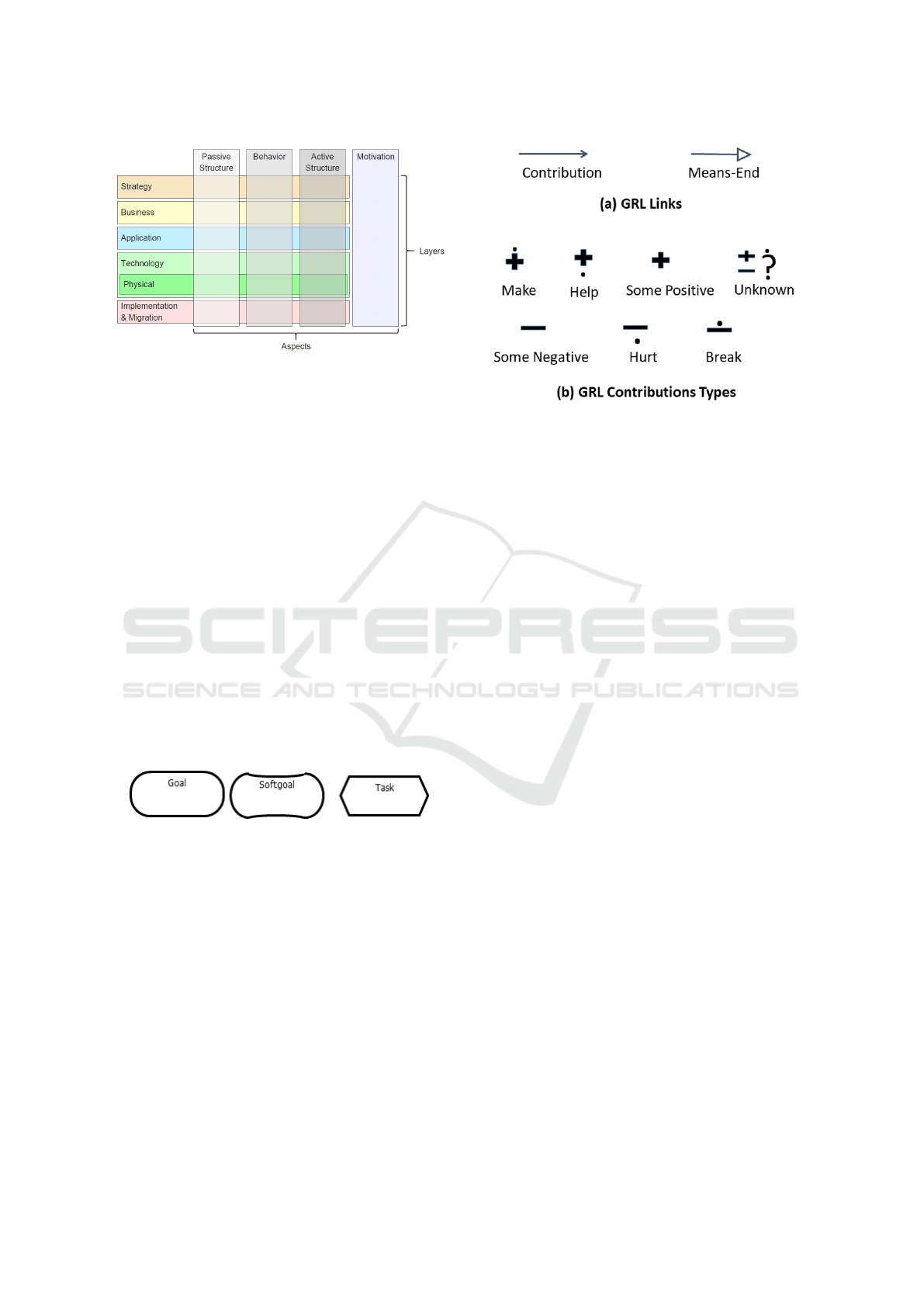

Figure 1: Archimate language layers and aspects (The Open

Group, 2019).

the subset of the GRL intentional elements. A goals

are quantiﬁable elements. They usually refer to

functional requirements. Softgoals refer to qualitative

aspects (Amyot et al., 2010). Soft-goals are usually

related to non-functional requirements. A task is a

solution which achieves goals or satisﬁes softgoals

(Amyot et al., 2010).

Figure 3 shows the contribution and means-end

links that are used to connect goals, softgoals, and

solutions in a GRL model. It also illustrates the

contribution types (Section b). Means-End links

describe how goals (e.g., functional requirements)

are achieved (Amyot et al., 2010). Contribution

links specify desired impacts of one element on

another element (e.g., softgoal) (Amyot et al., 2010).

As shown in Figure 3, the contribution link can

have a qualitative contribution type, or a quantitative

contribution (e.g., integer values) (Amyot et al.,

2010). As shown in the Section b of Figure 3,

contribution links can be labeled using texts or icons.

Figure 2: Basic GRL intentional elements (adapted from

(Amyot et al., 2010)).

2.3 The Approach

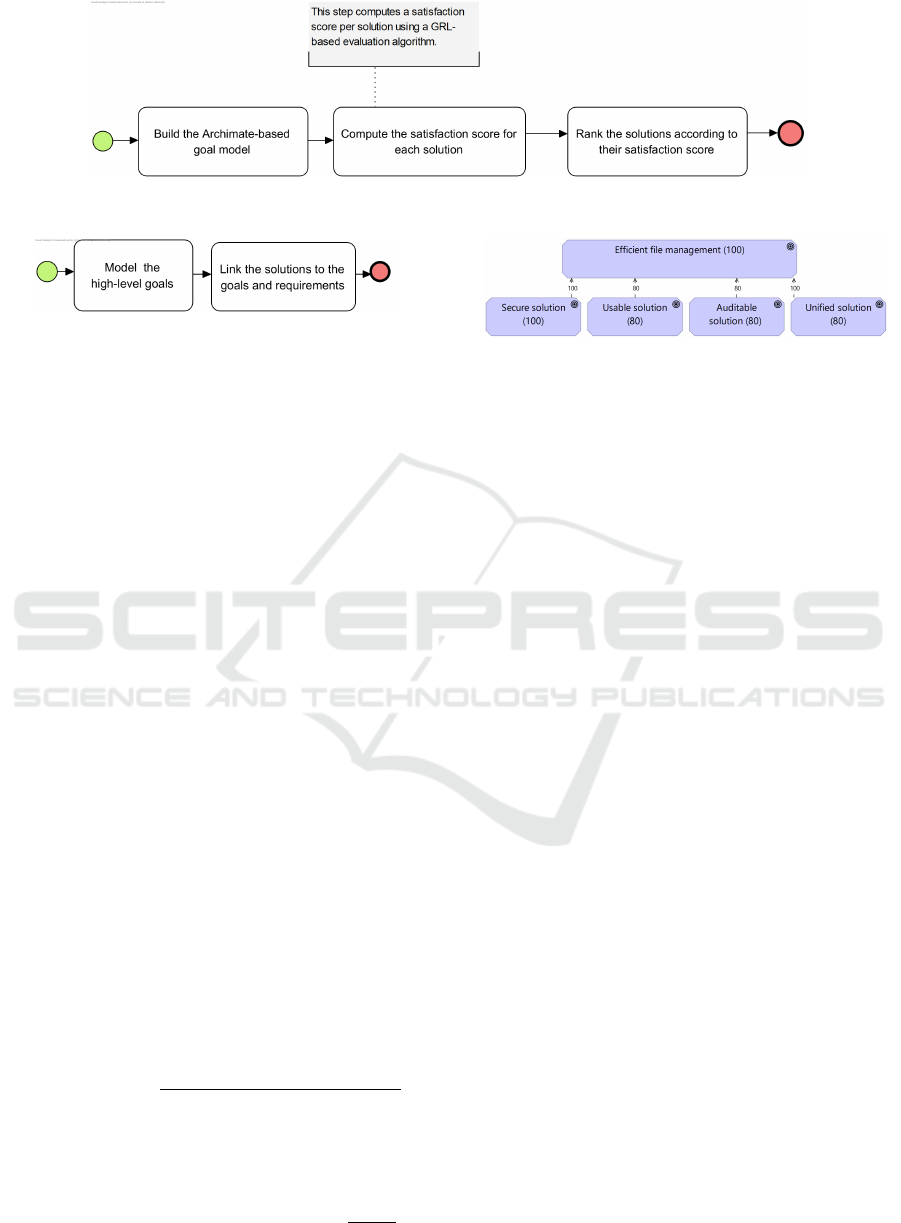

Figure 4 illustrates the process of the proposed

method. The ﬁrst step builds a goal model that

combines constructs from the Archimate and GRL

languages. This model connects the candidate

solutions, such as web services, to i) the objectives

they satisfy and ii) the requirements they implement.

The second step computes a satisfaction score

for each solution using a GRL-based evaluation

algorithm. This score measures the extent to which

each solution satisﬁes the objectives. The last step

ranks the solutions according to their satisfaction

score.

Figure 3: GRL links and contributions types (adapted from

(Amyot et al., 2010)).

To explain the proposed method, let’s consider a

medical clinic that wants to implement an efﬁcient

document management system (DMS) to improve

the management of its patients medical ﬁles.

Currently, all client ﬁles are paper-based. The

main goal (higher business objective) to satisfy by

implementing an automated document management

solution is efﬁcient ﬁle management. To satisfy

this goal efﬁciently, the architect has identiﬁed

three candidates solutions: Integrated Document

Management (IDM) service, Amazon Workdocs

service, and Miscrosoft SharePoint Document

Management Service.

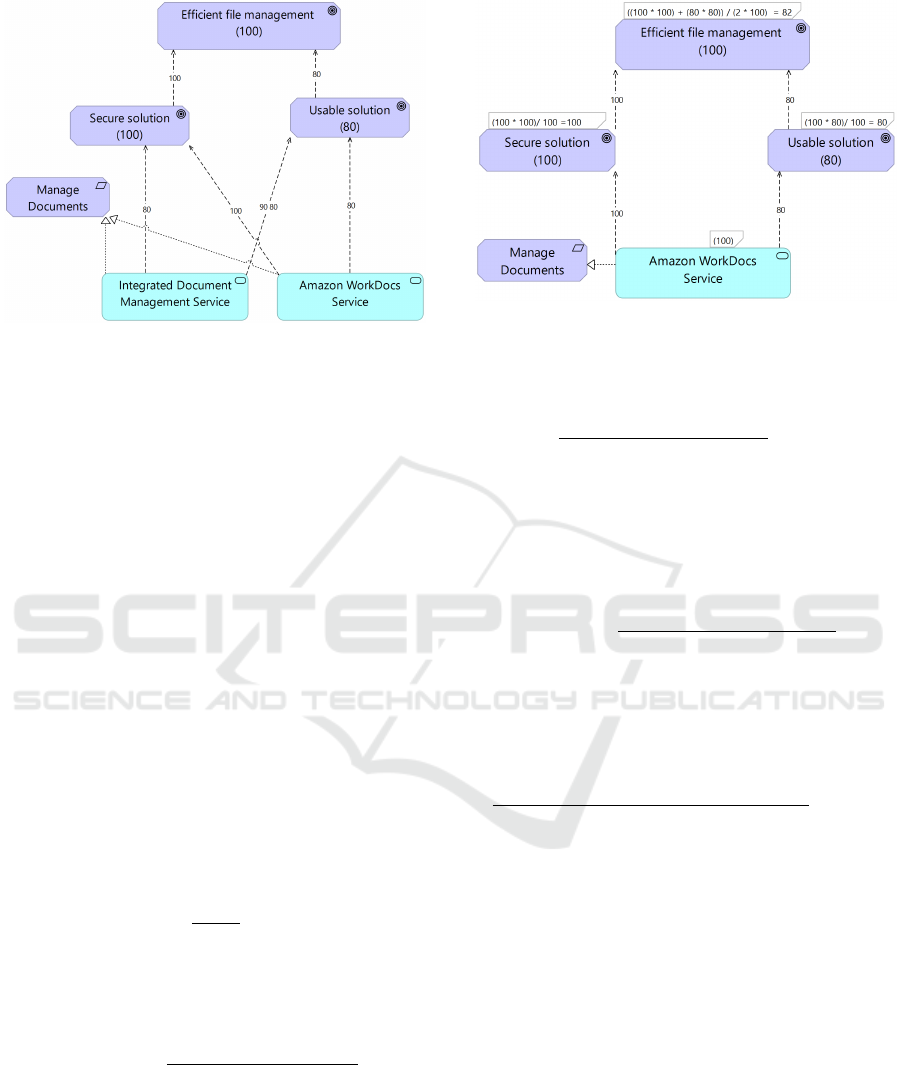

2.4 Build the Archimate Goal Model

The goal of this subprocess step is to create an

Archimate-based goal model that links the solutions

(e.g., services) to the goals/objectives they satisfy

and to the requirements they implement. This step

is composed of two activities as shown in Figure 5.

The ﬁrst activity builds a high-level goal model that

links the goals and sub-goals. The second activity

connects the solutions to i) the requirements they

implement and ii) the goal model obtained in the

previous activity.

2.4.1 Create the High-level Goal Model

This step consists of creating the high-level goal

model that contains the Archimate goals (GRL soft-

goals) to satisfy. A goal is an Archimate motivation

aspect. In this model, sub-goals are linked to high-

level goals using Archimate inﬂuence link (GRL

contribution link). Lets take the example of the

medical clinic. The highest goal to satisfy by

implementing an automated document management

Towards a Goal-oriented Method for Software Solutions Prioritization

289

Figure 4: Overall process of the proposed method.

Figure 5: The process of modeling the goal model.

system is efﬁcient ﬁle management. This high-level

goal has four sub-goals, namely Secure solution,

Usable solution, Auditable solution, and Uniﬁed

solution. To create the high-level goal model, the

architect proceeds as follows:

1. Specify the importance of high-level goals. The

importance attribute of a goal indicates how

important it is for the system or the organization.

The proposed method uses importance values

from 0 to 100. However, the modeler can use non-

integer values from any range. The importance

value of a goal is shown in brackets. In our

example, the architect assigned an importance

value of 100 to the highest goal (i.e., efﬁcient ﬁle

management) (see Figure 6).

2. Link sub-goals to the highest goals using the

Archimate inﬂuence link (GRL contribution link)

and specify the contribution value for each

inﬂuence link. The contribution value indicates

the desired impacts of a sub-goal on a higher-

level goal. As for importance values, we use

contribution values from 0 to 100. However,

the architect can use non-integer values from any

range.

3. Calculate the importance values for each sub-goal

using their contribution links’ values. Importance

values are propagated down from high-level goals

to sub-goals using the following formula (see

(Shamsaei et al., 2011)):

sGoal.iValue =

pGoal.iValue × sGoal.cValue

100

where sGoal.iValue and sGoal.cValue represent the

importance value and the evaluation value of the sub-

goal respectively and pGoal.iValue is the importance

value of the parent goal. For example, the importance

value of the sub-goal Usable solution is (

100×80

100

) =

80.

Figure 6: DMS high-level goal model.

The resulting DMS high-level goal model is

shown in the Figure 6.

2.4.2 Link the Solutions to the Goals and

Requirements

A complete goal model contains goals, solutions and

requirements. The previous steps built an Archimate-

based goal model that contains only the goals (high-

level goals and sub-goals) to be satisﬁed. This step,

links the candidate solutions to the requirements and

the goal model obtained in the previous step. The

solutions are Archimate concepts that satisfy goals.

Solutions may refer to Archimate concepts such as

business services (from business layer), application

services or application components (from application

layer). The requirements are Archimate concepts

from the motivation layer. According to the GRL

language, the requirements elements can not be

linked directly to the goals elements. Thus, the

proposed method links the requirements to the goals

through the solutions. To add the solutions and the

requirements to high-level goal model, the architect

proceeds as follows:

1. Link the solutions to the goals using the

Archimate inﬂuence link (GRL contribution link).

Each link must be quantiﬁed using a contribution

value which indicates the impact of the solution

on the achievement of the goal.

2. Link the solutions to the requirements using the

Archimate realization link (GRL means-end link).

For the sake of simplicity and to better explain the

proposed method, we will retain two solutions for

the DMS: Integrated Document Management (IDM)

service and Amazon Workdocs service) and two

sub-objective: Secure solution and Usable solution.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

290

Figure 7: DMS complete goal model.

Figure 7 illustrates the complete goal model of the

DMS.

2.5 Compute the Satisfaction Score

GRL provides a quantitative algorithm to evaluate

goal models, allowing us to compute the satisfaction

score of each candidate solution. Our approach uses

an adaptation of the evaluation algorithm described

in (Amyot et al., 2010). The ﬁrst step initializes the

evaluation values for each solution. By default, our

method gives all solutions an initial neutral value of

100, meaning that all solutions have the same initial

satisfaction score. The algorithm then propagates

the evaluation values using a bottom-up approach to

obtain evaluation values for each goal. The evaluation

values are propagated through the inﬂuence links. For

example, the evaluation value of the sub-goal Usable

solution is computed by i) multiplying the evaluation

value of the solution Amazon Workdocs service (i.e.,

100) by the value of the inﬂuence link that connects

the solution (i.e., Amazon Workdocs service) to the

sub-goal (i.e., Usable solution) and ii) then dividing

the result by 100 (i.e., (

100×80

100

)).

Therefore, the evaluation value of a goal (g)

reached by one source element (solution or sub-goal)

denoted src through an inﬂuence link is computed as

follows.

g.eValue =

src.eValue × src.cValue

100

where src.eValue refers to the evaluation value of

the source element src and src.cValue refers the

contribution value of the inﬂuence link that connects

src to the goal g.

When the goal is reached by n contribution links,

the evaluation value is computed as the average of the

calculated evaluation values of each inﬂuence links.

Figure 8: Evaluation of the DMS goal model.

Thus, the evaluation value of the high-level goal

Efﬁcient ﬁle management is computed as follows.

((100 × 100) + (80 × 80))

2 × 100

= 82

After propagating the evaluation values, the

algorithm computes the satisfaction score for each

solution using importance values and the evaluation

values of the goals. The satisfaction score of a

solution S is computed as follows.

S.score =

∑

i=1

.iValue × g

.eValue

∑

i=1

.iValue

where g.iValue and g.eValue are the importance value

and the evaluation value of the goal g respectively.

Thus, the satisfaction score of the solution Amazon

Workdocs service is computed as follows.

((100 × 100) + (80 × 80) + (100 × 82))

100 + 80 + 100

= 87.86

3 RELATED WORK

A few research works so far proposed approaches

to prioritize software solutions. Kwong et al.,

(Kwong et al., 2010) designed an interesting

approach that optimizes software components

selection for component-based software system

(CBSS) development. The approach uses an genetic

algorithm that maximizes the functional performance

of the CBSS and the cohesion and minimizes the

coupling of software modules. In (Min, 1992),

(Wei et al., 2005), authors proposed approaches to

select a suitable software using the analytic hierarchy

process (AHP), a structured technique which can be

effectively used with both qualitative and quantitative

factors to analyze complex decisions.

Towards a Goal-oriented Method for Software Solutions Prioritization

291

In (Badidi, 2013), Badidi designed a framework

for the selection of Software-as-a-Service (SAAS)

that relies on service level agreements (SLA) between

SaaS providers and consumers. The framework uses

an algorithm that ranks potential SaaS providers by

matching their offerings against the requirements of

the SLA.

In (Leshob et al., 2020), authors proposed an

approach to prioritize software requirements. They

used their method to rank the software solutions

based on the requirements they implement. These

approaches are based on a method that uses a one-

to-one mapping between candidate solutions and the

requirements. In the business analysis domain, the

BABOK (Business Analysis Body of Knowledge)

guide (IIBA, 2015) provided a technique based on the

value delivered by a solution to assess its performance

and prioritize it.

In (Radulescu, 2016), Radulescu provided

guidelines that allow business analysts to select and

prioritize security solutions. The guidelines were

summarized in a solution selection and prioritization

matrix based on security cost efﬁciency of the

solution and the average compliance gap subsequent

to its implementation. The author proposed to use

these guidelines to design a generic methodology

or process that can be uniformly applicable to any

organizational context, regardless of how information

security is addressed.

Maximilien and Singh (Maximilien and Singh,

2004) designed a framework for dynamic web

services selection. The framework uses an agent that

selects the web services based on a quality of service

(QOS) ontology.

Baker et al., (Baker et al., 2006) proposed

a method for ranking and selection of candidate

software components based on a series of features.

The method uses a greedy and simulated annealing

algorithms to determine a subset of components

that maximizes the total sum of weights (customer

desirability and expected revenue) while minimizing

the total cost (the cost of acquisition and development

time) of the selected components from a catalog of

components. In a similar work, Haghpanah et al.,

(Haghpanah et al., 2008) designed an algorithms

to automate component selection for component-

based software. The software component selection is

performed through a process of identifying a minimal

set of components that satisfy a set of requirements

and objectives while minimizing cost.

These approaches are interesting. However, they

all suffer from a number of limitations including

their usability and difﬁculty of implementation. The

contribution of this work is twofold. First, it proposes

a novel end-to-end method that takes into account

the contribution values of the solution to the business

objectives (softgoals). Second, from a usability point

of view, the method is easy to use by non-technical

users, such as business architects or analysts.

4 CONCLUSION AND FUTURE

WORKS

In this work, we designed a new method to prioritize

software solutions such as, services, components,

or any reusable software artefact in order to select

the solution that best meets business and stakeholder

needs. The prioritization process of the candidate

solutions is based on i) the requirements they

implement and ii) the goals (business objectives) they

satisfy. The proposed method is goal-oriented. It uses

two languages: the Archimate language, a language

for modeling EA and GRL, a goal language that

allows the assessment of the effectiveness of design

alternatives. First, the method builds an Archimate-

based goal model that links candidate solutions to

the functional requirements to be implemented and

the desired goals to be satisﬁed. The goal model

connects requirements, goals and solutions according

to GRL rules. Second, it computes automatically

satisfaction scores that measure the effectiveness of

each candidate solution. In the ﬁnal step, the method

ranks the solutions according to their satisfaction

score obtained in the previous step.

This paper establishes guidelines and directions

to design an automatic end-to-end method that helps

architects and even non-technical users, such as

business analysts to identify effective solutions. We

plan to conduct experiments to validate the proposed

approach. We also plan to extend the method in order

to support other prioritization factors, such as the cost

and the complexity of implementation.

ACKNOWLEDGMENTS

This research was supported by the Natural Sciences

and Engineering Research Council of Canada

(NSERC).

REFERENCES

Amyot, D., Ghanavati, S., Horkoff, J., Mussbacher,

G., Peyton, L., and Yu, E. (2010). Evaluating

goal models within the goal-oriented requirement

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

292

language. International Journal of Intelligent

Systems, 25(8):841–877.

Badidi, E. (2013). A Framework for SOFTWARE-AS-A-

SERVICE Selection and Provisioning. International

journal of Computer Networks and Communications.

Baker, P., Harman, M., Steinhöfel, K., and Skaliotis,

A. (2006). Search based approaches to component

selection and prioritization for the next release

problem. In IEEE International Conference on

Software Maintenance, ICSM.

Czekster, R. M., Webber, T., Jandrey, A. H., and Marcon,

C. A. M. (2019). Selection of enterprise resource

planning software using analytic hierarchy process.

Enterprise Information Systems.

Gaydamaka, K. (2019). Archimate-based approach to

requirements engineering. International Journal

of Mathematical, Engineering and Management

Sciences.

Haghpanah, N., Moaven, S., Habibi, J., Kargar, M., and

Yeganeh, S. H. (2008). Approximation Algorithms

for Software Component Selection Problem.

IIBA (2015). A guide to the Business Analysis Body of

Knowledge, Version 3. Lightning Source inc.

ITU-T (2012). ITU-T,User Requirements Notation (URN)–

Language deﬁnition.

Jonkers, H., Groenewegen, L., Bonsangue, M., van Buuren,

R., Quartel, D. A., Lankhorst, M. M., and Aldea,

A. (2017). A language for enterprise modelling. In

Enterprise Engineering Series.

Jonkers, H., Proper, E., Lankhorst, M. M., Quartel, D. A.,

and Iacob, M. E. (2011). ArchiMate® for integrated

modelling throughout the architecture development

and implementation cycle. In Proceedings - 13th

IEEE International Conference on Commerce and

Enterprise Computing, CEC 2011.

Kwong, C. K., Mu, L. F., Tang, J. F., and Luo, X. G. (2010).

Optimization of software components selection

for component-based software system development.

Computers and Industrial Engineering.

Leshob, A., Hadaya, P., and Renard, L. (2020). Software

Requirements Prioritization with the Goal-Oriented

Requirement Language. In Lecture Notes on Data

Engineering and Communications Technologies.

Maximilien, E. M. and Singh, M. P. (2004). A framework

and ontology for dynamic web, services selection.

IEEE Internet Computing.

Min, H. (1992). Selection of Software: The Analytic

Hierarchy Process. International Journal of Physical

Distribution and Logistics Management.

Peffers, K., Tuunanen, T., Rothenberger, M. A., and

Chatterjee, S. (2007). A design science research

methodology for information systems research.

Journal of Management Information Systems.

Radulescu, M. C. (2016). Considerations on the selection

and prioritization of information security solutions.

Audit Financiar.

Shamsaei, A., Pourshahid, A., and Amyot, D. (2011).

Business process compliance tracking using key

performance indicators. In Lecture Notes in Business

Information Processing.

The Open Group (2019). The Open Group Standard:

ArchiMate 3.1 Speciﬁcation.

van Lamsweerde, A. (2004). Goal-oriented requirements

enginering: a roundtrip from research to practice. In

12th IEEE Int Requirements Engineering Conference,

pages 4–7.

Wei, C. C., Chien, C. F., and Wang, M. J. J. (2005).

An AHP-based approach to ERP system selection.

International Journal of Production Economics.

Yu, E. S. K. E. (1997). Towards modelling and

reasoning support for early-phase requirements

engineering. In Proceedings of the IEEE International

Conference on Requirements Engineering, pages 226–

235, Annapolis, USA. IEEE.

Ziaee, M., Fathian, M., and Sadjadi, S. J. (2006). A modular

approach to ERP system selection: A case study.

Information Management and Computer Security.

Towards a Goal-oriented Method for Software Solutions Prioritization

293
