Sieving Camera Trap Sequences in the Wild

Anoushka Banerjee, Dileep Aroor Dinesh and Arnav Bhavsar

MANAS Lab, SCEE, Indian Institute of Technology Mandi, Kamand, H.P., India

Keywords:

Camera Trap, Empty Frames, Wildlife Detection, Domain Adaptation, Domain Generalization, Vision

Transformer (ViT), Faster Region Based Convolution Networks (Faster R-CNN) and DEtection TRansformer

(DETR).

Abstract:

Camera trap sequences are a treasure trove for wildlife data. Camera traps are susceptible to false triggers

caused by ground heat ﬂux and wind leading to empty frames. Empty frames are also generated if the animal

moves out of the camera ﬁeld of view in between the ﬁring of a shot. The time lost in manually sieving the

surfeit empty frames restraint the camera trap data usage. Camouﬂage, occlusion, motion blur, poor illumina-

tion, and a small region of interest not only make wildlife subject detection a difﬁcult task for human experts

but also add to the challenge of sifting empty frames from animal containing frames. Thus, in this work, we

attempt to automate empty frame removal and animal detection in camera trap sequences using deep learning

algorithms such as vision transformer (ViT), faster region based convolution networks (Faster R-CNN), and

DEtection TRansformer (DETR). Each biodiversity hotspot has its characteristic seasonal variations and ﬂora

and fauna distribution that juxtapose the need for domain generalization and adaptation in the leveraged deep

learning algorithms. Therefore, we address the challenge of adapting our models to a few locations and gen-

eralising to the unseen location where training data is scarce.

1 INTRODUCTION

Ecological object detection has recently gained mo-

mentum due to the availability of high-tech non-

intrusive and unobtrusive camera traps (Norouzzadeh

et al., 2018) (Zhang et al., 2016) (Figueroa et al.,

2014). Camera traps are being widely deployed to

continuously observe natural habitats for months or

even years, recording the rarest events occurring in

nature (Norouzzadeh et al., 2019) (Swinnen et al.,

2014) (Zhou, 2014). A colossal amount of data is

generated in the process. Biologists and conserva-

tion activists need to sift the generated data for vital

statistics on species locations, population sizes, inter-

actions among species, behavioural activity patterns,

and migrations.

Camera traps are heat triggered or motion sensed

devices that passively record wildlife presence. Cam-

era traps are prone to false triggers from moving vege-

tation, ground heat ﬂux, passers-by, and wind (Beery

et al., 2019). The camera trap can record an empty

frame if the animal moves out of the ﬁeld of view in

between the trigger and the shot capture delay. Thus,

more than 70% of camera trap images do not contain

animal (Cunha et al., 2021) (Swanson et al., 2015)

(Beery et al., 2019). Therefore, as a precursory to an-

imal detection empty frames need to be removed.

The primary challenges in empty frame removal

and animal detection in camera trap sequences are

camouﬂage, motion blur, occlusion, poor and varying

illumination, cropped out subject, subject too close

or too far, varying animal poses and optical distor-

tion due to ﬁxed camera angles (Norouzzadeh et al.,

2018) (Weinstein, 2018) (Beery et al., 2018). The ex-

igence of empty frame segregation and animal detec-

tion in camera trap images can be attributed to the

sparsity and sporadicity of subject content (Cunha

et al., 2021). The subject is seldom in the centre and

balanced with the background. Most images are difﬁ-

cult even for human eyes for identifying the presence

of an animal. Frequently only a part of the animal is

seen in low contrast frames due to dominant nocturnal

wildlife and camouﬂage (Beery et al., 2018) (Norouz-

zadeh et al., 2018). The time lost in manual review

and annotation is a bottleneck curtailing the use of

camera traps for comprehensive large-scale environ-

mental studies (Weinstein, 2018).

In our work, we elucidate a deep learning ap-

proach for automatic empty frame removal and detec-

tion and localisation of animals in their natural sur-

470

Banerjee, A., Dinesh, D. and Bhavsar, A.

Sieving Camera Trap Sequences in the Wild.

DOI: 10.5220/0010919000003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 470-479

ISBN: 978-989-758-549-4; ISSN: 2184-4313

roundings. We use a contemporary object detection

model; faster region convolutional network (Faster R-

CNN) (Ren et al., 2015), a relatively recent trans-

former encoder-decoder based detection model; DE-

tection TRansformer (DETR) (Carion et al., 2020),

and a solely attention based classiﬁcation model; Vi-

sion Transformer (ViT) (Dosovitskiy et al., 2020). We

perform our experimental studies on Caltech camera

traps (CCT) dataset (Beery et al., 2018). The pro-

posed approach can enable the extraction of valuable

information from camera trap sequences speedily and

eliminate human bias. Every biome has its distinctive

vegetation, soil, climate, and wildlife. Therefore, we

critically assess the prowess of the above mentioned

deep learning algorithms on domain adaptability and

generalisability in empty frame removal task.

In a nutshell, our contributions are as follows:

(1) solve empty frame removal task in camera trap

sequences and beat the state-of-the-art using deep

learning algorithms such as ViT, Faster R-CNN and

DETR, (2) animal detection in camera trap dataset

and set a benchmark performance (3) demonstration

of domain adaptability and generalisability trade-off

of each model along with a critical assessment of the

algorithms, (4) elucidating the prowess of the best

performing models through attention maps, and (5)

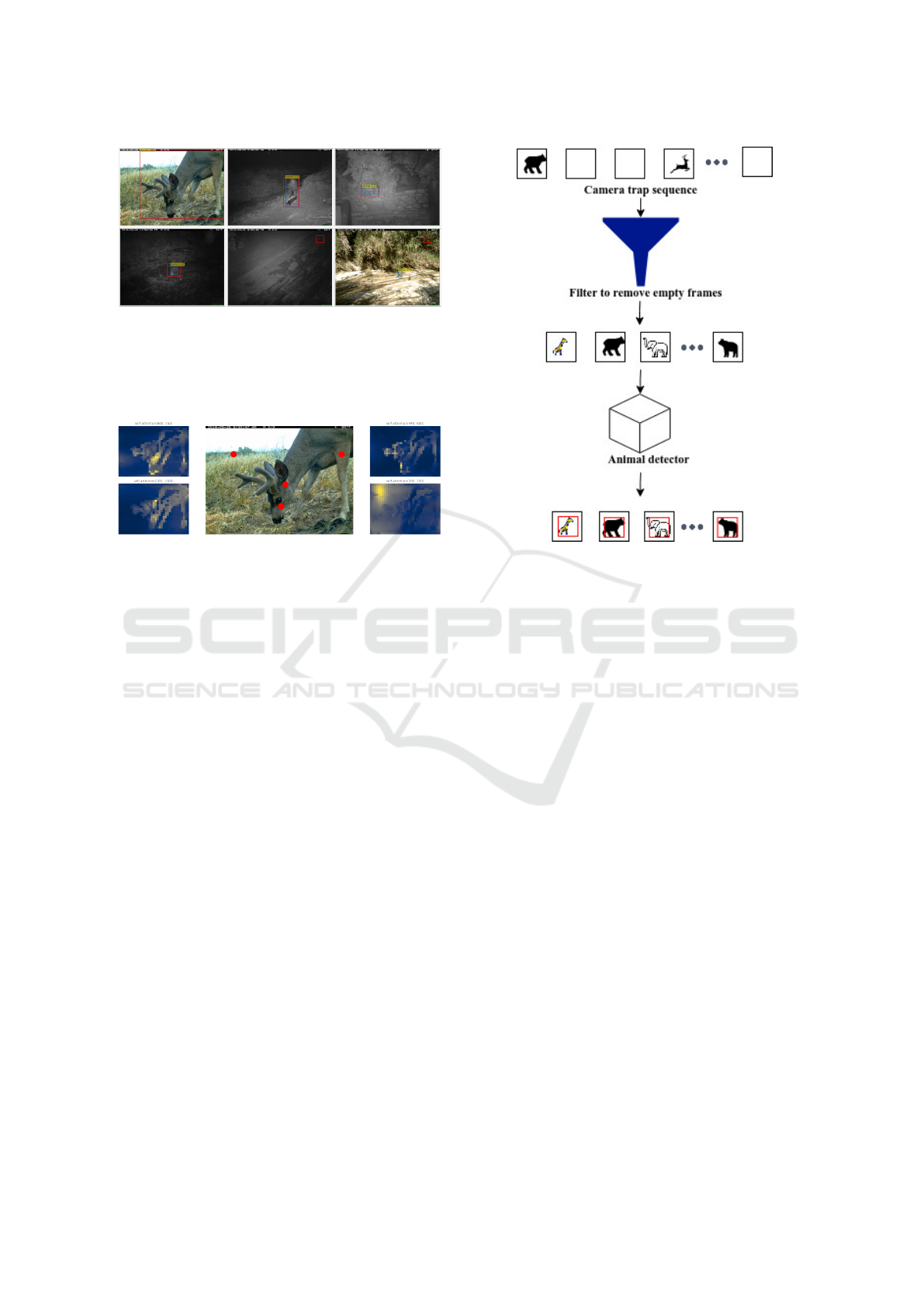

a two-stage pipeline for processing camera trap se-

quence to detect animals.

The rest of this paper is organized as follows: Sec-

tion II brieﬂy reviews related works on wildlife detec-

tion and camera trap sequences. Section III presents

our proposed empty frame removal and animal detec-

tion approach, and Section IV describes the experi-

ments, results, inferences and discusses the proposed

pipeline. At the end Section V concludes the paper.

2 LITERATURE REVIEW

In the recent past, there has been a signiﬁcant up-

surge in research endeavours by the deep learning

community to develop reliable animal detection algo-

rithm. Animal detectors are not only useful for col-

lecting ecosystem statistics but also for developing

collision avoidance systems (Matuska et al., 2016).

Matsuka et al.(Matuska et al., 2016) used scale in-

variant feature transform (SIFT) (Lindeberg, 2012)

and speeded up robust features (SURF) (Bay et al.,

2006) for local feature description. Then combined

support vector machines (SVM) (Cortes and Vapnik,

1995) with radial base function and bag of visual key-

point method for background subtraction and region

of interest (ROI) detection. After localising the ROI,

continuously adaptive mean shift (CAMShift) algo-

rithm was applied to ﬁnd optimal object size, posi-

tion, and orientation. But this methodology has the

limitation that if the animal is static for too long, the

detector will produce a false negative. As discussed

in (Emami and Fathy, 2011) (Hidayatullah and Konik,

2011), CAMShift has reliable performance with sin-

gle hue object tracking and in scenarios where object

colour has high contrast with the background colour.

But fails miserably with multi-hue object tracking and

cases where the object blends with the background.

Over a million years of evolution, organisms adjusted

to their surroundings by camouﬂaging. Blending with

the backdrop, birds and animals are the lion’s share

successful in survival and procreation. Therefore, the

deployment of CAMShift algorithm in the wildlife

detection system does not seem to be a wise decision.

Figueroa et al. (Figueroa et al., 2014) and Swin-

nen et al.(Swinnen et al., 2014) relied on handcrafted

feature to detect animals. Low-level pixel changes

were used as a delimiter between frames containing

animals and not containing animals. These techniques

have a strong correlation with environmental circum-

stances for accurate detection. Natural habitats are

prone to seasonal changes, day-night lighting varia-

tion, mist, and haze. For the current task at hand,

we should work out a modus operandi which ideally

has a low correlation with seasonal and day-to-day

changes in environmental conditions. Furthermore,

all the enlisted algorithms (Figueroa et al., 2014)

(Swinnen et al., 2014) (Emami and Fathy, 2011) (Ma-

tuska et al., 2016) work best on medium to large mam-

mals. The performance signiﬁcantly degrades when

ROI is smaller.

In (Zhou, 2014) the effectiveness of diverse fea-

ture generation algorithms for animal detection such

as local binary pattern (LBP) (Guo et al., 2010) and

histogram of gradients (HOG) (Dalal and Triggs,

2005) is investigated. LBP introduced by Ojala et

al. (Ojala et al., 1996) was designed for monochrome

static images and has the limitation that the feature

size increases with the number of neighbours. Tor-

ralba and Olivia (Torralba and Oliva, 2003) studied

the statistical properties of natural images. Their re-

sults concluded that without segmentation or group-

ing stages low-level features can be used for object

localisation. Zhang et al. (Zhang et al., 2016) con-

structed iterative embedded graph cut (IEC) method

for region proposal. This technique is not robust to

background variations and produces false positives

due to moving clouds, waving leaves, and shadows.

Although after several cross-frame fusion better re-

sults may be obtained.

Ensemble of CNN archetypes such as VGG (Si-

monyan and Zisserman, 2014), AlexNet (Krizhevsky

Sieving Camera Trap Sequences in the Wild

471

et al., 2012), ResNet (He et al., 2016), GoogLeNet

(Szegedy et al., 2015) and NiN (Lin et al., 2013) was

used for automatic counting and detecting animals

in Snapshot Serengeti dataset (Norouzzadeh et al.,

2018). As Bounding Box is not available with the

Snapshot Serengeti dataset, counting was treated as a

classiﬁcation problem with ±1 error tolerance.

More recently, approaches predicated on deep

convolutional neural networks (DCNN) such as Faster

R-CNN (Ren et al., 2015) and its predecessors Fast

R-CNN (Girshick, 2015) and R-CNN (Girshick et al.,

2014) are attaining the state-of-the-art performance.

Customarily, these algorithms are comprised of two

major segments. The ﬁrst segment generates object

region proposals at different scales and locations and

the second segment performs foreground identiﬁca-

tion to tell if the region proposal truly contains an ob-

ject or not. Beery et. al (Beery et al., 2018), exploited

the theme of generalization across datasets, back-

drops, and locations using Faster R-CNN with ResNet

and Inception backbone. Schneider et. al (Schneider

et al., 2018) demonstrated the detection capabilities

of Faster R-CNN and YOLOv2.0 on Reconyx camera

trap and Snapshot Serengeti datasets. Since natural

scenes are cluttered, these methods generate a large

number of region proposals. They ignore the unique

spatio-temporal features in the context of animal de-

tection from camera trap images (Zhang et al., 2016).

Faster R-CNN algorithm needs many passes through

a single image to detect all the objects.

Few works address the problem of automating

empty frame removal. Cunha et al. (Cunha et al.,

2021) examined the trade-off between precision and

inference latency on edge devices in empty frame re-

moval task. The use of attention mechanisms in ob-

ject detection is recently gaining prevalence. In the

recent past, a few approaches amalgamated convolu-

tional features and attention mechanisms.

3 PROPOSED STUDY, DATASET

AND DATA SPLITS

A very demanding and tiring aspect of unsheathing

vital statistics from camera trap sequences is empty

frame removal followed by detecting animals in the

sea of natural background clutter. Thus, to reduce the

time lost in manual review and eliminate human bias

we propose to solve the empty frame removal and

animal detection task in camera trap sequences. We

leverage ViT, DETR, and Faster R-CNN architecture

for this purpose. The contributors of the CCT dataset

used Faster R-CNN for their experimental analysis

and had set a benchmark (Beery et al., 2018). Faster

R-CNN from its inception is widely used across man-

ifold applications and domains for object detection.

Thus, as an obligatory choice, we employ Faster R-

CNN for empty frame removal and animal detection

task for comparisons.

But, the CCT dataset is laden with challenges

such as the dominance of low-contrast images, a

small range of tones, varying subject size, pose varia-

tions, and occlusions. Most existing deep learning ap-

proaches use state-of-the-art convolutional neural net-

work (CNN) backbones for object detection such as

faster region based CNN (Faster R-CNN) (Ren et al.,

2015), single shot detector (SSD) (Liu et al., 2016)

and you look only once (YOLO) detection algorithms

(Redmon and Farhadi, 2017). But convolution op-

eration has the limitation that all image pixels are

treated equally (Wu et al., 2020). Semantic concepts

with long-range dependence are often lost. Edges and

corners are easily captured by convolution ﬁlters but

sparse high-level concepts escape the sieve (Wu et al.,

2020). Therefore, for camera sequences, we need a

paradigm of detectors that alleviates the above stated

impediments.

Animals in the wild are often occluded which

needs that despite discontinuity in animal image pix-

els the distant but related animal features be in-

terweaved. Therefore, we choose to experiment

with DETR; a relatively recent paradigm of detec-

tors that reason about the relations of the animals

with the global image content. DETR based upon

encoder-decoder mechanism employing multiple at-

tention heads performs global reasoning. Global rea-

soning aids the model in making decisions about oc-

cluded and obscured object parts. Occlusion and low

illumination being the most common ailment of the

dataset, transformer architecture should have a clear

advantage here.

Transformers lack inductive biases such as local-

ity and translation equivariance inherent to CNNs

(Dosovitskiy et al., 2020). Intuitively, the lack of

locally restrictive receptive ﬁeld and translation in-

variance in transformers can be desirable for empty

frames segregation tasks. Vision Transformer (ViT)

(Dosovitskiy et al., 2020) is a pure transformer model.

It inputs the image as a sequence of patches in the

form of tokens. The image patches tease out patterns

efﬁciently. Therefore, inspired by ViTs success in vi-

sion and to pose empty frame segregation purely as a

classiﬁcation problem we roped in ViT.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

472

3.1 Caltech Camera Traps (CCT)

Dataset

There are 243,100 frames from 140 locations in the

Southwestern United States. The object categories

seen in this dataset are bobcat, opossum, coyote, rac-

coon, bird, dog, cat, squirrel, rabbit, skunk, lizard,

rodent, badger, deer, cow, fox, car, badger, fox, pig,

mountain lion, bat, and insect. Approximately 70%

of frames are blank. CCT dataset has a subset dataset

called Caltech Camera Traps-20 (CCT-20) (Beery

et al., 2018). It contains 57, 868 images across ran-

domly chosen 20 locations from 140 locations of CCT

dataset.

3.1.1 Data Split for Empty Frame Removal

The image distribution for any camera trap sequence

in general and CCT dataset, in particular, is skewed

towards empty frames as seen in Figure 1. To elimi-

nate bias we balance the number of empty frames and

animal frames at each location. For training data, we

choose empty and animal images from the 20 loca-

tions same as in CCT-20 dataset. For testing we cre-

ate two sets; (1) ‘cis’: the test data from locations

seen by the model during training and (2) ‘trans’: the

test data from locations unseen by the model during

training as in (Beery et al., 2018). To balance the

number of animal and empty frames at each train-

ing location we take the minimum of the maximum

number of animal and empty frames at each location.

We extract 8, 028 images containing equal numbers

of animal and empty frames. We use 70% of the ex-

tracted images for training and 30% for testing the

model. Therefore, we have 5, 638 training examples

and 2, 390 testing examples as in Figure 2 for seen

locations. To analyze domain adaptation vs. domain

generalization we pulled out 1,195 empty and animal

frames each from locations other than 20 training lo-

cations. These 2,390 images have background charac-

teristics different from locations seen during training.

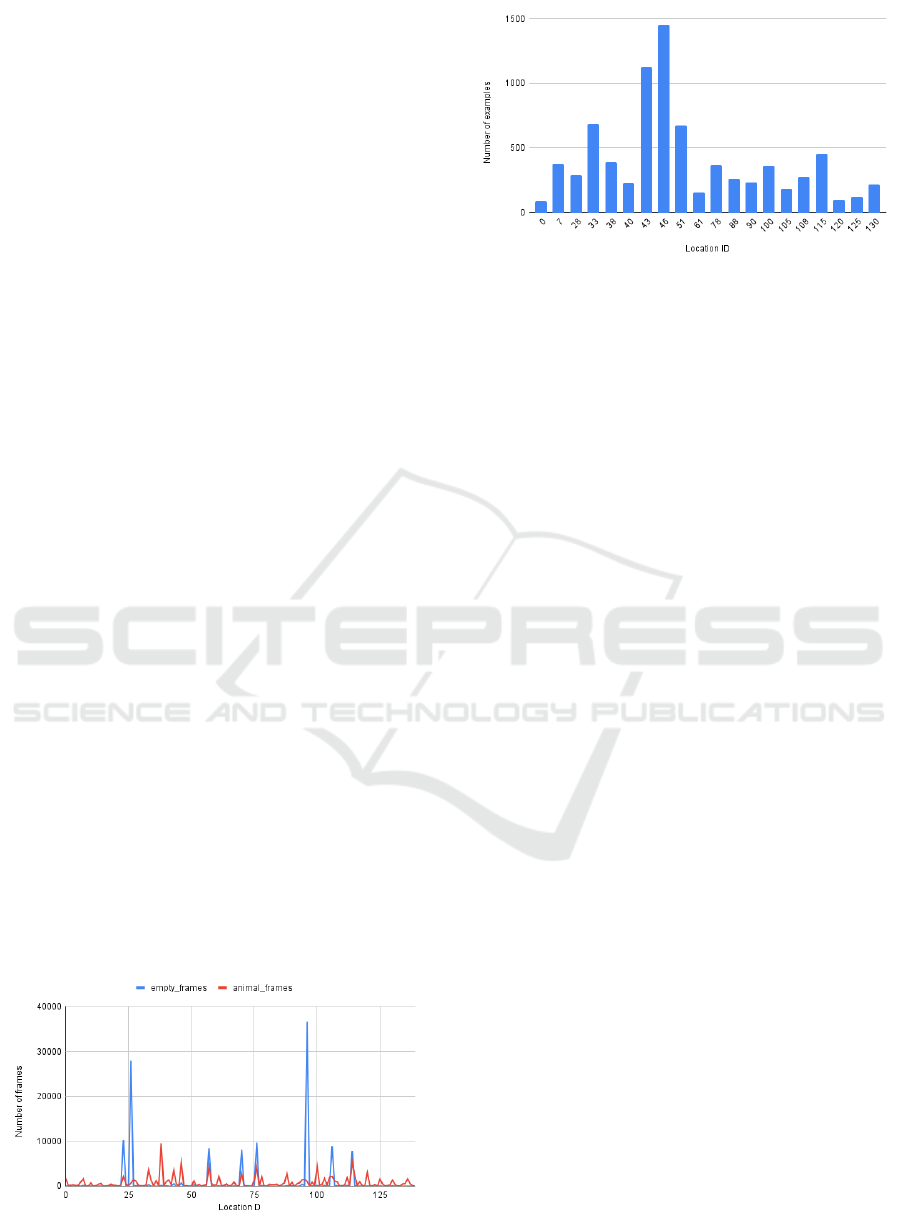

Figure 1: Number of empty and animal frames vs. locations

in entire dataset.

Figure 2: Number of examples vs. locations in dataset for

empty frame removal experiments.

3.1.2 Data Split for Animal Detection

Every location in CCT dataset has its characteris-

tic ﬂora and fauna, seasonal variations, frequency of

occurrence of species, and day and night duration.

Therefore, to critically assess the robustness and ac-

curacy of the leveraged algorithms in the light of do-

main generalisation we use completely disjoint loca-

tion sets for train and test. From 140 locations in the

CCT dataset, we use 100 locations ‘cis’ for model

training and 40 unseen ‘trans’ locations for test. We

have 37,356 training images with 39,361 annotations

and 24,489 test images with 25,571 annotations.

4 EXPERIMENTS, RESULTS AND

DISCUSSIONS

Our experimental analyses are bifurcated into; (1)

empty frame removal experiments and (2) animal de-

tection in camera trap sequences.

4.1 Empty Frame Removal

We use ViT, Faster R-CNN, and DETR for segre-

gating empty frames from animal frames. We pose

empty frame segregation as a binary classiﬁcation

problem. The two classes are frames containing an-

imal (animal frames) and frames without animals

(empty frames). We use percentage accuracy as the

evaluation metric. We train the models on ‘cis’ loca-

tions and test the prowess on both ‘cis’ and ‘trans’ test

sets.

4.1.1 Experiments with Vision

Transformer(ViT)

Empty frames are natural backdrops without any ob-

ject. The non-empty frames are natural backdrops

with an animal. Therefore, to model empty frame

Sieving Camera Trap Sequences in the Wild

473

segregation purely as a classiﬁcation task we lever-

age ViT. We train two models: (1) The ﬁrst model

adapts better i.e. the best model on ‘cis’ locations. In

this case, the model is trained till the test accuracy on

the ‘cis’ location is maximum. (2) The second model

generalises better i.e. the best model on ‘trans’ loca-

tion. In this case, the model is trained till the best ac-

curacy on ‘trans’ location is obtained. The ViT mod-

els are trained using AdamW (Loshchilov and Hutter,

2018) with a weight decay of 0.0001 and an initial

learning rate of 0.001. We employ random horizontal

ﬂip, random rotation, and random zoom with a factor

of 0.2 as data augmentation techniques.

Results from Best Model on ‘cis’ Locations: We

obtain an overall accuracy of 87.28% on ‘cis’ and

66.28% on ‘trans’ (Table 1). This can be accredited to

the generalization gap. On ‘cis’, the performance for

empty frames is better and on the ﬂip side for ‘trans’

the performance on animal frames is better. In cam-

era trap sequences the backdrop for both frames con-

taining animals and empty frames for a particular lo-

cation is the same. Therefore, for ‘cis’ locations the

model has a bias towards empty frames. In contrast,

for ‘trans’ locations some species are common as in

‘cis’ but the backdrop is different resulting in better

performance for animal frames.

Table 1: Accuracy in % from ViT best model on ‘cis’ loca-

tions.

Animal Empty Total

‘cis’ 84.60 89.96 87.28

‘trans’ 69.29 63.26 66.28

Results from Best Model on ‘trans’ Locations:

We obtain an overall accuracy of 67.15% on ‘cis’ lo-

cations and 72.93% on ‘trans’ locations (refer to Ta-

ble 2). Astoundingly, on ‘cis’ locations the animal

performance improved from 84.60% to 93.72% and

empty frames performance dwindled from 89.96% to

40.59% in comparison to ‘cis’ best model (from Ta-

ble 1 and Table 2). Every location has its charac-

teristic vegetation and camera ﬁeld of view. There-

fore, in the case of ‘trans’ locations the empty frames

are completely unseen. Hence, ‘trans’ best model has

very high accuracy for animal frames but much lower

empty frame performance.

Table 2: Accuracy in % from ViT best model on ‘trans’

locations.

Animal Empty Total

‘cis’ 93.72 40.59 67.15

‘trans’ 88.37 57.49 72.93

4.1.2 Experiments with Faster R-CNN

We wield pretrained Faster R-CNN with ResNet-101

backbone available in Detectron2 codebase (Wu et al.,

2019). The empty frames are annotated with a null

tensor; [0, 0, 0, 0] bounding boxes; to indicate 0 di-

mensions and null area for no subject content. An

empty frame is considered correctly classiﬁed if the

conﬁdence threshold and predicted bounding boxes

are null tensors. We use SGD with a momentum of

0.9. Beginning at 0.001 we decay the learning rate by

0.05 after every 1000 epochs.

Results from Faster R-CNN: We obtain an overall

accuracy of 65.35% from ‘cis’ locations and an over-

all accuracy of 64.27% from ‘trans’ locations (Table

3). Faster R-CNN is an object detection algorithm.

Therefore, the accuracy for detecting animals is much

higher for both ‘cis’ and ‘trans’ location sets. There

are many false positives in this case; defeating the ob-

jective of empty frame removal.

Table 3: Accuracy in % from Faster R-CNN.

Animal Empty Total

‘cis’ 98.74 31.96 65.35

‘trans’ 95.06 33.47 64.27

4.1.3 Experiments with DETR

For segregating empty frames from animal frames us-

ing DETR, we pose empty frame removal as a by-

product of the detection problem. The DETR model

is ﬁnetuned with AdamW (Loshchilov and Hutter,

2018) with a learning rate at 0.0001. Random hori-

zontal ﬂips is used as a data augmentation technique.

We train DETR on animal instances from ‘cis’ and ﬁl-

ter out empty frames using conﬁdence thresholding.

In the training set, all the animal instances are associ-

ated with a conﬁdence score greater than 0.95 (refer

to Figure 3). Therefore, we choose 0.95 as the conﬁ-

dence threshold for segregating empty frames. During

testing, a frame is considered empty if the conﬁdence

score associated with the frame for animal presence is

less than 0.95.

Results from DETR: From DETR we obtain an

overall accuracy of 80% on ‘cis’ locations and overall

accuracy of 76.57% on ‘trans’ locations (see Table 4).

The accuracy obtained on identifying frames contain-

ing animals is appreciable 98.49% on ‘cis’ locations

and 90.71% for ‘trans’ locations. We infer that DETR

has the least generalisation gap due to the encoder-

decoder attention mechanism.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

474

Figure 3: Number of animal frames in training set vs. con-

ﬁdence score from DETR.

Table 4: Accuracy in % from DETR.

Animal Empty Total

‘cis’ 98.49 61.51 80.00

‘trans’ 90.71 62.43 76.57

The inferences drawn from the above studies are

given in the next subsection. These inferences will

be used to narrow down upon the most suitable deep

learning algorithm for empty frame removal.

4.1.4 ViT, Faster R-CNN or DETR?

‘cis’ Location Performance: Among the three

deep learning techniques, the highest overall accuracy

on the ‘cis’ locations (87.28%) is given by ViT (best

model on ‘cis’ locations).

Faster R-CNN, ViT (best model on ‘trans’ loca-

tions), and DETR for animal containing frame have

accuracy more than 90% but for empty frame, the ac-

curacy is 40.59%, 31.96% and 61.51% respectively.

These models will detect animals with high accuracy

but a large mass of empty frames will be wrongly

identiﬁed as animal containing frames. Thus the pri-

mary motive of removing empty frames will not be

solved. On the contrary, an important consideration

for infrequently encountered and rare species is that

we want to retain any frame containing even slight

traces of a species. Hence, in such a scenario we

might relax empty frame removal if the cost is los-

ing frames containing uncommon species. DETR and

Faster R-CNN bequeath us with nearly the same ac-

curacy on animal frames (98.49% and 98.74% re-

spectively). But DETR has an upper hand on empty

frame performance by nearly 30% in comparison to

Faster R-CNN. Therefore, while dealing with rare

species we should employ DETR. Most camera trap

sequences produce a colossal amount of data with

more than 70% empty frames. Therefore the sweet

spot between reducing the burden of manual empty

frame removal and retaining rare species lies in the

usage of ViT(‘cis’ best model.)

‘trans’ Location Performance: The highest over-

all accuracy on ‘trans’ locations 76.57% is given by

DETR. DETR generalises well to new locations as it

focuses on animal presence. From the DETR self-

attention maps we observe that DETR coalesces dis-

tant semantic concepts well as all the background

pixels are interweaved and differentiated from object

pixels (Figure 6). Therefore, DETR provides nearly

the same accuracy on empty frame for both ‘cis’ and

‘trans’ locations (61.51% and 62.43% respectively).

At the same time, if we want to retain the maxi-

mum number of frames containing animals belonging

to extremely rare species Faster R-CNN is the most

suitable model.

Figure 4: Attention map for: (a) frame containing animal

at location 88, (b) frame containing animal at location 7, (c)

empty frame at location 130 and (d) empty frame at location

40.

Sieving Camera Trap Sequences in the Wild

475

ViT- Appraisal through Attention Map: Despite

the multitude of challenges, including varying poses,

camouﬂage, occlusion due to tree branches and

leaves, low contrast, and poor illumination ViT fo-

cuses its attention solely upon the animal (refer to

Figure 4 (a) and (b)). From Figure 4 (b) we see that

even though animal is not salient due to low con-

trast, no tonal gradient, and low illumination the at-

tention rightly focuses itself on the animal. In spite

of background clutter, deceiving animal-like objects,

and presence of colour tones similar to that of ani-

mals in empty frames the attention is not localised,

it is scattered and dispersed throughout the frame as

seen in Figure 4 (c) and (d). Therefore, through visual

scrutiny of attention maps, we see that ViT rightly fo-

cuses on the animals.

In the next section, we present results on detecting

(localising) animals in camera trap sequences from

frames containing animals.

4.2 Animal Detection

For detecting animals in camera trap sequences we

use Faster R-CNN and DETR. The evaluation met-

ric used for the animal detection task is COCO Aver-

age Precision (AP). COCO AP 0.5 −0.95 denotes the

average over multiple IoU (Intersection over Union)

threshold from 0.5 to 0.95 with a step size of 0.05.

The detection above the IoU threshold is taken as the

correct detection. COCO AP 0.5 is Average Precision

above 0.5 IoU threshold.

4.2.1 Animal Detection Results

From Table 5 it is observed that DETR outperforms

Faster R-CNN in the animal detection task. This ob-

servation could be accredited to the knitting of sparse-

high level semantics together in camera trap images

done by the fusion of convolutional backbone, atten-

tion mechanism, and encoder-decoder architecture in

DETR. Hence, for further scrutiny, we employ DETR.

The reason for the better performance of DETR is ex-

plained as beneath.

Table 5: Detection performance using DETR and Faster R-

CNN in AP(COCO AP 0.5-0.95).

Faster R-CNN DETR

AP 0.5-0.95 52.1 53.4

Sequence Analysis of Camera Trap Images with

Results from DETR: Since camera trap images are

a sequence of images, not all frames captured are

equal. After a trigger to shoot images it is an opti-

mistic conjecture to assume that at least one frame

can capture the animal. Therefore, as in (Beery et al.,

2018), we exploit frame information in two ways:

1. Most Conﬁdent: From a sequence of images, if

the most conﬁdent detection from all the frames

in a sequence has an IoU greater than 0.5 we con-

sider the animal has been correctly located.

2. Oracle: From a sequence of images, if the

highest IoU between the predicted bounding box

and ground truth bounding box (amongst all the

frames in a sequence) is greater than 0.5 we con-

sider the animal has been correctly located in that

sequence.

For sequence analysis, we remove the images with

multiple animals to have a clear case for choosing

the highest IoU and highest conﬁdence amongst a se-

quence of frames.

Treating all the frames equally i.e. without se-

quence information we obtain an average precision

of 89.2 (COCO AP 0.5) (refer to Table 6). With se-

quence information Most Con f ident and Oracle we

wield average precison of 91.4 and 94 (COCO AP

0.5) respectively. The frame sequences in this dataset

vary from 1-5 in length. Hence, it is appropriate to

evaluate the performance using sequence information.

94 COCO AP 0.5 points seem to be an upstanding

score considering the preposterous challenges of the

dataset; camouﬂage, motion, blur, occlusion, poor il-

lumination, negligible tonal range, cropped out sub-

ject, subject too close or too far, varying animal poses,

and optical distortion due to ﬁxed camera angles.

Table 6: Sequence analysis of camera trap images with re-

sults from DETR.

No sequence

information

Most

conﬁdent

Oracle

AP 0.5-0.95 55.4 61.2 68.5

AP 0.5 89.2 91.4 94

DETR Detection Performance Scrutiny:. To ap-

praise the performance of DETR on CCT se-

quence 1000 images are randomly selected for visual

scrutiny. Near ﬂawless detection is observed in most

of the daytime images (image(1) in Figure 5) and in

fair proportion of low-light images (image(2) and im-

age(3) in Figure 5). Despite the rationale that lumi-

nance and colour gradient is pivotal for shape and

depth inference by any algorithm, DETR performs

well on a fair share of images that have nearly ﬂat

or very weak luminance gradient and negligible range

of tones.

Many failure cases involve deceiving animal-like

background clutter (image(4)), or very low visibility

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

476

Figure 5: DETR detection output on CCT dataset from left

to right and top to bottom: (1) IoU equal to 0.99 (2) IoU

equal to 0.79 (3) IoU equal to 0.63 (4) False positive; IoU

equal to 0.39 (5) False negative detection (6) False positive

detection (The bounding boxes in red are ground truth and

blue are predicted).

Figure 6: Visualization of DETR encoder self-attention

weights for a CCT image; ﬁrst column top and bottom: self

attention map for reference point belonging to the object;

second column: original image; third column top and bot-

tom: self attention map for reference point belonging to the

object and belonging to background respectively.

either due to low-light (image(5)), or extreme camou-

ﬂage (image(6)). Indeed in such cases, it is difﬁcult

to see the animal, and there seems to be only a possi-

bility but no guarantee of animal presence.

In Figure 6, we visualise DETR encoder self-

attention using four reference points. Self attention

for a sample point indicates the likelihood of remain-

ing points being positively related to it. By visualising

how the model encodes the object, we gain intuition

whether the model is accurately knitting context se-

mantics while maintaining spatially-distant concepts.

So, in Figure 6 we see that for the three reference

points belonging to the object, the model assigns max-

imum weight to pixels belonging to the subject. Even

if there are three different spatially apart reference

points belonging to the object, the self-attention ma-

trix visualised is nearly the same. Thus, giving less

weight to background pixels, the model ﬁlters out

irrelevant parts of the image endowing itself with

the ability to make precise judgements. Also, for

a background reference point, the entire background

is weighted higher than object pixels. This gives us

the insight that indeed DETR encoder is maintaining

long-range dependencies (by weaving the background

pixels together throughout the image). The ability

to capture dependencies beyond the limited receptive

Figure 7: Proposed pipeline for empty frame removal and

animal detection.

ﬁeld of a convolutional ﬁlter is the key to better per-

formance of DETR than Faster R-CNN on the CCT

dataset. This further allows the model to gain wider

intuition for detecting obscured animal parts.

Based on the results from section 4 (empty frame

removal and empty frame detection) we propose an

end-to-end pipeline for animal detection from camera

trap sequences.

4.3 Discussion on a Proposed Pipeline

for Camera Trap Image Analysis

Encouraged by our results, we propose an end-to-end

pipeline for empty frame removal and animal detec-

tion task in camera trap sequences (refer to Figure 7).

Given a camera trap sequence, the proposed pipeline

removes the empty frames using ViT (best model on

‘cis’) and then locates animals with a bounding box

using DETR. It is observed that in CCT dataset 70%

of the frames are empty. The proposed pipeline is ap-

plied to the entire data and 99.4% of the total empty

frames are discarded. Only 0.6% of the total number

of empty frames remain along with frames contain-

ing animals. At the same time, we have lost 0.2% of

the frames that contain animals. In the next stage of

the pipeline, it is seen that 87.29% of animals are de-

tected with IoU greater than 0.5. IoU greater than

0.5 is a widely used threshold for object detection

tasks. We observe that 98.56% of animal frames are

Sieving Camera Trap Sequences in the Wild

477

detected with IoU greater than 0.3. With IoU above

0.3, the task of locating animals becomes very easy in

extremely low light and low contrast images.

5 CONCLUSION

In this work, we address the empty frame removal

problem and the animal detection challenge in camera

trap sequences. In tandem, we investigate the applica-

bility of ViT, DETR, and Faster R-CNN for this task.

Our experiments reafﬁrm the generalisation gap in the

context of unseen test data. We culminate our experi-

mental study with proposal of a two-stage pipeline for

mining vital statistics from camera trap sequences. In

the ﬁrst stage we ﬁlter out empty frames and in the

second stage, we perform wildlife detection and local-

isation. Balancing the trade-off between retaining all

frames containing animals and ﬁltering out all empty

frames we adopt ViT(best model on ‘cis’) for remov-

ing empty frames and DETR for detecting animals.

Despite heavy background clutter, camouﬂage, size

and pose variations, occlusion, progressive illumina-

tion changes from day to night, and seasonal varia-

tions in ﬂora and fauna in camera trap data we ob-

tain a competitive accuracy. We shall extend our work

to make the empty frame removal and animal detec-

tion pipeline even more robust, especially under ex-

treme low-light and low-contrast conditions. Hence,

develop practically deployable wildlife detection sys-

tems. Further, we plan to incorporate open set recog-

nition, zero-shot learning, and few-shot learning for

generalising to unseen locations.

ACKNOWLEDGEMENTS

This work is partially supported by National

Mission for Himalayan Studies (NMHS) grant

GBPNI/NMHS-2019-20/SG/314

REFERENCES

Bay, H., Tuytelaars, T., and Van Gool, L. (2006). Surf:

Speeded up robust features. In European conference

on computer vision, pages 404–417. Springer.

Beery, S., Van Horn, G., Mac Aodha, O., and Perona, P.

(2019). The iwildcam 2018 challenge dataset. arXiv

preprint arXiv:1904.05986.

Beery, S., Van Horn, G., and Perona, P. (2018). Recognition

in terra incognita. In Proceedings of the European

Conference on Computer Vision (ECCV), pages 456–

473.

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers. In European Conference on

Computer Vision, pages 213–229. Springer.

Cortes, C. and Vapnik, V. (1995). Support-vector networks.

Machine learning, 20(3):273–297.

Cunha, F., dos Santos, E. M., Barreto, R., and Colonna,

J. G. (2021). Filtering empty camera trap images in

embedded systems. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion (CVPR) Workshops, pages 2438–2446.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In 2005 IEEE com-

puter society conference on computer vision and pat-

tern recognition (CVPR’05), volume 1, pages 886–

893. Ieee.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Minderer,

M., Heigold, G., Gelly, S., et al. (2020). An image is

worth 16x16 words: Transformers for image recogni-

tion at scale. arXiv preprint arXiv:2010.11929.

Emami, E. and Fathy, M. (2011). Object tracking using

improved camshift algorithm combined with motion

segmentation. pages 1–4.

Figueroa, K., Camarena-Ibarrola, A., Garc

ıa, J., and Vil-

lela, H. T. (2014). Fast automatic detection of wildlife

in images from trap cameras. In Iberoamerican

Congress on Pattern Recognition, pages 940–947.

Springer.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

international conference on computer vision, pages

1440–1448.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detec-

tion and semantic segmentation. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 580–587.

Guo, Z., Zhang, L., and Zhang, D. (2010). A completed

modeling of local binary pattern operator for texture

classiﬁcation. IEEE transactions on image process-

ing, 19(6):1657–1663.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hidayatullah, P. and Konik, H. (2011). Camshift im-

provement on multi-hue and multi-object tracking. In

Proceedings of the 2011 International Conference on

Electrical Engineering and Informatics, pages 1–6.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. Advances in neural information processing

systems, 25:1097–1105.

Lin, M., Chen, Q., and Yan, S. (2013). Network in network.

arXiv preprint arXiv:1312.4400.

Lindeberg, T. (2012). Scale invariant feature transform.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37. Springer.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

478

Loshchilov, I. and Hutter, F. (2018). Fixing weight decay

regularization in adam.

Matuska, S., Hudec, R., Kamencay, P., and Trnovszky, T.

(01 May. 2016). A video camera road sign system

of the early warning from collision with the wild ani-

mals. Civil and Environmental Engineering, 12(1):42

– 46.

Norouzzadeh, M. S., Morris, D., Beery, S., Joshi, N., Jojic,

N., and Clune, J. (2019). A deep active learning sys-

tem for species identiﬁcation and counting in camera

trap images. ArXiv, abs/1910.09716.

Norouzzadeh, M. S., Nguyen, A., Kosmala, M., Swanson,

A., Palmer, M. S., Packer, C., and Clune, J. (2018).

Automatically identifying, counting, and describing

wild animals in camera-trap images with deep learn-

ing. Proceedings of the National Academy of Sciences,

115(25):E5716–E5725.

Ojala, T., Pietik

ainen, M., and Harwood, D. (1996). A com-

parative study of texture measures with classiﬁcation

based on featured distributions. Pattern Recognition,

29(1):51 – 59.

Redmon, J. and Farhadi, A. (2017). Yolo9000: better, faster,

stronger. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 7263–

7271.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. arXiv preprint arXiv:1506.01497.

Schneider, S., Taylor, G. W., and Kremer, S. (2018). Deep

learning object detection methods for ecological cam-

era trap data. In 2018 15th Conference on computer

and robot vision (CRV), pages 321–328. IEEE.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Swanson, A., Kosmala, M., Lintott, C., Simpson, R., Smith,

A., and Packer, C. (2015). Snapshot serengeti, high-

frequency annotated camera trap images of 40 mam-

malian species in an african savanna. Scientiﬁc data,

2(1):1–14.

Swinnen, K. R., Reijniers, J., Breno, M., and Leirs, H.

(2014). A novel method to reduce time investment

when processing videos from camera trap studies.

PloS one, 9(6):e98881.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 1–9.

Torralba, A. and Oliva, A. (2003). Statistics of natural im-

ages categories. Network (Bristol, England), 14:391–

412.

Weinstein, B. G. (2018). A computer vision for animal ecol-

ogy. Journal of Animal Ecology, 87(3):533–545.

Wu, B., Xu, C., Dai, X., Wan, A., Zhang, P., Tomizuka, M.,

Keutzer, K., and Vajda, P. (2020). Visual transformers:

Token-based image representation and processing for

computer vision. arXiv preprint arXiv:2006.03677.

Wu, Y., Kirillov, A., Massa, F., Lo, W.-Y., and Girshick, R.

(2019). Detectron2.

Zhang, Z., He, Z., Cao, G., and Cao, W. (2016). An-

imal detection from highly cluttered natural scenes

using spatiotemporal object region proposals and

patch veriﬁcation. IEEE Transactions on Multimedia,

18(10):2079–2092.

Zhou, D. (2014). Real-time animal detection system

for intelligent vehicles. PhD thesis, Universit

d’Ottawa/University of Ottawa.

Sieving Camera Trap Sequences in the Wild

479
