A Novel Energy-efficient Wormhole Attack Prevention Protocol for

WSN based on Trust and Reputation Factors

Saad Al-Ahmadi

Department of Computer Science, King Saud University, Riyadh, Saudi Arabia

Keywords: Network Security, Trust Mechanism, Wireless Sensor Networks, Wormhole Attack, WSN Simulation.

Abstract: The deployment of Wireless Sensor Networks (WSNs) for the Internet of Things (IoT) is important, but this

also poses some security issues. Wireless Sensor Networks (WSNs) are vulnerable to various attacks, such

as the Wormhole attack. The Wormhole attack is one of the most severe attacks on WSNs that is particularly

challenging to defend against even when the communication is authentic, and sensors are not compromised.

Existing techniques to detect and protect against Wormhole attacks place a substantial burden on the scarce

sensor resources and do not consider the dynamic nature of the network. In this paper, a novel Energy Efficient

Wormhole Attack Prevention Protocol (EWATR) is proposed to protect WSNs against Wormhole attacks.

EWATR is based on trust and reputation among WSN nodes that consider the dynamic nature of the network.

This study also compares EWATR against several state-of-the-art trust and reputation models through

extensive simulations using the TRMSim-WSN simulator. Eventually, the simulation results show the

superiority of EWATR over other proposed protocols in terms of efficient energy consumption and shorter

path length.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) consist of large

numbers of low-power sensors dynamically forming

different topologies. WSNs are notable for their

distributed cooperation, dynamic topology, lack of

central administration, open medium, and constrained

capability (computation and power constraints). Every

sensor serves as both a host and a router, forwarding

packets to and from other sensors. Sensors have many

limitations that require keeping in mind while

establishing networks, like limited memory size,

battery life, and processing performance (Akyildiz et

al., 2002). WSN is vital for the Internet of Things (IoT)

and has numerous military applications, environment

monitoring, predictive maintenance, smart grids,

transportation, buildings, healthcare, to name a few

(Agrawal et al., 2011).

WSN Security is a significant concern because

sensors interact with their surroundings and people

are often physically accessible, allowing possible

physical attacks. WSNs are more vulnerable than

traditional wired and wireless networks to security

threats. A wormhole attack is a severe threat where

powerful routers are injected in strategic locations to

tunnel packets received in one network and replay

them in another place. The attacker only needs two

transceivers and no key material.

There are many solutions proposed in the

literature to protect WSN against wormhole attacks.

This paper presents a novel Energy Efficient Worm-

hole Attack Prevention Protocol (EWATR) based on

trust and reputation among WSN nodes to combat

wormhole attacks. It uses cooperation to establish

trust among neighbouring sensors. EWATR can be

embedded in nay WSN routing protocol, such as Ad

hoc On-Demand Distance Vector (AODV), to detect

and prevent wormhole attacks. It can be extended to

other ad hoc networks such as the Wireless Ad-hoc

network (WANET), where route discovery and node

credibility are the first security requirements in

wireless routing protocols.

This paper is arranged as follows: Section 2

introduces the reader to the necessary background

information. In contrast, Section 3 covers an

extensive literature review of the state-of-the-art

research for detecting and preventing wormhole

attacks— Section 4 presents the proposed approach

EWATR. In Section 5, we show our comparison

results using simulation versus other existing

techniques. Section 6 concludes the work and sheds

light on future work.

Al-Ahmadi, S.

A Novel Energy-efﬁcient Wormhole Attack Prevention Protocol for WSN based on Trust and Reputation Factors.

DOI: 10.5220/0010951400003118

In Proceedings of the 11th International Conference on Sensor Networks (SENSORNETS 2022), pages 191-201

ISBN: 978-989-758-551-7; ISSN: 2184-4380

191

2 BACKGROUND

A wormhole attack is a severe WSN attack in which

the attacker fakes two sensors as the wormhole tunnel

ends, one of which collects, captures the packets, and

forwards them through the tunnel to the other. By

enabling smoother transmission channels, the tunnel

allures adjacent nodes to direct their traffic via the

tunnel rather than different safe routes. When

wormhole nodes only forward packets faster, it is

considered a passive attack. When a wormhole alters

packet content or drops them, it is regarded as an

active attack. As a Denial-of-Service attack, the

wormhole distorts data aggregation and routing

protocols.

Therefore, the attacker can initialize the

wormhole using malicious nodes deployed in several

locations to capture network traffic (packets or bits).

It redirects the network packets using inside an

extended distance tunnel. The wormhole tunnel was

established using either a wired link or high-

frequency wireless links (Aliady & Al-Ahmadi,

2019).

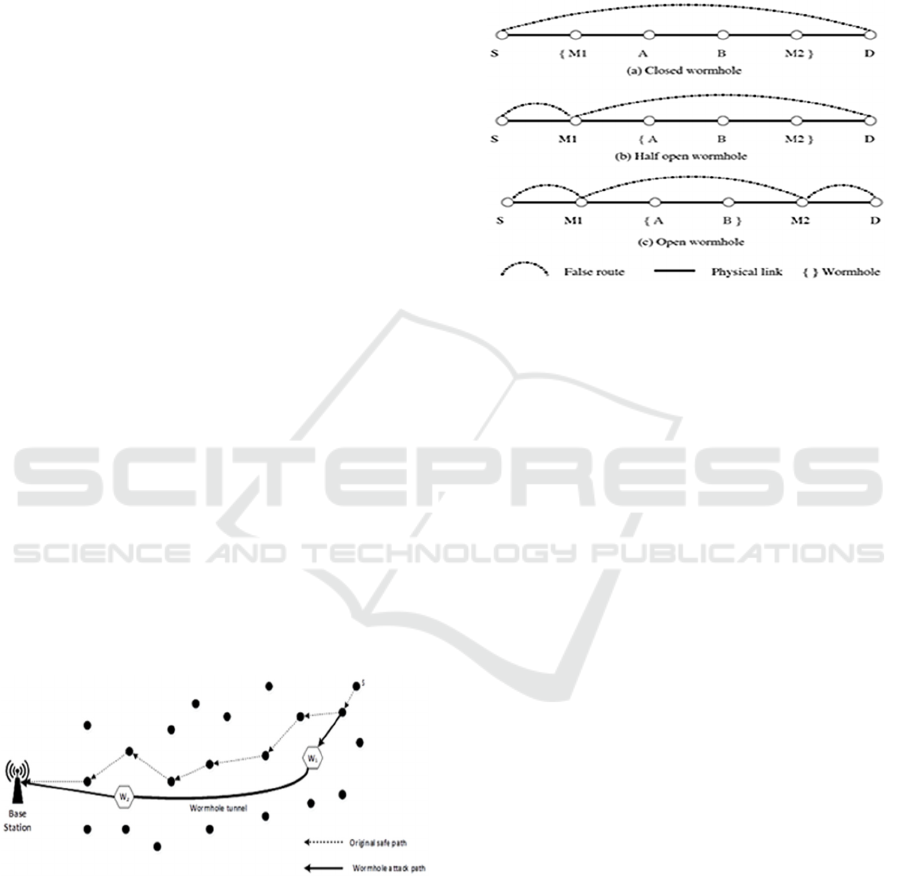

Figure 1 shows communication between the

source node S and the base station. The safe path,

shown in dotted lines, is long and has many hops,

while the dangerous path, shown in dark thick lines,

has fewer hops and passes through a wormhole tunnel

between the two malicious nodes W1 and W2 (Chiu

& Lui, 2006). In some cases, the tunnel establishes a

shortcut route that makes the tunnelled packet arrives

with fewer hops and shorter time. The confidentiality

and authenticity of the communication channel do not

defend against such a dangerous attack (Ban et al.,

2011).

Figure 1: Wormhole attack.

2.1 Wormhole Attack Classification

Wormholes are classified into three types: closed,

half-open, and open (N. Sharma & Singh, 2014), as

shown in Figure 2. Nodes S and D are the source and

destination nodes. Nodes M1 and M2 represent the

malicious nodes. Nodes A, B are benign nodes on the

route between S and D. Curly braces “{}” are used to

hide nodes invisible nodes to S and D. because they

are in the wormhole. The word “closed” means “start

from and include,” while the word “open” means

“start from but not include” (N. Sharma & Singh,

2014).

Figure 2: Types of Wormhole attack.

In closed wormhole attack (a), M1 and M2 take

over the neighbourhood discovery beacons between S

and D, where they assume they are direct neighbours

to each other while they are not. In half-open

wormhole attack (b), M1 is a neighbour of S and

tunnels beacons through M2 to D. Only one malicious

node is visible to S and D. Similar situation can

happen to D where it can see a neighbouring

wormhole node M2 and tunnels beacons through M1

to S. In the open mode wormhole (c), both wormholes

M1 and M2 are visible direct neighbours to S and D.

2.2 Wormhole Attack Modes

Wormhole attacks are classified according to

techniques used to establish the attack, such as

encapsulation, out-of-band channel, packet relay,

protocol deviation, and high-power transmission.

Packet encapsulation is considered an easy way to

launch a wormhole attack. There is no need for extra

specialized hardware or tools, and each packet is

routed only via the legitimate path. This attack class

is based on freezing the hop counter by encapsulating

the packets that reached the wormhole ends. The

packet is transported into the original form by the

second endpoint (Ghugar & Pradhan, 2019).

Therefore, this prevents the right functional nodes

from finding the shortest paths between them and

generates many fake neighbours since the hop counter

is unrealistic.

Using Out-of-Band mode needs much effort to

lunch since it needs extra hardware. It relies on

hardware rather than software. This mode is deployed

SENSORNETS 2022 - 11th International Conference on Sensor Networks

192

with at least two malicious nodes equipped with a

long-range directional wireless link or a direct wired

link (Ghugar & Pradhan, 2019).

Packet relay mode can be deployed with at least

one malicious node without specialized hardware by

initializing a fake neighbour relation between two

right functional indirect nodes and fabricating a

neighbour relation. The malicious node tunnels

packets between indirect nodes, thus controlling all

the traffic without changing the routing protocol.

Protocol deviation attacks can cause serious harm

to the ad hoc network and WSN (Padmavathi &

Shanmugapriya, 2009). It acts as a massive Denial of

Service (DoS) attack. This attack is also known as the

Rushing Attack. It is launched against many existing

on-demand routing protocols by using one or more

malicious nodes. In many existing routing protocols

such as AODV and DSR, a node can discover the

destination route by sending multiple RREQ packets

to know the suitable route to the destination node.

Each node forwards the RREQ packet only once to

prevent this flood’s high overhead. The intruder will

abuse this property in this attack by forwarding the

RREQ route discovery packet to other nodes. It will

cause any node to receive the rushed RREQ will

discard any further RREQ from the same route

discovery.

The high-power transmission attack’s main idea

is to use a high-power source such as an

electromagnetic radio frequency signal to send a

high-power broadcast to various network nodes.

Therefore, nodes that received the transmitted high-

power broadcast rebroadcast it to the destination

node. This method deploys the wormhole tunnel

simply without using any colluding node. Also,

malicious nodes are on the route between the source

and the destination nodes (Johnson et al., n.d.).

2.3 Countermeasures to Wormhole

Attacks

This section will briefly describe other detection and

prevention techniques of wormhole attacks in WSN

proposed by several researchers.

2.3.1 Secure Geographic Routing Protocol

Detecting wormholes based on a node’s geographical

location is a typical detection and prevention

technique—the coordinates of every node within the

WSN are used for secure geographic routing. The

sender node includes its current geographical location

in the packet and the time stamp so the receiver node

can verify communication and falsify malicious

nodes. The receiver node calculates the possible and

estimated transmission range and checks the

eligibility of transmission time. This technique

requires an accurate and synchronized timer with a

geographic positioning system such as GPS to obtain

good results. The usage of additional hardware has

many disadvantages, such as exceeding the overall

network cost and reducing battery life, especially

within the WSN that uses small or low power sensors.

There are many existing geographic protocols, for

example, Greedy Perimeter Stateless Routing

(GPSR) (Ratnasamy et al., 2001). GPSR is inspired

by a greedy algorithm where every node within the

network knows its current location by using beacons

to identify the closest neighbour and near the ultimate

destination.

2.3.2 Statistical Analysis Approach

One possible solution to detect and forestall the

wormhole attack is using statistics and probabilities.

We can utilize this vital information to see the

wormhole tunnel by studying nodes’ routes,

frequency, and neighbour discovery. The statistical

analysis approach can provide the right solution

depending on the sensors and network configuration.

For example, if the sensors have a set of radio

frequency ranges within fixed boundaries, detecting

the malicious node that uses a high-power

transmission would be more straightforward and

notable. The researchers proposed a new statistical

analysis scheme that explores the network routes by a

statistical routing protocol (Somu & Mallapur, 2019).

It can spot the attack by inspecting the behaviour of

the sensors and the transmitted information. Other

researchers have suggested statistical techniques that

focus intensely on investigating the state of sensor

nodes and their closest neighbours. Based on the

received neighbourhood information, the base

station(s) can discover the presence of wormholes

probabilistically using hypothesis testing (Buttyán et

al., 2005).

2.3.3 Cryptography Key

Using public or symmetric key cryptography is a

method proposed by many researchers. Keys building

and exchange techniques for secure transmission in

distributed environments is a challenging task.

Encryption and decryption in WSN consume large

amounts of those limited sensor resources such as

processing capabilities, memory available, and little

energy (Babaeer & Al-Ahmadi, 2020). In (Zhang et

al., 2006), a new scheme based on public and private

authentication keys was proposed to eliminate

A Novel Energy-efﬁcient Wormhole Attack Prevention Protocol for WSN based on Trust and Reputation Factors

193

malicious nodes before packet sending. The

researchers have suggested a key management

scheme based on the public key exchanging methods

to improve security matters in ad hoc networks and

WSNs (Salam et al., 2010). In (Ju, 2012), Elliptic

Curve Cryptography (ECC) is used as a routing-

driven key management scheme to help the exchange

mechanism between neighboring nodes. Nodes only

accept packets from authenticated neighbors with a

valid key and ignore other packets coming from fake

nodes. In this way, malicious nodes cannot connect

with rightful nodes to gain trust and validity. Another

critical management scheme solution was proposed in

(P. Sharma, 2012), where three keys were used for

different purposes. A global key (network key) is

generated periodically by the base station. All nodes

share it in the network and are used to encrypt all

broadcasted messages within the network. The last

two keys are pair-wise keys used by network nodes

for authentication and exchanging secure messages

purposes. An asymmetric cryptography-based key

management scheme was suggested in (Khalil et al.,

2007). It adopts a new fundamental management

approach by inheriting the advantages of asymmetric

cryptography and employs it efficiently for delivering

session keys to sensor nodes.

2.3.4 Trust Mechanism

Trusted-based is another approach that has been

proposed by many researchers as a solution to

wormhole attacks as well as other attacks like sink-

hole attacks, black hole attacks, and DoS attacks. The

trust is built in the network layer routing protocol by

building trusted links among all nodes within the

WSN before establishing communication. In

(Simaremare et al., 2013), the researchers have

proposed a model improving security in ad hoc On-

Demand Distance Vector (AODV) routing protocol

by adding a trust factor that consists of three primary

agents: trust agent, reputation agent, and combined

agent. The trust agent model records the node’s trust

information so the reputation agent can spread the

recorded data to all nodes. The combiner agent

generates consolidated trust factors from the previous

agents’ received information. Based on AODV, a

local and global trust calculation method is proposed

in (P. Sharma, 2012) to detect and prevent ad hoc

network attacks. The Trust AODV (TAODV)

calculates trust by gathering all activity information

from surrounding nodes. It enhances the existing

AODV by introducing new fields into the node’s

routing table to record other nodes’ positive and

negative feedback. A node is known for its

trustworthiness if the input from other nodes is

positive. Opinions among nodes change dynamically

with the rise of successful or failed communication

times. The AODV routing protocol is subject to

extensive research and has many variations, yet it is

still an open research area because of its flexibility.

3 LITERATURE REVIEW

The wormhole attack problem got the attention of

many researchers because it is a crucial issue in WSN

and it affects routing protocols and network lifetime.

In the literature, many wormholes detection

approaches have been proposed. The authors

proposed a robust trust model for a cluster-based

network in (Gautam & Kumar, 2018) to secure

against collusion attacks. The model is based on

direct trust using a time-lapse function. The function

takes advantage of the forgetting curve to calculate

direct trust—another reputation function used for

indirect trust (recommendation-based trust)

calculation. The cluster head plays the

recommendation manager’s role and builds indirect

trust by collecting information from all neighbours of

the target node. Simple mathematical operations

calculate direct trust, and it entirely depends upon the

packet transaction among nodes. Active and trust

communication among nodes is achieved when the

trust value is high. This model does not provide

complete trust information because it only considers

communication trust.

A MANET is a decentralized, ordinary, and self-

orbiting type of wireless network that has the

capability of managing mobile nodes. To detect

wormhole attacks in MANET, a lightweight approach

has been proposed in (Zardari et al., 2018). All replies

(RREP) packets with sequence numbers are stored

temporarily at the source node. The source node

calculates an average of all sequence number and then

store it. If any of the nodes exceeds the average, it will

discard all replies packets. Hence, wormhole nodes

can be eliminated from the network, and those nodes

will be communicating in the network who are

trusted. The proposed approach in this study is power-

efficient, less complex, and increases network

lifetime in large networks.

A similar task has been done in (An & Cho, 2021)

to detect wormhole attacks in WSN. When events

occur in the WSN, the sensor node in the vicinity of

the generation event recognizes the event, generates a

report of the detected event, and sends it to the base

station. A wormhole attack, where in the report is sent

over a various path than the original path, can happen

SENSORNETS 2022 - 11th International Conference on Sensor Networks

194

during the transmission process. As a result, a

wormhole attack is detected, including encrypted

node ID and hop count into the report content during

the statistical en-route filtering methods report

production process. Furthermore, in this study, they

proposed a wormhole detection technique that can

enhance security. The proposed approach detects both

wormhole attacks and false report injection together.

Ukil in (Ukil, 2010) presents a simple yet efficient

model based on collaborative computing through

trust and reputation. It gives the possibility to find an

optimal routing path that optimizes both reliability

and communication efficiency. In the case of a trusted

environment, no authentication is needed for a node

to communicate with other nodes and to unwrap

hidden keys. Reputation is a global phenomenon that

tends to the history of the trustworthiness of nodes.

The proposed model gives reliability preference over

efficiency to protect and secure the network from

insider threats. A worm propagation detection scheme

was presented in (Ho & Wright, 2017), according to

which a randomized-SPRT (Sequential Probability

Ratio Test) was built on sequential traffic analysis to

detect worm propagation through legitimate traffic.

Detector nodes observe communication patterns in

the network and identify the worm propagation

pattern. After the initial remote attestations to detect

infected nodes, detector nodes create chains of

connections that would not be seen in regular traffic

due to its spreading hop-by-hop. When some nodes

are compromised, a self-propagating malicious code

can take over the network and cause damage. The

authors presented a methodology based on round trip

time (RTT) and hop count to identify wormhole

attacks (M. A. Patel & Patel, 2018). This approach

requires two steps; the first step uses a hop counting

mechanism based on the RTT algorithm. In every

sensor node, built local maps to detect abnormalities

and use a diameter feature transmission range. In the

second step, both neighbours’ ids and RTT are

collected between every two successive nodes. This

technique does not need any specialized hardware and

saves energy consumption. Simulation results show

that this scheme has high detection accuracy.

The study (N. Sharma et al., 2020) proposes a

technique in which each node's trust value is

calculated by watching N2N packet delay during

packet transaction between neighbouring nodes, and

malicious node identification is conducted based on

this trust value. The trust value can also be used to

choose a secure way and make a routing decision. For

network performance valuation, the DSR routing

protocol is utilized in the existing malicious nodes.

The researchers produced a defence method to

protect wormhole attacks using the neighbour

information collected for all nodes in WSN (Chu et

al., 2019). This mechanism does not require extra

hardware, complex calculation and does not consume

significant resources. The proposed method depends

on a Quantum-inspired Tabu Search (QTS)

algorithm. This algorithm relies on finding

combinations of the nodes to indicate the detection of

wormholes. The experimental results show that the

detection of wormhole attacks is highly successful.

A similar situation appears in ad hoc network,

Mobile ad-hoc networks (MANETs), needs

protection from various attacks like the wormhole

that benefits from the absence of centralized

infrastructure. In MANETs, routing suffers when a

participating node does not set its intended function

and performs malicious activity. The attacker can

record packets at one location in the network, transfer

them to another location, and retransmits them into

the networks. Researchers introduced a modified

AODV to discover wormhole attacks without

specialized hardware such as a directional antenna

and a specific synchronized clock (Gupta et al.,

2011). Their protocol is independent of the physical

medium of the wireless network. In route discovery,

the source node starts the wormhole detection process

in the discovered path, which counts hop difference

among the neighbours of one of the hops away nodes.

The destination node discovers a wormhole if the hop

difference between neighbours of the nodes exceeds

the acceptable level. The algorithm uses an additional

hound packet to check if the ad hoc network is formed

between trusted parties. It does not require sending a

hound packet when the network is public, or nodes

experience a high packet dropping rate. The hound

packet is sent after the path discovery phase. The

simulation results show that the algorithm works well

in detecting wormholes of extensive tunnel lengths.

The researchers introduced Multi-Layered

Intrusion Detection (MLDW) as a method for

detecting and preventing wormhole attacks on

MANET in (C.P & Saviour Devaraj, 2013). MLDW

utilizes the AODV route discovery phase with

adequate response time and uses layer framework

information such as link latency estimator,

intermediate neighbour node discovery mechanism,

packet drop calculator, and node energy degrade

estimator followed by isolation technique. MLDW

does not require any specialized hardware or clock

synchronization and achieves good defence results.

Authors in (M. Patel et al., 2019) have presented

various detection features that help for wormhole

detection. Existing wormhole detection techniques

A Novel Energy-efﬁcient Wormhole Attack Prevention Protocol for WSN based on Trust and Reputation Factors

195

mainly rely on four detection features: time,

neighbourhood, location, and hop count. The time

feature indicates that the suspicious path has more

average time per hop than the safe path. Techniques

based on time information require clock

synchronization—the neighbourhood feature used by

detection techniques to store information on one hop

or two hops’ neighbours. Analysing and storing two

hops neighbour’s data in the network requires more

storage processing, power, and memory. The location

feature is significant for detecting wormhole to know

the location need to direct antennas and GPS. The hop

count feature shows that wormhole attracts traffic by

advertising a shorter route with a fewer hop count—

existing techniques used hop count feature in

collaboration with location and time features.

The authors proposed a new method for

preventing wormhole attacks by using an algorithm to

manage many nodes using node ID (Buch & Jinwala,

2011). In this method, Node ID was linked to the

surrounding nodes in a binary tree structure. The

algorithm created a load balancing feature for

monitoring a hierarchical system for nodes and an

extra packet header on each node to ensure it was not

compromised. The experiment developed a

simulation using C# on the Windows platform to

study only the binary structure of how the nodes

severed in a mesh network.

A Wormhole Resistant Hybrid Technique

(WRHT) was presented as a more positive way of

detecting the presence of a wormhole attack than

existing strategies in (Singh et al., 2016). WRHT

relies on the concept of watchdog and Delphi

schemes and verifies that the wormhole will not be

left untreated in the sensor network. WRHT depends

on the dual wormhole detection mechanism of

calculating probability factor time delay and packet

loss probability of the established path to find the

value of wormhole presence probability. All nodes in

the path are given a different ranking and,

subsequently, colours according to their behaviour. It

does not require additional hardware such as a global

positioning system (GPS), timing information,

synchronized clocks, or high computational needs

like traditional cryptographic schemes. The

experimental results showed significant improvement

in the detection rate of the wormhole attack.

4 PROPOSED APPROACH

The proposed protocol is an Energy Efficient Worm-

hole Attack prevention scheme in WSN based on

Trust and Reputation factor (EWATR). It makes use

of trust and reputation information (Khalid et al.,

2013) to calculate the trustworthiness of a node to

judge a node’s misbehaviour and effectively

distinguish between normal operating and malicious

nodes. In EWATR, the positive and negative effects

of a node’s action are observed. The observations are

aggregated in a specific trust table maintained by the

node. Statistical analysis is performed on the trust

table data to generate the node reputation.

Node’s trust computation based on:

● information collection,

● information dissemination,

● information mapping to trust model, and

● Decision making.

4.1 Information Collection

Information is collected by node (say A) through

packet broadcasting. Node A monitors another node

(say B) in promiscuous mode. When node B takes the

responsibility to forward the packet received from A,

it will broadcast it so node A can hear it again. Now,

node A will verify the packet contents and update the

trust rating for node B. In this manner, nodes can

collect what is called first-hand trust information.

When a sensor node broadcasts a packet, the node

monitors the neighbouring node through a watchdog

mechanism. After sending the packet to a neighbour,

the watchdog mechanism requires that the node

monitor the neighbour in a promiscuous mode, as

illustrated in figure 3, to verify whether the neighbour

has forwarded or intentionally dropped the packet. If

the neighbouring node takes the packet forwards, the

trust rating is incremented and updated in the sender

nodes database. Conversely, if the adjacent node

drops the packet, the trust rating is reduced in the

sender node’s database.

Figure 3: Description of promiscuous mode.

4.2 Information Dissemination

In EWATR, network nodes distribute their first-hand

information to the neighbouring nodes. Such kind of

distribution information is called second-hand

information, as implemented in Figure 4. The use of

second-hand information is beneficial and makes the

reinforcement of the reputation process faster.

Second-hand information sets up a global view of

trust in the network. The nodes extend second-hand

information either proactively, after some fixed time,

SENSORNETS 2022 - 11th International Conference on Sensor Networks

196

or reactively, on the occurrence of some event or

some essential change in the network.

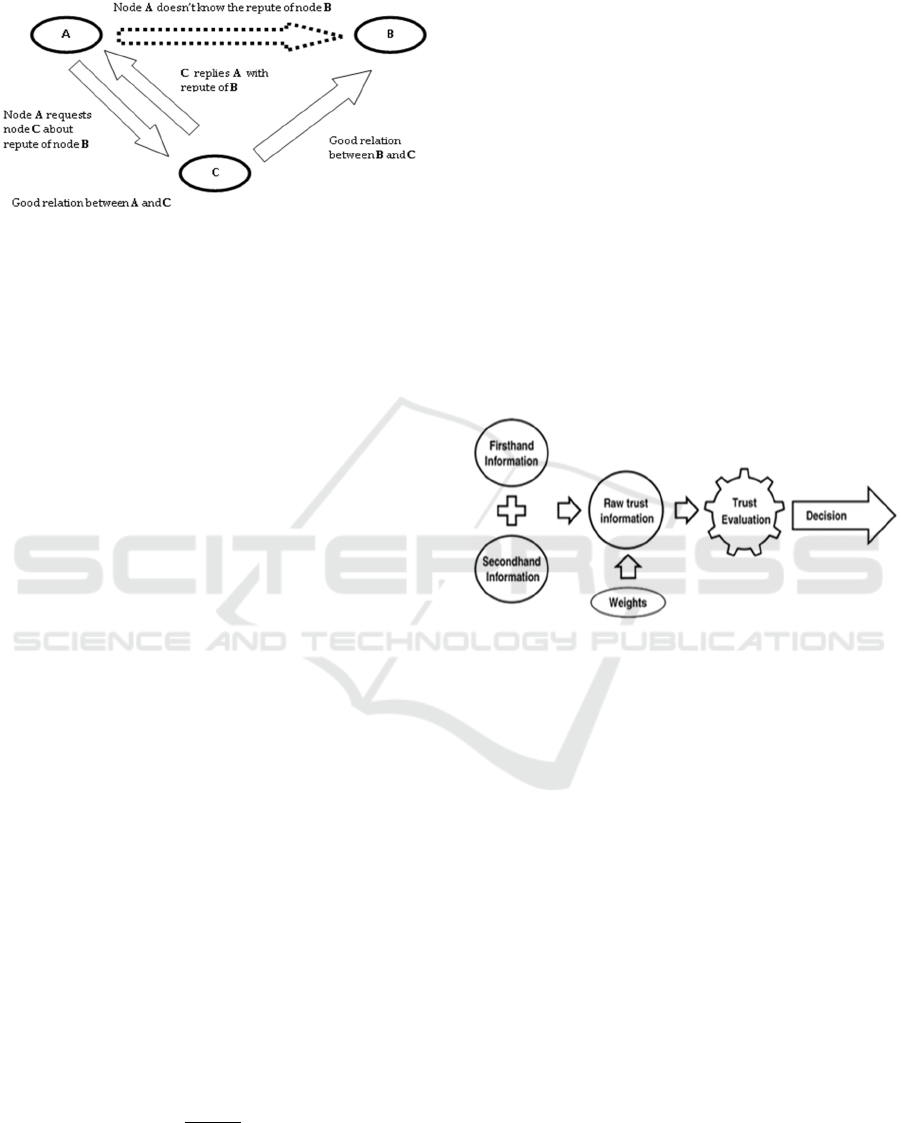

Figure 4: Second-hand trust information dissemination.

4.3 Information Mapping to the Trust

Model

In this phase, network nodes add first-hand and

second-hand information to produce a trust and

reputation metric. First-hand data is direct, and more

computation effort is required to combine first-hand

data into the reputation metric. The credibility of the

reporting node is made through various techniques

suggested in the literature. One such technique, called

the deviation test, is presented in (Ganeriwal et al.,

2008). The following inequality represents the

deviation test: Where d is a threshold, the value of

which is set truly. In the inequality given in Equation

(1), α and β are two parameters of the statistical Beta

distribution, which is used for decision-making.

 𝐵𝑒𝑡𝑎



∝,𝛽



𝐸



𝐵𝑒𝑡𝑎∝



,𝛽







𝑑

(1)

Here, α select right nodes while β selects nodes

with bad behaviours. The probability value E (Beta(α,

β)) is the measure of the current trust information

node A has about node B, whereas E (Beta(αf, βf))

shows the new trust information provided by some

node C to node A about node B. The reporting node

C is considered trustworthy if the left-hand side of the

difference in Equation (1) produces a value less than

threshold d.

Various trust and reputation mechanisms use

different statistical models to estimate the correctness

of second-hand information, relying on the

application and security requirements. The most used

schema is the Beta distribution, whose probability

density function is expressed using the Gamma

function as

𝑃



𝑥



 𝐵𝑒𝑡𝑎



∝,𝛽









,



















𝑥





1𝑥





,∀0

𝑥1,∝0,𝛽0

(2)

Where α refers to the acceptable behaviour, and β

represents the bad behaviour of a node. Equation (2)

suggested another way of measuring the consistency

of data by a reporting node. For example, let us

assume a node B provides trust information to node

A for P+Q times. If information is regular for p times,

then P(x) is implemented to predict its regularity in

the subsequent observation. If P(x) results in a value

equal to 1, then the reported information is regular

and authentic; otherwise, it is considered unauthentic

information.

4.4 Decision Making

The final step shows the decision-making process.

The decision relies on the computed trust values.

Node A decision may be one of the two binary values,

where a “1” refers to participating and forwarding the

packet, and a “0” means not cooperating. Figure 5

graphically illustrates the decision‐making process.

Figure 5: Trust computation process shows how weights

applied to set trust thresholds.

5 EXPERIMENT EVALUATION

We simulated three experiments to evaluate and

compare the performance of BTRM-WSN (Gómez

Mármol & Martínez Pérez, 2011), Eigen Trust

(Kamvar et al., n.d.), Peer Trust (Xiong & Liu, 2004),

Power Trust (Zhou & Hwang, 2007), Linguistic

Fuzzy Trust Model (LFTM) (Mármol et al., 2010),

and Trust and Reputation Infrastructure Based

Proposal model (TRIP) (Mármol & Pérez, 2012). The

first experiment runs on comparing the seven systems

in terms of accuracy in searching for trustworthy

sensors. This experiment estimates the level of

security provided in WSN. The second experiment

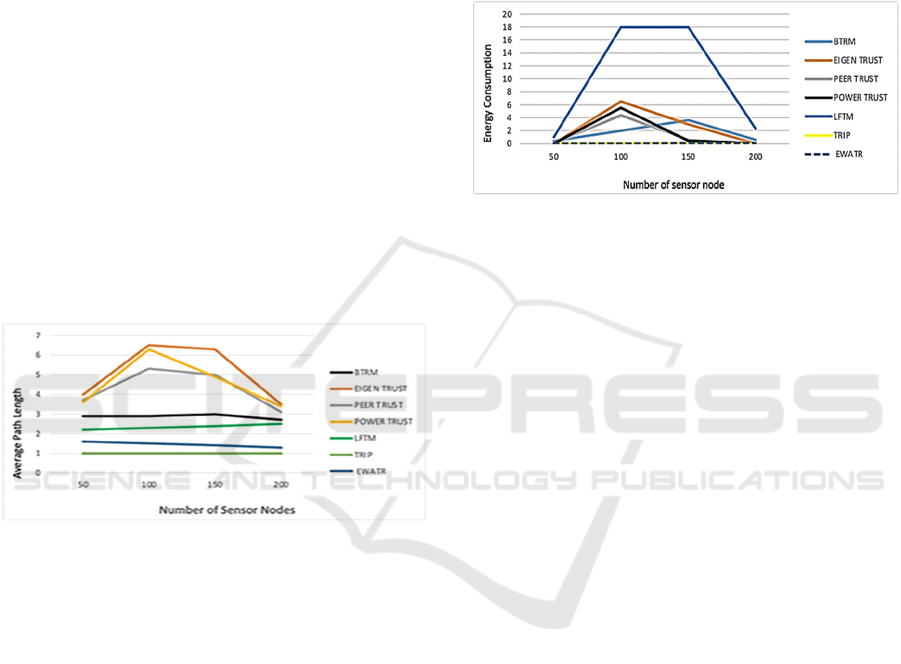

compares the average path length leading to the

trustworthy sensors selected. It assesses the

efficiency, or the facility for discovering reliable

sensors, of the seven techniques. Finally, the total

energy saving of applying these seven techniques in

WSNs is measured. The average Path length is the

A Novel Energy-efﬁcient Wormhole Attack Prevention Protocol for WSN based on Trust and Reputation Factors

197

efficiency measurements in ease of discovering

sensor nodes.

5.1 TRMSim-WSN Simulation

We implemented the seven trust and reputation model

simulators for WSN using TRMSim-WSN (Mármol

& Pérez, 2009). It is a java-based trust and reputation

model simulator that provides a straightforward

method to test a trust and reputation model over WSN

and compare it against other models. TRMSim-WSN

users may choose between static and dynamic

networks, as well as the proportion of fraudulent

nodes, the percentage of nodes functioning as clients

or servers, etc. We set up WSN based on network

parameter settings shown in table 1. In a randomly

created WSN, 30% of all nodes are clients that will

request default services. The other 70% nodes will be

servers, which are asked to provide services upon

request. WORMHOLE NODES act in pairs for a

single transaction when two legitimate nodes are

supposed to communicate (for sharing of files

between two legitimate nodes). There may be more

than two nodes, both even or odd nodes. Statistical

analysis may give more accurate results (Johnson et

al., n.d.). If the movements are random in the

network, wormhole nodes may have trouble catching

up dynamically. Similarly, it is hard for legitimate

ones to detect untrustworthy nodes.

Furthermore, in a typical transaction, two

WORMHOLE nodes are needed for the tunnel to be

established; one may be a Server node, while the one

at the other end will be a client sensor node.

Having 70 percent server nodes and 30 percent

client nodes means there are more sensing nodes

information being transmitted by servers than by

clients, which means that a client may be sending

requests to more than one server node, at a time. A

broadcast message by the client may reach multiple

Server or even client nodes. Interestingly, a wormhole

may also send a broadcast to the serving node and its

other peer (worm) closest to the client node.

In network topologies in an infrastructure-based

client-server model, clients are more than a single

Server. For instance, a Webserver may serve

thousands of clients’ requests a second.

This may be because sensing information like

humidity, temperature, wind speed, etc. maybe being

more often transmitted to hub/gateway/hybrid nodes,

which in turn may transmit or relay to infrastructure

nodes.

Table 1: Experiment Parameters.

NumExecutions 100 %Clients 20%

NumNetworks 100 %Relay 5%

MinNumSensors {50,100,150,200} %Malicious 70%

MaxNumSensors {50,100,150,200} Radio range {10, 8, 6, 4}

5.2 Accuracy

To estimate the reliability and level of security

provided by the trust and reputation system in WSN.

The accuracy of a trust and reputation system is

implemented by the percentage of times when it

successfully selects trustworthy sensors (the former

situation) out of the total number of transactions.

When a transaction take place, it from wormholes.

It may take several rounds of transactions, after which

the culprit nodes are caught.

Figure. 6 demonstrates the accuracy of BTRM-

WSN, Eigen Trust, Peer Trust, Power Trust, LFTM,

TRIP, and EWATR Techniques with various sensor

nodes over WSN. We conclude that the EWATR

technique can approximately provide the highest

accuracy and, consequently, the highest level of

reliability and security, while TRIP offers the lowest

value. Furthermore, it has been observed that the Peer

Trust model is the most oscillated and unstable

accuracy. Fig 6 shows accuracy calculations based on

static WSN. For nodes with similar movements, it

may be difficult for wormhole nodes to catch up to

locked-in victim nodes in all the above-mentioned

techniques. Hence repeating the exercise for

movements based on WSN may be futile.

Figure 6: Selection percentage of trustworthy servers over

static WSNs.

5.3 Path Length

The path length is the rate hops that lead to the most

trustworthy sensors selected by the client in a WSN

using a particular trust and reputation system. It

assumed that less average path length indicates better

performance in efficiency and facility searching for

SENSORNETS 2022 - 11th International Conference on Sensor Networks

198

trustworthy sensors of a trust and reputation system.

The reasons behind this claim: 1) fewer

intermediaries mean higher security level; and less

energy consumption; and 2) shorter path length refers

to that it is easier to find honest nodes, and thus,

server nodes will respond quicker to client nodes.

Figure 7 compares BTRM-WSN, Eigen Trust, Peer

Trust, Power Trust, LFTM, TRIP, and EWATR in

terms of rate path length leading to trustworthy sensors

with various sensor nodes over WSN. TRIP and

EWATR have the highest performance since, in TRIP,

the rate path length remains one by increasing the

number of sensor nodes. Moreover, Eigen Trust has the

lowest performance in terms of shorting average path

length. Eigen Trust, Power Trust, and Peer Trust are

unstable and lengthiest in average path length that

BTRM, LFTM, TRIP, and EWATR models.

With TRIP, the number of the hop, i.e., average

distance, remains the same, i.e., one. This means that

the Client and Server nodes are adjacent. The

Wormholes attack strives on spoofing and fooling the

Server-Client, that the best path between these is

through these.

Figure 7: Average path-length leading to trustworthy

servers over static WSNs.

5.4 Energy Consumption

Energy consumption of the network is the overall

energy consumed in (1) client nodes sending request

messages; (2) server nodes sending response services;

(3) energy consumed by malicious nodes which

provide inadequate services; (4) relay nodes that do

not provide services; and (5) the energy to execute the

trustworthy sensor searching process of a particular

trust and reputation system. How to effectively

reduce energy consumption is the main problem in

WSN research. Wormholes increase the wireless

energy transmission to fake being closer to sensor

nodes and thus gain trust and access to genuine nodes.

This also fakes path lengths. It takes several rounds to

detect culprit nodes, by which time, critical battery

drainage may have occurred in some cases. In some

instances, mini solar panels are utilized in WSN,

which only get a few minutes of light, e.g., in the

canopy of forests.

Figure 8 compares the energy consumption of

BTRM-WSN, Eigen Trust, Peer Trust, Power Trust,

LFTM, TRIP, and EWATR, respectively, over WSN

and by various sensor nodes. It can be concluded that

EWATR is the most energy consumption model in

WSN environments, while TRIP is the least energy

consumption.

Figure 8: Network energy consumption over WSNs.

6 CONCLUSIONS

The wormhole attack employs various modes to

launch one of the most severe malicious threats to

WSN. Self-configuring and autonomous systems,

such as WSNs, rely on trust to make successful

judgments upon recognizing a misbehaving node.

The task of building trust and reputation becomes

challenging when the nodes are mobile. We have

suggested the EWATR protocol and compared it with

BTRM-WSN, Eigen-Trust, Peer-Trust, Power-Trust,

LFTM, and TRIP. This paper concluded that the

EWATR technique’s accuracy approximately

provides the best accuracy and, thus, the best level of

reliability and security. While rate path length

concludes, TRIP and EWATR have the highest

performance, and Eigen Trust has the lowest

performance in terms of shorting rate path length.

Also, the energy consumed conducted that EWATR

is the most energy consumption model in WSN

environments, while TRIP is the least energy

consumption. Future work will evaluate the proposed

algorithm for various network conditions, such as

frequent link breaks between nodes, which is a typical

problem in a practical setting.

REFERENCES

Agrawal, S., Jain, S., & Sharma, S. (2011). A survey of

routing attacks and security measures in mobile ad-hoc

networks. ArXiv Preprint ArXiv:1105.5623.

A Novel Energy-efﬁcient Wormhole Attack Prevention Protocol for WSN based on Trust and Reputation Factors

199

Akyildiz, I. F., Su, W., Sankarasubramaniam, Y., & Cayirci,

E. (2002). Wireless sensor networks: a survey.

Computer Networks, 38(4), 393–422.

Aliady, W. A., & Al-Ahmadi, S. A. (2019). Energy

preserving secure measure against wormhole attack in

wireless sensor networks. IEEE Access, 7, 84132–

84141.

https://doi.org/10.1109/ACCESS.2019.2924283

An, G. H., & Cho, T. H. (2021). Wormhole detection using

encrypted node IDs and hop counts in the event report

of statistical en-route filtering. International Journal of

Computer Networks and Applications, 8(4), 390–399.

https://doi.org/10.22247/ijcna/2021/209705

Babaeer, H. A., & Al-Ahmadi, S. A. (2020). Efficient and

Secure Data Transmission and Sinkhole Detection in a

Multi-Clustering Wireless Sensor Network Based on

Homomorphic Encryption and Watermarking. IEEE

Access, 8, 92098–92109. https://doi.org/10.1109/

ACCESS.2020.2994587

Ban, X., Sarkar, R., & Gao, J. (2011). Local connectivity

tests to identify wormholes in wireless networks.

Proceedings of the Twelfth ACM International

Symposium on Mobile Ad Hoc Networking and

Computing, 1–11.

Buch, D., & Jinwala, D. (2011). Prevention of Wormhole

Attack in Wireless Sensor Network. International

Journal of Network Security & Its Applications, 3(5),

85–98. https://doi.org/10.5121/ijnsa.2011.3507

Buttyán, L., Dóra, L., & Vajda, I. (2005). Statistical

wormhole detection in sensor networks. European

Workshop on Security in Ad-Hoc and Sensor Networks,

128–141.

Chiu, H. S., & Lui, K.-S. (2006). DelPHI: wormhole

detection mechanism for ad hoc wireless networks.

2006 1st International Symposium on Wireless

Pervasive Computing, 6-pp.

Chu, T.-H., Kuo, S.-Y., & Chou, Y.-H. (2019). Using

Quantum-inspired Tabu Search Algorithm with Logic

Operation and Moving Average Indicator for

Wormhole Attack Detection in a WSN. Journal of

Internet Technology, 20(1), 167–176.

C.P, V., & Saviour Devaraj, A. F. (2013). MLDW- A

MultiLayered Detection mechanism for Wormhole

attack in AODV based MANET. International Journal

of Security, Privacy and Trust Management, 2(3), 29–

41. https://doi.org/10.5121/ijsptm.2013.2303

Ganeriwal, S., Balzano, L. K., & Srivastava, M. B. (2008).

Reputation-based framework for high integrity sensor

networks. ACM Transactions on Sensor Networks

(TOSN), 4(3), 1–37.

Gautam, A. K., & Kumar, R. (2018). A robust trust model

for wireless sensor networks. 2018 5th IEEE Uttar

Pradesh Section International Conference on Electrical,

Electronics and Computer Engineering (UPCON), 1–5.

Ghugar, U., & Pradhan, J. (2019). A Review on Wormhole

Attacks in Wireless Sensor Networks Intrusion

detection of various attack in WSN View project A

Review on Wormhole Attacks in Wireless Sensor

Networks. International Journal of Information

Communication Technology and Digital Convergence,

4(1), 32–45. https://www.researchgate.net/publication/

336798552

Gómez Mármol, F., & Martínez Pérez, G. (2011). Providing

trust in wireless sensor networks using a bio-inspired

technique. Telecommunication Systems, 46(2), 163–

180. https://doi.org/10.1007/s11235-010-9281-7

Gupta, S., Kar, S., & Dharmaraja, S. (2011). WHOP:

Wormhole attack detection protocol using hound

packet. 2011 International Conference on Innovations

in Information Technology, 226–231.

Ho, J. W., & Wright, M. (2017). Distributed detection of

sensor worms using sequential analysis and remote

software attestations. IEEE Access, 5, 680–695.

https://doi.org/10.1109/ACCESS.2017.2648853

Johnson, M. O., Siddiqui, A., & Karami, A. (n.d.). A

Wormhole Attack Detection and Prevention Technique

in Wireless Sensor Networks.

Ju, S. (2012). A lightweight key establishment in wireless

sensor network based on elliptic curve cryptography.

2012 IEEE International Conference on Intelligent

Control, Automatic Detection and High-End

Equipment, 138–141.

Kamvar, S. D., Schlosser, M. T., & Garcia-Molina, H. (n.d.).

The EigenTrust Algorithm for Reputation Management

in P2P Networks.

Khalid, O., Khan, S. U., Madani, S. A., Hayat, K., Khan, M.

I., Min‐Allah, N., Kolodziej, J., Wang, L., Zeadally, S.,

& Chen, D. (2013). Comparative study of trust and

reputation systems for wireless sensor networks.

Security and Communication Networks, 6(6), 669–688.

Khalil, I., Bagchi, S., & Shroff, N. B. (2007). Liteworp:

Detection and isolation of the wormhole attack in static

multihop wireless networks. Computer Networks,

51(13), 3750–3772.

Mármol, F. G., Marín-Blázquez, J. G., & Pérez, G. M.

(2010). Linguistic fuzzy logic enhancement of a trust

mechanism for distributed networks. Proceedings -

10th IEEE International Conference on Computer and

Information Technology, CIT-2010, 7th IEEE

International Conference on Embedded Software and

Systems, ICESS-2010, ScalCom-2010, 838–845.

https://doi.org/10.1109/CIT.2010.158

Mármol, F. G., & Pérez, G. M. (2009). TRMSim-WSN,

trust and reputation models simulator for wireless

sensor networks. IEEE International Conference on

Communications. https://doi.org/10.1109/ICC.2009.51

99545

Mármol, F. G., & Pérez, G. M. (2012). TRIP, a trust and

reputation infrastructure-based proposal for vehicular

ad hoc networks. Journal of Network and Computer

Applications, 35(3), 934–941.

Padmavathi, G., & Shanmugapriya, M. D. (2009). A Survey

of Attacks, Security Mechanisms and Challenges in

Wireless Sensor Networks. In IJCSIS) International

Journal of Computer Science and Information Security

(Vol. 4, Issue 1).

Patel, M. A., & Patel, M. M. (2018). Wormhole attack

detection in wireless sensor network. 2018

International Conference on Inventive Research in

Computing Applications (ICIRCA), 269–274.

SENSORNETS 2022 - 11th International Conference on Sensor Networks

200

Patel, M., Aggarwal, A., & Chaubey, N. (2019). Analysis

of Wormhole Detection Features in Wireless Sensor

Networks. International Conference on Internet of

Things and Connected Technologies, 22–29.

Ratnasamy, S., Francis, P., Handley, M., Karp, R., &

Shenker, S. (2001). A Scalable Content-Addressable

Network.

Salam, M. I., Kumar, P., & Lee, H. (2010). An efficient key

pre-distribution scheme for wireless sensor network

using public key cryptography. The 6th International

Conference on Networked Computing and Advanced

Information Management, 402–407.

Sharma, N., Sharma, M., & Sharma, D. P. (2020). A Trust

based Scheme for Spotting Malicious Node of

Wormhole in Dynamic Source Routing Protocol. 2020

Fourth International Conference on I-SMAC (IoT in

Social, Mobile, Analytics and Cloud)(I-SMAC), 1232–

1237.

Sharma, N., & Singh, U. (2014). Various Approaches to

Detect Wormhole Attack in Wireless Sensor Networks.

International Journal of Computer Science and Mobile

Computing, 3(2), 29–33.

Sharma, P. (2012). Trust based secure AODV in MANET.

Journal of Global Research in Computer Science, 3(6),

107–114.

Simaremare, H., Abouaissa, A., Sari, R. F., & Lorenz, P.

(2013). Secure AODV routing protocol based on trust

mechanism. In Wireless Networks and Security (pp. 81–

105). Springer.

Singh, R., Singh, J., & Singh, R. (2016). WRHT: A Hybrid

Technique for Detection of Wormhole Attack in

Wireless Sensor Networks. Mobile Information

Systems, 2016. https://doi.org/10.1155/2016/8354930

Somu, P., & Mallapur, D. (2019). Research Trends in

Secure Routing Protocols and Communication System

in WSNs. International Journal of Innovative

Technology and Exploring Engineering, 9(1), 3413–

3421.

Ukil, A. (2010). Trust and reputation based collaborating

computing in wireless sensor networks. 2010 Second

International Conference on Computational

Intelligence, Modelling and Simulation, 464–469.

Xiong, L., & Liu, L. (2004). Peertrust: Supporting

reputation-based trust for peer-to-peer electronic

communities. IEEE Transactions on Knowledge and

Data Engineering, 16(7), 843–857.

Zardari, Z., Memon, K., Shah, R., Dehraj, S., & Ahmed, I.

(2018). A lightweight technique for detection and

prevention of wormhole attack in MANET. ICST

Transactions on Scalable Information Systems, 165515.

https://doi.org/10.4108/eai.13-7-2018.165515

Zhang, Y., Liu, W., Lou, W., & Fang, Y. (2006). Location-

based compromise-tolerant security mechanisms for

wireless sensor networks. IEEE Journal on Selected

Areas in Communications, 24

(2), 247–260.

Zhou, R., & Hwang, K. (2007). Powertrust: A robust and

scalable reputation system for trusted peer-to-peer

computing. IEEE Transactions on Parallel and

Distributed Systems, 18(4), 460–473.

A Novel Energy-efﬁcient Wormhole Attack Prevention Protocol for WSN based on Trust and Reputation Factors

201
